Impact of Electrospun Piezoelectric Core–Shell PVDFhfp/PDMS Mesh on Tenogenic and Inflammatory Gene Expression in Human Adipose-Derived Stem Cells: Comparison of Static Cultivation with Uniaxial Cyclic Tensile Stretching

by
Walter Baumgartner
1,
Petra Wolint
1,
Silvan Hofmann
1,
Cléa Nüesch
1,
Maurizio Calcagni
1,
Marzia Brunelli
2 and
Johanna Buschmann
1,*
1
Division of Plastic and Hand Surgery, University Hospital Zurich, Rämistrasse 100, CH-8091 Zurich, Switzerland
2
2EMPA, CH-9014 St. Gallen, Switzerland
*
Author to whom correspondence should be addressed.
Bioengineering 2022, 9(1), 21; https://doi.org/10.3390/bioengineering9010021
Submission received: 26 November 2021 / Accepted: 29 December 2021 / Published: 8 January 2022
(This article belongs to the Special Issue Multifunctional Scaffolds for Musculoskeletal Regeneration)
Browse Figures
Versions Notes

Abstract

:
Specific microenvironments can trigger stem cell tenogenic differentiation, such as specific substrates or dynamic cell cultivation. Electrospun meshes composed by core–shell fibers (random or aligned; PDMS core; piezoelectric PVDFhfp shell) were fabricated by coaxial electrospinning. Elastic modulus and residual strain were assessed. Human ASCs were seeded on such scaffolds either under static conditions for 1 week or with subsequent 10% dynamic stretching for 10,800 cycles (1 Hz, 3 h), assessing load elongation curves in a Bose® bioreactor system. Gene expression for tenogenic expression, extracellular matrix, remodeling, pro-fibrotic and inflammatory marker genes were assessed (PCR). For cell-seeded meshes, the E modulus increased from 14 ± 3.8 MPa to 31 ± 17 MPa within 3 h, which was not observed for cell-free meshes. Random fibers resulted in higher tenogenic commitment than aligned fibers. Dynamic cultivation significantly enhanced pro-inflammatory markers. Compared to ASCs in culture flasks, ASCs on random meshes under static cultivation showed a significant upregulation of Mohawk, Tenascin-C and Tenomodulin. The tenogenic commitment expressed by human ASCs in contact with random PVDFhfp/PDMS paves the way for using this novel highly elastic material as an implant to be wrapped around a lacerated tendon, envisioned as a functional anti-adhesion membrane.

1. Introduction

Major characteristics of tendon tissue are the absence of vessels, very few tendon cells with low metabolic turnover and a poor healing capacity [1]. After rupture, tendons recover with conservative healing or surgical repair. However, particularly for flexor tendon surgical repair, a major issue consists in the adhesion of the new forming matrix to the surrounding tissue [2], leading to a compromised range of motion and joint stiffness [2]. Besides this, the development of scar tissue may result in reduced mechanical stability. Consequently, re-ruptures occur after excessive load in 7–15% of cases [3]. With regard to tendon repair optimization, stem cell therapy is becoming increasingly popular [4,5] due to the ability of stem cells to differentiate toward a tendon-like phenotype known as tenogenic lineage when appropriately stimulated through external cues. For example, tenogenic differentiation of adipose-derived stem cells (ASCs) was achieved by supplementing growth factors to the culture medium, such as growth and differentiation factor-5 (GDF-5) [6].
In order to prevent adhesion to the surrounding tissue, conventionally sutured tendons can be wrapped with biological and artificial membranes [7], acting as a physical barrier besides influencing cell growth and differentiation. Moreover, due to controlled drug delivery, surface topography and/or specific chemical characteristics, membranes’ interaction with stem cells were shown to reduce scar formation [8] and to modulate inflammatory events [9] which are reported to have a high impact on proper tenogenesis [10].
Piezoelectric materials have been shown to affect stem cell differentiation [11,12], as cells are able to sense the electrical stimuli provided by cyclic stretching/compression of the piezoelectric substrate. For example, electrical stimulation via piezoelectric materials led to a differentiation in neural stem cells [11], embryonic stem cells towards cardiomyocytes [13] and osteogenesis in mesenchymal stem cells [14,15].
Beyond the classic ceramic materials which are well known for their piezoelectric properties [12,16], polyvinylidene fluoride (PVDF)-based materials were shown to be suitable polymeric substrates for electrical stimulation [17]. Compared to ceramics, polymers have the further advantage to allow simultaneous electrical and mechanical stimulation due to their adequate mechanical elasticity. Using this approach, cells seeded onto piezoelectric polymeric membranes undergo a double stimulation. The first stimulation regards the electric stimulation due to the piezoelectric effect of the material under dynamic loading, and the second concerns the physical stretching of the membrane [18]. The impact of mechanical stimulation on stem cells’ commitment is indeed well known [19,20]. As tendons are physiologically exposed to stretching during force transmission, dynamic stretching of tissue engineered constructs in bioreactors can support a tenogenic commitment [21,22,23,24]. Among the key parameters, applied strain, duration and frequency of stretching were shown to play a fundamental role during stem cell commitment towards the tendon phenotype, while depressing osteoblast, chondrocyte and adipocyte phenotypes [25].
Among piezoelectric polymers, PVDFhfp (poly(vinylidene fluoride-co-hexafluoropropylene) provides support for tissue engineering applications [26,27]. Indeed, PVDFhfp is biocompatible, bioinert and finds already wide application in the development of cardiovascular devices, such as coronary stents [28]. Moreover, the polymer can be easily electrospun to extracellular matrix-mimicking scaffold meshes [29]. Stretched nanofibers of PVDFhfp have been reported to act beneficially though their piezoelectric effect: the mechanical-to-electrical conversion of stretched and aligned nanofibers outperformed the random sample by more than 10 times in terms of enhanced energy harvesting capability [30]. Using coaxial electrospinning, fibers featuring a core embedding a different material can be fabricated, further tailoring the mechanical properties of the meshes. PVDFhfp in combination with other polymers like polydimethylsiloxane (PDMS) was shown to provide core–shell electrospun fibers whose elasticity can be tuned and adapted to different technical purposes [15,29,31]. For example, such a membrane has been shown to help separating water from diesel fuel [31] or to be used as a flexible nano-generator to harvest sustainable energy [15].
The advantage of developing fibers with a PDMS core and a PVDFhfp shell resides in the possibility to obtain highly elastic fibers whose interface with the external environment is controlled by a very stable and biocompatible material. Indeed, the hydrophobic nature of PVDFhfp hinders proper cell attachment, which enlarges the value of a good physical barrier function to prevent tendon adhesion and optimize the gliding capacity in the tendon sheath of intrasynovial tendons [32,33,34,35].
In this study, a novel coaxially electrospun core–shell meshes, composed of either aligned or random oriented PVDFhfp/PDMS microfibers, were seeded with human ASCs without further chemical supplementation; no tenogenic induction medium. Furthermore, ASC-seeded PVDFhfp/PDMS random fiber meshes were cultivated for one week under static conditions and then mechanically and electrically stimulated in a Bose® bioreactor by uniaxial cyclic stretching for three hours.
The hypotheses of this study were:
  • PVDFhfp/PDMS electrospun fibers impact gene expression of human adipose-derived stem cells with an upregulation of tenogenic and downregulation of pro-inflammatory marker genes in supplement-free basal Dulbecco’s modified eagle medium (DMEM).
  • Aligned PVDFhfp/PDMS electrospun fibers lead to a higher tenogenic induction than corresponding random electrospun fibers [36].
  • Tenogenic gene upregulation is more pronounced after uniaxial cyclic stretching than under mere static cell cultivation [25].

2. Materials and Methods

2.1. Cells

Human adipose-derived stem cells (ASCs) were isolated from fat tissue with the consent of the patients according to Swiss (KEK-ZH: StV 7-2009) and international ethical guidelines (Clinical Trials.gov Identifier: NCT01218945) as reported in Buschmann et al. [37]. The extraction procedure was performed following Zuk et al. [38]. ASCs were characterized according to established procedures [39,40]. Of the 30 isolated primary ASC lines [37], three ASC lines were randomly selected [41]. The samples for these primary cells had been received from women, aged 54 years (F28, abdominal tissue, BMI: 24.2), 41 years (F15, abdominal tissue, BMI 21.3) and 29 years (F18, liposuction, BMI 24.1), with FXX being the internal number of patient from the comparative study of 30 patients [37]. In addition, human tenocytes that served as positive control were received as a kind gift from Prof. Snedeker, ETH Zurich. Two donors for tenocytes were included in the study; with one donor (patient 485 according to internal numbering): female, age 16 years, cells from semitendinosius, passage P3; and the second donor (patient 1062): female, age 19 years, cells isolated from gracilis tendon, not passaged, used as P0.

2.2. Multilineage Cell Differentiation

Lineage specific differentiation of ASCs towards the osteogenic, the endothelial, the adipogenic and the chondrogenic cell lineage were achieved using cell culture media supplementation according to Zuk et al. [38]. Von Kossa and Alizarin red staining were used to semi-quantitatively evaluate osteogenic differentiation extent, CD31 immunohistochemical staining to see the endothelial cell differentiation, Alcian Blue staining to evaluate the ability of the ASCs for chondrogenesis and Oil Red O staining to proof adipogenic differentiation—all differentiations have been reported previously [42].

2.3. Scaffolds

The amount of 3.5 g poly(vinylidene fluoride-co-hexafluoropropylene) (PVDFhfp, 400,000 Da, Sigma Aldrich, Burlington, MA, USA) was dissolved in 10 mL N,N-dimethylformamide (DMF) to give a 35 w/v% shell polymer solution [29]. For the PDMS core, PDMS Sylgard® 184 (Dow Corning, Midland, MI, USA) elastomeric base was dissolved in tetrahydrofuran (THF) in a ratio of 10:1 (w/w).
Electrospun scaffolds were produced at EMPA, St. Gallen, Switzerland. For that purpose, an in-house assembled electrospinning device was used. The process was performed in a temperature and humidity controlled environment, setting the temperature at 30 °C and humidity at 35%. Core–shell PVDFhfp/PDMS meshes, composed of PVDFhfp shell and PDMS core, were prepared by coaxial electrospinning. The polymer solutions for the shell and core were delivered through two different syringes mounted on two different pumps (SP210cZ and Aladdin-1000, WPI, Berlin, Germany) and different flow rates were used for each solution (shell: 18.30 µL min−1; core: 3.05 µL min−1). Voltage of 10 kV and −1 kV was applied at the cathode and anode, respectively, and the working distance between the spinneret and the collector was 15 cm. The solutions were then electrospun through a coaxial needle (PVDFhfp in the shell and PDMS in the core) either on a plate (random fibers) or on a cylindrical collector 12 cm in diameter (aligned fibers) rotating at 200 rpm. The coaxial needle was characterized by 12 g and 16 g for the outer and inner needle respectively. The surface of the as-prepared scaffolds was investigated by means of scanning electron microscopy (SEM, FEI, Nova NanoSEM 450). Single fibers were analyzed by transmission electron microscopy (TEM, FEI, Philips CM 12, TSS microscopy, New York, NY, USA).

2.4. Tissue Engineered Constructs: Cultivation

Patches of 1 cm × 1 cm and 200 ± 23 µm thick PVDFhfp/PDMS squares were incubated in 0.5 mL Dulbecco’s phosphate buffered saline (PBS) (Sigma-Aldrich/Merck & Cie, Schaffhausen, Switzerland) with 100 units penicillin and 100 µg mL−1 streptomycin (Sigma-Aldrich/Merck & Cie, Schaffhausen, Switzerland) for 1 h and dried in the laminar flow bench after aspiration of the antibiotic solution. The cell seeding consisted of placing 0.2 × 106 ASCs as a single cell suspension on one side of the scaffolds. The cells were distributed homogenously over the surface. All seeded scaffolds were cultivated in 24-well plates using 0.5 mL Dulbecco’s modified eagle medium (DMEM; Sigma-Aldrich/Merck & Cie, Schaffhausen, Switzerland))with 10% of FBS (Pan Biotech, Aidenbach, Germany), GlutaMAX-I (Sigma-Aldrich/Merck & Cie, Schaffhausen, Switzerland) and penicillin-streptomycin for 1 week in a humidified atmosphere of 95% air and 5% CO2 at 37 °C. Medium was changed twice a week. Cell proliferation was determined by alamarBlue™ cell viability assay (ThermoFisher Scientific, Waltham, MA, USA). The alamarBlue™ solution was diluted 1:10 in cell culture medium and incubated for 4 h on the cells. Then, 400 µL were removed and split to four times 100 µL, which were transferred to a 96-well plate. Fluorescence was determined by a Cytation 5 imaging reader (BioTek/Agilent Technologies (Schweiz) AG, Basel, Switzerland, with excitation wavelength of 530 nm and emission wavelength of 590 nm.

2.5. Mechanics of Tissue Engineered Constructs

For experiments in the bioreactor, force and displacement were continuously monitored, for cell-seeded scaffolds. Elastic Modulus (E) was assessed. For that purpose, random PVDFhfp/PDMS scaffolds of 7.2 cm × 1.4 cm were seeded with 0.2 × 106 ASCs within a square of approximately 1 cm × 1 cm field in the center and cultivated for one week. Then, they were placed in a bioreactor system (Bose® Electro Force® 5210 Test Instrument, Electro Force Systems Group, Sissach, Switzerland), fixed with in-house made grips (Figure 1). We applied a pre-load of 3 N to have initial tension and then “tared” the load cell before starting the experiment. After a tensile stretching regimen for 3 h, with 1 Hz and 10% strain, the scaffolds were carefully removed and used for quantitative real-time polymerase-chain reaction (RT-qPCR). Sample size was n = 3.
In addition, cell-free random scaffolds were tested in air (dry) and in basal DMEM medium (wet). In dry conditions, the scaffolds underwent quasi-static loading with a stretching consisting in 2 cycles (2 ramps) at 0.12 mm/s in displacement control. As for the wet conditions, the scaffolds underwent dynamic cyclic loading consisting in one million cycles. Elastic modulus was calculated on the stress/strain curves after 1 cycle, 100 kcycles and 500 kcycles. Stress was calculated by dividing the load to the cross-sectional area that was for all samples approximately 0.2 mm2. SEM pictures of random and aligned fibres were taken on previously gold coated samples (10 nm thickness) at 2 kV voltage. Alignment was assessed on SEM pictures and histograms proving directionality in aligned fibres were extrapolated using the ImageJ software, using the OrientationJ plug-in. Pore size was determined based on SEM pictures; and porosity was assessed according to P = (1 − ρ/ρ (0)) × 100%, where ρ is the density of the scaffold and ρ(0) is the density of PVDFhfp (1.78 g/cm3). In order to assess the formation of core–sheath fibres, electrospun meshes were embedded in PDMS and cross-sections were cut after immersion in liquid nitrogen. The cold temperature achieved after immersion allowed a clear cut of the sections. Afterwards, the embedded fibres were gold coated and underwent SEM imaging at 2 kV.

2.6. Gene Expression

Total RNA was extracted from the electrospun meshes using RNeasy Mini Kit (Qiagen, Hombrechtikon, Switzerland) according to the manufacturer’s instruction. The RNA was quantified using Nanodrop ND-1000 Spectrophotometer (Witec AG, Pfäffikon, Switzerland). An amount of 250 ng RNA was reverse transcribed into cDNA using oligo (dT) 12-18 primer (Invitrogen/ThermoFisher Scientific, Waltham, MA, USA), dNTP mix (Invitrogen/ThermoFisher Scientific, Waltham, MA, USA), DTT (Invitrogen/ThermoFisher Scientific, Waltham, MA, USA), 5× first-strand buffer (Invitrogen/ThermoFisher Scientific, Waltham, MA, USA), RNase inhibitor (Applied Biosystem/ThermoFisher Scientific, Waltham, MA, USA) and SuperScript III reverse transcriptase (Invitrogen/ThermoFisher Scientific, Waltham, MA, USA). RT-qPCR was performed using Fast SYBR® Green master mix (Applied Biosystems/ThermoFisher Scientific, Waltham, MA, USA) as well as primers synthesized by Microsynth (Balgach, Switzerland). For primer sequences, see Table 1. Primers for tenomodulin (TNMD), Scleraxis (SCX), Tenascin-C (TNC), Mohawk (MKX), Collagen I (COL1A1), Collagen III (COL3A1), matrix metalloproteases MMP-2, MMP-9, alpha-smooth muscle actin (α-SMA), interleukin-6 (IL-6), IL-8, tumor necrosis factor-alpha (TNF-α) and protease-activated receptor-2 (PAR-2), all human, were used. The number of amplification cycles was 40.

2.7. Statistics

All data were analyzed with Microsoft Excel and StatView 5.0.1 softwares. Provided that data were normally distributed (Shapiro–Wilk test) and given variance homogeneity (Levene’s test), parametric one-way ANOVA (analysis of variances) was conducted to compare biomechanics and inductions of gene expression of different experimental conditions. Paired t test was used for elastic modulus E of cell-seeded constructs. p values < 0.05 were considered significant and denoted with (*); for p < 0.01 (**) and for p < 0.001 (***) was used. Values were expressed as median with interquartile range. Plots were made with GraphPad Prism 8.0.0. (224) software.

3. Results

3.1. PVDFhfp/PDMS Electrospun Membranes

Random and aligned fiber meshes were fabricated by coaxial electrospinning (Figure 2). Both random as well as aligned fibers did not show any defects or blobs, nor beads-on-string structure. In contrast, fibers with homogeneous diameter and smooth surface were produced. The diameters in random fiber meshes were 32.0 ± 10.9 μm, while they were 33.0 ± 10.6 μm in aligned fiber meshes. The pore size in random meshes was 170.7 ± 55.3 µm and 147.9 ± 67.6 µm in the aligned fiber meshes. Porosity was 79.3 ± 9.12% for random meshes; and for the aligned fiber meshes it was 84.5 ± 9.71%. For aligned fibers, directionality of the fibers was homogeneous. Under high magnification, the core/shell structure of selected fibers was confirmed (Figure 2C) and in TEM images, the thin sheath of PVDFhfp was observed in contrast to the dark PDMS core (Figure 2E).

3.2. Random Versus Aligned Scaffolds; Impact on Gene Expression under Static Conditions

Although cells did not proliferate well when seeded on random or on aligned fiber meshes, nevertheless, approximately 3/4 of initial cell numbers were alive after 1 week of static cultivation, which was enough to get insight into the effects on gene expression of ASCs in contact with the materials. The experimental design is shown in SI Figure S1 and cell distribution after 1 week of cultivation is shown in SI Figure S2. As a first step, gene expression for tenogenic and inflammatory markers was analyzed in ASCs on either aligned or random PVDFhfp/PDMS (Figure 3).
The comparison of random and aligned fiber meshes revealed a slight upregulation for typical tendon markers on random scaffolds, such as Tenascin-C (TNC) (Figure 3A), Tenomdolin TNMD (Figure 3B) and Scleraxis SCX (Figure 3D), although there was no statistical significance. Moreover, Mohawk (MKX) was significantly enhanced in ASCs on random fibers (Figure 3C). ECM markers were not affected, except collagen III (Figure 3F), which was significantly higher expressed in ASCs on random fibers compared to aligned fibers.
Inflammatory marker genes showed approximately the same expression when random and aligned fibers were compared. However, when cells on scaffolds were compared to tenocytes, they showed a significantly lower expression of TNF-α, IL-6, IL-8 and PAR-2 for both, random and aligned fibers (Figure 3H–K). In addition, remodeling markers MMP-2 and MMP-9 were significantly lower expressed than in tenocytes (Figure 3L,M). Human tenocytes of two donors used as positive control showed considerable inter-donor variability.
Because the rationale of the study was to generate a novel scaffold material that supports tenogenic differentiation when applied as a wrap around a sutured (flexor) tendon, we decided to further investigate the random fiber meshes under dynamic conditions (cyclic stretching), because they showed more promising results with respect to ASC tenogenic commitment than the aligned fibers (under static cultivation, Figure 3).

3.3. Mechanical Properties of Tissue-Engineered Constructs

Wet cell-seeded scaffolds were cultivated for three hours under a stretching regimen of 10% strain under displacement control. During this period, E modulus increased gradually from 14.2 ± 3.8 MPa to 31.7 ± 17.6 MPa (n = 3, for paired t test p = 0.2495). The large standard deviation found at the endpoint of the stretching experiments (17.6 MPa) reflects the different responsiveness of the biological samples to mechanical/electrical stimulation. Figure 4 shows typical load elongation curves at the beginning (0 cycles), after 1.5 h (5400 cycles) and at 3 h (10,800 cycles) of cyclic stretching. As we applied a pre-load and due to relaxation of samples and re-orientation of fibers because of the dynamic loading, the load appeared to be negative.
For comparison of the mechanical properties of the cell-seeded constructs with cell-free scaffolds, elastic modulus and residual strain for the cell-free situation of the random fiber meshes are reported in the Supporting Information (SI Figure S3).
The elastic modulus and the residual strain of cell-free random PVDFhfp-PDMS electrospun core–shell fiber meshes was assessed by quasi-static loading (SI Figure S2A) in dry conditions, amounting to 3.3 ± 1.0 MPa. After the first cycle of loading, the elastic modulus showed comparable value featuring a non-significant reduction to 2.6 ± 1.2MPa (SI Figure S2C). Electrospun membranes were also affected by deformation, resulting in a residual strain of 27 ± 1.3% after the first loading cycle in dry conditions and a significantly lower residual strain of 16 ± 3.1% after the second cycle (SI Figure S2F).
Under wet conditions realized in culture medium DMEM and dynamic loading, random PVDFhfp/PDMS meshes showed a progressive decrease in the stress until stabilization after 200 kcycles (SI Figure S2B). Elastic modulus exhibited values amounting to 11.8 ± 9.9 MPa and 5.4 ± 3.2 MPa after the first and 500 loading kcycles, respectively (SI Figure S2D). The residual strain under wet conditions significantly decreased from 27 ± 2.6% to 15 ± 1.9% and to 4.3 ± 1.7% for 1 cycle, 100 kcycles and 500 kcycles, respectively (SI Figure S2F).

3.4. Dynamic Compared to Static Cultivation

In order to determine if a dynamic cultivation step would add benefit to the intended tenogenic commitment of ASCs seeded on random PVDFhfp/PDMS scaffolds, cells were cultivated for 1 week under normal static culture conditions and then cyclically stretched for 3 h to 10% strain at 1 Hz (Figure 5). Significantly higher TNMD gene expression was observed under dynamic culture conditions compared to static culture (Figure 5B). Here, values were normalized to ASCs without scaffold and cultured under static conditions (culture flask). However, MKX showed the opposite (Figure 5C) as the static cultivation led to a significant increase compared to dynamic cultivation. TNC was also upregulated compared to dynamic conditions by trend (Figure 5A).
As for collagen I, an increase for static conditions was observed, although not statistically significant (Figure 5E). For the ECM markers, collagen III was significantly higher under static compared to dynamic conditions (Figure 5F). Noteworthy is the significant downregulation of the pro-fibrotic marker gene α-SMA in scaffold cultures (both dynamic and static cultivation), when compared to tenocytes (Figure 5G).
Although statistically not significant, all four pro-inflammatory markers TNF-α, IL-6, IL-8 and PAR-2 were increased under the dynamic stretching regimen compared to static cultivation (Figure 5H–K). Matrix metalloproteases were not significantly impacted through dynamic stretching compared to static conditions.

3.5. Static Cultivation on Random PVDFhfp/PDMS—The Favorite

As the favorite condition when static and dynamic cultivation were compared (Figure 5), ASCs of three human donors were finally cultured on random PVDFhfp/PDMS meshes under static conditions for one week and compared to their ASCs in culture flask (Figure 6). A significant upregulation of tendon markers TNC, TNMD and MKX was found (Figure 6A–C), when ASCs were in contact with PVDFhfp/PDMS random fibers compared to ASCs in culture flask. Collagen III and α-SMA gene expression were significantly lower than for ASCs in culture flask (Figure 6F,G).
Inflammatory marker genes did not differ, comparing ASCs seeded on random PVDFhfp/PDMS and culture flask. The only exception is IL-8, which was significantly enhanced on the scaffold (Figure 6J). From the two matrix metalloproteases analyzed, MMP-9 was significantly higher expressed in ASCs seeded on the random scaffold compared to the culture flask (Figure 6M).

4. Discussion

In order to support tendon healing and minimize adhesion to neighbor tissue, smart functional materials are needed, providing ideal cues for tenogenic differentiation and modulating inflammatory response [43] towards a scar-less regenerative healing [44]. Physical membrane barriers around sutured tendons in form of thin electrospun fiber meshes [7] might be an option to address both aims, i.e., reduce adhesion and support tenogenesis. Our current study presents a novel hydrophobic coaxially electrospun fiber mesh, based on PVDFhfp/PDMS, featuring a PVDFhfp shell and a PDMS core. Human ASCs were seeded on either aligned or random fibers, and a dynamic cultivation step was tested, resulting in mechanical stretching and simultaneous electrical stimulation of the stem cells due to piezoelectric PVDFhfp. Gene expression was used as readout.
Cultivation on random fiber meshes increased Mohawk (MKX) gene expression significantly compared with aligned fiber meshes, as well as Tenascin-C (TNC) and Scleraxis (SCX) by trend (Figure 3). Cell-seeded random scaffolds showed a slight increase in stress after 10 kcycles (Figure 4) which was instead not observed in common stress/strain curves associated to cell- free PVDFhfp/PDMS meshes (SI Figure S2). When cell-seeded random scaffolds were exposed to cyclic uniaxial stretching for 3 h and compared to corresponding static culture, MKX was significantly downregulated, while tenomodulin (TNMD) was significantly upregulated; and inflammatory markers, such as PAR-2, TNF-α, IL-6 and IL-8, showed a slight increase (Figure 5). Finally, static cultivation of random scaffolds seeded with ASCs of three donors confirmed the significant increase in tenogenic markers TNC, TNMD and MKX compared to ASCs in culture flask, while collagen III and α-SMA were significantly downregulated (Figure 6).
Although tenogenic differentiation of stem cells can be achieved by supplementing the culture medium with growth and differentiation factor-5 (GDF-5 = bone morphogenetic protein-14, BMP-14) [4,6,45], our aim was to direct ASCs commitment towards a tenogenic phenotype via contact to the PVDFhfp surface of the fibers, without further induction medium, i.e., no chemical supplementation.
There are many reports on the comparison of random versus aligned electrospun fibers, serving as scaffold materials for stem cells [46,47,48]. For example, osteogenic differentiation of BMSCs was found to be favored on aligned nanofibers made of poly-L-lactic acid (PLLA) compared with random nanofibers [49]. Moreover, a study with human apical papilla cells for dental pulp regeneration showed that seeding these cells on aligned nanofibers of ε-caprolactone led to higher cell migration, viability, proliferation, adhesion and spreading, as well as collagen synthesis, compared to random fibers [50]. As for tenogenic differentiation, reports are controversial. Although a study shows aligned fibers to lead to improved tenogenesis compared with random fibers [51], another study employing human ASCs on random and aligned PLLA fibers, with additional immobilized PDGF-BB, resulted in nanofiber alignment having no effect [52]. Surprisingly, the gene expression resulting for human ASCs seeded on random PVDFhfp/PDMS showed higher TNMD (~4 fold), TNC (~2fold) and MKX expression (~2fold) compared to corresponding aligned fibers (Figure 3). This indicates that not only the topography, but also the chemical composition at the interface to the cells plays an important role—with the PVDFhfp surface in contact to the cells, leading to a more tenogenic commitment when the cells were on random fibers. PVDFhfp is very hydrophobic, making particularly interesting the finding of increased TNC gene expression. As TNC is an ECM stress protein, its main function consists in the modulation of cell adhesion through binding to fibronectin III [53]. Here, TNC gene expression was increased in random fibers compared to aligned fibers. On random fibers, ASCs are supposed to attach less easily to the mesh compared to aligned fibers [54], so that TNC is obviously increased to counteract the difficult microenvironment and to support further adhesion on random fibers (Figure 3). Of note, this upregulation of TNC was even more pronounced when compared to ASCs in the culture flask (~25fold).
In addition to the TNC increase, MKX was significantly higher when ASCs were on random than aligned fibers. The transcription factor MKX is a central factor regulating tendon-related gene expression; an overexpression of MKX was reported to elevate tendon-related markers in MSCs [55] and MKX knockout models were shown to exhibit heterotopic ossification of the Achilles tendon in Mkx(−/−) mice and rats [56]. Given these facts, a prominent induction of in ASCs that are in contact with random PVDFhfp/PDMS holds great promise to act beneficially with regard to induce tenogenic commitment, e.g., for mesenchymal stem cells present in the synovial fluid [35,57].
When cells on random PVDFhfp/PDMS were cultivated statically for one week and then subjected to a 3-h tensile cyclic stretching at 10% strain, TNMD gene expression significantly increased (40 fold compared to corresponding static cultivation; 100 fold compared to ASC in culture flask without scaffold, Figure 5, step 2 in SI Figure S1). TNMD is found primarily in dense hypo-vascular connective tissue; particularly in tendons, skeletal muscle and ligaments [58]. It is necessary for tenocyte proliferation and collagen type I fibril maturation [59]. In addition, TNMD is mechanosensitive (C-terminus co-localized with collagen I fiber in the ECM) and is required for a correct collagen I fibril adaption to mechanical load. On this regard, previous in vivo studies performed on a mice model showed that TNMD knockout to limit mice performance during endurance running [60]. Hence, our finding of an obvious increase of TNMD in ASCs seeded on PVDFhfp/PDMS can be judged beneficial with regard to stem cell commitment towards the tenogenic phenotype. The seeding of ASCs on random PVDFhfp/PDMS furthermore leads to a significant reduction in the profibrotic marker α-SMA compared to tenocytes (Figure 5), for both static and dynamic cultivation. As a consequence, the lowered α-SMA expression goes hand in hand with the high TNMD gene expression—because TNMD is reported to prevent fibrovascular scar formation during early tendon healing [61].
In contrast, the crucial and central transcription factor MKX was significantly higher under static conditions compared to dynamic cultivation, which has to be judged even more important than the increase of TNMD under dynamic conditions, because in addition to MKX also TNC was upregulated under static conditions. Additionally, ECM markers collagen III and I were increased under static conditions.
A further important finding and coherent with literature was the upregulation of inflammatory marker genes through exercise or tensile stretching [62]. We found a slight, but not statistically significant increase of TNF-α, IL-6, IL-8 and PAR-2 under dynamic conditions (Figure 5). In vivo studies have shown that mechanical loading of tendons leads to higher collagen I synthesis, dependent on auto- and paracrine action through growth factors, such as TGF-β, IGF-1 and also IL-6. During exercise, IL-6 is increased and it is reported that it may act as a mediator of loading induced collagen I synthesis [63]. However, in our experiments, collagen I gene expression was reduced under stretching, going along with downregulation of collagen III.
Taken together, the pronounced increase in inflammatory markers as well as the decreased ECM markers under dynamic conditions make the additional cultivation step in the bioreactor less promising than first expected. To keep things simple during preparation of a suitable wrap to be implanted around tendons, static cultivation of stem cells on PVDFhfp/PDMS was overall judged to be the favorite over dynamic cultivation.
Dynamic cultivation of cell-seeded PVDFhfp/PDMS meshes led to an increase of the E modulus over a period of 3 h during cyclic uniaxial tensile stretching (Figure 4). This finding stands in contrast to the cell-free situation where the E modulus decreased over repeated cyclic stretching (SI Figure S2) because the fibers of the material adapted to the stretching regimen, first by aligning toward the direction of the stretching and then following the well-known viscoelastic behavior (stress relaxation) of polymers [64]. In the cell-seeded condition, either the pores of the fiber mesh got filled with deposited ECM components of the highly stimulated cells (mechanical stretch and electrical stimulus by the piezoelectric characteristics [15]), or the surface of the fiber mesh conglutinates so that the culture medium cannot intrude easily into the pores anymore. Previous studies have shown that a very short time of dynamic loading with only 15 min had significantly affected cells seeded on scaffolds [65]. It has to be considered that the cell-seeded constructs were cultivated statically for 1 week before dynamic activation and our results from the static culture indicate a pronounced increase in TNMD gene expression compared to ASCs in culture flasks (Figure 5B). This might therefore have led to some matrix deposition within the pores of the scaffolds during static culture, resulting in a pore-closing effect during subsequent dynamic stimulation—with the curve resembling a typical elastic polymer (after 10,800 cycles).
Based on the mechanical and PCR findings, as a final step (SI Figure S1), we seeded ASCs of three different human donors on random PVDFhfp/PDMS and compared the gene expression with the corresponding ASCs in the culture flasks under static cultivation (Figure 6). Although there was some inter-donor variability, average upregulation of MKX, TNC and TNMD was significant when cells were in contact with the surface PVDFhfp of the fibers. Notably, pro-fibrotic α-SMA was significantly downregulated as well, paving the way for an accurate support of tendon healing [44], in case cell-seeded PVDFhfp/PDMS membranes are wrapped around a lacerated and sutured tendon.

5. Conclusions

We present a novel coaxially electrospun core–shell PVDFhfp/PDMS scaffold material, which is highly elastic and can potentially be used as a wrap around surgically sutured tendons after repair. This scaffold can be used as an anti-adhesion barrier. Interactions with stem cells in the sense of a tenogenic commitment have been shown to be more prominent when random fibers are used compared to aligned fibers. Although TNMD gene expression is significantly upregulated in ASCs on PVDFhfp/PDMS fibers after a 3-h cyclic stretching regimen to 10%, other important genes for tenogenesis, such as collagen I and III as well as the central transcription factor MKX experienced a downregulation. We conclude that a random PVDFhfp/PDMS wrap might lead to better results if only static cultivation is used before the cell-loaded construct is implanted, because dynamic stretching induced also a non-negligible upregulation of several inflammatory marker genes. As an alternative, random PVDFhfp/PDMS could also be used without cells, influencing mesenchymal stem cells present in the synovium of intrasynovial tendons [35] towards tenogenic commitment, while inflammatory reaction will be kept in check.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/bioengineering9010021/s1, Figure S1: Experimental step-by-step design for cell culture experiments; first row: adipose-derived stem cells (ASCs) were cultured in culture flask or seeded onto aligned or random fiber meshes of PVDFhfp/PDMS scaffolds; as positive control, human tenocytes were cultured in culture flasks. All experiments were done under static conditions. Second row: the most promising condition (static, random) was then compared to ASCs seeded on random fibers, but cultivated under dynamic conditions (i.e., stretching) in a Bose® bioreactor. Third row: the better condition with respect to tenogenic commitment of step 2 (static, random) was chosen and then performed for another two human ASC donors, with corresponding ASCs also cultivated in culture flasks as reference. The favorites of each step are marked by boxes, Figure S2: Cell-seeded scaffolds (aligned and random) after 1 week of cultivation, Figure S3: Cell-free situation: Stress–strain curve representative for random PVDFhfp/PDMS electrospun meshes (A) and stress pattern over number of cycles of such meshes during dynamic loading (B). Cell-free core–shell PVDFhfp/PDMS meshes achieved full relaxation after 200 kcycles and featured a constant trend under dynamic loading in wet conditions until 500 kcycles. Elastic Modulus was measured in air (C) and in culture medium DMEM (D), residual strain measured in air (E) and in culture medium (F). Median and interquartile range are shown. Key: * (p < 0.05), ** (p < 0.01) and *** (p < 0.001) in a unpaired t test (2 groups) and a one-way ANOVA (3 groups).

Author Contributions

Conceptualization, J.B.; methodology, P.W.; software, W.B., M.B. and P.W.; validation, W.B., M.B. and P.W.; formal analysis, W.B., M.B., P.W., S.H. and C.N.; investigation, W.B., M.B., P.W., S.H. and C.N.; resources, J.B.; data curation, W.B., M.B., P.W. and S.H., C.N.; writing—original draft preparation, J.B.; writing—review and editing, W.B., M.B. and J.B.; visualization, W.B., M.B., P.W., S.H., C.N. and M.C.; supervision, M.B., M.C. and J.B.; project administration, J.B.; funding acquisition, J.B.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Hartmann-Müller Foundation, Zurich, Switzerland, grant number 1800.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board of the University of Zurich; Human adipose-derived stem cells (ASCs) were isolated from fat tissue with the consent of the patients according to Swiss (KEK-ZH: StV 7-2009) and international ethical guidelines (ClinicalTrials.gov Identifier: NCT01218945).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data available on request due to restrictions privacy. The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank Jess Snedeker, ETH Zurich, for providing human tenocytes that were used as a reference for gene expression experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shapiro, E.; Grande, D.; Drakos, M. Biologics in Achilles tendon healing and repair: A review. Curr. Rev. Musculoskelet. Med. 2015, 8, 9–17. [Google Scholar] [CrossRef] [Green Version]
  2. Graham, D.J.; Clitherow, H.D.S.; Singh, H.P.; Clarke, E.C.; Smith, B.J.; Tonkin, M.A. The Effect of Extensor Tendon Adhesions on Finger Motion. J. Hand Surg. 2019, 44, 903.e1–903.e5. [Google Scholar] [CrossRef] [PubMed]
  3. Sharma, P.; Maffulli, N. Tendon injury and tendinopathy: Healing and repair. J. Bone Joint Surg. Am. 2005, 87, 187–202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Chen, S.; Wang, J.; Chen, Y.; Mo, X.; Fan, C. Tenogenic adipose-derived stem cell sheets with nanoyarn scaffolds for tendon regeneration. Mater. Sci. Eng. C Mater. Biol. Appl. 2021, 119, 111506. [Google Scholar] [CrossRef]
  5. Xu, Y.; Yin, H.; Chu, J.; Eglin, D.; Serra, T.; Docheva, D. An anisotropic nanocomposite hydrogel guides aligned orientation and enhances tenogenesis of human tendon stem/progenitor cells. Biomater. Sci. 2021, 9, 1237–1245. [Google Scholar] [CrossRef] [PubMed]
  6. James, R.; Kumbar, S.G.; Laurencin, C.T.; Balian, G.; Chhabra, A.B. Tendon tissue engineering: Adipose-derived stem cell and GDF-5 mediated regeneration using electrospun matrix systems. Biomed. Mater. 2011, 6, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Evrova, O.; Bürgisser, G.M.; Ebnöther, C.; Adathala, A.; Calcagni, M.; Bachmann, E.; Snedeker, J.G.; Scalera, C.; Giovanoli, P.; Vogel, V.; et al. Elastic and surgeon friendly electrospun tubes delivering PDGF-BB positively impact tendon rupture healing in a rabbit Achilles tendon model. Biomaterials 2020, 232, 119722. [Google Scholar] [CrossRef]
  8. Monavarian, M.; Kader, S.; Moeinzadeh, S.; Jabbari, E. Regenerative Scar-Free Skin Wound Healing. Tissue Eng. Part B Rev. 2019, 25, 294–311. [Google Scholar] [CrossRef]
  9. Schulze-Tanzil, G.; Al-Sadi, O.; Wiegand, E.; Ertel, W.; Busch, C.; Kohl, B.; Pufe, T. The role of pro-inflammatory and immunoregulatory cytokines in tendon healing and rupture: New insights. Scand. J. Med. Sci. Sports 2011, 21, 337–351. [Google Scholar] [CrossRef]
  10. Brandt, L.; Schubert, S.; Scheibe, P.; Brehm, W.; Franzen, J.; Gross, C.; Burk, J. Tenogenic Properties of Mesenchymal Progenitor Cells Are Compromised in an Inflammatory Environment. Int. J. Mol. Sci. 2018, 19, 2549. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, L.; Wu, J.; Wang, S.; Kun, L.; Gao, J.; Chen, B.; Ye, Y.; Wang, F.; Tong, F.; Jiang, J.; et al. Control the Neural Stem Cell Fate with Biohybrid Piezoelectrical Magnetite Micromotors. Nano Lett. 2021, 21, 3518–3526. [Google Scholar] [CrossRef]
  12. Tang, Y.F.; Wu, C.; Wu, Z.X.; Hu, L.; Zhang, W.; Zhao, K. Fabrication and in vitro biological properties of piezoelectric bioceramics for bone regeneration. Sci. Rep. 2017, 7, 43360. [Google Scholar] [CrossRef] [Green Version]
  13. Park, S.E.; Yeon, G.B.; Goo, H.G.; Seo, D.S.; Dayem, A.A.; Lee, K.E.; Park, H.M.; Cho, S.G.; Kim, D.S. Maintenance and differentiation of human ES cells on polyvinylidene fluoride scaffolds immobilized with a vitronectin-derived peptide. J. Cell. Physiol. 2021, 236, 3510–3520. [Google Scholar] [CrossRef] [PubMed]
  14. Guillot-Ferriols, M.; Rodríguez-Hernández, J.C.; Correia, D.M.; Carabineiro, S.A.C.; Lanceros-Méndez, S.; Gómez Ribelles, J.L.; Gallego Ferrer, G. Poly(vinylidene) fluoride membranes coated by heparin/collagen layer-by-layer, smart biomimetic approaches for mesenchymal stem cell culture. Mater. Sci. Eng. C Mater. Biol. Appl. 2020, 117, 111281. [Google Scholar] [CrossRef]
  15. Ponnamma, D.; Chamakh, M.M.; Alahzm, A.M.; Salim, N.; Hameed, N.; AlMaadeed, M.A.A. Core-Shell Nanofibers of Polyvinylidene Fluoride-based Nanocomposites as Piezoelectric Nanogenerators. Polymers 2020, 12, 2344. [Google Scholar] [CrossRef] [PubMed]
  16. Jiao, H.; Zhao, K.; Ma, L.N.; Tang, Y.F.; Liu, X.; Bian, T.R. Preparation and characterization of BaTiO3/HA nanocomposite materials by hydrothermal synthesis. J. Alloy. Compd. 2017, 693, 221–225. [Google Scholar] [CrossRef]
  17. Sappati, K.K.; Bhadra, S. Piezoelectric Polymer and Paper Substrates: A Review. Sensors 2018, 18, 3605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Urdeitx, P.; Doweidar, M.H. Enhanced Piezoelectric Fibered Extracellular Matrix to Promote Cardiomyocyte Maturation and Tissue Formation: A 3D Computational Model. Biology 2021, 10, 135. [Google Scholar] [CrossRef]
  19. Deniz, P.; Guler, S.; Çelik, E.; Hosseinian, P.; Aydin, H.M. Use of cyclic strain bioreactor for the upregulation of key tenocyte gene expression on Poly(glycerol-sebacate) (PGS) sheets. Mater. Sci. Eng. C 2020, 106, 110293. [Google Scholar] [CrossRef] [PubMed]
  20. Bacakova, L.; Zarubova, J.; Travnickova, M.; Musilkova, J.; Pajorova, J.; Slepicka, P.; Kasalkova, N.S.; Svorcik, V.; Kolska, Z.; Motarjemi, H.; et al. Stem cells: Their source, potency and use in regenerative therapies with focus on adipose-derived stem cells—A review. Biotechnol. Adv. 2018, 36, 1111–1126. [Google Scholar] [CrossRef]
  21. Nam, H.Y.; Pingguan-Murphy, B.; Abbas, A.A.; Merican, A.M.; Kamarul, T. Uniaxial Cyclic Tensile Stretching at 8% Strain Exclusively Promotes Tenogenic Differentiation of Human Bone Marrow-Derived Mesenchymal Stromal Cells. Stem Cells Int. 2019, 2019, 9723025. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Dyment, N.A.; Barrett, J.G.; Awad, H.A.; Bautista, C.A.; Banes, A.J.; Butler, D.L. A brief history of tendon and ligament bioreactors: Impact and future prospects. J. Orthop. Res. 2020, 38, 2318–2330. [Google Scholar] [CrossRef]
  23. Kubo, Y.; Hoffmann, B.; Goltz, K.; Schnakenberg, U.; Jahr, H.; Merkel, R.; Schulze-Tanzil, G.; Pufe, T.; Tohidnezhad, M. Different Frequency of Cyclic Tensile Strain Relates to Anabolic/Catabolic Conditions Consistent with Immunohistochemical Staining Intensity in Tenocytes. Int. J. Mol. Sci. 2020, 21, 1082. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Talò, G.; D’Arrigo, D.; Lorenzi, S.; Moretti, M.; Lovati, A.B. Independent, Controllable Stretch-Perfusion Bioreactor Chambers to Functionalize Cell-Seeded Decellularized Tendons. Ann. Biomed. Eng. 2020, 48, 1112–1126. [Google Scholar] [CrossRef] [Green Version]
  25. Engebretson, B.; Mussett, Z.R.; Sikavitsas, V.I. The effects of varying frequency and duration of mechanical stimulation on a tissue-engineered tendon construct. Connect. Tissue Res. 2018, 59, 167–177. [Google Scholar] [CrossRef]
  26. Weidenbacher, L.; Abrishamkar, A.; Rottmar, M.; Guex, A.G.; Maniura-Weber, K.; deMello, A.J.; Ferguson, S.J.; Rossi, R.M.; Fortunato, G. Electrospraying of microfluidic encapsulated cells for the fabrication of cell-laden electrospun hybrid tissue constructs. Acta Biomater. 2017, 64, 137–147. [Google Scholar] [CrossRef]
  27. Ahmed, F.; Dutta, N.K.; Zannettino, A.; Vandyke, K.; Choudhury, N.R. Engineering interaction between bone marrow derived endothelial cells and electrospun surfaces for artificial vascular graft applications. Biomacromolecules 2014, 15, 1276–1287. [Google Scholar] [CrossRef]
  28. Kamberi, M.; Pinson, D.; Pacetti, S.; Perkins, L.E.L.; Hossainy, S.; Mori, H.; Rapoza, R.J.; Kolodgie, F.; Virmani, R. Evaluation of chemical stability of polymers of XIENCE everolimus-eluting coronary stents in vivo by pyrolysis-gas chromatography/mass spectrometry. J. Biomed. Mater. Res. B Appl. Biomater. 2018, 106, 1721–1729. [Google Scholar] [CrossRef]
  29. Brunelli, M.; Alther, S.; Rossi, R.M.; Ferguson, S.J.; Rottmar, M.; Fortunato, G. Nanofiber membranes as biomimetic and mechanically stable surface coatings. Mater. Sci. Eng. C Mater. Biol. Appl. 2020, 108, 110417. [Google Scholar] [CrossRef]
  30. Najjar, R.; Luo, Y.; Jao, D.; Brennan, D.; Xue, Y.; Beachley, V.; Hu, X.; Xue, W. Biocompatible Silk/Polymer Energy Harvesters Using Stretched Poly (vinylidene fluoride-co-hexafluoropropylene) (PVDF-HFP) Nanofibers. Polymers 2017, 9, 479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Zhou, J.Y.; Bandekar, A.; Chase, G.G. Evaluation of electrowet coalescer in series with PVDF-HFP electrospun fiber membranes for separation of water from ULSD. Fuel 2018, 225, 111–117. [Google Scholar] [CrossRef]
  32. Wei, Z.; Reisdorf, R.L.; Thoreson, A.R.; Jay, G.D.; Moran, S.L.; An, K.N.; Amadio, P.C.; Zhao, C. Comparison of Autograft and Allograft with Surface Modification for Flexor Tendon Reconstruction: A Canine in Vivo Model. J. Bone Joint Surg. Am. 2018, 100, e42. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, T.; Lu, C.C.; Reisdorf, R.L.; Thoreson, A.R.; Gingery, A.; Moran, S.L.; Amadio, P.C.; Zhao, C. Revitalized and synovialized allograft for intrasynovial flexor tendon reconstruction in an in vivo canine model. J. Orthop. Res. 2018, 36, 2218–2227. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Lineberry, K.D.; Shue, S.; Chepla, K.J. The Management of Partial Zone II Intrasynovial Flexor Tendon Lacerations: A Literature Review of Biomechanics, Clinical Outcomes, and Complications. Plast. Reconstr. Surg. 2018, 141, 1165–1170. [Google Scholar] [CrossRef] [PubMed]
  35. Khan, M.R.; Smith, R.K.; David, F.; Lam, R.; Hughes, G.; De Godoy, R.; Carr, A.J.; Goodship, A.E.; Dudhia, J. Evaluation of the Effects of Synovial Multipotent Cells on Deep Digital Flexor Tendon Repair in a Large Animal Model of Intra-Synovial Tendinopathy. J. Orthop. Res. 2020, 38, 128–138. [Google Scholar] [CrossRef] [PubMed]
  36. Schoenenberger, A.D.; Tempfer, H.; Lehner, C.; Egloff, J.; Mauracher, M.; Bird, A.; Widmer, J.; Maniura-Weber, K.; Fucentese, S.F.; Traweger, A.; et al. Macromechanics and polycaprolactone fiber organization drive macrophage polarization and regulate inflammatory activation of tendon in vitro and in vivo. Biomaterials 2020, 249, 120034. [Google Scholar] [CrossRef] [PubMed]
  37. Buschmann, J.; Gao, S.; Härter, L.; Hemmi, S.; Welti, M.; Werner, C.M.L.; Calcagni, M.; Cinelli, P.; Wanner, G.A. Yield and proliferation rate of adipose-derived stem cells as a function of age, BMI and harvest site: Increasing the yield by using adherent and supernatant fractions? Cytotherapy 2013, 15, 1098–1105. [Google Scholar] [CrossRef] [PubMed]
  38. Zuk, P.A.; Zhu, M.; Mizuno, H.; Huang, J.; Futrell, J.W.; Katz, A.J.; Benhaim, P.; Lorenz, H.P.; Hedrick, M.H. Multilineage cells from human adipose tissue: Implications for cell-based therapies. Tissue Eng. 2001, 7, 211–228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Gronthos, S.; Franklin, D.M.; Leddy, H.A.; Robey, P.G.; Storms, R.W.; Gimble, J.M. Surface protein characterization of human adipose tissue-derived stromal cells. J. Cell. Physiol. 2001, 189, 54–63. [Google Scholar] [CrossRef]
  40. Buschmann, J.; Härter, L.; Gao, S.; Hemmi, S.; Welti, M.; Hild, N.; Schneider, O.D.; Stark, W.J.; Lindenblatt, N.; Werner, C.M.L.; et al. Tissue engineered bone grafts based on biomimetic nanocomposite PLGA/amorphous calcium phosphate scaffold and human adipose-derived stem cells. Injury 2012, 43, 1689–1697. [Google Scholar] [CrossRef] [Green Version]
  41. Gao, S.P.; Calcagni, M.; Welti, M.; Hemmi, S.; Hild, N.; Stark, W.J.; Meier Buergisser, G.; Wanner, G.A.; Cinelli, P.; Buschmann, J. Proliferation of ASC-derived endothelial cells in a 3D electrospun mesh: Impact of bone-biomimetic nanocomposite and co-culture with ASC-derived osteoblasts. Injury 2014, 45, 974–980. [Google Scholar] [CrossRef] [PubMed]
  42. Hess, S.C.; Stark, W.J.; Mohn, D.; Cohrs, N.H.; Märsmann, S.; Calcagni, M.; Cinelli, P.; Buschmann, J. Gene expression in human adipose-derived stem cells: Comparison of 2D films, 3D electrospun meshes or co-cultured scaffolds with two-way paracrine effects. Eur. Cells Mater. 2017, 34, 232–248. [Google Scholar] [CrossRef]
  43. D’Addona, A.; Maffulli, N.; Formisano, S.; Rosa, D. Inflammation in tendinopathy. Surgeon 2017, 15, 297–302. [Google Scholar] [CrossRef] [PubMed]
  44. Galatz, L.M.; Gerstenfeld, L.; Heber-Katz, E.; Rodeo, S.A. Tendon regeneration and scar formation: The concept of scarless healing. J. Orthop. Res. 2015, 33, 823–831. [Google Scholar] [CrossRef]
  45. Ciardulli, M.C.; Marino, L.; Lamparelli, E.P.; Guida, M.; Forsyth, N.R.; Selleri, C.; Della Porta, G.; Maffulli, N. Dose-Response Tendon-Specific Markers Induction by Growth Differentiation Factor-5 in Human Bone Marrow and Umbilical Cord Mesenchymal Stem Cells. Int. J. Mol. Sci. 2020, 21, 5905. [Google Scholar] [CrossRef]
  46. Zhang, C.; Wang, X.; Zhang, E.; Yang, L.; Yuan, H.; Tu, W.; Zhang, H.; Yin, Z.; Shen, W.; Chen, X.; et al. An Epigenetic Bioactive Composite Scaffold with Well-aligned Nanofibers for Functional Tendon Tissue Engineering. Acta Biomater. 2017, 66, 141–156. [Google Scholar] [CrossRef] [PubMed]
  47. Meng, Z.X.; Wang, Y.S.; Ma, C.; Zheng, W.; Li, L.; Zheng, Y.F. Electrospinning of PLGA/gelatin randomly-oriented and aligned nanofibers as potential scaffold in tissue engineering. Mater. Sci. Eng. C Mater. Biol. Appl. 2010, 30, 1204–1210. [Google Scholar] [CrossRef]
  48. Beason, D.P.; Connizzo, B.K.; Dourte, L.M.; Mauck, R.L.; Soslowsky, L.J.; Steinberg, D.R.; Bernstein, J. Fiber-aligned polymer scaffolds for rotator cuff repair in a rat model. J. Shoulder Elb. Surg. 2012, 21, 245–250. [Google Scholar] [CrossRef]
  49. Xie, J.; Shen, H.; Yuan, G.; Lin, K.; Su, J. The effects of alignment and diameter of electrospun fibers on the cellular behaviors and osteogenesis of BMSCs. Mater. Sci. Eng. C Mater. Biol. Appl. 2021, 120, 111787. [Google Scholar] [CrossRef]
  50. Leite, M.L.; Soares, D.G.; Anovazzi, G.; Mendes Soares, I.P.; Hebling, J.; de Souza Costa, C.A. Development of fibronectin-loaded nanofiber scaffolds for guided pulp tissue regeneration. J. Biomed. Mater. Res. B Appl. Biomater. 2021, 109, 1244–1258. [Google Scholar] [CrossRef] [PubMed]
  51. Islam, A.; Mbimba, T.; Younesi, M.; Akkus, O. Effects of substrate stiffness on the tenoinduction of human mesenchymal stem cells. Acta Biomater. 2017, 58, 244–253. [Google Scholar] [CrossRef]
  52. Perikamana, S.K.M.; Lee, J.; Ahmad, T.; Kim, E.M.; Byun, H.; Lee, S.; Shin, H. Harnessing biochemical and structural cues for tenogenic differentiation of adipose derived stem cells (ADSCs) and development of an in vitro tissue interface mimicking tendon-bone insertion graft. Biomaterials 2018, 165, 79–93. [Google Scholar] [CrossRef]
  53. Midwood, K.S.; Chiquet, M.; Tucker, R.P.; Orend, G. Tenascin-C at a glance. J. Cell Sci. 2016, 129, 4321–4327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Kai, D.; Prabhakaran, M.P.; Jin, G.; Ramakrishna, S. Guided orientation of cardiomyocytes on electrospun aligned nanofibers for cardiac tissue engineering. J. Biomed. Mater. Res. B Appl. Biomater. 2011, 98, 379–386. [Google Scholar] [CrossRef]
  55. Liu, H.; Zhang, C.; Zhu, S.; Lu, P.; Zhu, T.; Gong, X.; Zhang, Z.; Hu, J.; Yin, Z.; Heng, B.C.; et al. Mohawk Promotes the Tenogenesis of Mesenchymal Stem Cells through Activation of the TGF beta Signaling Pathway. Stem Cells 2015, 33, 443–455. [Google Scholar] [CrossRef] [PubMed]
  56. Suzuki, H.; Ito, Y.; Shinohara, M.; Yamashita, S.; Ichinose, S.; Kishida, A.; Oyaizu, T.; Kayama, T.; Nakamichi, R.; Koda, N.; et al. Gene targeting of the transcription factor Mohawk in rats causes heterotopic ossification of Achilles tendon via failed tenogenesis. Proc. Natl. Acad. Sci. USA 2016, 113, 7840–7845. [Google Scholar] [CrossRef] [Green Version]
  57. Li, N.; Gao, J.; Mi, L.; Zhang, G.; Zhang, L.; Zhang, N.; Huo, R.; Hu, J.; Xu, K. Synovial membrane mesenchymal stem cells: Past life, current situation, and application in bone and joint diseases. Stem Cell. Res. Ther. 2020, 11, 381. [Google Scholar] [CrossRef]
  58. Alexandrov, V.P.; Naimov, S.I. A Prospectus of Tenomodulin. Folia Med. 2016, 58, 19–27. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Docheva, D.; Hunziker, E.B.; Fassler, R.; Brandau, O. Tenomodulin is necessary for tenocyte proliferation and tendon maturation. Mol. Cell. Biol. 2005, 25, 699–705. [Google Scholar] [CrossRef] [Green Version]
  60. Dex, S.; Alberton, P.; Willkomm, L.; Söllradl, T.; Bago, S.; Milz, S.; Shakibaei, M.; Ignatius, A.; Bloch, W.; Clausen-Schaumann, H.; et al. Tenomodulin is Required for Tendon Endurance Running and Collagen I Fibril Adaptation to Mechanical Load. EBioMedicine 2017, 20, 240–254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Lin, D.; Alberton, P.; Caceres, M.D.; Volkmer, E.; Schieker, M.; Docheva, D. Tenomodulin is essential for prevention of adipocyte accumulation and fibrovascular scar formation during early tendon healing. Cell Death Dis. 2017, 8, e3116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Millar, N.L.; Silbernagel, K.G.; Thorborg, K.; Kirwan, P.D.; Galatz, L.M.; Abrams, G.D.; Murrell, G.A.C.; McInnes, I.B.; Rodeo, S.A. Tendinopathy. Nat. Rev. Dis. Primers 2021, 7, 1. [Google Scholar] [CrossRef] [PubMed]
  63. Heinemeier, K.M.; Kjaer, M. In vivo investigation of tendon responses to mechanical loading. J. Musculoskelet. Neuronal Interact. 2011, 11, 115–123. [Google Scholar] [PubMed]
  64. Giz, A.S.; Aydelik-Ayazoglu, S.; Catalgil-Giz, H.; Bayraktar, H.; Alaca, B.E. Stress relaxation and humidity dependence in sodium alginate-glycerol films. J. Mech. Behav. Biomed. Mater. 2019, 100, 103374. [Google Scholar] [CrossRef]
  65. Brunelli, M.; Perrault, C.M.; Lacroix, D. Short bursts of cyclic mechanical compression modulate tissue formation in a 3D hybrid scaffold. J. Mech. Behav. Biomed. Mater. 2017, 71, 165–174. [Google Scholar] [CrossRef] [Green Version]
Bioengineering 09 00021 g001 550

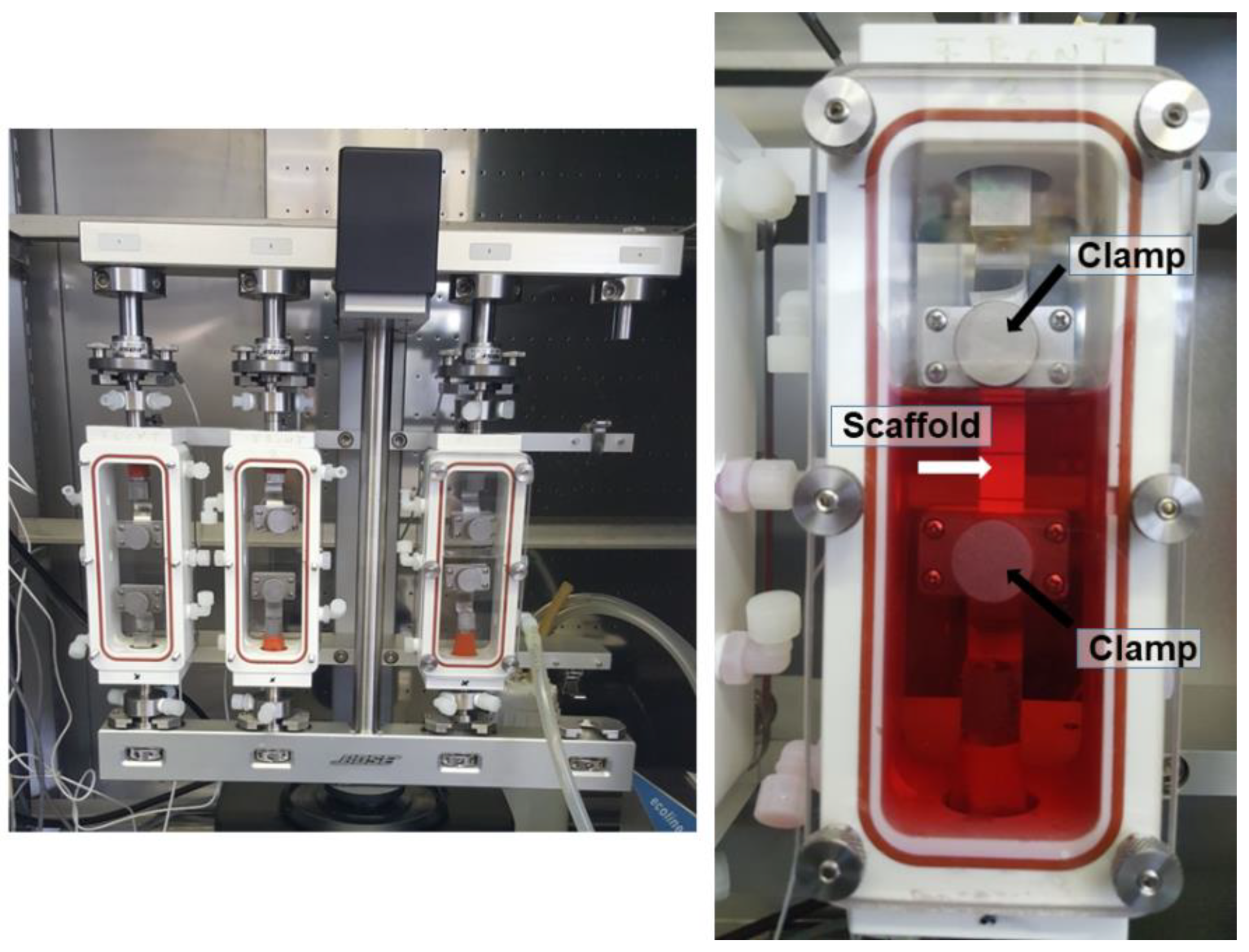

Figure 1. Bose® bioreactor system, with three chambers. Within the chamber, there are two self-made clamps (black arrows) to grip the scaffold material (white arrow). A scaffold attached to the two grips is shown and the chamber is filled with DMEM culture medium (red fluid).
Figure 1. Bose® bioreactor system, with three chambers. Within the chamber, there are two self-made clamps (black arrows) to grip the scaffold material (white arrow). A scaffold attached to the two grips is shown and the chamber is filled with DMEM culture medium (red fluid).
Bioengineering 09 00021 g001
Bioengineering 09 00021 g002 550

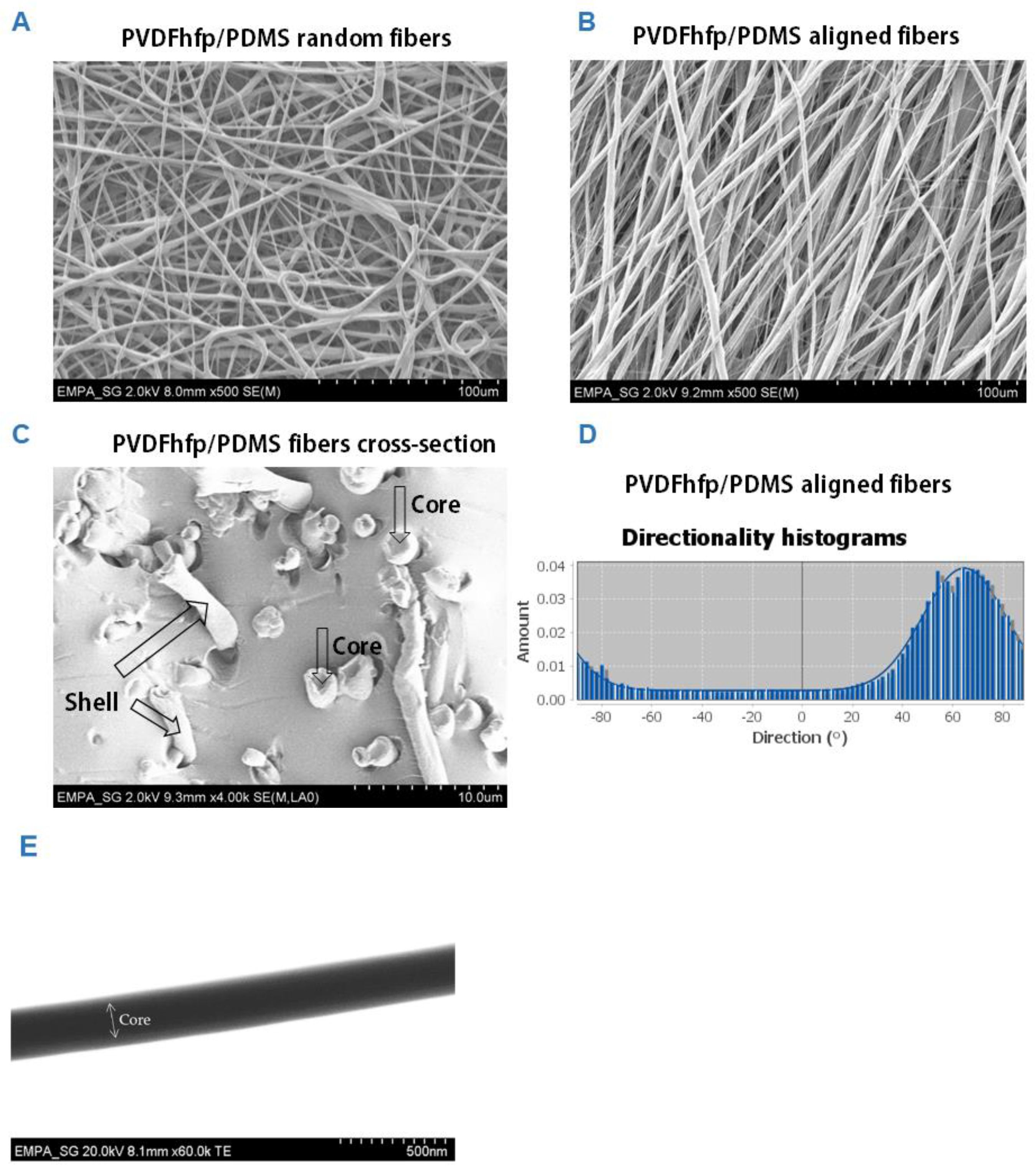

Figure 2. Scanning electron microscopy images (SEM) of random PVDFhfp/PDMS fiber mesh (A) and aligned fiber mesh (B); cross-section of core–shell fibers, with cores and shells depicted by arrows (C) and angles of directionality for aligned fibers (D). The fiber diameters were 32.0 ± 10.9 μm, while they were 33.0 ± 10.6 μm for the random and aligned fibers, respectively. TEM picture of core–shell structure (E). A white arrow with two arrowheads marks the core. The shell can be seen as a slightly brighter grey border.
Figure 2. Scanning electron microscopy images (SEM) of random PVDFhfp/PDMS fiber mesh (A) and aligned fiber mesh (B); cross-section of core–shell fibers, with cores and shells depicted by arrows (C) and angles of directionality for aligned fibers (D). The fiber diameters were 32.0 ± 10.9 μm, while they were 33.0 ± 10.6 μm for the random and aligned fibers, respectively. TEM picture of core–shell structure (E). A white arrow with two arrowheads marks the core. The shell can be seen as a slightly brighter grey border.
Bioengineering 09 00021 g002
Bioengineering 09 00021 g003 550

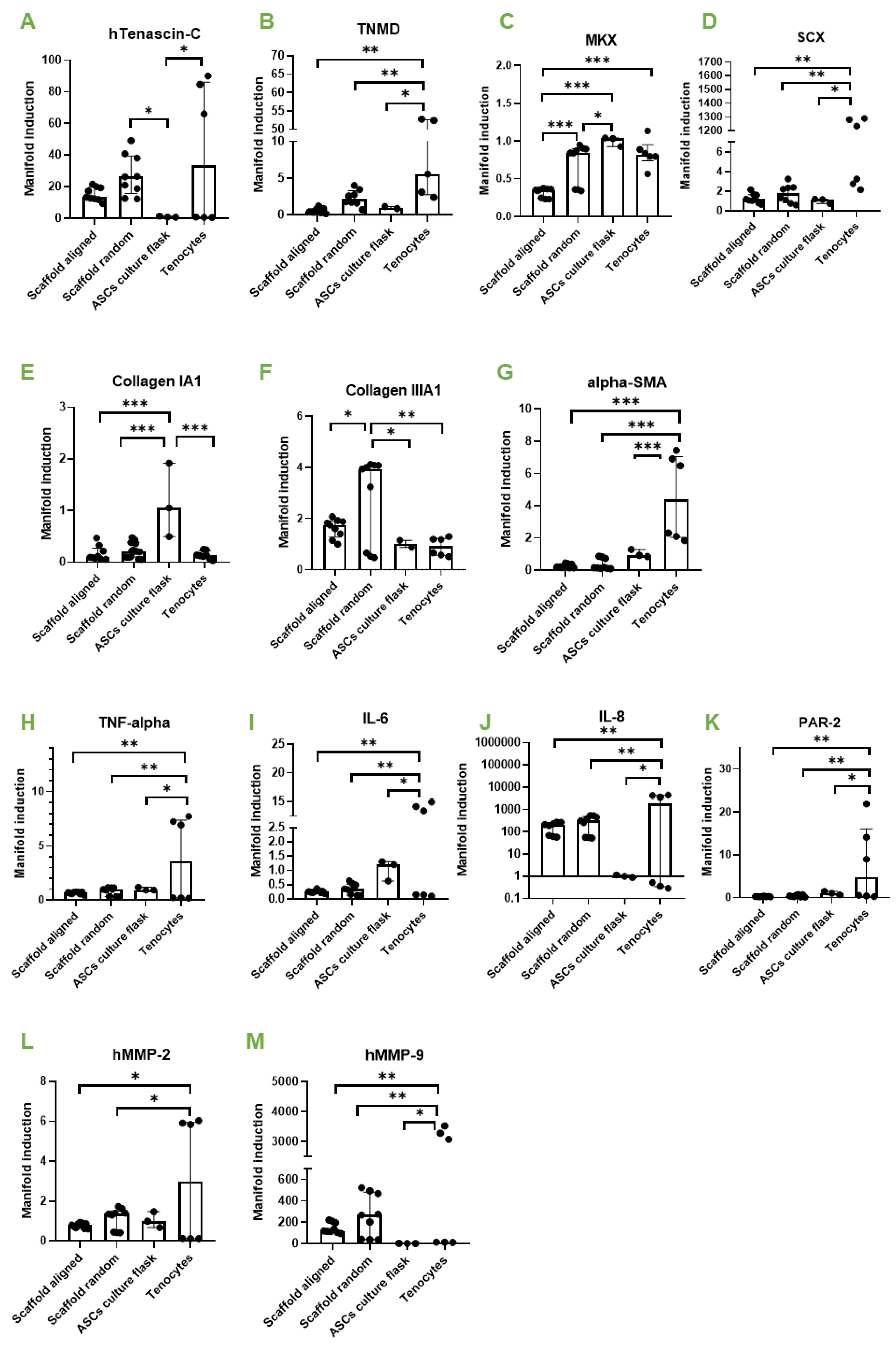

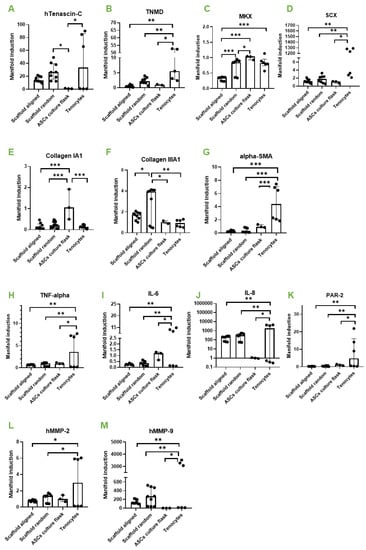

Figure 3. Aligned versus random. Gene expression of human ASCs (hASCs) on aligned PVDFhfp/PDMS, on random PVDFhfp/PDMS, cultivated in normal culture flasks (ASCs in culture flask) and human tenocytes (Tenocytes). Gene expression is shown as manifold induction compared to the ASCs in culture flask group (reference group set to 1). Median and interquartile range are shown. Key: * (p < 0.05), ** (p < 0.01) and *** (p < 0.001) in a one-way ANOVA. (A) TNC, (B) TNMD, (C) MKX. (D) SCX. (E) Collagen 1A1. (F) Collagen IIIA1. (G) α-SMA. (H) TNF-α. (I) IL-6. (J) IL-8. (K) PAR-2. (L) MMP-2 and (M) MMP-9.
Figure 3. Aligned versus random. Gene expression of human ASCs (hASCs) on aligned PVDFhfp/PDMS, on random PVDFhfp/PDMS, cultivated in normal culture flasks (ASCs in culture flask) and human tenocytes (Tenocytes). Gene expression is shown as manifold induction compared to the ASCs in culture flask group (reference group set to 1). Median and interquartile range are shown. Key: * (p < 0.05), ** (p < 0.01) and *** (p < 0.001) in a one-way ANOVA. (A) TNC, (B) TNMD, (C) MKX. (D) SCX. (E) Collagen 1A1. (F) Collagen IIIA1. (G) α-SMA. (H) TNF-α. (I) IL-6. (J) IL-8. (K) PAR-2. (L) MMP-2 and (M) MMP-9.
Bioengineering 09 00021 g003
Bioengineering 09 00021 g004 550

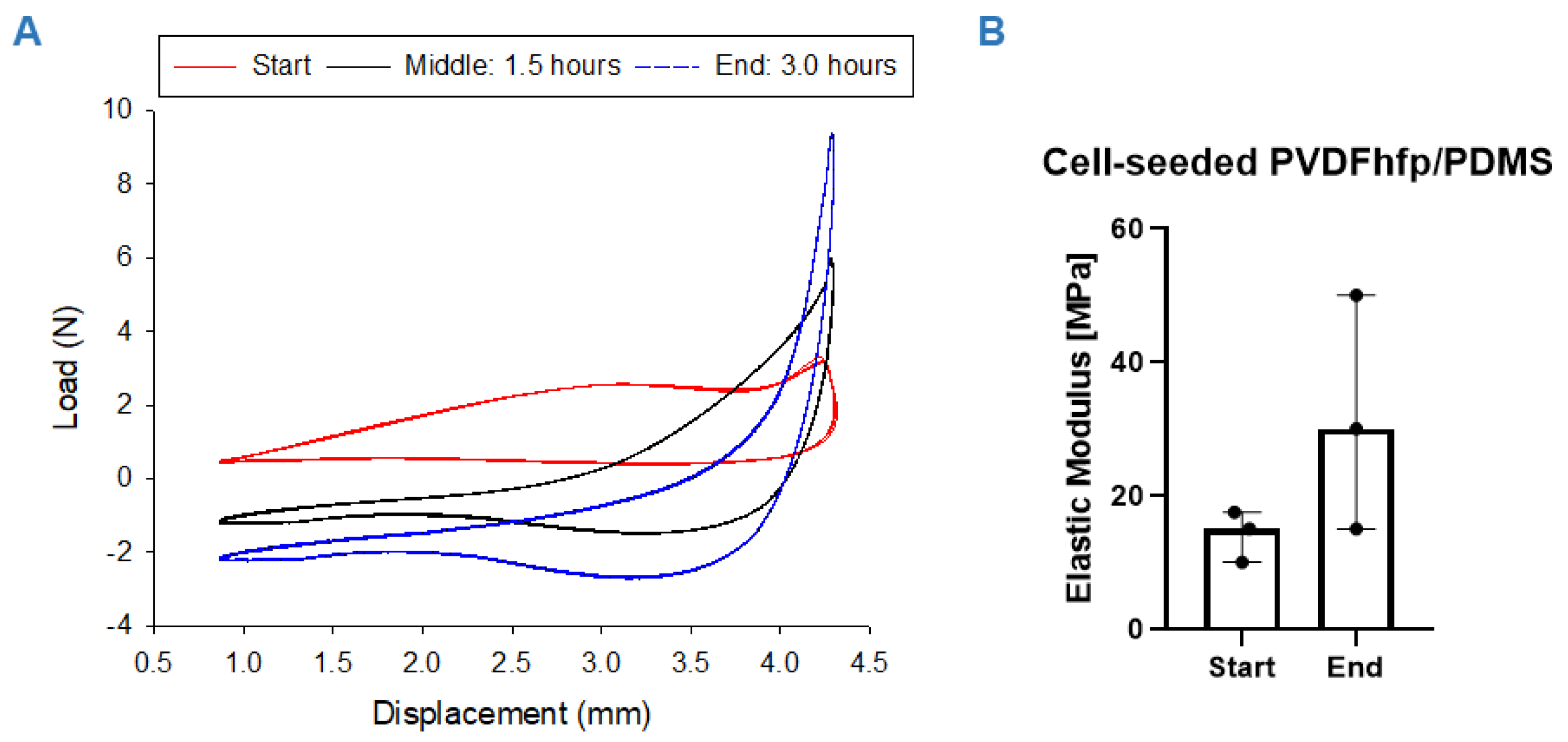

Figure 4. Mechanical properties: Load elongation curves for hASC cell-seeded PVDFhfp/PDMS scaffolds during the 3-h stretching regimen; at the beginning (start: 0 h) (A, red curve), in the middle of the experiment (middle: 1.5 h. 5400 cycles) (A, black curve) and at the end (end: 3.0 h, 10,800 cycles) (A, blue curve). Elastic modulus increased during the experiment, with p = 0.25 for n = 3 (B). Paired t test was used to analyze the elastic modulus data; data are shown as median and interquartile range.
Figure 4. Mechanical properties: Load elongation curves for hASC cell-seeded PVDFhfp/PDMS scaffolds during the 3-h stretching regimen; at the beginning (start: 0 h) (A, red curve), in the middle of the experiment (middle: 1.5 h. 5400 cycles) (A, black curve) and at the end (end: 3.0 h, 10,800 cycles) (A, blue curve). Elastic modulus increased during the experiment, with p = 0.25 for n = 3 (B). Paired t test was used to analyze the elastic modulus data; data are shown as median and interquartile range.
Bioengineering 09 00021 g004
Bioengineering 09 00021 g005a 550Bioengineering 09 00021 g005b 550

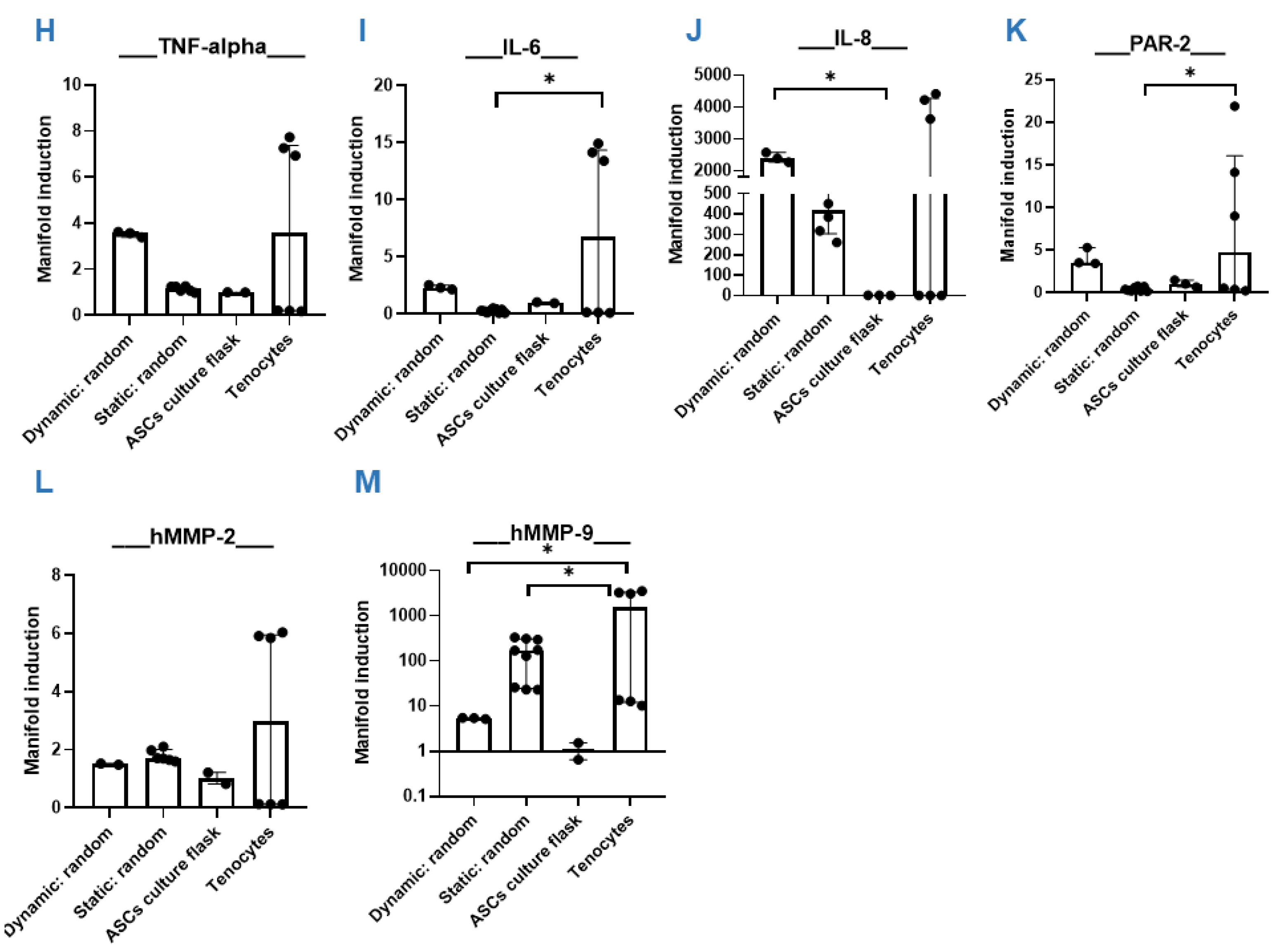

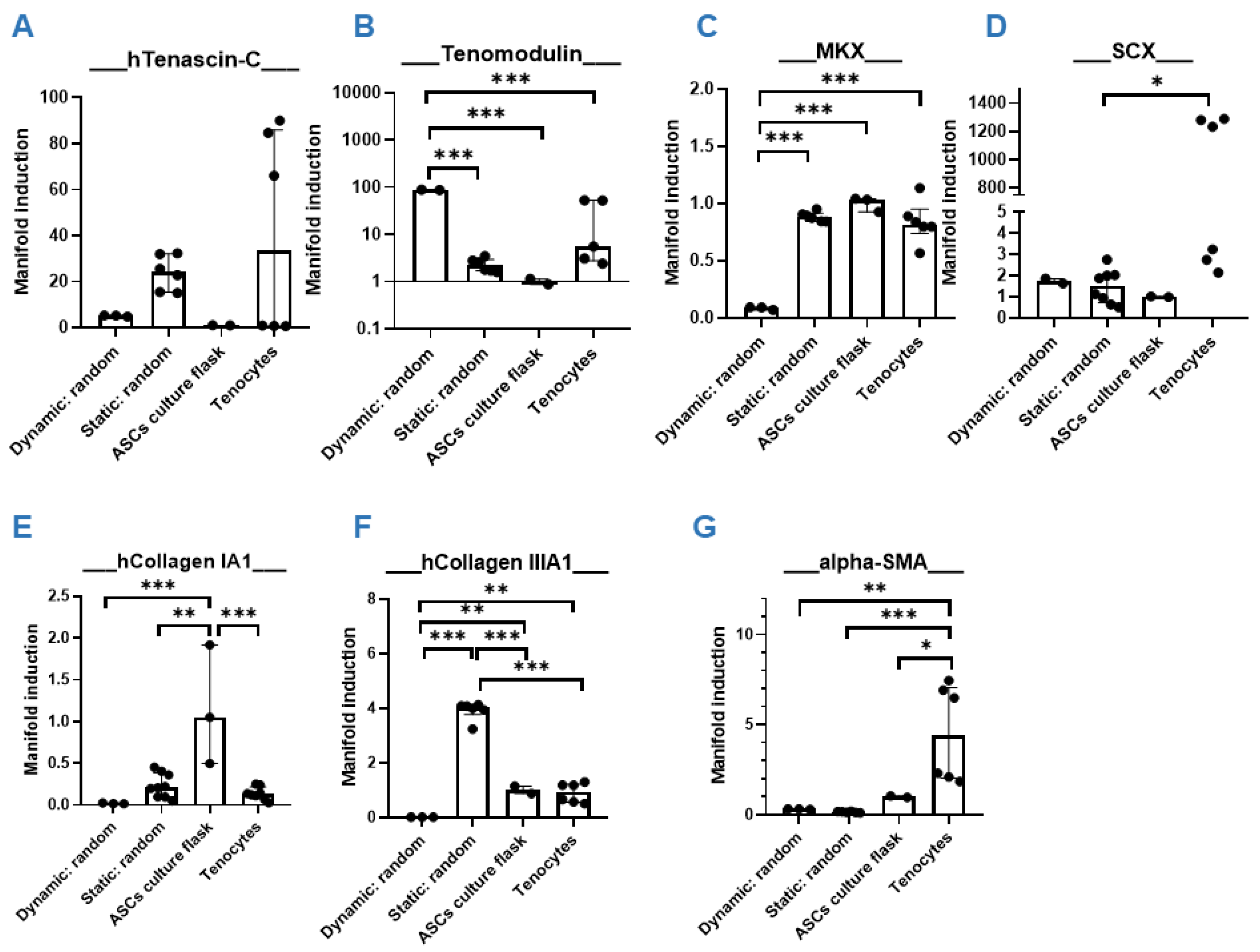

Figure 5. Dynamic versus static. Quantitative RT-PCR results of hASC on PVDFhfp/PDMS random fiber mesh under static and dynamic conditions. Gene expression (=manifold induction) of ASCs under dynamic conditions, static conditions or in culture flask (reference set to 1) or of human tenocytes as control was compared (A–M). Statistical analysis was performed with one-way ANOVA and data are shown as median and interquartile range, with * (p < 0.05), ** (p < 0.01) and *** (p < 0.001).
Figure 5. Dynamic versus static. Quantitative RT-PCR results of hASC on PVDFhfp/PDMS random fiber mesh under static and dynamic conditions. Gene expression (=manifold induction) of ASCs under dynamic conditions, static conditions or in culture flask (reference set to 1) or of human tenocytes as control was compared (A–M). Statistical analysis was performed with one-way ANOVA and data are shown as median and interquartile range, with * (p < 0.05), ** (p < 0.01) and *** (p < 0.001).
Bioengineering 09 00021 g005aBioengineering 09 00021 g005b
Bioengineering 09 00021 g006 550

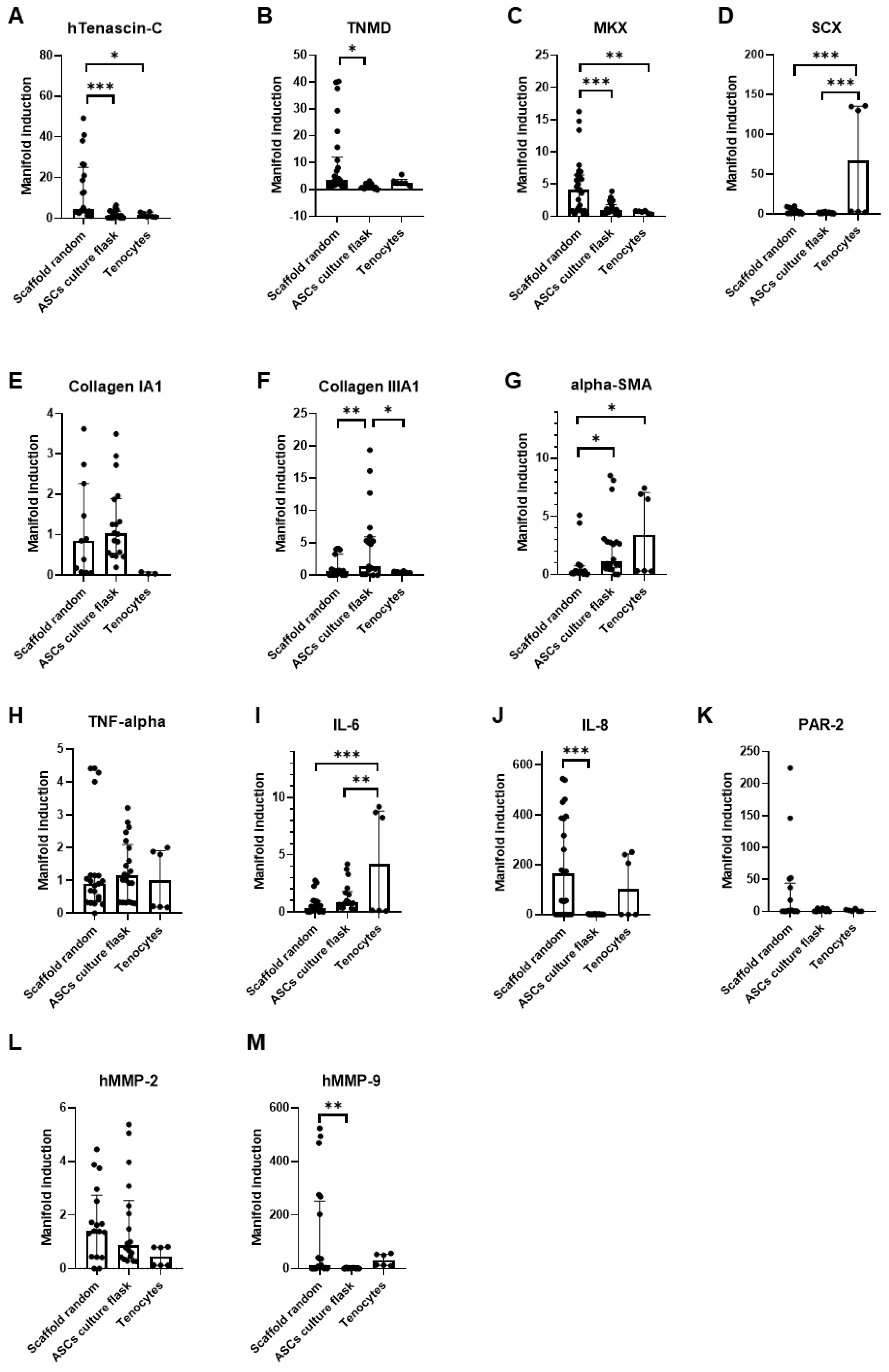

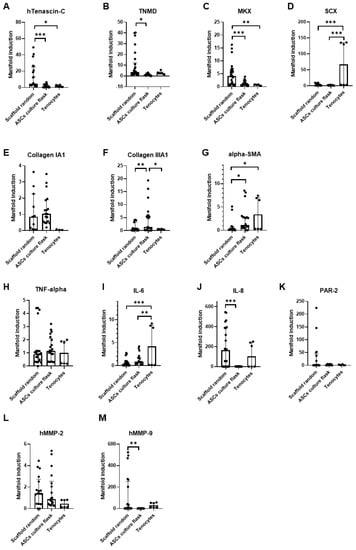

Figure 6. Random PVDFhfp/PDMS under static conditions. Quantitative RT-PCR results of 3 human ASC donors. Statistical analysis was performed with one-way ANOVA and data are shown as median and interquartile range, with * (p < 0.05), ** (p < 0.01) and *** (p < 0.001). (A) TNC, (B) TNMD, (C) MKX. (D) SCX. (E) Collagen 1A1. (F) Collagen IIIA1. (G) α-SMA. (H) TNF-α. (I) IL-6. (J) IL-8. (K) PAR-2. (L) MMP-2 and (M) MMP-9.
Figure 6. Random PVDFhfp/PDMS under static conditions. Quantitative RT-PCR results of 3 human ASC donors. Statistical analysis was performed with one-way ANOVA and data are shown as median and interquartile range, with * (p < 0.05), ** (p < 0.01) and *** (p < 0.001). (A) TNC, (B) TNMD, (C) MKX. (D) SCX. (E) Collagen 1A1. (F) Collagen IIIA1. (G) α-SMA. (H) TNF-α. (I) IL-6. (J) IL-8. (K) PAR-2. (L) MMP-2 and (M) MMP-9.
Bioengineering 09 00021 g006
Table
Table 1. Primer sequences (h = human) used for reverse transcription-polymerase chain reaction gene expression analysis.
Table 1. Primer sequences (h = human) used for reverse transcription-polymerase chain reaction gene expression analysis.
Genes5′-3′Primers
hTenascin-CForwardGGTGGATGGATTGTGTTCCTGAGA
ReverseCTGTGTCCTTGTCAAAGGTGGAGA
hMMP-2ForwardTGCGACCACAGCCAACTACG
ReverseTGGGACAGACGGAAGTTCTTGG
hMMP-9ForwardGACGCCGCTCACCTTCACTC
ReverseTTGGAACCACGACGCCCTTG
hCOL3A1ForwardCAGCGGTTCTCCAGGCAAGG
ReverseCTCCAGTGATCCCAGCAATCCC
hCOL1A1ForwardTGA CGA GAC CAA GAA CTG
ReverseCCA TCC AAA CCA CTG AAA CC
hTNMDForwardCCATGCTGGATGAGAGAGGTT
ReverseTTGGTAGCAGTATGGATATGGGT
hTNF-αForwardCGGACACCATGGACAAGTTT
ReverseGAAAGCCTTGCAGAGGTCAG
hα-SMAForwardACTGAGCGTGGCTATTCCTCCGTT
ReverseGCAGTGGCCATCTCATTTTCA
hMKXForwardTCAAGGACAACCTCGGCCTG
ReverseACGGGTTGTCACGGTGCTTG
hSCXForwardAGAACACCCAGCCCAAACAG
ReverseGGCCACCTCCTAACTGCGAATC
hIL-6ForwardGTAGCCGCCCACACAGACAGCC
ReverseGCCATCTTTGGAAGGTTC
hIL-8ForwardTCTGCAGCTCTGTGTGAAGGT
ReverseTGAATTCTCAGCCCTCTTCAA
hPAR2ForwardGTTGATGGCACATCCCACGTC
ReverseGTACAGGGCATAGACATGGC
gapdHForwardACCACAGTCCATGCCATCAC
ReverseTCCACCACCCTGTTGCTGTA
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Baumgartner, W.; Wolint, P.; Hofmann, S.; Nüesch, C.; Calcagni, M.; Brunelli, M.; Buschmann, J. Impact of Electrospun Piezoelectric Core–Shell PVDFhfp/PDMS Mesh on Tenogenic and Inflammatory Gene Expression in Human Adipose-Derived Stem Cells: Comparison of Static Cultivation with Uniaxial Cyclic Tensile Stretching. Bioengineering 2022, 9, 21. https://doi.org/10.3390/bioengineering9010021

AMA Style

Baumgartner W, Wolint P, Hofmann S, Nüesch C, Calcagni M, Brunelli M, Buschmann J. Impact of Electrospun Piezoelectric Core–Shell PVDFhfp/PDMS Mesh on Tenogenic and Inflammatory Gene Expression in Human Adipose-Derived Stem Cells: Comparison of Static Cultivation with Uniaxial Cyclic Tensile Stretching. Bioengineering. 2022; 9(1):21. https://doi.org/10.3390/bioengineering9010021

Chicago/Turabian Style

Baumgartner, Walter, Petra Wolint, Silvan Hofmann, Cléa Nüesch, Maurizio Calcagni, Marzia Brunelli, and Johanna Buschmann. 2022. "Impact of Electrospun Piezoelectric Core–Shell PVDFhfp/PDMS Mesh on Tenogenic and Inflammatory Gene Expression in Human Adipose-Derived Stem Cells: Comparison of Static Cultivation with Uniaxial Cyclic Tensile Stretching" Bioengineering 9, no. 1: 21. https://doi.org/10.3390/bioengineering9010021

APA Style

Baumgartner, W., Wolint, P., Hofmann, S., Nüesch, C., Calcagni, M., Brunelli, M., & Buschmann, J. (2022). Impact of Electrospun Piezoelectric Core–Shell PVDFhfp/PDMS Mesh on Tenogenic and Inflammatory Gene Expression in Human Adipose-Derived Stem Cells: Comparison of Static Cultivation with Uniaxial Cyclic Tensile Stretching. Bioengineering, 9(1), 21. https://doi.org/10.3390/bioengineering9010021

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
