Review

Sonodelivery in Skeletal Muscle: Current Approaches and Future Potential

by
Richard E. Decker
1,
Zachary E. Lamantia
1,
Todd S. Emrick
2 and
Marxa L. Figueiredo
1,*
1
Department of Basic Medical Sciences, Purdue University, 625 Harrison St., West Lafayette, IN 47907, USA
2
Department of Polymer Science & Engineering, University of Massachusetts, 120 Governors Drive, Amherst, MA 01003, USA
*
Author to whom correspondence should be addressed.
Bioengineering 2020, 7(3), 107; https://doi.org/10.3390/bioengineering7030107
Submission received: 17 July 2020 / Revised: 27 August 2020 / Accepted: 4 September 2020 / Published: 9 September 2020
(This article belongs to the Special Issue Advances in Skeletal Muscle Tissue Engineering)
Browse Figures
Review Reports Versions Notes

Abstract

:
There are currently multiple approaches to facilitate gene therapy via intramuscular gene delivery, such as electroporation, viral delivery, or direct DNA injection with or without polymeric carriers. Each of these methods has benefits, but each method also has shortcomings preventing it from being established as the ideal technique. A promising method, ultrasound-mediated gene delivery (or sonodelivery) is inexpensive, widely available, reusable, minimally invasive, and safe. Hurdles to utilizing sonodelivery include choosing from a large variety of conditions, which are often dependent on the equipment and/or research group, and moderate transfection efficiencies when compared to some other gene delivery methods. In this review, we provide a comprehensive look at the breadth of sonodelivery techniques for intramuscular gene delivery and suggest future directions for this continuously evolving field.

1. Introduction

Gene therapy shows increasing promise for the treatment of a wide range of diseases, from cancer to musculoskeletal and immunological disorders [1]. Although the basic premise of gene therapy is relatively simple on the surface—to introduce a gene or genes into a patient’s cells/tissue that will allow the body to produce a therapeutic protein or facilitate a genetic modification—every step of the process holds its own challenges. One of the major challenges associated with making gene therapy widely (and safely) accessible is that of gene delivery in vivo. There are currently many methods for delivering DNA in vitro at high efficiencies, including electroporation, lipid-based transfection, and viral delivery. Each of these methods presents potential challenges for clinical translation, including the cost and time of production, the invasiveness of the technique, the efficiency of delivery, and/or safety concerns related to an immune response or unintended genomic integration of the therapeutic gene. The development of a gene delivery technique that is inexpensive, widely available, reusable, minimally invasive, and safe will catalyze progress in gene therapy. One promising technique that meets all of these criteria has been under investigation for many years but has not yet reached widespread use: ultrasound-mediated or sonoporation gene delivery, herein referred to as sonodelivery [2,3]. As its name suggests, this approach involves using ultrasound to deliver non-viral vectors encoding therapeutic proteins into skeletal muscle, allowing the body to then produce its own therapeutic. Despite the work that has been done to explore the practicality of ultrasound-mediated intramuscular gene delivery, there is, to our knowledge, no comprehensive review of the most common approaches and technical conditions used for this promising technology. This review aims to fill that void and to discuss the future work needed for and the potential of establishing sonodelivery as a key player in the gene therapy field.

2. Methods for Cellular and Intramuscular Gene Delivery

There are many established methodologies for delivering plasmid DNA (pDNA) to muscles, each with its own advantages and disadvantages (Figure 1). To highlight these and provide context for the importance of sonodelivery, we will provide a brief background on four of the most common pDNA delivery approaches (excluding sonodelivery).

2.1. Direct Injection of Naked DNA

The oldest and most basic method of intramuscular DNA delivery is injection of naked DNA directly into the target muscle. This method yields a low immunogenic response in vivo and is both widely available and inexpensive [4]. Plasmids are low-cost and low maintenance and intramuscular injections are straightforward (though not necessarily easy) to administer, making this method one of the simplest to apply. However, it suffers from a very low efficiency [5], which has prevented direct injection of naked DNA from becoming a viable technique. It has been reported that swelling the muscles before injection (e.g., pretreating with a hypertonic solution) improves expression of proteins for which the transfected genes code [4,6,7]. Similarly, introducing myotoxic agents to the target muscle a few days prior to DNA injection has been shown to improve protein expression, but it is not yet clear whether this improvement is due to improved uptake of naked DNA or improved gene expression following uptake [4,8]. With all intramuscular gene delivery, injection technique is crucial [9]. A properly localized injection at optimal depth is essential, but is increasingly challenging as the size of the in vivo model increases [4]. Injections are therefore difficult to standardize, as optimal techniques require training and extensive practice. One method that has been used to increase injection accuracy when delivering a variety of payloads is the utilization of imaging ultrasound to guide the injection [10,11,12,13], although this too requires expertise and extensive practice. Another complication associated with increased test animal size is that of decreased gene uptake/expression. This may be due to increased levels of connective tissue in larger animals, which either acts to disperse the naked DNA or as a barrier to the DNA, preventing it from entering muscle cells [14]. Despite extensive research involving direct injection of naked DNA, DNA uptake and protein expression levels remain low. Thus, efforts to improve the efficiency of DNA delivery, including both biochemical and physical approaches, have led to strategies utilizing polymer and nanoparticle coupling, viral vectors, and electroporation, among others.

2.2. Polymers and Nanoparticles

Polymer and/or nanoparticle conjugation to DNA involves incubating DNA with the polymer/nanoparticle sample prior to delivery to improve transfection efficiency. These particles, if engineered with the appropriate properties, generally do not compromise cell viability or cause significant immunogenicity [15]. Interestingly, several aspects of the polymer, such as molecular weight, stability, size, charge, and structure, greatly affect the efficacy of the DNA binding and subsequent delivery into cells [15]. The ability to change these factors through polymer engineering makes this method highly adaptable; for example, polymers of a certain molecular weight might work well for intramuscular gene delivery but be ineffectual when applied to hepatocytes. It is also of note that polymers are often easy and inexpensive to synthesize [15]. Cationic polymers form so-called “polyplexes” (polymer–DNA complexes) with DNA, by binding to negatively charged phosphate groups in DNA, which facilitates the introduction of the DNA into the cell [16]. Despite their relative ease of use and production, these formulations are still inferior to alternative gene delivery methods in terms of efficiency (e.g., viral vectors), although they have been shown to approximate the efficiency of viral vectors when used in combination with physical methods of gene delivery [17,18,19]. Additionally, both degradable and non-degradable polymers have drawbacks that, to date, have complicated clinical applications. Degradable polymers may lead to accumulation of toxic metabolites and adverse reactions to treatment [20], whereas non-degradable polymers may aggregate during circulation and present a risk of clotting [21,22].

2.3. Viral Vectors

Viral vectors boast some of the highest gene delivery efficiencies of any of the methods discussed herein [10,23]. Multiple types of viruses are used in transfection, with adeno-associated viruses (AAVs) among the most common, especially for delivering genetic material into muscle cells. Although it is a significant challenge to produce good manufacturing practice (GMP) levels of virus at high enough titers for clinical trials, localized and systemic gene transfer methods utilizing AAVs have been developed, each with its own advantages and disadvantages [19,24]. Systemic viral delivery (i.e., intravenous injection) poses great risk to patients due to potential immune response and off-target delivery [13]. Localized delivery (i.e., direct intramuscular injection) tends to be much safer than systemic delivery because it induces a lower level of immune response and has decreased off-target delivery, but it is often less efficient for transducing large muscle masses due to the inability of the viral vector to disperse throughout the muscle tissue. In tumors, it is possible to use oncolytic viruses that can spread throughout the mass, but this would likely not be a safe approach for muscle. With appropriate targeting, the risk of infecting surrounding healthy myocytes can be reduced, though not eliminated entirely [25]. An additional risk of viral gene delivery is insertional mutagenesis. Through the process of genomic integration, additional base pairs are introduced to the genome [26]; these unintentional additions can be oncogenic and/or cause a great number of genetic defects. In summary, there are a number of major challenges associated with the most commonly used viral vectors, from the high risk for immunogenicity to the risk of (unintended) insertional mutagenesis to the high cost of production [19,23,27].

2.4. Electroporation

Due to the immunogenicity risks associated with biochemical methods, physical approaches have recently been investigated more extensively. One physical delivery method that is well integrated in the gene delivery field is electroporation. There are a range of electroporation devices and techniques, with many different products on the market to fit specific applications in vivo, in vitro, in situ, and ex vivo. Electroporation tends to produce a high transfection efficiency in all applications [28]. Its mechanism of action lies in the permeabilization of the cell and nuclear membranes using electricity [29]. The electrical current (“electro-”) creates transient pores (“-poration”) in the cell membrane through which genetic material can enter the cytoplasm [30]. The DNA can then move into the nucleus through similar pores in the nuclear membrane. This method can be applied to any portion of the body and is a relatively rapid process. One of the main challenges involved with electroporation is the invasiveness of the technique in vivo; electrodes are typically inserted into the subject [13,31]. Another major challenge with electroporation is the resultant low cell viability in vivo [32]. Gaps in the cell membrane can cause both an inflammatory response and necrosis of muscle fibers, which can lead to muscle damage. Although there are many different settings that can be adjusted to dramatically alter the uptake of DNA and/or viability of cells, electroporation still tends toward low viability [33]. Finally, electroporation is costly when compared to most other methods of physical gene delivery.

3. Ultrasound-Mediated Gene Delivery in Skeletal Muscle

Although each of the above-mentioned techniques has advantages and are helping to further the progress of gene therapy, their disadvantages are significant. One promising solution for delivering non-viral vectors to muscles for therapeutic protein production is ultrasound-mediated intramuscular gene delivery (sonodelivery), with advantages pertaining to maximizing safety, accessibility, and efficiency, while minimizing cost and invasiveness.
Sonodelivery is intramuscular gene delivery augmented with ultrasound to facilitate increased uptake of DNA. Although some of the general mechanisms will be discussed herein, a description of the basic methodology used for sonoporation will not be provided. We would encourage anyone interested in a thorough description of in vitro and in vivo sonoporation methodologies to refer to the previously published works available, including [13,34,35], among others.

3.1. Benefits of Ultrasound

Patient safety and therapeutic expense are two major factors to consider in any treatment type. Consequently, ultrasound-based strategies hold great promise for gene delivery or other therapeutics, due to their low cost and clinically established safety [13]. Ultrasound has been used on patients since the late 1940s and has been considered safe for pregnant women since the 1950s [36]. More specifically, the levels of ultrasound required for sonodelivery are also associated with low cytotoxicity levels and minimal tissue damage in vitro and in vivo [2,37]. Although sonodelivery is typically performed with specialized equipment, standard clinical ultrasound machines can be modified to produce the necessary output [10,18,38,39]. Standard ultrasound equipment is widely available and reusable indefinitely, making ultrasound a very affordable means of physical gene delivery.
An important consideration for a gene delivery system is its degree of invasiveness. As ultrasound waves can penetrate deep tissue even when applied epicutaneously, it is a very minimally invasive technique [3,40]. This combination of affordability, minimal invasiveness, and high level of safety makes ultrasound an enticing option for clinical gene delivery.

3.2. Sonoporation In Vitro

Generally, biological methods are tested in vitro prior to performing in vivo studies. This has been the case with sonoporation, with groups testing the efficacy of sonodelivery in various cell types [34,41,42,43]. Prior studies indicate that the conditions for in vitro sonodelivery tend to vary widely, from the settings of the sonoporator (Table 1) to the way cells are prepared for gene delivery (e.g., in suspension or seeded in culture plates). This wide variance tends to lead to variable transfection efficiencies. While it is common to experience problems when translating from in vitro to in vivo, this problem is particularly pronounced for sonodelivery, making it very challenging to effectively optimize conditions for intramuscular gene delivery using in vitro testing data [34,39,41,42]. There are likely many factors leading to this, such as increased difficulty in creating pores in cells in vivo [41], the rigid plastics that are used for cell culture causing ultrasound beam distortion issues [42] and the creation of standing waves [39], differences in DNA accessibility in culture versus in the natural muscle environment, and effectiveness of cell repair mechanisms in a monoculture. Other factors may also include the in vivo structure being more “protective” of the cells or the body’s ability to recruit inflammatory cells to the muscle following sonoporation.
We expect sonoporation to eventually become an inexpensive, reusable option for transfecting cells, especially following optimization and commercialization of specific tools designed to augment sonoporation in vitro. A significant challenge is the lack of well-defined sonodelivery conditions employed in vitro across laboratories (Table 1). This, combined with the lack of in vitro–in vivo correlation, establishes the necessity of further sonodelivery research, especially in vivo. Particularly notable is that, in our experience, in vivo sonoporation is more effective than in vitro sonoporation. As such, we will focus this review on in vivo sonodelivery work, as it appears to share more similarities across laboratories on how skeletal muscle sonoporation is approached and performed and we anticipate that it will have the greatest impact on the field of gene therapy.

3.3. Skeletal Muscle as a Therapeutic “Factory”

Although sonodelivery could be used to deliver genes in vivo for short-term treatment therapies such as targeted gene editing systems (e.g., CRISPR/Cas9), to deliver a therapeutic protein or drug directly to the site of interest [48,49], or to deliver viral vectors [50] or siRNA [51,52], this review will focus primarily on the delivery of plasmid DNA for long-term protein production.
Unlike injecting a dose of a drug that will be metabolized relatively quickly, genetic material must remain in the body long enough to allow for protein production and for the therapeutic protein to reach levels sufficient to treat a patient’s condition. Their low turnover, high metabolic rate, and ability to secrete cytokines and proteins (myokines) make skeletal muscle cells ideal candidates for protein production, particularly secreted proteins with therapeutic activity. Skeletal muscle’s inherent ability to repair itself using progenitor cells (i.e., satellite cells) could also provide a potential healing mechanism for any localized toxicity or inflammation induced during gene delivery [29,53,54]. The concept of gene therapy, to use a patient’s own tissue to create a therapeutic by delivering genes coding for therapeutic proteins, relies heavily on the tissue’s ability to produce these proteins over time. Skeletal muscle, which makes up approximately 30% of and provides structure and stability throughout the entire adult human body [55], is a promising target for therapeutic protein production because its cells tend to live longer than other cell types. A muscle can effectively become a “factory” within the body, continuously producing therapeutic proteins for months at a time [56,57] if the vector enables long-term expression. The therapeutic proteins produced at the factory can then be delivered systemically [43,55,58], allowing for long-term treatment following a single dose of intramuscular gene delivery [59]. Fusing specific motifs to the protein can further facilitate targeted delivery, for example, thus increasing therapeutic effectiveness and safety by decreasing off-target accumulation [60].

3.4. Sonoporation in Skeletal Muscle

Sonoporation has been proven effective for delivering pDNA into cells and tissues, especially when used in tandem with microbubbles (MBs) [19,38,43,61,62]. In studies using firefly luciferase as a reporter gene, pDNA, supplemented with MBs, was delivered successfully to muscles in vivo and the luciferase protein was expressed at high levels (nearly 100-fold higher than the non-ultrasound control) for prolonged periods of time (Figure 2) [10]. To our knowledge, studies have only shown localized luciferase activity in muscle cells at or near the injection site, with no indications of off-target delivery, accumulation, or expression [39].
One of the key components for successful sonoporation in muscle in vivo is the addition of MBs [10,19,38,43,62]. MBs are common echo-contrast agents used in medical procedures in humans. They typically consist of an inert gaseous bubble encapsulated by a biocompatible material, with lipids being the most common interfacial encapsulant [13,63]. For sonodelivery, MBs can either be fabricated with a protein or gene of interest loaded within the bubble or “empty” bubbles can be complexed with the payload prior to injection [64]. Examples of microbubbles used for sonoporation include SonoVueTM (Bracco), which has a phospholipid shell surrounding sulfur hexafluoride, and Optison (GE Healthcare), which consists of albumin-encapsulated perfluoropropane [65,66]. It is not fully understood how sonodelivery works at the cellular level, but it is generally believed that ultrasound energy produces transient micropores in the cell membrane via cavitation caused by oscillation of small bubbles present in the ultrasound media [2,43,45,55,67,68]. It is further believed, and empirically supported, that the addition of MBs significantly increases the cavitation facilitated by ultrasound alone (Figure 3) [13,43]. It has also been suggested that MBs create a microjet stream when they rupture, which forces the bound (or encapsulated) pDNA (or protein) into the cells through the pores created by the ultrasound-induced cavitation [44,64]. Regardless of the mode of action, it has been shown repeatedly that the addition of MBs significantly increases payload delivery into skeletal muscle as well as other types of tissue [10,19,55,61,69,70,71,72].
While combining ultrasound and MBs effectively delivers luciferase DNA into muscle, delivery of other types of DNA is problematic, possibly due to inefficient DNA uptake into the nucleus from the cytoplasm. While this would not be problematic for protein delivery, DNA must be taken into the nucleus for protein production to occur. One way to overcome this is by incorporating polymers with a nuclear localization sequence (NLS). A previous study conducted by our group showed that sonodelivery of DNA combined with MBs and an NLS-tagged polymer did indeed increase the efficiency of plasmid uptake and subsequent protein production by as much as six times compared to the non-US control [17] (Figure 4). On the other hand, some untargeted polymers, such as P85 Pluronic block copolymer, combined with MBs and ultrasound, showed a ~2-fold increase in pDNA delivery when compared to the non-ultrasound control [18]. Although further work is needed to determine the best polymer properties and ratio to MBs and pDNA and to determine the ideal ultrasound settings to deliver the polymer/MBs/pDNA mixture, this approach holds great promise for improving the efficacy of intramuscular sonodelivery. NLS polymers with variable compositions to balance hydrophilicity and charge are currently under development with the objective of further enhancing sonodelivery in muscle.

3.5. Effects of Sonoporation on Skeletal Muscle

Studies focused on how skeletal muscle is affected by sonoporation further demonstrate that it is one of the safest methods for gene delivery in vivo. For example, Chen et al. showed that muscle damage was comparably minimal following MB-free DNA injection with or without polymer and with or without ultrasound. When MBs were combined with ultrasound, there was a statistically significant increase in muscle damage compared to the control (Figure 5 and Figure 6). The authors noted that the damage was always localized around the injection site even when gene expression was observed distally [18]. In a similar study conducted by our group, muscles that had been injected with a DNA/MBs/polymer mixture and then subjected to ultrasound showed no significant damage at any of the time points evaluated during the study: 7 days, 23 days, or 12 months (Figure 7) [59]. Two other studies, conducted by Shapiro et al. and Wang et al., support our findings, with results showing no significant damage to muscles following treatment with MBs, DNA, and ultrasound [10,38]. Interestingly, a study conducted by Lu et al. yielded results contradictory to those of Chen et al., in that muscle damage was decreased in mice treated with DNA, MBs, and ultrasound compared to mice treated with DNA only [19]. Overall, these results are promising, especially in comparison to electroporation, which consistently induces muscle damage [29,73]. If we also consider the remarkable ability of skeletal muscle to repair itself from minor damage by employing progenitor (satellite) cells [53,54], the damage caused by sonoporation may not have a significant adverse impact on muscle fibers.

3.6. Variability in Sonoporation Conditions

Another factor that may lead to discrepancies between luciferase delivery and delivery of other types of DNA is variability in sonoporation conditions. Other variables may include the type of luciferase gene used (firefly, Renilla, enhanced firefly, etc.), the promoter driving transcription of the gene and other vector-related properties, the composition of the MB stabilizer (polymer, lipid, etc.), the concentration of MBs, and whether or not polymers are used in the nanoplex formulation. As was shown in Table 1, most research groups tend to use different sonoporation conditions in vitro. Table 2 shows that this is further accentuated for in vivo work. There are also a variety of different sonoporators in use, with many being custom modified ultrasound instruments. Although there are some commonalities among the different techniques, there is no consensus on an “ideal” set of conditions. Conditions used are largely dependent on each research group’s empirically derived preferences and the equipment used for the experiment. Although each research group has had success with their chosen sonoporation method, these differences could contribute to the disparity of results in the efficiency of sonodelivery and subsequent protein production. Developing a standardized protocol could help to bring defined sonoporation-mediated gene therapy conditions to the clinical stage. On the other hand, the success of sonodelivery under a variety of conditions highlights its potential application in a variety of clinical scenarios. For example, patients of different demographic groups (especially age) will likely have different levels of muscle density, so the ability to adapt the ultrasound conditions for each patient could increase the reach of sonodelivery.

4. Future Directions

The most pressing future direction for sonodelivery is that of standardization. With so many different sonoporators and sonoporation conditions, even for the same target tissue or cell type, and with such disparity in the results of the gene delivery, it is difficult to determine a standardized treatment method. Developing a standard unit of measure could help to expedite this process. Sonoporation conditions are typically reported by duty cycle, frequency, time, and intensity. Many reports also include probe size and some reports include other conditions, ranging from wave type to power output. Unfortunately, with the differences between instruments, the conditions that are typically reported can lead to a variable power output, meaning that the delivery power is likely not the same, even if the conditions are very similar. Although more optimization clearly is needed to find the average optimal conditions for delivering DNA into muscle using sonoporation, establishing a standard method for reporting sonoporation conditions, such as the inclusion of the power output, which can be calculated for each set of conditions, may help to ameliorate some of the disparities in results.
An interesting future direction for the sonodelivery field would include more work on combining sonoporation with other approaches that might increase the efficacy of gene delivery. Some work has already been done along this vein, including polymer-mediated sonodelivery [17,18,59], adjustments to cell membrane permeability by adding enzymes, such as hyaluronidase [80], and by adding drugs such as lidocaine and adjusting temperature [41], and electro-sonoporation [58,81,82]. Electro-sonoporation is a particularly interesting procedure in which electroporation and sonoporation are applied simultaneously to facilitate cell membrane pore formation. In a proof of concept investigation, Longsine-Parker et al. found that cell viability was 97.3% and membrane pore formation efficiency was 95.6% in mammalian cells after application [82]. These promising results were further explored with in vitro and in vivo studies that found that electro-sonoporation performed significantly better in both transfection efficiency and cell viability compared to electroporation alone [58,81]. While more work is needed to confirm these results and elaborate on the effectiveness of electro-sonoporation, it appears to be a highly promising technique. While all these possible adaptations would add more conditions to consider in the standardization procedure, they could greatly enhance the efficacy of sonodelivery for gene therapy.
Another direction of high importance and interest for intramuscular sonoporation will be the delivery of therapeutic genes, as opposed to reporter genes (i.e., luciferase). Although sonoporation has been used to deliver therapeutic genes intratumorally [62,76], the majority of the intramuscular sonodelivery completed to date has utilized reporter genes to test sonoporation conditions and efficiency. It could be argued that testing the delivery of therapeutic genes via sonoporation is of greater importance than standardization, as having a standardized method will only be useful when sufficient levels of therapeutic expression are observed. To help mitigate the potential for non-standard conditions to be a confounding factor of a lack of therapeutic expression, this work could be conducted in tandem with the above-mentioned standardization work. Of particular interest would be the delivery of therapeutic proteins tagged or fused with a reporter gene, such as luciferase, which would allow for simultaneous testing of therapeutic expression and optimization of sonodelivery conditions.
Further improvements for intramuscular sonodelivery and gene therapy might include the incorporation of muscle-specific refinements of payload, such as microbubbles designed to target skeletal muscle or the extracellular matrix (ECM) or vectors containing skeletal muscle-specific promoters to increase the efficiency of transgene expression [83]. In light of all these considerations, it can easily be seen that there is additional optimization needed for these approaches and there would be great benefit to the scientific community in implementing more extensive testing of therapeutic delivery to skeletal muscle using sonoporation.

5. Conclusions

As gene therapy becomes more popular as a viable therapeutic strategy, an affordable, non-invasive, non-viral gene delivery system will help to increase its availability and safety. Ultrasound-mediated gene delivery can fill this niche and, with continued study and proper standardization, sonodelivery has the potential to become the predominant technique for intramuscular gene delivery.

Author Contributions

Conceptualization, R.E.D. and M.L.F.; resources, M.L.F., T.S.E.; writing and figures—original draft preparation, R.E.D. and Z.E.L.; revisions, M.L.F. and T.S.E. All authors contributed to the organization and preparation of the manuscript for submission and publication. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this work was provided by the National Institutes of Health R01CA196947 and, in part, R01AR069079.

Acknowledgments

The authors acknowledge support from Basic Medical Sciences at Purdue University and the Imaging Core from the Purdue Center for Cancer Research, P30 CA023168.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Misra, S. Human gene therapy: A brief overview of the genetic revolution. J. Assoc. Phys. India 2013, 61, 127–133. [Google Scholar]
  2. Miller, D.L.; Pislaru, S.V.; Greenleaf, J.F. Sonoporation: Mechanical DNA Delivery by Ultrasonic Cavitation. Somat. Cell Mol. Genet. 2002, 27, 115–134. [Google Scholar] [CrossRef] [PubMed]
  3. Newman, C.M.H.; Bettinger, T. Gene therapy progress and prospects: Ultrasound for gene transfer. Gene Ther. 2007, 14, 465–475. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wolff, J.A.; Budker, V. The Mechanism of Naked DNA Uptake and Expression. Epigenetics Cancer Part A 2005, 54, 1–20. [Google Scholar] [CrossRef]
  5. Schratzberger, P.; Krainin, J.G.; Schratzberger, G.; Silver, M.; Ma, H.; Kearney, M.; Zuk, R.F.; Brisken, A.F.; Losordo, D.W.; Isner, J.M. Transcutaneous Ultrasound Augments Naked DNA Transfection of Skeletal Muscle. Mol. Ther. 2002, 6, 576–583. [Google Scholar] [CrossRef]
  6. Mumper, R.J.; Duguid, J.G.; Anwer, K.; Barron, M.K.; Nitta, H.; Rolland, A.P.; Barren, M.K. Polyvinyl Derivatives as Novel Interactive Polymers for Controlled Gene Delivery to Muscle. Pharm. Res. 1996, 13, 701–709. [Google Scholar] [CrossRef]
  7. Davis, H.L.; Demeneix, B.A.; Quantin, B.; Coulombe, J.; Whalen, R.G. Plasmid DNA is Superior to Viral Vectors for Direct Gene Transfer into Adult Mouse Skeletal Muscle. Hum. Gene Ther. 1993, 4, 733–740. [Google Scholar] [CrossRef]
  8. Wells, D.J.; Wells, K.E. Gene transfer studies in animals: What do they really tell us about the prospects for gene therapy in DMD? Neuromuscul Disord. 2002, 12, S11–S22. [Google Scholar] [CrossRef]
  9. Wolff, J.; Malone, R.; Williams, P.; Chong, W.; Acsadi, G.; Jani, A.; Felgner, P. Direct gene transfer into mouse muscle in vivo. Science 1990, 247, 1465–1468. [Google Scholar] [CrossRef]
  10. Shapiro, G.; Wong, A.W.; Bez, M.; Yang, F.; Tam, S.; Even, L.; Sheyn, D.; Ben-David, S.; Tawackoli, W.; Pelled, G.; et al. Multiparameter evaluation of in vivo gene delivery using ultrasound-guided, microbubble-enhanced sonoporation. J. Control. Release 2016, 223, 157–164. [Google Scholar] [CrossRef] [Green Version]
  11. Westhoff, B.; Seller, K.; Wild, A.; Jaeger, M.; Krauspe, R. Ultrasound-guided botulinum toxin injection technique for the iliopsoas muscle. Dev. Med. Child Neurol. 2007, 45, 829–832. [Google Scholar] [CrossRef]
  12. Bubnov, R. Ultrasound guided injections of Platelets Rich Plasma for muscle injury in professional athletes. Comparative study. Med. Ultrason. 2013, 15, 101–105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Bez, M.; Foiret, J.; Shapiro, G.; Pelled, G.; Ferrara, K.W.; Gazit, D. Nonviral ultrasound-mediated gene delivery in small and large animal models. Nat. Protoc. 2019, 14, 1015–1026. [Google Scholar] [CrossRef]
  14. Jiao, S.; Williams, P.; Berg, R.K.; Hodgeman, B.A.; Liu, L.; Repetto, G.M.; Wolff, J.A. Direct Gene Transfer into Nonhuman Primate Myofibers In Vivo. Hum. Gene Ther. 1992, 3, 21–33. [Google Scholar] [CrossRef] [PubMed]
  15. Rai, R.; Alwani, S.; Badea, I. Polymeric Nanoparticles in Gene Therapy: New Avenues of Design and Optimization for Delivery Applications. Polymers 2019, 11, 745. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hosseinkhani, H.; Abedini, F.; Ou, K.-L.; Domb, A. Polymers in gene therapy technology. Polym. Adv. Technol. 2014, 26, 198–211. [Google Scholar] [CrossRef]
  17. Parelkar, S.S.; Letteri, R.A.; Chan-Seng, D.; Zolochevska, O.; Ellis, J.; Figueiredo, M.; Emrick, T. Polymer–Peptide Delivery Platforms: Effect of Oligopeptide Orientation on Polymer-Based DNA Delivery. Biomacromolecules 2014, 15, 1328–1336. [Google Scholar] [CrossRef] [Green Version]
  18. Chen, Y.-C.; Jiang, L.-P.; Liu, N.-X.; Wang, Z.-H.; Hong, K.; Zhang, Q.-P. P85, Optison microbubbles and ultrasound cooperate in mediating plasmid DNA transfection in mouse skeletal muscles in vivo. Ultrason. Sonochem. 2011, 18, 513–519. [Google Scholar] [CrossRef]
  19. Lu, Q.L.; Liang, H.-D.; Partridge, T.; Blomley, M.J.K. Microbubble ultrasound improves the efficiency of gene transduction in skeletal muscle in vivo with reduced tissue damage. Gene Ther. 2003, 10, 396–405. [Google Scholar] [CrossRef] [Green Version]
  20. Singh, R.P.; RamaRao, P. Accumulated Polymer Degradation Products as Effector Molecules in Cytotoxicity of Polymeric Nanoparticles. Toxicol. Sci. 2013, 136, 131–143. [Google Scholar] [CrossRef]
  21. Lazzari, S.; Moscatelli, D.; Codari, F.; Salmona, M.; Morbidelli, M.; Diomede, L. Colloidal stability of polymeric nanoparticles in biological fluids. J. Nanopart. Res. 2012, 14, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Owens, D.; Peppas, N.A. Opsonization, biodistribution, and pharmacokinetics of polymeric nanoparticles. Int. J. Pharm. 2006, 307, 93–102. [Google Scholar] [CrossRef] [PubMed]
  23. Lundstrom, K. Viral Vectors in Gene Therapy. Diseases 2018, 6, 42. [Google Scholar] [CrossRef] [Green Version]
  24. Wang, D.; Zhong, L.; Abu Nahid, M.; Gao, G. The potential of adeno-associated viral vectors for gene delivery to muscle tissue. Expert Opin. Drug Deliv. 2014, 11, 345–364. [Google Scholar] [CrossRef] [PubMed]
  25. Maroun, J.; Muñoz-Alía, M.; Ammayappan, A.; Schulze, A.; Peng, K.-W.; Russell, S. Designing and building oncolytic viruses. Futur. Virol. 2017, 12, 193–213. [Google Scholar] [CrossRef] [Green Version]
  26. Suerth, J.D.; Labenski, V.; Schambach, A. Alpharetroviral Vectors: From a Cancer-Causing Agent to a Useful Tool for Human Gene Therapy. Viruses 2014, 6, 4811–4838. [Google Scholar] [CrossRef]
  27. Shi, W.; Arnold, G.S.; Bartlett, J.S. Insertional Mutagenesis of the Adeno-Associated Virus Type 2 (AAV2) Capsid Gene and Generation of AAV2 Vectors Targeted to Alternative Cell-Surface Receptors. Hum. Gene Ther. 2001, 12, 1697–1711. [Google Scholar] [CrossRef]
  28. Potter, H.; Heller, R. Transfection by Electroporation. Curr. Protoc. Mol. Boil. 2003, 62, 931–936. [Google Scholar] [CrossRef]
  29. Sokolowska, E.; Blachnio-Zabielska, A.U. A Critical Review of Electroporation as A Plasmid Delivery System in Mouse Skeletal Muscle. Int. J. Mol. Sci. 2019, 20, 2776. [Google Scholar] [CrossRef] [Green Version]
  30. Chang, D.C.; Reese, T.S. Changes in membrane structure induced by electroporation as revealed by rapid-freezing electron microscopy. Biophys. J. 1990, 58, 1–12. [Google Scholar] [CrossRef] [Green Version]
  31. Nishi, T.; Yoshizato, K.; Yamashiro, S.; Takeshima, H.; Sato, K.; Hamada, K.; Kitamura, I.; Yoshimura, T.; Saya, H.; Kuratsu, J.-I.; et al. High-efficiency in vivo gene transfer using intraarterial plasmid DNA injection following in vivo electroporation. Cancer Res. 1996, 56, 1050–1055. [Google Scholar] [PubMed]
  32. Stacey, K.J.; Ross, I.L.; Hume, D.A. Electroporation and DNA-dependent cell death in murine macrophages. Immunol. Cell Boil. 1993, 71, 75–85. [Google Scholar] [CrossRef] [PubMed]
  33. Sadiq, A.A.; Zaltum, M.A.M.; Mamman, H.B.; Adon, M.N.; Othman, N.B.; Dalimin, M.; Jamil, M.M.B.A. An overview: Investigation of electroporation and sonoporation techniques. In Proceedings of the 2015 2nd International Conference on Biomedical Engineering (ICoBE), Penang, Malaysia, 30–31 March 2015; Institute of Electrical and Electronics Engineers (IEEE): Piscataway, NJ, USA, 2015; pp. 1–6. [Google Scholar]
  34. Feril, L.B. Ultrasound-Mediated Gene Transfection. In Gene Therapy of Cancer: Methods and Protocols; Walther, W., Stein, U.S., Eds.; Humana Press: Totowa, NJ, USA, 2009; pp. 179–194. [Google Scholar]
  35. Nakamura, H. Electroporation and Sonoporation in Developmental Biology; Springer Science Business Media: Berlin, Germany, 2009. [Google Scholar]
  36. Campbell, S. A Short History of Sonography in Obstetrics and Gynaecology. Facts Views Vis. ObGyn 2013, 5, 213–229. [Google Scholar] [PubMed]
  37. Pepe, J.; Rincón, M.; Wu, J. Experimental comparison of sonoporation and electroporation in cell transfection applications. Acoust. Res. Lett. Online 2004, 5, 62–67. [Google Scholar] [CrossRef]
  38. Wang, X.; Liang, H.-D.; Dong, B.; Lu, Q.-L.; Blomley, M.J.K. Gene Transfer with Microbubble Ultrasound and Plasmid DNA into Skeletal Muscle of Mice: Comparison between Commercially Available Microbubble Contrast Agents 1. Radiology 2005, 237, 224–229. [Google Scholar] [CrossRef] [PubMed]
  39. Pislaru, S.V.; Pislaru, C.; Kinnick, R.R.; Singh, R.; Gulati, R.; Greenleaf, J.F.; Simari, R.D. Optimization of ultrasound-mediated gene transfer: Comparison of contrast agents and ultrasound modalities. Eur. Hear. J. 2003, 24, 1690–1698. [Google Scholar] [CrossRef] [Green Version]
  40. Mittelstein, D.R.; Ye, J.; Schibber, E.F.; Roychoudhury, A.; Martinez, L.T.; Fekrazad, M.H.; Ortiz, M.; Lee, P.P.; Shapiro, M.G.; Gharib, M. Selective ablation of cancer cells with low intensity pulsed ultrasound. Appl. Phys. Lett. 2020, 116, 013701. [Google Scholar] [CrossRef] [Green Version]
  41. Nozaki, T.; Ogawa, R.; Feril, L.B.; Kagiya, G.; Fuse, H.; Kondo, T. Enhancement of ultrasound-mediated gene transfection by membrane modification. J. Gene Med. 2003, 5, 1046–1055. [Google Scholar] [CrossRef]
  42. Li, Y.S.; Davidson, E.; Reid, C.N.; McHale, A.P. Optimising ultrasound-mediated gene transfer (sonoporation) in vitro and prolonged expression of a transgene in vivo: Potential applications for gene therapy of cancer. Cancer Lett. 2009, 273, 62–69. [Google Scholar] [CrossRef]
  43. Taniyama, Y.; Tachibana, K.; Hiraoka, K.; Aoki, M.; Yamamoto, S.; Matsumoto, K.; Nakamura, T.; Ogihara, T.; Kaneda, Y.; Morishita, R. Development of safe and efficient novel nonviral gene transfer using ultrasound: Enhancement of transfection efficiency of naked plasmid DNA in skeletal muscle. Gene Ther. 2002, 9, 372–380. [Google Scholar] [CrossRef] [Green Version]
  44. Suzuki, R.; Oda, Y.; Namai, E.; Takizawa, T.; Negishi, Y.; Utoguchi, N.; Tachibana, K.; Maruyama, K. Development of site specific gene delivery system with sonoporation. YAKUGAKU ZASSHI 2008, 128, 187–192. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Mehier-Humbert, S.; Bettinger, T.; Yan, F.; Guy, R.H. Ultrasound-mediated gene delivery: Kinetics of plasmid internalization and gene expression. J. Control. Release 2005, 104, 203–211. [Google Scholar] [CrossRef] [PubMed]
  46. Liang, H.-D.; Lu, Q.L.; Xue, S.-A.; Halliwell, M.; Kodama, T.; Cosgrove, D.O.; Stauss, H.J.; Partridge, T.A.; Blomley, M.J. Optimisation of ultrasound-mediated gene transfer (sonoporation) in skeletal muscle cells. Ultrasound Med. Boil. 2004, 30, 1523–1529. [Google Scholar] [CrossRef] [PubMed]
  47. Duvshani-Eshet, M.; Machluf, M. Therapeutic ultrasound optimization for gene delivery: A key factor achieving nuclear DNA localization. J. Control. Release 2005, 108, 513–528. [Google Scholar] [CrossRef] [PubMed]
  48. Unger, E.C.; Hersh, E.; Vannan, M.; Matsunaga, T.O.; McCreery, T. Local drug and gene delivery through microbubbles. Prog. Cardiovasc. Dis. 2001, 44, 45–54. [Google Scholar] [CrossRef] [PubMed]
  49. Sloand, J.N.; Nguyen, T.T.; Zinck, S.A.; Cook, E.C.; Zimudzi, T.J.; Showalter, S.A.; Glick, A.B.; Simon, J.C.; Medina, S.H. Ultrasound-Guided Cytosolic Protein Delivery via Transient Fluorous Masks. ACS Nano 2020, 14, 4061–4073. [Google Scholar] [CrossRef]
  50. De Carlo, F.; Thomas, L.; Brooke, B.; Varney, E.T.; Nande, R.; Boskovic, O.; Marshall, G.D.; Claudio, P.P.; Howard, C.M. Microbubble-mediated delivery of human adenoviruses does not elicit innate and adaptive immunity response in an immunocompetent mouse model of prostate cancer. J. Transl. Med. 2019, 17, 19. [Google Scholar] [CrossRef] [Green Version]
  51. Negishi, Y.; Endo, Y.; Fukuyama, T.; Suzuki, R.; Takizawa, T.; Omata, D.; Maruyama, K.; Aramaki, Y. Delivery of siRNA into the cytoplasm by liposomal bubbles and ultrasound. J. Control. Release 2008, 132, 124–130. [Google Scholar] [CrossRef]
  52. Sarisozen, C.; Salzano, G.; Torchilin, V. Recent advances in siRNA delivery. Biomol. Concepts 2015, 6, 321–341. [Google Scholar] [CrossRef] [Green Version]
  53. Morgan, J.E.; Partridge, T.A. Muscle satellite cells. Int. J. Biochem. Cell Boil. 2003, 35, 1151–1156. [Google Scholar] [CrossRef]
  54. Yin, H.; Price, F.; Rudnicki, M.A. Satellite Cells and the Muscle Stem Cell Niche. Physiol. Rev. 2013, 93, 23–67. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Liao, Z.-K.; Tsai, K.-C.; Wang, H.-T.; Tseng, S.-H.; Deng, W.-P.; Chen, W.-S.; Hwang, L.-H. Sonoporation-mediated anti-angiogenic gene transfer into muscle effectively regresses distant orthotopic tumors. Cancer Gene Ther. 2011, 19, 171–180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Lu, Q.L.; Bou-Gharios, G.; Partridge, T.A. Non-viral gene delivery in skeletal muscle: A protein factory. Gene Ther. 2003, 10, 131–142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. McMahon, J.; Wells, D. Electroporation for Gene Transfer to Skeletal Muscles. BioDrugs 2004, 18, 155–165. [Google Scholar] [CrossRef] [PubMed]
  58. Yamashita, Y.-I.; Shimada, M.; Tachibana, K.; Harimoto, N.; Tsujita, E.; Shirabe, K.; Miyazaki, J.; Sugimachi, K. In Vivo Gene Transfer into Muscle via Electro-Sonoporation. Hum. Gene Ther. 2002, 13, 2079–2084. [Google Scholar] [CrossRef]
  59. Figueiredo Neto, M.; Letteri, R.A.; Chan-Seng, D.; Emrick, T.; Figueiredo, M.L. Sonodelivery Facilitates Sustained Luciferase Expression from an Episomal Vector in Skeletal Muscle. Materials 2015, 8, 4608–4617. [Google Scholar] [CrossRef] [Green Version]
  60. Figueiredo, M.L.; Figueiredo Neto, M.; Salameh, J.W.; Decker, R.E.; Letteri, R.; Chan-Seng, D.; Emrick, T. Ligand-Mediated Targeting of Cytokine Interleukin-27 Enhances Its Bioactivity In Vivo. Mol. Ther. Methods Clin. Dev. 2020, 17, 739–751. [Google Scholar] [CrossRef]
  61. Burke, C.W.; Suk, J.S.; Kim, A.J.; Hsiang, Y.-H.J.; Klibanov, A.L.; Hanes, J.; Price, R.J. Markedly enhanced skeletal muscle transfection achieved by the ultrasound-targeted delivery of non-viral gene nanocarriers with microbubbles. J. Control. Release 2012, 162, 414–421. [Google Scholar] [CrossRef] [Green Version]
  62. Zolochevska, O.; Xia, X.; Williams, B.J.; Ramsay, A.; Li, S.; Figueiredo, M.L. Sonoporation Delivery of Interleukin-27 Gene Therapy Efficiently Reduces Prostate Tumor Cell Growth In Vivo. Hum. Gene Ther. 2011, 22, 1537–1550. [Google Scholar] [CrossRef] [Green Version]
  63. Upadhyay, A.; Dalvi, S.V. Microbubble Formulations: Synthesis, Stability, Modeling and Biomedical Applications. Ultrasound Med. Boil. 2019, 45, 301–343. [Google Scholar] [CrossRef]
  64. Unga, J.; Hashida, M. Ultrasound induced cancer immunotherapy. Adv. Drug Deliv. Rev. 2014, 72, 144–153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Frinking, P.J.; Bouakaz, A.; Kirkhorn, J.; Cate, F.J.T.; De Jong, N. Ultrasound contrast imaging: Current and new potential methods. Ultrasound Med. Boil. 2000, 26, 965–975. [Google Scholar] [CrossRef]
  66. Moran, C.M. CHAPTER 6—Ultrasonic contrast agents. In Clinical Ultrasound (Third Edition); Allan, P.L., Baxter, G.M., Weston, M.J., Eds.; Churchill Livingstone: Edinburgh, UK, 2011; pp. 77–89. [Google Scholar]
  67. Deng, C.X.; Sieling, F.; Pan, H.; Cui, J. Ultrasound-induced cell membrane porosity. Ultrasound Med. Boil. 2004, 30, 519–526. [Google Scholar] [CrossRef] [PubMed]
  68. Huang, Y.; Xi, X. Eit (Electrical Impedance Tomography) Guided Sonoporation, Ultrasound Tissue Ablation and Their Use. Thereof. Patent WO2010127369A1, 4 November 2010. [Google Scholar]
  69. Shih, C.-P.; Chen, H.-C.; Lin, Y.-C.; Chen, H.-K.; Wang, H.; Kuo, C.-Y.; Lin, Y.-Y.; Wang, C.-H. Middle-ear dexamethasone delivery via ultrasound microbubbles attenuates noise-induced hearing loss. Laryngoscope 2018, 129, 1907–1914. [Google Scholar] [CrossRef]
  70. Tlaxca, J.L.; Rychak, J.J.; Ernst, P.B.; Konkalmatt, P.R.; Shevchenko, T.I.; Pizzaro, T.T.; Rivera-Nieves, J.; Klibanov, A.L.; Lawrence, M.B. Ultrasound-based molecular imaging and specific gene delivery to mesenteric vasculature by endothelial adhesion molecule targeted microbubbles in a mouse model of Crohn’s disease. J. Control. Release 2012, 165, 216–225. [Google Scholar] [CrossRef] [Green Version]
  71. Tomizawa, M.; Shinozaki, F.; Motoyoshi, Y.; Sugiyama, T.; Yamamoto, S.; Sueishi, M. Sonoporation: Gene transfer using ultrasound. World J. Methodol. 2013, 3, 39–44. [Google Scholar] [CrossRef]
  72. Xu, W.; Zhang, X.; Hu, X.; Zhiyi, C.; Huang, P. Translational Prospects of ultrasound-mediated tumor immunotherapy: Preclinical advances and safety considerations. Cancer Lett. 2019, 460, 86–95. [Google Scholar] [CrossRef]
  73. Li, Y.; Wang, J.; Liu, J.; Liu, F. A novel system for in vivo neprilysin gene delivery using a syringe electrode. J. Neurosci. Methods 2010, 193, 226–231. [Google Scholar] [CrossRef]
  74. Watanabe, Y.; Horie, S.; Funaki, Y.; Kikuchi, Y.; Yamazaki, H.; Ishii, K.; Mori, S.; Vassaux, G.; Kodama, T. Delivery of Na/I Symporter Gene into Skeletal Muscle Using Nanobubbles and Ultrasound: Visualization of Gene Expression by PET. J. Nucl. Med. 2010, 51, 951–958. [Google Scholar] [CrossRef] [Green Version]
  75. Feichtinger, G.A.; Hofmann, A.T.; Slezak, P.; Schützenberger, S.; Kaipel, M.; Schwartz, E.; Neef, A.; Nomikou, N.; Nau, T.; Van Griensven, M.; et al. Sonoporation Increases Therapeutic Efficacy of Inducible and Constitutive BMP2/7 In Vivo Gene Delivery. Hum. Gene Ther. Methods 2014, 25, 57–71. [Google Scholar] [CrossRef] [Green Version]
  76. Zolochevska, O.; Ellis, J.; Parelkar, S.; Chan-Seng, D.; Emrick, T.; Wei, J.; Patrikeev, I.; Motamedi, M.; Figueiredo, M.L. Interleukin-27 Gene Delivery for Modifying Malignant Interactions Between Prostate Tumor and Bone. Hum. Gene Ther. 2013, 24, 970–981. [Google Scholar] [CrossRef] [Green Version]
  77. Tsai, K.-C.; Liao, Z.-K.; Yang, S.-J.; Lin, W.-L.; Shieh, M.-J.; Hwang, L.-H.; Chen, W.-S. Differences in gene expression between sonoporation in tumor and in muscle. J. Gene Med. 2009, 11, 933–940. [Google Scholar] [CrossRef]
  78. Sheyn, D.; Kimelman-Bleich, N.; Pelled, G.; Zilberman, Y.; Gazit, D.; Gazit, Z. Ultrasound-based nonviral gene delivery induces bone formation in vivo. Gene Ther. 2007, 15, 257–266. [Google Scholar] [CrossRef] [PubMed]
  79. Osawa, K.; Okubo, Y.; Nakao, K.; Koyama, N.; Bessho, K. Osteoinduction by microbubble-enhanced transcutaneous sonoporation of human bone morphogenetic protein-2. J. Gene Med. 2009, 11, 633–641. [Google Scholar] [CrossRef] [PubMed]
  80. Danialou, G.; Comtois, A.S.; Dudley, R.W.; Nalbantoglu, J.; Gilbert, R.; Karpati, G.; Jones, D.H.; Petrof, B.J. Ultrasound Increases Plasmid-Mediated Gene Transfer to Dystrophic Muscles without Collateral Damage. Mol. Ther. 2002, 6, 687–693. [Google Scholar] [CrossRef]
  81. Meschersky, M.E.; Kaaba, S.I.; Sokolovsky, A.A.; Moskovtsev, A.A.; Blokhin, D.Y.; Andriyanov, Y.V.; Kubatiev, A.A. A new method of combined electroporation and sonoporation with a reduced stress-inducing effect on cells. Pathogenesis 2012, 10, 59–67. [Google Scholar]
  82. Longsine-Parker, W.; Wang, H.; Koo, C.; Kim, J.; Kim, B.J.; Jayaraman, A.; Han, A. Microfluidic electro-sonoporation: A multi-modal cell poration methodology through simultaneous application of electric field and ultrasonic wave. Lab a Chip 2013, 13, 2144. [Google Scholar] [CrossRef]
  83. Piekarowicz, K.; Bertrand, A.T.; Azibani, F.; Beuvin, M.; Julien, L.; Machowska, M.; Bonne, G.; Rzepecki, R. A Muscle Hybrid Promoter as a Novel Tool for Gene Therapy. Mol. Ther. Methods Clin. Dev. 2019, 15, 157–169. [Google Scholar] [CrossRef] [Green Version]
Bioengineering 07 00107 g001 550

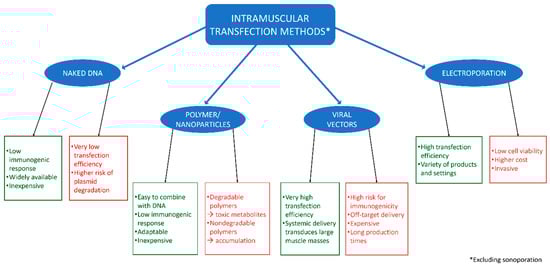

Figure 1. Common approaches for delivery of plasmid DNA into skeletal muscle and their associated advantages (green) and disadvantages (red).
Figure 1. Common approaches for delivery of plasmid DNA into skeletal muscle and their associated advantages (green) and disadvantages (red).
Bioengineering 07 00107 g001
Bioengineering 07 00107 g002 550

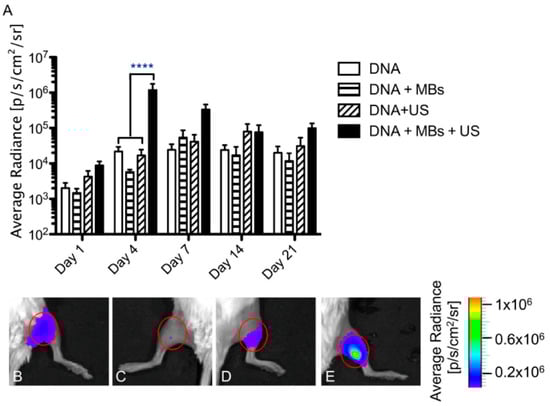

Figure 2. Luciferase 2 (Luc2) expression time course following sonoporation in vivo. (A). Luciferase expression profile in mice treated with microbubble-enhanced sonoporation of Luc2 (an enhanced form of Luciferase) in vivo. Mice were injected once with 50 μg plasmid DNA (DNA and DNA + ultrasound (US) groups), or 50 μg plasmid DNA premixed with 5 × 105 microbubbles (DNA + microbubbles (MBs) and DNA + MBs + US groups) and then treated with an acoustic pressure of 200 kPa for 2 min (DNA + US and DNA + MBs + US group). The treatment effect was monitored using bioluminescence imaging for 21 days after treatment. ****, p < 0.05 relative to control. (B–E). Representative images obtained in each group (DNA, DNA + MBs, DNA + US, and DNA + MBs + US, respectively) on Day 4 with the region of interest indicated by a red oval. Color bar, p/s/cm2/sr. (Reprinted from Shapiro et al. [10] with permission.)
Figure 2. Luciferase 2 (Luc2) expression time course following sonoporation in vivo. (A). Luciferase expression profile in mice treated with microbubble-enhanced sonoporation of Luc2 (an enhanced form of Luciferase) in vivo. Mice were injected once with 50 μg plasmid DNA (DNA and DNA + ultrasound (US) groups), or 50 μg plasmid DNA premixed with 5 × 105 microbubbles (DNA + microbubbles (MBs) and DNA + MBs + US groups) and then treated with an acoustic pressure of 200 kPa for 2 min (DNA + US and DNA + MBs + US group). The treatment effect was monitored using bioluminescence imaging for 21 days after treatment. ****, p < 0.05 relative to control. (B–E). Representative images obtained in each group (DNA, DNA + MBs, DNA + US, and DNA + MBs + US, respectively) on Day 4 with the region of interest indicated by a red oval. Color bar, p/s/cm2/sr. (Reprinted from Shapiro et al. [10] with permission.)
Bioengineering 07 00107 g002
Bioengineering 07 00107 g003 550
Figure 3. Electron microscope images of human skeletal muscles transfected with Optison MBs and pDNA with or without US. Micropores can be seen immediately following transfection (white arrow). (Reprinted from Taniyama et al. [43] with permission.)
Figure 3. Electron microscope images of human skeletal muscles transfected with Optison MBs and pDNA with or without US. Micropores can be seen immediately following transfection (white arrow). (Reprinted from Taniyama et al. [43] with permission.)
Bioengineering 07 00107 g003
Bioengineering 07 00107 g004 550

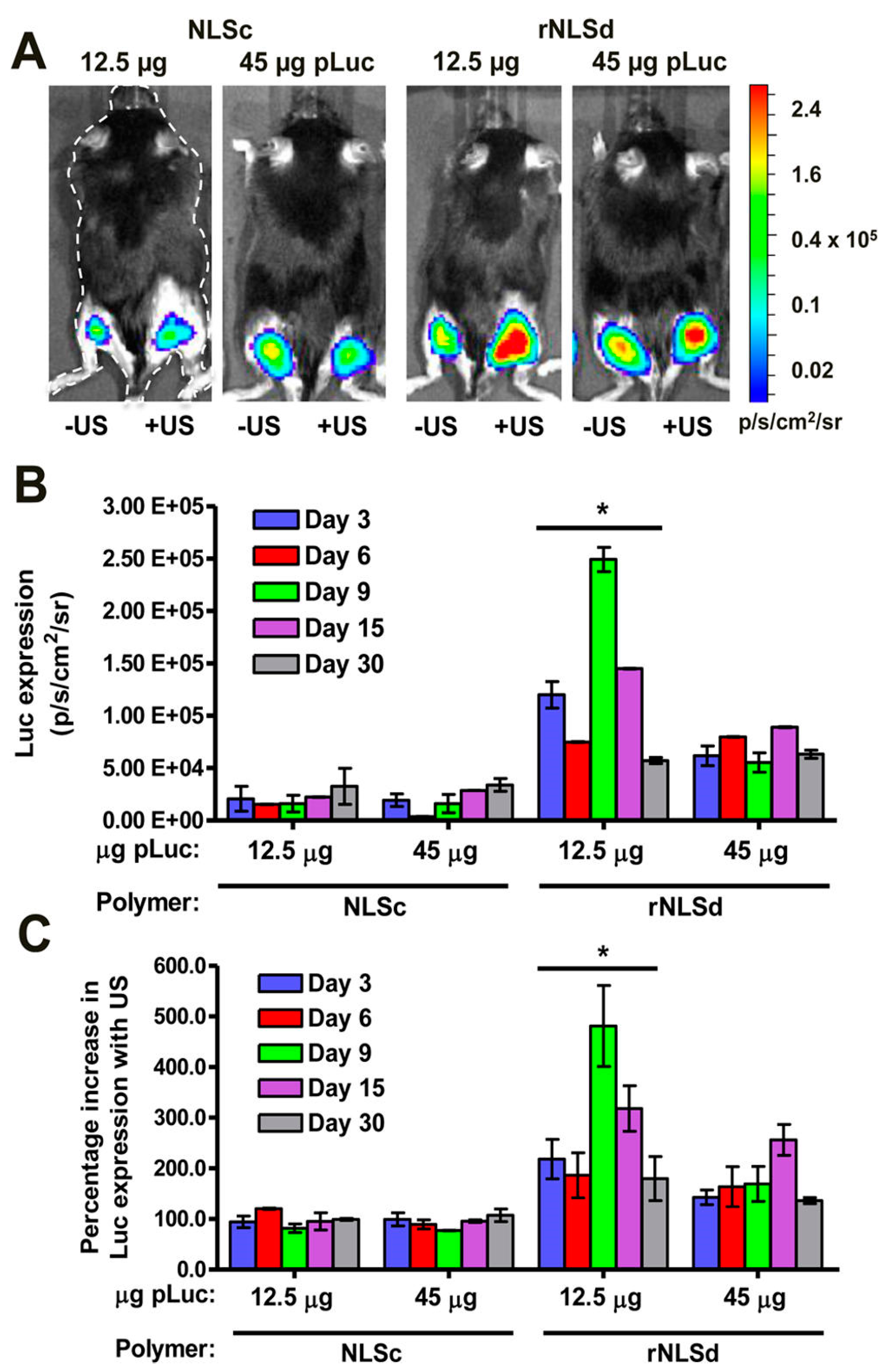

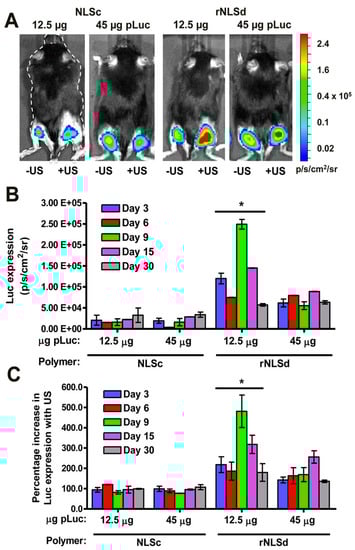

Figure 4. Intramuscular ultrasound-mediated gene delivery or “sonodelivery” in mice by NLSc- and rNLSd-based polyplexes. (A) Representative bioluminescence images of mice transfected with a luciferase reporter plasmid after a 5 min acquisition time using a Xenogen IVIS100 CCD camera (9 days after sonoporation). The right hind legs represent protein expression resulting from intramuscular ultrasound-mediated delivery; the left hind legs represent intramuscular delivery in the absence of ultrasound. The color bar indicates the luminescence intensity in photons per second per square centimeter per steradian (p/s/cm2/sr). (B) Luciferase expression from right hind legs. (C) Percentage change in luciferase expression upon application of an ultrasound stimulus (the ratio of the expression from the right hind leg to that from the left hind leg). Bars indicate ± the standard error of the mean (error bars) with * p < 0.05 for the rNLSd 12.5 μg dose as compared to all other groups. (Reprinted with permission from Parelkar et al. [17]. Copyright (2014) American Chemical Society.)
Figure 4. Intramuscular ultrasound-mediated gene delivery or “sonodelivery” in mice by NLSc- and rNLSd-based polyplexes. (A) Representative bioluminescence images of mice transfected with a luciferase reporter plasmid after a 5 min acquisition time using a Xenogen IVIS100 CCD camera (9 days after sonoporation). The right hind legs represent protein expression resulting from intramuscular ultrasound-mediated delivery; the left hind legs represent intramuscular delivery in the absence of ultrasound. The color bar indicates the luminescence intensity in photons per second per square centimeter per steradian (p/s/cm2/sr). (B) Luciferase expression from right hind legs. (C) Percentage change in luciferase expression upon application of an ultrasound stimulus (the ratio of the expression from the right hind leg to that from the left hind leg). Bars indicate ± the standard error of the mean (error bars) with * p < 0.05 for the rNLSd 12.5 μg dose as compared to all other groups. (Reprinted with permission from Parelkar et al. [17]. Copyright (2014) American Chemical Society.)
Bioengineering 07 00107 g004
Bioengineering 07 00107 g005 550

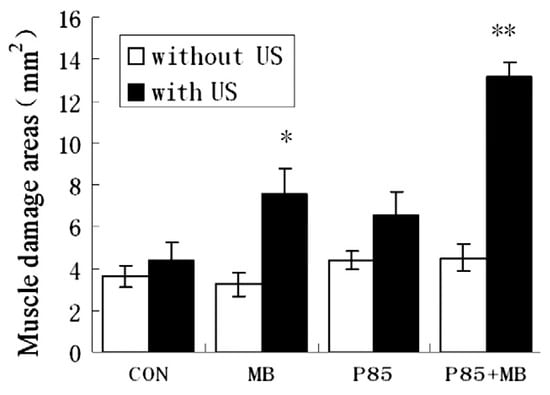

Figure 5. Sizes of the regions of damaged muscles. Both * and ** indicate comparisons between groups and saline control. * indicates p < 0.05 and ** p < 0.01. Data are presented as mean ± s.d. (two-tail Student’s t-test, Microsoft Excel 2003). (Reprinted from Chen et al. [18] with permission.)
Figure 5. Sizes of the regions of damaged muscles. Both * and ** indicate comparisons between groups and saline control. * indicates p < 0.05 and ** p < 0.01. Data are presented as mean ± s.d. (two-tail Student’s t-test, Microsoft Excel 2003). (Reprinted from Chen et al. [18] with permission.)
Bioengineering 07 00107 g005
Bioengineering 07 00107 g006 550
Figure 6. Images captured by 20× objective show damaged muscles after injection of transfection solution with or without ultrasound irradiation. Broken lines and arrows indicate the regions of injured muscles. Panel (A): no injection; panel (B): injection of transfection media containing DNA alone; panel (C): injection of transfection media containing DNA + 10% Optison; panel (D): injection of transfection media containing DNA + 10% Optison followed by US. The white scale bar indicates 100 μm. (Reprinted from Chen et al. [18] with permission.)
Figure 6. Images captured by 20× objective show damaged muscles after injection of transfection solution with or without ultrasound irradiation. Broken lines and arrows indicate the regions of injured muscles. Panel (A): no injection; panel (B): injection of transfection media containing DNA alone; panel (C): injection of transfection media containing DNA + 10% Optison; panel (D): injection of transfection media containing DNA + 10% Optison followed by US. The white scale bar indicates 100 μm. (Reprinted from Chen et al. [18] with permission.)
Bioengineering 07 00107 g006
Bioengineering 07 00107 g007 550
Figure 7. Analysis of muscle damage following gene delivery. Histological analyses at 7 days, 23 days, and 12 months, indicate neither plasmid, pCpGF (A) nor pEPIto (B), produced any significant signs of damage, as shown by H&E staining and visualization of skeletal muscle at 200× magnification. Inset: selected areas at higher magnification to show nuclear positioning in muscle fibers. Scale bar represents 50 μm. Arrows: normal positioning of nuclei at the periphery of muscle fibers, F; arrowheads: occasional atypical nuclei positioned centrally within fibers. (C) Analyses of percentage of muscle fibers displaying atypical central nuclei show no significant differences (p > 0.3) for either plasmid group for all three time points. (Reprinted from Figueiredo Neto et al. [59] with permission.)
Figure 7. Analysis of muscle damage following gene delivery. Histological analyses at 7 days, 23 days, and 12 months, indicate neither plasmid, pCpGF (A) nor pEPIto (B), produced any significant signs of damage, as shown by H&E staining and visualization of skeletal muscle at 200× magnification. Inset: selected areas at higher magnification to show nuclear positioning in muscle fibers. Scale bar represents 50 μm. Arrows: normal positioning of nuclei at the periphery of muscle fibers, F; arrowheads: occasional atypical nuclei positioned centrally within fibers. (C) Analyses of percentage of muscle fibers displaying atypical central nuclei show no significant differences (p > 0.3) for either plasmid group for all three time points. (Reprinted from Figueiredo Neto et al. [59] with permission.)
Bioengineering 07 00107 g007
Table
Table 1. Examples of common in vitro sonoporation conditions. Conditions listed are representative of the preferred conditions for pDNA delivery in the referenced experiment, not representative of all conditions tested. PRF = pulse repetition frequency; “-“ = not reported; * = unpublished data; ** = therapeutic instrument.
Table 1. Examples of common in vitro sonoporation conditions. Conditions listed are representative of the preferred conditions for pDNA delivery in the referenced experiment, not representative of all conditions tested. PRF = pulse repetition frequency; “-“ = not reported; * = unpublished data; ** = therapeutic instrument.
SonoporatorFrequency (MHz)Burst (W/cm2)PRF (Hz)Duty Cycle (%)Duration (s)Cell TypeReference
KTAC-40001.0150.7-50360C2C12Our Group *
KTAC-400022.525010COS-7[44]
Sonidel SP1001210060450HeLa[42]
Sonidel SP10014-60450C2C12Our Group *
Panametrics2.25-1002010MAT B III[45]
ES-1 Ultrasonic Generator13.6--20PC3[41]
“Dedicated Continuous Wave System”10.75--30VSMC, HUVEC[39]
Mark 3, EMS Limited **10.81002020H2K Myoblast[46]
UltraMax **12100301800BHK, LNCaP, BCE[47]
Table
Table 2. Examples of optimized in vivo sonoporation conditions. The conditions listed are representative of the preferred conditions for pDNA delivery in the referenced experiment; they are not representative of all conditions tested. PRF = pulse repetition frequency; “-“ = not reported; * = unpublished data; + = not listed in work, but based on work carried out by same reference group.
Table 2. Examples of optimized in vivo sonoporation conditions. The conditions listed are representative of the preferred conditions for pDNA delivery in the referenced experiment; they are not representative of all conditions tested. PRF = pulse repetition frequency; “-“ = not reported; * = unpublished data; + = not listed in work, but based on work carried out by same reference group.
SonoporatorFrequency (MHz)Burst (W/cm2)PRF (Hz)Duty Cycle (%)Duration (s)Reference
Dedicated Sonoporators
BFC Applications Probe + WF1946A Frequency Synthesizer1310002060[74]
KTAC-40001.0153-2060Our Group *
Sonidel SP 10012-50180Our Group *
Sonidel SP 10011.9-25360[42]
Sonidel SP 10012-25180[75]
Sonigene13-2060[76]
Sonigene12-2060[17]
Sonitron 200010.4200201200[55,77]
Sonitron 200015-50600[78]
Sonitron 200014-50300 (60 * 5)[79]
Sonopore 300022.525060[51]
Therapeutic Instruments
Mark 3, EMS Limited11-20120[18]
Mark 3, EMS Limited+131002060[19]
Mark 3, EMS Limited121002030[38]
Modified Siemens Antares1.4-540-120[10]
Ultax UX-301+12.5--60[43]
UltraMax11.5-30120[80]
System V, GE Vingmed1.7Mechanical Index = 1.7180[39]

Share and Cite

MDPI and ACS Style

Decker, R.E.; Lamantia, Z.E.; Emrick, T.S.; Figueiredo, M.L. Sonodelivery in Skeletal Muscle: Current Approaches and Future Potential. Bioengineering 2020, 7, 107. https://doi.org/10.3390/bioengineering7030107

AMA Style

Decker RE, Lamantia ZE, Emrick TS, Figueiredo ML. Sonodelivery in Skeletal Muscle: Current Approaches and Future Potential. Bioengineering. 2020; 7(3):107. https://doi.org/10.3390/bioengineering7030107

Chicago/Turabian Style

Decker, Richard E., Zachary E. Lamantia, Todd S. Emrick, and Marxa L. Figueiredo. 2020. "Sonodelivery in Skeletal Muscle: Current Approaches and Future Potential" Bioengineering 7, no. 3: 107. https://doi.org/10.3390/bioengineering7030107

APA Style

Decker, R. E., Lamantia, Z. E., Emrick, T. S., & Figueiredo, M. L. (2020). Sonodelivery in Skeletal Muscle: Current Approaches and Future Potential. Bioengineering, 7(3), 107. https://doi.org/10.3390/bioengineering7030107

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
