Andean Sacha Inchi (Plukenetia Volubilis L.) Leaf-Mediated Synthesis of Cu2O Nanoparticles: A Low-Cost Approach

by
Brajesh Kumar
1,2,*,
Kumari Smita
2,
Alexis Debut
2 and
Luis Cumbal
2
1
Post Graduate Department of Chemistry, TATA College, Kolhan University, Chaibasa, Jharkhand 833202, India
2
Centro de Nanociencia y Nanotecnologia, Universidad de las Fuerzas Armadas ESPE, Av. Gral. Rumiñahui s/n, Sangolqui P.O. BOX 171-5-231B, Ecuador
*
Author to whom correspondence should be addressed.
Bioengineering 2020, 7(2), 54; https://doi.org/10.3390/bioengineering7020054
Submission received: 9 May 2020 / Revised: 3 June 2020 / Accepted: 4 June 2020 / Published: 6 June 2020
(This article belongs to the Special Issue Engineering Novel Multifunctional Nanostructures for Various Biomedical Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this work, Andean sacha inchi (Plukenetia volubilis L.) leaves were used to prepare monodispersed cuprous oxide (Cu2O) nanoparticles under heating. Visual color changes and UV-visible spectroscopy of colloidal nanoparticles showed λmax at 255 nm, revealing the formation of copper oxide nanoparticles. Transmission electron microscopy and dynamic light scattering analysis indicated that the prepared nanoparticles were spherical with an average size of 6–10 nm. The semi-crystalline nature and Cu2O phase of as-prepared nanoparticles were examined by X-ray diffraction. Fourier-transform infrared spectroscopy confirmed the presence of polyphenols, alkaloids and sugar in the sacha inchi leaf, allowing the formation of Cu2O nanoparticles from Cu2+. Additionally, as-synthesized Cu2O nanoparticles exhibited good photocatalytic degradation activity against methylene blue (>78%, 150 min) with rate constant 0.0219106 min−1. The results suggested that the adopted method is low-cost, simple, ecofriendly and highly selective for the synthesis of small Cu2O nanoparticles and may be used as a nanocatalyst in the future in the efficient treatment of organic pollutants in water.

Graphical Abstract

1. Introduction

During the last two decades, nanoparticles/nanomaterials (of size less than 100 nm) have been extensively studied due to their exclusive properties such as high surface-to-volume ratio, flexibility, quantum size, high yield strength, rigidity, ductility and macro-quantum tunneling effect, and are currently used in various areas of chemistry, physics, medicine and engineering [1,2]. Copper is one of the most important elements used worldwide for various purposes. In particular, copper oxide nanoparticles have received great attention because of their low cost, high yield, mild reaction conditions and fantastic applications in batteries [3], catalysis [4], optical devices [5], printed electronics [6], anticancer therapeutics, sensing, antioxidants [7], antimicrobial activities [8], fuel cells [9], bioimaging [10], dye removal [11], gas sensors [12], etc.
Copper oxide nanoparticles have been synthesized by a variety of chemical and physical methods including hydrothermal synthesis [13], the wet chemical method [14], solution phase synthesis [15], sonochemical synthesis [16], the microwave method [17], the laser ablation method [18] and ball milling [19], in which a large amount of solvents is required for obtaining pure and well-defined nanoparticles. They create various problems for the ecosystem and the environment [7,20]. Plant-based metal nanoparticle preparation methods are low-cost, simple and ecofriendly and hold great promise in biotechnology applications due to the presence of effective reducing and capping agents such as carbohydrates, polyphenols, terpenoids, sugars, amino acids, flavanoids, saponins, etc. [20]. Therefore, they are favored over chemical and physical synthesis methods [21]. Previously reported syntheses of cuprous oxide/cupric oxide (Cu2O/CuO) nanoparticles have used plant materials to support large-scale synthesis, including extracts of Azadirachta indica leaf [22], Aegle Marmelo leaf [23], Aloe barbadensis Miller leaf [24], Acalypha indica leaf [25] Punica granatum peel [26], Terminalia arjuna bark [27], Stachys lavandulifolia flower [28], Terminalia bellirica [29] and Rubus glaucus fruit [30], etc.
Sacha inchi (SI) (Plukenetia volubilis L.) is a promising crop plant originally from the Amazon basin of Latin America. Its star-shaped green fruits produce nut-like seeds with a bitter taste and have been consumed by humans since Incan times due to their high content of fatty acids (ω-3 and ω-6, 35–60%), protein (27–33%), carbohydrates and antioxidants [31]. Its dried leaves are marketed as a tea and contain 84.2–93.4% sugar [32]. Phytochemicals such as saponins, terpenoids, polyphenolic compounds (flavonoids) and other components are also found in SI leaves and are responsible for their antioxidant and antiproliferative activities [33].
Thus, the utilization of these lost crops in nanotechnology and green chemistry has been continued by our group: SI leaves for the synthesis of silver nanoparticles [34], SI oil for the synthesis of silver [35] and gold nanoparticles [36] and SI shell biomass for the synthesis of silver nanoparticles [37] and removal of Cu2+/Pb2+ [38]. Our research on the SI plant may support an additional source of revenue for farmers on the western and northern edges of South America, such as Colombia, Ecuador, Venezuela, Peru, Bolivia, Brazil and Suriname, and in the Lesser Antilles [31].
To our knowledge, there have been no reports of the synthesis of Cu2O nanoparticles using the SI leaf. Herein, green Cu2O nanoparticles were synthesized by reducing Cu2+ ions with aqueous extract of SI leaf. This nanoparticle is used in the degradation of methylene blue (MB), one of the most common organic pollutants in wastewater from the dye industry (Figure 1). It is environmentally undesirable at a trace level and excessive usage of MB causes serious diseases in human beings [35,36]. Hence, the development of an ecofriendly method for the removal of MB from wastewater is necessary. In this work, full spectroscopic and microscopic characterizations were performed to confirm the formation of Cu2O nanoparticles. Photocatalytic evaluation experiments indicated that Cu2O nanoparticles possess fast catalytic activity in the degradation of MB.

2. Materials and Methods

2.1. Materials

Copper nitrate (Cu(NO3)2·3H2O, 99.0%) and methylene blue (MB, 99.5%) were purchased from Spectrum, USA. Sacha inchi (SI) leaves were collected with the help of Mr. Abraham Rodolfo Sanchez Piňuela from a farm in Quito, Ecuador. Milli-Q water was used in all experiments. All chemicals listed above were of analytical grade and used without any purification.

2.2. Preparation of Cu2O Nanoparticles

Thoroughly washed SI leaves were shade-dried for one week. The extraction of phytochemicals from the SI leaves was performed by an earlier extraction method [34]. Nearly 800 mg of the dried SI leaf was crushed into small pieces and transferred to a 100 mL flask containing 50 mL of Milli-Q water, and then it was mixed well and heated (64–68 °C) for 30 min. The obtained red extract of SI leaf was filtered through Whatman No. 1 paper and stored at 4 °C for further use. For the synthesis of Cu2O nanoparticles, 5 mL of SI leaf extract was added slowly to 20 mL of Cu(NO3)2 solution (10 mM), followed by heating for 5 h at 85–90 °C with continuous stirring. The formation of the Cu2O nanoparticles was indicated by a change of reaction mixture color from bluish-red to a greenish color.

2.3. Characterization of Cu2O Nanoparticles

The samples containing nanoparticles were confirmed by a UV-visible spectrophotometer, GENESYSTM 8 from Thermo Spectronic, England. The particle size distribution of the sample was analyzed using the HORIBA, DLS Version LB-550 program, Japan. The morphology and selected area electron diffraction (SAED) pattern of the nanoparticles were captured on a transmission electron microscope (TEM), FEI Tecnai, G2 Spirit Twin, Holland. X-ray diffraction (XRD) studies on thin films of the nanoparticle were carried out using a PANalytical brand θ-2θ configuration (generator-detector) X-ray tube, copper λ = 1.54059 Å, and an EMPYREAN diffractometer. The Fourier-transform infrared (FTIR) spectra were collected on a Spectrum Two IR spectrometer from Perkin Elmer, USA. The samples for FTIR and XRD analysis were prepared by carefully depositing a thin film of Cu2O nanoparticles on a glass slide by injecting and heating 1800 μL (600 μL × 3 times) of Cu2O solution drop by drop at 60–65 °C for 20–30 min allowing the solvent to evaporate. After that, the thin film of the samples was scratched and the FTIR-ATR analysis was performed.

2.4. Photocatalytic Effects

The photocatalytic activity of Cu2O nanoparticles during the degradation of MB was determined by carrying out the reaction in direct sunlight (1040–1165 cd/m2) at 30–35 °C (atmospheric temperature). Typically, 5 mL MB (10 mg/L) was mixed with 1 mL H2O in a glass tube; in a second glass tube, 5 mL MB (10 mg/L), aqueous solution containing Cu2O nanoparticles (500 μL) and H2O (500 μL) was mixed in the dark for 20 min to reach an adsorption-desorption equilibrium. Then, both sets were exposed to direct sunlight and the progress of the degradation reaction was monitored at different time intervals by UV-vis spectroscopy at a wavelength of 664 nm. To evaluate the interference of SI leaf extract on the reduction of MB, a separate reaction was performed in which 5 mL of MB (10 mg/L) was mixed with 500 μL of SI extract and 500 μL of H2O. After that, the reaction mixture was heated at 40 °C for 120 min in the dark. The photocatalytic degradation percentage of MB was calculated using Equation (1) and the respective first-order rate constants (k) according to Equation (2).
η = (A0 − At)/A0 × 100%
kt = ln (A0/At)
where η is the rate of degradation of MB in terms of percentage, A0 is the initial absorbance of the dye solution and At is the absorbance of the MB at time t, respectively. C0/Ct is measured from the relative intensity of absorbance (A0/At). The linear relationship of ln (A0/At) versus time indicates that the photodegradation of MB follows first-order kinetics [35,36].

3. Results and Discussion

3.1. UV-Vis Spectroscopy Analysis

Figure 2 shows the UV-visible absorption spectra of as-prepared Cu2O nanoparticles in the presence of SI leaf extract in an aqueous medium. The colorimetric reduction reaction of Cu2+ ions with the SI leaf extract (red colour) indicated the formation of a greenish-colored solution (a and b in Figure 2), attributed to the surface plasmon resonance (SPR) of the Cu2O nanoparticles [30,39]. The absorption peaks appearing at 260 and 340 nm (red line) correspond to the polyphenolic compounds present in the SI leaf extract [34], while as-prepared Cu2O nanoparticles exhibited a broad absorption peak at between 240 to 380 nm having two λmax at 255 and 360 nm (green line), respectively [39,40]. The change observed in the spectrum after the reduction of Cu2+ ions to Cu2O nanoparticles corresponds to the formation of Cu-phytochemicals, complex or spherical Cu2O nanoparticles with size 2–5 nm and quite stable in the shape-position of absorption after one month, indirectly indicating the stability of the nanoparticles [39,40].

3.2. TEM and SAED Analysis

The exact shape and size of the nanoparticles was determined using a TEM image. The high- (Figure 3a) and low- (Figure 3d) magnification TEM images showed a good dispersion with the spherical morphology of Cu2O nanoparticles inside the SI leaf extract. The majority of the nanoparticles observed from the TEM micrograph are small, with a size of 6–10 nm, indicating the availability of high surface catalytic activity for Cu2O nanoparticles; a small few of the Cu2O nanoparticles are of a bigger size, around 20–45 nm. This may be due to the presence of excessive SI phytochemicals on the surface of the Cu2O nanoparticles, which can cause the aggregation and enlargement of nanoparticles during the synthesis of Cu2O nanoparticles. The size distribution pattern of the nanoparticles observed in the TEM image (Figure 3a) was analyzed manually using ImageJ software. It showed the average size of the Cu2O nanoparticles to be 6.67 ± 3.96 nm (Figure 3b). No aggregation of nanoparticles suggested the presence of hydrophobic coating around the Cu2O nanoparticles. The SAED pattern of the Cu2O nanoparticles (Figure 3c) shows partial concentric rings which signify that the particles are spherical shape, semicrystalline nature and indexed as (111) and (200) lattice planes for the face-centred cubic (FCC) structure of Cu2O nanoparticles [16].

3.3. DLS Analysis

The dynamic light scattering (DLS) technique gives valuable information about the hydrodynamic size distribution of the Cu2O nanoparticles (Figure 4). The average width of the Cu2O nanoparticles was found to be 8.2 ± 2.1 nm with polydispersity index (PDI) = 0.0656. The observed PDI < 0.1 clearly indicates that the synthesized Cu2O nanoparticles were monodispersed in nature [29]. However, the average size of as-synthesized Cu2O nanoparticles determined by the DLS method was slightly higher than in the TEM analysis. This is due to either the presence of organic coating around nanoparticles or the screening of small particles by bigger ones [36,41].

3.4. XRD Analysis

In order to clarify the nature and crystallinity of the Cu2O nanoparticles, XRD analysis was performed as shown in Figure 5. The presence of intense peaks at 2θ = 36.46 and 42.45° represents the (111) and (200) planes. The XRD reflections of Cu2O match that of Inorganic Crystal Structure Database ICDD (Inorganic Crystal Structure Database) no. 98-018-0846 corresponding to the semi-crystalline cubic FCC structure, which match the common peaks in the earlier report [42]. It can be also observed that the undesired peak at 2θ = 32° is due to a typical impurity caused by a metallo-organic structure [23,24]. It is likely that these peaks indicate that the phytochemicals in SI leaf extract attached to the Cu2O nanoparticles and were also involved with surface-capped nanoparticles. However, the observed size of the nanoparticles in the XRD using the Scherrer formula (~46 nm) is bigger than in the TEM-DLS results [40]; this may be due to the aggregation of particles during drying for the preparation of XRD samples. This increment could be attributed to the light scattering effect because of the aggregation of the metal [43].

3.5. FTIR Analysis

FTIR spectra of the particles were recorded to detect the chemical interaction between SI leaf extract and Cu2+ that occurs during the synthesis of Cu2O nanoparticles (Figure 6). They reveal a weak absorption band at 698 cm−1 may correspond to the Cu-O bond vibrational frequencies, which are slightly higher than reported Cu–O (645 cm−1) bond vibration due to depending on the degree of hydrogen bonding. Furthermore, the additional Cu–O–H bonds lead to bending absorptions in the region of 896 cm−1 [44]. This can be attributed to the presence of the Cu–O bond. The strong band at 1028 cm−1 can be attributed to the C–O–C/secondary C–OH bonds in the polysaccharide/protein structure of the SI leaf [34]. The prominent bands at around 1241, 1314, 1374 and 1601 cm−1 can be attributed to the vibrational mode for C–H, C–N, C=C and C=O (amide 1) [30]. The existence of the peaks at 2847 and 2921 cm−1 is due to the symmetric and asymmetric C–H stretching vibrations of flavonoids/phenolic compounds, respectively. The broad absorption peak at 3331 cm−1 shows the existence of O–H/N–H stretching groups of macromolecular association [32,34]. The FTIR results indicate that the extract of SI leaf acted as a reducing and capping agent in the synthesis of the Cu2O nanoparticles.

3.6. Photocatalytic Activity

Figure 7a shows the photocatalytic activity of Cu2O nanoparticles in the degradation of MB. The peaks at around 300 nm correspond to the absorption of the benzene ring and the peaks between 600–700 nm represent the absorption of heteropoly aromatic linkage of MB [45]. It can be seen that the degradation of MB increases with increasing solar irradiation time by observing the decrease in λmax at 664 nm [35]. The photodegradation percentages (η) of MB for 30, 75 and 150 min are 25.45%, 59.88% and 78.90% in the presence of Cu2O nanoparticles when compared with that of the respective controls. No change of absorbance at λmax = 664 nm was observed when a blank test was performed with MB and SI leaf extract. This confirms that the SI leaf extract does not interfere with the reduction of MB. In Figure 7b, the plots of ln (A0/At) versus time yield good linear correlations and are well fitted with pseudo-first-order kinetics. The result indicates that the observed rate constant (k) and correlation coefficient (R2) for the MB degradation were 21.9106 × 10−3 min−1 and 0.9999. Hence, the present study highlights the promising potential of SI leaf-synthesized Cu2O nanoparticles for MB degradation in wastewater.

4. Conclusions

In conclusion, the use of SI leaf as a bioreducant for the synthesis of Cu2O nanoparticles is a low-cost, simple and ecofriendly approach. The results obtained from DLS, TEM, XRD and FTIR suggest that the Cu2O nanoparticles are highly dispersed, spherical, 6–10 nm in size, semicrystalline and surface-capped with SI leaf extract. The applied approach provided a Cu2O nanocatalyst, which presented very good catalytic performance for the degradation of MB under sunlight.

Author Contributions

All authors contributed equally to the research work presented in this research article. All authors have read and agreed to the published version of the manuscript.

Funding

This scientific work has been funded by the Universidad de las Fuerzas Armadas ESPE and Prometeo Project of the National Secretariat of Higher Education, Science, Technology and Innovation (SENESCYT), Ecuador.

Acknowledgments

Many thanks to Principal (Kasturi Boipai), TATA College, Chaibasa, India for support to complete this research work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Din, M.I.; Arshad, F.; Hussain, Z.; Mukhtar, M. Green adeptness in the synthesis and stabilization of copper nanoparticles: Catalytic, Antibacterial, Cytotoxicity, and Antioxidant Activities. Nanoscale Res. Lett 2017, 12, 638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Mehdizadeh, T.; Zamani, A.; Froushani, M.A. Preparation of Cu nanoparticles fixed on cellulosic walnut shell material and investigation of its antibacterial, antioxidant and anticancer effects. Heliyon 2020, 6, e03528. [Google Scholar] [CrossRef] [PubMed]
  3. Poizot, P.; Laruelle, S.; Grugeon, S.; Dupont, L.; Tarascon, J.M. Nano-sized Transition-Metal Oxides as Negative-Electrode Materials for Lithium-Ion Batteries. Nature 2000, 407, 496–499. [Google Scholar] [CrossRef] [PubMed]
  4. Gawande, M.B.; Goswami, A.; Felpin, F.-X.; Asefa, T.; Huang, X.; Silva, R.; Zou, X.; Zboril, R.; Varma, R.S. Cu and Cu-based nanoparticles: Synthesis and applications in catalysis. Chem. Rev. 2016, 116, 3722–3811. [Google Scholar] [CrossRef] [Green Version]
  5. Li, Y.; Qian, F.; Xiang, J.; Charles, M.L. Nanowire electronics and opteoelectronics devices. Mater. Today 2006, 9, 18–27. [Google Scholar] [CrossRef]
  6. Lee, W.; Lim, Y.S.; Kim, S.; Jung, J.; Han, Y.-K.; Yoon, S.; Pioa, L.; Kim, S.-H. Crystal-to crystal conversion of Cu2O nanoparticles to Cu crystals and applications in printed electronics. J. Mater. Chem. 2011, 21, 6928–6933. [Google Scholar] [CrossRef]
  7. Prasad, P.R.; Kanchi, S.; Naidoo, E.B. In-vitro evaluation of copper nanoparticles cytotoxicity on prostate cancer cell lines and their antioxidant, sensing and catalytic activity: One-pot green approach. J. Photochem. Photobiol. B Biol. 2016, 161, 375–382. [Google Scholar] [CrossRef]
  8. Patel, B.H.; Channiwala, M.Z.; Chaudhari, S.B.; Mandot, A.A. Biosynthesis of copper nanoparticles; Its characterization and efficacy against human pathogenic bacterium. J. Environ. Chem. Eng. 2016, 4, 2163–2169. [Google Scholar] [CrossRef]
  9. Xiao, G.; Gao, P.; Wang, L.; Chen, Y.; Wang, Y.; Zhang, G. Ultrasonochemical-assisted synthesis of CuO nanorods with high hydrogen storage ability. J. Nanomater. 2011, 201, 1–6. [Google Scholar] [CrossRef] [Green Version]
  10. Zhu, H.; Wang, J.; Xu, G. Fast Synthesis of Cu2O hollow microspheres and their application in DNA biosensor of hepatitis B virus. Cryst. Growth Des. 2009, 9, 633–638. [Google Scholar] [CrossRef]
  11. Saravanan, S.; Sivasankar, T. Effect of ultrasound power and calcination temperature on the sonochemical synthesis of copper oxide nanoparticles for textile dyes treatment. Environ. Prog. Sustain. Energy 2016, 35, 669–679. [Google Scholar] [CrossRef]
  12. Zhang, J.; Liu, J.; Peng, Q.; Wang, X.; Li, Y. Nearly monodisperse Cu2O and CuO nanospheres: Preparation and applicationfs or sensitive gas sensors. Chem. Mater. 2006, 18, 867–871. [Google Scholar] [CrossRef]
  13. Pan, L.; Zou, J.-J.; Zhang, T.; Wang, S.; Li, Z.; Wang, L.; Zhang, X. Cu2O film via hydrothermal redox approach: Morphology and photocatalytic performance. J. Phys. Chem. C 2014, 118, 16335–16343. [Google Scholar] [CrossRef]
  14. Wang, Z.; Wang, H.; Wang, L.; Pan, L. Controlled synthesis of Cu2O cubic and octahedral nano- and microcrystals. Cryst. Res. Technol. 2009, 44, 624–628. [Google Scholar] [CrossRef]
  15. Gou, L.; Murphy, C.J. Solution-phase synthesis of Cu2O nanocubes. Nano Lett. 2003, 3, 231–234. [Google Scholar] [CrossRef]
  16. Bhosale, M.A.; Bhanage, B.M. A simple approach for sonochemical synthesis of Cu2O nanoparticles with high catalytic properties. Adv. Powder Technol. 2016, 27, 238–244. [Google Scholar] [CrossRef]
  17. Wang, W.-W.; Zhu, Y.-J.; Cheng, G.-F.; Huang, Y.-H. Microwave-assisted synthesis of cupric oxide nanosheets and nanowhiskers. Mater. Lett. 2006, 60, 609–612. [Google Scholar] [CrossRef]
  18. Swarnkar, R.K.; Singh, S.C.; Gopal, R. Effect of aging on copper nanoparticles synthesized by pulsed laser ablation in water: Structural and optical characterizations. Bull. Mater. Sci. 2011, 34, 1363–1369. [Google Scholar] [CrossRef]
  19. Khayati, G.R.; Nourafkan, E.; Karimi, G.; Moradgholi, J. Synthesis of cuprous oxide nanoparticles by mechanochemical oxidation of copper in high planetary energy ball mill. Adv. Powder Technol. 2013, 24, 301–305. [Google Scholar] [CrossRef]
  20. Kuppusamy, P.; Ilavenil, S.; Srigopalram, S.; Maniam, G.P.; Yusoff, M.M.; Govindan, N.; Choi, K.C. Treating of palm oil mill effluent using Commelina nudiflora mediated copper nanoparticles as a novel bio-control agent. J. Clean. Prod. 2017, 141, 1023–1029. [Google Scholar] [CrossRef] [Green Version]
  21. Ghorbani, H.R. Biological and non-biological methods for fabrication of copper nanoparticles. Chem. Eng. Commun. 2015, 202, 1463–1467. [Google Scholar] [CrossRef]
  22. Nagar, N.; Devra, V. Green synthesis and characterization of copper nanoparticles using Azadirachta indica leaves. Mater. Chem. Phys. 2018, 213, 44–51. [Google Scholar] [CrossRef]
  23. Angajala, G.; Pavan, P.; Subashini, R. One-step biofabrication of copper nanoparticles from Aegle Marmelos correa aqueous leaf extract and evaluation of its anti-inflammatory and mosquito larvicidal efficacy. RSC Adv. 2014, 4, 51459–51470. [Google Scholar] [CrossRef]
  24. Gunalan, S.; Sivaraj, R.; Venckatesh, R. Aloe barbadensis Miller mediated green synthesis of mono-disperse copper oxide nanoparticles: Optical properties. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2012, 97, 1140–1144. [Google Scholar] [CrossRef] [PubMed]
  25. Sivaraj, R.; Rahman, P.K.S.M.; Rajiv, P.; Narendhran, S.; Venckatesh, R. Biosynthesis and characterization of Acalypha indica mediated copper oxide nanoparticles and evaluation of its antimicrobial and anticancer activity. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2014, 129, 255–258. [Google Scholar] [CrossRef]
  26. Ghidan, A.Y.; Al-Antary, T.M.; Awwad, A.M. Green synthesis of copper oxide nanoparticles using Punica granatum peels extract: Effect on green peach Aphid. Environ. Nanotechnol. Monit. Manag. 2016, 6, 95–98. [Google Scholar] [CrossRef]
  27. Yallappa, S.; Manjanna, J.; Sindhe, M.A.; Satyanarayan, N.D.; Pramod, S.N.; Nagaraja, K. Microwave assisted rapid synthesis and biological evaluation of stable copper nanoparticles using T. arjuna bark extract. Spectrochim Acta A Mol. Biomol. Spectrosc. 2013, 110, 108–115. [Google Scholar] [CrossRef]
  28. Khatami, M.; Heli, H.; Jahani, P.M.; Marcos, H.A.; Nobre, A.L. Copper/copper oxide nanoparticles synthesis using Stachys lavandulifolia and its antibacterial activity. IET Nanobiotechnol. 2017, 11, 709–713. [Google Scholar] [CrossRef]
  29. Viswadevarayalu, A.; Ramana, P.V.; Kumar, G.S.; Sumalatha, J.; Reddy, S.A. Fine ultrasmall copper nanoparticle (UCuNPs) synthesis by using Terminalia bellirica fruit extract and its antimicrobial activity. J. Clust. Sci. 2016, 27, 155–168. [Google Scholar] [CrossRef]
  30. Kumar, B.; Smita, K.; Cumbal, C.; Debut, A.; Angulo, Y. Biofabrication of copper oxide nanoparticles using Andean blackberry (Rubus glaucus Benth.) fruit and leaf. J. Saudi Chem. Soc. 2017, 21, S475–S480. [Google Scholar] [CrossRef] [Green Version]
  31. Kodahl, N. Sacha inchi (Plukenetia volubilis L.)—From lost crop of the Incas to part of the solution to global challenges? Planta 2020, 251, 80. [Google Scholar] [CrossRef] [PubMed]
  32. Nascimento, A.K.L.; Melo-Silveira, R.F.; Dantas-Santos, N.; Fernandes, J.M.; Zucolotto, S.M.; Rocha, H.A.O.; Scortecci, K.C. Antioxidant and antiproliferative activities of leaf extracts from Plukenetia volubilis Linneo (Euphorbiaceae). Evid. Based Complement. Altern. Med. 2013, 2013, 950272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Wang, S.; Zhub, F.; Kakuda, Y. Sacha inchi (Plukenetia volubilis L.): Nutritional composition, biological activity, and uses. Food Chem. 2018, 265, 316–328. [Google Scholar] [CrossRef] [PubMed]
  34. Kumar, B.; Smita, K.; Cumbal, C.; Debut, A. Synthesis of silver nanoparticles using Sacha inchi (Plukenetia volubilis L.) leaf extracts. Saudi J. Biol. Sci. 2014, 21, 605–609. [Google Scholar] [CrossRef] [Green Version]
  35. Kumar, B.; Smita, K.; Cumbal, C.; Debut, A. Sacha inchi (Plukenetia volubilis L.) oil for one pot synthesis of silver nanocatalyst: An ecofriendly approach. Ind. Crop. Prod. 2014, 58, 238–243. [Google Scholar] [CrossRef]
  36. Kumar, B.; Smita, K.; Cumbal, C.; Debut, A. One pot synthesis and characterization of gold nanocatalyst using Sacha inchi (Plukenetia volubilis) oil: Green approach. J. Photochem. Photobiol. B Biol. 2016, 158, 55–60. [Google Scholar] [CrossRef]
  37. Kumar, B.; Smita, K.; Cumbal, C.; Debut, A. Sacha inchi (Plukenetia volubilis L.) shell biomass for synthesis of silver nanocatalyst. J. Saudi Chem. Soc. 2017, 21, S293–S298. [Google Scholar] [CrossRef] [Green Version]
  38. Kumar, B.; Smita, K.; Sánchez, E.; Stael, C.; Cumbal, C. Andean Sacha inchi (Plukenetia volubilis L.) shell biomass as new biosorbents for Pb2+ and Cu2+ ions. Ecol. Eng. 2016, 93, 152–158. [Google Scholar] [CrossRef]
  39. Abboud, Y.; Saffaj, T.; Chagraoui, A.; El Bouari, A.; Brouzi, K.; Tanane, O.; Ihssane, B. Biosynthesis, characterization and antimicrobial activity of copper oxide nanoparticles (CONPs) produced using brown alga extract (Bifurcaria bifurcata). Appl. Nanosci. 2014, 4, 571–576. [Google Scholar] [CrossRef] [Green Version]
  40. Borgohain, K.; Murase, N.; Mahamuni, S. Synthesis and properties of Cu2O quantum particles. J. Appl. Phys. 2002, 92, 1292–1297. [Google Scholar] [CrossRef]
  41. Bhattacharjee, S. DLS and zeta potential—What they are and what they are not? J. Control. Release 2016, 235, 337–351. [Google Scholar] [CrossRef] [PubMed]
  42. Meghana, S.; Kabra, P.; Chakraborty, S.; Padmavathy, N. Understanding the pathway of antibacterial activity of copper oxide nanoparticles. RSC Adv. 2015, 5, 12293–12299. [Google Scholar] [CrossRef]
  43. Lin, H.; Huang, C.P.; Li, W.; Ni, C.; Shah, S.I.; Tseng, Y.H. Size dependency of nanocrystalline TiO2 on its optical property and photocatalytic reactivity exemplified by 2-chlorophenol. Appl. Catal. B Environ. 2006, 68, 1–11. [Google Scholar] [CrossRef]
  44. Moniri, S.; Ghoranneviss, M.; Hantehzadeh, M.R.; Asadabad, M.A. Synthesis and optical characterization of copper nanoparticles prepared by laser ablation. Bull. Mater. Sci. 2017, 40, 37–43. [Google Scholar] [CrossRef]
  45. Fathima, J.B.; Pugazhendhi, A.; Oves, M.; Venis, R. Synthesis of eco-friendly copper nanoparticles for augmentation of catalytic degradation of organic dyes. J. Mol. Liq. 2018, 260, 1–8. [Google Scholar] [CrossRef]
Bioengineering 07 00054 g001 550

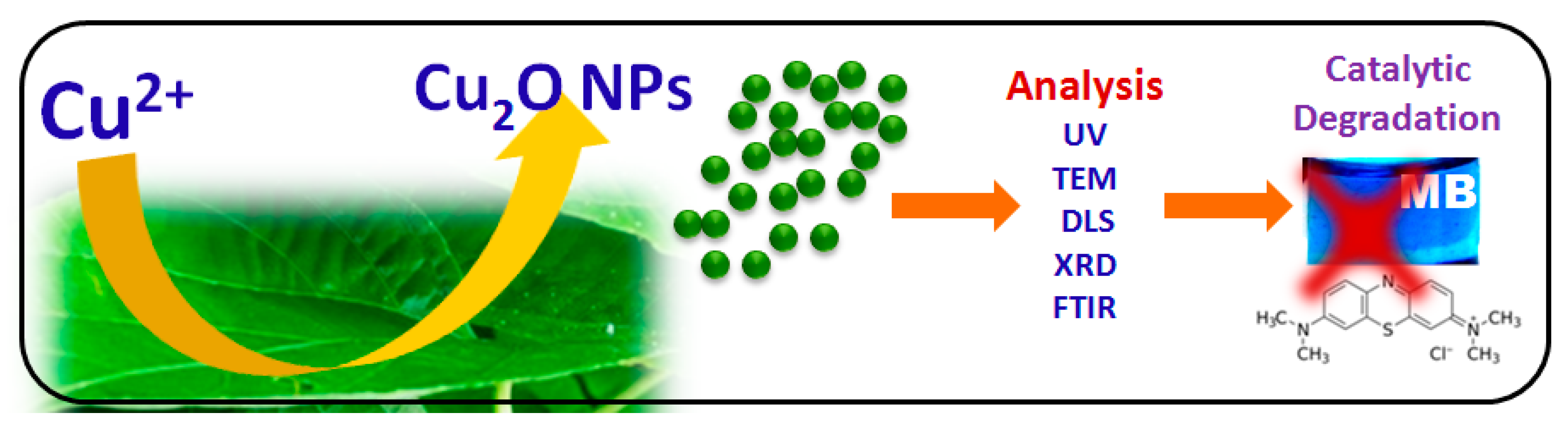

Figure 1. Schematic presentation of the synthesis and application of Cu2O nanoparticles.
Figure 1. Schematic presentation of the synthesis and application of Cu2O nanoparticles.
Bioengineering 07 00054 g001
Bioengineering 07 00054 g002 550
Figure 2. UV-vis spectra of SI leaf extract (red line) and Cu2O nanoparticles (green line). Visual picture of solution containing (a) SI leaf extract and (b) Cu2O nanoparticles.
Figure 2. UV-vis spectra of SI leaf extract (red line) and Cu2O nanoparticles (green line). Visual picture of solution containing (a) SI leaf extract and (b) Cu2O nanoparticles.
Bioengineering 07 00054 g002
Bioengineering 07 00054 g003 550
Figure 3. (a,d) TEM (transmission electron microscope) images of Cu2O nanoparticles synthesized in solution, (b) size distribution pattern and (c) SAED pattern.
Figure 3. (a,d) TEM (transmission electron microscope) images of Cu2O nanoparticles synthesized in solution, (b) size distribution pattern and (c) SAED pattern.
Bioengineering 07 00054 g003
Bioengineering 07 00054 g004 550
Figure 4. DLS size distribution of the Cu2O nanoparticles. Abbreviations: DLS, dynamic light scattering.
Figure 4. DLS size distribution of the Cu2O nanoparticles. Abbreviations: DLS, dynamic light scattering.
Bioengineering 07 00054 g004
Bioengineering 07 00054 g005 550
Figure 5. XRD pattern of the Cu2O nanoparticles. Abbreviations: XRD, X-ray diffraction.
Figure 5. XRD pattern of the Cu2O nanoparticles. Abbreviations: XRD, X-ray diffraction.
Bioengineering 07 00054 g005
Bioengineering 07 00054 g006 550

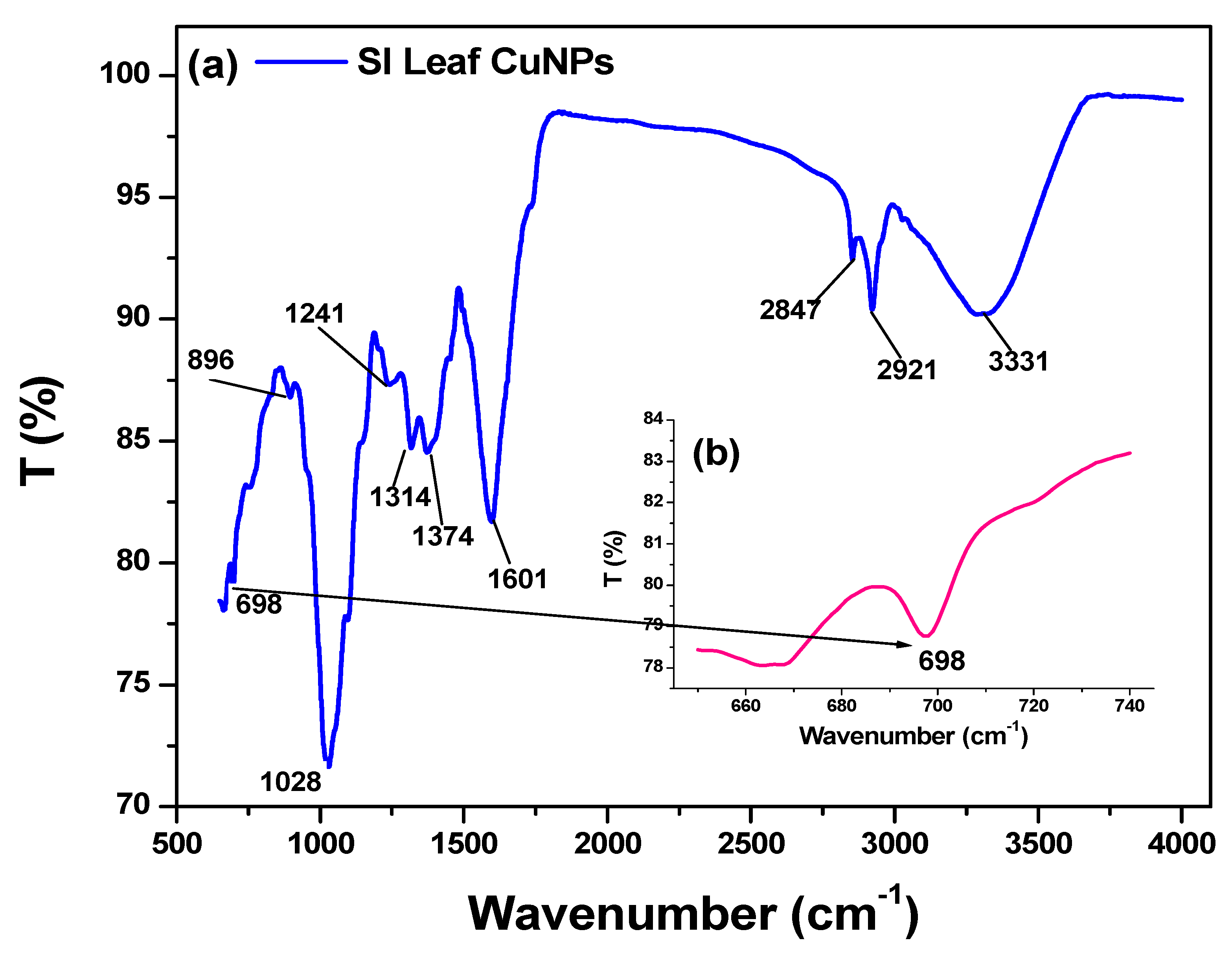

Figure 6. (a) FTIR spectrum of as-synthesized Cu2O nanoparticles using SI leaf extract and (b) specific Cu–O at 698 cm−1.
Figure 6. (a) FTIR spectrum of as-synthesized Cu2O nanoparticles using SI leaf extract and (b) specific Cu–O at 698 cm−1.
Bioengineering 07 00054 g006
Bioengineering 07 00054 g007 550
Figure 7. (a) Photocatalytic degradation pattern and (b) ln (A0/At) vs. time kinetic plot of MB using Cu2O nanoparticles as photocatalyst.
Figure 7. (a) Photocatalytic degradation pattern and (b) ln (A0/At) vs. time kinetic plot of MB using Cu2O nanoparticles as photocatalyst.
Bioengineering 07 00054 g007
