Biomechanical Effects of Cement Augmentation and Prophylactic Vertebroplasty on Adjacent Segment Stability in Multilevel Spinal Fusion: A Finite Element Analysis
Abstract
1. Introduction
2. Materials and Methods
2.1. Ethical Considerations
2.2. Finite Element Analysis of an Intact Model
2.3. Finite Element Model Verification
2.4. Finite Element Analysis of Surgical Models
- Type 1: Fusion with pedicle screws only.
- Type 2: Fusion with pedicle screws and cement augmentation at T10.
- Type 3: Fusion with pedicle screws and cement augmentation at T10 and T11.
- Type 4: Fusion with pedicle screws, cement augmentation at T10 and T11, and vertebroplasty at T9.
- Type 5: Fusion with pedicle screws, cement augmentation at T10 and T11, and vertebroplasty at T8 and T9.
2.5. Boundary and Loading Conditions
2.6. Outcome Measures
3. Results

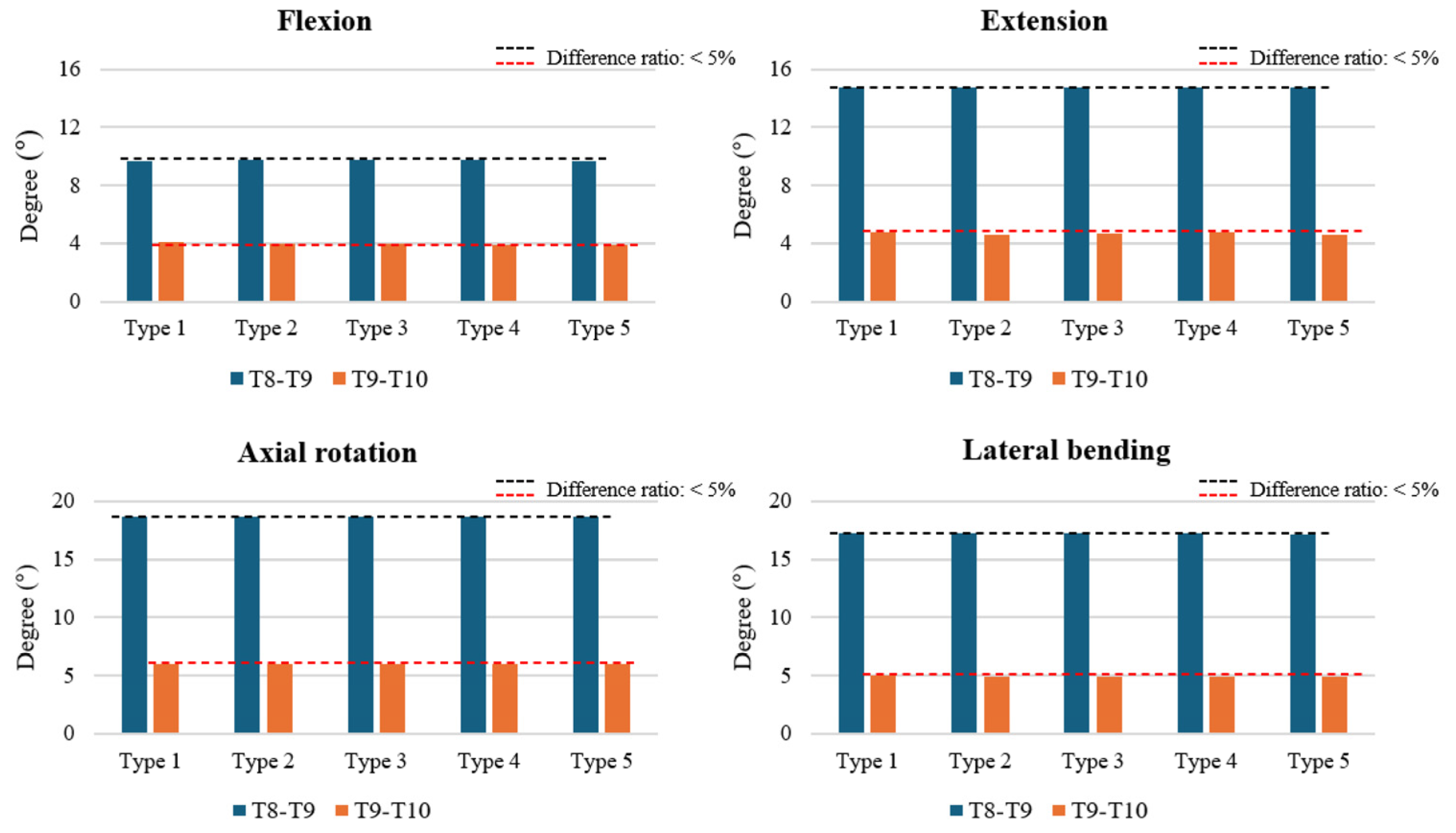

3.1. ROM at T8–T9 and T9–T10

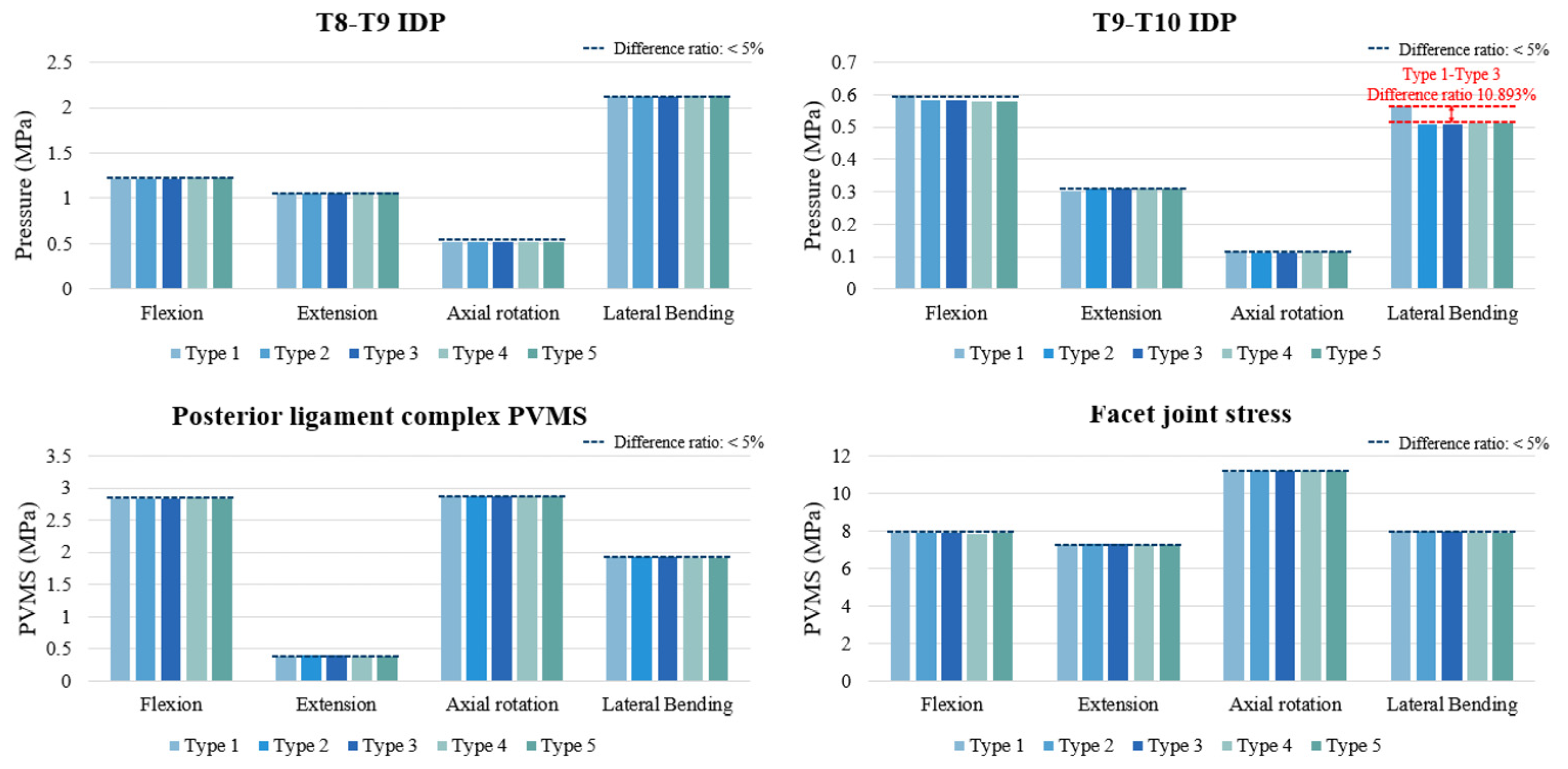

3.2. IDP at T8–T9 and T9–T10
3.3. PVMS in the PLC and Facet Joint Stress (MPa) at T8–T9

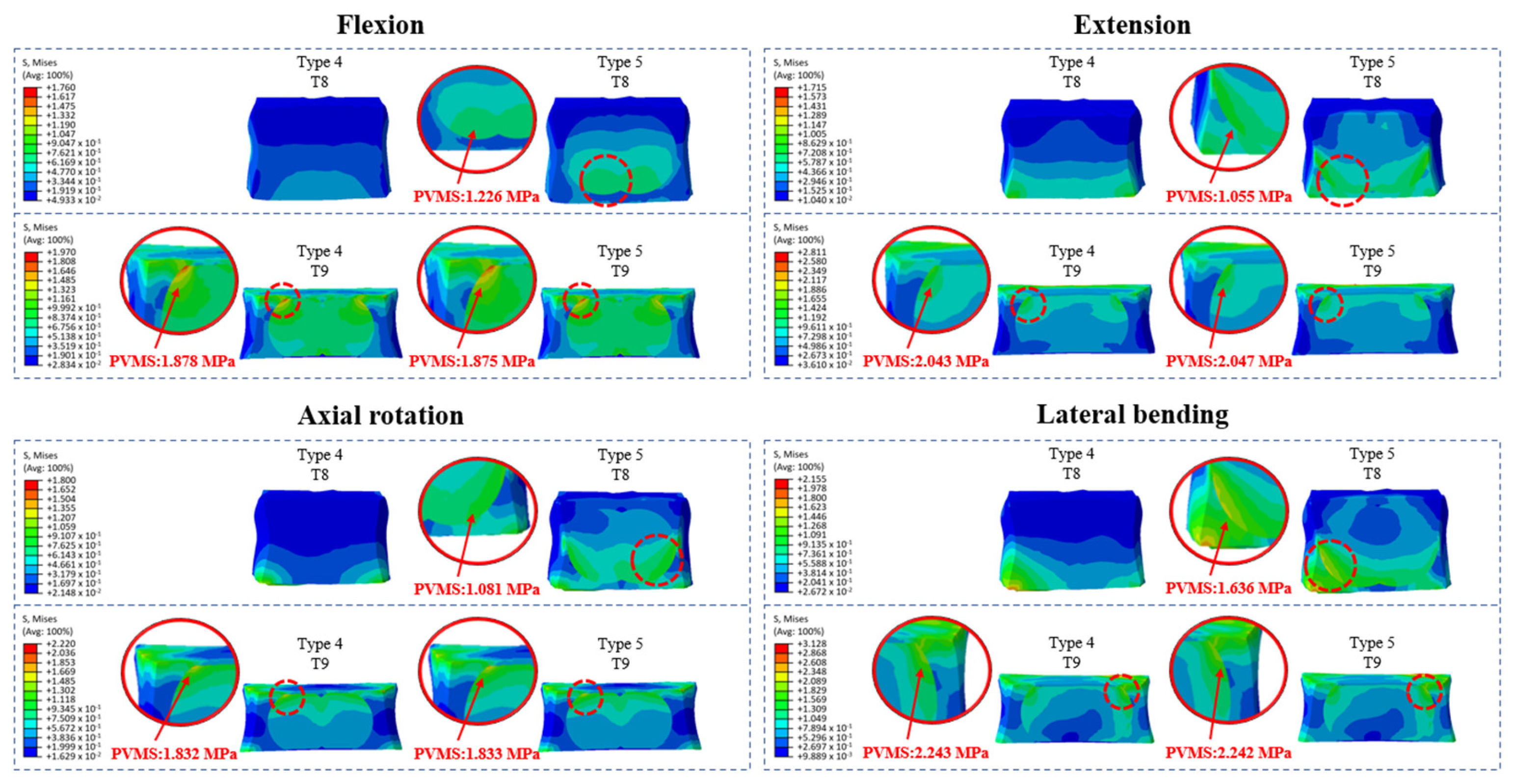

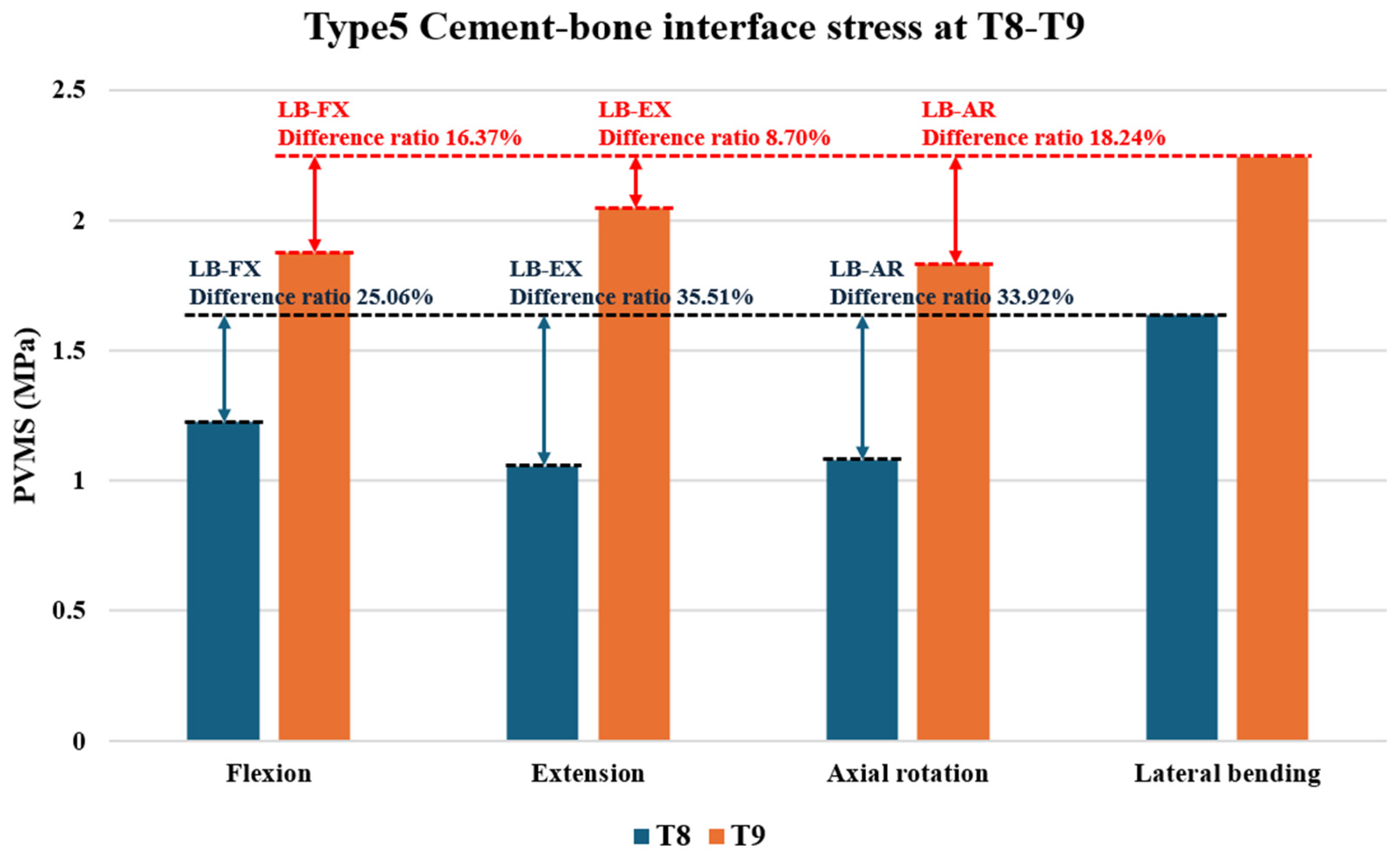

3.4. Cement–Bone Interface Stress Distribution at Adjacent Levels (T8 and T9) During Flexion, Extension, Axial Rotation, and Lateral Bending
4. Discussion
5. Conclusions
- Cement augmentation at the UIV did not significantly affect ROM, IDP, PLC, or facet joint PVMS, indicating preserved stability.
- UIV cement augmentation alone did not increase stress distribution at adjacent levels.
- Prophylactic vertebroplasty at adjacent levels produced uneven cement–cancellous bone interface stresses, particularly at T8 and T9.
- These abnormal stress concentrations may predispose patients to adjacent-level fractures and contribute to PJK or PJF.
- The results emphasize the trade-off between immediate fixation strength and long-term fracture risk, especially in osteoporotic or kyphotic patients.
- This study provides biomechanical evidence to guide surgical strategies aimed at minimizing complications and improving outcomes in multilevel spinal fusion.
- Future work should focus on osteoporotic, patient-specific finite element models and validation with clinical or experimental data to further refine surgical strategies.
