Engineering Escherichia coli for Poly-β-hydroxybutyrate Production from Methanol

by
Jiaying Wang
1,2,3,†,
Zhiqiang Chen
2,†,
Xiaogui Deng
1,2,4,
Qianqian Yuan
2,5,* and
Hongwu Ma
2,5,*
1
Tianjin University of Science and Technology, Tianjin 300457, China
2
Biodesign Center, Key Laboratory of Engineering Biology for Low-Carbon Manufacturing, Tianjin Institute of Industrial Biotechnology, Chinese Academy of Sciences, Tianjin 300308, China
3
College of Food Science and Engineering, Tianjin University of Science and Technology, Tianjin 300457, China
4
School of Biological Engineering, Tianjin University of Science and Technology, Tianjin 300457, China
5
National Center of Technology Innovation for Synthetic Biology, Tianjin 300308, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Bioengineering 2023, 10(4), 415; https://doi.org/10.3390/bioengineering10040415
Submission received: 31 December 2022 / Revised: 13 March 2023 / Accepted: 20 March 2023 / Published: 26 March 2023
(This article belongs to the Special Issue Bio-Applications of Engineered Escherichia coli)
Browse Figures
Review Reports Versions Notes

Abstract

:
The naturally occurring one-carbon assimilation pathways for the production of acetyl-CoA and its derivatives often have low product yields because of carbon loss as CO2. We constructed a methanol assimilation pathway to produce poly-3-hydroxybutyrate (P3HB) using the MCC pathway, which included the ribulose monophosphate (RuMP) pathway for methanol assimilation and non-oxidative glycolysis (NOG) for acetyl-CoA (precursor for PHB synthesis) production. The theoretical product carbon yield of the new pathway is 100%, hence no carbon loss. We constructed this pathway in E. coli JM109 by introducing methanol dehydrogenase (Mdh), a fused Hps–phi (hexulose-6-phosphate synthase and 3-phospho-6-hexuloisomerase), phosphoketolase, and the genes for PHB synthesis. We also knocked out the frmA gene (encoding formaldehyde dehydrogenase) to prevent the dehydrogenation of formaldehyde to formate. Mdh is the primary rate-limiting enzyme in methanol uptake; thus, we compared the activities of three Mdhs in vitro and in vivo and then selected the one from Bacillus methanolicus MGA3 for further study. Experimental results indicate that, in agreement with the computational analysis results, the introduction of the NOG pathway is essential for improving PHB production (65% increase in PHB concentration, up to 6.19% of dry cell weight). We demonstrated that PHB can be produced from methanol via metabolic engineering, which provides the foundation for the future large-scale use of one-carbon compounds for biopolymer production.

1. Introduction

The increasing demand for energy and resources from rapid economic development has prompted research on possible alternatives. Some alternative sources, such as biogas, bioethanol, and biomethanol, have been widely produced from some waste materials [1,2]. Over 53 million tons of methanol, a potential, low-cost alternative substrate to sugar for bioindustries, is produced annually [3]. Studies on the use of methanol as a carbon source for the production of single-cell proteins, amino acids, and biopolymers have been intensively reported [4,5,6,7]. However, the commercial production of industrial chemicals from methanol using natural methylotrophs is limited mainly by the lack of well-developed genetic tools to implement synthetic pathways for objective products. Therefore, well-studied model strains, such as Escherichia coli, have gained great attention in the bioconversion of methanol [8]. There are three major natural pathways for methanol assimilation: the ribulose monophosphate (RuMP) cycle, the xylulose monophosphate (XuMP) cycle, and the serine cycle [9]. Among them, the RuMP cycle is considered the most applicable methylotrophic pathway in E. coli, as the expression of only three heterologous enzymes is sufficient for methanol assimilation [10]. Muller et al. introduced three RuMP cycle enzymes, including methanol dehydrogenase (Mdh), hexulose-6-phosphate synthase (Hps), and 6-phospho-3-hexuloisomerase (Phi), into E. coli to enable methanol assimilation [10]. Whitaker et al. engineered the RuMP pathway and the flavanone naringenin synthesis pathway in E. coli, demonstrating the possibility of in vivo conversion of methanol into a specialty chemical [8].
Although the RuMP cycle is the most applicable methanol assimilation pathway in E. coli, methanol utilization via the RuMP pathway involves CO2 loss and ATP expenditure in the synthesis of acetyl-CoA–derived products [11]. Specifically, three formaldehydes condense to pyruvate, which is decarboxylated to form acetyl-CoA and CO2, thereby reducing the maximum carbon yield of acetyl-CoA to 67%. Similarly, two other methanol assimilation pathways—the serine pathway and the XuMP pathway—also reduce the carbon yield to 54% and 67%, respectively, which are not optimal pathways for maximizing the yields of acetyl-CoA–derived metabolites [12]. To solve this carbon-loss problem, Bogorad et al. [11] designed a new methanol assimilation pathway, referred to as the methanol condensation cycle (MCC), which consists of RuMP with a non-oxidative glycolysis (NOG) pathway and can produce one molecule of acetyl-CoA from two molecules of methanol without carbon loss. This new pathway allows the efficient conversion of methanol to multi-carbon acetyl-CoA–derived chemicals with 100% theoretical carbon yield.
As a derivative product of acetyl-CoA, poly-3-hydroxybutyrate (PHB) has excellent biodegradability. Within a certain period of time, microorganisms can break down PHB into CO2 and H2O, resulting in a significant reduction in “white pollution” [13,14]. PHB also has very good biocompatibility and is mainly used in drug delivery carriers and biological tissue engineering [15,16,17]. Additionally, recent studies have indicated that not only is PHB crucial for carbon storage, but it also plays an important role in supporting bacterial survival under adverse conditions, such as intermediate metabolite toxicity [18]. To this end, in this study, we aim to engineer the MCC pathway in E. coli and convert methanol to the acetyl-CoA–derived product PHB. An extended metabolic network model of E. coli incorporating the methanol assimilation pathway and the PHB synthesis pathway is used to identify the optimal pathway. Then, the functional modules for methanol assimilation, PHB synthesis, and NOG are introduced into E. coli, thereby constructing the entire bioconversion pathway from methanol to PHB.

2. Materials and Methods

2.1. Metabolic Network Analysis

An extended genome-scale E. coli metabolic network model based on iML1515 was used to calculate the optimal production pathway and yield of PHB by performing flux balance analysis (FBA) [19,20]. PHB is a polymer; thus, the monomer 3-hydroxybutyrate of PHB was considered the objective product in FBA. As no methanol utilization and MCC pathways exist in E. coli, the methanol utilization reaction converting methanol to formaldehyde and reactions of the MCC pathway (Mdh, Hps-phi, and Fxpk (phosphoketolase)) were added to the iML1515 model. The FBA calculation was performed using the COBRApy [21]. In the calculation, the uptake rate of methanol was set to 6 mmol/gDCW/h. The non-growth-associated energy maintenance parameter was set to 0 mmol/gDCW/h.

2.2. Plasmid Construction

The primers used in the plasmid construction were obtained from GENEWIZ (Suzhou, China) and are listed in Table S1 (Supplementary Materials). The genes mdh2 (GenBank: CP007739.1, protein ID: AIE59127.1) from Bacillus methanolicus MGA3, mdh-CT (GenBank: CP002878.1, protein ID: AEI80320.1) from Cupriavidus necator N-1 [22], and TaADH (GenBank: AL445067.1, protein ID: CAC12437.1) from Thermoplasma acidophilum DSM 1728 [23] were synthesized by Qinglan Biotech (Wuxi, China) with codon optimization and then cloned with primers 01, 02, 03, 04, 05, and 06 with restriction sites (Table 1, Column 3) at the end. Then cloned genes were introduced into the pET-28a vector by enzyme-cut and linked up with corresponding restriction enzymes and ligases (TaKaRa, Kusatsu, Japan). The recombinant plasmids (Table 1) were confirmed by restriction mapping and sequencing (GENEWIZ, Suzhou, China). The confirmed constructs were subsequently transformed into E. coli BL21 (DE3) for protein expression. The fused Hps–phi gene was synthesized (Qinglan Biotech, Wuxi, China) according to the sequence reported by Orita et al. [24]. PCR experiments were performed using GoTaq DNA polymerase (TaKaRa, Kusatsu, Japan) with corresponding primers. Positive transformants were verified by colony PCR and Sanger sequencing.

2.3. Reconstruction of Expression Vector

Two T7 promotors in the expression vector pACYCDuet-1 were replaced by the Trc promotor from pTrc99a to reconstruct a new vector called pZQ for the C1 assimilation module according to Golden Gate cloning [25]. The vector pACYCDuet-1 was first lined by amplification from the position of the T7 promotor of the mcs1 region with primers 09 and 10 (Table S1), which were designed to exclude the sequence of the T7 promotor. The lined sequence re-amplified by primers 11 and 12 (Table S1) was designed to contain the half sequence of the Trc promotor and the restriction site of the type IIs endonuclease BsaI (Thermo Fisher Scientific, Waltham, MA, USA). The re-amplified sequence was then re-circled by enzyme-cut and link-up with BsaI and T4 DNA-ligase (Thermo Fisher Scientific, Waltham, MA, USA). Finally, the re-circled plasmid was finally transformed to E. coli JM109, and positive vectors were verified by colony PCR and Sanger sequencing.
Similarly, the second T7 promotor was operated based on the first T7 promotor. The differences between the two were that (i) the initial vector was pACYCDuet-1, in which the T7 promotor changed to the Trc promotor, and (ii) the primers for the lining vector and re-amplifying primers (13, 14, 15, and 16; Table S1) were designed to be longer to avoid amplifying the mcs1 region.

2.4. Gene Modules Construction

A C1 assimilation module was built by introducing methanol dehydrogenase (Mdh), hexulose-6-phosphate synthase (Hps), and 3-phospho-6-hexuloisomerase (Phi) into a reconstructed plasmid pZQ. Each methanol dehydrogenase gene (mdh2, mdh-CT, and TaADH) was first introduced into the multiple cloning site 1 of plasmid pZQ, individually with primers 17 and 18, 19 and 20, and 21 and 22, respectively (the restriction enzyme cutting sites are listed in Table 1 and Table 2). The positive vectors were verified by colony PCR and Sanger sequencing. The multiple cloning site 2 of the vector pZQ with methanol dehydrogenase (Table 1) was added by Phs–Phi fusion with primers 23 and 24 (Table S1), and the positive vector was verified by colony PCR and Sanger sequencing, after which the C1 assimilation module was constructed.
The NOG module was constructed on plasmid PBHR68 containing the PHB production module [26]. The fxpk gene from Bifidobacterium adolescentis was introduced into PBHR68 by using primers 25 and 26 (Table 1) with enzyme cutting and combination.
Table
Table 1. Plasmids used in this study. The first and second columns contain the plasmids and genes used in this study, respectively. The third column contains the plasmid information.
Table 1. Plasmids used in this study. The first and second columns contain the plasmids and genes used in this study, respectively. The third column contains the plasmid information.
PlasmidEncoded GeneDescriptionReference
pET-28a High-copy-number, T7 promotor, pBR322 ori, KanR[27]
pET-28a_mdh2mdh2 gene from B. methanolicus MGA3The mdh2 gene was amplified from synthesized mdh2 with codon optimization using primers 01 and 02 and ligated into the NheI/BamHI site of pET-28a.[27]
pET-28a_mdh-CTmdh-CT gene from Cupriavidus necator N-1The mdh-CT gene was amplified from synthesized mdh-CT with codon optimization using primers 03 and 04 and ligated into the NheI/HindIII site of pET-28a.This study
pET-28a_TaADHTaADH gene from Thermoplasma acidophilum DSM 1728The TaADH gene was amplified from Thermoplasma acidophilum DSM 1728 using primers 05 and 06 and ligated into the NheI/HindIII site of pET-28a.This study
pET-28a_hps-phiThe artificial fusion of hps and phi with codon optimizationThe artificial fusion of the hps and phi genes was amplified using primers 07 and 08 and ligated into the NdeI/XhoI site of pET-28a.This study
pACYCDuet-1 High-copy-number, T7 promotor, P15A ori, CmRNovagen
pTrc99a High-copy-number, Trc promotor, pBR322 ori, AmpRNovagen
pZQ The two T7 promotors of pACYCDuet-1 were replaced by the Trc promotor of pTrc99a using primers 09, 10, 11, 12, 13, 14, 15, and 16 according to the method of GGA.This study
pZQ_mdh2mdh2 gene from B. methanolicus MGA3The mdh2 gene was amplified from synthesized mdh2 with codon optimization using primers 17 and 18 and ligated into the BamHI/EcoRI site of pZQ.This study
pZQ_mdh2-hps-phimdh2 gene from B. methanolicus MGA3 and artificial fusion of hps and phi with codon optimizationThe artificial fusion of the hps and phi genes was amplified using primers 19 and 20 and ligated into the NdeI/XhoI site of pZQ_mdh2.This study
pBHR68phaA, phaB, and phaC from Ralstonia eutrophaphaA, phaB, and phaC expression plasmid, pBluescript SK¯ derivative, AmpR[26]
pBHR70phaA, phaB, phaC, fbp and fxpk from Bifidobacterium adolescentisphaA, phaB, phaC, fbp and fxpk expression plasmid, pBluescript SK¯ derivative, AmpRThis study
pTKRED pSC101 replication, ParaBAD-driven I-SceI gene, λ-Red, SpR[28]
pTKS/CS p15A replication, LP regions, I-SceI restriction sites, CmR, TetR[28]

2.5. Genome Manipulation

The wild-type JM109 and the previously constructed E. coli strain JM109-NOG were used as the chassis strain for further genome modification [29]. Plasmids pTKS/CS and pTKRED were used to delete the gene frmA (glutathione (GSH)-dependent formaldehyde dehydrogenase); this deletion method was conducted according to a 1-step inactivation of chromosomal genes [30]. The functions and description of plasmids (pTKS/CS and pTKRED) used for genome manipulation are listed in Table 1. Corresponding primers (27, 28, 29, 30, 31, and 32) are listed in Table S1. The strains used in this study are shown in Table 2.
Table
Table 2. Strains used in this study. The first column reports the strains constructed in this study, the second column demonstrates the characteristics of the strains, and the third column shows the sources of these strains.
Table 2. Strains used in this study. The first column reports the strains constructed in this study, the second column demonstrates the characteristics of the strains, and the third column shows the sources of these strains.
StrainFeatureSource
JM109E. coli, recA1, endA1, gyrA96, thi, hsdR17, supE44, relA1, Δ(lac proAB)/F’ [traD36, proAB+, lacq lacZΔM15]TransGen Biotech
BL21(DE3)E. coli, F–, ompT, gal, dcm, lon, hsdSB(rB- mB-), λ(DE3 [lacI lacUV5-T7 gene 1 ind1 sam7 nin5])TransGen Biotech
BL21-pet28a_mdh2BL21(DE3), pet28a_mdh2This study
BL21-pet28a_mdh-CTBL21(DE3), pet28a_mdh-CTThis study
BL21-pet28a_TaADHBL21(DE3), pet28a_TaADHThis study
BL21-pet28a_ hps-phiBL21(DE3), pet28a_ hps-phiThis study
JM109-ΔfrmE. coli JM109, ΔfrmAThis study
JM109-Δfrm-mdh2JM109-Δfrm, pZQ_mdh2This study
JM109-Δfrm-C1JM109-Δfrm, pZQ_mdh2-hps-phiThis study
JM109-NOGJM109, Pfbp::PJ23100, ::fxpk[29]
JM109-NOG-ΔfrmJM109-NOG, ΔfrmAThis study
JM109-NOG-Δfrm-PHBJM109-NOG-Δfrm, pBHR68This study
JM109-NOG-Δfrm-C1-PHBJM109-NOG-Δfrm, pZQ_mdh2-hps-phi and pBHR68This study
JM109-Δfrm-C1-PHBJM109-Δfrm, pZQ_mdh2-hps-phi and pBHR68This study
JM109-NOG-Δfrm-C1-PHB-NOGJM109-NOG-frm, pZQ_mdh2-hps-phi and pBHR70This study

2.6. Gene Expression in E. coli and Protein Purification

The E. coli strain BL21 (DE3) with constructed pET-28a vectors grew in lysogeny broth (400 mL; Sangon Biotech Co., Ltd., Shanghai, China) at 37 °C and 200 rpm with 50 µg/mL kanamycin (Solarbio Science & Technology Co., Ltd., Beijing, China) to an absorbance ranging from 0.6 to 0.8 (600 nm). Gene expression was induced by adding 0.1 mM isopropyl-b-D-thiogalactopyranoside (Solarbio Science & Technology Co., Ltd., Beijing, China), and the cells were incubated at 18 °C for 16 h. The bacterial cells were harvested by centrifugation (10,000× g for 30 min at 4 °C) and re-suspended in a lysis buffer (20 mM imidazole, 50 mM Tris HCl, 150 mM NaCl (Solarbio, Beijing, China; pH = 7.5)). The cells were disrupted by passing the cell suspension three times through a high-pressure homogenizer (JN-3000 PLUS) at 6,894,757 Pa (1000 Psi). Cell debris and membrane fractions were removed by centrifugation (10,000× g for 30 min at 4 °C). The supernatant was loaded onto a Ni–NTA agarose column (GE Healthcare Bio-Sciences AB, Uppsala, Sweden) equilibrated with the lysis buffer (20 mM imidazole, 50 mM Tris HCl, 150 mM NaCl; pH = 7.5). The column was washed with 2 column volumes of the lysis buffer and 2 column volumes of the wash buffer (50 mM imidazole, 50 mM Tris HCl, 150 mM NaCl; pH = 7.5). The proteins were finally eluted with a gradient elution buffer ((100 mM, 150 mM, 200 mM, respectively) imidazole, 50 mM Tris HCl, 150 mM NaCl; pH = 7.5). The purified proteins were desalted using an ultrafiltration tube (10,000 MWCO; Millipore, Burlington, MA, USA) with a desalting buffer (50 mM Tris HCl, 150 mM NaCl, 6 mM MgCl2; pH = 7.5) [31]. Protein concentration was determined using the Bradford method [32] with a BCA Protein Assay Kit (Solarbio, Beijing, China), and the sizes of the standard and protein enrichments were confirmed through sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE).

2.7. Enzyme Activity Measurement

2.7.1. Assay of NAD-Dependent Methanol Dehydrogenase Activity In Vitro

The reaction was conducted in 3-paralleled 200 µL in pre-heated (37 °C) 50 mM K2HPO4 buffer containing 5 mM MgSO4, 500 µM NAD+ (all purchased from Sigma-Aldrich, St. Louis, MO, USA), and 200 µg protein; 0.5 M methanol (Sigma-Aldrich, St. Louis, MO, USA) was added [10]. The production of NADH was measured at 340 nm and 37 °C with a microplate reader (Infinite 200 PRO; Tecan, Zurich, Switzerland) every minute until a steady state was reached. Average values were used to calculate the activity of enzymes in vitro according to a standard curve of NADH at different concentrations combining the reading sample time. One unit (U) was defined as the amount of enzyme required to process 1 mM of substrate per minute, and specific units (U/mg protein) were calculated by the total protein concentration [10].

2.7.2. Assay of Hps–phi Fusion Activity In Vitro

The fused enzyme activity of purified Hps–phi was assayed by measuring the NADPH formation via coupled reactions catalyzed by glucose-6-phosphate dehydrogenase (G6PD) and phosphoglucoisomerase (Pgi) at 37 °C as described previously [33,34]. Subsequently, 5 mM ribose-5-phosphate (Sigma-Aldrich, St. Louis, MO, USA) was used as the initial substrate to convert the reaction mixture of 200 µL to ribulose-5-phosphate by 10 U Pgi at 37 °C for 5 min to start the reaction. The reaction mixture contained 50 mM K2HPO4, 2.5 mM NADP+, 5 mM MgSO4, 10 U G6PD, and 10 U Pgi. To start the reaction, 5 mM formaldehyde was added to the reaction mixture. Each sample was tested in 3 parallels.

2.7.3. Enzyme Activity Measurement by Formaldehyde Production/Consumption In Vivo

Enzyme activity assay for methanol dehydrogenase and Hps–phi was conducted in vivo using a method similar to that described in the study by Muller et al. [10]. Cells were grown overnight in a Murashige and Skoog (MS) medium supplemented with 0.5% ribose (We tested whether ribose could produce more pentose as ribulose could not be purchased. Pentose was preferable for methanol assimilation; data not shown.) and antibiotics. Up to 200 µL supernatant was mixed with Nash’s reagent [35], and the formaldehyde concentration was determined at 412 nm with a microplate reader. The activity was calculated similarly to NAD-dependent methanol dehydrogenase activity in vitro. One unit (U) was defined as 1 mmol formaldehyde produced per minute. For calculating specific units (U/mg protein), the protein concentration was estimated based on the OD600 of the culture and the assumption that 1 L culture with an OD600 of 1 contains 0.250 g of biomass, half of which was assumed to be protein.

2.7.4. PHB Production and Assay of PHB

Constructed E. coli strains were grown overnight in an LB medium with antibiotics. The following morning, 1 mL bacteria solution was used to inoculate in main cultures containing 50 mL of MS medium with 100 mM ribose (Sigma-Aldrich, St. Louis, MO, USA) in 250 mL baffled shake flasks to an OD600 of 0.8. Subsequently, 0.1 mM IPTG was added to the solution. Cells were grown at 20 °C, shaking at 220 rpm for 10 h.
Cells were centrifuged at 10,000× g for 4 min at room temperature and re-suspended with water. They were then centrifuged and re-suspended twice. The pellet was re-suspended in 50 mL standard MS medium without glucose or ribose, and the actual OD600 was measured. The re-suspended cells were inoculated at 37 °C, shaking at 150 rpm as 0.5 M methanol was added. After inoculation for 22 h, the re-suspended cells (pelleted by centrifugation at 10,000× g for 4 min at 4 °C) were freeze-dried to determine the PHB concentration.
The PHB content (w/w %) was quantified by gas chromatography (GC5; Persee, Beijing, China) with an HP-5 capillary column [36,37]. The PHB content (w/w %) was defined as the percent ratio of PHB concentration (dry weight per liter of culture broth) to cell concentration (dry weight per liter of culture broth).

3. Results

3.1. Prediction of Optimal PHB Production Pathway

The optimal PHB pathway and flux distribution from RuMP and MCC calculated by the extended E. coli metabolic model iML1515 is shown in Figure 1. After adding the RuMP pathway (Mdh, Hps-phi) and PHB synthetic pathway (PhaA, PhaB and PhaC) to iML1515, the PHB production rate was calculated as 1 mmol/gDCW/h PHB (C4) from 6 mmol/gDCW/h methanol (C1) (Figure 1A). Methanol was converted to PHB with carbon loss as CO2 at the pyruvate decarboxylation step, leading to the C-mol yield of PHB of 0.67 using the RuMP pathway. After adding the NOG pathway (Fxpk) to form the MCC pathway, the PHB production rate was improved to 1.5 mmol/gDCW/h from 6 mmol/gDCW/h methanol consumption (Figure 1B). This rate was equal to 1 C-mol/C-mol carbon yield, which was a 50% increase relative to a C-mol yield of 0.67 obtained from the RuMP pathway. This result implied that the combination of the NOG pathway with the RuMP pathway could theoretically improve PHB yield from methanol in E. coli.

3.2. Evaluation of the Effect of frmA Deletion on the Degradation of Formaldehyde

Before the introduction of the C1 assimilation module, the endogenous GSH-dependent formaldehyde dehydrogenase was inactivated by deleting its encoded frmA gene [38,39], which could prevent formaldehyde from being dehydrogenized to formate, potentially increasing the amount of formaldehyde entering the MCC pathway. The results shown in Figure 2 indicate that formaldehyde concentration in the wild-type JM109 strain decreased rapidly because of the formation of formate by formaldehyde dehydrogenase. By contrast, formaldehyde concentration in the E. coli JM109-Δfrm strain did not change over time. Therefore, the following C1 utilization strains were all based on the frmA deletion mutant.

3.3. Construction of C1 Assimilation Module

The C1 assimilation module included methanol dehydrogenase and the fused Hps–phi enzyme. The Hps–phi enzyme was chosen based on the study by Orita et al. [24], which reported a considerably high activity. The Hps–phi activities measured in vitro and in vivo (4400 and 1602 mU/mg, respectively; Table 3) in our study were similar to the previously reported values. By contrast, the reported Mdh enzyme activities were very considerably low [10]. To find an Mdh enzyme with high activity, we tested three Mdh enzymes from B. methanolicus MGA3, T. acidophilum DSM 1728, and C. necator N-1, respectively. The results shown in Table 3 indicate that Mdh from B. methanolicus (encoded by the mdh2 gene) exhibits the highest activity both in vitro (11.4 mU/mg) and in vivo (9.2 mU/mg). Therefore, mdh2 was selected to construct the C1 assimilation module in the engineered strains.
To evaluate the effect of the C1 assimilation module, genes encoding the enzymes Mdh and fused Hps–phi were orderly integrated into an expression vector pZQ to generate vectors pZQ_mdh2 and pZQ_mdh2-hps-phi (Table 1). Then these two vectors were transformed into JM109-Δfrm to construct the JM109-Δfrm-mdh2 and JM109-Δfrm-C1, respectively. Then, formaldehyde concentrations for different strains in methanol media were measured (Figure 3). The results indicated that the introduction of mdh2 could successfully enable the conversion of methanol to formaldehyde in strain JM109-Δfrm-mdh2, whereas the formaldehyde could not be further utilized. With the further introduction of Hps-phi fusion, the formaldehyde concentration could be reduced in strain JM109-Δfrm-C1, which indicated that formaldehyde was converted into the RuMP pathway. However, a significant amount of formaldehyde remained that could be utilized. This might be owing to the lack of ribulose-5-phosphate, which was a key intermetabolite for the condensation of formaldehyde (Figure 1). As we failed to obtain a relatively inexpensive Ru5P as a carbon source, an alternative method using ribose to supply ribulose-5-phosphate, ribose-5-phosphate, and other circulating C5 metabolites by cellular metabolism was tested. An obvious decrease in formaldehyde concentration was observed in strain JM109-Δfrm-C1 using ribose and methanol as carbon sources. This demonstrated that the expression of enzyme Hps–phi fusion was effective for the conversion of formaldehyde into the central pathways when circulating C5 metabolites were relatively sufficient.

3.4. Evaluation of the Effect of C1 and NOG Module on PHB Production from Methanol

The construction of plasmid pBHR68 for PHB production (including phaA, phaB, and phaC) was conducted in a previous study [26]. We used the plasmid pBHR68 as the PHB production module. This plasmid was transformed into JM109-Δfrm and JM109-Δfrm-C1 to obtain new strains JM109-Δfrm-PHB and JM109-Δfrm-C1-PHB, respectively. The strain JM109-Δfrm-PHB, which contained only the PHB production module but not the C1 module, was also created as a control.JM109-Δfrm-C1-PHB contained all the required genes for converting methanol to PHB. As shown in Figure 1, the C1 assimilation module needed to combine well with the NOG module (phosphoketolase) to form the complete carbon-conserved pathway. We then further introduced the phosphoketolase gene fxpk from Bifidobacterium adolescentis into the genome of JM109-Δfrm-C1-PHB, obtaining the strain JM109-NOG-Δfrm-C1-PHB. To increase the Fxpk expression, the fxpk gene was also inserted into the PHB synthesis plasmid pBHR68 for the formation of a new plasmid, pBHR70. Plasmid PBHR70, replacing PBHR68, was introduced into JM109-NOG-Δfrm-C1 to obtain a new strain JM109-NOG-Δfrm-C1-PHB-NOG with improved phosphoketolase expression.
To evaluate whether the C1 and NOG modules contribute to PHB biosynthesis, PHB production was conducted with or without methanol (Figure 4). A statistical analysis of the obtained data was performed using SPSS 18.0 for Windows, and differences between the production with or without methanol were evaluated using a t-test, where p < 0.05 was considered significantly different. When the C1 absorption function module was absent, the addition of methanol would not increase the yield of PHB in strain JM109-Δfrm-PHB. By contrast, the content of PHB in strain JM109-Δfrm-C1-PHB increased by 7.4% (from 3.27% to 3.51%) when supplied with methanol. Moreover, the PHB content of JM109-Δfrm-C1-PHB strain on methanol (3.51%) was higher than that of the control group JM109-Δfrm-PHB (3.39%). These results indicated that methanol was indeed converted to PHB with the addition of the C1 module. However, both the increases in PHB content were relatively low, implying that the classic RuMP pathway, solely, might not be sufficient for efficient PHB biosynthesis from methanol in E. coli.

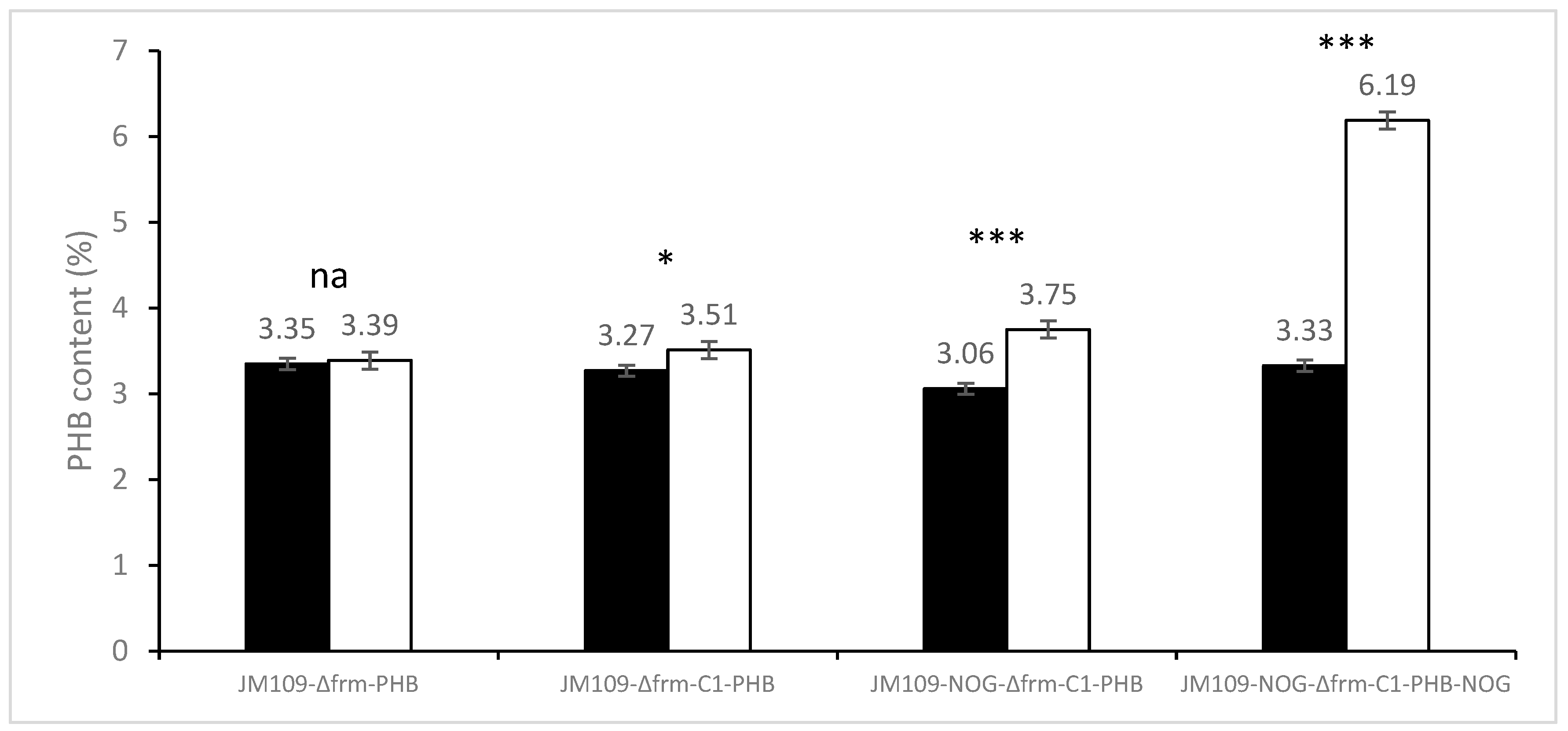

After the introduction of the NOG module, the PHB content of JM109-NOG-Δfrm-C1-PHB strain in the methanol group (3.75%) was about 22.5% higher than that in the non-methanol group (3.06%). The PHB content of strains with the NOG module (3.75%) was 6.8% higher than that of strains without the NOG module (3.51%) with methanol as a carbon source, which indicated that the addition of the NOG module could facilitate PHB biosynthesis from methanol. With the further overexpression of the NOG module using multi-copy plasmid in strain JM109-NOG-Δfrm-C1-PHB-NOG, its PHB content from methanol (6.19%) was 85% higher than that without methanol (3.33%) and was 65.1% higher than that produced by JM109-NOG-Δfrm-C1-PHB (3.75%). This indicated that the expression level of NOG is important in the methanol bioconversion using the MCC pathway. The comparison of the above results shows that the overexpression of the MCC pathway can significantly facilitate PHB biosynthesis from methanol, which is consistent with the in silico calculation result.

4. Discussion

Considering the low cost of methanol and the continuing efforts to convert abundant natural gas and coal into methanol, developing technologies to convert methanol into other industrial products has drawn interest [12]. In recent decades, several studies have reported on the use of methylotrophs for industrial chemical production from methanol [4,5,6,7].
Muller et al. [10] were the first to demonstrate the possibility of using methanol in engineered E. coli by introducing the Mdh and RuMP genes into the host. Whitaker et al. [8] further optimized the engineered strain using a superior Mdh from B. stearothermophilus and demonstrated that the engineered strain could convert methanol to flavanone naringenin. However, both studies used the natural RuMP pathway for methanol assimilation, which is not favorable for the production of acetyl-CoA–derived products (such as PHB) resulting from carbon loss during pyruvate decarboxylation, as described by Bogorad et al. [11].
On the basis of previous studies and guided by the optimal pathway for PHB production determined by genome-scale network analysis, we first engineered the MCC pathway in E. coli to improve product yield. The MCC pathway is the combination of the RuMP pathway with the NOG pathway [40], which can theoretically enable 100% carbon conservation from methanol to acetyl-CoA–derived products.
To evaluate whether the MCC pathway is better than the RuMP pathway in C1 utilization, we first selected the candidate enzymes by testing the activities of the enzymes (Table 3) in vivo and in vitro. As a result, mdh2 from B. methanolicus MGA3 and Hps–phi fusion [24] were selected as C1 assimilation enzymes in this study. Compared with previously reported results [9,24], the results on the enzyme activities in the present study are similar; the candidate enzymes we selected would be effective for the host. The frmA gene coded the enzyme converting formaldehyde to formate would greatly reduce the availability of formaldehyde to Hps–phi (Figure 3) if the gene existed. Three types of modules, C1 assimilation modules, NOG modules, and PHB production modules (Figure 1), were then constructed. The three modules could build the MCC pathway in the host with corresponding enzymes (Table 1), and the effect of the C1 assimilation module was confirmed (Figure 4).
The construction of the MCC pathway has also been conducted in vitro [11], which could continuously produce ethanol. However, it could not achieve the complete conversion to products because of the accumulation of intermediary metabolites. In the present study, the formaldehyde generated from methanol could not be completely consumed further (Figure 3). This might be due to the insufficient supply of circulating metabolites, such as ribulose-5-phosphate and xylulose-5-phosphate, which have been reported to be an important factor in methanol bioconversion via the RuMP pathway [9]. Since the construction of E. coli strains that can grow with methanol as the sole carbon source is still difficult [9], in this study, the PHB biosynthesis from methanol was conducted via whole-cell biocatalysis (Figure 4). Although the final PHB content from methanol (6.19%) was not as high as those previously reported (ranging from 20% to 29% PHB content) from sugar-based carbon sources [26] or other carbon sources [41,42,43], a significant increase of 65% in PHB content with the MCC pathway was observed relative to that with only the RuMP pathway through statistical analysis. The experimental results confirm the importance of the combination of NOG with RuMP to form the complete MCC pathway, which can obviously facilitate the biosynthesis of acetyl-CoA–derived chemicals from one-carbon compounds. Future efforts can be expected to engineer cellular metabolism for growable strains via the MCC pathway using a one-carbon compound as the sole carbon source.

5. Conclusions

On the basis of metabolic network analysis, we found that the MCC pathway can convert C1 compounds into acetyl-CoA–derived products, such as PHB, without carbon loss. We engineered this pathway in E. coli by introducing the heterologous genes for C1 assimilation, phosphoketolase (NOG), and PHB production from different organisms. Compared with the strain containing only the RuMP pathway for C1 assimilation, the strain with the complete MCC pathway produced more PHB by assimilating methanol. Despite the low PHB content relative to that from strains growing on glucose, the results indicate that the introduction of the MCC pathway in E. coli can improve its ability for C1 compound bioconversion. To our knowledge, the present study is the first metabolic engineering research on the conversion of methanol to PHB in E. coli. This study provides a basis for subsequent studies to further improve product yield from methanol.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bioengineering10040415/s1, Table S1: Primer sequences used in this study.

Author Contributions

Conceptualization, Z.C. and H.M.; methodology, Z.C. and J.W.; formal analysis, X.D. and J.W.; investigation, Z.C. and Q.Y.; resources, H.M.; writing—original draft preparation, Z.C.; writing—review and editing, J.W., X.D., Q.Y. and H.M.; visualization, X.D.; supervision, Q.Y. and H.M.; project administration, H.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (2018YFA09013400), the National Natural Science Foundation of China (21908239), and the Tianjin Synthetic Biotechnology Innovation Capacity Improvement Project (TSBICIP-PTJS-001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Patel, S.K.S.; Gupta, R.K.; Kalia, V.C.; Lee, J.-K. Integrating anaerobic digestion of potato peels to methanol production by methanotrophs immobilized on banana leaves. Bioresour. Technol. 2021, 323, 124550. [Google Scholar] [CrossRef] [PubMed]
  2. Kumar, V.; Patel, S.K.S.; Gupta, R.K.; Otari, S.V.; Gao, H.; Lee, J.-K.; Zhang, L. Enhanced Saccharification and Fermentation of Rice Straw by Reducing the Concentration of Phenolic Compounds Using an Immobilized Enzyme Cocktail. Biotechnol. J. 2019, 14, 1800468. [Google Scholar] [CrossRef] [PubMed]
  3. Zezzi do Valle Gomes, M.; Palmqvist, A.E.C. Influence of operating conditions and immobilization on activity of alcohol dehydrogenase for the conversion of formaldehyde to methanol. New J. Chem. 2017, 41, 11391–11397. [Google Scholar] [CrossRef]
  4. Westlake, R. Large-scale Continuous Production of Single Cell Protein. Chem. Ing. Tech. 1986, 58, 934–937. [Google Scholar] [CrossRef]
  5. Windass, J.D.; Worsey, M.J.; Pioli, E.M.; Pioli, D.; Barth, P.T.; Atherton, K.T.; Dart, E.C.; Byrom, D.; Powell, K.; Senior, P.J. Improved conversion of methanol to single-cell protein by Methylophilus methylotrophus. Nature 1980, 287, 396–401. [Google Scholar] [CrossRef] [PubMed]
  6. Schrader, J.; Schilling, M.; Holtmann, D.; Sell, D.; Filho, M.V.; Marx, A.; Vorholt, J.A. Methanol-based industrial biotechnology: Current status and future perspectives of methylotrophic bacteria. Trends Biotechnol. 2009, 27, 107–115. [Google Scholar] [CrossRef]
  7. Brautaset, T.; Jakobsen, O.M.; Josefsen, K.D.; Flickinger, M.C.; Ellingsen, T.E. Bacillus methanolicus: A candidate for industrial production of amino acids from methanol at 50 degrees C. Appl. Microbiol. Biotechnol. 2007, 74, 22–34. [Google Scholar] [CrossRef]
  8. Whitaker, W.B.; Jones, J.A.; Bennett, R.K.; Gonzalez, J.E.; Vernacchio, V.R.; Collins, S.M.; Palmer, M.A.; Schmidt, S.; Antoniewicz, M.R.; Koffas, M.A.; et al. Engineering the biological conversion of methanol to specialty chemicals in Escherichia coli. Metab. Eng. 2017, 39, 49–59. [Google Scholar] [CrossRef]
  9. Sanford, P.A.; Woolston, B.M. Synthetic or natural? Metabolic engineering for assimilation and valorization of methanol. Curr. Opin. Biotechnol. 2022, 74, 171–179. [Google Scholar] [CrossRef]
  10. Muller, J.E.N.; Meyer, F.; Litsanov, B.; Kiefer, P.; Potthoff, E.; Heux, S.; Quax, W.J.; Wendisch, V.F.; Brautaset, T.; Portais, J.C.; et al. Engineering Escherichia coli for methanol conversion. Metab. Eng. 2015, 28, 190–201. [Google Scholar] [CrossRef]
  11. Bogorad, I.W.; Chen, C.T.; Theisen, M.K.; Wu, T.Y.; Schlenz, A.R.; Lam, A.T.; Liao, J.C. Building carbon-carbon bonds using a biocatalytic methanol condensation cycle. Proc. Natl. Acad. Sci. USA 2014, 111, 15928–15933. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Haynes, C.A.; Gonzalez, R. Rethinking biological activation of methane and conversion to liquid fuels. Nat. Chem. Biol. 2014, 10, 331–339. [Google Scholar] [CrossRef]
  13. Anderson, A.J.; Dawes, E.A. Occurrence, metabolism, metabolic role, and industrial uses of bacterial polyhydroxyalkanoates. Microbiol. Rev. 1990, 54, 450–472. [Google Scholar] [CrossRef]
  14. Lee, S.Y. Bacterial polyhydroxyalkanoates. Biotechnol. Bioeng. 1996, 49, 1–14. [Google Scholar] [CrossRef]
  15. Williams, S.F.; Martin, D.P.; Horowitz, D.M.; Peoples, O.P. PHA applications: Addressing the price performance issue: I. Tissue engineering. Int. J. Biol. Macromol. 1999, 25, 111–121. [Google Scholar] [CrossRef] [PubMed]
  16. van der Walle, G.A.M.; Buisman, G.J.H.; Weusthuis, R.A.; Eggink, G. Development of environmentally friendly coatings and paints using medium-chain-length poly(3-hydroxyalkanoates) as the polymer binder. Int. J. Biol. Macromol. 1999, 25, 123–128. [Google Scholar] [CrossRef] [PubMed]
  17. Sudesh, K.; Abe, H.; Doi, Y. Synthesis, structure and properties of polyhydroxyalkanoates: Biological polyesters. Prog. Polym. Sci. 2000, 25, 1503–1555. [Google Scholar] [CrossRef]
  18. Müller-Santos, M.; Koskimäki, J.J.; Alves, L.P.S.; de Souza, E.M.; Jendrossek, D.; Pirttilä, A.M. The protective role of PHB and its degradation products against stress situations in bacteria. FEMS Microbiol. Rev. 2020, 45, fuaa058. [Google Scholar] [CrossRef]
  19. Orth, J.D.; Thiele, I.; Palsson, B.O. What is flux balance analysis? Nat. Biotechnol. 2010, 28, 245–248. [Google Scholar] [CrossRef]
  20. Monk, J.M.; Lloyd, C.J.; Brunk, E.; Mih, N.; Sastry, A.; King, Z.; Takeuchi, R.; Nomura, W.; Zhang, Z.; Mori, H.; et al. iML1515, a knowledgebase that computes Escherichia coli traits. Nat. Biotechnol. 2017, 35, 904–908. [Google Scholar] [CrossRef]
  21. Ebrahim, A.; Lerman, J.A.; Palsson, B.O.; Hyduke, D.R. COBRApy: COnstraints-Based Reconstruction and Analysis for Python. BMC Syst. Biol. 2013, 7, 74. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Wu, T.Y.; Chen, C.T.; Liu, J.T.; Bogorad, I.W.; Damoiseaux, R.; Liao, J.C. Characterization and evolution of an activator-independent methanol dehydrogenase from Cupriavidus necator N-1. Appl. Microbiol. Biotechnol. 2016, 100, 4969–4983. [Google Scholar] [CrossRef] [Green Version]
  23. Marino-Marmolejo, E.N.; De Leon-Rodriguez, A.; de la Rosa, A.P.; Santos, L. Heterologous expression and characterization of an alcohol dehydrogenase from the archeon Thermoplasma acidophilum. Mol. Biotechnol. 2009, 42, 61–67. [Google Scholar] [CrossRef] [PubMed]
  24. Orita, I.; Sakamoto, N.; Kato, N.; Yurimoto, H.; Sakai, Y. Bifunctional enzyme fusion of 3-hexulose-6-phosphate synthase and 6-phospho-3-hexuloisomerase. Appl. Microbiol. Biotechnol. 2007, 76, 439–445. [Google Scholar] [CrossRef]
  25. Engler, C.; Kandzia, R.; Marillonnet, S. A one pot, one step, precision cloning method with high throughput capability. PLoS ONE 2008, 3, e3647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Spiekermann, P.; Rehm, B.H.; Kalscheuer, R.; Baumeister, D.; Steinbuchel, A. A sensitive, viable-colony staining method using Nile red for direct screening of bacteria that accumulate polyhydroxyalkanoic acids and other lipid storage compounds. Arch. Microbiol. 1999, 171, 73–80. [Google Scholar] [CrossRef] [PubMed]
  27. Silva-Rocha, R.; Martínez-García, E.; Calles, B.; Chavarría, M.; Arce-Rodríguez, A.; de Las Heras, A.; Páez-Espino, A.D.; Durante-Rodríguez, G.; Kim, J.; Nikel, P.I.; et al. The Standard European Vector Architecture (SEVA): A coherent platform for the analysis and deployment of complex prokaryotic phenotypes. Nucleic Acids Res. 2013, 41, D666–D675. [Google Scholar] [CrossRef]
  28. Kuhlman, T.E.; Cox, E.C. Site-specific chromosomal integration of large synthetic constructs. Nucleic Acids Res. 2010, 38, e92. [Google Scholar] [CrossRef] [Green Version]
  29. Yang, X.; Yuan, Q.; Zheng, Y.; Ma, H.; Chen, T.; Zhao, X. An engineered non-oxidative glycolysis pathway for acetone production in Escherichia coli. Biotechnol. Lett. 2016, 38, 1359–1365. [Google Scholar] [CrossRef]
  30. Datsenko, K.A.; Wanner, B.L. One-step inactivation of chromosomal genes in Escherichia coli K-12 using PCR products. Proc. Natl. Acad. Sci. USA 2000, 97, 6640–6645. [Google Scholar] [CrossRef] [Green Version]
  31. Wen, L.; Huang, K.; Liu, Y.; Wang, P.G. Facile Enzymatic Synthesis of Phosphorylated Ketopentoses. ACS Catal. 2016, 6, 1649–1654. [Google Scholar] [CrossRef]
  32. Kruger, N.J. The Bradford method for protein quantitation. Methods Mol. Biol. 1994, 32, 9–15. [Google Scholar] [PubMed]
  33. Yasueda, H.; Kawahara, Y.; Sugimoto, S. Bacillus subtilis yckG and yckF encode two key enzymes of the ribulose monophosphate pathway used by methylotrophs, and yckH is required for their expression. J. Bacteriol. 1999, 181, 7154–7160. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Lessmeier, L.; Pfeifenschneider, J.; Carnicer, M.; Heux, S.; Portais, J.C.; Wendisch, V.F. Production of carbon-13-labeled cadaverine by engineered Corynebacterium glutamicum using carbon-13-labeled methanol as co-substrate. Appl. Microbiol. Biotechnol. 2015, 99, 10163–10176. [Google Scholar] [CrossRef]
  35. Nash, T. The colorimetric estimation of formaldehyde by means of the Hantzsch reaction. Biochem. J. 1953, 55, 416–421. [Google Scholar] [CrossRef] [Green Version]
  36. Abe, H.; Doi, Y.; Fukushima, T.; Eya, H. Biosynthesis from gluconate of a random copolyester consisting of 3-hydroxybutyrate and medium-chain-length 3-hydroxyalkanoates by Pseudomonas sp. 61-3. Int. J. Biol. Macromol. 1994, 16, 115–119. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, Q.; Lin, Z.; Zhang, Y.; Li, Y.; Wang, Z.; Chen, T. Improved poly(3-hydroxybutyrate) production in Escherichia coli by inactivation of cytochrome bd-II oxidase or/and NDH-II dehydrogenase in low efficient respiratory chains. J. Biotechnol. 2014, 192 Pt A, 170–176. [Google Scholar] [CrossRef]
  38. Gutheil, W.G.; Holmquist, B.; Vallee, B.L. Purification, characterization, and partial sequence of the glutathione-dependent formaldehyde dehydrogenase from Escherichia coli: A class III alcohol dehydrogenase. Biochemistry 1992, 31, 475–481. [Google Scholar] [CrossRef]
  39. Gonzalez, C.F.; Proudfoot, M.; Brown, G.; Korniyenko, Y.; Mori, H.; Savchenko, A.V.; Yakunin, A.F. Molecular basis of formaldehyde detoxification. Characterization of two S-formylglutathione hydrolases from Escherichia coli, FrmB and YeiG. J. Biol. Chem. 2006, 281, 14514–14522. [Google Scholar] [CrossRef] [Green Version]
  40. Bogorad, I.W.; Lin, T.S.; Liao, J.C. Synthetic non-oxidative glycolysis enables complete carbon conservation. Nature 2013, 502, 693–697. [Google Scholar] [CrossRef]
  41. Li, H.F.; Tian, L.; Lian, G.; Fan, L.H.; Li, Z.J. Engineering Vibrio alginolyticus as a novel chassis for PHB production from starch. Front. Bioeng. Biotechnol. 2023, 11, 1130368. [Google Scholar] [CrossRef] [PubMed]
  42. Yim, S.S.; Choi, J.W.; Lee, Y.J.; Jeong, K.J. Rapid combinatorial rewiring of metabolic networks for enhanced poly(3-hydroxybutyrate) production in Corynebacterium glutamicum. Microb. Cell Fact. 2023, 22, 29. [Google Scholar] [CrossRef] [PubMed]
  43. Saeed, S.; Firyal, S.; Tayyab, M.; Irfan, M.; Mohy ud Din, A.; Mehmood, T. Bioconversion of apple peels (Malus domestica) to polyhydroxybutyrate using statistical design to optimize process parameters through Bacillus thuringiensis via solid-state fermentation. Biomass Convers. Biorefinery 2022. [Google Scholar] [CrossRef]
Bioengineering 10 00415 g001 550

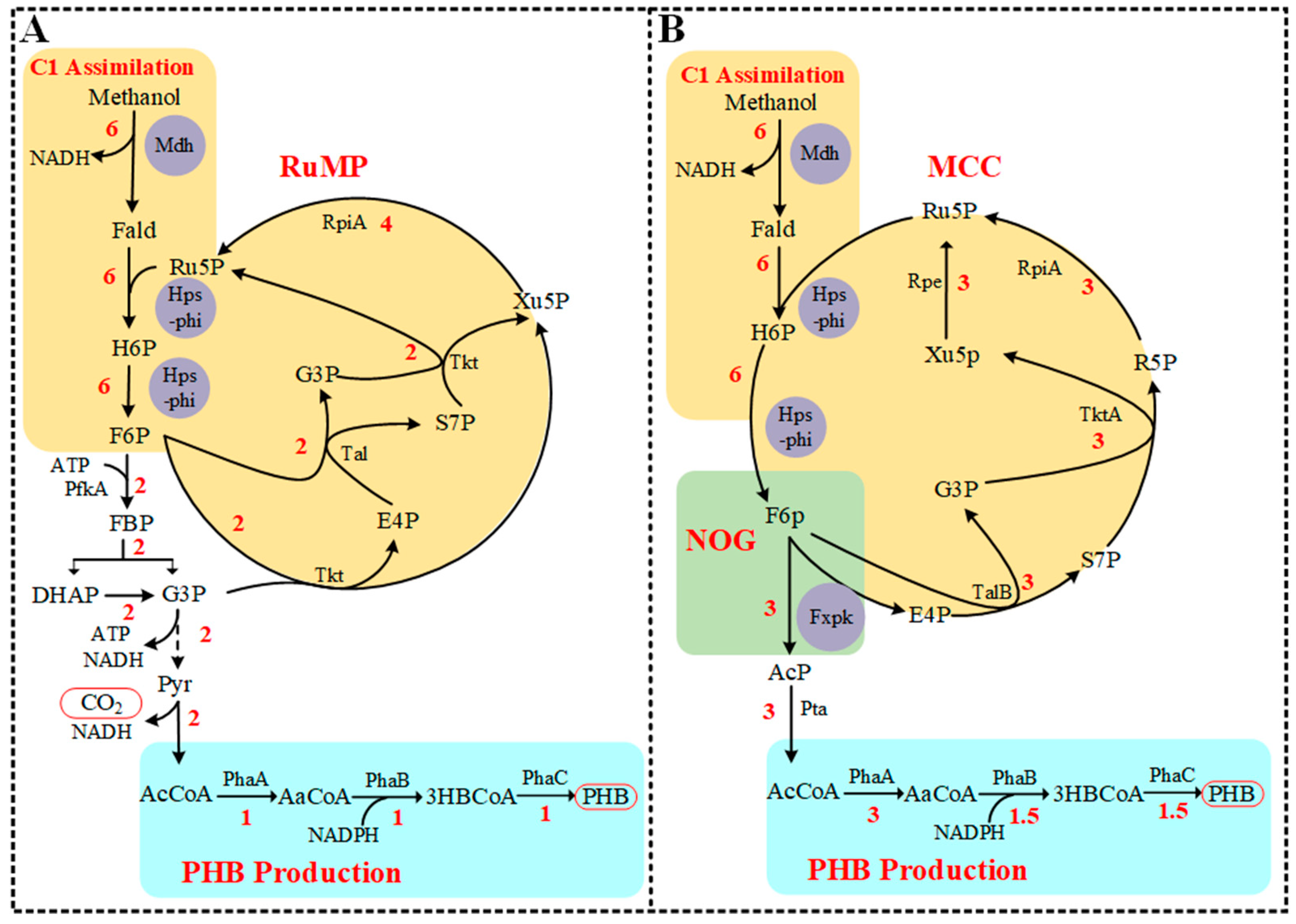

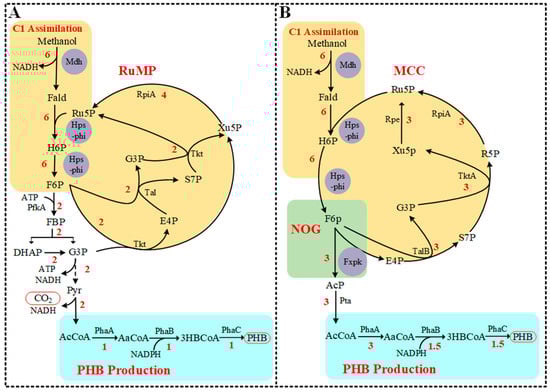

Figure 1. Conversion of methanol to PHB by RuMP pathway (A) and MCC pathway (B) calculated using flux balance analysis of an extended E. coli metabolic network. The C1 assimilation module contained enzymes Mdh (methanol dehydrogenase) and Hps-phi fusion (the fusion protein of hexulose-6-phosphate synthase and 6-phospho-3-hexuloisomerase). The NOG module contained the enzyme Fxpk (phosphoketolase). The PHB production module contained phaA (3-ketothiolase), phaB (acetoacetyl-CoA reductase), and phaC (PHB synthase). Numbers indicate the flux distribution of PHB synthesis from methanol. RpiA, ribose-5-phosphate isomerase A; Tkt, transketolase; Tal, transaldolase; Rpe, ribose-5-phosphate 3-epimerase; TktA, transketolase A; TalB, transaldolase B; Fald, formaldehyde; H6P, hexulose-6-phosphate; F6P, fructose-6-phosphate; FBP, fructose 1,6-bisphosphate; G3P, glyceraldehyde 3-phosphate; DHAP, dihydroxy acetone phosphate; Pyr, Pyruvate; AcCoA, acetyl-CoA; E4P, erythorse 4-phosphate; Ru5P, ribulose-5-phosphate; R5P, ribose-5-phosphate; Xu5P, xylulose-5-phosphate; sedoheptulose-7-phosphate; AaCoA, Acetoacetyl-CoA; 3HBCoA, 3-Hydroxybutanoyl-CoA.
Figure 1. Conversion of methanol to PHB by RuMP pathway (A) and MCC pathway (B) calculated using flux balance analysis of an extended E. coli metabolic network. The C1 assimilation module contained enzymes Mdh (methanol dehydrogenase) and Hps-phi fusion (the fusion protein of hexulose-6-phosphate synthase and 6-phospho-3-hexuloisomerase). The NOG module contained the enzyme Fxpk (phosphoketolase). The PHB production module contained phaA (3-ketothiolase), phaB (acetoacetyl-CoA reductase), and phaC (PHB synthase). Numbers indicate the flux distribution of PHB synthesis from methanol. RpiA, ribose-5-phosphate isomerase A; Tkt, transketolase; Tal, transaldolase; Rpe, ribose-5-phosphate 3-epimerase; TktA, transketolase A; TalB, transaldolase B; Fald, formaldehyde; H6P, hexulose-6-phosphate; F6P, fructose-6-phosphate; FBP, fructose 1,6-bisphosphate; G3P, glyceraldehyde 3-phosphate; DHAP, dihydroxy acetone phosphate; Pyr, Pyruvate; AcCoA, acetyl-CoA; E4P, erythorse 4-phosphate; Ru5P, ribulose-5-phosphate; R5P, ribose-5-phosphate; Xu5P, xylulose-5-phosphate; sedoheptulose-7-phosphate; AaCoA, Acetoacetyl-CoA; 3HBCoA, 3-Hydroxybutanoyl-CoA.
Bioengineering 10 00415 g001
Bioengineering 10 00415 g002 550

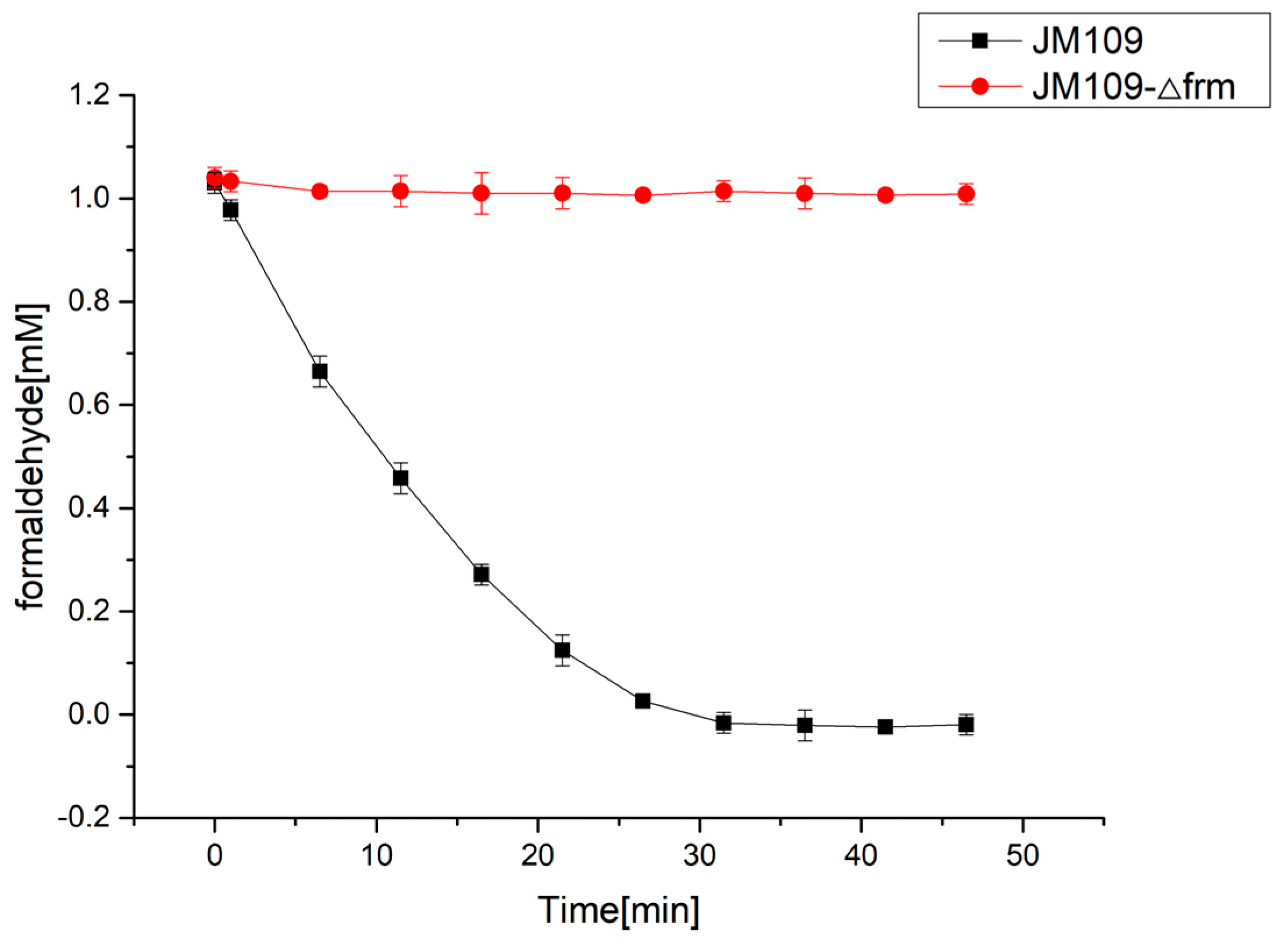

Figure 2. Formaldehyde degradation in E. coli JM109 strain (black symbols) and JM109-Δfrm strain (red symbols). The result indicated that the deletion of frmA is important to accumulate enough formaldehyde as the substrate for RuMP pathway. All experiments were conducted in triplicate. The mean values of three biological replicates are presented, and error bars indicate standard deviations.
Figure 2. Formaldehyde degradation in E. coli JM109 strain (black symbols) and JM109-Δfrm strain (red symbols). The result indicated that the deletion of frmA is important to accumulate enough formaldehyde as the substrate for RuMP pathway. All experiments were conducted in triplicate. The mean values of three biological replicates are presented, and error bars indicate standard deviations.
Bioengineering 10 00415 g002
Bioengineering 10 00415 g003 550
Figure 3. Formaldehyde production in JM109-Δfrm cells expressing mdh2 in the presence or absence of hps-phi fusion. The strain JM109-Δfrm (black squares), which did not contain constructed plasmids, was set as control. The strain JM109-Δfrm-mdh2 (red circles), which contained Mdh2 enzyme, was set to test whether Mdh2 could convert methanol to formaldehyde. The strain JM109-Δfrm-C1 (blue triangles), which contained enzymes Mdh2 and Phs–phi fusion, was set to test whether formaldehyde generated from methanol could be further assimilated into RuMP pathway. Ribose was added as an alternative method to supply circulating C5 metabolites (pink inverted triangles). The mean values of three biological replicates are shown, and error bars indicate standard deviations.
Figure 3. Formaldehyde production in JM109-Δfrm cells expressing mdh2 in the presence or absence of hps-phi fusion. The strain JM109-Δfrm (black squares), which did not contain constructed plasmids, was set as control. The strain JM109-Δfrm-mdh2 (red circles), which contained Mdh2 enzyme, was set to test whether Mdh2 could convert methanol to formaldehyde. The strain JM109-Δfrm-C1 (blue triangles), which contained enzymes Mdh2 and Phs–phi fusion, was set to test whether formaldehyde generated from methanol could be further assimilated into RuMP pathway. Ribose was added as an alternative method to supply circulating C5 metabolites (pink inverted triangles). The mean values of three biological replicates are shown, and error bars indicate standard deviations.
Bioengineering 10 00415 g003
Bioengineering 10 00415 g004 550
Figure 4. PHB production from different engineered E. coli strains. The introduction of the phosphoketolase gene to form the complete MCC pathway greatly improved PHB content. JM109-Δfrm-PHB with only PHB production module was set as control. JM109-Δfrm-C1-PHB with PHB production module and C1 assimilation module was set to test the RuMP pathway. JM109-NOG-Δfrm-C1-PHB with PHB production module, C1 assimilation module, and low-expression NOG module was set to test the MCC pathway. JM109-NOG-Δfrm-C1-PHB-NOG with PHB production module, C1 assimilation module, and high-expression NOG module was also set to test the MCC pathway. Shown are the mean values of three biological replicates, and error bars indicate standard deviations. The dark and white columns represented engineered strains conducted using water and methanol, respectively. t-tests were conducted to evaluate statistical significance at p < 0.05 (*),and p < 0.001 (***).
Figure 4. PHB production from different engineered E. coli strains. The introduction of the phosphoketolase gene to form the complete MCC pathway greatly improved PHB content. JM109-Δfrm-PHB with only PHB production module was set as control. JM109-Δfrm-C1-PHB with PHB production module and C1 assimilation module was set to test the RuMP pathway. JM109-NOG-Δfrm-C1-PHB with PHB production module, C1 assimilation module, and low-expression NOG module was set to test the MCC pathway. JM109-NOG-Δfrm-C1-PHB-NOG with PHB production module, C1 assimilation module, and high-expression NOG module was also set to test the MCC pathway. Shown are the mean values of three biological replicates, and error bars indicate standard deviations. The dark and white columns represented engineered strains conducted using water and methanol, respectively. t-tests were conducted to evaluate statistical significance at p < 0.05 (*),and p < 0.001 (***).
Bioengineering 10 00415 g004
Table
Table 3. Measured activities of different enzymes from different sources. In vitro activities were measured using purified proteins; in vivo activities were measured using E. coli cell suspensions harboring the corresponding enzymes. Description contains the advantages of each enzyme mentioned in the literature. The hyphen (-) indicates activity not detected. Sources column specifies the species source of these enzymes. Shown are the mean values of three biological replicates.
Table 3. Measured activities of different enzymes from different sources. In vitro activities were measured using purified proteins; in vivo activities were measured using E. coli cell suspensions harboring the corresponding enzymes. Description contains the advantages of each enzyme mentioned in the literature. The hyphen (-) indicates activity not detected. Sources column specifies the species source of these enzymes. Shown are the mean values of three biological replicates.
Enzyme Activity (mU/mg)In VitroIn VivoDescriptionSourcesReference
mdh211.49.2Higher activity in vivo B. methanolicus MGA3[10]
TaADH (Ta1316 ADH)0.9-High relative activity in vitro at high temperatureT. acidophilum DSM 1728[23]
mdh-CT4.80.43Higher activity in vitro C. necator N-1[22]
Hps-phi44001602Higher efficiency than a simple mixture of individual enzymesM. gastri MB19[24]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, J.; Chen, Z.; Deng, X.; Yuan, Q.; Ma, H. Engineering Escherichia coli for Poly-β-hydroxybutyrate Production from Methanol. Bioengineering 2023, 10, 415. https://doi.org/10.3390/bioengineering10040415

AMA Style

Wang J, Chen Z, Deng X, Yuan Q, Ma H. Engineering Escherichia coli for Poly-β-hydroxybutyrate Production from Methanol. Bioengineering. 2023; 10(4):415. https://doi.org/10.3390/bioengineering10040415

Chicago/Turabian Style

Wang, Jiaying, Zhiqiang Chen, Xiaogui Deng, Qianqian Yuan, and Hongwu Ma. 2023. "Engineering Escherichia coli for Poly-β-hydroxybutyrate Production from Methanol" Bioengineering 10, no. 4: 415. https://doi.org/10.3390/bioengineering10040415

APA Style

Wang, J., Chen, Z., Deng, X., Yuan, Q., & Ma, H. (2023). Engineering Escherichia coli for Poly-β-hydroxybutyrate Production from Methanol. Bioengineering, 10(4), 415. https://doi.org/10.3390/bioengineering10040415

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
