Measuring and Modelling Evaporation Losses from Wet Branches of Lemon Trees

Abstract

Evaporation losses of rainfall intercepted by canopies depend on many factors, including the temporal scale of observations. At the event scale, interception is a few millimetres, whereas at a larger temporal scale, the number of times that a canopy is filled by rainfall and then depleted can make the interception an important fraction of the rainfall depth. Recently, a simplified interception/evaporation model has been proposed, which considers a modified Merrian model to compute interception during wet spells and a simple power-law equation to model evaporation from wet canopy during dry spells. Modelling evaporation process at the sub hourly temporal scale required the two parameters of the power-law, describing the hourly evaporation depth and the evaporation rate. In this paper, for branches of lemon trees, we focused on the evaporation process from wet branches starting from the interception capacity, S, and simple models in addition to the power-law were applied and tested. In particular, for different temperature, T, and vapour pressure deficit, VPD, conditions, numerous experimental testes were carried out, and the two parameters describing the evaporation process from wet branches were determined and linked to T, VPD and S. The results obtained in this work help us to understand the studied process, highlight its complexity, and could be implemented in the recently introduced interception/evaporation model to quantify this important component of the hydrologic cycle.

1. Introduction

Interception loss is a part of rainfall that is intercepted by the Earth’s surface and subsequently evaporates [1]. From a hydrological point of view, where more emphasis is given to the related hydrological processes, interception loss is defined as a part of rainfall that is mostly captured by vegetation, and it cannot take part in the runoff and infiltration processes, since it is bound to evaporate [2,3]. The role of interception in the hydrologic cycle has probably been underestimated and sometimes completely neglected [4]. Beven [5] stated that in some environments, evaporation from intercepted water via wet and rough canopies can be very significant in the total water balance. Calder [6] showed that in the upland forest catchments of Britain, evaporation from interception amounted to 35% of the gross rainfall in areas where more than 1000 mm of annual rainfall occurred. However, in areas with lower rainfall and high vegetation cover, evaporation from interception can be more significant, achieving 40–50% of the gross rainfall [4]. For a number of different environments and species, Carlyle-Moses [7] also stated that interception loss is often an important component of water balance and found that, on average, it was equal to 26 and 13% of the gross precipitation for coniferous and foliated deciduous forests, respectively. Therefore, the need to develop parsimonious simple models able to predict this component of the hydrological cycle, which require few parameters and can be applied at a large scale, is widely acknowledged [8], especially for orchards where it seems that less experimental research was carried out than for forests.

The increased interest in the potential of tree planting to help mitigate flooding, increase the soil infiltration capacity [9], enhance soil drying resulting from transpiration and wet-canopy evaporation, increase ground-surface roughness and also reduce the splash and surface erosion caused by raindrop impacts [10], encouraged us to pursue a deeper understanding of the interception process. For low rainfall intensities, and consequently for small drop sizes, which are more frequent at the yearly scale, it is reasonable to accept that interception plays a crucial role in the hydrologic cycle [10,11]. However, for extreme rainfall events, it was also shown that the importance of vegetation cover decreases [12].

Of course, in irrigation, when sprinklers are applied under limited water application rates, interception also affects the water balance. For example, Jiao et al. [13] developed a process-based dynamic interception model for alfalfa canopies, validated it under conditions of simulated sprinkler irrigation and demonstrated that the amount of interception increased rapidly with duration in the early stage of sprinkler irrigation and then gradually levelled off until the maximum retention capacity of the canopy was reached.

The most commonly applied interception models are described in a review article by Muzylo et al. [14], who listed the peculiarities of each model, also indicating the required input temporal scale, the output variables, the number of parameters, the number of layers (single or multiple), and the appropriate spatial scale. The list included the physical-based Rutter model [15,16]; Rutter was the first to model forest rainfall interception, recognizing that the process was primarily driven by evaporation from wet canopies.

Early applications of Rutter-type models were made by Calder [17] and by Gash and Morton [18]. However, the abovementioned physical-based models are difficult to apply because of the many physical parameters that are required, especially for large-scale applications. According to this line of thinking, simplified models were developed, such as that suggested by Linsley et al. [19], who modified the very simple interception model first introduced by Horton [20], which did not account for the amount of gross rainfall, since it merely assumed that the rainfall in each storm completely filled the interception storage.

The Linsley et al. model, which assumed that the interception loss exponentially approaches the interception capacity as the amount of rainfall increases [21], was then applied and tested by Merrian [22], who studied the effect of fog intensity and leaf shape on water storage on leaves by using a simple fog wind tunnel and leaves of aluminium and plastic. Merrian [22] found that the drip measurements were reasonably close to the values predicted by using an exponential equation based on fog flow and leaf storage capacity. Recently, Baiamonte [23] showed that the exponential Merrian model can be derived according to a simple linear storage model, also accounting for the antecedent intercepted stored volume.

Baiamonte [23] applied the modified Merrian model to compute interception during wet spells and used a simple power-law equation to model evaporation from a wet canopy during dry spells. The shape of the power-law equation used to model the evaporation process (high fluxes at first, and then gradually decreasing fluxes) was in good agreement with the physical circumstance highlighted by Babu et al. [24]. This author stated that evaporation from a wet canopy comprises a “preheat period”, where the drying speed quickly increases, and then a “constant rate period”, where evaporation takes place on the outside surface for the removal of unbound moisture (free water) from the surface of the leaf [24].

For faba bean cover crop, Baiamonte [23] applied such an integrated model for continuous simulation, according to the sub hourly rainfall data that were considered as appropriate to study both interception and evaporation processes. Moreover, for branches of fava bean, the interception capacity included woody parts and bark, but it was referred to the leaf area. However, in that work, when modelling evaporation from a wet canopy, a rough account of the air temperature variability during the simulated period was considered, since the evaporation experiments were performed for just one temperature value and evaporation data for the actual temperatures were simply rescaled according to an empirical formula [25]. Moreover, the important role of the relative humidity was not considered.

From an experimental point of view, measuring evaporation losses from a wet canopy involves a multitude of uncertainties because of the high number of factors that influence the process, including the interception capacity from which the evaporation process takes place, which in turn depends on several factors, such as the roughness of leaves’ surfaces or the leaf angle above the horizontal [26,27]. Thus, knowledge of the interception capacity is fundamental in modelling the subsequent evaporation process from a wet canopy.

The interception capacity can be estimated using direct methods such as the cantilever, which is based on the cantilever deflection of a water-laden branch [28,29], or by weighting vegetative surfaces after artificial wetting [30,31]. In contrast, indirect methods refer to model optimization, graphical estimation [32,33,34], interception capacity estimation by the differences between the gross rainfall above the canopy and the throughfall and stemflow components, as first suggested by Helvey and Patric [35], or to the most common regression-based approaches between rainfall and throughfall [33,36].

In this paper, in contrast to most of the abovementioned works carried out for forests, we focused on the experimental measurements of evaporation losses from branches of lemon trees once the interception capacity using artificial wetting was achieved. Moreover, the experimental study aimed at detecting the effect of environmental parameters on the evaporation process. In particular, for branches of lemon trees and for different temperature, T, and vapour pressure deficit, VPD, conditions, numerous experimental tests were carried out to detect a simple model, in addition to the power-law [23], able to best describe the studied process. An attempt to link the parameters associated with the considered simple model to T, RH and S was also performed. IR images were used to explain the intermittence of evaporation processes due to particular temperatures and relative humidity temporal variability.

2. Materials and Methods

Subdividing sub hourly rainfall data series into wet spells, WS (h), and dry spells, DS (h), Baiamonte [23] considered a modified Merrian model to compute interception during wet spells, WS, where evaporation because of the high humidity was low and it was neglected, and a simple power-law equation to model evaporation from a wet canopy during dry spells, DS. In particular, by using a simple linear storage model, the interception process during a WS was described by the following relationship, which made it possible to account for the antecedent interception volume, ICS₀ (mm), at the time t₀:

$$\frac{ICS}{S}=1-\left(1-\frac{IC{S}_0 }{S}\right) exp\left(-\frac{R}{S}\right)$$

(1)

where ICS (mm) is the actual interception volume at the time t (h), S (mm) is the interception capacity, and R (mm) is the actual cumulated rainfall volume.

Meanwhile, during a DS, the evaporation process, which started from an antecedent storage volume, ICS₀ ≥ 0, was described by a simple power-law:

$$E=m t^n$$

(2)

where E (mm) is the cumulated water loss due to evaporation from a wet canopy per unit surface area, and n and m are the shape and scale parameters, respectively, to be determined by experimental measurements, for a fixed air temperature T_ex (°C). If imposing in Equation (2) that the interception capacity, S, stored in the canopy entirely evaporates:

$$S=m t_{max}^n$$

(3)

where the corresponding time t_max equals to:

$$t_{max}={\left(\frac{S}{m}\right)}^{1/n}$$

(4)

For any antecedent time initial condition, t₀, during a dry spell, DS (h), the corresponding evaporation loss, ΔE (mm), was expressed as:

$$\Delta E=LAI m {\left(\frac{T_m}{T_{ex}}\right)}^{1.93} \left({\left(DS+t_0\right)}^n-t_0^n\right)$$

(5)

where DS + t₀ (h) is the time initial condition, t₀, shifted by the dry spell duration, LAI is the leaf area index, the first factor in brackets accounts for the actual temperature T_m that affects the evaporation process [23,25], and the amount of evaporation volume depends on both n and m numerical constants.

A similar power-law equation was also considered by Black et al. [37] to model the cumulative evaporation of an initially wet, deep soil, and by Ritchie [38], who reported the experimental parameters obtained by other researchers for different soils. Moreover, as mentioned in the introduction, Equation (2) agrees with Babu et al. [24], who described evaporation from a wet canopy according to a first stage, where the drying speed quickly increases, and then an almost “constant rate period”, with gradually decreasing evaporation fluxes. For the faba bean cover crop, Baiamonte [23] showed that for a fixed outdoor air temperature, T_ex (°C), the cumulated evaporation volume, E (mm), could actually be described by Equation (2).

In this paper, for branches of lemon trees, different temporal variations in E relationships were analysed, such as the already considered power-law (Equation (2)), the exponential law, according to a simple linear storage model [39], and the semi-log relationship. According to the experimental measurements, the semi-log relationship provided the best fitting of the experimental data. Moreover, as in Equation (2), the semi-log relationship is also characterized by a first stage with high evaporation fluxes and then a second stage with gradually decreasing fluxes, as it is described in the following.

By maintaining the notation coefficients used in Equation (2), the semi-log relationship can be described as:

$$E=n log\left(t\right)+m$$

(6)

where n is the shape parameter, which is linked to the evaporation rate, dE/dt = n/t, and m is the evaporation amount after one hour.

Similar to the power-law, assuming a complete evaporation of the interception capacity, S, yields:

$$S=n log\left(t_{max}\right)+m$$

(7)

The corresponding time t_max can be determined:

$$t_{max}=exp\left(\frac{S-m}{n}\right)$$

(8)

Contrarily to the power-law, for which the evaporation process starts immediately after the interception capacity is achieved, for the semi-log relationship, the evaporation starts by a short time t₀ > 0 that can be derived by Equation (6) for E = 0, yielding:

$$t_0=exp\left(-\frac{m}{n}\right)$$

(9)

This occurrence that could be ascribed to inertial or viscous forces making the process start [39] was seldom observed for the experimental data (where the estimated t₀ was equal to a few minutes), although, as mentioned above, the semi-log relationship provided the best data fitting. Of course, for t = t₀, Equation (6) yields:

$$E=n log\left(t_0\right)+m=0$$

(10)

Interestingly, for any dry spell, DS, by using the semi-log relationship, starting at any antecedent time initial condition, t₀, contrarily to the power-law (Equation (5)), the corresponding evaporation loss only depends on the shape parameter n:

$$\Delta E=LAI n log\left(\frac{DS+t_0}{t_0}\right)$$

(11)

where, as in Equation (5), the evaporation loss is rescaled according to the LAI.

3. Experimental Layout

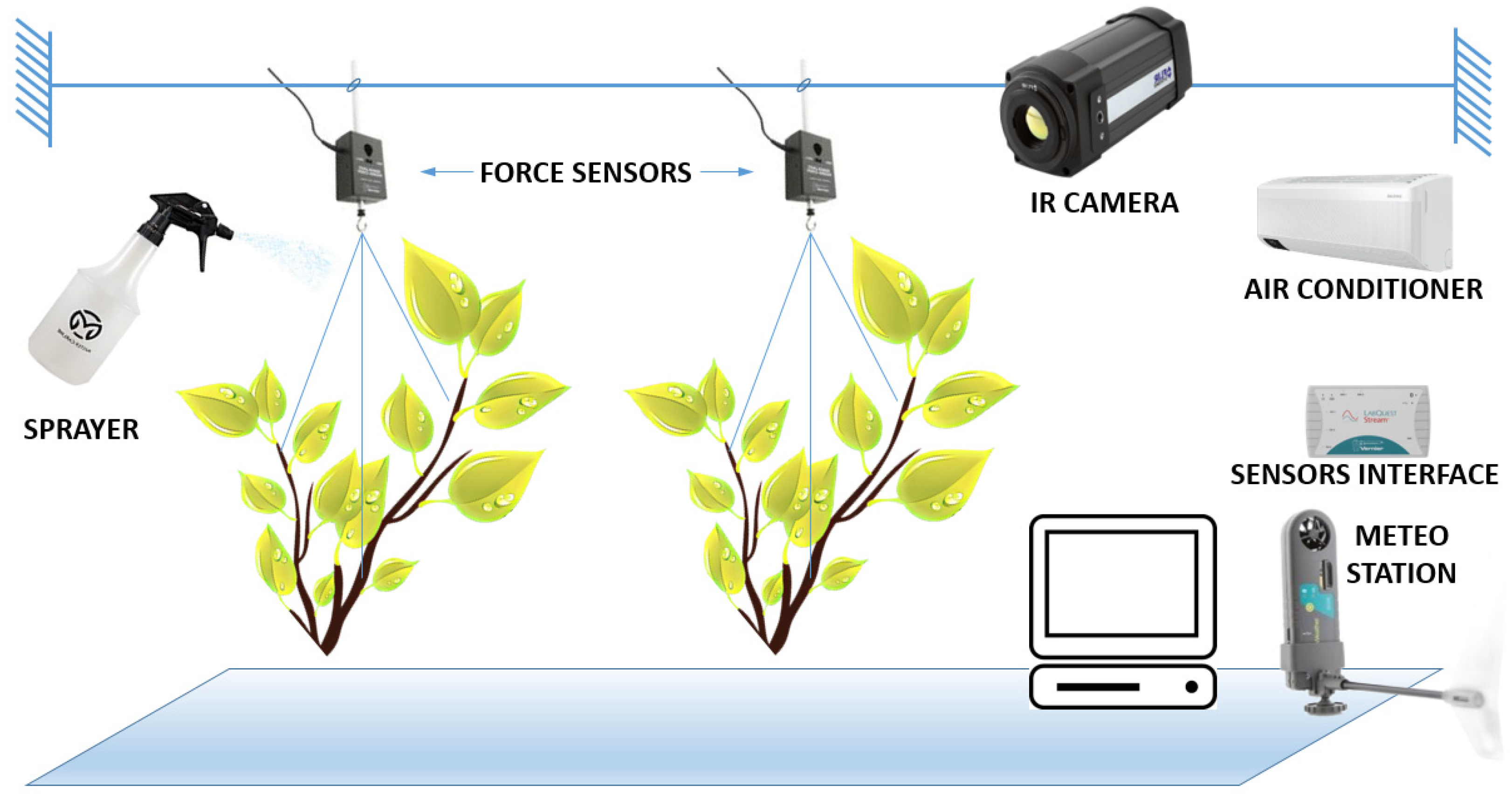

Figure 1 shows the experimental layout where for branches of lemon trees (Citrus limon (L.) Osbeck), interception capacity, S (mm) and evaporation depth E (mm), starting from S, were measured. For each run, two branches of lemon trees that were not wilting were selected from the field. After the selection, each was cut, taken immediately to the laboratory and weighted. By using a thin nylon thread (0.3 mm), for data acquisition, the dry branches were suspended on the balance arrangement by using two force sensors connected to an interface with a range of ±10 N and a sensitivity of 0.01 N, as shown in Figure 1. A weather sensor was also connected to the interface for temperature and relative humidity data acquisition. Temperature and relative humidity were imposed by using a common air conditioner, which was employed to mimic different climatic conditions. A thermal camera, FLIR A320 (IR camera), was also used to monitor the evaporation process.

Rainfall was simulated by using a common sprayer (Figure 1) until the interception capacity S was achieved. After the branches were saturated, when dripping stopped, branch weight, temperature and relative humidity data were recorded at an interval of 2 min. The slight transpiration losses, depending on the capacitance of the plant and on the evaporation process itself, were assumed as an additional evaporation loss or as negligible, according to the fact that transpiration may have been inhibited by the wet branch conditions [40,41,42,43], and also given the limited duration of the tests and the absence of solar radiation.

Tests were considered as completed when the weight of the evaporated water matched the weight corresponding to the interception capacity, thus including the water intercepted by leaves, woody parts and bark [44]. At the end of the test, the individual leaves were separated from the branches and scanned by using a Fiji image processing package [45], which made it possible to measure the number of leaves, #L, and leaf surface area, LA. The interception capacity in terms of water depth, S (mm), was calculated as the ratio between the intercepted water volume at saturation, thus including woody parts and bark, but it was referred to the leaf surface area, LA.

It is also important to note that indoor experiments were performed, so the important factors of solar radiation and wind speed were not considered. However, these issues, the effects of which are known, should be the focus of further research.

4. Results

For branches of lemon trees with different numbers of leaves, #L, and leaf surface areas, LA (m²), 22 runs were carried out (

Table 1. For the 22 runs, number of leaves, #L, leaf area, LA, interception capacity, S, mean relative humidity and temperature, <RH> and <T>, with the corresponding coefficient of variation, CV, vapour pressure deficit, VPD, n and m parameters, correlation coefficient, characteristic times, t₀ and t_max, and the ratio E/S.

run #	#L	LA (m2)	S (mm)	<RH> (%)	CV(RH)	<T> (°C)	CV(T)	VPD	n	m	R	t0 (h)	tmax (h)	E/S
1a	34	0.149	0.089	64.9	1.1%	26.5	0.8%	1.212	0.0234	0.0499	0.905	0.119	5.38	1.00
1b	140	0.293	0.108	63.6	3.1%	26.7	1.4%	1.276	0.0296	0.0533	0.935	0.165	6.39	1.02
1aR	34	0.149	0.106	62.8	3.0%	26.6	1.2%	1.294	0.0246	0.0401	0.976	0.196	14.44	1.00
1bR	140	0.293	0.114	63.5	2.4%	26.7	1.2%	1.274	0.0294	0.0432	0.979	0.230	11.29	0.98
2a	76	0.148	0.099	56.2	1.8%	26.3	1.3%	1.498	0.0274	0.0779	0.976	0.058	2.15	1.00
2b	48	0.162	0.090	56.5	1.9%	26.3	1.1%	1.486	0.0259	0.0642	0.975	0.084	2.72	1.05
3a	52	0.153	0.104	45.9	1.7%	29.7	0.5%	2.260	0.0302	0.0896	0.983	0.051	1.61	1.04
3b	93	0.205	0.114	46.0	1.6%	29.9	1.0%	2.275	0.0336	0.0819	0.979	0.088	2.63	1.06
4aR	38	0.162	0.075	58.8	6.4%	18.5	1.6%	0.877	0.0199	0.0563	0.957	0.059	2.55	1.10
4bR	62	0.157	0.088	58.4	6.6%	18.5	1.7%	0.888	0.0268	0.0562	0.963	0.122	3.33	0.96
5a	48	0.154	0.136	63.1	1.5%	23.8	1.0%	1.088	0.0354	0.0615	0.970	0.176	8.26	1.06
5b	93	0.228	0.134	63.4	1.3%	23.8	1.0%	1.081	0.0397	0.0594	0.954	0.224	6.52	1.06
6a	33	0.145	0.105	67.5	1.3%	24.1	0.9%	0.977	0.0256	0.0522	0.977	0.131	7.97	1.00
6b	68	0.228	0.084	67.6	1.4%	24.2	0.9%	0.976	0.0242	0.0434	0.954	0.167	5.29	1.07
7a	63	0.186	0.082	70.8	4.2%	21.6	1.4%	0.751	0.0220	0.0491	0.957	0.108	4.37	1.13
7b	64	0.154	0.054	71.4	4.1%	21.6	1.3%	0.736	0.0160	0.0389	0.899	0.088	2.52	1.23
8a	90	0.195	0.078	55.1	1.6%	21.8	1.4%	1.175	0.0191	0.0566	0.980	0.052	3.05	1.05
8b	72	0.223	0.068	55.1	1.5%	21.9	1.3%	1.177	0.0182	0.0452	0.966	0.083	3.53	1.09
9a	54	0.163	0.043	57.0	1.3%	19.9	1.2%	1.002	0.0144	0.0304	0.957	0.121	2.45	1.17
9b	8	0.040	0.067	56.2	3.0%	20.0	1.3%	1.025	0.0167	0.0377	0.966	0.104	5.73	0.95
9aR	54	0.163	0.055	55.1	1.3%	20.1	1.1%	1.058	0.0175	0.0338	0.936	0.144	3.28	1.07
9bR	8	0.040	0.043	55.1	1.3%	20.1	1.1%	1.058	0.0099	0.0285	0.993	0.057	4.46	0.94

), providing different values of the interception capacity, S (mm), as can be observed in Table 1. Dealing with the same tree species, a wide S variability was not expected, which contrarily occurred with a coefficient of variation CV = 30%. Figure 2 shows the frequency distribution of S that it was fitted by a normal distribution well, meaning that the average value <S> = 0.088 mm could be considered as the significant interception capacity for the investigated lemon tree branches. However, such S variability significantly affected the interpretation of the evaporation measurements, as is shown later.

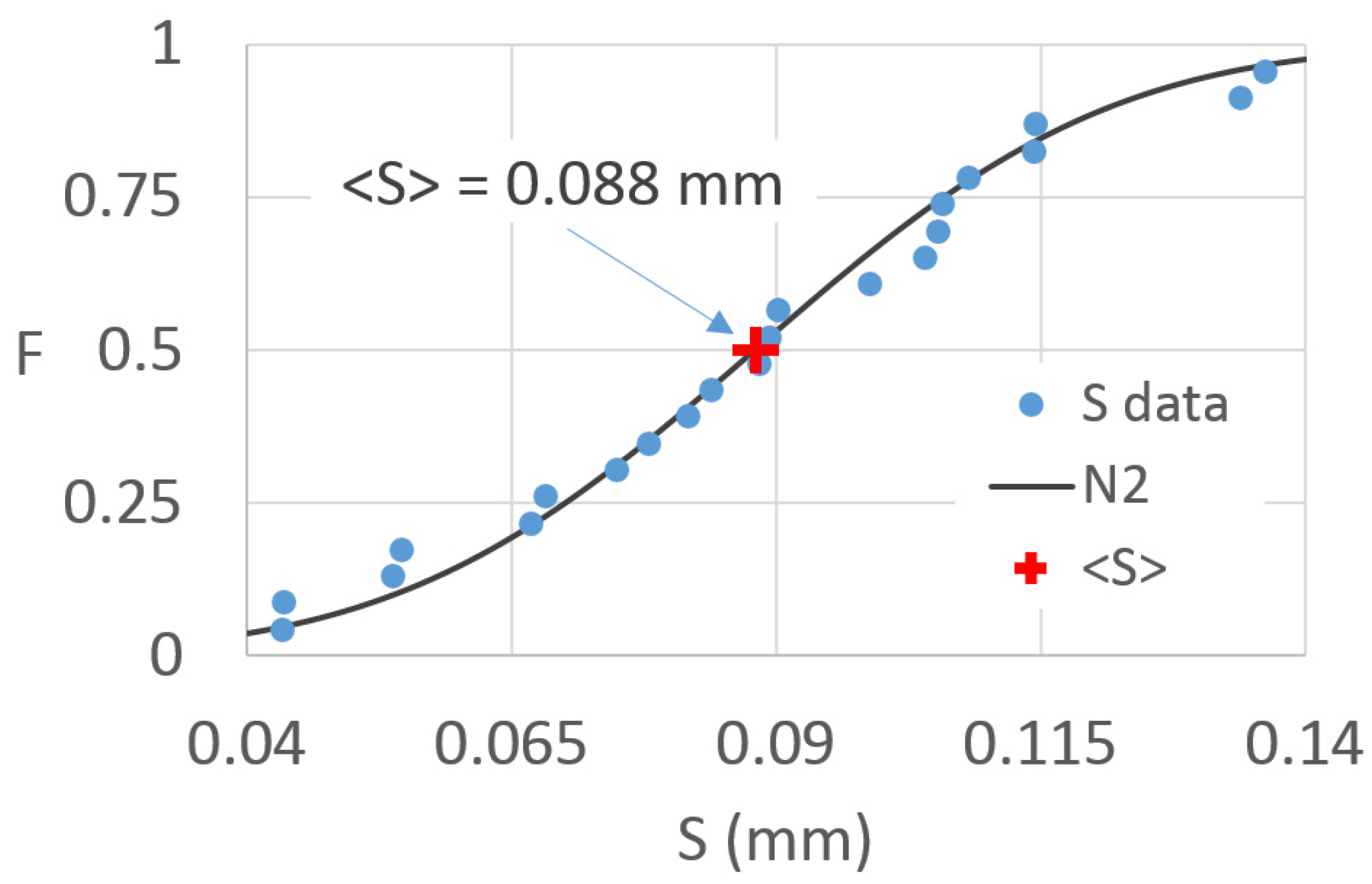

The S variability was explained by many reasons, e.g., (i) the actual leaf moisture content that may determine different leaf shapes, thus affecting the maximum water amount that can be stored on the branches, and so the interception capacity; (ii) during the wetting process, not only could the upper side of the leaves be wetted, but indeed, wetting the lower side of the leaves could result in an S increase; (iii) the actual condition of the surface leaf roughness, which can change according to the presence of sand by previous rainfall events, (iv) the drop size effect [10,11]. Point (iii) is supported by the S values obtained from lemon branches sampled at the same time (denoted with the code a and b in Table 1), which provided similar values of the interception capacity.

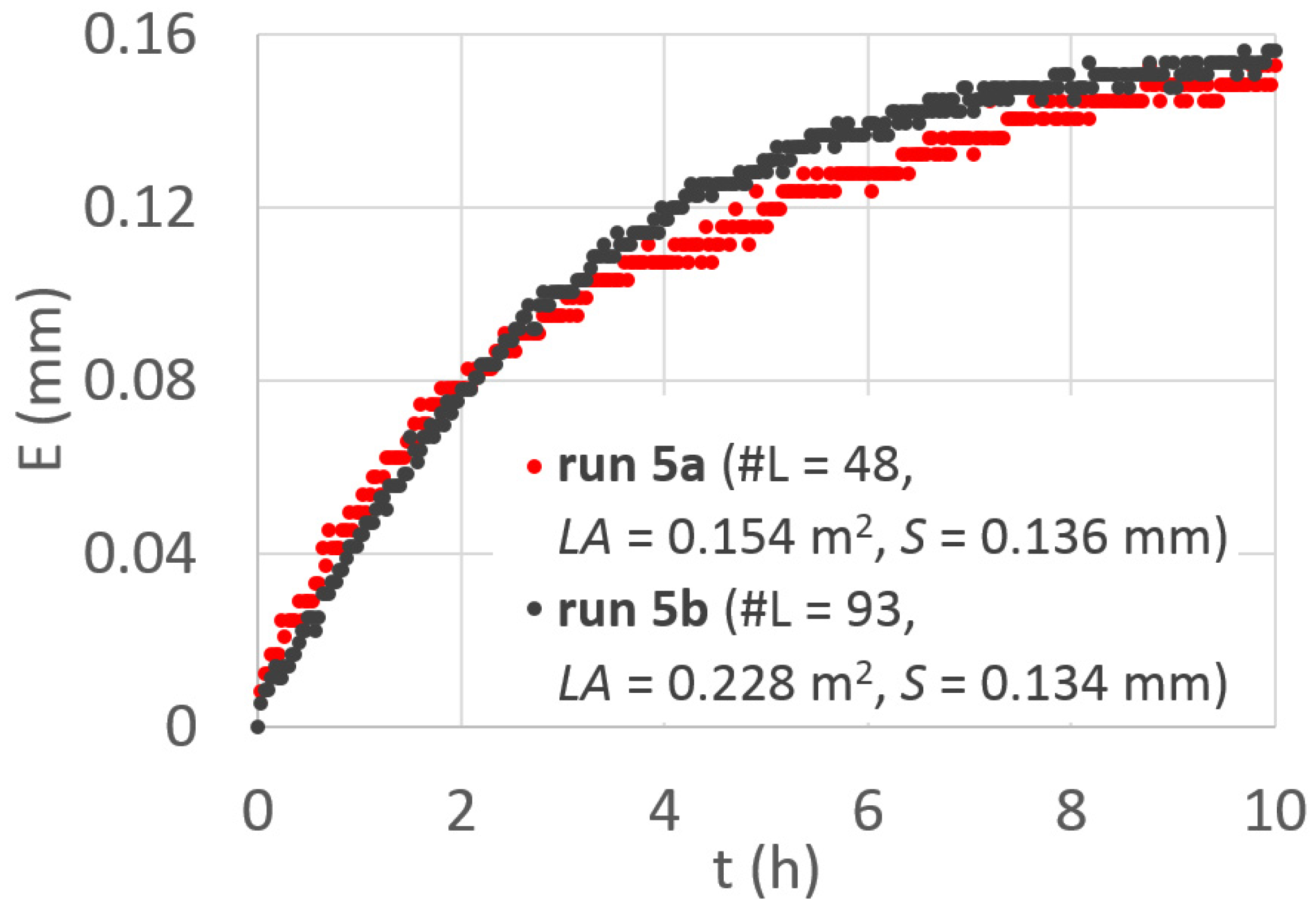

For example, Figure 3 shows the E versus the time relationship, corresponding to run 5a and 5b, thus sampled at the same time, providing very close S values (0.136 and 0.134 mm, respectively), despite the different number of leaves, #L, and leaf surface area, LA, values, as displayed in Figure 3. However, in the case of Figure 3, it can also be observed that the evaporation depth of the wet canopy exceeds the interception capacity (S). This occurrence was probably due to the transpiration effect, meaning that for run 5, the branches lost more water than that evaporated from the wet leaves.

For these runs, the E versus t relationships were also almost similar each other, indicating the suitability of the experimental data that, per unit surface areas, are independent of the size of the sampled branches. Interestingly, Table 1 shows that high t_max values are associated with runs carried out for the same branches previously tested, denoted with the code R, especially for high temperatures (1aR and 1bR, <T> = 26.6 °C). This is because when performing measurements on branches already tested, different leaf shapes occurred. However, this occurrence was not detected in run 4 and 9 at lower temperatures.

As described in the previous section, different temporal variations in the E relationships were analysed, and the semi-log relationship provided the best fitting.

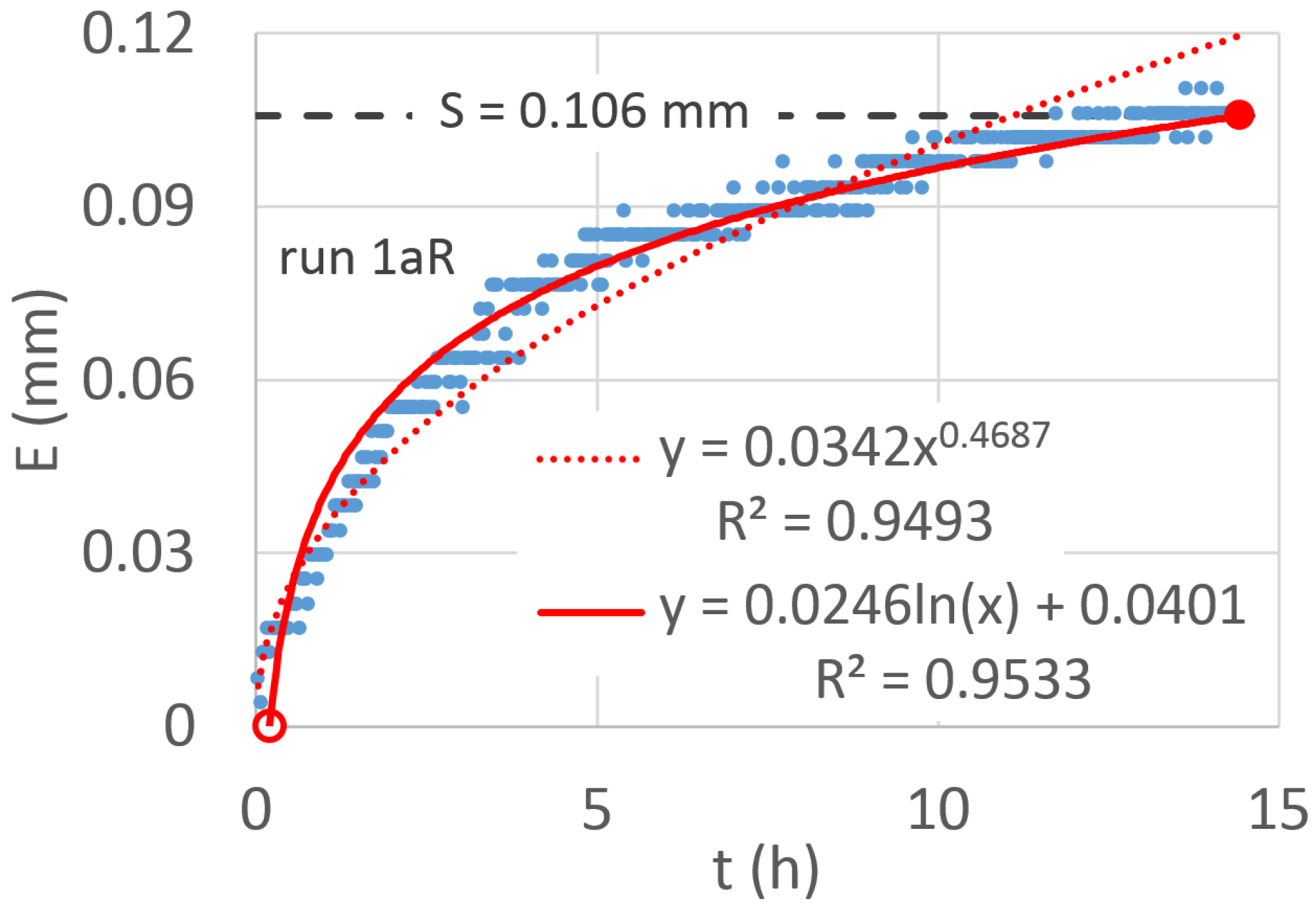

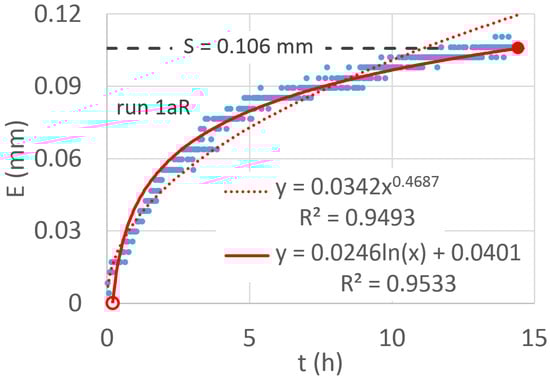

As an example, for E experimental data vs. time, obtained for run #1aR, Figure 4 shows the comparison between the fittings of the power-law (Equation (2)) considered by Baiamonte [23] and of the semi-log relationship (Equation (6)). For the latter, t₀ (red circle) and t_max (red dot) and the corresponding interception capacity, S, are also indicated. Although high coefficients of determination were obtained for both cases, it can be observed that the power-law overestimated the evaporation near to the S achievement.

4.1. Parameters Estimation

Once the best fitting relationship was selected (Equation (6)), the corresponding regression coefficients n and m were estimated according to the ordinary least squares method and are reported in Table 1, together with the correlation coefficient, R, t₀, t_max and the ratio E/S close to the unity, with E the measured E value at t = t_max.

Table 1 also reports the mean relative humidity, <RH>, the mean temperature, <T>, and the vapour pressure deficit, VPD, which were associated with each run. This is because, as mentioned above, different T and RH values were imposed by using an air conditioner, the thermostat of which maintained constant RH and T values, but with a certain variability around the average values. In Table 1, the corresponding coefficient of variations, CV(RH) and CV(T), are also reported. A statistical ANOVA to analyse the significance of n and m parameters was performed by choosing S, VPD and T as independent variables, which actually may have affected the evaporation measurements (

Table 2. Regression statistics for n and m parameters of Equation (6).

Regression Statistics	n	m
Multiple R	0.9638	0.8414
R Square	0.9290	0.7079
Adjusted R Square	0.9172	0.6592
Standard Error	0.0021	0.0094
Observations	22	22

,

Table 3. For n and m parameters, ANOVA of the linear multiple regression.

ANOVA	df	SS	MS	F	Significance F
n parameter
Regression	3	0.0010	0.0003	78.50	1.56 × 10−10
Residual	18	0.0001	4.43 × 10−6
Total	21	0.0011
m parameter
Regression	3	0.0038	0.0013	14.54	4.68 × 10−5
Residual	18	0.0016	0.0001
Total	21	0.0054

and

Table 4. For n and m parameters, ANOVA of the explanatory variables.

Explanatory Variables	Coefficients	Standard Error	t Stat	p-Value	Lower 95%	Upper 95%
n parameter
Intercept	0.0035	0.0039	0.8960	0.3821	−0.0048	0.0118
<T>	−3.032 × 10−4	0.0003	−1.0750	0.2966	−0.0009	0.0003
VPD	3.075 × 10−3	0.0020	1.5376	0.1415	−0.0011	0.0073
S	0.2724	0.0238	11.436	1.1×10−9	0.2224	0.3225
m parameter
Intercept	0.0266	0.0175	1.5168	0.1467	−0.0103	0.0635
<T>	−1.885 × 10−3	0.0013	−1.5026	0.1503	−0.0045	0.0008
VPD	3.386 × 10−2	0.0089	3.8069	0.0013	0.0152	0.0525
S	0.3334	0.1060	3.1469	0.0056	0.1108	0.5560

).

For n and m parameters, Table 2 reports the regression statistics, indicating high values of the regression coefficients with low values of the standard errors. Table 3 reports the results of ANOVA in terms of the linear multiple regression, illustrating the good performance of the selected multiple regression model, whereas in Table 4, ANOVA is referred to the considered explanatory variables.

As can be observed in Table 4, the S variable explains most of the n and m variability, especially for the n parameter, whereas the relative humidity, much more than the temperature, plays an important role in describing the m parameter.

Moreover, the signs of the coefficients of the explanatory variables agreed with their physical meaning, with the exception of the coefficient sign of T for the n parameter. RH and S were statistically significant for the m parameter, which indicated one-hour evaporation depth. Contrarily, the n parameter, i.e., the shape factor of Equation (6), as observed above, was mostly explained by the interception capacity alone. The latter agrees with the consideration that for high S values, evaporation fluxes and the drying speed quickly increase and vice versa.

The multiple linear regression (Table 4) provided the following n and m relationships:

$$n=\mathrm{a}+{\mathrm{a}}_1 S+{\mathrm{a}}_2 \overline{\mathrm{VPD}}+{\mathrm{a}}_3\overline{\mathrm{T}}$$

(12)

$$m=\mathrm{b}+{\mathrm{b}}_1 S+{\mathrm{b}}_2 \overline{\mathrm{VPD}}+{\mathrm{b}}_3\overline{\mathrm{T}}$$

(13)

where in Equation (12), the numerical constants, a, a₁, a₂ and a₃, are equal to 0.0035, 0.2724, 3.07 × 10⁻³ and −3.03 × 10⁻⁴, whereas in Equation (13), the numerical constants, b, b₁, b₂ and b₃, equal to 0.0266, 0.3334, 3.38 × 10⁻² and −1.28 × 10⁻³, respectively, and the over line symbol indicates the mean value.

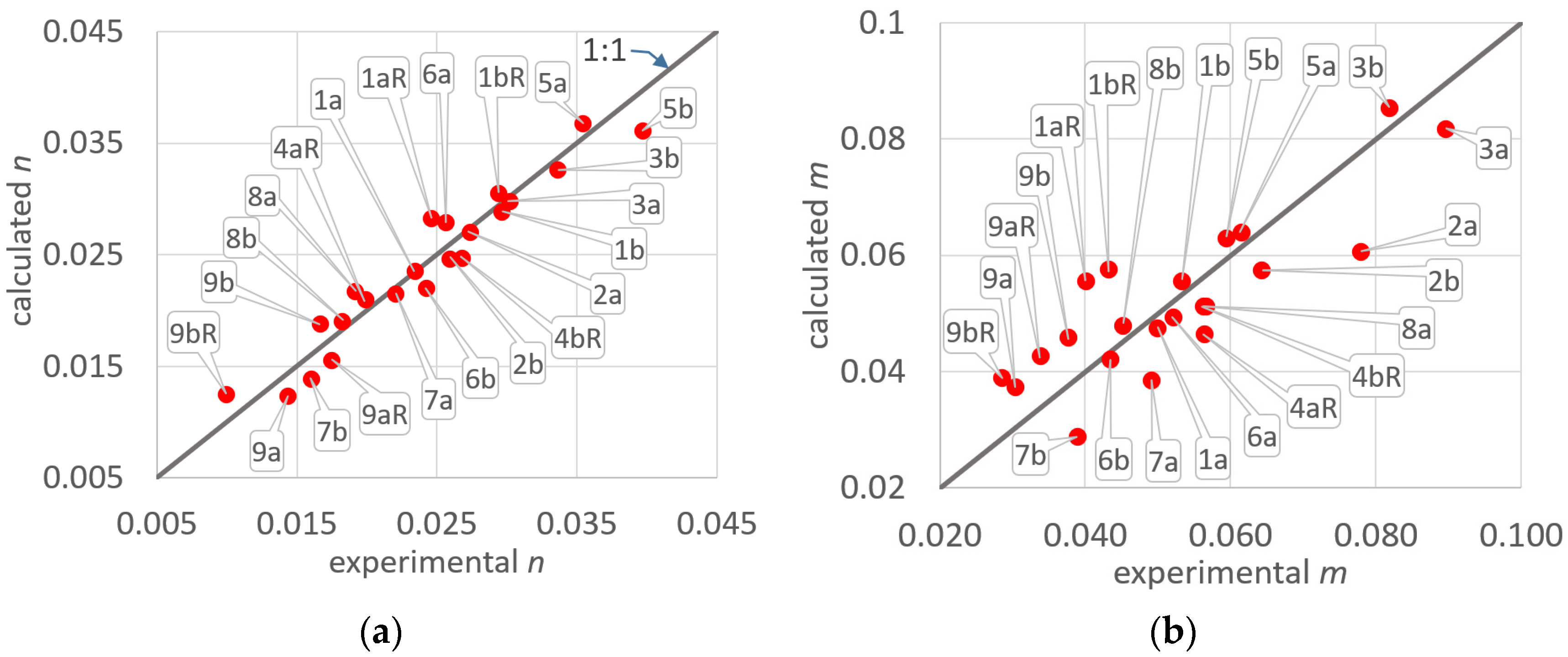

In Figure 5, n and m estimated by using the experimental data are compared with those calculated using Equation (12) and Equation (13), respectively. The figure shows that for n parameter (Figure 5a), the dots are almost close to the line of perfect agreement, indicating the good performance of Equation (12) in explaining the shape parameter of the semi-log relationship, which is linked to the evaporation rate. Meanwhile, a wider dot dispersion around the 1:1 line was obtained for the m parameter (Figure 5b).

It is interesting to observe that many of the dispersed data refer to runs carried out in branches already used to determine the E vs. t relationships (code R), indicating that the modifications of leaves’ shapes not accounted for in the selected explanatory variables could have an important role in describing the amount of water that evaporates after one hour (m parameter). Meanwhile, this effect seems to play a minor role in the evaporation rate (Figure 5a).

The consistency of the numerical constants could be better checked by analysing the influence of the physical variables on the E versus t relationships. Towards this aim, substituting Equations (12) and (13) into Equation (6), and grouping the numerical constants provide:

$$E=\left(\mathrm{a}\log t+\mathrm{b}\right)+\left({\mathrm{a}}_1\log t+{\mathrm{b}}_1\right) S+\left({\mathrm{a}}_2\log t+{\mathrm{b}}_2\right) \overline{\mathrm{VPD}}+\left({\mathrm{a}}_3\log t+{\mathrm{b}}_3\right)\overline{ \mathrm{T}}$$

(14)

For any time t, the abovementioned consistence should be proved by the following conditions:

$${\mathrm{a}}_1\log t+{\mathrm{b}}_1>0$$

(15)

$${\mathrm{a}}_2\log t+{\mathrm{b}}_2>0$$

(16)

$${\mathrm{a}}_3\log t+{\mathrm{b}}_3>0$$

(17)

Indeed, it should be expected that with increasing S, VPD and T, evaporation should increase. In a simpler way, Equations (15)–(17) could be applied for fixed VPD, by varying T, and for fixed T, by varying VPD, to check their expected influence on E.

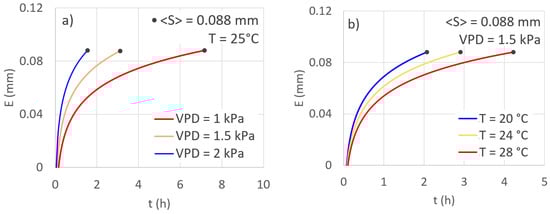

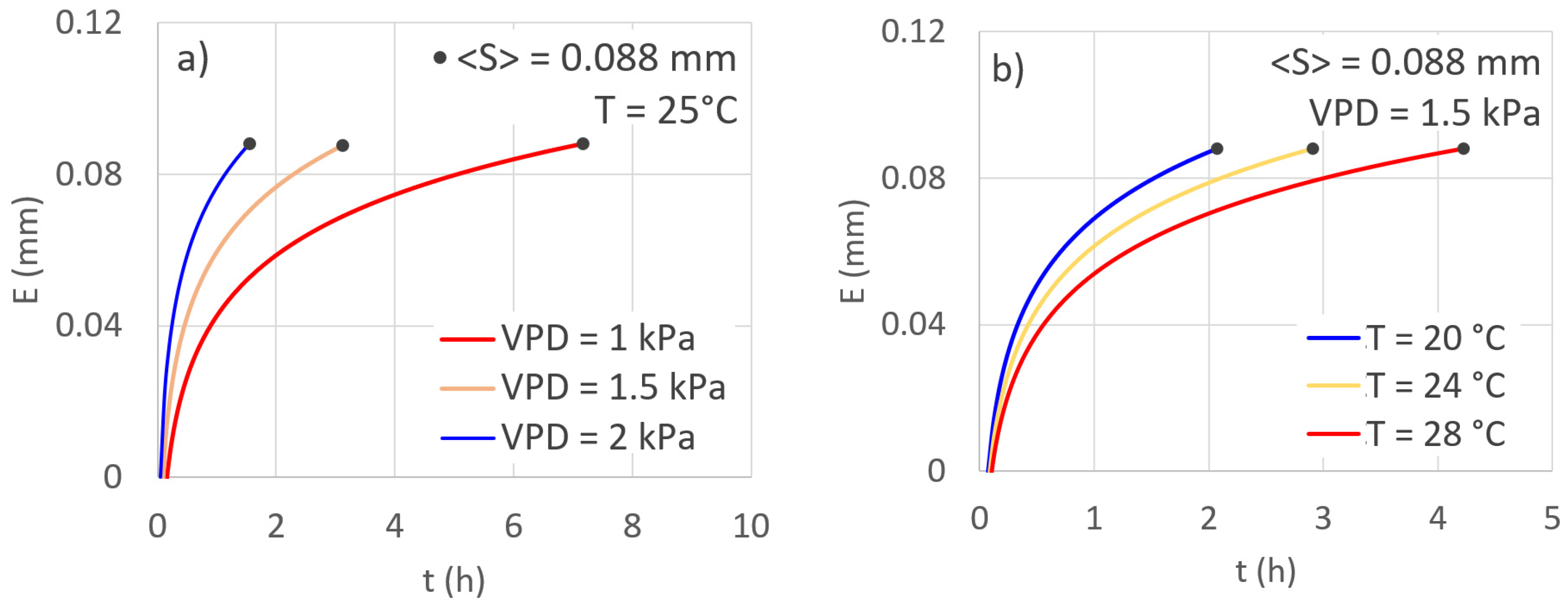

For a fixed S equal to the mean value (S = 0.088 mm) and for T = 25 °C, Figure 6a shows E versus t, for different VPDs (VPD = 1, 1.5 and 2 kPa, Figure 6a), whereas in Figure 6b, for VPD = 1.5 kPa, E versus t is plotted for different Ts (T = 20, 24 and 28 °C). The figure shows that for both VPD and T, the expected trends occur, indicating the suitability of the calibrated model, and thus the influence on the evaporation process by the considered physical variables. However, it seems that VPD has greater importance than T, also supported by the ANOVA, at least in the considered range of the investigated variables.

From a practical point of view, the usefulness of such calibrated relationships lays in their ability to estimate the evaporation losses, starting with any initial conditions, t₀, when applied in combination with an interception model, such as that suggested by Baiamonte [23].

A more extended validation of such a procedure was performed by considering that the evaporation losses are only described by the shape parameter, n, of the semi-log relationship, as observed in the previous section:

$$\Delta E=\left(\mathrm{a}+{\mathrm{a}}_1 S+{\mathrm{a}}_2 \mathrm{VPD}+{\mathrm{a}}_3 \mathrm{T}\right) log\left(\frac{DS+t_0}{t_0}\right)$$

(18)

where DS (h) is the dry spell duration for which the evaporation loss has to be estimated.

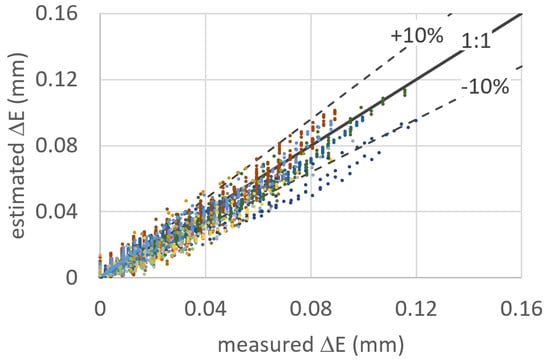

With this aim, the experimental data and those corresponding to the fitting relationships were disaggregated to check the procedure for many possible combinations of the pairs (E₀, E) and (t₀, t). Thus, for each run, r, the combinations N_r = n (n −1)/2! of disaggregated data were considered, with n equal to the number of the sampled E values for each run.

Because of the high number, n, of the experimental E values, N₂₂ = Σ N_r = 2812 disaggregated data were obtained and compared with the data calculated using Equation (18). The results of the comparison are reported in Figure 7, where the line of perfect agreement is also indicated. The standard error of the estimate, SEE, of ΔE was equal to 0.007 mm, which is not much if considering the complexity of the studied process. In the same Figure 7, two straight lines bounding the domain corresponding to a maximum estimate error equal to ±10% are plotted. Excluding the minor number of cases, the points fall inside of this field, proving the reliability of the suggested procedure.

4.2. Using IR Images

For the runs carried out with low values of the mean temperature (such as #4aR, #4bR, #7a and #7b), the non-monotonic behaviour of the E temporal variation was observed. As an example, for run 7b, for which a slight T variability occurred (<T> = 21.6 °C), Figure 8 shows that the experimental E values started increasing and then decreasing versus the time, mostly because of the RH and VPD variations that were determined by the air conditioner, which maintained the temperature using a temperature sensor associated with a controller. It is known that the sensor read the return air temperature from the room which was air-conditioned and the controller compared it with the set point. Once the set point was achieved the controller, cut down the compressor which in turn stopped the room being cooled more, and so on.

While the intermittent compressor functioning did not provide significant effects for high temperatures, for low temperatures, the RH (and VPD) role on E became more and more evident at decreasing T. The E decreasing steps were clearly due to a condensing process so that the leaves were enriched by the water vapour in air that condensed on the cool leaves.

This was more due to RH (and VPD) than to T variation, with the latter exhibiting smaller variations than RH (Figure 8). As can be observed by the domains A₁, A₂, B₁ and B₂ displayed in Figure 8, a certain condensation delay with respect to the RH increasing occurred, so if in the range A₁, RH increased, its effect in terms of condensation (E decreasing) occurred in the subsequent range B₁, and so for A₂ and B₂. This is probably due to the fact that inertial effects occurred after the RH reading increased, which causes the vapour condensation with some delay.

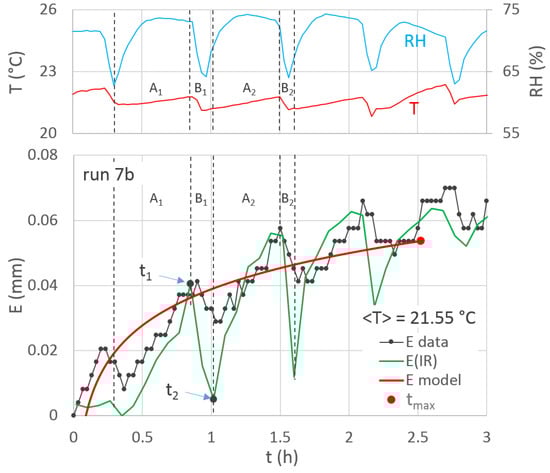

As can be observed in Figure 8, for these cases as well, the semi-log relationship was considered, providing an average behaviour of the non-monotonic E relationship. This issue, which was of course determined by the selected experimental set up, complicated the interpretation of the experimental data and contributed to explaining the aforementioned errors associated with E estimation by means of VPD, T and S data.

A deeper analysis was performed for the 7b run by using the IR camera (Figure 1) recording infrared images during the evaporation process. Since the leaf surface temperature changed according to the amount of water stored on the branches, it was assumed that the number of pixels corresponding to a range of temperatures denoted the evaporation for any fixed time t. In particular, the evaporation losses derived by the IR images, E(IR), were rescaled according to:

$$E\left(\mathrm{IR}\right)=\left(\frac{N_{max}-N_t}{N_{max}}\right) S \mathrm{for} T<T_{max}$$

(19)

where S is the interception capacity for run 7b (Table 1), T_max is the temperature for dry conditions (21.8 °C), N_t is the number of pixels at the time t, for which T < T_max, and N_max is the total number of pixels of the sampled branch. Of course, when the run starts, N_t = N_max and E(IR) = 0, whereas for dry conditions (N_t = 0), E(IR) = S. The E(IR) values derived in such way are plotted in Figure 8, showing similar behaviour to E data obtained by the force sensors, thus confirming the alternation of the condensation and of the evaporation processes provided by the direct measurements.

The overestimated condensation obtained using IR images (Figure 8, B₁ and B₂) could be ascribed to the heat transfer from the leaves to the water stored on the branches that determines a leaf cooling down, which should be carefully considered when upscaling such procedure.

Two IR images corresponding to the times t₁ and t₂, for which highly different E values occurred, are plotted in Figure 9, where the same T scale at t₁ = 0.85 h (Figure 9a) and, after 10 min, at t₂ = 1.02 h (Figure 9b) was set. The latter made it possible to observe the condensation process during step B₁ (Figure 8), thus validating the E versus t relationship obtained by the force sensors under T and RH conditions.

5. Conclusions

In a recent work, a simplified interception/evaporation model was proposed [23], which considers a modified Merrian model to compute interception during wet spells and a simple power-law equation to model evaporation from a wet canopy during dry spells. The modelling evaporation process at the sub hourly temporal scale required the two parameters of the power-law, describing the hourly evaporation depth and the evaporation rate.

In this paper, we focused on the evaporation process from wet branches of lemon trees starting from the interception capacity, S. For different temperature, T, and vapour pressure deficit, VPD, conditions, numerous experimental tests were carried out. In addition to the abovementioned power-law, simple models were applied and tested, and the semi-log model provided the best fitting to the evaporation data. Two parameters, physically linked to the evaporation fluxes and to the evaporation amount from the wet branches, were determined and correlated to T, S, and to vapour pressure deficit, VPD.

We are aware that the experimental measurements carried out in the laboratory were affected by various uncertainties and approximations, such as a lack of consideration for solar radiation, resulting in sensible heat flux in the air. Moreover, we are aware that the model based on indoor experiments, thus neglecting wind speed, did not follow a rigorous procedure to enable it to be applicable under field conditions and for crops that differ from lemon trees. However, the results obtained in this work help us to understand the studied process, highlight its complexity and could be implemented in the recently introduced interception/evaporation model to quantify, under the abovementioned limitations, this important component of the hydrologic cycle.
