Poly(Lactic-co-glycolic) Acid and Phospholipids Hybrid Nanoparticles for Regeneration of Biological Tissue

Abstract

In tissue regeneration, biomaterials facilitate biological processes. However, a treatment with biomaterials will be successful only if supported by simple and inexpensive technologies which stimulate the regenerative processes. The present study focused on the possibility of creating formulations from which then to obtain suitable materials for the regeneration of heart tissue. The experimental procedure for precipitation of polymer- nanoparticles was modified ad hoc to obtain hybrid poly lactic-co-glycolic acid (PLGA)-phospholipid nanoparticles. The properties of the formulations produced by direct PLGA-phospholipid co-precipitation depend on the mass ratio $\mathcal{R}=$ polymer mass/phospholipid mass. The value of this parameter allows us to modulate the properties of the formulations. Formulations with $\mathcal{R}$ = 1.5, 2.3, 4, and 9 were prepared, and for each of them the particle-size distribution obtained by dynamic light scattering was studied. All samples showed that the hydrodynamic diameter decreases with increasing $\mathcal{R}$ value. This behavior is interpreted as polymer coil shrinkage due to contacts with the non-solvent. The spreadability and ease of obtaining thin sheets were evaluated for each formulation. The formulation with $\mathcal{R}=4$ resulted in a homogeneous and easily workable material in thin sheets.

1. Introduction

Poly lactic-co-glycolic acid (PLGA) is considered a suitable polymer for the fabrication of drug delivery devices and tissue engineering applications. PLGA is a biodegradable polymer approved by Food and Drug Administration [1]. In particular, PLGA has been extensively studied for the development of devices for the controlled delivery of small molecule drugs, proteins [2], and other macromolecules in research and commercial settings. In the last few decades, numerous protein-based bioactive polymers have been involved with delivery of molecules starting from the properties of the matrices structures formulated [3,4,5,6,7].

Currently, significant efforts are being made to integrate both diagnostic and therapeutic functions into a nanoscale system to achieve items associated with a wide range of scientific applications. Nanoparticles have great potential to achieve such purposes, especially when more than one type of nanostructure can be integrated into a nanoscale system [8]. Hybrid nanoparticles are composed of at least two different nanoparticles to overcome the limitations of single-component nanoparticles, as well as to recognize new properties not possible for single nanoparticles and to acquire additional functions [9,10,11,12]. To evaluate this type of systems, different mathematical approaches defining a specific model can be extremely useful and provide important information [13,14,15,16,17].

Experimentally, hybrid PLGA-phospholipid nanoparticles are generally fabricated either with the core-shell procedure [18] or by passive loading in liposomes [19]. Herein, we present results of hybrid particles obtained with a direct PLGA-phospholipid co-precipitation method. The rationale consists in finding easily reproducible, inexpensive and not very elaborate formulations for the development of materials useful in regenerative medicine. In this context, the use of biomaterials play the role of stimulating the regenerative processes. Indeed, regenerative medicine depends heavily on the development of tools that can help in repairing or replacing damaged or diseased human cells or tissues to restore normal function [20,21,22,23].

The discovery and development of erodible polymers that can be used with maximum efficiency and minimum risk to user requires the optimization of their transfer to the target during application [24]. The efficiency of the process crucially depends on the physical state of the formulation applied. Recently, a device consisting of liposomes trapped in cross-linked poly(lactic-co-glycolic) acid (PLGA) was suggested to overcome pulmonary hypertension problems [25]. The application of the device for the administration of the chemical cocktail for the regeneration of cardiac tissue involves a number of interfaces, where the interaction with the formulation plays a pivotal role.

Physicochemical parameters such as droplet size distribution, impaction and adhesion, sliding and retention, and wetting and spreading are of prime importance in ensuring maximum capture by the target surface as well as coverage of the target surface [26]. This research aims to identify a suitable formulation with specific mechanical properties for manufacturing a PLGA-based material capable of spreading on heart allowing tissue regeneration in order to deliver drugs.

2. Materials and Methods

2.1. Chemicals

Copolymer poly(D,L-lactide-co-glycolide) (Resomer RG 503 H) was purchased from Sigma Aldrich (St. Louis, MO, USA). The weight average molecular mass M${}_w$ was 24–38 kDa and the lactide/glycolide molar ratio 50:50. Dichloromethane CH₂Cl₂(DCM) solvent was obtained from Sigma Aldrich. Phospholipids Epikuron 130P (EPK) composed of phosphatidylcholine (33%), phosphatidylethanolamine (15%), phosphatidylinositol (16%), and phosphatidic acid (6%) was generously donated by Cargill. UltraPure Water (UPW) (Milli Q system) was used in all measurements.

2.2. Dynamic Light Scattering

The average hydrodynamic diameter values of nanoparticles were determined at 25 °C by means of dynamic light scattering (DLS) Malvern UK ZS90 commercial instrument operating with a 4 mW He-Ne laser (633 nm wavelength). The samples were dispersed into a suspension and loaded in a cuvette while the instrument was left free to optimize the instrumental parameters. The size distribution by intensity of scattered light was recovered, using the software implemented by the manufacturer at 25 °C. Each measurement was performed in triplicate.

2.3. Preparation of Hybrid Nanoparticles

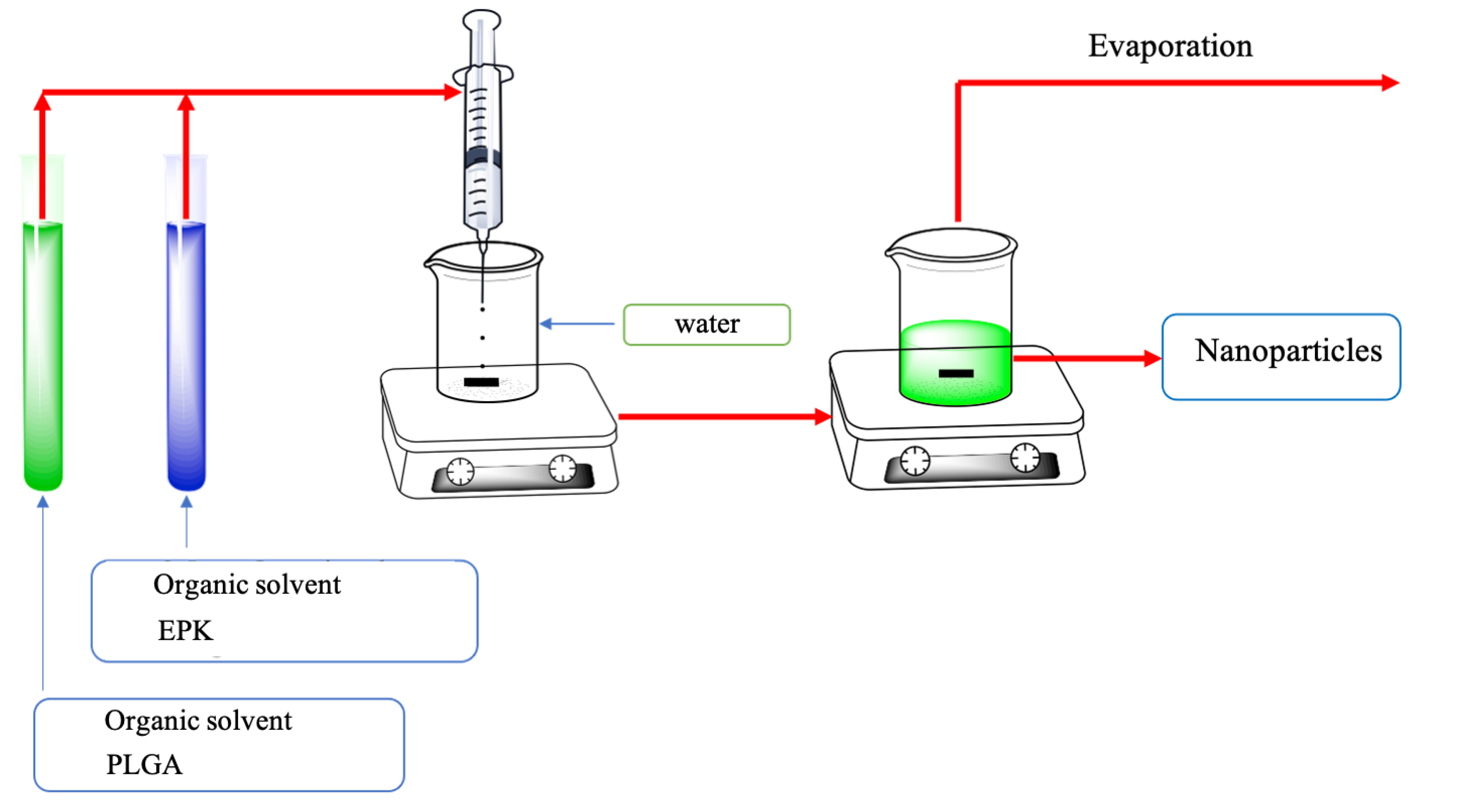

Nanoprecipitation is a versatile method for making various types of polymer nanoparticles with well-controlled particle size [27]. PLGA masses of 60, 70, 80, and 90 mg were dissolved in 5 mL of DCM then poured dropwise in the dispersing phase (0.015 dm${}^3$ of UPW) by means of a syringe (20 mL) under moderate magnetic stirring, as shown in Figure 1. The suspension of nanoparticles then was sonicated for 1 min at 50% W and 50% pulser and left under stirring overnight.

In order to prepare the hybrid nanoparticles, PLGA masses of 60, 70, 80, and 90 mg were dissolved in 2.5 mL of DCM while 40, 30, 20, and 10 mg of EPK were dissolved in other 2.5 mL of DCM. Both solutions were mixed in a syringe so as to obtain mixtures with a ratio (m/m) PLGA/EPK of 60:40, 70:30, 80:20, and 90:10.

The resulting mixture was poured dropwise (1 mL/min) into 0.015 dm${}^3$ of UPW which was stirred with a rotating magnet. Then, the suspension was sonicated for 1 min at 50% W and 50% pulser and left under stirring overnight.

2.4. Preparation of Patches

The freshly formed nanoparticles were separated from the precipitation environment and uniformly layered on slides and allowed to evaporate. When the solvent evaporation was completed, a patch material was deposited on the slide.

The adhesion strength of the patch was tested for each slide. By wetting the slide, the ability to detach while having shape remain intact was evaluated. Furthermore, the workability of the material, i.e., the detachment from the slide and its accommodation on another surface, was evaluated.

3. Results and Discussion

The DLS size distributions of all control nanoparticles are shown in Figure 2a. The spectra represent log-normal distributions with maximum values centered in the 150–300 nm size range. To check whether free energy, $G^{\mathrm{form}}$, of the system, is sufficient to cause a size distribution, a rough estimate can be made from considering the balance between the entropy of dispersion and the interfacial energy [28], i.e.,

$$\Delta G^{\mathrm{form}}=\gamma \Delta A-T\Delta S^{\mathrm{conf}}$$

(1)

where $\gamma$ is the interfacial tension between the two phases, $\Delta A$ is the increase in interfacial area, T is the absolute temperature and $\Delta S^{\mathrm{conf}}$ is the configurational entropy in the resulting dispersion. The first term, $\gamma \Delta A$, is the work required to expand the interface and it is positive. The second term, $T\Delta S^{\mathrm{conf}}$, is the configurational entropy resulting from the production of a number of particles. The formation of new nanoparticles implies an increase in $\Delta A$ so it must be $|\gamma \Delta A|<T|\Delta S^{\mathrm{conf}}|$ for the nanoparticles to form spontaneously. This is achieved because the long and flexible molecules of PLGA in the presence of a poor solvent, such as water, curl up assuming the configuration of random coil [29]. In this process, a large number of solvent molecules are released and the entropy of the system increases. The random coil configuration adopted by the PLGA molecules depends both on molecular mass of the polymer and its concentration [30]. On the other hand, each PLGA rearrangement corresponds to a hydrodynamic particle diameter, $d_z$, of the nanoparticles produced. Figure 2b shows that the large reduction in $d_z$ is simply a consequence of the increase in PLGA concentration. Moreover, for $C_{\mathrm{PLGA}}\approx$ 6 gdm${}^{-3}$, $d_z$ undergoes a sort of “collapse”. This is due to the fact that at relatively low PLGA concentration, the monomers avoid each other and particle is kept large to maximize its conformational entropy. At higher PLGA concentration, the proximity between the monomers leads to hydrophobic attraction which promotes particle collapse. Note that the sizes of PLGA obtained in this research are compatible with those obtained in acetonitrile ($114\pm 24$ nm), vortexed and filtered [18].

When the formation of nanoparticles takes place in a medium containing EPK, the physicochemical process is somewhat more complex. In fact, the process of break-up of liquid sheets into nanoparticles seems to be the result of surface forces tending to divide the system into spherical particles. In order to study the formation process of hybrid nanoparticles, the parameter $\mathcal{R}$ was defined as follows:

$$\mathcal{R}=\frac{mass\left(\mathrm{PLGA}\right)}{mass\left(\mathrm{EPK}\right)}=\frac{C_{\mathrm{PLGA}}}{C_{\mathrm{EPK}}}$$

(2)

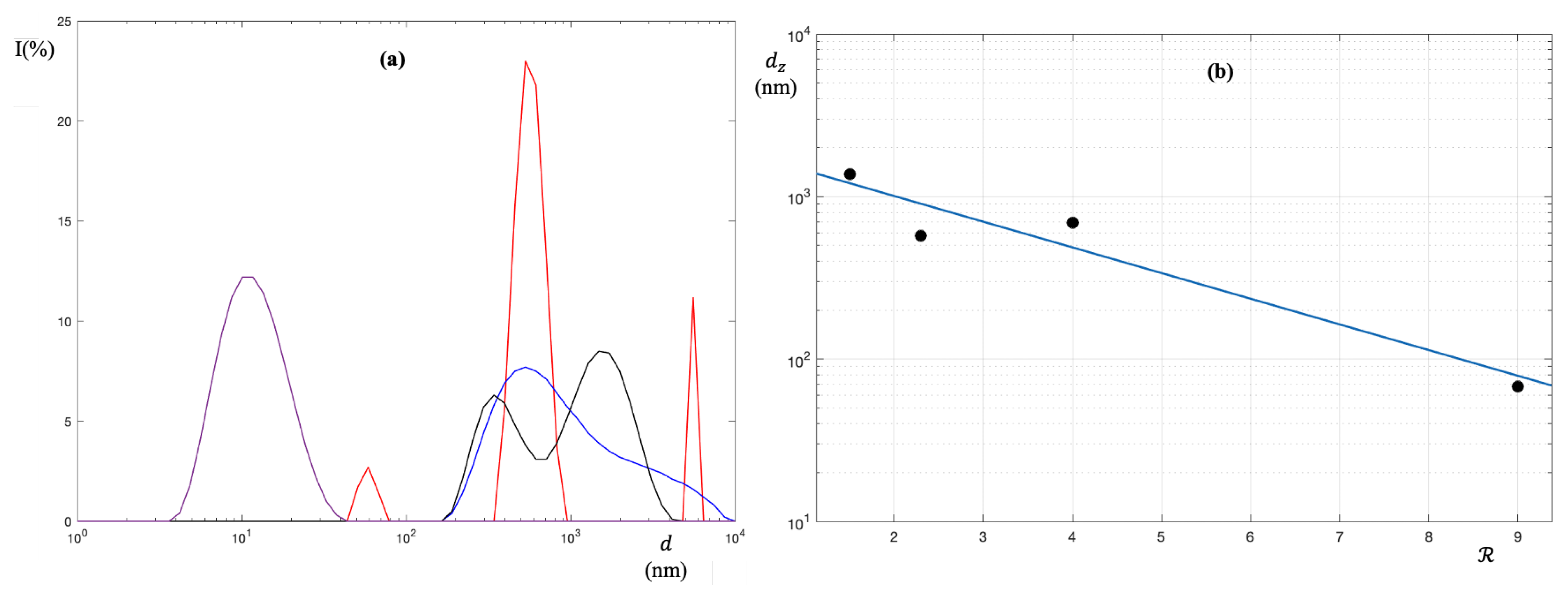

$\mathcal{R}$ was varied experimentally from 1.5 to 9 and each formulation was analyzed by DLS. For the different $\mathcal{R}$ ratios, it ensured that in the resulting mixtures there was the same amount of polymer, as in PLGA nanoparticles. Furthermore, the amount of phospholipid was that generally used to prepare phosphatidylcholine liposomes [31]. Figure 3a shows the measured particle size distributions. Although thermodynamics determines the most stable configuration of a system (see Equation (1)), in real systems, due to the different process rates, metastable situations are created. In the formation of hybrid nanoparticles, if the formation rate of the PLGA–water interface is much faster than the formation rate of the EPK–water interface, the EPK molecules will accumulate on the PLGA spheres. On the other hand, if it is the formation rate of the EPK–water interface that is faster, then the lipid will aggregate and incorporate the PLGA particles.

It can be clearly seen in Figure 3a that by increasing the parameter $\mathcal{R}$, the particle size distributions exhibit complex shapes, for $\mathcal{R}=1.5$ the size distribution of hybrid nanoparticles is only slightly different from reference, for $\mathcal{R}=2.3$ the size distribution tends to widen whilst, for $\mathcal{R}=4$ it becomes bimodal. Finally, for $\mathcal{R}=9$, it is again unimodal with smaller average dimensions.

This complex response of the system can be better studied by considering $d_z$ as a function of $\mathcal{R}$. Figure 3b reveals that a semi-log plot, with a linear X axis, of $d_z$ vs. $\mathcal{R}$ exhibits a linear trend. Therefore, the regression procedure provides the following relationship:

$$d_z=1600e^{-0.3\mathcal{R}}\left(\mathrm{nm}\right)$$

(3)

The large decrease in $d_z$ can be explained by the shrinkage of the PLGA coil. Indeed, an increase in $\mathcal{R}$ leads to a larger number of polymer–water molecule contacts, which cause further shrinkage of the polymer molecules. Accordingly, the hydrodynamic diameter is reduced.

Note that hybrid nanoparticles obtained by precipitation in water of Fl-ceramide-loaded PLGA and combined with liposomes exhibit $d_z=195\pm 15$ nm [19]. Although the procedure used is very complex and the solvent is different, the size of these nanoparticles is in the range shown in Figure 3b. This suggests that a simple direct PLGA-phospholipid co-precipitation method is capable of delivering nanoparticles with dimensions comparable to other methods. Furthermore, by varying the $\mathcal{R}$ ratio, it is possible to modulate the diameter of the nanoparticles.

The goal of the formulations is to provide a simple procedure for producing a durable material adhering to tissues and easy to be handled. For this reason, each formulation was separated from its precipitating medium and spread on a slide. The shape of the residual material left behind when the liquid phase evaporates, depends largely on the $\mathcal{R}$ ratio used to prepare the formulations. An important factor in the deposited material is the tenacity. Indeed, strong adhesion between material and the support-slide creates difficulties in removal and workability. During evaporation, liquid crystals of very high viscosity may be produced. Such highly viscous structures can trap low molecular mass compounds and serve as reservoirs for chemicals. The material derived from the formulations with $\mathcal{R}=1.5$ or $\mathcal{R}=2.3$ is not spreadable on the slide and crumbles in heterogeneous pieces which are difficult to use (inset Figure 4a). An aliquot of the material was removed from the slide and resuspended in water giving the size spectrum displayed in Figure 4a. As one can see, the distribution exhibits three distinct peaks indicating difficult rehydration and poor exfoliation of the material.

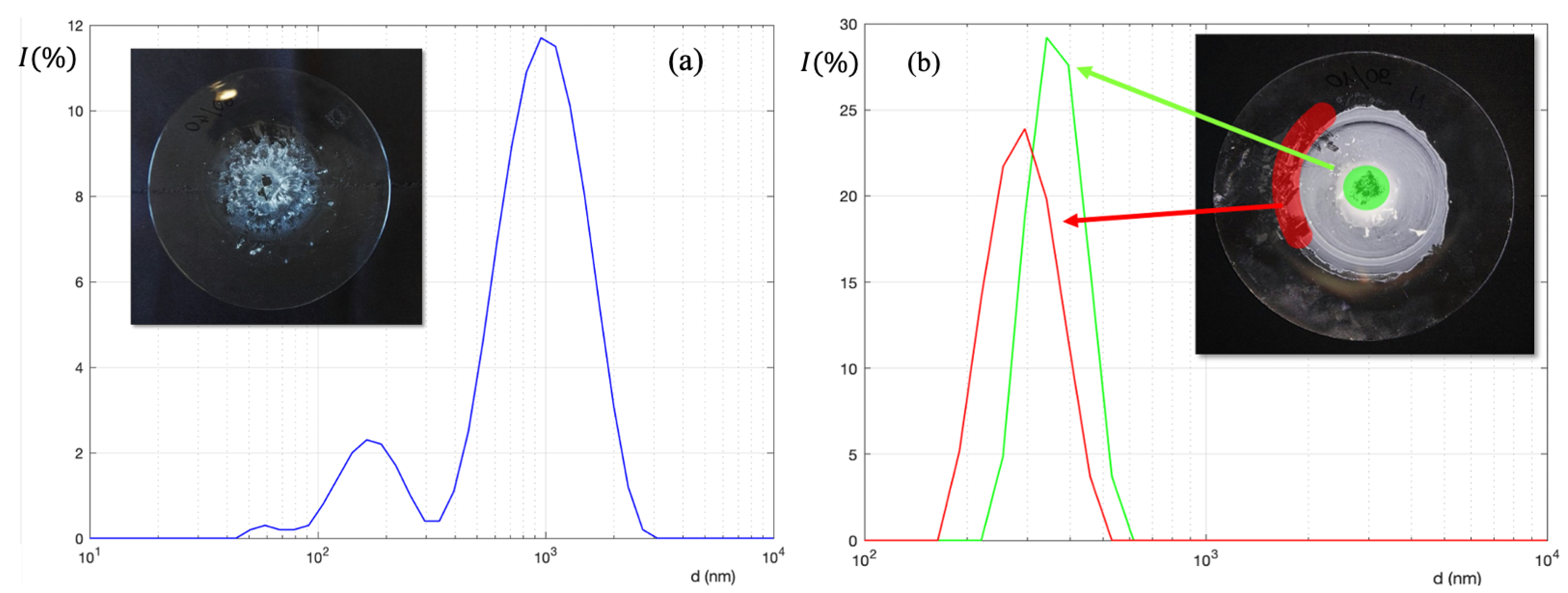

Evaporation of liquid phase from formulation with $\mathcal{R}=9$, produces a waxy material which is easily spreadable on a slide. The material is visually homogeneous and the degree of homogeneity was estimated as follows. Two samples were taken from the dry sample placed on the slide. The first on the outer edge, the second in the center of the slide, as shown in the inset of Figure 4b. The collected samples were rehydrated individually and analyzed by DLS. As it can be seen in Figure 4b both particle size distributions are sufficiently narrow and very close, indicating a good homogeneity of the sample. However, due to its high adhesiveness, it hardly comes off the slide. This property makes it unsuitable for the developing patches to be applied to biological tissues. Finally, the material obtained from the formulation with $\mathcal{R}=4$, although it does not have a waxy consistency, can be evenly and easily distributed on a slide. Moreover, the material is homogeneous and can be detached by simply wetting the slide, as shown in Figure 5a. The material detached from the slide retains the shape of the film and bends easily without breaking. These properties are good requirements for the development of a material to be used as drug delivery patch for tissue regeneration. In this sense, a $2.5\times 6$ cm${}^2$ sample patch was fabricated to perform preliminary tests of accomodability and adaptability to cardiac tissue, Figure 5b. Although these first results seem to indicate a good response of the material, further experiments are needed for a full discussion of the application of the material on animal heart.

4. Conclusions

The process, generally used for the nanoprecipitation of polymers, was modified ad hoc to obtain hybrid nanoparticles of PLGA and EPK. By varying the ratio $\mathcal{R}$, hybrid nanoparticles with different chemical-physical properties are obtained. The DLS measurements performed for each formulation show that the size spectrum takes a very complex shape depending on several factors. However, the larger $\mathcal{R}$, the smaller the mean hydrodynamic diameter of the nanoparticles. The reduction in diameter is due to the contacts between the polymer and use of a poor solvent such as water. A new solution containing hybrid particles eventually useful for regeneration procedures was obtained from each formulation by evaporating the liquid phase. The performance of this material depends on the $\mathcal{R}$ value of the starting formulation. In particular, the material obtained by the formulation with $\mathcal{R}=4$ presents chemical characteristics making it suitable for surgical use.

Although further measurements are needed, it appears that the material obtained in this research constitutes the starting point for obtaining material to be used in regenerative medicine for the regeneration of heart tissue.
