Recent Advances in Supported Metal Catalysts for Syngas Production from Methane

Abstract

Over the past few years, great attention is paid to syngas production processes from different resources especially from abundant sources, such as methane. This review of the literature is intended for syngas production from methane through the dry reforming (DRM) and the steam reforming of methane (SRM). The catalyst development for DRM and SRM represents the key factor to realize a commercial application through the utilization of more efficient catalytic systems. Due to the enormous amount of published literature in this field, the current work is mainly dedicated to the most recent achievements in the metal-oxide catalyst development for DRM and SRM in the past five years. Ni-based supported catalysts are considered the most widely used catalysts for DRM and SRM, which are commercially available; hence, this review has focused on the recent advancements achieved in Ni catalysts with special focus on the various attempts to address the catalyst deactivation challenge in both DRM and SRM applications. Furthermore, other catalytic systems, including Co-based catalysts, noble metals (Pt, Rh, Ru, and Ir), and bimetallic systems have been included in this literature review to understand the observed improvements in the catalytic activities and coke suppression property of these catalysts.

1. Introduction

The continuous reliance on fossil fuels as a major energy source has a huge influence on the environment contributing in the undesirable increased emissions of anthropogenic greenhouse gases. This growing energy demand is projected to further increase in the future as reported in the 2016 energy outlook by the international energy agency (IEA). With the depletion of the fossil fuel resources, a significant need arises for utilizing the abundant sustainable resources toward producing efficient fuels and chemicals. Furthermore, all of the hydrocarbon fossil fuel based energy sources are nonrenewable in nature; therefore, it is crucial to find efficient ways to deploy these materials in a more sustainable and environmentally benign way. Synthesis gas (syngas), which is a mixture of hydrogen (H₂) and carbon monoxide (CO), provides a viable solution as an energy carrier, feedstock for producing hydrogen fuel, and higher value chemicals. Syngas production has a significant contribution in reducing greenhouse gases emission particularly carbon dioxide (CO₂) via the more efficient syngas-based power generation plants, as well as fuel cell technologies. Moreover, syngas conversion into clean liquid fuels through the Fischer-Tropsch (F-T) synthesis provides a cleaner route for exploiting fossil fuels by reducing the greenhouse gases emissions at the end-user side. Syngas could be produced from various feedstocks including gaseous, solid, and liquid hydrocarbons using processes, such as dry reforming (DR), steam reforming (SR), partial oxidation (POX), and autothermal reforming (ATR). The aforementioned processes differ in the amount of heat required and the product distribution, which is mainly dependent on the nature of the feedstock that is used and the operating conditions [1]. For instance, hydrogen fuel is mostly produced from the steam reforming processes of natural gas and other oxygenated hydrocarbons due to the high concentration of hydrogen in the produced syngas. On the other hand, the gasification of solid hydrocarbons mainly produces syngas that could be consumed directly as a fuel in power plants and internal combustion engines [2]. A detailed comparison analysis of the advantages and disadvantages between the different syngas production processes is reported by Wilhelm and coworkers to determine the optimum combination of processes for the production of syngas to be used in Fischer-Tropsch (F-T) synthesis [3]. A similar study has been conducted to investigate the different scenarios for syngas production based on the required scale of the production and the target application [4]. The use of catalysts in DRM and SRM reactions is essential to improve the reaction kinetics and achieve a maximum production of syngas by reducing the activation energy of the desired reactions without being consumed in the process. Moreover, since both DRM and SRM reactions are endothermic processes, the presence of a catalyst significantly helps to reduce the necessary temperature to obtain the products. Nevertheless, in all of the processes that are used for syngas production the role of the catalyst used is detrimental to the overall conversion, H₂/CO ratio, and the energy requirement of the process. Several attempts have been made to develop catalytic systems with improved resilience to coke formation, as well as using cheaper precursors. These includes, the variation of synthesis methods, synthesis conditions, using mixed support approach, and bimetallic systems [5]. The current work provides a summary of the state of the art in the field of metal-oxide catalysts used in the different processes for syngas production with special focus on syngas production from methane using dry and steam reforming processes. The recent advancement that was achieved in the past five years in the fields of metal-oxide catalysts synthesis, characterizations, and performances in syngas production are thoroughly reviewed. A great attention is paid to address the issues that are related to catalyst deactivation during syngas production processes.

2. Syngas Production from Methane

Gaseous hydrocarbons, such as methane (CH₄), are considered to be the major feedstock that is used for syngas production through various technologies and processes to meet the requirement of fuel cell applications, gas to liquid conversions, and chemical production. Methane is considered to be the primary constituent of natural gas that is available in abundant quantities from oil and gas reserves as well as landfill gas [6], and could be envisaged as a potential and reliable feedstock for clean fuels and chemical synthesis. Other sources of methane include biogas, which is produced from the decomposition of organic compounds in the environment. The direct emission of CH₄ into the atmosphere contributes to about 20% of the global warming second to CO₂ contribution; therefore, developing technologies for the conversion of CH₄ into higher value products is substantially essential. The two major processes considered in this work for the production of syngas from CH₄ are the dry reforming of methane (DRM), and the steam reforming of methane (SRM). In the following sections, the catalysts used in the various processes for the conversion of methane into syngas are comprehensively reviewed.

2.1. Dry Reforming of Methane (DRM)

The DRM reaction utilizes two significant greenhouse gases (CH₄ and CO₂) to produce a cleaner form of energy carrier (i.e., syngas) that could be transformed into hydrogen fuel or valuable chemicals [5].

$${\mathrm{CH}}_4+{\mathrm{CO}}_2\to 2\mathrm{CO}+2{\mathrm{H}}_2\hspace{1em}\Delta H^0{}_{298\mathrm{K}}=247.2 \mathrm{kJ}/\mathrm{mol}$$

(1)

From Reaction (1) the produced syngas has H₂/CO ratio equal to 1:1, which is well suited for the synthesis of oxygenated hydrocarbons, and F-T synthesis.

The development of efficient catalysts for DRM is essential to achieve high syngas production, while maintaining a longer lifetime for the catalyst. The common metals used for DRM are transition metals (Ni, Co, and Cu), as well as noble metal catalysts (Rh, Ru, and Pt) supported on oxide-based materials. Theoretical calculations have proven the superior performance of noble metal catalysts in terms of having higher catalytic activity and resistance to deactivation, however, they are considered expensive for commercial use. On the other hand, transition metals, particularly Ni based catalysts, are relatively cheaper and have good catalytic properties with the major drawback being prone to deactivation due to coke formation, especially at high temperatures [5].

Table 1. Ni-based metal-oxide catalysts for dry reforming of methane (DRM).

Metal	Support	Temperature (K)	CH4 Conversion	H2/CO	Remarks	Ref.
Ni	Nd-mesoporous silica	973	53	0.75	Mesoporous silica support was modified using Neodymium (Nd) to improve the metal dispersion and support basicity	[24]
Ni	La-ZrO2	555	22.8	0.83	The use of electric field to improve the catalytic performance of DRM was studied, and it was concluded that the electric power accelerates the surface reaction of CH4 hence reaction can proceed at very low temperatures	[25]
	Ce-ZrO2	545	13.2	0.75
	Pr-ZrO2	538	15.2	0.78
	Nd-ZrO2	498	12.5	0.88
	Y-ZrO2	496	12.4	0.75
Ni	Ce-Al	1073	90	1.1	The reflux precipitation synthesis method was used to prepare different Ni loadings on Ce-Al support which achieved improved stability due to the existence of various Ce, Al, and Ce-Al oxides with excellent oxidative properties that burns off the deposited carbon	[19]
Ni	CeO2	1073	95	2	Impregnation synthesis was used to prepare the catalyst to be used under chemical looping DRM conditions to achieve high H2/CO ratios due to the continuous oxidation-reduction of the catalyst	[17]
Ni	Ce-ZnAl2O4	1073	82	1	Cerium (Ce) was used as a support promotor using co-precipitation method to improve the Ni dispersion and reduce particle size to achieve longer catalyst lifetime	[26]
Ni	γ-Al2O3	NA	30	1	Dielectric plasma was used to improve the catalytic performance for DRM and the impacts of the different process conditions (Ni loading, feed composition, and discharge power) was statistically correlated	[27]
Ni	Si microspheres	1023	70	0.8	Sol-gel microencapsulation synthesis was used to prepare the catalyst, and the conversion of the carbon formed into SiC was confirmed which prevented catalyst deactivation	[28]
Ni	Al2O4	1073	90	0.81	Co-precipitation synthesis was used to prepare catalysts with improved activity and stability attributed to the small crystallite size, high surface area, and the good metal dispersion	[29]
Ni	MgO-Al2O3	973	74	0.94	The small metal cluster size and high surface areas were deemed responsible for the observe activity and stability.	[14]
Ni	Al2O3	1023	70	1	Sequential impregnation versus sol-gel synthesis methods were compared for the preparation of the catalyst. The sol-gel route resulted in a small particle size with enhanced dispersion and catalytic activity	[18]
	CeO2-Al2O3	1023	90	1
Ni	γ-Al2O3	1023	68		The excellent catalytic performance of CeO2-YSZ as a support for Ni catalyst was ascribed to its high oxidative abilities leading to an increased Ni dispersion and hence reducing carbon deposition	[22]
	CeO2-YSZ	1023	100	0.75
	Ce0.15Zr0.85O2	1023	100
Ni	SBA-15	1023	92	0.98	The optimum operating conditions were developed using SBA-15 with high surface area suitable for high Ni content impregnation	[30]
Ni	MgO-SBA-15	1073	96	1.1	A comparison between the impregnation route versus coating for introducing MgO into the porous structure of SBA-15 was investigated	[13]
Ni	Ce0.75Zr0.25-SBA-15	1073	100	0.9	The catalyst lifetime was increased by adding CeZr into the SBA-15 support as oxygen providcers	[31]
Ni	CaFe2O4	1073	90.04	0.98	The support was prepared by sol-gel method and the Ni was introduced using wet impregnation technique. Predictions of the DRM was performed using Artificial Neural Network (ANN) based on metal loadings, feed composition, and reaction temperature.	[32]
Ni	SiO2 (core-shell)	1023	86	0.98	Water in oil micromulsion technique was used to prepare the catalyst with a core-shell structure which reduced Ni sintering during DRM	[33]
	SiO2 (conventional impregnation)	1023	74	0.65
Ni	ZrO2	1123	97	1	Monoclinic ZrO2 substrates were prepared by adjusting the catalyst synthesis conditions to vary the support surface morphology leading to higher dispersion, surface oxygen availability, and hence showing superior performance to conventional supports	[34]
Ni	ZSM-5	1073	66	0.95	Introducing Co to Ni/ZSM-5 catalyst has significantly improved the catalyst stability due to the activity of Co in oxidation reactions	[35]
Ni	Ce-Zr-SBA-15	873	63	0.85	The effect of Ce-Zr doping into Ni/SBA-15 prepared using different impregnation strategies was studied to gain insights into the role of the synthesis route on the catalyst activity and stability	[36]
Ni	SiO2	1023	88		The catalytic performance of different metal-oxides support were tested for DRM and it was concluded that MgO modified Al2O3 possess a great stability due to the improved dispersion and the strong metal-support interaction	[11]
	TiO2	1023	3
	Al2O3	1023	78
	ZrO2	1023	88
	MgO	1023	90
	MgO-AL2O3	1023	87
Ni	CeMgAl	1073	96.5	0.8	The reflux co-precipitation technique was used to prepare the catalyst and the effects of the calcination and reduction temperatures were evaluated	[23]
Ni	Al2O3-ZrO2	1123	85	0.95	A comparison between catalyst preparation methods was presented	[37]
Ni	Al2O3	1073	93	1.3	The catalytic performance of Ni supported onto two different supports was investigated	[38]
Ni	CeZrO2	1073	91	0.9
Ni	CeO2-SiO2	1073	98	1.2	The physicochemical properties of the catalyst were improved by using the mixed oxide approach	[20]
Ni	Al2O3	1073	94	0.86	Different formulations and precursor concentrations were used for the preparation of the Al2O3 support in order to vary the support characteristics and performance in DRM	[8]
Ni	Silicalite	973	65	1.23	The role of the support surface morphology and defects on the cata;ytic performance in DRM was investigated	[7]
	MCM-41	973	77	1.03
	Silica delaminated zeolite	973	79	1.39
Ni	clinoptilolite	1123	88	0.94	The impacts of the support type on the catalyst properties in DRM was analyzed. The utilization of clinoptilolite as cheap support was found promising	[12]
	Al2O3	1123	93	0.97
	CeO2	1123	75	0.93

summarizes the recent advances in the application of Ni based catalysts for DRM along with the CH₄ conversion values reported at different temperatures. In the following sections we will discuss in details the various strategies adopted to improve the catalytic performance of Ni-based systems in DRM.

2.1.1. Effects of the Support on the Catalytic Activity in DRM

A typical metal-oxide catalyst is composed of active metal sites and a support surface to provide the necessary surface area for the dispersion of metals [7]. The attributes that are required in a promising support material include the high surface area, thermal and chemical stability, high oxygen storage capacity, and the support basic-acid characteristics. Moreover, the support material contributes in the DRM reaction through the metal-support interaction, which plays a vital role in the overall catalytic activity and stability. Al₂O₃, which is available commercially, is considered to be the main support material used for DRM with Ni-based catalysts [5]. Wenlong and coworkers have recently studied the preparation of Al₂O₃ support and reported a comparison with commercial γ-Al₂O₃ [8]. The catalytic activity evaluation was conducted in a fixed bed reactor using reaction temperature = 800 °C, reaction pressure = 1 atm, CH₄/CO₂ = 1 (V/V), and gas hourly space velocity (GHSV) = 14,400 mL/(gcat·h). The authors have concluded that the template synthesis approach produces Al₂O₃ support with higher surface areas and basicity than the commercial counterpart and therefore exhibited enhanced CH₄ conversion and could be considered for practical application. Modifications of the support basicity was also recently investigated using phosphorous (P) as a modifier in Ni/Al₂O₃ catalyst [9]. The findings of this study have confirmed the proportional correlation between the support surface basicity and its catalytic activity due to the induced acid-base interaction between the basic support and the acidic CO₂ leading to the dissociation of CO₂ during DRM. The 10 wt % Ni/Al₂O₃ catalyst with 2 wt % P exhibited the highest stability with an activity loss of 7% over 100-h reaction period when compared to 32% for the unmodified 10 wt % Ni/Al₂O₃. Das et al. have argued that increasing the support basicity is not absolutely beneficial to improve the catalytic activity in DRM but it is rather preferred to have a moderate acid to base ratio in the catalyst [10]. The argument was justified by the fact that the acidic CO₂ will preferentially adsorb on the basic sites while methane decomposition will proceed on the acidic sites; hence the control of acid/base ratio is essential to obtain optimum activation energies of the two reactions (CO₂ disproportionation and CH₄ decomposition). To systematically investigate the impact of the acid/base ratio in DRM reaction, modified silica and alumina supports have been synthesized using a single and two-step synthesis methods. Figure 1 demonstrate the argument that is made by Das et al. that at higher acid/base ratio, methane decomposition was more favored (lower activation energy for CH₄), while at lower acid/base ratios (higher basicity), the activation of CO₂ through Boudouard reaction and metal oxidation was predominant. On the other hand a moderate acid/base ratio (around 1.7) displayed the highest TOF (Figure 1a), which could be attributed to the comparable rates of CH₄ cracking and CO₂ splitting, which releases enough oxygen to immediately remove the deposited carbon.

Although alumina has shown a superior catalytic activity as a support in DRM, it has a major challenge, which is phase transformation into alpha phase alumina (α-Al₂O₃), which has propelled the search for other potential support materials. Rong-jun et al. has presented a comparison between different support materials (SiO₂, TiO₂, ZrO₂, MgO, and Al₂O₃) that are impregnated with a Ni loading of 8 wt % in DRM [11]. SiO₂ has shown the highest surface area as compared to the other support materials, however it has a low interaction with the metal sites, leading to low dispersion and easily reducible catalysts, which is not favorable for DRM reactions. All of the supports excepts for Al₂O₃ and MgO has displayed a low reduction temperature between 300–500 °C, while Al₂O₃ was stable beyond 600 °C, which could be ascribed to the formation of NiAl₂O₄ spinel, indicating a strong interaction between NiO and Al₂O₃ as was evident from the H₂ temperature programmed reduction (H₂-TPR) profiles similar to previous observations [12]. MgO support has a wide range of reduction temperature, which starts at 200 °C until 950 °C, which could be attributed to the formation of NiO-MgO solid solution. The strong basic centers on MgO acts as active sorption sites for CO₂ during the DRM reaction, which consequently suppress the hydrogenation reaction of CO₂ toward coke formation and hence improves the catalyst stability [13]. Therefore, the authors have also impregnated Ni metals on MgO-Al₂O₃ support to benefit from the synergism between the two individual materials. The deployment of the mixed support has resulted in a significant improvement in both the CH₄ conversion and most importantly the coke deposition rate which was reported to be the lowest amongst the studied supports mainly due to the strong interaction between NiO and Al₂O₃ and MgO, as indicated by the small particle size and large specific surface area of the metal sites. These observations were supported by a recent study for the impregnation of different Ni loadings on MgO-Al₂O₃ via the co-precipitation technique [14]. The enhanced catalytic activity and prolonged catalyst lifetime was also attributed to the small particle size and high specific surface area up to a Ni content of 15 wt %. The catalyst reduction temperature was reported to be between 800–900 °C regardless of Ni loadings, which was higher than the values observed by Rong-jun et al. (600–900 °C) [11]. Furthermore, according to N₂ adsorption experiments the Ni/MgO-Al₂O₃ catalyst prepared by [14] has a mesoporous structure with pore size of 2–9 nm which is smaller than the same catalyst reported by Rong-jun et al. [11]. Nevertheless, it is important to mention that the idea of a direct correlation between the MgO content in the catalyst and its acid/base properties have been recently challenged [15]. Although the positive impact of MgO on the catalytic activity of Ni/ZrO₂ in DRM reaction was also realized in the recent study, the correlation of acid/base property to the MgO content is not accurate. More investigations are therefore required to understand the relationship between the support constituents, the observed characterizations, and the catalytic performance.

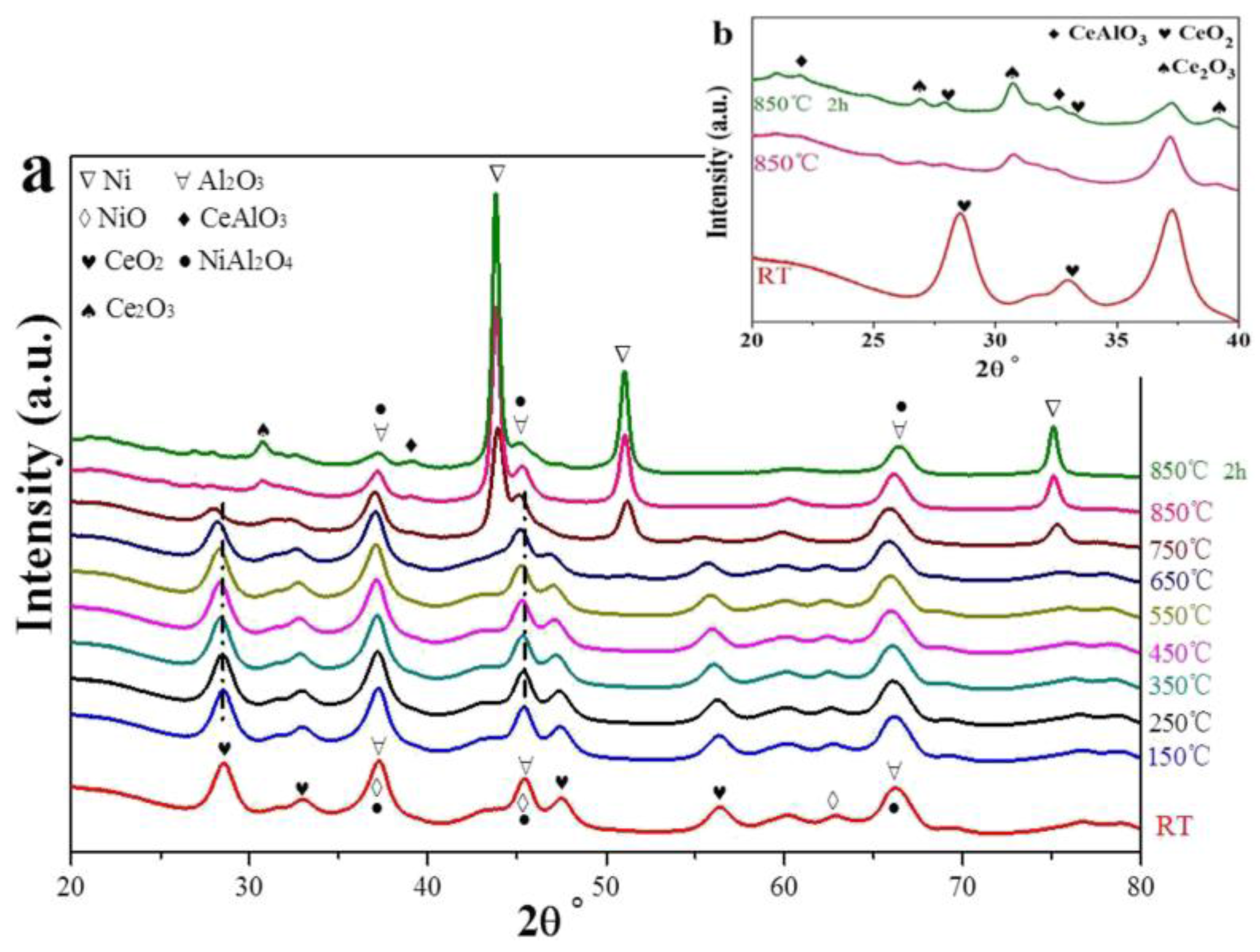

CeO₂ was reported to have excellent characteristics as a support material for Ni impregnation in DRM reactions, owing to its high oxygen mobility and positive impact on the oxidation state of Ni species [12,16,17]. However, the beneficial impact of CeO₂ are more pronounced when used as a promotor for Al₂O₃ supports as demonstrated by Haghighi and coworkers [18]. Two different synthesis methods were utilized to prepare the Ni/CeO₂-Al₂O₃ catalyst namely the sol-gel and sequential impregnation approaches. It was concluded that the addition of 10 wt % CeO₂ as a promotor has reduced the overall surface area, but resulted in a uniform distribution of small particle size Ni species, showing higher catalytic activity and stability than the unmodified Ni/Al₂O₃ up to 10 h at 850 °C. The catalytic DRM experiments were carried out at atmospheric pressure in the temperature range of 550–850 °C with feed ratio of CH₄/CO₂ = 1. Both syntheses approaches has shown a stable performance up to 10 h however, sol-gel synthesis technique recorded a considerably higher CH₄ conversion than the impregnation route (90% versus 35% at 750 °C). In a similar study by Han et al. [19], the addition of 2 wt % CeO₂ to Al₂O₃ was studied at different Ni loadings (5–30 mol %) to get insights into the carbon resistance ability of CeO₂-modified catalysts. The stability test was carried out on 10 wt % Ni/CeO₂-Al₂O₃ catalysts at 750 °C for 30 h with a GHSV of 40,000 mL g⁻¹ h⁻¹. Under these conditions, the formation of carbon nanotubes was confirmed from scanning electron microscopy (SEM) scans, however it was believed that it has no impact on the stability, and hence, the improved stability of CeO₂ was attributed to the suppression of graphite-like carbons confirming previous findings for CeO₂-modifed SiO₂ [20] and CeO₂ modified MgO-Al₂O₃ [21]. To further understand these observations, in-situ XRD and H₂-TPR were conducted to gain more insights into the structural evolution of the catalyst and correlate the CeO₂-Al₂O₃ mixed oxide catalyst with the catalytic performance. The XRD diffraction patterns of the 10 wt % Ni/CeO₂-Al₂O₃ catalyst is shown in Figure 2. It can be clearly observed that the calcined catalyst at room temperature, characteristic peaks were detected for CeO₂ (28.5°, 33°, 47.5°, and 56.3°), NiO (44.5°, 51.9°, and 76.4°), and NiAl₂O₄ spinel (37°, 44.9°, 59.6° and 65.5°). However, at a reduction temperature of 750 °C these peaks showed lower intensities and moved to lower angles indicating the complete reduction of Ce⁴⁺ and Ni²⁺, while new peaks for Ni phase has appeared. These observations were confirmed by the H₂-TPR results (not shown here) which shown a reduction of NiO to Ni⁰ (a small band at 250–400 °C) and the formation of CeAlO₃ (a main peak at 825 °C). In a similar study, Munoz et al. [22] reported the incorporation of Ni into CeO₂-YSZ and Ce_0.15Zr_0.85O₂ supports as catalysts for DRM reaction at 750 °C and atmospheric pressure. The high catalytic activity and stability exhibited by the two catalysts was attributed to the excellent oxidative nature of the support material that induced the oxidation of the carbonaceous materials formed during the DRM reaction. Furthermore, the Ni/CeO₂-YSZ catalysts showed superior stability at space velocity of 60,000 cm³/g/h and undiluted equimolar feed (CH₄:CO₂ = 1) compared to Ni/Ce_0.15Zr_0.85O₂, which lost its stability almost immediately. Several characterization techniques including Raman spectroscopy, Thermogravimetric Analysis (TGA), Transmission Electron Microscopy (TEM), and X-ray Photoelectron Spectroscopy (XPS), were deployed to investigate the nature of the coke deposited on the spent catalysts. Two peaks were observed in the derivative TGA profile, with the low temperature peak corresponding to reactive carbon, whereas the high temperature peak represents a more crystalline coke. The strong Ni-support interaction as observed from the XPS spectra (not shown here) of the spent catalyst was responsible for the catalyst stability through the preservation of the metal dispersion via a kinetically balanced oxidation-carbonation reactions. The prolonged stability for undiluted feed streams was also reported for Ni/CeMgAl catalyst that was prepared using refluxed co-precipitation technique and was also ascribed to the presence of both CeO₂ and MgO in the support [23].

Apart from Ni-based catalysts, numerous studies have been conducted for the development of Co-based metal catalysts for DRM and summarized in

Table 2. Co-based catalysts and noble metal catalysts for DRM.

Metal	Support	Temperature (K)	CH4 Conversion	H2/CO	Remarks	Ref.
Co	Ca-AC	1173	94		The co-impregnation of Ca on the surface of AC has enhanced the Co-AC interaction, Co dispersion and induced CO2 adsorption properties resulting in an improved stability	[45]
Co	Nd2O3	1023	62.7	0.97	Wet impregnation method was used to prepare the catalyst with 20 wt% Co loading and a reaction mechanism was proposed and modelled	[42]
Co	La2O3	1023	50		Wet impregnation technique was used to prepare the catalysts up to 20 wt % Co loading. The DRM kinetics was modelled using Langmuir-Hinshelwood mechanisms with excellent agreement	[43]
Co	CeO2	1023	79.5	0.97	Wet impregnation was employed as a synthesis method achieving enhanced catalytic activity due to the excellent metal disperion	[41]
Co	CeO2	1023	78		The effect of the reactants partial pressure on the catalytic performance was investigated	[40]
Co	Al2O3	973	61		Catalysts with low metal loadings were investigated for DRM	[46]
Co	MgO	973	69.38	0.79	Co-precipitation technique was used to prepare nanosized catalysts for DRM and the metal loading was optimized	[44]
Ir	Ce0.9Pr0.1O2	1025	62	0.98	Different synthesis strategies were analyzed to control the Ir dispersion, and it was found that deposition-precipitation possesses the lowest coke deposition	[47]

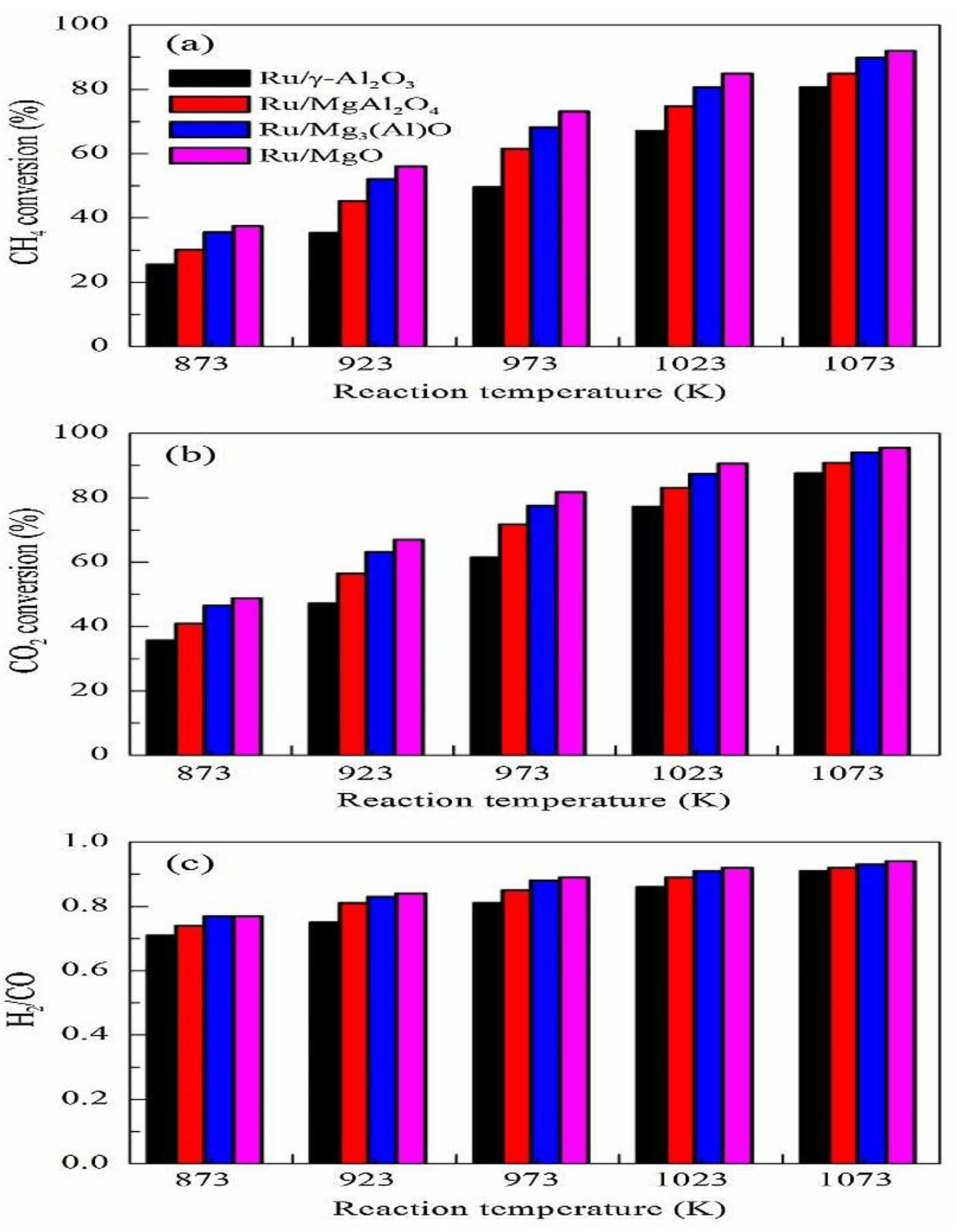

Ru	γ-Al2O3	1023	67		The influence of the support on the metal dispersion was analyzed and it was found that the MgAlO mixed oxide support has excellent stability due to the strong basicity of the support	[48]
	MgAl2O4		75
	Mg3AlO		80
	MgO		86
Rh	La2O3-γ-Al2O3				The effect of phosphorous addition to the support was studied under different impregnation scenarios to study the impacts on catalyst activity and stability	[49]
Rh	γ-Al2O3	1073	97.5		Numerical simulation of the catalytic DRM in a membrane reactor was performed to find the optimum operating conditions and it was found that Ni/La2O3 is the most stable catalyst at 1073 K	[50]
Pt	hydroxyapatite (HAP)	973	30	0.92	Different synthesis methods were deployed to introduce Pt into HAP and it was concluded that the incipient wetness is the most efficient technique	[51]

. A recent study by Abasaeed and coworkers [39] was conducted for the impregnation of Co into nanosized CeO₂ and ZrO₂ supports calcined at different temperatures. It has been found that the effluent gaseous product for the case of Co/ZrO₂ has higher H₂/CO ratio than Co/CeO₂ for the same Co content. Moreover, the catalytic activity was favored at lower calcination temperatures due to the observed reduction of surface area when the samples are calcined at higher temperatures (50% reduction in BET surface area between 500 °C to 900 °C). Moreover, temperature programmed reduction (TPR) analysis has shown that for Co/ZrO catalysts a reduction peak has shifted toward the low temperature region when increasing the calcination temperature indicating a more reducible metal phase when calcining at low temperatures. According to the temperature programmed oxidation (TPO) and TEM images that were performed on the spent catalyst, the type of the carbonaceous residue formed for each support (i.e., ZrO₂ and CeO₂) was different. The presence of CNTs with different sizes was observed for the case of Co/ZrO₂ whereas a reactive carbon was deposited on CeO₂ after the DRM reaction, which has then oxidized due to the high oxygen storage capacity of CeO₂. To further understand the catalytic activity of Co/CeO₂ catalyst, a similar study was conducted by Ayodele et al. [40] to investigate the impact of the reactants partial pressure on the catalytic performance. It was found that reactants partial pressure of 45 kPa was optimum with about 80% CH₄ conversion and H₂/CO ratio close to unity. Detailed characterizations of the as-prepared catalysts revealed the excellent dispersion of Co with nanosized particle size on the CeO₂ surface. A more recent study by the same group [41] has reported that the BET surface area of the 20 wt % Co/80 wt % CeO₂ is almost double of the pristine CeO₂ support which implies the good dispersion of Co metals. Other support materials are also reported in literature as excellent candidates that are considered for Co-based catalysts, such as Nd₂O₃ [42], La₂O₃ [43], and MgO [44]. A common observation was realized on most of the Co-based systems, regarding the noticeable improvement in the catalyst textural properties after the impregnation of up to 20 wt % Co into the support surface. This could be mainly ascribed to the good dispersion of Co species in the support matrix and the formation of uniform mesopores thereby enhancing the distribution of Co metals. For instance, the bare La₂O₃ has a total BET surface area of 8 m²/g as determined from the N₂-adsorption-desortion experiment at 77 K which was doubled upon the introduction of 20 wt % Co/80 wt % La₂O₃ [43]. Similarly, the pristine Nd₂O₃ surface area was almost tripled from 6.7 m²/g upon the impregnation of 20 wt % Co into the support surface [42]. To address the catalyst deactivation issue of Co-based catalysts Mirzaei et al. [44] has impregnated 5–30 wt % Co into MgO supports using co-precipitation method. TEM images have revealed that a small spherical Co particles (10 nm) were identified and the formation of Co-Mg solid solution with reduction temperature greater than 400 °C was confirmed using H₂-TPR. The catalyst that was prepared at 10 wt % Co loading was found to show 67% CH₄ conversion and was stable up to 15 h at 700 °C. A deeper look at the SEM image (Figure 3) of 10 wt % Co/MgO clearly shows the formation of whisker type coke that did not hindered the accessibility of the reactant feed to the active Co sites [44]. As discussed previously for the case of Ni/MgO, the basicity of the MgO support that induces the adsorption of CO₂ combined with its high surface area are the main features for their deployment as a stable supports in DRM [14].

Noble metal catalysts, including Rh, Ru, Pt, Pt, and Ir have also gained considerable attention in the past few years as effective catalysts for DRM, as reported in Table 2. A series of Ru-based catalysts were prepared on different support materials and the metal dispersion was found to be in the following order Ru/Mg₃(Al)O > Ru/MgO > Ru/MgAl₂O₄ > Ru/γ-Al₂O₃, thereby Ru/Mg₃(Al)O and Ru/MgO has shown superior catalytic activity and stability than the other supports. Amongst the studied catalysts Ru/Mg₃(Al)O has shown the highest surface area and metal dispersion of 128 m²/g and 15%, respectively. The high dispersion of Ru particles on the Mg₃(Al)O support resulted in higher metal-support interaction as was manifested in the XPS results that recorded a binding energy of 279.6 eV for Ru/γ-Al₂O₃ as compared to 280.7 eV for Ru/Mg₃(Al)O. Figure 4 shows the catalytic performance of these catalysts at various temperatures. In order to further understand the superior performance of Ru/Mg₃(Al)O catalyst, CO₂-TPD experiments were performed in the temperature range from 100 °C to 800 °C. Moreover, Ru/Mg₃(Al)O catalyst was proven to be stable up to 300 h at 750 °C maintaining 80% and 0.9 CH₄ conversion and H₂/CO ratio, respectively. The presence of Mg²⁺ -O^2- on Ru/Mg₃(Al)O as compared to Ru/γ-Al₂O₃ has resulted in a shift in the CO₂ desorption peaks toward higher temperatures, indicating a stronger basicity of the Ru/Mg₃(Al)O catalyst that plays an important role in the activation of CO₂ during the DRM reaction. The basic nature of the Mg₃(Al)O and MgO supports was considered to be responsible for the observed catalytic activity and stability, which acts as active sites to adsorb CO₂ and suppress the coke formation through hydrogenation pathway [39].

2.1.2. Bimetallic Catalysts

The combination of two metals to form bimetallic systems is reported in literature as an efficient approach to improve the catalytic performance in hydrogen production from reforming reactions [52], and it has been concluded that bimetallic catalysts significantly enhance the catalyst lifetime when compared to monometallic catalysts [53]. The physicochemical properties of 5 wt % Ni-10 wt % Co/Al₂O₃ catalyst prepared via co-impregnation method were examined and its catalytic performance in DRM was evaluated by Siang et al. [54]. The formation of NiO, Co₃O₄, NiCo₂O₄, CoAl₂O₄, and NiAl₂O₄ phases was confirmed using XRD analysis leading to CH₄ conversion and H₂/CO ratio of 67% and 1, respectively, at 700 °C. This was mainly attributed to the fine dispersion of nanosized Ni and Co oxides into the Al₂O₃ surface dictating the strong metal-support interaction. To further explain the observed catalytic activity, Raman spectroscopy and SEM scans were utilized to determine the nature of the coke deposited on the spent catalyst. The presence of a whisker type carbon was identified, which in contrary to crystalline carbon, is reactive and did not hinder the accessibility of gaseous reactants to the active metal sites [54]. A similar study by Uner and coworkers has demonstrated the formation of different types of carbonaceous residues on the spent catalyst surface of 8 wt % Ni-4 wt % Co/CeO₂ [16]. Despite the addition of Co into the Ni/CeO₂ catalyst, it did not show any improvement in the CH₄ conversion, however the prolonged catalyst lifetime was realized. This could be explained by the reduction in surface area upon the introduction of Co into the Ni/CeO₂ matrix. The morphology of the carbonaceous residue was analyzed on the spent catalyst using TEM analysis. A strong metal-support interaction was deduced from the TEM analysis which was deemed responsible for decreasing the catalytic activity in DRM due to the migration of parts of the Ce support to the metal surface during the catalyst reduction stage causing the blockage of the active metals during the reaction. This implies that CeO₂ works well as a promotor for Ni/Al₂O₃, rather than a support material. A more systematic study is still required to investigate the effect of Co loading in Ni-Co/CeO₂ catalyst in order to establish the optimum loadings for CH₄ conversion. Furthermore, increasing the calcination temperature of the bimetallic catalyst has shown a positive impact on lowering coke deposition. High calcination temperature (i.e., 900 °C) has produced one type of amorphous carbonaceous residue which oxidized at 525 °C whereas low calcination temperature (i.e., 700 °C) has produced two different types of coke residues, thus supporting previous findings [16]. In addition to the effect of calcination temperature, catalyst reduction time was also reported to have a great influence on the physicochemical properties of the bimetallic Ni-Co catalyst supported on MgO [55]. 8 wt % Ni-2 wt % Co/MgO Catalyst with shorter reduction times (i.e., less than 1 h) exhibited better catalytic activity than catalyst reduced for long times, mainly due to the formation of smaller metal sites with excellent dispersion (10%) after short reduction times while the long exposure to reducing environment has resulted in metal agglomeration, and hence the catalyst was susceptible to deactivation. The proven effects of catalyst calcination temperature and reduction time on the characteristics and performance of the resulting catalyst brings the attention to the role of the synthesis method in general. Haghighi group has investigated the use of sonochemical, sequential impregnation, and sol-gel synthesis methods in the preparation of Ni-Co/Al₂O₃-ZrO₂ catalysts for DRM [37,56]. The use of ultrasound irradiation assisted impregnation is proven effective to overcome the agglomeration of metals and achieve a good metal dispersion, uniformity of metal distribution, and high specific surface area, and therefore high conversion and stability were attained. The effects of ultrasound power and time on the metal dispersion were significant, as indicated by the TEM images of the 10 wt % Ni-3 wt % Co/Al₂O₃-ZrO₂ catalysts that were prepared at different ultrasonic power and durations. A closer look at the H₂-TPR indicates that the presence of Co and ZrO₂ has improved the Ni-Al₂O₃ interactions by preventing the formation of the inactive NiAl₂O₄ spinals. Furthermore, the use of sonication assisted impregnation has resulted in a more sharp peaks in the H₂-TPR profiles opposed to wider peaks for the regular impregnation samples, dictating a narrow size distribution of the Ni and Co metals, and consequently a stronger metal-support interaction. The superior coke suppression property of the ultrasound-modified samples (stable up to 24 h) could be mainly ascribed to the excellent dispersion and small metal sizes induced by the ultrasound power [56]. The excellent coking suppression property of the Ni-Co/Al₂O₃-ZrO₂ samples that were prepared using ultrasonic method (denoted as NiCoAZ-U) as compared to the wet impregnation route (NiCoAZ-I) was confirmed from the TGA profiles, as shown in Figure 5. Interestingly, there was a significant weight loss that was observed for NiCoAZ-I in the temperature zone from 500 °C to 700 °C whereas no weight loss was noticed for NiCoAZ-U given the fact that the weight loss between 500 °C to 700 °C is attributed to the oxidation of coke to CO₂ and CO. The SEM images (not shown here) have also confirmed the findings from TGA results indicating no coke formation up to 24 h at reaction temperature of 850 °C. Similar observations were reported for the impregnation of Ni-Co on zeolite Y using ultrasound irradiation assisted impregnation. The superior catalytic activity Ni-Co/Al₂O₃-ZrO₂ and Ni-Cu/Al₂O₃-ZrO₂ catalysts prepared using sol-gel synthesis approach in contrast to sequential impregnation method was also attributed to the metal dispersion and particle size differences [37]. It is also worthy to mention that the addition of Co had greater impacts on the catalyst activity when compared to Cu promotors, mainly due to the higher surface area of the Co-Ni bimetallic system than the Cu-Ni catalysts and consequently the reactants adsorption. To further prolong the lifetime of Ni-Co bimetallic catalysts, Pintar et al. [57] has recently proposed the coating of the bimetallic Ni-Co/CeO₂-ZrO₂ catalyst onto the surface of β-SiC to achieve a stable performance up to 550 h, as can be seen in Figure 6. The introduction of β-SiC provided a mean to control the extent of oxygen mobility induced by the CeO₂-ZrO₂ support and could be used to tune the redox property of the catalyst and consequently attain higher stability.

Other bimetallic catalytic systems that are reported in literature are summarized in

Table 3. Bimetallic catalyst systems for DRM.

Metal	Support	Temperature (K)	CH4 Conversion	H2/CO	Remarks	Ref.
Ni-Co	CeZrO2/β-SiC	1023	65	0.8	Deposition precipitation was used to produce catalyst with controlled metal cluster size to reduce coking	[57]
Ni-Co	γ-Al2O3	973	67	1	The bimetallic catalyst with small crystallite size was prepared using to improve the catalyst activity and stability. The formation of an amorphous carbon was evident explaining the catalyst prolonged lifetime	[54]
Ni-Co	ZrO2-Al2O3	1123	93	1	The ultrasound-mediated synthesis produced catalysts with high surface area, small crystal size, and high metal dispersion resulted in the observed enhanced stability	[56]
Ni-Co	CeO2	973	64	0.80	The effects of the catalyst calcination temperature on the catalytic activity and stability was studied, and it was certain that at higher calcination temperatures the carbon deposition was minimized	[16]
Co-Ce	ZrO2	973	78	0.67	The oxygen storage property of the ZrO2 support was promoted by adding Ce at different ratios to reduce metal sintering and carbon formation	[62]
Ni-Co	ZSM-5	1073	80	0.98	Introducing Co to Ni/ZSM-5 catalyst has significantly improved the catalyst stability due to the activity of Co in oxidation reactions	[47]
Ni-Co	Zeolite Y	1123	96	0.93	The utilization of ultrasonic power in the synthesis of Co-Ni bimetallic catalyst has resulted in higher metal dispersion	[63]
Co-Mo	MgO/MWCNTs	1223	98.6	1.1	The insitu growth of multiwall carbon nanotubes (MWCNTs) in the solution of mixed Co and Mo precursors was used to prepare the composite catalyst with excellent activity for syngas production	[64]
Ni-Co	CeO2-ZrO2	973	90	0.73	The mixed support was prepared by thermal precipitation in ethylene glycol media	[65]
Ni-Cu	Al2O3	1123	82	0.83	Plasma treatment was applied to synthesize the bimetallic nanocatalysts to improve the uniformity of metal dispersion	[66]
Ni-Co	MgO	1073	92	0.98	The impacts of the catalyst reduction duration was studied and it was concluded that the short reduction time is preferable for better stability	[55]
Mn-Ni	SiO2	1073	77.8	0.65	The positive impact of Mn as a catalyst promotor was confirmed	[67]
Zr-Ni	SiO2	1073	89.3
Co-Sr	γ-Al2O3	973	80	0.88	The Sr acted as a promotor to enhance the support basicity and hence reduced carbon formation with no effects on the catalytic activity	[68]
Pt-Ni	Al2O3	1073	92	1.1	The role of the addition of Pt to the Ni-based catalyst was analyzed using two oxide supports. The improvement in the catalyst lifetime was highly pronounced when adding Pt to Ni/CeZrO2	[38]
Pt-Ni	CeZrO2	1073	94	0.8
Ni-Co	Al2O3-ZrO2	1123	96	0.98	The effects of synthesis method and the use of metal promotors was investigated	[37]
Ni-Cu	Al2O3-ZrO2	1123	93	0.93

.

Mesoporous silica SBA-15 with hexagonal one-dimensional pore structures was also proven to be a promising support for Ni-Co bimetallic systems [58,59]. Figure 7 displays the effect of Co/Ni ratio in the Ni_xCo_1−x/SBA-15 catalyst at two GHSV of 36,000 mL/g/h and 72,000 mL/g/h [58]. It was found that at lower GHSV (i.e., 36,000 mL/g/h) the addition of Co has shown a negative effect on the CH₄ and CO₂ conversion as compared to the monometallic Ni/SBA-15 catalyst. However, as the GHSV was increased to 72,000 mL/g/h, the catalytic activity of the bimetallic Ni_xCo_1−x/SBA-15 catalyst was even higher than the monometallic Ni/SBA-15 catalyst. Especially for the sample with the lowest CO/Ni ratio (Ni₉Co₁/SBA-15). To explain the positive role of Co addition to the Ni_xCo_1−x/SBA-15 catalyst, the particle sizes of the samples are plotted against the initial DRM activity, as shown in Figure 7c. It was concluded that the introduction of Co induces the formation of Co-Ni alloys, and hence leading to smaller Ni particle sizes, especially at low Co/Ni ratios confirming previous findings [59].

A recent study has studied the controlled deposition of Fe-Ni nanoparticles onto Mg(Al)O periclase support using colloid synthesis route [60]. According to energy dispersive X-ray analysis (EDX) and X-ray absorption near-edge structure (XANES), the formation of a core-shell structure was confirmed with the Ni in the core and Fe in the shell side. The DRM reaction was performed at 650 °C, and it was found that the rate of CH₄ consumption was 10 times higher in the pure Ni catalyst when compared to the Ni/MgAlO prepared using coprecipitation route. However, the pure Ni nanoparticles have suffered a severe deactivation via carbonaceous residue formation. For the case of the bimetallic Ni-Fe catalyst, and optimum ratio of Ni/Fe of 3:1 was found to produce a catalyst with high active metal sites and improved stability. It was also found that the selection of the catalyst reduction temperature is critical to prolong the catalyst lifetime. For instance, catalysts reduced at 650 °C as opposed to 850 °C has shown a decrease in coke formation by up to 50%, as was measured by the TPO experiments. In order to further understand the synergism in Ni-Fe bimetallic systems and in order to understand the mechanism through which the Ni-Fe alloys function, the reader is advised to refer to the work by Kim et al. [61].

2.2. Steam Reforming of Methane (SRM)

Syngas production from SRM is one of the very well established technologies that is available in commercial scales using mainly Ni/Al₂O₃ catalysts in reformers operated at high temperatures (i.e., 800 °C) [69]. In this review article we have limited our literature to include only scientific publications available after 2013 to recapitulate the advancement achieved in the catalyst development for SRM. The SRM is a highly endothermic reaction and to attain a high CH₄ conversion and H₂/CO ratio the reaction should be operated at elevated temperatures and high H₂O/CH₄ ratios which present great challenges such as the high energy requirements and the necessity for desulfurization prior to entering the reformer.

$${\mathrm{CH}}_4+{\mathrm{H}}_2\mathrm{O}\to \mathrm{CO}+3{\mathrm{H}}_2\hspace{1em}\Delta H^0{}_{298\mathrm{K}}=228\mathrm{kJ}/\mathrm{mol}$$

(2)

According to the SRM reaction, the produced syngas has H₂/CO ratio of 3:1, which makes it suitable for hydrogen production for fuel cell applications.

Table 4. Summary of Catalysts used for steam reforming of methane (SRM).

Catalyst	CH4 Conversion %	Conditions	Catalyst Characteristics	Remarks	Ref.
10 wt % Ni/SiO2	35	700 °C, 3.5 h, H2O/CH4 = 0.5	Ni particle size = 6.9 nm	The catalyst prepared using plasma was evaluated for long-term stability	[70]
10 wt % Ni/TiO2	27	500 °C, H2O/CH4 = 1	BET surface area = 42 m2/g and Ni dispersion = 2.8%	Different Ni contents were loaded on TiO2 for SRM at low temperatures	[71]
10 wt % Ni/Al2O3	30	500 °C, H2O/CH4 = 1	BET surface area = 40 m2/g and Ni dispersion = 1.3%
10 wt % Ni/SiO2	10	500 °C, H2O/CH4 = 1	BET surface area = 300 m2/g and Ni dispersion = 2.6%
10 wt % Ni/SiO2	96	700 °C, H2O/CH4 = 3.5	BET surface area = 268 m2/g and particle size = 11 nm	The sol-gel technique was used to prepare the catalyst with small particle sizes	[72]
15 wt % Ni/TiO2	92	700 °C, H2O/CH4 = 1.2	BET surface area = 62 m2/g	Ultrasound irradiation was used to enhance the Ni dispersion	[73]
15 wt % Ni/MgAl2O4	45	600 °C, 5 bar, H2O/CH4 = 5	BET surface area = 43 m2/g, Ni dispersion = 6.3%, and particle size = 10 nm	The effect of calcination temperature on the physicochemical properties was analyzed	[74]
9 wt % Ni/ZrO2	65	973 K and, H2O/CH4 = 4	BET surface area = 19 m2/g and particle size = 23 nm	Different structures of ZrO2 supports were used for SRM	[75]
6 wt % Ni/ZrO2	30	650 °C and, H2O/CH4 = 2.5	BET surface area = 16 m2/g	The textural properties of ZrO2 support were controlled to improve Ni dispersion	[76]
Ni/SiO2/ZrO2	95	650 °C and, H2O/CH4 = 2.5	BET surface area = 176 m2/g
10 wt % Ni/Y2Zr2O7	85	700 °C and, H2O/CH4 = 2	BET surface area = 21 m2/g and particle size = 12 nm and Ni dispersion = 100%	Different synthesis approaches were used to prepare the support which showed different metal-support interactions	[77]
Ni/Al2O3-Silicalite	69	650 °C, and H2O/CH4 = 3		The silicalite shell was grown around Al2O3 followed by impregnation to introduce Ni into the core of the catalyst	[78]
Ni/90 wt % Ce-10 wt % Gd	73	700 °C, and H2O/CH4 = 3	BET surface area = 65 m2/g and metal dispersion = 1.6%	Doping the support with Gd improved H2/CO ratio at the expense of the catalytic activity	[79]
Ni/MgAl	40	600 °C, and H2O/CH4 = 2	BET surface area = 97 m2/g and particle size = 14 nm	Ni-based hydrotalcite catalyst was prepared and the use of Fe and Cr promotors on the Ni dispersion was studied.	[80]
Fe-Ni/MgAl	50	600 °C, and H2O/CH4 = 2	BET surface area = 98 m2/g and particle size = 8 nm
Cr-Ni/MgAl	45	600 °C, and H2O/CH4 = 2	BET surface area = 104 m2/g and particle size = 8 nm
Ni/MgAl + CrFe3O4	75	600 °C, and H2O/CH4=2	BET surface area = 13 m2/g
13 wt % Ni-1 wt % Ce/Al2O3	75	750 °C, and H2O/CH4 = 3	BET surface area = 26 m2/g and Ni dispersion = 8.3%	The effects of Ce as a promotor for Ni-based catalyst was investigated	[81]
5 wt % Ni/SiO2-Al2O3	75	750 °C, and H2O/CH4 = 1	BET surface area = 73 m2/g and particle size = 19 nm	Ni nanoparticles supported catalysts exhibited better dispersion, particle size, and reducibility than conventional Ni catalysts	[82]
5 wt % Ni nano-particles/SiO2-Al2O3	98	750 °C, and H2O/CH4 = 1	BET surface area = 106 m2/g and particle size = 6 nm
5 wt % Ni/Al2O3-Y2O3-ZrO2	95	1125 K, and H2O/CH4 = 1.5		SRM was studied at low H2O/CH4 to enhance the energy effeciency	[83]
0.09 wt % (Pd-Rh)/CeZrO2-Al2O3	93	1073 K, and H2O/CH4 = 1.5	BET surface area = 146.8 m2/g and metal dispersion = 37.5%	The bimetallic catalyst was coated on metallic foam to reduce coke formation	[84]
8 wt % Rh/Al2O3	88	1073 K, and H2O/CH4 = 1.5	BET surface area = 6.4 m2/g
13 wt % Ni/Al2O3	85	1073 K, and H2O/CH4 = 1.5	BET surface area = 164 m2/g
0.1 wt % Pt-13 wt % Ni/MgAl2O4	65	600 °C, and H2O/CH4 = 5	BET surface area = 44 m2/g and particle size = 7.6 nm	The cata;yst reducibility was improved by doping the catalyst with different Pt loadings	[85]
5 wt % Ir/MgAl2O4	55	850 °C, and H2O/CH4 = 3	particle size = 1 nm and metal dispersion = 100%	Ir and Rh supported on MgAl2O4 were found to have high metal dispersion and hence better catalytic activity	[86]
5 wt % Rh/MgAl2O4	41	850 °C, and H2O/CH4 = 3	particle size = 2 nm and metal dispersion = 50%
5 wt % Pt/MgAl2O4	49	850 °C, and H2O/CH4 = 3	particle size = 3 nm and metal dispersion = 29%
5 wt % Pd/MgAl2O4	31	850 °C, and H2O/CH4 = 3	particle size = 16 nm and metal dispersion = 6%
5 wt % Ru/MgAl2O4	3	850 °C, and H2O/CH4 = 3	particle size = 20 nm and metal dispersion = 5%
5 wt % Ni/MgAl2O4	4	850 °C, and H2O/CH4 = 3	particle size = 7 nm and metal dispersion = 15%
1 wt % Pt/Al2O3	70	973 K, and H2O/CH4 = 4	BET surface area = 131 m2/g and metal dispersion = 50%	The effect of the addition of toluene to the feed stream was studied	[87]
1.4 wt % Pt/CeO2-Al2O3	75	973 K, and H2O/CH4 = 4	BET surface area = 84 m2/g and metal dispersion = 83%

presents a summary of the recent advances in the catalyst development for SRM in the past five years.

The catalytic performance of different Ni-based catalysts that were prepared using incipient wetness impregnation (SiO₂, Al₂O₃) and co-precipitation technique (Mg-Al and Zn-Al) was evaluated for SRM at low temperature (less than 600 °C) by Nieva et al. [88]. The catalysts prepared via the co-precipitation route (Ni/Mg-Al and Ni/Zn-Al) was found to have better activity and stability compared to Ni/SiO₂ and Ni/Al₂O₃ samples due to the higher metal-support interactions of these catalysts. The superior catalytic activity could be attributed to the small particle sizes recorded for Ni/Mg-Al (3 nm) and Ni/Zn-Al (6 nm) as compared to the larger particle sizes measured using TEM histograms for Ni/SiO₂ (12 nm) and Ni/Al₂O₃ (19 nm) samples. The small particle size and the strong metal-support interaction for Ni/Mg-Al and Ni/Zn-Al have prevented the dissolution of carbon, and thus the formation of nanofibers as was evident from TGA analysis. Moreover, the inhibition of CH₄ decomposition and CO disproportionation reactions combined with the fast gasification of coke on Ni/Mg-Al and Ni/Zn-Al is deemed responsible for the observed stability. Another comparison between the different support materials for SRM was conducted recently and modelled using artificial neural network (ANN) to optimize the Ni loadings and the process operating conditions [89]. The authors have used wet impregnation synthesis method to introduce Ni (5, 10, 20, and 40 wt %) into SiO₂, Al₂O₃ and SBA-15 supports promoted with 1 wt % Ce, Mo, B and Zr. The catalyst prepared with 10 wt % Ni on SBA-15 support has shown the highest activity and coke resistance compared to the other catalysts. The promotion of 10 wt % Ni/SBA-15 with 1 wt % Ce was found to further improve the catalyst stability and increase the CH₄ reaction rate. This is mainly attributed to the small particle sizes (11 nm), good Ni dispersion (10%), and the excellent oxygen storage capacity of Ce promotors [81]. The excellent textural properties of SBA-15 (BET surface area of 300 m²/g and pore volume of 0.6 cm³/g) provided a large surface for Ni deposition without any agglomeration, similar to previous findings [13,76]. Mesoporous silica (MCM-41) possesses hexagonal pores with similar textural properties as SBA-15 have been also studied as a promising candidate for Ni supported catalysts in SRM. As an attempt to reduce the Ni particle size the use of sol-gel synthesis method for the preparation of Ni/SiO₂ catalysts was investigated in comparison to conventional impregnation methods [90]. It was found that the sol-gel (also called polymer-assisted synthesis) produces small and well-dispersed Ni particles, and hence has high metal-support interactions thereby having longer lifetime in SRM up to 60 h. The measurement of crystallite size using XRD diffractograms revealed the importance impact of the synthesis route on the size of NiO crystallites. Much smaller crystallites (8–11 nm) are deposited using polymer-assisted approach when compared to conventional impregnation (15–23 nm), which could be ascribed to the formation of very small NiO particles prior to the combustion of the polymer matrix, which has then firmly attached afterwards on the SiO₂ support. Furthermore, the small particle size on the calcined catalyst obtained using the sol-gel method were retained after the reduction step at 750 °C, while for the case of impregnation routes, the particle sizes have further increased up to 45 nm. To differentiate between the amount and types of carbonaceous residues formed on the spent catalysts that were prepared via conventional impregnation and sol-gel technique, TPO analysis was performed. It was concluded that mainly amorphous carbon (less deactivating) was deposited on the sol-gel catalyst while a graphitic coke (more crystalline phase) was formed on the catalyst prepared via the impregnation route [90]. Another attempt to prepare Ni nanoparticle using sol-gel synthesis approach was reported by Ali and coworkers [82] for the impregnation of 5 wt % Ni into the surface of 10 wt % SiO₂ modified alumina support. The as-synthesized Ni nanoparticles exhibited exceptionally superior catalytic activity and stability compared to the conventionally impregnated catalysts mainly due to the better dispersion, high reducibility, and the smaller particle sizes (6 nm as opposed to 19 nm for the conventional impregnation samples). Similarly, other researchers have reported the improved characteristics of catalysts prepared via sol-gel route, for instance Bej et al. [72] have varied the catalyst calcination temperature and Ni loading to optimize the NiO crystallite size on a Ni/SiO₂ catalyst prepared using sol-gel method. Low calcination temperatures (i.e., 400 °C) was found to produce small Ni particle size recording a CH₄ conversion of about 96% at 700 °C and H₂O/CH₄ ratio of 3.5 stable up to 3 h, confirming previous findings [74]. However, it is worthy to mention that an optimization of the calcination temperature is always required, due to their impact on the metal particle size and catalyst surface area, and consequently the catalytic performance. Moreover, the use of dielectric barrier discharge plasma (DBC) was found to have similar results to sol-gel synthesis method producing Ni particle sizes of about 5 nm and hence showing better stability in SRM [70]. Furthermore, the use of ultrasound irradiation assisted impregnation method was proven successful to obtain fine metal dispersion of small Ni particles, as was observed for the case of Ni/TiO₂ catalysts [73]. In order to further improve the catalytic performance of Ni/TiO₂ catalysts in SRM, Kho et al. [71] have recently proposed that the activation step for Ni/TiO₂ catalysts should be performed at milder conditions (i.e., less than 400 °C) to avoid undesirable phase changes in TiO₂ support. Findings from this study revealed that for 10 wt % Ni/TiO₂ the presence of two forms of Ni was evident, a bulk-like Ni and a strongly attached Ni-TiO₂. Each phase has contributed differently in the overall SRM reaction leading to a stable performance up to 54 h at 500 °C. The effect of H₂O/CH₄ ratio on the catalytic activity and stability of 10 wt % Ni/TiO₂ up to 54 h was assessed in the range from 1 to 3. At values of H₂O/CH₄ = 1 and 3, the catalyst stability was retained and the values of H₂/CH₄ and H₂/Co_x of approximately 4 was observed. Whereas, at H₂O/CH₄ = 2, the catalyst lost its stability after 24 h with a slight increase in the H₂/CH₄ and H₂/Co_x ratios to about 5. This observation could be explained from the XRD spectra of the spent catalyst at different H₂O/CH₄ ratios. An accelerated growth in the Ni particle size was observed up to 7 nm, 12 nm, and 19 nm for H₂O/CH₄ ratios of 1, 2, and 3, respectively. Moreover, an unfavorable phase transformation from the higher surface area anatase-TiO₂ to rutile-TiO₂ was depicted from the XRD patterns, which could lead to partial activity losses. This can be clearly seen from the weight loss at 700 °C for the spent catalysts at H₂O/CH₄ ratios higher than 1. These observations indicate the importance of optimizing the operating conditions in SRM reactions.

While Ni-based catalysts received the most attention for industrial SRM applications, the catalyst deactivation through metal sintering and coke deposition is considered the major challenge to be addressed. Noble metals (Pt, Rh, Ru, and Ir) supported on various oxide supports that have been extensively studied in the past for SRM can overcome these shortcomings of Ni-based systems. A series of noble metal catalysts supported on MgAl₂O₄ and Al₂O₃ using incipient wetness impregnation method were evaluated for SRM [86]. Exceptionally high metal dispersions were recorded for the case of Ir and Rh (100% and 50%, respectively) with particle sizes less than 2 nm, which was reflected in their superior activity and stability (five times higher than Ni/MgAl₂O₄). According to SEM images, the use of MgAl₂O₄ support produced significantly smaller particle sizes as compared to using Al₂O₃ which explains the observed reduction in CH₄ conversion from 90% to 78% for 5 wt % Rh/Al₂O₃ within 70 h, while 5 wt % Rh/MgAl₂O₄ maintained the same initial conversion of 95%. Implications of density functional theory (DFT) analysis attributed the observed coke resistance property to the presence of a strong positive charge for the case of Rh and Ir supported on MgAl₂O₄, which increased the metal-support interaction. To further improve the catalytic performance of Rh-based catalysts, the utilization of a mixed support approach provides a great synergism toward enhancing the overall characteristics of the catalyst in SRM. Duarte et al. [91] has systematically investigated the promotion of Al₂O₃ support with CeO₂ and Sm₂O₃-CeO₂ for SRM at 500 °C. The coexistence of atomically deposited Rh and Rh nanoparticles on the Rh/CeO₂-Al₂O₃ has led to a positive synergism toward carbon gasification during SRM, thereby showing only 17% deactivation at 500 °C. Similarly, Castro et al. [87] has investigated the impact of adding CeO₂ to Pt/Al₂O₃ catalyst to introduce new oxygen vacancies and prolong the catalyst lifetime. The CeO₂ acted as a source of oxygen during the SRM reaction to control the redox property of the catalyst and to induce a balance between the gasification and reforming reactions in a way to suppress coke deposition on the catalyst surface.

Nevertheless, noble metals are expensive and therefore a bimetallic system where noble metals are added to Ni-based systems could provide the ultimate properties due to the formation of superficial Ni-noble metal alloys [92,93]. In order to understand the synergistic effects in Ni-Co bimetallic catalysts in SRM, a series of Ni-Co/Al₂O₃ catalysts were prepared using co-impregnation technique with Ni content of 12 wt % and different Co loadings (1%, 3%, 7%, 12%, and 15%) [53]. Although, the catalytic activity of the Co-modified catalysts was decreased compared to the 12 wt % Ni/Al₂O₃, the catalyst stability was significantly improved up to 160 h for the case of 7 wt % Co at 800 °C as was confirmed by SEM images of the fresh and spent catalyst. A theoretical study was presented by Wang et al. [94] using DFT to determine the major reactions taking place in bimetallic systems of Ni-catalyst modified with Cu, Au, and Ag in an attempt to determine the least carbon producing bimetallic catalyst and understand the observed experimental findings. More recently, the introduction of 0.01–1 wt % Pt into Ni/MgAl₂O₄ catalyst prepared using sequential impregnation technique was studied by Jaiswar et al. [85]. Figure 8 shows the CH₄ conversion at different Pt loadings, which correlate very well with the recorded metal specific surface areas of these samples. The optimum Pt loading was found to be 0.1 wt % based on the metal dispersion and catalytic activity, which was ascribed to the increase in metal specific surface area and the formation of Pt-Ni alloys on the catalyst surface. The addition of Pt beyond 0.1 wt % has resulted in agglomeration of the active metals and consequently lowering the catalyst activity and stability, thus, it is always essential to optimize the metal loading in bimetallic systems.

3. Conclusions

Over the past five years, several studies have been conducted on DRM and SRM over Ni-based metal-oxide catalysts to improve the syngas production rate, while maintaining the catalyst stability. The role of the support was found essential to achieving the required physicochemical properties in syngas production through DRM. Promoting the Al₂O₃ support with CeO₂, ZrO₂, SiO₂, and La₂O₃ was found to have significant impacts on the catalyst characteristics, such as the Ni dispersion, particle size, metal specific surface area, and the catalyst reducibility. Therefore, the selection of the right combination of the support material is necessary to maximize syngas production. Although the strong metal-support interaction has led to more stable catalysts for both DRM and SRM applications, the catalyst reducibility has been an issue, therefore a tradeoff between the metal-support interaction and the catalyst reducibility is always required. The support surface acid/base property was also found to be a key factor to control the catalyst stability via the control of the activation energy of the CO₂ and CH₄ reaction pathways. The acid/base property could be controlled using various approaches, such as the calcination temperature, the use of basic supports (such as MgO), the synthesis method, and the acidity modifiers. Furthermore, the control of the metal loading in the catalyst is always required in order to determine the limits where metal agglomeration starts to appear. The most influential factor on the catalyst stability was found to be the metal particle size and dispersion. Preparing nanoparticles through the variation of synthesis methods and conditions is considered to be a promising route to produce catalysts with small particle sizes. It was also concluded that not only the nature of the metal and support are important in DRM and SRM reactions but also the synthesis scheme used to prepare the catalysts, since all of the properties are greatly dependent on the synthesis conditions and the catalyst formulations. The utilization of different synthesis methods in preparing the catalysts is a potential area of research where great achievement could be realized.

The major challenge for Ni-based catalysts was found to be the deactivation and high coke formation opposed to noble metals, which displayed considerably stable performances. Consequently, future studies in the area of bimetallic systems are very promising to achieve a synergism between transient and noble metals toward high methane conversion and longer stability. Controlling the doping ratio of the noble metal to non-noble metal catalyst is very crucial to achieve the required stability improvement as higher doping percentages can lead to agglomeration and loss of activity. In addition to noble metals, Co has also shown a great potential to improve the stability of the catalyst by creating Ni-Co alloys and reducing the Ni particle sizes especially on large surface area supports such as mesoporous silica (SiO₂, MCM-41 and SBA-15). However, the optimization of the Ni/Co ratio in the bimetallic catalyst along with the operating conditions is very crucial to obtain the best catalyst formulations and catalytic results.

Furthermore, more detailed characterizations and theoretical calculations that are based on computational analysis are still required to understand the mechanisms behind these observed catalytic performances. Understanding of the deactivation mechanism and the type/morphology of the carbonaceous residues (whisker carbon versus active carbons) formed on the catalyst can significantly lead to a better catalyst design toward more stability. Future directions to design a potent catalyst for syngas production from methane could include the use of high surface area supports, such as metal organic frameworks (MOFs), which can act as excellent supports for high metal dispersions. Furthermore, a better understanding of the catalyst deactivation process using in situ catalytic experiments is significantly beneficial for the catalyst development purposes.
