Article

Molecular Dynamics Simulation of the Aggregation Behavior of Typical Aromatic Pollutants and Its Influence on the n-Octanol–Air Partition Coefficient

by
Wanran Li
1,2,
Wencong Fan
2,
Jing Zhang
3,
Shuhua Chen
3,
Yawei Shi
2 and
Guanghui Ding
2,*
1
College of Intelligence and Electronic Engineering, Dalian Neusoft University of Information, Dalian 116023, China
2
College of Environmental Science and Engineering, Dalian Maritime University, Linghai Road 1, Dalian 116026, China
3
College of Environment and Chemical Technology, Dalian University, Dalian 116622, China
*
Author to whom correspondence should be addressed.
Toxics 2025, 13(9), 721; https://doi.org/10.3390/toxics13090721
Submission received: 22 July 2025 / Revised: 25 August 2025 / Accepted: 26 August 2025 / Published: 28 August 2025
Browse Figure
Versions Notes

Abstract

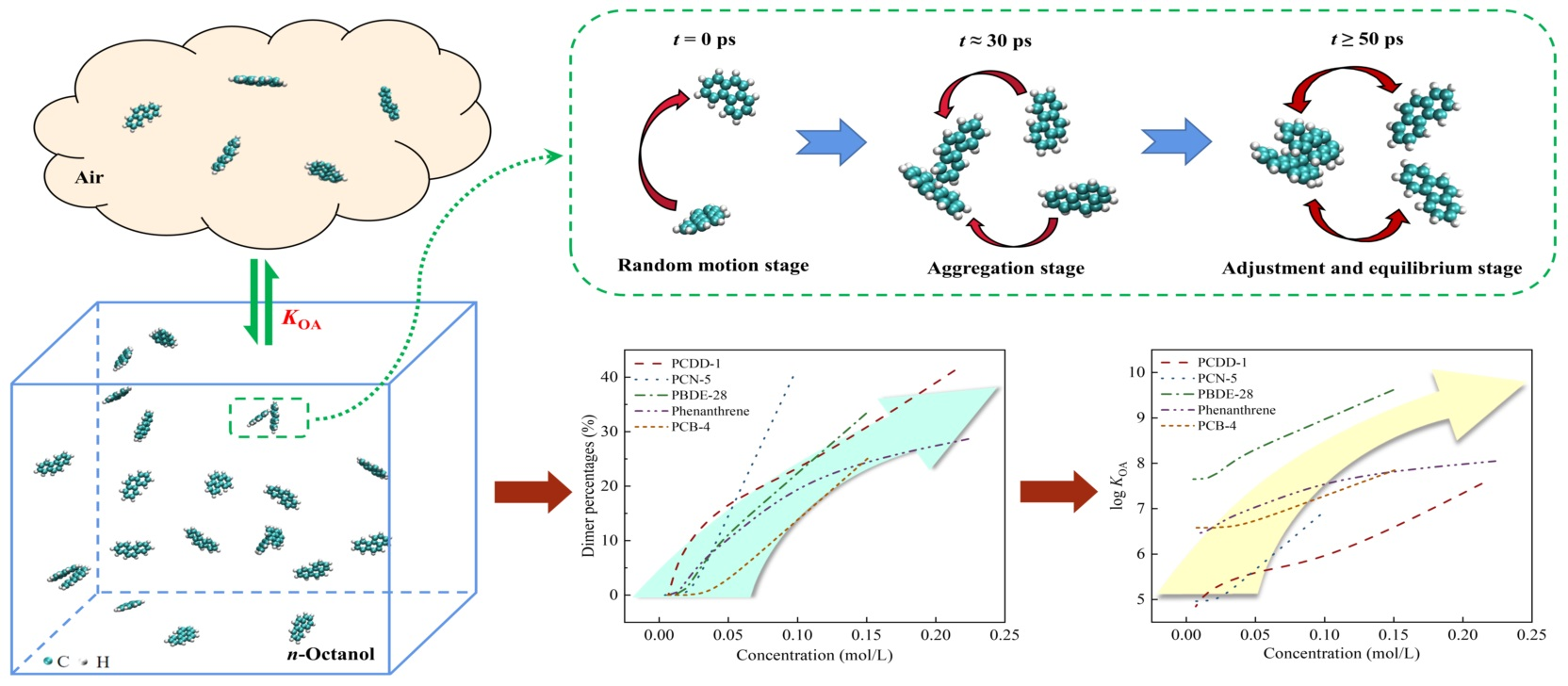

The aggregation behavior of typical aromatic pollutants in the n-octanol phase and its influence on the n-octanol–air partition coefficient (KOA) were investigated using molecular dynamics simulation. The aggregate proportion of selected aromatic pollutants gradually increased with increasing simulation time and then reached a dynamic equilibrium state. It is interesting to find that the higher the concentration of aromatic pollutants, the more aggregates formed in the n-octanol phase. Log KOA values of these aromatic pollutants were subsequently estimated based on the percentages of aggregates and the solvation free energy from the gas phase to the n-octanol phase. The log KOA values were also found to gradually increase with increasing concentration. Therefore, the effect of concentration on KOA should be taken into consideration during the analysis of the environmental behavior and transport of these aromatic pollutants. In addition, it was found that π–π interactions drive the formation of different numbers of aggregates for different aromatic pollutants, a phenomenon that affects the KOA values of aromatic pollutants. The above results shed some light on the effects of aggregates and concentration on the partition behavior of aromatic pollutants and provide a theoretical basis for the correction of KOA of aromatic pollutants in the environment.

1. Introduction

Aromatic pollutants, including polychlorinated biphenyls (PCBs), polycyclic aromatic hydrocarbons (PAHs), polybrominated diphenyl ethers (PBDEs), and polychlorinated dibenzo-p-dioxins (PCDDs), are a ubiquitous class of environmental contaminants characterized by toxicity, environmental persistence, bioaccumulation, and long-range transport potential, posing substantial threats to ecosystem integrity and human health [1]. These threats are tightly linked to their environmental partitioning behaviors, which are quantified by the n-octanol–air partition coefficient (KOA)—defined as the ratio of the concentration of a chemical in the n-octanol phase (CO) to that in the gas phase (CA) at the state of distribution equilibrium. N-octanol exhibits structural similarity to natural organic matrices, as both are composed of weakly polar to nonpolar components characterized by long alkyl chains and associated minor polar functional groups. This structural congruence enables n-octanol to serve as a surrogate for environmental organic phases (e.g., soil humus, biological fats, and plant waxes), allowing it to accurately reflect the partitioning behavior of chemicals in real environmental organic matrices [2]. As a crucial parameter describing pollutant partitioning between the atmosphere and environmental organic phases, KOA is essential for modeling transport, predicting environmental distribution, and formulating contamination control strategies [3]. Experimental methods for determining KOA include the generation column method, fugacity measurement, and solid-phase microextraction (SPME), while theoretical predictions rely on fragment constants, QSAR models, and solvation free energy methods, collectively supporting environmental and risk studies. Notably, substances with high KOA values exhibit strong affinity for organic-rich compartments like soil organic matter, plant waxes, or biological lipids, limiting long-range atmospheric transport and promoting accumulation in near-surface environments [4].
Driven by π–π interactions, chemicals with an aromatic structure could form dimers, trimers, and even polymers in solutions [5,6,7]. During the experimental measurement of the n-octanol–air partition coefficient (KOA) of aromatic pollutants, the concentrations of these chemicals in the n-octanol phase are higher than those common in environmental phases, and the probability of molecular encounters and collisions is relatively higher in a typical experimental setting [8,9]. Therefore, it is easier for aromatic chemicals to form aggregates in the n-octanol phase. However, the aggregation behavior and the equilibrium characteristics of typical aromatic pollutants in the n-octanol phase are not clear. Notably, current approaches for determining KOA via experimental measurements or predicting it through theoretical calculations have not considered the impact of such aggregation behavior on KOA values [10,11]. It has been reported that the formation of dimers of polychlorinated biphenyls (PCBs) could have a great influence on their apparent KOA values [12], with similar findings for polycyclic aromatic hydrocarbons (PAHs), polybrominated diphenyl ethers (PBDEs), polychlorinated naphthalenes (PCNs), and polychlorinated dibenzo-p-dioxins (PCDDs) from theoretical computation [13].
With the improvement of computer performance, molecular dynamics (MD) simulation has become an effective method to investigate the aggregation behavior of substances at the molecular level [14,15,16]. Therefore, MD simulation could be used to investigate the dynamic aggregation behavior and microscopic morphology of aromatic chemicals in the n-octanol phase, which are difficult to determine in macroscopic experiments. In order to further analyze these phenomena from a microscopic viewpoint at the molecular level, MD simulation was adopted in the present study to investigate the aggregation process and the equilibrium characteristics of typical aromatic pollutants, including PCB-4, phenanthrene, PBDE-28, PCN-5, and PCDD-1 in the n-octanol phase. Furthermore, effects of concentration on the aggregation behavior were investigated in order to analyze the influence of aggregate formation on KOA. This study could deepen the understanding of the microscale mechanism of environmental partition behavior of aromatic pollutants and improve the theoretical prediction of relevant partition coefficients.

2. Materials and Methods

2.1. Datasets

In this study, molecular dynamics simulation was employed to investigate the aggregation behavior of typical aromatic pollutants in the n-octanol phase under their saturated concentrations. The selected pollutants focused on PCB-4, phenanthrene, PBDE-28, PCN-5, and PCDD-1, which exhibited significant differences in solubility in n-octanol. Limited by the availability of experimental values for physicochemical properties, the apparent saturated concentrations in the n-octanol phase (SO) of these typical aromatic pollutants were estimated from the experimentally determined saturated water solubility (SW) and n-octanol–water partition coefficients (KOW) [17,18,19,20,21,22,23].
K OW = C O C W = S O S W
where CO and CW are the concentrations of a chemical in the n-octanol phase and the water phase at equilibrium, respectively. In the MD simulation, the number of n-octanol molecules was set to 1000, and then the number of molecules of these aromatic pollutants was calculated based on the corresponding estimated SO. Selected physicochemical properties of these aromatic pollutants and maximal molecule numbers dissolved in the n-octanol systems are listed in Table 1.
To systematically evaluate the accuracy of the corrected KOA values of aromatic pollutants after correction for aggregation behavior, this study collected experimentally measured log KOA values, which are listed in Table 2 [24,25,26,27,28,29,30]. These experimental values covered typical organic pollutants from low to high molecular weights and with different functional group types to ensure the representativeness and coverage of the data. For compounds with multiple reported experimental log KOA values from different sources, the average value was calculated and used as the representative experimental data for subsequent comparison. By quantifying the degree of deviation between theoretically corrected log KOA values and these experimental data, this study aims to verify the practical effectiveness of the aggregation-effect correction model in improving log KOA prediction accuracy. Ultimately, it seeks to provide a scientific basis for the selection of fundamental parameters in subsequent environmental fate simulations and risk assessments of organic compounds.

2.2. Molecular Dynamics Simulation

Gromacs 2020.2 software [31] and the GAFF force field [32] were used for the MD simulation. Initial structure files of the target chemicals were obtained online from the PubChem database, topology files with force field parameters were generated using the ACPYPE 2017.1.17 software [33], and the simulation system of typical aromatic pollutants in n-octanol solutions was constructed using Gromacs. The steepest descent method was adopted to conduct the initial energy minimization in order to eliminate unreasonable molecular overlap or crossover. After relaxation, the conjugate gradient method was used to minimize the energy once again, so that the structure of the system and the distance between atoms and the configuration were reasonable.
After energy minimization, the system was pre-balanced for 1000 ps in the canonical ensemble (NVT), followed by 1000 ps in the constant-pressure, constant-temperature ensemble (NPT). The NVT ensemble was used to reduce the pressure of the simulation box and heat the system to the set temperature. NPT ensemble was used to adjust the pressure of the model system to reach the convergence of the density. Then, MD simulation was performed for 50 ns after the system reached equilibrium. The integral algorithm used in the MD simulation was the leap-frog method [34] with a step size of 1 fs. The long-range electrostatic interaction was calculated using the cut-off method [35], in which the cut-off distance for the non-bonded interactions was set to 1.2 nm. The pressure was controlled to 1 atm by using isotropic Parrinello–Rahman pressure coupling [36]. Temperature coupling was achieved using the velocity rescaling heat bath method [37], and the temperature was controlled at 298 K. The linear constraint solver (LINCS) algorithm was used to restrict all chemical bonds [38]. Three-dimensional periodic boundary conditions were used to remove the size effects.
The system structure and thermodynamic properties were detected to determine whether the final equilibrium had been reached. Trajectory files containing the positions and speeds of all particles in the system were obtained. Then, useful thermodynamic and statistical information was calculated from the trajectory files. In addition, the visual molecular dynamics software (VMD) 1.9.3 [39] was used to depict trajectory snapshot graphs, display the particle movement trajectory, and analyze the particle movement in the simulation system. A dimer with the face-to-face, offset face-to-face, or edge-to-face conformation was recognized when the centroid distance of two molecules was shorter than 3.8, 3.9, or 5.0 Å, respectively [40,41].

2.3. Calculation of log KOA and Solvation Free Energy of Aromatic Pollutants

According to fundamental thermodynamic principles, the logarithm of the n-octanol–air partition coefficient (log KOA) can be derived from the Gibbs free energy of solvation from air to n-octanol (ΔGOA, herein referred to as solvation free energy).
l o g   K O A = − Δ G O A 2.303   R T
This quantitative relationship is specifically governed by thermodynamic equations involving the gas constant (R = 8.314 J·mol−1·K−1) and absolute temperature (T, in Kelvin). Such a thermodynamic correlation facilitates the development of an efficient approach for directly estimating log KOA values using ΔGOA, reducing reliance on labor-intensive experiments—particularly as quantum chemistry enables high-precision ΔGOA calculations. For solvation free energy estimation, this study employed the Solvation Model Density (SMD) model developed by Marenich et al. [42], selected for its superior performance in capturing solute–solvent interactions across diverse chemical systems and its proven accuracy in thermodynamic property calculations.
Molecular structures of target aromatic pollutant congeners and dimers were constructed using CS ChemDraw Ultra (Version 14.0, Cambridge Scientific Computing, Inc., Cambridge, UK). The calculation of ΔGOA based on the SMD involved three sequential steps: geometry optimization, frequency calculation, and single-point energy calculation. All computational procedures were performed using the Gaussian 09-E01 software package [43]. Frequency calculations were conducted to verify that the optimized molecular geometries correspond to true minima on the potential energy surface, ensuring the reliability of subsequent energy calculations. Single-point energies in both the gas phase and n-octanol phase were computed using the SMD model at the HF/MIDI!6D theoretical level—a combination previously validated as optimal for solvation free energy calculations. Finally, log KOA values were determined from the computed ΔGOA values using Equation (2).

2.4. Study on Effects of the Concentration on the Aggregation Behavior

The effect of the concentration on the aggregation behavior of aromatic pollutants was explored based on six concentrations. These concentrations were the saturation concentration, one-half, one-quarter, one-eighth, one-sixteenth, and one-thirty-second of the saturation concentration in the n-octanol phase. Corresponding molecular numbers of aromatic pollutants and n-octanol at different concentrations are listed in Table S1. The molecular conformations at different concentrations after 50 ns of MD simulation were captured to analyze the aggregation behavior of these typical aromatic pollutants in the n-octanol phase.
The effect of the concentration was further analyzed by comparing the aggregation behavior of these aromatic pollutants at the same concentration level. The concentration was set to be their lowest apparent saturated concentration (9.67 × 10−2 mol/L) in the n-octanol phase, corresponding to 61 aromatic molecules dissolved in 4000 n-octanol molecules. After 50 ns of MD simulation, the molecular conformations of different aromatic pollutants at the same concentration were captured and analyzed.

3. Results and Discussion

3.1. The Aggregation Processes of Typical Aromatic Pollutants in the n-Octanol Phase

Changes in the potential energy of n-octanol systems saturated with typical aromatic pollutants during the MD simulation were presented in Figure S1. It can be seen that the initial potential energies were about 15,000 to 16,000 kcal/mol, and they quickly decreased in the initial 30 ps. Thereafter, the downward trend gradually slowed down. After 50 ps, the potential energies of these systems tended to be stable, and finally fluctuated around 10,762, 10,706, 10,062, 10,361, and 10,521 kcal/mol, respectively, within small ranges. The total energy of the systems presented a similar trend as the potential energy, and finally fluctuated around 29,821, 30,056, 29,160, 29,213, and 29,734 kcal/mol, respectively (Figure S2). These results indicated that the systems almost reached equilibrium after 50 ps of MD simulation.
In order to analyze the aggregation process of the typical aromatic pollutants in the n-octanol phase, molecular conformations at different simulation times were captured, as shown in Figures S3–S7: PCB-4 (Figure S3), phenanthrene (Figure S4), PBDE-28 (Figure S5), PCN-5 (Figure S6), and PCDD-1 (Figure S7). The n-octanol solvent molecules were concealed in these figures, while the molecules of aromatic pollutants were retained in order to show their aggregation behaviors clearly. It can be seen that the molecular aggregation processes were similar over time. At the beginning, molecules of the aromatic pollutants were randomly distributed in the solution inside the box. At 5 ps, some molecules were sufficiently close to each other to form dimers. During 5–30 ps, the molecular conformation changed greatly, and the number of dimers increased gradually. After 30 ps, the aggregation of these aromatic molecules in the systems gradually slowed down. At 50 ps, the systems were relatively stable with three dimers formed for PCB-4, five dimers for phenanthrene, four dimers for PBDE-28, three dimers for PCN-5, and seven dimers and one trimer for PCDD-1. Together with Figures S1 and S2, it can be confirmed that the equilibrium was quickly reached following significant changes in the molecular conformation as well as the plunge of potential energy and total energy of the systems.
Changes in aggregate percentages of these aromatic pollutants were summarized in Table 3. It can be seen that the proportion of dimers gradually increased and the proportion of single molecules gradually decreased with increasing simulation time. At 50 ps, the proportion of dimers presented the order of PCDD-1 > PCN-5 > PBDE-28 > Phenanthrene > PCB-4. PCDD-1 had the highest proportion of aggregates among these five typical aromatic pollutants. In addition to dimers, PCDD-1 also formed a trimer at 50 ps.
The molecular aggregation process of these aromatic pollutants could be divided into three stages: random motion stage, aggregation stage, and adjustment and equilibrium stage, as described by [44]. During the random motion stage, the aromatic molecules collided with surrounding molecules and moved randomly. When two aromatic molecules got closer to each other during the random collision, the molecules could be attracted by intermolecular interactions, such as hydrogen bond interactions and π–π interactions. It was found that only 1~2 hydrogen bonds could be formed in the simulation process. Therefore, π–π interactions should be the main driving force for the aggregation of aromatic molecules. With the decrease of molecular distance, the π–π interactions gradually increased. However, the molecules could not be infinitely close to each other due to the stereo-hindrance effect and electrostatic repulsion. During this aggregation stage, aggregates were formed and the energy of the systems decreased greatly. After this, the systems entered the adjustment and equilibrium stage. At this stage, the aromatic molecules in the aggregates continuously adjusted their positions to stabilize the structure and the final dimers existed mostly in the form of edge-to-face stacking and offset face-to-face stacking.

3.2. Aggregation Characteristics of Typical Aromatic Pollutants in the n-Octanol Phase at Equilibrium

The simulation time was further extended to 50 ns to investigate the aggregation behavior of these aromatic pollutants in the n-octanol phase. Firstly, two molecules in a system were randomly selected to analyze the change of their centroid distance (Figure S8). The changes in the molecular centroid distance with the simulation time are shown in Figure S9. It can be seen that the molecular centroid distances changed irregularly with the simulation time. Sometimes, the molecular centroid distance was less than the corresponding cut-off distance of dimers, suggesting that dimers had been formed and separated for many times during the MD simulation. Therefore, a dynamic equilibrium of aggregation and segregation had established in the systems.
In order to directly reflect the dynamic equilibrium process, changes in the molecular conformations at different simulation times were captured and shown in Figures S10–S14. It could be seen that there were always three dimers for PCB-4, although they were present in different places of the simulation system within 50 ns. This also suggested that there existed a dynamic equilibrium of aggregation and segregation for PCB-4 dimers and the number of dimers was always constant in the system. This was the case for phenanthrene, PBDE-28, PCN-5, and PCDD-1, though different numbers of dimers were formed. Based on Figures S10–S14, the aggregate percentages of these aromatic pollutants were summarized and listed in Table 4. It showed that the aggregate percentages of these aromatic pollutants remained almost constant in the equilibrium state, except for the systems of PCN-5 and PCDD-1 at 20 ns and 10 ns respectively. The aggregate percentages also followed the order of PCDD-1 > PCN-5 > PBDE-28 > phenanthrene > PCB-4.
It is known that π–π interactions are the main driving force for the aggregation of aromatic molecules. Therefore, π–π interactions of PCDD-1, PCN-5, PBDE-28, phenanthrene, and PCB-4 were calculated and determined to be −11.54, −11.10, −10.98, −10.37, and −9.77 kcal/mol, respectively. It was found that the values gradually increased, indicating that the corresponding π–π interactions decreased gradually. It is believed that the stronger the π–π interaction, the more aggregates are formed. Therefore, the aggregation degree of these aromatic pollutants decreased in the order of PCDD-1, PCN-5, PBDE-28, phenanthrene, and PCB-4, as expected.
Aromatic pollutants can form aggregates in the n-octanol phase, while they usually exist as individual molecules in the gas phase. It has been reported that the log KOA of organic chemicals could be predicted from the solvation free energy from the gas phase to the n-octanol phase (ΔGOA) [11]. The aggregates formed in the n-octanol phase could affect the ΔGOA of aromatic pollutants and consequently affect their KOA values. Based on aggregate percentages of these aromatic pollutants at equilibrium and ΔGOA calculated for different aggregates, their log KOA values were estimated (Table S2). It can be seen from the table that the estimated log KOA values were close to the experimental ones. The deviation between experimental and estimated log KOA, could be related to the different concentrations considered. For PCDD-1, there is a trend to form more polymers, and therefore the experimental value was slightly higher than the estimated value.

3.3. Effects of the Concentration on the Aggregation Behavior and KOA of Typical Aromatic Pollutants

The molecular conformations of these typical aromatic pollutants in the n-octanol phase at different concentrations are shown in Figures S15–S19. It can be seen that the concentration greatly affected the aggregation behavior of these aromatic pollutants. The proportion of aggregates decreased with decreasing concentrations of aromatic pollutants in the n-octanol phase. When the concentrations of PCB-4, phenanthrene, PBDE-28, PCN-5, and PCDD-1 decreased to one-fourth, one-sixteenth, one-eighth, one-fourth, and one-thirty-second of the saturated concentration, respectively, these aromatic pollutants existed completely in monomeric form. The aggregate proportions of aromatic pollutants formed in the n-octanol phase at different concentrations are summarized in Figure 1. When the concentrations of PCB-4, phenanthrene, PBDE-28, PCN-5, and PCDD-1 in the n-octanol phase decreased to 0.038, 0.014, 0.019, 0.024, and 0.007 mol/L, respectively, the aromatic pollutants completely existed in monomeric form, without any dimers or trimers.
The MD simulations were used to estimate the monomer percentages and aggregate percentages of these aromatic pollutants, and, subsequently, their apparent log KOA values were estimated based on these percentages and corresponding ΔGOA values, calculated following the method reported by Li et al. [11] The estimated log KOA values are listed in Tables S3–S7. With the decrease in concentration, the estimated log KOA values gradually decreased, indicating that the KOA values of these aromatic pollutants are not constants, but change with concentration. It can be seen that different numbers of aggregates formed in the n-octanol phase at different concentrations. As the hydrophobicity of dimers and polymers is higher than the hydrophobicity of monomers, the presence of dimers and polymers will increase the apparent KOA values. The higher the concentration, the more aggregates formed, and consequently the higher the apparent log KOA value.
When the concentrations of these aromatic pollutants in the n-octanol phase were kept the same as 9.67 × 10−2 mol/L (61 aromatic molecules: 4000 n-octanol molecules), the aggregation behavior of different aromatic pollutants was analyzed, and the results are shown in Figure S20. At the equilibrium state, there were four dimers formed for PCB-4, four dimers for phenanthrene, eight dimers for PBDE-28, 12 dimers for PCN-5, and six dimers for PCDD-1. The percentages of aggregates formed by these aromatic pollutants are summarized in Table 5. The results showed that these aromatic pollutants all had aggregates in the n-octanol phase at this concentration. However, the proportion of aggregates formed was in the order of PCN-5 > PBDE-28 > PCDD-1 > phenanthrene = PCB-4. This order was different from that at the saturation concentrations shown in Table 3. This might be related to different degrees of concentration decrease and different rates of aggregate proportion decline following the decrease in concentrations.
At the concentration of 9.67 × 10−2 mol/L, the log KOA values of these aromatic pollutants were estimated based on the percentages and corresponding ΔGOA values, the results of which are also shown in Table 4. It was interesting to find that the log KOA value of PCB-4 estimated at this concentration was closer to the corresponding experimental value than the value estimated at saturation concentrations. This suggests that the concentration of aromatic pollutants affects their aggregation behaviors and, consequently, KOA values, and that the experimental log KOA values should be measured at unsaturated concentrations. Therefore, the partition behavior of aromatic pollutants in the actual environment could be different from that in the experimental measurement setting, and the effect of the concentration on log KOA values should be taken into consideration when the environmental behavior and transport of these aromatic pollutants are investigated.

4. Conclusions

Our study demonstrates that aromatic pollutants can form dimers and even trimers in the n-octanol phase, with their abundance increasing at higher concentrations. These aggregates exhibit enhanced hydrophobicity, thereby influencing the partitioning behavior of aromatic pollutants. Notably, aggregation is markedly more pronounced in liquid phases (such as n-octanol or water) compared to the gas phase, where monomers predominate. Consequently, aggregation exerts a stronger effect on the KOA than on KOW. Experimentally derived log KOA values were found to decrease with decreasing concentration, reflecting aggregate dissociation. Since conventional measurements employ high concentrations, the resulting log KOA values likely overestimate both aggregation tendency and partition coefficients under environmental conditions. Thus, ambient concentration levels must be considered when applying log KOA values to predict the environmental distribution and fate of aromatic pollutants. Furthermore, π–π interactions were identified as the key driving force for aggregation, with variations among pollutants explaining differences in their KOA values. This study highlights the critical roles of concentration-dependent aggregation and π–π interactions in modulating the partitioning behavior of aromatic pollutants, with significant implications for accurate risk assessment and environmental modeling.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxics13090721/s1, Figure S1: Changes of the potential energy of n-octanol systems saturated with PCB-4 (A), Phenanthrene (B), PBDE-28 (C), PCN-5 (D) and PCDD-1 (E) during the MD simulation; Figure S2: Changes of the total energy of n-octanol systems saturated with PCB-4 (A), Phenanthrene (B), PBDE-28 (C), PCN-5 (D) and PCDD-1 (E) during the MD simulation; Figure S3: The aggregation process of PCB-4 molecules in the n-octanol phase (Red circles marked for dimers); Figure S4: The aggregation process of Phenanthrene molecules in the n-octanol phase (Red circles marked for dimers); Figure S5: The aggregation process of PBDE-28 molecules in the n-octanol phase (Red circles marked for dimers); Figure S6: The aggregation process of PCN-5 molecules in the n-octanol phase (Red circles marked for dimers); Figure S7: The aggregation process of PCDD-1 molecules in the n-octanol phase (Red circles marked for dimers and yellow circle for trimer); Figure S8: Initial centroid distances of PCB-4 (A), Phenanthrene (B), PBDE-28 (C), PCN-5 (D) and PCDD-1 (E); Figure S9: Changes of molecular centroid distance of PCB-4 (A), Phenanthrene (B), PBDE-28 (C), PCN-5 (D) and PCDD-1 (E) with the simulation time; Figure S10: Changes of molecular conformation of PCB-4 at different simulation time (Red circles marked for dimers); Figure S11: Changes of molecular conformation of Phenanthrene at different simulation time (Red circles marked for dimers); Figure S12: Changes of molecular conformation of PBDE-28 at different simulation time (Red circles marked for dimers); Figure S13: Changes of molecular conformation of PCN-5 at different simulation time (Red circles marked for dimers); Figure S14: Changes of molecular conformation of PCDD-1 at different simulation time (Red circles marked for dimers and yellow circle for trimer); Figure S15: Molecular conformations of PCB-4 in the n-octanol phase at different concentrations (Red circles marked for dimers); Figure S16: Molecular conformations of Phenanthrene in the n-octanol phase at different concentrations (Red circles marked for dimers); Figure S17: Molecular conformations of PBDE-28 in the n-octanol phase at different concentrations (Red circles marked for dimers); Figure S18: Molecular conformations of PCN-5 in the n-octanol phase at different concentrations (Red circles marked for dimers); Figure S19: Molecular conformations of PCDD-1 in the n-octanol phase at different concentrations (Red circles marked for dimers and yellow circle for trimer); Figure S20: Aggregation behavior of different aromatic pollutants in the n-octanol phase at the same concentration of 9.67×10-2 mol/L (Red circles marked for dimers); Table S1: Molecular number of aromatic pollutants and n-octanol calculated at different concentrations; Table S2: Experimental and estimated log KOA of 5 typical aromatic pollutants based on predicted aggregate percentages and their molecular structures; Table S3: Aggregate percentages, and experimental and estimated log KOA values of PCB-4 at different concentrations; Table S4: Aggregate percentages, and experimental and estimated log KOA values of Phenanthrene at different concentrations; Table S5: Aggregate percentages, and experimental and estimated log KOA values of PBDE-28 at different concentrations; Table S6: Aggregate percentages, and experimental and estimated log KOA values PCN-5 at different concentrations; Table S7: Aggregate percentages, and experimental and estimated log KOA values of PCDD-1 at different concentrations.

Author Contributions

Investigation, W.L. and W.F.; methodology, W.L. and G.D.; formal analysis, J.Z. and S.C.; writing—original draft, W.L. and W.F.; software, Y.S.; project administration, W.L. and G.D.; supervision, G.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant number: 51479016 and 42177267), the Basic Research Project of Colleges of Liaoning (Grant number: JYTQN2023479), the Doctoral Research Initiation Fund of Liaoning (Grant number: 2025-BS-0923), and the Science and Technology Innovation Foundation of Dalian (Grant number: 2019J13FZ128; 2023RQ096).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lu, D.; Lin, Y.; Le, S.; Chen, Y.; Feng, C.; Qian, Z.; Wang, G.; Li, J.; Xiao, P. Assessment of POPs in foods from western China: Machine learning insights into risk and contamination drivers. Environ. Int. 2025, 199, 109458. [Google Scholar] [CrossRef]
  2. Pochec, M.; Krupka, K.M.; Panek, J.J.; Orzechowski, K.; Jezierska, A. Intermolecular Interactions and Spectroscopic Signatures of the Hydrogen-Bonded System—n-Octanol in Experimental and Theoretical Studies. Molecules 2022, 27, 1225. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, Z.; Zhao, H.; Wang, J.; Li, X.; Li, Z.; Zhang, X.; Ou, Y. Prediction and mechanism analysis of octanol-air partition coefficient for persistent organic pollutants based on machine learning models. J. Environ. Chem. Eng. 2025, 13, 115741. [Google Scholar] [CrossRef]
  4. Baskaran, S.; Lei, Y.D.; Wania, F. A Database of Experimentally Derived and Estimated Octanol–Air Partition Ratios (KOA). J. Phys. Chem. Ref. Data 2021, 50, 043101. [Google Scholar] [CrossRef]
  5. Doxtader, M.M.; Mangle, E.A.; Bhattacharya, A.K.; Cohen, S.M.; Topp, M.R. Spectroscopy of benzene complexes with perylene and other aromatic species. Chem. Phys. 1986, 101, 413–427. [Google Scholar] [CrossRef]
  6. Hunter, C.A.; Sanders, J.K. The nature of π-π interactions. J. Am. Chem. Soc. 1990, 112, 5525–5534. [Google Scholar] [CrossRef]
  7. Arunan, E.; Gutowsky, H.S. The rotational spectrum, structure and dynamics of a benzene dimer. J. Chem. Phys. 1993, 98, 4294–4296. [Google Scholar] [CrossRef]
  8. Risa, A.; Barrios, L.A.; Diego, R.; Roubeau, O.; Aleshin, D.Y.; Nelyubina, Y.; Novikov, V.; Teat, S.J.; Arino, J.R.; Aromi, G. Engineered π…π interactions favour supramolecular dimers X@[FeL3]2 (X = Cl, Br, I): Solid state and solution structure. Chem. Sci. 2024, 15, 9047–9053. [Google Scholar] [CrossRef] [PubMed]
  9. Fatima, A.; Singh, M.; Abualnaja, K.M.; Althubeiti, K.; Muthu, S.; Siddiqui, N.; Javed, S. Experimental Spectroscopic, Structural (Monomer and Dimer), Molecular Docking, Molecular Dynamics Simulation and Hirshfeld Surface Analysis of 2-Amino-6-Methylpyridine. Polycyclic Aromat. Compd. 2023, 43, 3910–3940. [Google Scholar] [CrossRef]
  10. Lee, H.; Dehez, F.; Chipot, C.; Lim, H.-K.; Kim, H. Enthalpy-Entropy Interplay in π-Stacking Interaction of Benzene Dimer in Water. J. Chem. Theory Comput. 2019, 15, 1538–1545. [Google Scholar] [CrossRef] [PubMed]
  11. Miliordos, E.; Apra, E.; Xantheas, S.S. Benchmark theoretical study of the π-π binding energy in the benzene dimer. J. Phys. Chem. A 2014, 118, 7568–7578. [Google Scholar] [CrossRef]
  12. Li, W.; Ding, G.; Gao, H.; Zhuang, Y.; Gu, X.; Peijnenburg, W. Prediction of octanol-air partition coefficients for PCBs at different ambient temperatures based on the solvation free energy and the dimer ratio. Chemosphere 2020, 242, 125246. [Google Scholar] [CrossRef] [PubMed]
  13. Li, W.; Chen, D.; Chen, S.; Zhang, J.; Song, G.; Shi, Y.; Sun, Y.; Ding, G.; Peijnenburg, W. Modelling the octanol-air partition coefficient of aromatic pollutants based on the solvation free energy and the dimer effect. Chemosphere 2022, 309, 136608. [Google Scholar] [CrossRef] [PubMed]
  14. Elaissi, S.; Alsaif, N.A.M.; Moneer, E.M.; Gouadria, S. Ozone Generation Study for Indoor Air Purification from Volatile Organic Compounds Using a Cold Corona Discharge Plasma Model. Symmetry 2025, 17, 567. [Google Scholar] [CrossRef]
  15. Tang, H.; Zhao, Y.; Yang, X.; Liu, D.; Shao, P.; Zhu, Z.; Shan, S.; Cui, F.; Xing, B. New Insight into the Aggregation of Graphene Oxide Using Molecular Dynamics Simulations and Extended Derjaguin-Landau-Verwey-Overbeek Theory. Environ. Sci. Technol. 2017, 51, 9674–9682. [Google Scholar] [CrossRef] [PubMed]
  16. Jia, J.; Huang, Y.D.; Long, J.; He, J.M.; Zhang, H.X. Molecular dynamics simulation of the interface between self-assembled monolayers on Au(111) surface and epoxy resin. Appl. Surf. Sci. 2009, 255, 6451–6459. [Google Scholar] [CrossRef]
  17. Mackay, D.; Shiu, W.Y.; Ma, K.-C. Illustrated Handbook of Physical-Chemical Properties of Environmental Fate for Organic Chemicals; CRC Press: Boca Raton, FL, USA, 1997. [Google Scholar]
  18. Braekevelt, E.; Tittlemier, S.A.; Tomy, G.T. Direct measurement of octanol-water partition coefficients of some environmentally relevant brominated diphenyl ether congeners. Chemosphere 2003, 51, 563–567. [Google Scholar] [CrossRef]
  19. Kim, M.; Coskun, O.M.; Ordu, S.; Mutlu, R. Modeling Pollutant Diffusion in the Ground Using Conformable Fractional Derivative in Spherical Coordinates with Complete Symmetry. Symmetry 2024, 16, 1358. [Google Scholar] [CrossRef]
  20. Ruelle, P. The n-octanol and n-hexane/water partition coefficient of environmentally relevant chemicals predicted from the mobile order and disorder (MOD) thermodynamics. Chemosphere 2000, 40, 457–512. [Google Scholar] [CrossRef]
  21. Yalkowsky, S.H.; He, Y.; Jain, P. Handbook of Aqueous Solubility Data, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2010. [Google Scholar]
  22. Tittlemier, S.A.; Halldorson, T.; Stern, G.A.; Tomy, G.T. Vapor pressures, aqueous solubilities, and Henry’s law constants of some brominated flame retardants. Environ. Toxicol. Chem. 2002, 21, 1804–1810. [Google Scholar] [CrossRef]
  23. Opperhulzen, A.; Volde, E.W.V.D.; Gobas, F.A.P.C.; Liem, D.A.K.; Steen, J.M.D.V.D.; Hutzinger, O. Relationship between bioconcentration in fish and steric factors of hydrophobic chemicals. Chemosphere 1985, 14, 1871–1896. [Google Scholar] [CrossRef]
  24. Kömp, P.; McLachlan, M.S. Octanol/air partitioning of polychlorinated biphenyls. Environ. Toxicol. Chem. 1997, 16, 2433–2437. [Google Scholar] [CrossRef]
  25. Mackay, D.; Callcott, D. Partitioning and physical chemical properties of PAHs. In PAHs and Related Compounds Chemistry; Neilson, A.H., Ed.; Springer: Berlin, Germany, 1998; pp. 329–332. [Google Scholar]
  26. Harner, T.; Bidleman, T.F. Measurement of octanol-air partition coefficients for polycyclic aromatic hydrocarbons and polychlorinated naphthalenes. J. Chem. Eng. Data 1998, 43, 40–46. [Google Scholar] [CrossRef]
  27. Treves, K.; Shragina, L.; Rudich, Y. Measurement of octanol-air partition coefficients using solid-phase microextraction (SPME)-application to hydroxy alkyl nitrates. Atmos. Environ. 2001, 35, 843–5854. [Google Scholar] [CrossRef]
  28. Odabasi, M.; Cetin, E.; Sofuoglu, A. Determination of octanol-air partition coefficients and supercooled liquid vapor pressures of PAHs as a function of temperature: Application to gas-particle partitioning in an urban atmosphere. Atmos. Environ. 2006, 40, 6615–6625. [Google Scholar] [CrossRef]
  29. Harner, T.; Shoeib, M. Measurements of octanol-air partition coefficients (KOA) for polybrominated diphenyl ethers (PBDEs): Predicting partitioning in the environment. J. Chem. Eng. Data 2002, 47, 228–232. [Google Scholar] [CrossRef]
  30. Harner, T.; Green, N.J.L.; Jones, K.C. Measurements of octanol-air partition coefficients for PCDD/Fs: A tool in assessing air-soil equilibrium status. Environ. Sci. Technol. 2000, 34, 3109–3114. [Google Scholar] [CrossRef]
  31. Van Der Spoel, D.; Lindahl, E.; Hess, B.; Groenhof, G.; Mark, A.E.; Berendsen, H.J. GROMACS: Fast, flexible, and free. J. Comput. Chem. 2005, 26, 1701–1718. [Google Scholar] [CrossRef]
  32. Wang, J.; Wolf, R.M.; Caldwell, J.W.; Kollman, P.A.; Case, D.A. Development and testing of a general amber force field. J. Comput. Chem. 2004, 25, 1157–1174. [Google Scholar] [CrossRef] [PubMed]
  33. da Silva, A.W.S.; Vranken, W.F. ACPYPE—AnteChamber PYthon Parser interface. BMC Res. Notes 2012, 5, 367. [Google Scholar] [CrossRef]
  34. Svanberg, M. An improved leap-frog rotational algorithm. Mol. Phys. 1997, 92, 1085–1088. [Google Scholar] [CrossRef]
  35. Frenkel, D.; Smit, B. Understanding Molecular Simulation, 2nd ed.; Academic Press: Amsterdam, The Netherlands, 2001. [Google Scholar]
  36. Martonak, R.; Laio, A.; Parrinello, M. Predicting crystal structures: The Parrinello-Rahman method revisited. Phys. Rev. Lett. 2003, 90, 075503. [Google Scholar] [CrossRef]
  37. Berendsen, H.J.C.; Postma, J.P.M.; van Gunsteren, W.F.; DiNola, A.; Haak, J.R. Molecular dynamics with coupling to an external bath. J. Chem. Phys. 1984, 81, 3684–3690. [Google Scholar] [CrossRef]
  38. Hess, B.; Bekker, H.; Berendsen, H.J.C.; Fraaije, J.G.E.M. LINCS: A linear constraint solver for molecular simulations. J. Comput. Chem. 1997, 18, 1463–1472. [Google Scholar] [CrossRef]
  39. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  40. Sherrill, C.D.; Takatani, T.; Hohenstein, E.G. An assessment of theoretical methods for nonbonded interactions: Comparison to complete basis set limit coupled-cluster potential energy curves for the benzene dimer, the methane dimer, benzene-methane, and benzene-H2S. J. Phys. Chem. A 2009, 113, 10146–10159. [Google Scholar] [CrossRef] [PubMed]
  41. Tsuzuki, S.; Honda, K.; Uchimaru, T.; Mikami, M. Ab initio calculations of structures and interaction energies of toluene dimers including CCSD(T) level electron correlation correction. J. Chem. Phys. 2005, 122, 144323. [Google Scholar] [CrossRef]
  42. Marenich, A.V.; Cramer, C.J.; Truhlar, D.G. Universal Solvation Model Based on Solute Electron Density and on a Continuum Model of the Solvent Defined by the Bulk Dielectric Constant and Atomic Surface Tensions. J. Phys. Chem. B 2009, 113, 6378–6396. [Google Scholar] [CrossRef]
  43. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision E.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  44. Qiu, H.; Deng, J.; Wu, B.; Sun, X.; Cai, J.; Chen, Z.; Xu, H. Study on the microscopic aggregation behavior of lignite molecules in water. Colloids Surf. A 2022, 637, 128194. [Google Scholar] [CrossRef]
Toxics 13 00721 g001

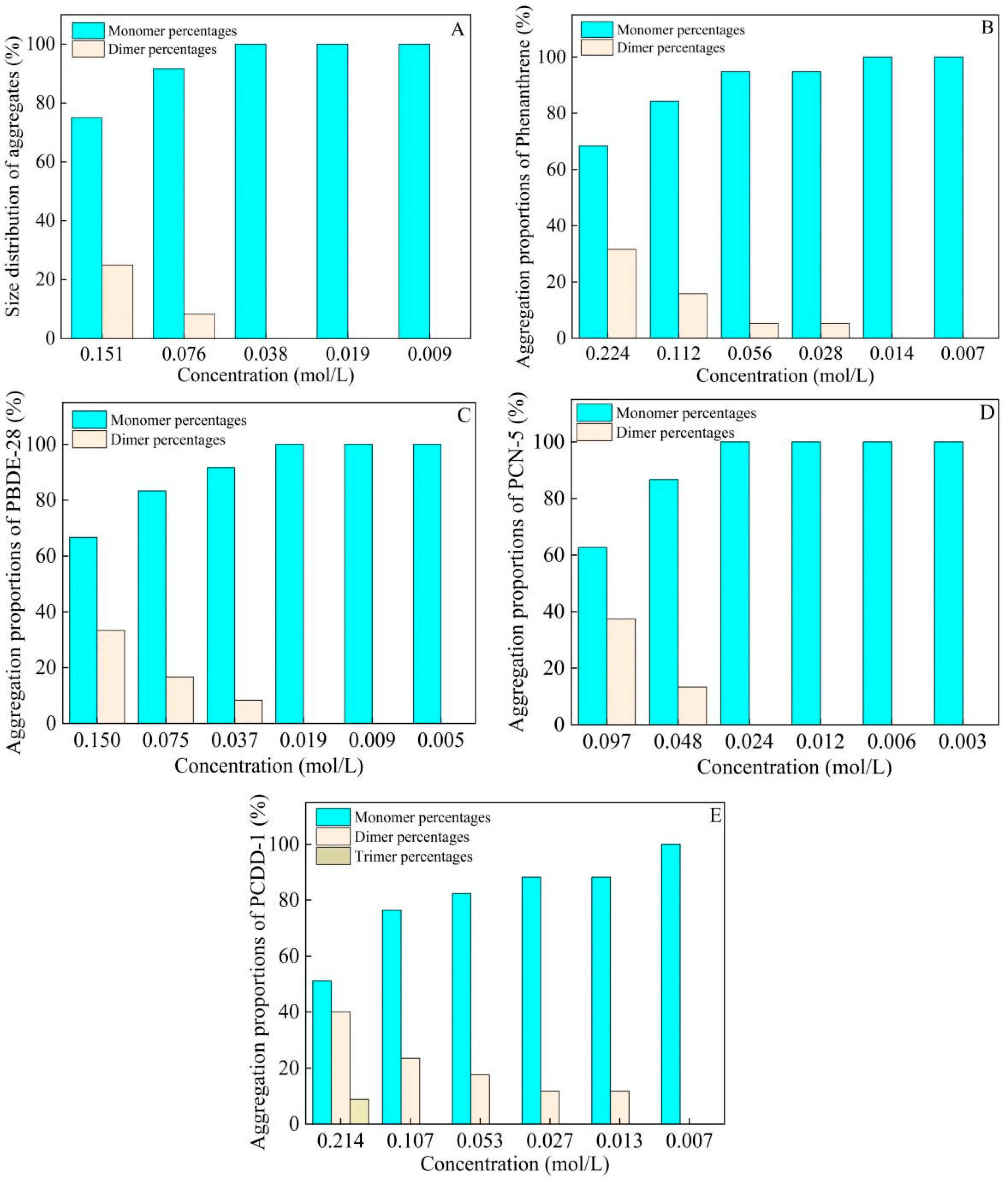

Figure 1. Aggregation proportions of PCB-4 (A), phenanthrene (B), PBDE-28 (C), PCN-5 (D), and PCDD-1 (E) formed in the n-octanol phase at different concentrations under equilibrium state.
Figure 1. Aggregation proportions of PCB-4 (A), phenanthrene (B), PBDE-28 (C), PCN-5 (D), and PCDD-1 (E) formed in the n-octanol phase at different concentrations under equilibrium state.
Toxics 13 00721 g001
Table 1. Selected physicochemical properties of typical aromatic pollutants and maximal molecule numbers dissolved in 1000 n-octanol molecules.
Table 1. Selected physicochemical properties of typical aromatic pollutants and maximal molecule numbers dissolved in 1000 n-octanol molecules.
ChemicalsSW (mol/L)log KOWSO (mol/L)n (Chemical):n (n-Octanol)
PCB-41.91 × 10−64.901.51 × 10−124:1000
Phenanthrene6.03 × 10−64.572.24 × 10−135:1000
PBDE-281.72 × 10−75.941.50 × 10−124:1000
PCN-51.60 × 10−64.789.67 × 10−215:1000
PCDD-11.91 × 10−65.052.14 × 10−134:1000
Table 2. Experimental and average log KOA values of typical aromatic pollutants.
Table 2. Experimental and average log KOA values of typical aromatic pollutants.
Chemicalslog KOAReference
Experimental ValuesAverage Values
PCB-47.187.18[24]
Phenanthrene7.457.65[25]
7.57[26]
7.88[27]
7.68[28]
PBDE-289.509.50[29]
PCN-56.936.93[26]
PCDD-17.867.86[30]
Table 3. Changes in aggregate percentages of typical aromatic pollutants in the aggregation process.
Table 3. Changes in aggregate percentages of typical aromatic pollutants in the aggregation process.
Aggregate FormTime (ps)Aggregate Percentages (%)
PCB-4PhePBDE-28PCN-5PCDD-1
Monomer0100.0100.0100.0100.0100.0
591.788.691.7100.082.4
1083.388.683.386.782.4
2083.382.983.386.776.5
3075.077.175.060.070.6
5075.071.466.760.050.0
Dimer000000
58.311.48.3017.7
1016.711.416.713.317.7
2016.717.116.713.323.5
3025.022.925.040.029.4
5025.028.633.340.041.2
Trimer000000
500000
1000000
2000000
3000000
5000008.8
Table 4. Change of aggregate percentages of typical aromatic pollutants at different simulation times under equilibrium state.
Table 4. Change of aggregate percentages of typical aromatic pollutants at different simulation times under equilibrium state.
Aggregate FormTime (ns)Aggregate Percentages (%)
PCB-4PhePBDE-28PCN-5PCDD-1
Monomer075.071.466.760.050.0
1075.071.466.760.055.9
2075.071.466.773.350.0
3075.071.466.760.050.0
4075.071.466.760.050.0
5075.071.466.760.050.0
Dimer025.028.633.340.041.2
1025.028.633.340.035.3
2025.028.633.326.741.2
3025.028.633.340.041.2
4025.028.633.340.041.2
5025.028.633.340.041.2
Trimer000008.8
1000008.8
2000008.8
3000008.8
4000008.8
5000008.8
Table 5. Aggregate percentages in the n-octanol phase at 9.67 × 10−2 mol/L and estimated log KOA values of typical aromatic pollutants.
Table 5. Aggregate percentages in the n-octanol phase at 9.67 × 10−2 mol/L and estimated log KOA values of typical aromatic pollutants.
ChemicalsMonomer Percentages (%)Dimer Percentages (%)Trimer Percentages (%)Estimated log KOA Values
PCB-486.913.107.24
Phe86.913.107.17
PBDE-2873.826.209.19
PCN-560.040.006.85
PCDD-180.319.705.72
