Designing a Stable g-C3N4/BiVO4-Based Photoelectrochemical Aptasensor for Tetracycline Determination

by
Lu Qiao
1,2,
Yue Zhao
1,2,
Yuanyuan Zhang
1,2,
Mingjuan Zhang
1,2,
Yani Tao
1,2,
Yao Xiao
1,2,
Xinxia Zeng
1,2,
Yi Zhang
1,2,* and
Yuan Zhu
1,2,*
1
College of Environmental Science and Engineering, Hunan University, Changsha 410082, China
2
Key Laboratory of Environmental Biology and Pollution Control, Hunan University, Ministry of Education, Changsha 410082, China
*
Authors to whom correspondence should be addressed.
Toxics 2023, 11(1), 17; https://doi.org/10.3390/toxics11010017
Submission received: 22 November 2022 / Revised: 7 December 2022 / Accepted: 22 December 2022 / Published: 25 December 2022
(This article belongs to the Section Toxicity Reduction and Environmental Remediation)
Browse Figures
Versions Notes

Abstract

:
The excessive consumption of tetracycline (TC) could bring a series of unpredictable health and ecological risks. Therefore, it is crucial to develop convenient and effective detection technology for TC. Herein, a “signal on” photoelectrochemical (PEC) aptasensor was constructed for the stable detection of TC. Specifically, the g-C3N4/BiVO4 were used to promote the migration of photo-generated charges to an enhanced photocurrent response. TC aptamer probes were stably fixed on the g-C3N4/BiVO4/FTO electrode as a recognition element via covalent bonding interaction. In the presence of TC, the aptamer probes could directly recognize and capture TC. Subsequently, TC was oxidized by the photogenerated holes of g-C3N4/BiVO4, causing an enhanced photocurrent. The “signal on” PEC aptasensor displayed a distinguished detection performance toward TC in terms of a wide linear range from 0.1 to 500 nM with a low detection limit of 0.06 nM, and possessed high stability, great selectivity, and good application prospects.

1. Introduction

Nowadays, various hazardous small molecules (i.e., antibiotics, insecticides, environmental pollutants, pesticide residues, and hormones) have become significant factors threatening environmental health. Tetracycline (TC), a common hazardous small molecule, has been widely used as a feed additive in agriculture and livestock breeding on account of its economic advantage, broad-spectrum activity against bacteria, and favorable oral absorption [1,2]. However, the abuse of TC can cause residues in food-producing animals and environmental media, and the consumption of such food or exposure to contaminated soil/water can cause serious harm to the human body, such as allergic reactions, skeletal dysplasia, and hepatotoxicity [3,4]. Additionally, it can cause the spread of super bacteria with drug resistance and reduce the efficient treatment of bacterial infections [5]. Therefore, the development of efficient platforms for monitoring tetracycline or other hazardous small molecules is an objective and realistic demand. Currently, the main methods of TC detection are chromatographic detection, bioassay, and immunoassay, e.g., high-performance liquid chromatography (HPLC), fluorescence assay, lateral flow assay, and mass spectrometry [6,7,8,9,10]. Although these traditional techniques are able to detect TC, there are shortcomings, including high testing costs, complicated operations, long detection time, poor reproducibility, and so on. Thus, an efficient strategy for highly reliable TC detection is critical.
Indeed, various sensors have been rising to the challenge in becoming a feasible technique to detect TC, on account of their simple operation, high selectivity, and low costs, such as biomimetic electrochemical sensor [11], electrochemical sensor [12], electrochemical immunosensor [13], fluorescent sensor [14], etc. Alternatively, the photoelectrochemical (PEC) aptasensor has been drawing broad attention, owing to its low background noise, great sensitivity, and fast response [15,16]. It is worth noting that the PEC aptasensor can also directly realize the expression of the response signal without extra signal indicators, which is so practical compared to other sensors [17,18,19]. In PEC construction, the selection of appropriate photoactive materials is favorable to obtain a high efficiency and stable signal output [20]. Many photoactive materials (e.g., inorganic semiconductors and organic materials) have been developed to construct the PEC aptasensor, due to their unique PEC properties [21]. Among them, graphitic carbon nitride (g-C3N4) has been widely explored owing to its feasible photoactivity, low cost, and appropriate bandgap [22]. Nevertheless, pure g-C3N4 shows poor PEC properties due to its quick recombination of photogenerated electrons/holes, which restricts the construction of a high-performance PEC aptasensor [23]. Therefore, it is vital to effectively address this issue. In fact, a number of methods, including element doping, morphological control, and heterojunction system have been reported [24,25]. Inspiringly, the g-C3N4-based heterojunctions as an uncomplicated method are able to significantly improve the PEC performance of g-C3N4 [26]. For instance, a proposed PEC sensor based on ZnIn2S4/g-C3N4 heterojunction was developed for the sensitive detection of bisphenol A [27]. BiVO4 as a magnetic metal oxide possesses considerable merits, i.e., high visible light response, low cost, and low toxicity [28]. Researchers have pointed out that BiVO4 was suitable for decorating g-C3N4 owing to their well-matched energy-level structure, and the designed heterojunction has promoted the fast transfer of electrons and exhibited attractive and stable photocurrent signal [29]. Thence, BiVO4/g-C3N4 heterojunction could be expected to improve an increased PEC performance and be applied to the design of a PEC aptasensor for detecting TC.
Herein, we fabricated a reliable PEC aptasensor based on g-C3N4/BiVO4 as an electrode material for TC determination. Additionally, the TC aptamer probes could be tightly assembled on the surface of g-C3N4/BiVO4 via covalent bonding interaction, to prevent it from falling off the electrode and further obtain a more stable and reliable signal response. When there is presence of TC, the aptamer probes could specially capture the TC and be oxidated by the accumulated holes on the photoactive materials and impede the electron–hole recombination, causing an enhanced photocurrent signal [30]. This work provided a promising method for a feasible analysis platform with excellent stability, selectivity, and detectability.

2. Experimental Section

2.1. Reagents and Instruments

Melamine (C3H6N6), sodium vanadate (Na3VO4·12H2O), bismuth nitrate (Bi(NO3)3·5H2O), chitosan powder (CS), glutaraldehyde (GA), bovine serum albumin (BSA), tetracycline (TC), oxytetracycline (OTC), kanamycin (KAN), tobramycin (TOB), and ciprofloxacin (CIP) were bought from Sinopharm Chemical Reagent Corporation. Additionally, the TC aptamer probes were supplied by Sangon Biotechnology Co.Ltd (sequences 5’ to 3’: NH2-(CH2)6-CGT ACG –GAA TTC GCT AGC CCC CCG GCA GGC CAC GGC TTG GGT TGG TCC CAC TGC GCG TGG ATC CGA GCT CCA CGT G) [31].
A scanning electron microscope (SEM, ZEISS Sigma 300, Oberkochen, Germany) was used to conduct morphology of the prepared materials. X-ray diffractometer (Panaco X’ Pert-PRO Bruker AXS D8 Advances, Almelo, Netherland) was employed for X-ray diffraction (XRD) analysis. X-ray photoelectron spectroscopy (XPS, Thermo Scientific K-Alpha, Waltham, America) was carried out to evaluate the chemical compositions of the material. LAMBDA 750 UV/Vis/NIR Spectrophotometer was run to evaluate the absorbance properties of the samples. Microinfrared spectroscopy (Nicolet iN10 MX Infrared Imaging Microscope) was performed to determine the structure of the materials. A CHI 660E workstation (CH Instruments Ins., Shanghai, China) was operated for PEC and electrochemical measurement.

2.2. Synthesis of g-C3N4

A ceramic crucible with 10 g melamine was placed in a muffle furnace and subsequently heated to 550 °C for 4 h. Secondly, the resulting product was further heated at 550 °C for 2 h to obtain pure g-C3N4 nanosheets [32].

2.3. Synthesis of g-C3N4/BiVO4

The g-C3N4/BiVO4 with different weight ratios were prepared by the same procedure [33]. Specifically, 5 g-C3N4 was dissolved in 100 mL water and agitated for 30 min. Then, Bi(NO3)3·5H2O and NH4VO3 with a molar ratio of 1:1 were dropped into the above solution, followed by stirring for 30 min. Then, the mixture was further rinsed and dried at 80 °C for 12 h and calcined to 400 °C for 2 h.

2.4. Fabrication of the PEC Aptasensor

First, 200 μL of 4 mg mL−1 g-C3N4/BiVO4 suspension was added to the fluorine-doped tin oxide (FTO) electrode to obtain the working electrode (g-C3N4/BiVO4/FTO electrode). Afterwards, 20 μL each of 0.1 wt% chitosan (CS), 5 wt% glutaraldehyde (GA), and 4 μM TC aptamer solution was added to the surface of the working electrode, so that the TC aptamer probes could be tightly immobilized to the surface of electrode via covalent bonding interaction. Finally, 20 μL of 1 wt% BSA was dropped on the above electrode to prevent non-specific adsorption [34,35].

2.5. Detection of TC

Prior to the PEC detection, 20 μL of TC solution with different concentrations (0, 0.1, 1, 10, 50, 100, 500 nM) was dropped on the prepared electrode and incubated at room temperature for 60 min, followed by rinsing with 0.01 M PBS and testing PEC signal in Na2SO4 (0.1 M) solution [15,32].

3. Results and Discussion

3.1. Working Principle of the PEC Aptasensor

Scheme 1 depicted the working principle of the proposed PEC aptasensor. In this progress (Scheme 1A), an FTO electrode was sequentially decorated by the g-C3N4/BiVO4, CS, GA, TC aptamer probes, BSA, and TC. Here, the g-C3N4/BiVO4 heterojunction was designed successfully owing to the well-matched energy level of g-C3N4 and BiVO4 (Scheme 1B), which exhibited enhanced separation of photogenerated carriers and an improved, attractive, and stable photocurrent signal, indicating that it is feasible to fabricate more an accurate PEC aptasensor [29,36]. Moreover, the aptamer probes were tightly immobilized onto the surface of g-C3N4/BiVO4/FTO, due to the covalent bonding interaction (GA was connected to both the amino-rich CS and the amino-functionalized TC aptamer probes). Remarkably, π-π stacking and covalent bond interaction are common methods to fix aptamer probes onto the sensor surface. The π-π stacking have merits of simple operation, low cost, and short reaction time. However, to a certain degree, the covalent bond interaction appears to be more stable, because this method could make the aptamer probes tightly bonded to the electrode and not easily fall off, so that the prepared aptamer sensor is able to present relatively stable results [5,15]. Notably, after the decoration of the TC aptamer probes, the photocurrent was decreased due to the steric hindrance of biomolecules. Then, the BSA was dropped onto the modified electrode to prevent non-specific adsorption. When there is existence of TC, the formation of aptamer–TC complexes brought about an increased photocurrent due to the oxidation by the holes accumulated on the g-C3N4/BiVO4, and further facilitated electrons transfer [30]. Specifically, the TC molecules could be oxidized directly by photogenerated holes in the valence band (VB) of BiVO4. Subsequently, the holes were consumed, which inhibited the recombination of photogenerated electrons/holes, resulting in the accumulation of more free electrons on the CB of g-C3N4, which were transferred to the electrode to generate an increased photocurrent signal (Scheme 1B). Therefore, a “signal on” PEC aptasensor for highly stable determination of TC was constructed.

3.2. Characterization of the Prepared Materials

The morphologies of the synthesized g-C3N4/BiVO4 were observed by SEM. As seen from Figure 1A, the g-C3N4 showed the appearance of smooth sheet structure. After the introduction of BiVO4, the irregular flower-like BiVO4 was directly anchored onto the surface of g-C3N4, confirming that the smooth surface of g-C3N4 could provide a suitable platform for the decoration BiVO4, and further indicating that the electrode material was successfully prepared. Figure 1A also exhibited the XRD patterns of g-C3N4 and g-C3N4/BiVO4 to characterize the crystalline features. As for g-C3N4, two main peaks around 13.1° and 27.3° were observed, which could be attributed to the (100) in-plane structural packing of heptazine units and (002) interlayer stacking of the conjugated aromatic segment [29]. After the BiVO4 decoration, the peaks of g-C3N4/BiVO4 were matched with the XRD standard card of BiVO4 (PDF#14-0688). Additionally, the diffraction peaks at 18.7°, 28.8°, 30.4°, 34.6°, 35.0°, 39.7°, 42.5°, 45.8°, 46.5°, 47.0°, 50.2°, and 53.1° are ascribed to the (1 1 0), (1 2 1), (0 4 0), (2 0 0), (0 0 2), (2 1 1), (1 5 0), (1 3 2), (0 4 2), (2 0 2), (1 6 1), and (1 5 2) diffraction phases of BiVO4, respectively [29]. Additionally, the peaks of g-C3N4 in the g-C3N4/BiVO4 were still retained but noticeably weakened owing to its low XRD intensity, and the existence of g-C3N4 in the composite could be verified by other characterization.
XPS was employed to investigate the existence of g-C3N4 and the interface interaction between g-C3N4 and BiVO4 in the g-C3N4/BiVO4 composites. Figure 1B presented the full-scan XPS spectrum of the composites, showing C, N, Bi, V, and O elements were major compositions in g-C3N4/ BiVO4. In Figure 1C, the spectrum C 1s displayed two peaks located at 287.98 eV and 284.58 eV, which were attributed to the tertiary carbon C-(N)3 and the C-C bonds [37]. Four characteristic peaks at 398.48 eV, 400.10 eV, 401.18 eV, and 404.18 eV in the N 1s (Figure 1D) might be due to the sp2 hybrid nitrogen C=N-C, tertiary nitrogen N-(C)3, the nitrogen in the amino functional group C-N-H, and the π-excitation of C-N heterocycles, respectively [38]. The XPS analysis of C 1s and N 1s demonstrated that a triazine heterocyclic ring exists in the g-C3N4/BiVO4 composite. The peaks of Bi 4f (Figure 1E) at 159.03 eV and 164.31 eV were assigned to Bi 4f7/2 and Bi 4f5/2, respectively [29]. The results indicated that Bi3+ exists in the g-C3N4/BiVO4 composite. Additionally, in Figure 1F, the V 2p at 516.70 eV and 523.98 eV could be associated with V 2p3/2 and V 2p1/2, respectively [39]. Overall, these results illustrated that the g-C3N4/ BiVO4 was successfully prepared.
UV/vis diffuse reflectance spectrum (DRS) was performed to determine the optical absorption behaviors of the photoactive materials. In Figure S1A, the absorption edge of g-C3N4 was about 464 nm. After introducing BiVO4, the absorption edge of the complex was enhanced on account of the formation of a heterojunction between these two semiconductors [40]. Obviously, the g-C3N4/ BiVO4 could embrace more visible light which is of benefit to the PEC performance. Furthermore, Miro-FTIR spectra was adopted to confirm the chemical structures of the materials. As shown in Figure S1B, the g-C3N4/BiVO4 composites had similar absorption peaks of g-C3N4, suggesting no obvious structural change of g-C3N4 and g-C3N4/BiVO4 [38]. In conclusion, the g-C3N4/BiVO4 was successfully prepared, which could boost more charge transfer and will be helpful for the construction of the PEC sensor.

3.3. Fabrication of the PEC Aptasensor

To confirm the successful fabrication process of the PEC aptasensor, photocurrent measurement was conducted. In Figure 2A, the g-C3N4/BiVO4/FTO (curve b) displayed maximum photocurrent compared to the g-C3N4/FTO (curve a), owing to the appealing PEC properties of g-C3N4/BiVO4. However, after introducing aptamer probes and BSA, the photocurrent was certainly decreased due to their nonconductivity (curve c and curve d). Upon introduction of TC (curve e), the PEC response increased, which was attributed to the oxidation of TC by the accumulated holes on the prepared materials [41]. Electrochemical impedance spectroscopy (EIS) analysis can also be used to explain the feasibility of the PEC sensor. As illustrated in Figure 2B, g-C3N4/BiVO4/FTO electrode (curve b) presented a much smaller Rct compared to g-C3N4/FTO (curve a), suggesting that BiVO4 enhanced the transfer of the electrons. After the aptamer probes and BSA were modified on the electrode (curve c and curve d), the Rct increased gradually on account of the increased steric hindrance of the electrode interface [30]. During the presence of TC (curve e), the semicircles further increased, which was similar to the photocurrent results. These results confirmed successful modification of the PEC aptasensor.

3.4. Analytical Performance of the PEC Aptasensor

To confirm the detection capacity of the PEC aptasensor, various concentrations (0, 0.1, 1, 10, 50, 100, 500 nM) of TC were studied under the optimal conditions (the specific optimization results were detailed in Figure S2). As shown in Figure 3A, the photocurrent intensity of the PEC aptasensor was enhanced with the concentration of TC increasing. Additionally, the linear equation could be fitted to I (nA) = 29.0622 lg (C/nM) + 242.209 (R2 = 0.989) in the range of 0.1-500 nM with a limit of detection (LOD) of 0.06 nM (S/N = 3) [42], which was below the maximum residue limits (MRLs) of TC (900 nM) in milk set by the US Food and Drug Administration [43]. Additionally, compared with most other methods reported previously, such as colorimetric, fluorescence, electrochemistry, and electrochemiluminescence (Table 1), the PEC aptasensor displayed excellent performance with a relatively lower detection limit and convenient operation.
Various interfering substances, such as OTC, KAN, TOB, and CIP, were chosen to evaluate the selectivity of the PEC aptasensor. As shown in Figure 3C, the photocurrent differences (∆I) of TC (10 nM) were different to the photocurrent differences of the four other interferents (10 nM), reflecting a high TC selectivity of the PEC sensor. Furthermore, the PEC aptasensor showed a wonderful stability under the eight on–off irradiation cycles (Figure 3D). Additionally, the long-term stability of the designed PEC aptasensor was determined. The results showed that when the PEC aptasensor was kept at 4 °C for 16 days, the current of the prepared electrode had no obvious change (Figure S3). These results demonstrate that the PEC aptasensor has favorable potential for TC detection.

3.5. Real Samples Analysis

A standard addition method was used to confirm the analytical feasibility of the PEC aptasensor in real samples. Table 2 exhibited that the recoveries of the PEC aptasensor ranged from 98.23–98.92%, and the RSD was 0.54–1.48%, which was essentially consistent with the results obtained by HPLC. Therefore, the fabricated PEC aptasensor has excellent application prospects.

4. Conclusions

In this work, we successfully fabricated a “signal on” PEC aptasensor based on the g-C3N4/BiVO4 for the highly stable determination of TC. The g-C3N4/BiVO4 acted as a photoactive material, which provided a stable and strong photocurrent. Moreover, TC aptamer probes were stably assembled on the surface of g-C3N4/BiVO4 via covalent bonding interaction to obtain a more reliable signal response. Due to the oxidation of the aptamer–TC complex by the accumulated holes on the g-C3N4/BiVO4, the “signal on” PEC aptasensor displayed satisfactory stability and acceptable satisfactory detectability. Under the optimal conditions, the PEC aptasensor for TC detection can manifest a linear range of TC from 0.1 to 500 nM with a detection limit of 0.06 nM. Obviously, the proposed sensor presents a trend of accurate detection capability and early warning function and has the potential to control the environmental and health risks of such pollutants. Additionally, we hope to promote this detection method in the future with actual samples.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxics11010017/s1, Real samples preparation; Validation by HPLC; Figure S1: (A) UV/vis diffuse reflectance spectrum and (B) Miro-FTIR spectra of the prepared materials; Figure S2: The effect of PEC performance on (A) Proportion of composites, (B) Incubation concentration of aptamer probes; Figure S3: The long-term stability of the developed PEC aptasensor.

Author Contributions

L.Q.: investigation, methodology, data curation, writing—original draft. Y.Z. (Yue Zhao), Y.T., Y.X. and X.Z.: validation. Y.Z. (Yuanyuan Zhang): methodology. M.Z.: data curation, Y.Z. (Yi Zhang): conceptualization, writing—review and editing, funding acquisition. Y.Z. (Yuan Zhu): writing—review and editing, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the National Natural Science Foundation of China (Nos. 51979102, 52000065), the Research Projects of Education Department of Hunan Province (No. 17A223).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy reasons.

Conflicts of Interest

The authors have no competing financial interests to declare.

References

  1. Jia, P.; Bu, T.; Sun, X.; Liu, Y.; Liu, J.; Wang, Q.; Shui, Y.; Guo, S.; Wang, L. A sensitive and selective approach for detection of tetracyclines using fluorescent molybdenum disulfide nanoplates. Food Chem. 2019, 297, 124969. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, X.; Li, L.; Jiang, H.; Zhangsun, H.; Wang, Q.; Sun, X.; Wang, L. Highly selective and sensitive fluorescence detection of tetracyclines based on novel tungsten oxide quantum dots. Food Chem. 2022, 374, 131774. [Google Scholar] [CrossRef] [PubMed]
  3. Hamilton, L.A.; Guarascio, A.J. Tetracycline Allergy. Pharmacy 2019, 7, 104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wei, C.; Liu, Y.; Jiang, A.; Wu, B. A pharmacovigilance study of the association between tetracyclines and hepatotoxicity based on Food and Drug Administration adverse event reporting system data. Int. J. Clin. Pharm. 2022, 44, 709–716. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, Z.; Wu, Z.; Lin, X.; Han, F.; Liang, Z.; Huang, L.; Dai, M.; Han, D.; Han, L.; Niu, L. A label-free PEC aptasensor platform based on g-C3N4/BiVO4 heterojunction for tetracycline detection in food analysis. Food Chem. 2023, 402, 134258. [Google Scholar] [CrossRef] [PubMed]
  6. Gil, R.L.; Amorim, C.M.P.G.; Montenegro, M.d.C.B.S.M.; Araújo, A.N. Cucurbit[8]uril-Based Potentiometric Sensor Coupled to HPLC for Determination of Tetracycline Residues in Milk Samples. Chemosensors 2022, 10, 98. [Google Scholar] [CrossRef]
  7. Ahmed, S.R.; Kumar, S.; Ortega, G.A.; Srinivasan, S.; Rajabzadeh, A.R. Target specific aptamer-induced self-assembly of fluorescent graphene quantum dots on palladium nanoparticles for sensitive detection of tetracycline in raw milk. Food Chem. 2021, 346, 128893. [Google Scholar] [CrossRef] [PubMed]
  8. Tian, Y.; Bu, T.; Zhang, M.; Sun, X.; Jia, P.; Wang, Q.; Liu, Y.; Bai, F.; Zhao, S.; Wang, L. Metal-polydopamine framework based lateral flow assay for high sensitive detection of tetracycline in food samples. Food Chem. 2021, 339, 127854. [Google Scholar] [CrossRef] [PubMed]
  9. Jiang, T.; Peng, Z.; Xie, M.; Fang, X.; Hong, Y.; Huang, Z.; Gao, W.; Zhou, Z.; Li, L.; Zhu, Z. Rapid analysis of tetracycline in honey by microwave plasma torch mass spectrometry with ablation samples. Anal. Methods 2020, 12, 535–543. [Google Scholar] [CrossRef]
  10. Kadam, U.S.; Hong, J.C. Advances in aptameric biosensors designed to detect toxic contaminants from food, water, human fluids, and the environment. Trends Environ. Anal. Chem. 2022, 36, e00184. [Google Scholar] [CrossRef]
  11. Stoian, I.A.; Iacob, B.C.; Dudas, C.L.; Barbu-Tudoran, L.; Bogdan, D.; Marian, I.O.; Bodoki, E.; Oprean, R. Biomimetic electrochemical sensor for the highly selective detection of azithromycin in biological samples. Biosens. Bioelectron. 2020, 155, 112098. [Google Scholar] [CrossRef] [PubMed]
  12. Ma, X.; Pang, C.; Li, S.; Xiong, Y.; Li, J.; Luo, J.; Yang, Y. Synthesis of Zr-coordinated amide porphyrin-based two-dimensional covalent organic framework at liquid-liquid interface for electrochemical sensing of tetracycline. Biosens. Bioelectron. 2019, 146, 111734. [Google Scholar] [CrossRef] [PubMed]
  13. El Alami El Hassani, N.; Baraket, A.; Boudjaoui, S.; Taveira Tenorio Neto, E.; Bausells, J.; El Bari, N.; Bouchikhi, B.; Elaissari, A.; Errachid, A.; Zine, N. Development and application of a novel electrochemical immunosensor for tetracycline screening in honey using a fully integrated electrochemical Bio-MEMS. Biosens. Bioelectron. 2019, 130, 330–337. [Google Scholar] [CrossRef] [PubMed]
  14. Ma, X.; Du, C.; Zhang, J.; Shang, M.; Song, W. A system composed of vanadium(IV) disulfide quantum dots and molybdenum(IV) disulfide nanosheets for use in an aptamer-based fluorometric tetracycline assay. Mikrochim. Acta 2019, 186, 837. [Google Scholar] [CrossRef] [PubMed]
  15. Qiao, L.; Zhu, Y.; Zeng, T.; Zhang, Y.; Zhang, M.; Song, K.; Yin, N.; Tao, Y.; Zhao, Y.; Zhang, Y.; et al. Turn-off photoelectrochemical aptasensor based on g-C3N4/WC/WO3 composites for tobramycin detection. Food Chem. 2022, 403, 134287. [Google Scholar] [CrossRef]
  16. Xiao, K.; Zhu, R.; Du, C.; Zheng, H.; Zhang, X.; Chen, J. Zinc-Air Battery-Assisted Self-Powered PEC Sensors for Sensitive Assay of PTP1B Activity Based on Perovskite Quantum Dots Encapsulated in Vinyl-Functionalized Covalent Organic Frameworks. Anal. Chem. 2022, 94, 9844–9850. [Google Scholar] [CrossRef]
  17. Kadam, U.S.; Trinh, K.H.; Kumar, V.; Lee, K.W.; Cho, Y.; Can, M.T.; Lee, H.; Kim, Y.; Kim, S.; Kang, J.; et al. Identification and structural analysis of novel malathion-specific DNA aptameric sensors designed for food testing. Biomaterials 2022, 287, 121617. [Google Scholar] [CrossRef]
  18. Trinh, K.H.; Kadam, U.S.; Song, J.; Cho, Y.; Kang, C.H.; Lee, K.O.; Lim, C.O.; Chung, W.S.; Hong, J.C. Novel DNA Aptameric Sensors to Detect the Toxic Insecticide Fenitrothion. Int. J. Mol. Sci. 2021, 22, 10846. [Google Scholar] [CrossRef]
  19. Zhang, Y.; Xiao, J.Y.; Zhu, Y.; Tian, L.J.; Wang, W.K.; Zhu, T.T.; Li, W.W.; Yu, H.Q. Fluorescence Sensor Based on Biosynthetic CdSe/CdS Quantum Dots and Liposome Carrier Signal Amplification for Mercury Detection. Anal. Chem. 2020, 92, 3990–3997. [Google Scholar] [CrossRef]
  20. Kong, W.; Qu, F.; Lu, L. A photoelectrochemical aptasensor based on p-n heterojunction CdS-Cu2O nanorod arrays with enhanced photocurrent for the detection of prostate-specific antigen. Anal. Bioanal. Chem. 2020, 412, 841–848. [Google Scholar] [CrossRef] [PubMed]
  21. Lu, Y.; Zhang, B.; Tian, Y.; Guo, Q.; Yang, X.; Nie, G. An enhanced photoelectrochemical sensor for aflatoxin B1 detection based on organic-inorganic heterojunction nanomaterial: Poly(5-formylindole)/NiO. Mikrochim. Acta 2020, 187, 467. [Google Scholar] [CrossRef] [PubMed]
  22. Mao, L.; Xue, X.; Xu, X.; Wen, W.; Chen, M.-M.; Zhang, X.; Wang, S. Heterostructured CuO-g-C3N4 nanocomposites as a highly efficient photocathode for photoelectrochemical aflatoxin B1 sensing. Sens. Actuators B Chem. 2021, 329, 129146. [Google Scholar] [CrossRef]
  23. Liu, Y.; Yan, K.; Zhang, J. Graphitic Carbon Nitride Sensitized with CdS Quantum Dots for Visible-Light-Driven Photoelectrochemical Aptasensing of Tetracycline. ACS Appl. Mater. Interfaces 2016, 8, 28255–28264. [Google Scholar] [CrossRef] [PubMed]
  24. Hosseini-Hosseinabad, S.M.; Siavash Moakhar, R.; Soleimani, F.; Sadrnezhaad, S.K.; Masudy-Panah, S.; Katal, R.; Seza, A.; Ghane, N.; Ramakrishna, S. One-pot microwave synthesis of hierarchical C-doped CuO dandelions/g-C3N4 nanocomposite with enhanced photostability for photoelectrochemical water splitting. Appl. Surf. Sci. 2020, 530, 147271. [Google Scholar] [CrossRef]
  25. Ye, L.; Wang, D.; Chen, S. Fabrication and Enhanced Photoelectrochemical Performance of MoS(2)/S-Doped g-C(3)N(4) Heterojunction Film. ACS Appl. Mater. Interfaces 2016, 8, 5280–5289. [Google Scholar] [CrossRef]
  26. Dang, X.; Song, Z.; Zhao, H. Signal amplified photoelectrochemical assay based on Polypyrrole/g-C3N4/WO3 inverse opal photonic crystals triple heterojunction assembled through sandwich-type recognition model. Sens. Actuators B Chem. 2020, 310, 127888. [Google Scholar] [CrossRef]
  27. Chen, Q.; Yuan, C.; Zhai, C. Label-free photoelectrochemical sensor based on 2D/2D ZnIn2S4/g-C3N4 heterojunction for the efficient and sensitive detection of bisphenol A. Chin. Chem. Lett. 2022, 33, 983–986. [Google Scholar] [CrossRef]
  28. Xu, Y.; Wen, Z.; Wang, T.; Zhang, M.; Ding, C.; Guo, Y.; Jiang, D.; Wang, K. Ternary Z-scheme heterojunction of Bi SPR-promoted BiVO4/g-C3N4 with effectively boosted photoelectrochemical activity for constructing oxytetracycline aptasensor. Biosens. Bioelectron. 2020, 166, 112453. [Google Scholar] [CrossRef]
  29. Xu, X.; Zhang, J.; Tao, F.; Dong, Y.; Wang, L.; Hong, T. Facile construction of Z-scheme g-C3N4/BiVO4 heterojunctions for boosting visible-light photocatalytic activity. Mater. Sci. Eng. B 2022, 279, 115676. [Google Scholar] [CrossRef]
  30. Tang, L.; Ouyang, X.; Peng, B.; Zeng, G.; Zhu, Y.; Yu, J.; Feng, C.; Fang, S.; Zhu, X.; Tan, J. Highly sensitive detection of microcystin-LR under visible light using a self-powered photoelectrochemical aptasensor based on a CoO/Au/g-C3N4 Z-scheme heterojunction. Nanoscale 2019, 11, 12198–12209. [Google Scholar] [CrossRef]
  31. Feng, Y.; Yan, T.; Wu, T.; Zhang, N.; Yang, Q.; Sun, M.; Yan, L.; Du, B.; Wei, Q. A label-free photoelectrochemical aptasensing platform base on plasmon Au coupling with MOF-derived In2O3@g-C3N4 nanoarchitectures for tetracycline detection. Sens. Actuators B Chem. 2019, 298, 126817. [Google Scholar] [CrossRef]
  32. Peng, B.; Lu, Y.; Luo, J.; Zhang, Z.; Zhu, X.; Tang, L.; Wang, L.; Deng, Y.; Ouyang, X.; Tan, J.; et al. Visible light-activated self-powered photoelectrochemical aptasensor for ultrasensitive chloramphenicol detection based on DFT-proved Z-scheme Ag2CrO4/g-C3N4/graphene oxide. J. Hazard. Mater. 2021, 401, 123395. [Google Scholar] [CrossRef] [PubMed]
  33. Xie, Q.; He, W.; Liu, S.; Li, C.; Zhang, J.; Wong, P.K. Bifunctional S-scheme g-C3N4/Bi/BiVO4 hybrid photocatalysts toward artificial carbon cycling. Chin. J. Catal. 2020, 41, 140–153. [Google Scholar] [CrossRef]
  34. Zhu, X.; Gao, L.; Tang, L.; Peng, B.; Huang, H.; Wang, J.; Yu, J.; Ouyang, X.; Tan, J. Ultrathin PtNi nanozyme based self-powered photoelectrochemical aptasensor for ultrasensitive chloramphenicol detection. Biosens. Bioelectron. 2019, 146, 111756. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, Z.; Zhang, M.; Xu, Y.; Wen, Z.; Ding, C.; Guo, Y.; Hao, N.; Wang, K. Bi3+ engineered black anatase titania coupled with graphene for effective tobramycin photoelectrochemical detection. Sens. Actuators B Chem. 2020, 321, 128464. [Google Scholar] [CrossRef]
  36. Wang, Q.; Lin, Y.; Li, P.; Ma, M.; Maheskumar, V.; Jiang, Z.; Zhang, R. An efficient Z-scheme (Cr, B) codoped g-C3N4/BiVO4 photocatalyst for water splitting: A hybrid DFT study. Int. J. Hydrog. Energy 2021, 46, 247–261. [Google Scholar] [CrossRef]
  37. Wang, Y.; Tan, G.; Liu, T.; Su, Y.; Ren, H.; Zhang, X.; Xia, A.; Lv, L.; Liu, Y. Photocatalytic properties of the g-C3N4/{010} facets BiVO4 interface Z-Scheme photocatalysts induced by BiVO4 surface heterojunction. Appl. Catal. B Environ. 2018, 234, 37–49. [Google Scholar] [CrossRef]
  38. Deng, Y.; Tang, L.; Feng, C.; Zeng, G.; Wang, J.; Zhou, Y.; Liu, Y.; Peng, B.; Feng, H. Construction of plasmonic Ag modified phosphorous-doped ultrathin g-C3N4 nanosheets/BiVO4 photocatalyst with enhanced visible-near-infrared response ability for ciprofloxacin degradation. J. Hazard. Mater. 2018, 344, 758–769. [Google Scholar] [CrossRef]
  39. Chen, F.; Yang, Q.; Wang, Y.; Zhao, J.; Wang, D.; Li, X.; Guo, Z.; Wang, H.; Deng, Y.; Niu, C.; et al. Novel ternary heterojunction photcocatalyst of Ag nanoparticles and g-C3N4 nanosheets co-modified BiVO4 for wider spectrum visible-light photocatalytic degradation of refractory pollutant. Appl. Catal. B Environ. 2017, 205, 133–147. [Google Scholar] [CrossRef]
  40. Lu, M.; Li, Q.; Zhang, C.; Fan, X.; Li, L.; Dong, Y.; Chen, G.; Shi, H. Remarkable photocatalytic activity enhancement of CO2 conversion over 2D/2D g-C3N4/BiVO4 Z-scheme heterojunction promoted by efficient interfacial charge transfer. Carbon 2020, 160, 342–352. [Google Scholar] [CrossRef]
  41. Okoth, O.K.; Yan, K.; Feng, J.; Zhang, J. Label-free photoelectrochemical aptasensing of diclofenac based on gold nanoparticles and graphene-doped CdS. Sens. Actuators B Chem. 2018, 256, 334–341. [Google Scholar] [CrossRef]
  42. Cakiroglu, B.; Ozacar, M. A self-powered photoelectrochemical glucose biosensor based on supercapacitor Co3O4-CNT hybrid on TiO2. Biosens. Bioelectron. 2018, 119, 34–41. [Google Scholar] [CrossRef] [PubMed]
  43. Yao, R.; Li, Z.; Liu, G.; Fan, C.; Pu, S. Luminol-Eu-based ratiometric fluorescence probe for highly selective and visual determination of tetracycline. Talanta 2021, 234, 122612. [Google Scholar] [CrossRef] [PubMed]
  44. Tang, Y.; Huang, X.; Wang, X.; Wang, C.; Tao, H.; Wu, Y. G-quadruplex DNAzyme as peroxidase mimetic in a colorimetric biosensor for ultrasensitive and selective detection of trace tetracyclines in foods. Food Chem. 2022, 366, 130560. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, K.; Jia, P.; Hou, J.; Bu, T.; Sun, X.; Liu, Y.; Wang, L. Innovative Dual-Emitting Ratiometric Fluorescence Sensor for Tetracyclines Detection Based on Boron Nitride Quantum Dots and Europium Ions. ACS Sustain. Chem. Eng. 2020, 8, 17185–17193. [Google Scholar] [CrossRef]
  46. Besharati, M.; Hamedi, J.; Hosseinkhani, S.; Saber, R. A novel electrochemical biosensor based on TetX2 monooxygenase immobilized on a nano-porous glassy carbon electrode for tetracycline residue detection. Bioelectrochemistry 2019, 128, 66–73. [Google Scholar] [CrossRef] [PubMed]
  47. Deng, B.; Xu, Q.; Lu, H.; Ye, L.; Wang, Y. Pharmacokinetics and residues of tetracycline in crucian carp muscle using capillary electrophoresis on-line coupled with electrochemiluminescence detection. Food Chem. 2012, 134, 2350–2354. [Google Scholar] [CrossRef]
Toxics 11 00017 sch001 550

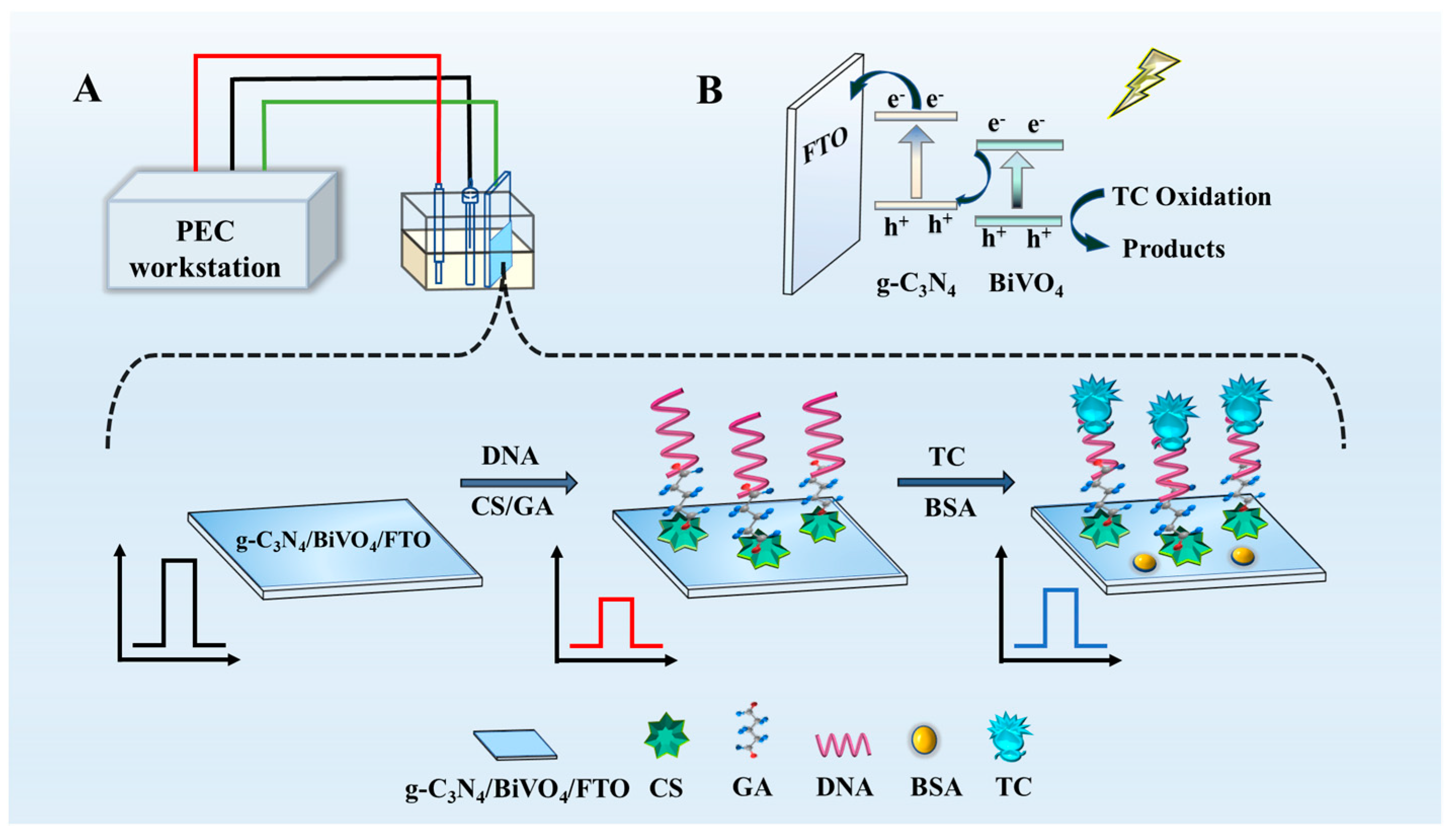

Scheme 1. Schematic diagram of the development of PEC aptasensor for TC determination: (A) the assembly of the PEC aptasensor; (B) the mechanism of the PEC aptasensor.
Scheme 1. Schematic diagram of the development of PEC aptasensor for TC determination: (A) the assembly of the PEC aptasensor; (B) the mechanism of the PEC aptasensor.
Toxics 11 00017 sch001
Toxics 11 00017 g001 550

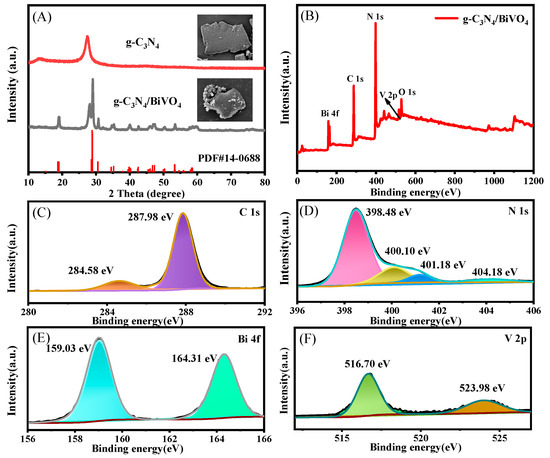

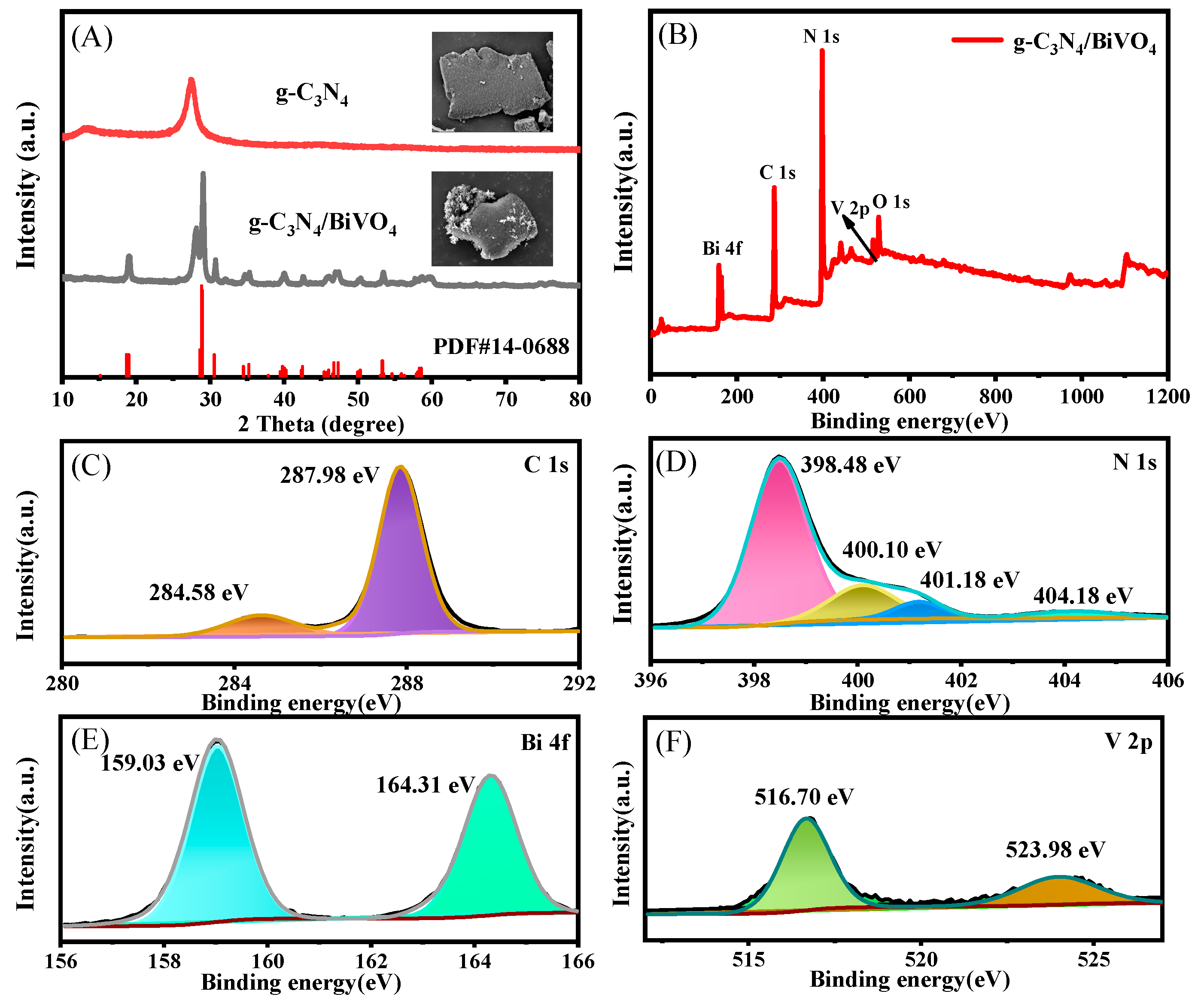

Figure 1. (A) SEM images and XRD patterns; (B) XPS survey spectrum; (C–F) corresponding high -resolution XPS spectra of the prepared materials.
Figure 1. (A) SEM images and XRD patterns; (B) XPS survey spectrum; (C–F) corresponding high -resolution XPS spectra of the prepared materials.
Toxics 11 00017 g001
Toxics 11 00017 g002 550

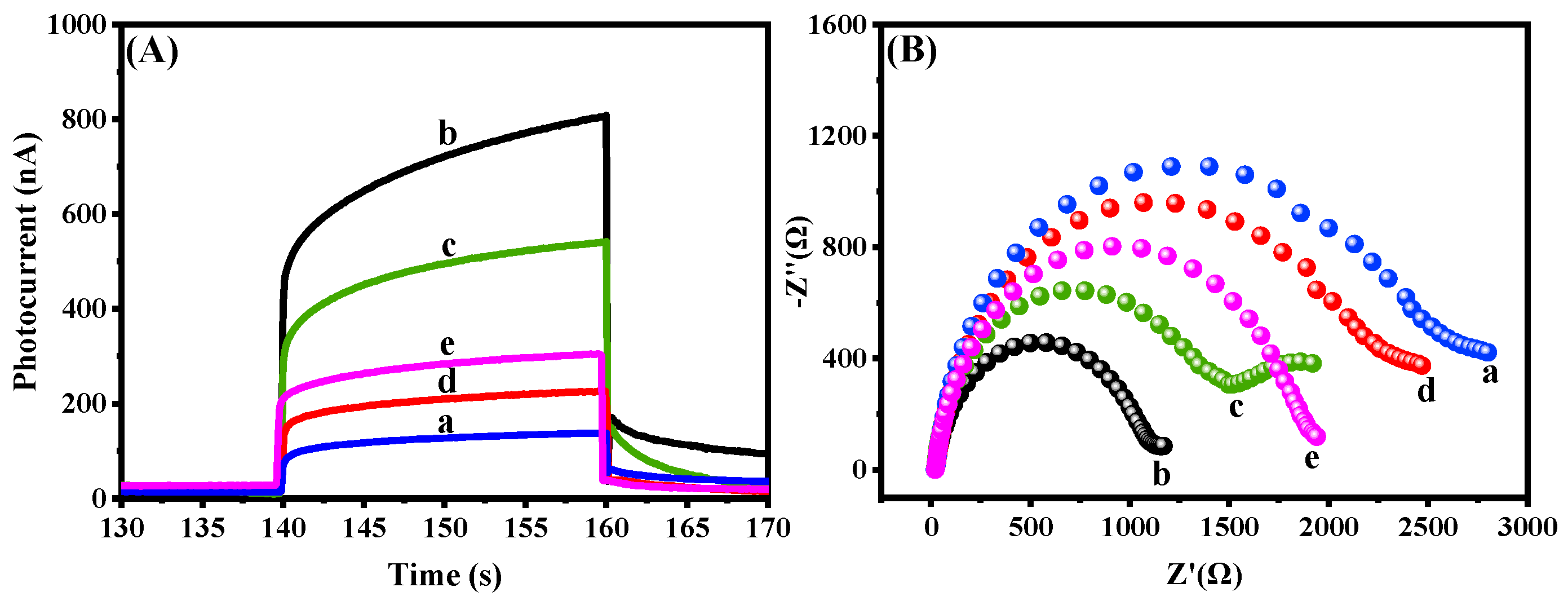

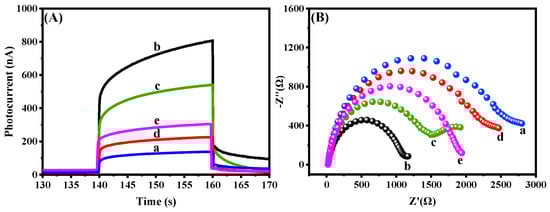

Figure 2. (A) Photocurrent responses and (B) electrochemical impedance spectra of (a) g-C3N4/FTO; (b) g-C3N4/BiVO4/FTO; (c) g-C3N4/BiVO4/Aptamer/FTO; (d) g-C3N4/BiVO4/Aptamer/BSA/FTO; (e) g-C3N4/BiVO4/Aptamer/BSA/TC/FTO.
Figure 2. (A) Photocurrent responses and (B) electrochemical impedance spectra of (a) g-C3N4/FTO; (b) g-C3N4/BiVO4/FTO; (c) g-C3N4/BiVO4/Aptamer/FTO; (d) g-C3N4/BiVO4/Aptamer/BSA/FTO; (e) g-C3N4/BiVO4/Aptamer/BSA/TC/FTO.
Toxics 11 00017 g002
Toxics 11 00017 g003 550

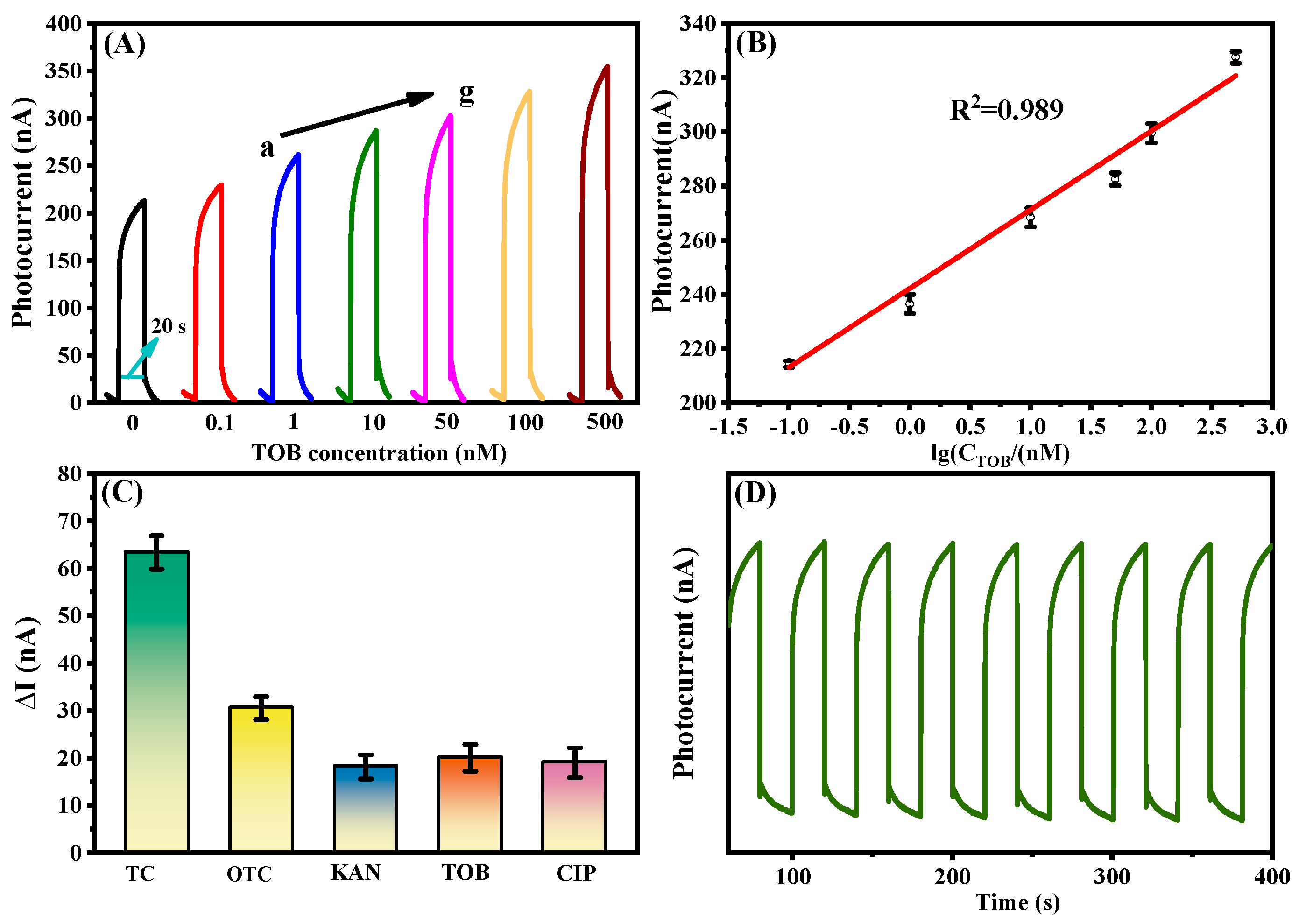

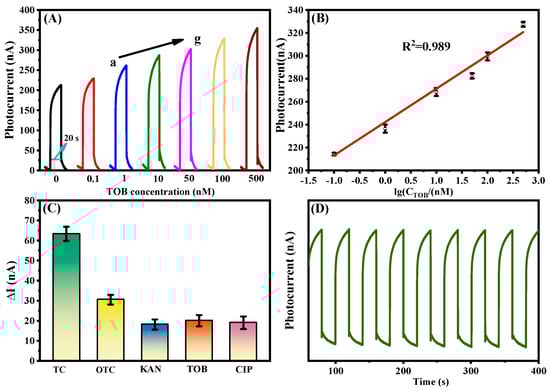

Figure 3. (A) Photocurrents of the PEC sensor at various concentrations of TC; (B) corresponding calibration curve; (C) selectivity; (D) stability of the PEC sensor.
Figure 3. (A) Photocurrents of the PEC sensor at various concentrations of TC; (B) corresponding calibration curve; (C) selectivity; (D) stability of the PEC sensor.
Toxics 11 00017 g003
Table
Table 1. Various methods for TC determination.
Table 1. Various methods for TC determination.
No.MethodLinear rangeDetection limitReference
1Colorimetric0.011–1 μM3.1 nM[44]
2Fluorescence2.5–50 μM19.0 nM[45]
3Electrochemistry0.5–5 μM18 nM[46]
4Electrochemiluminescence0.011–22.2 μM4.0 nM[47]
5PEC aptasensor5–200 nM1.6 nM[5]
6PEC aptasensor0.1–500 nM0.06 nMThis work
Table
Table 2. Determination of TC in Real Samples Using the Developed Sensor.
Table 2. Determination of TC in Real Samples Using the Developed Sensor.
SamplesAdded (nM)Found (meana ± SDb) (nM)Recovery (%)RSD (%)
PEC AptasensorHPLC
River water000--
4039.29 ± 0.5838.74 ± 0.8098.231.48
8079.04 ± 0.7178.38 ± 0.9598.800.90
200197.85 ± 1.08192.21 ± 0.6498.920.54
meana, the average value of three measurements; SDb, standard deviation.
