Comparative Genomic and Functional Evaluations of Bacillus subtilis Newly Isolated from Korean Traditional Fermented Foods

by
Hye Jin Choi
1,
Donghyun Shin
2,
Minhye Shin
1,
Bohyun Yun
3,
Minkyoung Kang
4,
Hee-Jong Yang
5,
Do-Youn Jeong
5,
Younghoon Kim
1,* and
Sangnam Oh
4,*
1
Department of Agricultural Biotechnology and Research Institute of Agriculture and Life Science, Seoul National University, Seoul 08826, Korea
2
Department of Agricultural Convergence Technology, Jeonbuk National University, Jeonju 54896, Korea
3
Department of Animal Science and Institute of Milk Genomics, Jeonbuk National University, Jeonju 54896, Korea
4
Department of Functional Food and Biotechnology, Jeonju University, Jeonju 55069, Korea
5
Microbial Institute for Fermentation Industry, Sunchang, Jeonbuk 56048, Korea
*
Authors to whom correspondence should be addressed.
Foods 2020, 9(12), 1805; https://doi.org/10.3390/foods9121805
Submission received: 12 October 2020 / Revised: 20 November 2020 / Accepted: 28 November 2020 / Published: 4 December 2020
(This article belongs to the Section Food Microbiology)
Browse Figures
Versions Notes

Abstract

:
Many fermented foods are known to have beneficial effects on human and animal health, offering anti-aging and immunomodulatory benefits to host. Microorganisms contained in the fermented foods are known to provide metabolic products possibly improving host health. However, despite of a number of studies on the functional effects of the fermented foods, isolation and identification of the effective bacterial strains in the products are still in progress. The objective of this study was to isolate candidate functional strains in various Korean traditional fermented foods, including ganjang, gochujang, doenjang, and jeotgal, and evaluate their beneficial effects on the host, using Caenorhabditis elegans as a surrogate animal model. Among the 30 strains isolated, five Bacillus spp. were selected that increased the expression level of pmk-1, an innate immune gene of C. elegans. These strains extended the nematode lifespan and showed intestinal adhesion to the host. Based on the bioinformatic analyses of whole genome sequences and pangenomes, the five strains of Bacillus subtilis were genetically different from the strains found in East Asian countries and previously reported strains isolated from Korean fermented foods. Our findings suggest that the newly isolated B. subtilis strains can be a good candidate for probiotic with further in-depth investigation on health benefits and safety.

1. Introduction

With increased consumer interest in functional foods, the food industry has experienced innovative and economic expansion [1]. A number of studies have reported that functional foods provide benefits to host health functions and anti-aging by enhancing host immunity [2]. These health-promoting functions can be further increased by microbes that propagate during the process of food fermentation [3]. The microorganisms produce metabolic products such as proteases, antibiotic metabolites, and signaling molecules to the host cells, regulating the host immune responses and metabolism [4,5,6].
The WHO has defined probiotics as “live microorganisms that, when administered in adequate amounts, confer a health benefit on the host” [7]. Probiotics are known to improve gut microbial balance, strengthen the immune system, and reduce specific cancer risk and have anti-aging effects [8,9,10]. In particular, a number of probiotics are involved in the fermentation of Korean traditional fermented foods such as ganjang (fermented soy sauce), gochujang (fermented red chilli paste), doenjang (fermented soybean paste), and kimchi (fermented pickled vegetables), increasing the nutritional and functional potential of the foods [11]. Representatively, microorganisms involved in the fermentation process of Korean traditional fermented foods include Bacillus spp., Leuconostoc spp., Weissella spp., Aspergillus spp., Mucor spp., and Lactobacillus spp. [12]. These microorganisms derived from the fermented foods may provide a positive effect on host intestinal microorganisms, reducing pathogenic bacterial growth and stimulating the immune responses [13]. Especially, Bacillus species have been proven to be commonly used probiotic strains with health benefits and are symbiotic microorganisms that also exist in the human gastrointestinal tract [14]. They are gram-positive, either aerobic or anaerobic, and form endospores, giving them advantages of being stored at room temperature as a dry form over other non-spore-forming bacteria such as Lactobacillus species. They are also able to survive in the host gastrointestinal tract and reach the small intestine [15]. In particular, B. subtilis is a generally recognized as safe (GRAS) organism and has been investigated for animal probiotic development due to its high level of hydrolytic and fibrinolytic enzymes, secretion of antimicrobial compounds, and for producing spores cultured in aerobic conditions [16].
Caenorhabditis elegans is known to be suitable for experimental animal models because of its short life span and facile genetic manipulation [17]. It has been well established that C. elegans is a useful animal model for screening probiotic bacteria because its intestinal cell structure is similar to that of humans [18]. In this study, we isolated bacterial strains from Korean traditional fermented foods and identified Bacillus strains by 16S rRNA sequencing. C. elegans as a surrogate animal model was used to evaluate the effects of the isolated Bacillus spp. on the longevity and immunity enhancement of the host and intestinal adherence of strains. We also analyzed pangenomes based on whole-genome sequencing data of the isolated strains. Our findings suggest that the newly isolated B. subtilis strains can be used as promising anti-aging probiotic strains with the abilities to enhance immunity and prolong the lifespan of nematodes.

2. Materials and Methods

2.1. Bacterial Isolation and Culture

To isolate Bacillus spp., which can be used as probiotics, Korean traditional fermented foods such as Korean soy sauce (ganjang), Korean red pepper paste (gochujang), Korean soybean paste (doenjang), and Korean salted seafood (jeotgal) were collected from 5 different provinces in Korea, including Gyeonggi-do, Gangwon-do, Chungcheong-do, Jeolla-do, and Gyeongsang-do (fermentation period: August 2017 to November 2019). One gram of each sample collected was mixed with 9 mL of sterile water and serially diluted. The diluted samples were spread on Luria-Bertani (LB) agar (Difco, Sparks, MD, USA), and colonies were selected after incubation at 30 °C for 18 h. It is noted that our procedure was not selective for spore forming cells and that we selected colonies using the morphological differences such as smooth, humid, and mucoid phenotypes on LB agar plate [19]. Further 16S rRNA sequencing was conducted for identification of the strains. Lactocaseibacillus rhamnosus GG (LGG), used for a control in the nematode associated analyses, was grown in MRS medium at 37 °C.

2.2. Acid Tolerance and Bile Tolerance

To evaluate the acid resistance of selected Bacillus spp., bacterial isolates were inoculated in LB broth (5 mL) at pH 2.0 adjusted with 5 N HCl (Sigma-Aldrich, St. Louis, MO, USA) and incubated at 30 °C for 1 h with agitation. After serial dilution, the culture medium was plated on LB agar medium and incubated in a 30 °C incubator, and the acid resistance was analyzed by measuring the number of viable cells. The control group was cultured in LB medium without adjusting the pH. In parallel, for bile resistance, isolates were inoculated in LB broth containing 0.3% Oxgall (Neogen, MI, USA) and cultivated for 30 h in a shaking incubator at 250 rpm. Oxgall is manufactured from fresh bile by rapid evaporation of the water content and composed of fatty acids, bile acids, inorganic salts, sulfates, bile pigments, cholesterol, mucin, lecithin, glycuronicaids, porphyrins, and urea. After serial dilution of the culture medium, the cells were plated on LB agar medium and cultured in a 30 °C incubator, and the resistance characteristics were analyzed by measuring the number of viable cells [20].

2.3. Antimicrobial Activity

Indicator strains (Bacillus cereus, Staphylococcus aureus, Listeria monocytogenes and Enterococcus faecalis) for antimicrobial activity were obtained from the Korean Culture Center of Microorganisms (KCCM, Seoul, Korea) and the Korean Collection for Type Cultures (KCTC, Daejeon, Korea). Accession numbers are KCTC3624 and KCCM40935 for B. cereus, KCCM11335 for S. aureus, KCCM43155 for L. monocytogenes, and KCCM11814 for E. faecalis. According to the agar diffusion method [21], each pathogenic strain was cultured to an OD (optical density) of 0.4 to 0.6 at 600 nm in an appropriate broth medium including LB or Tryptic Soy Broth (TSB), mixed with 1% in 0.8% of molten agar medium, and subsequently solidified for incubation of the test strains. The Bacillus isolates were inoculated in 5 mL of LB broth and incubated in a 30 °C with 150 rpm shaking in an incubator for 24 h. The culture supernatant was prepared by centrifugation at 13,000 rpm and filtration using a 0.45-µm syringe filter. One hundred microliters of the solution were added into an 8-mm hole in the agar medium containing each pathogenic strain and incubated for 24 h at 30 or 37 °C depending on the pathogenic strains. The antimicrobial activity of the selected strains was evaluated by the diameter of the zone of inhibition.

2.4. C. elegans Culture Conditions

The C. elegans strains used in this study were CF512 fer-15(b26)II;fem-1(hc17) IV (fer-15;fem-1 worms) and AY102 (P-vha-6::pmk-1::GFP +rol-6(su1006);pmk-1::GFP). For survival experiments, the fer-15;fem-1 mutants were used because they are unable to produce progeny at 25 °C without alteration in the C. elegans phenotype. In addition, we employed the AY102 mutant strain harboring the GFP expression system for the activation of pmk-1 (the worm homologue of p38 MAPK), which is a key player in the immune response and aging in C. elegans [17]. Worms were maintained on nematode growth medium (NGM) plates seeded with E. coli OP50 and maintained at 25 °C as described previously [22].

2.5. C. elegans Pmk-1-Mediated Screening for Anti-Aging Activity

The anti-aging activity assay using AY102 transgenic worms at the L4 stage was performed by modifying the previously described method [22]. Briefly, the worms were exposed to NGM plates treated with probiotic candidate strains (107 colony forming units per plate) for 24 h. After exposing C. elegans to preconditioning plates of Bacillus isolates for 24 h, 10 worms were picked randomly and placed on Brain Heart Infusion (BHI) plates containing 100 μg/mL kanamycin (Sigma-Aldrich) and 100 μg/mL streptomycin (Sigma-Aldrich). Three to five worms were transferred to a round-bottom 96-well plate containing 20 μL of M9 buffer and anesthetized by treatment with 20 μL of 30 mM NaN3 (Sigma-Aldrich). Fluorescence microscopy (IX53, Olympus, Tokyo, Japan) was used to determine the expression rate of GFP (green fluorescent protein) in C. elegans. Images were analyzed using ImageJ (https://imagej.nih.gov/ij).

2.6. C. elegans Lifespan Analysis

The lifespan of C. elegans was measured as in previous studies to confirm that candidate organisms can prolong the survival of C. elegans [23]. The worms at the L4 stage were exposed to bacteria-treated NGM plates (5 × 106 colony forming units per plate), and the number of living worms was recorded daily. To accurately count, worms were moved to new plate with bacteria every 3 days. Worms were considered dead when they did not respond to a careful touch, and all C. elegans were incubated at 25 °C.

2.7. Measurement of Intestinal Colonization of C. elegans

To measure the colonization of C. elegans, the numbers of bacterial cells in worm intestines were measured. The amounts of bacteria adhered to the intestine of the worm were measured according to the method described above [18]. Briefly, after exposing C. elegans (at the L4 stage) to each isolated bacterium (E. coli OP50 as a non-colonizing negative control, LGG as a colonizing positive control, or each isolated Bacillus strain) for 24 h, 10 worms were picked randomly, washed twice in M9 buffer, and placed on BHI plates containing 100 μg/mL kanamycin (Sigma-Aldrich) and 100 μg/mL streptomycin (Sigma-Aldrich). To remove the bacteria attached to the surface of the worm, the worms were washed with 5 μL of gentamicin solution (25 μg/mL) for 5 min. The worms were washed 5 times with M9 buffer, treated with 1% Triton X-100 dissolved in M9 buffer, and physically disrupted using a pestle motor. The diluted worm lysates were plated on acidified MRS agar plates (pH 5.0) for LGG at 37 °C for 24 h or on LB agar plates for E. coli OP50 and Bacillus strains at 30 °C for 24 h.

2.8. Whole-Genome Sequencing and Pangenome Analysis

Whole-genome shotgun sequencing of five B. subtilis bacteria, SRCM103517, SRCM103571, SRCM103576, SRCM103689, and SRCM104011, was carried out using PacBio SMRT sequencing technology. A sequence of nucleotides was generated by DNA polymerase incorporation with a circular single molecule real-time (SMRT) sequencing system. Polymerase reads were trimmed to include only the high-quality regional sequences from adapters and further to include sequences from multiple passes around a circular template. Each polymerase read was partitioned to form one or more subreads, which contained sequences from a single pass of a polymerase on a single strand of an insert within an SMRTbell ™ template (PacBio, Menlo Park, CA, USA). The sequencing library was prepared by random fragmentation of the DNA or the cDNA sample, followed by 5′ and 3′ adapter ligation. This library was loaded into a flow cell where the fragments are captured on a lawn of surface-bound oligos complementary to the library adapters. As all four reversible, terminator-bound dNTPs are present during each sequencing cycle, the natural competition minimizes incorporation bias and significantly reduces raw error rates compared with other technologies. Then, the sequencing data were converted into raw data for analysis. Contigs were constructed by de novo assembly using the Hierarchical Genome Assembly Process(HGAP) Assembly (v. 3.0, PacBio, Menlo Park, CA, USA), which was initially preassembling seed reads, generating a consensus sequence of the mapped reads and correcting and filtering the reads. The genomic sequences were deposited in the NCBI sequence Read Archive under project accession number PRJNA515340 (for SRCM103517), PRJNA515369 (for SRCM103571), PRJNA516537 (for SRCM103576), PRJNA516532 (for SRCM103689), and PRJNA515144 (for SRCM104011).
For pangenome analysis, the genome sequences of 24 strains isolated from food in Korea and 32 strains from various hosts in China and Japan were acquired from GenBank to compare different host-derived strains. All 61 genome sequences, including 5 sequenced in this study, were annotated by Prokka (v 1.14.5, Victorian Bioinformatics Consortium, https://vicbioinformatics.com/software.prokka.shtml), and the protein coding sequences were predicted by the EggNOG-mapper (v 2.0.1, http://eggnog-mapper.embl.de) and functionally categorized based on the COG database. To evaluate genetic relatedness, the average nucleotide identity (ANI) was calculated based on the JSpecies web server (http://jspecies.ribohost.com/jspeciesws).
The nucleotide sequences of 61 B. subtilis strains were annotated by Prokka to obtain GFF format files, which were used to calculate the core and pangenomes. The core and pangenomes were calculated using Roary (v 3.13.0, https://sanger-pathogens.github.io/Roary), a rapid standalone pangenomic pipeline. A pair of genes was defined as belonging to the same gene family when the identity value of their amino acid sequences was >95%. In addition, the phylogenetic tree was constructed based on the core genes using Randomized Accelerated Maximum Likelihood (RAxML) (v 8.2.12, https://github.com/stamatak/standard-RAxML) and was drawn by MEGA-X (v 10.0.5., https://www.megasoftware.net) from the newick file.

2.9. Statistical Analysis

The survival rate of worms was assessed using the Kaplan–Meier method, and the significance of differences was determined using a log-rank test between survival curves (STATA6, STATA, College Station, TX, USA). We conducted Student’s t-tests to determine significant differences in colony-forming unit (CFU) calculations to determine the presence of bacteria. All data represent three independent results. A p value of 0.05 in all replicates was considered to reflect a significant difference when compared to the control.

3. Results and Discussion

3.1. Functional Analysis of Potential Probiotics

One of the beneficial effect of probiotics on host as a living organism is to improve the intestinal microbial balance, implementing that they must be able to survive at the low pH and with bile salts of the gastrointestinal environment [24]. To conduct primary screening of potential probiotic strains in vitro, we evaluated the acid and bile tolerances of the bacterial strains isolated from Korean traditional foods (described in the Section 2). A total of 30 candidate Bacillus strains, identified by 16S rRNA sequencing, were tested, and subsequently, 16 strains showed survival rates of 50% or higher at pH 2, and 28 strains showed survival rates of 80% or higher at 0.3% bile acid (Supplementary Figure S1). B. subtilis SRCM103612, the highest acid-resistant strain, showed 75.91% survival at pH 2, while B. velezensis SRCM103691, the highest bile-resistant strain, had 99.09% survival at 0.3% bile acid.
We next assessed antimicrobial activity against pathogenic bacteria such as B. cereus, S. aureus, L. monocytogenes, and E. faecalis to evaluate the antimicrobial activity of Bacillus spp. isolates from traditional Korean fermented foods. As a result of the antimicrobial activity test, 12 of the 30 candidate strains (SRCM103517, SRCM103571, SRCM103574, SRCM103581, SRCM103622, SRCM103623, SRCM103629, SRCM103837, SRCM103881, SRCM104005, SRCM104008, SRCM104011) had antimicrobial activity against all 5 pathogenic bacteria, and 17 strains (SRCM103551, SRCM103576, SRCM103583, SRCM103608, SRCM103612, SRCM103616, SRCM103639, SRCM103641, SRCM103689, SRCM103691, SRCM103696, SRCM103697, SRCM103773, SRCM103835, SRCM103844, SRCM103862, SRCM103923) except one strain (SRCM103788) had antimicrobial activity against one or more pathogens (Supplementary Table S1).
Korean traditional fermented foods are known to have functional properties such as fibrinolytic activity, antimicrobial activity, and hypocholesterolemic effects [25]. In particular, Bacillus spp., generally present as 106–107 colony forming units (CFU) per ml in the products, is highly involved in the fermentation process of these fermented foods, affecting their quality as well as host effects such as cholesterol and fibrin decomposition activities [26,27]. For its use as a probiotic strain, the ingested bacteria must face the challenge of acidic environment and toxic compounds like bile during the passage through the gastrointestinal tract. B. subtilis is generally known as a neutrophile, but it also induces physiological systems that increase survival in extreme acidic conditions [28]. These systems include upregulation of dehydrogenases, decarboxylases, and SigX extracytoplasmic stress regulon. It is noteworthy to mention that bacilli tend to form spores at low pH [29]. The formation of spores would affect the bacterial ability for acid tolerance. Supplementary experiments to test the presence of spores at acidic condition will be required. In addition to the acid resistance, bacilli have a wide range of bile salt tolerance depending on the specific strains [30]. According to Wang et al., while B. cereus is sensitive to bile salts, B. subtilis and B. amyloliquefaciens perform well in tolerance to them [31]. In this study, we found that 16 and 28 species among 30 Bacillus isolates showed more than 50% acid resistance at pH 2.0 and more than 80% survival rate at 0.3% bile acid, respectively, indicating their potential uses as probiotics to survive against the host digestion process (Supplementary Figure S1).
Bacillus, which has a number of hydrolytic activities as well as produce a variety of antimicrobial peptides [32], has antimicrobial activity against pathogenic microorganisms such as E. coli O157 and S. aureus, and studies have shown that this antimicrobial activity can inhibit the growth of harmful microorganisms in food [33]. It is common that Bacillus strains possess an antimicrobial activity against a wide range of pathogenic bacteria including B. cereus, S. aureus, and L. monocytogenes by producing hydrolytic enzymes and antimicrobial peptides. Moreover, B. subtilis is able to produce a wide spectrum of bioactive antibiotic metabolites based on their biosynthetic pathways such as ribosomal peptides, volatile compounds, and polyketides [34]. Of the 30 bacteria isolated in this study, 29 bacterial strains, excluding one strain, had antibacterial activity against at least one representative pathogen, and 12 strains showed antibacterial activity against all 5 pathogens, which can function as potential probiotics (Supplementary Table S1). In order to support the results of antimicrobial activity in the selected B. subtilis, we analyzed presence of sdpC gene, encoding sporulation delaying protein C acting as an antimicrobial mediator, in their whole genome sequences, but could not find a general feature conserved for their antimicrobial activity. Further analysis on genetic differences among the strains will be investigated.

3.2. Screening of Probiotics That Have an Anti-Aging Effect on C. elegans

The C. elegans model was used to select strains that could positively influence the longevity and immunity of the host [18]. Increasing innate immunity of nematode intestinal epithelial cells is beneficial for survival against exposure to pathogenic bacteria [35]. Innate immunity in C. elegans is regulated by the PMK-1 p38 mitogen-activated protein kinase (MAPK) pathway, which is essential for resistance against pathogenic bacteria and fungi [36]. To observe the stimulation of pmk-1 in the nematode, the mutant animal AY102 C. elegans (P-vha-6::pmk-1::GFP +rol-6(su1006); pmk-1::GFP) was exposed to a bacteria-treated plate for 24 h [37]. Figure 1 shows the expression rate of stimulation of pmk-1 via transgenic worms harboring the pmk-1::GFP reporter system with candidate bacteria. LGG was used as a positive probiotic control, which has been shown to have gastrointestinal and immune-enhancing functions [38,39,40]. Among 30 Bacillus spp., 14 strains were found to express higher levels of pmk-1 than LGG, and the top 5 strains, B. subtilis SRCM103517, SRCM103571, SRCM103576, SRCM103689, and SRCM104011, were selected for further analysis (Figure 1).
The pmk-1 pathway is known as a key pathway for the immune response of C. elegans, functioning to strengthen immunity of the nematode [41,42]. According to the previous studies, probiotics such as lactobacilli can increase nematode immunity and life span by increasing the expression of pmk-1 and protect nematodes from pathogen infection [43,44]. The signaling pathway through PMK-1 is a key component of the C. elegans immune conditioning and promotion with probiotic strains [45]. In addition to lactobacilli, B. subtilis has been demonstrated to promote C. elegans innate immunity by producing a lipopeptide fengycin that mediates microbial antagonism especially against Gram-positive pathogens [43]. The bacteria isolated in this study, specifically the 5 selected bacteria, had higher expression levels of pmk-1 than LGG, which could function in the host by stimulating innate immunity, here the pmk-1 pathway in C. elegans. PMK-1 and insulin/insulin-like growth factor-1 (IIS) are well known pathways related to the immune response and longevity of C. elegans [46]. Besides PMK-1, the IIS pathway is the first pathway established in aging research and well known to regulate nematode growth, aging, and longevity [47]. In order to understand the mechanism of immunomodulatory activity in C. elegans with the specific 5 strains of B. subtilis, further transcriptional analyses will be required.

3.3. Bacillus Extends the Lifespan of C. elegans

C. elegans has a relatively short lifespan of approximately 17 days on average and is thus considered as a model system suitable for aging research [48]. In many studies, C. elegans has been used to evaluate substances that prolong the life span [49]. To investigate whether the 5 selected Bacillus strains, showing higher expression levels of pmk-1 than LGG, extend the lifespan of C. elegans, we performed a lifespan prolongation experiment. A total of ninety worms were exposed to candidate bacteria-treated plates, and the number of surviving worms was measured daily. E. coli OP50 was used as a control, which is a basic food of C. elegans. All 5 strains were shown to extend the lifespan of C. elegans compared with the control OP50 from 17 to 21 days (p < 0.05). B. subtilis SRCM 104011 extended the lifespan of the nematodes most significantly (p = 0.0000) (Figure 2A).
The life span is associated with stress, nutrition, and environmental signals and is regulated by conserved signaling pathways and transcription factors [50]. Metchnikoff hypothesized that consumption of milk and probiotics could increase the lifespan of the host, and continued research has shown that probiotics are positive for the longevity and health of the host [51,52]. In addition, probiotics extend the lifespan of C. elegans through various genetic pathways, such as p38 MAPK/SKN-1 or DAF-2/DAF-16, and through improvements in immune function [53,54,55]. Based on these findings, we speculate that the five strains evaluated in this study could increase the lifespan of nematodes contributing to the immunity of the host. Further research is needed to determine the more sophisticated mechanism of the isolated Bacillus actions for increasing the lifespan of nematodes.

3.4. Colonization of Bacteria on C. elegans Intestine

The human gastrointestinal tract is inhabited by a complex and dynamic community of approximately 500 to 1000 different microbial species. Among these, bacterial strains with identified beneficial properties include mainly Bifidobacterium and Lactobacillus species [56]. In general, to be considered as probiotics, these bacterial strains must survive the gastrointestinal tract [7] and adhere to the intestinal mucosa in their host [57,58]. To evaluate the probiotic potential of the isolated Bacillus species, we examined the intestinal adhesion of the five isolated strains in the nematodes after exposure for 24 h (Figure 2B). Two strains of B. subtilis (B. subtilis SRCM103571 and SRCM103576) showed adhesion of the intestine, but the other three strains were not adhered.
Factors for determining bacterial colonization to the host intestine are surface hydrophobicity, excretion of secretory enzymes and lipopeptides, and utilization of polysaccharide produced from the epithelial cells [59]. Many B. subtilis strains have an adhesive capability, but the degree is varied according to the strain and its physiological state [60]. Specific probiotics promote health by colonizing the host’s intestine, while some of them do transient probiotic colonization that are metabolically active in the intestine without replication to high numbers or displacing members of the native gut microbiota [61]. Here, the longevity effect of the B. subtilis strains on the C. elegans model suggested that the lifespan of the nematode model could be extended through other mechanisms in addition to colonizing the intestine of the C. elegans model.

3.5. Whole-Genome Sequencing and Pangenome Analysis

In order to provide genomic insights and unique features of the selected five strains, possibly associated with their host health-promoting effects, we first conducted whole-genome sequencing of the selected bacteria, SRCM103517, SRCM103571, SRCM103576, SRCM103689, and SRCM104011 (Supplementary Figure S2). General genome features of the B. subtilis strains are described in Supplementary Table S2. By comparing COG (Clusters of Orthologous Groups of proteins) data from the five isolated B. subtilis strains, 3275 core genes were clustered. The numbers of unique genes of the five strains confirmed the difference in genes for each strain. Of the five Bacillus strains, SRCM 103576 and SRCM104011 have a total of 591 and 228 unique genes that are the largest and the smallest number of unique genes among the five strains, respectively (Figure 3A). Analysis of the core gene functionality of the five strains confirmed that they are involved in information storage and processing (22.9%), cellular processes and signals (23.5%), and metabolism (53.6%) functions (Figure 3B).
Pangenome analysis compares the entire gene set of all strains of a species, enabling assessment of the genomic diversity of entire repertoires of genes and identification of the core genomic elements [62]. To analyze the genomic differences among B. subtilis isolated from fermented products in East Asian countries, we next performed pangenome analysis using 61 genomes of different B. subtilis species, including 29, 3, and 24 B. subtilis strains isolated from China, Japan, and Korea, respectively, as well as the 5 strains isolated in this study. When compared the genomes of the 5 strains with the 32 B. subtilis strains isolated from China and Japan, a total of 2098 core genes were clustered, but less than the 3275 core genes clustered among the five strains in the above analysis, showing greater genetic differences by the origin of country. A group of 35 accessory genes were clustered, and 6061 unique genes were found (Figure 4A). According to the functional analysis of the core gene, the core gene was associated with metabolic, cellular processes and signals, information storage and processing functions. In particular, the five B. subtilis strains in this study had more functional genes than those from other East Asian B. subtilis strains (Figure 4A). Specifically, several genes, such as deoA (encoding pyrimidine-nucleoside phosphorylase), haelllM_2 (encoding modification methylase HaeIII), vgb (encoding virginiamycin B lyase), and vsr (encoding very short patch repair protein), were present in only the currently isolated five strains (Table 1). Pyrimidine-nucleoside phosphorylase encoded by deoA catalyzes phosphoryolysis of the pyrimidine nucleosides with the formation of the pyrimidine base and ribose-1-phosphate. This enzyme participates in pyrimidine metabolism and has been studied for anticancer drug design [63]. Related to deoA, haeIIIM_2 is also involved in nucleotide metabolism as DNA methyltransferase, implementing that the isolated bacterial strains in this study would be associated with an altered nucleotide metabolism compared to the other B. subtilis strains. There is a study showing that the vgb gene, uniquely present in B. subtilis SRCM103517, SRCM103689, and SRCM104011 strains, increases intestinal tract colonization of mice and has antioxidant effects, thereby reducing liver toxicity in mice. To elucidate the molecular mechanisms of the isolated strains as probiotics and to enhance their applicability, further functional studies on these genes will be performed.
Next, we conducted a comparative analysis on the 5 B. subtilis strains in this study and previously reported 24 B. subtilis strains from Korean traditional foods to find unique features in the functionally selected five strains but not present in other strains originated from same country. As a result of the pangenome analysis of the 29 B. subtilis strains, it was confirmed that a total of 2950 core genes were clustered and that 27 accessory gene groups were clustered and had 2638 unique genes (Figure 4B). The core genes were involved in the functions on metabolic, cellular processes and signals, information storage and processing, and the strains in this study possessed more core genes compared to the other 24 strains previously isolated in Korea (Figure 4B). Average nucleotide identity (ANI) tree analysis revealed that the genomic characteristics of B. subtilis species would be clustered by the sources of isolation and that at least 4 strains in this study are correlated with the B. subtilis strains isolated from doenjang (Supplementary Figure S3). Importantly, we found unique genes present only in the five selected strains in this study, but not in other strains isolated from Korean fermented products as shown in Table 2. Among the five strains, SRCM103571 and SRCM103689 possessed a number of unique genes including cscB, lacF_2, lacG, maa_1, nisB, nisC_2, sacA, and spaS, which are involved in disaccharide permeases, sucrose-5-phosphate hydrolase, nisin biosynthesis, and lantibiotic subtilin synthesis. Disaccharide metabolism-associated proteins including fructooligosaccharide and galactooligosaccharide permeases have been reported to be essential for colonization, have effects on cell membrane fluidity, and be required for prebiotic utilization, providing the bacterial strains to attach and colonize the host intestine [64,65,66]. Additionally, peptides such as nisin and subtilin, encoded by nisB, nisC, and spaS, are bacteriocin effective against many Gram-positive organisms, functioning as probable probiotics with antimicrobial activities [67,68,69]. Moreover, B. subtilis SRCM103571 and SRCM103689 specifically possess genes encoding response regulators of aspartate phosphatase I and SaeR, which are involved in sporulation and adhesion to the host cells [70,71].
In the previous section, we demonstrated that the selected five B. subtilis strains induced high expression of pmk-1 in the nematode host possibly through the p38-MAPK signaling pathway (Figure 1). The association of B. subtilis and its effects on the MAPK signaling has been suggested from many studies. For example, surfactin produced by B. subtilis upregulates the expression of MAPK signaling pathway and controls the secretion of proinflammatory cytokines, overall promoting wound healing and scar inhibition [72]. Sublancin, a glucosylated antimicrobial peptide produced in B. subtilis, modulates innate immunity via MAPK signaling pathway enhancing phagocytic activity of macrophages [73]. Moreover, pentapeptide competence and sporulation factor (CSF) of B. subtilis is a quorum sensing factor and controls competence and spore formation in the bacteria. A recent study reported that the factor is involved in the induction of cytoprotective heat shock protein in host intestinal cells via p38-MAPK signaling pathway [74]. In order to address the question of genetic differences between the five selected strains, functioning the induction of pmk-1 on host, and other B. subtilis species isolated in Korea, we compared amino acid sequences of surfactin synthase subunits SrfAC and SrfAD in the total 29 B. subtilis strains. As shown in supplementary Figure S4, both protein sequences were highly conserved among the strains. The five strains in this study were shown to have more closely-related SrfAC than others. For SrfAD, the phylogenic analysis indicated that SRCM104011, SRCM103571, and SRCM103517 have slightly different amino acid sequences than other strains. These results implement that the five strains might have a distinct characteristic on the surfactin activity, probably associated with the host MAPK activity. To prove this hypothesis, further studies on the surfactin synthesis and its activity in these selected strains are required.

4. Conclusions

B. subtilis is a major fermenting microorganism in some Korean traditional fermented foods (cheonggukjang, doenjang, and gochujang), contributing to the flavor, texture, and nutritional value of the products, while it is also suggested to have potential health effects, such as anticancer, antioxidant, and fibrinolytic activity, on humans [75]. In this study, we showed that five strains of B. subtilis isolated from Korean traditional fermented foods possess acid and bile tolerance, antimicrobial activity, and functions in life extension and immune gene enhancement in the C. elegans in vivo model. In addition, as a result of pangenome analysis of the whole-genome sequencing data, the five strains possessed genetic differences from the bacterial strains isolated in East Asian countries and previously reported Korean strains. Their genetic features might be involved in the extension of lifespan in the nematode model via MAPK pathway, but more sophisticated evaluations are required. We expect that the newly isolated B. subtilis strains, present in natural fermented foods, can be applied as promising probiotics to be valuable as GRAS strains possibly enhancing human immune functionality and lifespan; thus, continuous research is needed to determine their detailed mechanism of action and applicability.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-8158/9/12/1805/s1. Figure S1: Acid tolerance and bile tolerance; Figure S2: Circular maps of the selected B. subtilis strains; Figure S3: ANI tree analysis of B. subtilis 5 strains SRCM103517, SRCM103571, SRCM103576, SRCM103689, and SRCM104011 (in this study) and other 24 strains previously isolated in Korea; Figure S4: Phylogenetic analysis of amino acid sequences of surfactin synthase subunits SrfAC and SrfAD in the total 29 B. subtilis strains including 5 strains (in this study) and other 24 strains previously isolated in Korea. Table S1: Antimicrobial activity against five pathogenic bacteria B. cereus KCTC3624, B. cereus KCCM40935, S. aureus KCCM11335, L. monocytogenes KCCM43155, and E. faecalis KCCM11814; Table S2: General genome features of the B. subtilis SRCM103517, SRCM103571, SRCM103576, SRCM103689, and SRCM104011.

Author Contributions

H.J.C. and D.S. wrote the manuscript; H.-J.Y., D.-Y.J., Y.K., and S.O. designed the research; H.J.C., B.Y., H.-J.Y., D.-Y.J., Y.K., and S.O. designed and carried out experiments; H.J.C., B.Y., and D.S. performed analysis and analyzed data; H.J.C., B.Y., and D.S. generated the figures; H.J.C., M.S., B.Y., M.K., H.-J.Y., D.-Y.J., Y.K., and S.O. critically revised the manuscript; Y.K. and S.O. supervised the research. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (2018R1D1A1A02085907) and by the Ministry of Science, Information and Communications Technology (ICT) and Future Planning (2016M3C1B5907057).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Daliri, E.; Lee, B. Current trends and future perspectives on functional foods and nutraceuticals. In Beneficial Microorganisms in Food and Nutraceuticals; Springer: Cham, Switzerland, 2015; pp. 221–244. ISBN 978-3-319-23176-1. [Google Scholar]
  2. Das, G.; Paramithiotis, S.; Sundaram Sivamaruthi, B.; Wijaya, C.H.; Suharta, S.; Sanlier, N.; Shin, H.-S.; Patra, J.K. Traditional fermented foods with anti-aging effect: A concentric review. Food Res. Int. 2020, 134, 109269. [Google Scholar] [CrossRef] [PubMed]
  3. Kim, B.; Hong, V.M.; Yang, J.; Hyun, H.; Im, J.J.; Hwang, J.; Yoon, S.; Kim, J.E. A review of fermented foods with beneficial effects on brain and cognitive function. Prev. Nutr. Food Sci. 2016, 21, 297–309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Cammarota, M.; De Rosa, M.; Stellavato, A.; Lamberti, M.; Marzaioli, I.; Giuliano, M. In vitro evaluation of Lactobacillus plantarum DSMZ 12028 as a probiotic: Emphasis on innate immunity. Int. J. Food Microbiol. 2009, 135, 90–98. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, J.; Ji, H. Influence of Probiotics on Dietary Protein Digestion and Utilization in the Gastrointestinal Tract. Available online: https://www.eurekaselect.com/162238/article (accessed on 19 November 2020).
  6. Fooks, L.J.; Fuller, R.; Gibson, G.R. Prebiotics, probiotics and human gut microbiology. Int. Dairy J. 1999, 9, 53–61. [Google Scholar] [CrossRef]
  7. Hill, C.; Guarner, F.; Reid, G.; Gibson, G.R.; Merenstein, D.J.; Pot, B.; Morelli, L.; Canani, R.B.; Flint, H.J.; Salminen, S.; et al. Expert consensus document. The International Scientific Association for Probiotics and Prebiotics consensus statement on the scope and appropriate use of the term probiotic. Nat. Rev. Gastroenterol. Hepatol. 2014, 11, 506–514. [Google Scholar] [CrossRef] [Green Version]
  8. Kiran, M.; Gharat, P.; Vakharia, M.; Ranganathan, N. Specific probiotics for chronic kidney disease: A review. Indian Pract. 2019, 72, 29–40. [Google Scholar]
  9. La Fata, G.; Weber, P.; Mohajeri, M.H. Probiotics and the gut immune system: Indirect regulation. Probiotics Antimicrob. Proteins 2018, 10, 11–21. [Google Scholar] [CrossRef]
  10. Sharif, M.K.; Mahmood, S.; Ahsan, F. Chapter 2—Role of probiotics toward the improvement of gut health with special reference to colorectal cancer. In Diet, Microbiome and Health; Holban, A.M., Grumezescu, A.M., Eds.; Handbook of Food Bioengineering; Academic Press: Faisalabad, Pakistan, 2018; pp. 35–50. ISBN 978-0-12-811440-7. [Google Scholar]
  11. Chun, B.H.; Kim, K.H.; Jeong, S.E.; Jeon, C.O. The effect of salt concentrations on the fermentation of doenjang, a traditional Korean fermented soybean paste. Food Microbiol. 2020, 86, 103329. [Google Scholar] [CrossRef]
  12. Kim, S.-Y.; Lee, N.-K.; Han, E.J.; Paik, H.-D. Characterization of subtilin KU43 produced by Bacillus subtilis KU43 isolated from traditional Korean fermented foods. Food Sci. Biotechnol. 2012, 21, 1433–1438. [Google Scholar] [CrossRef]
  13. Khan, I.; Kang, S.C. Probiotic potential of nutritionally improved Lactobacillus plantarum DGK-17 isolated from Kimchi—A traditional Korean fermented food. Food Control. 2016, 60, 88–94. [Google Scholar] [CrossRef]
  14. Duc, L.H.; Hong, H.A.; Barbosa, T.M.; Henriques, A.O.; Cutting, S.M. Characterization of Bacillus probiotics available for human use. Appl. Environ. Microbiol. 2004, 70, 2161–2171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Mingmongkolchai, S.; Panbangred, W. Bacillus probiotics: An alternative to antibiotics for livestock production. J. Appl. Microbiol. 2018, 124, 1334–1346. [Google Scholar] [CrossRef] [PubMed]
  16. De Boer, A.S.; Diderichsen, B. On the safety of Bacillus subtilis and B. amyloliquefaciens: A review. Appl. Microbiol. Biotechnol. 1991, 36, 1–4. [Google Scholar] [CrossRef] [PubMed]
  17. Komura, T.; Ikeda, T.; Hoshino, K.; Shibamura, A.; Nishikawa, Y. Caenorhabditis elegans as an alternative model to study senescence of host defense and the prevention by immunonutrition. Adv. Exp. Med. Biol. 2012, 710, 19–27. [Google Scholar] [CrossRef] [PubMed]
  18. Yang, K.H.; Yun, B.; Choi, H.J.; Ryu, S.; Lee, W.J.; Oh, M.-H.; Song, M.-H.; Kim, J.N.; Oh, S.; Kim, Y.; et al. Simple evaluation of Listeria monocytogenes pathogenesis using Caenorhabditis elegans animal model. Food Sci. Anim. Resour. 2019, 39, 84–92. [Google Scholar] [CrossRef] [Green Version]
  19. Liu, C.; Lu, J.; Lu, L.; Liu, Y.; Wang, F.; Xiao, M. Isolation, structural characterization and immunological activity of an exopolysaccharide produced by Bacillus licheniformis 8-37-0-1. Bioresour. Technol. 2010, 101, 5528–5533. [Google Scholar] [CrossRef]
  20. Oh, A.; Daliri, E.B.; Oh, D.H. Screening for potential probiotic bacteria from Korean fermented soybean paste: In vitro and Caenorhabditis elegans model testing. LWT 2018, 88, 132–138. [Google Scholar] [CrossRef]
  21. Balouiri, M.; Sadiki, M.; Ibnsouda, S.K. Methods for in vitro evaluating antimicrobial activity: A review. J Pharm Anal. 2016, 6, 71–79. [Google Scholar] [CrossRef] [Green Version]
  22. Park, M.R.; Ryu, S.; Maburutse, B.E.; Oh, N.S.; Kim, S.H.; Oh, S.; Jeong, S.-Y.; Jeong, D.-Y.; Oh, S.; Kim, Y. Probiotic Lactobacillus fermentum strain JDFM216 stimulates the longevity and immune response of Caenorhabditis elegans through a nuclear hormone receptor. Sci. Rep. 2018, 8, 7441. [Google Scholar] [CrossRef]
  23. Heo, J.; Shin, D.; Chang, S.Y.; Bogere, P.; Park, M.R.; Ryu, S.; Lee, W.J.; Yun, B.; Lee, H.K.; Kim, Y.; et al. Comparative genome analysis and evaluation of probiotic characteristics of Lactobacillus plantarum strain JDFM LP11. Korean J. Food Sci. Anim Resour. 2018, 38, 878–888. [Google Scholar] [CrossRef] [Green Version]
  24. Fuller, R. (Ed.) Probiotics: The Scientific Basis; Springer Nature: Dordrecht, The Netherlands, 1992; ISBN 978-94-010-5043-2. [Google Scholar]
  25. Kim, Y.; Cho, J.-Y.; Kuk, J.-H.; Moon, J.-H.; Cho, J.-I.; Kim, Y.-C.; Park, K.-H. Identification and antimicrobial activity of phenylacetic acid produced by Bacillus licheniformis isolated from fermented soybean, Chungkook-Jang. Curr. Microbiol. 2004, 48, 312–317. [Google Scholar] [CrossRef] [PubMed]
  26. Kang, M.; Kim, J.-C.; Kwon, T. Effect of Chongkukjang on blood glucose and lipid profile in neonatal streptozotocin-induced diabetic rats. Food Sci. Biotechnol. 2003, 12, 544–547. [Google Scholar]
  27. Kim, K.P.; Rhee, C.H.; Park, H.D. Degradation of cholesterol by Bacillus subtilis SFF34 isolated from Korean traditional fermented flatfish. Lett. Appl. Microbiol. 2002, 35, 468–472. [Google Scholar] [CrossRef] [PubMed]
  28. Syahbanu, F.; Giriwono, P.E.; Tjandrawinata, R.R.; Suhartono, M.T. Molecular analysis of a fibrin-degrading enzyme from Bacillus subtilis K2 isolated from the Indonesian soybean-based fermented food moromi. Mol. Biol. Rep. 2020, 47, 8553–8563. [Google Scholar] [CrossRef] [PubMed]
  29. Wilks, J.C.; Kitko, R.D.; Cleeton, S.H.; Lee, G.E.; Ugwu, C.S.; Jones, B.D.; BonDurant, S.S.; Slonczewski, J.L. Acid and base stress and transcriptomic responses in Bacillus subtilis. Appl. Environ. Microbiol. 2009, 75, 981–990. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Ciarciaglini, G.; Hill, P.J.; Davies, K.; McClure, P.J.; Kilsby, D.; Brown, M.H.; Coote, P.J. Germination-induced bioluminescence, a route to determine the inhibitory effect of a combination preservation treatment on bacterial spores. Appl. Environ. Microbiol. 2000, 66, 3735–3742. [Google Scholar] [CrossRef] [Green Version]
  31. Wang, Y.; Zhang, H.; Zhang, L.; Liu, W.; Zhang, Y.; Zhang, X.; Sun, T. In vitro assessment of probiotic properties of Bacillus isolated from naturally fermented congee from Inner Mongolia of China. World J. Microbiol. Biotechnol. 2010, 26, 1369–1377. [Google Scholar] [CrossRef]
  32. Ashiuchi, M.; Kamei, T.; Baek, D.H.; Shin, S.Y.; Sung, M.H.; Soda, K.; Yagi, T.; Misono, H. Isolation of Bacillus subtilis (chungkookjang), a poly-gamma-glutamate producer with high genetic competence. Appl. Microbiol. Biotechnol. 2001, 57, 764–769. [Google Scholar] [CrossRef]
  33. Jeong, S.-J.; Yang, H.-J.; Jeong, S.-Y.; Jeong, D.-Y. Identification of characterization and statistical optimization of medium constituent for Bacillus subtilis SCJ4 isolated from Korean traditional fermented food. Korean J. Microbiol. 2015, 51, 48–60. [Google Scholar] [CrossRef]
  34. Caulier, S.; Nannan, C.; Gillis, A.; Licciardi, F.; Bragard, C.; Mahillon, J. Overview of the antimicrobial compounds produced by members of the Bacillus subtilis group. Front. Microbiol. 2019, 10, 302. [Google Scholar] [CrossRef] [Green Version]
  35. Foster, K.J.; Cheesman, H.K.; Liu, P.; Peterson, N.D.; Anderson, S.M.; Pukkila-Worley, R. Innate immunity in the C. elegans intestine is programmed by a neuronal regulator of AWC olfactory Neuron Development. Cell Rep. 2020, 31, 107478. [Google Scholar] [CrossRef] [PubMed]
  36. Kim, D.H.; Feinbaum, R.; Alloing, G.; Emerson, F.E.; Garsin, D.A.; Inoue, H.; Tanaka-Hino, M.; Hisamoto, N.; Matsumoto, K.; Tan, M.-W.; et al. A conserved p38 MAP kinase pathway in Caenorhabditis elegans innate immunity. Science 2002, 297, 623–626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Jang, S.Y.; Heo, J.; Park, M.R.; Song, M.-H.; Kim, J.N.; Jo, S.H.; Jeong, D.-Y.; Lee, H.K.; Kim, Y.; Oh, S. Genome characteristics of Lactobacillus fermentum strain JDFM216 for application as probiotic bacteria. J. Microbiol. Biotechnol. 2017, 27, 1266–1271. [Google Scholar] [CrossRef] [PubMed]
  38. Goldin, B.R. Health benefits of probiotics. Br. J. Nutr. 1998, 80, S203–S207. [Google Scholar] [CrossRef]
  39. De Groote, M.A.; Frank, D.N.; Dowell, E.; Glode, M.P.; Pace, N.R. Lactobacillus rhamnosus GG bacteremia associated with probiotic use in a child with short gut syndrome. Pediatr. Infect. Dis. J. 2005, 24, 278–280. [Google Scholar] [CrossRef]
  40. Hawrelak, J.A.; Whitten, D.L.; Myers, S.P. Is Lactobacillus rhamnosus GG effective in preventing the onset of antibiotic-associated diarrhoea: A systematic review. Digestion 2005, 72, 51–56. [Google Scholar] [CrossRef]
  41. Lee, J.; Choe, J.; Kim, J.; Oh, S.; Park, S.; Kim, S.; Kim, Y. Heat-killed Lactobacillus spp. cells enhance survivals of Caenorhabditis elegans against Salmonella and Yersinia infections. Lett. Appl. Microbiol. 2015, 61, 523–530. [Google Scholar] [CrossRef]
  42. Kim, Y.; Mylonakis, E. Caenorhabditis elegans immune conditioning with the probiotic bacterium Lactobacillus acidophilus strain NCFM enhances gram-positive immune responses. Infect. Immun. 2012, 80, 2500–2508. [Google Scholar] [CrossRef] [Green Version]
  43. Iatsenko, I.; Yim, J.J.; Schroeder, F.C.; Sommer, R.J. B. subtilis GS67 protects C. elegans from Gram-positive pathogens via fengycin-mediated microbial antagonism. Curr. Biol. 2014, 24, 2720–2727. [Google Scholar] [CrossRef] [Green Version]
  44. Roselli, M.; Schifano, E.; Guantario, B.; Zinno, P.; Uccelletti, D.; Devirgiliis, C. Caenorhabditis elegans and probiotics interactions from a prolongevity perspective. Int. J. Mol. Sci. 2019, 20, 5020. [Google Scholar] [CrossRef] [Green Version]
  45. Komura, T.; Ikeda, T.; Yasui, C.; Saeki, S.; Nishikawa, Y. Mechanism underlying prolongevity induced by bifidobacteria in Caenorhabditis elegans. Biogerontology 2013, 14, 73–87. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Mathew, R.; Pal Bhadra, M.; Bhadra, U. Insulin/insulin-like growth factor-1 signalling (IIS) based regulation of lifespan across species. Biogerontology 2017, 18, 35–53. [Google Scholar] [CrossRef] [PubMed]
  47. Tissenbaum, H.A. Using C. elegans for aging research. Invertebr. Reprod. Dev. 2015, 59, 59–63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Upadhyay, A.; Chompoo, J.; Taira, N.; Fukuta, M.; Tawata, S. Significant longevity-extending effects of Alpinia zerumbet leaf extract on the life span of Caenorhabditis elegans. Biosci. Biotechnol. Biochem. 2013, 77, 217–223. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Zhao, Y.; Zhao, L.; Zheng, X.; Fu, T.; Guo, H.; Ren, F. Lactobacillus salivarius strain FDB89 induced longevity in Caenorhabditis elegans by dietary restriction. J. Microbiol. 2013, 51, 183–188. [Google Scholar] [CrossRef]
  50. Ayala, F.R.; Bauman, C.; Cogliati, S.; Leñini, C.; Bartolini, M.; Grau, R. Microbial flora, probiotics, Bacillus subtilis and the search for a long and healthy human longevity. Microb. Cell 2017, 4, 133–136. [Google Scholar] [CrossRef]
  51. Gasbarrini, G.; Bonvicini, F.; Gramenzi, A. Probiotics history. J. Clin. Gastroenterol. 2016, 50 (Suppl. 2), S116–S119. [Google Scholar] [CrossRef]
  52. Vasiljevic, T.; Shah, N.P. Probiotics—From Metchnikoff to bioactives. Int. Dairy J. 2008, 18, 714–728. [Google Scholar] [CrossRef]
  53. Kwon, G.; Lee, J.; Lim, Y.-H. Dairy Propionibacterium extends the mean lifespan of Caenorhabditis elegans via activation of the innate immune system. Sci. Rep. 2016, 6, 31713. [Google Scholar] [CrossRef]
  54. Troemel, E.R.; Chu, S.W.; Reinke, V.; Lee, S.S.; Ausubel, F.M.; Kim, D.H. p38 MAPK regulates expression of immune response genes and contributes to longevity in C. elegans. PLoS Genet. 2006, 2, e183. [Google Scholar] [CrossRef]
  55. Zhao, L.; Zhao, Y.; Liu, R.; Zheng, X.; Zhang, M.; Guo, H.; Zhang, H.; Ren, F. The Transcription factor DAF-16 is essential for increased longevity in C. elegans exposed to Bifidobacterium longum BB68. Sci. Rep. 2017, 7, 7408. [Google Scholar] [CrossRef] [PubMed]
  56. Collado, M.C.; Isolauri, E.; Salminen, S.; Sanz, Y. The impact of probiotic on gut health. Curr. Drug Metab. 2009, 10, 68–78. [Google Scholar] [CrossRef] [PubMed]
  57. Collado, M.C.; Gueimonde, M.; Sanz, Y.; Salminen, S. Adhesion properties and competitive pathogen exclusion ability of bifidobacteria with acquired acid resistance. J. Food Prot. 2006, 69, 1675–1679. [Google Scholar] [CrossRef]
  58. Collado, M.C.; Meriluoto, J.; Salminen, S. Development of new probiotics by strain combinations: Is it possible to improve the adhesion to intestinal mucus? J. Dairy Sci. 2007, 90, 2710–2716. [Google Scholar] [CrossRef] [PubMed]
  59. Lee, S.M.; Donaldson, G.P.; Mikulski, Z.; Boyajian, S.; Ley, K.; Mazmanian, S.K. Bacterial colonization factors control specificity and stability of the gut microbiota. Nature 2013, 501, 426–429. [Google Scholar] [CrossRef] [Green Version]
  60. Ahimou, F.; Paquot, M.; Jacques, P.; Thonart, P.; Rouxhet, P.G. Influence of electrical properties on the evaluation of the surface hydrophobicity of Bacillus subtilis. J. Microbiol. Methods 2001, 45, 119–126. [Google Scholar] [CrossRef]
  61. Khan, M.W.; Zadeh, M.; Bere, P.; Gounaris, E.; Owen, J.; Klaenhammer, T.; Mohamadzadeh, M. Modulating intestinal immune responses by lipoteichoic acid-deficient Lactobacillus acidophilus. Immunotherapy 2012, 4, 151–161. [Google Scholar] [CrossRef] [Green Version]
  62. Gonzales-Siles, L.; Karlsson, R.; Schmidt, P.; Salvà-Serra, F.; Jaén-Luchoro, D.; Skovbjerg, S.; Moore, E.R.B.; Gomila, M. A pangenome approach for discerning species-unique gene markers for identifications of Streptococcus pneumoniae and Streptococcus pseudopneumoniae. Front. Cell Infect. Microbiol. 2020, 10, 222. [Google Scholar] [CrossRef]
  63. Balaev, V.V.; Prokofev, I.I.; Gabdoulkhakov, A.G.; Betzel, C.; Lashkov, A.A. Crystal structure of pyrimidine-nucleoside phosphorylase from Bacillus subtilis in complex with imidazole and sulfate. Acta Cryst. F Struct. Biol. Commun. 2018, 74, 193–197. [Google Scholar] [CrossRef]
  64. Thomas, M.; Wrzosek, L.; Ben-Yahia, L.; Noordine, M.-L.; Gitton, C.; Chevret, D.; Langella, P.; Mayeur, C.; Cherbuy, C.; Rul, F. Carbohydrate metabolism is essential for the colonization of Streptococcus thermophilus in the digestive tract of gnotobiotic rats. PLoS ONE 2011, 6, e28789. [Google Scholar] [CrossRef] [Green Version]
  65. Chen, C.; Zhao, G.; Chen, W.; Guo, B. Metabolism of fructooligosaccharides in Lactobacillus plantarum ST-III via differential gene transcription and alteration of cell membrane fluidity. Appl. Environ. Microbiol. 2015, 81, 7697–7707. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Rattanaprasert, M.; van Pijkeren, J.-P.; Ramer-Tait, A.E.; Quintero, M.; Kok, C.R.; Walter, J.; Hutkins, R.W. Genes involved in galactooligosaccharide metabolism in Lactobacillus reuteri and their ecological role in the gastrointestinal tract. Appl. Environ. Microbiol. 2019, 85. [Google Scholar] [CrossRef] [PubMed]
  67. Kleerebezem, M. Quorum sensing control of lantibiotic production; nisin and subtilin autoregulate their own biosynthesis. Peptides 2004, 25, 1405–1414. [Google Scholar] [CrossRef] [PubMed]
  68. Siegers, K.; Heinzmann, S.; Entian, K.-D. Biosynthesis of lantibiotic nisin posttranslational modification of its prepeptide occurs at a multimeric membrane-associated lanthionine synthetase complex. J. Biol. Chem. 1996, 271, 12294–12301. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Velho, R.V.; Basso, A.P.; Segalin, J.; Costa-Medina, L.F.; Brandelli, A. The presence of sboA and spaS genes and antimicrobial peptides subtilosin A and subtilin among Bacillus strains of the Amazon basin. Genet. Mol. Biol. 2013, 36, 101–104. [Google Scholar] [CrossRef] [Green Version]
  70. Qiao, J.Q.; Tian, D.W.; Huo, R.; Wu, H.J.; Gao, X.W. Functional analysis and application of the cryptic plasmid pBSG3 harboring the RapQ-PhrQ system in Bacillus amyloliquefaciens B3. Plasmid 2011, 65, 141–149. [Google Scholar] [CrossRef] [PubMed]
  71. Fan, X.; Zhang, X.; Zhu, Y.; Niu, L.; Teng, M.; Sun, B.; Li, X. Structure of the DNA-binding domain of the response regulator SaeR from Staphylococcus aureus. Acta Cryst D 2015, 71, 1768–1776. [Google Scholar] [CrossRef]
  72. Yan, L.; Liu, G.; Zhao, B.; Pang, B.; Wu, W.; Ai, C.; Zhao, X.; Wang, X.; Jiang, C.; Shao, D.; et al. Novel biomedical functions of surfactin A from Bacillus subtilis in wound healing promotion and scar inhibition. J. Agric. Food Chem. 2020, 68, 6987–6997. [Google Scholar] [CrossRef]
  73. Wang, S.; Ye, Q.; Wang, K.; Zeng, X.; Huang, S.; Yu, H.; Ge, Q.; Qi, D.; Qiao, S. Enhancement of macrophage function by the antimicrobial peptide sublancin protects mice from methicillin-resistant Staphylococcus aureus. J. Immunol. Res. 2019, 2019, 3979352. [Google Scholar] [CrossRef] [Green Version]
  74. Di Luccia, B.; D’Apuzzo, E.; Varriale, F.; Baccigalupi, L.; Ricca, E.; Pollice, A. Bacillus megaterium SF185 induces stress pathways and affects the cell cycle distribution of human intestinal epithelial cells. Benef. Microbes 2016, 7, 609–620. [Google Scholar] [CrossRef] [Green Version]
  75. Park, K.-Y.; Jung, K.-O.; Rhee, S.-H.; Choi, Y.H. Antimutagenic effects of doenjang (Korean fermented soypaste) and its active compounds. Mutat. Res. 2003, 523–524, 43–53. [Google Scholar] [CrossRef]
Foods 09 01805 g001 550

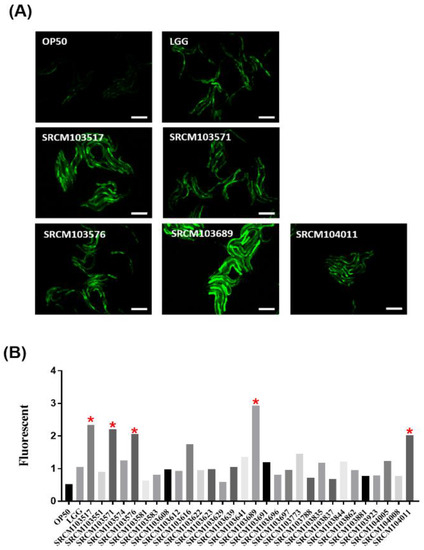

Figure 1. Induction of pmk-1::GFP exposed to candidate probiotics. (A) GFP visualization was assessed in the L4 stage of AY102 worms exposed to bacterial strains for 24 h. Animals integrated with the pmk-1::GFP transgene were visualized by fluorescence microscopy. The scale bar indicates 1 mm. (B) The degree of expression was measured using the ImageJ program and was then divided by the number of worms. Bacillus subtilis SRCM103689 showed the highest expression rate among the candidate strains. Red stars indicate five Bacillus subtilis strains showing high expression rate among the candidate strains.
Figure 1. Induction of pmk-1::GFP exposed to candidate probiotics. (A) GFP visualization was assessed in the L4 stage of AY102 worms exposed to bacterial strains for 24 h. Animals integrated with the pmk-1::GFP transgene were visualized by fluorescence microscopy. The scale bar indicates 1 mm. (B) The degree of expression was measured using the ImageJ program and was then divided by the number of worms. Bacillus subtilis SRCM103689 showed the highest expression rate among the candidate strains. Red stars indicate five Bacillus subtilis strains showing high expression rate among the candidate strains.
Foods 09 01805 g001
Foods 09 01805 g002 550

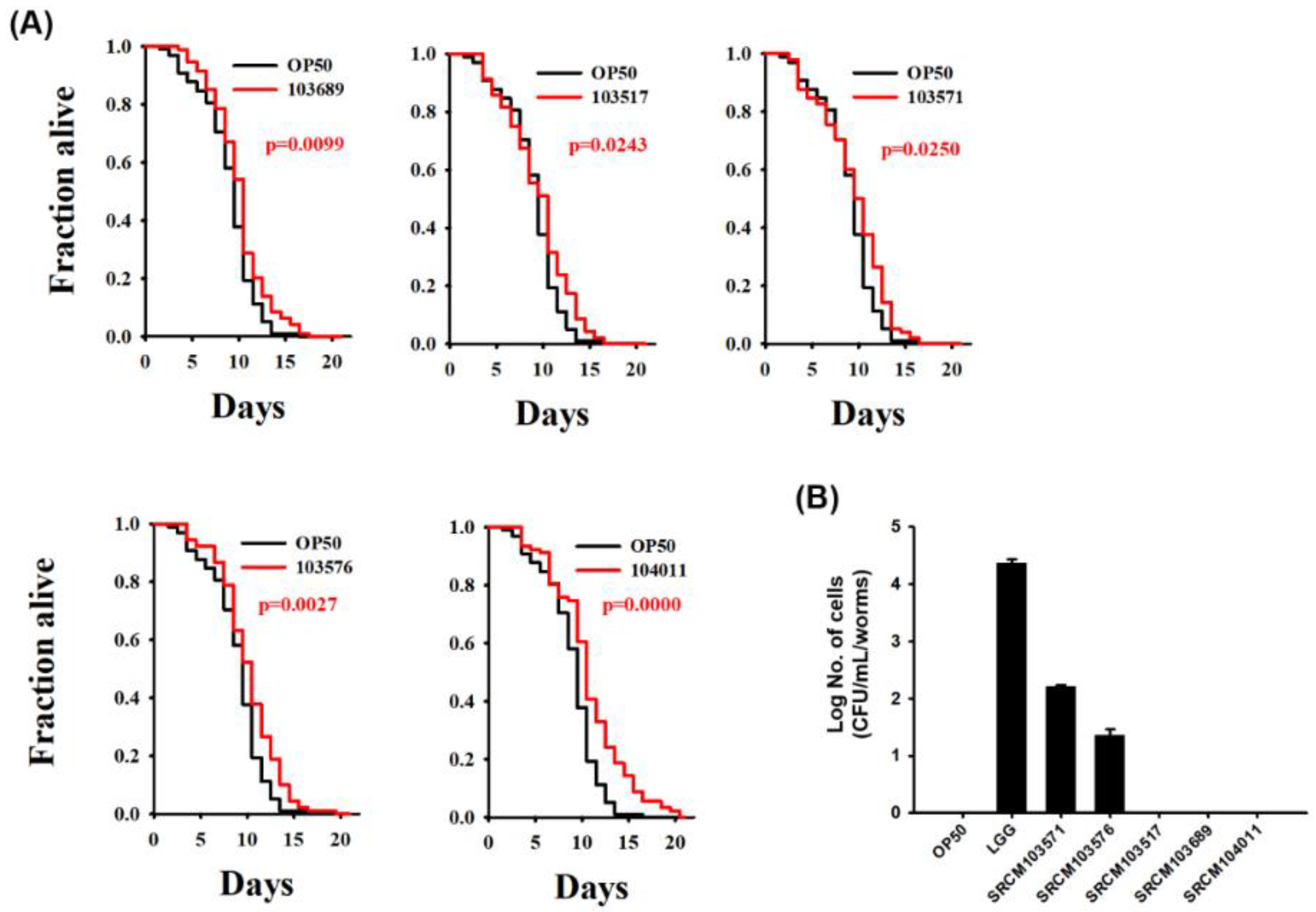

Figure 2. Anti-aging effects (A) and persistence (B) of selected Bacillus subtilis strains in C. elegans. (A) Survival statistics of B. subtilis were compared with the worms exposed to E. coli OP50, with p = 0.0243 for SRCM103517, p = 0.0250 for SRCM103571, p = 0.0027 for SRCM103576, p = 0.0099 for SRCM103689, and p = 0.0000 for SRCM104011, analyzed by Kaplan–Meier analysis. (B) After C. elegans was exposed to bacteria for 24 h, the ability of the bacteria to attach to the nematode intestine was confirmed. Data are presented as the mean ± SD of three experiments. The error bars represent the standard deviation.
Figure 2. Anti-aging effects (A) and persistence (B) of selected Bacillus subtilis strains in C. elegans. (A) Survival statistics of B. subtilis were compared with the worms exposed to E. coli OP50, with p = 0.0243 for SRCM103517, p = 0.0250 for SRCM103571, p = 0.0027 for SRCM103576, p = 0.0099 for SRCM103689, and p = 0.0000 for SRCM104011, analyzed by Kaplan–Meier analysis. (B) After C. elegans was exposed to bacteria for 24 h, the ability of the bacteria to attach to the nematode intestine was confirmed. Data are presented as the mean ± SD of three experiments. The error bars represent the standard deviation.
Foods 09 01805 g002
Foods 09 01805 g003 550

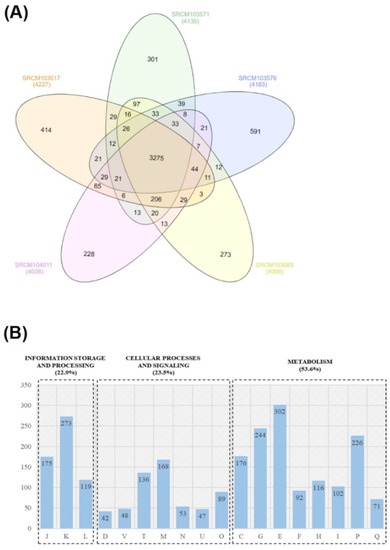

Figure 3. Venn diagram of pangenome analysis results using selected B. subtilis strains from Korean traditional fermented food. (A) Venn diagram of pangenome analysis results using 5 B. subtilis strains from Korea traditional fermented food. (B) Core genes of B. subtilis 5 strains from Korea using the COG database. J, Translation, ribosomal structure, and biogenesis; K, Transcription; L, Replication, recombination, and repair; D, Cell cycle control, cell division, and chromosome partitioning; V, Defense mechanisms; T, Signal transduction mechanisms; M, Cell wall/membrane/envelope biogenesis; N, Cell motility; O, Posttranslational modification, protein turnover, and chaperones; C, Energy production and conversion; G, Carbohydrate transport and metabolism; E, Amino acid transport and metabolism; F, Nucleotide transport and metabolism; H, Coenzyme transport and metabolism; I, Lipid transport and metabolism; P, Inorganic ion transport and metabolism; Q, Secondary metabolite biosynthesis, transport, and catabolism.
Figure 3. Venn diagram of pangenome analysis results using selected B. subtilis strains from Korean traditional fermented food. (A) Venn diagram of pangenome analysis results using 5 B. subtilis strains from Korea traditional fermented food. (B) Core genes of B. subtilis 5 strains from Korea using the COG database. J, Translation, ribosomal structure, and biogenesis; K, Transcription; L, Replication, recombination, and repair; D, Cell cycle control, cell division, and chromosome partitioning; V, Defense mechanisms; T, Signal transduction mechanisms; M, Cell wall/membrane/envelope biogenesis; N, Cell motility; O, Posttranslational modification, protein turnover, and chaperones; C, Energy production and conversion; G, Carbohydrate transport and metabolism; E, Amino acid transport and metabolism; F, Nucleotide transport and metabolism; H, Coenzyme transport and metabolism; I, Lipid transport and metabolism; P, Inorganic ion transport and metabolism; Q, Secondary metabolite biosynthesis, transport, and catabolism.
Foods 09 01805 g003
Foods 09 01805 g004 550

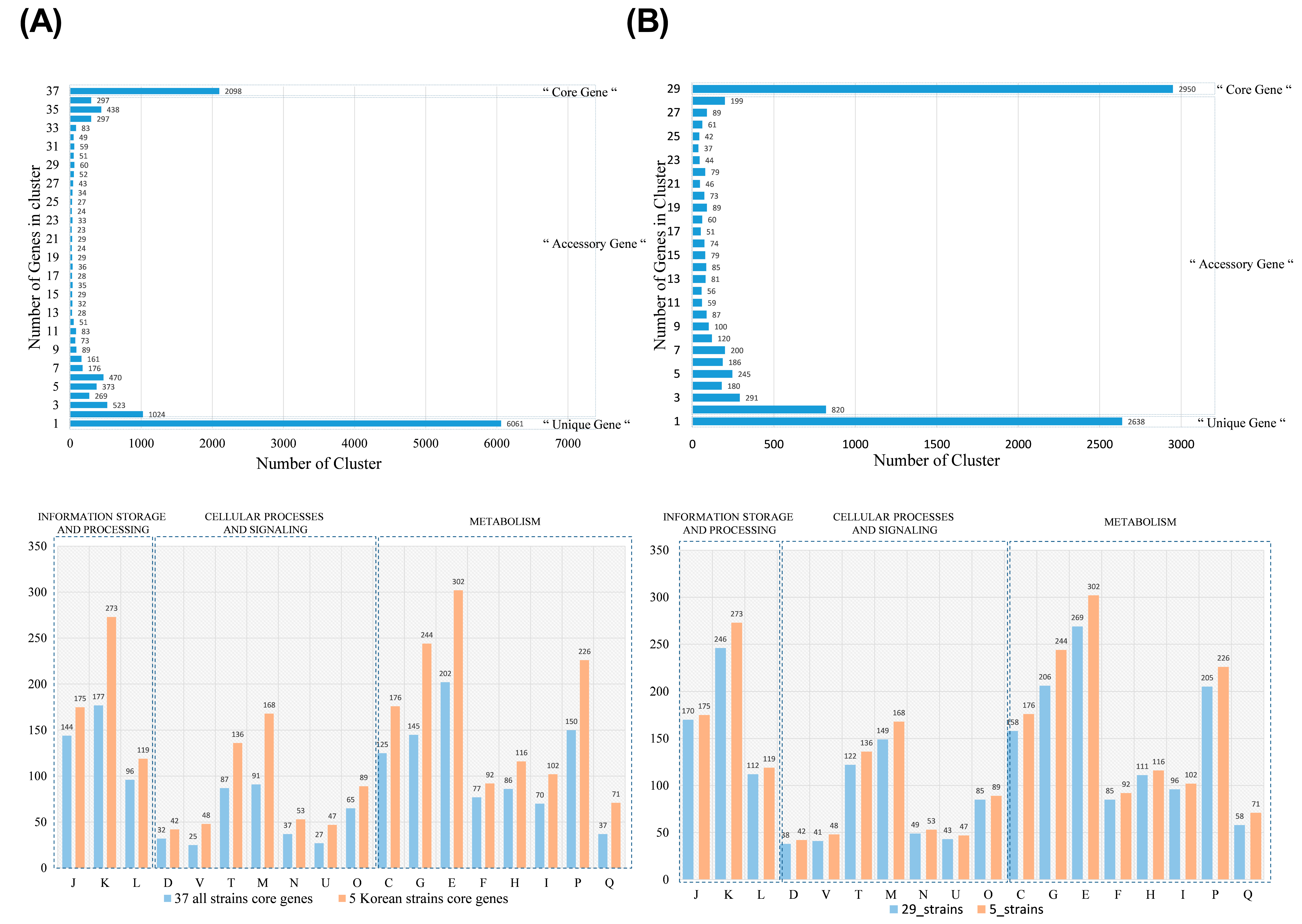

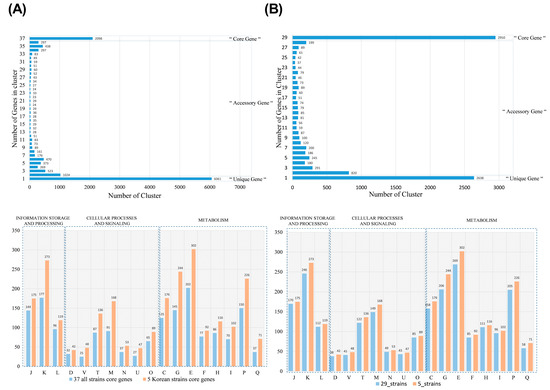

Figure 4. Pangenome analysis results using B. subtilis strains available with complete genome sequences in NCBI with selected B. subtilis strains from Korean traditional fermented food. (A) Upper: Pangenome analysis results using 32 B. subtilis strains available with complete genome sequences in NCBI and 5 strains from Korea in this study. Lower: Core genes of selected B. subtilis 5 strains from Korea and all 37 strains using the COG database. (B) Upper: Pangenome analysis results using 24 B. subtilis strains from Korea in another study available with complete genome sequences in NCBI and 5 strains from Korea in this study. Lower: Core genes of 5 B. subtilis strains from Korea in this study and all 29 strains from Korea in this and other studies using the COG database. J, Translation, ribosomal structure, and biogenesis; K, Transcription; L, Replication, recombination, and repair; D, Cell cycle control, cell division, and chromosome partitioning; V, Defense mechanisms; T, Signal transduction mechanisms; M, Cell wall/membrane/envelope biogenesis; N, Cell motility; O, Posttranslational modification, protein turnover, and chaperones; C, Energy production and conversion; G, Carbohydrate transport and metabolism; E, Amino acid transport and metabolism; F, Nucleotide transport and metabolism; H, Coenzyme transport and metabolism; I, Lipid transport and metabolism; P, Inorganic ion transport and metabolism; Q, Secondary metabolite biosynthesis, transport, and catabolism.
Figure 4. Pangenome analysis results using B. subtilis strains available with complete genome sequences in NCBI with selected B. subtilis strains from Korean traditional fermented food. (A) Upper: Pangenome analysis results using 32 B. subtilis strains available with complete genome sequences in NCBI and 5 strains from Korea in this study. Lower: Core genes of selected B. subtilis 5 strains from Korea and all 37 strains using the COG database. (B) Upper: Pangenome analysis results using 24 B. subtilis strains from Korea in another study available with complete genome sequences in NCBI and 5 strains from Korea in this study. Lower: Core genes of 5 B. subtilis strains from Korea in this study and all 29 strains from Korea in this and other studies using the COG database. J, Translation, ribosomal structure, and biogenesis; K, Transcription; L, Replication, recombination, and repair; D, Cell cycle control, cell division, and chromosome partitioning; V, Defense mechanisms; T, Signal transduction mechanisms; M, Cell wall/membrane/envelope biogenesis; N, Cell motility; O, Posttranslational modification, protein turnover, and chaperones; C, Energy production and conversion; G, Carbohydrate transport and metabolism; E, Amino acid transport and metabolism; F, Nucleotide transport and metabolism; H, Coenzyme transport and metabolism; I, Lipid transport and metabolism; P, Inorganic ion transport and metabolism; Q, Secondary metabolite biosynthesis, transport, and catabolism.
Foods 09 01805 g004
Table
Table 1. Newly isolated Bacillus subtilis-specific genes that are not present in Chinese and Japanese strains.
Table 1. Newly isolated Bacillus subtilis-specific genes that are not present in Chinese and Japanese strains.
GeneGene DescriptionStrains
deoAThymidine phosphorylaseSRCM103571, SRCM103689
haeIIIM_2Modification methylase HaeIIISRCM103571, SRCM103689
vgbVirginiamycin B lyaseSRCM103517, SRCM103689, SRCM104011
vsrVery short patch repair proteinSRCM103571, SRCM103689
group_6918Response regulator aspartate phosphatase ISRCM103571, SRCM104011
group_16459Chromosomal replication initiator protein DnaASRCM103517, SRCM103571
group_16672Competence pheromoneSRCM103571, SRCM103689
Table
Table 2. Newly isolated B. subtilis-specific genes that are not present in other strains isolated from Korean fermented products.
Table 2. Newly isolated B. subtilis-specific genes that are not present in other strains isolated from Korean fermented products.
GeneGene DescriptionStrains
comXCompetence pheromoneSRCM103571, SRCM103689
tagU_1Polyisoprenyl-teichoic acid--peptidoglycan teichoic acid transferase TagUSRCM103517, SRCM103571, SRCM103689, SRCM104011
cscBSucrose permeaseSRCM103571, SRCM103689
lacF_2Lactose transport system permease protein LacFSRCM103571, SRCM103689
lacGLactose transport system permease protein LacGSRCM103571, SRCM103689
maa_1Maltose O-acetyltransferaseSRCM103571, SRCM103689
nisBNisin biosynthesis protein NisBSRCM103571, SRCM103689
nisC_2Nisin biosynthesis protein NisCSRCM103571, SRCM103689
rapIResponse regulator aspartate phosphatase ISRCM103517, SRCM104011
sacASucrose-6-phosphate hydrolaseSRCM103571, SRCM103689
saeRResponse regulator SaeRSRCM103517, SRCM104011
scrK_2FructokinaseSRCM103517, SRCM104011
spaSLantibiotic subtilinSRCM103571, SRCM103689
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Choi, H.J.; Shin, D.; Shin, M.; Yun, B.; Kang, M.; Yang, H.-J.; Jeong, D.-Y.; Kim, Y.; Oh, S. Comparative Genomic and Functional Evaluations of Bacillus subtilis Newly Isolated from Korean Traditional Fermented Foods. Foods 2020, 9, 1805. https://doi.org/10.3390/foods9121805

AMA Style

Choi HJ, Shin D, Shin M, Yun B, Kang M, Yang H-J, Jeong D-Y, Kim Y, Oh S. Comparative Genomic and Functional Evaluations of Bacillus subtilis Newly Isolated from Korean Traditional Fermented Foods. Foods. 2020; 9(12):1805. https://doi.org/10.3390/foods9121805

Chicago/Turabian Style

Choi, Hye Jin, Donghyun Shin, Minhye Shin, Bohyun Yun, Minkyoung Kang, Hee-Jong Yang, Do-Youn Jeong, Younghoon Kim, and Sangnam Oh. 2020. "Comparative Genomic and Functional Evaluations of Bacillus subtilis Newly Isolated from Korean Traditional Fermented Foods" Foods 9, no. 12: 1805. https://doi.org/10.3390/foods9121805

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
