  • Systematic Review
  • Open Access

23 January 2025

The Early Exposure Rate and Vertical Bone Gain of Titanium Mesh for Maxillary Bone Regeneration: A Systematic Review and Meta-Analysis

,
,
,
and
1
Department of Innovative Technologies in Medicine & Dentistry, University of Chieti-Pescara, 66100 Chieti, Italy
2
Department of Research, Bioface/PgO/UCAM, Montevideo 11100, Uruguay
*
Author to whom correspondence should be addressed.
Dent. J.2025, 13(2), 52;https://doi.org/10.3390/dj13020052
This article belongs to the Topic Oral Health Management and Disease Treatment
Version Notes
Order Reprints
Review Reports

Abstract

Background/Objectives: The use of titanium meshes in bone regeneration is a clinical procedure that regenerates bone defects by ensuring graft stability and biocompatibility. The aim of the present investigation was to evaluate the clinical effectiveness of titanium mesh procedures in terms of vertical bone gain and the exposure rate. Methods: The product screening and eligibility analysis were performed using the Pubmed/MEDLINE, EMBASE, and Google Scholar electronic databases by two authors. The selected articles were classified based on the study design, regenerative technique, tested groups and materials, sample size, clinical findings, and follow-up. A risk of bias calculation was conducted on the selected randomized controlled trials (RCTs) and non-randomized trials and a series of pairwise meta-analysis calculations were performed for the vertical bone gain (VBG) and exposure rate. A significantly lower exposure rate was observed using coronally advanced lingual flaps (p < 0.05). No difference was observed between the titanium mesh and GBR techniques in terms of VBG (p > 0.05). Results: The initial search output 288 articles, and 164 papers were excluded after the eligibility analysis. The descriptive synthesis considered a total of 97 papers and 6 articles were considered for the pairwise comparison. Conclusions: Within the limits of the present investigation, the titanium mesh procedure reported high VBG values after the healing period. The mesh exposure rate was drastically lower with passive management of the surgical flap.

1. Introduction

The treatment of severe bone ridge atrophies represents a complex clinical challenge in oral surgery due to the dysmorphic alteration of the oral tissues and the loss of support for implant rehabilitation [1,2,3]. Alveolar bone defects are commonly due to the loss of teeth, and from dentofacial traumas, neoplasms, and cyst expansion and removal defects, while the resorption rate could be severely increased other factors including infections and passive loading by an incongruous prosthesis [4,5]. On the other hand, different resorption patterns have been described between the horizontal and vertical components of the bone ridges of both the mandibular and maxillary ridges [2,4,5,6,7]. For this purpose, several different bone augmentation procedures for increasing the bone volume have been purposed including inlay/onlay bone grafts, bone distraction, guided bone regeneration, and titanium meshes [8,9,10,11]. Guided bone augmentation procedures are accomplished using the creation of a regenerative space based on scaffold positioning to stabilize the blood clot [12]. The addition of a covering made of collagen membranes has been used to compartmentalize the oral tissue components to restore the oral tissues’ anatomical morphology [6,13]. In the literature, this is described as the application of a non-resorbable membrane (i.e., polytetrafluoroethylene (PTFE)) or resorbable membrane (i.e., collagen) [14,15,16]. Historically, non-resorbable and titanium-reinforced membranes were used for guided bone regeneration procedures in the late 1980s due to their high mechanical stability and ability to maintain spaces [17]. Limitations of this technique include the necessity for a second surgery to remove the mesh and the tendency for exposure during the healing period [17]. Titanium meshes are a space-making device that have been used for the treatment of complex vertical defects due to the addition of a bone graft [11]. The theoretical advantage of titanium meshes is the presence of pores, which are able to create a favorable environment for the vascular sustenance and integration of the core graft [11,18]. Another interesting characteristic is the documented high biocompatibility of titanium, which prevents foreign body reactions and reduces the failure rate of the procedure [11,19]. Mechanically, the mesh is characterized by a high ductility due to the adaptation of the device to the bone defect area [11,19]. In addition, the device rigidity is able to guarantee a regenerative space during the healing phase and the graft integration process [11,19]. In the literature, the customization of titanium meshes through CAD/CAM has been used to increase the stability of regenerative devices and the on-chair procedure duration [20,21,22]. However, titanium meshes are technically sensitive and they are not free from complications. In fact, the main source of titanium mesh failure is from exposure of the mesh during the healing period, combined with contamination of the bone graft, which often irreversibly compromises the regenerative procedure [23]. The aim of the present systematic review was to investigate the clinical effectiveness of titanium meshes in bone regeneration procedures.

2. Materials and Methods

2.1. Screening of Scientific Articles

The literature search was performed following the criteria of the PICO guidelines (population, intervention, comparison, and outcome), as shown in Table 1. The data collected from the systematic search were processed in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines. The present review was registered in the PROSPERO database (CRD42024585970). The Boolean search was carried out according to the strategy described in Table 2 and performed on the PubMed, EMBASE, and Google Scholar electronic databases (10 June 2024).
Table 1. Summary of the PICO (population, intervention, comparison, and outcome) model.
Table 2. Screening strategy using Boolean search.

2.2. Inclusion and Exclusion Criteria

In the initial screening phase, the identified studies were assessed based on the following inclusion criteria: human clinical trials, prospective or retrospective studies, case series or case reports, with no restriction on follow-up after surgical procedures or regarding the type of graft material mix used, and finally English-language papers.
The exclusion criteria were systematic literature reviews, editorial letters, in vitro studies, and animal studies. The evaluation of the manuscripts using the above criteria was performed for the purpose of including them in the eligibility analysis.

2.3. Screening Process

Two expert reviewers (FL and IA) independently and blindly performed the selection and screening of articles in order to identify scientific articles for the analysis processes. However, the articles that were excluded from the research work according to the criteria are reported in the paper as well as the justification for their exclusion.

2.4. Data Analysis

A database was specifically created using Excel software (Microsoft, Redmond, WA, USA) to enter the data collected from the included scientific studies. The collected data were classified according to the following characteristics: study design, sample size, regenerative technique, complications, biomaterial/resorbable membrane type, surgical flap technique, and follow-up.

2.5. Outcome Measures

The outcome measures considered for the data analysis were the occurrence of flap exposure during the bone regeneration healing period (<6 months), and the vertical bone height and horizontal bone gains calculated at the follow-up using computed tomography assessments.

2.6. Risk of Bias Assessment (RoB)

An RoB analysis was performed according to the OHAT Guidelines and Risk of Bias Rating Tool for Human and Animal Studies using Rev Man 5.5 (The Nordic Cochrane Centre, The Cochrane Collaboration, Copenhagen, 2014). Only the trials included for the meta-analysis process were submitted to the risk of bias assessment [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30]. The following guideline criteria were applied: randomization sequence, allocation concealment, blinding participants, blinding outcomes, incomplete outcome data, selective reporting, and other biases. The RoB parameters were classified as adequate, unclear, or inadequate. The minimum RoB ratio was a total of 5/7 low risk (lr) indicators with/without unclear risk (ur) parameters. Otherwise, the articles were categorized as high risk (hr).

2.7. Meta-Analysis

A forest plot of the relative effects was generated to assess the consistency and the significance of the rankings. I2 < 40% was considered low heterogeneity. To guarantee valid pairwise comparisons, we selected studies with similar methodologies for further statistical calculations. Pairwise comparisons were performed for the titanium mesh group vs. membrane regeneration group and the coronally advanced lingual flap group vs. control group considering the site exposure and vertical bone gain (VBG) parameters. The exposure rate was expressed as an Odds Ratio (OR) and the VBG was expressed as the mean difference (MD).

3. Results

3.1. Screening Procedure

The search conducted using electronic databases (PubMed/Medline, EMBASE, and Google Scholar) found 288 articles. The search did not detect duplicates so the scientific articles were submitted for eligibility evaluation. A total of 164 articles were excluded from the synthesis process for reasons such as being off-topic (114 articles), being in a different language (15 publications), using an animal model (41 scientific articles), and being a literature review (21 papers). As a result of the careful selection, a total of 97 scientific articles were included in the descriptive analysis and 6 articles were considered for the pairwise meta-analysis. This systematic literature review included retrospective case–control studies, prospective studies, cohort studies, case series and case reports, randomized controlled trials, non-RCTs, preliminary studies, and comparative studies (Figure 1; Table 2).

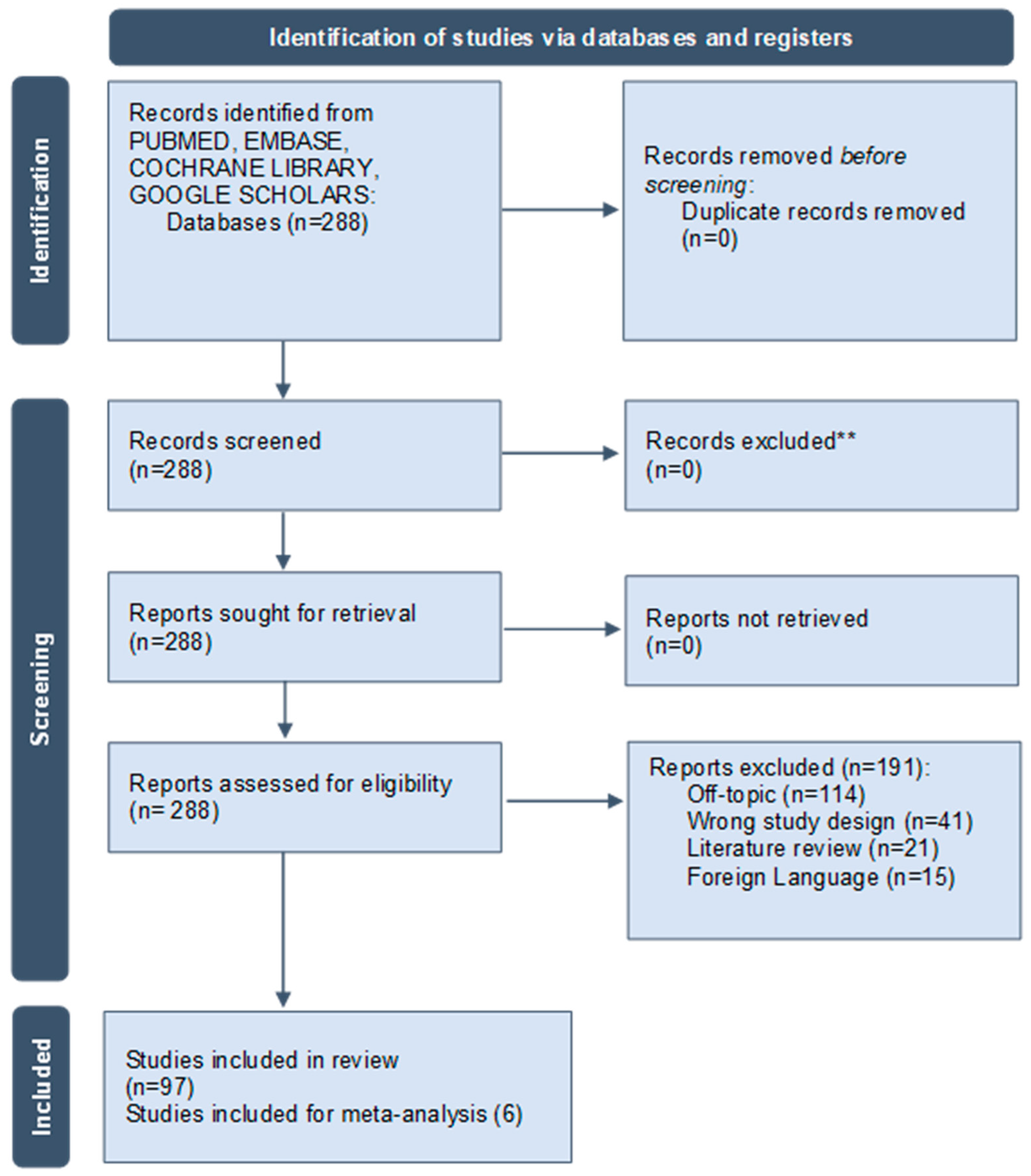

Figure 1. Screening flowchart for the investigated studies following the PRISMA guidelines. ** the step was performed by human with no automation tools.

3.2. Characteristics of the Included Studies

The descriptive synthesis reported that the most frequent grafts used for bone regeneration were autogenous bone and autogenous bone mixed with a heterologous bone graft. Some studies differed in the autogenous/heterologous mix ratio, which ranged from a ratio of 50:50 to 70:30 of autogenous bone and BBM (bovine bone mineral). The combination of platelet-rich plasma (PRP), collagen sponges (rhBMP-2 ÷ ACS), resorbable collagen membranes, and alloplastic materials mixed with a nano-bone graft was also reported (Table 3 and Table 4). The most frequent complication reported was mesh exposure that was correlated to a partial failure of the graft or, in some cases, a higher incidence of compromised bone grafts. Other reported complications were infection, total/partial bone resorption, temporary neurological disturbances, and implant failure. The follow-up results were heterogeneous since the follow-up time in the included studies ranged from 5 months to 20.5 years (Table 3 and Table 4).
Table 3. Studies included after the literature screening [RCT: randomized controlled trial; non-RCT: non-randomized controlled trial]. The synthesis was performed considering the regenerative methods, study model design, sample size, and test and control groups.
Table 4. Studies included after the literature screening. The synthesis was performed considering the technique, complications, bone graft study outcome, findings, and follow-up.

3.3. RoB Findings

The summary of the RoB assessment results is presented in Figure 2. According to the Cochrane Collaboration, most of the studies were considered to have a low risk of bias. According to the selection bias assessment, the findings were 71.4%lr and 28.6%hr regarding random sequence generation. The performance bias and detection bias analyses reported 28.6%lr and 71.4%ur for these studies. The attrition bias was 28.6%ur and 71.4%lr (Figure 3). A value of 100%lr was reported for the allocation concealment, selective reporting, and other biases.

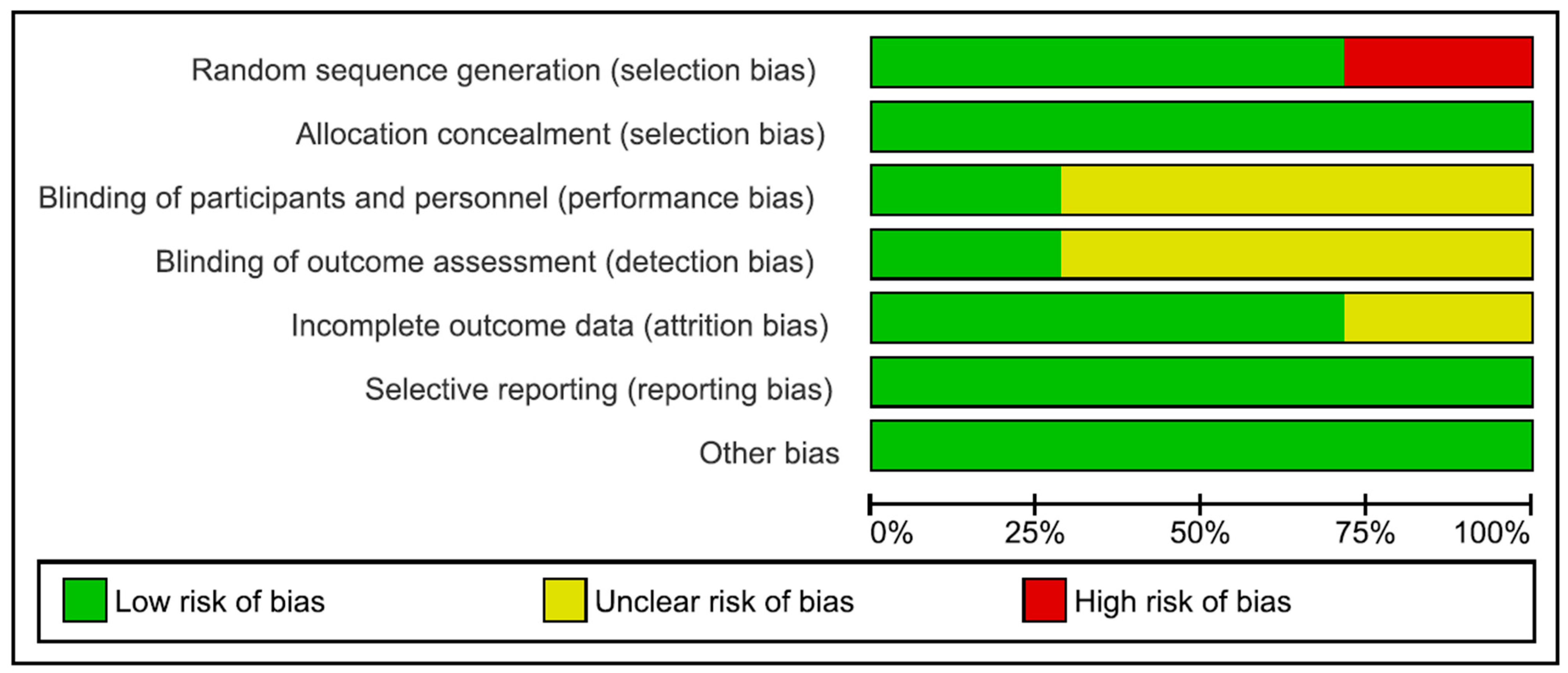

Figure 2. Risk of bias graph: review authors’ judgements about each risk of bias item, presented as percentages for all included studies.

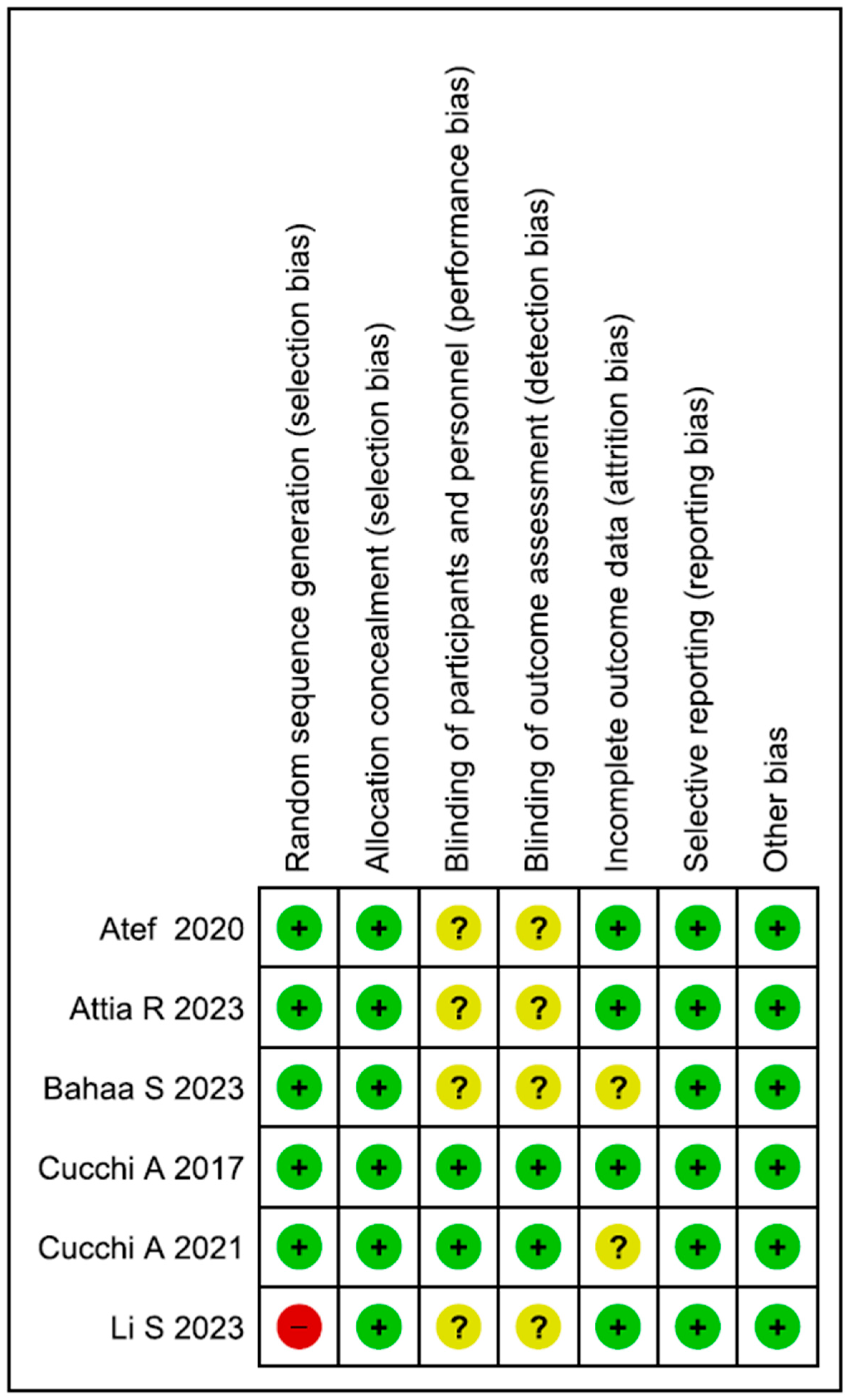

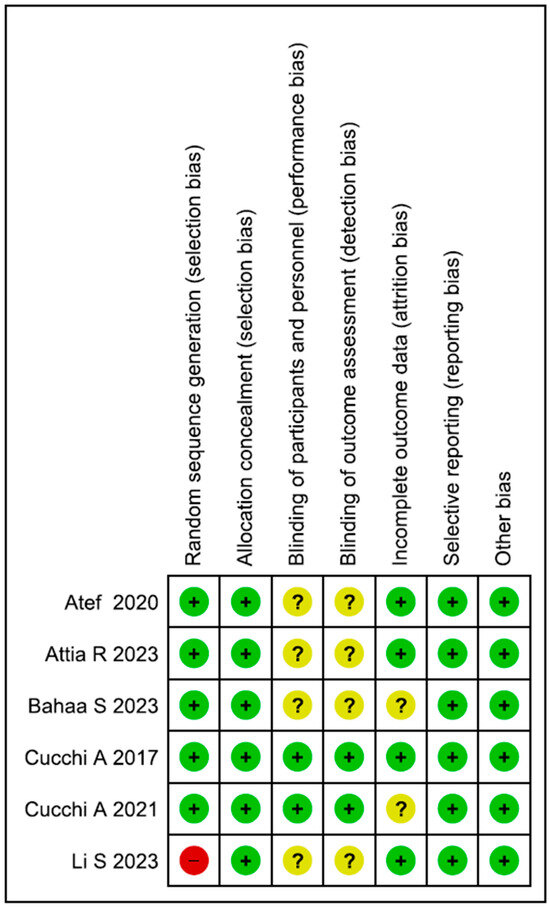

Figure 3. Risk of bias summary: review authors’ judgements about each risk of bias item for each included study [green light (+): low RoB; yellow light (?) uncertain RoB; red light (−): high RoB] [6,67,87,105,106,109].

3.4. Meta-Analysis Assessment

3.4.1. Titanium Mesh vs. Membrane GBR: Site Exposure

This assessment included four articles for a total of 130 participants (range: 20–40). The estimated effect was 2.56 [0.91; 7.20]. The heterogeneity test reported a Chi2 value of 0.91 and I2 of 0%. No significant differences between the study groups were reported in terms of exposure of the site during the healing period (p = 0.08) (Figure 4). The exposure ratio of the titanium mesh and GBR groups were, respectively, 21.53% and 9.23%.

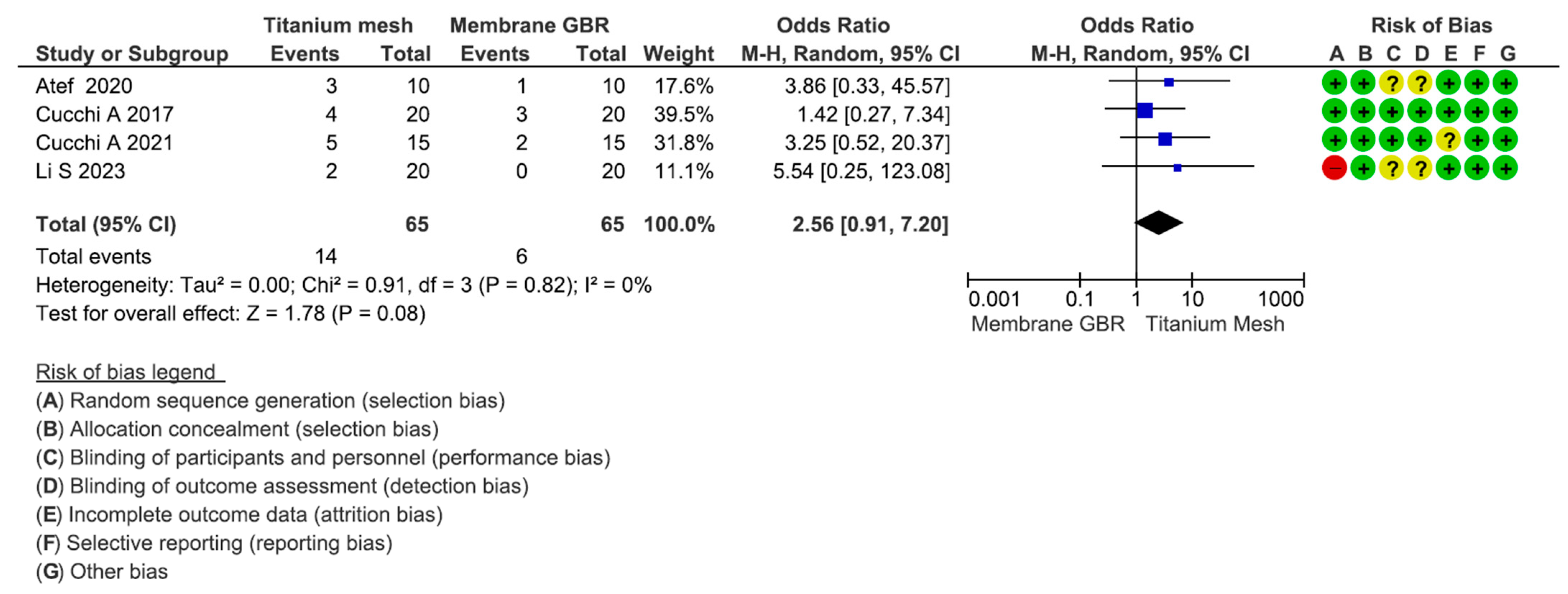

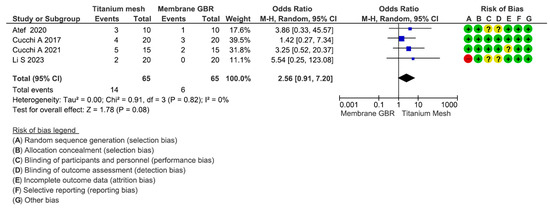

Figure 4. Forest plot of comparison of exposure outcome for mesh group vs. GBR group [6,67,87,109].

3.4.2. Titanium Mesh vs. Membrane GBR: Vertical Bone Gain (VBG)

This assessment included four articles for a total of 130 participants (range: 20–40). The estimated effect was −0.12 [−0.81; 0.58]. The heterogeneity test reported a Chi2 value of 6.43 and I2 of 53%. No significant differences between the study groups were reported in terms of the VBG (p = 0.74) (Figure 5). The mean VBG of the titanium mesh and GBR groups were, respectively, 4.22 ± 1.68 and 4.42 ± 1.18.

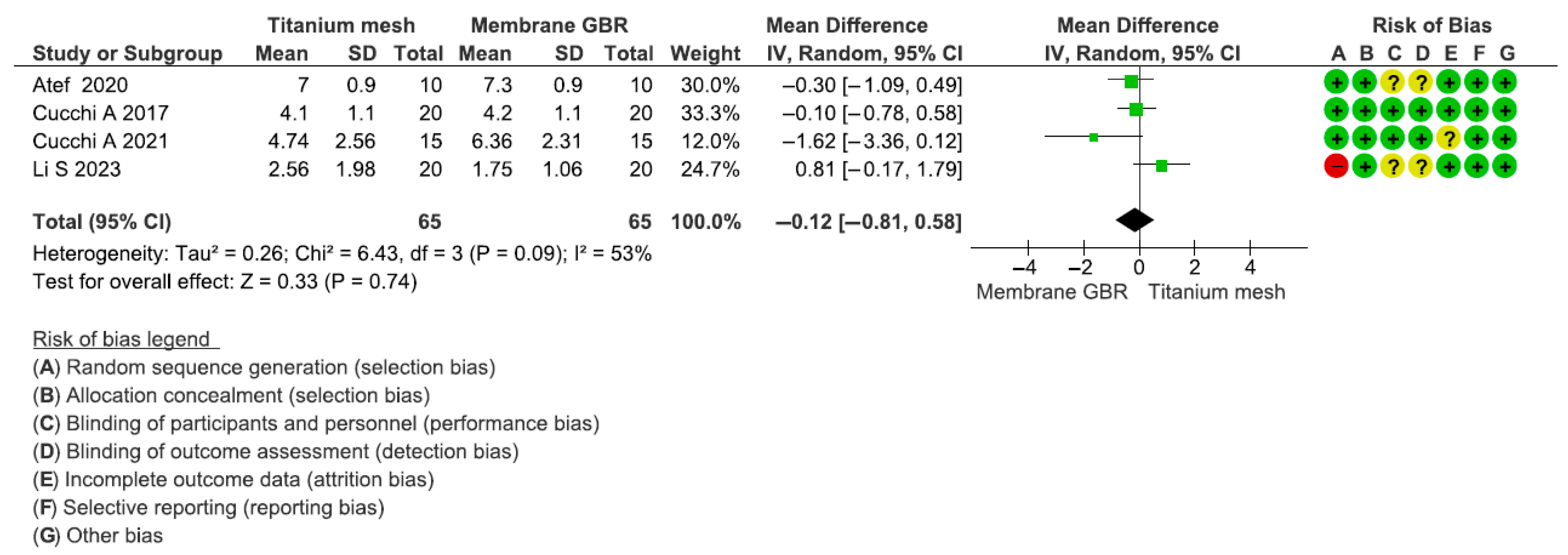

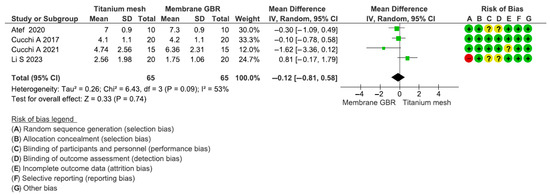

Figure 5. Forest plot of comparison of vertical bone gain outcome for mesh group vs. GBR group [6,67,87,109].

3.4.3. Coronally Advanced Lingual Flap Site Exposure

This assessment included two articles for a total of 54 participants (range: 14–40). The estimated effect was 0.10 [0.01; 0.94]. The heterogeneity test reported a Chi2 value of 0.66 and I2 of 0%. Significant differences between the study groups were reported in terms of the exposure of the site during the healing period (p = 0.04) (Figure 6). The exposure ratios of the coronally advanced lingual flap and control groups were, respectively, 0% and 43.2%.

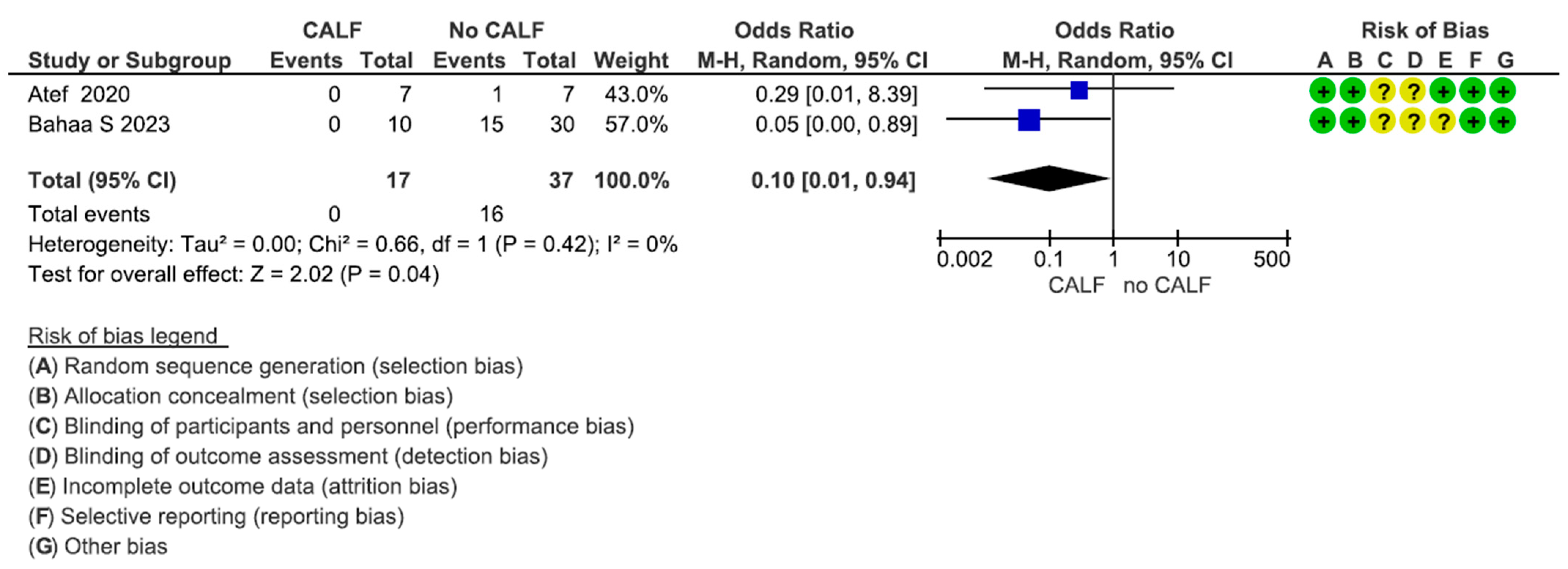

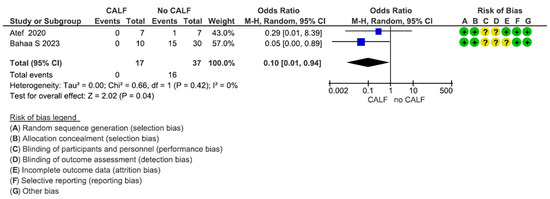

Figure 6. Forest plot of comparison of lingual flap release exposure [6,106].

3.4.4. Coronally Advanced Lingual Flap Vertical Bone Gain (VBG)

This assessment included two articles for a total of 54 participants (range: 14–40). The estimated effect was 0.91 [−0.89; 2.72]. The heterogeneity test reported a Chi2 value of 5.06 and I2 of 80%. No significant differences between the study groups were reported in terms of the VBG (p = 0.32) (Figure 7). The VBG of the coronally advanced lingual flap and control groups were, respectively, 3.68 ± 1.36 and 3.26 ± 1.47.

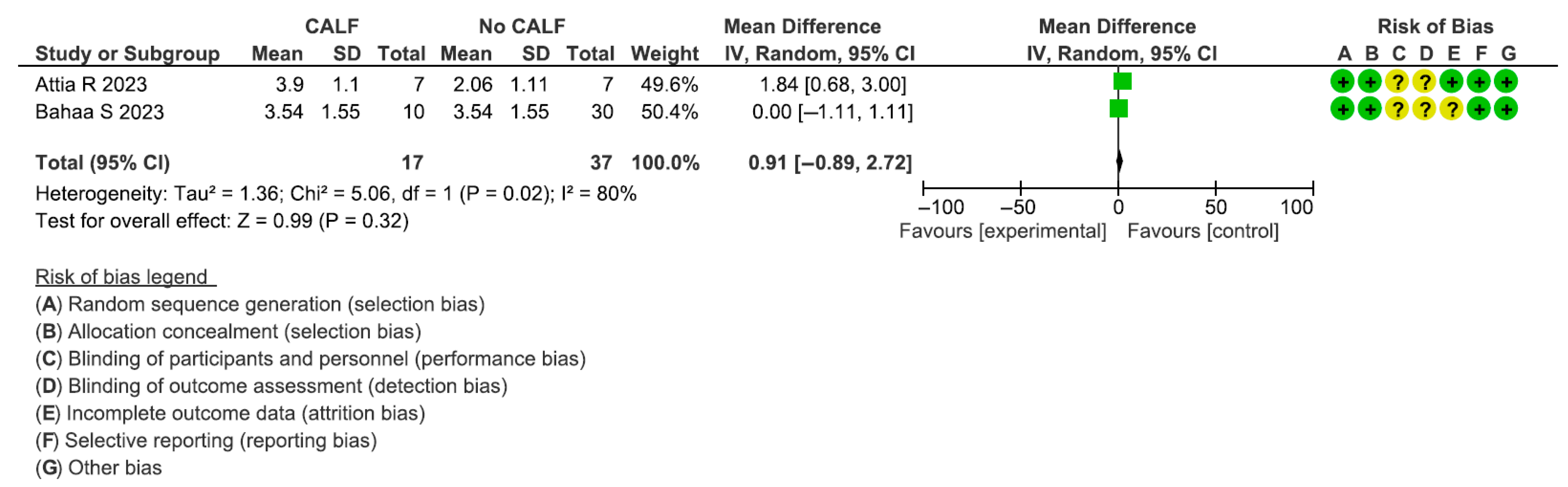

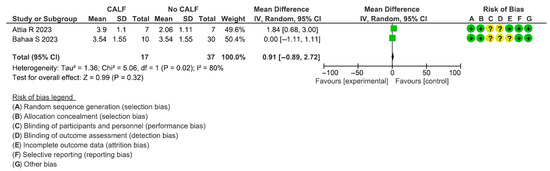

Figure 7. Forest plot of comparison of vertical bone gain (VBG) [105,106].

4. Discussion

The use of titanium mesh in the reconstruction of localized bone defects has been used with high reliability and very low exposure and complication rates [112]. Titanium mesh has been indicated for a wide range of clinical defects including peri-implant bone defects, maxillary atrophy, alveolar sockets, and periodontal defects, and for other therapeutic applications [90]. The literature documents its use in a small number of cases for more extensive defects that originate from neoplastic pathological processes, such as odontogenic keratocyst processes, and trauma treated with complete ostectomy, hemibulectomies, and completely disarticulated resections of mandible and mandibular rami [27,113]. There are documented cases of titanium mesh use in non-grafted sinus floor elevation [114]. Titanium meshes are high-performance devices with high biocompatibility; their the barrier effect can guide the healing processes in the absence of immune responses during healing [102]. The grids can be morphologically adapted to the defect which makes them highly specific and customizable; such customization can be achieved using laser sintering or CAD/CAM [102]. Titanium grids can be stabilized with microscrews on the sides of the membrane itself and can be equipped with holes that allow for a greater blood supply to the defect, bringing oxygen, nutrients, and immune cells into the defect, which are essential to ensure the success of osteogenesis. Studies have confirmed that macroporosity has effects on bone regeneration by ensuring a sufficient blood supply to the defect, stimulating osteogenesis due to the presence of the holes. It has been observed that titanium meshes do not interfere with blood flow [21]. In addition, the presence of the mesh, compared with the presence of resorbable membranes alone, ensures that the treatment is not compromised; thus, they are considered reliable for promoting new bone formation. The rigidity of the titanium mesh ensures stability and prevents the collapse of the membrane itself within the defect, a situation that is possible with the use of resorbable membranes alone [25,56,115]. In some cases of combination regenerative and implant therapies, the implants were placed concurrently with the titanium mesh; in other cases, the placement of the titanium mesh occurred in a second surgery after 8–9 months [107]. Regenerative procedures using titanium meshes resulted in significant bone regeneration in the narrow alveolar ridges, allowing for implant placement [39]. Regenerative site exposure seems to be one of the most common early and delayed complication during the healing period. The present investigation reported no significant differences in exposure rate for titanium mesh vs. membrane GBR procedures (p = 0.06). Fewer exposures were observed with the use of e-PTFE membranes to cover the titanium meshes [15]. Due to the tight spread of the study outcome and the limited number of selected articles, this aspect deserves more study to determine the exposure outcome. A critical point of the present investigation was to analyze the wide heterogeneity in methods including the treatment site and jaw region, defect extension, simultaneous/delayed implant positioning, graft materials, and additional screws and plates used.
Following to the Cochrane review methodology, the present review performed a search in multiple electronic databases. Due to the difficulties in finding MesH term indicators for this topic, the screening was conducted considering all clinical studies and without applying filters regarding the study design methodology for the full-text evaluation, eligibility analysis, and descriptive synthesis. The statistical methods considered the applicability of sub-group comparisons. The main limit of this approach is indubitably a decrease in the study data robustness and strength that should be considered when interpreting the findings from this review. The present study considered an observation period of only about 9 months but a more extended follow-up period is necessary to evaluate the medium- and long-term effectiveness of both techniques in over to evaluate the comparative performance of mesh regeneration compared to membrane grafts.
Our opinion is that homogeneous study methodologies are necessary to improve the robustness of meta-analyses. It is necessary for review methodologies to reduce the wide range of biases associated with several variables including the surgical technique, procedure site (single/multiple edentulism), atrophy grading, mesh characteristics (including the porosity), adaptation technique, use of stabilization screws, and biomaterial used. In fact, considering the wide range of biomaterials used and the differences in methodology, a meta-analysis was not possible.
A sufficient pool of articles for a pairwise comparison was only possible for an analysis of the VBG and coronally advanced lingual flap as statistical variables based on the methodological characteristics and RoB of the considered studies. The VBG also seemed to be similar for both clinical protocols; more histological comparisons could elucidate the graft-interface differences and the new bone formation patterns between the procedures. A drastic reduction in the exposure rates was reported for the coronally advanced lingual flap method, suggesting that it could be considered a favorable approach for decreasing the incidence of complications. No effects were reported for the vertical bone gain parameters. In addition, treating large defects with a customized titanium mesh is a useful protocol and provides a predictable result, even in the case of dehiscence. Custom, pre-formed titanium mesh together with a mixture of autologous bone and a xenograft is a feasible and reliable technique for vertical bone regeneration and advanced and three-dimensional defects [95].

5. Conclusions

Due to the weak robustness of the study data, the limitations of the present review, and the strength of the analytic findings, no definitive conclusions could be made but this topic is worthy of further investigation in the future. The research outcome seems to suggest that bone regeneration of more extensive defects using titanium meshes represents a useful bone regeneration technique, which, despite being performed with different methods using different combinations of membranes and/or bone grafts of different types, and its possible complications, was found to not compromise regenerative techniques. In the present investigation, no significant differences in bone exposure and vertical bone gain were observed when comparing the technique with membrane bone regeneration. The physical and morphological characteristics of the titanium meshes, which can also be customized to the conformation of the defect, guarantee the immobilization and stability of the defect and thus will guide the regeneration and, when present, the optimal integration of the biomaterial. The management and the surgical passivity of the flaps seems to minimize the risk of exposure, with a significant reduction in the complication incidence.

Author Contributions

Conceptualization, A.S. and F.L.; methodology, F.L., I.A., S.A.G. and S.R.T.; software, F.L.; validation, A.S., F.L., S.A.G., S.R.T. and I.A.; formal analysis, F.L.; investigation, F.L., I.A., S.A.G. and S.R.T.; data curation, F.L., I.A., S.A.G. and S.R.T.; writing—original draft preparation, F.L.; writing—review and editing, F.L.; visualization, F.L.; supervision, F.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

All experimental data that support the findings of this study are available from the corresponding author upon request.

Conflicts of Interest

The authors declare no conflicts of interest.
