Transformative Si8R8 Siliconoids

by
Naohiko Akasaka
,
Shintaro Ishida
and
Takeaki Iwamoto
*
Department of Chemistry, Graduate School of Science, Tohoku University, Sendai 980-8578, Japan
*
Author to whom correspondence should be addressed.
Inorganics 2018, 6(4), 107; https://doi.org/10.3390/inorganics6040107
Submission received: 3 September 2018 / Revised: 30 September 2018 / Accepted: 1 October 2018 / Published: 3 October 2018
(This article belongs to the Special Issue Coordination Chemistry of Silicon)
Browse Figures
Versions Notes

Abstract

:
Molecular silicon clusters with unsubstituted silicon vertices (siliconoids) have received attention as unsaturated silicon clusters and potential intermediates in the gas-phase deposition of elemental silicon. Investigation of behaviors of the siliconoids could contribute to the greater understanding of the transformation of silicon clusters as found in the chemical vapor deposition of elemental silicon. Herein we reported drastic transformation of a Si8R8 siliconoid to three novel silicon clusters under mild thermal conditions. Molecular structures of the obtained new clusters were determined by XRD analyses. Two clusters are siliconoids that have unsaturated silicon vertices adopting unusual geometries, and another one is a bis(disilene) which has two silicon–silicon double bonds interacted to each other through the central polyhedral silicon skeleton. The observed drastic transformation of silicon frameworks suggests that unsaturated molecular silicon clusters have a great potential to provide various molecular silicon clusters bearing unprecedented structures and properties.

Graphical Abstract

1. Introduction

Molecular silicon clusters have attracted much attention as their characteristic electronic properties and reactivity depend on the structures [1,2,3,4,5]. In the chemical vapor deposition (CVD) process of elemental silicon, unsaturated silicon clusters with unsubstituted silicon vertices are considered as potential intermediates [6,7,8]. Recently, such kinds of unsaturated molecular silicon clusters are synthesized as isolable molecules [9,10,11,12,13,14,15,16,17,18,19,20,21,22] and termed “siliconoids” by Scheschkewitz et al. [10]. The siliconoids show their characteristic distorted structures and large distribution of 29Si nuclear magnetic resonances. As the unsubstituted vertices are considered to be preferred reaction sites for transformation of silicon clusters [23,24,25], investigation of thermal transformation of the siliconoids would provide fundamental reactions that may contribute to improving our understanding of the mechanism of the CVD process elemental silicon [26,27,28,29,30]. However, thermal transformation of siliconoids is still scarce. Scheschkewitz et al. have reported thermal rearrangement, expansion, and contraction of Si6Tip6 (Tip = 2,4,6-triisopropylphenyl) siliconoids [10,13,15,16,17,22].
Recently, we reported that thermal reaction of Si5R6 siliconoid 1 at 40 °C afforded Si8R8 siliconoids 4 and 6, the latter of which undergoes thermal isomerization to 4 upon extra heating (Scheme 1). In this transformation, elimination of a silylene unit (SiR2, 2) from 1 generates disilene 3 and silylene 5, which equilibrate with each other and dimerize to give 4 and 6, respectively [22]. As 4 has still highly strained structures similar to 1, we examined further thermal reactions of 4. Herein, we report thermal transformation of 4 giving new silicon clusters that involve highly distorted silicon atoms, silicon–silicon double bonds, or unsubstituted silicon vertices. The observed drastic transformation suggests that unsaturated molecular silicon clusters have a great potential to provide various molecular silicon clusters bearing unprecedented structures and properties.

2. Results

2.1. Thermal Reactions of 4

Upon heating 4 at 75 °C in benzene-d6, new silicon clusters with unprecedented silicon frameworks 7, 8, and 9 were formed together with silylene 2 and its thermal isomerization product, silene 10 (Scheme 2). Compounds 7 and 8 are isomers of 4 and 6 bearing the formula of Si8R8, while 9 is a contracted Si7R6 cluster. Formation of 9 is consistent with concomitant formations of SiR2 units (2 and 10). The time course of the product yields monitored by 1H NMR spectrum (see Figure S16 in the Supplementary Materials) indicated that 7 was initially formed and then 8 and 9 were generated in this reaction: after heating for 3 h, 7, 8, and 9 were observed in 26%, 3%, and 28% yields, respectively, while 19 h later, 7 disappeared and 8 and 9 were observed in 6% and 59% yields, respectively. Silicon clusters 7, 8, and 9 are moisture and air sensitive and isolated by careful recrystallization of the reaction mixture. Details of the structures of 7–9 will be discussed in the subsequent sections.
Interestingly, thermal reaction of pure 7 at 60 °C in benzene-d6 provided not only 8 and 9 but also 4. This result indicates that isomerization between 4 and 7 is reversible at 60 °C in solution, though we are not able to distinguish whether 8 and 9 were formed from 4 directly or via 7. While 8 remains intact after heating even at 80 °C for 10 h in benzene-d6, 9 was decomposed together with formation of 10 under the same conditions as monitored by 1H NMR spectroscopy.

2.2. Molecular Structure of 7

XRD analysis exhibits that 7 has unsubstituted vertices at the Si3 and Si4 atoms that were shared by the bicyclo[1.1.0]tetrasilane moiety [Si1, Si2, Si3, and Si4] similar to 4 and the tricyclo[2.2.0.02,5]hexasilane moiety [Si3, Si4, Si5, Si6, Si7, and Si8] (Figure 1). The Si3 and Si4 atoms adopt a highly distorted umbrella geometry which is very far from the typical tetrahedral configuration: the bond angles vary from 57.47(2)° [Si2–Si3–Si4] to 149.57(3)° [Si1–Si3–Si6] around the Si3 atom and from 56.02(2)° [Si2–Si4–Si3] to 140.10(3)° [Si2–Si4–Si5] around the Si4 atom. The distance between Si3 and Si4 [2.5477(8) Å] is longer than typical Si–Si single bond length [ca. 2.36 Å] [31] and those of the other Si–Si bonds in the silicon skeleton of 7 [2.3037(8)–2.4618(7) Å] but close to the distance between bridgehead unsubstituted silicon atoms in hexamesitylpentasila[1.1.1]propellane 11 [2.636(1) Å] [18] and siliconoids such as 12 [2.7076(8) Å] [13,14] (Figure 2).
The 1H NMR spectrum of 7 indicates a facile flipping of the bicyclo[1.1.0]tetrasilane moiety (Si1, Si2, Si3, and Si4) in solution on the NMR time scale: two t-Bu groups on Si5 and Si7 atoms were equally observed and four singlet signals for SiMe3 groups on the terminal five-membered rings were observed with the same integral ratio. In the 29Si NMR spectrum of 7, a large distribution of chemical shifts [δSi = −191.9 (Si4), −66.3 (Si6), −20.0 (Si3), −12.0 (Si5, Si7), 7.5 (Si2), 42.2 (Si1), 64.7 (Si8) ppm] were observed similar to those observed for the reported siliconoids [13,14,18].
The UV–Vis spectrum of 7 in hexane exhibits several absorption bands tailed to ca. 600 nm with several shoulders as found in those of other molecular silicon clusters. The longest wavelength’s absorption maximum was observed at 492 nm (ε 1400) (Figure 3). Judging from the results of the TD-DFT calculation of 7 at the B3LYP/6-311G(d)//B3PW91-D3/6-31G(d) level of theory (7opt), the band at 492 nm can be assigned to the transition from HOMO to LUMO. As shown in Figure 3b, HOMO and LUMO are mainly the σ and σ* orbitals of the Si3–Si4 bond with the highly distorted geometry which is the longest Si–Si distance in the silicon framework as mentioned above.

2.3. Molecular Structure of 8

Although purification of 8 was very difficult because of its very low yield, a few single crystals of 8 were luckily obtained after recrystallization from hexane. Accordingly, 8 was characterized by only XRD analysis and 1H NMR spectroscopy. XRD analysis exhibits that it has two silicon–silicon double bonds at both sides of a tricyclo[2.2.0.02,5]hexasilane framework (Figure 4). The double-bond silicon atoms Si1, Si2, Si5, and Si6 lie on the crystallographic C2 axis. The Si1–Si2 [2.1570(12) Å] and Si5–Si6 [2.1641(12) Å] distances are within the range of the known silicon–silicon double bonds (2.118–2.289 Å) [32,33] and these Si=Si double-bond planes are almost perpendicular to each other with the dihedral angle between the least-square plane of the terminal silacyclopentane rings of 87.3°. The Si–Si single bond distances in the central tricyclo[2.2.0.02,5]hexasilane skeleton [2.3496(8)–2.3641(9) Å] are similar to that of typical Si–Si single bonds (ca. 2.36 Å) [31] and reported tricyclo[2.2.0.02,5]hexasilanes [2.33–2.47 Å] [13,34,35,36].
In the UV–Vis spectrum of 8 in hexane, a distinct absorption band (λmax 451 nm) with a shoulder band (500 to 600 nm) was observed in the visible region (Figure 5a). This band is considerably redshifted compared to that observed for a structurally related bis(disilene) in which two Si=Si double bonds were connected by a Si−Si bond (13, λmax = 403 nm, Figure 2). DFT calculation suggested that the band in the visible region would be overlapped by a few bands due to π(Si=Si) to π*(Si=Si) transitions. For compound 8 optimized at the B3PW91-D3/6-31G(d) level of theory (8opt), HOMO (−4.47 eV) and HOMO−1 (−4.50 eV) are π(Si=Si) orbitals, while LUMO (−1.47 eV) and LUMO+1 (−1.17 eV) are π*(Si=Si) orbitals (Figure 5b). While HOMO and HOMO−1 are almost degenerated, the difference in energy between LUMO and LUMO+1 was relatively large (0.30 eV). This large energy difference would result from considerable interaction between two π*(Si=Si) orbitals through the central silicon cage. TD-DFT calculation of 8opt at the B3LYP/6-311G(d) [hexane]//B3PW91-D3/6-31G(d) level of theory predicts that the major peak observed at 451 nm involves a combination of HOMO−1 to LUMO+1 and HOMO to LUMO+1 transitions, while the shoulder band involves HOMO to LUMO and HOMO−1 to LUMO transitions. The spectral feature of 8 is consistent with the substantial interactions between two Si=Si double bonds through the central silicon cages.

2.4. Molecular Structure of 9

The XRD analysis indicates that 9 is also a silicon cluster classified as a siliconoid having unsubstituted vertices at Si2 and Si3 atoms with a hexasila[2.1.1]propellane skeleton in which two wings (Si4 and Si5–Si6) are bridged by Si7 atom (Figure 6). To the best of our knowledge, this is the first example of a silicon cluster having [2.1.1]propellane skeleton, although persilapropellane family including hexamesitylpentasila[1.1.1]propellane 11 (Figure 2) [18] and its bridged siliconoids [13,14] have been synthesized as isolable molecules. Cluster 9 can also be seen as a hexasilaprismane (Si2–Si7) in which two skeletal silicon atoms (Si2 and Si3) are bridged by one silicon atom (Si1). The Si2 and Si3 atoms adopt an umbrella-type inverted tetrahedral geometry as observed for bridgehead silicon atoms of pentasila[1.1.1]properanes [13,14,18]. The Si2–Si3 distance [2.6829(8) Å)] is comparable with the distances between silicon atom with an umbrella geometry in hexamesitylpentasila[1.1.1]propellane 11 [2.636(1) Å] [18] and siliconoids such as 12 [2.7076(8) Å] (Figure 2) [13,14].
The 29Si NMR spectrum of 9 showed five signals due to skeletal silicon nuclei at −159.5 (Si2, Si3), −60.3 (Si7), 2.3 (Si5, Si6), 26.5 (Si1), 123.3 (Si4) ppm, which were assigned on the basis of a 1H–29Si HMBC spectrum. The highfield-shifted 29Si NMR resonance due to the unsubstituted vertices of 9 (δSi = −159.5) is similar to those of pentasila[1.1.1]propellane 11 [δSi = −273.2 [18]] and its bridged siliconoid 12 [δSi = −274.2 [13]], while the considerably downfieldshift of Si4 nuclei in 9 resembles that of 12 [δSi = 174.6] [13]. The geometry around the hexasilaprismane framework in 9 except for the Si2 and Si3 atoms resembles to those of the reported hexasilaprismanes [10,36,37].
In the UV–Vis spectrum in hexane, 9 exhibits a distinct absorption band at 511 nm (ε 2700) (Figure 7), which is similar to the absorption bands observed for siliconoids 11 and 12 (Figure 2) but in contrast to those for hexasilaprismanes showing normally only weak absorption tailing to 500 nm [10,36,37]. TD-DFT calculation of 9 predicted that this band should be assigned to HOMO → LUMO and HOMO−1 → LUMO transitions. HOMO−1 and LUMO involve mainly σ and σ* orbitals of the interbridgehead Si2–Si3 bond with the umbrella geometry, while HOMO is σ orbitals of the Si–Si bond in the silicon framework. The characteristic absorption band observed in 9 would result from the presence of the unsubstituted silicon vertices with an inverted geometry.

2.5. Theoretical Study

Although the detailed mechanism for transformation from 4 to 7–9 remains unclear at this moment, it should be worthy to discuss the relative stability of Si8R8 isomers 4, 6, 7, 8. In Table 1, relative energies of the clusters calculated at the B3PW91-D3/6-31G(d) level are shown and all optimized structures (4opt, 6opt, 7opt, 8opt, and 9opt) were in agreement with the experimentally observed structures. Formations of 6opt and 7opt from 4opt are predicted to be very slightly endoergonic, while generation of 8opt and 9opt+2opt and from 4opt are exoergonic at 348.14 K, which is consistent with the experimental results. In contrast to the predicted high thermal stability of 8opt, the yield of 8 was considerably low. As silylene 2 decomposes quickly to 10 at 348 K [38], formation of 9 is expected to be irreversible under the thermal conditions. The irreversible formation of 9 and the higher activation barrier for formation of 8 compared to those for other reactions may be responsible for the low yield of 8. Although the reason for the higher stability of 8opt compared to other isomers remains unclear, the absence of the highly strained structure such as bicyclo[1.1.0]tetrasilane moiety and the umbrella geometry as found in 4opt, 6opt, and 7opt may be mainly responsible for the relative stability of 8opt.
It is also noteworthy to compare with other possible Si8R8 isomers. Theoretical study of Si8H8 species demonstrated that a silicon cluster bearing a bicyclo[1.1.0]butane moiety with C2 symmetry (14H in Figure 8) has been located theoretically as the most stable isomer which is 30.9 kJ/mol lower in energy than the second stable octasilacubane 15H at the B3LYP/6-31G(d) level of theory [39]. While isolable Si8R8 species such as octasilacubane 15 [40,41,42,43,44,45] and octasilacuneane 16 [19] have been reported, the Si8R8 clusters in our study such as 4, 6, 7, and 8 do not provide such stable isomers. Two silicon vertices of the Si8R8 clusters in this study have two alkyl groups, while two silicon vertices are unsubstituted, which would lead to a unique transformation reaction without involving the stable isomers such as octacubane.

3. Materials and Methods

3.1. General Procedures

All reactions treating air-sensitive compounds were carried out under nitrogen atmosphere using a high-vacuum line and standard Schlenk techniques, or a glove box, as well as dry and oxygen-free solvents. NMR spectra were recorded on a Bruker Avance 500 FT NMR spectrometer (Bruker Japan, Yokohama, Japan). The 1H and 13C NMR chemical shifts were referenced to residual 1H and 13C signals of the solvents, benzene-d6 (1H δ 7.16; 13C δ 128.0). The 29Si NMR chemical shifts were relative to Me4Si in ppm (δ 0.00). Sampling of air-sensitive compounds was carried out using a VAC NEXUS 100027 type glove box (Vacuum Atmospheres Co., Hawthorne, CA, USA). Reactions at low temperatures were performed by using an EYELA PSL-1400 cryobath (Tokyo Rikakikai Co, Ltd, Tokyo, Japan). UV–Vis spectra were recorded on a JASCO V-660 spectrometer (JASCO, Tokyo, Japan).

3.2. Materials

Benzene, benzene-d6, diethyl ether, hexane, tetrahydrofuran (THF), and toluene were dried over LiAlH4, and then distilled prior to use by using the vacuum line. Compound 4 was prepared according to the procedure reported in the literature [22].

3.3. Thermolysis of 4

In a J. Young NMR tube, 4 (5.0 mg, 0.0044 mmol) was dissolved in benzene-d6 (0.5 mL). The mixture was heated for 22 h at 75 °C, monitored by 1H NMR spectroscopy (Figure S16). After heating the mixture for 3 h, compounds 7 (26%), 8 (3%), and 9 (28%) were formed (Figure S1). After heating for a total of 22 h, only 8 (6%) and 9 (59%) were observed (Figure S2). The yields of 7–9 were determined by 1H NMR spectroscopy using ferrocene as an internal standard.

3.4. Isolation of 7

In a Schlenk tube (30 mL) equipped with a magnetic stir bar, compound 4 (150 mg, 0.131 mmol) and benzene (15 mL) were placed. The reaction mixture was heated at 75 °C for 3 h. Benzene was removed in vacuo. Recrystallization from hexane at −35 °C gave 4. Recrystallization of the mother liquor from toluene at −35 °C gave cluster 7 as reddish orange crystals (11.4 mg, 0.0100 mmol) in 8.0% yield.
7: reddish orange crystals; mp. 138 °C (decomp.); 1H NMR (C6D6, 500 MHz, 298 K) δ 0.40 (s, 18H, SiMe3), 0.45 (s, 18H, SiMe3), 0.46 (s, 18H, SiMe3), 0.52 (s, 18H, SiMe3), 1.52 (s, 18H, t-Bu), 1.53 (s, 9H, t-Bu), 1.57 (s, 9H, t-Bu), 1.94–2.00 (m, 4H, CH2), 2.03 (s, 4H, CH2); 13C NMR (C6D6, 125 MHz, 298 K) δ 4.8 (SiMe3), 5.8 (SiMe3), 6.2 (SiMe3), 6.6 (SiMe3), 17.5 (C), 19.5 (C), 20.6 (C), 26.8 (C), 32.0 (C(CH3)3), 32.3 (C), 33.4 (C(CH3)3), 34.2 (C), 35.1 (CH2), 35.6 (CH2), 35.9 (C(CH3)3), 36.3 (CH2); 29Si NMR (C6D6, 99 MHz, 298 K) δ −191.9 (Si4), −66.3 (Si8), −20.0 (Si2), −12.0 (Si5,Si7), 2.60 (SiMe3), 3.01 (SiMe3), 3.66 (2 × SiMe3), 7.53 (Si3), 42.2 (Si1), 64.7 (Si6); UV/vis (in hexane): λmax/nm (ε) 492 (1400), 405 (sh, 3100), 351 (sh, 6500); HRMS (APCI) m/z ([M]+ was not observed but [M + H + O2]+ was found probably because 7 is so reactive that it was partially oxidized and/or hydrolyzed before injecting the sample into the instrument) calcd for C48H117O2Si16: 1173.5356; found: 1173.5353; anal. calcd for C48H116Si16: C, 50.45; H, 10.23; found: C, 50.83; H, 9.90.

3.5. Isolation of 8 and 9

In a Schlenk tube (30 mL) equipped with a magnetic stir bar, compound 4 (104.0 mg, 0.0910 mmol) and benzene (15 mL) were placed. The reaction mixture was heated at 75 °C for 20 h. The volatiles were removed in vacuo. Recrystallization from hexane at −35 °C gave 8 as an orange powder (2.6 mg, 0.0023 mmol) in 3% yield. Recrystallization of the mother liquor from diethyl ether at −35 °C gave 9 as red crystals (20.4 mg, 0.026 mmol) in 29% yield.
8: orange crystals; 1H NMR (C6D6, 500 MHz, 299 K) δ 0.39 (s, 72H, SiMe3), 1.71 (s, 36H, t-Bu), 1.98 (s, 8H, CH2); UV/vis (in hexane): λmax/nm (ε) 540 (sh, 1100), 451 (12000).
9: red crystals; mp. 164 °C (decomp); 1H NMR (C6D6, 500 MHz, 299 K) δ 0.31 (s, 18H, SiMe3), 0.54 (s, 18H, SiMe3) 1.30 (s, 18H, t-Bu), 1.35 (s, 9H, t-Bu), 1.39 (s, 9H, t-Bu), 1.90–2.06 (m, 8H, CH2); 13C NMR (C6D6, 125 MHz, 300 K) δ 5.1 (SiMe3), 5.6 (SiMe3), 15.5 (C), 17.7 (C), 24.9 (C), 25.8 (C), 30.4 (C), 31.3 (C(CH3)3), 31.5 (C(CH3)3), 32.0 (C(CH3)3), 35.5 (CH2), 36.9 (CH2); 29Si NMR (C6D6, 99 MHz, 299 K) δ −159.5 (Si2, Si3), −60.3 (Si7), 2.3 (Si5, Si6), 3.6 (SiMe3), 5.3 (SiMe3), 26.5 (Si1), 123.3 (Si4); UV/vis (in hexane): λmax/nm (ε) 511 (2700), 260 (28000); HRMS (APCI) m/z ([M]+ was missing but [M + H3 + O4]+ was found probably because 9 is highly reactive and it was partially oxidized and/or hydrolyzed before injecting the sample into the instrument) calcd for C32H79O4Si11: 835.3435; found: 835.3437; anal. calcd for C32H76Si11: C, 49.92; H, 9.95; found: C, 49.90; H, 9.81.

3.6. X-ray Analysis

Recrystallization from toluene (7), hexane (8), and diethyl ether (9) at −35 °C gave single crystals suitable for data collection. The single crystals coated by Apiezon® grease were mounted on the glass fiber and transferred to the cold gas stream of the diffractometer. X-ray data were collected on a BrukerAXS APEXII diffractometer (Bruker Japan, Yokohama, Japan) with graphite monochromated Mo Kα radiation (λ = 0.71073 Å). The data were corrected for Lorentz and polarization effects. An empirical absorption correction based on the multiple measurement of equivalent reflections was applied using the program SADABS [46]. The structures were solved by direct methods and refined by full-matrix least squares against F2 using all data (SHELXL-2014/7) [47]. CCDC-1863288–1863290 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).
7: CCDC-1863288; [code si302a]; 100 K; C48H116Si16∙(C7H8)2.5; Fw 1373.17; triclinic; space group P−1 (#2), a = 11.5327(18) Å, b = 17.883(3) Å, c = 21.560(3) Å, α = 69.416(2)°, β = 85.458(2)°, γ = 76.379(2)°, V = 4045.5(11) Å3, Z = 2, Dcalcd = 1.127 mg/m3, R1 = 0.0357 (I > 2σ(I)), wR2 = 0.0941 (all data), GOF = 1.062.
8: CCDC-1863289: [code si303a]: 100 K; C48H116Si16; Fw 1142.84; monoclinic; space group C2/c (#15), a = 21.538(2) Å, b = 17.9167(19) Å, c = 20.792(3) Å, β = 118.8750(10)°, V = 7026.1(15) Å3, Z = 4, Dcalcd = 1.080 mg/m3, R1 = 0.0363 (I > 2σ(I)), wR2 = 0.0910 (all data), GOF = 1.077.
9: CCDC-1863290: [code si301a]; 100 K; C32H76Si11; Fw 769.92; orthorhombic; space group Pbca (#61), a = 11.3287(13) Å, b = 17.976(2) Å, c = 46.325(5) Å, V = 9433.6(19) Å3, Z = 8, Dcalcd = 1.084 mg/m3, R1 = 0.0377 (I > 2σ(I)), wR2 = 0.0839 (all data), GOF = 1.111.

3.7. Theoretical Study

All theoretical calculations were performed using a Gaussian 09 [48] and GRRM14 programs [49,50]. Geometry optimization of 2, 4, 6, 7, 8, and 9 (2opt, 4opt, 6opt, 7opt, 8opt, and 9opt) were carried out at the B3PW91-D3/6-31G(d) level of theory. The atomic coordinates of all optimized structures were summarized in a .xyz file (optimized structures.xyz).

4. Conclusions

Si8R8 cluster 4 transforms into novel silicon clusters 7, 8, and 9, bearing unprecedented silicon frameworks accompanied by elimination of the R2Si (silylene) unit under a mild thermal condition. Reversible isomerization between 4 and 7 was observed. XRD analyses exhibit that both 7 and 9 have two unsubstituted skeletal silicon atoms classified as siliconoids, while 8 has two Si=Si double bonds. A large dispersion of 29Si chemical shifts was observed for 7 and 9 as found in the reported siliconoids. The observed transformation of molecular silicon clusters involving substantially different molecular structures and electronic properties suggests that unsaturated molecular silicon clusters have a great potential to provide various molecular silicon clusters bearing unprecedented structures and properties.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/6/4/107/s1, Figures S1–S15: NMR spectra of 7–9, Figure S16: Time course of the product yields during thermolysis of 7, Figures S17–S19: UV–Vis spectra of 7–9, Tables S1–S5: Transition Energy, Wavelength, and Oscillator Strengths of the Electronic Transition of 4opt, 6opt-9opt, a xyz file (“optimized structures.xyz”): the atomic coordinates and energies of 4opt, 6opt-9opt. Cif and checkCif files.

Author Contributions

Investigation, N.A. and S.I.; Project administration, T.I.; Writing—original draft, N.A.; Writing—review & editing, N.A., S.I., and T.I.

Funding

This work was supported by JSPS KAKENHI grant JP25248010, JP17H03015 (Takeaki Iwamoto), and Grant-in-Aid for JSPS Fellows (Naohiko Akasaka).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hengge, E.; Janoschek, R. Homocyclic silanes. Chem. Rev. 1995, 95, 1495–1526. [Google Scholar] [CrossRef]
  2. Sekiguchi, A.; Sakurai, H. Cage and cluster compounds of silicon, germanium, and tin. Adv. Organomet. Chem. 1995, 37, 1–38. [Google Scholar] [CrossRef]
  3. Sekiguchi, A.; Nagase, S. Polyhedral silicon compounds. In The Chemistry of Organic Silicon Compounds; Rappoport, Z., Apeloig, Y., Eds.; Wiley: Chichester, UK, 1998; Volume 2, pp. 119–152. [Google Scholar]
  4. Hengge, E.; Stüger, H. Recent advances in the chemistry of cyclopolysilanes. In The Chemistry of Organic Silicon Compounds; Rappoport, Z., Apeloig, Y., Eds.; Wiley: Chichester, UK, 1998; Volume 2, pp. 2177–2216. [Google Scholar]
  5. Marschner, C. Oligosilanes. In Structure and Bonding 156, Functional Molecular Silicon Compounds I. Regular Oxidation States; Scheschkewitz, D., Ed.; Springer: New York, NY, USA, 2014; Volume 156, pp. 163–228. [Google Scholar]
  6. Lyon, J.T.; Gruene, P.; Fielicke, A.; Meijer, G.; Janssens, E.; Claes, P.; Lievens, P. Structures of silicon cluster cations in the gas phase. J. Am. Chem. Soc. 2009, 131, 1115–1121. [Google Scholar] [CrossRef] [PubMed]
  7. Peppernick, S.J.; Gunaratne, K.D.D.; Castleman, A.W. The relative abundances of silicon hydride clusters, SinHx− (n = 8–12 and 0 ≤ x ≤ 25), investigated with high-resolution time-of-flight mass spectrometry. Int. J. Mass. Spectr. 2010, 290, 65–71. [Google Scholar] [CrossRef]
  8. Haertelt, M.; Lyon, J.T.; Claes, P.; de Haeck, J.; Lievens, P.; Fielicke, A. Gas-phase structures of neutral silicon clusters. J. Chem. Phys. 2012, 136, 064301. [Google Scholar] [CrossRef] [PubMed]
  9. Berger, R.J.; Rzepa, H.S.; Scheschkewitz, D. Ring currents in the dismutational aromatic Si6R6. Angew. Chem. Int. Ed. 2010, 49, 10006–10009. [Google Scholar] [CrossRef] [PubMed]
  10. Abersfelder, K.; Russell, A.; Rzepa, H.S.; White, A.J.P.; Haycock, P.R.; Scheschkewitz, D. Contraction and expansion of the silicon scaffold of stable Si6R6 isomers. J. Am. Chem. Soc. 2012, 134, 16008–16016. [Google Scholar] [CrossRef] [PubMed]
  11. Scheschkewitz, D. A molecular silicon cluster with a “naked” vertex atom. Angew. Chem. Int. Ed. 2005, 44, 2954–2956. [Google Scholar] [CrossRef] [PubMed]
  12. Abersfelder, K.; White, A.J.P.; Rzepa, H.S.; Scheschkewitz, D. A tricyclic aromatic isomer of hexasilabenzene. Science 2010, 327, 564–566. [Google Scholar] [CrossRef] [PubMed]
  13. Abersfelder, K.; White, A.J.P.; Berger, R.J.F.; Rzepa, H.S.; Scheschkewitz, D. A stable derivative of the global minimum on the Si6H6 potential energy surface. Angew. Chem., Int. Ed. 2011, 50, 7936–7939. [Google Scholar] [CrossRef] [PubMed]
  14. Willmes, P.; Leszczynska, K.; Heider, Y.; Abersfelder, K.; Zimmer, M.; Huch, V.; Scheschkewitz, D. Isolation and versatile derivatization of an unsaturated anionic silicon cluster (siliconoid). Angew. Chem. Int. Ed. 2016, 55, 2907–2910. [Google Scholar] [CrossRef] [PubMed]
  15. Fischer, G.; Huch, V.; Mayer, P.; Vasisht, S.K.; Veith, M.; Wiberg, N. Si8(SitBu3)6: A hitherto unknown cluster structure in silicon chemistry. Angew. Chem. Int. Ed. 2005, 44, 7884–7887. [Google Scholar] [CrossRef] [PubMed]
  16. Klapötke, T.M.; Vasisht, S.K.; Fischer, G.; Mayer, P. A reactive Si4 cage: K(SitBu3)3Si4. J. Organomet. Chem. 2010, 695, 667–672. [Google Scholar] [CrossRef]
  17. Klapötke, T.M.; Vasisht, S.K.; Mayer, P. Spirocycle (SitBu3)6Si9Cl2: The first of its kind among group 14 elements. Eur. J. Inorg. Chem. 2010, 2010, 3256–3260. [Google Scholar] [CrossRef]
  18. Nied, D.; Koppe, R.; Klopper, W.; Schnockel, H.; Breher, F. Synthesis of a pentasilapropellane. Exploring the nature of a stretched silicon–silicon bond in a nonclassical molecule. J. Am. Chem. Soc. 2010, 132, 10264–10265. [Google Scholar] [CrossRef] [PubMed]
  19. Ishida, S.; Otsuka, K.; Toma, Y.; Kyushin, S. An organosilicon cluster with an octasilacuneane core: A missing silicon cage motif. Angew. Chem. Int. Ed. 2013, 52, 2507–2510. [Google Scholar] [CrossRef] [PubMed]
  20. Tsurusaki, A.; Iizuka, C.; Otsuka, K.; Kyushin, S. Cyclopentasilane-fused hexasilabenzvalene. J. Am. Chem. Soc. 2013, 135, 16340–16343. [Google Scholar] [CrossRef] [PubMed]
  21. Tsurusaki, A.; Kamiyama, J.; Kyushin, S. Tetrasilane-bridged bicyclo[4.1.0]heptasil-1-ene. J. Am. Chem. Soc. 2014, 136, 12896–12898. [Google Scholar] [CrossRef] [PubMed]
  22. Iwamoto, T.; Akasaka, N.; Ishida, S. A heavy analogue of the smallest bridgehead alkene stabilized by a base. Nat. Commun. 2014, 5, 5353. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Hamers, R.J.; Köhler, U.K.; Demuth, J.E. Nucleation and growth of epitaxial silicon on Si(001) and Si(111) surfaces by scanning tunneling microscopy. Ultramicroscopy 1989, 31, 10–19. [Google Scholar] [CrossRef]
  24. Swihart, M.T.; Girshick, S.L. Thermochemistry and kinetics of silicon hydride cluster formation during thermal decomposition of silane. J. Phys. Chem. B 1999, 103, 64–76. [Google Scholar] [CrossRef]
  25. Swihart, M.T.; Girshick, S.L. Ab initio structures and energetics of selected hydrogenated silicon clusters containing six to ten silicon atoms. Chem. Phys. Lett. 1999, 307, 527–532. [Google Scholar] [CrossRef]
  26. Li, C.P.; Li, X.J.; Yang, J.C. Silicon hydride clusters Si5Hn (n = 3–12) and their anions: Structures, thermochemistry, and electron affinities. J. Phys. Chem. A 2006, 110, 12026–12034. [Google Scholar] [CrossRef] [PubMed]
  27. Singh, R. Effect of hydrogen on ground state properties of silicon clusters (SinHm; n = 11–15, m = 0–4): A density functional based tight binding study. J. Phys. Condens. Matt. 2008, 20, 045226. [Google Scholar] [CrossRef]
  28. Adamczyk, A.J.; Broadbelt, L.J. Thermochemical property estimation of hydrogenated silicon clusters. J. Phys. Chem. A 2011, 115, 8969–8982. [Google Scholar] [CrossRef] [PubMed]
  29. Gapurenko, O.A.; Minyaev, R.M.; Minkin, V.I. Silicon analogues of pyramidane: A quantum-chemical study. Mendeleev Commun. 2012, 22, 8–10. [Google Scholar] [CrossRef]
  30. Thingna, J.; Prasad, R.; Auluck, S. Photo-absorption spectra of small hydrogenated silicon clusters using the time-dependent density functional theory. J. Phys. Chem. Solids 2011, 72, 1096–1100. [Google Scholar] [CrossRef] [Green Version]
  31. Kaftory, M.; Kapon, M.; Botoshansky, M. The structural chemistry of organosilicon compounds. In The Chemistry of Organic Silicon Compounds; Rappoport, Z., Apeloig, Y., Eds.; Wiley: Chichester, UK, 1998; Volume 2, pp. 181–266. [Google Scholar]
  32. Okazaki, R.; West, R. Chemistry of stable disilenes. Adv. Organomet. Chem. 1996, 39, 231–273. [Google Scholar] [CrossRef]
  33. Kira, M.; Iwamoto, T. Progress in the chemistry of stable disilenes. Adv. Organomet. Chem. 2006, 54, 73–148. [Google Scholar] [CrossRef]
  34. Kabe, Y.; Kuroda, M.; Honda, Y.; Yamashita, O.; Kawase, T.; Masamune, S. Reductive oligomerization of 1,2-di-tert-butyl-1,1,2,2-tetrachlorodisilane: The tricyclo[2.2.0.02,5]hexasilane and tetracyclo[3.3.0.02,7.03,6]octasilane systems. Angew. Chem. Int. Ed. Engl. 1988, 27, 1725–1727. [Google Scholar] [CrossRef]
  35. Iwamoto, T.; Uchiyama, K.; Kabuto, C.; Kira, M. Synthesis of tricyclo[3.1.0.02,4]hexasilane and its photochemical isomerization to tricyclo[2.2.0.02,5]hexasilane. Chem. Lett. 2007, 36, 368–369. [Google Scholar] [CrossRef]
  36. Li, Y.; Li, J.; Zhang, J.; Song, H.; Cui, C. Isolation of R6Si6 dianion: A bridged tricyclic isomer of dianionic hexasilabenzene. J. Am. Chem. Soc. 2018, 140, 1219–1222. [Google Scholar] [CrossRef] [PubMed]
  37. Sekiguchi, A.; Yatabe, T.; Kabuto, C.; Sakurai, H. The missing hexasilaprismane: Synthesis, x-ray analysis and photochemical reactions. J. Am. Chem. Soc. 1993, 115, 5853–5854. [Google Scholar] [CrossRef]
  38. Kira, M.; Ishida, S.; Iwamoto, T.; Kabuto, C. The first isolable dialkylsilylene. J. Am. Chem. Soc. 1999, 121, 9722–9723. [Google Scholar] [CrossRef]
  39. Tang, M.; Lu, W.; Wang, C.Z.; Ho, K.M. Search for most stable structure of Si8H8 cluster. Chem. Phys. Lett. 2003, 377, 413–418. [Google Scholar] [CrossRef]
  40. Matsumoto, H.; Higuchi, K.; Hoshino, Y.; Koike, H.; Naoi, Y.; Nagai, Y. The first octasilacubane system: Synthesis of octakis-(t-butyldimethylsilyl)pentacyclo[4.2.0.02,5.03,8.04,7]octasilane. J. Chem. Soc. Chem. Commun. 1988, 1083–1084. [Google Scholar] [CrossRef]
  41. Furukawa, K.; Fujino, M.; Matsumoto, N. Cubic silicon cluster. Appl. Phys. Lett. 1992, 60, 2744–2745. [Google Scholar] [CrossRef]
  42. Sekiguchi, A.; Yatabe, T.; Kamatani, H.; Kabuto, C.; Sakurai, H. Preparation, characterization, and crystal structures of octasilacubanes and octagermacubanes. J. Am. Chem. Soc. 1992, 114, 6260–6262. [Google Scholar] [CrossRef]
  43. Matsumoto, H.; Higuchi, K.; Kyushin, S.; Goto, M. Octakis(1,1,2-trimethylpropyl)octasilacubane: Synthesis, molecular structure, and unusual properties. Angew. Chem. Int. Ed. Engl. 1992, 31, 1354–1356. [Google Scholar] [CrossRef]
  44. Furukawa, K.; Fujino, M.; Matsumoto, N. Superlattice structure of octa-tert-butylpentacyclo[4.2.0.02,5.03,8.04,7]octasilane found by reinvestigation of x-ray structure analysis. J. Organomet. Chem. 1996, 515, 37–41. [Google Scholar] [CrossRef]
  45. Unno, M.; Matsumoto, T.; Mochizuki, K.; Higuchi, K.; Goto, M.; Matsumoto, H. Structure and oxidation of octakis(tert-butyldimethylsilyl)octasilacubane. J. Organomet. Chem. 2003, 685, 156–161. [Google Scholar] [CrossRef]
  46. Sheldrick, G.M. SADABS; Empirical Absorption Correction Program; Institute for Inorganic Chemistry: Göttingen, Germany, 1996. [Google Scholar]
  47. Sheldrick, G.M. SHELXL-2014/7; Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 2014. [Google Scholar]
  48. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  49. Maeda, S.; Harabuchi, Y.; Osada, Y.; Taketsugu, T.; Morokuma, K.; Ohno, K. Available online: http://grrm.chem.tohoku.ac.jp/GRRM/ (accessed on 1 October 2018).
  50. Maeda, S.; Ohno, K.; Morokuma, K. Systematic exploration of the mechanism of chemical reactions: The global reaction route mapping (GRRM) strategy using the ADDF and AFIR methods. Phys. Chem. Chem. Phys. 2013, 15, 3683–3701. [Google Scholar] [CrossRef] [PubMed]
Inorganics 06 00107 sch001 550
Scheme 1. Thermal transformation of 1. R = SiMe3.
Scheme 1. Thermal transformation of 1. R = SiMe3.
Inorganics 06 00107 sch001
Inorganics 06 00107 sch002 550

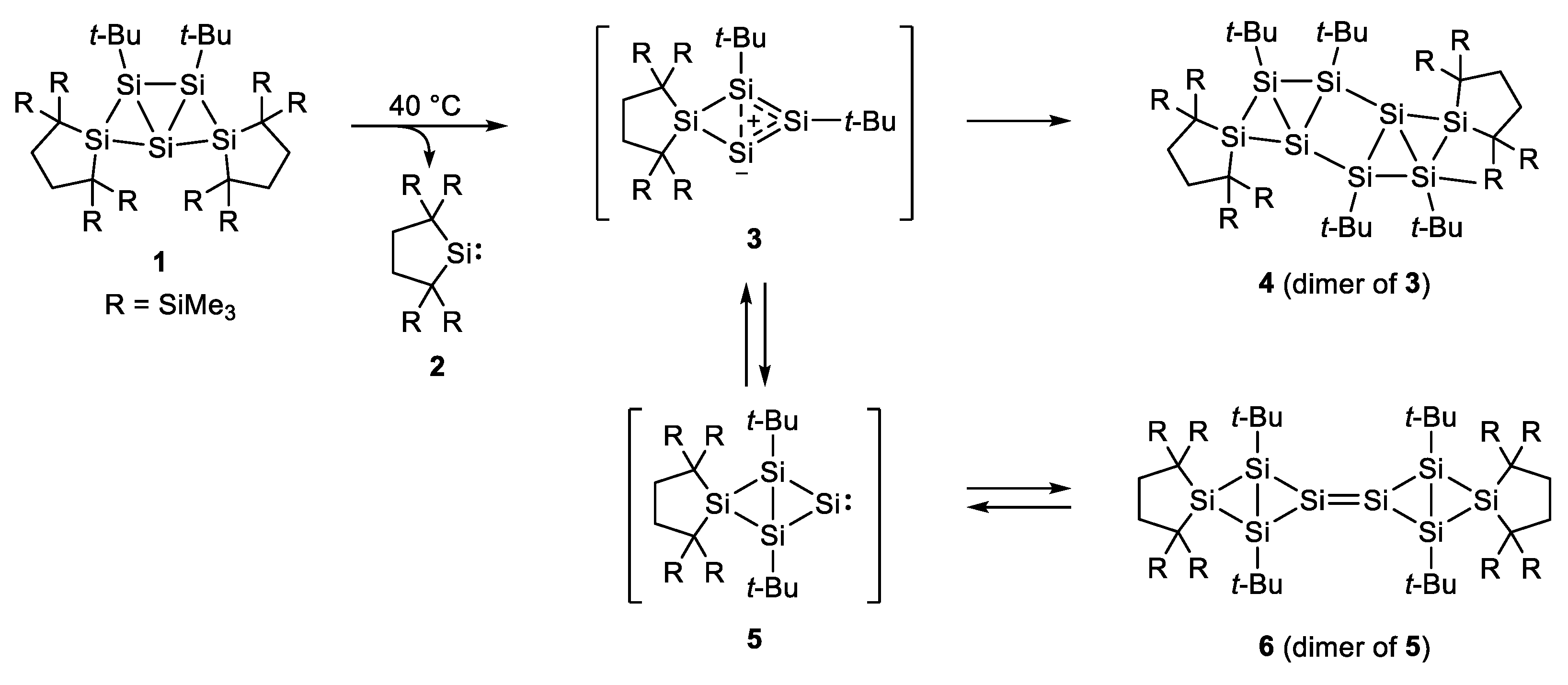

Scheme 2. Thermal transformation of 4. R = SiMe3.
Scheme 2. Thermal transformation of 4. R = SiMe3.
Inorganics 06 00107 sch002
Inorganics 06 00107 g001 550

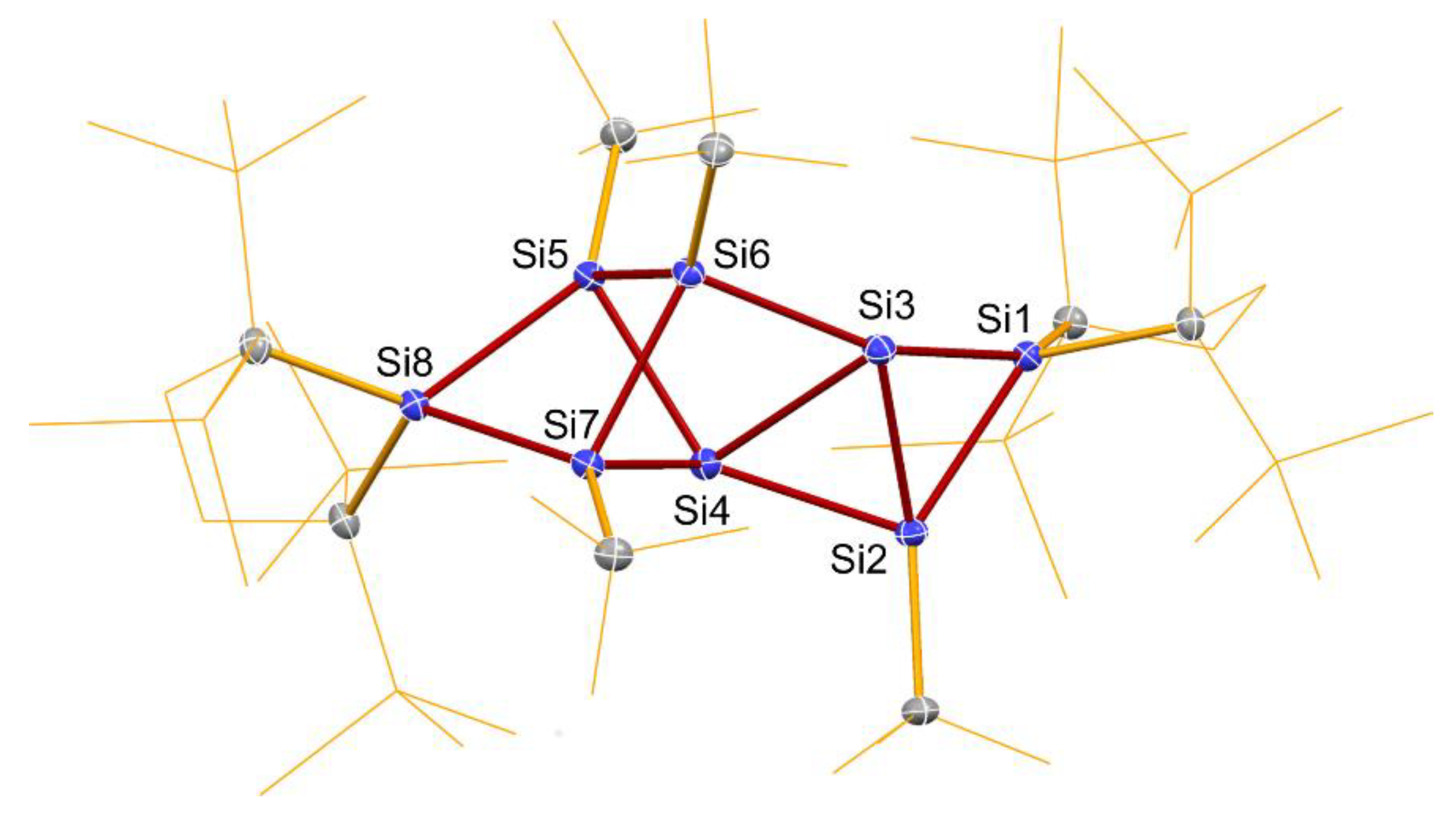

Figure 1. ORTEP drawing of 7 (atomic displacement parameters set at 50% probability; hydrogen atoms and thermal ellipsoids of selected carbon and silicon atoms omitted for clarity). Selected distances [Å] and angles [°]: Si1–Si2 2.3684(7), Si1–Si3 2.3798(8), Si2–Si3 2.3037(8), Si2–Si4 2.3422(8), Si3–Si4 2.5466(8), Si4–Si5 2.4005(8), Si4–Si7 2.4240(7), Si5–Si6 2.3563(8), Si5–Si8 2.4441(7), Si6–Si7 2.3440(8), Si7–Si8 2.4618(7), Si1–Si2–Si3–Si4 122.48(3).
Figure 1. ORTEP drawing of 7 (atomic displacement parameters set at 50% probability; hydrogen atoms and thermal ellipsoids of selected carbon and silicon atoms omitted for clarity). Selected distances [Å] and angles [°]: Si1–Si2 2.3684(7), Si1–Si3 2.3798(8), Si2–Si3 2.3037(8), Si2–Si4 2.3422(8), Si3–Si4 2.5466(8), Si4–Si5 2.4005(8), Si4–Si7 2.4240(7), Si5–Si6 2.3563(8), Si5–Si8 2.4441(7), Si6–Si7 2.3440(8), Si7–Si8 2.4618(7), Si1–Si2–Si3–Si4 122.48(3).
Inorganics 06 00107 g001
Inorganics 06 00107 g002 550

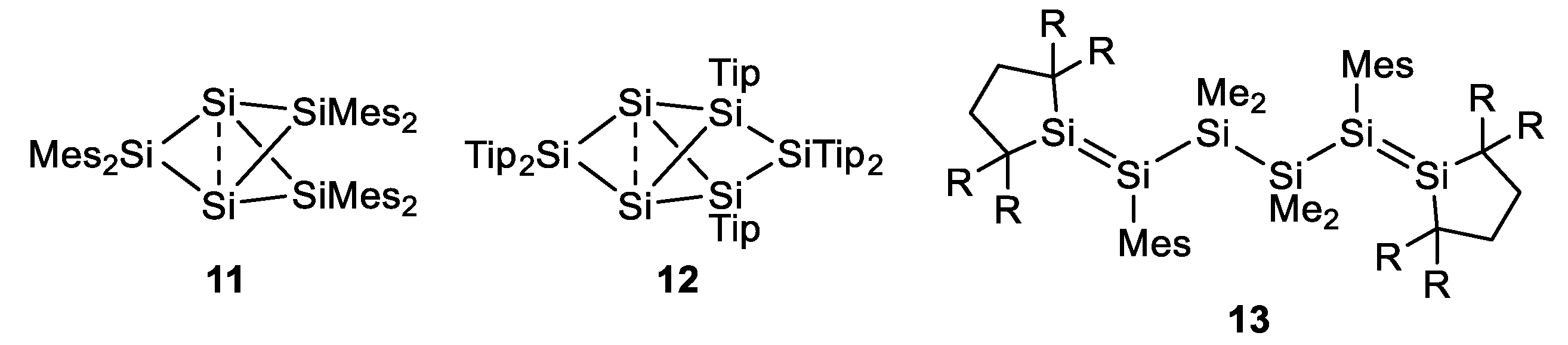

Figure 2. Related silicon clusters and a disilene. Mes = 2,4,6-trimethylphenyl, Tip = 2,4,6-triisopropylphenyl, R = SiMe3.
Figure 2. Related silicon clusters and a disilene. Mes = 2,4,6-trimethylphenyl, Tip = 2,4,6-triisopropylphenyl, R = SiMe3.
Inorganics 06 00107 g002
Inorganics 06 00107 g003 550

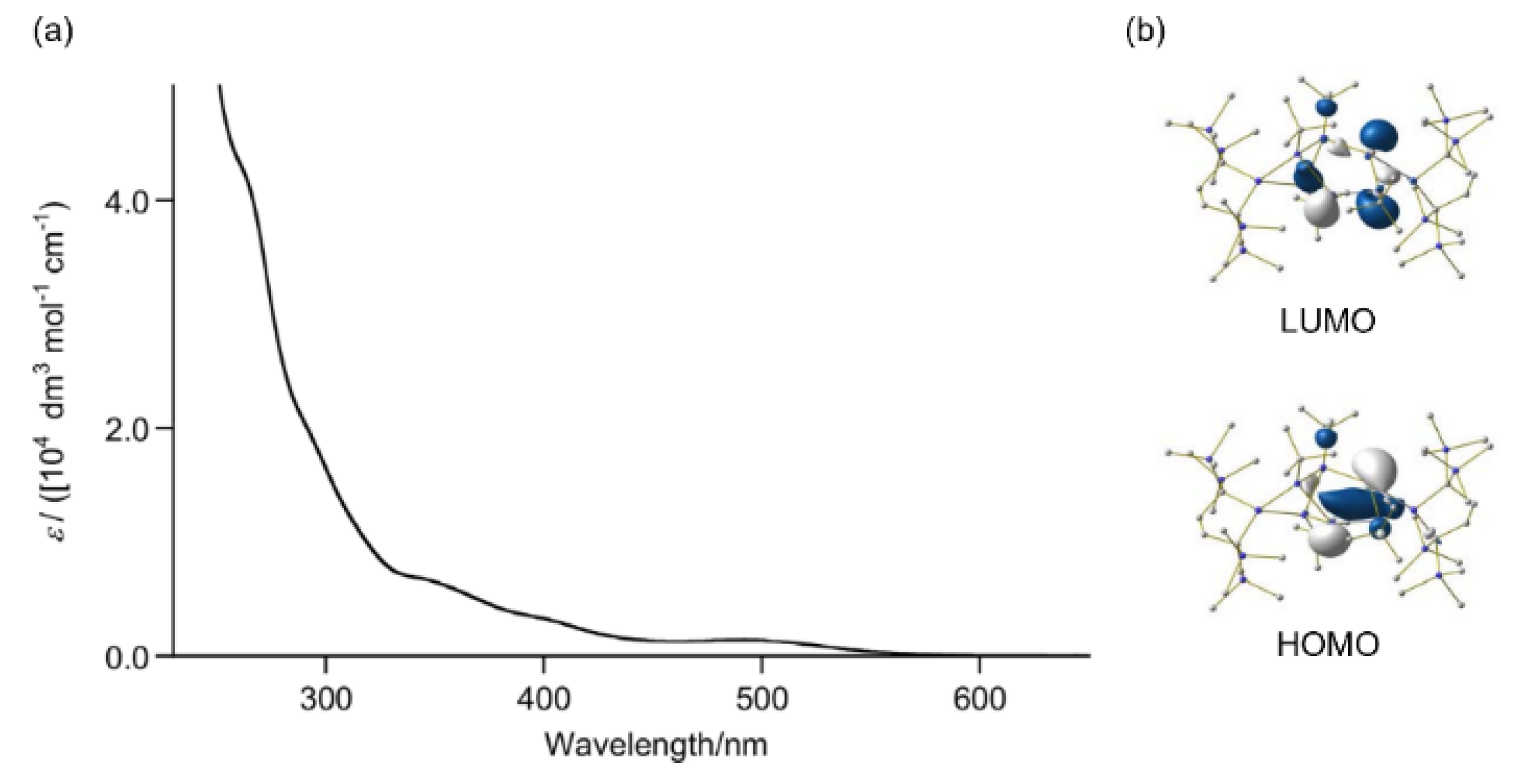

Figure 3. (a) UV–Vis spectrum of 7 in hexane at room temperature. (b) Frontier Kohn–Sham orbitals of 7 at the B3LYP-D3/6-311G(d)//B3PW91-D3/6-31G(d) level of theory (isosurface value = 0.05 e−/Å3).
Figure 3. (a) UV–Vis spectrum of 7 in hexane at room temperature. (b) Frontier Kohn–Sham orbitals of 7 at the B3LYP-D3/6-311G(d)//B3PW91-D3/6-31G(d) level of theory (isosurface value = 0.05 e−/Å3).
Inorganics 06 00107 g003
Inorganics 06 00107 g004 550

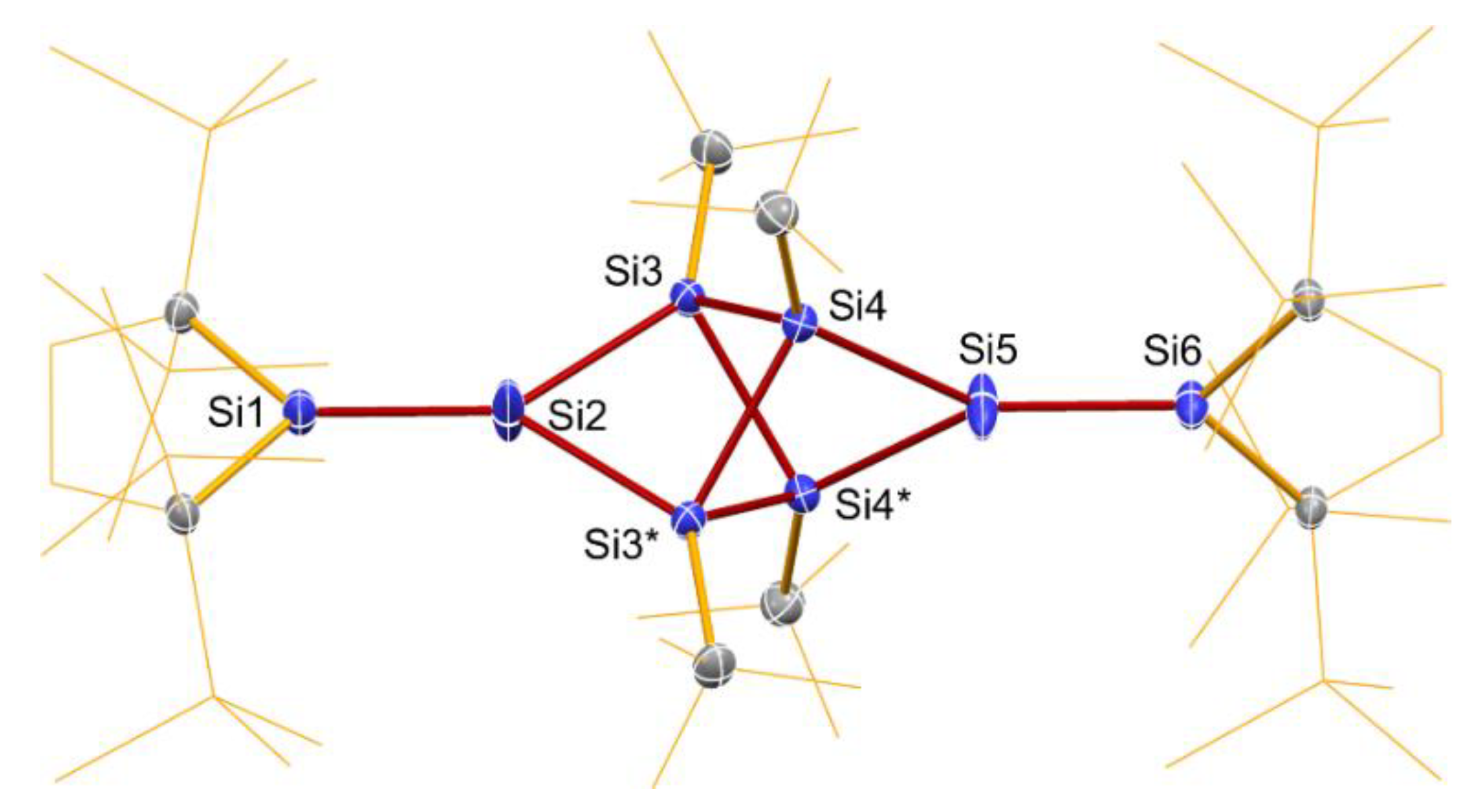

Figure 4. ORTEP drawing of 8 (atomic displacement parameters set at 50% probability; hydrogen atoms and thermal ellipsoids of selected carbon and silicon atoms omitted for clarity). Selected distances [Å] and angles [°]: Si1–Si2 2.1570(12), Si2–Si3 2.3570(9), Si3–Si4 2.3496(8), Si4–Si5 2.3641(9), Si5–Si6 2.1641(12), Si1–Si2–Si3 142.020(19), Si3–Si2–Si3* 75.96(4), Si2–Si3–Si4 90.74(3), Si3–Si4–Si5 91.17(3), Si4–Si5–Si6 142.41(2), Si1–Si2–Si3–Si4 142.134(19), Si2–Si3–Si4–Si5 128.51(2).
Figure 4. ORTEP drawing of 8 (atomic displacement parameters set at 50% probability; hydrogen atoms and thermal ellipsoids of selected carbon and silicon atoms omitted for clarity). Selected distances [Å] and angles [°]: Si1–Si2 2.1570(12), Si2–Si3 2.3570(9), Si3–Si4 2.3496(8), Si4–Si5 2.3641(9), Si5–Si6 2.1641(12), Si1–Si2–Si3 142.020(19), Si3–Si2–Si3* 75.96(4), Si2–Si3–Si4 90.74(3), Si3–Si4–Si5 91.17(3), Si4–Si5–Si6 142.41(2), Si1–Si2–Si3–Si4 142.134(19), Si2–Si3–Si4–Si5 128.51(2).
Inorganics 06 00107 g004
Inorganics 06 00107 g005 550

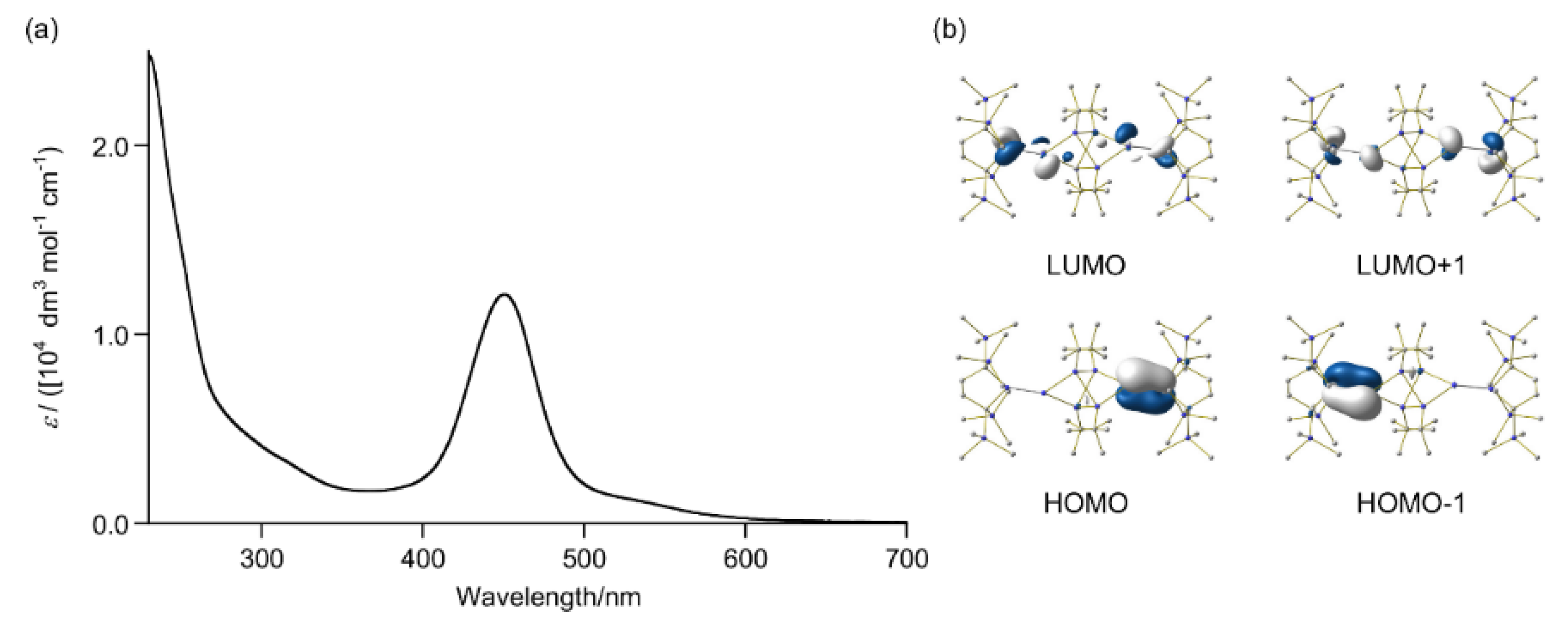

Figure 5. (a) UV–Vis spectrum of 8 in hexane at room temperature. (b) Frontier Kohn–Sham orbitals of 8 at the B3LYP-D3/6-311G(d)//B3PW91-D3/6-31G(d) level of theory (isosurface value = 0.05 e−/Å3).
Figure 5. (a) UV–Vis spectrum of 8 in hexane at room temperature. (b) Frontier Kohn–Sham orbitals of 8 at the B3LYP-D3/6-311G(d)//B3PW91-D3/6-31G(d) level of theory (isosurface value = 0.05 e−/Å3).
Inorganics 06 00107 g005
Inorganics 06 00107 g006 550

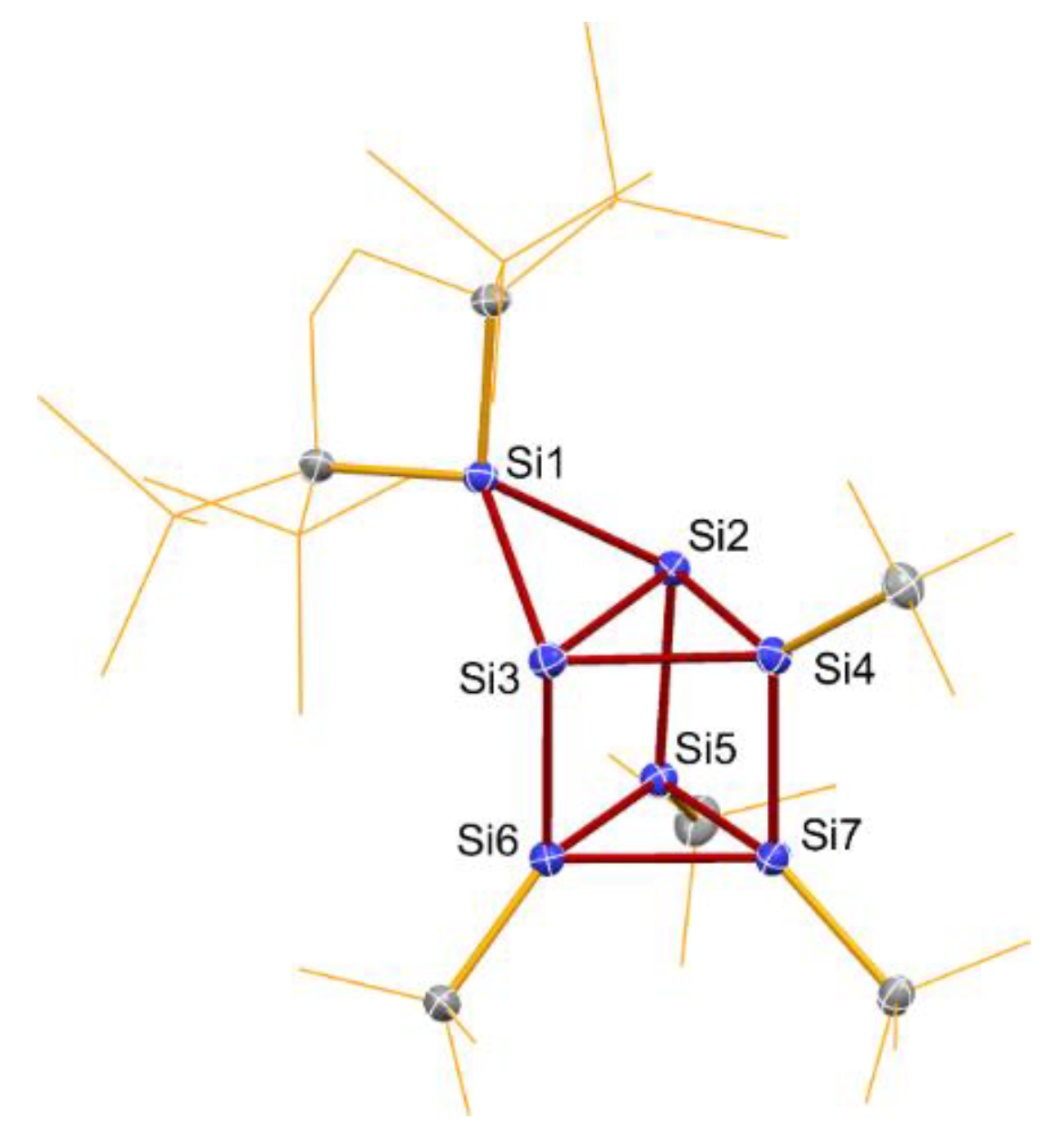

Figure 6. ORTEP drawing of 9 (atomic displacement parameters set at 50% probability; hydrogen atoms and thermal ellipsoids of selected carbon and silicon atoms omitted for clarity). Selected distances [Å] and angles [°]: Si1–Si2 2.3813(8), Si2–Si3 2.6829(8), Si2–Si4 2.3645(8), Si2–Si5 2.3738(8), Si3–Si4 2.3566(8), Si3–Si6 2.3804(8), Si4–Si7 2.3051(8), Si5–Si6 2.3292(8), Si5–Si7 2.3435(9), Si6–Si7 2.3511(8), Si2–Si1–Si3 68.86(3), Si1–Si2–Si3 55.26(2), Si1–Si2–Si4 102.08(3), Si1–Si2–Si5 117.64(3), Si4–Si2–Si5 88.85(3), Si1–Si3–Si2 55.88(2), Si1–Si3–Si4 102.85(3), Si1–Si3–Si6 115.41(3), Si4–Si3–Si6 88.32(3), Si1–Si2–Si3–Si4 142.33(4).
Figure 6. ORTEP drawing of 9 (atomic displacement parameters set at 50% probability; hydrogen atoms and thermal ellipsoids of selected carbon and silicon atoms omitted for clarity). Selected distances [Å] and angles [°]: Si1–Si2 2.3813(8), Si2–Si3 2.6829(8), Si2–Si4 2.3645(8), Si2–Si5 2.3738(8), Si3–Si4 2.3566(8), Si3–Si6 2.3804(8), Si4–Si7 2.3051(8), Si5–Si6 2.3292(8), Si5–Si7 2.3435(9), Si6–Si7 2.3511(8), Si2–Si1–Si3 68.86(3), Si1–Si2–Si3 55.26(2), Si1–Si2–Si4 102.08(3), Si1–Si2–Si5 117.64(3), Si4–Si2–Si5 88.85(3), Si1–Si3–Si2 55.88(2), Si1–Si3–Si4 102.85(3), Si1–Si3–Si6 115.41(3), Si4–Si3–Si6 88.32(3), Si1–Si2–Si3–Si4 142.33(4).
Inorganics 06 00107 g006
Inorganics 06 00107 g007 550

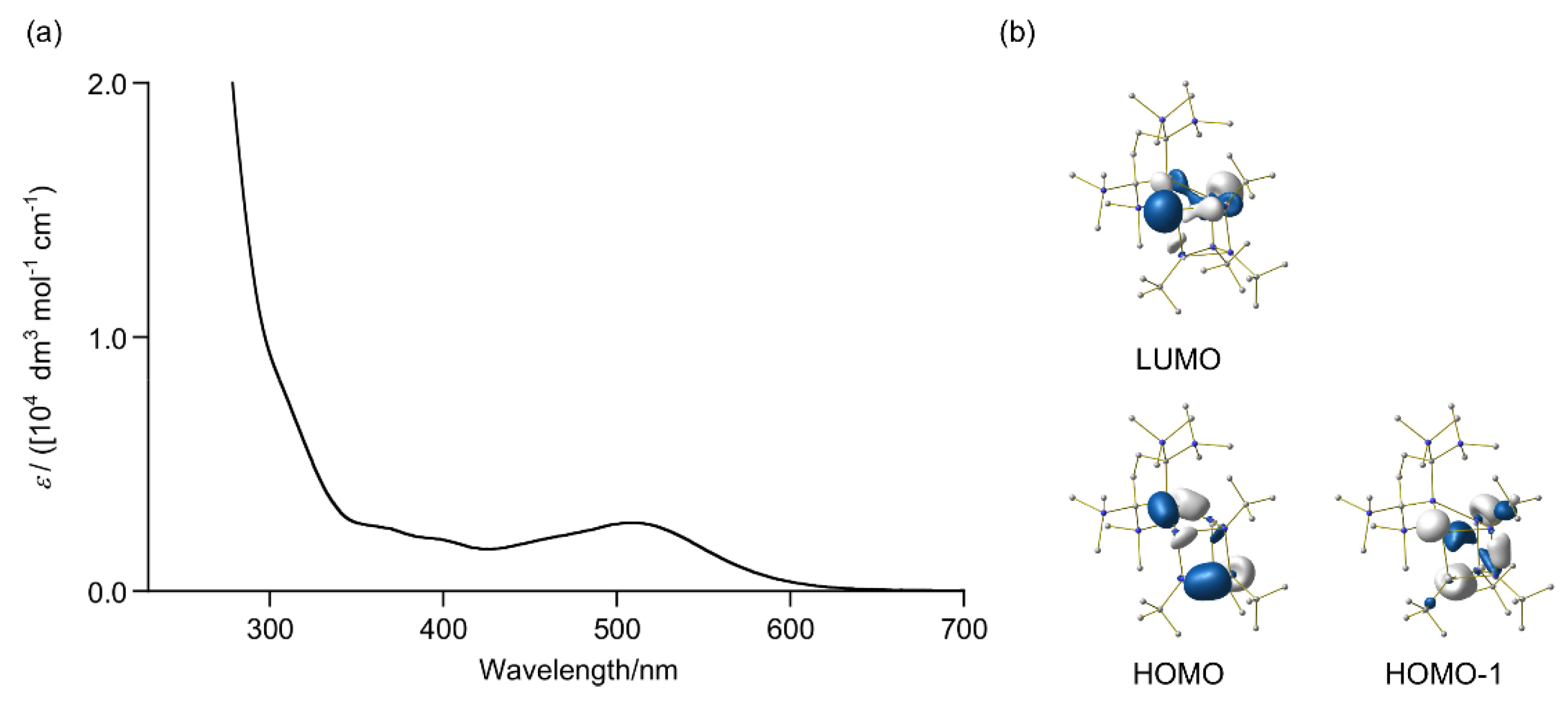

Figure 7. (a) UV–Vis spectrum of 9 in hexane at room temperature. (b) Frontier Kohn–Sham orbitals of 9 at the B3LYP-D3/6-311G(d)//B3PW91-D3/6-31G(d) level of theory (isosurface value = 0.05 e−/Å3).
Figure 7. (a) UV–Vis spectrum of 9 in hexane at room temperature. (b) Frontier Kohn–Sham orbitals of 9 at the B3LYP-D3/6-311G(d)//B3PW91-D3/6-31G(d) level of theory (isosurface value = 0.05 e−/Å3).
Inorganics 06 00107 g007
Inorganics 06 00107 g008 550

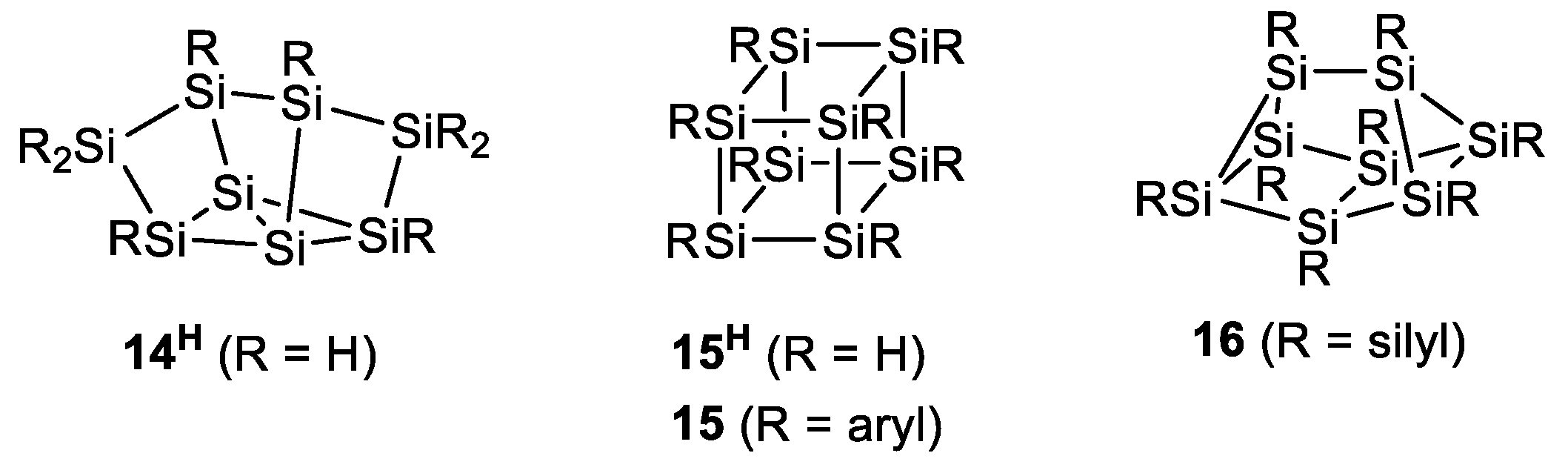

Figure 8. Examples of related Si8R8 isomers.
Figure 8. Examples of related Si8R8 isomers.
Inorganics 06 00107 g008
Table
Table 1. Relative free energies for Si8R8 isomers calculated at the B3PW91-D3/6-31G(d) level of theory.
Table 1. Relative free energies for Si8R8 isomers calculated at the B3PW91-D3/6-31G(d) level of theory.
CompoundΔG(298.15 K) [kJ/mol]ΔG(348.15 K) [kJ/mol]
4opt0.00.0
6opt+16.2+14.6
7opt+14.2+14.6
8opt−71.8−77.5
9opt + 2opt+14.9−0.1
