Pentacoordinated Chloro-Iron(III) Complexes with Unsymmetrically Substituted N2O2 Quadridentate Schiff-Base Ligands: Syntheses, Structures, Magnetic and Redox Properties

by
Jonathan Cisterna
1,†,
Vania Artigas
1,
Mauricio Fuentealba
1,
Paul Hamon
2,
Carolina Manzur
1,
Jean-René Hamon
2,* and
David Carrillo
1,*
1
Laboratorio de Química Inorgánica y Laboratorio de Cristalografía, Instituto de Química, Facultad de Ciencias, Pontificia Universidad Católica de Valparaíso, Campus Curauma, Avenida Universidad 330, Valparaíso, Chile
2
CNRS, University Rennes, ISCR (Institut des Sciences Chimiques de Rennes)—UMR 6226, F-35000 Rennes, France
*
Authors to whom correspondence should be addressed.
†
Present address: Laboratorio de Química-Física, Departamento de Química, Universidad de Antofagasta: Campus Coloso, Avenida Universidad de Antofagasta 02800, Antofagasta, Chile.
Inorganics 2018, 6(1), 5; https://doi.org/10.3390/inorganics6010005
Submission received: 19 November 2017 / Revised: 22 December 2017 / Accepted: 26 December 2017 / Published: 29 December 2017
(This article belongs to the Special Issue Schiff-Base Metal Complexes)
Browse Figures
Versions Notes

Abstract

Since their development in the 1930s, Schiff-base complexes have played an important role in the field of coordination chemistry. Here, we report the synthetic, spectral, structural, magnetic and electrochemical studies of two new pentacoordinated neutral chloro-iron(III) complexes (3,5) supported by dianionic [N2O2]2− tetradentate Schiff-base ligands unsymmetrically substituted by either a pair of acceptor (F and NO2) or donor (ferrocenyl and OCH3) groups. The electron-withdrawing Schiff-base proligand 2 and the complexes 3 and 5 were prepared in good yields (79–86%). Complex 3 was readily obtained upon reaction of 2 with anhydrous iron chloride under basic conditions, while the bimetallic derivative 5 was synthesized by condensation of the free amino group of the ferrocenyl-containing O,N,N-tridentate half-unit 4 with 5-methoxysalicylaldehyde in the presence of FeCl3. The three new compounds were characterized by elemental analysis, FT-IR, UV–Vis, mass spectrometry and in the case of 2 by multinuclear NMR spectroscopy. The crystal structures of 3 and 5 revealed that in the two five-coordinate monomers, the iron atom showed distorted square-pyramidal geometry, with the N and O atoms of the Schiff-base ligand occupying the basal sites and the chlorine atom at the apex of the pyramid. Magnetic measurements showed a high-spin configuration (S = 5/2) for the Fe(III) ion in 3 and 5. Reduction associated with the Fe(III)/Fe(II) redox couple occurred at −0.464 and −0.764 V vs. Ag/Ag+, and oxidation taking place at the Schiff-base ligand was observed at 1.300 and 0.942 V vs. Ag/Ag+ for 3 and 5, respectively. A high-electronic delocalization of the Schiff-base ligand substituted by fluoro and nitro groups stabilizes the Fe(II) oxidation state and shifts the redox potential anodically.

Graphical Abstract

1. Introduction

Since their first description by Hugo Schiff in 1864 [1], the so-called Schiff-base compounds have become, in their deprotonated form, one of the most widely used acyclic and macrocyclic polydentate ligands in coordination chemistry [2,3,4,5]. Schiff-bases that have been characterized by an imine (>C=N–) or azomethine (–HC=N–) group are easily synthesized by straightforward condensation reactions of ketone or aldehyde with primary amines. N,N-bis(salicylidene)ethylenediamine H2-salen, and N,N-bis(salicylidene)-o-phenylenediamine H2-salphen, both reported for the first time by Pfeiffer and coworkers 85 years ago [6], probably represent the archetypical symmetric N2O2 tetradentate Schiff-base species. They were obtained by spontaneous condensation of salicylaldehyde with ethylenediamine and o-phenylenediamine, respectively, in a 2:1 stoichiometric ratio. In the early 1980s, Costes and coworkers described the first non-template synthesis of an unsymmetrically substituted N2O2 tetradentate Schiff-base through a two-step process [7]. First, 2,4-pentanedione was monocondensated with ethylenediamine to generate the parent O,N,N-tridentate half-unit. In a second step, reaction of the latter with salicylaldehyde formed the desired product in a 1:1:1 overall stoichiometric ratio. Owing to the easy tunability of their stereo-electronic structures and their flexible denticities, Schiff-base ligands readily form complexes with most of the transition metals that are stabilized in low as well as higher oxidation states and with various polyhedral arrangements [8,9]. As a consequence, this class of compounds has found utility in a number of fields from catalysis [10,11] to materials chemistry [12,13], including nonlinear optics (NLO) [14,15].
Besides their function as model compounds for biological systems [16], iron complexes of Schiff-base ligands are known to display interesting magnetic properties [17,18]. For instance, six-coordinate d5 iron(III) complexes with N3O2X donor sets (X = S [19], Cl, N3, NCO, NCS, NCSe, CN [20,21]) show spin-crossover activity. Striking thermochromic behavior in various organic solvents caused by spin-equilibrium has also been observed for ionic hexacoordinated iron(III) Schiff-base complexes [22]. On the other hand, neutral five-coordinate d5 halogeno-iron(III) complexes containing planar tetradentate Schiff-base ligands show high-spin (HS) configuration (S = 5/2) and weak intermolecular antiferromagnetic exchange [17,22,23,24], presumably originating from pairwise interactions [25]. Moreover, some pentacoordinated [M(III)(salen)X] derivatives have also been found to be active NLO chromophores [26,27]. Recently, Karuppasamy et al. reported a series of eight chloro-iron(III) complexes with salen ligands symmetrically substituted with donor or acceptor groups prepared by a solvothermal one-pot method [28].
We have an ongoing interest in the synthesis and structural chemistry of new metal complexes featuring unsymmetrically substituted D-π-D′ and A-π-A′ Schiff-base ligands (D, D′, A, A′ denote donor and acceptor groups, respectively, and π a conjugated bridge), as building blocks to construct expanded D-π-A systems in order to enhance their second-order NLO responses. Recently we successfully prepared a series of robust neutral [M(salphen)]-type complexes (M = Ni, Cu) supported by dianionic [N2O2]2− tetradentate Schiff-base ligands (LD, LA) substituted by either a pair of donor or acceptor groups [29]. Encouraged by these results and continuing our efforts in this field we have now extended the scope to pentacoordinated chloro-iron(III) complexes of the type [Fe(LD/LA)Cl] as a preliminary study towards the elaboration of more complex coordination compounds. Interestingly, the labile chloro ligand is easily displaced by oxo anions [30], which allows the formation of iron(III) complexes bearing monodentate and bidentate anionic oxygen donor ligands [31]. Polynuclear species containing [FeIII(LD)] and [FeIII(La)] units might be prepared using rigid aromatic linkers that have predetermined shapes and connectivities upon application of such a synthetic strategy. Herein we report the synthesis and full characterization of the new unsymmetrically substituted Schiff-base derivative 2 resulting from monocondensation of the half-units 1 with 5-nitrosalicylaldehyde and the A-π-A′ (3) and D-π-D′ (5) chloro-iron(III)-centered macroacyclic salphen-type Schiff-base complexes [Fe(N2O2)Cl] (see formulae in Schemes 1–3). Complex 3 is readily obtained upon reaction of 2 with anhydrous iron chloride in basic medium, whereas the homobimetallic compound 5 is formed by condensation of the free amino group of the organometallic half-units 4 with 5-methoxysalicylaldehyde in the presence of iron(III) salt. The three new compounds 2, 3 and 5 were authenticated by X-ray diffraction studies. Redox and magnetic properties of the two iron(III) Schiff-base complexes were also investigated.

2. Results and Discussion

2.1. Syntheses

The acceptor unsymmetrically substituted Schiff base 2 was synthesized by the classical condensation reaction between half-unit (4-F–C6H4)–C(O)CH=C(CH3)–N(H)–C6H4–NH2 (1) [29] and 5-nitrosalicylaldehyde, in methanol at room temperature for 6 h (Scheme 1). Compound 2 was isolated as an air- and thermally stable yellow solid in good yield (79.7%). This proligand is soluble in the common organic solvents except diethyl ether and hydrocarbons.
The neutral mononuclear pentacoordinate chloro-iron(III) complex 3 was synthesized following a known one-pot two-step procedure [32]. First, the diprotic derivative 2 was doubly deprotonated with potassium tert-butoxide in THF at ambient temperature, before addition of a THF solution of anhydrous iron(III) chloride (Scheme 2). Complex 3 was isolated as a dark brown solid in excellent yield (86.4%).
As all attempts to synthesize and isolate the related electron-rich unsymmetrically substituted Schiff-base starting material were unsuccessful, the synthesis of the binuclear complex 5 was carried out via a previously used one-pot template methodology [29], that is, the condensation of the organometallic ONN-tridentate half-unit 4 [33] with 5-methoxy-2-hydroxibenzaldehyde in the presence of FeCl3 (Scheme 3). Complex 5 was isolated as black needles in 79.1% yield.
Complexes 3 and 5 are air- and thermally stable and moisture insensitive on storage under ordinary conditions; they exhibit good solubility in common organic solvents but are insoluble in diethyl ether and aliphatic and aromatic hydrocarbons.
The composition and structures of the new compounds 2, 3 and 5 were established by satisfactory elemental analyses, FT-IR, mass spectrometry, and multinuclear NMR spectroscopy in the case of 2. In addition, the proligand 2 and the complexes 3 and 5 were authenticated by single-crystal X-ray diffraction studies (see Section 2.4). Observation of the molecular ion peaks (100% intensity) in the ESI+ mass spectra of 2, 3 and 5, along with the good agreement of the experimental and simulated isotopic patterns, confirmed their structures.

2.2. FT-IR Spectroscopy

The solid-state FT-IR spectrum of the Schiff-base 2 exhibits two broad and weak bands at 3441 and 3070 cm−1 attributed to the ν(O–H) and ν(N–H) stretching vibrations, respectively. The shape and position of these bands are due to the two intramolecular N–H···O and O–H···N hydrogen bonds (see drawing of 2 in Scheme 1) [34,35]. Strong bands are also observed in the 1614–1584 cm−1 region and are attributed to the characteristic ν(CInorganics 06 00005 i001N), ν(CInorganics 06 00005 i001O) and ν(CInorganics 06 00005 i001C) stretching modes of the Schiff-base skeleton. Likewise, two strong bands in the 1480–1340 cm−1 range have been assigned to the asymmetric and symmetric vibrational modes of the –NO2 group [35,36]. The solid-state FT-IR spectra of the complexes 3 and 5 show a quite similar absorption band pattern (see Section 3.2), suggesting the analogy of their molecular structures. The disappearance of both the ν(O–H) and ν(N–H) absorption bands in the spectrum of complex 3 and the bathochromic shift by 8 cm−1 of the ν(CInorganics 06 00005 i001N) stretching of the azomethine group upon complex formation [37,38] indicate that the acyclic [N2O2]2− ligand is bonded to the iron(III) ion in its dianionic form and in a tetradentate fashion through the N2O2-donor set of the Schiff-base ligand.

2.3. NMR Spectroscopy

The 1H-NMR spectrum of the proligand 2, recorded in CD2Cl2 at 298 K, displayed the expected resonance patterns consistent with the proposed structure (see Section 3.2 for complete assignments). The azomethine proton resonance was observed at 8.79 ppm, testifying the assembly of the expected acyclic Schiff base 2. The amino and phenolic proton signals were seen at 13.05 and 13.71 ppm, respectively. Such deshielded resonances are in accordance with intramolecular hydrogen bonding of the amino proton with the carbonyl oxygen atom and of the hydroxyl proton with the imine nitrogen atom, thus closing, in both cases, a pseudo six-membered heterocycle (Scheme 1) [34,35,39,40]. The singlet resonance of the methine proton at 5.94 ppm testified the tautomeric keto-enamine form of 2. The sharp singlet showing up at 2.09 ppm was ascribed to the methyl group. The four magnetically nonequivalent protons of the o-phenylene bridge gave rise to four different resonances of various multiplicities that were observed in the 8.41–7.02 ppm range, with the same integration ratio (see Section 3.2).
The 1H-NMR findings were confirmed by the proton-decoupled 13C-NMR spectral data with each type of carbon providing a separate resonance (see Section 3.2 for complete assignments). The enaminone structure was confirmed by the presence of the peak at 94.6 ppm, whereas the azomethine carbon resonated at 162.4 ppm. Owing to the intramolecular N–H···O hydrogen bonding, the carbonyl carbon resonance was upfield-shifted with respect to a pure ketonic carbon (>200 ppm) and found at 187.8 ppm. In the 4-fluorophenyl ring, the carbon atom directly bonded to the fluorine substituent appeared as a doublet with 1JC,F coupling constant of 252 Hz. The ortho and meta carbons appeared also as doublets with 2JC,F of 21 Hz and a 3JC,F of 9 Hz. By contrast, the fluorine nucleus appeared as a singlet at –110.15 ppm in the 19F-NMR spectrum.

2.4. Crystal Structures

Good-quality single crystals for X-ray structure investigation were obtained for compounds 2, 3 and 5, either by slow evaporation of saturated dichloromethane solution in the cases of 2 and 3 or by slow diffusion of diethyl ether into a saturated acetonitrile solution of 5. The molecular structure of 2 is displayed in Figure 1, and those of 3 and 5 are depicted in Figure 2. Selected bond lengths and angles of 2 and of the [Fe(N2O2)Cl] coordination core of 3 and 5 are given in Table 1 and Table 2, respectively, whereas other selected bond distances and angles of 3 and 5 are provided in Tables S1 and S2 of the Supplementary Materials, respectively. The Schiff-base proligand 2 crystallizes in the triclinic centrosymmetric space group P 1 ¯ with one molecule per asymmetric unit. Complexes 3 and 5 crystallize as solvated dichloromethane 3·CH2Cl2 and acetonitrile 5·0.5CH3CN compounds, in the centrosymmetric space groups P21/c and Pbca, respectively, with in each case one molecule in the asymmetric unit. The single-crystal X-ray diffraction studies confirm that each compound contains an unsymmetrically substituted electron-withdrawing or electron-releasing N2O2 salphen-type framework. The latter results from the monocondensation of half-unit 1 with 5-nitrosalicylaldehyde in the case of 2 and 3 and of the organometallic precursor 4 with 5-methoxysalicylaldehyde to form 5. In 5, the free cyclopentadienyl ring of the ferrocenyl substituent is disordered over two positions with an eclipsed/staggered occupancy ratio of 67/33 (Table S3, Supplementary Materials). For the sake of simplicity only the major conformer is taken into account in the discussion of the structure. As expected, the ferrocenyl unit features a typical linear η5-FeII-η5 sandwich structure [41], with almost parallel cyclopentadienyl rings and a ring centroid–Fe-ring centroid angle of 178.4°. The ring centroid-iron distances are of 1.674 and 1.636 Å for the free and substituted rings, respectively. The structures of 2 and 3 are stabilized by networks of intra- and intermolecular hydrogen bonds that connect the neighboring entities (Figures S1 and S2, Supplementary Materials).
The potentially tetradentate acyclic ligand 2 exists as the Z-s-Z conformational form [34,35] in the enaminone part of the molecule (Figure 1) whose plane is almost coplanar with that of the 4-fluorophenyl substituent, making a dihedral angle of 6.3(1)°. The structure also reveals two intramolecular hydrogen bonds that close two pseudo-six-membered rings through the resonant ···O=C–C=C–NH··· fragment [42], with alternating double, single, double and single bonds between the vicinal O, C and N sp2-hybridized atoms (Table 1). The first hydrogen bond is located between the amino hydrogen atom and the carbonyl oxygen atom, whereas the second one takes place between the hydroxo substituent of the salicylidene ring and the imine nitrogen, with N···O separations of 2.638(2) and 2.586(2) Å, respectively (Table S4, Supplementary Materials). Lastly, the enaminone and salicylaldimine planes rotate by 69.0(1)° and 9.8(1)°, respectively, with respect to that of the o-diazophenylene spacer, while the nitro group is virtually coplanar with the salicylidene ring with a dihedral angle of 2.7(4)°.
The principal structural features of complexes 3 and 5 are depicted in Figure 2. The two structures consist of discrete molecules of [Fe(LA/LD)Cl]. In each compound, the iron(III) ion occupies the central position of a distorted pentahedral arrangement. Out of its five coordination sites, four positions are occupied by the dianionic tetradentate Schiff-base ligand through two nitrogen (amino and imino) atoms and two oxygen (carbonyl and phenoxido) atoms. The remaining fifth coordination is satisfied by a chloro ligand. The trigonality index (τ) [43] that is a parameter of distortion from the square-pyramidal to the trigonal-bipyramidal geometry has been calculated for the two pentahedral iron sites. The τ values are found to be 0.32 and 0.45 for 3 and 5, respectively, indicating that the pentacoordinated environment is strongly distorted from a perfectly square pyramid (τ = 0). The iron atoms are, indeed, substantially protruded from the ligand plane, which represents the typical five-coordinate square-pyramidal arrangement. These iron atoms are displaced by 0.529 and 0.576 Å in 3 and 5, respectively, from the least-squares plane defined by the Schiff-base donor atoms. This reflects the strain exerted by the ligand structure and results in a significantly bent arrangement of the ligand that is reflected in the angles of 39.7(2)° and 52.0(4)°, respectively, between the two planes of the [O–C–C–C–N] chelate rings of the ligands. The transoid O(1)–Fe–N(2) angles were found at slightly below 160° (Table 2), whereas the O(2)–Fe–N(1) angles are of 138.13(13)° and 132.3(3)° in 3 and 5, respectively. The O–Fe–O angle averages to 92.8° (Table 2).
The Fe–O, Fe–N and Fe–Cl bond lengths are almost identical in the two molecules (Table 2), and are consistent with the corresponding values measured in similar pentacoordinated iron(III)-chloride complexes supported by the N2O2 tetradentate Schiff-base ligand [17,24,25,44,45,46,47,48,49]. The average values are 1.921 and 1.888 Å (Fe–O), 2.064 and 2.084 Å (Fe–N), and 2.218 Å (Fe–Cl). Studies of metal complexes with tetradentate Schiff-base ligands have shown that the iron-to-imine nitrogen bond distance is an indicator of the electronic spin state of the metal ion [24,49,50]. The Fe–N bond lengths are in the range 1.93–1.96 Å for the low-spin state and in the range 2.00–2.10 Å for the high-spin configuration. In the structures of 3 and 5 reported here, the Fe–N bond distances of 2.109(3) and 2.060(7) Å, respectively, clearly suggest that the iron(III) ion in both complexes is in the high-spin state. This is consistent with the results of the magnetic measurements (see Section 2.7).
On the other hand, the [O(1)–CCC–N(1)] plane makes dihedral angles of 34.8(2)° and 14.8(5)° with that of its 4-fluorophenyl and substituted Cp ring substituents in 3 and 5, respectively. Like in the free proligand 2, the NO2 group is almost coplanar (4.1(6)°) with the salicylidene ring in 3.

2.5. Electronic Absorption Spectra

The UV-Vis spectra of the five-coordinate Schiff-base complexes 3 and 5 were recorded in CH2Cl2 (εr = 8.90) and in DMSO (εr = 47.6). The deconvoluted spectral data are gathered in Table 3, whereas both experimental and deconvoluted spectra are displayed in Figure 3 (for those recorded in CH2Cl2) and Figure S3 (for those recorded in DMSO). A strong broad absorption band was observed in the 300–430 nm range, whereas a set of two to three absorption bands appeared in the 450–650 nm range. The high-energy bands are attributed to π–π* intra-ligand charge-transfer transitions (ILCT), and the lower-energy bands are assumed to involve ligand-to-metal and metal-to-ligand charge-transfer transitions in a lesser extent [27]. In the spectrum of 5 recorded in DMSO (Figure S3), the band at 502 nm could be indicative of high-spin species, while the lowest energy band observed around 650 nm could arise from d–d transitions [22].
On moving from the less polar solvent to the more polar one, the two compounds exhibit solvatochromism, that is, their maximal absorption peaks show hypsochromic or bathochromic shifts (see Table 3). This indicates the change of dipole moments in the ground and excited states, verifying the existence of intramolecular charge transfer and suggestive of molecular first hyperpolarizabilities with nonzero values [27].

2.6. Electrochemical Properties

Cyclic voltammetry (CV) was used to investigate the redox properties of the two five-coordinate chloro-iron(III) Schiff-base complexes 3 and 5 (Figure 4). The measurements were carried out in methylene chloride solution containing 0.1 M nBu4N+PF6− as supporting electrolyte, at 293 K in the +1.5 to −1.0 V potential range, with redox potentials quoted against Ag/Ag+ reference electrode. The CV of 3 exhibited a reversible redox process centered at −0.454 V (ΔEp = 92 mV, ipc/ipa = 1.10). This slight discrepancy from an idealized chemical reversibility (ipc/ipa = 1.00) could be accounted for by the fact that the electrogenerated iron(II) species is excessively air sensitive, leading to the formation of the thermodynamically stable µ-oxo bridged dimer [(L)Fe–O–Fe(L)] [51]. The CV of the more electron-rich derivative 5 showed an irreversible reduction wave at a more cathodic potential (Epc = −0.764 V). These redox events have been assigned to the Fe(III)/Fe(II) couple [28,52]. Both compounds also underwent oxidative processes taking place at the Schiff-base ligands: an irreversible oxidation wave at Epa = 1.300 V in the case of 3, and a quasi-reversible one centered at 0.942 V (ΔEp = 115 mV, ipc/ipa = 0.99) in the case of 5. This electrochemical behavior is reminiscent of that observed with [Fe(salen)Cl] derivatives possessing either symmetrically [28] or unsymmetrically substituted N2O2 tetradentate Schiff-base ligands [52]. Here, the observed opposite redox behavior between 3 and 5 is in accordance with the electronic donor/acceptor ability of the two ligands as previously observed in the Ni(II) and Cu(II) series [29]. On the other hand, the CV of the homobimetallic complex 5 also presents a quasi-reversible redox process at 0.333 V (ΔEp = 118 mV, ipc/ipa = 0.85) attributed to the monoelectronic oxidation of the ferrocenyl fragment that is anodically shifted by ~160 mV with respect to free ferrocene under the same experimental conditions. This anodic shift is presumably due to the electron-withdrawing ability of the Schiff-base chloro-iron(III) unit. In fact, we previously found such a large anodic shift (168 mV) in the case of a Cu(II) complex with a ferrocenyl-containing Schiff-base ligand bearing a nitro substituent [36]. Lastly, the shoulders at 0.500 and 0.460 V observed at v = 0.1 V/s disappear at higher scan rates, suggesting some adsorption/desorption process at the vitreous carbon working electrode.

2.7. Magnetic Measurements

The room temperature value of χMT, with χM the molar magnetic susceptibility and T the temperature in Kelvin, is equal to 4.2 and 4.1 cm3·K·mol−1 for 3 and 5, respectively. These values are fully compatible with a Fe(III) high-spin complex (the expected value is 4.375 cm3·K·mol−1 with a Zeeman factor equal to 2.00). χMTs remain quasi-constant on cooling down to 50 K (Figure 5). Below this temperature, χMTs abruptly decrease, which can be the sign of the presence of antiferromagnetic interaction between magnetic centers (see here below) [22,23,24,25].

3. Materials and Methods

All manipulations were performed under dry nitrogen atmosphere using standard Schlenk techniques. Solvents were dried and distilled according to standard procedures [53]. 5-nitrosalicylaldehyde, 5-methoxy-2-hydroxybenzaldehyde, iron (III) chloride and potassium tert-butoxide were purchased from Aldrich (Sigma-Aldrich Co., St. Louis, MO, USA) and used without further purification. Half units (4-F–C6H4)–C(O)CH=C(CH3)N(H)-o-C6H4NH2 (1) [29] and {(η5-C5H5)Fe(η5-C5H4)–C(O)CH=C(CH3)N(H)-o-C6H4NH2 (4) [33] were synthesized according to published procedures, characterized by FT-IR and 1H-NMR spectroscopy and checked against literature data.
Solid-state FT-IR spectra were recorded on a Perkin-Elmer Model 1600 FT-IR spectrophotometer (Perkin-Elmer Inc., Waltham, MA, USA) with KBr disks in the 4000 to 450 cm−1 range, electronic spectra on a Shimadzu UV-1800 spectrophotometer (Shimadzu Co., Kioto, Japan), and NMR spectra on a Bruker Avance III 400 spectrometer (Bruker Co., Billerica, MA, USA) at 298 K. All NMR spectra are reported in parts per million (ppm) relative to tetramethylsilane (Me4Si) for 1H- and 13C-NMR spectra, with the residual solvent proton and carbon resonances used as internal standards. Chemical shifts of 19F-NMR spectra are referenced against external CFCl3. All signals have been assigned using their appropriate chemical shift (δ in ppm), multiplicity, coupling constants (J in Hertz), and integral ratio. The following abbreviations apply for signal multiplicity of peaks within spectra: s = singlet, d = doublet, t = triplet, m = multiplet, br = broad. High-resolution electrospray ionization mass spectra (ESI-MS) were conducted on a Bruker MAXI 4G mass spectrometer in positive mode, at the Centre Régional de Mesures Physiques de l’Ouest (CRMPO, Université de Rennes 1, France). Elemental analyses were carried out on a Thermo-Finnigan Flash EA 1112 CHNS/O analyzer by the Microanalytical Service of the CRMPO. Cyclic voltammetry (CV) measurements were performed using a CH Instruments model Ch604E potentiostat (Ch Instruments Inc., Austin, TX, USA), using a standard three-electrode setup with a vitreous carbon working electrode, platinum wire auxiliary electrode, and Ag/Ag+ as the reference electrode. Dichloromethane solutions were 1.0 mM in the compound under study and 0.1 M in the supporting electrolyte n-Bu4N+PF6− with voltage scan rate of 100 mV·s−1. The ferricenium/ferrocene redox couple was used as internal reference for the potential measurements. The temperature dependences of the magnetizations for powdered samples have been measured with a SQUID magnetometer (Quantum design MPMS-XL5; Quantum design Inc., San Diego, CA, USA) operating between 2 and 300 K at a constant field of 2 kOe below 20 K and 10 kOe above. The experimental data have been corrected from the sample holder diamagnetism and the intrinsic diamagnetism estimated from the Pascal’s tables [54]. Melting points were determined in evacuated capillaries on a Kofler Bristoline melting point apparatus and were not corrected.

3.1. X-ray Crystal Structure Determination Measurements

Single crystals of 2, 3·CH2Cl2 and 5·0.5CH3CN were grown as depicted in Section 2.4. A well-shaped crystal of each compound was mounted on top of glass fibers in a random orientation. Intensity diffraction data were collected at 296 K on a Bruker D8 QUEST diffractometer (Bruker Co., Billerica, MA, USA) equipped with a bidimensional CMOS Photon100 detector (Bruker Co., Billerica, MA, USA), using graphite monochromated Mo Kα radiation (λ = 0.71073 Å). The diffraction frames were integrated using the APEX2 package, and were corrected for absorptions with SADABS. The structures of 2 and 5·0.5CH3CN were solved using OLEX2 [55], with the SHELXS structure solution program using Direct Methods [56]. The structure of 3·CH2Cl2 was solved by Patterson methods [57]. The structures of 2 and 5·0.5CH3CN were refined with CGLS minimisation and that of 3·CH2Cl2 with full-matrix least-squares methods based on F2 (SHELXL-97) [56,57]. For the three compounds, non-hydrogen atoms were refined with anisotropic displacement parameters. All hydrogen atoms were included in their calculated positions, assigned fixed isotropic thermal parameters and constrained to ride on their parent atoms. A summary of the details about crystal data, collection parameters and refinement are documented in Table 4, and additional crystallographic details are in the CIF files. ORTEP views were drawn using OLEX2 software [55].
CIF files have been deposited at the Cambridge Crystallographic Data Center and were allocated the deposition numbers CCDC 1580128 for 2, 1580129 for 3, and 1580130 for 5. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336033).

3.2. Synthetic Procedures

3.2.1. [(4-F–C6H4)C(O)CH=C(CH3)N(H)-o-C6H4N=CH–(2-OH,5-NO2–C6H3)] (2)

Half-unit 1 (200 mg, 0.740 mmol) was dissolved in MeOH (10 mL). Then, 160.8 mg (0.962 mmol) of 5-nitrosalicylaldehyde, previously dissolved in MeOH (10 mL), was added. The reaction mixture was stirred at room temperature for 6 h, leading to the formation of a yellow-mustard solid. The resulting suspension was filtered, washed three times with 5 mL of cold (−30 °C) MeOH and three time more with 5 mL of diethyl ether, and dried in vacuo, affording 247.3 mg (79.7% yield) of a yellow-mustard powder. Recrystallization by slow evaporation of a saturated dichloromethane solution deposited orange single crystals suitable for X-ray structure determination. mp 164–166 °C (Dec). Anal. calcd for C23H18FN3O4 (419.41 g·mol−1): C, 65.87; H, 4.33; N, 10.02; found: C, 65.43; H, 4.01; N, 9.46. HRMS–ESI+ (based on C23H18N3O4FNa) m/z calcd: 442.1174; found: 442.1177 [M + Na]+. FT-IR (KBr pellet, cm−1): 3441(w) ν(O–H), 3070(w) ν(N–H), 2995(vw), 2916(vw) ν( C–H aryl) 2848(vw) ν(C–H alkyl), 1614(w), 1584(s) ν(CInorganics 06 00005 i001N), ν( CInorganics 06 00005 i001O) and/or ν(CInorganics 06 00005 i001C), 1479(s), 1338(s) νasym(NO2), νsym(NO2), 1296(s) ν(C–F). 1H NMR (400 MHz, CD2Cl2): 13.71 (s, 1 H, O–H), 13.05 (br s, 1 H, N–H), 8.79 (s, 1 H, N=CH), 8.41 (d, 1 H, J = 4.0 Hz, o-C6H4), 8.20 (dd, 1 H, J = 12.0 Hz, 4.0 Hz, C6H3), 7.92 (dd, 2 H, J =8.0 Hz, 4.0 Hz, p-C6H4), 7.37 (m, 4 H, o-C6H4 + C6H3), 7.29 (dd, J = 8.0 Hz, 4.0 Hz, 1 H, o-C6H4), 7.11 (t, J = 8.0 Hz, 2 H, C6H4F), 7.02 (d, J = 12.0 Hz, 1 H, o-C6H4), 5.94 (s, 1 H, CH=C), 2.09 (s, 3 H, CH3). 13C NMR (100 MHz, CD2Cl2): 187.8 (C=O), 166.9 (C–OH), 165.1 (d, JC,F = 252 Hz, C–F), 162.9 (CH=C), 162.4 (N=CH), 143.0 (C–NO2), 140.6 (C–N=), 136.6 (C–NH), 133.9 (Cquat, C6H4F), 129.7 (d, JC,F = 9 Hz, CH, C6H4F), 129.0 (CH, o-C6H4), 128.8 (CH, o-C6H4), 128.7 (CH, o-C6H4), 127.8 (CH, C6H3), 127.3 (CH, C6H3), 119.4 (CH, C6H3), 119.0 (Cquat, C6H3–CH=N), 118.6 (CH, o-C6H4),115.4 (d, JC,F = 21 Hz, CH, C6H4F), 94.6 (CH=C), 20.5 (CH3). 19F NMR (376 MHz, CD2Cl2): −110.15 (s, CF).

3.2.2. [{(4-F–C6H4)C(O)CH=C(CH3)N-o-C6H4N=CH–(2-O,5-NO2–C6H3)}FeCl] (3)

A Schlenk tube containing a magnetic stirring bar was charged with 300 mg (0.715 mmol) of proligand 2, and placed in vacuo for 30 min. Then the solid was dissolved in 10 mL of freshly distilled THF. The resulting solution was stirred and 161 mg (1.431 mmol) of potassium tert-butoxide was added, generating an orange solid in the mixture that was stirred for an additional 30 min. Then 174 mg (1.073 mmol) of anhydrous FeCl3, dissolved in 10 mL of freshly distilled THF, was added to the reaction mixture that turned dark brown. Stirring was continued for 4 h at room temperature, a dark solid appeared after 1 h. The solvent was completely evaporated in vacuo. The solid residue was extracted with 20 mL of dichloromethane. The resulting solution was filtered, and concentrated to obtain a dark brown solid which was filtered off and dried in vacuo for 2 h, affording 314 mg (86.4% yield) of microcrystalline dark brown solid. Recrystallization by slow evaporation of a saturated dichloromethane solution deposited black single crystals suitable for X-ray structure determination. mp 250–252 °C (dec). Anal. calcd for C23H16ClFFeN3O4 (508.69 g·mol−1): C, 54.31; H, 3.17; N, 8.26; found: C, 54.53; H, 3.29; N, 8.04. HRMS-ESI+ (based on C23H16N3O4F35ClNa56Fe) m/z calcd: 531.0055; found: 531.0056 [M + Na]+. FT-IR (KBr pellet, cm−1): 3229(w) ν(O–H), 3064(v) ν( C–H aryl), 2964(w), 2922(w) ν( C–H alkyl), 1608(s), 1599(w), 1548(s) ν(CInorganics 06 00005 i001N), ν( CInorganics 06 00005 i001O) and/or ν(CInorganics 06 00005 i001C), 1492(s) νasym (NO2), 1320(s), νsym(NO2), 1102 (m) ν(C–F).

3.2.3. [{(η5-C5H5)Fe(η5-C5H4)C(O)CH=C(CH3)N-o-C6H4N=CH–(2-O,5-OCH3–C6H3)}FeCl] (5)

A Schlenk tube containing a magnetic stirring bar was charged with 300 mg (0.833 mmol) of the organometallic half-unit 4 and placed under vacuum for 30 min. Freshly distilled THF (10 mL) and 103.9 µL (0.833 mmol) of 5-methoxysalicylaldehyde were successively added. The resulting dark orange solution was stirred for 15 min before adding 186.9 mg (1.666 mmol) of potassium tert-butoxide. The reaction mixture was stirred for an additional 15 min leading to the formation of a light orange suspension. Addition of 207.2 mg (1.245 mmol) of anhydrous FeCl3, dissolved in 15 mL of freshly distilled THF, generated a dark-brown slurry. Work up as above for 4 provided a dark solid that was filtered off and adsorbed on a column packed with silica gel. Elution with CH3Cl/MeOH mixture (10:1) produced the release of a dark-brown band that was collected. The solvents were evaporated in vacuo, and the solid material was recrystallized by slow diffusion of diethyl ether into a saturated acetonitrile solution of the compound, affording 384.6 mg (79.1% yield) of black needles suitable for X-ray structure determination. mp 280–282 °C. Anal. calcd for C28H24ClFe2N2O3 (583.65 g·mol−1): C, 57.62; H, 4.14; N, 4.80; found: C, 57.46; H, 4.37; N, 4.96. HRMS-ESI+ (based on C28H24N2O335ClNa56Fe2) m/z calcd: 606.00664; found: 606.0065 [M + Na]+. FT-IR (KBr pellet, cm−1): 3432(m), ν(O–H); 3064(w), 3004(w), 2948(w) ν(C–H aryl), 2924(w), 2850(vw), 2834(m) ν(C–H alkyl), 1602(s), 1552(s), 1536(s) ν(CInorganics 06 00005 i001N), ν(CInorganics 06 00005 i001O) and/or ν(CInorganics 06 00005 i001C), 1362(vs), 1266(s), 1324(m) ν(C–O).

4. Conclusions

Two new pentacoordinated chloro-iron(III) complexes of unsymmetrically substituted [N2O2]2− tetradentate Schiff-base ligands bearing either a pair of donor or acceptor substituents along with the Schiff-base proligand possessing the electron-withdrawing fluorine and nitro groups have been prepared and fully characterized. In the two D-π-D’ and A-π-A’ compounds, the two donor or acceptor units are connected through the conjugated iron(III)-centered macroacyclic Schiff-base core. The two complexes exhibited solvatochromic behavior that is suggestive of potential NLO activity. Although the nature of the substituents (acceptor vs. donor) does not have significant influence on the values of absorption maxima, electron-withdrawing and electron-donating substituents produce anodic and cathodic shifts, respectively, in both Schiff-base-ligand-based Fe(III) complexes, specifically in Fe(III)/Fe(II) redox potential values. Single-crystal X-ray diffraction analyses showed that the iron(III) ion adopts a strongly distorted square-pyramidal geometry. Moreover, the iron-to-imine bond lengths, close to 2.10 Å, put both complexes in the high-spin state. This finding was further confirmed by solid-phase magnetic measurements. Furthermore, a synthetic strategy utilizing the lability of the chloro ligand is anticipated to open up avenues for accessing a vast array of new mixed-ligand iron(III) complexes.

Supplementary Materials

The following are available online at www.mdpi.com/2304-6740/6/1/5/s1. Cif and cif-checked files. Figure S1: Packing diagram of 2 showing the hydrogen bonding interactions, Figure S2: Packing diagram of 3·CH2Cl2 showing the hydrogen bonding interactions implying the dichloromethane crystallization molecules, Figure S3: Experimental UV-vis spectra of complexes 3 (top, full line) and 5 (bottom, full line) recorded in DMSO at 20 °C, and their respective deconvoluted spectra (dotted lines), Table S1: Selected bond distances (Å) and angles (°) for compounds 3·CH2Cl2, Table S2: Selected bond distances (Å) and angles (°) for compound 5·0.5MeCN, Table S3: Atomic occupancy for complex 5, Table S4: Hydrogen bond interaction parameters for proligand 2.
Supplementary File 1

Acknowledgments

Financial support from the Fondo Nacional de Desarrollo Científico y Tecnológico [FONDECYT (Chile), grant no. 1130105 (David Carrillo, Carolina Manzur and Mauricio Fuentealba), the Vicerrectoría de Investigación y Estudios Avanzados, Pontificia Universidad Católica de Valparaíso, Chile (David Carrillo, Carolina Manzur and Mauricio Fuentealba), the CNRS and the Université de Rennes 1 is gratefully acknowledged. This research has been performed as part of the Chilean-French International Associated Laboratory “Multifunctional Molecules and Materials” (LIA M3-CNRS N° 1027). The authors are grateful to O. Cador (ISCR, Rennes), F. Lambert and P. Jehan (CRMPO, Rennes) for helpful assistance with magnetic measurements and HRMS, respectively. Jonathan Cisterna thanks the CONICYT (Chile) for support of a graduate fellowship.

Author Contributions

David Carrillo and Carolina Manzur conceived and designed the experiments; Jonathan Cisterna performed the experiments; Mauricio Fuentealba, Jean-René Hamon, Carolina Manzur and David Carrillo analyzed the data; Vania Artigas and Mauricio Fuentealba performed the crystallographic studies, Paul Hamon carried out the NMR experiments; Jean-René Hamon wrote the paper, and Jonathan Cisterna, Carolina Manzur and David Carrillo participated to the article editing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schiff, H. Mittheilungen aus dem universitätslaboratorium in pisa: Eine neue reihe organischer basen. Justus Liebigs Ann. Chem. 1864, 131, 118–119. [Google Scholar] [CrossRef]
  2. Hobday, M.D.; Smith, T.D. N,N'-ethylenebis(salicylideneiminato) transition metal ion chelates. Coord. Chem. Rev. 1973, 9, 311–337. [Google Scholar] [CrossRef]
  3. Garnovskii, A.D.; Nivorozhkin, A.L.; Minkin, V.I. Ligand environment and the structure of Schiff base adducts and tetracoordinated metal-chelates. Coord. Chem. Rev. 1993, 126, 1–69. [Google Scholar] [CrossRef]
  4. Vigato, P.A.; Tamburini, S. Advances in acyclic compartmental ligands and related complexes. Coord. Chem. Rev. 2008, 252, 1871–1995. [Google Scholar] [CrossRef]
  5. Yang, J.; Shi, R.; Zhou, P.; Qiu, Q.; Li, H. Asymmetric Schiff bases derived from diaminomaleonitrile and their metal complexes. J. Mol. Struct. 2016, 1106, 242–258. [Google Scholar] [CrossRef]
  6. Pfeiffer, P.; Breith, E.; Lubbe, E.; Tsumaki, T. Tricyclische orthokondensierte nebenvalenzringe. Justus Liebigs Ann. Chem. 1933, 503, 84–130. [Google Scholar] [CrossRef]
  7. Costes, J.-P.; Cros, G.; Darbieu, M.H.; Laurent, J.-P. The non-template synthesis of novel non-symmetrical, tetradentate Schiff bases. Their nickel(II) and cobalt(III) complexes. Inorg. Chim. Acta 1982, 60, 111–114. [Google Scholar] [CrossRef]
  8. Guerriero, P.; Tarnburini, S.; Vigato, P.A. From mononuclear to polynuclear macrocyclic or macroacyclic complexes. Coord. Chem. Rev. 1995, 139, 17–243. [Google Scholar] [CrossRef]
  9. Clarke, R.M.; Storr, T. The chemistry and applications of multimetallic salen complexes. Dalton Trans. 2014, 43, 9380–9391. [Google Scholar] [CrossRef] [PubMed]
  10. Menati, S.; Amiri Rudbari, H.; Askari, B.; Riahi Farsani, M.; Jalilian, F.; Dini, G. Synthesis and characterization of insoluble cobalt(II), nickel(II), zinc(II) and palladium(II) Schiff base complexes: Heterogeneous catalysts for oxidation of sulfides with hydrogen peroxide. C. R. Chimie 2016, 19, 347–356. [Google Scholar] [CrossRef]
  11. Drozdzak, R.; Allaert, B.; Ledoux, N.; Dragutan, I.; Dragutan, V.; Verpoort, F. Ruthenium complexes bearing bidentate Schiff base ligands as efficient catalysts for organic and polymer syntheses. Coord. Chem. Rev. 2005, 249, 3055–3074. [Google Scholar] [CrossRef]
  12. Wezenberg, S.J.; Kleij, A.W. Material Applications for Salen Frameworks. Angew. Chem. Int. Ed. 2008, 47, 2354–2364. [Google Scholar] [CrossRef] [PubMed]
  13. Castillo-Martinez, E.; Carretero-Gonzalez, J.; Armand, M. Polymeric Schiff bases as low-voltage redox centers for sodium-ion batteries. Angew. Chem. Int. Ed. 2014, 53, 5341–5345. [Google Scholar] [CrossRef] [PubMed]
  14. Di Bella, S. Second-order nonlinear optical properties of transition metal complexes. Chem. Soc. Rev. 2001, 30, 355–366. [Google Scholar] [CrossRef]
  15. Righetto, S.; Di Bella, S. Synthesis, characterization, optical absorption/fluorescence spectroscopy, and second-order nonlinear optical properties of aggregate molecular architectures of unsymmetrical Schiff-base zinc(II) complexes. Dalton Trans. 2014, 43, 2168–2175. [Google Scholar] [CrossRef]
  16. Kaim, W.; Schwederski, B. Bioinorganic chemistry: Inorganic elements. In The Chemistry of Life; John Wiley & Sons: Chichester, UK, 1994; ISBN 0-471-94369-X. [Google Scholar]
  17. Weber, B.; Jäger, E.-G. Structure and magnetic properties of iron(II/III) complexes with N2O22− coordinating Schiff base like ligands. Eur. J. Inorg. Chem. 2009, 465–477. [Google Scholar] [CrossRef]
  18. Domracheva, N.; Pyataev, A.; Manapov, R.; Gruzdev, M.; Chervonova, U.; Kolker, A. Structural, magnetic and dynamic characterization of liquid crystalline iron(III) Schiff base complexes with asymmetric ligands. Eur. J. Inorg. Chem. 2011, 1219–1229. [Google Scholar] [CrossRef]
  19. Phonsri, W.; Martinez, V.; Davies, C.G.; Jameson, G.N.L.; Moubaraki, B.; Murray, K.S. Ligand effects in a heteroleptic bis-tridentate iron(III) spin crossover complex showing a very high T1/2 value. Chem. Commun. 2016, 52, 1443–1446. [Google Scholar] [CrossRef] [PubMed]
  20. Krüger, C.; Augustín, P.; Nemec, I.; Trávnícek, Z.; Oshio, H.; Boca, R.; Renz, F. Spin crossover in iron(III) complexes with pentadentate Schiff base ligands and pseudohalido coligands. Eur. J. Inorg. Chem. 2013, 902–915. [Google Scholar] [CrossRef]
  21. Kruger, C.; Augustin, P.; Dlhan, L.; Pavlik, J.; Moncol, J.; Nemec, I.; Boca, R.; Renz, F. Iron(III) complexes with pentadentate Schiff-base ligands: Influence of crystal packing change and pseudohalido coligand variations on spincrossover. Polyhedron 2015, 87, 194–201. [Google Scholar] [CrossRef]
  22. Matsumoto, N.; Kimoto, K.; Ohyoshi, A.; Maeda, Y. Synthesis and characterization of iron(III) complexes with unsymmetrical quadridentate Schiff bases, and spin equilibrium behavior in solution. Bull. Chem. Soc. Jpn. 1984, 57, 3307–3311. [Google Scholar] [CrossRef]
  23. Fitzsimmons, B.W.; Smith, A.W.; Larkworthy, L.F.; Rogers, K.A. Transition metal–Schiff base complexes. Part VI. Mössbauer and magnetic investigations of some iron(II) and iron(III) systems. J. Chem. Soc. Dalton Trans. 1973, 676–680. [Google Scholar] [CrossRef]
  24. Shyu, H.-L.; Wei, H.-H.; Lee, G.-H.; Wang, Y. Structure, magnetic properties and epoxidation activity of iron(III) salicylaldimine complexes. J. Chem. Soc. Dalton Trans. 2000, 915–918. [Google Scholar] [CrossRef]
  25. Gerloch, M.; Mabbs, F.E. The crystal and molecular structure of chloro-(NN′-bis-salicylidene-ethylenediamine)iron(III) as a hexaco-ordinate Dimer. J. Chem. Soc. A 1967, 1900–1908. [Google Scholar] [CrossRef]
  26. Chiang, W.; Thompson, M.E.; Van Engen, D. Synthesis and Nonlinear Optical Properties of Inorganic Coordination Polymers. Spec. Publ. R. Soc. Chem. 1991, 91, 210–216. [Google Scholar]
  27. Elmali, A.; Karakas, A.; Unver, H. Nonlinear optical properties of bis[(p-bromophenyl-salicylaldiminato)chloro]iron(III) and its ligand N-(4-bromo)-salicylaldimine. Chem. Phys. 2005, 309, 251–257. [Google Scholar] [CrossRef]
  28. Karuppasamy, P.; Thiruppathi, D.; Vijaya Sundar, J.; Rajapandian, V.; Ganesan, M.; Rajendran, T.; Rajagopal, S.; Nagarajan, N.; Rajendran, P.; Sivasubramanian, V.K. Spectral, computational, electrochemical and antibacterial studies of iron(III)-salen complexes. Arab. J. Sci. Eng. 2015, 40, 2945–2958. [Google Scholar] [CrossRef]
  29. Cisterna, J.; Artigas, V.; Fuentealba, M.; Hamon, P.; Manzur, C.; Dorcet, V.; Hamon, J.-R.; Carrillo, D. Nickel(II) and copper(II) complexes of new unsymmetrically-substituted tetradentate Schiff base ligands: Spectral, structural, electrochemical and computational studies. Inorg. Chim. Acta 2017, 462, 266–280. [Google Scholar] [CrossRef]
  30. Silvestri, A.; Barone, G.; Ruisi, G.; Lo Giudice, M.T.; Tumminello, S. The interaction of native DNA with iron(III)-N,N’-ethylene-bis(salicylideneiminato)-chloride. J. Inorg. Biochem. 2004, 98, 589–594. [Google Scholar] [CrossRef] [PubMed]
  31. Darensbourg, D.J.; Ortiz, C.G.; Billodeaux, D.R. Synthesis and structural characterization of iron(III) salen complexes possessing appended anionic oxygen donor ligands. Inorg. Chim. Acta 2004, 357, 2143–2149. [Google Scholar] [CrossRef]
  32. Novoa, N.; Roisnel, T.; Hamon, P.; Kahlal, S.; Manzur, C.; Ngo, H.M.; Ledoux-Rak, I.; Saillard, J.-Y.; Carrillo, D.; Hamon, J.-R. Four-coordinate nickel(II) and copper(II) complex based ONO tridentate Schiff base ligands: Synthesis, molecular structure, electrochemical, linear and nonlinear properties, and computational study. Dalton Trans. 2015, 44, 18019–18037. [Google Scholar] [CrossRef] [PubMed]
  33. Fuentealba, M.; Trujillo, A.; Hamon, J.-R.; Carrillo, D.; Manzur, C. Synthesis, characterization and crystal structure of the tridentate metalloligand formed from mono-condensation of ferrocenoylacetone and 1,2-phenylenediamine. J. Mol. Struct. 2008, 881, 76–82. [Google Scholar] [CrossRef]
  34. Trujillo, A.; Fuentealba, M.; Carrillo, D.; Manzur, C.; Ledoux-Rak, I.; Hamon, J.-R.; Saillard, J.-Y. Synthesis, spectral, structural, second-order nonlinear optical properties and theoretical studies On new organometallic donor-acceptor substituted nickel(II) and copper(II) unsymmetrical Schiff-base complexes. Inorg. Chem. 2010, 49, 2750–2764. [Google Scholar] [CrossRef] [PubMed]
  35. Celedón, S.; Fuentealba, M.; Roisnel, T.; Ledoux-Rak, I.; Hamon, J.-R.; Carrillo, D.; Manzur, C. Side-chain metallopolymers containing second-order NLO-active bimetallic NiII and PdII Schiff-base complexes: Syntheses, structures, electrochemical and computational studies. Eur. J. Inorg. Chem. 2016, 3012–3023. [Google Scholar] [CrossRef]
  36. Cisterna, J.; Dorcet, V.; Manzur, C.; Ledoux-Rak, I.; Hamon, J.R.; Carrillo, D. Synthesis, spectral, electrochemical, crystal structures and nonlinear optical properties of unsymmetrical Ni(II) and Cu(II) Schiff base complexes. Inorg. Chim. Acta 2015, 430, 82–90. [Google Scholar] [CrossRef]
  37. Mahmoud, W.H.; Mahmoud, N.F.; Mohamed, G.G. Mixed ligand complexes of the novel nanoferrocene based Schiff base ligand (HL): Synthesis, spectroscopic characterization, MOE studies and antimicrobial/anticancer activities. J. Organomet. Chem. 2017, 848, 288–301. [Google Scholar] [CrossRef]
  38. Ouennoughi, Y.; Eddine Karce, H.; Aggoun, D.; Lanez, T.; Ruiz-Rosas, R.; Bouzerafa, B.; Ourari, A.; Morallon, E. A novel ferrocenic copper(II) complex salen-like, derived from 5-chloromethyl-2-hydroxyacetophenone and N-ferrocenmethylaniline: Design, spectral approach and solvent effect towards electrochemical behavior of Fc+/Fc redox couple. J. Organomet. Chem. 2017, 848, 344–351. [Google Scholar] [CrossRef]
  39. Sharif, S.; Denisov, G.S.; Toney, M.D.; Limbach, H.-H. NMR studies of solvent-assisted proton transfer in a biologically relevant Schiff base: Toward a distinction of geometric and equilibrium H-bond isotope effects. J. Am. Chem. Soc. 2006, 128, 3375–3387. [Google Scholar] [CrossRef] [PubMed]
  40. Dziembowska, T.; Szafran, M.; Katrusiak, A.; Rozwadowski, Z. Crystal structure of and solvent effect on tautomeric equilibrium in Schiff base derived from 2-hydroxy-1-naphthaldehyde and methylamine studied by X-ray diffraction, DFT, NMR and IR methods. J. Mol. Struct. 2009, 929, 32–42. [Google Scholar] [CrossRef]
  41. Dunitz, J.D.; Orgel, L.E.; Rich, A. The crystal structure of ferrocene. Acta Crystallogr. 1956, 9, 373–375. [Google Scholar] [CrossRef]
  42. Gilli, P.; Bertolasi, V.; Ferretti, V.; Gilli, G. Evidence for intramolecular N–H···O resonance-assisted hydrogen bonding in β-enaminones and related heterodienes. A combined crystal-structural, IR and NMR spectroscopic, and quantum-mechanical investigation. J. Am. Chem. Soc. 2000, 122, 10405–10417. [Google Scholar] [CrossRef]
  43. Addison, A.W.; Nageswara, T.; Reedijk, J.; van Rijn, J.; Verchoor, G.C. Synthesis, structure, and spectroscopic properties of copper( II) compounds containing nitrogen-sulphur donor ligands ; the crystal and molecular structure of aqua[1,7-bis(N-methylbenzimidazol-2′-yl)-2,6-dithiaheptane]copper(II) perchlorate. J. Chem. Soc. Dalton Trans. 1984, 1349–1356. [Google Scholar] [CrossRef]
  44. Gerloch, M.; Mabbs, F.E. The crystal and molecular structure of NN′-bis(salicylideneiminato)-iron(III)chloride as a five-co-ordinate monomer. J. Chem. Soc. A 1967, 1598–1608. [Google Scholar] [CrossRef]
  45. Elmali, A.; Elerman, Y.; Svoboda, I.; Fuess, H. Structure of [N,N'-o-Phenylenebis-(salicylideneaminato)]iron(III) chloride as a five-coordinate monomer. Acta Crystallogr. 1993, C49, 1365–1367. [Google Scholar] [CrossRef]
  46. Elerman, Y.; Kabak, M.; Tllko, D. A Five-coordinated monomer of chloro-[N,N'-(di-2-hydroxy-1-naphthylidene)-1,2-diaminobenzene]iron(III). Acta Crystallogr. 1997, C53, 712–714. [Google Scholar] [CrossRef]
  47. Elmali, A.; Kavlakoglu, E.; Elerman, Y.; Svoboda, I. A complex containing both five- and six-coordinate [bis(5-bromosalicylidene)benzene-1,2-diimine]chloro-iron(III). Acta Crystallogr. 2000, C56, 1097–1099. [Google Scholar] [CrossRef]
  48. Oyaizu, K.; Tsuchida, E. Crystal structure and reactivity of a five-coordinate chloroiron(III) complex with a bulky tetradentate Schiff base ligand. Inorg. Chim. Acta 2003, 355, 414–419. [Google Scholar] [CrossRef]
  49. Dyers, L., Jr.; Que, S.Y.; VanDerveer, D.; Bu, X.R. Synthesis and structures of new salen complexes with bulky groups. Inorg. Chim. Acta 2006, 359, 197–203. [Google Scholar] [CrossRef]
  50. Calligaris, M.; Nardin, G.; Randaccio, L. Structural aspects of metal complexes with some tetradentate schiff bases. Coord. Chem. Rev. 1972, 7, 385–403. [Google Scholar] [CrossRef]
  51. Oyaizu, K.; Dewi, E.L.; Tsuchida, E. A µ-oxo diiron(III) complex with a short Fe–Fe distance: Crystal structure of (μ-oxo)bis[N,N’-o-phenylenebis(salicylideneiminato)iron(III)]. Inorg. Chim. Acta 2001, 321, 205–208. [Google Scholar] [CrossRef]
  52. Carré, B.; Costes, J.-P.; Tommasino, J.-B.; De Montauzon, D.; Soulet, F.; Fabre, P.-L. Electrochemical studies of Iron(III) Schiff base complexes—I. The monomeric FeIII(N2O2)Cl complexes. Polyhedron 1993, 12, 641–649. [Google Scholar] [CrossRef]
  53. Armarego, W.L.F.; Chai, C.L.L. Purification of Laboratory Chemicals, 5th ed.; Butterworth-Heinemann, Elsevier Inc.: Amsterdam, The Netherlands, 2003; ISBN 978-0-7506-7571-0. [Google Scholar]
  54. Kahn, O. Molecular Magnetism; VCH Publishers: New York, USA, 1993; ISBN 978-0471188384. [Google Scholar]
  55. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  56. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar] [CrossRef]
  57. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. [Google Scholar] [CrossRef] [PubMed]
Inorganics 06 00005 sch001

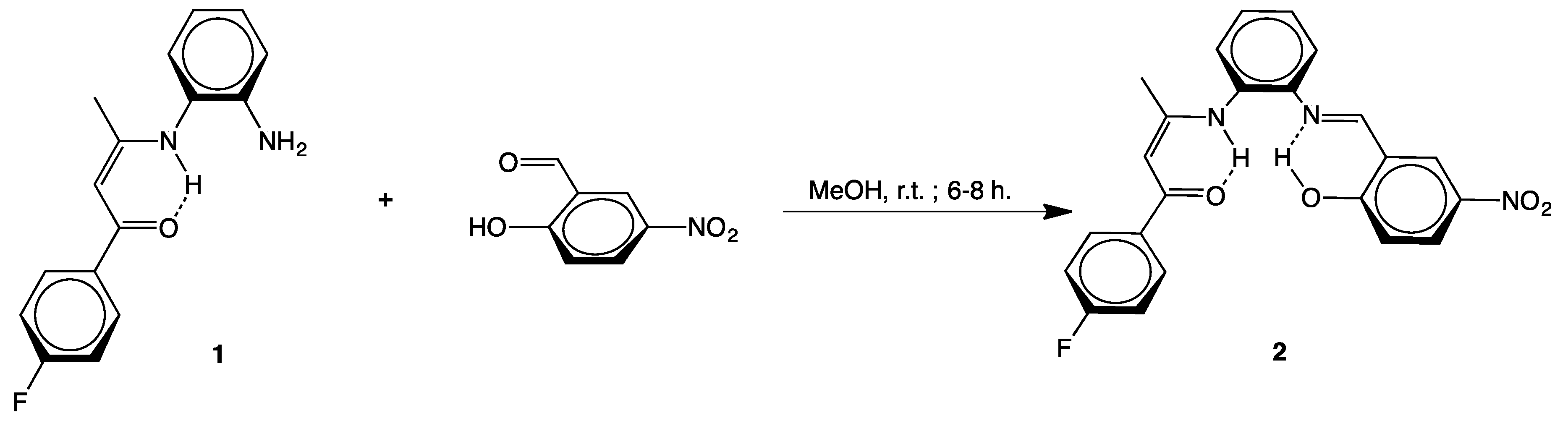

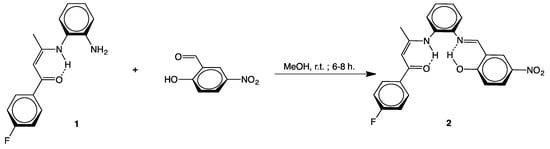

Scheme 1. Synthesis of the unsymmetrically substituted tetradentate Schiff base 2.
Scheme 1. Synthesis of the unsymmetrically substituted tetradentate Schiff base 2.
Inorganics 06 00005 sch001
Inorganics 06 00005 sch002

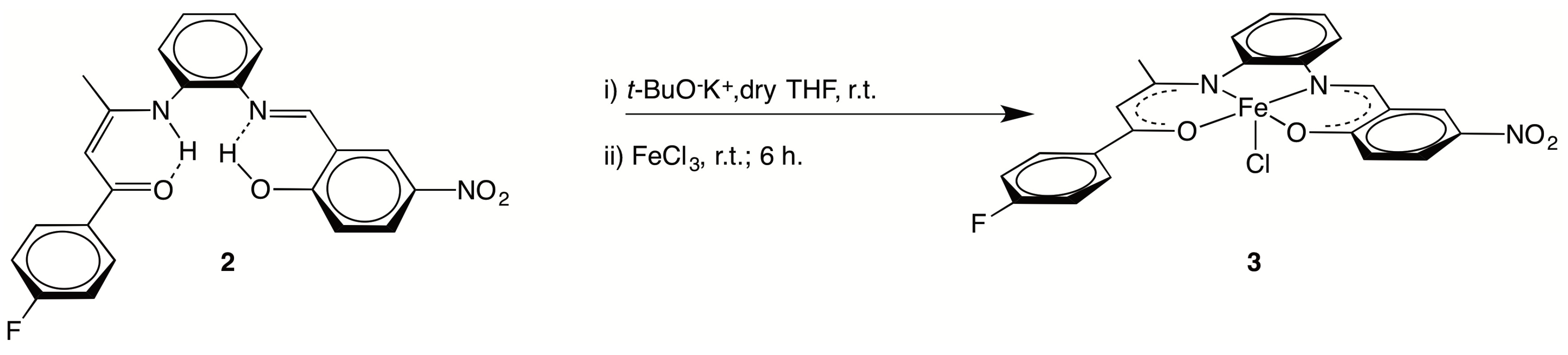

Scheme 2. Synthesis of the pentacoordinated chloro-iron(III) complex 3.
Scheme 2. Synthesis of the pentacoordinated chloro-iron(III) complex 3.
Inorganics 06 00005 sch002
Inorganics 06 00005 sch003

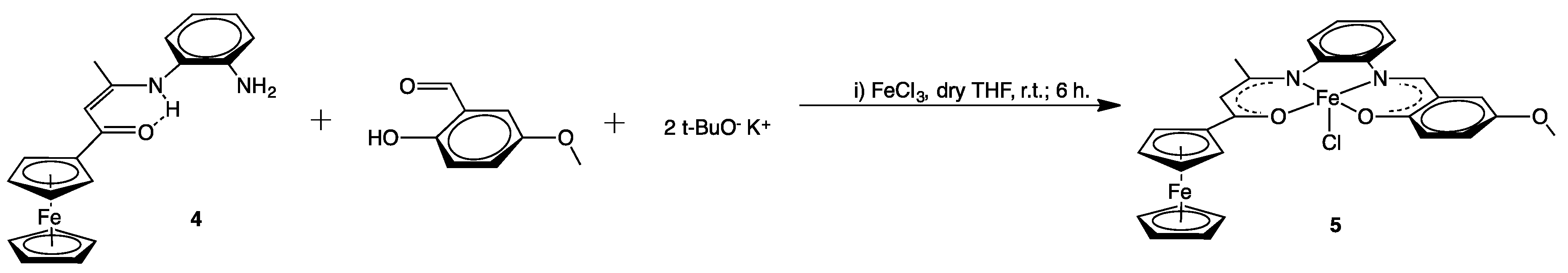

Scheme 3. Synthesis of the pentacoordinated chloro-iron(III) complex 5.
Scheme 3. Synthesis of the pentacoordinated chloro-iron(III) complex 5.
Inorganics 06 00005 sch003
Inorganics 06 00005 g001

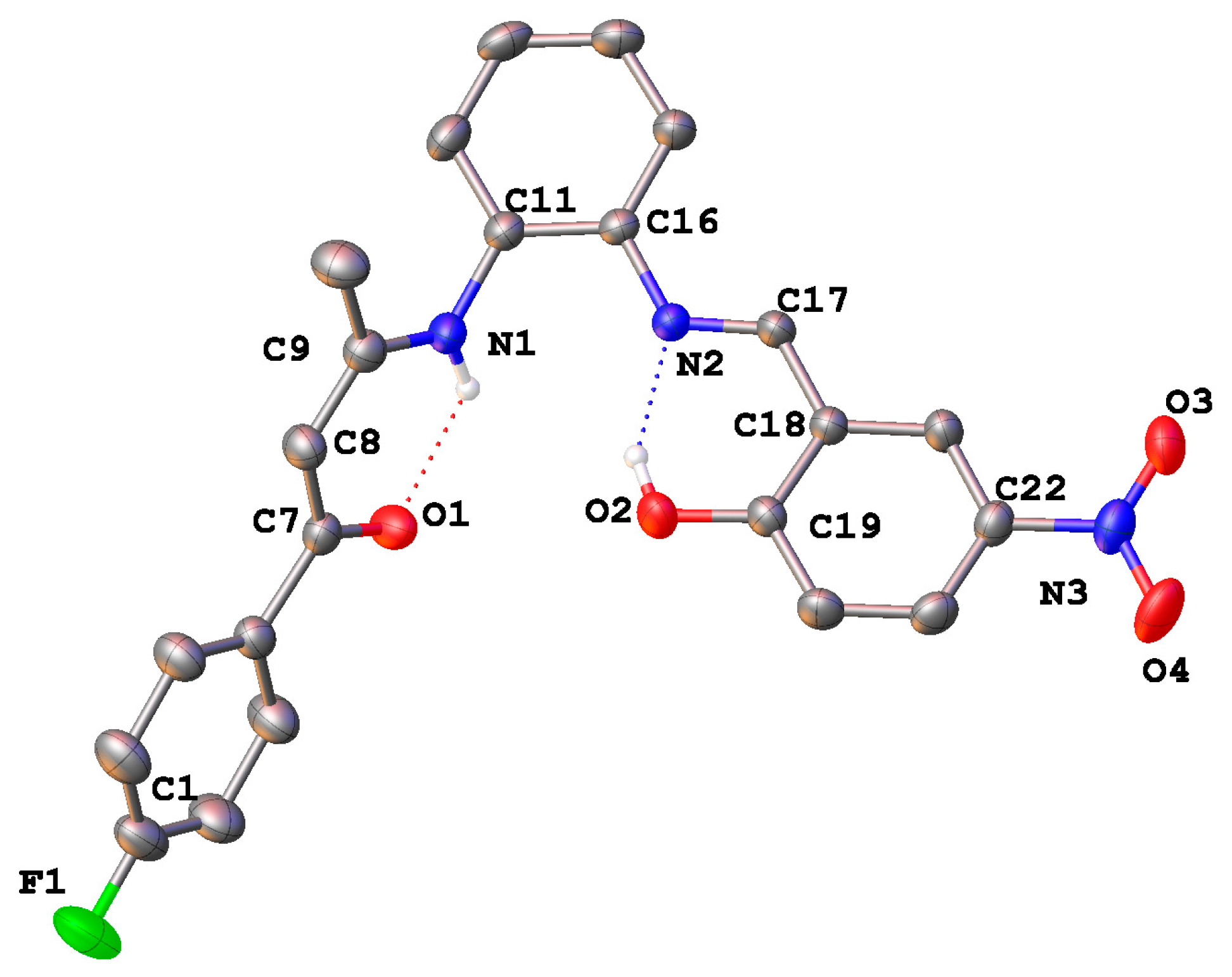

Figure 1. Molecular structure of the Schiff-base proligand 2 showing partial atom numbering scheme. Nonrelevant hydrogen atoms are omitted for clarity. Thermal ellipsoids are drawn at 50% probability.
Figure 1. Molecular structure of the Schiff-base proligand 2 showing partial atom numbering scheme. Nonrelevant hydrogen atoms are omitted for clarity. Thermal ellipsoids are drawn at 50% probability.
Inorganics 06 00005 g001
Inorganics 06 00005 g002

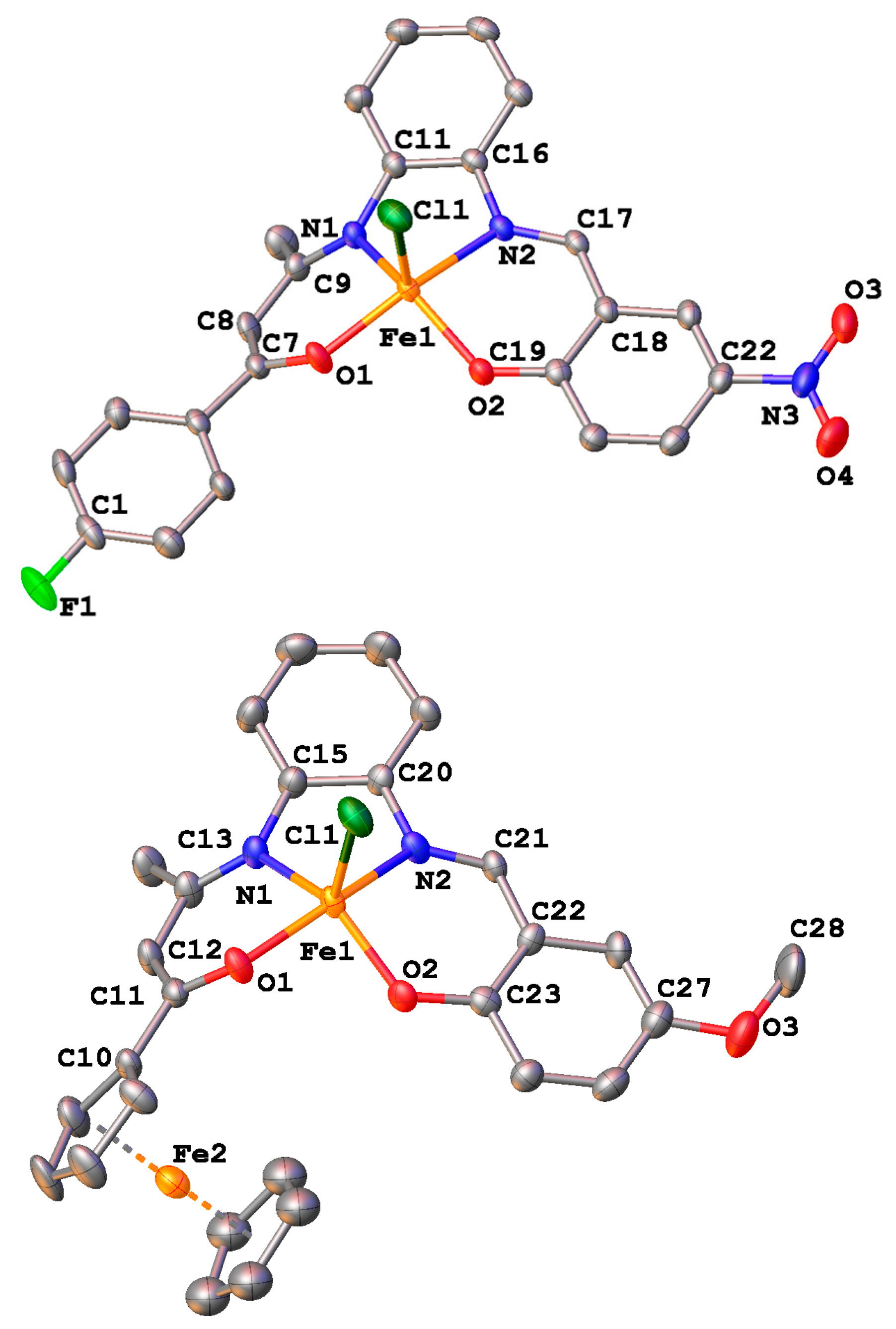

Figure 2. Molecular structures of 3·CH2Cl2 (top) and 5·0.5CH3CN (bottom) with partial atom labelling schemes. Hydrogen atoms and crystallization solvent molecules have been omitted for clarity. Thermal ellipsoids are drawn at 50% probability.
Figure 2. Molecular structures of 3·CH2Cl2 (top) and 5·0.5CH3CN (bottom) with partial atom labelling schemes. Hydrogen atoms and crystallization solvent molecules have been omitted for clarity. Thermal ellipsoids are drawn at 50% probability.
Inorganics 06 00005 g002
Inorganics 06 00005 g003

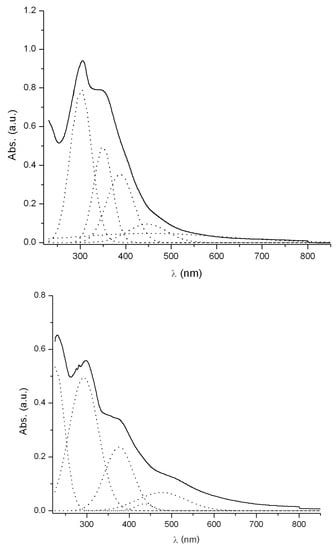

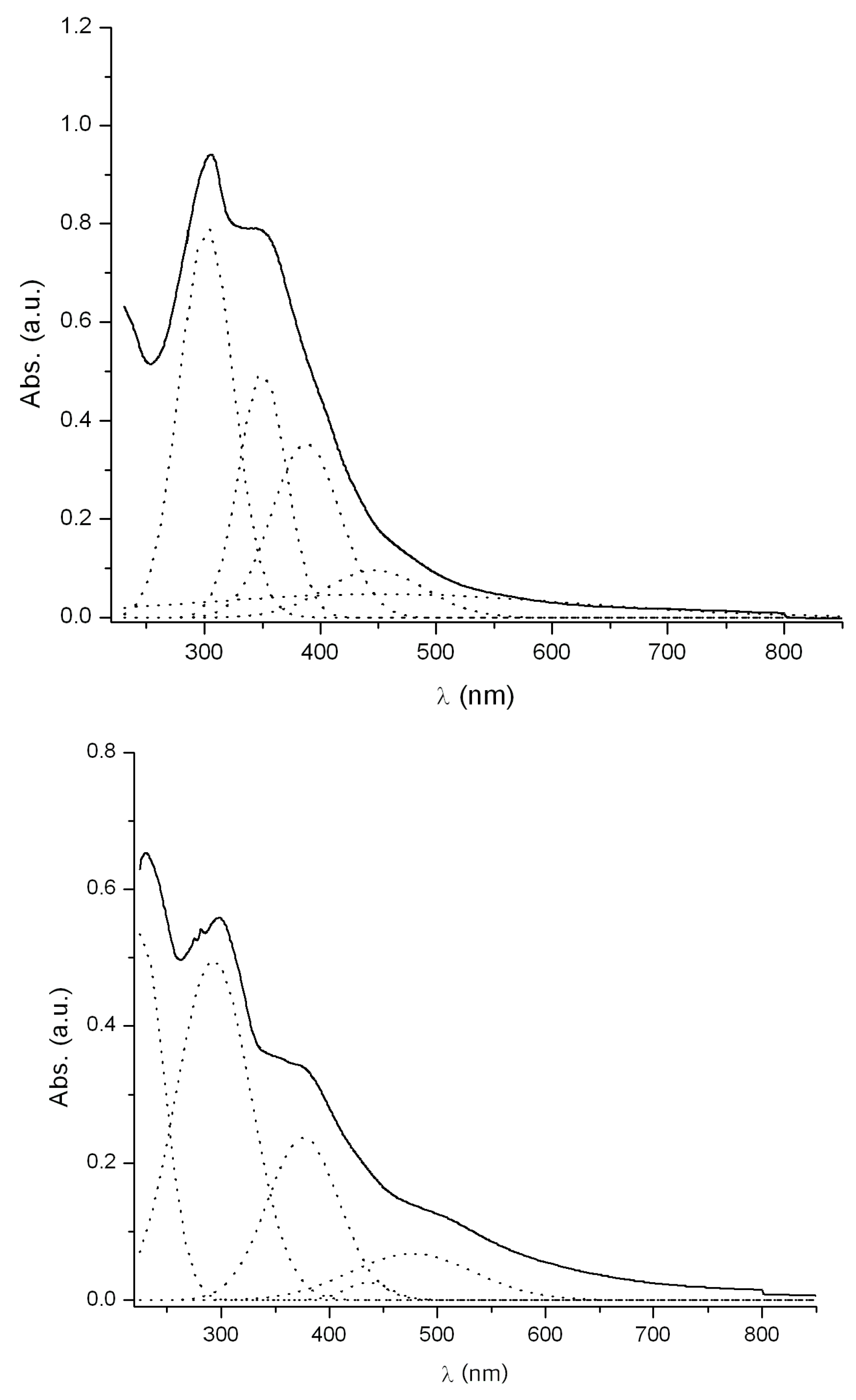

Figure 3. Experimental UV-Vis spectra of complexes 3 (top, full line) and 5 (bottom, full line) recorded in CH2Cl2 at 20 °C, and their respective deconvoluted spectra (dotted lines).
Figure 3. Experimental UV-Vis spectra of complexes 3 (top, full line) and 5 (bottom, full line) recorded in CH2Cl2 at 20 °C, and their respective deconvoluted spectra (dotted lines).
Inorganics 06 00005 g003
Inorganics 06 00005 g004

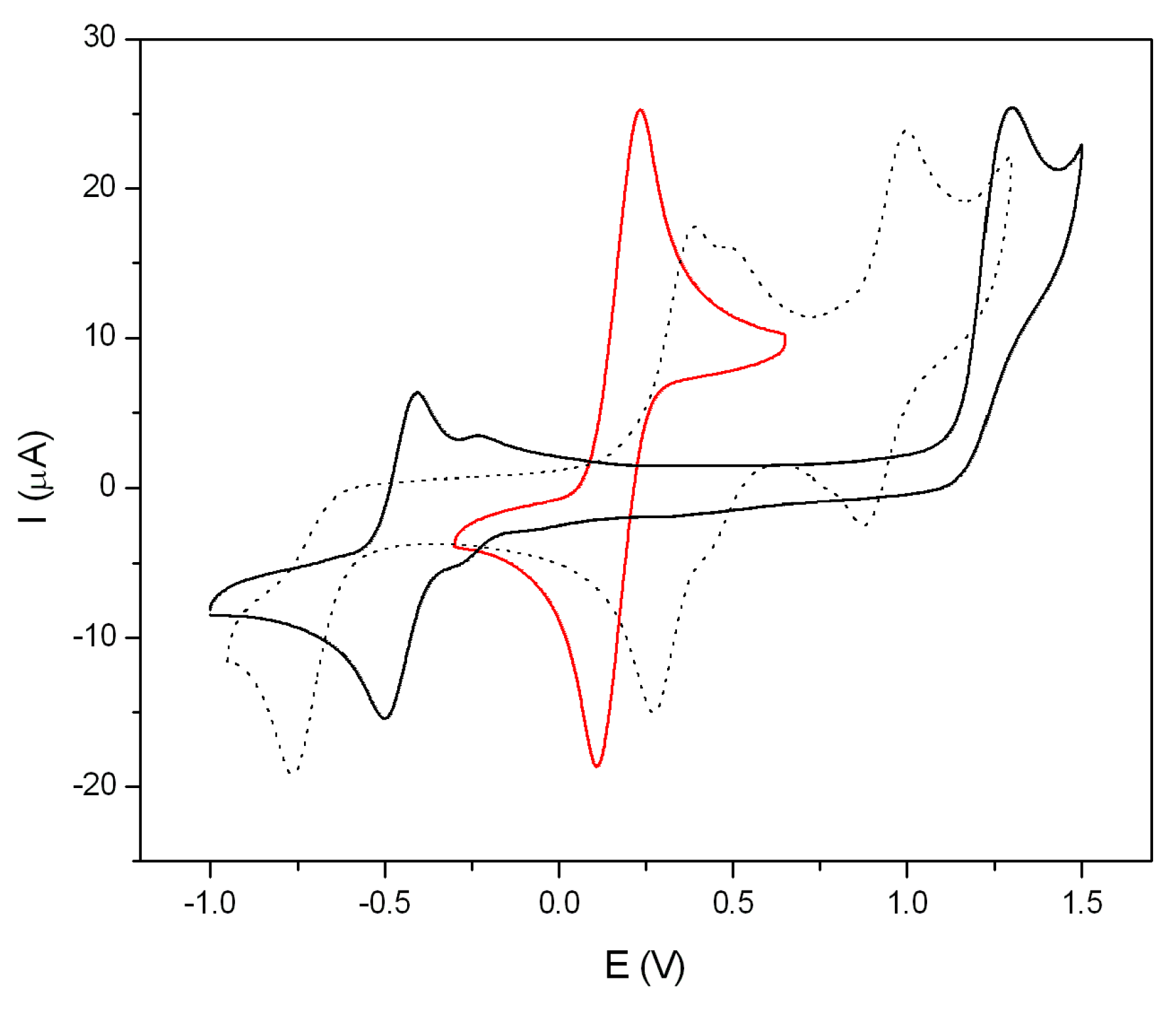

Figure 4. Cyclic voltammograms of 3 (black line) and 5 (dotted line), recorded in CH2Cl2 containing 0.1 M n-Bu4N+PF6− at a vitreous carbon working electrode at 293 K, v = 100 mV·s−1, reference electrode Ag/Ag+, internal reference ferricenium/ferrocene redox couple (red line).
Figure 4. Cyclic voltammograms of 3 (black line) and 5 (dotted line), recorded in CH2Cl2 containing 0.1 M n-Bu4N+PF6− at a vitreous carbon working electrode at 293 K, v = 100 mV·s−1, reference electrode Ag/Ag+, internal reference ferricenium/ferrocene redox couple (red line).
Inorganics 06 00005 g004
Inorganics 06 00005 g005

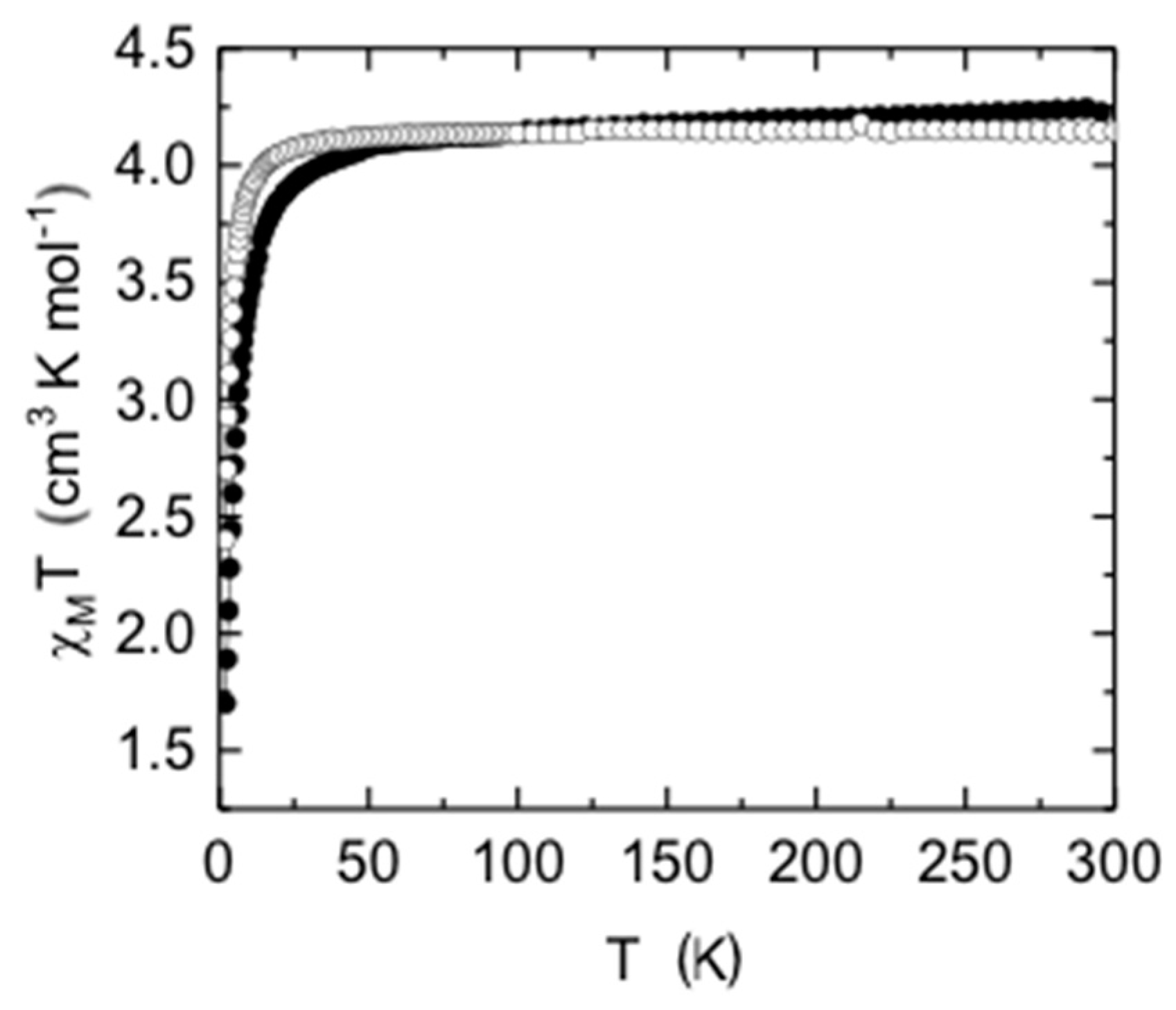

Figure 5. Thermal variation of χMT between 2 and 300 K for 3 (full circles) and 5 (empty circles).
Figure 5. Thermal variation of χMT between 2 and 300 K for 3 (full circles) and 5 (empty circles).
Inorganics 06 00005 g005
Table 1. Selected bond distances (Å) and angles (°) for compound 2.
Table 1. Selected bond distances (Å) and angles (°) for compound 2.
Bond Distances
O(1)–C(7)1.249(2)O(2)–C(19)1.329(2)
N(1)–C(9)1.333(3)N(2)–C(17)1.279(2)
C(7)–C(8)1.421(3)C(17)–C(18)1.444(3)
C(8)–C(9)1.373(3)C(18)–C(19)1.413(3)
N(1)–C(11)1.428(2)N(2)–C(16)1.415(2)
F(1)–C(1)1.3250(17)N(3)–C(22)1.460(3)
N(3)–O(3)1.220(3)N(3)–O(4)1.217(3)
Bond Angles
O(1)–C(7)–C(8)122.18(19)O(2)–C(19)–C(18)121.10(17)
C(7)–C(8)–C(9)124.1(2)C(17)–C(18)–C(19)121.29(17)
N(1)–C(9)–C(8)121.21(19)N(2)–C(17)–C(18)121.80(17)
C(9)–N(1)–C(11)126.32(18)C(16)–N(2)–C(17)121.95(16)
O(3)–N(3)–O(4)123.3(2)O(3)–N(3)–C(22)118.33(18)
Table 2. Selected bond distances (Å) and angles (°) within the first [Fe(N2O2)Cl] coordination sphere for compounds 3·CH2Cl2 and 5·0.5CH3CN.
Table 2. Selected bond distances (Å) and angles (°) within the first [Fe(N2O2)Cl] coordination sphere for compounds 3·CH2Cl2 and 5·0.5CH3CN.
3·CH2Cl25·0.5CH3CN
Bond Distances
Fe(1)–O(1)1.918(3)1.925(6)
Fe (1)–O(2)1.900(3)1.877(7)
Fe (1)–N(1)2.063(3)2.068(8)
Fe (1)–N(2)2.109(3)2.060(7)
Fe (1)–Cl(1)2.208(12)2.229(3)
Bond Angles
O(1)–Fe(1)–N(2)157.26(13)159.5(3)
O(2)–Fe(1)–N(1)138.13(13)132.3(3)
O(1)–Fe(1)–O(2)93.21(12)92.4(3)
O(1)–Fe(1)–N(1)88.31(12)87.6(3)
O(2)–Fe(1)–N(2)86.69(12)87.7(3)
N(1)–Fe(1)–N(2)76.92(12)77.7(3)
O(1)–Fe(1)–Cl(1)101.80(10)101.4(2)
O(2)–Fe(1)–Cl(1)110.17(10)112.9(2)
N(1)–Fe(1)–Cl(1)110.41(10)113.7(2)
N(2)–Fe(1)–Cl(1)99.55(9)97.4(2)
Table 3. Deconvoluted UV-Vis absorption data for complexes 3 and 5.
Table 3. Deconvoluted UV-Vis absorption data for complexes 3 and 5.
Comp.λ/nm (log ε) CH2Cl2λ/nm (log ε) DMSOΔE (cm−1)
3301 (4.42)311(4.38)+1068
349(4.22)357(3.04)+642
387(4.08)383(3.79)−270
446(3.51)420(4.12)−1388
453(3.20)466(3.22)+616
5292(4.22)303(4.47)+1243
375(3.90)392(4.34)+1156
435(3.95)447(3.54)+617
476(4.35)475(3.76)−44
-502(3.48)-
-653(3.00)-
Table 4. Crystal data, details of data collection and structure refinement parameters for compounds 2, 3·CH2Cl2 and 5·0.5CH3CN.
Table 4. Crystal data, details of data collection and structure refinement parameters for compounds 2, 3·CH2Cl2 and 5·0.5CH3CN.
23·CH2Cl25·0.5CH3CN
Empirical Formula C23H18FN3O4C23H16ClFFeN3O4·CH2Cl2C28H24ClFe2N2O3·0.5C2H3N
Formula mass, g·mol−1419.40593.61604.17
Collection T, K296296296
Crystal systemtriclinicmonoclinicorthorhombic
Space groupP 1 ¯ P21/cPbca
a (Å)6.50650(10)13.7047(8)17.1576(10)
b (Å)8.9928(2)7.3909(5)13.8793(10)
c (Å)17.7353(5)24.6860(14)23.1768(17)
α (°)98.3710(11)9090
β (°)92.8731(11)99.469(2)90
γ (°)100.6470(10)9090
V (Å3)1005.82(4)2466.4(3)5519.2(7)
Z248
Dcalcd (g·cm−3)1.3851.5991.454
Crystal size (mm)0.347 × 0.284 × 0.1760.281 × 0.129 × 0.0680.143 × 0.114 × 0.096
F(000)436.01204.02480.0
Abs coeff (mm−1)0.1030.9811.182
θ range (°)4.658 to 52.7744.858 to 52.765.158 to 52.756
Range h,k,l−8/8, −11/11, −22/22−17/17, −9/9, −30/30−21/20, −17/17, −28/28
No. total refl.250534408198249
No. unique refl.411650415616
Comp. θmax (%)9910099.4
Max/min transmission0.982/0.9660.981/0.7650.619/0.745
Data/restraints/parameters4116/0/2705041/12/3265616/0/326
Final R [I > 2σ(I)]R1 = 0.0558; wR2 = 0.1550R1 = 0.0584; wR2 = 0.1487R1 = 0.1190; wR2 = 0.2982
R indices (all data)R1 = 0.0735; wR2 = 0.1751R1 = 0.0852; wR2 = 0.1653R1 = 0.1473; wR2 = 0.3191
Goodness of fit / F21.0471.0831.170
Largest diff. peak/hole (eÅ−3)0.38/−0.320.56/−0.781.42/−0.97

Share and Cite

MDPI and ACS Style

Cisterna, J.; Artigas, V.; Fuentealba, M.; Hamon, P.; Manzur, C.; Hamon, J.-R.; Carrillo, D. Pentacoordinated Chloro-Iron(III) Complexes with Unsymmetrically Substituted N2O2 Quadridentate Schiff-Base Ligands: Syntheses, Structures, Magnetic and Redox Properties. Inorganics 2018, 6, 5. https://doi.org/10.3390/inorganics6010005

AMA Style

Cisterna J, Artigas V, Fuentealba M, Hamon P, Manzur C, Hamon J-R, Carrillo D. Pentacoordinated Chloro-Iron(III) Complexes with Unsymmetrically Substituted N2O2 Quadridentate Schiff-Base Ligands: Syntheses, Structures, Magnetic and Redox Properties. Inorganics. 2018; 6(1):5. https://doi.org/10.3390/inorganics6010005

Chicago/Turabian Style

Cisterna, Jonathan, Vania Artigas, Mauricio Fuentealba, Paul Hamon, Carolina Manzur, Jean-René Hamon, and David Carrillo. 2018. "Pentacoordinated Chloro-Iron(III) Complexes with Unsymmetrically Substituted N2O2 Quadridentate Schiff-Base Ligands: Syntheses, Structures, Magnetic and Redox Properties" Inorganics 6, no. 1: 5. https://doi.org/10.3390/inorganics6010005

APA Style

Cisterna, J., Artigas, V., Fuentealba, M., Hamon, P., Manzur, C., Hamon, J.-R., & Carrillo, D. (2018). Pentacoordinated Chloro-Iron(III) Complexes with Unsymmetrically Substituted N2O2 Quadridentate Schiff-Base Ligands: Syntheses, Structures, Magnetic and Redox Properties. Inorganics, 6(1), 5. https://doi.org/10.3390/inorganics6010005

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
