Multivariate Linear Regression Models to Predict Monomer Poisoning Effect in Ethylene/Polar Monomer Copolymerization Catalyzed by Late Transition Metals

by
Wei Zhao
1,
Zhihao Liu
1,
Yanan Zhao
1,*,
Yi Luo
1,2,* and
Shengbao He
2
1
State Key Laboratory of Fine Chemicals, School of Chemical Engineering, Dalian University of Technology, Dalian 116024, China
2
PetroChina Petrochemical Research Institute, Beijing 102206, China
*
Authors to whom correspondence should be addressed.
Inorganics 2022, 10(2), 26; https://doi.org/10.3390/inorganics10020026
Submission received: 27 January 2022 / Revised: 13 February 2022 / Accepted: 14 February 2022 / Published: 21 February 2022
(This article belongs to the Special Issue Cornerstones in Contemporary Inorganic Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
This study combined density functional theory (DFT) calculations and multivariate linear regression (MLR) to analyze the monomer poisoning effect in ethylene/polar monomer copolymerization catalyzed by the Brookhart-type catalysts. The calculation results showed that the poisoning effect of polar monomers with relatively electron-deficient functional groups is weaker, such as ethers, and halogens. On the contrary, polar monomers with electron-rich functional groups (carbonyl, carboxyl, and acyl groups) exert a stronger poisoning effect. In addition, three descriptors that significantly affect the poisoning effect have been proposed on the basis of the multiple linear regression model, viz., the chemical shift of the vinyl carbon atom and heteroatom of polar monomer as well as the metal-X distance in the σ-coordination structure. It is expected that these models could guide the development of efficient catalytic copolymerization system in this field.

1. Introduction

Compared with the polyolefins, the incorporation of polar monomers into nonfunctionalized polyolefin backbones can significantly improve various properties of polymers, such as flexibility, adhesion, protective properties, surface properties, solvent resistance, which leads to expanding the range of applications [1,2,3,4,5,6]. It is well known that metal-catalyzed coordination-insertion copolymerization of olefinic hydrocarbons with polar monomers is the most convenient and economical synthetic strategy. Generally, the early-transition-metal complexes with high oxygen affinity are easily poisoned by polar functional groups [7]. It is, therefore, necessary to use late-transition-metal complexes (Ni or Pd) with low oxygen affinity to catalyze the coordination copolymerization of polar monomers.
In this context, various late-transition-metal catalysts have been developed (Figure 1a) [8,9]. In the mid-1990s, a groundbreaking work was achieved by using cationic Ni/Pd catalysts based on α-diimine ligands by Brookhart (II in Figure 1a,) [10]. Since then, a series of complexes [11,12,13,14] have been developed on the basis of the Brookhart-type catalysts, which are only suitable for a small part of simple monomers such as acrylates [15], vinyl ketones [10], and silyl vinyl ethers [16,17,18,19]. In 2002, Drent-type catalysts were reported by Drent and co-workers (III in Figure 1a,) [20]. In addition, they expanded the scope of substrate for copolymerization, such as vinyl fluoride [21], vinyl ethers [22], and some important methylene-spaced polar monomers (with a spacer between the polar group and the double bond) [23,24,25,26,27,28]. However, there are still some obvious disadvantages in these catalytic systems: low copolymerization activity, low insertion rate and low molecular weight [29], etc. Among them, the low copolymerization activity is a common challenge for these catalysts. It is noteworthy that the main reason for the low activity of copolymerization is the occurrence of the poisoning effect. The tolerance of the same catalyst to different functional groups is obviously different, but there is a lack of systematic study on this difference. Therefore, systematically exploring the poisoning effect of polar monomers is helpful for improving the copolymerization activity. Herein, multivariate linear regression analyses on the poisoning effect of different polar monomers have been conducted based on DFT calculations at the molecular level, taking the conventional Brookhart-type catalysts II as a model. Various polar monomers [30,31,32] and the copolymerization mechanism are shown in Figure 1 and Figure S1. When ∆∆E(π-σ) < 0, the π-complex (double bond coordination) is more stable than the heteroatom coordination complex (σ-complex), and vice versa. As shown in Figure 1c, if the σ-complex (B2) is more stable than the vinyl-coordination π-complex (B3), the catalyst could be poisoned and inactive. Through multiple linear regression analysis, it has been demonstrated that the chemical shifts of a vinyl carbon atom (monNMRCβ) and the coordinating heteroatom (monNMRX) of polar monomers, as well as the metal-heteroatom distance (B2bondPd/Ni-X), are the key factors governing the poisoning effect. The current prediction models are expected to be useful for the prediction of the poisoning effect of other polar monomers in the polymerization catalyzed by Brookhart-type catalysts.

2. Computational Details

All DFT calculations were performed with Gaussian 16 program [33]. The D3 [34] dispersion-corrected density functional method B3LYP functional [35,36,37], together with the 6-311G(d) basis set for nonmetal atoms (C, H, O, N, P, S, F, Si and Cl) and the LANL2DZ [38,39,40] basis set, as well as the associated poseupotential for metal atoms (Pd and Ni) was used for geometry optimizations. All optimizations were carried out in the gas-phase. The noncovalent interaction (NCI) analysis [41] by Multiwfn [42] and VMD [43] softwares was carried out for important structures. The optimized tridimensional geometrical structures were represented by CYLView [44]. Color map and multiple linear regression analysis were performed with Matlab program. Taking diimide palladium as an example, single-point calculations were further performed at the higher level by using the density functional method M06 [45]; 6-311 + G (d, p) was used for the nonmetal atoms; the basis set LANL2DZ [38,39,40], as well as the associated pseudopotential, were applied for the Pd atom. In these single-point calculations, the solvation effect of toluene (ε = 2.37) was considered through the CPCM model [46,47]. It can be seen from comparison of results by solvated and gas-phase that the effect of solvation exerted a minor effect on the trend of poisoning effects (see Figure S1).

3. Results and Discussion

The poisoning effect of several different types of polar monomers (see Figure S2) were explored by DFT calculation and multiple linear regression analysis. Generally, the energy difference ∆∆E(π-σ) (Figure 1c) between double bond coordination and heteroatom coordination is directly related to the poisoning effect. Firstly, the coordination process of a series of polar monomers catalyzed by complex IIPd and IINi were calculated. Through theoretical calculation, it was found that the energy difference of some polar monomers was too high (∆∆E(π-σ) > 0), such as acrylonitrile, methylene spacer vinyl and internal olefin monomers; thus, there are very obvious poisoning effects. On the contrary, the poisoning effect of ether olefins and halogenated olefins is relatively weaker theoretically (∆∆E(π-σ) < 0, Figure 2). However, although the poisoning effect of halogenated olefins is weak (Figure 2a), the β-halide or or β-OR elimination reaction can easily occur in the polymerization, resulting in low polymerization activity [48,49]. For polar monomers 42, 56, 57, this is a kind of styrenic monomers, which are easy to coordinate metal to produce stable and inactive η3-complexes [50]. These results are consistent with the experimental phenomena [51]. Moreover, the number of polar monomers that cannot poison Ni complexes (Figure 2a) is significantly less than that of Pd complexes (Figure 2a,b).
Before the MLR analysis, it is necessary to calculate the electronic and stereoscopic descriptors of different polar monomers by DFT calculation. At present, as hundreds of molecular descriptors are available in the literature [42,43,44,45,46,47,48,49,50,51,52,53,54], we selected a number of them based on our previous experience on olefin polymerization [55,56,57,58] and the literature about MLR analysis of transition-metal-based reactivity. For the predictive effect and the convenience of the MLR model, only one of heteroatom coordination and double bond coordination should be selected for descriptor calculation. Firstly, the descriptors of heteroatom coordination structure B2 and polar monomers are calculated for multivariate linear regression. A total of 21 descriptors were calculated, including Sterimol values [59] (B2B1Ni/Pd-X, B2B5Ni/Pd-X and B2LNi/Pd-X), steric hindrance of metal center (B2StericNi/Pd), bond length (B2bondNi/Pd-X), LUMO (B2LUMO), dihedral angle (B2∠XNi/PdN1C1 and B2∠C3Ni/PdN2C2), Infrared freq (monIRC=C) and Freq Intensities (monvC=C), NMR (monNMRCα, monNMRCβ and monNMRX), NBO (B2NBONi/Pd, monNBOX, monNBOCα and monNBOCβ), Polarizability (monα), HOMO (monHOMO), volume (monV) and Dipole Moment (monμ). Having both computed ∆∆E(π-σ) and descriptors in hand, we performed univariate correlation analysis for the whole data set (87 reactions) to investigate the relationship between descriptors and ∆∆E(π-σ), and to see the variation trends in poisoning effect (by complex IINi). For this purpose, a correlation matrix for the selected parameters was generated, as represented by a color map [60] (Figure 3). As shown in Figure 3, relatively strong correlations were found between ∆∆E(π-σ) and some electronic parameters involving D2 (monNMRCβ, |R| = 0.76), D3 (monNMRX, |R| = 0.59), D5 (monNBOX, |R| = 0.60) and D15 (B2bondNi-X, |R| = 0.70). These descriptors with high correlation coefficient |R| can presumably exert a major influence on ∆∆E(π-σ). Conversely, steric hindrance descriptors exert little effect on ∆∆E(π-σ), such as D17–D21.
According to the color map in Figure 3, we selected four single parameters D2 (monNMRCβ, |R| = 0.76), D3 (monNMRX, |R| = 0.59), D5 (monNBOX, |R| = 0.60) and D15 (B2bondNi-X, |R| = 0.70) with relatively higher absolute values of R to performed univariate correlation analysis to investigate the relationship between descriptors and ∆∆E(π-σ) and to see the variation trends of poisoning effect. However, when we evaluated the full set of data (87 reactions) in Figure S1, the single parameters cannot describe well the trend of the ∆∆E(π-σ) value (R2 < 0.60, Figure 4), suggesting that multivariate linear regression analysis was required to describe the combined multivariate influences of polar monomers on poisoning effect.
Next, Linear regression modeling was applied to correlate the poisoning effect (expressed as ∆∆E(π-σ)) to the above calculated descriptors. A total of 87 reactions were used in this paper, of which 60 reactions were randomly selected as the training set and 27 reactions as the test set. Considering that the accuracy of the simplified regression model can be expressed more clearly via a graphical manner, a plot of the calculated ∆∆E(π-σ) values and that predicted by this model is depicted in Figure 5. When complex IINi was used, the results demonstrated a high correlation (R2 = 0.85, Q2 = 0.83; Q2 represents the value of leave-one-out cross validation and showed that there was no overfitting) between predicted ∆∆E(π-σ) values and calculated ones (Figure 5a). Moreover, when complex IIPd is used, the result shows a relatively lower correlation between predicted ∆∆E(π-σ) values and calculated ones (R2 = 0.79, Q2 = 0.78, Figure 5b). Notably, as the models were acquired from normalized descriptors, the resulting coefficients can indicate the significance of the represented descriptor. Therefore, it can be seen from the model that, for complex IINi and IIPd systems, the descriptors monNMRCβ and B2BondNi/Pd-X exert a significant impact on the poisoning effect. Nevertheless, monoNMRX holds a relatively weaker effect on the poisoning effect of IINi systems and almost no effect on IIPd systems. Besides, the descriptors of π-coordination structure B3 (in complex IINi systems) and polar monomers are also calculated (Figure S3), but the prediction results (R2 = 0.82) based on these descriptors are not as satisfactory as the above results (R2 = 0.85, Figure 5a).
It is worth noting that there were several deviation points in both complexes IINi (a) and IIPd (b) systems (points in green circle, Figure 5a,b), and these deviation points may reduce the prediction accuracy of the MLR model; thus, it is necessary to analyze the origins of these deviation points. Through structural analysis, it was found that these deviation points share something in common, that is, there are obvious non-covalent weak interactions in the σ-coordination structure (Figure 6), including hydrogen bond, H···π interactions and heteroatom···π interactions. In order to confirm the effect of non-covalent weak interaction on energy of σ-coordination structure, the aromatic ring on the ligand was substituted with methyl, and the ΔΔE(π-σ) was calculated (Figure S4). By comparing the calculation results, it can be seen that the non-covalent weak interaction between polar monomers and aromatic ring on ligands exerted an obvious effect on the energy of ΔΔE(π-σ), but the non-covalent weak interaction is not considered in above descriptors. Therefore, there is a certain deviation in the prediction results of the system with obvious non-covalent weak interaction. Furthermore, external validation of the MLR model for the complex IINi (a) and IIPd were performed separately; results are shown in Figure 7. These results indicate that these MLR models have certain extrapolation and prediction ability. It is noted that some monomers containing an active hydrogen or a strong electrophilic group could undergo side reactions in the polymerization system rather than polymerize. However, these monomers were considered for expending the scope of data set and were helpful for constructing the prediction models [61,62,63]. It is also noteworthy that there may be secondary interactions between polar monomer molecules in the polymerization system [4,64]. Our work mainly focuses on the influence of the electronic or stereoscopic effect of the monomer itself on the poisoning effect of the catalyst. The actual experimental reaction system was very complex; there will be a variety of interactions. In order to explore the main reasons affecting the poisoning effect, this work simplifies the experimental conditions and provides a valuable reference for experimenters to screen suitable polymerized monomers.

4. Conclusions

In summary, the poisoning effect of different polar monomers by Brookhart-type catalyst were explored through the combination of DFT calculations and multiple linear regression analyses. The results show that the combination of the structure of heteroatom-coordination complex and the descriptors of polar monomer can establish a relationship between the structure and the poisoning effect represented by ΔΔE(π-σ). It is found that the descriptors of monNMRCβ and B2BondNi/Pd-X are the key factors affecting the poisoning effect. In addition, in the case of the Ni system, the monNMRX descriptor also plays a certain role in the poisoning effect. Besides, by analyzing the σ-coordination structure of the deviation point, it was found that the non-covalent interaction between polar monomers and the catalyst may be the main reason for the deviation of the predicted value by the multiple linear regression model. Moreover, the result of external verification shows that such prediction models possess a certain ability to predict and extrapolate the poisoning effect of other polar monomers. Such a combination of DFT-derived energy difference and multidimensional quantitative analysis is expected to be effective in assessing the other polymerization performance and can provide new and efficient monomer screening strategies for experimentalists.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics10020026/s1, Figure S1: Gas-phase vs. solvation effect ΔΔE(π-σ) (kcal/mol) for complex IIPd; Figure S2: structures of polar monomers; Figure S3: plot of computed vs. predicted ΔΔE(π-σ) (kcal/mol) for complex IINi (base on B3 structure) using the multivariate linear regression models; Figure S4: changes of structure and ΔΔE(π-σ) after substitution of aromatic ring on catalyst (complex IINi) with methyl. Electronic energy data of polar monomers coordination, polar monomers and other structures; and electronic and stereoscopic descriptors of polar monomers, complexes B2 and B3 (Excel) (XLSX). Optimized stationary points (ZIP).

Author Contributions

Conceptualization, Y.L., Y.Z. and S.H.; methodology, W.Z., Y.Z. and Z.L.; investigation, W.Z. and Y.Z.; data curation, W.Z., Z.L. and Y.Z.; writing—original draft preparation, W.Z. and Y.Z.; writing—review and editing, Y.L., Y.Z. and W.Z.; funding acquisition, Y.L., Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NSFC (Nos. 22071015, U1862115, and 22101041. China Postdoctoral Science Foundation (2021M700664)).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

This research did not report any data.

Acknowledgments

This work was supported by the NSFC (Nos. 22071015, U1862115, and 22101041, China Postdoctoral Science Foundation (2021M700664)). The authors also thank the Network and Information Center of Dalian University of Technology for part of computational resources.

Conflicts of Interest

The authors declare no conflict of interest. The funders had absolutely no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Dong, J.Y.; Hu, Y. Design and synthesis of structurally well-defined functional polyolefins via transition metal-mediated olefin polymerization chemistry. Coord. Chem. Rev. 2006, 250, 47–65. [Google Scholar] [CrossRef]
  2. Chung, T.M. Functionalization of Polyolefins; Elsevier: Amsterdam, The Netherlands, 2002. [Google Scholar]
  3. Rünzi, T.; Mecking, S. Saturated polar-substituted polyethylene elastomers from insertion polymerization. Adv. Funct. Mater. 2014, 24, 387–395. [Google Scholar] [CrossRef] [Green Version]
  4. Dai, S.; Chen, C. Palladium-catalyzed direct synthesis of various branched, carboxylic acid-functionalized polyolefins: Characterization, derivatization, and properties. Macromolecules 2018, 51, 6818–6824. [Google Scholar] [CrossRef]
  5. Na, Y.; Dai, S.; Chen, C. Direct synthesis of polar-functionalized linear low-density polyethylene (LLDPE) and low-density polyethylene (LDPE). Macromolecules 2018, 51, 4040–4048. [Google Scholar] [CrossRef]
  6. Sui, X.; Hong, C.; Pang, W.; Chen, C. Unsymmetrical α-diimine palladium catalysts and their properties in olefin (co) polymerization. Mater. Chem. Front. 2017, 1, 967–972. [Google Scholar] [CrossRef]
  7. Ittel, S.D.; Johnson, L.K.; Brookhart, M. Late-metal catalysts for ethylene homo-and copolymerization. Chem. Rev. 2000, 100, 1169–1204. [Google Scholar] [CrossRef]
  8. Klabunde, U.; Itten, S.D. Nickel catalysis for ethylene homo-and co-polymerization. J. Mol. Catal. 1987, 41, 123–134. [Google Scholar] [CrossRef]
  9. Yasuda, H.; Nakano, R.; Ito, S.; Nozaki, K. Palladium/IzQO-catalyzed coordination-insertion copolymerization of ethylene and 1, 1-disubstituted ethylenes bearing a polar functional group. J. Am. Chem. Soc. 2018, 140, 1876–1883. [Google Scholar] [CrossRef]
  10. Johnson, L.K.; Mecking, S.; Brookhart, M. Copolymerization of ethylene and propylene with functionalized vinyl monomers by palladium (II) catalysts. J. Am. Chem. Soc. 1996, 118, 267–268. [Google Scholar] [CrossRef]
  11. Chen, Z.; Brookhart, M. Exploring ethylene/polar vinyl monomer copolymerizations using Ni and Pd α-diimine catalysts. Acc. Chem. Res. 2018, 51, 1831–1839. [Google Scholar] [CrossRef]
  12. Wang, F.; Chen, C. A continuing legend: The Brookhart-type α-diimine nickel and palladium catalysts. Polym. Chem. 2019, 10, 2354–2369. [Google Scholar] [CrossRef] [Green Version]
  13. Culver, D.B.; Tafazolian, H.; Conley, M.P. A bulky Pd (II) α-Diimine catalyst supported on sulfated zirconia for the polymerization of ethylene and copolymerization of ethylene and methyl acrylate. Organometallics 2018, 37, 1001–1006. [Google Scholar] [CrossRef]
  14. Hyatt, M.G.; Guironnet, D. Silane as chain transfer agent for the polymerization of ethylene catalyzed by a palladium (II) diimine catalyst. ACS Catal. 2017, 7, 5717–5720. [Google Scholar] [CrossRef]
  15. Mecking, S.; Johnson, L.K.; Wang, L.; Brookhart, M. Mechanistic studies of the palladium-catalyzed copolymerization of ethylene and α-olefins with methyl acrylate. J. Am. Chem. Soc. 1998, 120, 888–899. [Google Scholar] [CrossRef]
  16. Luo, S.; Jordan, R.F. Copolymerization of silyl vinyl ethers with olefins by (α-diimine) PdR+. J. Am. Chem. Soc. 2006, 128, 12072–12073. [Google Scholar] [CrossRef]
  17. Chen, Z.; Liu, W.; Daugulis, O.; Brookhart, M. Mechanistic studies of Pd (II)-catalyzed copolymerization of ethylene and vinylalkoxysilanes: Evidence for a β-silyl elimination chain transfer mechanism. J. Am. Chem. Soc. 2016, 138, 16120–16129. [Google Scholar] [CrossRef]
  18. Chen, Z.; Leatherman, M.D.; Daugulis, O.; Brookhart, M. Nickel-catalyzed copolymerization of ethylene and vinyltrialkoxysilanes: Catalytic production of cross-linkable polyethylene and elucidation of the chain-growth mechanism. J. Am. Chem. Soc. 2017, 139, 16013–16022. [Google Scholar] [CrossRef]
  19. Zhou, S.; Chen, C. Synthesis of silicon-functionalized polyolefins by subsequent cobalt-catalyzed dehydrogenative silylation and nickel-catalyzed copolymerization. Sci. Bull. 2018, 63, 441–445. [Google Scholar] [CrossRef] [Green Version]
  20. Drent, E.; van Dijk, R.; van Ginkel, R.; van Oort, B.; Pugh, R.I. Palladium catalysed copolymerisation of ethene with alkylacrylates: Polar comonomer built into the linear polymer chain. Chem. Commun. 2002, 7, 744–745. [Google Scholar] [CrossRef]
  21. Weng, W.; Shen, Z.; Jordan, R.F. Copolymerization of ethylene and vinyl fluoride by (phosphine-sulfonate) Pd (Me)(py) catalysts. J. Am. Chem. Soc. 2007, 129, 15450–15451. [Google Scholar] [CrossRef] [PubMed]
  22. Luo, S.; Vela, J.; Life, G.R.; Jordan, R.F. Copolymerization of ethylene and alkyl vinyl ethers by a (phosphine-sulfonate) PdMe catalyst. J. Am. Chem. Soc. 2007, 129, 8946–8947. [Google Scholar] [CrossRef]
  23. Nakamura, A.; Anselment, T.M.J.; Claverie, J.; Goodall, B.; Jordan, R.F.; Mecking, S.; Rieger, B.; Sen, A.; van Leeuwen, P.W.N.M.; Nozaki, K. Ortho-phosphinobenzenesulfonate: A superb ligand for palladium-catalyzed coordination-insertion copolymerization of polar vinyl monomers. Acc. Chem. Res. 2013, 46, 1438–1449. [Google Scholar] [CrossRef]
  24. Ito, S. Palladium-catalyzed homo-and copolymerization of polar monomers: Synthesis of aliphatic and aromatic polymers. Bull. Chem. Soc. Jpn. 2018, 91, 251–261. [Google Scholar] [CrossRef] [Green Version]
  25. Schuster, N.; Rünzi, T.; Mecking, S. Reactivity of functionalized vinyl monomers in insertion copolymerization. Macromolecules 2016, 49, 1172–1179. [Google Scholar] [CrossRef]
  26. Jian, Z.; Falivene, L.; Boffa, G.; Sánchez, S.O.; Caporaso, L.; Grassi, A.; Mecking, S. Direct synthesis of telechelic polyethylene by selective insertion polymerization. Angew. Chem. 2016, 128, 14590–14595. [Google Scholar] [CrossRef] [Green Version]
  27. Zhang, W.; Waddell, P.M.; Tiedemann, M.A.; Padilla, C.E.; Mei, J.; Chen, L.; Carrow, B.P. Electron-rich metal cations enable synthesis of high molecular weight, linear functional polyethylenes. J. Am. Chem. Soc. 2018, 140, 8841–8850. [Google Scholar] [CrossRef]
  28. Zhang, D.; Chen, C. Influence of polyethylene glycol unit on palladium-and nickel-catalyzed ethylene polymerization and copolymerization. Angew. Chem. Int. Ed. 2017, 56, 14672–14676. [Google Scholar] [CrossRef] [PubMed]
  29. Tan, C.; Chen, C. Emerging palladium and nickel catalysts for copolymerization of olefins with polar monomers. Angew. Chem. Int. Ed. 2019, 58, 7192–7200. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, Z.; Li, G.; Liang, G.; Gao, H.; Wu, Q. Enhancing thermal stability and living fashion in α-diimine–nickel-catalyzed (co) polymerization of ethylene and polar monomer by increasing the steric bulk of ligand backbone. Macromolecules 2017, 50, 2675–2682. [Google Scholar]
  31. Zhong, S.; Tan, Y.; Zhong, L.; Gao, J.; Liao, H.; Jiang, L.; Gao, H.; Wu, Q. Precision synthesis of ethylene and polar monomer copolymers by palladium-catalyzed living coordination copolymerization. Macromolecules 2017, 50, 5661–5669. [Google Scholar] [CrossRef]
  32. Hong, C.; Wang, X.; Chen, C. Palladium-catalyzed dimerization of vinyl ethers: Mechanism, catalyst optimization, and polymerization applications. Macromolecules 2019, 52, 7123–7129. [Google Scholar] [CrossRef]
  33. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision A.03; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  34. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lee, C.; Yang, W.; Parr, R.G. Development of the colic-salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]
  37. Becke, A.D. Density-functional thermochemistry. III. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  38. Wadt, W.R.; Hay, P.J. Ab initio effective core potentials for molecular calculations. potentials for main group elements Na to Bi. J. Chem. Phys. 1985, 82, 284–298. [Google Scholar] [CrossRef]
  39. Hay, P.J.; Wadt, W.R. Ab initio effective core potentials for molecular calculations. Potentials for K to Au including the outermost core orbitals. J. Chem. Phys. 1985, 82, 299–310. [Google Scholar] [CrossRef]
  40. Hay, P.J.; Wadt, W.R. Ab initio effective core potentials for molecular calculations. Potentials for the transition metal atoms Sc to Hg. J. Chem. Phys. 1985, 82, 270–283. [Google Scholar] [CrossRef]
  41. Johnson, E.R.; Keinan, S.; Mori-Sanchez, P.; Contreras-García, J.; Cohen, A.J.; Yang, W.T. Revealing noncovalent interactions. J. Am. Chem. Soc. 2010, 132, 6498–6506. [Google Scholar] [CrossRef] [Green Version]
  42. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  43. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graphics 1996, 14, 33–38. [Google Scholar] [CrossRef]
  44. Legault, C.Y. Cylview, Version 1.0 b. 2009. Available online: http://www.cylview.org/ (accessed on 17 January 2022).
  45. Zhao, Y.; Truhlar, D.G. Density functionals with broad applicability in chemistry. Acc. Chem. Res. 2008, 41, 157–167. [Google Scholar] [CrossRef] [PubMed]
  46. Barone, V.; Cossi, M. Quantum calculation of molecular energies and energy gradients in solution by a conductor solvent model. J. Phys. Chem. A 1998, 102, 1995–2001. [Google Scholar] [CrossRef]
  47. Cossi, M.; Rega, N.; Scalmani, G.; Barone, V. Energies, structures, and electronic properties of molecules in solution with the C-PCM solvation model. J. Comput. Chem. 2003, 24, 669–681. [Google Scholar] [CrossRef] [PubMed]
  48. Kang, M.; Sen, A.; Zakharov, L.; Rheingold, A.L. Diametrically opposite trends in alkene insertion in late and early transition metal compounds: Relevance to transition-metal-catalyzed polymerization of polar vinyl monomers. J. Am. Chem. Soc. 2002, 124, 12080–12081. [Google Scholar] [CrossRef]
  49. Foley, S.R.; Stockland, R.A.; Shen, H.; Jordan, R.F. Reaction of vinyl chloride with late transition metal olefin polymerization catalysts. J. Am. Chem. Soc. 2003, 125, 4350–4361. [Google Scholar] [CrossRef]
  50. Liao, G.; Xiao, Z.; Chen, X.; Du, C.; Zhong, L.; Cheung, C.S.; Gao, H. Fast and regioselective polymerization of para-alkoxystyrene by palladium catalysts for precision production of high-molecular-weight polystyrene derivative. Macromolecules 2020, 53, 256–266. [Google Scholar] [CrossRef]
  51. Chen, M.; Chen, C. Direct and tandem routes for the copolymerization of ethylene with polar functionalized internal olefins. Angew. Chem. Int. Ed. 2020, 59, 1206–1210. [Google Scholar] [CrossRef]
  52. Maity, B.; Cao, Z.; Kumawat, J.; Gupta, V.; Cavallo, L. A multivariate linear regression approach to predict ethene/1-Olefin copolymerization statistics promoted by group 4 catalysts. ACS Catal. 2021, 11, 4061–4070. [Google Scholar] [CrossRef]
  53. Santiago, C.B.; Guo, J.Y.; Sigman, M.S. Predictive and mechanistic multivariate linear regression models for reaction development. Chem. Sci. 2018, 9, 2398–2412. [Google Scholar] [CrossRef] [Green Version]
  54. Todeschini, R.; Consonni, V. Handbook of Molecular Descriptors; John Wiley & Sons: Hoboken, NJ, USA, 2008; Volume 11. [Google Scholar]
  55. Sun, J.; Chen, M.; Luo, G.; Chen, C.; Luo, Y. Diphosphazane-monoxide and phosphine-sulfonate palladium catalyzed ethylene copolymerization with polar monomers: A computational study. Organometallics 2019, 38, 638–646. [Google Scholar] [CrossRef]
  56. Mehmood, A.; Xu, X.; Raza, W.; Kim, K.H.; Luo, Y. Mechanistic studies for palladium catalyzed copolymerization of ethylene with vinyl ethers. Polymers 2020, 12, 2401. [Google Scholar] [CrossRef] [PubMed]
  57. Mehmood, A.; Xu, X.; Kang, K.; Luo, Y. Origin of different chain-end microstructures in ethylene/vinyl halide copolymerization catalysed by phosphine-sulfonate palladium complexes. New J. Chem. 2020, 44, 16941–16947. [Google Scholar] [CrossRef]
  58. Mehmood, A.; Xu, X.; Raza, W.; Kukkar, D.; Kim, K.H.; Luo, Y. Computational study of the copolymerization mechanism of ethylene with methyl 2-acetamidoacrylate catalyzed by phosphine-sulfonate palladium complexes. New J. Chem. 2021, 45, 16670–16678. [Google Scholar] [CrossRef]
  59. Cramer III, R.D. Quantitative drug design. Annu. Rep. Med. Chem. 1976, 11, 301–310. [Google Scholar]
  60. Guo, J.Y.; Minko, Y.; Santiago, C.B.; Sigman, M.S. Developing comprehensive computational parameter sets to describe the performance of pyridine-oxazoline and related ligands. ACS Catal. 2017, 7, 4144–4151. [Google Scholar] [CrossRef]
  61. Imuta, J.I.; Kashiwa, N.; Toda, Y. Catalytic regioselective introduction of allyl alcohol into the nonpolar polyolefins: Development of one-pot synthesis of hydroxyl-capped polyolefins mediated by a new metallocene IF catalyst. J. Am. Chem. Soc. 2002, 124, 1176–1177. [Google Scholar] [CrossRef]
  62. Ji, G.; Chen, Z.; Wang, X.Y.; Ning, X.S.; Xu, C.J.; Zhang, X.M.; Tao, W.J.; Li, J.F.; Gao, Y.; Shen, Q.; et al. Direct copolymerization of ethylene with protic comonomers enabled by multinuclear Ni catalysts. Nat. Commun. 2021, 12, 6283. [Google Scholar] [CrossRef]
  63. Marques, M.M.; Correia, S.G.; Ascenso, J.R.; Ribeiro, A.F.G.; Gomes, P.T.; Dias, A.R.; Foster, P.; Raush, M.D.; Chien, J.C.W. Polymerization with TMA-protected polar vinyl comonomers. I. Catalyzed by group 4 metal complexes with η5-type ligands. J. Polym. Sci. Polym. Chem. 1999, 37, 2457–2469. [Google Scholar] [CrossRef]
  64. Chen, T.; Chen, Z.; Chen, C. An ionic cluster strategy for performance improvements and product morphology control in metal-catalyzed olefin–polar monomer copolymerization. J. Am. Chem. Soc. 2022, 144, 2245–2254. [Google Scholar]
Inorganics 10 00026 g001 550

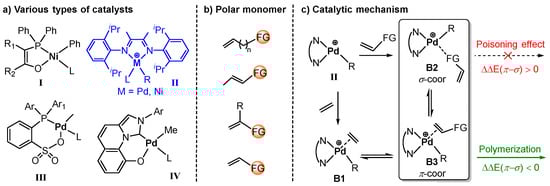

Figure 1. (a) Four conventional catalyst structures [8,9,10,20]. (b) Several different polar monomer structures. (c) The copolymerization mechanism of ethylene/polar monomer meditated by Brookhart-type catalysts II.
Figure 1. (a) Four conventional catalyst structures [8,9,10,20]. (b) Several different polar monomer structures. (c) The copolymerization mechanism of ethylene/polar monomer meditated by Brookhart-type catalysts II.
Inorganics 10 00026 g001
Inorganics 10 00026 g002 550

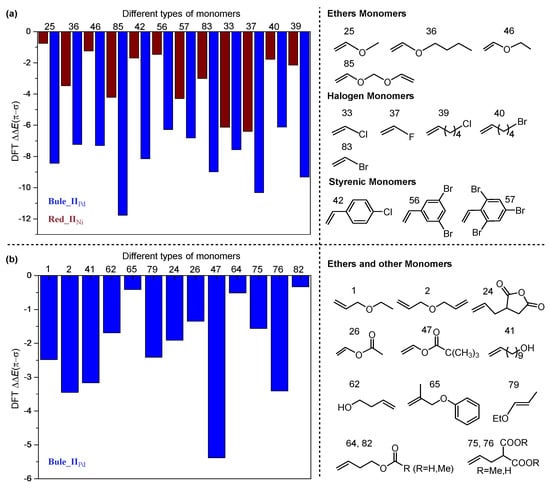

Figure 2. (a) The polar monomers with weak poisoning effect catalyzed by IINi and IIPd complexes (∆∆E(π-σ) < 0). (b) Other monomers with weak poisoning effect catalyzed by IIPd complex.
Figure 2. (a) The polar monomers with weak poisoning effect catalyzed by IINi and IIPd complexes (∆∆E(π-σ) < 0). (b) Other monomers with weak poisoning effect catalyzed by IIPd complex.
Inorganics 10 00026 g002
Inorganics 10 00026 g003 550

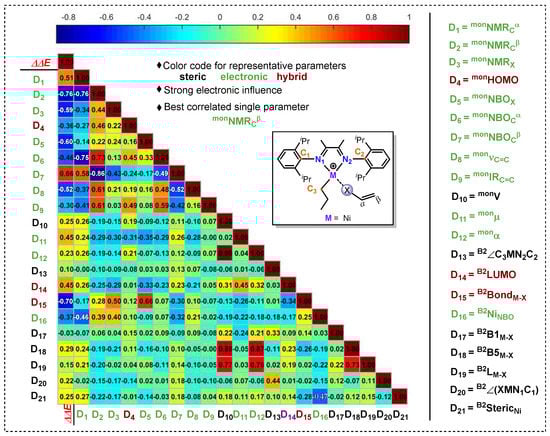

Figure 3. Correlation color map. The first column corresponds to the single-parameter correlations of the ∆∆E(π-σ), while the others represent the interparameter correlations [60].
Figure 3. Correlation color map. The first column corresponds to the single-parameter correlations of the ∆∆E(π-σ), while the others represent the interparameter correlations [60].
Inorganics 10 00026 g003
Inorganics 10 00026 g004 550

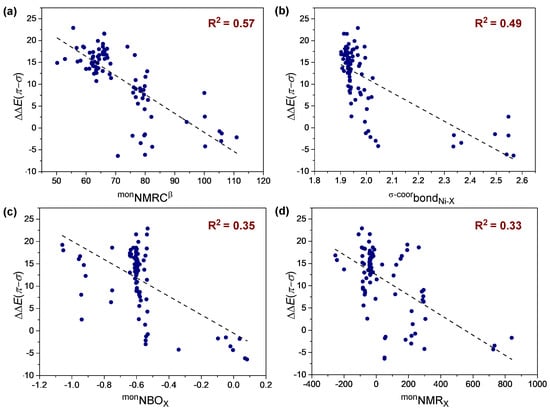

Figure 4. Representative univariate trends. Different polar monomers catalyzed by IINi complex.
Figure 4. Representative univariate trends. Different polar monomers catalyzed by IINi complex.
Inorganics 10 00026 g004
Inorganics 10 00026 g005 550

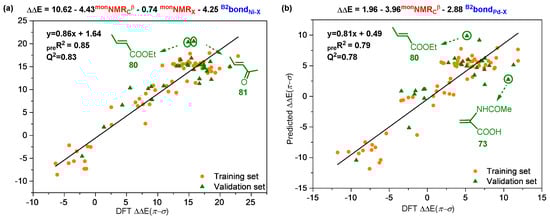

Figure 5. Plot of computed vs. predicted ∆∆E(π-σ) (kcal/mol) for complexes IINi (a) and IIPd (b) using the multivariate linear regression models.
Figure 5. Plot of computed vs. predicted ∆∆E(π-σ) (kcal/mol) for complexes IINi (a) and IIPd (b) using the multivariate linear regression models.
Inorganics 10 00026 g005
Inorganics 10 00026 g006 550

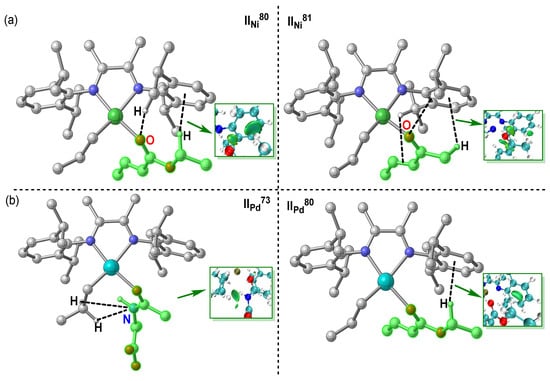

Figure 6. Structure and non-covalent interaction of deviation points in complexes IINi (a) and IIPd (b) systems.
Figure 6. Structure and non-covalent interaction of deviation points in complexes IINi (a) and IIPd (b) systems.
Inorganics 10 00026 g006
Inorganics 10 00026 g007 550

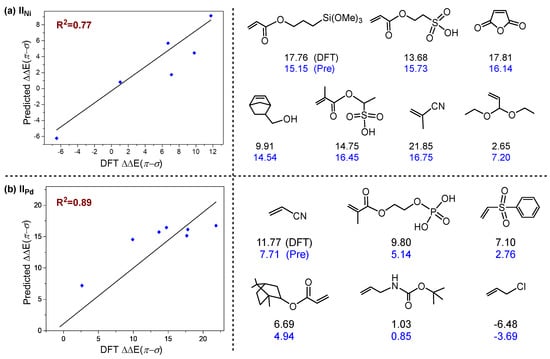

Figure 7. External verification of the multivariate linear regression models for complexes IINi (a) and IIPd (b). Blue represents predicted ΔΔE(π-σ) (kcal/mol), black represents computed ΔΔE(π-σ) (kcal/mol).
Figure 7. External verification of the multivariate linear regression models for complexes IINi (a) and IIPd (b). Blue represents predicted ΔΔE(π-σ) (kcal/mol), black represents computed ΔΔE(π-σ) (kcal/mol).
Inorganics 10 00026 g007
