High-Performance Electro-Optical Mach–Zehnder Modulators in a Silicon Nitride–Lithium Niobate Thin-Film Hybrid Platform

Abstract

We analyzed a Mach–Zehnder electro-optical modulator based on a silicon nitride strip–loaded waveguide on 0.5 μm thick x-cut lithium niobate thin film. The optical and radio frequency parameters for two different modulator structures (Type I: packaged with 2 μm thick SiO₂ and Type II: unpackaged) were simulated, calculated, and optimized. The Optical parameters included the single-mode conditions, effective indices, the separation distance between the electrode edge and the Si₃N₄-strip-loaded edge, optical power distribution, bending loss, optical field distribution, and half-wave voltage. The radio frequency parameters included the characteristic impedance, attenuation constant, radio frequency effective index, and −3 dB modulation bandwidth. According to the numerical simulation and theoretical analysis, the half-wave voltage product and the −3 dB modulation bandwidth were, respectively, 2.85 V·cm and 0.4 THz for Type I modulator, and 2.33 V·cm and 1.26 THz for Type II modulator, with a device length of 3 mm.

1. Introduction

In recent years, a lithium niobate thin film on a low-refractive-index SiO₂ layer (lithium niobate-on-insulator (LNOI)) [1] has become commercially available. This film offers a high-refractive-index contrast between LN and SiO₂, good optical confinement, and strong light guidance [2]. Due to the small size and high energy density in the waveguide, the electro-optical (E-O) and nonlinear optical effects are enhanced. Compared with traditional LN modulators, the devices based on LNOI have larger confinement for the light, resulting in smaller footprints and higher modulation efficiency [3,4]. The waveguide devices in LNOI are usually prepared using dry etching [5]. However, a waveguide that is directly etched can have a significant sidewall angle [6,7] that limits the minimum separation distance between the waveguide edge and the electrode edge, resulting in difficulties in producing devices based on strongly coupled waveguides.

Silicon nitride (Si₃N₄) has widely been employed in photonic integrated circuits because it is easy to implement and process. A Si₃N₄ ridge waveguide loading strip on an LNOI (Si₃N₄-strip-loaded LNOI) can effectively form a composite strip waveguide [8,9,10]. Since the process is only performed for the Si₃N₄ layer, this prepared waveguide structure avoids the difficulty of etching the direct LN [11,12]. A Si₃N₄-strip-loaded LNOI structure can be designed to confine most of the energy in the LN layer [13]. Therefore, the roughness of the sidewalls of a Si₃N₄-strip-loaded waveguide has less effect on the transmission losses than that of an etched LN ridge waveguide [14]. More importantly, these types of hybrid structures can take advantage of the properties of different materials to form heterogeneous photonic devices. Compared with silicon, Si₃N₄ does not suffer from two-photon absorption, and it has lower material loss [15]. Furthermore, silicon thin film is usually conductive and will screen the modulation field from x-cut LN devices with transverse electric (TE) polarization [16,17]. Si₃N₄-strip-loaded LNOI has been successfully demonstrated for use in E-O [10], second-harmonic generation [18], and integrated platforms [19,20,21]. However, few reports in the literature involve the systematic simulation of E-O Mach–Zehnder modulators (MZMs) in a silicon nitride–lithium niobate thin film hybrid platform. Our work has focused on E-O modulators based on a Si₃N₄-strip-loaded waveguide on LNOI in order to obtain low half-wave voltages and large modulation bandwidths.

In this paper, Si₃N₄-strip-loaded E-O MZMs in 0.5 μm thick x-cut LNOI are presented. The dimensions of the Si₃N₄-strip-loaded and coplanar waveguide electrode were optimized to achieve ultra-compact routing and high-performance modulation for single-mode operation with transverse electric (TE) polarization. We evaluated the performance of the analyzed modulator based on the separation distance between the electrode edge and the Si₃N₄-strip-loaded edge, the bending radius, the half-wave voltage product (V_π·L), the characteristic impedance, the attenuation constant, the radio frequency (RF) effective index, and the modulation bandwidth. For the modulators that were packaged with 2 μm thick SiO₂ (Type I) and unpackaged (Type II), the half-wave voltage-length products were 2.85 and 2.33 V·cm, and the modulation bandwidths with a length of 3 mm were 0.4 and 1.26 THz, respectively. The realization of a Si₃N₄ composite strip waveguide could have good prospects for fabricating more advanced and complicated integrated optical devices and circuits based on LNOI.

2. Device Description and Methods

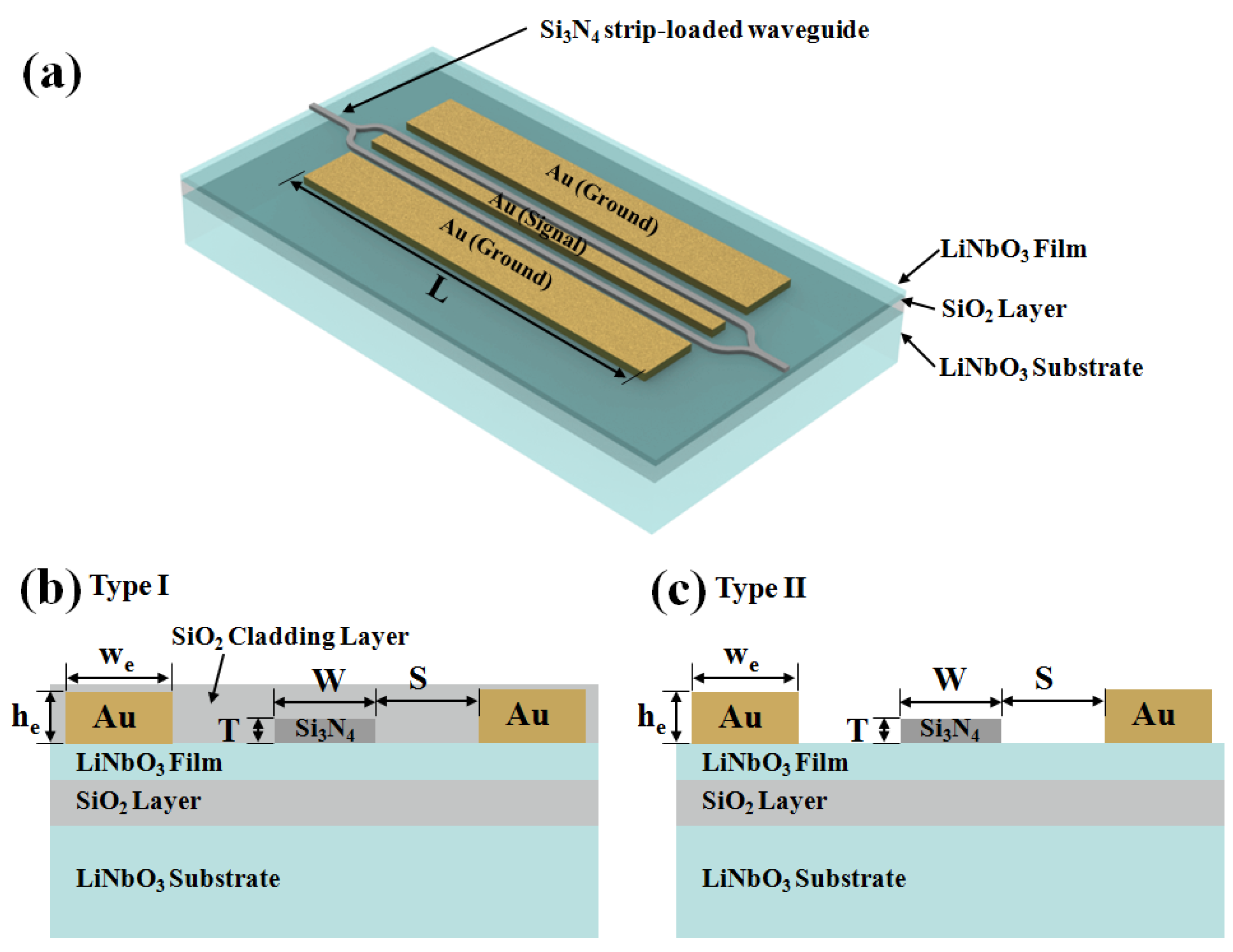

The structure of an MZM consists of optical-routing waveguides and coplanar waveguide electrodes. A schematic for this structure is shown in Figure 1a. Two different MZM structures were designed in this research, Type I and Type II, as shown in Figure 1b,c. The LNOI consisted of a 0.5 μm thick x-cut LN thin film bonded to 2 μm thick SiO₂ cladding deposited on an LN substrate [2]. The crystal orientation of the LN thin film was chosen to utilize the highest E-O coefficient of LN, r₃₃ = 31 pm/V, at λ = 1.55 µm [22], for the TE mode. To provide lateral optical confinement, a Si₃N₄-strip-loaded waveguide was located at the top of the LN thin film. Coplanar waveguide electrodes were configured in ground-signal-ground form, and two LN waveguides were located in two gaps between the ground and signal metals. To produce a large E-O modulation bandwidth, the coplanar waveguide electrodes were operated in a traveling wave manner and optimized for impedance matching, as well as velocity matching for the microwave and optical signals.

Table 1. Refractive indices (λ = 1.55 µm) and dielectric constants of the materials in simulation.

Material	Refractive Index		Dielectric Constant
	Ordinary Refractive Index (no)	Extraordinary Refractive Index (ne)
LN [22]	2.211	2.138	28.4
SiO2	1.445		3.9
Si3N4	1.989		7.5

shows the refractive indices and dielectric constants of the materials in the simulation at a wavelength of 1.55 µm.

Based on a full-vectorial finite-difference method (FVFDM) [23,24], mode calculation was performed using the commercial software Lumerical: Mode Solutions. The basic principle of the FVFDM was to surround the optical waveguide with a rectangular computing window, discretely dividing the computing window into a grid with equal or unequal spacing, with the selected points on the grid as nodes. The difference quotient of the electric field or magnetic field component of the adjacent node was used to replace the differential quotient of the waveguide equation. In this way, the eigenvalue equation of the matrix could be obtained. By solving the eigenvalue equation, the mode field distribution and the corresponding propagation constant of the eigenmode could be obtained. Based on a finite element method (FEM), the electric field distribution and the RF parameters were simulated using the commercial software COMSOL Multiphysics [25] and a high-frequency structure simulator (HFSS) [26], respectively. The FEM in COMSOL utilized well-known mathematical equations and energy minimization in triangular elements to determine the solutions for the voltage and electric field distributions given specific input models, relevant parameters, and boundary conditions. The principle of the FEM in HFSS was to divide the object into small tetrahedra for calculation, then form a network of all the small tetrahedral elements, and finally obtain the solution of the model using its connection. The HFSS also had an adaptive solution function, which meant that the software analyzed the results and determined the parts with large errors.

3. Results and Discussion

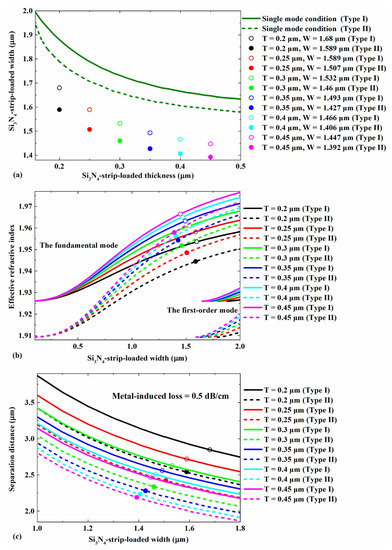

In this work, we optimized the Si₃N₄-strip-loaded dimensions based on four aspects: single-mode conditions, the effective refractive index, the separation distance between the electrode edge, and the Si₃N₄-strip-loaded edge, and the optical power confinement in the LN layer. The single-mode conditions were first investigated because of their advantages: (i) There was no energy transformation between modes. (ii) The signal distortion caused by several modes of transmission at different speeds could be avoided [27]. Figure 2a shows the cutoff dimension of the Si₃N₄-strip-loaded waveguide for the TE mode between the single- and multi-mode conditions. The cutoff width and thickness of the Si₃N₄-strip-loaded waveguide for the fundamental mode were both zero. No matter how small the thickness and the width of the Si₃N₄-strip-loaded waveguide were, there was always a waveguide mode [28]. Waveguides of all widths and thicknesses under the curves satisfied the single-mode conditions. For example, for a 0.3 μm thick Si₃N₄-strip-loaded Type I, the cutoff width of the achieved single-mode operation was 1.732 μm. The cutoff thickness decreased with the increase in the Si₃N₄-strip-loaded width. At the same Si₃N₄-strip-loaded thickness, the cutoff width of Type I was larger than that of Type II. Considering the single-mode conditions, the effective refractive index, and separation distance, six combinations of widths and thicknesses of the Si₃N₄-strip-loaded waveguide were selected for both the Type I and Type II structures in subsequent simulations, marked in Figure 2 as circles.

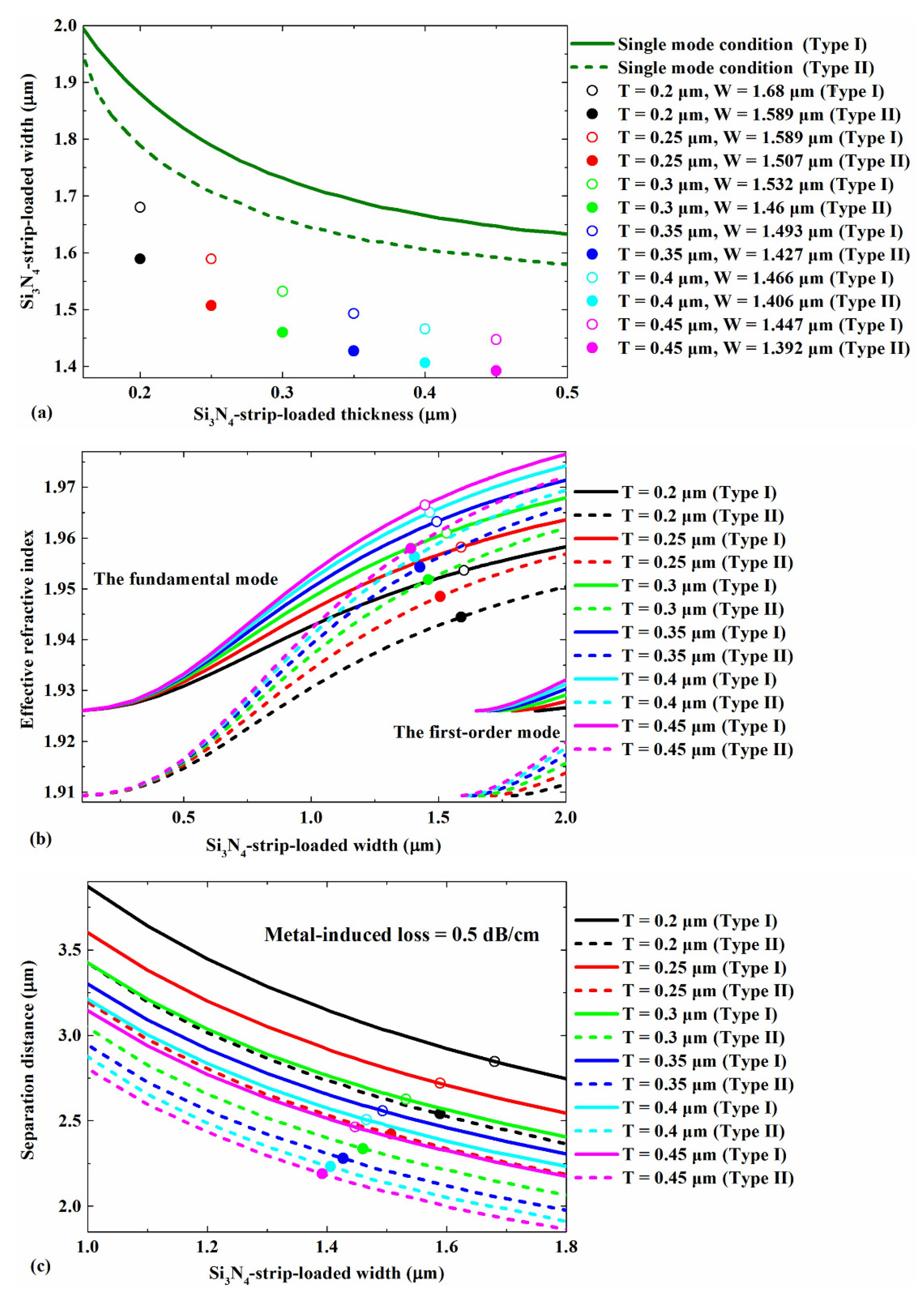

The effective refractive indices of the TE fundamental and first-order modes in the Si₃N₄-strip-loaded waveguides as a function of the width for different thicknesses of the Si₃N₄-strip-loaded waveguides are presented in Figure 2b. The effective refractive index increased with the increasing width and thickness of the Si₃N₄-strip-loaded LNOI. At the same Si₃N₄-strip-loaded width and thickness, the effective refractive index of Type I with the single-mode operation was larger than that of Type II. To ensure that only one electric field intensity peak was supported in the Si₃N₄-strip-loaded waveguide, the width of the Si₃N₄-strip-loaded waveguides should be less than the value of the first-order mode. The hollow circles in the figure correspond to the effective refractive index of six combinations of widths and thicknesses of the Si₃N₄-strip-loaded waveguide for Type I, and the solid circles correspond to the effective refractive index of six combinations of widths and thicknesses of Si₃N₄-strip-loaded waveguide for Type II.

To obtain a large electric field strength and a low electrode-induced loss in the optical waveguide, an appropriate separation distance between the electrode edge and the Si₃N₄-strip-loaded edge was selected. The target electrode-induced loss was 0.5 dB/cm in this simulation. The separation distances as a function of the width for different thicknesses of the Si₃N₄-strip-loaded waveguides are shown in Figure 2c. The separation distance decreased with the increasing width and thickness of the Si₃N₄-strip-loaded LNOI. At the same Si₃N₄-strip-loaded width and thickness, the separation distance of Type I was larger than that of Type II. The hollow circles in the figure correspond to the separation distances of the six combinations of widths and thicknesses of the Si₃N₄-strip-loaded waveguide for Type I, and the solid circles correspond to the separation distance of six combinations of widths and thicknesses of the Si₃N₄-strip-loaded waveguide for Type II.

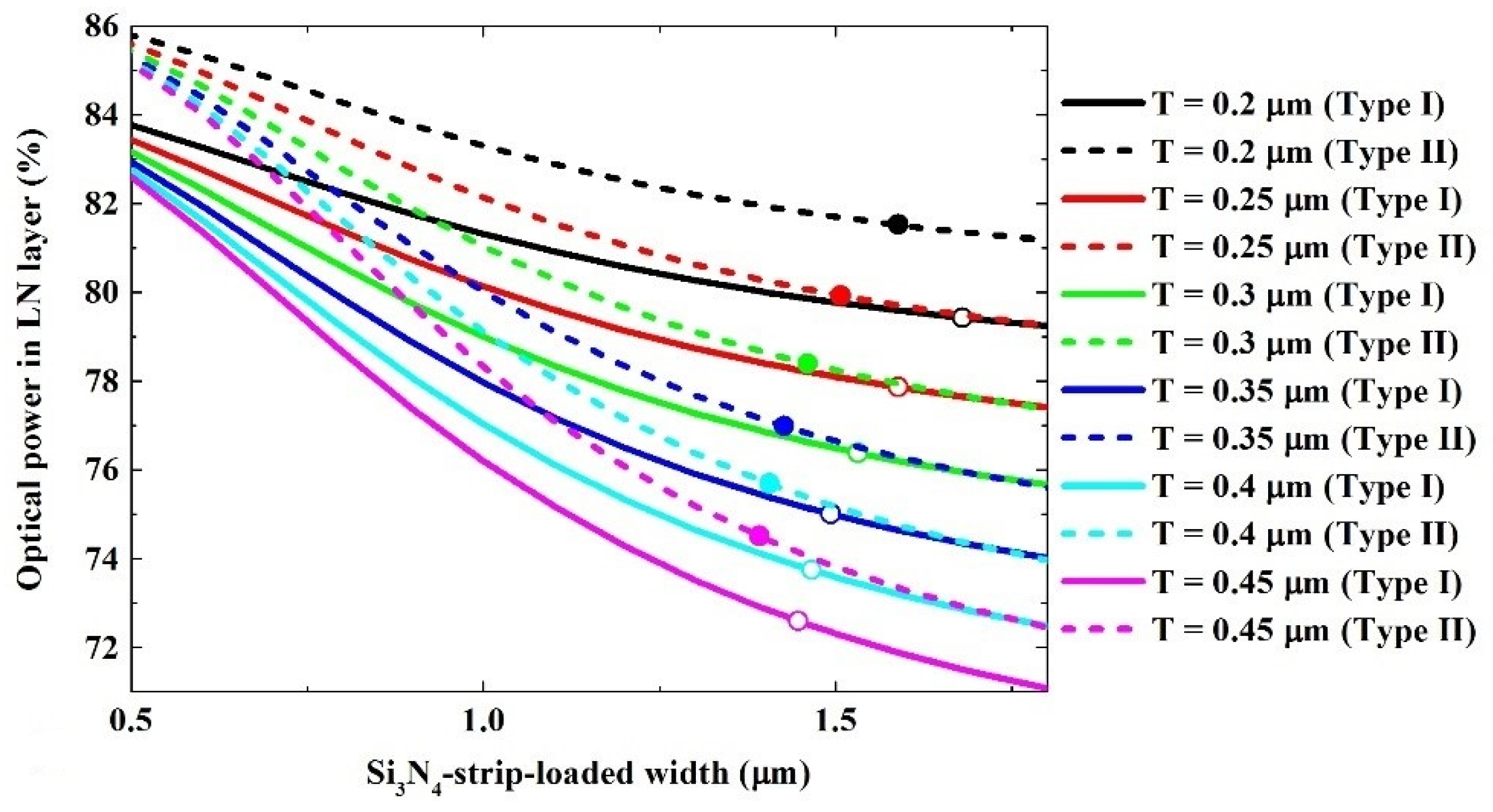

The optical power distribution of the Si₃N₄-strip-loaded LNOI was mainly divided into four parts. The layers from the top to the bottom were the SiO₂ layer (Type I) or air layer (Type II), the Si₃N₄-strip-loaded, the LN layer, and the SiO₂ cladding layer. As much optical power as possible is required to be concentrated in the LN layer in E-O applications. Figure 3 shows the optical power in the LN layer, with the thickness and width of the Si₃N₄-strip-loaded waveguide as the parameters. The optical power in the LN layer decreased with the increasing width and thickness of the Si₃N₄-strip-loaded waveguide. At the same Si₃N₄-strip-loaded width and thickness, the optical power in the LN layer of Type I was less than that of Type II. The hollow circles in the figure correspond to the optical power in the LN layer for six combinations of widths and thicknesses of the Si₃N₄-strip-loaded waveguide for Type I, and the solid circles correspond to the optical power in the LN layer of six combinations of the widths and thicknesses of Si₃N₄-strip-loaded waveguide for Type II.

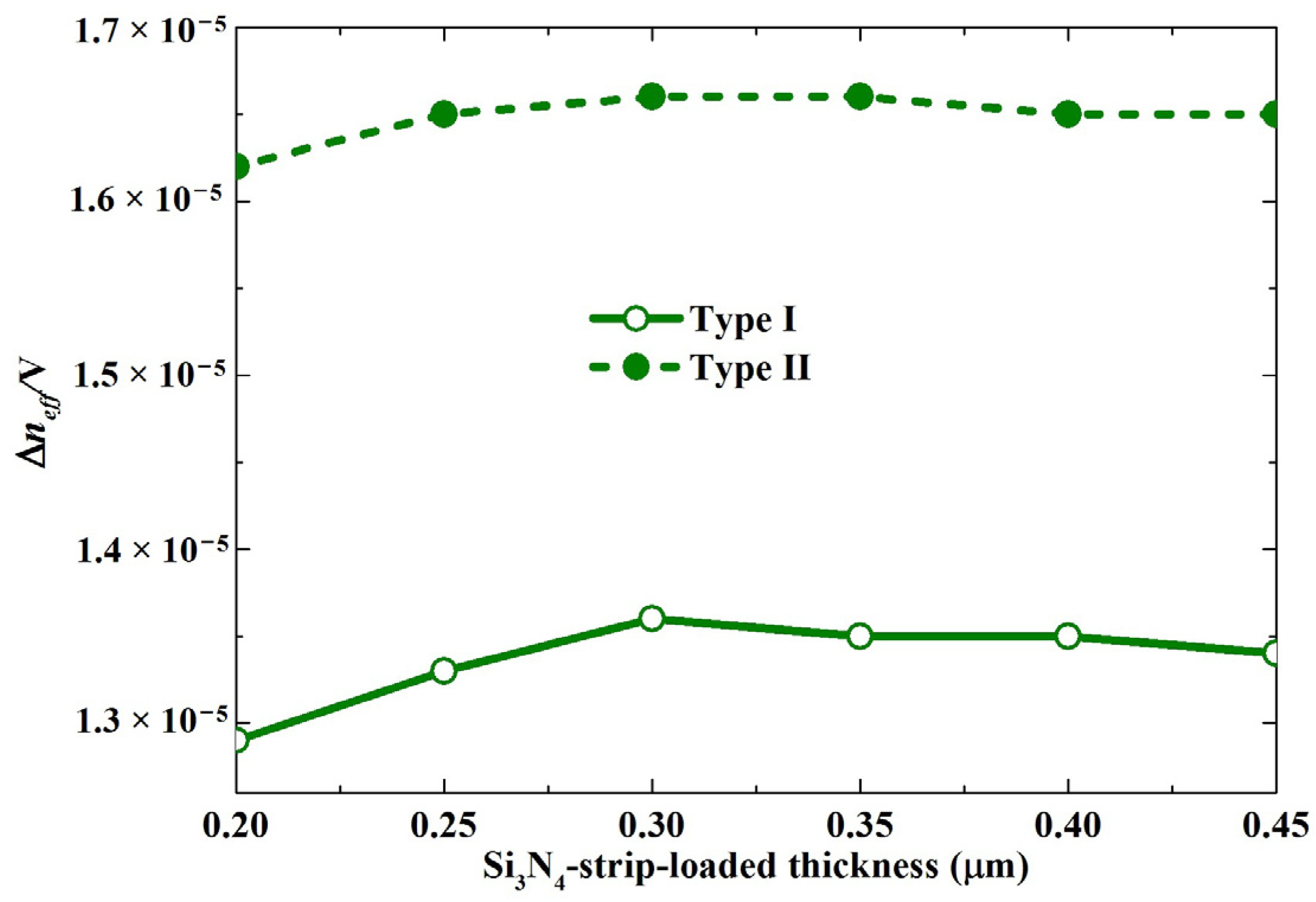

Using the distribution of the electrostatic field, the distribution of the refractive index of the LN waveguide was calculated. The effective refractive index change (Δn_eff) of the TE mode of a single waveguide was the difference between the effective refractive index with and without the voltage. Figure 4 shows the effective refractive index change for six combinations of the Si₃N₄-strip-loaded widths and thicknesses for the unit voltage. For an increasing Si₃N₄-strip-loaded thickness and a decreasing Si₃N₄-strip-loaded width combination, the Δn_eff/V increased at first but then decreased after reaching the peak at a thickness of 0.3 μm. For the combination of the same thickness of Si₃N₄-strip-loaded waveguide, the Δn_eff/V of Type I was smaller than that of Type II. The selection of these parameters was insensitive of Δn_eff/V.

The single-mode operation, the appropriate optical power in the LN layer, tight waveguide separation, and large Δn_eff/V enabled an ultra-compact, high-efficiency, and low-loss E-O MZM. Considering the above factors in the subsequent simulations, the thicknesses and widths of the Si₃N₄-strip-loaded waveguides and the separation distance in Type I and Type II structures are shown in

Table 2. The parameters of the dimensions of the Si₃N₄-strip-loaded waveguides and the separation distance.

Type	Thickness (µm)	Width (µm)	Separation Distance (µm)
Type I	0.3	1.532	2.629
Type II	0.3	1.46	2.336

.

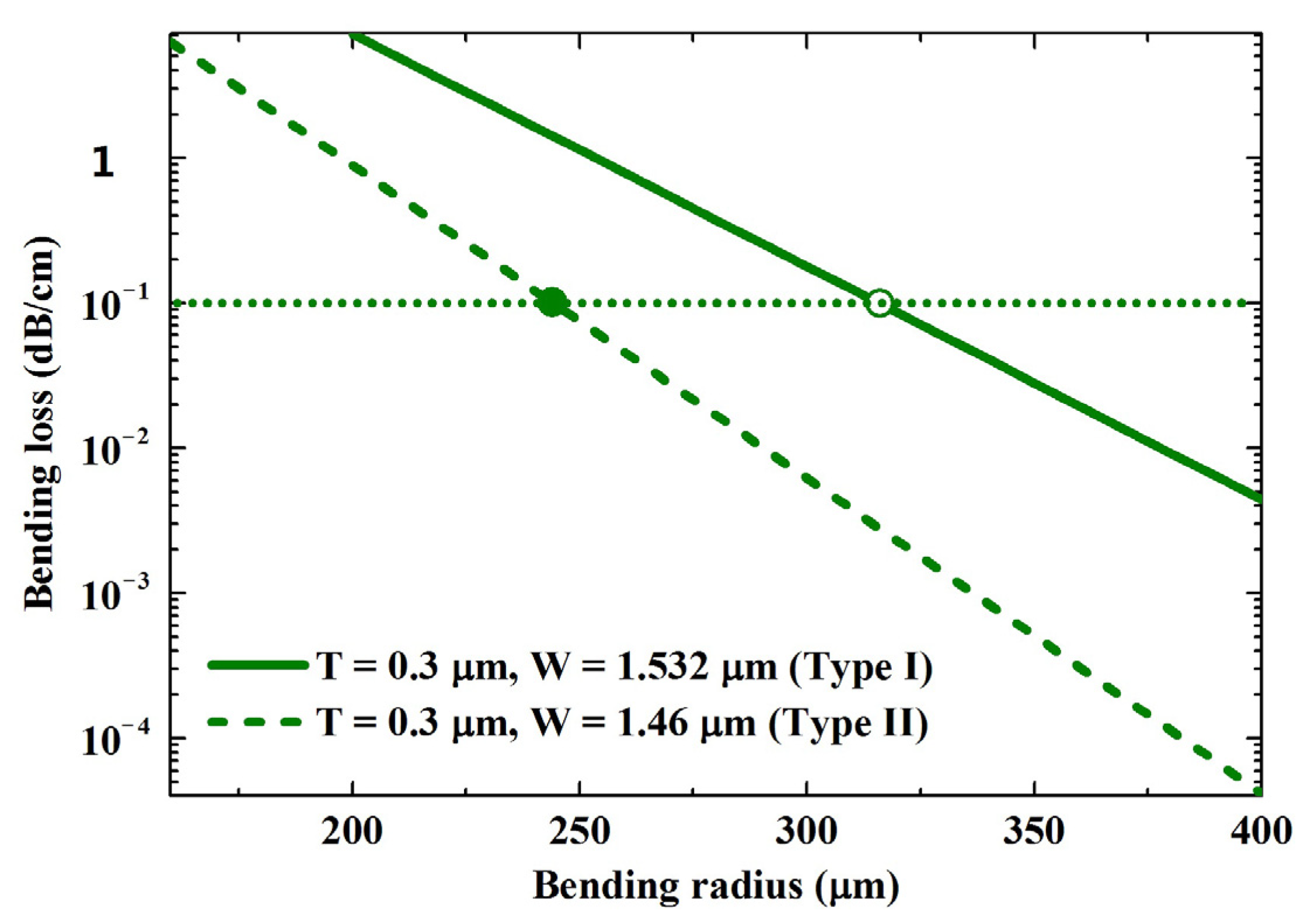

Since the circular arcs in each arm of the structure involved bending waveguides, the relationship between the bending loss and the bending radius is shown in Figure 5. The bending loss decreased exponentially with the bending radius. A small bending radius was necessary for the ultra-compact MZM. The bending losses of Type I was larger than those of Type II. The bending losses of Type I and Type II were both 0.1 dB/cm when the bending radii were 316 and 244 µm.

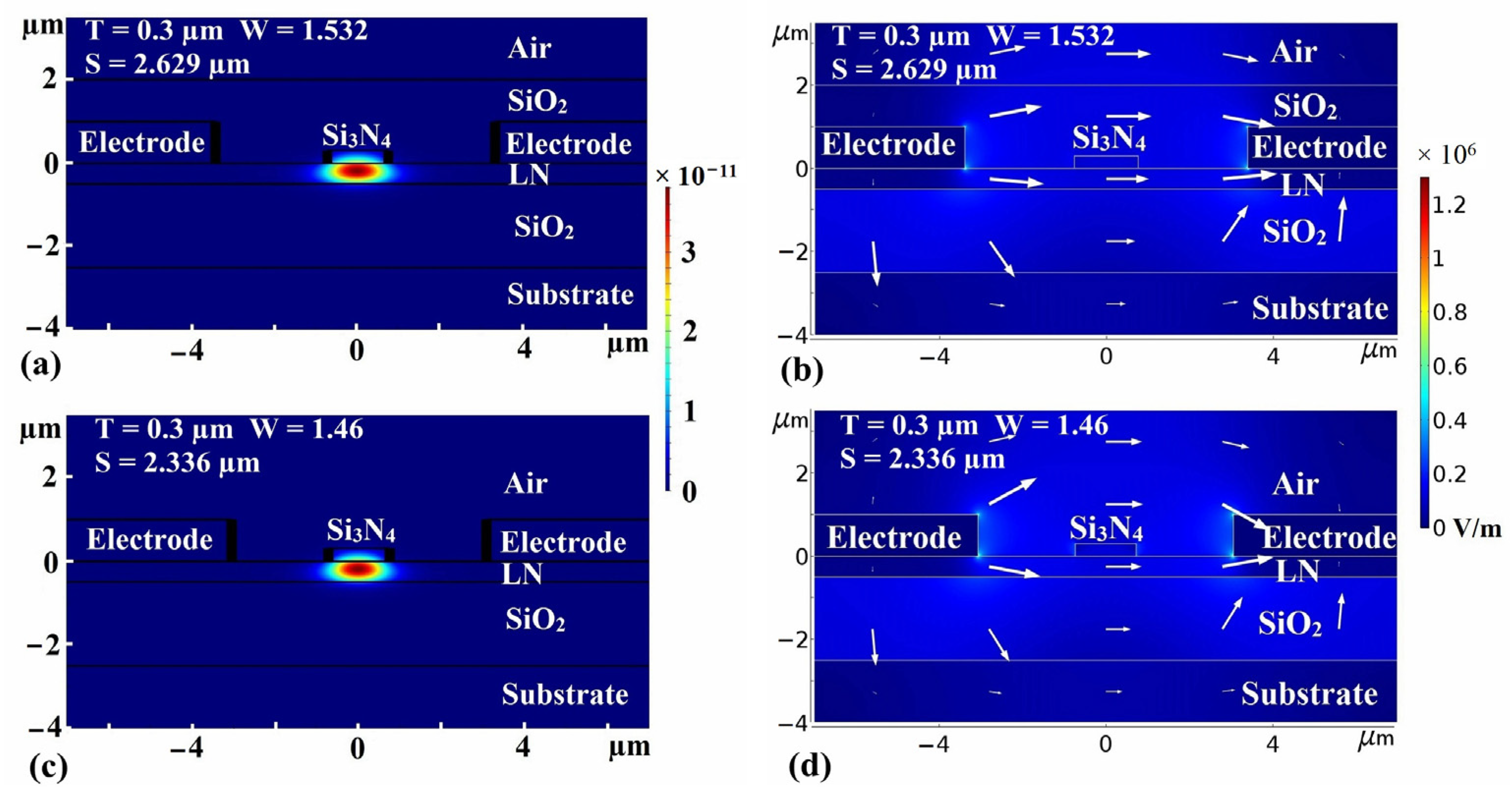

The distributions of the electric field and the optical mode were simulated. The optical mode distributions of Type I and Type II are shown in Figure 6a,c. Most of the optical power of Type I and Type II was confined within the LN layer. A voltage of 1 V was applied between electrodes. The distribution of the electrostatic field is shown in Figure 6b,d. The electric field intensities in the center of the LN layer below the Si₃N₄-strip-loaded waveguide for Type I and Type II were 121,103 and 127,997 V/m, respectively. The electric field in the LN layer of Type I was less than that of Type II.

In the E-O MZM (Figure 1), two light beams of equal intensity and phase traveled across two arm waveguides, and finally, the beams combined to form an interference pattern of dark and light fringes. For the two arms, opposite electric fields were applied to modify the refractive index of the LN layer, thus changing the phase of the wave propagating through those arms. The resulting diffraction pattern depended on the difference in the effective refractive index of the two arms. The intensity (I) of the sinusoidal interference signal depended on the interaction length in the optical-modulating waveguide (L) and the change in the effective refractive index Δn_eff [29,30].

$$I\propto [1+V\cdot \cos \Delta \varphi ],$$

(1)

where Δϕ is the phase shift between the guided modes of the two arms, which is correlated directly to L and Δn_eff, and V is the change in applied voltage. The phase shift is given by the following equation:

$$\Delta \varphi =\frac{2\pi }{\lambda }\Delta n_{eff}L=\frac{V}{V_{\pi }}\frac{\pi }{2}.$$

(2)

where V_π is the half-wave voltage. For the Type I and Type II devices, when the thickness of the Si₃N₄-strip-loaded combination was 0.3 µm, the Δn_eff/V values were 1.36 × 10⁻⁵ and 1.66 × 10⁻⁵ V⁻¹, and the half-wave voltage-length products were calculated as 2.85 and 2.33 V·cm.

HFSS was chosen as the preferred tool for an accurate and high-frequency dependent analysis. HFSS allowed for the geometric definition and analysis of structures in a three-dimensional environment. Perfect electric walls were defined for the signal trace and the ground plane in HFSS. The dielectric was given a permittivity, permeability, and a loss tangent.

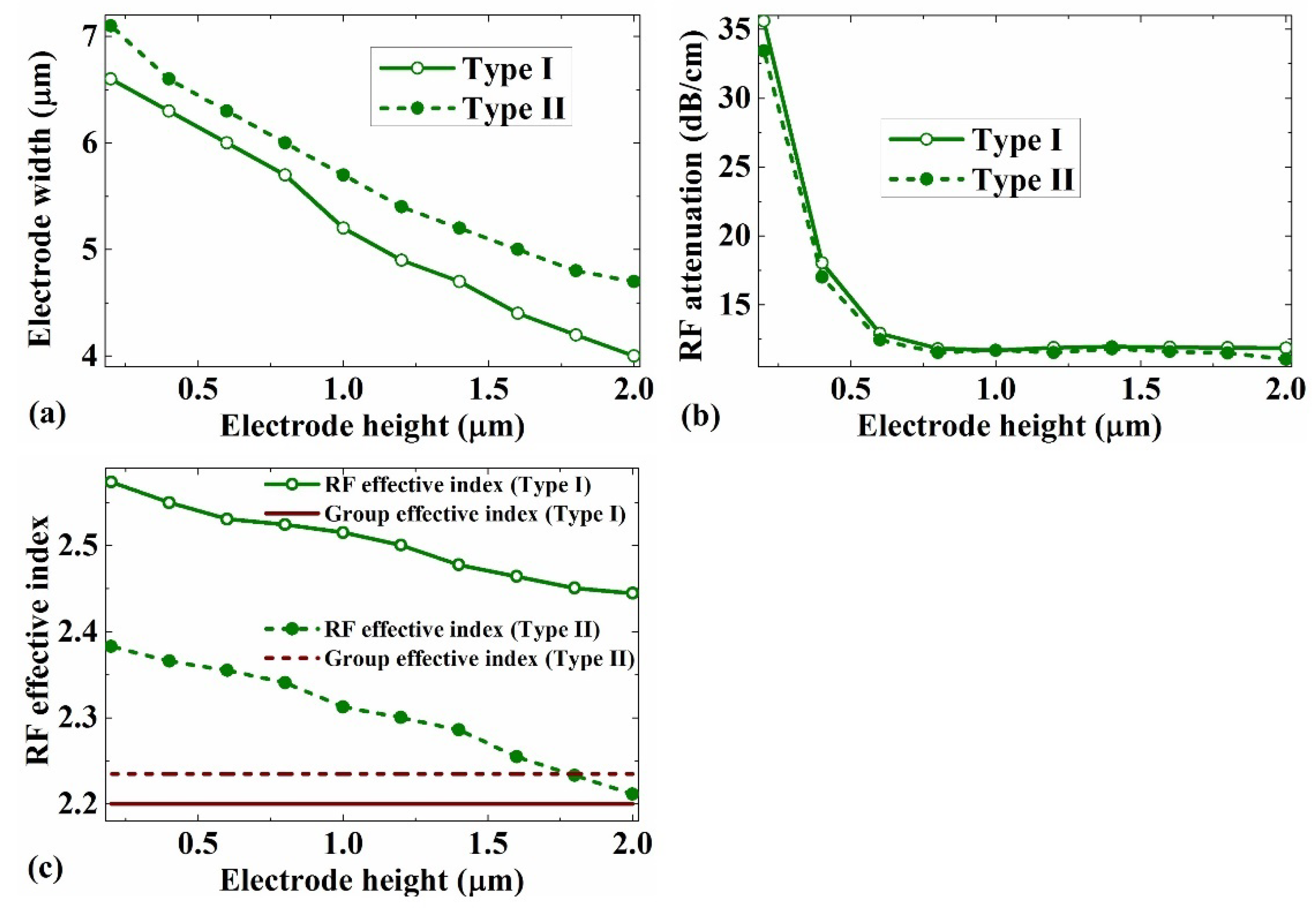

The performance of the traveling wave modulator was related to the characteristic impedance of the RF coplanar waveguide electrode, the loss of the RF signal, and the velocity matching of the optical modes and the RF signal. The best modulation efficiency was obtained when the propagation velocity difference between the RF signal and the optical wave was the smallest (velocity-matching condition). This meant that the difference between the RF effective index and the group effective index was smaller [31]. We analyzed the characteristic impedance of the coplanar waveguide electrode structure for different signal electrode dimensions. For each signal electrode thickness, the width of the signal electrode was first adjusted to ensure that the characteristic impedance of the coplanar waveguide electrode was 50 Ω at a frequency of 100 GHz. The relationship between the signal electrode height and width is shown in Figure 7a. A thin signal electrode would require a wide signal electrode to achieve characteristic impedance matching. At the same signal electrode height, the signal electrode width of Type I was smaller than that of Type II because the dielectric constant of SiO₂ was larger than that of air. Then, for each combination of the width and height of the signal electrode, the RF effective mode index and the RF attenuation of the electrodes were further analyzed, as shown in Figure 7b,c. For the RF attenuation, thick and narrow signal electrode combination facilitated the low-loss RF signal. When the electrode thickness was larger than 0.8 µm, the decrease in the RF attenuation was saturated, which was also the preferred region for metal thickness in order to achieve the ultimate performance. The group effective indices of the Si₃N₄-strip-loaded LNOI waveguide for the optical mode are marked in Figure 7c. The group effective index was obviously smaller than the RF effective index for Type I, and the propagation speed of the optical and RF signals was well-matched for Type II. This was because the dielectric constant of the SiO₂ was much higher than that of air, so the RF effective index of Type I was significantly higher than that of Type II. In subsequent simulations, considering the RF attenuation and velocity-matching between the RF signal and the optical mode, the signal electrode height was set at 1.8 μm, and the electrode widths for Type I and Type II were set to 4.4 and 4.8 μm, respectively.

The RF electrode–optic frequency response m(ω) could be modeled as [32]:

$$m(\omega )=\frac{R_L+R_G}{R_L}\left|\frac{Z_{in}}{Z_{in}+Z_G}\right|\left|\frac{(Z_L+Z_0)F(u_{+})+(Z_L-Z_0)F(u_{-})}{(Z_L+Z_0)e^{{\gamma }_{m}L}+(Z_L-Z_0)e^{-{\gamma }_{m}L}}\right|,$$

(3)

where R_L and R_G are the load and generator resistances, respectively. In the expression, Z_in is the modulator input impedance:

$$Z_{in}=Z_0\frac{Z_L+Z_0\tanh ({\gamma }_{m}L)}{Z_0+Z_L\tanh ({\gamma }_{m}L)},$$

(4)

where Z_G and Z_L are the generator and load impedances, Z₀ is the characteristic impedance, $F(u_{\pm })=(1-e^{u_{\pm }})/u_{\pm }$, where $u_{\pm }=\pm {\alpha }_{m}L+j\omega (\pm n_m-n_g)L/c_0$, and ${\gamma }_m={\alpha }_m+j\omega n_m/c_0$ is the propagation constant. In this expression, n_m and α_m are the RF effective mode index and RF attenuation. The units of α_m are Np/cm, with 1 Np/cm equal to 8.68 dB/cm. c₀ is the speed of light in a vacuum. We assumed R_L = R_G = Z_G = Z_L = 50 Ω.

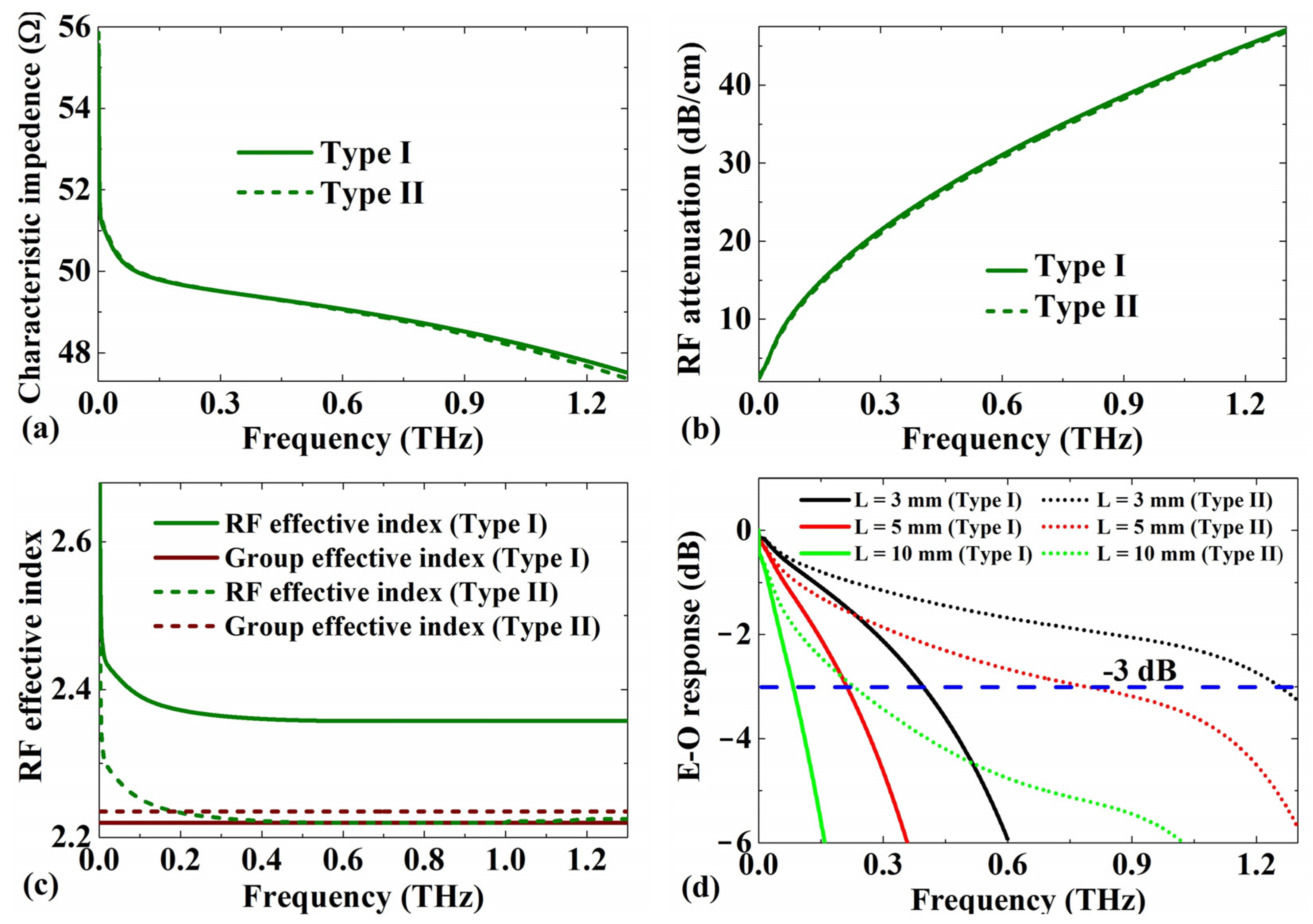

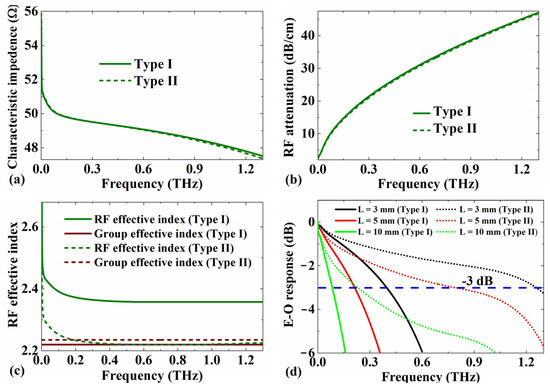

The overall modulation frequency response of a traveling wave modulator could be calculated with the characteristic impedance, RF attenuation, RF effective index, and group effective index [30,33]. Figure 8a shows the characteristic impedance of the MZM at frequencies in the range of 0–1.3 THz. The characteristic impedance curves of Type I and Type II were highly coincident, ranging from 47.5 Ω to 56 Ω. Figure 8b shows the RF attenuation. At frequencies from 0 to 1.3 THz, the RF attenuation curves of Type I and Type II were very similar, ranging from 4 dB/cm to 47 dB/cm. Figure 8c shows the RF effective index at frequencies in the range of 0–1.3 THz. The group effective indices of the optical mode are marked in Figure 8c for comparison. For the Type I device, the group effective index was always obviously smaller than the RF effective index at the frequencies in the range of 0–1.3 THz. For the Type II device, the group effective index was smaller than the RF effective index at the frequencies in the range of 0–0.1 THz, but the propagation speed of the optical and RF signals was well-matched at the frequencies in the range of 0.1–1.3 THz. Figure 8d shows the E-O frequency response at the frequencies in the range of 0–1.3 THz. The modeled bandwidths (−3 dB) with the interaction lengths of 3, 5, and 10 mm for Type I were 0.083, 0.214, and 0.4 THz, and those for Type II were 0.23, 0.79, and 1.26 THz, respectively.

Table 3. Comparison of the modulator performance of LNOI-based modulator.

Structure	Experimental or Theoretical	Interaction Length (mm)	Vπ·L (V·cm)	Bandwidth (GHz)	References
SiNx-LNOI	Experimental	12	3	8	[10]
SiN-LNOI	Experimental	8	3.1	33	[34]
Si3N4-LNOI	Experimental	7.8	2.24	80	[35]
SiN-LNOI	Theoretical	3	3.6	420	[36]
LNOI-SiNx	Experimental	5	6.67	30.6	[37]
LN ridge	Experimental	10	2.3	80	[3]
LN ridge	Experimental	3	2.2	>70	[33]
Si-LNOI	Experimental	5	6.7	>100	[38]
Si-LNOI	Theoretical	5	1.76	350	[30]
Si3N4-LNOI (Type I)	Theoretical	3	2.85	400	This work
Si3N4-LNOI (Type I)	Theoretical	10	2.85	83	This work
Si3N4-LNOI (Type II)	Theoretical	3	2.33	1260	This work
Si3N4-LNOI (Type II)		10	2.33	230	This work

shows the comparison of the performance of the present device with state-of-the-art devices, including the interaction length, half-wave voltage length product, −3 dB E-O bandwidth, and waveguide width. The E-O bandwidth of the Type II device with a length of 3 mm extended to 1200 GHz, the highest bandwidth for an LN modulator.

4. Conclusions

We demonstrated an E-O MZM configuration with high-performance modulation in a Si₃N₄-strip-loaded 0.5 μm thick x-cut LNOI. The widths and thicknesses of the Si₃N₄-strip-loaded waveguides of Type I and Type II were optimized. The optimized values of V_π·L for Type I and Type II were calculated to be 2.85 and 2.33 V·cm, respectively. The widths and heights of the coplanar waveguide electrodes for Type I and Type II were optimized. The −3 dB E-O modulation bandwidths for Type I and Type II with a device length of 3 mm were calculated to be 0.4 and 1.26 THz, respectively. The process of this design, which did not require etching or sawing of LN, was based on a current silicon nitride ultra-low-loss passive optical waveguide.
