All-Dielectric Metasurface Based on Complementary Split-Ring Resonators for Refractive Index Sensing

Abstract

Thanks to their lower losses and sharper resonances compared to their metallic counterparts, all-dielectric metasurfaces are attracting a quickly growing research interest. The application of such metasurfaces in the field of refractive index sensing is extremely attractive, especially due to the expected high performance and the simplicity of the sensing element excitation and readout. Herein, we report on an all-dielectric silicon metasurface based on complementary split-ring resonators (CSRRs) optimized for refractive index sensing. A quasi-bound state in the continuum (quasi-BIC) with an ultra-high quality factor can be excited in the near-infrared (NIR) window by violating the structure symmetry. By using the three-dimensional finite element method (3D-FEM), a refractive index sensor for biomedical applications with an ultra-high figure of merit (FoM > 100,000 RIU⁻¹) has been designed, exploiting the quasi-BIC resonance. The proposed design strategy opens new avenues for developing flat biochemical sensors that are accurate and responsive in real time.

1. Introduction

Resonant micro- and nano-photonic refractive index sensors have long been utilized for real-time, label-free analysis of chemical and biological samples, such as identifying target biomolecules in a biologic fluid or detecting organic liquid compounds. When target molecules interact with light, the sensor resonance frequency shifts due to light–matter interaction. The frequency shift is subsequently measured and utilized to detect target molecules [1,2,3,4,5,6]. The sensitivity (S = Δλ_res/Δn) of refractive index sensors is evaluated as the ratio of the shift in the sensor resonance wavelength to the change in the sample’s refractive index. The figure of merit (FoM = S/FWHM) normalizes the refractive index sensitivity to the resonant mode spectral width (full width at the half maximum, FWHM) [5,6,7,8].

Surface plasmons [9,10,11,12], photonic crystal cavities [3,13,14,15,16], and whispering gallery mode resonators [2,4,17,18,19,20] have all been used to produce better sensitivities and superior sensing performance. Furthermore, biochemical sensing applications have used plasmonic nanostructures that support Fano resonances [21,22,23,24]. However, despite their high sensitivity to the surrounding medium refractive index, they suffer from broad resonances caused by high optical absorption losses in the metal, which severely limit the sensor FoM.

Metasurfaces (MSs) are planar interfaces made of periodic arrays of sub-wavelength resonant elements used to manipulate the phase, polarization, and amplitude of light [25,26,27]. They are the 2D equivalents of bulk metamaterials. Due to their lower ohmic losses and thus sharper Fano resonances than their metallic equivalents, all-dielectric MSs have become more popular in recent years for sensing applications [28,29,30,31,32,33,34]. In this regard, a new type of MS based on the CSRR [35] was recently reported. In this MS, an ultrathin slot is etched in a silicon layer on a standard glass substrate. In the NIR window, the MS shows two multipolar resonances. Meanwhile, an asymmetry in the structure of the slotted CSRR can be used to trigger a quasi-BIC with an ultra-high Q-factor thanks to the vanishing radiation losses for a small degree of asymmetry. Quasi-BIC modes have already been exploited in many application domains, including nonlinear optics and sensing [36,37,38].

In our study, by examining the sensitivity of the quasi-BIC mode to the superstrate medium refractive index, we assessed the CSRR-MS sensing capacity. By exploiting the non-radiative nature of the quasi-BIC mode, exceptionally high-quality factors and FoMs can be produced, allowing for the design of highly accurate biological and chemical sensors.

2. Metasurface

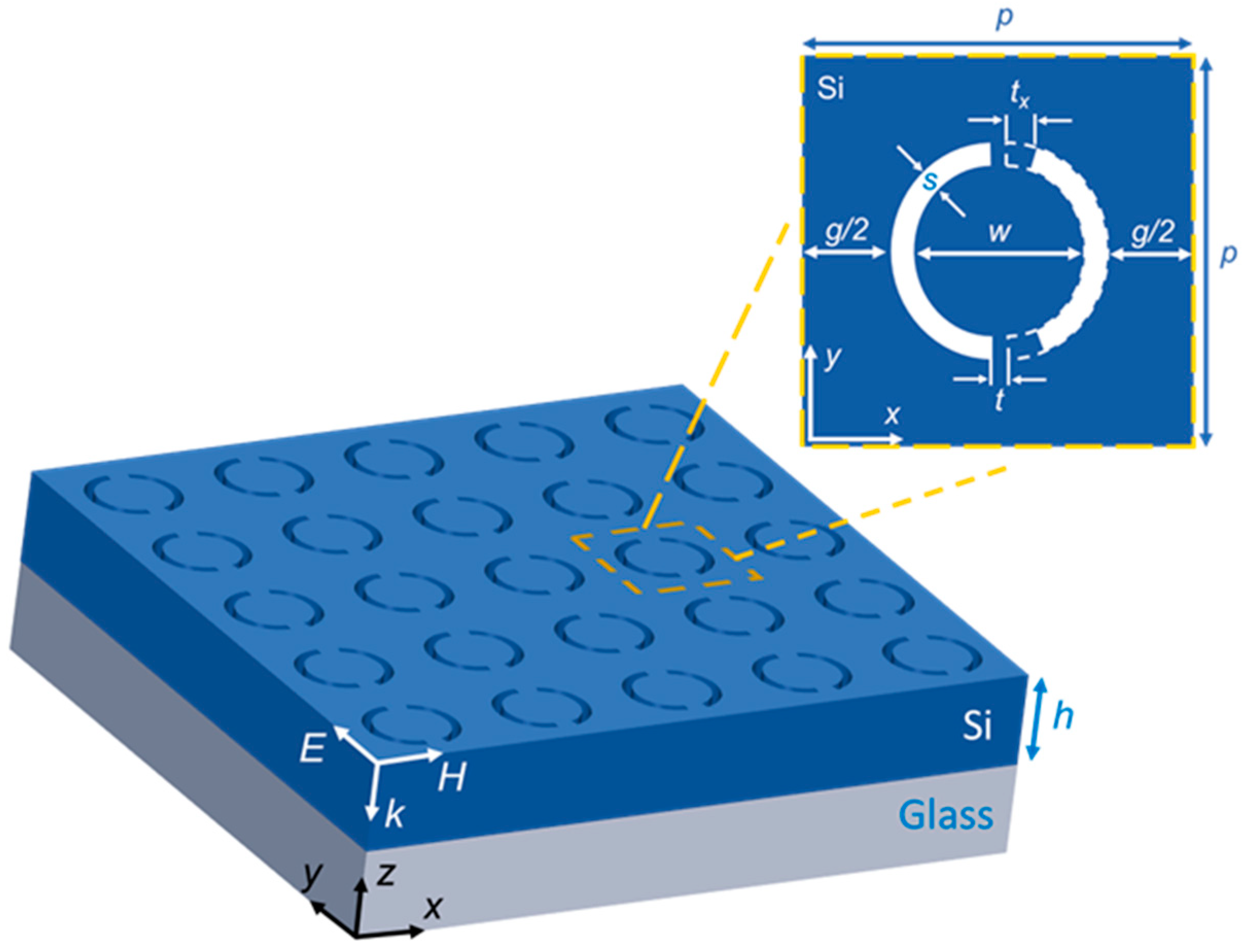

Figure 1 shows the proposed sensing device. A periodic array of circular slots is fully etched in a silicon layer of thickness h, deposited on a glass substrate to form the CSRR-MS. Each unit cell of the periodic structure has one circular slot, whose structural parameters are shown in the inset of Figure 1. The slot width, the inner diameter, the distance between neighboring slots in the x-direction, the pitch of the periodic square array, and the size of the silicon gaps are identified as s, w, g, p, and t, respectively. In addition, an asymmetry parameter t_x is introduced in order to break the structure symmetry and excite the quasi-BIC resonance, reducing the arc length in one half of the CSRR structure. The depth of the slots etched in the silicon layer is equal to h.

The transmission spectra of the MS have been computed using the 3D-FEM. The silicon layer is assumed as deposited on a glass substrate with a refractive index of n_g = 1.52, and a y-polarized plane wave irradiates the MS in the z-direction (see Figure 1). We assume h = 232 nm, s = 25 nm, w = 496 nm, g = 240 nm, and t = 100 nm, which are identical to the values in [35]. The refractive index dispersion of silicon is considered [39]. All these geometrical features are compatible with the technological constraints typically imposed by e-beam lithography, having a resolution below 5 nm [40].

We assume that the metasurface is top illuminated by a sub-pm linewidth laser source operating in the NIR, whose emission frequency can be precisely tuned in a narrow range of a few hundreds of pm by a piezoelectric transducer. A standard detector operating in the NIR can be used for measuring the transmitted power.

3. Simulation Results

The MS has been simulated by 3D-FEM. In our simulations, we consider a 1-µm-thick glass substrate with the silicon layer on the top. We assume that the Si layer is patterned by a periodic array of 25-nm-wide circular slots. The slots and the 1-µm-thick volume above the silicon layer are filled with superstrate media of various refractive indices (n in the range 1.31–1.33). The size of each unit cell including one circular slot was p = 786 nm and periodic boundary conditions were used along x and y directions. Two ports were added on the top and the bottom domains and a y-polarized plane wave was incident onto the MS from the top port. The maximum mesh size for the glass substrate, the silicon layer, and the superstrate media was approximately (λ/7.6), (λ/17.45), and (λ/6.65) nm, respectively.

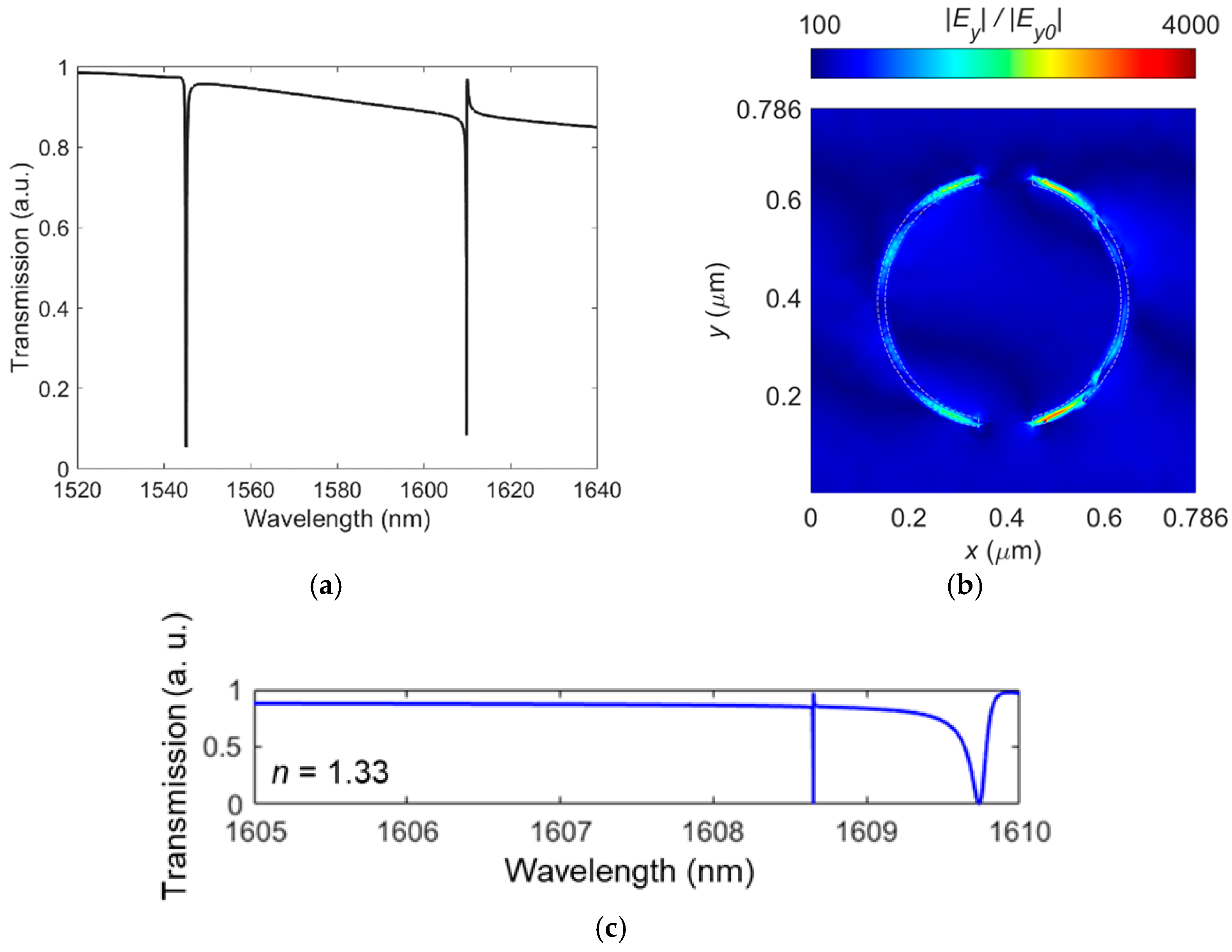

First, we estimated the MS transmission spectra by assuming that the MS was symmetric (t_x = 0) and that the etched slots, as well as the volume above the Si layer, were filled with a fluid, as typical for chemosensors and biosensors. In this calculation, we assumed that the fluid had a refractive index n = 1.33 and neglected the fluid optical absorption. The symmetric MS supports two strong resonances at λ₁ = 1545 nm and λ₂ = 1610 nm, as shown in Figure 2a. The size of the silicon gap (t) has small effect on these multipolar resonances, as revealed in prior research [35].

In addition to the resonances mentioned above, symmetry breaking allows the described CSRR-MS to support an ultra-high quality factor quasi-BIC mode. We decreased the arc length in one half of the CSRR structure by introducing an asymmetry parameter t_x = 10 nm to violate the structure in-plane inversion symmetry and trigger the quasi-BIC mode, as shown in [35]. The in-plane electric field (E_y) of the quasi-BIC resonant mode was calculated at the top surface of the asymmetric CSRR MS (t_x = 10 nm) and plotted in Figure 2b. The transmission spectrum of the asymmetric MS in the narrow wavelength ranging from 1605 nm to 1610 nm is shown in Figure 2c, considering again n = 1.33 and k = 0 (k is the extinction coefficient of the superstrate medium). The quasi-BIC resonance occurs at λ_res = 1608.7 nm.

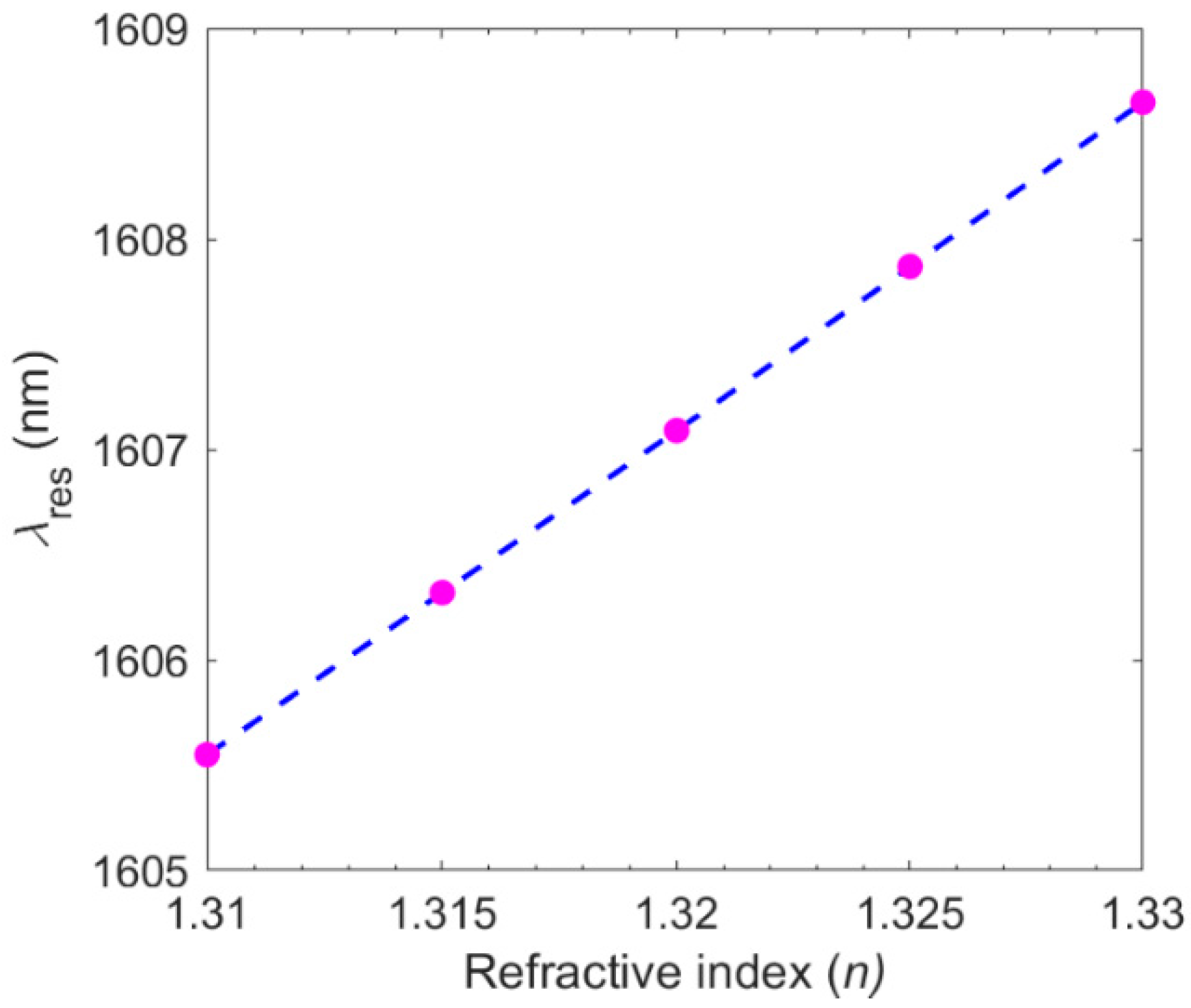

To study the asymmetric MS performance as a refractive index sensor, we varied the refractive index n of the fluid inside the etched slots and above the Si layer in the range from 1.31 to 1.33. Then, the transmission spectrum in each case was calculated to investigate the sensitivity of the quasi-BIC mode to n. Figure 3 shows the outcome of our numerical calculations. The dependence of the resonance wavelength on n is almost linear, as demonstrated in the linear fit of the dashed line in Figure 3.

The sensitivity of the quasi-BIC mode to changes in the superstrate medium refractive index (S = λ_res/n) was computed and found to be S = 155 nm RIU⁻¹. In addition to S, we considered the figure of merit (FoM), defined as FoM = S/FWHM, where FWHM is the full width at half maximum of the transmission drop at resonance wavelength. For example, for the quasi-BIC mode at = 1608.7 nm, we estimated a FWHM of 0.4 pm, resulting in an ultra-high FoM of 387.500 RIU⁻¹. Although the archived value of S is comparable to that reported for other all-dielectric metasurfaces [34] and worse than that obtainable with some plasmonic sensors [41], we stress that the main performance parameter is the FoM, whose value exceeds 10⁵.

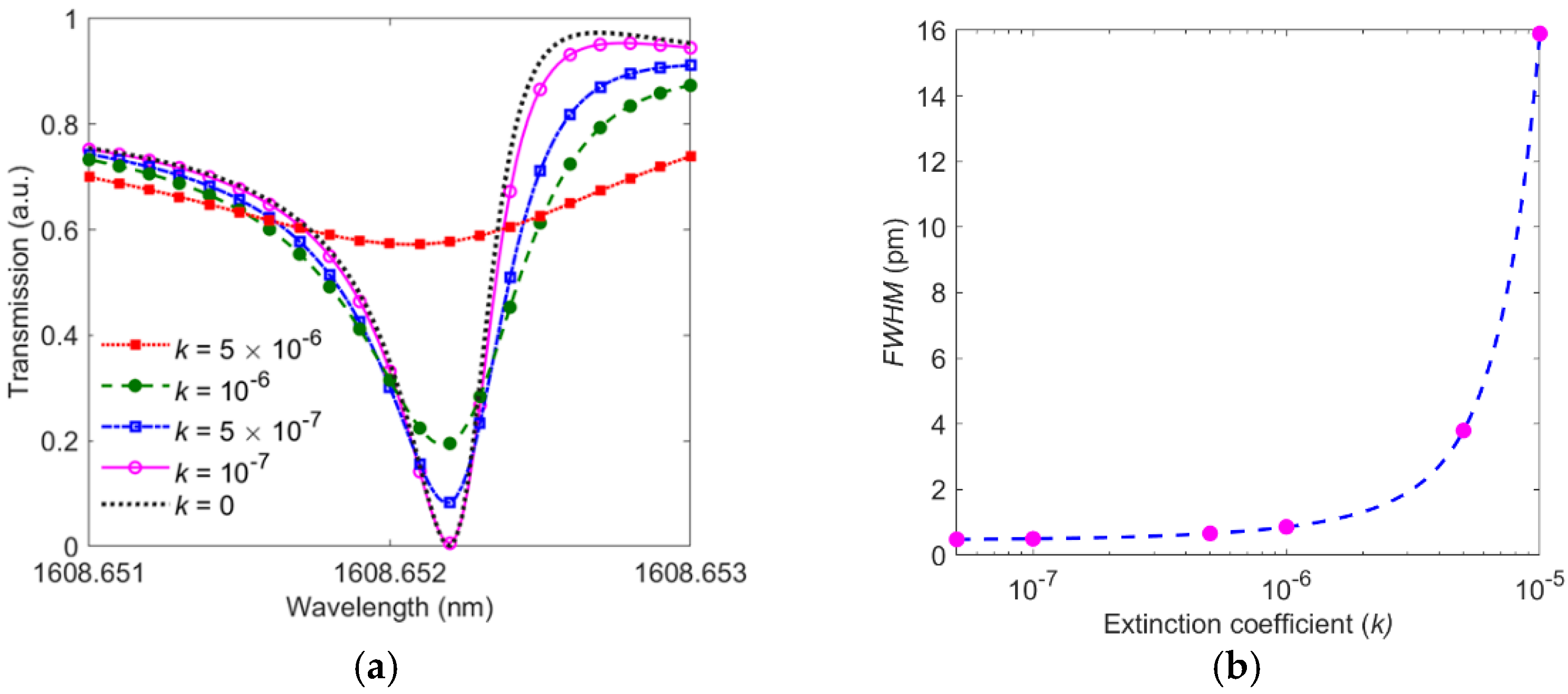

We evaluated the effect of a nonzero value of k on the quasi-BIC resonance and the FWHM. We calculated the transmission spectra of the asymmetric CSRR MS (t_x = 10 nm) for a constant superstrate refractive index of n = 1.33 and different values of the superstrate extinction coefficient (k ranging from 0 to 5 × 10⁻⁶). The FWHM of the resonance was increased for higher k values due to larger optical losses inside the superstrate medium, leading to a low-FoM sensing device, as shown by Figure 4a. Figure 4b shows that the FWHM of the quasi-BIC mode changes non-linearly with variations of the superstrate extinction coefficient (k). While the value of FWHM is nearly constant for k < 10⁻⁶, a sharp increase was observed for larger k values.

Since the values of k are below 10⁻⁶ for several applications involving, for example, organic liquid compound detection [42], we expect a modest degradation of the FoM (reduction factor < 2) due to the nonzero values of k when applications involving fluids having k < 10⁻⁶ @ 1.6 μm are considered.

4. Conclusions

We report on the design of a refractive index sensor with an ultra-high figure of merit (>10⁵ RIU⁻¹) based on all-dielectric metasurfaces that support a quasi-BIC mode. Our 3D numerical simulations showed that the ultra-narrow quasi-BIC resonance in the complementary split-ring resonator metasurface structure can attain a sensitivity value of 155 nm RIU⁻¹ and an outstanding FoM of 387,500 RIU⁻¹, when k = 0. This high value of FoM is obtained with a value of t_x (the geometrical asymmetry parameter) equal to 10 nm, which is feasible from a technological point of view. Considering new biomedical applications, the proposed technique offers new paths of research on light–matter interactions. In addition, cluster analysis could be utilized to enhance the resolution of chemosensors and biosensors developed according to the approach discussed here [43,44].
