Discussion on Piston-Type Phase Ambiguity in a Coherent Beam Combining System

Abstract

Coherent beam combining (CBC) with closely arranged centrosymmetric arrays is a promising way to obtain a high-brightness laser. An essential task in CBC is to actively control the piston phases of the input beams, maintaining the correct phasing to maximize the combination efficiency. By applying the neural network, the nonlinear mapping relationship between the far-field image and the piston phase could be established, so that the piston phase can be corrected quickly with one step, which caused widespread concern. However, there exists a piston-type phase ambiguity problem in the CBC system with centrosymmetric arrays, which means that multiple different piston phases may generate the same far-field image. This will prevent the far-field image from correctly reflecting the phase information, which will result in a performance degradation of the image-based intelligent algorithms. In this paper, we make a theoretical analysis of phase ambiguity. A method to solve phase ambiguity is proposed, which requires no additional optical devices. We designed simulations to verify our conclusions and methods. We believe that our work solves the phase ambiguity problem in theory and is conducive to improving the performance of image-based algorithms.

1. Introduction

High-power lasers are widely applied in many fields, including Lidar systems, Space Communication, Laser Medicine, Material Processing, and so on [1,2,3,4,5,6]. Therefore, obtaining high-power lasers has important practical value. The laser output with high power and high beam quality can be obtained in the far-field by combining multiple low-power laser beams to keep the phase difference between sub-beams as an integral multiple of 2π [1,2,7,8,9,10]. Chang et al. firstly demonstrated the coherent beam combining (CBC) of more than 100 beams [11]. Civan Laser reported a CBC system with an output laser power of more than 10 kW [12]. The results show that the co-phase output in the CBC system is a promising method to obtain a high-power output.

The core challenge of achieving a co-phase output is to correct and lock the piston phase quickly between each sub-beam [13,14,15,16,17,18,19]. In the past, a series of phase-locking methods have been proposed, including the dithering technique [20,21,22], interference measurement [23,24], and stochastic parallel gradient descent (SPGD) [25,26]. The dithering technique and the interference measurement method need to add new devices to the CBC system. The optimization algorithms cost a number of iterative steps before reaching convergence, which limits their application in practice. With the development of deep learning, various intelligent algorithms are introduced into CBC [27,28,29,30]. Researchers expect to use neural network (NN) models to establish the mapping between the far-field and the piston phase, and compensate the current piston phase with a prediction to realize the co-phase, which helps to reduce iterative steps. In 2019, Hou et al. predicted the rough value of the piston phase according to the far-field image at the defocus plane with a convolutional neural network (CNN), and then applied SPGD based on the prediction, so as to increase the convergence speed [27]. In 2020, Liu et al. employed CNN to measure the beam-pointing and piston phase of sub-beams from the far-field image in a two-beam coherent beam combining system [28]. These studies indicate that the introduction of image information can effectively improve the convergence-performance of the algorithm.

Although the algorithm based on deep learning shows a competitive performance, its interpretability has yet to be discussed. Researchers want to know whether the model learned to “infer” or “remember”. The problem is whether the piston phase can be directly predicted from the far-field with one step in theory. We notice that the model will not converge in some cases. For example, researchers find that a piston-type phase ambiguity exists in centrosymmetric arrays [31,32], which means that different piston phases may generate the same far-field image. In this case, the far-field image cannot provide sufficient information of the current piston phase, interfering with the model’s learning (we will show this in Section 4). Due to such phenomena, predictions of NN are reliable only when all the causes of phase ambiguity have been solved. Our main work is to analyze the mechanism of phase ambiguity and find its solution, which is helpful to supplement the interpretability of deep-learning-based algorithms as well. After that, the introduced image information will accurately reflect the piston phase, which is helpful for a high-speed and accurate prediction.

2. Principle

2.1. Discussion on Piston-Type Phase Ambiguity

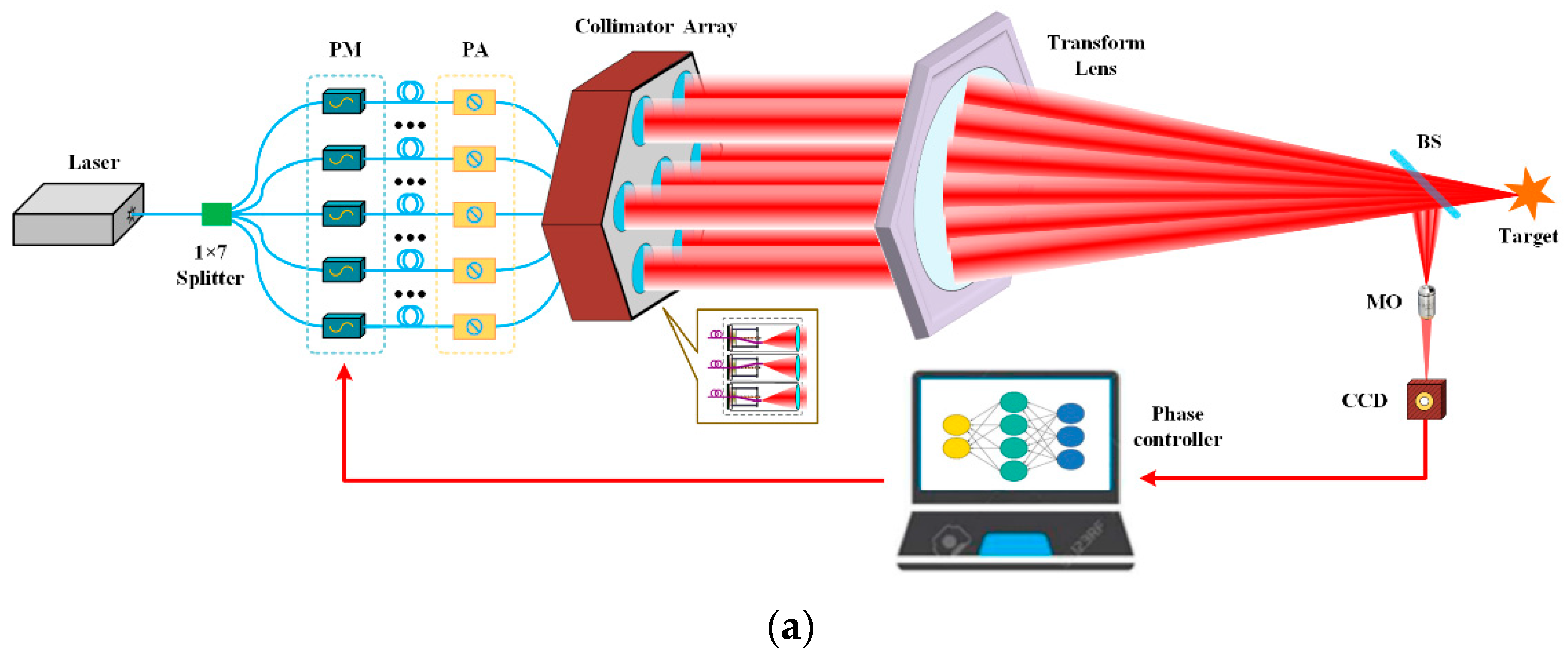

The diagram of the CBC system is shown in Figure 1. We divide the laser into N elements by a fiber splitter. (N is the number of sub-apertures.) The power amplifier (PA) is employed to amplify the power of each sub-beam. After that, the piston phases of the amplified sub-beams are controlled by the phase modulator (PM). The output sub-beams are focused by a transform lens, and then the focused sub-beams are split by a beam-splitter (BS) into two beams. One beam is sent to a 10× micro-objective (MO) and detected by a CCD camera to obtain the far-field image for phase-locking. Another beam is transformed to the target face for practical application.

The key step of CBC is to manipulate the phase controller to make each sub-beam co-phase. In intelligent algorithms, it models the predicted piston phase through the far-field image. Then, the phase controller applies the prediction for compensation. Far-field images need to accurately reflect the information of the piston phases, which requires that the far-field image have its unique corresponding piston phase. However, piston-type phase ambiguity will leave the above requirement unsatisfied. Phase ambiguity means that different piston phases may generate the same far-field image. Figure 2 shows the examples of phase ambiguity in simulation, in which three different piston phases correspond to the same far-field image. We find that the piston phase in Figure 2c is equal to adding a common piston phase ($\frac{\pi }{6}$) to all sub-apertures in Figure 2a. We call this phenomenon of phase ambiguity phase redundancy. The piston phase in Figure 2e could be obtained by rotating the original piston phases in Figure 2a 180 degrees and conjugating it. We call this phenomenon of phase ambiguity rotational conjugate symmetry (this phenomenon only occurs in centrosymmetric arrays). The following discussion will prove why they generate the same far-field image and provides solutions to eliminate their impact.

On the emissive plane, the sub-apertures are usually arranged in a centrosymmetric shape, which is beneficial to reduce the sidelobe energy and obtain high-quality combined beams [33,34,35,36,37,38]. However, the centrosymmetric arrangement will cause phase ambiguity. Next, we discuss phase ambiguity with the example of a regular-hexagonal 7-element arrangement.

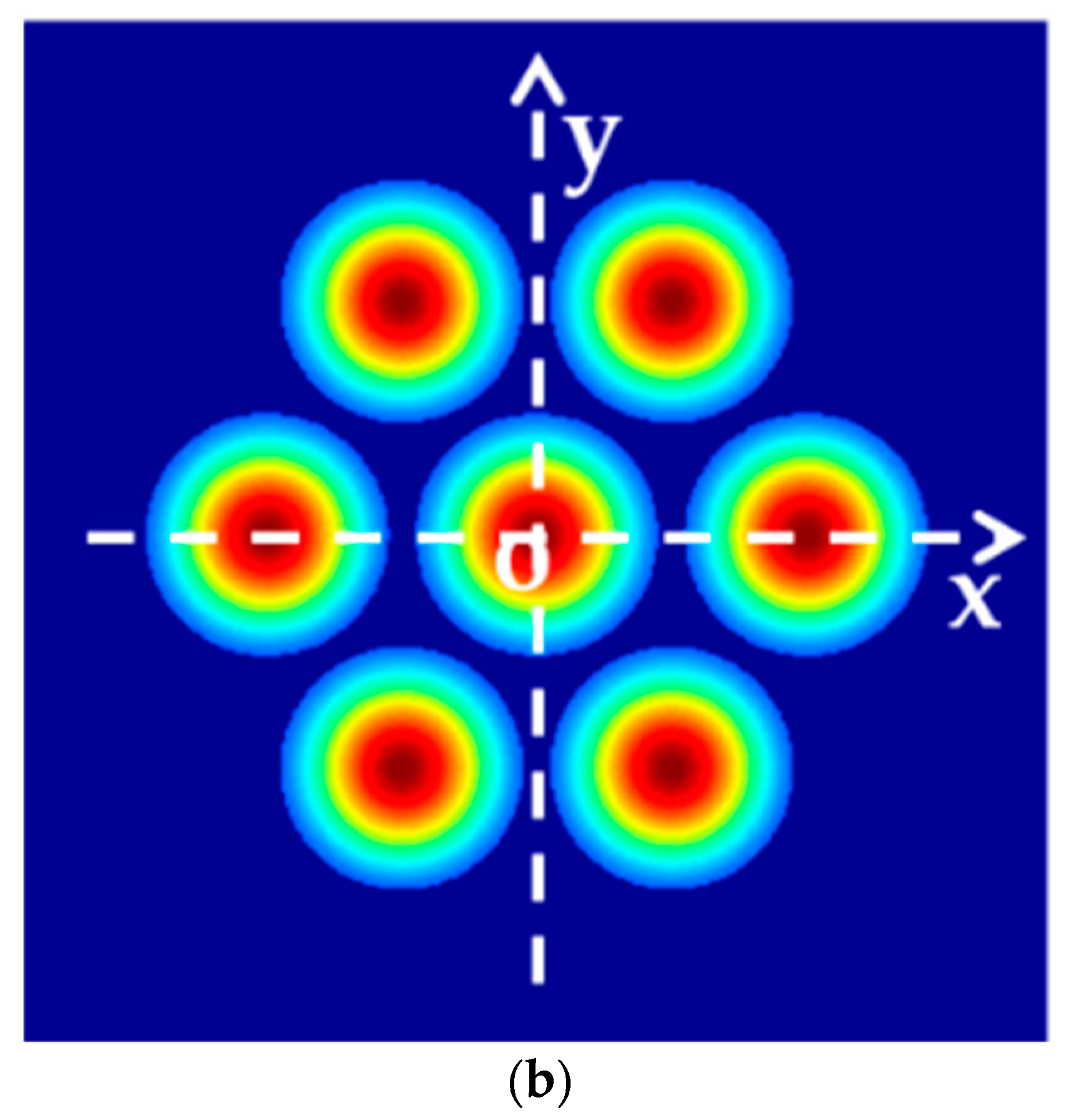

Without loss of generality, we construct a Cartesian coordinate system with the center of the emissive plane as the origin, as shown in Figure 1b. The near-field complex amplitude of the n-th sub-beam can be expressed as

$$U_{nea{r}_{\mathrm{n}}}\left(x,y,0\right)={{\displaystyle \mathrm{A}}}_0\cdot \exp \left[-\frac{{\left(x-x_{\mathrm{n}}\right)}^2+{\left(y-y_{\mathrm{n}}\right)}^2}{{\omega }_0{}^2}\right]\cdot circ\left(\frac{{\left(x-x_{\mathrm{n}}\right)}^2+{\left(y-y_{\mathrm{n}}\right)}^2}{{{\displaystyle (d/2)}}^2}\right)$$

(1)

where ${{\displaystyle \mathrm{A}}}_0$ is the amplitude, ω₀ is the waist radius (when the sub-beams are plane waves, ω₀ can be regarded as infinity), d is the diameter of sub-apertures, and (x_n, y_n, 0) is the coordinate of the n-th sub-aperture’s center in the above coordinate system. $circ(r)=\{\begin{array}{l}1,\mathrm{r}\le 1\\ 0,\mathrm{otherwise}\end{array}$. The near-field complex amplitude after piston phase modulation could be expressed as

$$E_{nea{r}_{\mathrm{n}}}={{\displaystyle \mathrm{A}}}_0\cdot \exp \left[-\frac{{\left(x-x_{\mathrm{n}}\right)}^2+{\left(y-y_{\mathrm{n}}\right)}^2}{{\omega }_0{}^2}\right]\cdot \exp \left[i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]\cdot circ\left(\frac{{\left(x-x_{\mathrm{n}}\right)}^2+{\left(y-y_{\mathrm{n}}\right)}^2}{{{\displaystyle (d/2)}}^2}\right)$$

(2)

The index of the sub-aperture at the center is 0, the corresponding piston phase is ${{\displaystyle \mathsf{\psi }}}_0$ (the value range of all phases in this paper is [−π, π]), and the corresponding center coordinate is $\{\begin{array}{l}{{\displaystyle x}}_0=0\\ {{\displaystyle y}}_0=0\end{array}$. We find that when the sub-apertures are in a centrosymmetric arrangement, for the n-th sub-aperture (n ≠ 0), there always exists another sub-aperture which is centrosymmetric with it regarding the sub-aperture 0. We denote the index of this sub-aperture as −n; the corresponding piston phase is ${{\displaystyle \mathsf{\psi }}}_{-\mathrm{n}}$, and the central coordinate is (x_−n, y_−n, 0). It is obvious that x_−n = −x_n and y_−n = −y_n. The overall near-field complex amplitude modulated by the piston phase is equal to the sum of each sub-aperture, which can be expressed as

$$E_{near}={\displaystyle \sum {{\displaystyle \mathrm{A}}}_0\cdot \exp \left[-\frac{{\left(x-x_{\mathrm{n}}\right)}^2+{\left(y-y_{\mathrm{n}}\right)}^2}{{\omega }_0{}^2}\right]\cdot \exp \left[i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]}\cdot circ\left(\frac{{\left(x-x_{\mathrm{n}}\right)}^2+{\left(y-y_{\mathrm{n}}\right)}^2}{{{\displaystyle (d/2)}}^2}\right)$$

(3)

where n = 0, ±1, ±2,…, ±(N − 1) ÷ 2. The near-field complex amplitude $E_{near}$ is transformed to the far-field complex amplitude $E_{far}$ at the focal plane by the lens. Then, the relationship between $E_{far}$ and $E_{near}$ can be expressed by the Fraunhofer diffraction formula, as follows [39].

$$\begin{array}{ll}{E}_{far}& =\frac{{{\displaystyle \mathrm{e}}}^{i\cdot k\cdot f_{\mathrm{lens}}}{{\displaystyle \mathrm{e}}}^{i\cdot \frac{k\cdot f_{\mathrm{lens}}}{2}{{\displaystyle \lambda }}^2({{\displaystyle u}}^2+{{\displaystyle v}}^2)}}{i\cdot \lambda \cdot f_{\mathrm{lens}}}{\displaystyle \iint E_{near}\cdot \exp }\left[-i\cdot 2\pi \cdot \left(ux+vy\right)\right]dxdy\\ & =\frac{{{\displaystyle \mathrm{e}}}^{i\cdot k\cdot f_{\mathrm{lens}}}{{\displaystyle \mathrm{e}}}^{i\cdot \frac{k\cdot f_{\mathrm{lens}}}{2}{{\displaystyle \lambda }}^2({{\displaystyle u}}^2+{{\displaystyle v}}^2)}}{i\cdot \lambda \cdot f_{\mathrm{lens}}}{\displaystyle \sum _n{\displaystyle \underset{{{\displaystyle circ}}_n}{\iint }{{\displaystyle \mathrm{A}}}_0\cdot \exp \left[-\frac{{\left(x-x_{\mathrm{n}}\right)}^2+{\left(y-y_{\mathrm{n}}\right)}^2}{{\omega }_0{}^2}\right]}}\cdot \exp \left[i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]\cdot \exp \left[-i\cdot 2\pi \cdot \left(ux+vy\right)\right]dxdy\end{array}$$

(4)

where $u=\frac{x_{far}}{\lambda f_{\mathrm{lens}}}$ and $v=\frac{y_{far}}{\lambda f_{\mathrm{lens}}}$ ($k=\frac{2\pi }{\lambda }$ is the wave number, λ is the beam wavelength, and $f_{\mathrm{lens}}$ is the focal length of the transform lens). If we make the variable substitution x′ = x − x_n and y′ = y − y_n, the far-field complex amplitude of the n-th sub-beam can be rewritten as

$$E_{fa{r}_{\mathrm{n}}}=\frac{{{\displaystyle \mathrm{e}}}^{i\cdot k\cdot f_{\mathrm{lens}}}{{\displaystyle \mathrm{e}}}^{i\cdot \frac{k\cdot f_{\mathrm{lens}}}{2}{{\displaystyle \lambda }}^2({{\displaystyle u}}^2+{{\displaystyle v}}^2)}}{i\cdot \lambda \cdot f_{\mathrm{lens}}}{\displaystyle \underset{{{\displaystyle cir}}_0}{\iint }{{\displaystyle \mathrm{A}}}_0\cdot \exp \left[-\frac{{\left(x^{\prime }\right)}^2+{\left(y^{\prime }\right)}^2}{{\omega }_0{}^2}+i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}-i\cdot 2\pi \cdot \left[u\left(x^{\prime }+x_{\mathrm{n}}\right)+v\left(y^{\prime }+y_{\mathrm{n}}\right)\right]\right]}d{x}^{\prime }d{y}^{\prime }$$

(5)

We separate the variables independent of x′ and y′, then move them out of the integral symbol. Equation (5) is transformed into

$$\begin{array}{c}{E}_{fa{r}_{\mathrm{n}}}=\frac{{{\displaystyle \mathrm{e}}}^{i\cdot k\cdot f_{\mathrm{lens}}}{{\displaystyle \mathrm{e}}}^{i\cdot \frac{k\cdot f_{\mathrm{lens}}}{2}{{\displaystyle \lambda }}^2({{\displaystyle u}}^2+{{\displaystyle v}}^2)}}{i\cdot \lambda \cdot f_{\mathrm{lens}}}{{\displaystyle \mathrm{A}}}_0\cdot \exp \left[-i\cdot 2\pi \cdot x_{\mathrm{n}}\cdot u-i\cdot 2\pi \cdot y_{\mathrm{n}}\cdot v+i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]\\ {\displaystyle \underset{{{\displaystyle cir}}_0}{\iint }\exp \left[-\frac{{\left(x^{\prime }\right)}^2}{{\omega }_0{}^2}-i\cdot 2\pi \cdot u\cdot x^{\prime }-\frac{{\left(y^{\prime }\right)}^2}{{\omega }_0{}^2}-i\cdot 2\pi \cdot v\cdot y^{\prime }\right]}d{x}^{\prime }d{y}^{\prime }\end{array}$$

(6)

We denote $\mathrm{A}(u,v)={{\displaystyle \mathrm{A}}}_0\frac{{{\displaystyle \mathrm{e}}}^{i\cdot k\cdot f_{\mathrm{lens}}}{{\displaystyle \mathrm{e}}}^{i\cdot \frac{k\cdot f_{\mathrm{lens}}}{2}{{\displaystyle \lambda }}^2({{\displaystyle u}}^2+{{\displaystyle v}}^2)}}{i\cdot \lambda \cdot f_{\mathrm{lens}}}{\displaystyle \underset{{{\displaystyle cir}}_0}{\iint }\exp \left[-\frac{{\left(x^{\prime }\right)}^2}{{\omega }_0{}^2}-i\cdot 2\pi \cdot u\cdot x^{\prime }-\frac{{\left(y^{\prime }\right)}^2}{{\omega }_0{}^2}-i\cdot 2\pi \cdot v\cdot y^{\prime }\right]}d{x}^{\prime }d{y}^{\prime }$ (the value of $\mathrm{A}(u,v)$ is independent of n) and substitute Equation (6) with Equation (4). Then, we obtain the superposition of each sub-beam’s far-field complex amplitude

$$\begin{array}{ll}{E}_{far}(u,v,\mathsf{\Psi })& ={\displaystyle \sum \mathrm{A}(u,v)}\cdot \exp \left[-i\cdot 2\pi \cdot x_{\mathrm{n}}\cdot u-i\cdot 2\pi \cdot y_{\mathrm{n}}\cdot v+i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]\\ & =\mathrm{A}(u,v)\cdot {\displaystyle \sum \exp \left[-i\cdot 2\pi \cdot x_{\mathrm{n}}\cdot u-i\cdot 2\pi \cdot y_{\mathrm{n}}\cdot v+i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]}\end{array}$$

(7)

where $\mathsf{\Psi }=\left\{{{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right\}$ (n = 0, ±1, ±2,…, ±(N − 1) ÷ 2) denotes the set of the n-th sub-beam’s piston phase. The far-field intensity distribution $I_{far}$ could be calculated from the square of the far-field complex amplitude’s modulus, which can be expressed as

$$I_{far}={{\displaystyle \Vert E_{far}\Vert }}^2={{\displaystyle \Vert \mathrm{A}(u,v)\Vert }}^2\cdot {{\displaystyle \Vert {\displaystyle \sum \exp \left[-i\cdot 2\pi \cdot x_{\mathrm{n}}\cdot u-i\cdot 2\pi \cdot y_{\mathrm{n}}\cdot v+i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]}\Vert }}^2$$

(8)

The far-field intensity distribution determines the shape of the far-field image on the charge-coupled device (CCD) camera. Here, we only consider the influence of the piston phase on the far-field image, so we separate $I^{\prime }{}_{far}$($I_{far}={{\displaystyle \Vert \mathrm{A}(u,v)\Vert }}^2\cdot I{\prime }_{far}$), which is related to $\mathsf{\Psi }=\left\{{{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right\}$.

$$\begin{array}{ll}{I}^{\prime }{}_{far}\left(\mathsf{\Psi }\right)& ={{\displaystyle \Vert {\displaystyle \sum \exp \left[-i\cdot 2\pi \cdot x_{\mathrm{n}}\cdot u-i\cdot 2\pi \cdot y_{\mathrm{n}}\cdot v+i\cdot {{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right]}\Vert }}^2\\ & ={{\displaystyle \Vert {\displaystyle \sum \cos \left(-2\pi \cdot x_{\mathrm{n}}\cdot u-2\pi \cdot y_{\mathrm{n}}\cdot v+{{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right)}+i\cdot \sin \left(-2\pi \cdot x_{\mathrm{n}}\cdot u-2\pi \cdot y_{\mathrm{n}}\cdot v+{{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right)\Vert }}^2\\ & ={\displaystyle \sum _{\mathrm{i}}{\displaystyle \sum _{\mathrm{j}}\cos }}\left[-2\pi \cdot \left(x_{\mathrm{i}}-x_{\mathrm{j}}\right)\cdot u-2\pi \cdot \left(y_{\mathrm{i}}-y_{\mathrm{j}}\right)\cdot v+\left({\mathsf{\psi }}_{\mathrm{i}}-{\mathsf{\psi }}_{\mathrm{j}}\right)\right]\end{array}$$

(9)

where i, j = 0, ±1, ±2,…, ±(N − 1) ÷ 2. Without loss of generality, we denote ${\mathsf{\phi }}_{\mathrm{i}}{=\mathsf{\psi }}_{\mathrm{i}}-{\mathsf{\psi }}_0$, and then a set of N pistons $\mathsf{\Psi }=\left\{{{\displaystyle \mathsf{\psi }}}_{\mathrm{n}}\right\}$ (n = 0, ±1, ±2,…, ±(N − 1) ÷ 2) can be expressed by a set of N − 1 relative pistons $\mathsf{\Phi }=\left\{{{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}\right\}$ (n = ±1, ±2,…, ±(N − 1) ÷ 2). This corresponds to phase redundancy (for more details, see Appendix A). Since phase redundancy can be solved by relative phase expression, we will not consider phase redundancy during the later discussion on phase ambiguity. After substituting the relative pistons $\mathsf{\Phi }=\left\{{{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}\right\}$ and $\{\begin{array}{l}{{\displaystyle x}}_0=0\\ {{\displaystyle y}}_0=0\end{array}$ into Equation (9), we get

$$\begin{array}{ll}{I}^{\prime }{}_{far}\left(\mathsf{\Phi }\right)& =1+{\displaystyle \sum _{\mathrm{i}}\left(\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v+{\mathsf{\phi }}_{\mathrm{i}}\right)+\cos \left(2\pi \cdot x_{\mathrm{i}}\cdot u+2\pi \cdot y_{\mathrm{i}}\cdot v+{\mathsf{\phi }}_{\mathrm{i}}\right)\right)}+\\ & \frac{1}{2}{\displaystyle \sum _{\mathrm{i}}{\displaystyle \sum _{\mathrm{j}}\left\{\cos \left[-2\pi \cdot \left(x_{\mathrm{i}}-x_{\mathrm{j}}\right)\cdot u-2\pi \cdot \left(y_{\mathrm{i}}-y_{\mathrm{j}}\right)\cdot v+\left({\mathsf{\phi }}_{\mathrm{i}}-{\mathsf{\phi }}_{\mathrm{j}}\right)\right]+\cos \left[-2\pi \cdot \left(-x_{\mathrm{i}}+x_{\mathrm{j}}\right)\cdot u-2\pi \cdot \left(-y_{\mathrm{i}}+y_{\mathrm{j}}\right)\cdot v+\left({\mathsf{\phi }}_{-\mathrm{i}}-{\mathsf{\phi }}_{-\mathrm{j}}\right)\right]\right\}}}\end{array}$$

(10)

where i, j = ±1, ±2,…, ±(N − 1) ÷ 2. Then, we define ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })={\displaystyle \sum _{\mathrm{i}}\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v+{\mathsf{\phi }}_{\mathrm{i}}\right)}$ and ${{\displaystyle \mathrm{B}}}_{\mathrm{j}}(\mathsf{\Phi })={\displaystyle \sum _{\mathrm{i}}\cos [-2\pi \cdot \left(x_{\mathrm{i}}-x_{\mathrm{j}}\right)\cdot u-2\pi \cdot \left(y_{\mathrm{i}}-y_{\mathrm{j}}\right)\cdot v+\left({\mathsf{\phi }}_{\mathrm{i}}-{\mathsf{\phi }}_{\mathrm{j}}\right)]}$ (when j ≠ 0). By substituting them into Equation (10), we obtain

$$I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)=1+{{\displaystyle 2\cdot \mathrm{B}}}_0(\mathsf{\Phi })+\frac{1}{2}{\displaystyle \sum _{\mathrm{j}}{{\displaystyle [\mathrm{B}}}_{\mathrm{j}}(\mathsf{\Phi })+{{\displaystyle \mathrm{B}}}_{-\mathrm{j}}(\mathsf{\Phi })]}$$

(11)

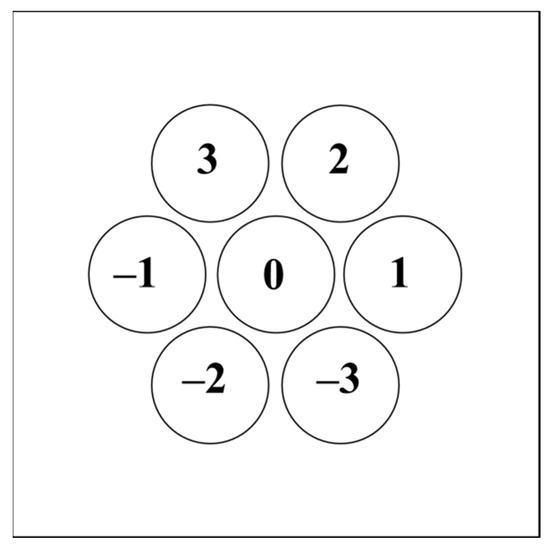

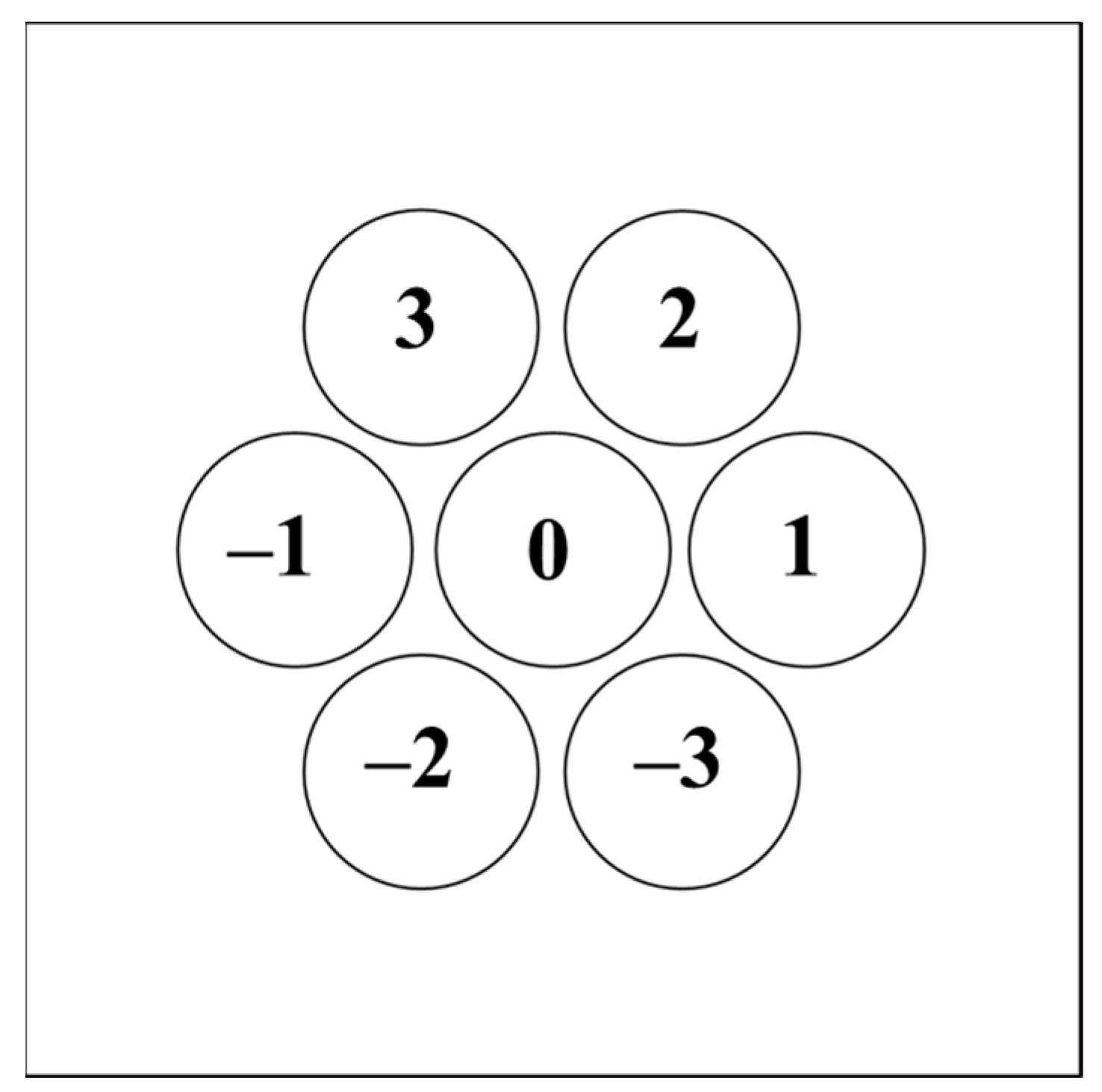

In a regular-hexagonal arrangement (7-element), if $\mathsf{\Phi }=\left\{{{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}\right\}$ and $\mathsf{\Theta }=\left\{{{\displaystyle \mathsf{\theta }}}_{\mathrm{n}}\right\}$ generate the same far-field image, that is, $I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)=I^{\prime }{}_{far}\left(\mathsf{\Theta }\right)$, we get (for more details, see Appendix C)

$${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })={{\displaystyle \mathrm{B}}}_0(\mathsf{\Theta })$$

(12)

$$\Rightarrow {\displaystyle \sum _{\mathrm{i}}\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v+{\mathsf{\phi }}_{\mathrm{i}}\right)}={\displaystyle \sum _{\mathrm{i}}\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v+{\mathsf{\theta }}_{\mathrm{i}}\right)}$$

(13)

If the expression of Equation (13) holds, the coefficients of $\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ and $\sin \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ in ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })$ are equal to the ones in ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Theta })$ for i =1,2,…, (N − 1) ÷ 2 (for more details, see Appendix B.). The coefficient of $\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ in ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })$ is $\cos ({\mathsf{\phi }}_{\mathrm{i}})+\cos ({\mathsf{\phi }}_{-\mathrm{i}})$, and the coefficient of $\sin \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ in ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })$ is $\sin ({\mathsf{\phi }}_{\mathrm{i}})-\sin ({\mathsf{\phi }}_{-\mathrm{i}})$. The ones in ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Theta })$ are $\cos ({\mathsf{\theta }}_{\mathrm{i}})+\cos ({\mathsf{\theta }}_{-\mathrm{i}})$ and $\sin ({\mathsf{\theta }}_{\mathrm{i}})-\sin ({\mathsf{\theta }}_{-\mathrm{i}})$. So, we obtain

$$\{\begin{array}{l}\cos ({\mathsf{\phi }}_{\mathrm{i}})+\cos ({\mathsf{\phi }}_{-\mathrm{i}})=\cos ({\mathsf{\theta }}_{\mathrm{i}})+\cos ({\mathsf{\theta }}_{-\mathrm{i}})\\ \sin ({\mathsf{\phi }}_{\mathrm{i}})-\sin ({\mathsf{\phi }}_{-\mathrm{i}})=\sin ({\mathsf{\theta }}_{\mathrm{i}})-\sin ({\mathsf{\theta }}_{-\mathrm{i}})\end{array}$$

(14)

We define ${{\displaystyle \mathrm{D}}}_0(\mathsf{\Phi })={\displaystyle \sum _{\mathrm{i}}\sin \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v+{\mathsf{\phi }}_{\mathrm{i}}\right)}$. Then, (11) could be rewritten as

$$I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)={{\displaystyle (1+{{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi }))}}^2+{{\displaystyle ({{\displaystyle \mathrm{D}}}_0(\mathsf{\Phi }))}}^2$$

(15)

When $I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)=I^{\prime }{}_{far}\left(\mathsf{\Theta }\right)$ and ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })={{\displaystyle \mathrm{B}}}_0(\mathsf{\Theta })$ hold, we get

$$\begin{array}{c}{I}^{\prime }{}_{far}\left(\mathsf{\Phi }\right)-{{\displaystyle ({{\displaystyle 1+\mathrm{B}}}_0(\mathsf{\Phi }))}}^2=I^{\prime }{}_{far}\left(\mathsf{\Theta }\right)-{{\displaystyle ({{\displaystyle 1+\mathrm{B}}}_0(\mathsf{\Theta }))}}^2\\ {{\displaystyle ({{\displaystyle \mathrm{D}}}_0(\mathsf{\Phi }))}}^2={{\displaystyle ({{\displaystyle \mathrm{D}}}_0(\mathsf{\Theta }))}}^2\end{array}$$

(16)

Equation (16) has two solutions, which are

$${{\displaystyle \mathrm{D}}}_0(\mathsf{\Phi })={{\displaystyle \mathrm{D}}}_0(\mathsf{\Theta })$$

(17)

$${{\displaystyle \mathrm{D}}}_0(\mathsf{\Phi })=-{{\displaystyle \mathrm{D}}}_0(\mathsf{\Theta })$$

(18)

When (17) holds, the coefficients of $\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ and $\sin \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ in ${{\displaystyle \mathrm{D}}}_0(\mathsf{\Phi })$ are equal to the ones in ${{\displaystyle \mathrm{D}}}_0(\mathsf{\Theta })$ for i = 1, 2,…, (N − 1) ÷ 2. As in the analysis on (13), we have

$$\{\begin{array}{l}\cos ({\mathsf{\phi }}_{\mathrm{i}})-\cos ({\mathsf{\phi }}_{-\mathrm{i}})=\cos ({\mathsf{\theta }}_{\mathrm{i}})-\cos ({\mathsf{\theta }}_{-\mathrm{i}})\\ \sin ({\mathsf{\phi }}_{\mathrm{i}})+\sin ({\mathsf{\phi }}_{-\mathrm{i}})=\sin ({\mathsf{\theta }}_{\mathrm{i}})+\sin ({\mathsf{\theta }}_{-\mathrm{i}})\end{array}$$

(19)

After simultaneously solving (14) and (19), we obtain

$$\{\begin{array}{l}{\cos (\mathsf{\theta }}_{\mathrm{i}})={\cos (\mathsf{\phi }}_{\mathrm{i}})\\ {\cos (\mathsf{\theta }}_{-\mathrm{i}})={\cos (\mathsf{\phi }}_{-\mathrm{i}})\\ {\sin (\mathsf{\theta }}_{\mathrm{i}})={\sin (\mathsf{\phi }}_{\mathrm{i}})\\ {\sin (\mathsf{\theta }}_{-\mathrm{i}})={\sin (\mathsf{\phi }}_{-\mathrm{i}})\end{array}$$

(20)

$$\Rightarrow \{\begin{array}{l}{\mathsf{\theta }}_{\mathrm{i}}={\mathsf{\phi }}_{\mathrm{i}}+2\mathrm{m}\pi \\ {\mathsf{\theta }}_{-\mathrm{i}}={\mathsf{\phi }}_{-\mathrm{i}}+2\mathrm{m}\pi \end{array}$$

(21)

where m is an integer. Equation (21) indicates that $\mathsf{\Phi }=\left\{{{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}\right\}$ and $\mathsf{\Theta }=\left\{{{\displaystyle \mathsf{\theta }}}_{\mathrm{n}}\right\}$ may generate the same far-field image when the difference between ${\mathsf{\theta }}_{\mathrm{i}}$ and ${\mathsf{\phi }}_{\mathrm{i}}$ is an integer multiple of 2π (i = ±1, ±2,…, ±(N − 1) ÷ 2). We denote this solution of ${\mathsf{\theta }}_{\mathrm{i}}$ as solution 1.

Another solution of (16) is (18), which means the coefficients of $\cos \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ and $\sin \left(-2\pi \cdot x_{\mathrm{i}}\cdot u-2\pi \cdot y_{\mathrm{i}}\cdot v\right)$ in ${{\displaystyle \mathrm{D}}}_0(\mathsf{\Phi })$ are the opposites of the ones in ${{\displaystyle \mathrm{D}}}_0(\mathsf{\Theta })$ for i = 1, 2,…, (N − 1) ÷ 2. As in the analysis on (19), we get

$$\{\begin{array}{l}\cos ({\mathsf{\phi }}_{\mathrm{i}})-\cos ({\mathsf{\phi }}_{-\mathrm{i}})=-\cos ({\mathsf{\theta }}_{\mathrm{i}})+\cos ({\mathsf{\theta }}_{-\mathrm{i}})\\ \sin ({\mathsf{\phi }}_{\mathrm{i}})+\sin ({\mathsf{\phi }}_{-\mathrm{i}})=-\sin ({\mathsf{\theta }}_{\mathrm{i}})-\sin ({\mathsf{\theta }}_{-\mathrm{i}})\end{array}$$

(22)

After simultaneously solving (22) and (19), we obtain

$$\{\begin{array}{l}{\cos (\mathsf{\theta }}_{\mathrm{i}})={\cos (\mathsf{\phi }}_{-\mathrm{i}})\\ {\cos (\mathsf{\theta }}_{-\mathrm{i}})={\cos (\mathsf{\phi }}_{\mathrm{i}})\\ {\sin (\mathsf{\theta }}_{\mathrm{i}})=-{\sin (\mathsf{\phi }}_{-\mathrm{i}})\\ {\sin (\mathsf{\theta }}_{-\mathrm{i}})=-{\sin (\mathsf{\phi }}_{\mathrm{i}})\end{array}$$

(23)

$$\Rightarrow \{\begin{array}{l}{\mathsf{\theta }}_{\mathrm{i}}=-{\mathsf{\phi }}_{-\mathrm{i}}+2\mathrm{m}\pi \\ {\mathsf{\theta }}_{-\mathrm{i}}=-{\mathsf{\phi }}_{\mathrm{i}}+2\mathrm{m}\pi \end{array}$$

(24)

where m is an integer. We denote this solution of ${\mathsf{\theta }}_{\mathrm{i}}$ as solution 2. Solution 2 corresponds to a rotational conjugate symmetry, which is caused by the central symmetrical arrangement of the arrays.

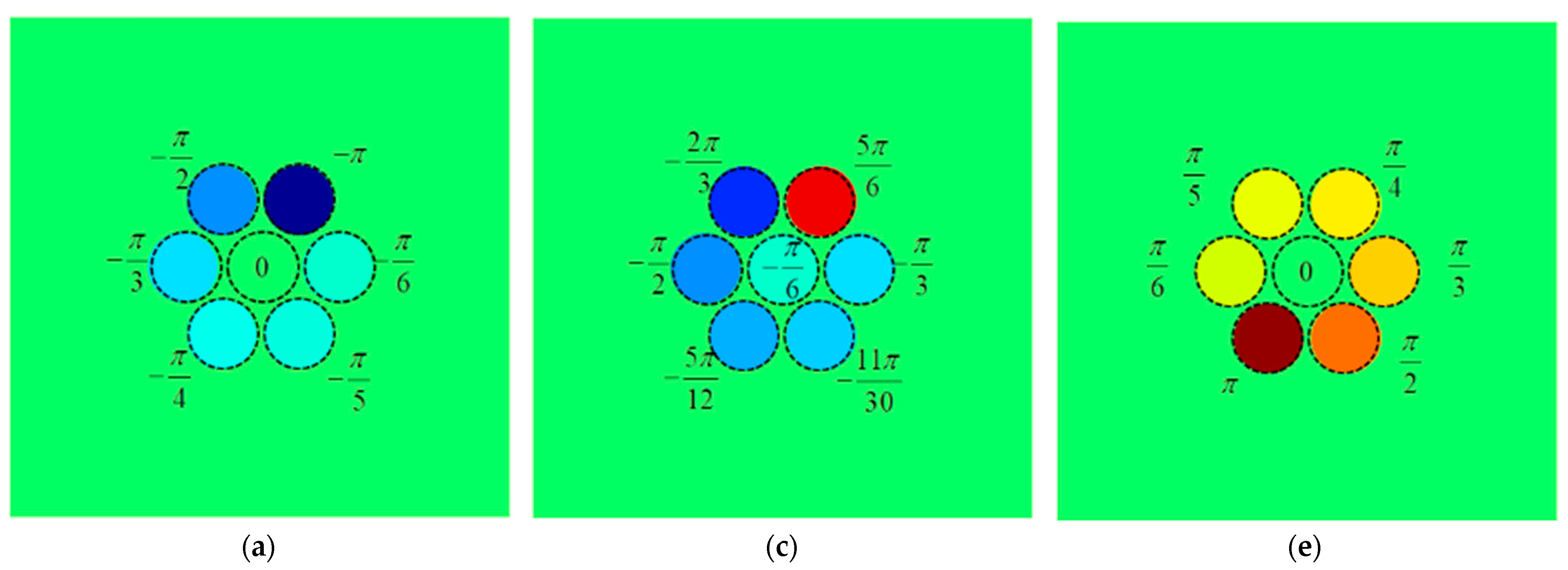

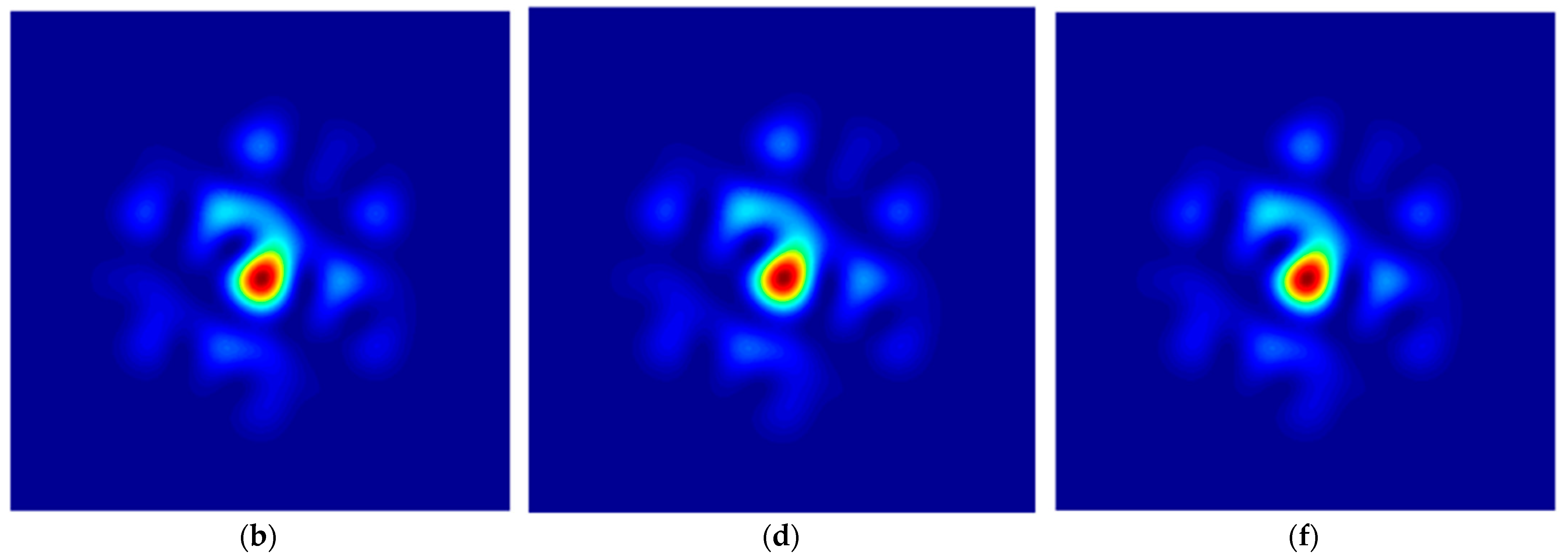

The above analysis shows that there exist two different piston phases (when $-{\mathsf{\phi }}_{-\mathrm{i}}={\mathsf{\phi }}_{\mathrm{i}}$, these two solutions degenerate into one), which will generate the same far-field image in a 7-element system. This is the reason why it is difficult to correctly predict the piston phase with a single far-field image. In particular, solution 1 and solution 2 constitute all solutions of $I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)=I^{\prime }{}_{far}\left(\mathsf{\Theta }\right)$. If we can distinguish between solution 1 and solution 2, the phase ambiguity in a 7-element system will be solved.

2.2. Solution to Piston-Type Phase Ambiguity

According to the analysis in Section 2.1, solution 1 corresponds to the original piston phase (denoted as $\mathsf{\Phi }$), and solution 2 corresponds to the phase obtained by rotating the original piston phase 180 degrees and conjugating it (denoted as $\overline{\mathsf{\Phi }}$). Therefore, $\mathsf{\Phi }$ and its rotationally conjugate piston phase $\overline{\mathsf{\Phi }}$ will generate the same far-field image. This multi-solution problem is the phase ambiguity.

In CBC, it is necessary to distinguish these two situations so that we can obtain accurate information on the piston phase for phase compensation. In practice, in order to achieve this, an additional optical device needs to be added to the system, which will increase the cost of building and maintaining the experimental platform. Especially when the system is highly integrated, it is difficult to add additional optical devices. We consider distinguishing these two piston phases by breaking the rotationally conjugate symmetry in principle. We declare that applying non-centrosymmetric arrays is a choice to solve this problem, but, as mentioned earlier, it will damage the quality (the energy ratio of the central lobe) of the combined beam. Our method is to introduce phase modulation $\mathsf{\Lambda }=\left\{{{\displaystyle \gamma }}_{\mathrm{n}}\right\}$. The modulated phase can be expressed as ${{\displaystyle \mathsf{\Phi }}}_{\mathrm{m}}=\left\{{{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}+{{\displaystyle \gamma }}_{\mathrm{n}}\right\}$ and ${{\displaystyle \overline{\mathsf{\Phi }}}}_{\mathrm{m}}=\left\{{{\displaystyle \overline{\mathsf{\phi }}}}_{\mathrm{n}}+{{\displaystyle \gamma }}_{\mathrm{n}}\right\}$, where ${{\displaystyle \overline{\mathsf{\phi }}}}_{\mathrm{n}}=-{{\displaystyle \mathsf{\phi }}}_{-\mathrm{n}}$. If ${{\displaystyle \mathsf{\Phi }}}_{\mathrm{m}}$ and ${{\displaystyle \overline{\mathsf{\Phi }}}}_{\mathrm{m}}$ generate different far-field images, the following formula holds (where m is an integer).

$${{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}+{{\displaystyle \gamma }}_{\mathrm{n}}\ne {{\displaystyle \overline{\mathsf{\phi }}}}_{\mathrm{n}}+{{\displaystyle \gamma }}_{\mathrm{n}}+2\mathrm{m}\mathsf{\pi }$$

(25)

$${{\displaystyle -\mathsf{\phi }}}_{-\mathrm{n}}-{{\displaystyle \gamma }}_{-\mathrm{n}}\ne {{\displaystyle \overline{\mathsf{\phi }}}}_{\mathrm{n}}+{{\displaystyle \gamma }}_{\mathrm{n}}+2\mathrm{m}\mathsf{\pi }$$

(26)

In fact, if ${{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}\ne {{\displaystyle -\mathsf{\phi }}}_{-\mathrm{n}}$, Equation (27) always holds. If ${{\displaystyle \mathsf{\phi }}}_{\mathrm{n}}={{\displaystyle -\mathsf{\phi }}}_{-\mathrm{n}}$ (that is $\mathsf{\Phi }=\overline{\mathsf{\Phi }}$), the multi solution problem no longer exists. Therefore, we only consider Equation (26). When it holds, there should be

$${{\displaystyle \gamma }}_{\mathrm{n}}\ne {{\displaystyle -\gamma }}_{-\mathrm{n}}+2\mathrm{m}\mathsf{\pi }$$

(27)

Thus, if $\mathsf{\Lambda }=\left\{{{\displaystyle \gamma }}_{\mathrm{n}}\right\}$ satisfied Equation (27), we would discriminate $\mathsf{\Phi }$ and $\overline{\mathsf{\Phi }}$ ($\mathsf{\Phi }\ne \overline{\mathsf{\Phi }}$) by applying a modulation phase.

We can obtain accurate information of the piston phase through a pair of far-field images. Compared with adding other optical devices (such as wavefront sensors or additional charge-coupled device (CCD) cameras on a defocus plane), our method only needs to capture a modulated image to overcome the phase ambiguity. This does not increase the complexity of the system. It should be noted that our method will take an additional step for modulated image acquisition. At the same time, it also requires the phase controller to have a high regulation accuracy to ensure the generation of a specific modulation phase.

2.3. Discussion on Scalability

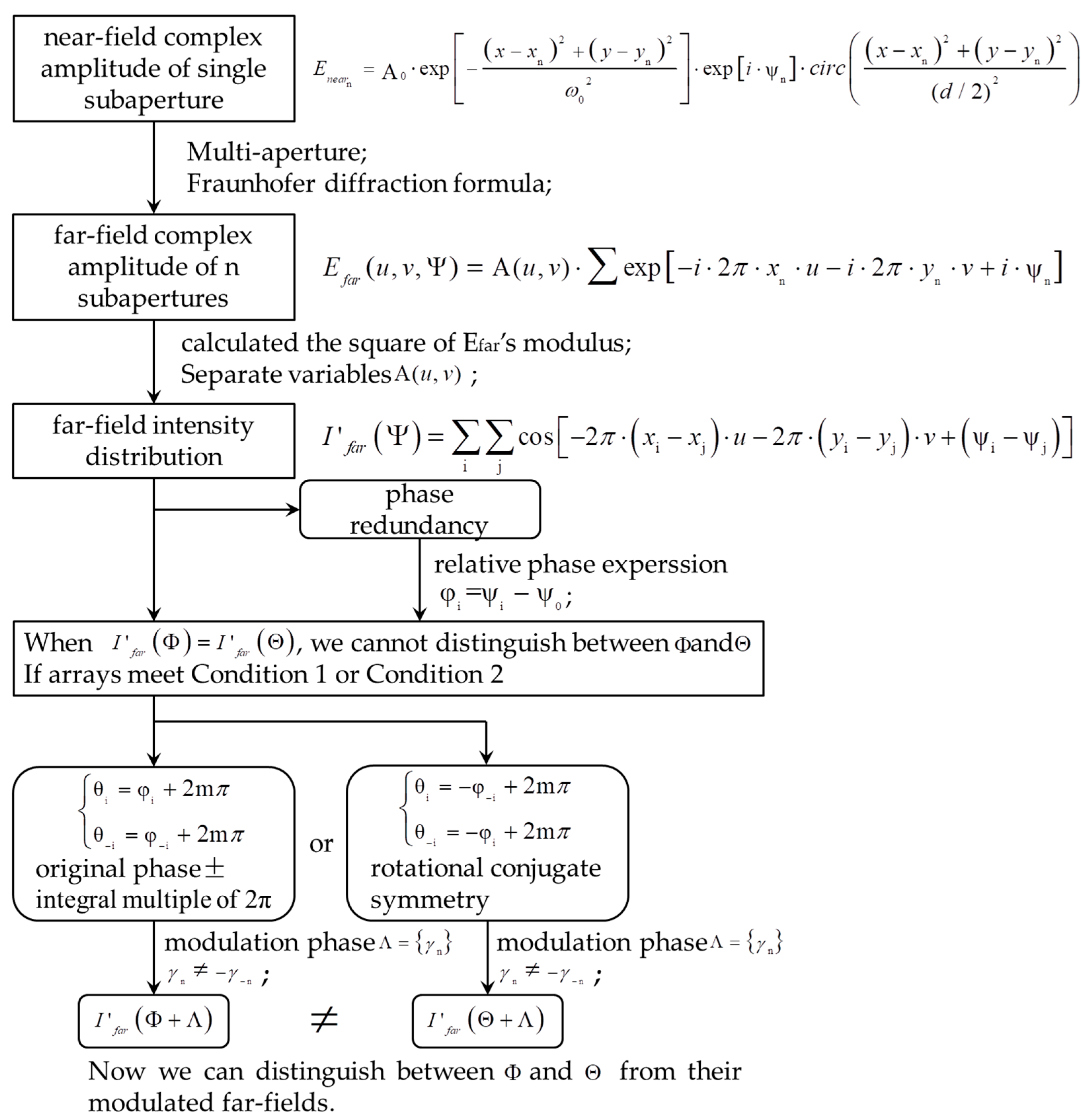

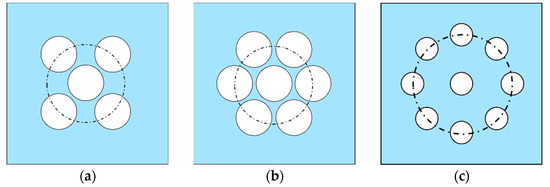

We deduced all cases of phase ambiguity in a 7-element system according to the analysis in Section 2.2. In this section, we will discuss the scalability of the above theories and solutions.

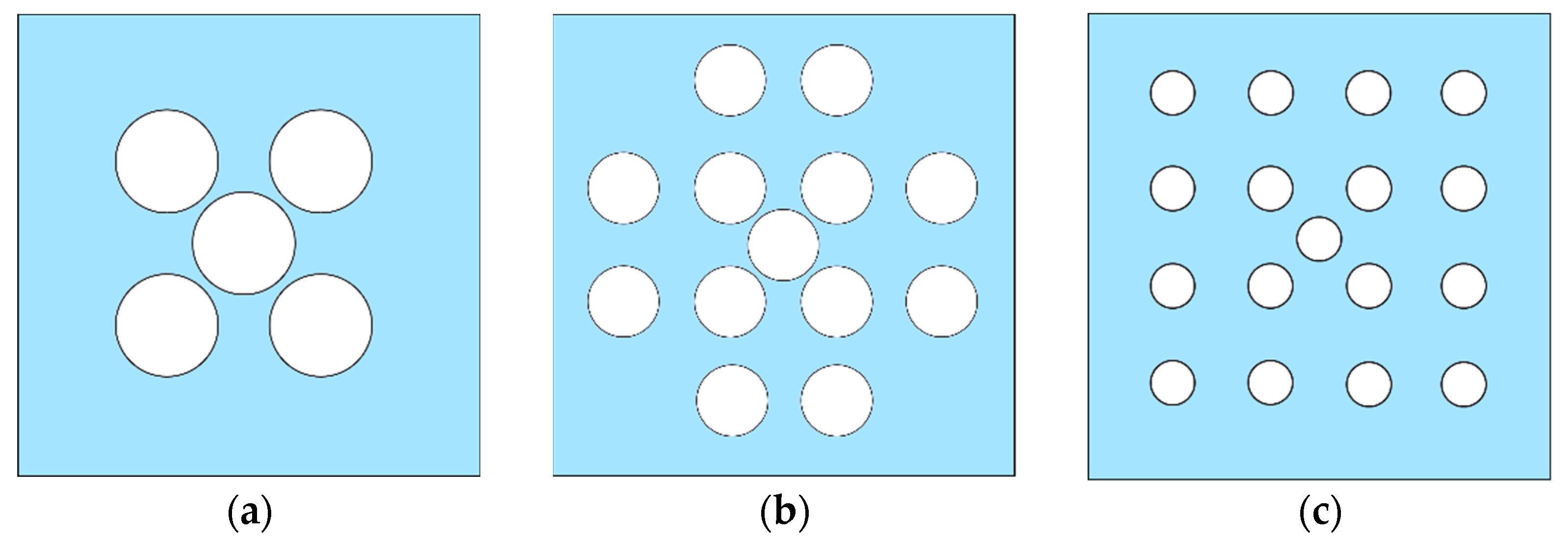

The first question is whether rotational conjugate symmetry will occur in arbitrary centrosymmetric arrays. $\overline{\mathsf{\Phi }}$ is the solution of (12) and (18), so we could obtain $I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)=I^{\prime }{}_{far}\left(\overline{\mathsf{\Phi }}\right)$ according to (15), which indicates that rotational conjugate symmetry exists in arbitrary centrosymmetric arrays. Equations (25) and (26) still hold after adding the phase modulation satisfying (27), indicating that our method can break the rotational conjugate symmetry in centrosymmetric arrays.

The second question is whether phase ambiguity only contains rotational conjugate symmetry in larger arrays. We give two applicable conditions. In these two cases, phase ambiguity only contains rotational conjugate symmetry. At this time, our method can still determine the correct piston phase according to far-fields.

Condition 1: ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })$ and $\frac{1}{2}{\displaystyle \sum _{\mathrm{j}}{{\displaystyle [\mathrm{B}}}_{\mathrm{j}}(\mathsf{\Phi })+{{\displaystyle \mathrm{B}}}_{-\mathrm{j}}(\mathsf{\Phi })]}$ do not have terms with the same frequency. The frequency of each component in ${{\displaystyle \mathrm{B}}}_0(\mathsf{\Phi })$ can be expressed as ${\left\{\right(-2\pi x}_{\mathrm{i}}{,-2\pi y}_{\mathrm{i}}\left)\right\}$ (where i = ±1, ±2,…, ±(N − 1) ÷ 2). The frequency of each component in $\frac{1}{2}{\displaystyle \sum _{\mathrm{j}}{{\displaystyle [\mathrm{B}}}_{\mathrm{j}}(\mathsf{\Phi })+{{\displaystyle \mathrm{B}}}_{-\mathrm{j}}(\mathsf{\Phi })]}$ can be expressed as ${\left\{\right(-2\pi (x}_{\mathrm{p}}-x_{\mathrm{q}}{),-2\pi (y}_{\mathrm{p}}-y_{\mathrm{q}}\left)\right)\}$ (where p, q = ±1, ±2,…, ±(N − 1) ÷ 2). Then, Condition 1 can be expressed, as $\{\begin{array}{l}{{\displaystyle x}}_{\mathrm{i}}={{\displaystyle x}}_{\mathrm{p}}-{{\displaystyle x}}_{\mathrm{q}}\\ {{\displaystyle y}}_{\mathrm{i}}={{\displaystyle y}}_{\mathrm{p}}-{{\displaystyle y}}_{\mathrm{q}}\end{array}$ for i, p, q = ±1, ±2,…, ±(N − 1) ÷ 2 does not exist. Examples of arrays meeting Condition 1 are shown in Figure 3.

Next, we will explain why phase ambiguity only contains rotational conjugate symmetry in arrays meeting Condition 1. When $I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)=I^{\prime }{}_{far}\left(\mathsf{\Theta }\right)$, the coefficients of each frequency component are equal (Appendix B). Thus, the coefficients of frequency $\left\{\right(-{2\pi x}_{\mathrm{i}},-{2\pi y}_{\mathrm{i}}\left)\right\}$ in $I^{\prime }{}_{far}\left(\mathsf{\Phi }\right)$ equal to the ones in $I^{\prime }{}_{far}\left(\mathsf{\Theta }\right)$. $\frac{1}{2}{\displaystyle \sum _{\mathrm{j}}{{\displaystyle [\mathrm{B}}}_{\mathrm{j}}(\mathsf{\Phi })+{{\displaystyle \mathrm{B}}}_{-\mathrm{j}}(\mathsf{\Phi })]}$ do not contain a frequency of $\left\{\right(-{2\pi x}_{\mathrm{i}},-{2\pi y}_{\mathrm{i}}\left)\right\}$, and so we obtain (12). Phase ambiguity contains only rotational conjugate symmetry, in this case according to the analysis in Section 2.2.

Condition 2: The centers of all sub-apertures (except sub-aperture 0) are located on the same circle (for more details and proofs, see Appendix D.). Examples of arrays meeting Condition 1 are shown in Figure 4.

The array arrangement affects phase ambiguity in our derivation. There is no limit on the size of sub-apertures or filling factors in Condition 1 or Condition 2, and there is no limit on the number of array elements in Condition 1 or Condition 2, which means that our method is also suitable for large-scale arrays as long as they meet one of the above conditions. The derivation process is summarized with a diagram, which is shown in Appendix E.

For more general arrangements (except for the above two cases), the frequency distribution will become very complex with the number of array elements increasing. Therefore, it will be difficult to obtain the analytical solution of phase ambiguity. Whether there exists a cause of phase ambiguity other than rotational conjugate symmetry remains to be further studied. It may be necessary to combine theoretical derivation with numerical simulation to analyze this problem. This is also the direction and focus of our future work.

3. Simulation and Result Analysis

In Section 2, we analyze the solutions of the piston phase that will cause the phase ambiguity in the CBC system with a centrosymmetric distribution of sub-apertures, and provide a method to solve this problem. In this section, we will verify our conclusions of theoretical derivation through a simulation.

We conduct simulations based on the CBC system shown in Figure 1, and the parameters are A = 1, ω₀ = 11 mm, λ = 1064 nm, and $f_{\mathrm{lens}}=2\mathrm{m}$. We first randomly generate 50 groups of $\mathsf{\Phi }$ as the Target Phase. Each group of $\mathsf{\Phi }$ will generate its corresponding far-field image ($I_{far}\left(\mathsf{\Phi }\right)$).

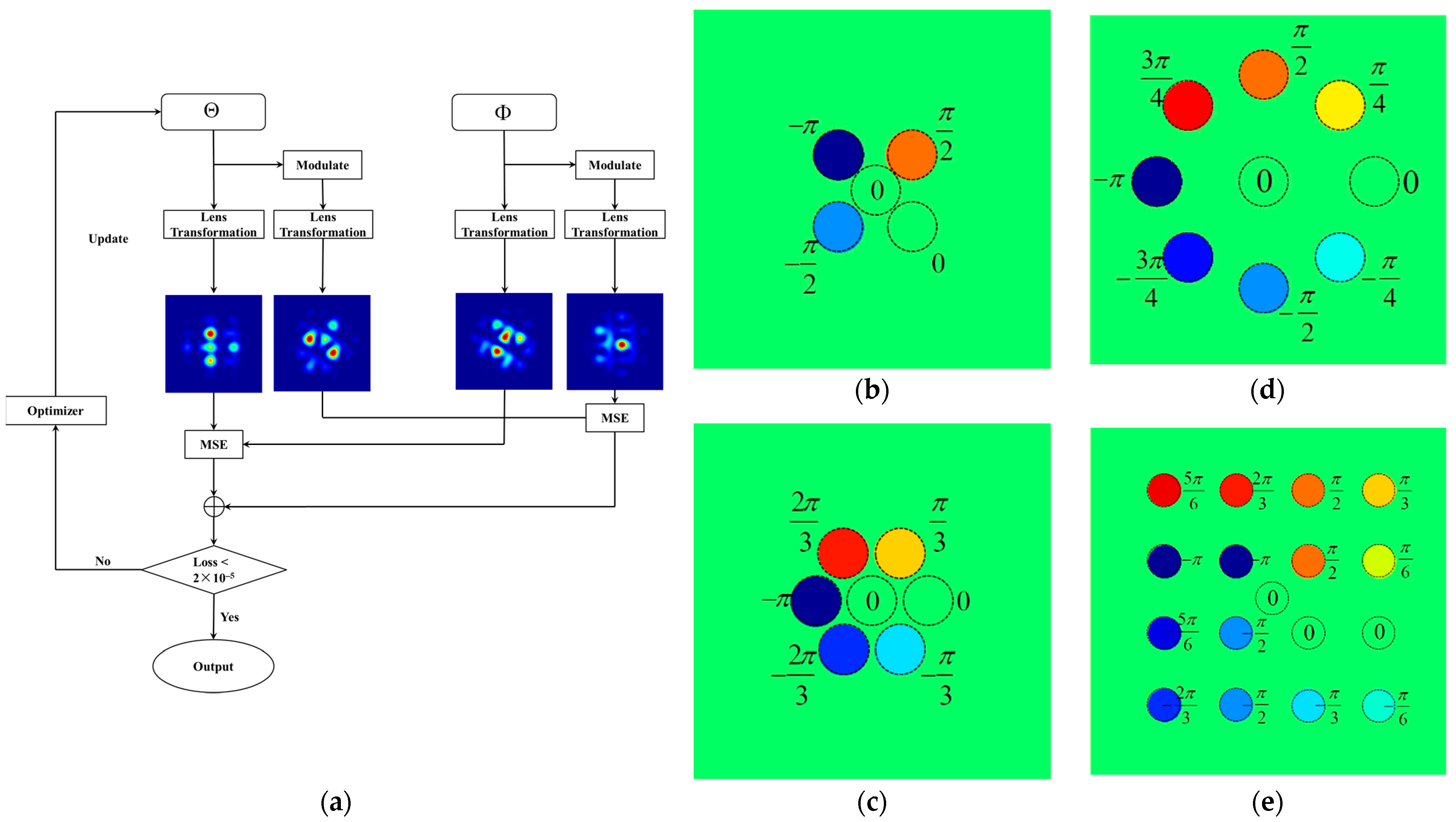

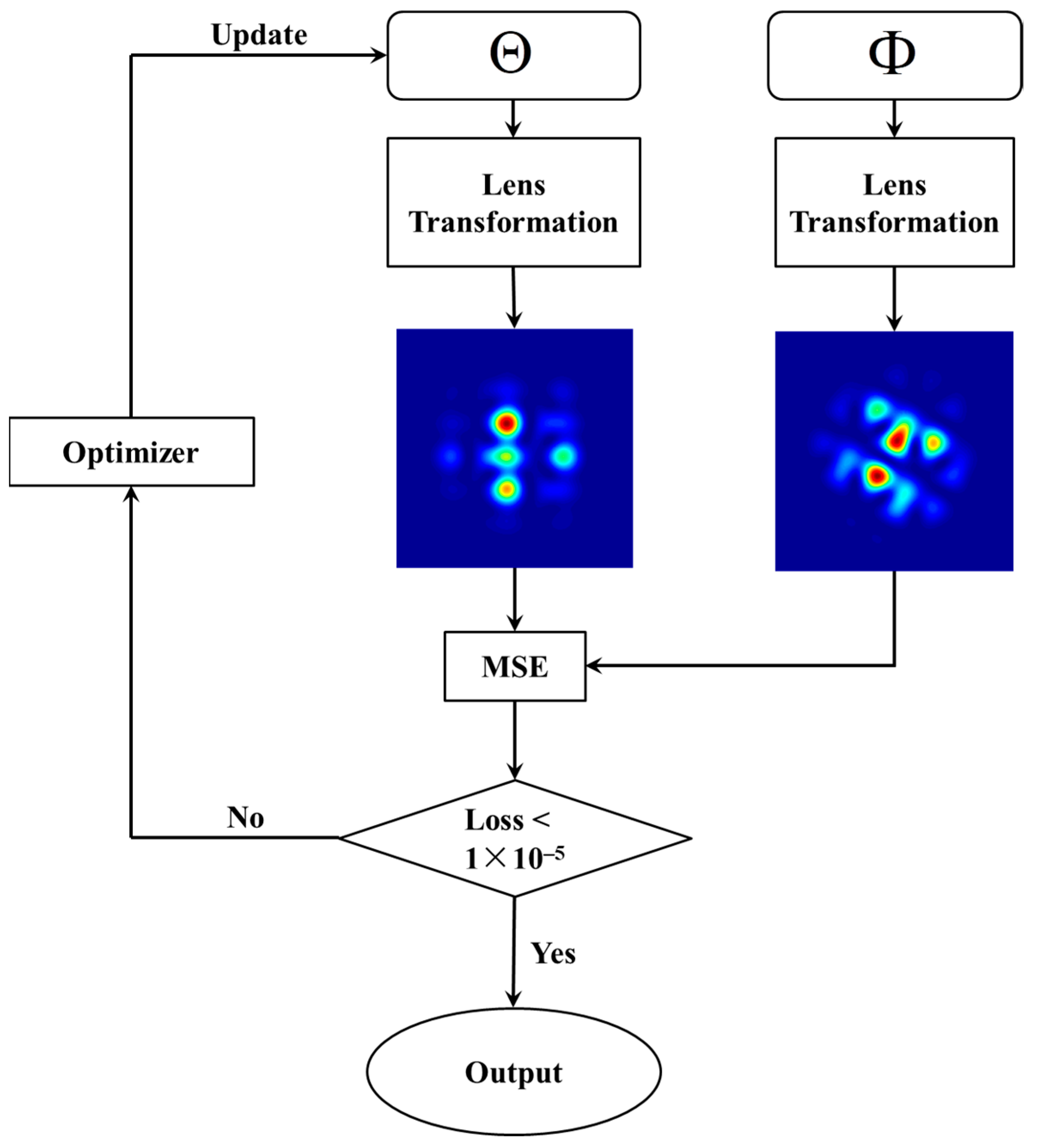

We take $\mathsf{\Theta }$ as the parameter and use Adam [40] for optimization. For each $I_{far}\left(\mathsf{\Phi }\right)$, we first randomly initialize the value of $\mathsf{\Theta }$, then we generate its far-field image ($I_{far}\left(\mathsf{\Theta }\right)$). We calculate the mean square error (MSE) loss between normalized $I_{far}\left(\mathsf{\Phi }\right)$ and $I_{far}\left(\mathsf{\Theta }\right)$, and use this loss to optimize $\mathsf{\Theta }$ with Adam. Then, we use the updated $\mathsf{\Theta }$ to generate a new far-field image and repeat the above steps.

We stopped the iteration until the loss is less than −1 ×10⁻⁵. At this time, it is considered that $\mathsf{\Phi }$ and $\mathsf{\Theta }$ generated approximately the same far-field images. The process is shown in Figure 5. It sometimes fell into the local optimum during iteration. If the loss was still more than 1 × 10⁻⁵ after 500 iterations, we would reinitialize $\mathsf{\Theta }$ and start a new round of iterations.

After obtaining a set of $\mathsf{\Theta }$ that meet the requirements, we would reinitialize it and repeat the above process until finding 200 groups of $\mathsf{\Theta }$ that have similar far-field images with $I_{far}\left(\mathsf{\Phi }\right)$. For each $\mathsf{\Phi }$, we randomly initialize the value of $\mathsf{\Theta }$ 200 times, which means we will find 200 groups of $\mathsf{\Theta }$ that have far-field images similar to $I_{far}\left(\mathsf{\Phi }\right)$.

If our theoretical derivation is correct, the solutions are distributed in two intervals when the arrays meet Condition 1 and Condition 2. One is $\mathsf{\Phi }$ itself, and the other is $\mathsf{\Phi }$’s rotationally conjugate piston phase ($\overline{\mathsf{\Phi }}$). If there remain other intervals, this indicates that other solutions exist. If there exists only one interval, it means that the rotationally conjugate piston phase $\overline{\mathsf{\Phi }}$ will not generate the same far-field image as the original one $\mathsf{\Phi }$ (Another possibility is that $\mathsf{\Phi }=\overline{\mathsf{\Phi }}$, but we avoid generating this kind of $\mathsf{\Phi }$).

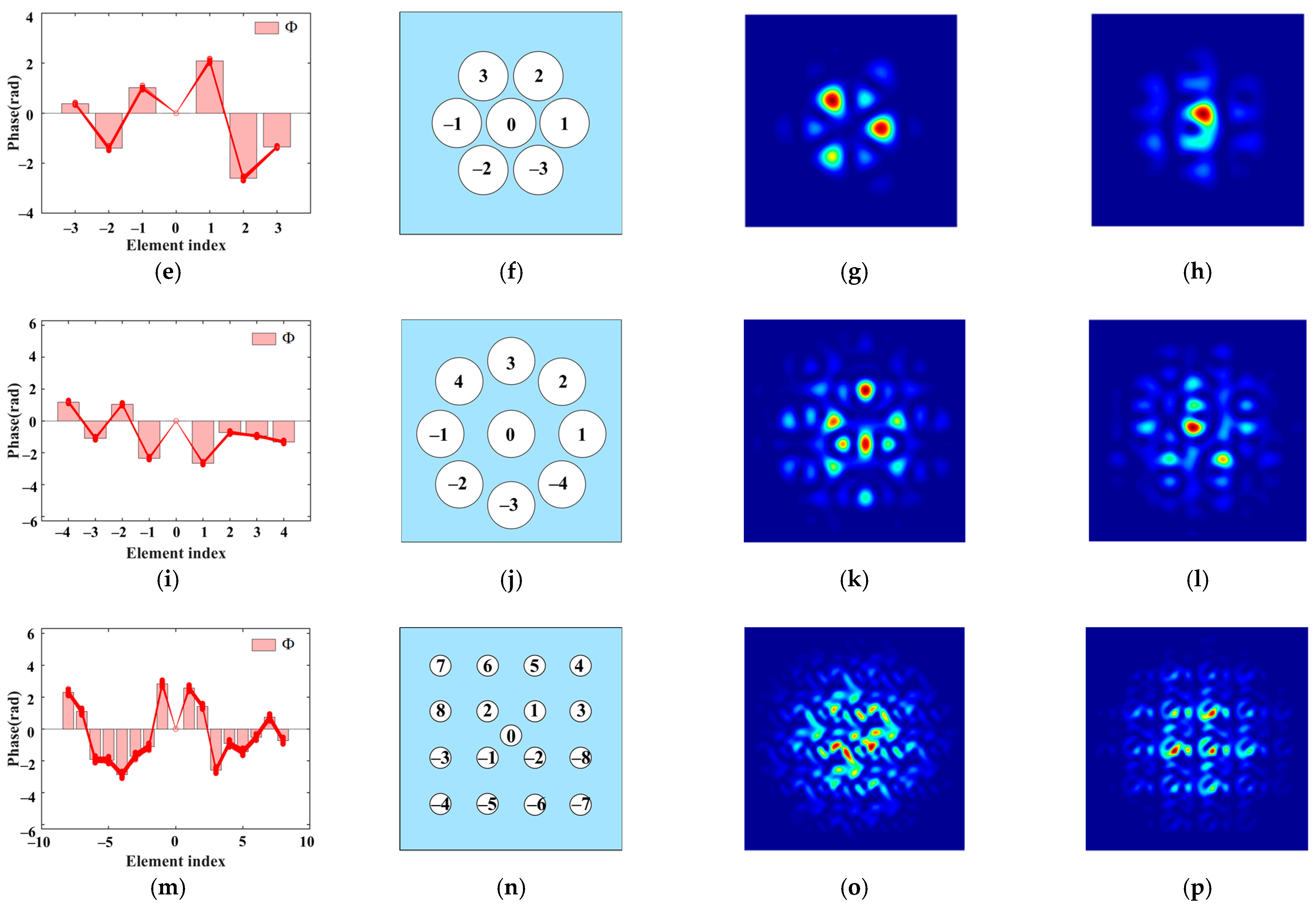

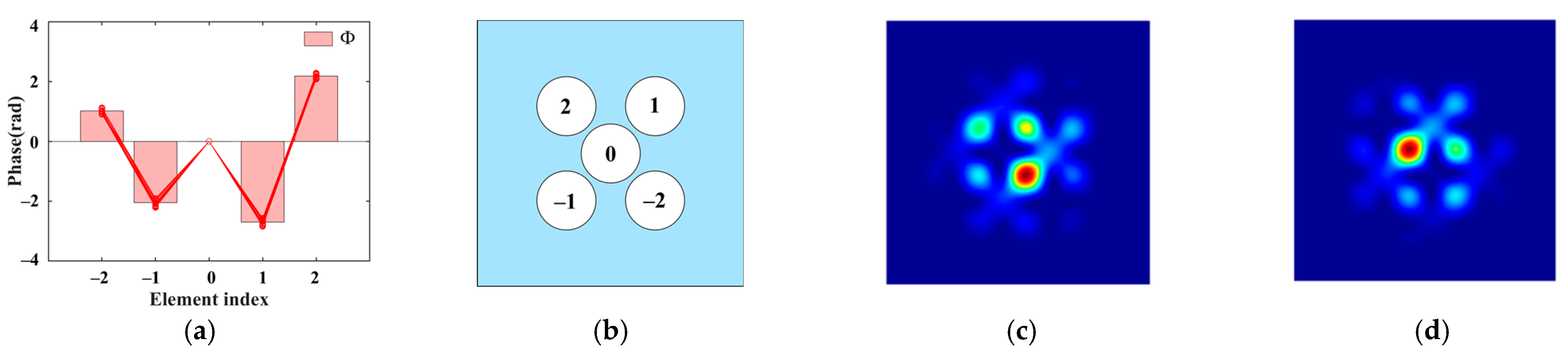

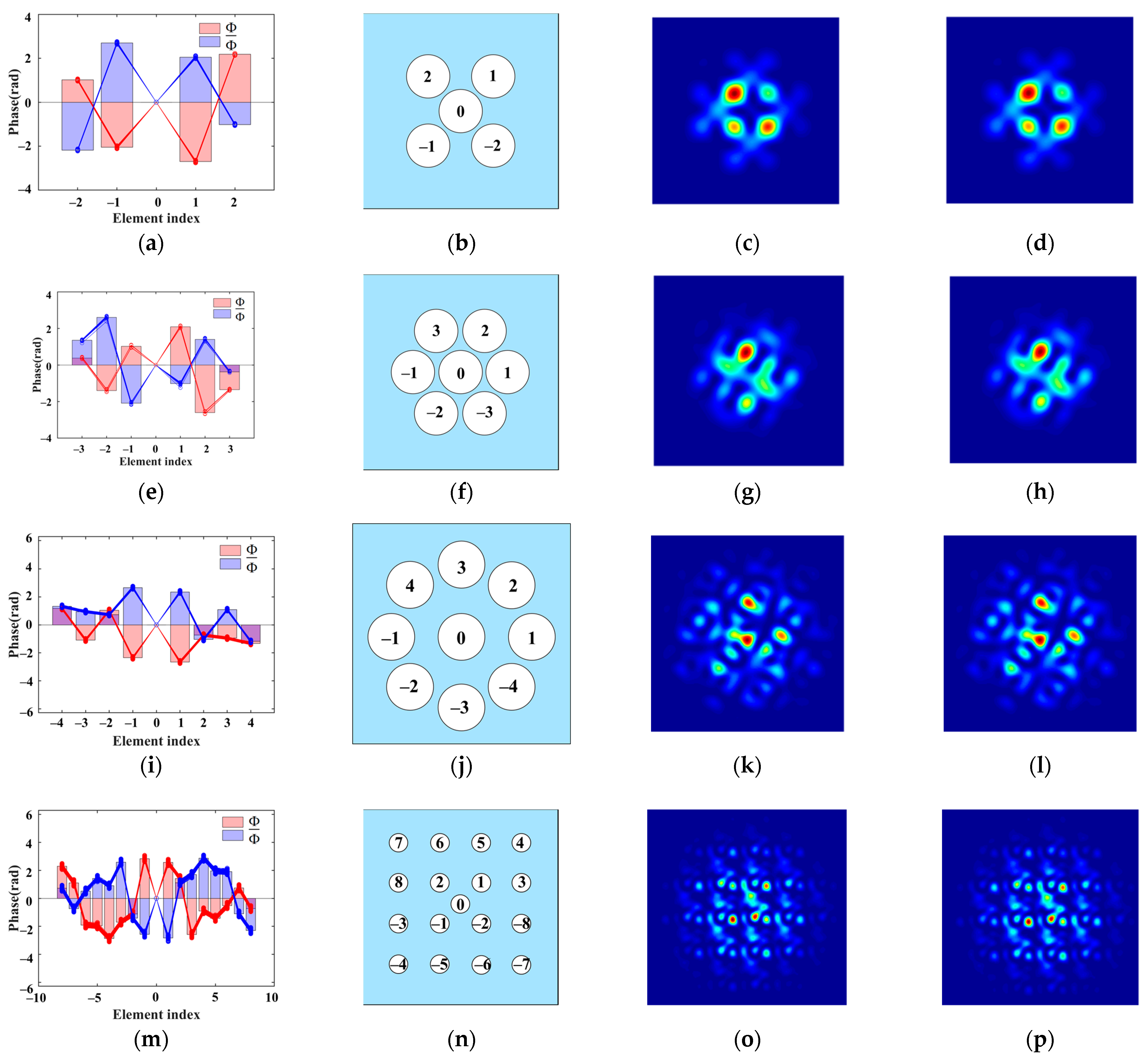

We conducted simulations, and the results demonstrate that our conclusions are correct. We randomly selected a $\mathsf{\Phi }$ for each system and drew the results of the above simulation iterations in Figure 6. In centrosymmetric-array CBC systems which meet Condition 1 (5-element, 7-element, and 9-element) or Condition 2 (5-element and 17-element), the solutions are distributed in two intervals (red lines and blue lines). One is $\mathsf{\Phi }$ itself, and the other is $\overline{\mathsf{\Phi }}$. Figure 4c–d,g–h,k–l and o–p show that $\overline{\mathsf{\Phi }}$ will generate the same far-field image as $\mathsf{\Phi }$.

Aiming at verifying whether our method can effectively solve the phase ambiguity problem, we designed a simulation process similar to the previous one. The difference is that we not only require $\mathsf{\Theta }$ and $\mathsf{\Phi }$ to generate similar far-field images, but also the modulated ones to generate similar far-field images. The process is shown in Figure 7a.

If our method works, the solutions are only distributed near $\mathsf{\Phi }$. We can see that modulated $\mathsf{\Phi }$ and modulated $\overline{\mathsf{\Phi }}$ will no longer generate the far field from Figure 8, which indicates that we can distinguish them by a pair of far-field images. The results of the simulations are consistent with our conclusions, which indicates that our method is effective.

4. Impact of Piston-Type Phase Ambiguity

As image-based intelligent algorithms, deep learning algorithms predict the piston phase from the far-field image, and compensate the current piston phase with the prediction to realize the co-phase. Through the analysis in Section 2, we prove that there exist two piston phase distributions in centrosymmetric arrays, which may generate the same far-field image. Therefore, we cannot distinguish them from a single far-field image. In other words, this mapping relationship can be described as “one to many”. If we force the NN model to fit this relationship, it will be difficult for the model to converge. In the next part, we will show the impact of phase ambiguity through simulations.

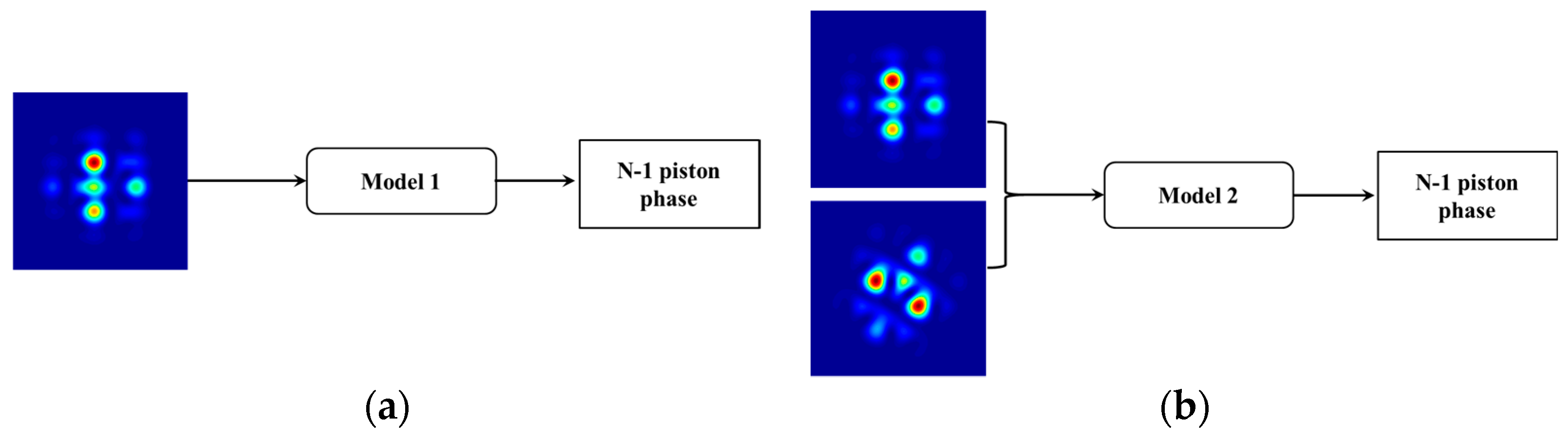

We conduct simulations on a 7-element CBC system. Our simulations are divided into two groups (as shown in Figure 9). In the first group, we employ model 1 to predict the piston phase from a single far-field image on the focal plane. According to our analysis, there exists phase ambiguity in this case. In the second group, model 2 takes the far-field image in the first group and the corresponding modulated ones as input (the modulation phase satisfies (29), which is shown in Figure 7c). The phase ambiguity problem is solved in the second group. We used 30,000 groups of training data to train the models for 200 epochs. We choose MSE as the loss function, which is defined as

$$MSE=\frac{1}{\mathrm{N}-1}{\displaystyle \sum _{\mathrm{n}}{\left(\frac{1}{\pi }{\mathsf{\phi }}^{\mathrm{pred}}{}_{\mathrm{n}}-\frac{1}{\pi }{\mathsf{\phi }}_{\mathrm{n}}\right)}^2}$$

(28)

where ${\mathsf{\phi }}^{\mathrm{pred}}{}_{\mathrm{n}}$ is the prediction of the n-th sub-aperture’s piston phase, and ${\mathsf{\phi }}_{\mathrm{n}}$ is the ground truth of the n-th sub-aperture’s piston phase (n = ±1, ±2,…, ±(N − 1) ÷ 2). The performances of these two models on the training data tend to converge after 200 epochs (shown in Figure 10).

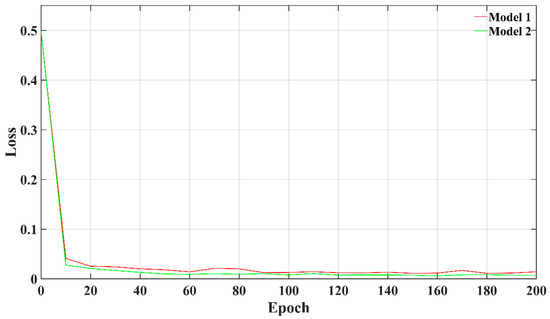

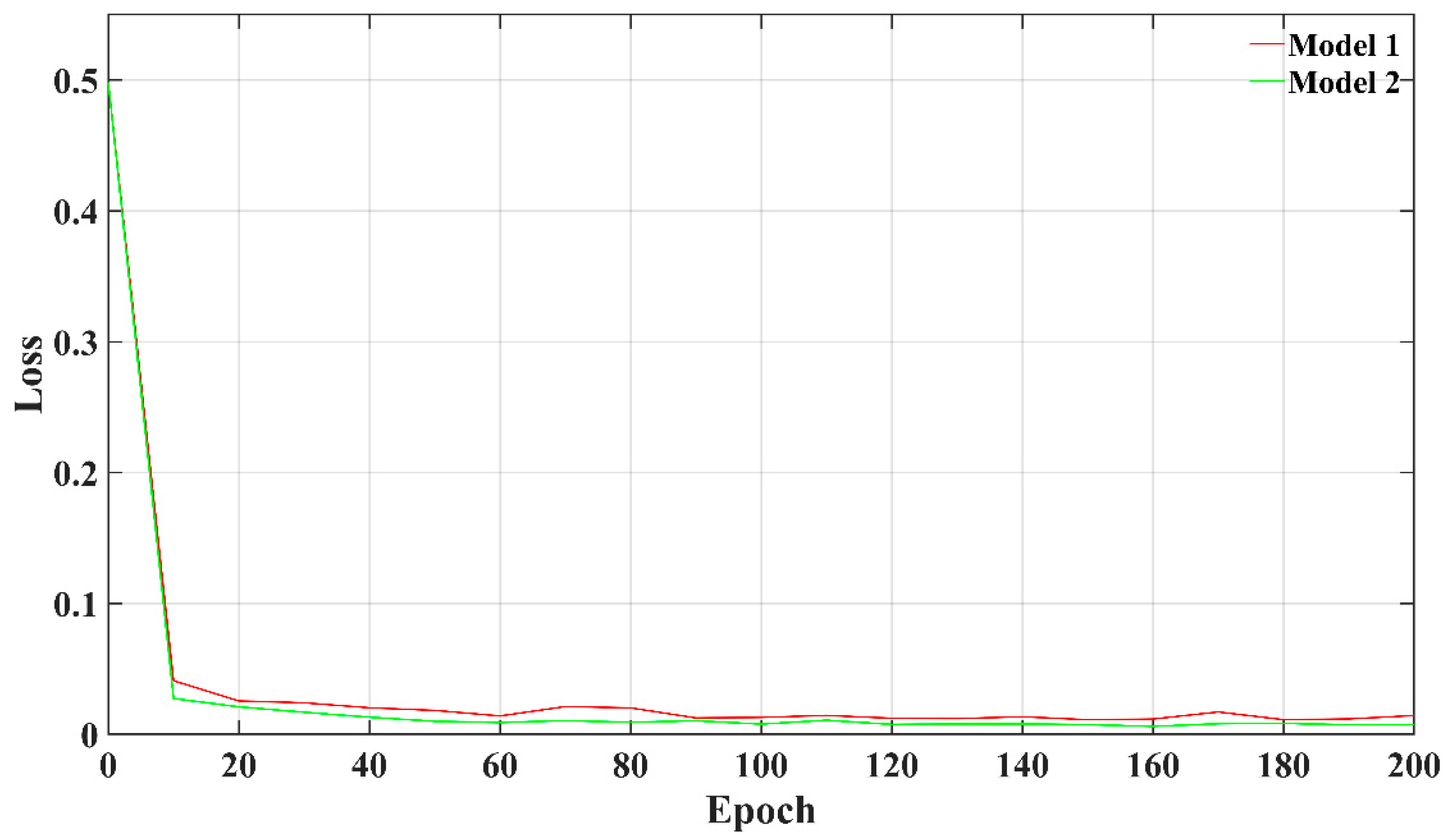

We take 5000 groups of testing data to test the performance of model 1 and model 2. We use the normalized power-in-the-bucket (PIB) as evaluation index, which can be expressed as

$$PIB=\frac{{\displaystyle \int {\displaystyle \int circ}}(d_{bucket}){{\displaystyle I}}_{far}dxdy}{\sigma \cdot {\displaystyle \int {\displaystyle \int {{\displaystyle I}}_{far}}}dxdy}$$

(29)

where $d_{bucket}$ is the diameter of bucket, and σ is the ideal PIB ($d_{bucket}$ is 90 mm, and σ is 0.525 in our simulation). If the model performs well, its corresponding normalized PIB will be high.

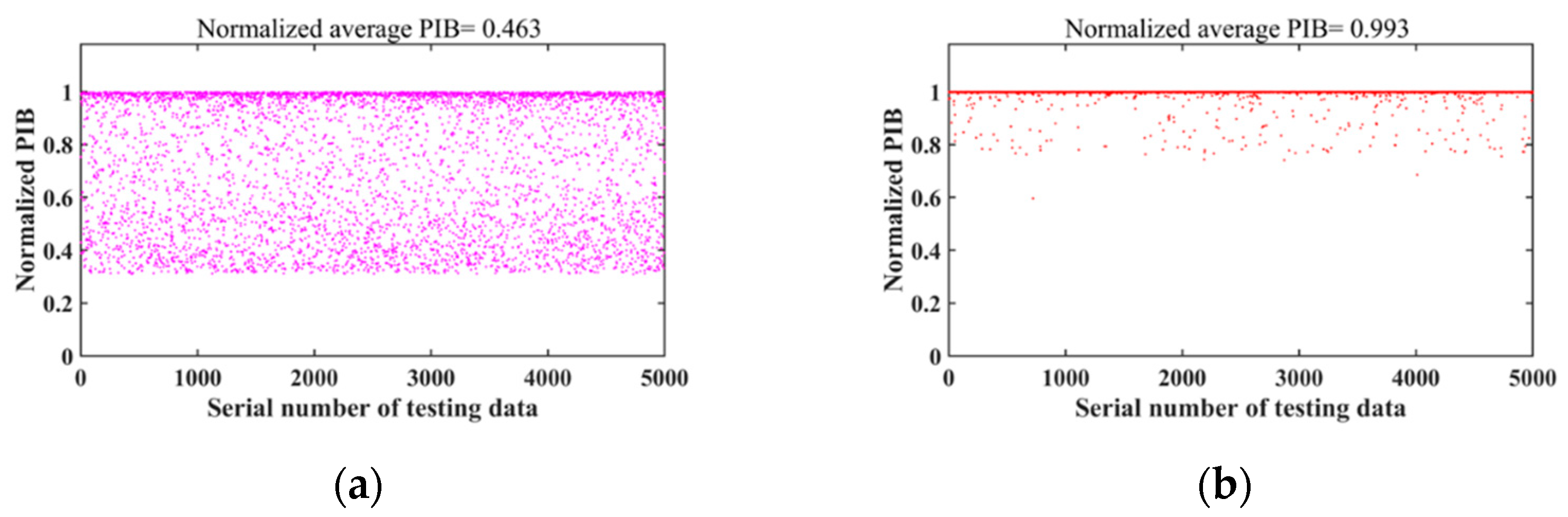

The performances of model 1 and model 2 on the testing data are shown in Figure 11. Although model 1 fits the training data well, its generalization ability is poor. The result indicates that model 1 tends to “remember” rather than “infer”. The model established an unreasonable mapping relationship due to phase ambiguity, so it is difficult for model 1 to converge. Therefore, solving phase ambiguity is necessary. Model 2 performs well on both the training data and the testing data, which indicates that our method can effectively solve phase ambiguity. We submitted supplementary materials, which include the code of models and the dataset.

5. Conclusions

In this paper, we prove that piston-type phase ambiguity will occur in coherent beam combining (CBC) systems with a centrosymmetric distribution of sub-apertures. In some specific arrays, we obtain all solutions of piston-type phase ambiguity in multi-aperture CBC systems through theoretical derivation: if two groups of piston phases generate the same far-field image, they are equal or rotationally conjugate to each other. To solve this problem, we propose a method by applying asymmetric phase modulation without adding additional optical devices. In addition to the theoretical proof, we designed simulations to verify our conclusions. The simulation results show the correctness of our analysis on phase ambiguity and the effectiveness of our method. We believe that our work can not only help to theoretically analyze the corresponding relationship between the piston phase and the far-field image but also improve the performance of image-based intelligent algorithms.
