Article

Transverse Load and Temperature Sensing Using Multiplexed Long-Period Fiber Gratings

by
Ismael Torres-Gómez
1,*,
Alejandro Martínez-Rios
1,
Gilberto Anzueto-Sánchez
1,
Daniel. E. Ceballos-Herrera
2 and
Guillermo Salceda-Delgado
3
1
Centro de Investigaciones en Óptica AC (CIO), Loma del Bosque 115, Lomas del Campestre, Leon, Guanajuato 37150, Mexico
2
Instituto de Ingeniería, Universidad Nacional Autónoma de México (UNAM), Ciudad Universitaria, Alcaldía Coyoacán, Mexico City 04510, Mexico
3
Facultad de Ciencias Físico Matemáticas, Universidad Autónoma de Nuevo León (UANL), Avenida Universidad S/N, San Nicolás de los Garza, Nuevo León 66455, Mexico
*
Author to whom correspondence should be addressed.
Photonics 2021, 8(1), 1; https://doi.org/10.3390/photonics8010001
Submission received: 30 October 2020 / Revised: 14 December 2020 / Accepted: 16 December 2020 / Published: 22 December 2020
(This article belongs to the Special Issue Advancements in Fiber Bragg Grating Research)

Abstract

:
The simultaneous measurement of transverse load and temperature using two long-period fiber gratings multiplexed in the wavelength domain is presented experimentally. For this, a mechanically induced long-period fiber grating (MI-LPFG) and a long-period fiber grating inscribed by a continuous-wave CO2 laser (CO2 LPFG) are connected in cascade. First, the transverse load and the temperature measurements were individually performed by the multiplexed long-period fiber gratings configuration. The MI-LPFG is subject to a transverse load variation from 0–2000 g with steps of 500 g, whereas the CO2 LPFG is unloaded and they are kept at room temperature. Similarly, the CO2 LPFG is subject to a temperature variation from 30 to 110 °C by increments of 20 °C, while the MI-LPFG with a constant transverse load of 2000 g is kept at room temperature. Subsequently, the simultaneous measurement of the transverse load and the temperature is performed by the multiplexed long-period fiber grating following the steps outlined above. According to the experimental results, the transverse load and temperature measurement present high repeatability for the individual and simultaneous process. Moreover, the multiplexed LPFGs exhibit low cladding-mode crosstalk of transverse load and temperature. The coarse wavelength-division multiplexing (CWDM) of long-period fiber gratings is an attractive alternative technique in optical fiber distributed sensing applications.

1. Introduction

Long-period fiber gratings (LPFGs) are versatile components widely studied with relevant applications in telecommunications, fiber-optic lasers, and sensing systems [1,2,3]. Concerning sensing applications, LPFGs offer high sensitivity to external perturbations of the surrounding medium, immunity to electromagnetic fields, passive measurements, fast response, low insertion loss, small backscattering, compactness, and remote monitoring. These properties make LPFGs very attractive in developing physical, chemical, and biological fiber optic sensors [4,5,6]. Currently, several methods have been reported to produce LPFGs, such as exposure to ultra-violet (UV), electric arc discharge, CO2 laser radiation, femtosecond laser radiation, mechanical pressure, hydrogen-oxygen flame heating, and ion implementation, among others [7,8,9,10,11,12,13]. Despite the progress made in the fabrication methods of LPFGs, there are still some challenges to harnessing the potential of LPFGs in sensing applications, such as the development of low-cost interrogation systems [14] and the optical fiber distributed sensing applications by the wavelength-division multiplexing of LPFGs in cascade.
Two different approaches have been reported for the optical fiber distributed sensing applications with wavelength-division multiplexing of LPFGs. The first method uses two similar concatenated LPFGs to conform a Mach–Zehnder interferometer [15]. In this way, one can have two or more Mach–Zehnder interferometers with distinct cavity lengths in series to measure different parameters simultaneously [16,17]. However, interferometric optical fiber sensors produce differential outputs. Therefore, they require complex demodulation techniques such as filtering the carrier frequencies in the frequency domain and the unwrapped phase processes to extract the external perturbations [18]. The second method entails implementing two or more different LPFGs in series in such form that their reference rejection bands do not overlap and operate independently [19,20,21,22]. Although these schemes require simple demodulation techniques, the wavelength-division multiplexing of LPFGs is delimited because LPFGs usually generate multiple rejection bands. However, mechanically induced long-period fiber gratings (MI-LPFGs) with a primary rejection band have recently been reported using laminated plates [23]. Such MI-LPFGs with a principal rejection band facilitate the use of the CWDM technique for LPFG sensors in cascade.
In this report, we demonstrate experimentally the simultaneous measurement of transverse load and temperature using two multiplexed long-period fiber gratings. For this, an MI-LPFG is connected with a CO2 LPFG in cascade to measure transverse load and temperature, respectively. These LPFGs are notable for having a prominent attenuation band over a wide wavelength range. As far as we know, this is the first time that the technique of wavelength-division multiplexing using LPFGs with a prominent attenuation band is presented. The work’s structure comprises the following sections: Section 1 explains an antecedent on the two approaches of the multiplexing LPFGs reported previously, highlighting their scope and limitations. The relevance of the wavelength-division multiplexing technique using LPFGs with a prominent attenuation band and their application in distributed sensing is also presented. The general principle of the phase-matching in LPFGs is described in Section 2. Section 3 describes the experimental arrangement and its principal features. Also, it describes in detail the implementation of the MI-LPFG and the inscription of the CO2 LPFG. In Section 4, the individual characterization of the MI-LPFG and the CO2 LPFG is presented when the LPFGs are under transverse load and temperature, respectively. Also, we show the simultaneous measurement of transverse load and temperature. Finally, Section 5 presents the most relevant findings of the work.

2. LPFGs Principle

Long-period fiber gratings result from a periodic refractive index modulation produced in the core of a single-mode optical fiber. The long-period fiber gratings operate as modal couplers allowing the light transfer from the fundamental mode in the core ( LP 01 ) to different co-propagating high-order cladding modes ( LP 0 m ,   m = 2 , 3 , 4 ) . This coupling results in a discrete set of rejection bands in the grating transmission spectrum due to the scattering of the high-order cladding modes at the interface between the cladding and the external medium. Where the resonant central wavelength ( λ m ) of the individual rejection bands must fulfill the phase-matching condition [7],
λ m = ( n 01 n 0 m ) Λ
where n 01 and n 0 m represent the effective refractive indices of the LP 01 mode in the core and the LP 0 m mode in the cladding, respectively, and Λ is the period of the refractive index modulation in the long-period fiber grating.
The number of rejection bands in an LPFG depends upon the structure and material composition of the host single-mode optical fiber and the corresponding refractive index modulation. In general, LPFGs in single-modal optical fiber with a cosinusoidal refractive index modulation and a typical period from 100 600   μ m , usually present spectrum transmissions with three to five rejection bands in the spectral range from 1200–1700 nm [7], where the attenuation depth of the rejection bands typically is more profound as the coupling mode’s order of the cladding increases. LPFGs with this number of the rejection bands and their spectral side lobes limit the wavelength-division multiplexing of LPFGs in cascade [16]. However, in the last years, it has been shown that LPFGs with a primary rejection band over a wide wavelength range using different inscription techniques is feasible [23,24,25,26,27]. Long-period fiber gratings with a primary rejection band facilitate the deployment of fiber optic distributed sensing systems based on the wavelength-division multiplexing of LPFGs.

3. Setup and Components

Figure 1a illustrates the experimental configuration schematic for measuring the transverse load (TL) and the temperature (T) by the multiplexed LPFGs. The experimental setup consisted of an MI-LPFG connected to a CO2 LPFG in cascade. The CO2 LPFG was located over an electric hot plate where the temperature can be manually controlled. The input end of the MI-LPFG was connected to a white light source (WLS; AQ-4303B), and the output end of the CO2 LPFG was connected to an optical spectrum analyzer (OSA; AQ-6315A). For each proof, the transmission spectrum of the cascaded LPFGs was recorded by the optical spectrum analyzer, while the spectral resolution was set to 1 nm. The fiber used in the double grating configuration is a standard single-mode fiber (SMF-28) for telecommunications. The LPFGs were separated 10 cm in the single-mode optical fiber. Figure 1b illustrates the photography of the experimental configuration.
The MI-LPFG can be achieved when the optical fiber is compressed between a flat aluminum plate and a laminated plate, see Figure 1b. The laminated plate consisted of a parallel assembling of single-edged utility blades [23]. The laminated plate had a length of approximately 30 mm, an average period of 490 ± 10 µm, and an average duty cycle of the refractive-index modulation of 0.2. Figure 2a shows the transmission spectrum of the MI-LPFG when a constant transverse load of 2000 g is applied between the plates. As can be seen, its spectrum transmission shows a primary rejection band at 1279.3 nm with a sidelobe at 1338.4 nm and shallow rejection bands at 1386.0 and 1484.2 nm. The primary rejection band’s attenuation depth was 14.4 dB, whereas the attenuation depth for the lateral shallow rejection bands was lower than 1.5 dB. According to the reference spectrum transmission of the MI-LPFG, its average insertion loss is lower than 0.25 dB for the above conditions. It should be noted that the MI-LPFG has no attenuation bands in the spectral range from 1540–1640 nm, although a small portion of light can propagate through the cladding, as can be inferred from the background loss induced by the MI-LPFG in that spectral range.
On the other hand, the CO2 LPFG was inscribed using a continuous-wave CO2 laser glass processing system (Laser Master LZM-100). It has a length of 37.5 mm and a period of 0.75 mm. In the inscription process, a fiber section is heated during 120 ms with a power discharge of 20 W; then, with the same power, the fiber is pulled for 60 ms. In order to have a principal rejection band in the spectral range of 1540–1580 nm, a period of 0.75 nm was determined empirically based on an extensive experimental study. Figure 2b shows its transmission spectrum. As can be seen, the transmission spectrum displays a primary rejection band at 1553.8 nm with 9.8 dB and shallow rejection bands at 1220.2, 1289.7, 1370.8, and 1493.7 nm with attenuation depths lower than 2.2 dB. According to the reference spectrum transmission, the average insertion loss is lower than 0.85 dB. The insertion loss is due to the scattering produced by the heated points irradiated by the continuous-wave CO2 laser. The CO2 LPFG was fixed on an aluminum holder (12 × 2 × 1 cm) by commercial epoxy putty. The CO2 LPFG was sat on the aluminum holder by pasting its two ends with a physical separation of 10 cm. Then the aluminum holder with the CO2 LPFG was placed over the electric hot plate, see Figure 1b. The maximum operating temperature of the epoxy putty was 110 °C. For its part, Figure 2c illustrates the transmission spectrum of the MI-LPFG and the CO2 LPFG in cascade when a constant transverse load of 2000 g is applied in the MI-LPFG. We can observe the primary rejection bands of the LPFGs and the overlapping of their shallow rejection bands. The insertion loss of the cascaded LPFGs is less than 1.1 dB regarding the reference transmission spectrum.

4. Experiment and Results Analysis

Once the experimental setup was installed, the transverse load on the MI-LPFG was increased from 0 to 2000 g with increments of 500 g, while the CO2 LPFG remains unloaded. Both LPFGs in the proofs stayed at room temperature (27 ± 3 °C). Figure 3a shows the transmission spectrum evolution of the multiplexed LPFGs when the load on the MI-LPFG increases. As a result, the attenuation depth of the leading rejection band of the MI-LPFG got more profound as the transverse load increased. In contrast, the attenuation depth of the principal rejection band of the CO2 LPFG remains practically unchanged. Figure 3b,c shows the spectrum transmission evolution of the primary rejection bands of the multiplexed LPFGs when the transverse load increases. No wavelength shift is observed in the MI-LPFG primary rejection band. In contrast, the principal rejection band of the CO2 LPFG presents a tiny wavelength shift to larger wavelengths that can be practically considered negligible. Figure 4 illustrates the attenuation depth evolution of the primary rejection bands of the multiplexed LPFGs versus the transverse load on the MI-LPFG. The leading rejection band of the MI-LPFG presents a nonlinear increase, while the attenuation depth of the principal rejection band of CO2 LPFG shows a small variation. It is important to note that the shallow rejection bands of the MI-LPFG also got deeper when the transverse load increased, but they do not interfere with the primary rejection band of the CO2 LPFG.
Next, the temperature in the CO2 LPFG was increased from 30 to 110 °C by steps of 20 °C using an electric hot plate, whereas the MI-LPFG with a constant transverse load of 2000 g was kept at room temperature. Figure 5a shows the transmission spectrum evolution of the multiplexed LPFGs when the temperature in the CO2 LPFG was increased. Figure 5b,c shows the transmission spectrum evolution of the primary rejection bands of the multiplexed LPFGs. As can be seen, the rejection band of the CO2 LPFG shifted towards longer wavelengths with a slight decrease in the attenuation depth. Meanwhile, the leading rejection band of the MI-LPFG presents small variations in the attenuation depth and wavelength shift. Figure 6 shows the wavelength shift of the primary rejection bands of multiplexed LPFGs concerning the spectrum transmission of the multiplexed LPFG at 30 °C. The CO2 LPFG principal rejection band shows a linear wavelength shift when the temperature is increased. This rejection band shows a temperature sensitivity of 50 pm/°C, and its R-squared factor of the linear fitting is 0.9989. On the other hand, the MI-LPFG leading rejection band presented a small oscillating wavelength shift due to the overlapping with the shallow rejection bands at 1289.7 nm of the CO2 LPFG. Similarly, the attenuation depth of the leading rejection band of the MI-LPFG is slightly altered.
Then, the transverse load on the MI-LPFG and the temperature in the CO2 LPFG were simultaneously measured. Thus, the transverse load was increased from 0 to 2000 g by increments of 500 g in the MI-LPFG, while the temperature was also increased from 30 to 110 °C by steps of 20 °C in the CO2 LPFG. Figure 7a shows the transmission spectrum evolution of the multiplexed LPFGs for these conditions. Figure 7b,c shows the primary rejection bands evolution of the multiplexed LPFGs when the transverse load and the temperature were increased, respectively. Figure 8a shows the leading rejection band’s attenuation depth behavior in the MI-LPFG when the transverse load increases for different temperatures at the CO2 LPFG. The attenuation depth shows a nonlinear increase, similar to the results obtained previously in Figure 4. On the other hand, Figure 8b shows the principal rejection band’s wavelength shift in the CO2 LPFG with respect to spectrum transmission at 30 °C for the above conditions. The principal rejection band’s center wavelength in the CO2 LPFG shows a linear wavelength shift towards longer wavelengths. The rejection band shows a temperature sensitivity of 50 pm/°C, and its R-squared factor of the linear fitting was 0.9986.
The MI-LPFG displays a leading rejection band at 1280 ± 1 nm, while the CO2 LPFG presents a principal rejection band at 1553.80 nm at room temperature (27 °C). The wavelength separation between the primary rejection bands allows the CWDM of LPFGs with low cladding-mode crosstalk. When the transverse load in the MI-LPFG was increased from 0–2000 g, the principal rejection band of the CO2 LPFG underwent attenuation depth variations lower than ±0.2 dB and a wavelength shift lower than ±0.2 nm with respect to the initial spectrum transmission. We assume that these random variations are due to the white light source output power stability combined with the insertion loss induced by the MI-LPFG. Note that the MI-LPFG transverse load sensitivity was obtained at a constant room temperature. However, it is well known that attenuation depth and the central wavelength location of the rejection bands are influenced by the temperature on the MI-LPFGs [28]. It had been observed that with a temperature increase on the MI-LPFGs, the rejection bands shift to longer wavelengths, and their attenuation depth partially decreases. In this sense, to include the effect of the temperature on the MI-LPFG response, the transverse load sensitivity, and the wavelength shifting sensitivity of the principal rejection band can be calibrated at different temperatures. On the other hand, when the temperature in the CO2 LPFG was increased from 30 to 110 °C, the leading rejection band in the MI-LPFG experienced an attenuation depth variation lower than ±0.4 dB and a wavelength shift lower than ±0.3 nm with respect to the initial spectrum transmission. We assume that these variations are also due to the white light source output power stability and the overlapping between the leading rejection band in the MI-LPFG and the CO2 LPFG shallow rejection band at 1289.7 nm. In the last case, increasing the separation between the LPFGs can significantly reduce the overlapping effect since cladding light will be attenuated by the high index polymer coating of the optical fiber section between LPFG. On the other side, the random variations of the power transmission spectrum introduced by the white light source can be eliminated using a broadband light source by combining two superluminescent diodes at 1280 and 1550 nm.
The above results were replicated when we simultaneously measured the transverse load and the temperature in the multiplexed LPFGs, respectively. Figure 9a displays a comparison between the individual and simultaneous measurement of the attenuation depth in the MI-LPFG. As can be seen, except for the attenuation depth corresponding to 1500 g, the remainder attenuation depth points preserve a close correlation. This difference at 1500 g can be due to the repeatability of the MI-LPFG. Meanwhile, Figure 9b illustrates a comparison between the wavelength shift in the CO2 LPFG for the individual and simultaneous temperature measurement, where one can observe a close correlation between individual and simultaneous measurements of the temperature. According to these results, the multiplexed LPFGs operate with low cladding-mode crosstalk. The experimental results demonstrate the simultaneous measurement of transverse load and temperature by the multiplexed LPFGs. The current multiplexed LPFGs arrangement uses an MI-LPFG; however, it is possible to produce LPFGs with a primary rejection band by other inscription methods such as electric arc discharge and femtosecond laser irradiation [25,26,27]. These LPFGs may allow more flexible schemes of distributed sensing applications based on multiplexed LPFGs in cascade.

5. Conclusions

The simultaneous measurement of transverse load and temperature using two multiplexed long-period fiber gratings has been demonstrated experimentally in this work. We have used an MI-LPFG with a CO2 LPFG connected in cascade to measure the transverse load and the temperature, respectively. The experimental results show that the transverse load and temperature measurements show low cladding-mode crosstalk between the multiplexed LPFGs. In fact, the cladding-mode crosstalk can be canceled by increasing the length of the fiber between the gratings. The low or absence of cladding-modes crosstalk, simplify the interrogation method since only changes in transmission need to be measured. It is well known that distributed sensing applications are still a trend in the development of optical fiber sensors based on multiplexed LPFGs. In this regard, we propose the CWDM of long-period fiber gratings with a leading rejection band to determine multiple parameters simultaneously. To our best knowledge, this is the first time that coarse multiplexing of LPFGs has been reported for multiple parameter sensing using LPFGs with a leading rejection band. The new concept of multiplexed LPFGs using MI-LPFG with only one leading rejection band can facilitate the CWDM of several LPFGs in cascade. This technique can improve the implementation of fiber optic distributed sensing systems based on the wavelength-division multiplexing of LPFGs.

Author Contributions

Conceptualization, I.T.-G.; methodology, A.M.-R. and D.E.C.-H.; validation, G.A.-S. and G.S.-D.; formal analysis, D.E.C.-H.; investigation, G.A.-S. and G.S.-D.; writing—original draft preparation, I.T.-G. and A.M.-R.; writing—review and editing, all authors; supervision, A.M.-R.; project administration, I.T.-G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chiang, K.S.; Liu, Q. Long-period grating devices for application in optical communications. In Proceedings of the 5th ICOCN, Chengdu, China, 23–27 September 2006; pp. 128–133. [Google Scholar]
  2. Krčmařík, D.; Kulishov, M.; Slavík, R. Long-period fiber gratings in active fibers. In Current Trends in Short and Long-Period Fiber Gratings; Cuadrado-Laborde, C., Ed.; InTech: Rijeka, Croatia, 2013; pp. 87–104. [Google Scholar]
  3. Bhatia, V. Applications of long-period gratings to single and multi-parameter sensing. Opt. Express 1999, 4, 457–466. [Google Scholar] [CrossRef] [PubMed]
  4. Rao, Y.J.; Wang, Y.P.; Ran, Z.L.; Zhu, T. Novel fiber-optic sensors based on long-period fiber grating written by high-frequency CO2 laser pulses. J. Lightwave Technol. 2003, 21, 1320–1327. [Google Scholar]
  5. Korposh, S.; James, S.; Tatam, R.; Lee, S.W. Optical fibre long-period gratings functionalized with nano-assembled thin films: Approaches to chemical sensing. In Current Trends in Short and Long-Period Fiber Gratings; Cuadrado-Laborde, C., Ed.; InTech: Rijeka, Croatia, 2013; pp. 63–83. [Google Scholar]
  6. Zhao, X.W.; Wang, Q. Mini review: Recent advances in long period fiber grating biological and chemical sensors. Instrum. Sci. Technol. 2019, 47, 40–169. [Google Scholar] [CrossRef]
  7. Vengsarkar, A.M.; Lemaire, P.J.; Judkins, J.B.; Bhatia, V.; Erdogan, T.; Sipe, J.E. Long-period fiber gratings as band-rejection filters. J. Lightwave Technol. 1996, 14, 58–65. [Google Scholar] [CrossRef]
  8. Enomoto, T.; Shigehara, M.; Ishikawa, S.; Danzuka, T.; Kanamori, H. Long-period fiber grating in a pure-silica-core fiber written by residual stress relaxation. In Proceedings of the OFC’98. Optical Fiber Communication Conference and Exhibit. Technical Digest, Conference Edition, 1998 OSA Technical Digest Series, San Jose, CA, USA, 22–27 February 1998; Volume 2, pp. 277–278. [Google Scholar]
  9. Davis, D.D.; Gaylord, T.K.; Glytsis, E.N.; Kosinski, S.G.; Mettler, S.C.; Vengsarkar, A.M. Long-period fibre grating fabrication with focused CO2 laser pulses. Electron. Lett. 1998, 34, 302–303. [Google Scholar] [CrossRef]
  10. Kondo, Y.; Nouchi, K.; Mitsuyu, T.; Watanabe, M.; Kazansky, P.G.; Hirao, K. Fabrication of long-period fiber gratings by focused irradiation of infrared femtosecond laser pulses. Opt. Lett. 1999, 24, 646–648. [Google Scholar] [CrossRef]
  11. Savin, S.; Digonnet, M.J.F.; Kino, G.S.; Shaw, H.J. Tunable mechanically induced long-period fiber gratings. Opt. Lett. 2000, 25, 710–712. [Google Scholar] [CrossRef]
  12. Fu, C.; Liu, S.; Bai, Z.; He, J.; Liao, C.; Wang, Y.; Li, Z.; Zhang, Y.; Yang, K.; Yu, B.; et al. Orbital angular momentum mode converter based on helical long period fiber Grating Inscribed by Hydrogen-Oxygen lame. J. Lightwave Technol. 2018, 36, 1683–1688. [Google Scholar] [CrossRef]
  13. Fujimaki, M.; Ohki, Y.; Brebner, J.L.; Roorda, S. Fabrication of long-period optical fiber gratings by use of ion implantation. Opt. Lett. 2000, 25, 88–89. [Google Scholar] [CrossRef]
  14. Dos Santos, P.S.S.; Jorge, P.A.S.; de Almeida, J.M.M.M.; Coelho, L. Low-cost interrogation system for long-period fiber gratings applied to remote sensing. Sensors 2019, 19, 1500. [Google Scholar] [CrossRef] [Green Version]
  15. Gu, X.J. Wavelength-division multiplexing isolation fiber filter and light source using cascaded long-period fiber gratings. Opt. Lett. 1998, 23, 509–510. [Google Scholar] [CrossRef] [PubMed]
  16. Murphy, R.P.; James, S.W.; Tatam, R.P. Multiplexing of fiber-optic long-period grating-based interferometric sensors. J. Lightwave Technol. 2007, 25, 825–829. [Google Scholar] [CrossRef] [Green Version]
  17. Huang, Q.; Chen, H. Multi-parameter optochemical sensing based on coated cascaded long-period fiber gratings and frequency division multiplexing. Optik 2017, 132, 348–355. [Google Scholar] [CrossRef] [Green Version]
  18. Bhatia, V.; Campbell, D.; Claus, R.O.; Vengsarkar, A.M. Simultaneous strain and temperature measurement with long-period gratings. Opt. Lett. 1997, 22, 648–650. [Google Scholar] [CrossRef] [PubMed]
  19. Yokota, M.; Oka, H.; Yoshino, T. Mechanically induced long period fiber grating and its application for distributed sensing. In Proceedings of the 2002 15th Optical Fiber Sensors Conference Technical Digest, Portland, OR, USA, 6–10 May 2002; pp. 135–138. [Google Scholar]
  20. Eftimov, T.; Bock, W.; Mikulic, P.; Nikolova, K. Multiplexed long period gratings with differential Interrogation. 16 ISCMP: Progress in Solid State and Molecular Electronics, Ionics and Photonics. J. Phys. Conf. Ser. 2010, 253, 012023. [Google Scholar] [CrossRef]
  21. Zhan, Y.; Gu, K.; Wu, H.; Luo, F. A combined long period fiber grating multi-parameter sensor. Sens. Rev. 2013, 33, 220–227. [Google Scholar] [CrossRef]
  22. Hromadka, J.; Korposh, S.; Partridge, M.C.; James, S.W.; Davis, F.; Crump, D.; Tatam, R.P. Multi-parameter measurements using optical fibre long period gratings for indoor air quality monitoring. Sens. Actuat. B Chem. 2017, 244, 217–225. [Google Scholar] [CrossRef]
  23. Torres-Gómez, I.; Ceballos-Herrera, D.E.; Salas-Alcantara, K.M. Mechanically-induced long-Period fiber gratings using laminated plates. Sensors 2020, 20, 2582. [Google Scholar] [CrossRef]
  24. Rego, G.; Fernandes, J.R.A.; Santos, J.L.; Salgado, H.M.; Marques, P.V.S. New technique to mechanically induce long-period fibre gratings. Opt. Commun. 2003, 220, 111–118. [Google Scholar] [CrossRef]
  25. Rego, G.; Okhotnikov, O.; Dianov, E.; Sulimov, V. High-temperature stability of long-period fiber gratings produced using an electric arc. J. Lightwave Technol. 2001, 19, 1574–1579. [Google Scholar] [CrossRef]
  26. Nam, S.H.; Zhan, C.; Lee, J.; Hahn, C.; Reichard, K.; Ruffin, P.; Deng, K.L.; Yin, S. Bend-insensitive ultra short long-period gratings by the electric arc method and their applications to harsh environment sensing and communication. Opt. Express 2005, 13, 731–737. [Google Scholar] [CrossRef] [PubMed]
  27. Sun, X.; Huang, P.; Zhao, J.; Wei, L.; Zhang, N.; Kuang, D.; Zhu, X. Characteristic control of long period fiber grating (LPFG) fabricated by infrared femtosecond laser. Front. Optoelectron. 2012, 5, 334–340. [Google Scholar] [CrossRef]
  28. García-de-la-Rosa, L.A.; Torres-Gómez, I.; Martínez-Ríos, A.; Monzón-Hernández, D. Temperature impact on mechanically induced long-period fiber gratings. Opt. Laser Eng. 2011, 49, 714–717. [Google Scholar] [CrossRef]
Figure 1. Experimental configuration: (a) schematic and (b) photography.
Figure 1. Experimental configuration: (a) schematic and (b) photography.
Photonics 08 00001 g001

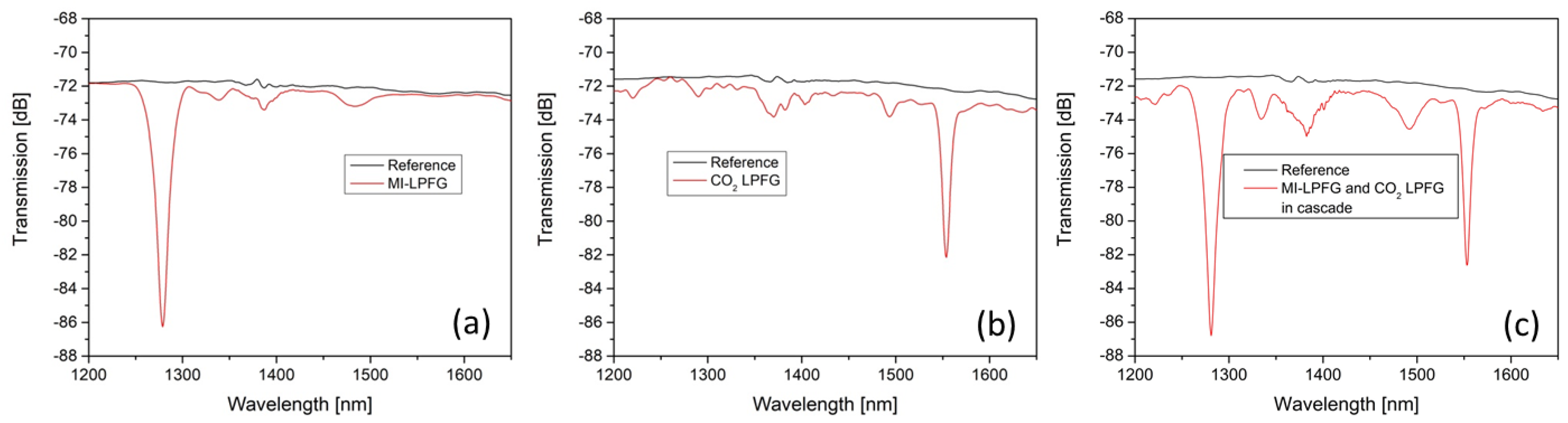

Figure 2. The transmission spectrum of (a) mechanically induced long-period fiber grating (MI-LPFG), (b) CO2 LPFG, (c) multiplexed MI-LPFG and CO2 LPFG.
Figure 2. The transmission spectrum of (a) mechanically induced long-period fiber grating (MI-LPFG), (b) CO2 LPFG, (c) multiplexed MI-LPFG and CO2 LPFG.
Photonics 08 00001 g002

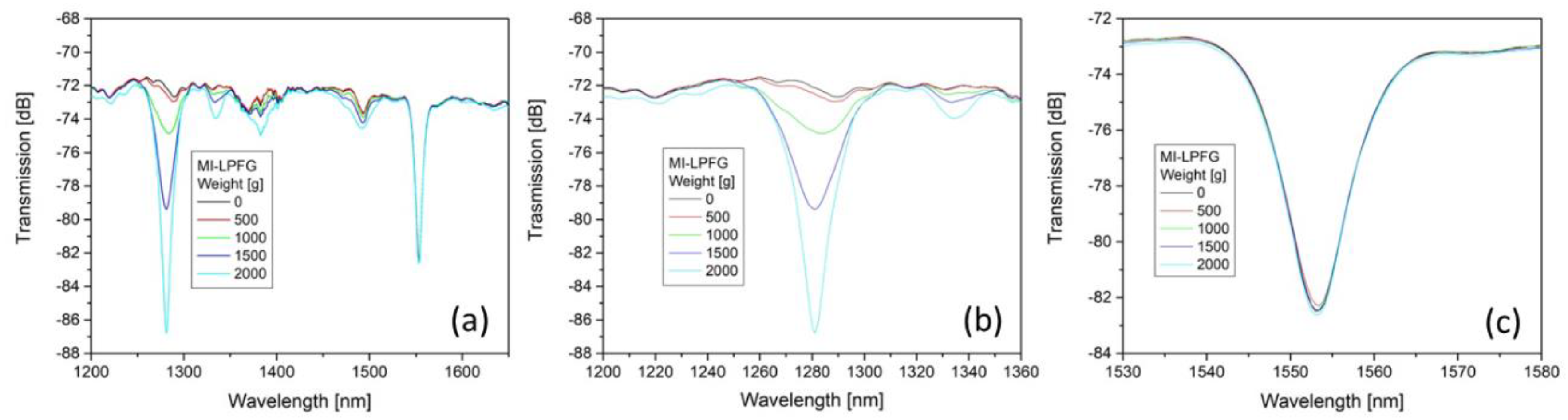

Figure 3. The transmission spectrum of (a) multiplexed LPFGs, (b) MI-LPFG, (c) CO2 LPFG versus applied weight on the MI-LPFG.
Figure 3. The transmission spectrum of (a) multiplexed LPFGs, (b) MI-LPFG, (c) CO2 LPFG versus applied weight on the MI-LPFG.
Photonics 08 00001 g003

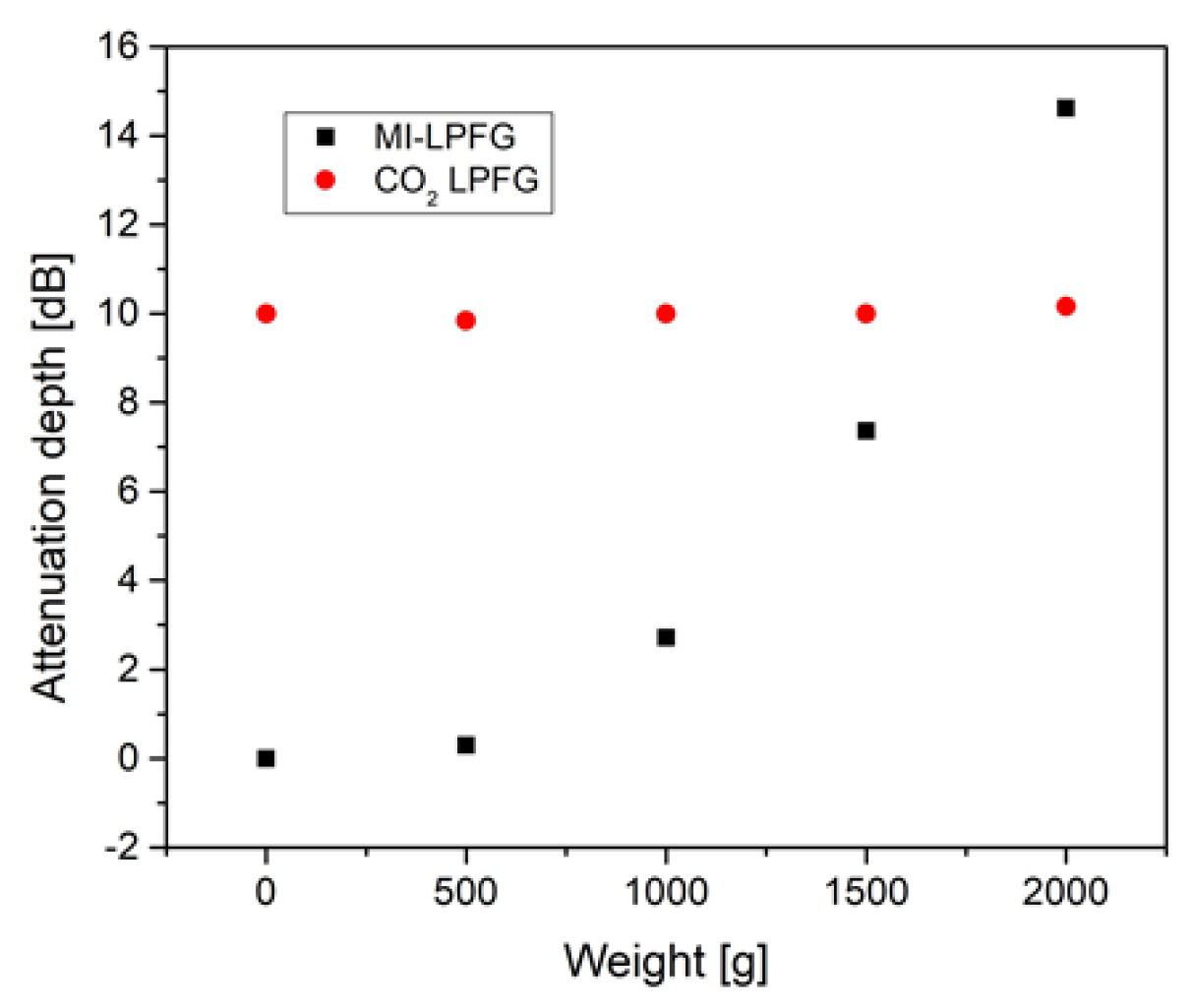

Figure 4. Attenuation depth of the main rejection bands of the MI-LPFG and the CO2 LPFG versus applied weight on the MI-LPFG.
Figure 4. Attenuation depth of the main rejection bands of the MI-LPFG and the CO2 LPFG versus applied weight on the MI-LPFG.
Photonics 08 00001 g004

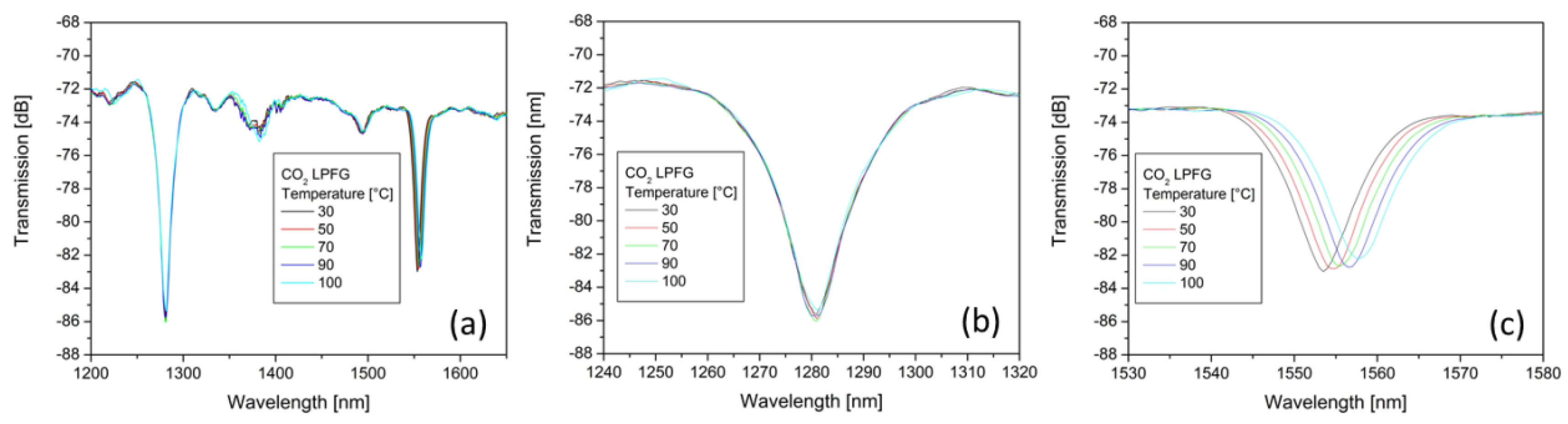

Figure 5. The transmission spectrum of (a) multiplexed LPFGs, (b) MI-LPFG, (c) CO2 LPFG versus applied temperature on the CO2 LPFG.
Figure 5. The transmission spectrum of (a) multiplexed LPFGs, (b) MI-LPFG, (c) CO2 LPFG versus applied temperature on the CO2 LPFG.
Photonics 08 00001 g005

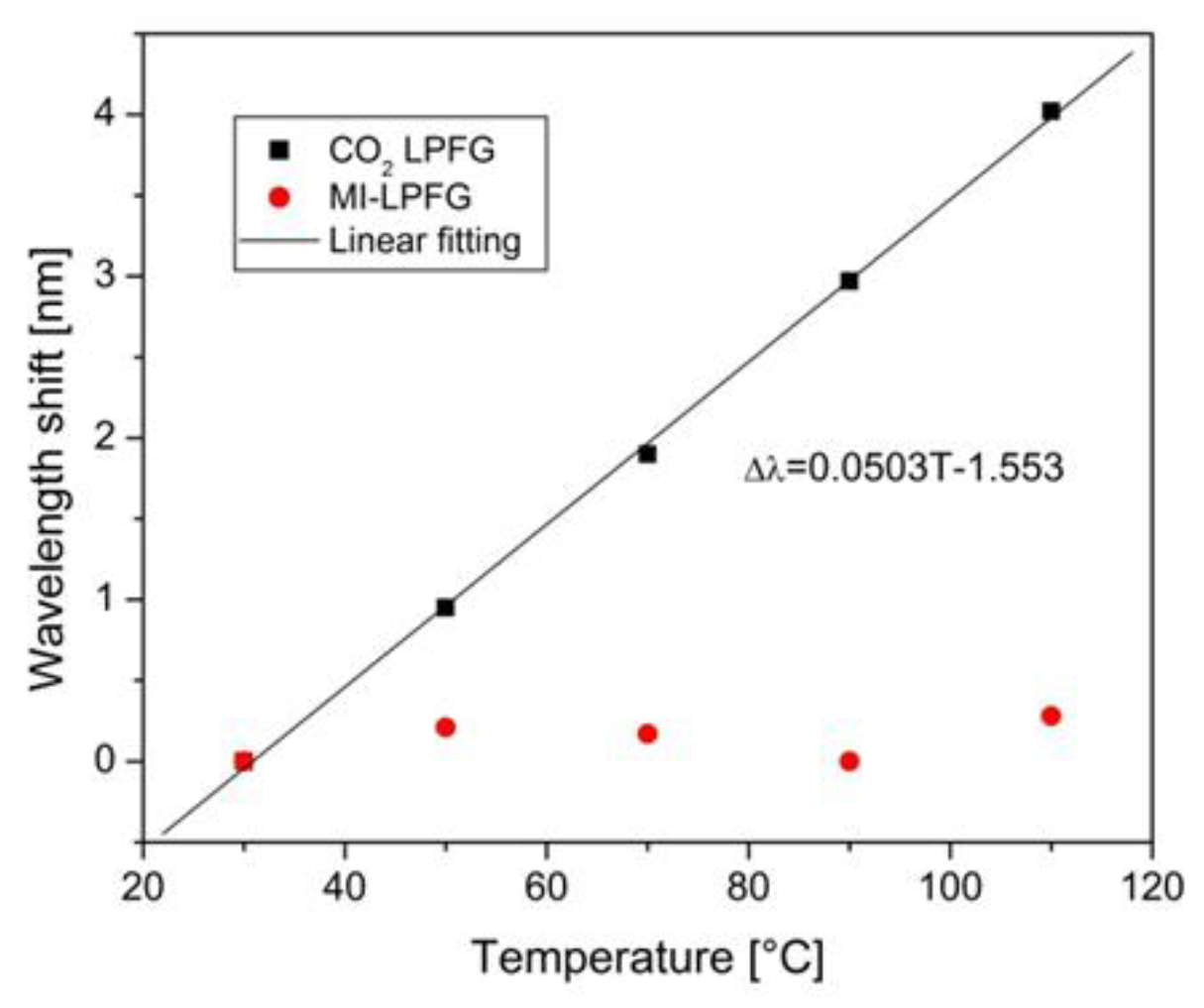

Figure 6. The wavelength shift of the main rejection bands of MI-LPFG and CO2 LPFG versus applied temperature on CO2 LPFG.
Figure 6. The wavelength shift of the main rejection bands of MI-LPFG and CO2 LPFG versus applied temperature on CO2 LPFG.
Photonics 08 00001 g006
Figure 7. The transmission spectrum of (a) multiplexed LPFGs, (b) MI-LPFG, (c) CO2 LPFG versus applied transverse load on MI-LPFG and temperature on the CO2 LPFG, simultaneously.
Figure 7. The transmission spectrum of (a) multiplexed LPFGs, (b) MI-LPFG, (c) CO2 LPFG versus applied transverse load on MI-LPFG and temperature on the CO2 LPFG, simultaneously.
Photonics 08 00001 g007

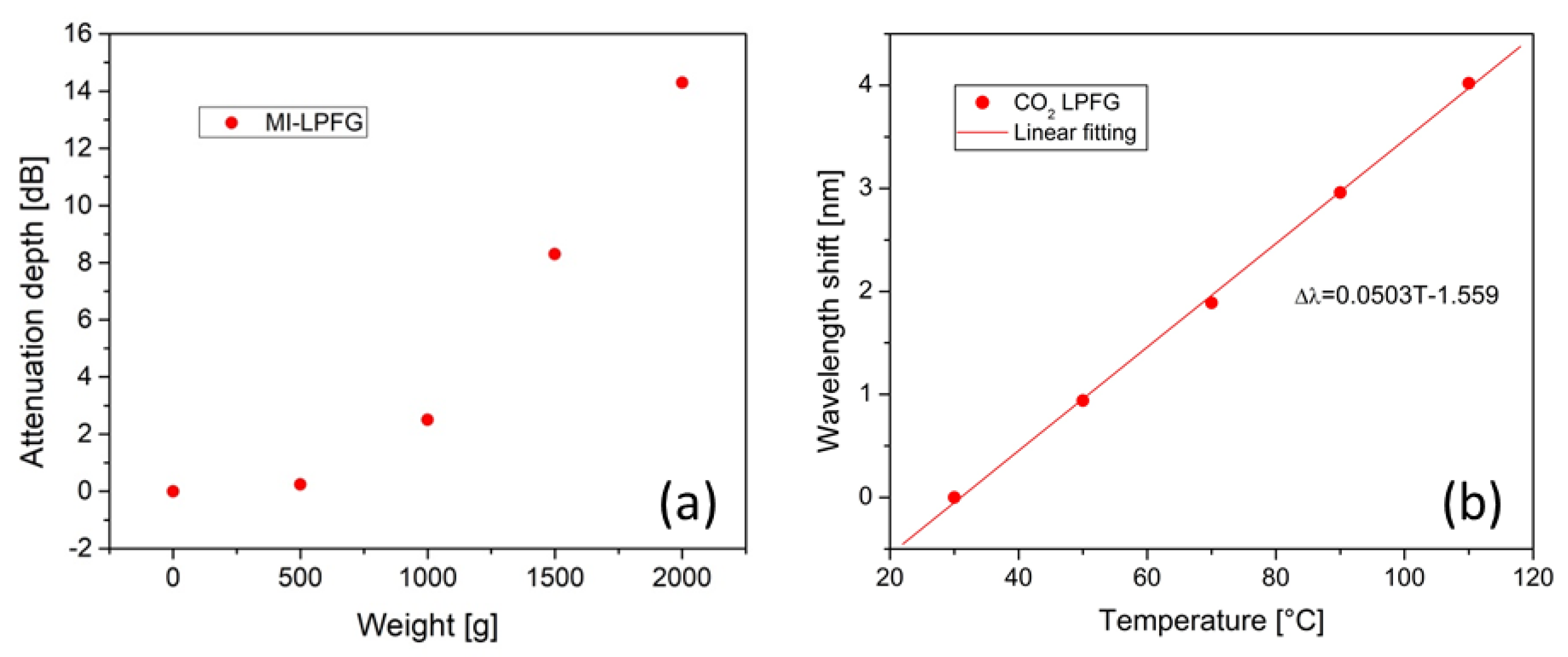

Figure 8. (a) Attenuation depth of MI-LPFG, and (b) wavelength shift of the CO2 LPFG for the simultaneous measurement of transverse load and temperature, respectively.
Figure 8. (a) Attenuation depth of MI-LPFG, and (b) wavelength shift of the CO2 LPFG for the simultaneous measurement of transverse load and temperature, respectively.
Photonics 08 00001 g008

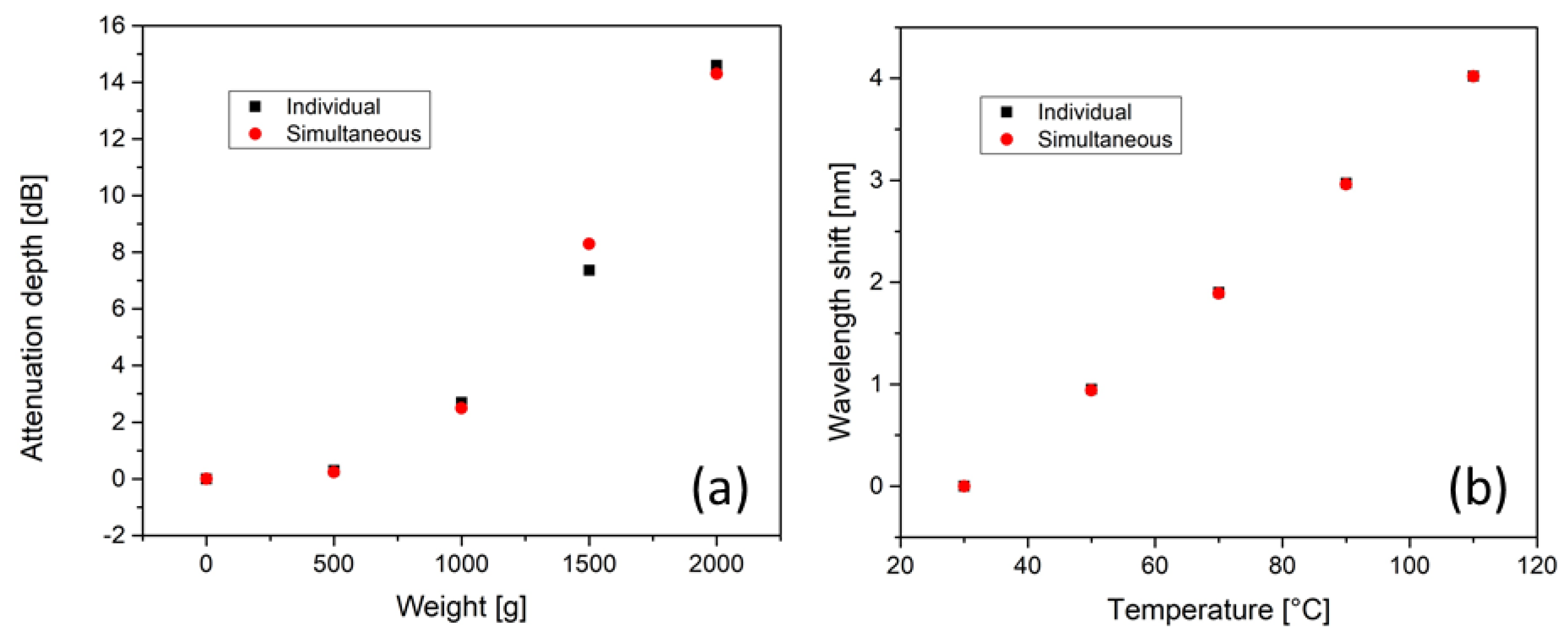

Figure 9. Individual and simultaneous measurement of (a) attenuation depth in the MI-LPFG and (b) wavelength shift in the CO2 LPFG.
Figure 9. Individual and simultaneous measurement of (a) attenuation depth in the MI-LPFG and (b) wavelength shift in the CO2 LPFG.
Photonics 08 00001 g009
