Photonics 2017, 4(2), 35; https://doi.org/10.3390/photonics4020035
Coupling of Surface Plasmon Polariton in Al-Doped ZnO with Fabry-Pérot Resonance for Total Light Absorption
David George 1,†, Murthada Adewole 1,†, Safaa Hassan 1,†, David Lowell 1, Jingbiao Cui 2, Hualiang Zhang 3, Usha Philipose 1
and Yuankun Lin 1,4,*
and Yuankun Lin 1,4,*
1
Department of Physics, University of North Texas, Denton, TX 76203, USA
2
Department of Physics & Materials Science, University of Memphis, Memphis, TN 38152, USA
3
ECE Department, University of Massachusetts Lowell, Lowell, MA 01854, USA
4
Department of Electrical Engineering, University of North Texas, Denton, TX 76203, USA
†
These authors contributed equally to this manuscript.
*
Author to whom correspondence should be addressed.
Received: 18 March 2017 / Revised: 18 April 2017 / Accepted: 24 April 2017 / Published: 27 April 2017
Abstract

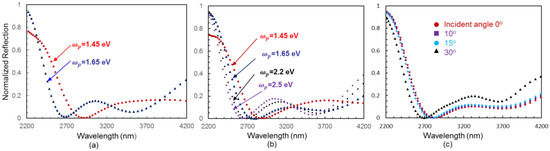

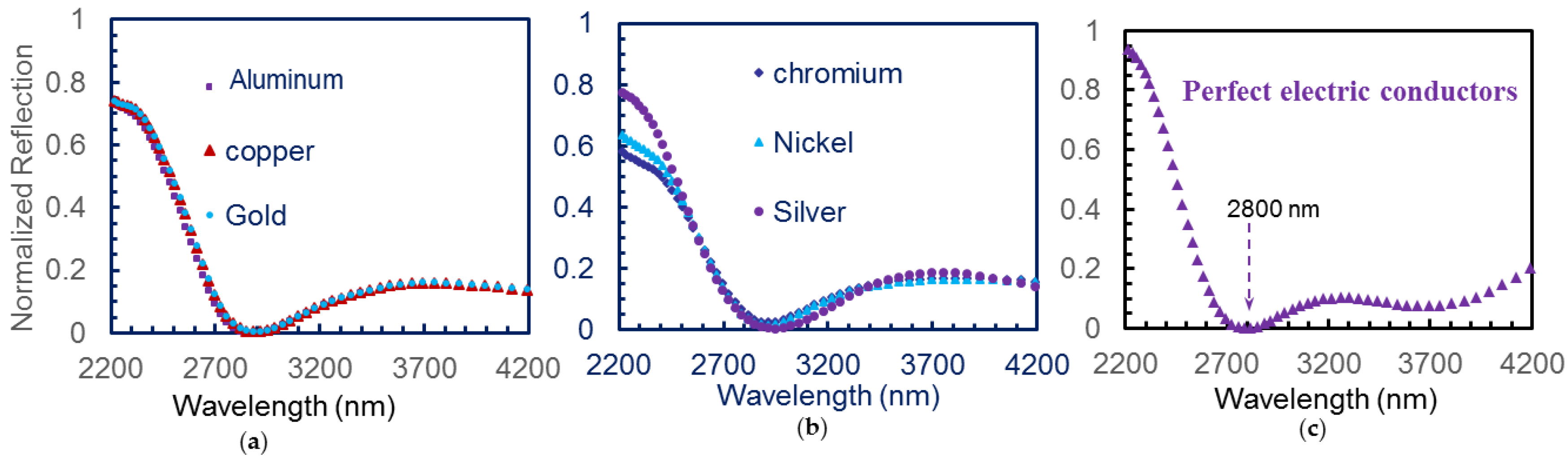

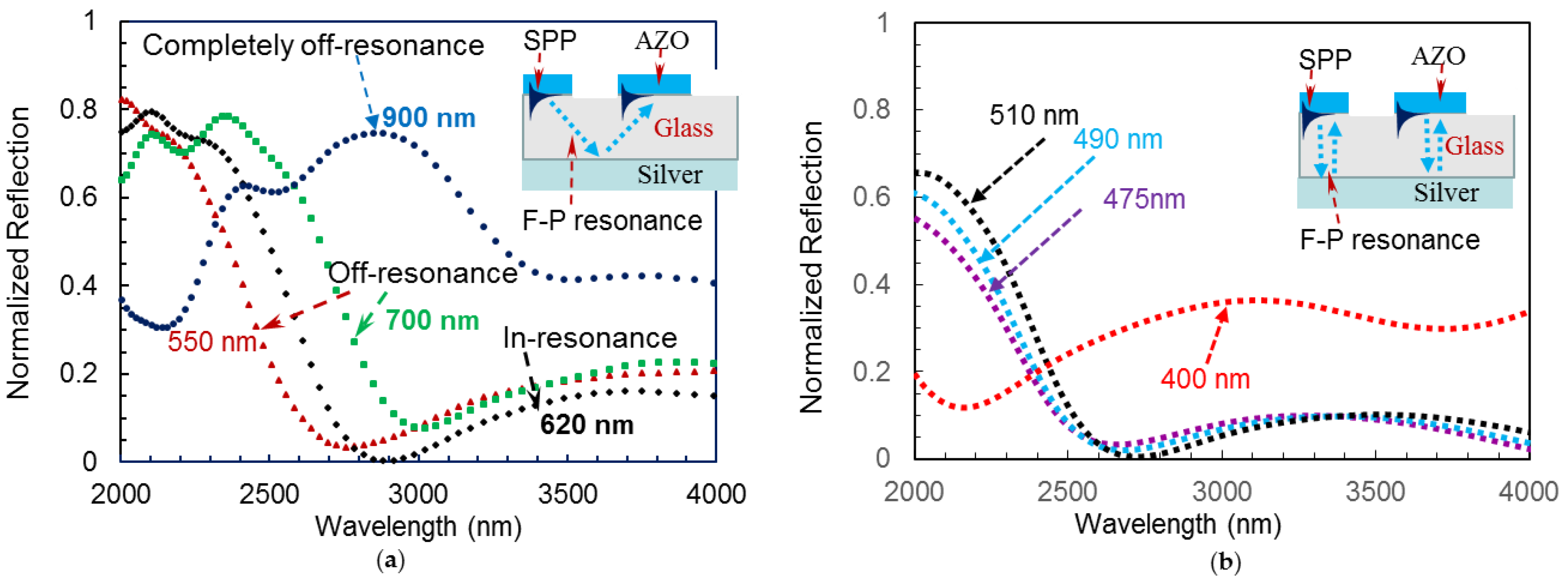

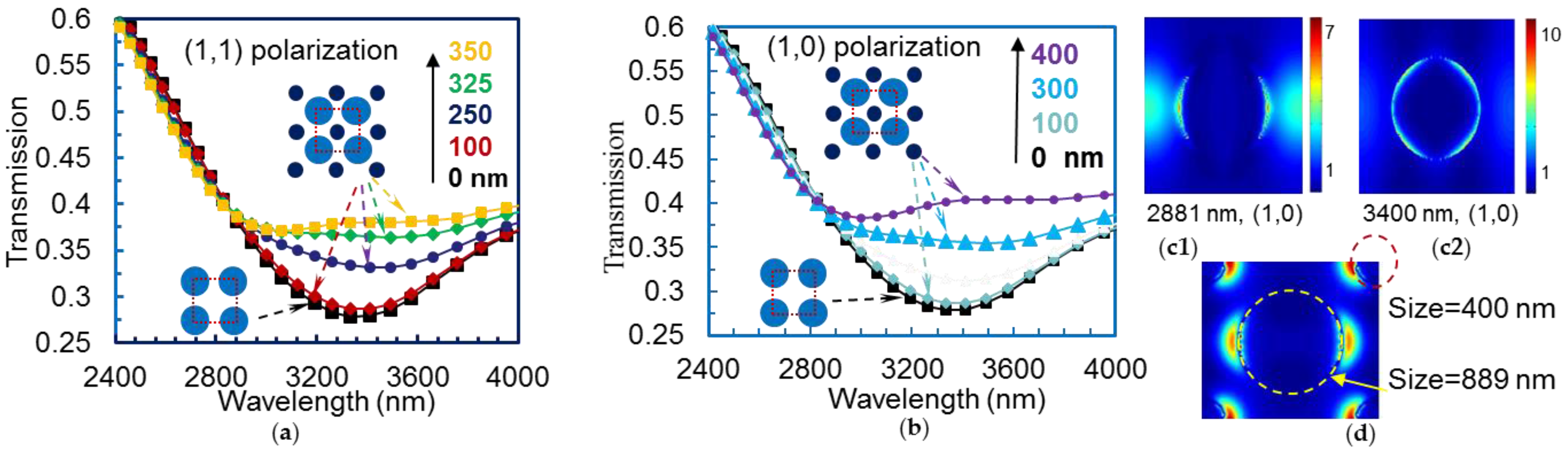

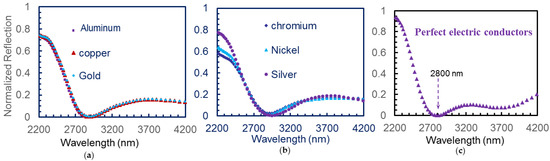

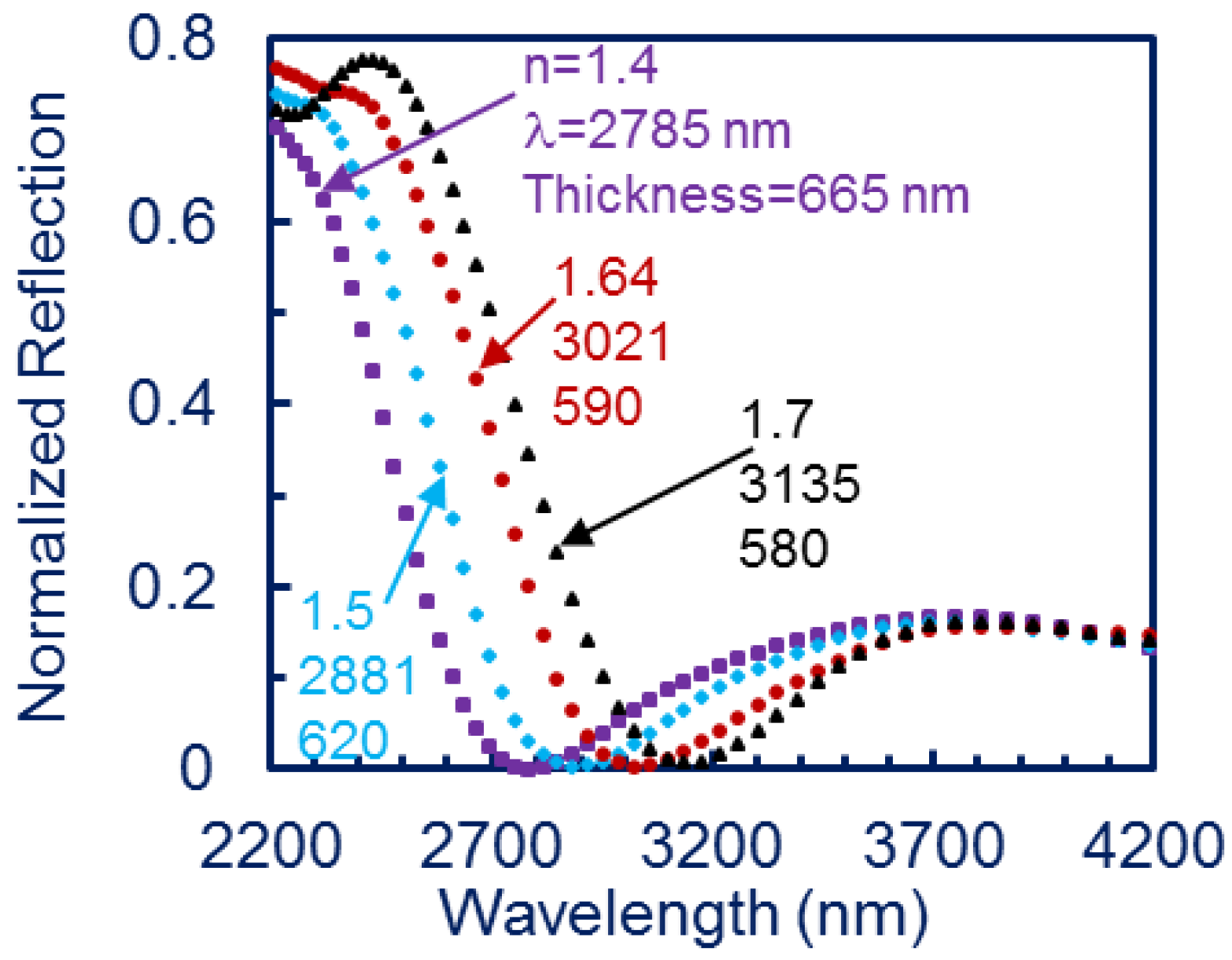

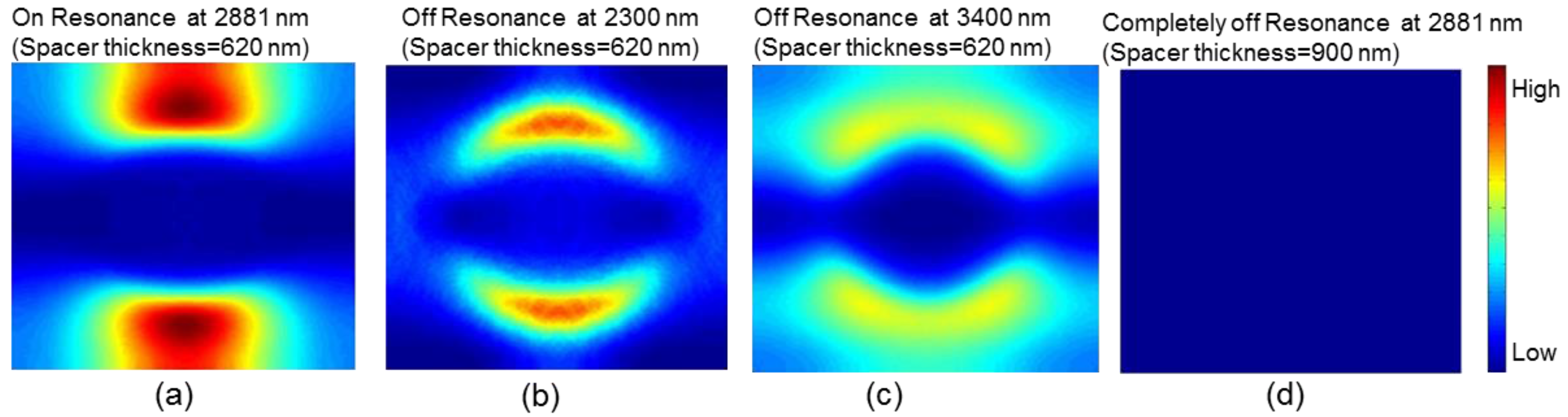

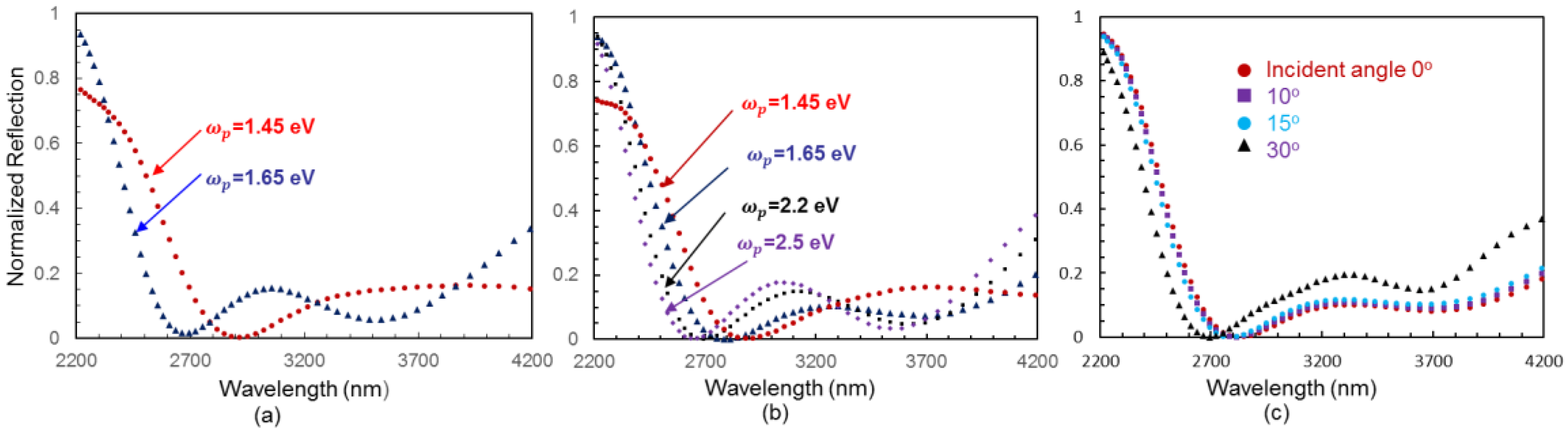

Al-doped ZnO (AZO) can be used as an electrically tunable plasmonic material in the near infrared range. This paper presents finite-difference time-domain (FDTD) simulations on total light absorption (TLA) resulting from the coupling of a surface plasmon polariton (SPP) with Fabry-Pérot (F-P) resonance in a three-layer structure consisting of an AZO square lattice hole array, a spacer, and a layer of silver. Firstly, we identified that the surface plasmon polariton (SPP) that will couple to the F-P resonance because of an SPP standing wave in the (1,0) direction of the square lattice. Two types of coupling between SPP and F-P resonance are observed in the simulations. In order to achieve TLA, an increase in the refractive index of the spacer material leads to a decrease in the thickness of the spacer. Additionally, it is shown that the replacement of silver by other, more cost-effective metals has no significance influence on the TLA condition. It is observed in the simulations that post-fabrication tunability of the TLA wavelength is possible via the electrical tunability of the AZO. Finally, electric field intensity distributions at specific wavelengths are computed to further prove the coupling of SPP with F-P resonance. This work will contribute to the design principle for future device fabrication for TLA applications. View Full-Text
Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
Share & Cite This Article
MDPI and ACS Style
George, D.; Adewole, M.; Hassan, S.; Lowell, D.; Cui, J.; Zhang, H.; Philipose, U.; Lin, Y. Coupling of Surface Plasmon Polariton in Al-Doped ZnO with Fabry-Pérot Resonance for Total Light Absorption. Photonics 2017, 4, 35.
