2.1. Simulation Methods for Combined Perturbations and Evolution Characteristics of the Optical Field
In practical atmospheric environments, various discrete scattering particle systems such as smoke, aerosols, water mist, and dust are widely present. Although these particles differ in composition, size, and spatial distribution, they all adhere to the fundamental physical principles governing the interaction between particles and electromagnetic waves. The model constructed in this study is applicable to various discrete scattering particle systems. In this paper, water mist is employed as the medium for investigating particle effects, utilizing a simple droplet particle model that does not account for multimodal particle size distributions or non-spherical characteristics. Mist particles are assumed to be homogeneous in composition and are thus treated as a monodisperse system; their scattering properties are taken as the superposition of scattering effects from particles with different sizes.
To simulate the beam propagation process under the combined effects of particle scattering and turbulence perturbations, this paper adopts a numerical modeling method that alternately combines the Monte Carlo method and the phase screen method to construct a composite transmission simulation model. When employing the Monte Carlo method, the coordinates and energy of incident photons are first sampled according to the intensity distribution across the beam cross-section, using the rejection method to randomly select coordinate and energy values. Subsequently, based on Mie scattering theory, the direction of motion and energy are randomly altered to simulate photon-particle collisions, while simultaneously recording the scattering positions, energy attenuation, and final exit states. Through multiple sampling and result averaging, the optical field distribution and SI are obtained. Starting from the second segment interval, incident information sampling is performed only for the remaining scattered photons. As phase screens do not change photon coordinates, the spatial positions and energy states of scattered photons at each incidence are consistent with those after transmission through the previous phase screen.
Based on the Huygens–Fresnel principle, the multi-phase screen method is adopted to simulate the phase modulation of the light beam by turbulence. The transmission path is divided into
M segments, and the light field on the receiving plane is obtained by evolving the complex amplitude segment by segment. The inverse spectrum method is adopted to generate random phase screens, whose core principle lies in filtering the Gaussian random process based on the refractive index power spectrum of atmospheric turbulence. In this paper, the Von Karman spectrum is selected to characterize the spatial distribution characteristics of atmospheric turbulence, with its expression given as follows [
22]:
where
is plane wave vector,
,
. In this paper, the light beam propagates along a horizontal path, and
is a constant. Meanwhile, the effects of the inner and outer scales of turbulence on the simulation results are not investigated, and their values are kept constant throughout the process.
The filtering function
is jointly determined by the Von Karman spectrum and the atmospheric coherence length
, where
z is propagation distance,
λ is wavelength, and its form is expressed as follows:
The discrete-form phase screen is obtained by performing the two-dimensional inverse Fourier transform on the filtered Gaussian random process:
where
,
a(
m′,
n′) is complex Gaussian random variable with unit variance,
C is scale factor, and
N is resolution. The square receiving plane is divided into a uniform square grid, where
N denotes the number of grid cells.
In the model shown in

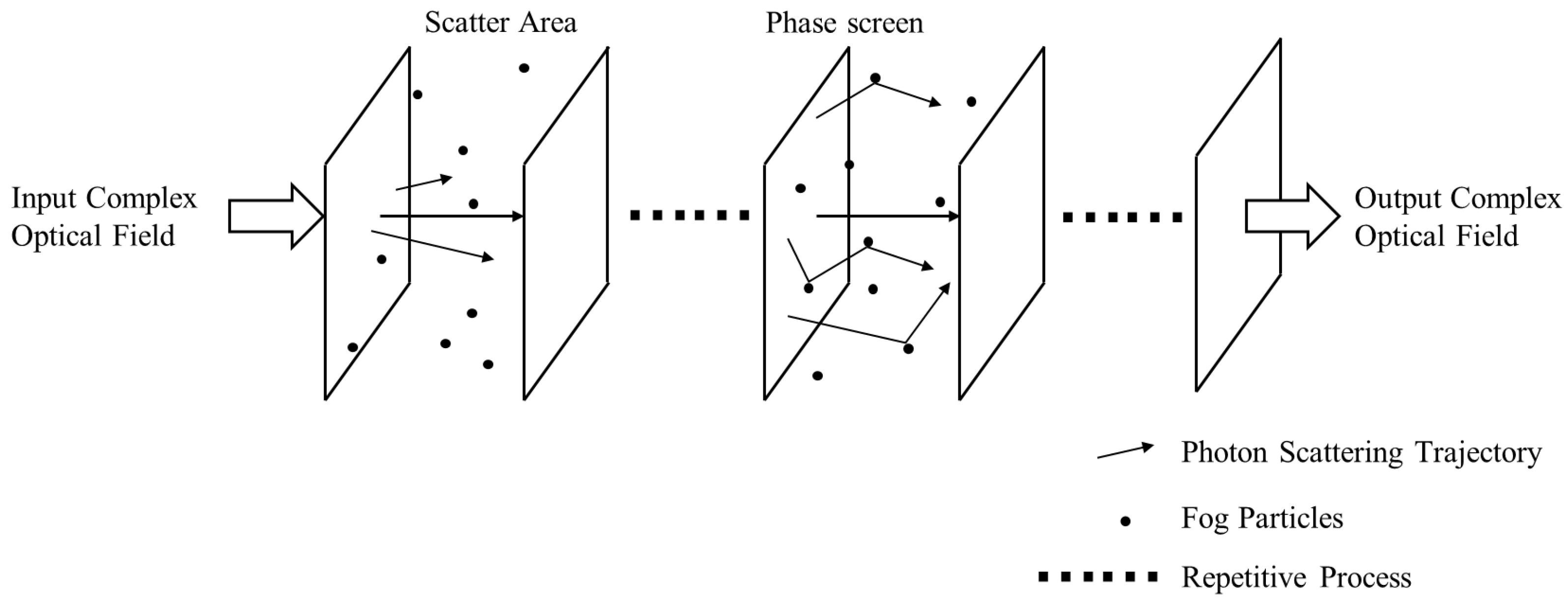

Figure 1, all phase screens are arranged at equal intervals, with their centers aligned along a straight line. The entire transmission path is divided into multiple segments, each of which is simulated sequentially using the combined ‘phase screen method + Monte Carlo method’. The composite simulation model strictly follows the wave optics principle, and the laser beam propagates in the form of a complex optical field throughout the whole process. The specific coupling mechanism between the multi-phase screen turbulence model and MC scattering model in each propagation segment is as follows: The complex optical field first enters the multi-phase screen module in field form, and the phase screen modulates the wavefront of the input optical field according to the atmospheric turbulence refractive index distribution, outputting the phase-modulated complex optical field. Then, the field enters the MC scattering module: the MC method first samples and extracts the incident photon coordinates and initial energy according to the intensity distribution of the input complex optical field, and it simulates the random collision and scattering process between photons and aerosol particles based on Mie scattering theory and radiative transfer theory, while recording the scattering position, energy attenuation and final exit state of each photon in real time. After the MC scattering simulation, the scattered light field (regarded as spherical wave field emitted from scattered particles, with phase and amplitude determined by propagation distance) and the un-scattered transmitted light field are coherently superposed to form the output complex optical field of the current propagation segment. This output optical field then serves as the input optical field of the next propagation segment until the complex optical field propagates to the receiving plane. When the laser field is subjected to these dual disturbances, both its amplitude and phase are simultaneously affected by the random redistribution of energy caused by scattering and the random wavefront distortions induced by turbulence, leading to significant fluctuations. As a core parameter characterizing the intensity of these light fluctuations, SI holds significant engineering application value. Based on this, the present study selects SI as the core quantitative metric, which is expressed as follows [
37,
38]:
where
and
are both local spatial averages of the light intensity. A small square region is selected at the center of the received optical field to calculate the average light intensity, SI, and the intensity ratio between scattered and transmitted light within this area. The side length of the sampling region is set to one-tenth of the beam waist radius, approximately 0.5 mm. Based on the estimation using the Gaussian intensity distribution formula, the intensity attenuation caused by the beam’s radial distribution within this region is less than 3%. Therefore, fluctuations in the incident light intensity are considered negligible, effectively eliminating the interference of the beam’s inherent intensity gradient on the local fluctuation characteristics.
To verify the self-consistency and physical rationality of the proposed coupled MC–multi-phase screen model, limiting case analysis is carried out in this study. When the visibility approaches infinity (scattering effect is negligible), the model is reduced to the classic multi-phase screen turbulence model, and the calculated SI is consistent with the classic turbulence scintillation results; when the Rytov variance is 0 (turbulence effect is negligible), the model is simplified to the pure MC scattering model, and the simulation results of transmittance and SI match the theoretical predictions of Mie scattering and radiative transfer theory. The limiting case analysis confirms the physical soundness of the coupled model, laying a solid foundation for the reliability of the subsequent simulation results.
Based on the fog classification standard of the China Meteorological Administration, the visibility values set in this study cover typical conditions such as light fog, dense fog, and thick fog, with visibility
V corresponding to 200 m, 500 m, and 1000 m, respectively. The turbulence intensity includes three typical regimes: weak turbulence, moderate turbulence, and strong turbulence, with Rytov variances
= 0.1, 1, 10, respectively [
39]. The number of phase screens is determined under the condition that the propagation between successive screens remains in the weak-fluctuation regime
[
40]; the screen spacing must also satisfy the Fresnel-scale requirement
[
41]. When the total propagation distance is extended, additional phase screen modules can be simply added while keeping the screen spacing unchanged. Consequently, the inter-screen spacing is set to 80 m, and a total of 12 phase screens are employed, resulting in a total propagation length of 960 m. In this paper, without special annotation in figures, parameters are selected as
Table 1. All the above simulation specifications are essential for this study: they ensure the numerical accuracy and statistical stability of the coupled MC–multi-phase screen model, conform to actual atmospheric propagation characteristics, and enable a focused analysis of the core dynamic coupling mechanism between particle scattering and atmospheric turbulence without redundant parameter interference.

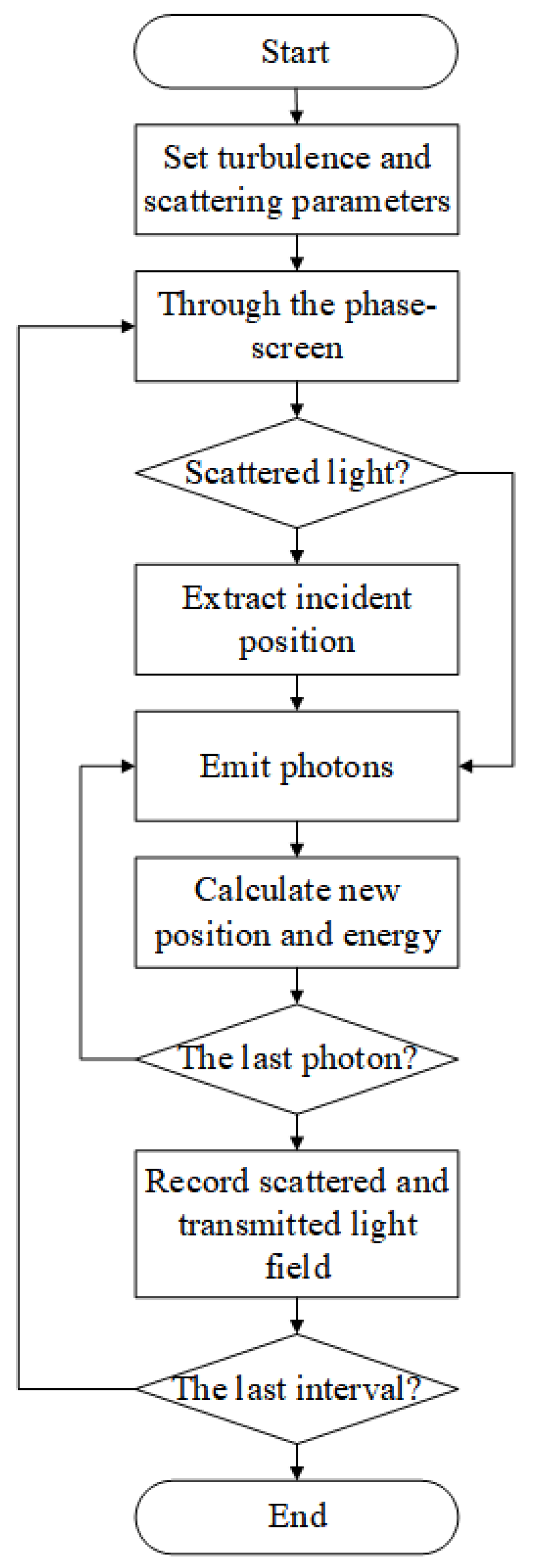

According to the process shown in
Figure 2,

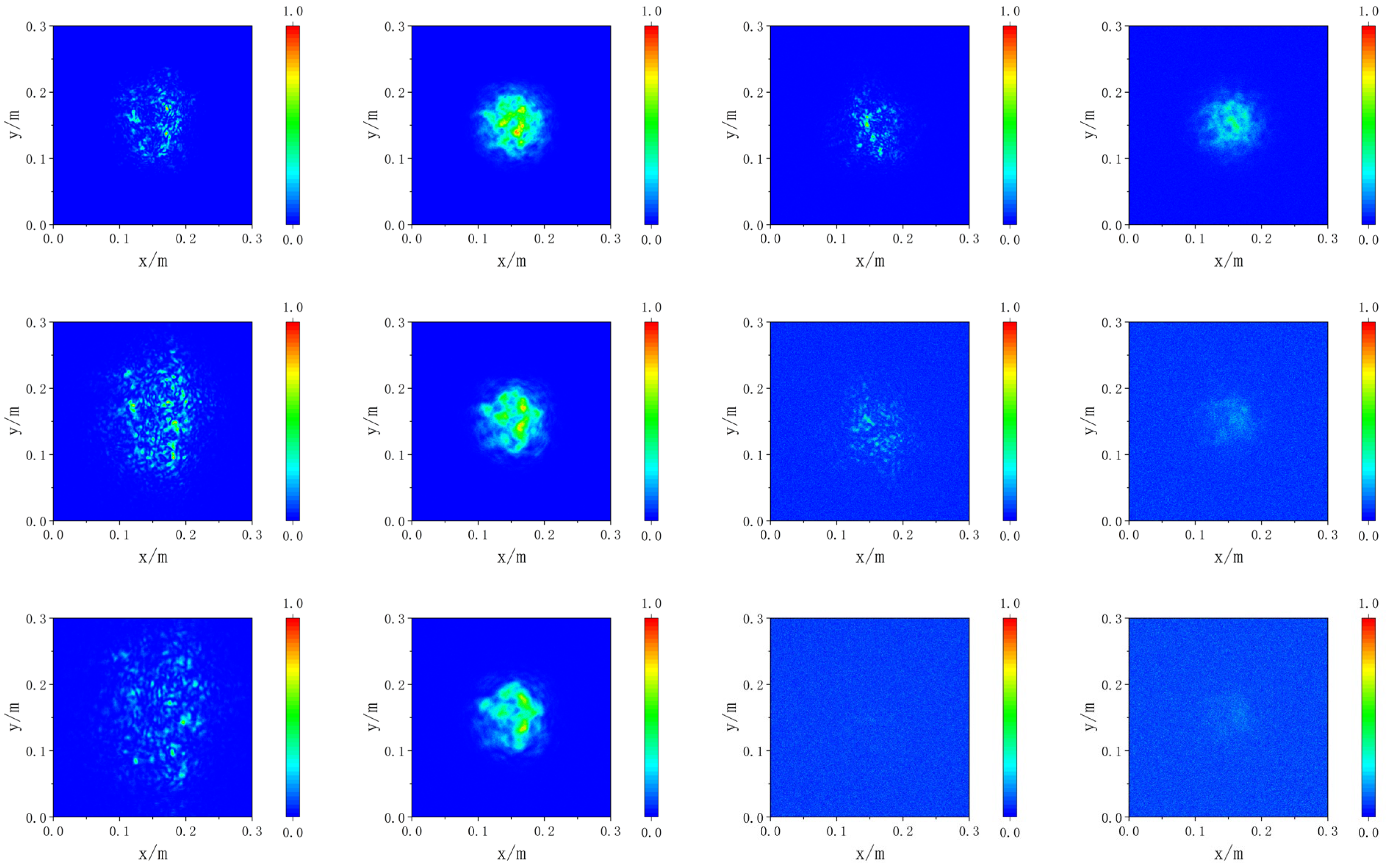

Figure 3 illustrates the evolution of optical field intensity distribution with propagation distance under different conditions. Under the condition of weak scattering and strong turbulence, the optical field exhibits noticeable random scintillation characteristics as distance increases, with significant intensity fluctuations at the center of the spot. Under the condition of strong scattering and weak turbulence, the optical field demonstrates uniform energy attenuation and blurring, where turbulence-induced scintillation is suppressed by scattering effects, resulting in a smoother spot profile. Under the condition of comparable scattering and turbulence, the optical field simultaneously exhibits both energy attenuation from scattering and fluctuation modulation from turbulence, presenting a unique distribution pattern characterized by coupled attenuation and fluctuation behavior.

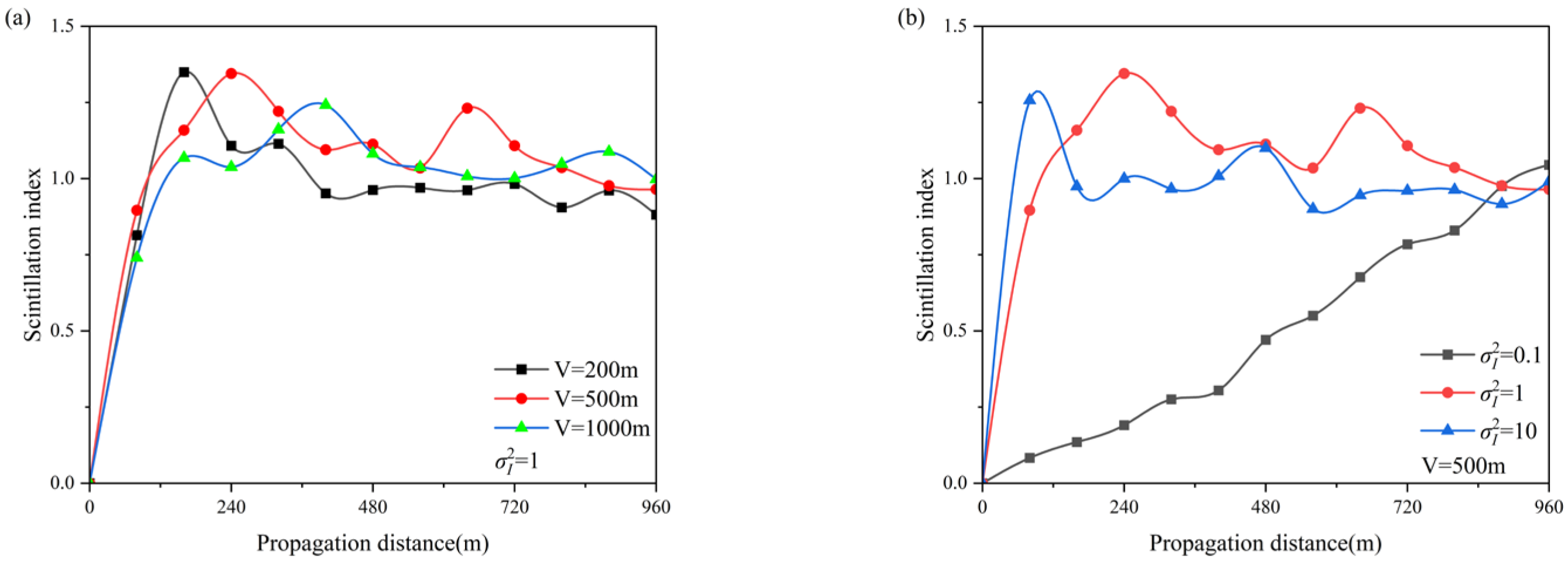

Composite SIs are shown in
Figure 4. In
Figure 4a, the growth rate of the curve initially increases and then decreases, with lower visibility leading to a more pronounced change in the growth rate. In
Figure 4b, under strong turbulence, SI first rises and then falls with increasing propagation distance, which originates from the dynamic competition mechanism between turbulence and scattering. The physical essence of the non-monotonic evolution of composite SIs lies in the dynamic transformation of the dominant factor of optical field intensity fluctuations during propagation: In the early propagation stage, the energy of the transmitted light field is dominant, and the random phase distortion caused by atmospheric turbulence leads to the disordered superposition of the optical field wavefront, which intensifies the local constructive and destructive interference of the light field and thus significantly increases the SI. With the increase in propagation distance, the continuous scattering of aerosol particles depletes the energy of the transmitted light, and the scattered light field with statistical stationarity gradually becomes the main component of the composite light field. The scattered photons follow the Poisson distribution in spatial intensity distribution, and the variance of the intensity fluctuation is equal to the mean value, which makes the SI tend to be stable and converge to 1. In addition, the mutual modulation between scattering and turbulence further amplifies this evolution characteristic: turbulence distorts the photon propagation path, which changes the scattering probability of particles and the energy distribution of scattered light; scattering reduces the energy of the transmitted light field, which weakens the modulation effect of turbulence on the main light field, forming a bidirectional coupling regulation of the scintillation behavior.
Visibility and turbulence intensity regulate the composite SI evolution by changing the energy balance between scattered and transmitted light and the degree of optical field wavefront distortion, respectively. For different visibility conditions, lower visibility means higher aerosol particle number density and stronger scattering effect, which accelerates the energy attenuation of the transmitted light field and makes the scattered light field become dominant in a shorter propagation distance. Thus, the SI peak appears earlier and the peak value is smaller. Higher visibility weakens the scattering effect, the transmitted light field maintains the energy advantage for a longer time, and the turbulence perturbation can be fully developed, leading to a higher SI peak and a later occurrence position. For different turbulence intensity conditions, stronger turbulence leads to more severe random phase distortion of the optical field, which significantly enhances the interference fluctuation of the transmitted light field in the early propagation stage and thus increases the SI peak value; at the same time, strong turbulence accelerates the energy dissipation of the transmitted light field through path deflection, making the scattered light field dominant in advance, so the SI peak appears earlier. The synergistic regulation of the two factors forms the diverse evolution characteristics of composite SI under different atmospheric conditions.

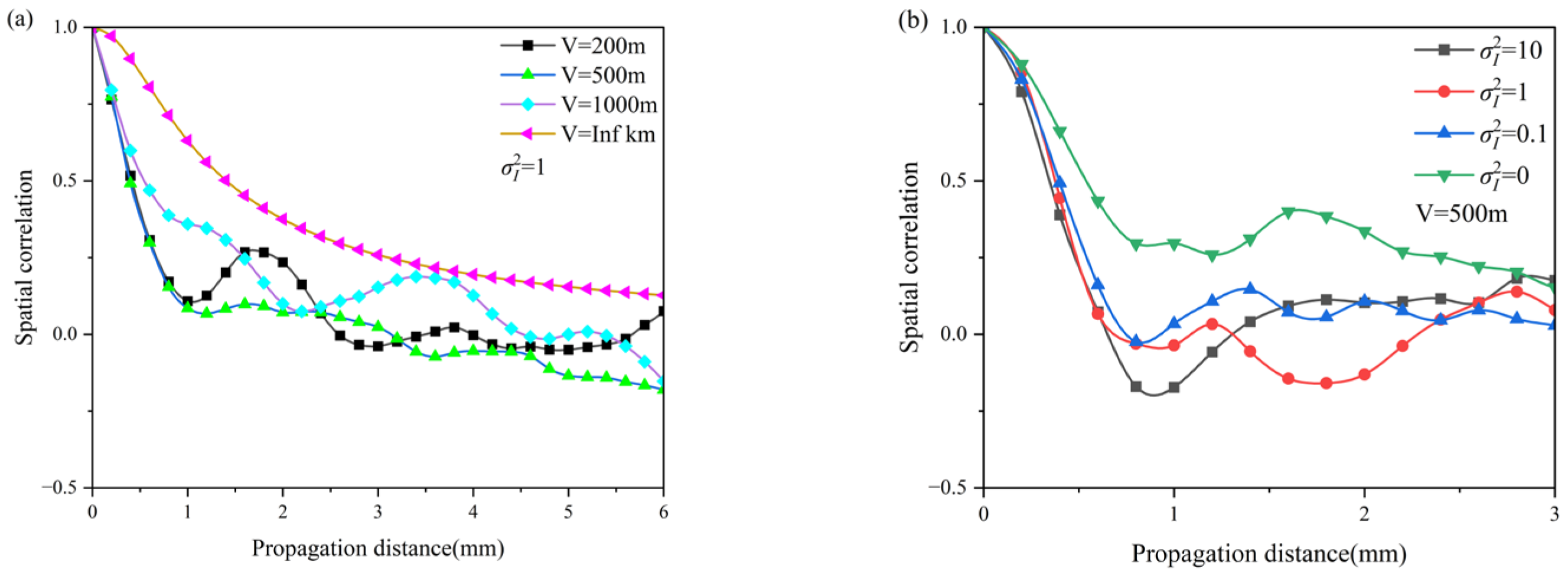

By continuously moving the position of the square sampling region on the receiving plane, the variation curve of spatial correlation is obtained, as shown in
Figure 5. All curves exhibit a two-stage characteristic: an initial sharp decline followed by a relatively moderate decrease. The first stage of sharp decline is primarily dominated by short-range intense turbulence disturbances, where the rapid wavefront distortion caused by turbulence leads to a swift breakdown of coherence within small spatial scales. The more gradual decline in the second stage reflects the long-range statistical effects of scattering, as the random distribution of scattered photons exhibits a smoother influence over larger spatial scales. The final stabilized values of some curves are greater than zero, and this value gradually decreases as visibility decreases or turbulence intensity increases, due to the residual coherence in the optical field that is never entirely destroyed. Overall, lower visibility or higher turbulence intensity leads to a faster decay in the spatial correlation of the optical field. High particle concentrations along the propagation path increase the probability of photon-particle collisions, altering the direction of a large number of photons. The random motion of scattered photons breaks the intensity correlation of the originally spatially coherent optical field at different spatial positions. Turbulence causes an irregular spatial distribution of atmospheric refractive index, imposing random phase distortions on the optical field and thereby disrupting its spatial coherence.
2.2. Light Intensity Ratio and Its Relationship with SI
The two simulation methods influence the amplitude, phase, and energy distribution of scattered and transmitted light through different mechanisms. Therefore, the relative variation between the scattered and transmitted components of a Gaussian beam during propagation is a key factor leading to changes in the beam’s transmission characteristics under perturbations. This relative variation between scattered and transmitted light can be characterized by their intensity ratio, which is defined as
where
Is is the scattered light intensity and
It is the transmitted light intensity. The transmittance at different distances under varying visibility conditions is shown in
Figure 6. The variation curve of
r is presented in
Figure 7.

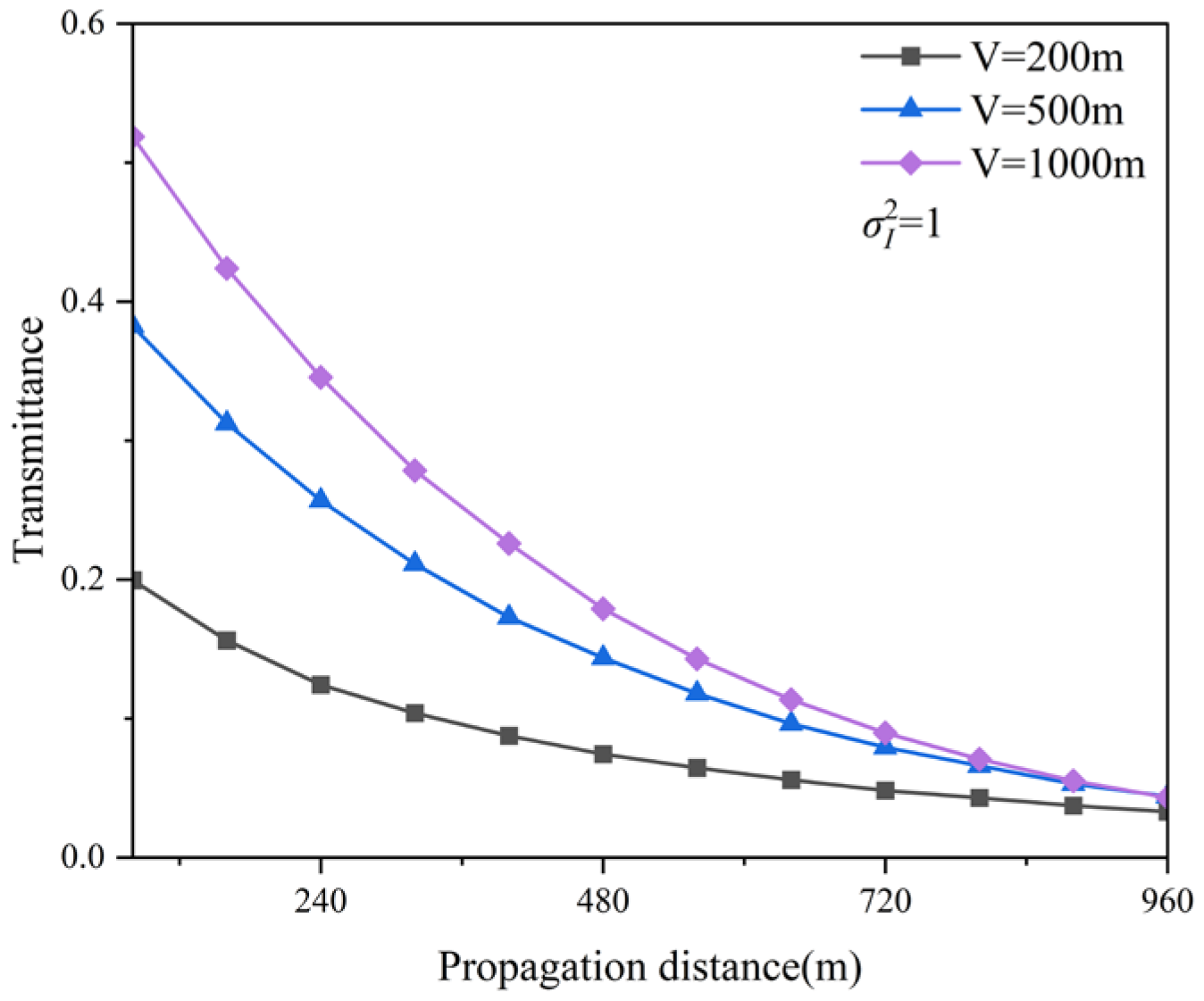

From
Figure 6, it can be observed that as the transmission distance increases, the transmittance under all visibility conditions shows a continuous declining trend. Especially when the transmission distance approaches 960 m, the transmittance has dropped to an extremely low level, indicating that the energy proportion of the transmitted light is negligible at this point. The attenuation is essentially determined by the scattering optical thickness
τ, and its relationship with visibility is given by
. Simulation results reveal that the transmittance under combined perturbations deviates from the theoretical value for pure scattering. This discrepancy arises from the modulation of photon paths by turbulent phase perturbations: some photons that initially deviate from the detection region are redirected and recollected due to turbulence-induced deflection, while some focused photons are scattered out of the detection field by turbulence. This visually demonstrates the coupling effect between scattering and turbulence.

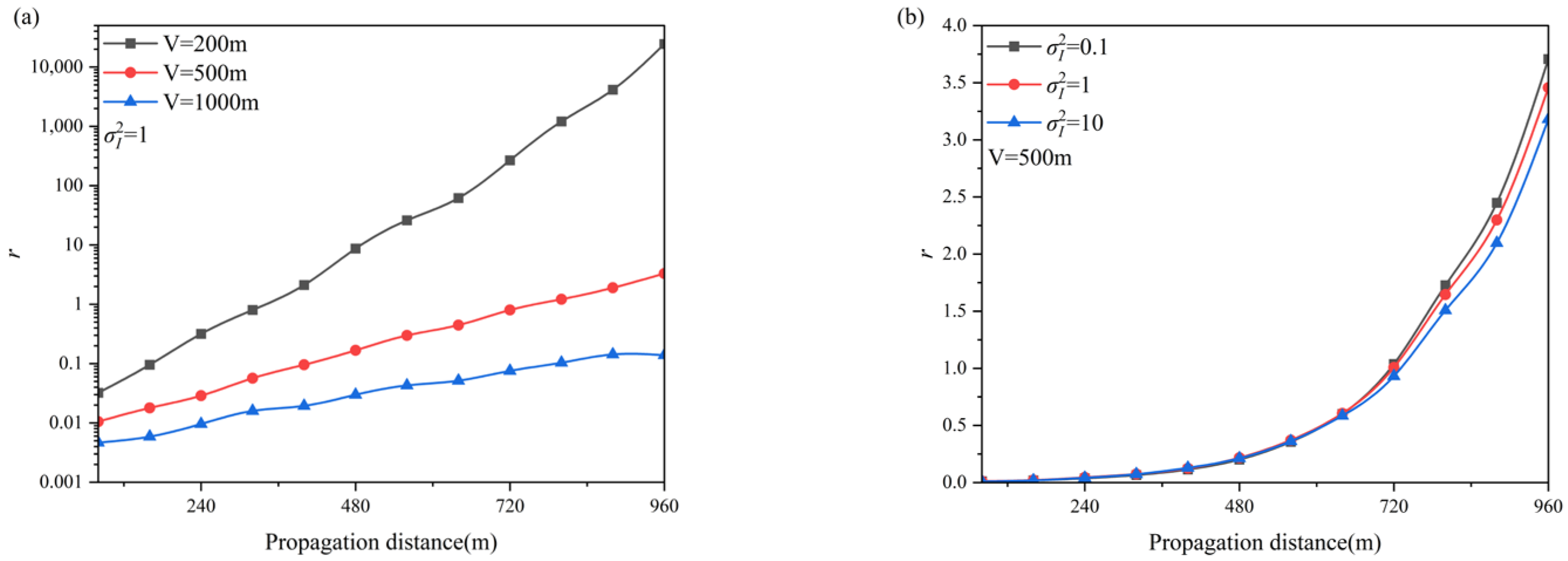

From
Figure 7, it can be seen that both visibility and turbulence intensity significantly regulate the light intensity ratio. Under low visibility,
r increases logarithmically; under high visibility, the scattering effect of particles is weak, and
r grows slowly. Compared with
Figure 6, when the transmittance is extremely low, the energy of the transmitted light approaches zero. The relative proportion of scattered light energy causes
r to become extremely large due to the sharp decrease in transmitted light energy. At this point,
r can no longer effectively reflect the relationship between the scattered and transmitted optical fields, and its reference significance is limited. The differences in the variation in
r under different visibility conditions stem from the high particle density under low visibility, where scattering consumes the energy of transmitted light more intensely, leading to an exponential increase in the relative proportion of scattered light intensity. Under high visibility, particles are sparse, the energy consumption effect of scattering is weak, and the energy advantage of transmitted light is maintained over a longer period. The greater the turbulence intensity, the stronger its effect on the phase distortion and energy dissipation of transmitted light, indirectly accelerating the energy conversion from transmitted light to scattered light, thereby making the relative proportion of scattered light intensity increase more significantly.
To investigate how
r affects the variation in the composite SI, we start from the definition of SI and derive a calculation formula that includes
r. Based on the uncorrelated superposition of the scattered and transmitted fields, the composite SI can be expressed as
where
and
are the local spatial average intensities of the scattered and transmitted light, respectively.
For the scattered light
SIs = var(
Is)/
μs and for the transmitted light
SIt = var(
It)/
μt. Substituting these into the above equation yields
Substituting
r into Equation (7), we finally obtain the method to calculate the composite SI using only information from the scattered and transmitted fields:

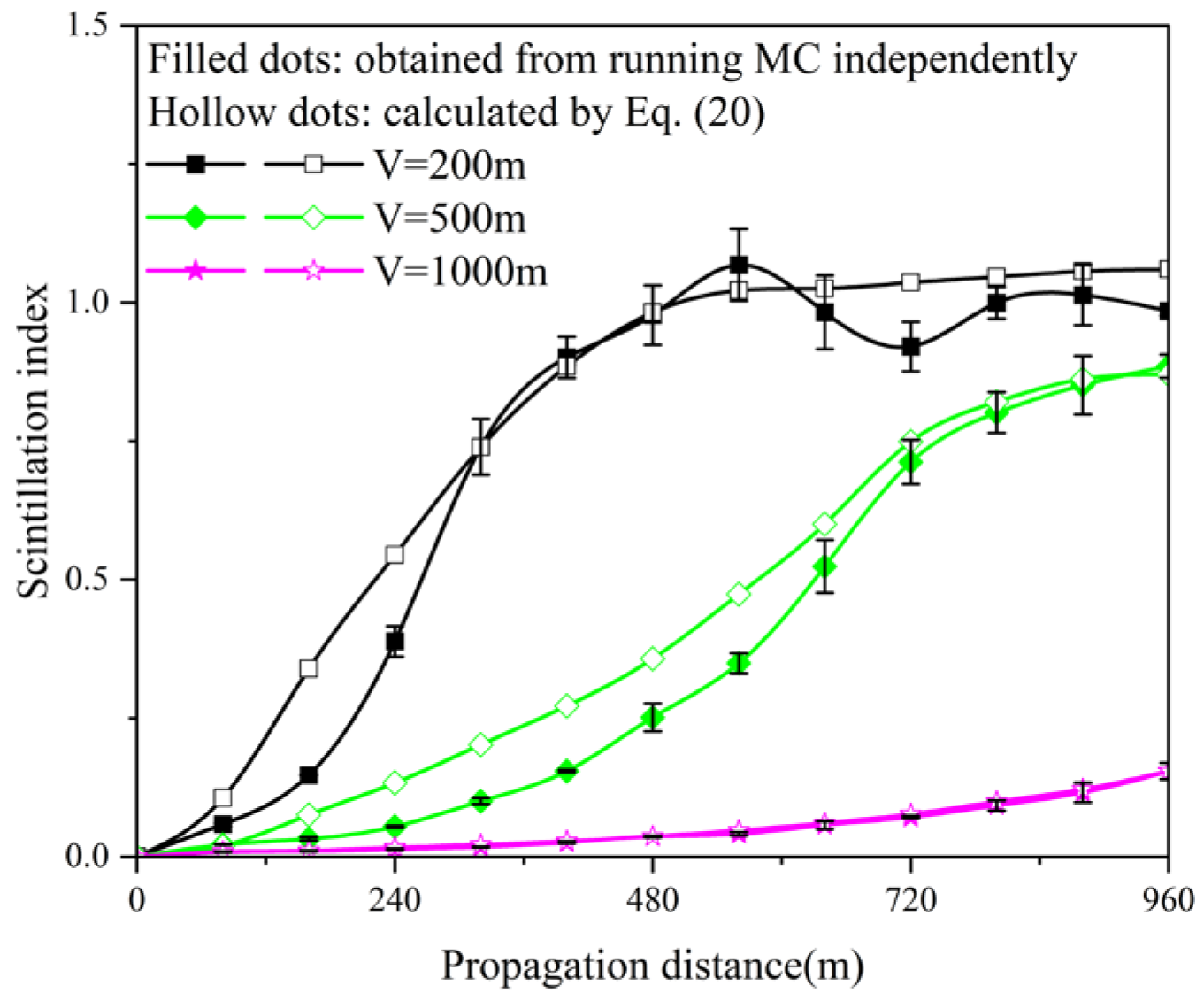

Comparing the results calculated by Equation (7) with those presented in
Figure 4 yields the difference between the two methods, as illustrated in
Figure 8.

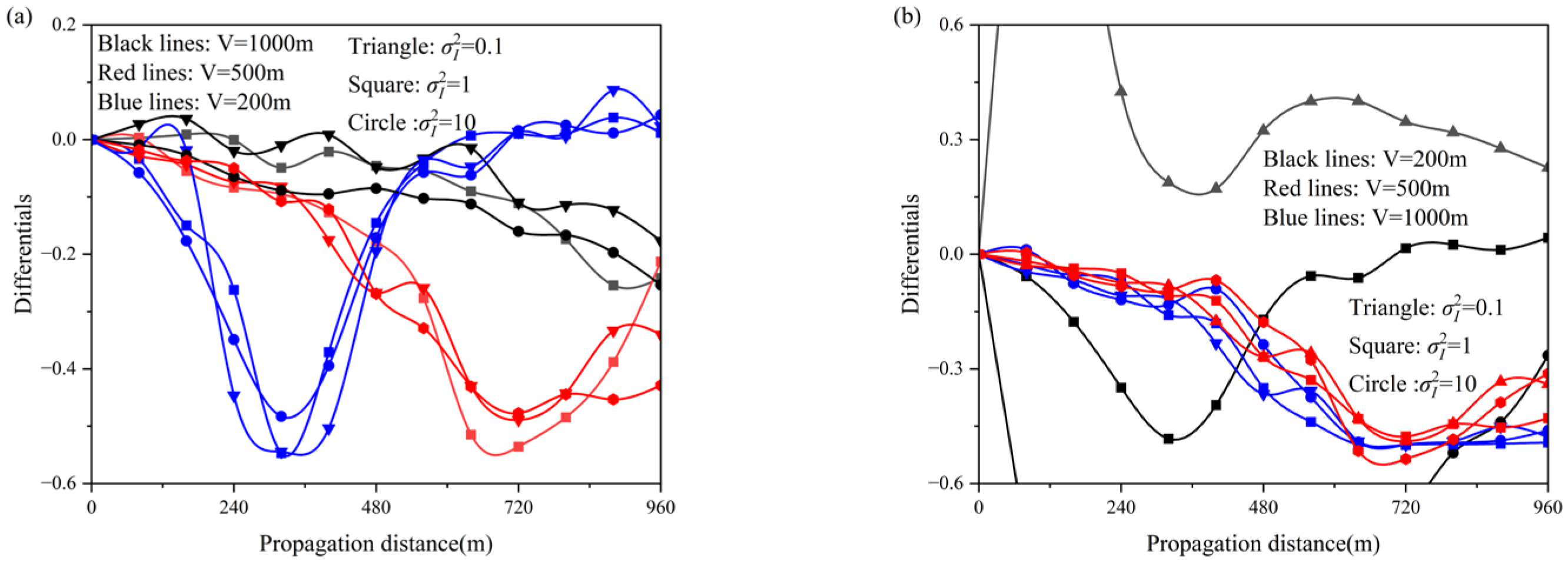

From
Figure 8a, it can be observed that the maximum/minimum values, extreme points, and periods of each differential curve are different, showing a clear periodic fluctuation characteristic that aligns with the shape of a sinusoidal function. The curve characteristics are related to visibility: the extreme points shift backward as visibility increases, the period increases with visibility, and the amplitude is around 0.5. Therefore, a sinusoidal compensation term is constructed, with visibility and propagation distance as variables. It is observed that the half-period is
V/100 + 2. Allowing for a certain error margin, each curve has a phase shift, calculated to be 8
V/1000. Thus, the final constructed compensation term is
From
Figure 8b, it can be seen that the differential curves exhibit a concentrated trend, showing a monotonic change similar to a logarithmic function. Therefore, a logarithmic compensation term is constructed as
To fully characterize the deviation characteristics, we supplement the simulation analysis of all 9 combinations of visibility and Rytov variance. From the full set of deviation data, we summarize two typical and stable trends: the deviation curves along the visibility dimension maintain regular sinusoidal fluctuations under V ≥ 500 m, while the deviation curves along the turbulence intensity dimension present stable monotonic logarithmic variation under all visibility conditions. However, the deviation data under V = 200 m lose the above regular characteristics and show severe irregular fluctuations, and direct numerical simulation of the coupled MC-multi-phase screen model is still required to obtain reliable composite SI results. The deep physical mechanisms underlying the specific sinusoidal and logarithmic deviation trends summarized from the data remain to be further investigated—this is due to the complex nonlinear coupling between aerosol multiple scattering, turbulence phase modulation, and coherent optical field interference in the atmospheric channel, which involves the joint action of multiple microscopic physical processes that need more refined modeling to explore.

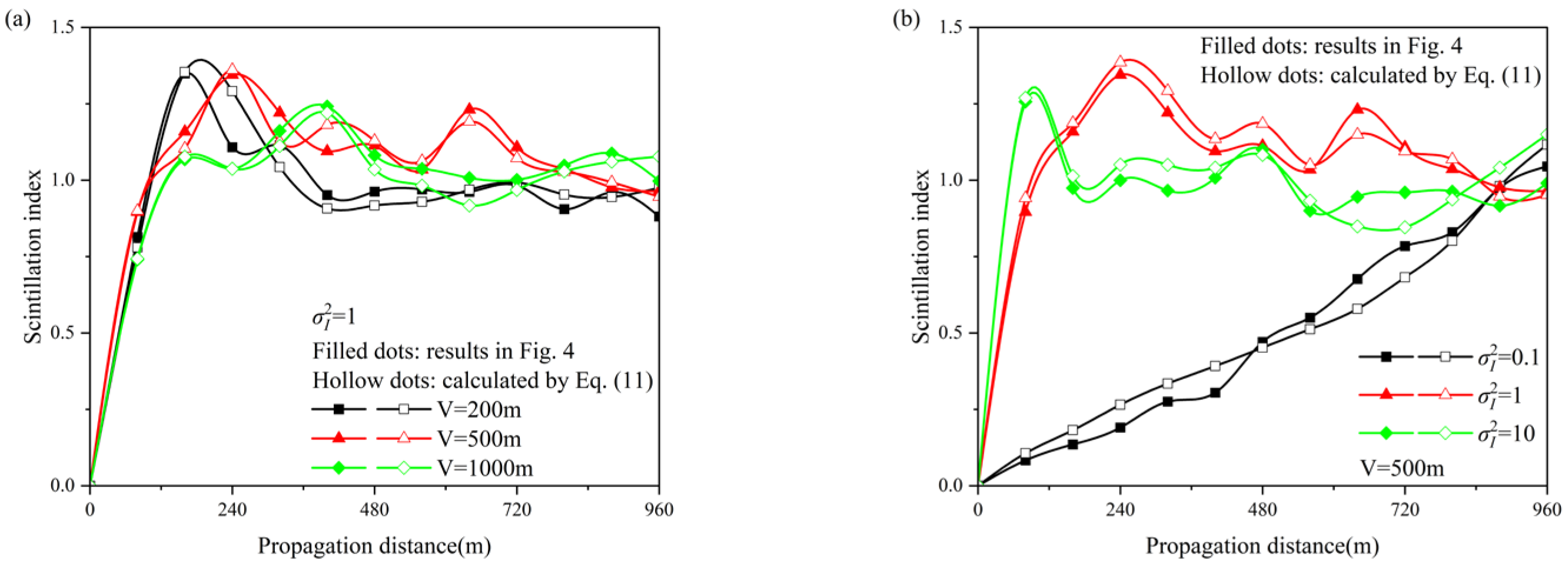

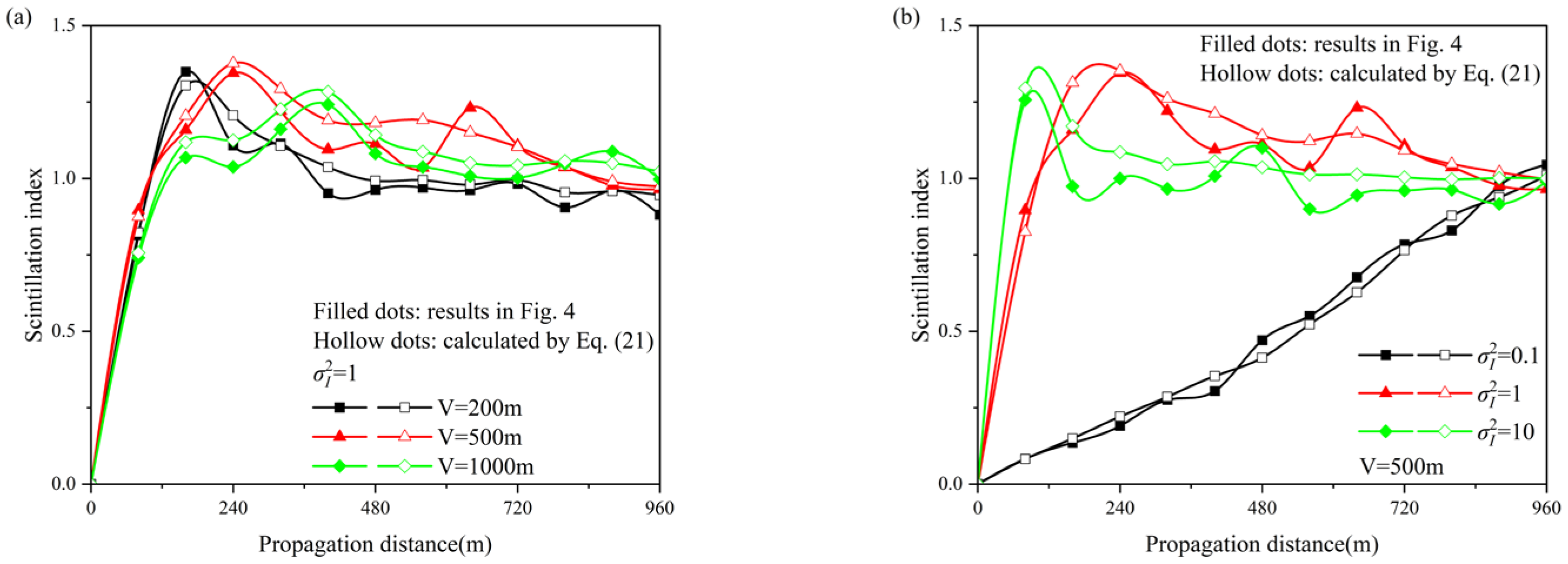

The compensation terms are added to SI calculated from the intensity ratio of scattered to transmitted light, yielding the coupled SI, as shown in
Figure 9.
As can be seen from the figure, the coupled results are in close agreement with the composite simulation results. During the simulation process, inevitable light intensity variations within a finite region introduce additional SI. The difference along the visibility dimension exhibits periodic fluctuations, consistent with a sinusoidal function shape, due to the periodic nature of phase interference between scattered and transmitted light. The difference along the turbulence intensity dimension shows a monotonic variation, aligning with a logarithmic function shape, owing to the cumulative effects of energy dissipation caused by turbulence and the associated quantization errors.
