Spectral-Kinetic Characterization of YF3: Eu3+ and YF3: (Eu3+, Nd3+) Nanoparticles for Optical Temperature Sensing
Abstract
:1. Introduction
- synthesis and physicochemical characterization of the samples (size, morphology, and phase composition);
- spectral-kinetic characterization to choose optimal Eu3+ and Nd3+ concentrations;
- spectral-kinetic characterization in order to understand the influence of the annealing procedure on spectral-kinetic characteristics; and
- the calculation of Sa and Sr.
2. Materials and Methods
2.1. Physicochemical Characterization of the Nanoparticles
2.2. Temperature-Dependent Spectral-Kinetic Characterization of the Nanoparticles
3. Results and Discussion

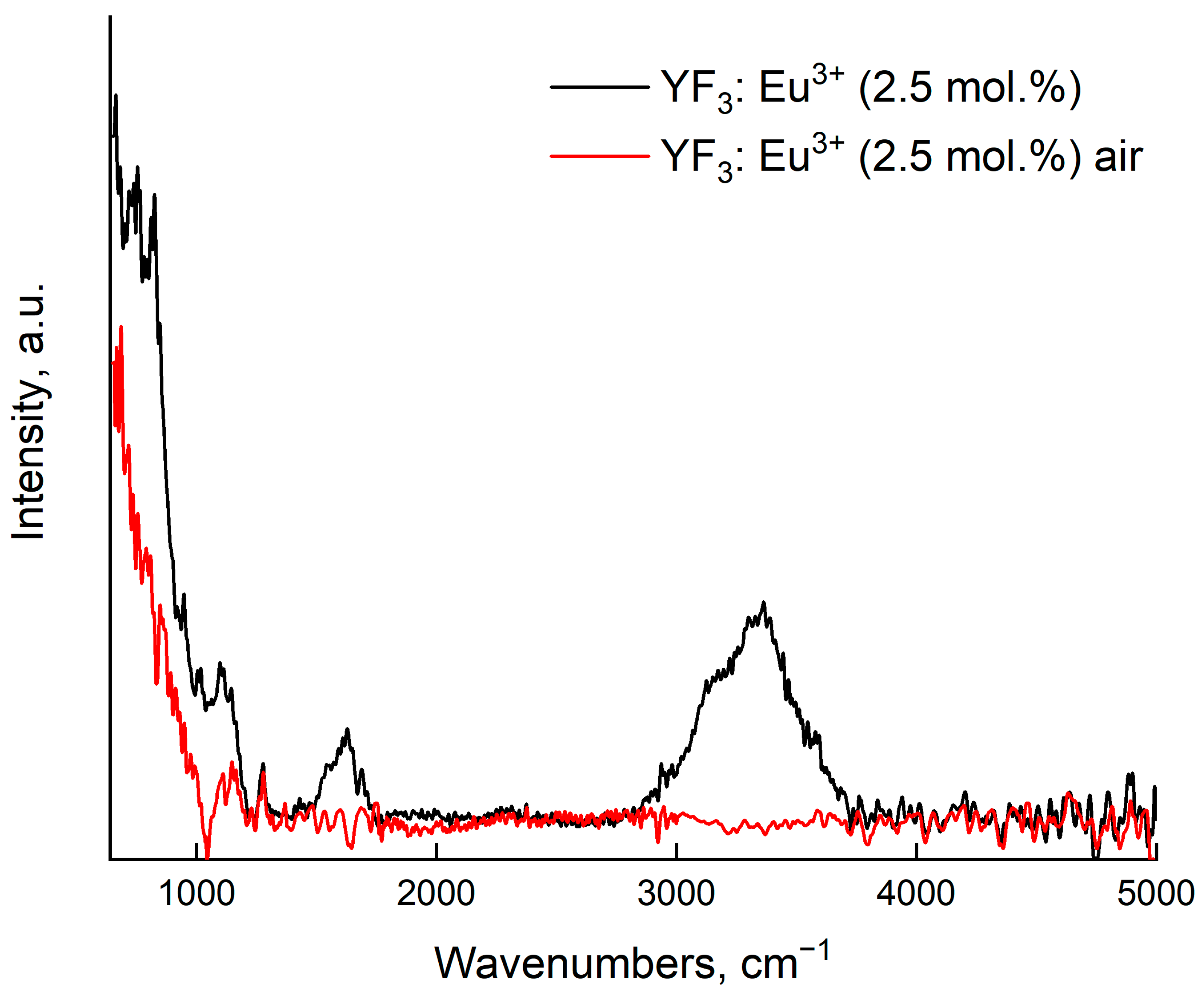

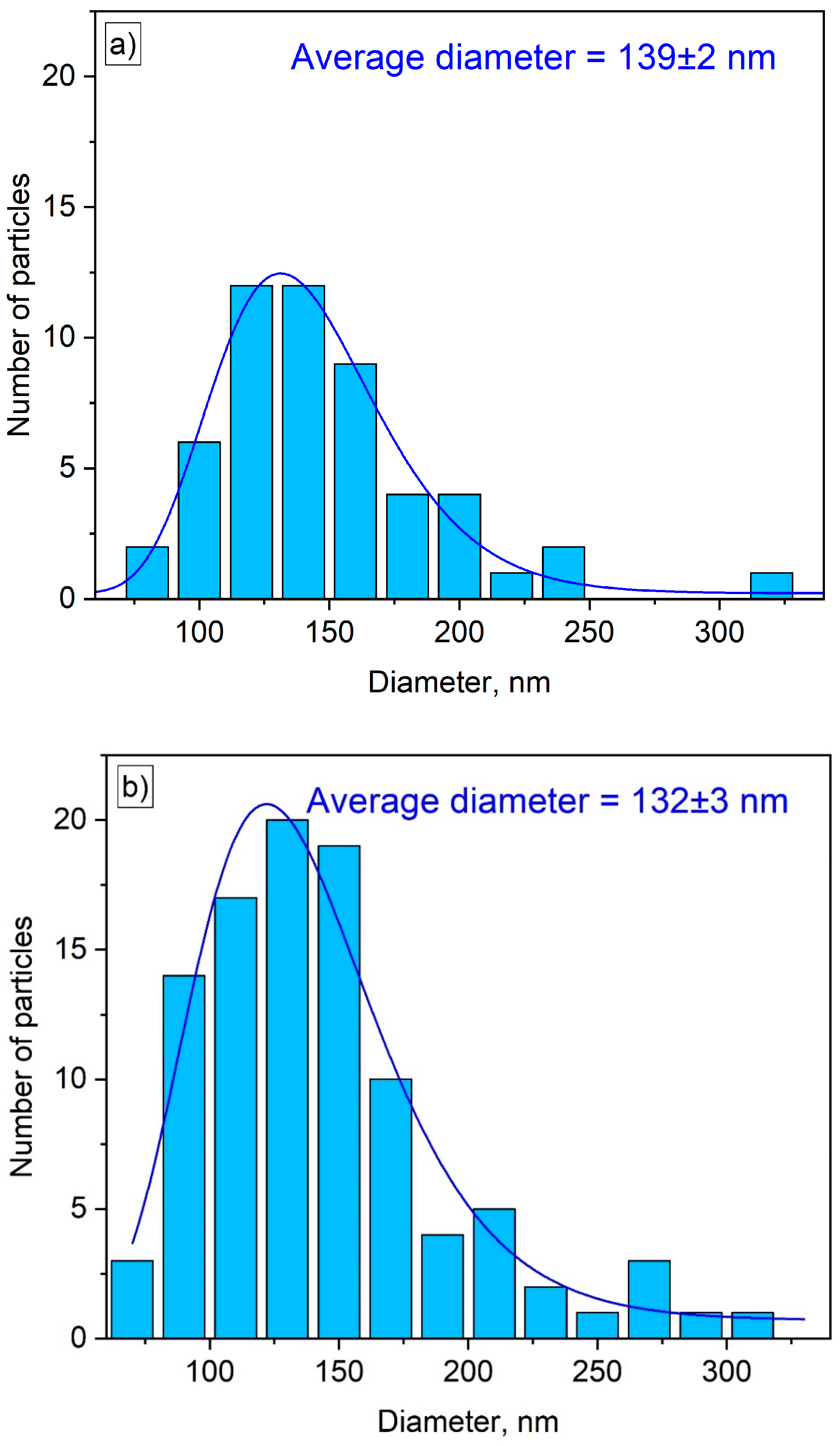

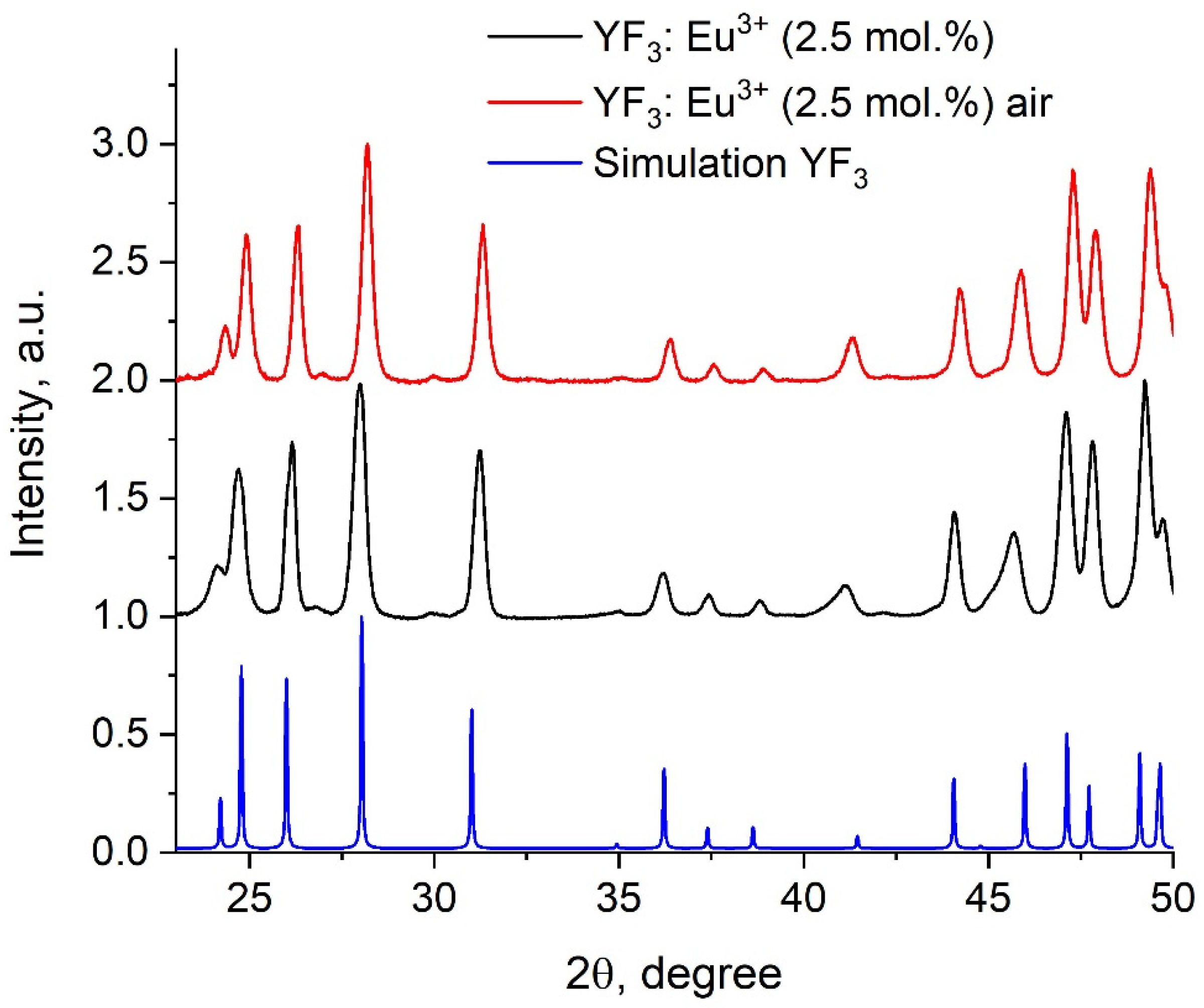

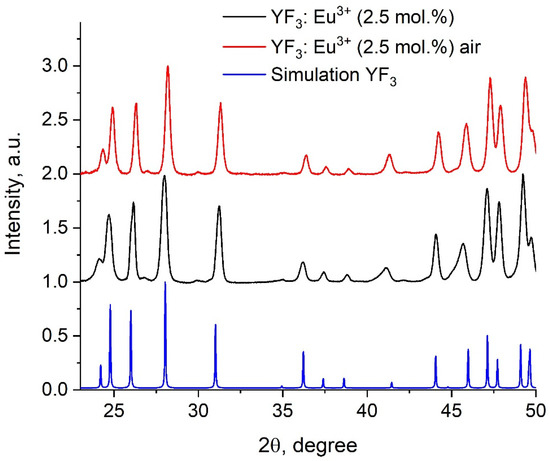

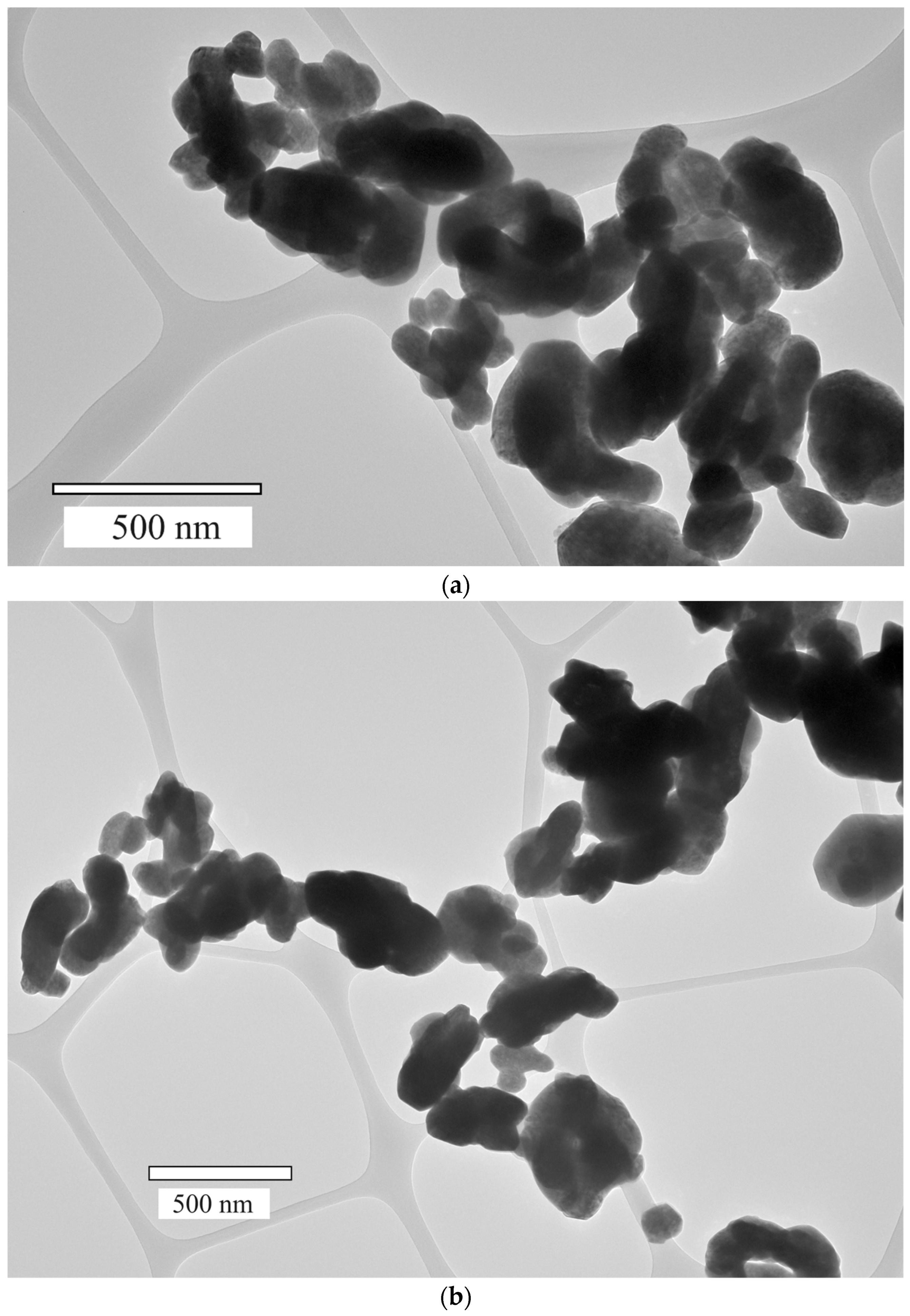

3.1. Physicochemical Characterization of the Nanoparticles

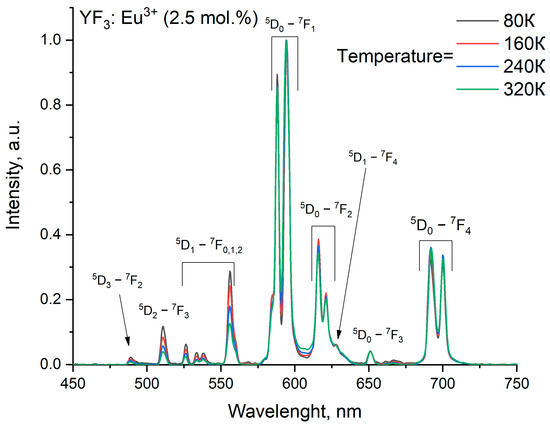

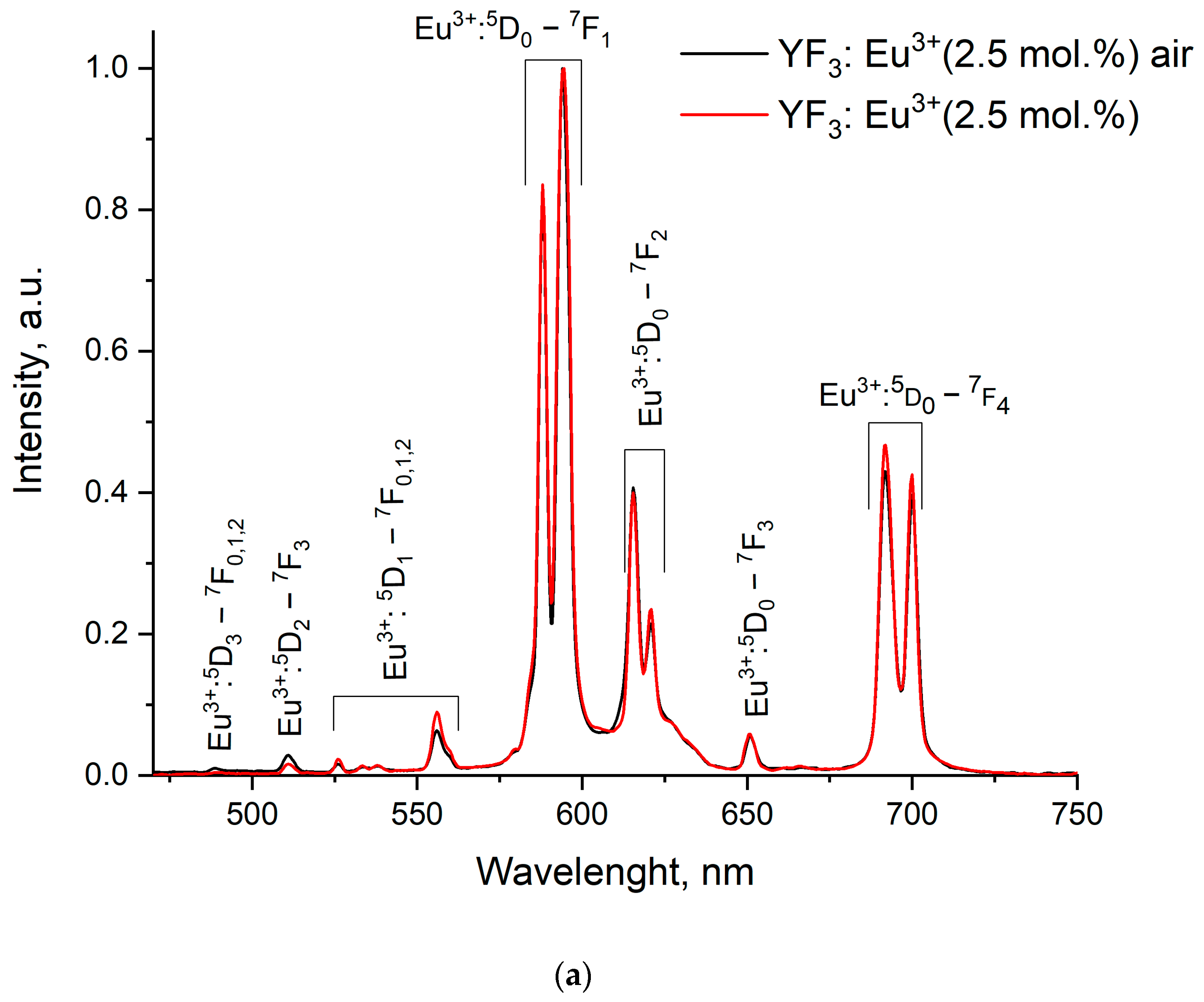

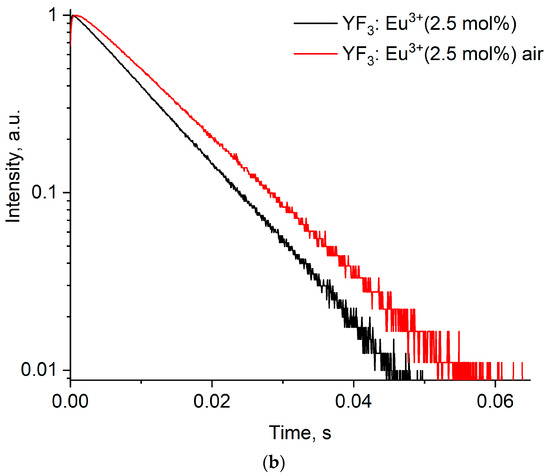

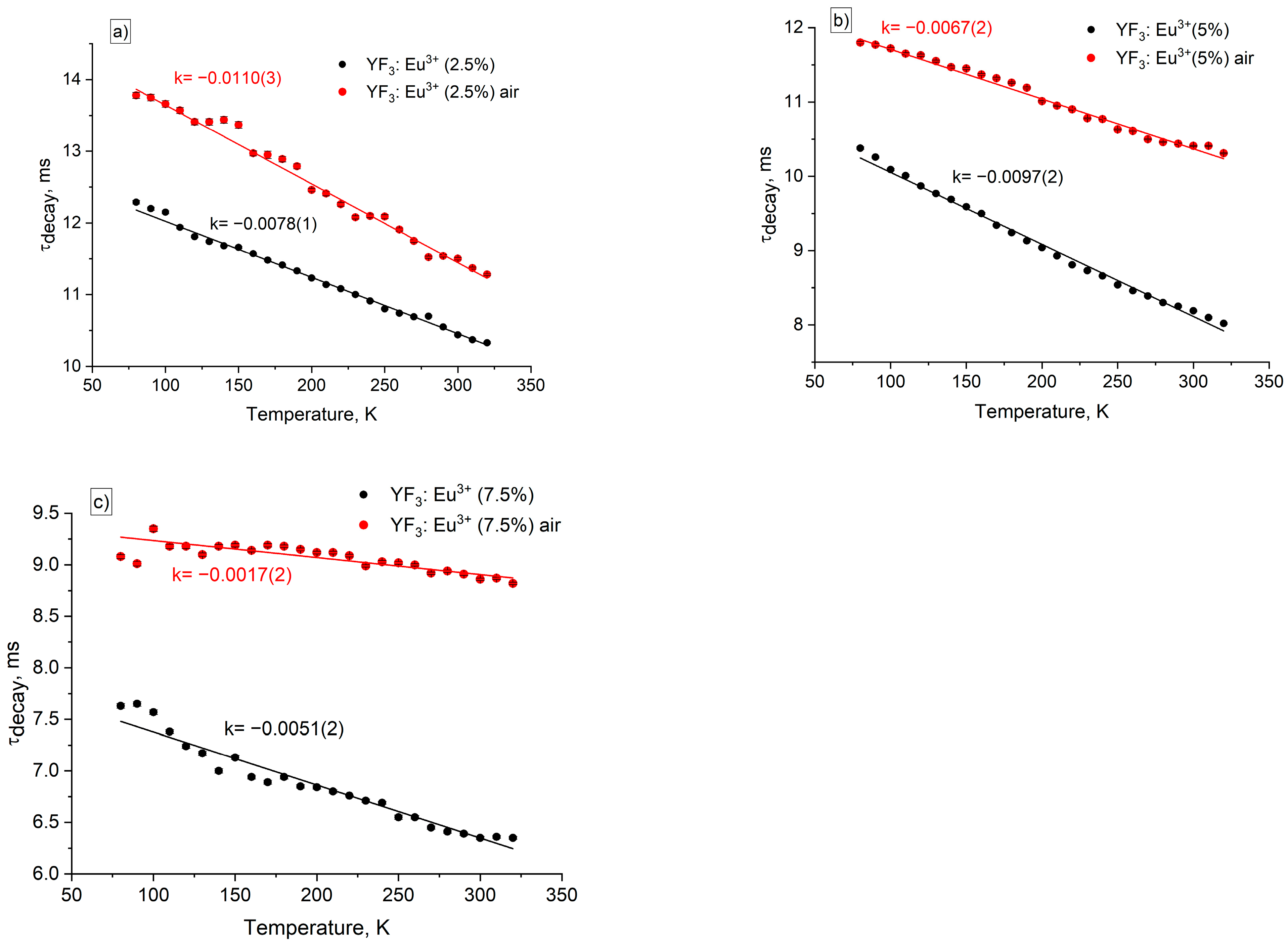

3.2. Temperature-Dependent Spectral-Kinetic Characterization of Single-Doped YF3: Eu3+

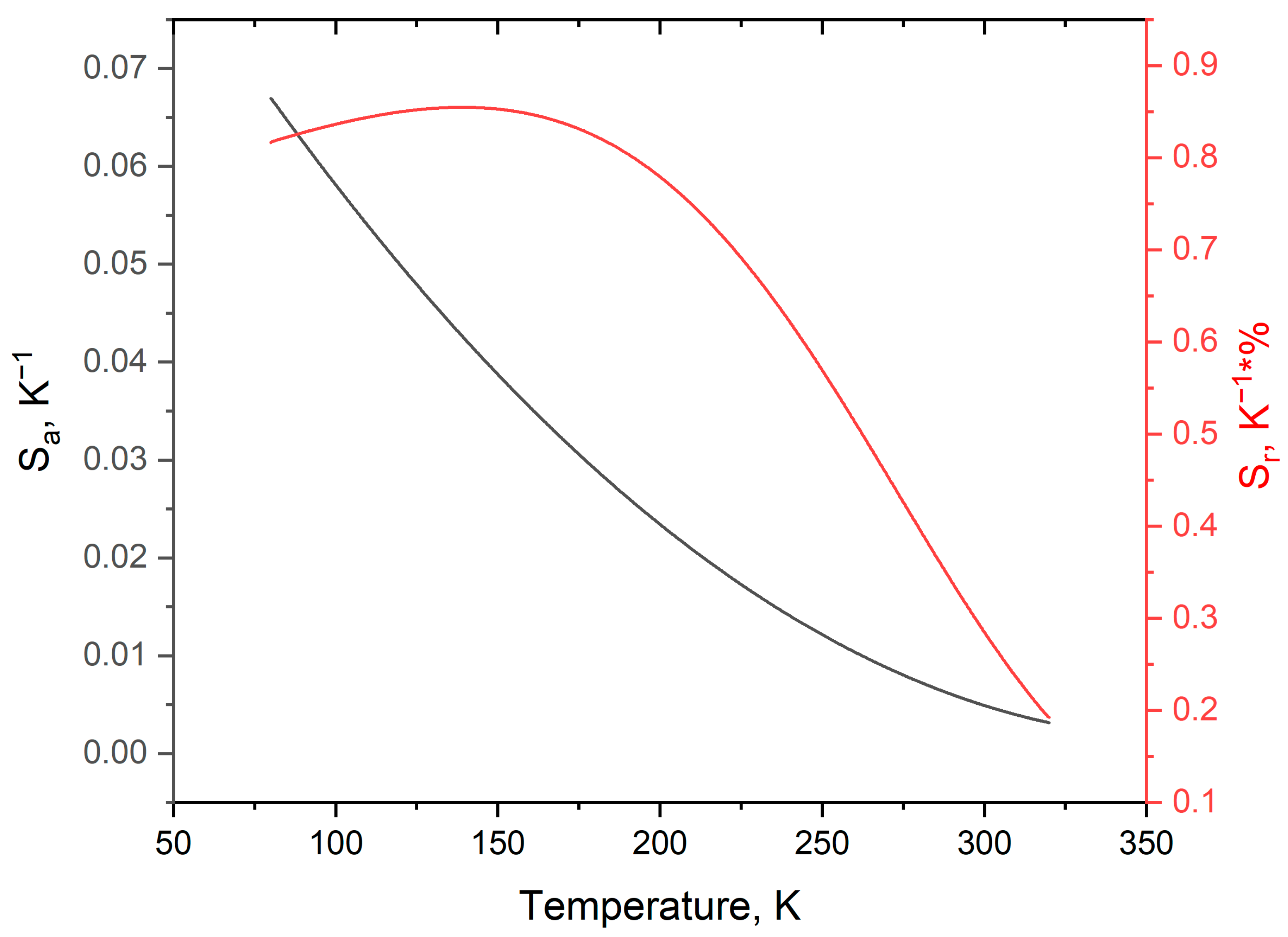

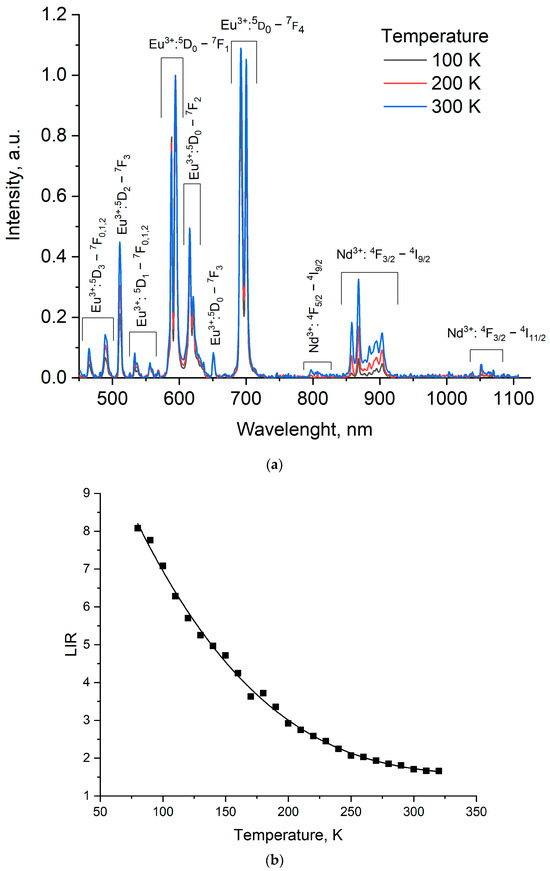

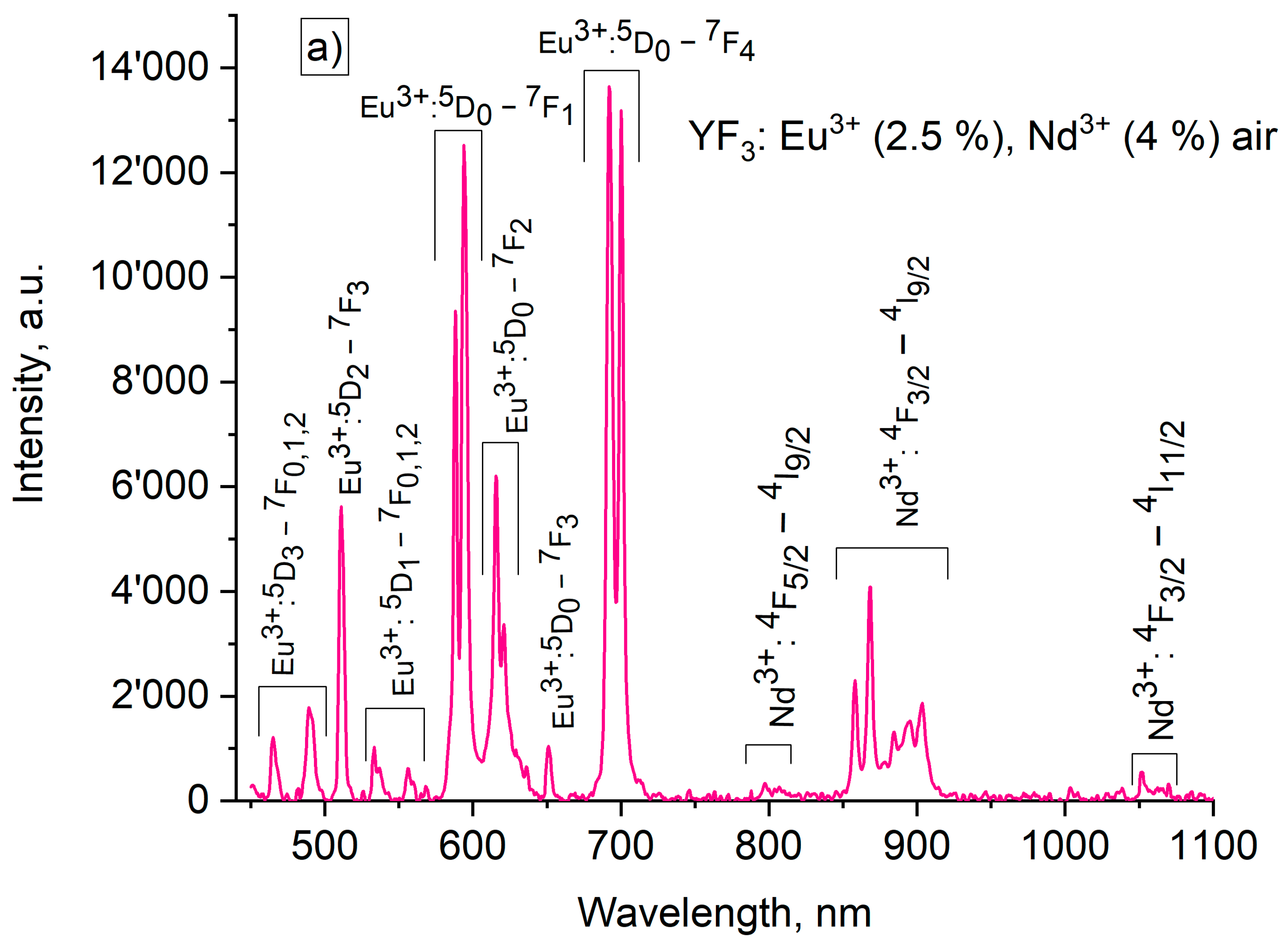

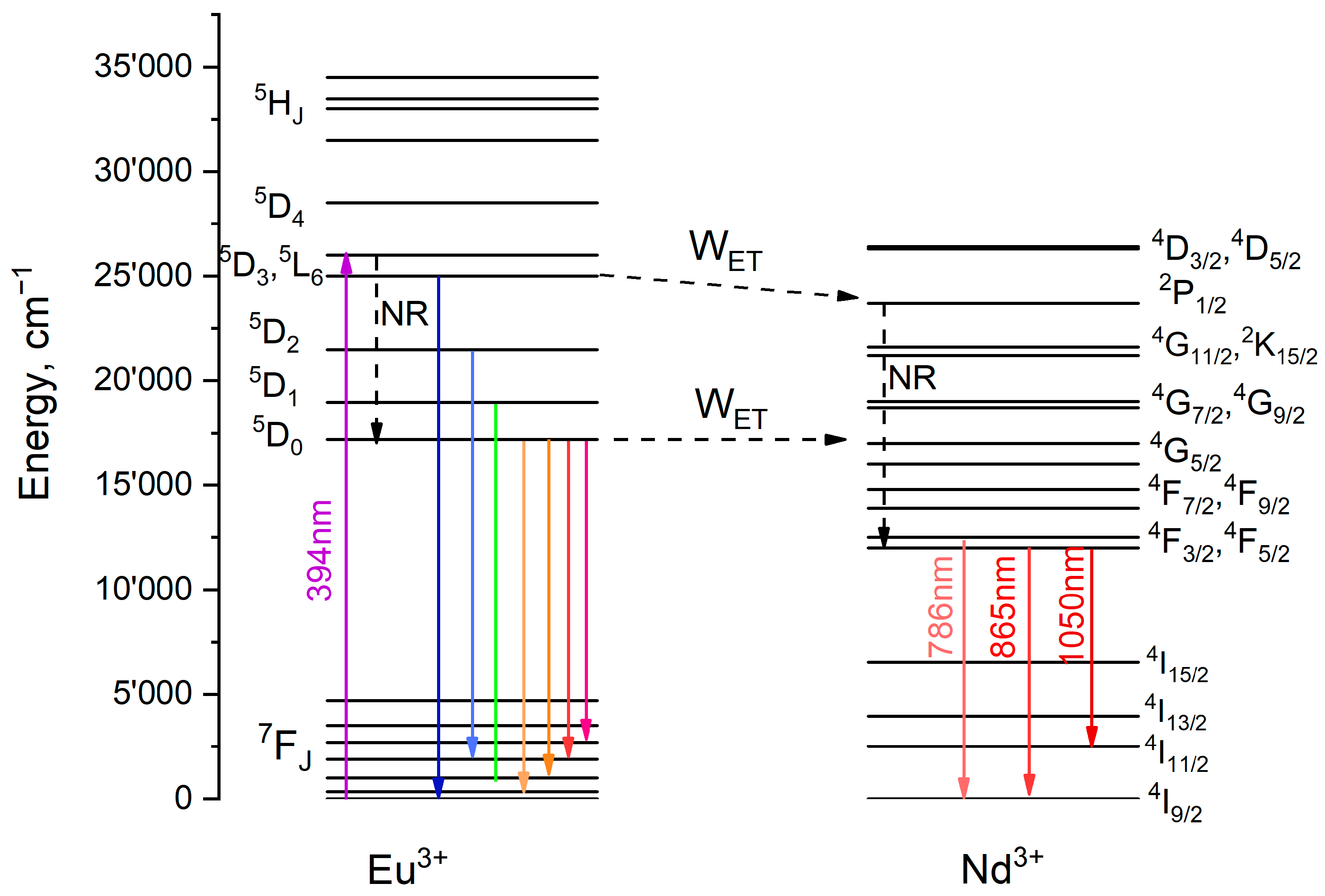

3.3. Temperature-Dependent Spectral Characterization of Double-Doped YF3:(Eu3+, Nd3+)

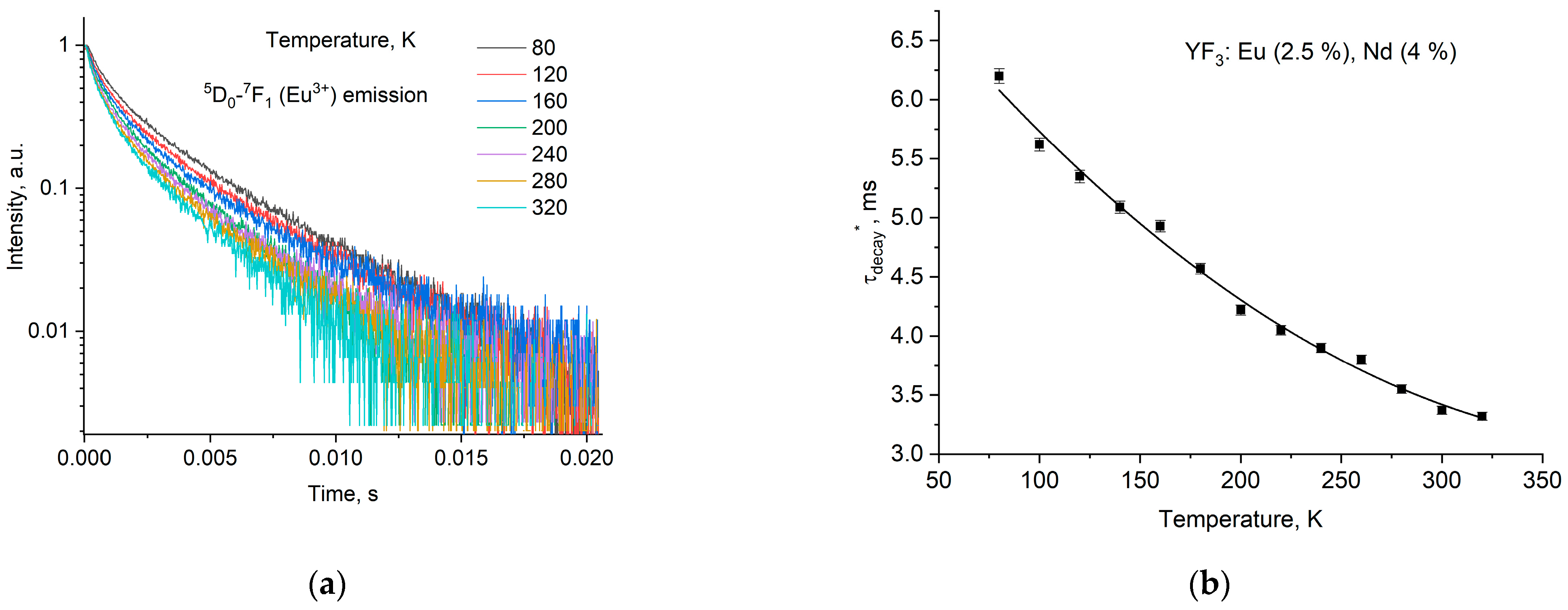

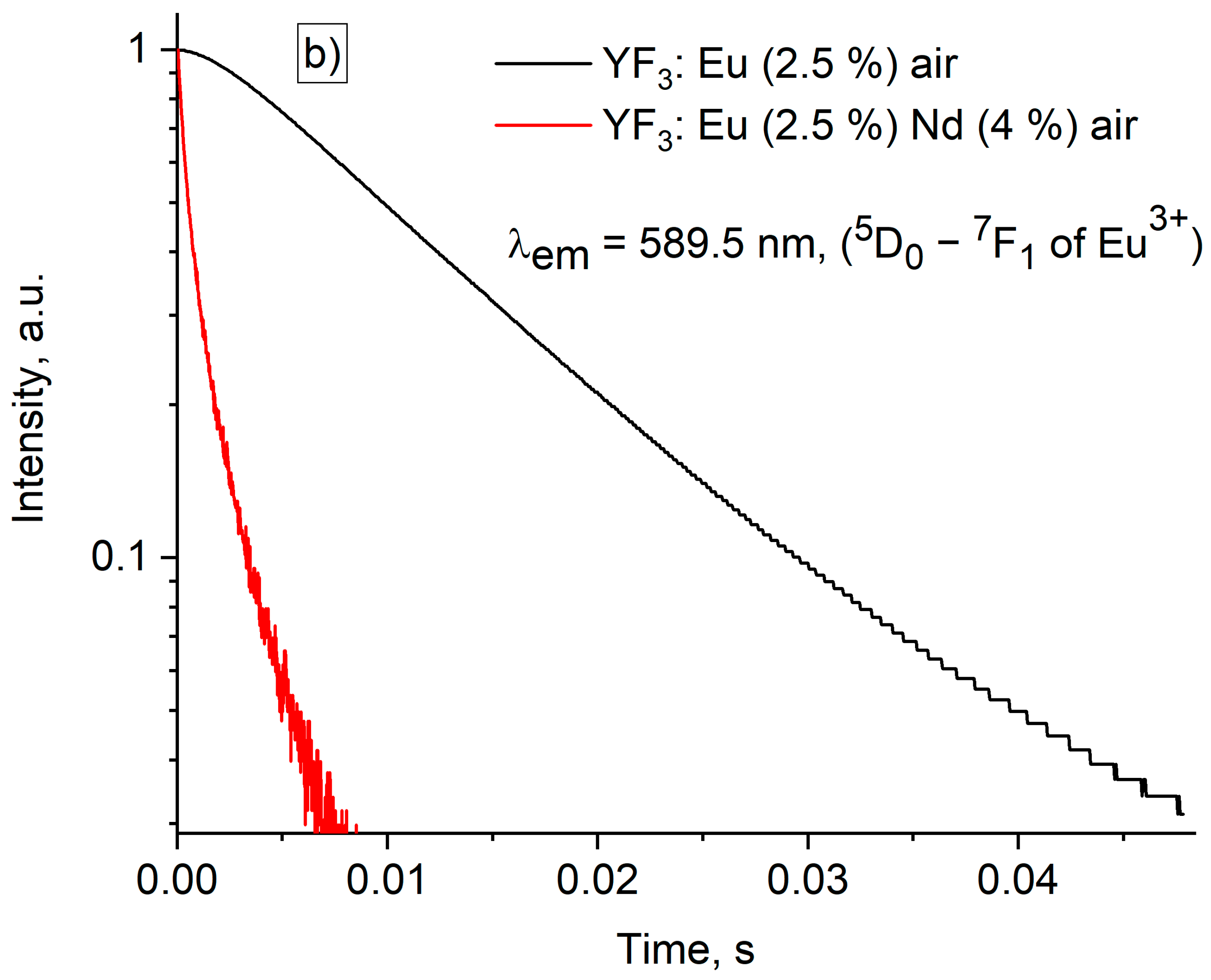

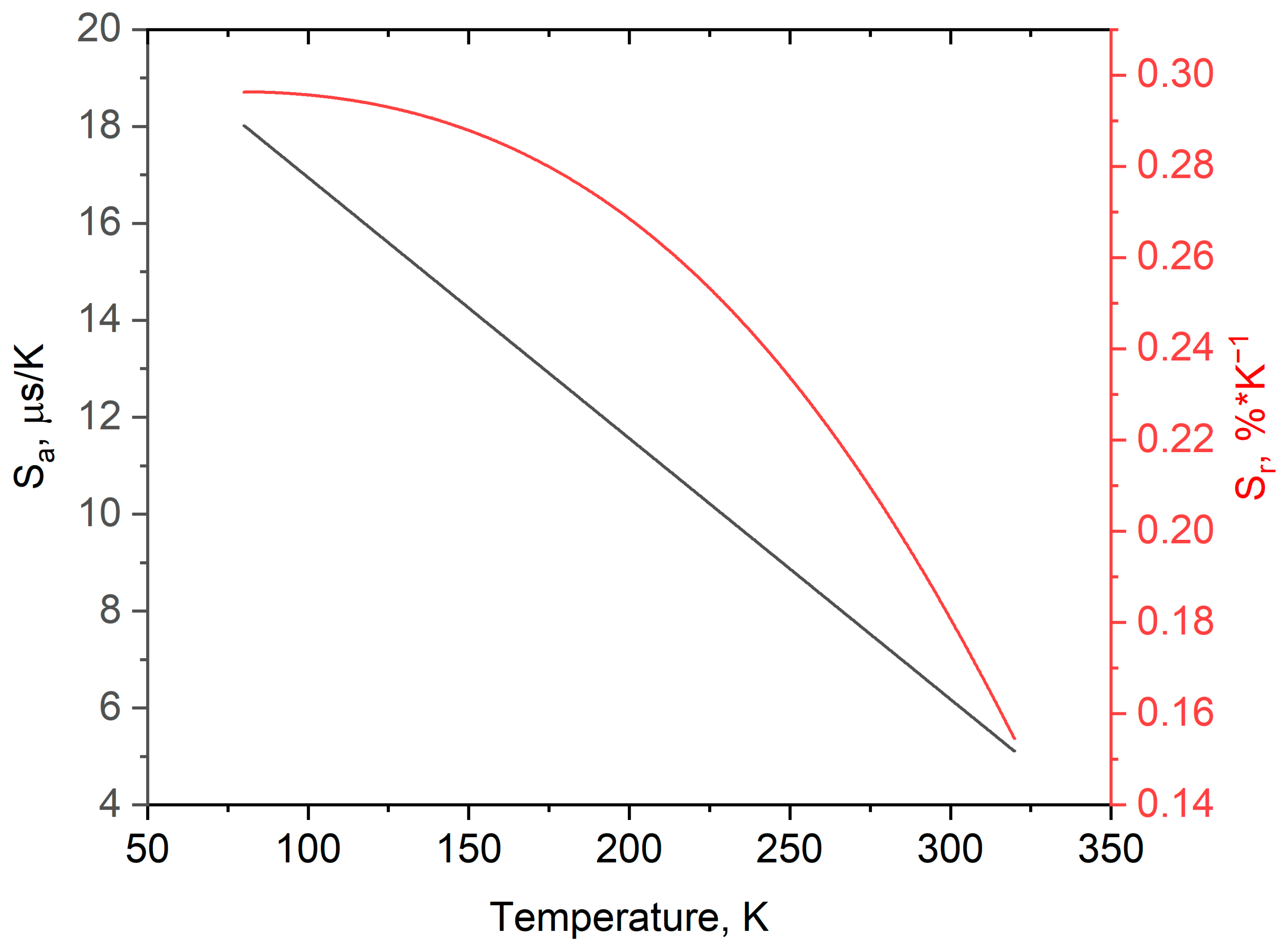

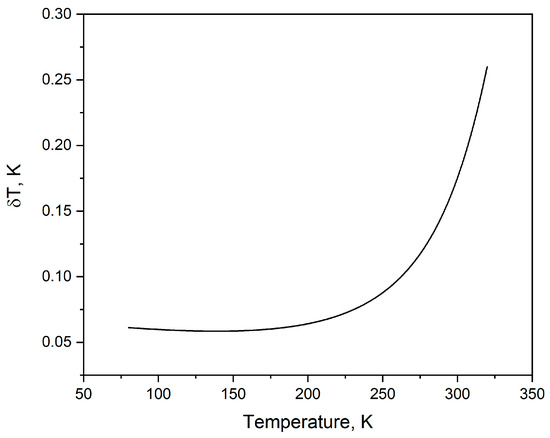

3.4. Temperature-Dependent Kinetic Characterization of Double-Doped YF3: Eu3+, Nd3+
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Dramićanin, M.D. Trends in luminescence thermometry. J. Appl. Phys. 2020, 128, 040902. [Google Scholar] [CrossRef]
- Xu, H.; Bai, G.; He, K.; Tao, S.; Lu, Z.; Zhang, Y.; Xu, S. Multifunctional optical sensing applications of luminescent ions doped perovskite structured LaGaO3 phosphors in near-infrared spectroscopy. Mater. Today Phys. 2022, 28, 100872. [Google Scholar] [CrossRef]
- Wang, C.; Meng, Y.; Su, Z.; Dong, J.; Lian, Y.; Huang, Y.; Bai, G. Self-monitored Nd-doped MoSe2 nanosheets with near-infrared luminescent sensing for photothermal therapy. J. Mater. 2024, 10, 163–172. [Google Scholar] [CrossRef]
- Luo, Y.; Li, H.; Cai, M.; Liu, Y.; Chen, L.; Xu, S.; Bai, G. Designing polyacrylic acid capped luminescent rare earth core–shell nanoparticles for simultaneous Cu (II) and temperature sensing. Mater. Des. 2022, 224, 111405. [Google Scholar] [CrossRef]
- Brites, C.D.; Balabhadra, S.; Carlos, L.D. Lanthanide-based thermometers: At the cutting-edge of luminescence thermometry. Adv. Opt. Mater. 2019, 7, 1801239. [Google Scholar] [CrossRef]
- Brites, C.D.S.; Millán, A.; Carlos, L.D. Lanthanides in luminescent thermometry. In Handbook on the Physics and Chemistry of Rare Earths; Elsevier: Amsterdam, The Netherlands, 2016; Volume 49, pp. 339–427. [Google Scholar]
- Fedorov, P.P.; Luginina, A.A.; Kuznetsov, S.V.; Osiko, V.V. Nanofluorides. J. Fluor. Chem. 2011, 132, 1012–1039. [Google Scholar] [CrossRef]
- Pudovkin, M.S.; Shamsutdinov, N.I.; Zelenikhin, P.V.; Nizamutdinov, A.S. Transmission electron microscopy and flow cytometry study of cellular uptake of unmodified Pr3+:LaF3 nanoparticles in dynamic. J. Nanopart. Res. 2021, 23, 124. [Google Scholar] [CrossRef]
- Pudovkin, M.S.; Zelenikhin, P.V.; Shtyreva, V.V.; Evtugyn, V.G.; Salnikov, V.V.; Nizamutdinov, A.S.; Semashko, V.V. Cellular uptake and cytotoxicity of unmodified Pr3+: LaF3 nanoparticles. J. Nanopart. Res. 2019, 21, 1–13. [Google Scholar] [CrossRef]
- Meijer, J.M.; Aarts, L.; van der Ende, B.M.; Vlugt, T.J.; Meijerink, A. Downconversion for solar cells in YF3: Nd3+, Yb3+. Phys. Rev. B 2010, 81, 035107. [Google Scholar] [CrossRef]
- Pudovkin, M.; Oleynikova, E.; Kiiamov, A.; Cherosov, M.; Gafurov, M. Nd3+, Yb3+: YF3 Optical Temperature Nanosensors Operating in the Biological Windows. Materials 2022, 16, 39. [Google Scholar] [CrossRef]
- Piñol, R.; Brites, C.D.; Silva, N.J.; Carlos, L.D.; Millán, A. Nanoscale thermometry for hyperthermia applications. In Nanomaterials for Magnetic and Optical Hyperthermia Applications; Elsevier: Amsterdam, The Netherlands, 2019; pp. 139–172. [Google Scholar]
- Jaque, D.; Vetrone, F. Luminescence nanothermometry. Nanoscale 2012, 4, 4301–4326. [Google Scholar] [CrossRef]
- Chen, D.; Wang, Z.; Zhou, Y.; Huang, P.; Ji, Z. Tb3+/Eu3+: YF3 nanophase embedded glass ceramics: Structural characterization, tunable luminescence and temperature sensing behavior. J. Alloys Compd. 2015, 646, 339–344. [Google Scholar] [CrossRef]
- Maciejewska, K.; Bednarkiewicz, A.; Marciniak, L. NIR luminescence lifetime nanothermometry based on phonon assisted Yb3+–Nd3+ energy transfer. Nanoscale Adv. 2021, 3, 4918–4925. [Google Scholar] [CrossRef]
- Kaczmarek, A.M.; Kaczmarek, M.K.; Van Deun, R. Er3+-to-Yb3+ and Pr3+-to-Yb3+ energy transfer for highly efficient near-infrared cryogenic optical temperature sensing. Nanoscale 2019, 11, 833–837. [Google Scholar] [CrossRef]
- Qi, Y.; Li, S.; Min, Q.; Lu, W.; Xu, X.; Zhou, D.; Yu, X. Optical temperature sensing properties of KLu2F7: Yb3+/Er3+/Nd3+ nanoparticles under NIR excitation. J. Alloys Compd. 2018, 742, 497–503. [Google Scholar] [CrossRef]
- Alakshin, E.M.; Klochkov, A.V.; Kondratyeva, E.I.; Korableva, S.L.; Kiiamov, A.G.; Nuzhina, D.S.; Kodjikian, S. Microwave-assisted hydrothermal synthesis and annealing of DyF3 nanoparticles. J. Nanomater. 2016, 2016, 7148307. [Google Scholar] [CrossRef]
- Tan, M.C.; Kumar, G.A.; Riman, R.E.; Brik, M.G.; Brown, E.; Hommerich, U. Synthesis and optical properties of infrared-emitting YF3:Nd nanoparticles. J. Appl. Phys. 2009, 106, 063118. [Google Scholar] [CrossRef]
- Momma, K.; Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr. 2011, 44, 1272–1276. [Google Scholar] [CrossRef]
- Wang, X.; Sheng, T.; Fu, Z.; Li, W. Highly uniform YF3: Ln3+ (Ln = Ce3+, Tb3+) walnut-like microcrystals: Hydrothermal synthesis and luminescent properties. Mater. Res. Bull. 2013, 48, 2143–2148. [Google Scholar] [CrossRef]
- Vanetsev, A.; Kaldvee, K.; Puust, L.; Keevend, K.; Nefedova, A.; Fedorenko, S.; Orlovskii, Y. Relation of Crystallinity and Fluorescent Properties of LaF3: Nd3+ Nanoparticles Synthesized with Different Water-Based Techniques. ChemistrySelect 2017, 2, 4874–4881. [Google Scholar] [CrossRef]
- Alakshin, E.M.; Blokhin, D.S.; Sabitova, A.M.; Klochkov, A.V.; Klochkov, V.V.E.; Kono, K.; Tagirov, M.S. Experimental proof of the existence of water clusters in fullerene-like PrF3 nanoparticles. JETP Lett. 2012, 96, 181–183. [Google Scholar] [CrossRef]
- Gharouel, S.; Labrador-Páez, L.; Haro-González, P.; Horchani-Naifer, K.; Férid, M. Fluorescence intensity ratio and lifetime thermometry of praseodymium phosphates for temperature sensing. J. Lumin. 2018, 201, 372–383. [Google Scholar] [CrossRef]
- Laia, A.S.; Hora, D.A.; Rezende, M.V.d.S.; Gomes, M.A.; Brandão-Silva, A.C.; dos Santos, M.A.C.; Dantas, N.O.; Silva, A.C.A.; Rodrigues, J.J.; Valerio, M.E.G.; et al. Investigating the Thermometric Performance of Inorganic Materials Doped with Nd3+ under Infrared LED Excitation: An Alternative for Deep Tissue Luminescent Thermometry. Photonics 2023, 10, 485. [Google Scholar] [CrossRef]
- Liu, J.; Van Deun, R.; Kaczmarek, A.M. Eu3+, Tb3+-and Er3+, Yb3+-doped α-MoO3 nanosheets for optical luminescent thermometry. Nanomaterials 2019, 9, 646. [Google Scholar] [CrossRef]
- Fangfang, H.U.; Zhangmei, Z.H.A.O.; Fengfeng, C.H.I.; Xiantao, W.; Min, Y.I.N. Structural characterization and temperature-dependent luminescence of CaF2: Tb3+/Eu3+ glass ceramics. J. Rare Earths 2017, 35, 536–541. [Google Scholar]
- Zhou, A.; Song, F.; Song, F.; Feng, M.; Adnan, K.; Ju, D.; Wang, X. Optical thermometry using fluorescence intensities multi-ratios in NaGdTiO4: Yb3+/Tm3+ phosphors. Opt. Mater. 2018, 78, 438–444. [Google Scholar] [CrossRef]
- Tan, M.; Li, F.; Cao, N.; Li, H.; Wang, X.; Zhang, C.; Chen, G. Accurate in vivo nanothermometry through NIR-II lanthanide luminescence lifetime. Small 2020, 16, 2004118. [Google Scholar] [CrossRef]
- Marciniak, L.; Bednarkiewicz, A.; Stefanski, M.; Tomala, R.; Hreniak, D.; Strek, W. Near infrared absorbing near infrared emitting highly-sensitive luminescent nanothermometer based on Nd3+ to Yb3+ energy transfer. Phys. Chem. Chem. Phys. 2015, 17, 24315–24321. [Google Scholar] [CrossRef]
- Ji, Z.; Cheng, Y.; Cui, X.; Lin, H.; Xu, J.; Wang, Y. Heating-induced abnormal increase in Yb3+ excited state lifetime and its potential application in lifetime luminescence nanothermometry. Inorg. Chem. Front. 2019, 6, 110–116. [Google Scholar] [CrossRef]
- Khadiev, A.R.; Korableva, S.L.; Ginkel, A.K.; Morozov, O.A.; Nizamutdinov, A.S.; Semashko, V.V.; Pudovkin, M.S. Down-conversion based Tm3+: LiY1-XYbXF4 temperature sensors. Opt. Mater. 2022, 134, 113118. [Google Scholar] [CrossRef]
- Fu, Y.; Zhao, L.; Guo, Y.; Yu, H. Up-conversion luminescence lifetime thermometry based on the 1G4 state of Tm3+ modulated by cross relaxation processes. Dalton Trans. 2019, 48, 16034–16040. [Google Scholar] [CrossRef]
- Katumo, N.; Gao, G.; Laufer, F.; Richards, B.S.; Howard, I.A. Smartphone-based luminescent thermometry via temperature-sensitive delayed fluorescence from Gd2O2S: Eu3+. Adv. Opt. Mater. 2020, 8, 2000507. [Google Scholar] [CrossRef]
- Siaï, A.; Haro-González, P.; Naifer, K.H.; Férid, M. Optical temperature sensing of Er3+/Yb3+ doped LaGdO3 based on fluorescence intensity ratio and lifetime thermometry. Opt. Mater. 2018, 76, 34–41. [Google Scholar] [CrossRef]
- Dramićanin, M.D.; Antić, Ž.; Ćulubrk, S.; Ahrenkiel, S.P.; Nedeljković, J.M. Self-referenced luminescence thermometry with Sm3+ doped TiO2 nanoparticles. Nanotechnology 2014, 25, 485501. [Google Scholar] [CrossRef]
- Maciejewska, K.; Bednarkiewicz, A.; Marciniak, L. The influence of the Er3+ dopant concentration in LaPO4: Nd3+, Er3+ on thermometric properties of ratiometric and kinetic-based luminescent thermometers operating in NIR II and NIR III optical windows. Phys. B Condens. Matter 2021, 620, 413247. [Google Scholar] [CrossRef]
- Zhou, Y.; Yan, B. Ratiometric detection of temperature using responsive dual-emissive MOF hybrids. J. Mater. Chem. C 2015, 3, 9353–9358. [Google Scholar] [CrossRef]
- Marciniak, L.; Trejgis, K. Luminescence lifetime thermometry with Mn3+–Mn4+ co-doped nanocrystals. J. Mater. Chem. C 2018, 6, 7092–7100. [Google Scholar] [CrossRef]
- Kamma, I.; Kommidi, P.; Reddy, B.R. High temperature measurement using luminescence of Pr3+ doped YAG and Ho3+ doped CaF2. Phys. Status Solidi C 2009, 6, S187–S190. [Google Scholar] [CrossRef]
Sample | YF3: Eu3+ 2.5% | YF3: Eu3+ 5.0% | YF3: Eu3+ 7.5% |
---|---|---|---|
Before annealing | 78·10−4 | 97·10−4 | 51·10−4 |
After annealing | 110·10−4 | 67·10−4 | 17·10−4 |
Sample | Transitions and Wavelengths for LIR (I1/I2) and Optical Excitation Conditions | Maximum Sa [K−1] in the 100–220 K Range | Maximum Sr [%K−1] in the 100–220 K Range | Ref. |
---|---|---|---|---|
Annealed YF3: Eu3+, Nd3+ | Nd3+ (4F3/2–4I9/2, ~866 nm), Eu3+ (5D0–7F1, ~590 nm) is carried out at 394 nm (7F0–5L6 absorption band) | 0.065 (80 K) | 0.85 (160 K) | This work |
α-MoO3: Eu3+, Tb3+ | ITb (5D4–7F5, ~548 nm)/IEu (5D0–7F2, ~621 nm) | ~10–3 at 105 K, not studied at higher temperatures | ~ 0.50 at 105 K, not studied at higher temperatures | [26] |
Tb3+, Eu3+: CaF2 | ITb (5D4–7F5, ~545 nm)/IEu (5D0–7F2, ~615 nm), λex = 485 nm pulse laser | 4.0·10–3 | – | [27] |
Tb3+ (6.0%), Eu3+ (8.0%): Ca5(PO4)3F | ITb (5D4–7F5, ~548 nm)/IEu (5D0–7F2, ~621 nm), λex = 299 nm, laser | 1.31·10–3 | 0.40 | [27] |
Yb3+, Tm3+: NaGdTiO4 | ITm (3H4 (1) → 3H6, 812 nm)/ITm (3H4 (2) → 3H6, 798 nm), λex = 980 nm, CW laser | 2.0·10–3 at 100 K and 1.0·10–3 at 200 K | – | [28] |
Nd3+ (1%), Yb3+ (0.5–5%): LiLaP4O12 | INd (4F3/2–4I9/2, ~866 nm)/IYb (2F5/2–2F7/2, ~980 nm), λex = 808 nm, CW laser | – | From 0.05 to 0.25 (depends on the Yb3+ concentration) | [29] |
Sample | Transition, Wavelength, and Excitation Conditions | Max Sa [μs/K] | Max Sr [%/K] | Ref. |
---|---|---|---|---|
Annealed YF3: Eu3+, Nd3+ | Emission of Eu3+ (5D0–7F1, ~590 nm), λex = 394 nm (7F0–5L6 absorption band) | 10–18 in the 80–200 K | 0.2–0.3, in the 80–200 K | This work |
β-NaGdF4: Nd3+, Yb3+ | Yb3+ (2F5/2–2F7/2, ~980 nm), λex = 808 nm (4I9/2–4F5/2 abs. of Nd3+). | Linear increase from 1.0 (300 K) to 2.8 (at 350 K) | Increases from 0.7 (300 K) to 1.6 (at 350 K) | [31] |
Nd0.5RE0.4Yb0.1PO4 (RE = Y, Lu, La, Gd) | Yb3+ (2F5/2–2F7/2, ~980 nm), λex = 940 nm, 2F7/2–2F5/2 absorption band of Yb3+. | 0.4–1.6 at 300 K | 0.5–1.2 at 300 K | [15] |
LiYXYb1−XF4: Tm3+ | λex = 688 nm, 3H6–3F2,3 (Tm3+) absorption band of | 1.2 | 0.36 | [32] |
β-PbF2: Tm3+, Yb3+ | Tm3+ (1G4–3H6, 478 nm), (2F7/2–2F5/2 abs. of Yb3+) | – | 0.20 (at 300 K) | [33] |
Gd2O2S: Eu3+ | Eu3+, 5D0 level, λex = 375 nm (the transition is not specified) | – | Linear decreas: 4.5 (at 280 K) to 3.0 (at 335 K) | [34] |
LaGdO3: Er3+/Yb3+ | Er3+ (4S3/2–4I15/2, 530 nm), (4F9/2–4I15/2, 670 nm) (2F7/2–2F5/2 abs. of Yb3+) | – | 1.79 (4S3/2) and 0.94 (4F9/2) in the 290–350 K range. | [35] |
TiO2: Sm3+ | Sm3+ (4G5/2–6H7/2, 612 nm) 438 nm (matrix excitation) | 10%/°C at 70 °C | [36] | |
NaPr(PO3)4 | Pr3+ (emission from 3P0, the wavelength is not specified), λex = 488 nm (3H4–3P0 absorption band of Pr3+. | Linearl increas: 44·10−4 (at 300 K) to 60·10−4 (at 365 K) | [24] | |
LaPO4: Nd3+, Er3+ | Nd3+ (4F5/2–4F11/2 λem = 1055 nm), λex = 808 nm abs. 4I9/2–4F5/2) | Max value 0.003 at 600 K | max value ~2.5 at 600 K | [37] |
MOF: Eu3+ | Host excitation under 368 nm, λem = 525 nm | Linear decrease: ~550 us (at 270 K) to ~460 us (at 360 K). The estimated Sa is equal to 1.0 us/K | – | [38] |
GAG: Mn3+, Mn4+ | λex = 266 nm, λem = 610 nm (5T2–5E′′ of Mn3+) | 2.08 at 249 K | [39] | |
Pr3+: YAG | Pr3+ (1D2–3H4, 617 nm), λex = 488 nm (3H4–3P0 absorption band of Pr3+. | Linear decrease: ~190 us (at 10 K) to ~110 us (at 1000 K). The estimated Sa is equal to 0.080 us/K | – | [40] |
CaF2: Ho3+ | Ho3+ (5F5–5I8, λem = 650 nm), λex = 488 nm (5F3–5I8 absorption band of Ho3+. | Linear decrease: ~100 us (at 100 K) to ~40 us (at 450 K). The estimated Sa is equal to 0.17 us/K | – | [40] |
LiPr(PO3)4 | Pr3+ (emission from 3P0, the wavelength is not specified) λex = 488 nm (3H4–3P0 absorption band of Pr3+. | 0.0044 K−1 in the 300–365 K range | The Sa increases almost linearly from 0.44%/K (at 300 K) to 0.65%/K (at 365 K) | [24] |
