A Facile Aqueous Solution Route for the Growth of Chalcogenide Perovskite BaZrS₃ Films

Abstract

The prototypical chalcogenide perovskite, BaZrS₃ (BZS), with its direct bandgap of 1.7–1.8 eV, high chemical stability, and strong light–matter interactions, has garnered significant interest over the past few years. So far, attempts to grow BaZrS₃ films have been limited mainly to physical vapor deposition techniques. Here, we report the fabrication of BZS thin films via a facile aqueous solution route of polymer-assisted deposition (PAD), where the polymer-chelated cation precursor films were sulfurized in a mixed CS₂ and Ar atmosphere. The formation of a single-phase polycrystalline BZS thin film at a processing temperature of 900 °C was confirmed by X-ray diffraction and Raman spectroscopy. The stoichiometry of the films was verified by Rutherford Backscattering spectrometry and energy-dispersive X-ray spectroscopy. The BZS films showed a photoluminescence peak at around 1.8 eV and exhibited a photogenerated current under light illumination at a wavelength of 530 nm. Temperature-dependent resistivity analysis revealed that the conduction of BaZrS₃ films under the dark condition could be described by the Efros–Shklovskii variable range hopping model in the temperature range of 60–300 K, with an activation energy of about 44 meV.

1. Introduction

Perovskite is a compositionally diverse class of materials with a prototypical formula of ABX₃, where A and B are positively charged cations and X is a negatively charged ion. The crystal structure of perovskites consists of corner-sharing [BX₆] octahedra, where the A cation sits in the cubo-octahedral void between the octahedra. Oxide and halide perovskites have been extensively studied for their multifunctional properties, such as ferroelectricity, ferromagnetism, superconductivity, ionic conductivity, catalytic activity, and semiconductive, as well as optoelectronic properties [1,2,3,4,5,6,7,8,9,10,11,12]. The ideal structure of a perovskite ABX₃ is cubic, where the geometry and symmetry of the crystal structure are affected by the relative size of the comprising ions.

Recently, chalcogenide perovskites have emerged as a new class of semiconducting materials that have demonstrated promising electronic and optical properties with possible applications in optoelectronics, thermoelectrics, and infrared optics [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]. These perovskite compounds are much more stable than their lead halide counterparts are. The compositions of chalcogenide perovskites that have been widely studied so far are composed mainly of earth-abundant and non-toxic elements [32,33]. Chalcogenide perovskite BaZrS₃ (BZS), as depicted in Figure 1a for the crystal structure, has received the most attention [15,16,17,18,19,20,21,22,32,34,35,36,37], since it possesses high absorption coefficients near the band edge and long recombination lifetimes. These properties make chalcogenide perovskites promising candidates for photovoltaic applications [18,20,21,32]. Developing scalable procedures for the deposition of thin films of such materials is integral to both fundamental studies of optoelectronic and charge transport properties and the ultimate applications of chalcogenide perovskites for electronic and optical devices.

Compared to the ease of the low-temperature chemical solution deposition of hybrid-halide perovskites such as MAPbI₃, the deposition of chalcogenide perovskites is complicated by several factors. The significant difference between the vapor pressures of cations and the sulfide anion poses a synthetic difficulty for the most commonly used thin film growth techniques. Moreover, the synthesis of chalcogenide perovskites such as BZS often involves the use of H₂S, a toxic, flammable, and corrosive gas [19,35,36]. Cation-to-anion stoichiometry can also be difficult to maintain since the higher temperatures needed for the crystallization of perovskite can lead to sulfide vacancies in the grown crystal lattice [22]. So far, two-step approaches have been widely used to synthesize BZS films, where either BaZrO₃ or Ba-Zr metal thin films were first deposited by physical vapor deposition such as pulsed laser deposition or sputtering, and the as-deposited films were subsequently sulfurized in a reactive or sulfur-containing atmosphere such as CS₂ to form polycrystalline BZS thin films [17,22,26,35,38]. Recently, in situ one-step deposition of BZS films has been demonstrated by pulsed laser deposition and molecular beam epitaxy, both of which enabled epitaxial films using H₂S gas as a sulfurizing reagent [19,36]. It should be also noted that Ravi et al. reported the synthesis of BZS films by forming colloidal BZS nanocrystals using a solid-state reaction route, and then functionalizing the surface of BZS nanocrystals to achieve their colloidal dispersions [34]. More recently, BaZrS₃ nanoparticles were synthesized by a thermal decomposition mechanism in the organic solvent [39].

Chemical solution deposition (CSD) has been extensively investigated as a tool to deposit both metal-oxide and hybrid–halide perovskite films, since this cost-effective technique offers the advantages of an easy set-up and the ability to coat large areas. Polymer-assisted deposition (PAD), a CSD technique with unique chemistry to prepare precursor solutions, has been remarkably demonstrated as a very powerful method to grow high-quality thin films including oxides, nitrides, and carbides [40,41,42,43,44,45,46]. In this report, we present the first demonstration of the growth of a sulfide BZS perovskite thin film using an aqueous PAD process.

2. Materials and Methods

In the PAD process, the water-soluble polymer such as polyethylenimine (PEI) binds directly with the metal ions in the solution [43,44,45,46]. Figure 1b shows an example of the covalent linkage between the PEI and the Ba²⁺, where Ba²⁺ is bound to PEI as an ethylenediaminetetraacetic acid (EDTA) complex. The process flow diagram of the PAD method to grow BZS films, as illustrated in Figure 1c, mainly includes the following three stages. (1) Individual aqueous solutions of polymer–metal precursors (where the metal cation is bound to polymer) are first prepared. These solutions are then mixed at appropriate ratios to ensure fine control over their stoichiometry. It is noted that the viscosity and the metal loading of the precursor solution can be diluted or concentrated simply by adding or removing water in the solution, where the solutions are shelf-stable over several months and insensitive to air. The use of such chemistry by the PAD process may avoid many challenges such as the solubility of metal precursors, chemical compatibility of the metal precursors with each other and the chosen solvent, and their reactivity upon mixing based on other chemical solution deposition approaches. (2) The polymer–metal precursor solution can be coated onto substrates using standard solution deposition methods such as spin casting. (3) The coated precursor films can then be subjected to a post-annealing process to depolymerize the polymer in the precursor film, and then annealed in a reactive atmosphere at an appropriate temperature to crystallize the film.

2.1. Precursor Synthesis and BZS Film Growth

The chemistry and detailed procedures to prepare aqueous precursors by PAD can be found in the relevant articles [43,44,45,46]. The solution of cation Zr⁴⁺ bound with polymer was prepared by adding 8.4 g of ZrCl₄ slowly into a flacon tube containing 15 g of PEI aqueous solution (50 wt%) from Acros Organics™ (Geel, Belgium). The solution was further diluted by adding 32 mL of ultrapure water, where the solution was stirred continuously until it was clear. The solution was filtered by Amicon™ ultrafiltration with a PM 10 membrane. Inductively coupled plasma-atomic emission spectroscopy (ICP-ES) showed that the final solution had a Zr⁴⁺ cation concentration of 106 mM. ICP-ES analysis was conducted using Thermo Scientific iCAP 6000 Inductively Coupled Plasma Optical Emission Spectrometer. Detailed procedures to conduct ICP-ES analysis are presented in the Supplementary Information.

Similarly, the solution of cation Ba²⁺ bound with polymer PEI was prepared by adding 1.52 g of Ba(NO₃)₂ into a clear solution of 1.7 g of EDTA and 1.7 g of PEI (50 wt% a.q.) in 25 mL of ultrapure water. ICP-ES analysis after purification by Amicon filtration showed that the final solution had a Ba²⁺ cation concentration of 143 mM. It is noted that filtration used in the PAD process enables the removal of non-coordinated cations and anions [44,45,46], preventing precipitation, and therefore, yielding a homogeneous solution at the molecular level for a homogeneous coating.

The final precursor solution used for spin coating was prepared by mixing the individual cation precursors in proportion to maintain 1:1 stoichiometry by taking 0.5 mL of the Ba-PEI solution and 0.67 mL of the Zr-PEI solution to obtain 1.17 mL of 61 mM solution with respect to the Ba and Zr cations. This polymer-chelated cation solution was spin-coated on plasma-treated c-cut sapphire substrates at 6000 rpm for 60 s. The coated substrates were then thermally treated in a quartz tube furnace that was purged with Ar and kept under a continuous argon flow. To depolymerize the polymers in the as-coated precursor films and to avoid the formation of bubbles on the film surface and voids in the bulk of the films, the furnace was heated to 550 °C at a rate of 1 °C/min. The samples were then ramped (50 °C/min) to a temperature of 900 °C, and we held at this temperature for three hours under the flow of CS₂ carried by Ar gas at 30 standard cubic centimeters per min. The annealing process is schematically illustrated in Figure 1c. The furnace was allowed to cool to room temperature naturally by turning off the power supply to the furnace after the thermal treatment process. The annealing temperature was chosen to ensure the decomposition of CS₂ to enable the proper sulfurization of the thin films.

2.2. Characterization of Structure and Chemical Composition of the BZS Films

The structure of the BZS films after sulfurization in a CS₂-Ar atmosphere was characterized by X-ray diffraction (XRD) using an X’Pert PANalytical MRD PRO X-ray diffractometer with Cu Ka radiation (λ = 1.54 Å). The surface morphology of the films was inspected by scanning electron microscopy (SEM) using a Focused Ion Beam Scanning Electron Microscope (FIB-SEM)—Carl Zeiss AURIGA CrossBeam with an Oxford energy-dispersive X-ray system. The chemical composition of the films was characterized by Rutherford backscattering spectrometry (RBS) and energy-dispersive X-ray spectroscopy. The RBS was conducted on a 3 MV NEC Pelletron tandem accelerator at Los Alamos National Laboratory. The 2.3 MeV 4He⁺ was used to maximize the mass resolution without getting into the non-Rutherford cross-section region for elements in the film and substrate. A silicon surface barrier detector was mounted at 167 degrees in reference to the beam direction to collect backscattered He particles. The total accumulated charge used was 2 μC.

2.3. Raman Spectra, Photoluminescence, and Photocurrent Measurements of the BZS Films

Room-temperature Raman and Photoluminescence (PL) spectra of the BZS films were measured using a Renishaw inVia Raman microscope with a 1200 L/mm grating and 50× objective lens. The laser wavelength was 514 nm for the Raman and the PL spectra measurements.

To measure the photocurrent of the BZS films, uniform illumination from a 530 nm precision light-emitting diode (LED) spotlight (Mightex, Toronto, ON, Canada) with an output power of about 38 mW was shined on the surface of the films. The light source provides a uniform illumination spot with a diameter of 22 mm at a working distance of 10 cm from the surface of the BZS sample. The photocurrent measurements were taken using an Agilent E4890 precision LCR meter with an applied DC bias of 100 mV on the sample surface.

2.4. Temperature-Dependence of Resistance Measurements

The temperature-dependent resistance of the BZS samples was measured using the direct current resistance setup in a Physical Property Measurement System (PPMS, Quantum Design). A square shape sample was wired in a four-probe geometry using indium metal wires with a direct current applied through two of the probes, while the other two probes were used to measure the voltage.

3. Results

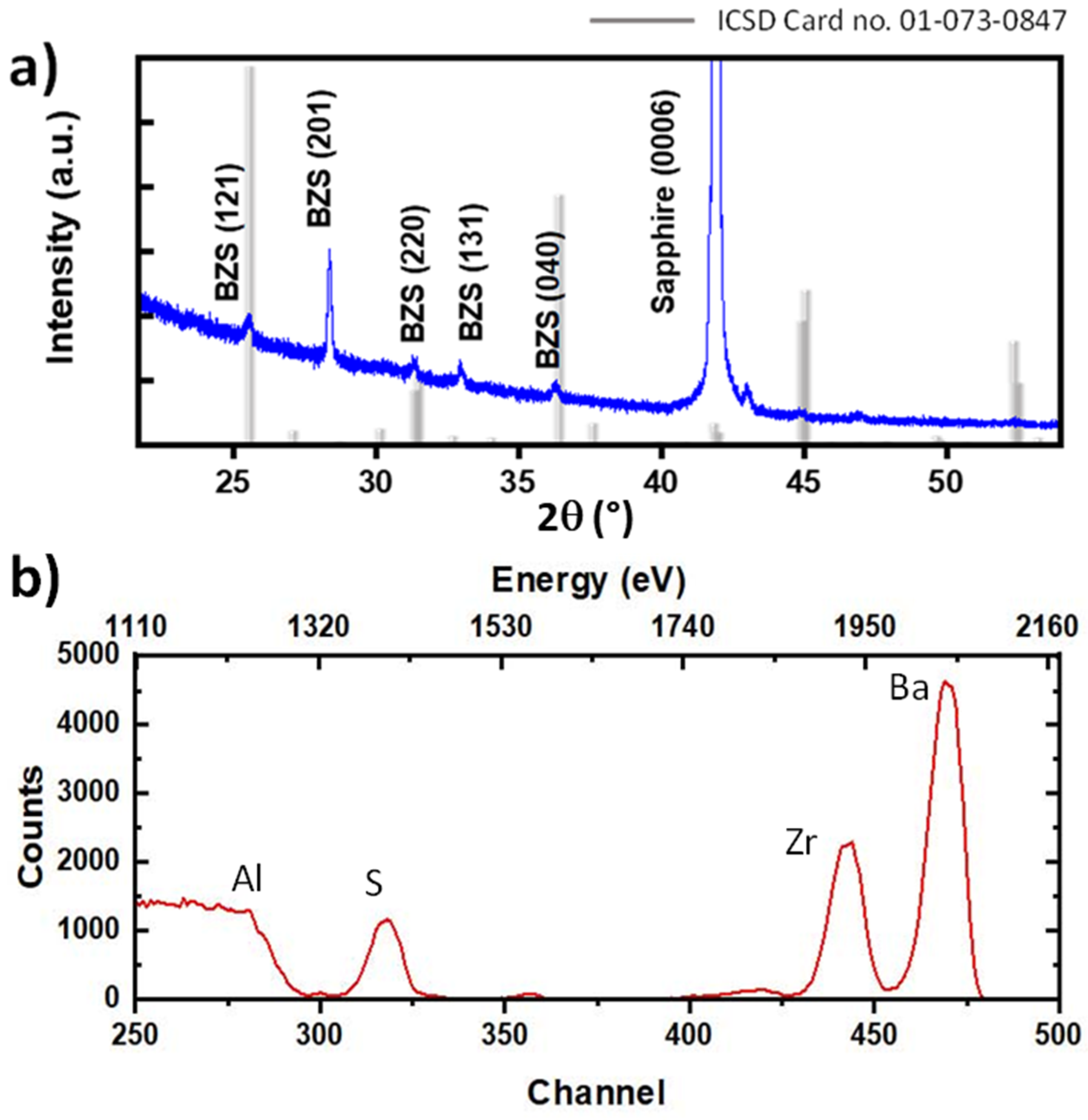

As can be seen from Figure 2, the XRD θ-2θ scans show the formation of single-phase polycrystalline perovskite BaZrS₃ film on the c-plane sapphire substrate. All the discernible diffraction peaks of the film match well with the standard peak positions of BZS, where the BZS is crystallized in a distorted perovskite structure of the orthorhombic Pnma space group retrieved from the PDF (powder diffraction file) card ICDD 00-015-0327. No additional peaks were observed, suggesting that the films synthesized by PAD were phase pure chalcogenide perovskite. The surface of BZS films processed at such an annealing temperature showed the morphology of a connected network of crystals (see Figure S1, Supplementary Information). The composition of the as-fabricated films was determined by Rutherford backscattering spectrometry (RBS). The atomic ratios were determined to be 1:1.03:3.02 (within 5% errors), which is very similar to the ideal Ba:Zr:S ratio of 1:1:3. It is noted that the atomic ratio measured from an energy-dispersive X-ray is similar to the compositions obtained by RBS (see Figure S2, Supplementary Information). The BZS film thickness was estimated to be 83 nm from the fitting to the RBS spectrum. This value was very similar to the film thickness (~76 nm) estimated from the XRD full width at the half maximum (~0.112°) of the BZS (201) diffraction peak.

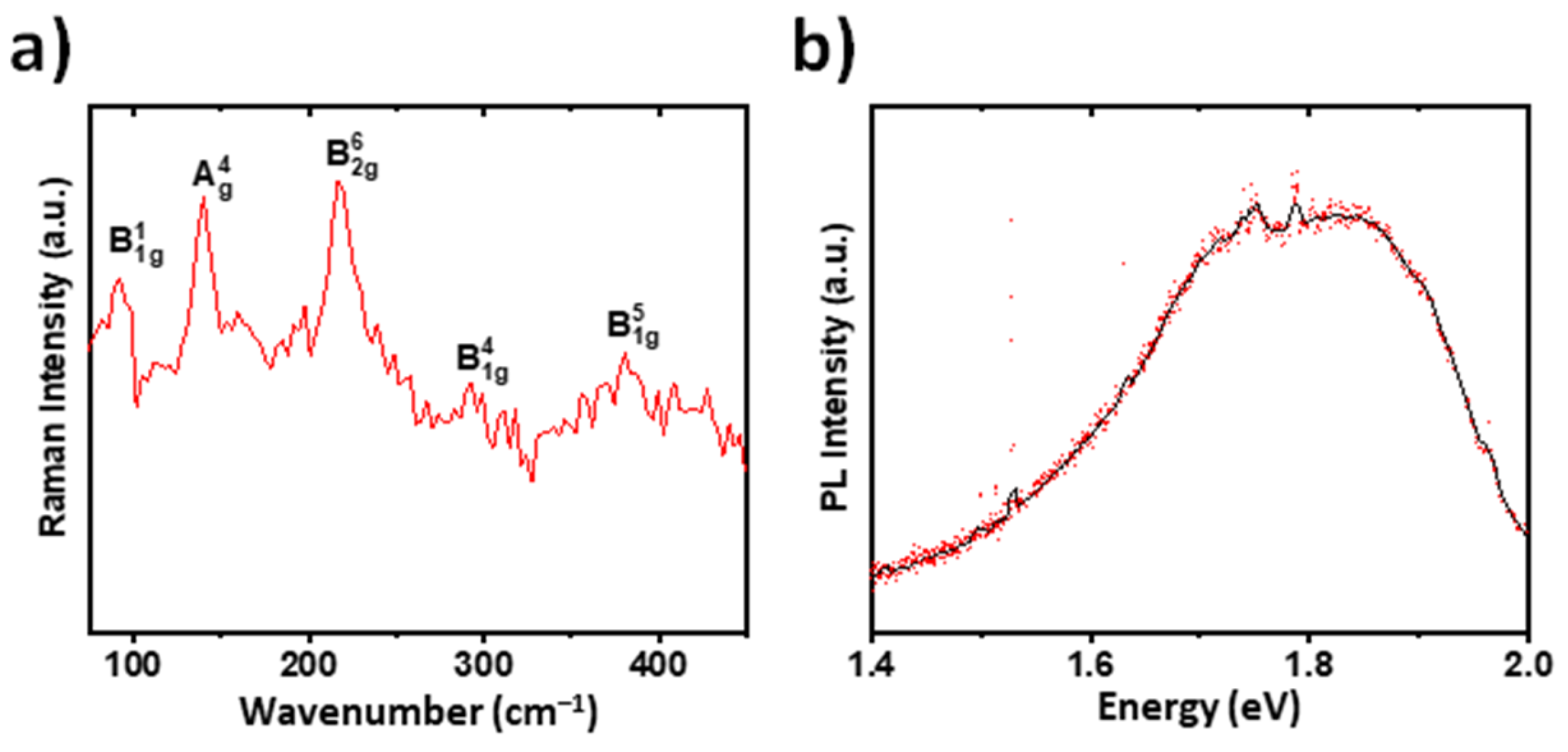

The Raman spectrum of the BZS film synthesized by PAD is illustrated in Figure 3a. Five major peaks can be observed between wavenumbers 50 and 400 cm⁻¹, which are identified as $B_{1g}^1$, $A_g^4$, $B_{2g}^6,$ $B_{1g}^4$, and $B_{1g}^5$ modes. As illustrated in Figure 3b, the PL spectrum of the film shows a broad peak centered around 1.8 eV, with a width of ~200 meV. Both the Raman and PL measurements of the BZS films prepared by PAD are in good agreement with prior reports of BaZrS₃ with the Pnma structure [17,22,26,47,48,49].

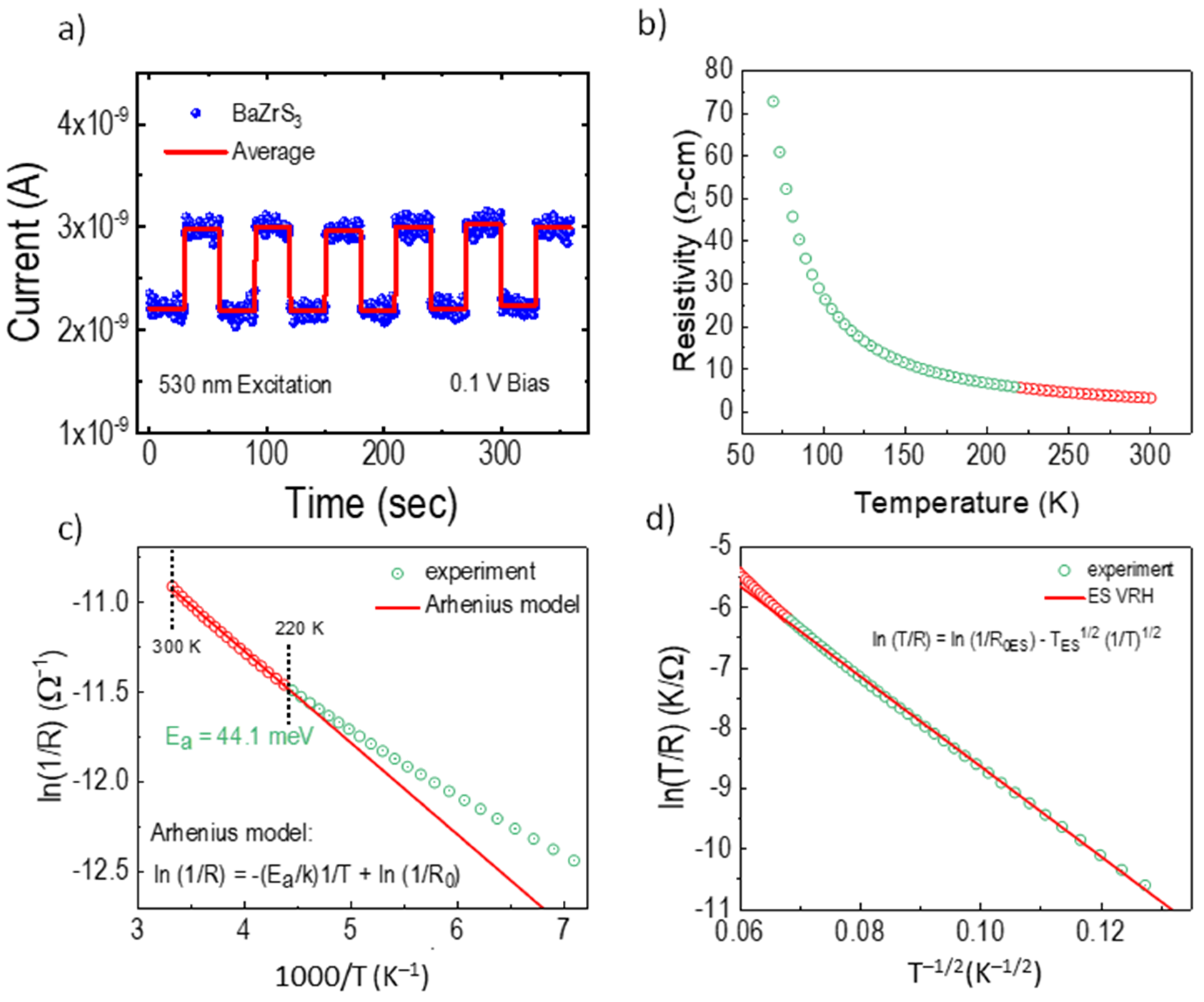

The BZS films synthesized by PAD show a noticeable photogenerated current, as illustrated in Figure 4a. Given that the bandgap of BZS is at around 1.8 eV, we used a 530 nm LED to illuminate the BZS film. Figure 4a shows the time-dependent current of the BZS film by turning the LED on and off, where the BZS film was biased at 0.1 V at room temperature in the dark. As can be seen from Figure 4a, an increase in the current was detected due to the photogenerated carriers in the BZS film under illumination.

The temperature-dependent electrical resistivity of BZS samples is shown in Figure 4b. The increase in resistivity with decreasing temperature suggests the film behaves as a semiconductor does. Beyond 60 K, the resistance value exceeded the measurement limit of our PPMS setup. The non-linear nature of the resistivity vs. temperature characteristic may come from two distinct carrier transport mechanisms. In semiconductors, the conductivity (or resistivity) is normally governed by thermally activated carriers (electron or hole) at room temperature, where the thermally activated electrical conductivity of semiconducting materials is often described by the Arrhenius relation,

$$\sigma ={\sigma }_0\mathrm{e}\mathrm{x}\mathrm{p}\left(\frac{-E_a}{kT}\right)$$

(1)

where σ₀ is a constant, E_a is the activation energy, and k is Boltzmann’s constant. The electrical resistivity of a material can be expressed as $R=\frac{1}{\sigma }\frac{l}{A}$, where σ is the electrical conductivity (reciprocal of electrical resistivity), l is the length of the sample, and A is the cross-sectional area through which the carrier transport is taking place. By replacing σ with $\frac{1}{R}\frac{l}{A}$, the modified version of the Arrhenius equation can be written as $ln\frac{1}{R}=-\left(\frac{E_a}{k}\right)\frac{1}{T}+\mathrm{l}\mathrm{n}\left(\frac{1}{R_0}\right)$, where R₀ is a constant. The ln(1/R) vs. 1/T plot should exhibit a linear relationship with a slope of −(E_a/k) and an intercept of ln(1/R₀) if thermally activated Arrhenius-type conduction dominates the conductivity. As shown in Figure 4c, the linear relationship of ln(1/R) vs. 1/T between 300 K and 220 K suggests the thermally activated conduction in the range of the mentioned temperatures. The calculated activation energy for the sample is about 44 meV, which is higher than that of the BZS films previously reported via the sulfurization of BaZrO₃ films [22]. The highly resistive nature of the BZS film synthesized by PAD suggests a relatively lower carrier concentration that is directly related to the activation energy at a given temperature. At a temperature lower than 220 K, Figure 4c clearly shows that the fitting starts deviating from the linear relationship of ln(1/R) vs. 1/T. This deviation suggests a different conduction mechanism in the low-temperature region for the BZS films synthesized by PAD. In the low-temperature region, we find that the Efros–Shklovskii (E-S)-type variable range hopping model can be used to fit the experimental data, as shown in Figure 4d. This model can be expressed with the following equation [50],

$${\sigma }_{ES}\left(T\right)=\frac{{\sigma }_{0ES}}{T}\mathrm{e}\mathrm{x}\mathrm{p}{\left[-\frac{T_{ES}}{T}\right]}^{1/2}$$

(2)

where the E-S model takes into account the coulomb interactions between the localized electrons at lower temperatures. The characteristic temperature, T_ES, depends on the localization length and dielectric constant of the material. As can be seen from Figure 4d, our experimental data can be best fitted by a linear relationship between ln(T/R) and $1/T^{-1/2}$ at temperatures below 220 K. The conductivity of BZS film synthesized by PAD at low temperatures is consistent with the previously reported charge transport mechanism in BZS films derived from the sulfurization of BaZrO₃ films [22]. Further systematic studies are needed to identify and quantify the role of crystallinity and stoichiometry of the BZS thin films on optoelectronic properties derived from various growth techniques.

4. Conclusions

This work sets the stage for developing chalcogenide perovskites as a family of semiconductor materials using a benign aqueous chemical solution deposition method, i.e., polymer-assisted deposition. The polycrystalline BaZrS₃ films synthesized by polymer-assisted deposition show photoluminescence and photo-generated currents similar to those of the polycrystalline BaZrS₃ films deposited by physical vapor deposition. The charge transport of the demonstrated film was ascertained to follow the E-S variable range hopping at lower temperatures and Arrhenius thermally activated conduction at temperatures above 220 K to room temperature. The growth of chalcogenide perovskite BaZrS₃ films by a polymer-assisted deposition not only provides an attractive synthetic route for the deposition of such a class of semiconductor materials, but it also offers the potential to impact research on other sulfur- and selenium-containing chalcogenide compounds.
