# Multi-Strategy Improved Sparrow Search Algorithm and Application

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Sparrow Search Algorithm

## 3. Sparrow Search Algorithm Enhancement Strategy

#### 3.1. Piecewise Chaos Mapping

#### 3.2. Gaussian Differential Variance

#### 3.3. Linear Differential Decreasing Inertia Weights

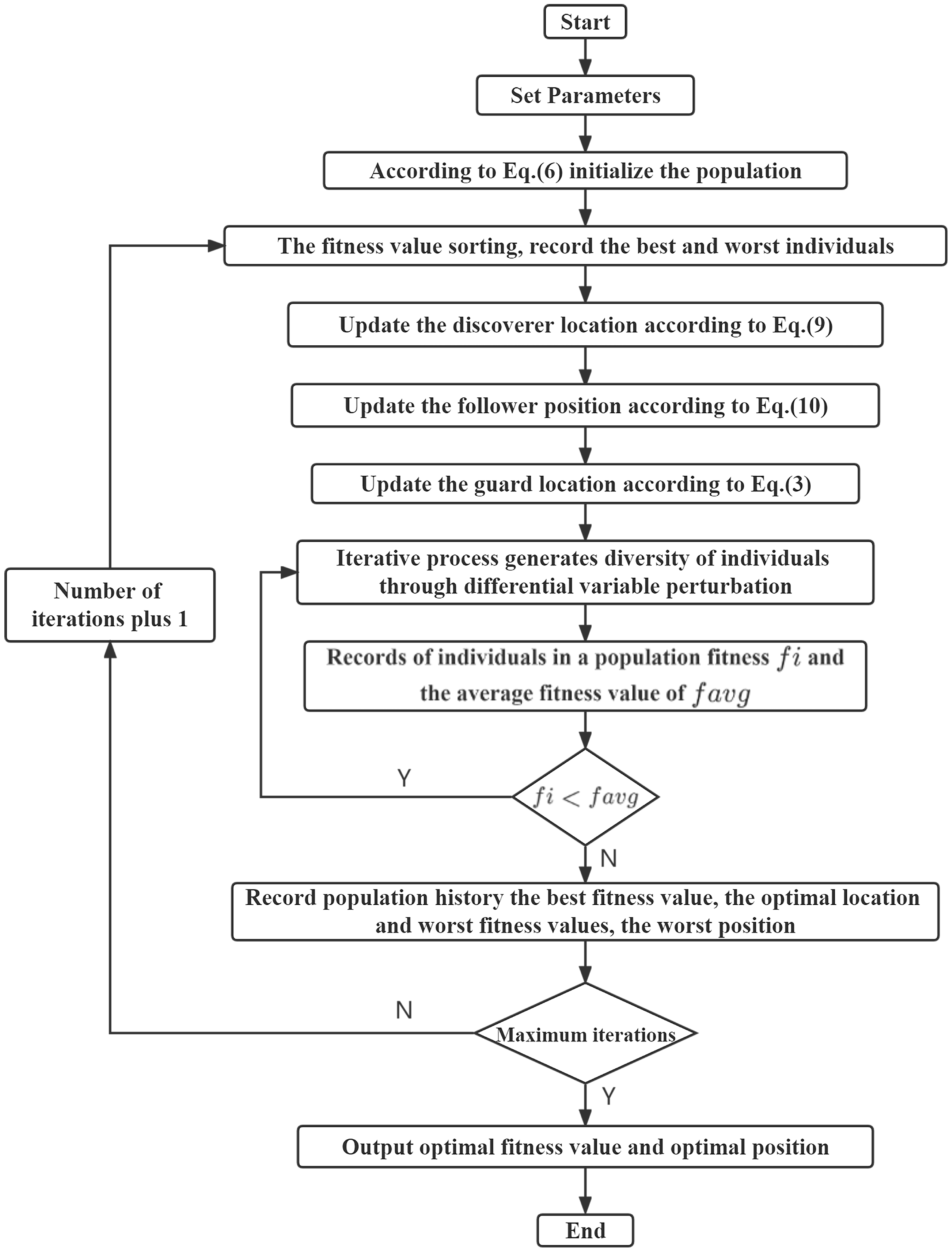

## 4. Improved Sparrow Search Algorithm

**Step 1**: The parameters are set; each parameter includes population size N, number of discoverers M, number of followers ($N-M$), number of sparrows for reconnaissance warning $(0.1-0.2)N$, dimension of the objective function $Dim$, upper and lower bounds $lb$, $ub$ of initial values, and maximum number of iterations ${iter}_{max}$;

**Step 2**: Apply the piecewise chaotic sequence in Equation (4) to initialize the population and generate N D-dimensional vectors;

**Step 3**: Calculate the fitness value ${f}_{i}$ of all individuals in the population, record the current best individual fitness value ${f}_{g}$ and the corresponding position ${X}_{b}$, and record the current worst individual fitness value ${f}_{w}$ and the corresponding position ${X}_{w}$;

**Step 5**: Therandomly selected 10%–20% individuals in the species sparrow flock are used as scouts, and the scout positions are updated by Equation (3);

**Step 6**: During the iteration of the algorithm, the diversity of individuals is generated by perturbation of the difference variables to make the algorithm converge quickly. After one complete iteration, the fitness value ${f}_{i}$ and the population average fitness value ${f}_{avg}$ are recalculated for each individual of the population, and when ${f}_{i}$ < ${f}_{avg}$, the Gaussian difference variation is performed according to Equation (5), and the pre-variation individual is replaced by the post-variation individual if it is better than the pre-variation individual;

**Step 7**: Update the historical optimal position ${X}_{b}$ and the corresponding fitness value ${f}_{g}$ of the sparrow population, and the worst position ${X}_{w}$ and the corresponding fitness value ${f}_{w}$ of the population;

**Step 8**: Determine whether the number of iterations of the algorithm reaches the maximum or the accuracy of the solution reaches the requirement, the loop ends if the requirement is reached; otherwise, return to

**Step 4**.

## 5. Simulation Experiments and Results Analysis

#### 5.1. CEC Test Functions

#### 5.2. Experimental Anvironment and Parameter Settings

#### 5.3. Comparative Analysis of Optimization Results

#### 5.4. Wilcoxon Rank-Sum Test

#### 5.5. Comparative Time Analysis

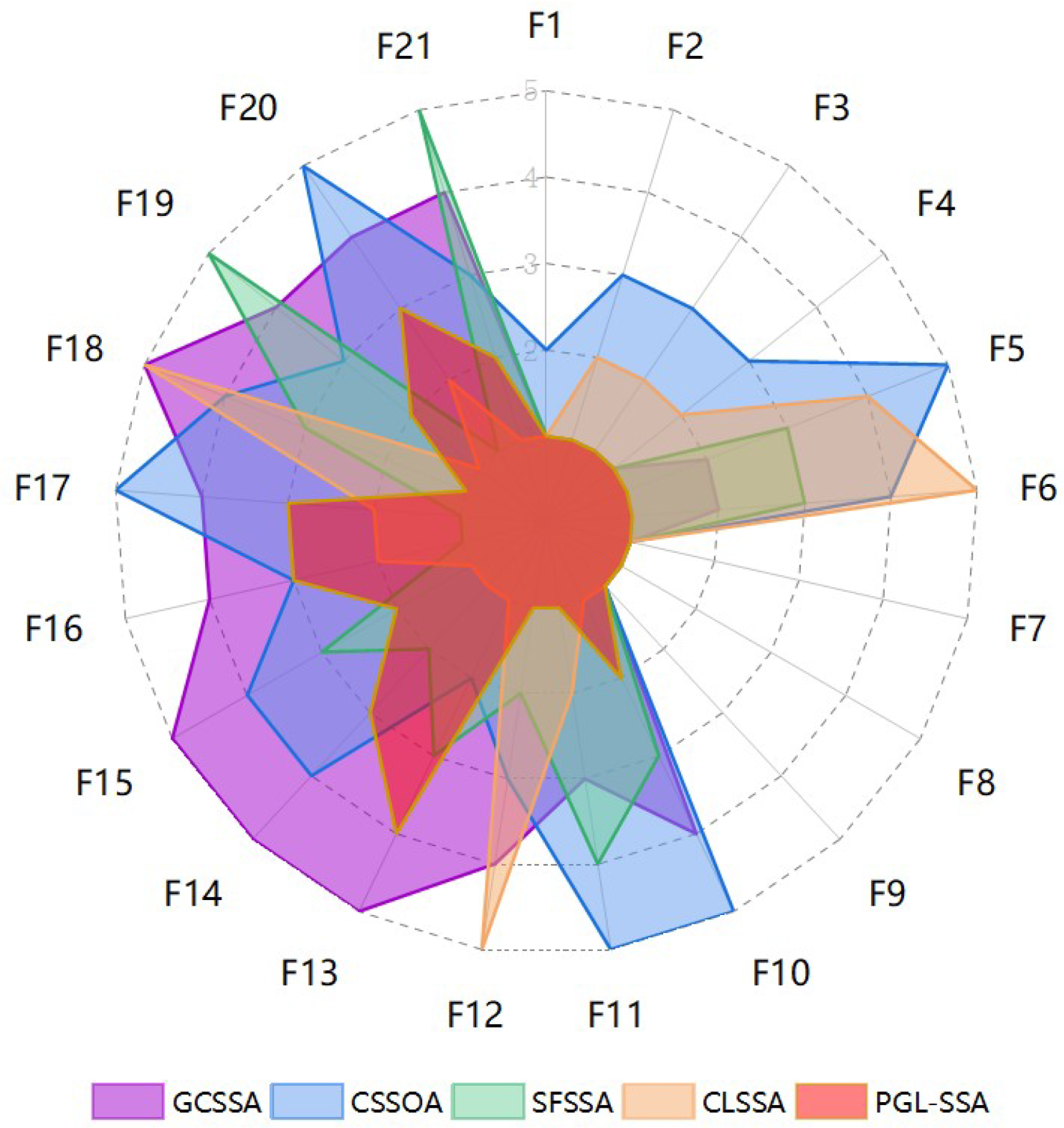

#### 5.6. Comparison of PGL-SSA with Different Improved SSA

## 6. Application of PGL-SSA for HVAC Control

#### 6.1. Fitness Function

#### 6.2. PID Parameter Tuning Simulation Experiment and Result Analysis

#### 6.2.1. Optimal Tuning of PID Parameters for First-Order Inertia Delay Systems

#### 6.2.2. Optimal Tuning of PID Parameters for Second-Order Underdamped Delay Systems

#### 6.2.3. PMSM System PID Parameter Optimization

## 7. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Xue, J.K.; Shen, B. A novel swarm intelligence optimization approach: Sparrow search algorithm. Syst. Sci. Control Eng.
**2020**, 8, 22–34. [Google Scholar] [CrossRef] - Tang, A.D.; Zhou, H.; Han, T.; Xie, L. A Chaos Sparrow Search Algorithm with Logarithmic Spiral and Adaptive Step for Engineering Problems. Comput. Model. Eng. Sci.
**2022**, 130, 331–364. [Google Scholar] [CrossRef] - Ren, X.Y.; Chen, S.; Wang, K.Y.; Tan, J. Design and application of improved sparrow search algorithm based on sine cosine and firefly perturbation. Math. Biosci. Eng.
**2022**, 19, 11422–11452. [Google Scholar] [CrossRef] [PubMed] - Gao, C.F.; Chen, J.Q.; Shi, M.H. Multi-strategy sparrow search algorithm integrating golden sine and curve adaptive. Appl. Res. Comput.
**2022**, 39, 491–499. [Google Scholar] - Gao, B.W.; Shen, W.; Guan, H.; Zheng, L.T.; Zhang, W. Research on Multistrategy Improved Evolutionary Sparrow Search Algorithm and its Application. IEEE Access
**2022**, 10, 62520–62534. [Google Scholar] [CrossRef] - Pan, S.; Han, Y.; Wei, S.; Wei, Y.; Xia, L.; Xie, L.; Kong, X.; Yu, W. A model based on Gauss distribution for predicting window behavior in building. Build. Environ.
**2019**, 149, 210–219. [Google Scholar] [CrossRef] - Wang, K.; Li, Z.B.; Cheng, H.; Zhang, K. Mutation Chicken Swarm Optimization Based on Nonlinear Inertia Weight. In Proceedings of the 3rd IEEE International Conference on Computer and Communications (ICCC), Chengdu, China, 13–16 December 2017; pp. 2206–2211. [Google Scholar]
- Metzmacher, H.; Syndicus, M.; Warthmann, A.; van Treeck, C. Exploratory comparison of control algorithms and machine learning as regulators for a personalized climatization system. Energy Build.
**2022**, 255, 111653.1–111653.16. [Google Scholar] [CrossRef] - Selamat, H.; Haniff, M.F.; Sharif, Z.M.; Attaran, S.M.; Sakri, F.M.; Razak, M.A.A. Review on HVAC System Optimization Towards Energy Saving Building Operation. Int. Energy J.
**2020**, 20, 345–357. [Google Scholar] - Liao, G.C. Fusion of Improved Sparrow Search Algorithm and Long Short-Term Memory Neural Network Application in Load Forecasting. Energies
**2021**, 15, 130. [Google Scholar] [CrossRef] - He, N.; Xi, K.; Zhang, M.; Li, S. A Novel Tuning Method for Predictive Control of VAV Air Conditioning System Based on Machine Learning and Improved PSO. J. Beijing Inst. Technol.
**2022**, 31, 350–361. [Google Scholar] - Fayyaz, M.; Farhan, A.A.; Javed, A.R. Thermal Comfort Model for HVAC Buildings Using Machine Learning. Arab. J. Sci. Eng.
**2022**, 47, 2045–2060. [Google Scholar] [CrossRef] - Yuan, X.L.; Pan, Y.Q.; Yang, J.R.; Wang, W.T.; Huang, Z.Z. Study on the application of reinforcement learning in the operation optimization of HVAC system. Build. Simul.
**2021**, 14, 75–87. [Google Scholar] [CrossRef] - Puchta, E.D.P.; Bassetto, P.; Biuk, L.H.; Itaborahy, M.A.; Converti, A.; Kaster, M.D.; Siqueira, H.V. Swarm-Inspired Algorithms to Optimize a Nonlinear Gaussian Adaptive PID Controller. Energies
**2021**, 14, 3385. [Google Scholar] [CrossRef] - Wang, M. HVAC Control System for Neural Network Optimization PID Controller. Mod. Electron.
**2017**, 40, 137–139, 143. [Google Scholar] - He, S.Y.; Cao, Z.Q.; Yu, S.W. Optimization of PID Parameters Based on Flower Pollination Algorithm. Comput. Eng. Appl.
**2016**, 52, 59–62. [Google Scholar] - Liu, W.Z.; An, D.; Xu, Y.; Shao, M.; Liu, Z.P.; Zou, D.F. Study on the Optimization of PID Parameters by Self-Polymerizing Moth Flame Optimization Algorithm. Mach. Tool Hydraul.
**2021**, 49, 24–28. [Google Scholar] - Duan, S.M.; Luo, H.L.; Liu, H.P. Hybrid Algorithm of Population Search and Bottle Sea Sheath Group Optimizes PID Parameters. J. Syst. Simul.
**2022**, 34, 1230–1246. [Google Scholar] - Kazimipour, B.; Li, X.D.; Qin, A.K. A Review of Population Initialization Techniques for Evolutionary Algorithms. In Proceedings of the 2014 IEEE Congress on Evolutionary Computation (CEC), Beijing, China, 6–11 July 2014; pp. 2585–2592. [Google Scholar]
- Lv, X.; Mu, X.D.; Zhang, J.; Wang, Z. Chaos sparrow search optimization algorithm. J. Beijing Univ. Aeronaut. Astronaut.
**2021**, 47, 1712–1720. Available online: https://kns.cnki.net/kcms/detail/detail.aspx?dbcode=CJFD&dbname=CJFDLAST2021&filename=BJHK202108024&uniplatform=NZKPT&v=VPpzCYKdySObbTY6_JlYuYqbd4mkg6i8M7MDATEvRlU26n4nq5mKeSlq3fpAm61m (accessed on 7 November 2022). - Chen, L.; Yin, J.S. Whale swarm algorithm for Gaussian differential variation and logarithmic inertia weight optimization. Comput. Eng. Appl.
**2021**, 57, 77–90. [Google Scholar] - Nagra, A.A.; Han, F.; Ling, Q.H. An improved hybrid self-inertia weight adaptive particle swarm optimization algorithm with local search. Eng. Optim.
**2019**, 51, 1115–1132. [Google Scholar] [CrossRef] - Bai, Y.; Peng, Z.R. Bottle Sea Sheath Swarm Algorithm Based on Adaptive Inertia Weight. Control Decis.
**2022**, 37, 237–246. [Google Scholar] - Shi, H.Q.; Hou, Q.; Xu, Z.; Li, K. Application Analysis of Optimization Algorithm Test Functions. Comput. Sci. Appl.
**2021**, 11, 2633–2645. [Google Scholar] - Saeed, S.; Ong, H.C.; Sathasivam, S. Self-Adaptive Single Objective Hybrid Algorithm for Unconstrained and Constrained Test functions: An Application of Optimization Algorithm. Arab. J. Sci. Eng.
**2019**, 44, 3497–3513. [Google Scholar] [CrossRef] - Cruz, L.M.; David, L.; Sumaiti, A.A.; Rivera, S. Load Curtailment Optimization Using the PSO Algorithm for Enhancing the Reliability of Distribution Networks. Energies
**2020**, 13, 3236. [Google Scholar] [CrossRef] - Guo, J.X.; Lu, Y.J.; Li, Z.H. PID parameter tuning algorithm of rotor UAV Based on Improved Particle Swarm Optimization. In Proceedings of the 2022 IEEE 6th Information Technology and Mechatronics Engineering Conference (ITOEC), Chongqing, China, 4–6 March 2022; pp. 1251–1255. [Google Scholar]
- Zhang, Z.; Rao, S.H.; Zhang, S.J. Gray Wolf Optimization Algorithm Based on Adaptive Normal Cloud Model. Control Decis.
**2021**, 36, 2562–2568. [Google Scholar] - Derrac, J.; Garcia, S.; Molina, D.; Herrera, F. A practical tutorial on the use of nonparametric statistical tests as a methodology for comparing evolutionary and swarm intelligence algorithms. Swarm Evol. Comput.
**2011**, 1, 3–18. [Google Scholar] [CrossRef] - Kvascev, G.S.; Djurovic, Z.M. Water Level Control in the Thermal Power Plant Steam Separator Based on New PID Tuning Method for Integrating Processes. Energies
**2022**, 15, 6310. [Google Scholar] [CrossRef] - Ozdemir, M.T.; Ozturk, D. Water Comparative Performance Analysis of Optimal PID Parameters Tuning Based on the Optics Inspired Optimization Methods for Automatic Generation Control. Energies
**2017**, 10, 2134. [Google Scholar] [CrossRef] [Green Version] - Zhan, J.Y.; Zhang, Z.Z.; He, Y.Z. Modeling and simulation of building air conditioning system. Heat. Vent. Air Cond.
**2021**, 51, 271–275. [Google Scholar] - Alipouri, Y.; Zhong, L.X. Multi-Model Identification of HVAC System. Appl. Sci.
**2021**, 11, 668. [Google Scholar] [CrossRef] - Hui, H.X.; Ding, Y.; Chen, T.; Rahman, S.; Song, Y. Dynamic and Stability Analysis of the Power System With the Control Loop of Inverter Air Conditioners. IEEE Trans. Ind. Electron.
**2020**, 68, 2725–2736. [Google Scholar] [CrossRef] - Xu, Q.; Zhang, C.; Zhang, L.; Wang, C. Multiobjective Optimization of PID Controller of PMSM. J. Control Sci. Eng.
**2014**, 2014, 471609. [Google Scholar] [CrossRef] [Green Version] - Soundirarrajan, N.; Srinivasan, K. Performance Evaluation of Ant Lion Optimizer-Based PID Controller for Speed Control of PMSM. J. Test. Eval.
**2019**, 49, 1104–1118. [Google Scholar] [CrossRef] - Gao, F.; Yu, L. Study on PID parameter optimization of PMSM drive system based on SOA. J. Hebei Univ. Technol.
**2018**, 47, 19–24, 31. Available online: https://kns.cnki.net/kcms/detail/detail.aspx?dbcode=CJFD&dbname=CJFDLAST2018&filename=HBGB201801003&uniplatform=NZKPT&v=wgwYWMsY1TgzIAt1z5ErdR0uj-4rysj8G3GZ8w2D_H6tt0Edb0QduT_luii8oxeH (accessed on 7 November 2022).

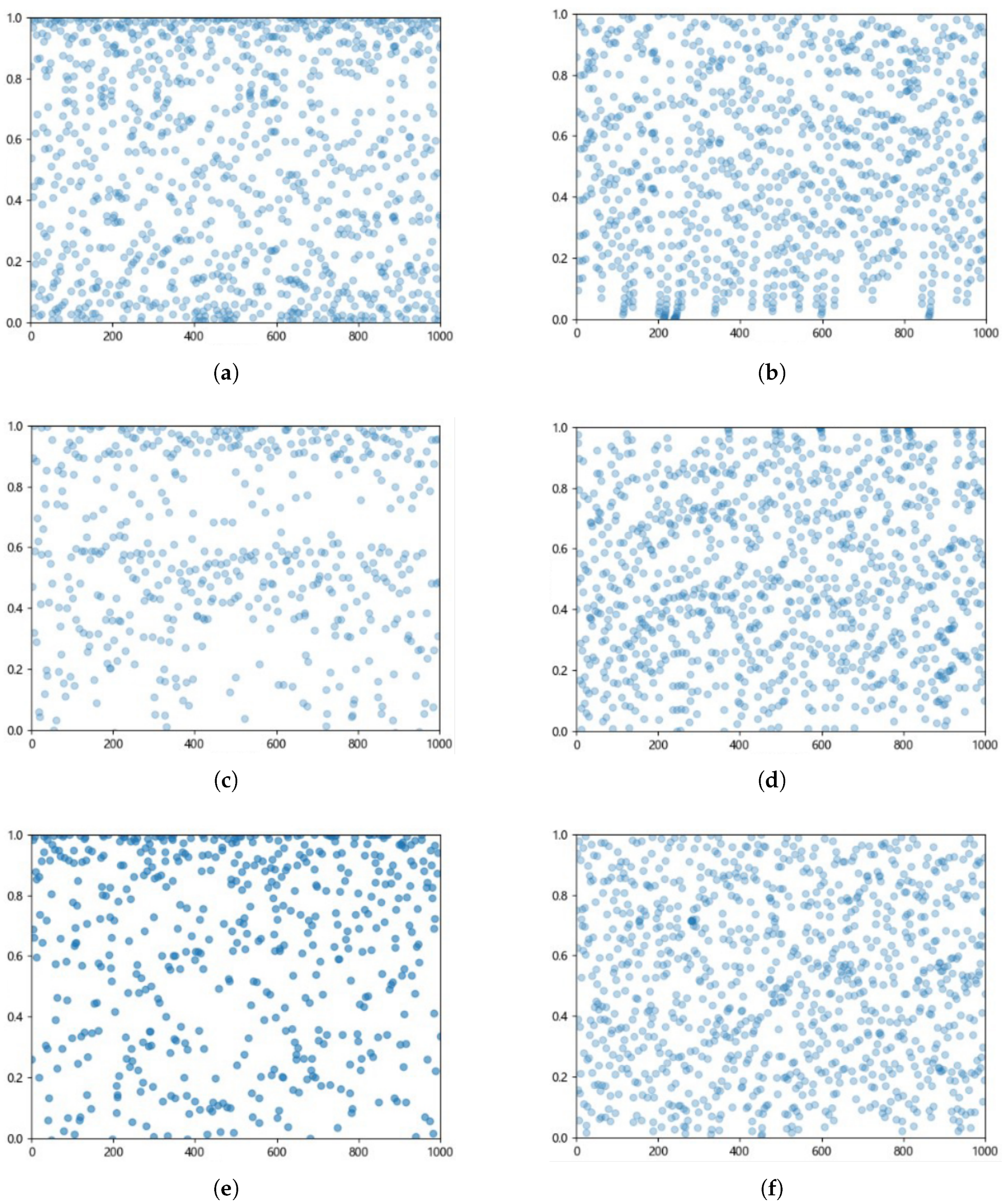

**Figure 1.**The distribution of 1000 iterations of six chaotic mappings, (

**a**) logistic mapping, (

**b**) tent mapping, (

**c**) iterative mapping, (

**d**) intermittency mapping, (

**e**) chebyshev mapping, and (

**f**) piecewise mapping.

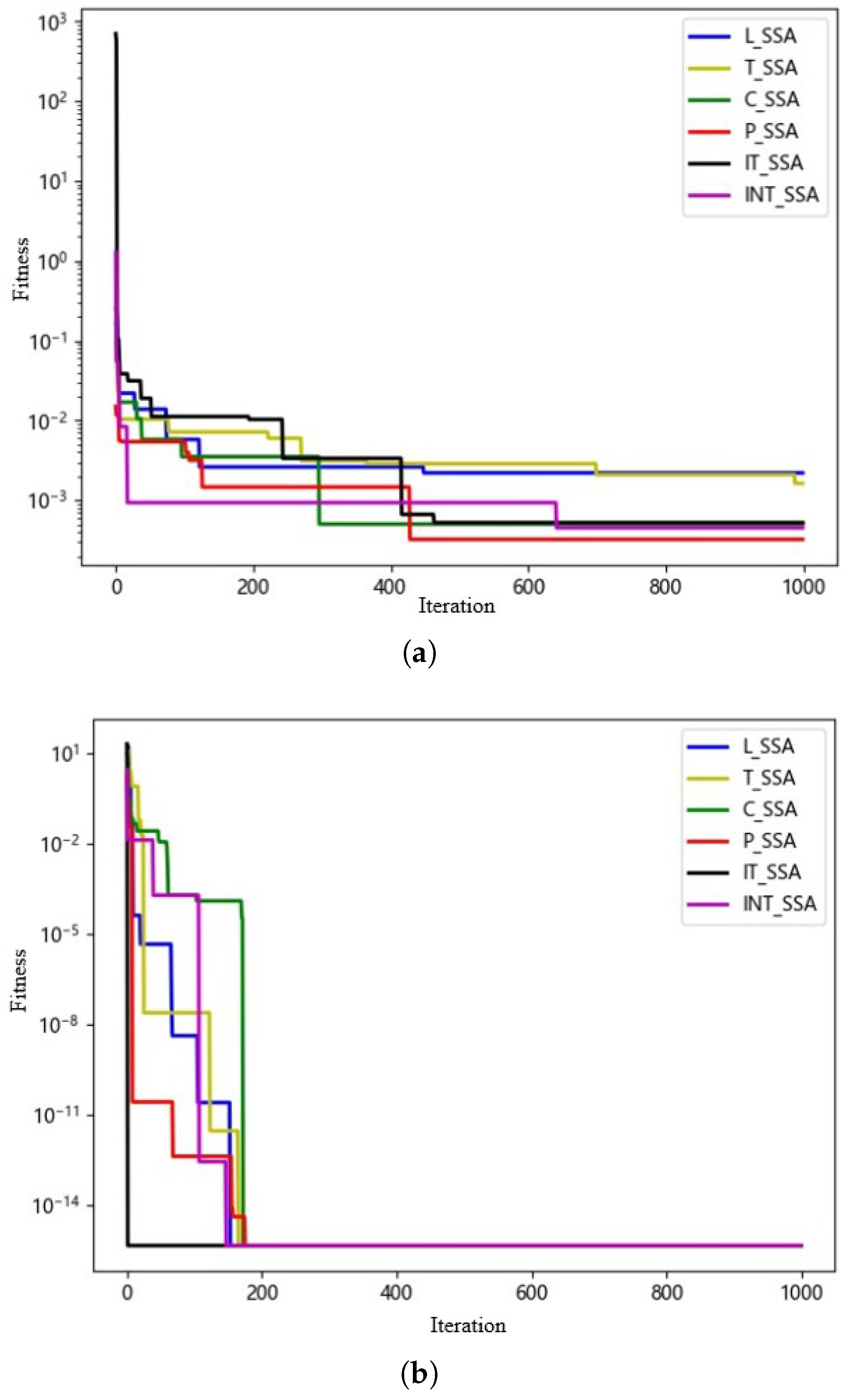

**Figure 2.**Iteration curves of 6 chaotic mapping improved SSA algorithms for different types of test functions, (

**a**) for high-dimensional single-peaked function, (

**b**) for high-dimensional multi-peaked function.

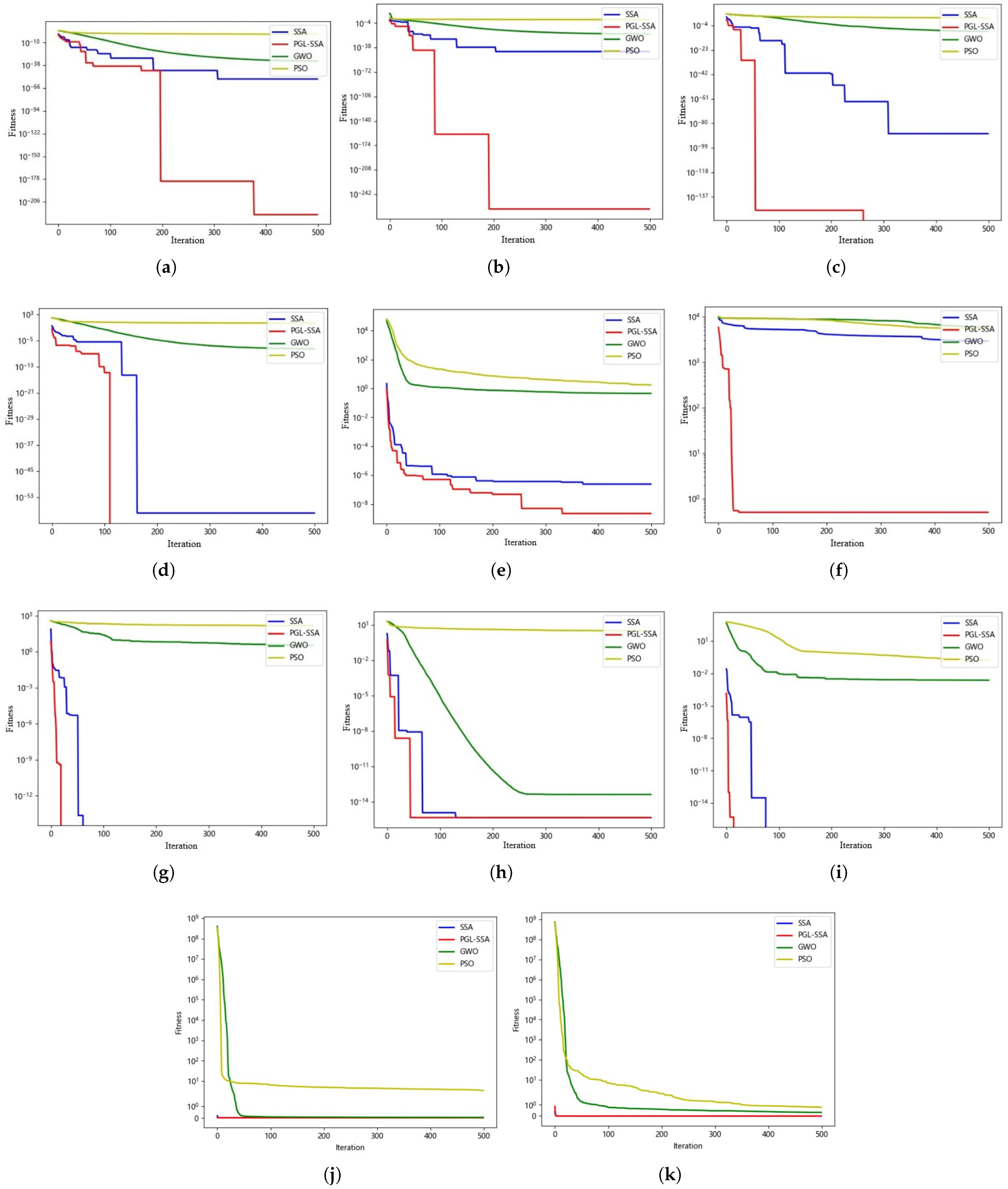

**Figure 4.**Different algorithms convergence curves of F1–F11 with 30 dimensions. (

**a**) F1 Convergence curve. (

**b**) F2 Convergence curve. (

**c**) F3 Convergence curve. (

**d**) F4 Convergence curve. (

**e**) F5 Convergence curve. (

**f**) F6 Convergence curve. (

**g**) F7 Convergence curve. (

**h**) F8 Convergence curve. (

**i**) F9 Convergence curve. (

**j**) F10 Convergence curve. (

**k**) F11 Convergence curve.

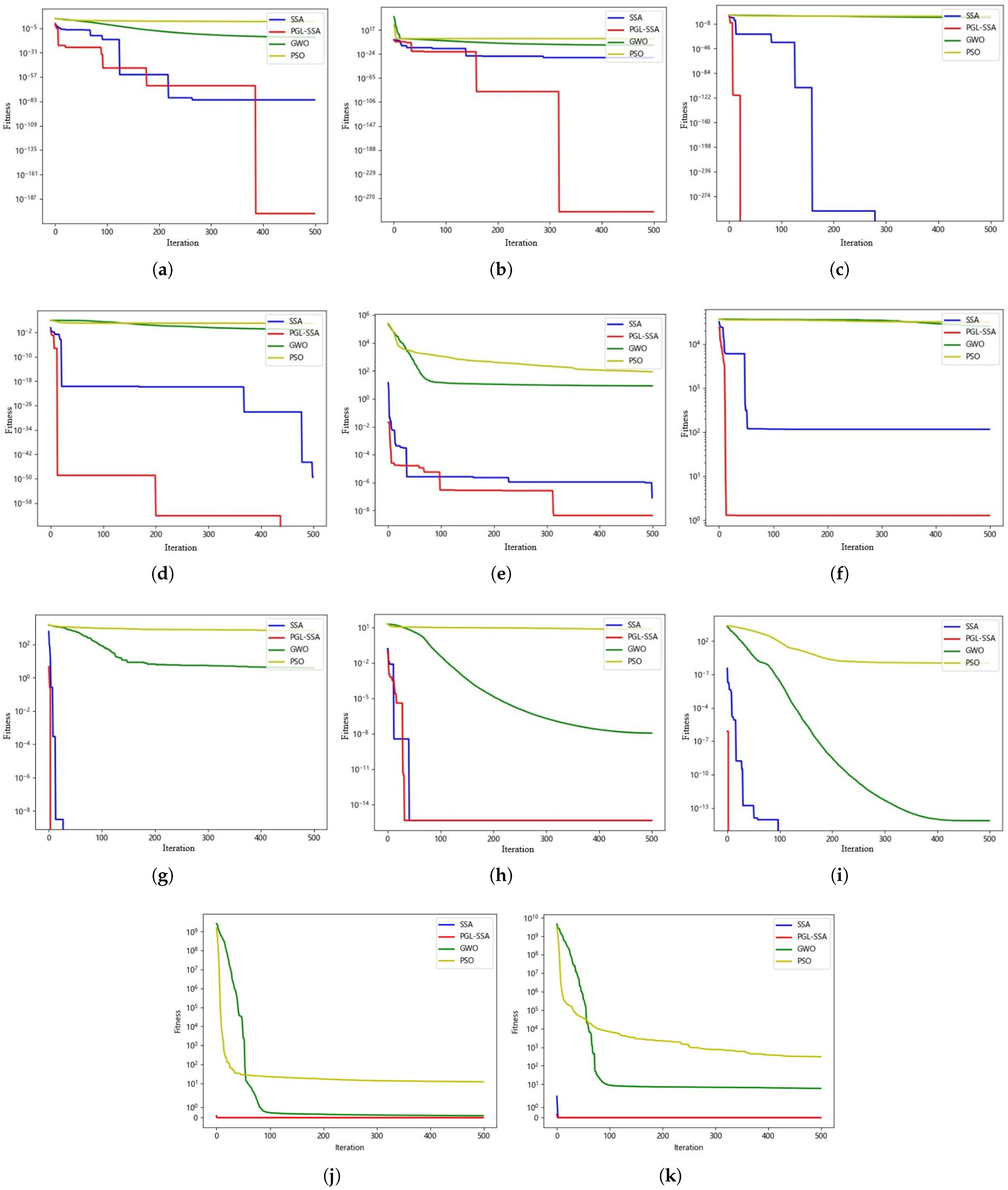

**Figure 5.**Different algorithms convergence curves of F1–F11 with 100 dimensions. (

**a**) F1 Convergence curve. (

**b**) F2 Convergence curve. (

**c**) F3 Convergence curve. (

**d**) F4 Convergence curve. (

**e**) F5 Convergence curve. (

**f**) F6 Convergence curve. (

**g**) F7 Convergence curve. (

**h**) F8 Convergence curve. (

**i**) F9 Convergence curve. (

**j**) F10 Convergence curve. (

**k**) F11 Convergence curve.

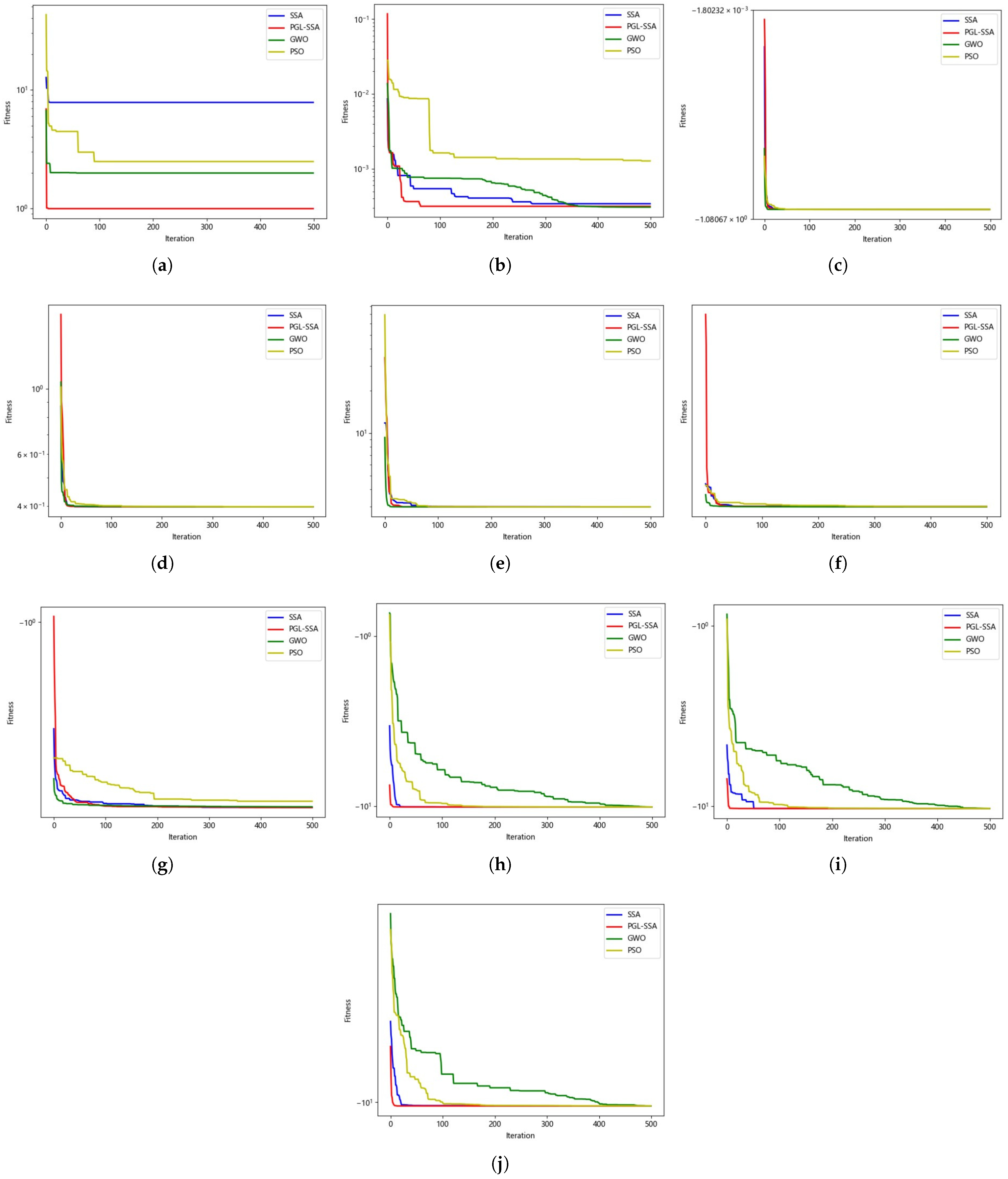

**Figure 6.**Convergence curves of fixed-dimensional peak functions for different algorithms. (

**a**) F12 Convergence curve. (

**b**) F13 Convergence curve. (

**c**) F14 Convergence curve. (

**d**) F15 Convergence curve. (

**e**) F16 Convergence curve. (

**f**) F17 Convergence curve. (

**g**) F18 Convergence curve. (

**h**) F19 Convergence curve. (

**i**) F20 Convergence curve. (

**j**) F21 Convergence curve.

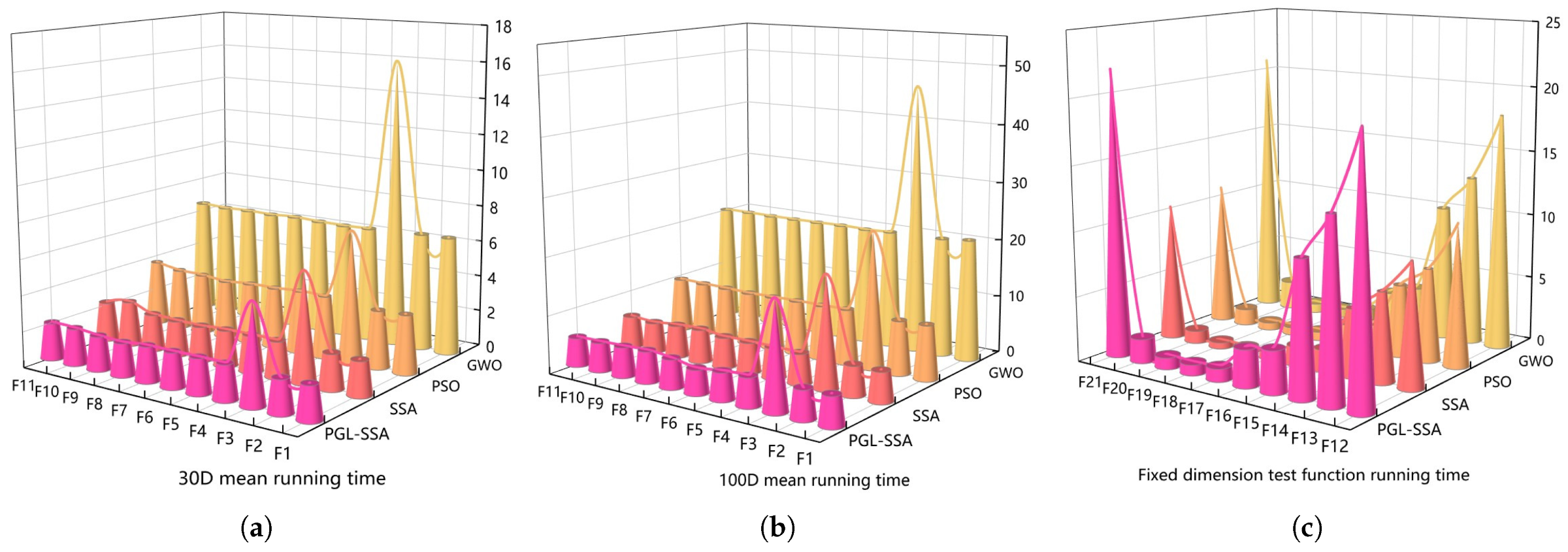

**Figure 8.**Comparison of running time of different algorithms in each dimension. (

**a**) 30D mean running time, (

**b**) 100D mean running time, (

**c**) Fixed dimension test function running time.

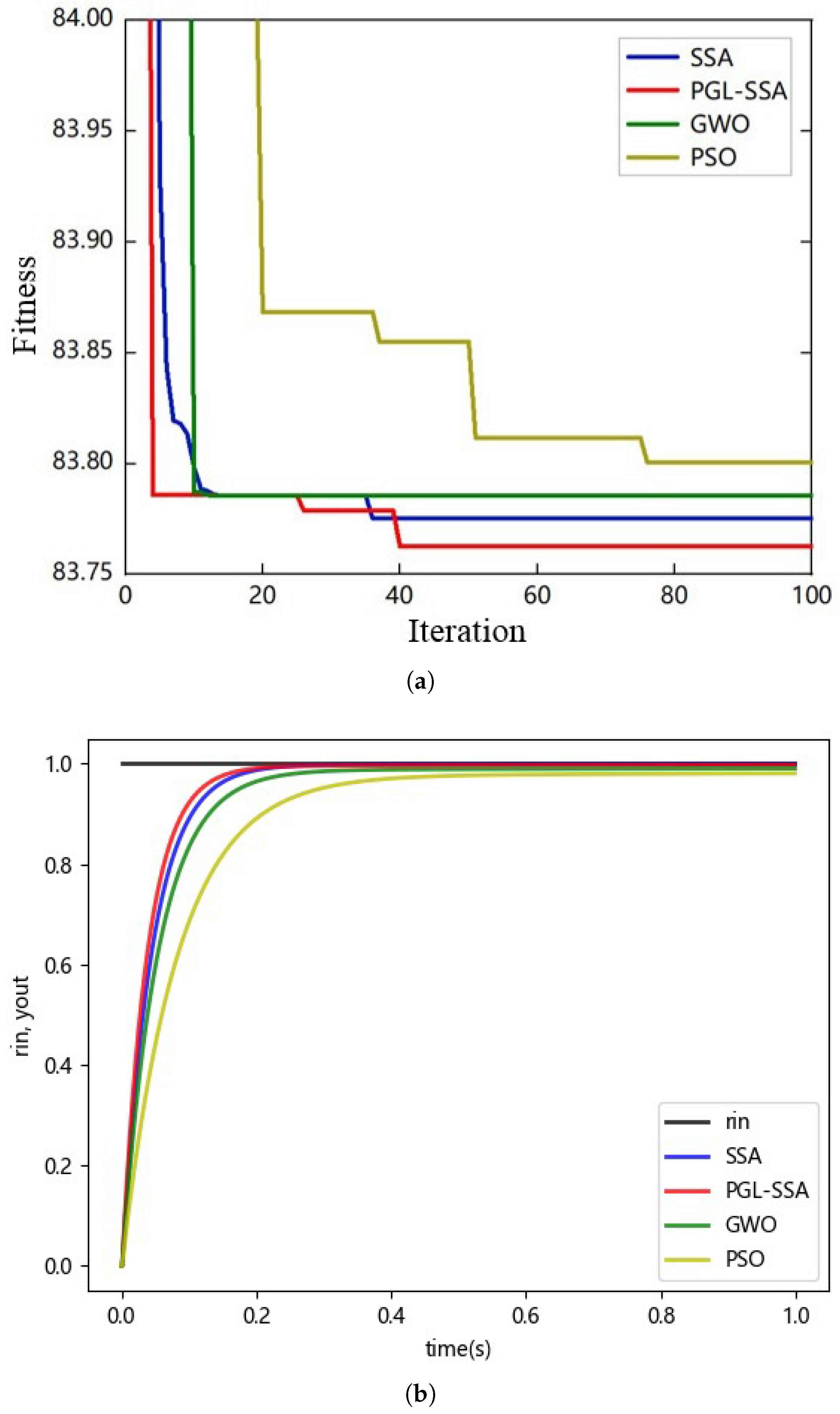

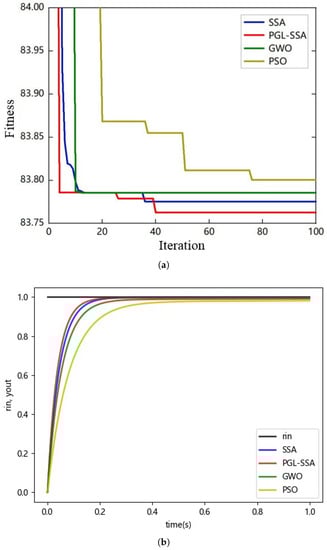

**Figure 10.**Convergence curves and step response curves of different algorithms for first-order inertial delay systems. (

**a**) Convergence curve. (

**b**) Step response curve.

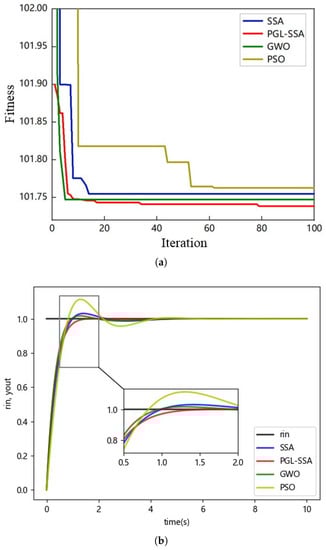

**Figure 11.**Convergence curves and step response curves of different algorithms for second-order inertial delay systems. (

**a**) Convergence curve. (

**b**) step response curve.

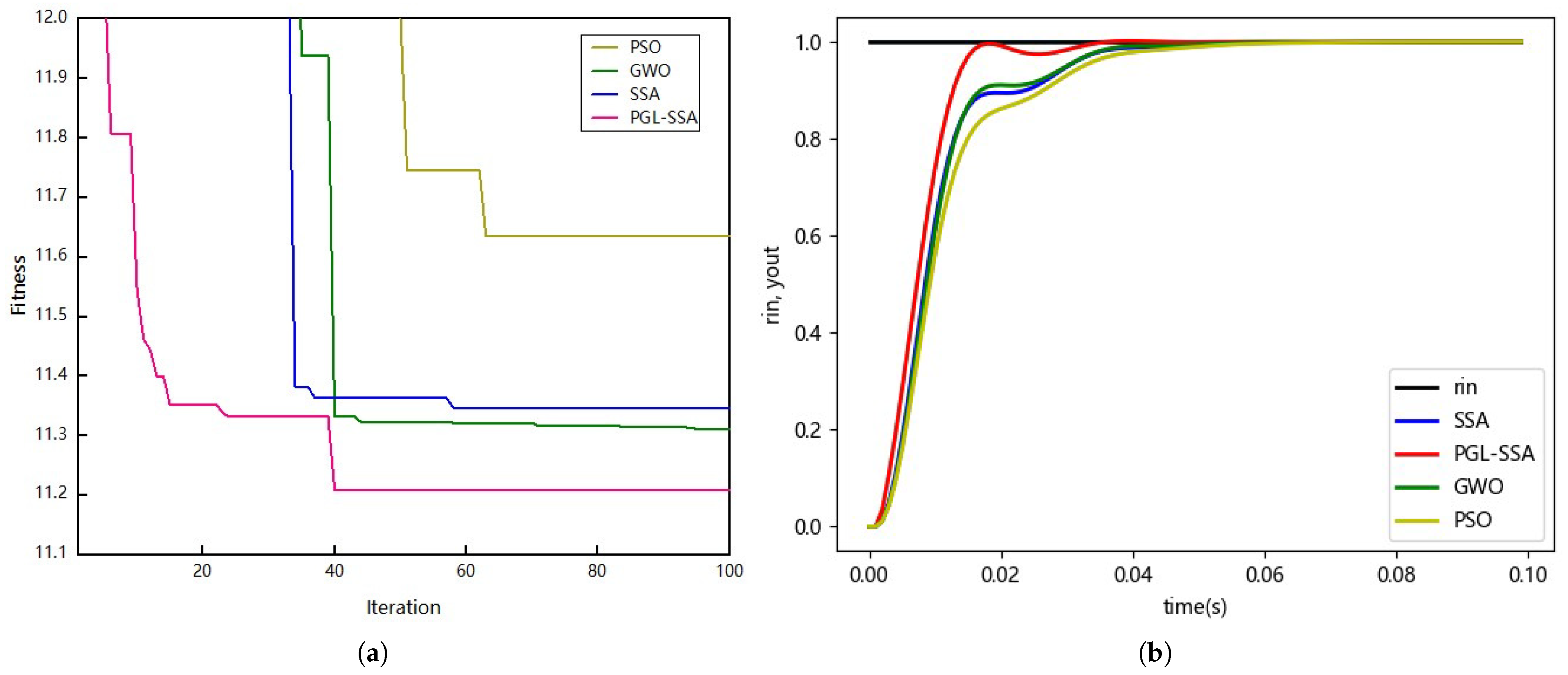

**Figure 12.**Convergence curves and step response curves of different algorithms for PMSM systems. (

**a**) Convergence curve. (

**b**) Step response curve.

Type | Title | Function | Interval | Dimension | Min |
---|---|---|---|---|---|

Single peak | Sphere | ${F}_{1}\left(x\right)={\sum}_{i=1}^{n}{x}_{i}^{2}$ | $[-100,100]$ | 30/100 | 0 |

Schwefel 2.22 | ${F}_{2}\left(x\right)={\sum}_{i=1}^{n}\left|{x}_{i}\right|+{\prod}_{i=1}^{n}\left|{x}_{i}\right|$ | $[-10,10]$ | 30/100 | 0 | |

Quadric | ${F}_{3}\left(x\right)={\sum}_{i=1}^{n}{\left({\sum}_{j=1}^{i}{\chi}_{j}\right)}^{2}$ | $[-100,100]$ | 30/100 | 0 | |

Schwefel 2.21 | ${F}_{4}={max}_{i}\left\{\left|{x}_{i}\right|,1\u2a7di\u2a7dn\right\}$ | $[-100,100]$ | 30/100 | 0 | |

Step | ${F}_{5}\left(x\right)={\sum}_{i=1}^{n}{\left(\left[{x}_{i}+0.5\right]\right)}^{2}$ | $[-100,100]$ | 30/100 | 0 | |

Multi-peak | Schwefel 2.26 | ${F}_{6}\left(x\right)={\sum}_{i=1}^{n}-\left({x}_{i}sin\left(\sqrt{\left|{x}_{i}\right|}\right)\right)$ | $[-500,500]$ | 30/100 | $-418.9829d$ |

Rastrigin | ${F}_{7}\left(x\right)={\sum}_{i=1}^{n}\left[{x}_{i}^{2}-10cos\left(2\pi {x}_{i}\right)+10\right]$ | $[-5.12,5.12]$ | 30/100 | 0 | |

Ackley | $\begin{array}{cc}& \hfill {F}_{8}\left(\mathbf{x}\right)=-20exp\left(-0.2\sqrt{\frac{1}{D}\sum _{i=1}^{D}{x}_{i}^{2}}\right)\hfill \\ & \hfill -exp\left(\frac{1}{D}\sum _{i=1}^{D}cos\left(2\pi {x}_{i}\right)\right)+20+\mathrm{e}\hfill \end{array}$ | $[-32,32]$ | 30/100 | 0 | |

Griewank | ${F}_{9}\left(x\right)=\frac{1}{4000}{\sum}_{i=1}^{n}{x}_{i}^{2}-{\prod}_{i=1}^{n}cos\left(\frac{{x}_{i}}{\sqrt{i}}\right)+1$ | $[-600,600]$ | 30/100 | 0 | |

Penalized | $\begin{array}{cc}& \hfill {F}_{10}\left(x\right)=\frac{\pi}{D}\{10{sin}^{2}\left(\pi {y}_{i}\right)+\sum _{i-1}^{D-1}{\left({y}_{i}-1\right)}^{2}\hfill \\ & \hfill \left[1+10{sin}^{2}\left(\pi {y}_{i+1}\right)\right]+\left({y}_{D}-1\right)\hfill \\ & \hfill +\sum _{i-1}^{D}u\left({x}_{i},10,100,4\right){y}_{i}=1+\frac{{x}_{i}+1}{4}\hfill \\ & \hfill u\left({x}_{i},a,k,m\right)=\{\begin{array}{c}\hfill k{\left({x}_{i}-a\right)}^{m}{x}_{i}>a\hfill \\ \hfill 0-a<{x}_{i}<a\hfill \\ \hfill k{\left(-{x}_{i}-a\right)}^{m}{x}_{i}<a\hfill \end{array}\hfill \end{array}$ | $[-50,50]$ | 30/100 | 0 | |

Penalized2 | $\begin{array}{cc}& \hfill {F}_{11}\left(x\right)=0.1\{{sin}^{2}\left(3\pi {x}_{i}\right)+\sum _{i=1}^{D}{\left({x}_{i}-1\right)}^{2}\hfill \\ & \hfill \left[1+{sin}^{2}\left(3\pi {x}_{i}\right)\right]+{\left({x}_{D}-1\right)}^{2}\hfill \\ & \hfill [1+{sin}^{2}\left(2\pi {x}_{D}\right)]\}+\sum _{i-1}^{D}u\left({x}_{i},5,100,4\right)\hfill \end{array}$ | $[-50,50]$ | 30/100 | 0 | |

Fixed dimensional multi-peak | Foxholes | ${F}_{12}\left(x\right)={\left({\displaystyle \frac{1}{500}+\sum _{j=1}^{25}\frac{1}{j+{\sum}_{i=1}^{2}{\left({x}_{i}-{a}_{ij}\right)}^{6}}}\right)}^{-1}$ | $[-65.5360,65.5360]$ | 2 | 0.998004 |

Kowalik | ${F}_{13}\left(x\right)={\sum}_{i=1}^{11}{\left({\displaystyle {a}_{i}-\frac{{x}_{1}\left({b}_{i}^{2}+{b}_{i}{x}_{2}\right)}{{b}_{i}^{2}+{b}_{i}{x}_{3}+{x}_{4}}}\right)}^{-1}$ | $[-5,5]$ | 4 | 0.0003075 | |

Six Hump Camel Back | ${F}_{14}\left(x\right)=4{x}_{1}^{2}-2.1{x}_{1}^{4}+1/3{x}_{1}^{6}+{x}_{1}{x}_{2}-4{x}_{2}^{2}+{x}_{2}^{4}$ | $[-5,5]$ | 2 | $-1.03163$ | |

Branin | $\begin{array}{c}\hfill {F}_{15}\left(x\right)={\left({x}_{2}-\frac{5.1}{4{\pi}^{2}}{x}_{1}^{2}+\frac{5}{\pi}{x}_{1}-6\right)}^{2}+\\ \hfill 10\left(1-\frac{1}{8\pi}\right)cos{x}_{1}+10\end{array}$ | $[-5,5]$ | 2 | 0.398 | |

Goldstein Price | $\begin{array}{cc}& {F}_{16}\left(x\right)=[1+{\left({x}_{1}+{x}_{2}+1\right)}^{2}\hfill \\ & \left(19-14{x}_{1}+3{x}_{1}^{2}-14{x}_{2}+6{x}_{1}{x}_{2}+3{x}_{2}^{2}\right)]\hfill \\ & \times [30+{\left(2{x}_{1}-3{x}_{2}\right)}^{2}\hfill \\ & \times \left(18-32{x}_{1}+12{x}_{1}^{2}+48{x}_{2}-36{x}_{1}{x}_{2}+27{x}_{2}^{2}\right)]\hfill \end{array}$ | $[-5,5]$ | 2 | 3 | |

Hartman 3 | ${F}_{17}\left(x\right)=-{\sum}_{i=1}^{4}{c}_{i}exp\left(-{\sum}_{j=1}^{3}{a}_{ij}{\left({x}_{j}-{p}_{ij}\right)}^{2}\right)$ | $[0,1]$ | 3 | −3.86 | |

Hartman 6 | ${F}_{18}\left(x\right)=-{\sum}_{i=1}^{4}{c}_{i}exp\left(-{\sum}_{j=1}^{6}{a}_{ij}{\left({x}_{j}-{p}_{ij}\right)}^{2}\right)$ | $[0,1]$ | 6 | −3.32 | |

Langermann 5 | ${F}_{19}\left(x\right)=-{\sum}_{i=1}^{5}{\left[\left(X-{a}_{i}\right){\left(X-{a}_{i}\right)}^{T}+{c}_{i}\right]}^{-1}$ | $[0,10]$ | 4 | −10.1532 | |

Langermann 7 | ${F}_{20}\left(x\right)=-{\sum}_{i=1}^{7}{\left[\left(X-{a}_{i}\right){\left(X-{a}_{i}\right)}^{T}+{c}_{i}\right]}^{-1}$ | $[0,10]$ | 4 | −10.4029 | |

Langermann 10 | ${F}_{21}\left(x\right)=-{\sum}_{i=1}^{10}{\left[\left(X-{a}_{i}\right){\left(X-{a}_{i}\right)}^{T}+{c}_{i}\right]}^{-1}$ | $[0,10]$ | 4 | −10.5364 |

Algorithm | Parameters |
---|---|

PSO | ${W}_{1}=0.9;{C}_{1},{C}_{2}=2;{V}_{min}=-5,{V}_{max}=5$ |

GWO | $\alpha $ decreases linearly from 2 to 0; ${r}_{1},{r}_{2}\in [0,1]$ |

SSA | $M=0.7N;ST=0.6;SD=0.2N$ |

PGL-SSA | $M=0.7N;ST=0.6;SD=0.2N$ |

Function | Algorithm | $\mathit{Dim}=30$ | $\mathit{Dim}=100$ | ||||
---|---|---|---|---|---|---|---|

Mean | Std | Best | Mean | Std | Best | ||

PSO | 1.88 × ${10}^{0}$ | 4.27 × ${10}^{-1}$ | 1.28 × ${10}^{0}$ | 1.10 × ${10}^{2}$ | 6.59 × ${10}^{0}$ | 1.02 × ${10}^{2}$ | |

F1 | GWO | 2.35 × ${10}^{-33}$ | 2.53 × ${10}^{-33}$ | $4.46\times {10}^{-34}$ | 3.05 × ${10}^{-15}$ | 6.03 × ${10}^{-16}$ | 2.36 × ${10}^{-15}$ |

SSA | 1.45 × ${10}^{-55}$ | 2.91 × ${10}^{-55}$ | 0.0 | 4.57 × ${10}^{-82}$ | 6.46 × ${10}^{-82}$ | 0.0 | |

PGL-SSA | $\mathbf{1}.\mathbf{72}\times {\mathbf{10}}^{-\mathbf{222}}$ | 0.0 | 0.0 | $\mathbf{2}.\mathbf{75}\times {\mathbf{10}}^{-\mathbf{203}}$ | 0.0 | 0.0 | |

PSO | 5.65 × ${10}^{0}$ | 9.29 × ${10}^{-1}$ | 4.64 × ${10}^{0}$ | 2.19 × ${10}^{2}$ | 5.75 × ${10}^{1}$ | 1.61 × ${10}^{2}$ | |

F2 | GWO | 6.62 × ${10}^{-20}$ | 3.65 × ${10}^{-20}$ | 2.49 × ${10}^{-20}$ | 1.56 × ${10}^{-9}$ | 6.59 × ${10}^{-10}$ | 9.02 × ${10}^{-10}$ |

SSA | 2.90 × ${10}^{-44}$ | 5.81 × ${10}^{-44}$ | 0.0 | 9.61 × ${10}^{-31}$ | 9.61 × ${10}^{-31}$ | 5.65 × ${10}^{-59}$ | |

PGL-SSA | $\mathbf{4}.\mathbf{79}\times {\mathbf{10}}^{-\mathbf{263}}$ | 0.0 | 0.0 | $\mathbf{3}.\mathbf{70}\times {\mathbf{10}}^{-\mathbf{294}}$ | 0.0 | 0.0 | |

PSO | 8.29 × ${10}^{1}$ | 1.43 × ${10}^{1}$ | 6.69 × ${10}^{1}$ | 9.91 × ${10}^{3}$ | 2.53 × ${10}^{3}$ | 7.37 × ${10}^{3}$ | |

F3 | GWO | 2.69 × ${10}^{-9}$ | 3.59 × ${10}^{-9}$ | 1.15 × ${10}^{-11}$ | 1.13 × ${10}^{2}$ | 5.62 × ${10}^{1}$ | 5.71 × ${10}^{1}$ |

SSA | 1.07 × ${10}^{-88}$ | 2.15 × ${10}^{-88}$ | 0.0 | 0.0 | 0.0 | 0.0 | |

PGL-SSA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | |

PSO | 2.06 × ${10}^{0}$ | 1.81 × ${10}^{-1}$ | 1.82 × ${10}^{0}$ | 1.08 × ${10}^{1}$ | 1.32 × ${10}^{0}$ | 9.48 × ${10}^{0}$ | |

F4 | GWO | 2.86 × ${10}^{-8}$ | 2.36 × ${10}^{-8}$ | 7.67 × ${10}^{-9}$ | 1.03 × ${10}^{-1}$ | 5.25 × ${10}^{-2}$ | 5.07 × ${10}^{-2}$ |

SSA | 1.45 × ${10}^{-58}$ | 2.91 × ${10}^{-58}$ | 0.0 | 3.04 × ${10}^{-50}$ | 3.04 × ${10}^{-50}$ | 0.0 | |

PGL-SSA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | |

PSO | 1.73 × ${10}^{0}$ | 6.97 × ${10}^{-1}$ | 6.85 × ${10}^{-1}$ | 8.71 × ${10}^{1}$ | 4.47 × ${10}^{0}$ | 8.27 × ${10}^{1}$ | |

F5 | GWO | 4.54 × ${10}^{-1}$ | 3.36 × ${10}^{-1}$ | 6.63 × ${10}^{-5}$ | 8.57 × ${10}^{0}$ | 5.39 × ${10}^{-2}$ | 8.51 × ${10}^{0}$ |

SSA | 2.40 × ${10}^{-7}$ | 4.48 × ${10}^{-7}$ | 5.38 × ${10}^{-11}$ | 8.27 × ${10}^{-8}$ | 6.22 × ${10}^{-8}$ | 2.05 × ${10}^{-8}$ | |

PGL-SSA | $\mathbf{2}.\mathbf{19}\times {\mathbf{10}}^{-\mathbf{9}}$ | $\mathbf{2}.\mathbf{22}\times {\mathbf{10}}^{-\mathbf{9}}$ | $\mathbf{5}.\mathbf{56}\times {\mathbf{10}}^{-\mathbf{13}}$ | $\mathbf{4}.\mathbf{48}\times {\mathbf{10}}^{-\mathbf{9}}$ | $\mathbf{4}.\mathbf{26}\times {\mathbf{10}}^{-\mathbf{11}}$ | $\mathbf{4}.\mathbf{44}\times {\mathbf{10}}^{-\mathbf{9}}$ | |

PSO | 5.50 × ${10}^{3}$ | 3.56 × ${10}^{2}$ | 5.05 × ${10}^{3}$ | 3.18 × ${10}^{4}$ | 3.38 × ${10}^{3}$ | 2.84 × ${10}^{4}$ | |

F6 | GWO | 5.93 × ${10}^{3}$ | 2.95 × ${10}^{2}$ | 5.47 × ${10}^{3}$ | 2.52 × ${10}^{4}$ | 5.93 × ${10}^{2}$ | 2.46 × ${10}^{4}$ |

SSA | 2.90 × ${10}^{3}$ | 2.54 × ${10}^{3}$ | 6.64 × ${10}^{0}$ | 1.16 × ${10}^{2}$ | 1.16 × ${10}^{2}$ | 1.96 × ${10}^{-1}$ | |

PGL-SSA | $\mathbf{5}.\mathbf{04}\times {\mathbf{10}}^{-\mathbf{1}}$ | $\mathbf{3}.\mathbf{92}\times {\mathbf{10}}^{-\mathbf{1}}$ | $\mathbf{1}.\mathbf{50}\times {\mathbf{10}}^{-\mathbf{3}}$ | $\mathbf{1}.\mathbf{27}\times {\mathbf{10}}^{\mathbf{0}}$ | $\mathbf{1}.\mathbf{22}\times {\mathbf{10}}^{\mathbf{0}}$ | $\mathbf{4}.\mathbf{97}\times {\mathbf{10}}^{-\mathbf{2}}$ | |

PSO | 1.43 × ${10}^{2}$ | 1.59 × ${10}^{1}$ | 1.26 × ${10}^{2}$ | 6.76 × ${10}^{2}$ | 4.42 × ${10}^{0}$ | 6.72 × ${10}^{2}$ | |

F7 | GWO | 3.42 × ${10}^{0}$ | 4.21 × ${10}^{0}$ | 1.13 × ${10}^{-13}$ | 3.90 × ${10}^{0}$ | 3.90 × ${10}^{0}$ | 1.90 × ${10}^{-11}$ |

SSA | 2.47 × ${10}^{-224}$ | 3.75 × ${10}^{-225}$ | 0.0 | 1.95 × ${10}^{-211}$ | 4.34 × ${10}^{-212}$ | 0.0 | |

PGL-SSA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | |

PSO | 3.05 × ${10}^{0}$ | 3.43 × ${10}^{-1}$ | 2.55 × ${10}^{0}$ | 7.50 × ${10}^{0}$ | 2.98 × ${10}^{-1}$ | 7.21 × ${10}^{0}$ | |

F8 | GWO | 4.09 × ${10}^{-14}$ | 1.74 × ${10}^{-15}$ | 3.95 × ${10}^{-14}$ | 1.13 × ${10}^{-8}$ | 3.76 × ${10}^{-9}$ | 7.60 × ${10}^{-9}$ |

SSA | $4.44\times {10}^{-16}$ | 0.0 | $4.44\times {10}^{-16}$ | $4.44\times {10}^{-16}$ | 0.0 | $4.44\times {10}^{-16}$ | |

PGL-SSA | $\mathbf{4}.\mathbf{44}\times {\mathbf{10}}^{-\mathbf{16}}$ | 0.0 | $\mathbf{4}.\mathbf{44}\times {\mathbf{10}}^{-\mathbf{16}}$ | $\mathbf{4}.\mathbf{44}\times {\mathbf{10}}^{-\mathbf{16}}$ | 0.0 | $\mathbf{4}.\mathbf{44}\times {\mathbf{10}}^{-\mathbf{16}}$ | |

PSO | 1.67 × ${10}^{-1}$ | 2.27 × ${10}^{-2}$ | 1.24 × ${10}^{-1}$ | 1.03 × ${10}^{0}$ | 6.45 × ${10}^{-3}$ | 1.02 × ${10}^{0}$ | |

F9 | GWO | 2.31 × ${10}^{-3}$ | 4.63 × ${10}^{-3}$ | 0.0 | 7.16 × ${10}^{-15}$ | 1.66 × ${10}^{-16}$ | 6.99 × ${10}^{-15}$ |

SSA | 5.14 × ${10}^{-199}$ | 4.32 × ${10}^{-200}$ | 0.0 | 4.47 × ${10}^{-207}$ | 1.25 × ${10}^{-208}$ | 0.0 | |

PGL-SSA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | |

PSO | 3.38 × ${10}^{0}$ | 1.46 × ${10}^{0}$ | 1.68 × ${10}^{0}$ | 1.19 × ${10}^{1}$ | 2.77 × ${10}^{0}$ | 7.80 × ${10}^{0}$ | |

F10 | GWO | 3.29 × ${10}^{-2}$ | 1.64 × ${10}^{-2}$ | 2.03 × ${10}^{-2}$ | 1.85 × ${10}^{-1}$ | 2.45 × ${10}^{-2}$ | 1.43 × ${10}^{-1}$ |

SSA | 1.05 × ${10}^{-8}$ | 1.70 × ${10}^{-8}$ | 1.09 × ${10}^{-9}$ | 2.54 × ${10}^{-9}$ | 3.74 × ${10}^{-9}$ | 4.10 × ${10}^{-10}$ | |

PGL-SSA | $\mathbf{3}.\mathbf{83}\times {\mathbf{10}}^{-\mathbf{9}}$ | $\mathbf{4}.\mathbf{40}\times {\mathbf{10}}^{-\mathbf{9}}$ | $\mathbf{9}.\mathbf{87}\times {\mathbf{10}}^{-\mathbf{14}}$ | $\mathbf{8}.\mathbf{05}\times {\mathbf{10}}^{-\mathbf{10}}$ | $\mathbf{6}.\mathbf{94}\times {\mathbf{10}}^{-\mathbf{10}}$ | $\mathbf{8}.\mathbf{41}\times {\mathbf{10}}^{-\mathbf{11}}$ | |

PSO | 7.70 × ${10}^{-1}$ | 3.71 × ${10}^{-1}$ | 4.43 × ${10}^{-1}$ | 3.05 × ${10}^{2}$ | 1.25 × ${10}^{2}$ | 2.13 × ${10}^{2}$ | |

F11 | GWO | 3.26 × ${10}^{-1}$ | 2.92 × ${10}^{-1}$ | 6.23 × ${10}^{-5}$ | 5.92 × ${10}^{0}$ | 3.76 × ${10}^{-1}$ | 5.49 × ${10}^{0}$ |

SSA | 6.10 × ${10}^{-8}$ | 3.95 × ${10}^{-8}$ | 1.19 × ${10}^{-8}$ | 1.02 × ${10}^{-7}$ | 9.70 × ${10}^{-8}$ | 1.06 × ${10}^{-8}$ | |

PGL-SSA | $\mathbf{2}.\mathbf{39}\times {\mathbf{10}}^{-\mathbf{8}}$ | $\mathbf{2}.\mathbf{07}\times {\mathbf{10}}^{-\mathbf{8}}$ | $\mathbf{5}.\mathbf{29}\times {\mathbf{10}}^{-\mathbf{10}}$ | $\mathbf{3}.\mathbf{57}\times {\mathbf{10}}^{-\mathbf{8}}$ | $\mathbf{2}.\mathbf{94}\times {\mathbf{10}}^{-\mathbf{8}}$ | $\mathbf{1}.\mathbf{65}\times {\mathbf{10}}^{-\mathbf{9}}$ | |

Dim = 2 | |||||||

PSO | 2.48 × ${10}^{1}$ | 4.95 × ${10}^{-1}$ | 1.99 × ${10}^{0}$ | ||||

F12 | GWO | 1.99 × ${10}^{0}$ | 9.92 × ${10}^{-1}$ | 9.98 × ${10}^{-1}$ | |||

SSA | 7.82 × ${10}^{0}$ | 4.84 × ${10}^{0}$ | 2.98 × ${10}^{0}$ | ||||

PGL-SSA | $\mathbf{9}.\mathbf{98}\times {\mathbf{10}}^{-\mathbf{1}}$ | $\mathbf{4}.\mathbf{35}\times {\mathbf{10}}^{-\mathbf{12}}$ | $\mathbf{9}.\mathbf{98}\times {\mathbf{10}}^{-\mathbf{1}}$ | ||||

Dim = 4 | |||||||

PSO | 1.27 × ${10}^{-3}$ | 5.22 × ${10}^{-4}$ | 7.50 × ${10}^{-4}$ | ||||

F13 | GWO | 3.15 × ${10}^{-4}$ | $\mathbf{1}.\mathbf{23}\times {\mathbf{10}}^{-\mathbf{8}}$ | 3.08 × ${10}^{-4}$ | |||

SSA | 3.41 × ${10}^{-4}$ | 2.66 × ${10}^{-6}$ | 3.38 × ${10}^{-4}$ | ||||

PGL-SSA | $\mathbf{3}.\mathbf{07}\times {\mathbf{10}}^{-\mathbf{4}}$ | 6.55 × ${10}^{-6}$ | $\mathbf{3}.\mathbf{07}\times {\mathbf{10}}^{-\mathbf{4}}$ | ||||

Dim = 2 | |||||||

PSO | $-1.03\times {10}^{0}$ | 4.06 × ${10}^{-5}$ | $-1.03\times {10}^{0}$ | ||||

F14 | GWO | $-1.03\times {10}^{0}$ | $\mathbf{2}.\mathbf{45}\times {\mathbf{10}}^{-\mathbf{9}}$ | $-1.03\times {10}^{0}$ | |||

SSA | $-1.03\times {10}^{0}$ | 4.28 × ${10}^{-5}$ | $-1.03\times {10}^{0}$ | ||||

PGL-SSA | $-1.03\times {10}^{0}$ | 2.10 × ${10}^{-5}$ | $-1.03\times {10}^{0}$ | ||||

Dim = 2 | |||||||

PSO | 3.97 × ${10}^{-1}$ | 2.15 × ${10}^{-4}$ | 3.97 × ${10}^{-1}$ | ||||

F15 | GWO | 3.97 × ${10}^{-1}$ | $\mathbf{4}.\mathbf{31}\times {\mathbf{10}}^{-\mathbf{7}}$ | 3.97 × ${10}^{-1}$ | |||

SSA | 3.97 × ${10}^{-1}$ | 2.35 × ${10}^{-5}$ | 3.97 × ${10}^{-1}$ | ||||

PGL-SSA | 3.97 × ${10}^{-1}$ | 1.31 × ${10}^{-5}$ | 3.97 × ${10}^{-1}$ | ||||

Dim = 2 | |||||||

PSO | 3.00 × ${10}^{0}$ | 4.59 × ${10}^{-4}$ | 3.00 × ${10}^{0}$ | ||||

GWO | 3.00 × ${10}^{0}$ | $\mathbf{7}.\mathbf{20}\times {\mathbf{10}}^{-\mathbf{6}}$ | 3.00 × ${10}^{0}$ | ||||

F16 | SSA | 3.00 × ${10}^{0}$ | 2.50 × ${10}^{-3}$ | 3.00 × ${10}^{0}$ | |||

PGL-SSA | 3.00 × ${10}^{0}$ | 1.00 × ${10}^{-3}$ | 3.00 × ${10}^{0}$ | ||||

Dim = 3 | |||||||

PSO | $-3.85\times {10}^{0}$ | 2.16 × ${10}^{-3}$ | $-3.86\times {10}^{0}$ | ||||

F17 | GWO | $-3.86\times {10}^{0}$ | $\mathbf{3}.\mathbf{24}\times {\mathbf{10}}^{-\mathbf{5}}$ | $-3.86\times {10}^{0}$ | |||

SSA | $-3.85\times {10}^{0}$ | 1.99 × ${10}^{-3}$ | $-3.86\times {10}^{0}$ | ||||

PGL-SSA | $-3.86\times {10}^{0}$ | 8.08 × ${10}^{-4}$ | $-3.86\times {10}^{0}$ | ||||

Dim = 6 | |||||||

PSO | $-3.02\times {10}^{0}$ | 1.45 × ${10}^{-1}$ | $-3.20\times {10}^{0}$ | ||||

F18 | GWO | $-3.29\times {10}^{0}$ | 4.76 × ${10}^{-2}$ | $-\mathbf{3}.\mathbf{32}\times {\mathbf{10}}^{\mathbf{0}}$ | |||

SSA | $-3.27\times {10}^{0}$ | 3.87 × ${10}^{-2}$ | $-3.31\times {10}^{0}$ | ||||

PGL-SSA | $-3.29\times {10}^{0}$ | $\mathbf{1}.\mathbf{78}\times {\mathbf{10}}^{-\mathbf{2}}$ | $-3.31\times {10}^{0}$ | ||||

Dim = 4 | |||||||

PSO | $-1.01\times {10}^{1}$ | $2.01\times {10}^{-3}$ | $-1.01\times {10}^{1}$ | ||||

F19 | GWO | $-1.01\times {10}^{1}$ | 2.51 × ${10}^{-4}$ | $-1.01\times {10}^{1}$ | |||

SSA | $-1.01\times {10}^{1}$ | 2.53 × ${10}^{-3}$ | $-1.01\times {10}^{1}$ | ||||

PGL-SSA | $-1.01\times {10}^{1}$ | $\mathbf{8}.\mathbf{42}\times {\mathbf{10}}^{-\mathbf{5}}$ | $-1.01\times {10}^{1}$ | ||||

Dim = 4 | |||||||

PSO | $-1.03\times {10}^{1}$ | 2.50 × ${10}^{-3}$ | $-1.03\times {10}^{1}$ | ||||

F20 | GWO | $-\mathbf{1}.\mathbf{04}\times {\mathbf{10}}^{\mathbf{1}}$ | 2.52 × ${10}^{-4}$ | $-\mathbf{1}.\mathbf{04}\times {\mathbf{10}}^{\mathbf{1}}$ | |||

SSA | $-1.03\times {10}^{1}$ | 7.49 × ${10}^{-3}$ | $-1.04\times {10}^{1}$ | ||||

PGL-SSA | $-\mathbf{1}.\mathbf{04}\times {\mathbf{10}}^{\mathbf{1}}$ | $\mathbf{1}.\mathbf{25}\times {\mathbf{10}}^{-\mathbf{4}}$ | $-\mathbf{1}.\mathbf{04}\times {\mathbf{10}}^{\mathbf{1}}$ | ||||

Dim = 4 | |||||||

PSO | $-1.05\times {10}^{1}$ | 1.46 × ${10}^{-2}$ | $-1.05\times {10}^{1}$ | ||||

F21 | GWO | $-1.05\times {10}^{1}$ | 2.44 × ${10}^{-4}$ | $-1.05\times {10}^{1}$ | |||

SSA | $-1.05\times {10}^{1}$ | 5.26 × ${10}^{-3}$ | $-1.05\times {10}^{1}$ | ||||

PGL-SSA | $-1.05\times {10}^{1}$ | $\mathbf{8}.\mathbf{73}\times {\mathbf{10}}^{-\mathbf{5}}$ | $-1.05\times {10}^{1}$ |

Function | Algorithm | ||
---|---|---|---|

PGL-SSA/SSA | PGL-SSA/GWO | PGL-SSA/PSO | |

F1 | 4.34 × ${10}^{-4}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F2 | 4.17 × ${10}^{-5}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F3 | 7.91 × ${10}^{-5}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F4 | 1.81 × ${10}^{-4}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F5 | 5.78 × ${10}^{-5}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F6 | 1.04 × ${10}^{-10}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F7 | 3.35 × ${10}^{-2}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F8 | N/A | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F9 | 1.75 × ${10}^{-2}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F10 | 2.74 × ${10}^{-4}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F11 | 1.47 × ${10}^{-2}$ | 2.87 × ${10}^{-11}$ | 2.87 × ${10}^{-11}$ |

F12 | 1.76 × ${10}^{-3}$ | N/A | 2.44 × ${10}^{-3}$ |

F13 | N/A | 4.64 × ${10}^{-1}$ | 9.02 × ${10}^{-3}$ |

F14 | 4.95 × ${10}^{-2}$ | 2.75 × ${10}^{-1}$ | 4.95 × ${10}^{-2}$ |

F15 | N/A | 3.74 × ${10}^{-1}$ | 4.95 × ${10}^{-2}$ |

F16 | 4.95 × ${10}^{-2}$ | 2.75 × ${10}^{-1}$ | 5.12 × ${10}^{-1}$ |

F17 | 4.95 × ${10}^{-2}$ | 3.71 × ${10}^{-1}$ | 4.95 × ${10}^{-2}$ |

F18 | 4.95 × ${10}^{-2}$ | 1.94 × ${10}^{-1}$ | 4.95 × ${10}^{-2}$ |

F19 | 4.95 × ${10}^{-2}$ | 4.95 × ${10}^{-2}$ | 4.95 × ${10}^{-2}$ |

F20 | 4.95 × ${10}^{-2}$ | 4.95 × ${10}^{-2}$ | 4.95 × ${10}^{-2}$ |

F21 | 4.95 × ${10}^{-2}$ | 4.95 × ${10}^{-2}$ | 4.95 × ${10}^{-2}$ |

Function | Algorithm | Dim | Mean | Std | Best |
---|---|---|---|---|---|

GCSSA | 30 | 0.0 | 0.0 | 0.0 | |

CSSOA | 30 | 7.24 × ${10}^{-77}$ | 3.43 × ${10}^{-76}$ | 9.12 × ${10}^{-82}$ | |

F1 | SFSSA | 30 | 0.0 | 0.0 | 0.0 |

CLSSA | 30 | 0.0 | 0.0 | 3.84 × ${10}^{-201}$ | |

PGL-SSA | 30 | 1.72 × ${10}^{-222}$ | 0.0 | 0.0 | |

GCSSA | 30 | 0.0 | 0.0 | 0.0 | |

CSSOA | 30 | 2.43 × ${10}^{-40}$ | 3.74 × ${10}^{-40}$ | 4.77 × ${10}^{-51}$ | |

F2 | SFSSA | 30 | 0.0 | 0.0 | 0.0 |

CLSSA | 30 | 0.0 | 4.74 × ${10}^{-103}$ | 2.34 × ${10}^{-103}$ | |

PGL-SSA | 30 | 4.79 × ${10}^{-263}$ | 0.0 | 0.0 | |

GCSSA | 30 | 0.0 | 0.0 | 0.0 | |

CSSOA | 30 | 4.47 × ${10}^{-62}$ | 2.84 × ${10}^{-61}$ | 7.12 × ${10}^{-74}$ | |

F3 | SFSSA | 30 | 0.0 | 0.0 | 0.0 |

CLSSA | 30 | 0.0 | 8.34 × ${10}^{-121}$ | 4.37 × ${10}^{-121}$ | |

PGL-SSA | 30 | 0.0 | 0.0 | 0.0 | |

GCSSA | 30 | 0.0 | 0.0 | 0.0 | |

CSSOA | 30 | 7.64 × ${10}^{-35}$ | 4.37 × ${10}^{-34}$ | 4.47 × ${10}^{-49}$ | |

F4 | SFSSA | 30 | 0.0 | 0.0 | 0.0 |

CLSSA | 30 | 0.0 | 4.64 × ${10}^{-102}$ | 7.27 × ${10}^{-104}$ | |

PGL-SSA | 30 | 0.0 | 0.0 | 0.0 | |

GCSSA | 30 | 4.14 × ${10}^{-9}$ | 2.65 × ${10}^{-9}$ | 1.14 × ${10}^{-13}$ | |

CSSOA | 30 | 4.44 × ${10}^{-5}$ | 6.24 × ${10}^{-5}$ | 5.33 × ${10}^{-8}$ | |

F5 | SFSSA | 30 | 4.34 × ${10}^{-8}$ | 2.62 × ${10}^{-8}$ | 3.26 × ${10}^{-11}$ |

CLSSA | 30 | 0.0 | 3.47 × ${10}^{-8}$ | 4.34 × ${10}^{-9}$ | |

PGL-SSA | 30 | 2.14 × ${10}^{-9}$ | 2.22 × ${10}^{-9}$ | 5.56 × ${10}^{-13}$ | |

GCSSA | 30 | 7.33 × ${10}^{0}$ | 1.47 × ${10}^{0}$ | 4.33 × ${10}^{-2}$ | |

CSSOA | 30 | $-2.77\times {10}^{3}$ | 4.74 × ${10}^{2}$ | 4.34 × ${10}^{0}$ | |

F6 | SFSSA | 30 | 1.47 × ${10}^{1}$ | 4.84 × ${10}^{1}$ | 2.33 × ${10}^{-1}$ |

CLSSA | 30 | $-9.47\times {10}^{3}$ | 8.47 × ${10}^{2}$ | $-8.04\times {10}^{3}$ | |

PGL-SSA | 30 | 5.04 × ${10}^{-1}$ | 3.92 × ${10}^{-1}$ | 1.50 × ${10}^{-3}$ | |

GCSSA | 30 | 0.0 | 0.0 | 0.0 | |

CSSOA | 30 | 0.0 | 0.0 | 0.0 | |

F7 | SFSSA | 30 | 0.0 | 0.0 | 0.0 |

CLSSA | 30 | 0.0 | 0.0 | 0.0 | |

PGL-SSA | 30 | 0.0 | 0.0 | 0.0 | |

GCSSA | 30 | 7.84 × ${10}^{-16}$ | 0.0 | 6.47 × ${10}^{-16}$ | |

CSSOA | 30 | 9.43 × ${10}^{-16}$ | 0.0 | 9.04 × ${10}^{-13}$ | |

F8 | SFSSA | 30 | 8.88 × ${10}^{-16}$ | 0.0 | 8.88 × ${10}^{-16}$ |

CLSSA | 30 | 8.96 × ${10}^{-16}$ | 0.0 | 8.96 × ${10}^{-16}$ | |

PGL-SSA | 30 | 4.44 × ${10}^{-16}$ | 0.0 | 4.44 × ${10}^{-16}$ | |

GCSSA | 30 | 0.0 | 0.0 | 0.0 | |

CSSOA | 30 | 0.0 | 0.0 | 0.0 | |

F9 | SFSSA | 30 | 0.0 | 0.0 | 0.0 |

CLSSA | 30 | 0.0 | 0.0 | 0.0 | |

PGL-SSA | 30 | 0.0 | 0.0 | 0.0 | |

GCSSA | 30 | 4.84 × ${10}^{-7}$ | 4.78 × ${10}^{-8}$ | 6.43 × ${10}^{-9}$ | |

CSSOA | 30 | 2.44 × ${10}^{-5}$ | 4.37 × ${10}^{-5}$ | 7.33 × ${10}^{-7}$ | |

F10 | SFSSA | 30 | 4.37 × ${10}^{-8}$ | 3.24 × ${10}^{-8}$ | 8.34 × ${10}^{-12}$ |

CLSSA | 30 | 2.47 × ${10}^{-27}$ | 1.43 × ${10}^{-9}$ | 3.74 × ${10}^{-10}$ | |

PGL-SSA | 30 | 3.83 × ${10}^{-9}$ | 4.40 × ${10}^{-9}$ | 9.87 × ${10}^{-14}$ | |

GCSSA | 30 | 6.34 × ${10}^{-6}$ | 2.04 × ${10}^{-7}$ | 7.44 × ${10}^{-9}$ | |

CSSOA | 30 | 3.47 × ${10}^{-5}$ | 2.02 × ${10}^{-5}$ | 4.62 × ${10}^{-7}$ | |

F11 | SFSSA | 30 | 4.84 × ${10}^{-7}$ | 2.73 × ${10}^{-7}$ | 6.22 × ${10}^{-9}$ |

CLSSA | 30 | 2.48 × ${10}^{-20}$ | 2.42 × ${10}^{-8}$ | 3.77 × ${10}^{-9}$ | |

PGL-SSA | 30 | 2.39 × ${10}^{-8}$ | 2.07 × ${10}^{-8}$ | 5.29 × ${10}^{-10}$ | |

GCSSA | 2 | 2.42 × ${10}^{0}$ | 7.62 × ${10}^{-1}$ | 1.73 × ${10}^{0}$ | |

CSSOA | 2 | 1.73 × ${10}^{0}$ | 4.34 × ${10}^{-1}$ | 1.44 × ${10}^{0}$ | |

F12 | SFSSA | 2 | 1.02 × ${10}^{0}$ | 7.42 × ${10}^{-4}$ | 1.02 × ${10}^{0}$ |

CLSSA | 2 | 1.02 × ${10}^{0}$ | 2.43 × ${10}^{0}$ | 1.46 × ${10}^{0}$ | |

PGL-SSA | 2 | 9.98 × ${10}^{-1}$ | 4.35 × ${10}^{-12}$ | 9.98 × ${10}^{-1}$ | |

GCSSA | 4 | 3.42 × ${10}^{-4}$ | 4.21 × ${10}^{-5}$ | 2.77 × ${10}^{-4}$ | |

CSSOA | 4 | 3.21 × ${10}^{-4}$ | 4.44 × ${10}^{-6}$ | 3.13 × ${10}^{-4}$ | |

F13 | SFSSA | 4 | 3.13 × ${10}^{-4}$ | 4.88 × ${10}^{-6}$ | 3.13 × ${10}^{-4}$ |

CLSSA | 4 | 3.12 × ${10}^{-4}$ | 2.47 × ${10}^{-7}$ | 3.12 × ${10}^{-4}$ | |

PGL-SSA | 4 | 3.07 × ${10}^{-4}$ | 6.55 × ${10}^{-6}$ | 3.07 × ${10}^{-4}$ | |

GCSSA | 2 | $-1.03\times {10}^{0}$ | 3.77 × ${10}^{-4}$ | $-1.33\times {10}^{0}$ | |

CSSOA | 2 | $-1.03\times {10}^{0}$ | 3.41 × ${10}^{-4}$ | $-1.03\times {10}^{0}$ | |

F14 | SFSSA | 2 | $-1.03\times {10}^{0}$ | 4.47 × ${10}^{-7}$ | $-1.03\times {10}^{0}$ |

CLSSA | 2 | $-1.2\times {10}^{0}$ | 5.37 × ${10}^{-16}$ | $-1.02\times {10}^{0}$ | |

PGL-SSA | 2 | $-1.03\times {10}^{0}$ | 2.10 × ${10}^{-5}$ | $-1.03\times {10}^{0}$ | |

GCSSA | 2 | 3.97 × ${10}^{-1}$ | 1.77 × ${10}^{-4}$ | 3.97 × ${10}^{-1}$ | |

CSSOA | 2 | 4.01 × ${10}^{-1}$ | 5.42 × ${10}^{-5}$ | 4.01 × ${10}^{-1}$ | |

F15 | SFSSA | 2 | 3.99 × ${10}^{-1}$ | 1.77 × ${10}^{-5}$ | 3.99 × ${10}^{-1}$ |

CLSSA | 2 | 4.03 × ${10}^{-1}$ | 0.0 | 4.03 × ${10}^{-1}$ | |

PGL-SSA | 2 | 3.97 × ${10}^{-1}$ | 1.31 × ${10}^{-5}$ | 3.97 × ${10}^{-1}$ | |

GCSSA | 2 | 3.00 × ${10}^{0}$ | 1.27 × ${10}^{-3}$ | 3.00 × ${10}^{0}$ | |

CSSOA | 2 | 3.00 × ${10}^{0}$ | 1.00 × ${10}^{-3}$ | 3.00 × ${10}^{0}$ | |

F16 | SFSSA | 2 | 3.01 × ${10}^{0}$ | 3.77 × ${10}^{-15}$ | 3.01 × ${10}^{0}$ |

CLSSA | 2 | 3.02 × ${10}^{0}$ | 4.84 × ${10}^{-15}$ | 3.02 × ${10}^{0}$ | |

PGL-SSA | 2 | 3.00 × ${10}^{0}$ | 1.00 × ${10}^{-3}$ | 3.00 × ${10}^{0}$ | |

GCSSA | 3 | $-3.88\times {10}^{0}$ | 6.24 × ${10}^{-3}$ | $-3.88\times {10}^{0}$ | |

CSSOA | 3 | $-3.84\times {10}^{0}$ | 7.37 × ${10}^{-3}$ | $-3.84\times {10}^{0}$ | |

F17 | SFSSA | 3 | $-3.86\times {10}^{0}$ | 2.44 × ${10}^{-15}$ | $-3.86\times {10}^{0}$ |

CLSSA | 3 | $-3.94\times {10}^{0}$ | 2.74 × ${10}^{-15}$ | $-3.94\times {10}^{0}$ | |

PGL-SSA | 3 | $-3.86\times {10}^{0}$ | 8.08 × ${10}^{-4}$ | $-3.86\times {10}^{0}$ | |

GCSSA | 6 | $-3.28\times {10}^{0}$ | 7.34 × ${10}^{-1}$ | $-3.28\times {10}^{0}$ | |

CSSOA | 6 | $-3.34\times {10}^{0}$ | 2.37 × ${10}^{-2}$ | $-3.34\times {10}^{0}$ | |

F18 | SFSSA | 6 | $-3.33\times {10}^{0}$ | 1.84 × ${10}^{-2}$ | $-3.33\times {10}^{0}$ |

CLSSA | 6 | $-3.33\times {10}^{0}$ | 5.74 × ${10}^{-2}$ | $-3.33\times {10}^{0}$ | |

PGL-SSA | 6 | $-3.29\times {10}^{0}$ | 1.78 × ${10}^{-2}$ | $-3.31\times {10}^{0}$ | |

GCSSA | 4 | $-1.01\times {10}^{1}$ | 7.44 × ${10}^{-4}$ | -1.01 × ${10}^{1}$ | |

CSSOA | 4 | $-1.01\times {10}^{1}$ | 4.47 × ${10}^{-4}$ | -1.01 × ${10}^{1}$ | |

F19 | SFSSA | 4 | $-9.73\times {10}^{0}$ | 8.74 × ${10}^{-1}$ | $-1.01\times {10}^{1}$ |

CLSSA | 4 | $-1.01\times {10}^{1}$ | 5.44 × ${10}^{-8}$ | $-1.01\times {10}^{1}$ | |

PGL-SSA | 4 | $-1.01\times {10}^{1}$ | 8.42 × ${10}^{-5}$ | $-1.01\times {10}^{1}$ | |

GCSSA | 4 | $-1.04\times {10}^{1}$ | $-1.47$×${10}^{-4}$ | $-1.04\times {10}^{1}$ | |

CSSOA | 4 | $-1.04\times {10}^{1}$ | 7.33 × ${10}^{-4}$ | $-1.04\times {10}^{1}$ | |

F20 | SFSSA | 4 | $-1.04\times {10}^{1}$ | 4.43 × ${10}^{-10}$ | $-1.04\times {10}^{1}$ |

CLSSA | 4 | $-1.04\times {10}^{1}$ | 1.13 × ${10}^{-6}$ | $-1.04\times {10}^{1}$ | |

PGL-SSA | 4 | $-1.04\times {10}^{1}$ | 1.25 × ${10}^{-4}$ | $-1.04\times {10}^{1}$ | |

GCSSA | 4 | $-1.05\times {10}^{1}$ | 8.66 × ${10}^{-5}$ | $-1.05\times {10}^{1}$ | |

CSSOA | 4 | $-1.05\times {10}^{1}$ | 4.37 × ${10}^{-5}$ | $-1.05\times {10}^{1}$ | |

F21 | SFSSA | 4 | $-1.05\times {10}^{1}$ | 4.17 × ${10}^{-4}$ | $-1.05\times {10}^{1}$ |

CLSSA | 4 | $-1.05\times {10}^{1}$ | 5.64 × ${10}^{-8}$ | $-1.05\times {10}^{1}$ | |

PGL-SSA | 4 | $-1.05\times {10}^{1}$ | 8.73 × ${10}^{-5}$ | $-1.05\times {10}^{1}$ |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Liu, X.; Bai, Y.; Yu, C.; Yang, H.; Gao, H.; Wang, J.; Chang, Q.; Wen, X.
Multi-Strategy Improved Sparrow Search Algorithm and Application. *Math. Comput. Appl.* **2022**, *27*, 96.
https://doi.org/10.3390/mca27060096

**AMA Style**

Liu X, Bai Y, Yu C, Yang H, Gao H, Wang J, Chang Q, Wen X.
Multi-Strategy Improved Sparrow Search Algorithm and Application. *Mathematical and Computational Applications*. 2022; 27(6):96.
https://doi.org/10.3390/mca27060096

**Chicago/Turabian Style**

Liu, Xiangdong, Yan Bai, Cunhui Yu, Hailong Yang, Haoning Gao, Jing Wang, Qing Chang, and Xiaodong Wen.
2022. "Multi-Strategy Improved Sparrow Search Algorithm and Application" *Mathematical and Computational Applications* 27, no. 6: 96.
https://doi.org/10.3390/mca27060096
