# Modeling the Macrophage-Mediated Inflammation Involved in the Bone Fracture Healing Process

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Biological Background

## 3. Modeling Assumptions

## 4. Model Formulation

## 5. Analysis of the Model

## 6. Numerical Results

#### 6.1. Comparison of Existing Models

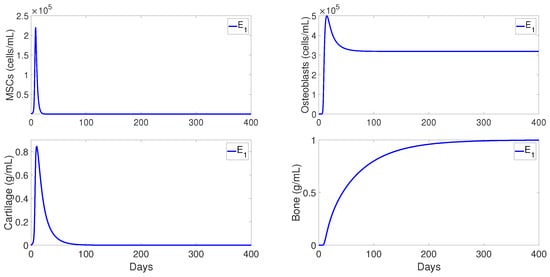

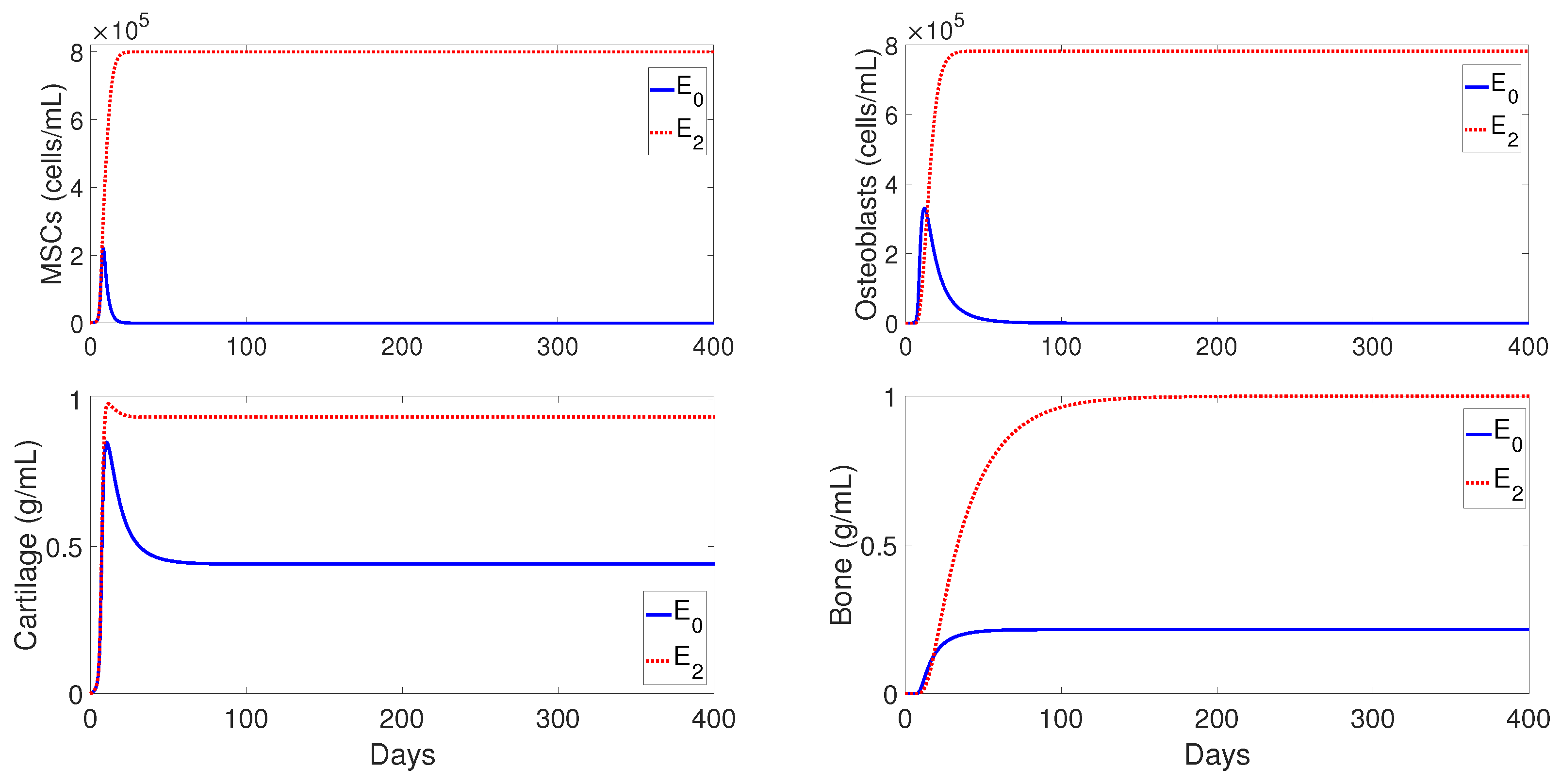

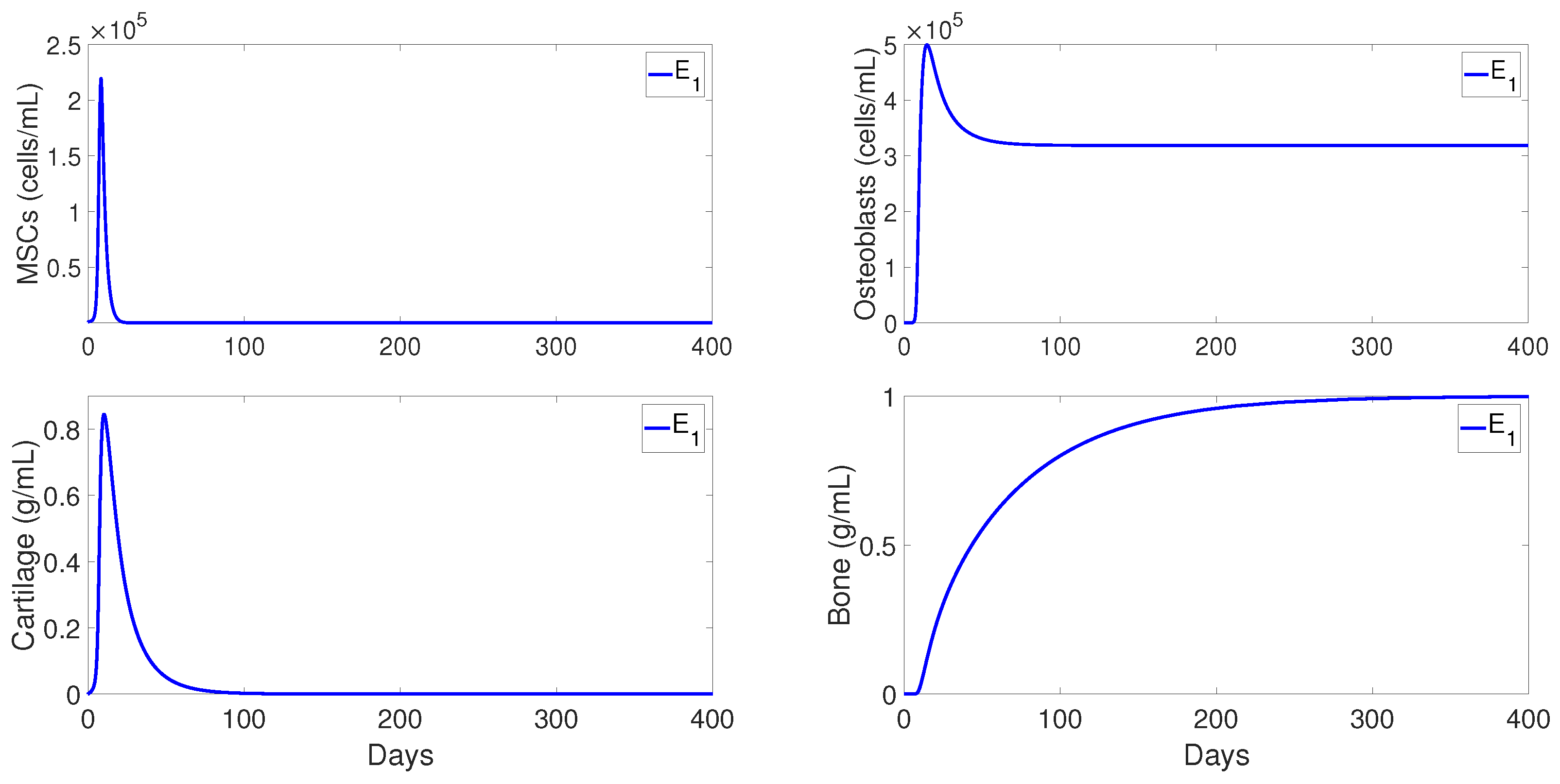

#### 6.2. Different Outcomes of the Bone Fracture Healing Process

#### 6.3. Importance of Macrophages during the Bone Fracture Healing Process

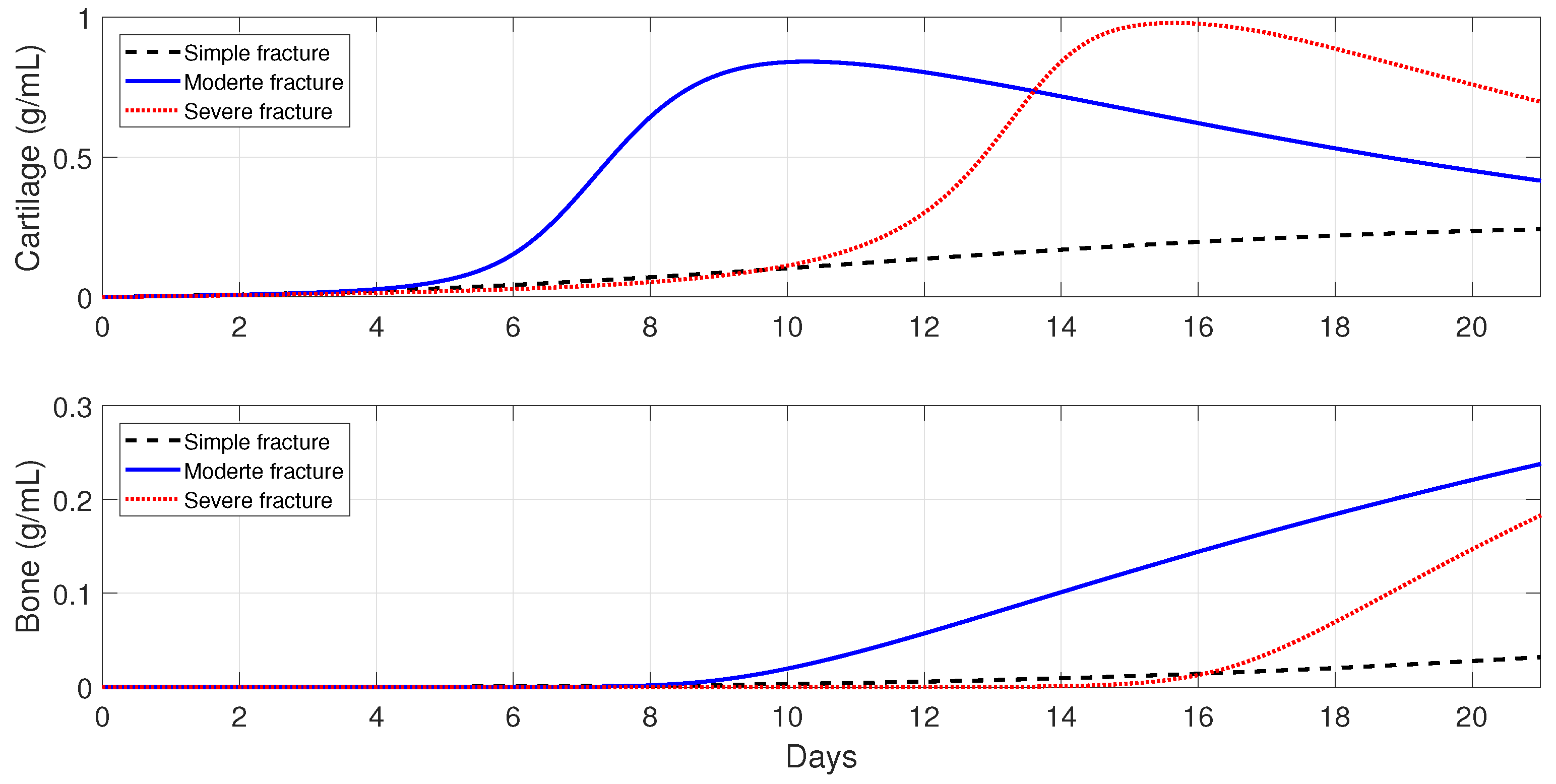

#### 6.4. Evolution of the Healing Process for Different Types of Fractures

#### 6.5. Immune-Modulation Therapeutic Treatments of Bone Fractures

#### 6.5.1. Administration of Anti-Inflammatory Drugs at the Beginning of the Healing Process

#### 6.5.2. Cellular Therapeutic Interventions under Immune-Compromised Conditions

## 7. Discussion and Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

**Theorem**

**A1.**

**Proof**

**of**

**Theorem**

**A1.**

**Theorem**

**A2.**

**Proof**

**of**

**Theorem**

**A2.**

**Theorem**

**A3.**

**Proof**

**of**

**Theorem**

**A3**.

## References

- Schmidt-Bleek, K.; Kwee, B.J.; Mooney, D.J.; Duda, G.N. Boon and bane of inflammation in bone tissue regeneration and its link with angiogenesis. Tissue Eng. Part B Rev.
**2015**, 21, 354–364. [Google Scholar] [CrossRef] [PubMed] - Kovach, T.K.; Dighe, A.S.; Lobo, P.I.; Cui, Q. Interactions between MSCs and immune cells: Implications for bone healing. J. Immunol. Res.
**2015**, 2015, 752510. [Google Scholar] [CrossRef] [PubMed] - Loi, F.; Córdova, L.A.; Pajarinen, J.; Lin, T.; Yao, Z.; Goodman, S.B. Inflammation, fracture and bone repair. Bone
**2016**, 86, 119–130. [Google Scholar] [CrossRef] [PubMed][Green Version] - Pisani, P.; Renna, M.D.; Conversano, F.; Casciaro, E.; Di Paola, M.; Quarta, E.; Muratore, M.; Casciaro, S. Major osteoporotic fragility fractures: Risk factor updates and societal impact. World J. Orthop.
**2016**, 7, 171. [Google Scholar] [CrossRef] [PubMed] - Teng, G.G. Mortality and osteoporotic fractures: Is the link causal, and is it modifiable? Clin. Exp. Rheumatol.
**2008**, 26, 125. [Google Scholar] - Carlier, A.; Geris, L.; Lammens, J.; Van Oosterwyck, H. Bringing computational models of bone regeneration to the clinic. Wiley Interdisciplin. Rev. Syst. Biol. Med.
**2015**, 7, 183–194. [Google Scholar] [CrossRef] [PubMed][Green Version] - Huber-Lang, M.; Kovtun, A.; Ignatius, A. The role of complement in trauma and fracture healing. Semin. Immunol.
**2013**, 25, 73–78. [Google Scholar] [CrossRef][Green Version] - Foundation, I.O. Osteoporosis Facts and Statistics; Data and Publication, International Osteoporosis Foundation: Nyon, Switzerland, 2017. [Google Scholar]
- Zhou, Z.; Redaelli, A.; Johnell, O.; Willke, R.J.; Massimini, G. A retrospective analysis of health care costs for bone fractures in women with early-stage breast carcinoma. Cancer
**2004**, 100, 507–517. [Google Scholar] [CrossRef][Green Version] - Pajarinen, J.; Lin, T.; Gibon, E.; Kohno, Y.; Maruyama, M.; Nathan, K.; Lu, L.; Yao, Z.; Goodman, S.B. Mesenchymal stem cell-macrophage crosstalk and bone healing. Biomaterials
**2018**. [Google Scholar] [CrossRef] - Kojouharov, H.V.; Trejo, I.; Chen-Charpentier, B.M. Modeling the effects of inflammation in bone fracture healing. AIP Conf. Proc.
**2017**, 1895, 020005. [Google Scholar][Green Version] - Schlundt, C.; El Khassawna, T.; Serra, A.; Dienelt, A.; Wendler, S.; Schell, H.; van Rooijen, N.; Radbruch, A.; Lucius, R.; Hartmann, S.; et al. Macrophages in bone fracture healing: Their essential role in endochondral ossification. Bone
**2018**, 106, 78–89. [Google Scholar] [CrossRef] [PubMed] - Zhang, R.; Liang, Y.; Wei, S. M2 macrophages are closely associated with accelerated clavicle fracture healing in patients with traumatic brain injury: A retrospective cohort study. J. Orthop. Surg. Res.
**2018**, 13, 213. [Google Scholar] [CrossRef] - Marsell, R.; Einhorn, T.A. The biology of fracture healing. Injury
**2011**, 42, 551–555. [Google Scholar] [CrossRef] [PubMed][Green Version] - Chung, E.; Son, Y. Crosstalk between mesenchymal stem cells and macrophages in tissue repair. Tissue Eng. Regen. Med.
**2014**, 11, 431–438. [Google Scholar] [CrossRef] - Schlundt, C.; Schell, H.; Goodman, S.B.; Vunjak-Novakovic, G.; Duda, G.N.; Schmidt-Bleek, K. Immune modulation as a therapeutic strategy in bone regeneration. J. Exp. Orthop.
**2015**, 2, 1. [Google Scholar] [CrossRef] [PubMed] - Chan, J.K.; Glass, G.E.; Ersek, A.; Freidin, A.; Williams, G.A.; Gowers, K.; Santo, A.I.E.; Jeffery, R.; Otto, W.R.; Poulsom, R.; et al. Low-dose TNF augments fracture healing in normal and osteoporotic bone by up-regulating the innate immune response. EMBO Mol. Med.
**2015**, 7, 547–561. [Google Scholar] [CrossRef] [PubMed] - Mantovani, A.; Sozzani, S.; Locati, M.; Allavena, P.; Sica, A. Macrophage polarization: Tumor-associated macrophages as a paradigm for polarized M2 mononuclear phagocytes. Trends Immunol.
**2002**, 23, 549–555. [Google Scholar] [CrossRef] - Border, W.A.; Noble, N.A. Transforming growth factor β in tissue fibrosis. N. Engl. J. Med.
**1994**, 331, 1286–1292. [Google Scholar] - Cavaillon, J.M. Pro-versus anti-inflammatory cytokines: Myth or reality. Cell. Mol. Biol.
**2001**, 47, 695–702. [Google Scholar] - Osta, B.; Benedetti, G.; Miossec, P. Classical and paradoxical effects of TNF-α on bone homeostasis. Front. Immunol.
**2014**, 5, 48. [Google Scholar] [CrossRef] - Arango Duque, G.; Descoteaux, A. Macrophage cytokines: Involvement in immunity and infectious diseases. Front. Immunol.
**2014**, 5, 491. [Google Scholar] [CrossRef] [PubMed] - Mountziaris, P.M.; Mikos, A.G. Modulation of the inflammatory response for enhanced bone tissue regeneration. Tissue Eng. Part B Rev.
**2008**, 14, 179–186. [Google Scholar] [CrossRef] [PubMed] - Gibon, E.; Lu, L.Y.; Nathan, K.; Goodman, S.B. Inflammation, ageing, and bone regeneration. J. Orthop. Transl.
**2017**, 10, 28–35. [Google Scholar] [CrossRef] [PubMed] - Gibon, E.; Loi, F.; Córdova, L.A.; Pajarinen, J.; Lin, T.; Lu, L.; Nabeshima, A.; Yao, Z.; Goodman, S.B. Aging affects bone marrow macrophage polarization: Relevance to bone healing. Regen. Eng. Transl. Med.
**2016**, 2, 98–104. [Google Scholar] [CrossRef] [PubMed] - Serhan, C.N.; Savill, J. Resolution of inflammation: The beginning programs the end. Nat. Immunol.
**2005**, 6, 1191–1197. [Google Scholar] [CrossRef] [PubMed] - Newman, S.L.; Henson, J.E.; Henson, P.M. Phagocytosis of senescent neutrophils by human monocyte-derived macrophages and rabbit inflammatory macrophages. J. Exp. Med.
**1982**, 156, 430–442. [Google Scholar] [CrossRef][Green Version] - Italiani, P.; Boraschi, D. From monocytes to M1/M2 macrophages: Phenotypical vs. functional differentiation. Front. Immunol.
**2014**, 5, 514. [Google Scholar] [CrossRef] - Wang, Y.; Yang, T.; Ma, Y.; Halade, G.V.; Zhang, J.; Lindsey, M.L.; Jin, Y.F. Mathematical modeling and stability analysis of macrophage activation in left ventricular remodeling post-myocardial infarction. BMC Genom.
**2012**, 13, S21. [Google Scholar] [CrossRef][Green Version] - Bailon-Plaza, A.; Van Der Meulen, M.C. A mathematical framework to study the effects of growth factor influences on fracture healing. J. Theor. Biol.
**2001**, 212, 191–209. [Google Scholar] [CrossRef] - Echeverri, L.; Herrero, M.; Lopez, J.; Oleaga, G. Early stages of bone fracture healing: Formation of a fibrin–collagen scaffold in the fracture hematoma. Bull. Math. Biol.
**2015**, 77, 156–183. [Google Scholar] [CrossRef] - Doblaré, M.; Garcıa, J.; Gómez, M. Modelling bone tissue fracture and healing: A review. Eng. Fract. Mech.
**2004**, 71, 1809–1840. [Google Scholar] [CrossRef] - Ghiasi, M.S.; Chen, J.; Vaziri, A.; Rodriguez, E.K.; Nazarian, A. Bone fracture healing in mechanobiological modeling: A review of principles and methods. Bone Rep.
**2017**, 6, 87–100. [Google Scholar] [CrossRef] [PubMed] - Einhorn, T.A. The science of fracture healing. J. Orthop. Trauma
**2005**, 19, S4–S6. [Google Scholar] [CrossRef] [PubMed] - Einhorn, T.A.; Gerstenfeld, L.C. Fracture healing: Mechanisms and interventions. Nat. Rev. Rheumatol.
**2015**, 11, 45. [Google Scholar] [CrossRef] [PubMed] - Gómez-Barrena, E.; Rosset, P.; Lozano, D.; Stanovici, J.; Ermthaller, C.; Gerbhard, F. Bone fracture healing: Cell therapy in delayed unions and nonunions. Bone
**2015**, 70, 93–101. [Google Scholar] [CrossRef] [PubMed][Green Version] - Carlier, A.; Geris, L.; van Gastel, N.; Carmeliet, G.; Van Oosterwyck, H. Oxygen as a critical determinant of bone fracture healing—A multiscale model. J. Theor. Biol.
**2015**, 365, 247–264. [Google Scholar] [CrossRef] [PubMed][Green Version] - Nagaraja, S.; Wallqvist, A.; Reifman, J.; Mitrophanov, A.Y. Computational approach to characterize causative factors and molecular indicators of chronic wound inflammation. J. Immunol.
**2014**, 192, 1824–1834. [Google Scholar] [CrossRef] [PubMed] - Yu, T. Design and Validation of A Mathematical Model to Describe Macrophage Dynamics in Wound Healing. Ph.D. Thesis, Drexel University, Philadelphia, PA, USA, 2014. [Google Scholar]
- Otto, S.P.; Day, T. A Biologist’s Guide to Mathematical Modeling in Ecology and Evolution; Princeton University Press: Princeton, NJ, USA, 2011. [Google Scholar]
- Marée, A.F.; Komba, M.; Dyck, C.; Labkecki, M.; Finegood, D.T.; Edelstein-Keshet, L. Quantifying macrophage defects in type 1 diabetes. J. Theor. Biol.
**2005**, 233, 533–551. [Google Scholar] [CrossRef] - Sherratt, J.A.; Murray, J. Models of epidermal wound healing. Proc. R. Soc. Lond. B
**1990**, 241, 29–36. [Google Scholar] - Isaksson, H. Recent advances in mechanobiological modeling of bone regeneration. Mech. Res. Commun.
**2012**, 42, 22–31. [Google Scholar] [CrossRef] - Schell, H.; Duda, G.; Peters, A.; Tsitsilonis, S.; Johnson, K.; Schmidt-Bleek, K. The haematoma and its role in bone healing. J. Exp. Orthop.
**2017**, 4, 5. [Google Scholar] [CrossRef] [PubMed] - Van Furth, R.; Diesselhoff-den Dulk, M.M.; Mattie, H. Quantitative study on the production and kinetics of mononuclear phagocytes during an acute inflammatory reaction. J. Exp. Med.
**1973**, 138, 1314–1330. [Google Scholar] [CrossRef] [PubMed] - Bastidas-Coral, A.P.; Bakker, A.D.; Zandieh-Doulabi, B.; Kleverlaan, C.J.; Bravenboer, N.; Forouzanfar, T.; Klein-Nulend, J. Cytokines TNF-α, IL-6, IL-17F, and IL-4 differentially affect osteogenic differentiation of human adipose stem cells. Stem Cells Int.
**2016**, 2016, 1318256. [Google Scholar] [CrossRef] [PubMed] - Gilbert, L.; He, X.; Farmer, P.; Boden, S.; Kozlowski, M.; Rubin, J.; Nanes, M.S. Inhibition of Osteoblast Differentiation by Tumor Necrosis Factor-α 1. Endocrinology
**2000**, 141, 3956–3964. [Google Scholar] [CrossRef] [PubMed] - Lacey, D.; Simmons, P.; Graves, S.; Hamilton, J. Proinflammatory cytokines inhibit osteogenic differentiation from stem cells: Implications for bone repair during inflammation. Osteoarthritis Cartilage
**2009**, 17, 735–742. [Google Scholar] [CrossRef] [PubMed] - Lu, Y.; Lekszycki, T. Modeling of an initial stage of bone fracture healing. Contin. Mech. Thermodyn.
**2015**, 27, 851. [Google Scholar] [CrossRef] - Hoegel, F.; Abdulazim, A.; Augat, P.; Buehren, V. Quantification of reaming debris at the fracture gap of diaphyseal A2 and A3 Fractures After reamed intramedullary nailing of the sheep tibia. Eur. J. Trauma Emerg. Surg.
**2008**, 34, 587–591. [Google Scholar] [CrossRef] - Gaston, M.; Simpson, A. Inhibition of fracture healing. Bone Joint J.
**2007**, 89, 1553–1560. [Google Scholar] [CrossRef][Green Version] - Roberts, T.T.; Rosenbaum, A.J. Bone grafts, bone substitutes and orthobiologics: The bridge between basic science and clinical advancements in fracture healing. Organogenesis
**2012**, 8, 114–124. [Google Scholar] [CrossRef] - Wu, M.; Chen, G.; Li, Y.P. TGF-β and BMP signaling in osteoblast, skeletal development, and bone formation, homeostasis and disease. Bone Res.
**2016**, 4, 16009. [Google Scholar] [CrossRef] - Recknagel, S.; Bindl, R.; Brochhausen, C.; Göckelmann, M.; Wehner, T.; Schoengraf, P.; Huber-Lang, M.; Claes, L.; Ignatius, A. Systemic inflammation induced by a thoracic trauma alters the cellular composition of the early fracture callus. J. Trauma Acute Care Surg.
**2013**, 74, 531–537. [Google Scholar] [CrossRef] [PubMed] - Stuart, A.; Humphries, A.R. Dynamical Systems and Numerical Analysis; Cambridge University Press: Cambridge, UK, 1998. [Google Scholar]
- Strang, G. Introduction to Linear Algebra; Wellesley-Cambridge Press: Wellesley, MA, USA, 1993. [Google Scholar]

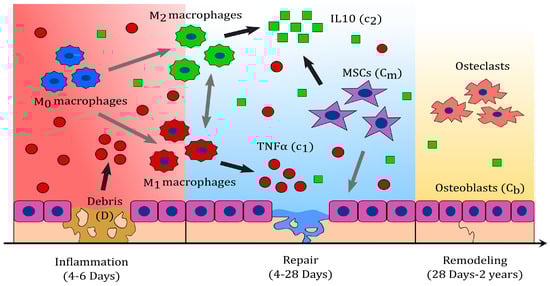

**Figure 1.**Inflammatory, repair, and remodeling phases of the bone fracture healing process. During the inflammatory phase, debris (D) activates the healing process by attracting macrophages ${M}_{0}$ to the injury site, which subsequently activate into their ${M}_{1}$ or ${M}_{2}$ phenotypes. Activated macrophages remove debris and secrete pro- and anti-inflammatory cytokines, such as tumor necrotic factor-$\alpha $ (TNF-$\alpha $) (${c}_{1}$) and interleukin-10 (IL-10) (${c}_{2}$), which regulate the inflammation and the cellular functions. During the repair phase, migrating mesenchymal stem cells (MSCs) up-regulate IL-10 production, proliferate, and differentiate into osteoblasts (${C}_{b}$). Mesenchymal and osteoblast cells synthesize the fibro/cartilage and woven bone, which closes the fracture gap. During the bone remodeling phase, osteoblasts and osteoclasts constantly remove and deposit new bone until the fracture is fully repaired.

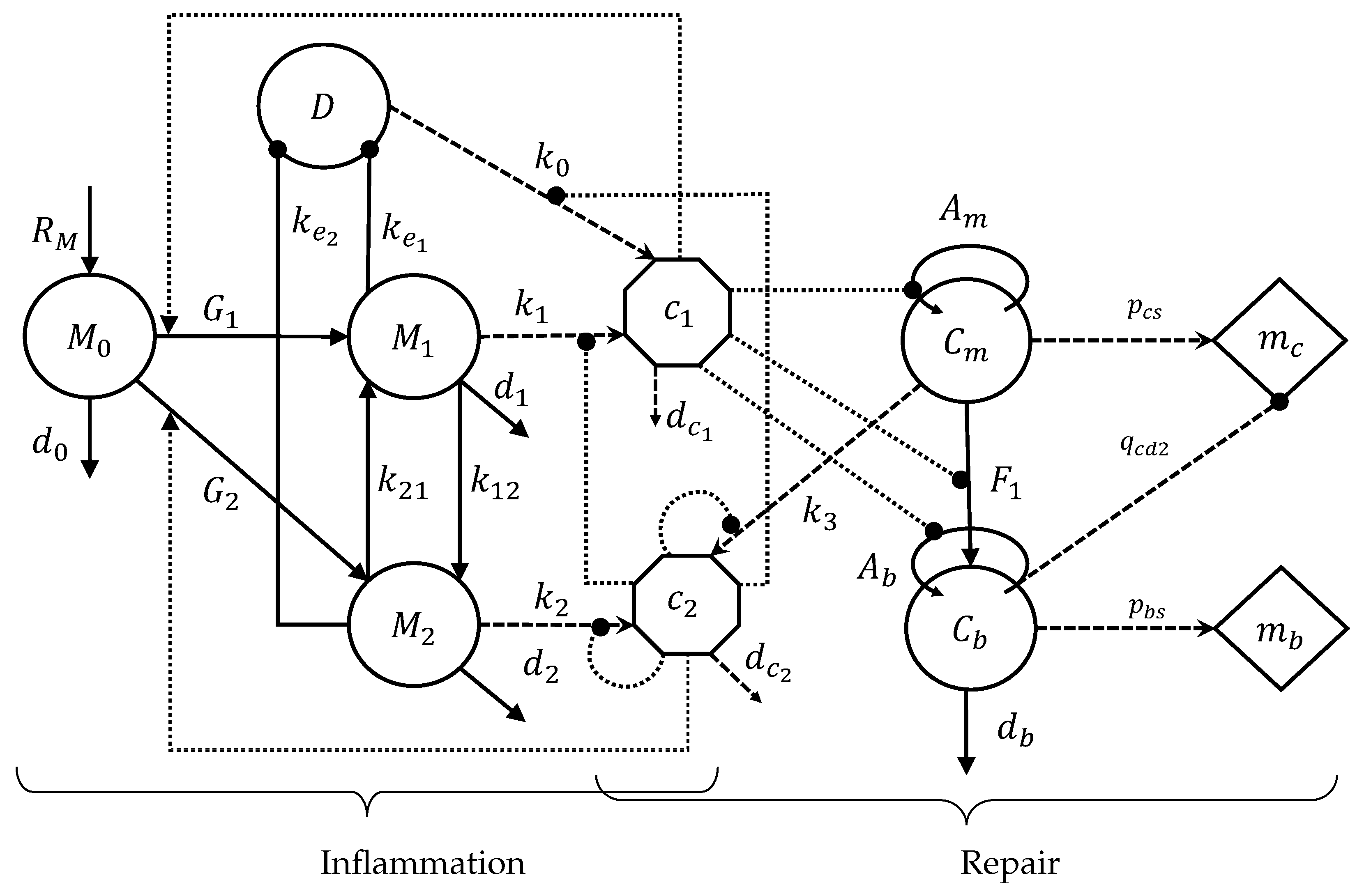

**Figure 2.**Flow diagram of the cellular and molecular dynamics during the inflammatory and repair phases of the bone fracture healing process.

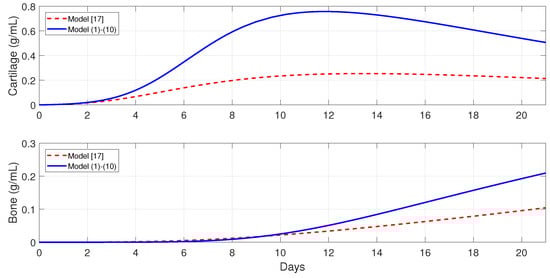

**Figure 3.**Comparison of tissues evolution in Model [11] and Model (1)–(10).

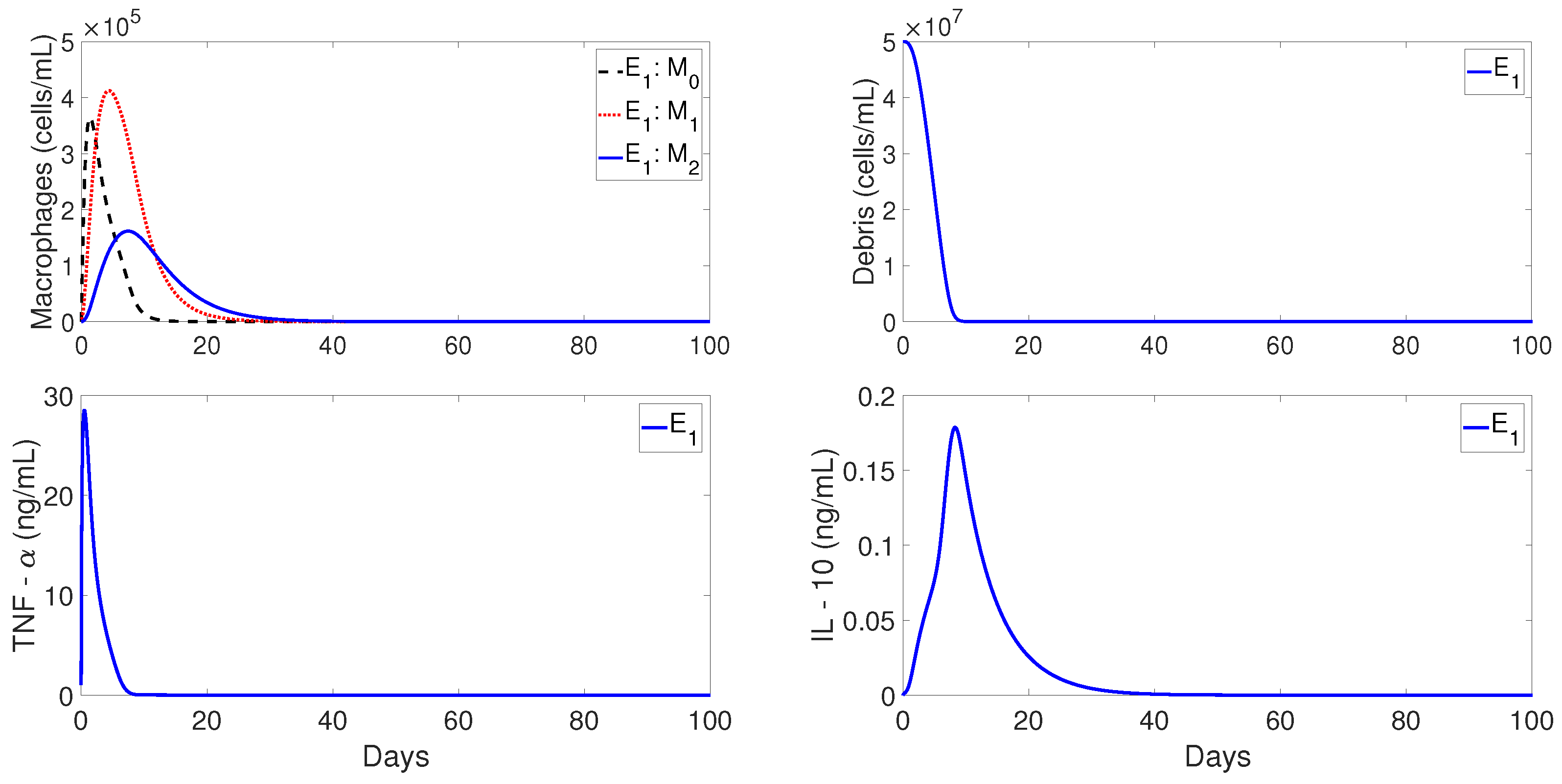

**Figure 4.**Cellular and molecular evolution of the resolution of the inflammation in normal conditions.

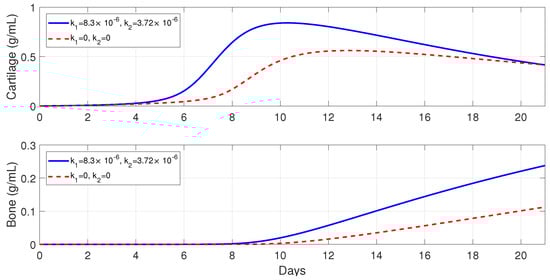

**Figure 7.**Tissue evolution when macrophages contribute to the healing process (solid line), ${k}_{1},{k}_{2}\ne 0$, and when they do not contribute to the healing process (dashed line), ${k}_{1}={k}_{2}=0$.

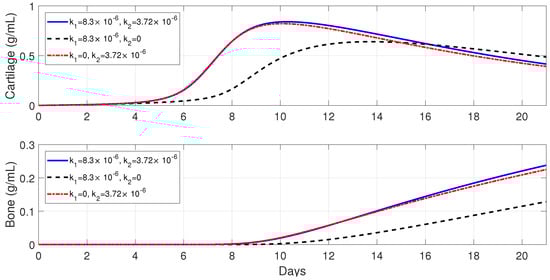

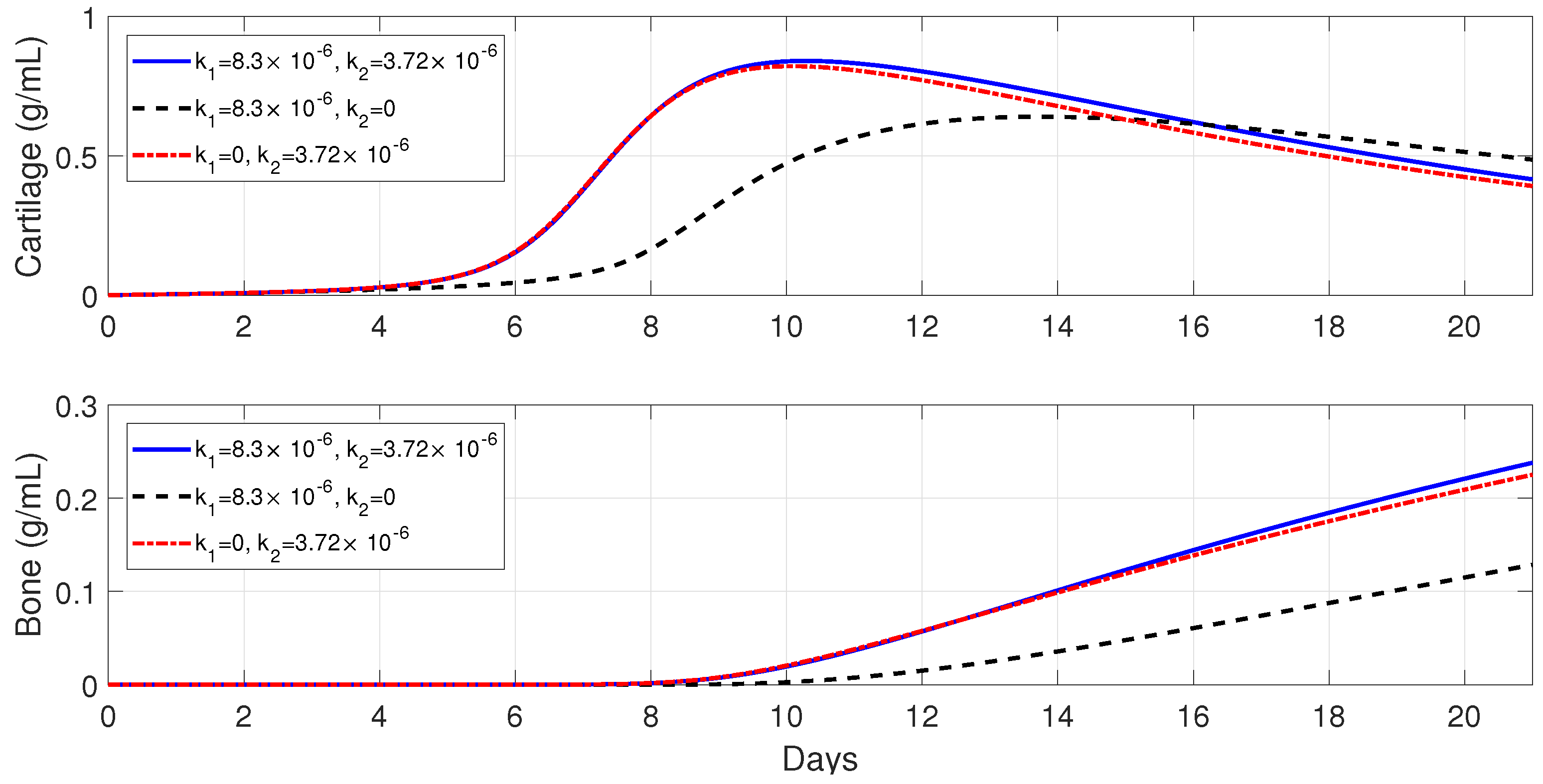

**Figure 8.**Tissue evolution when the alternatively activated macrophages, ${M}_{2}$, do not contribute to the healing process (dashed line), ${k}_{2}=0$, and when the classically activated macrophages, ${M}_{1}$, do not contribute to the healing process (dotted line), ${k}_{1}=0$.

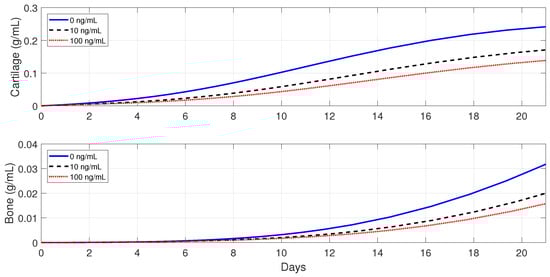

**Figure 10.**Tissue evolution in a simple fracture under different initial anti-inflammatory cytokines concentrations, $D\left(0\right)=3\times {10}^{5}$.

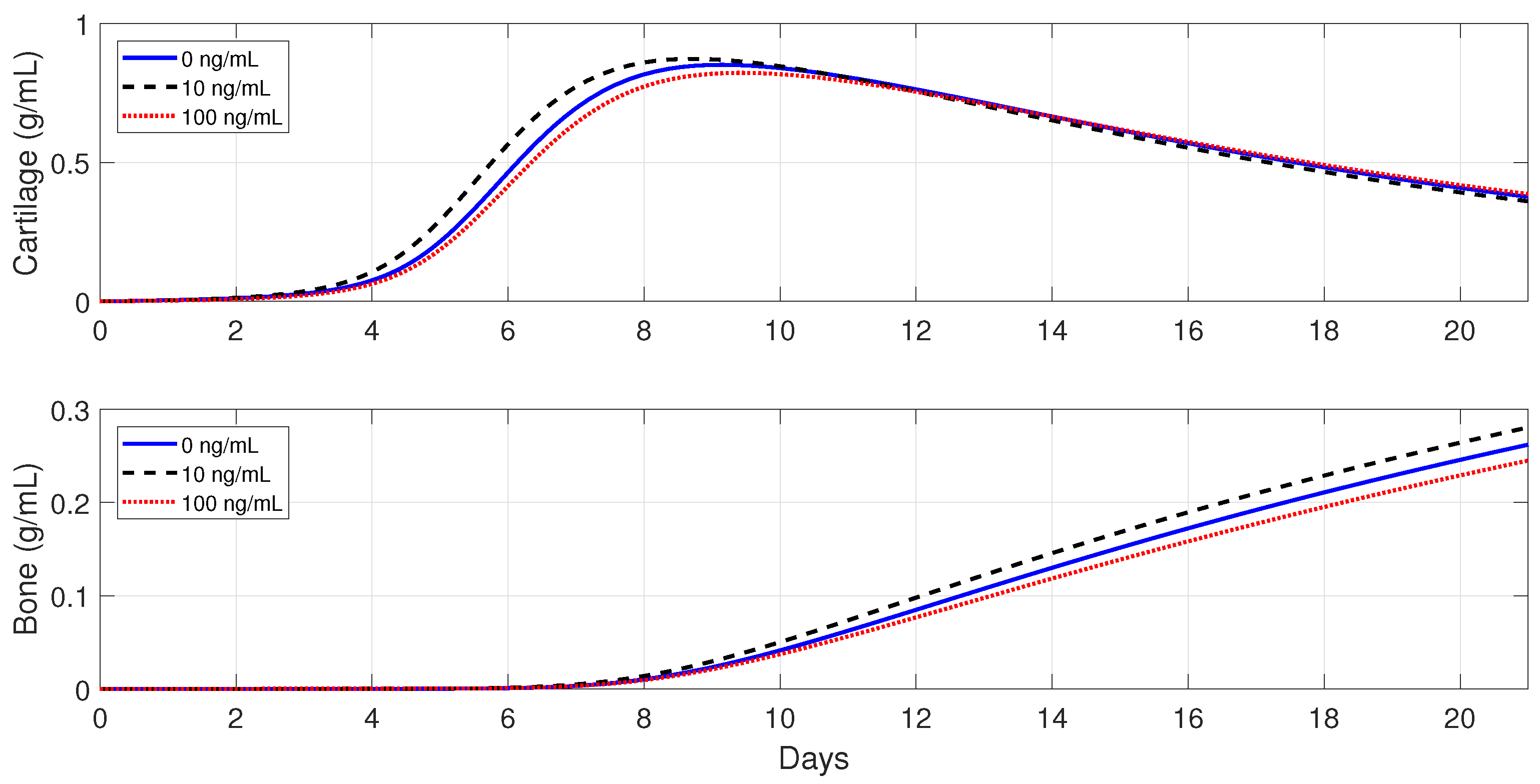

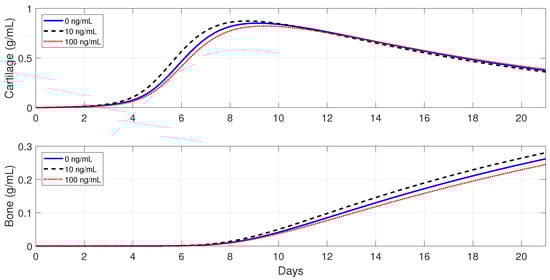

**Figure 11.**Tissue evolution in a moderate fracture under different initial anti-inflammatory cytokines concentrations, $D\left(0\right)=2\times {10}^{7}$.

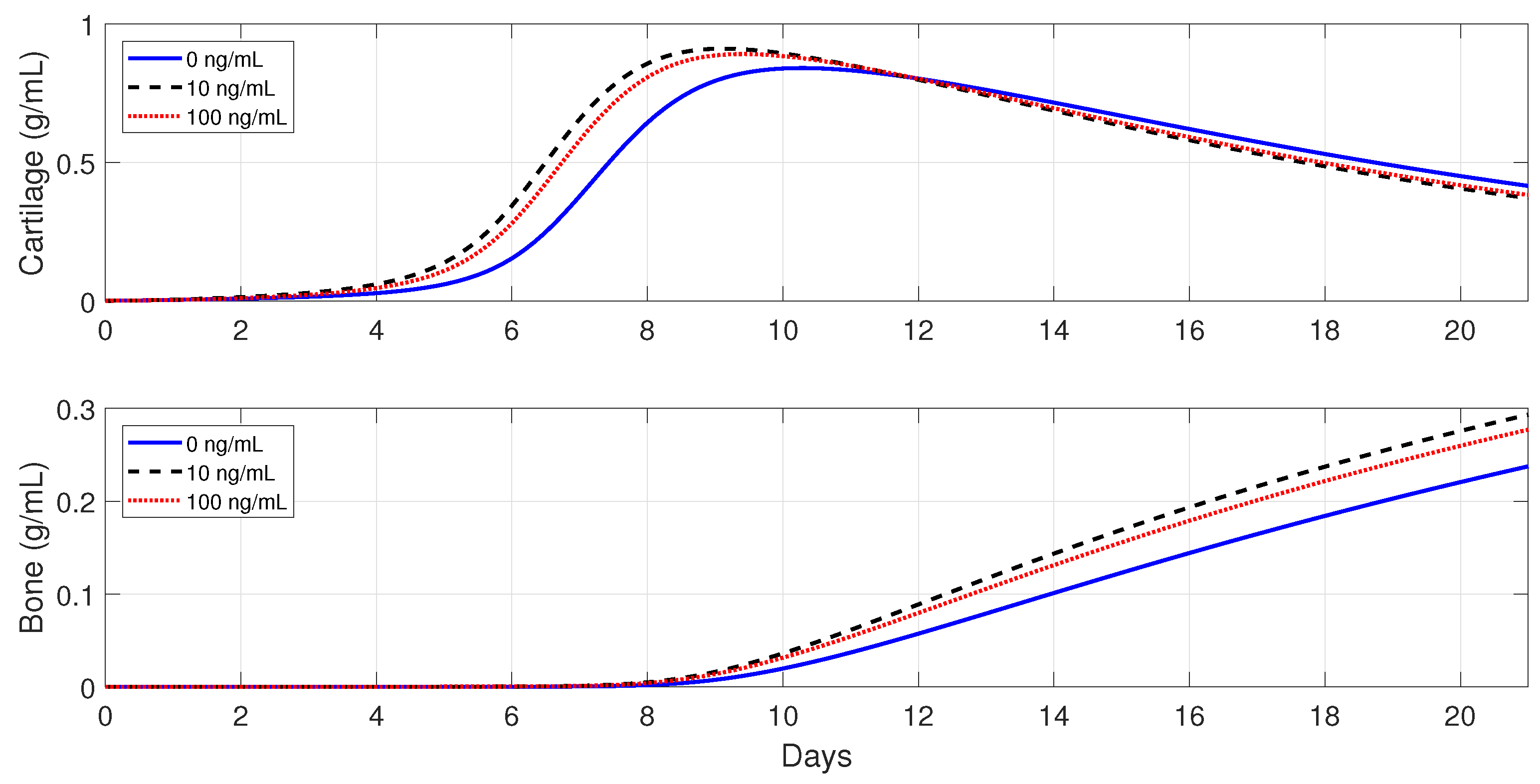

**Figure 12.**Tissue evolution in a moderate fracture under different initial anti-inflammatory cytokine concentrations, $D\left(0\right)=5\times {10}^{7}$.

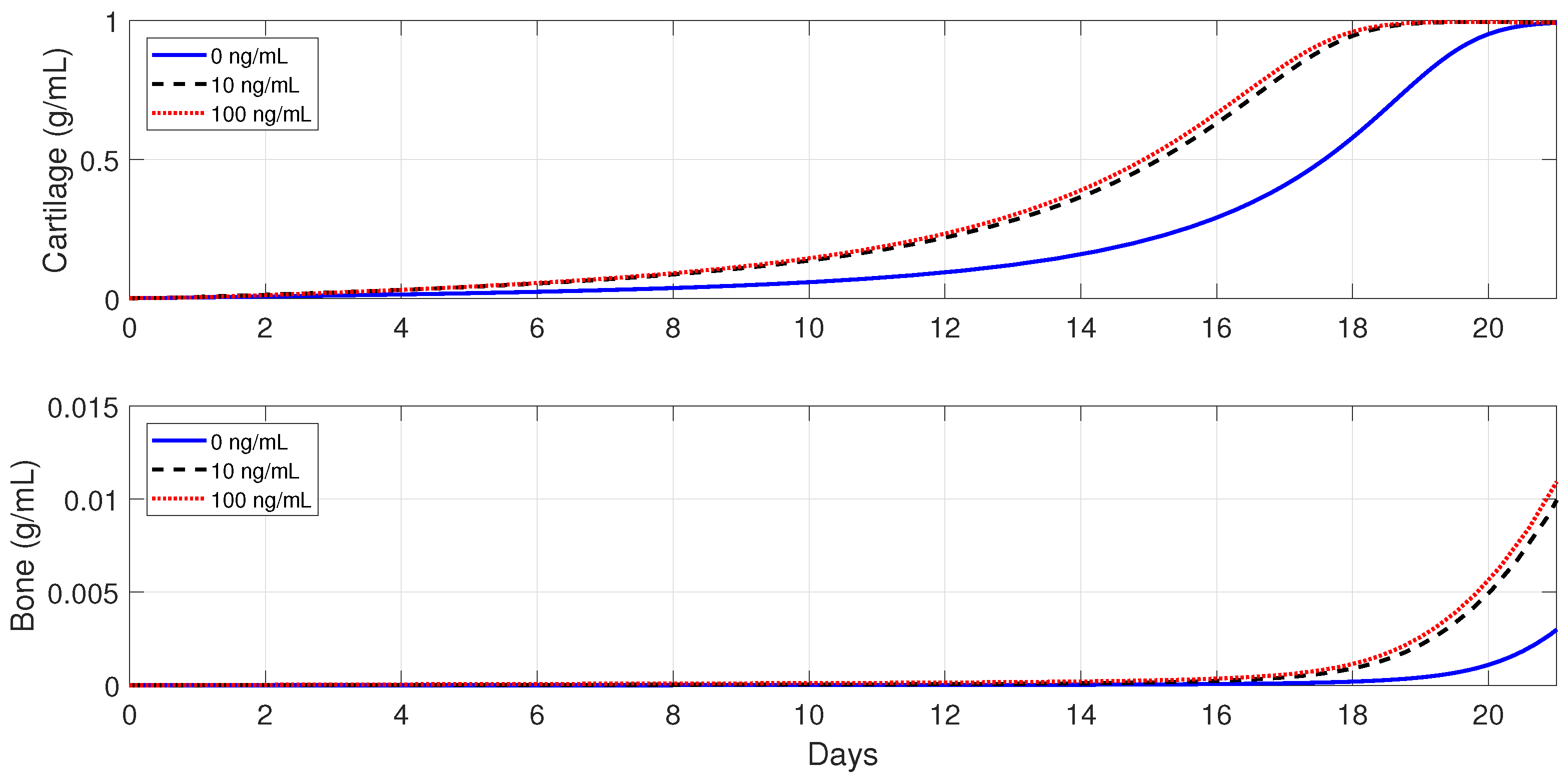

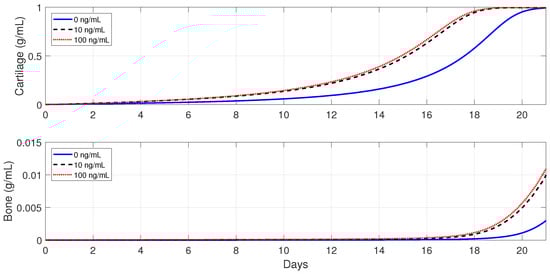

**Figure 13.**Tissue evolution in a severe fracture under different initial anti-inflammatory cytokines concentrations.

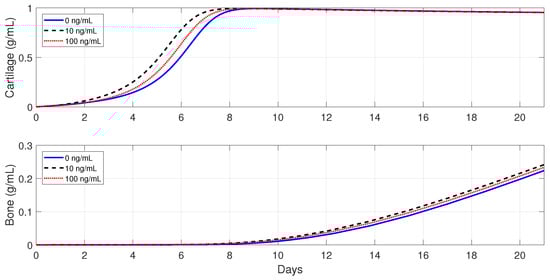

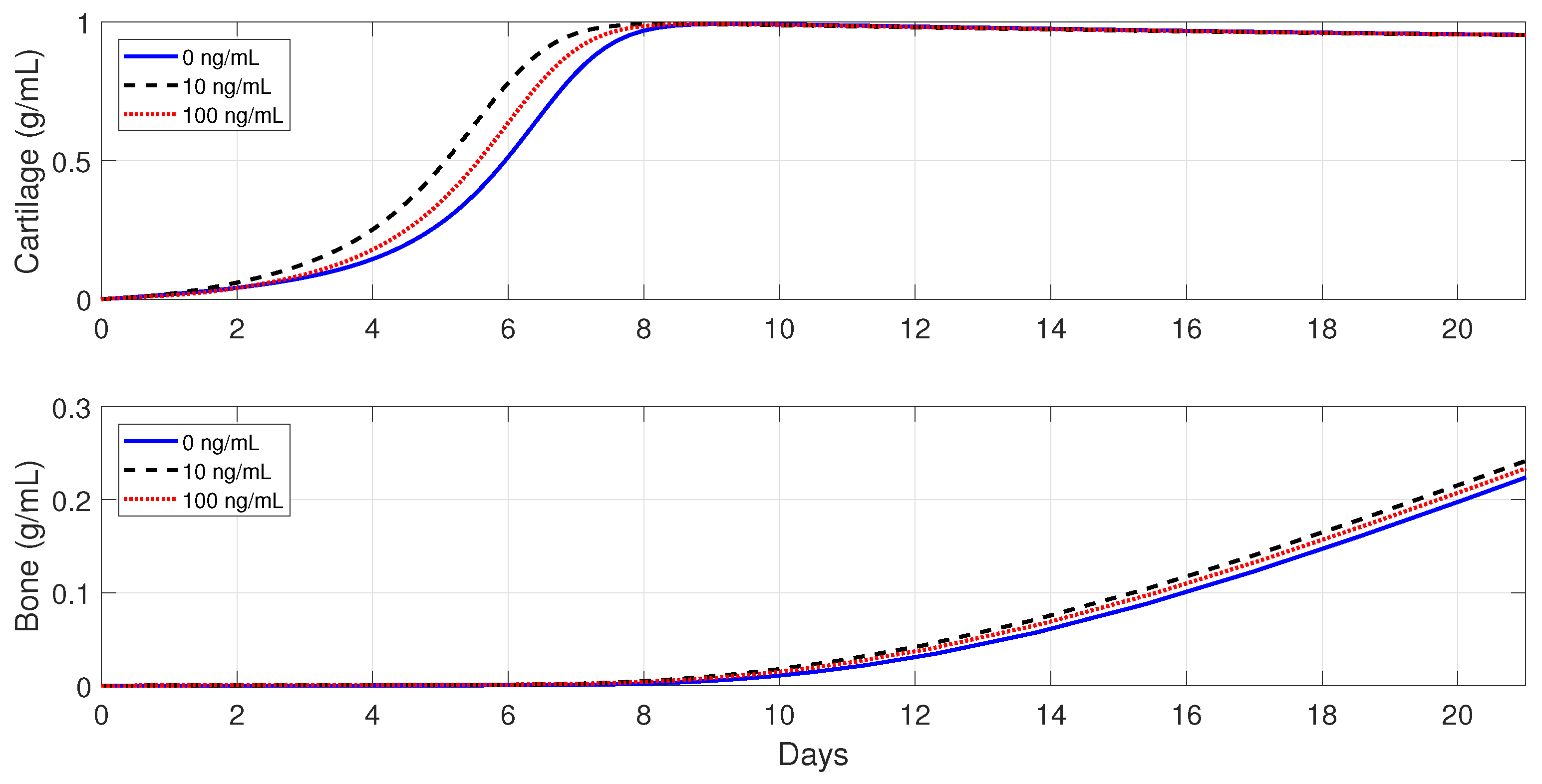

**Figure 14.**Tissue evolution in an advanced age fracture under different initial anti-inflammatory cytokines concentrations.

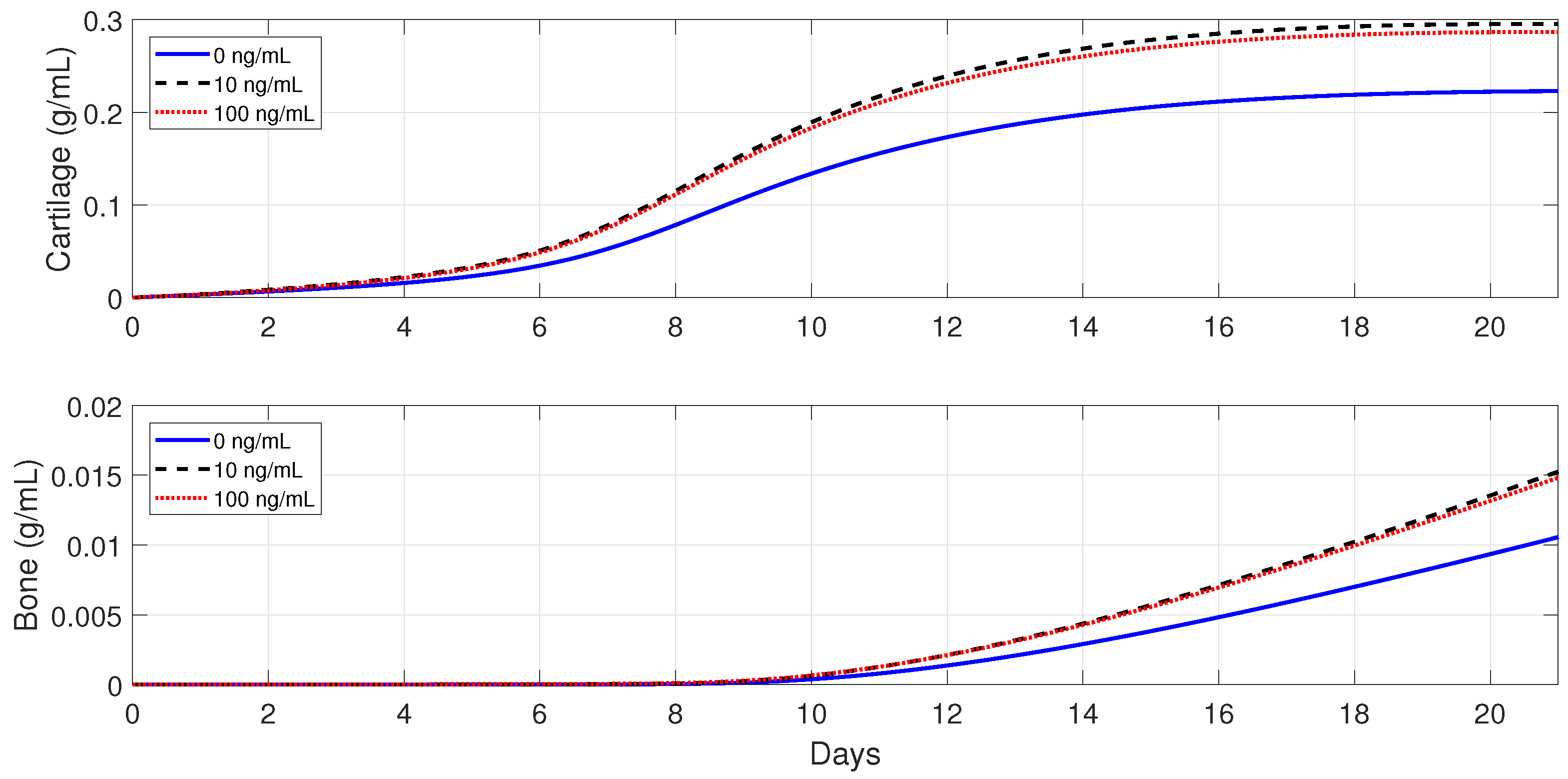

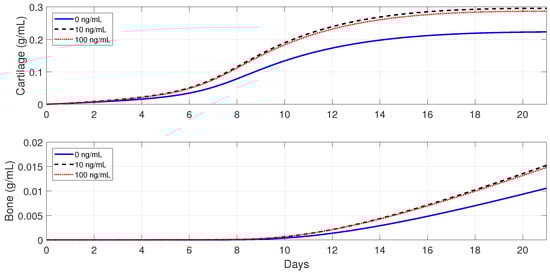

**Figure 15.**Tissue evolution in a senile osteoporotic fracture under different initial anti-inflammatory cytokines concentrations.

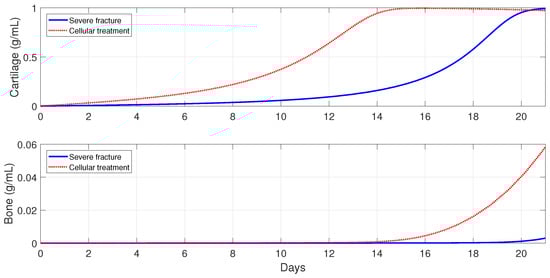

**Figure 16.**Tissue evolution in a severe fracture without therapeutic innervation (solid line) and with ${M}_{0}\left(0\right)$ and ${C}_{m}\left(0\right)$ transplantation (dotted line).

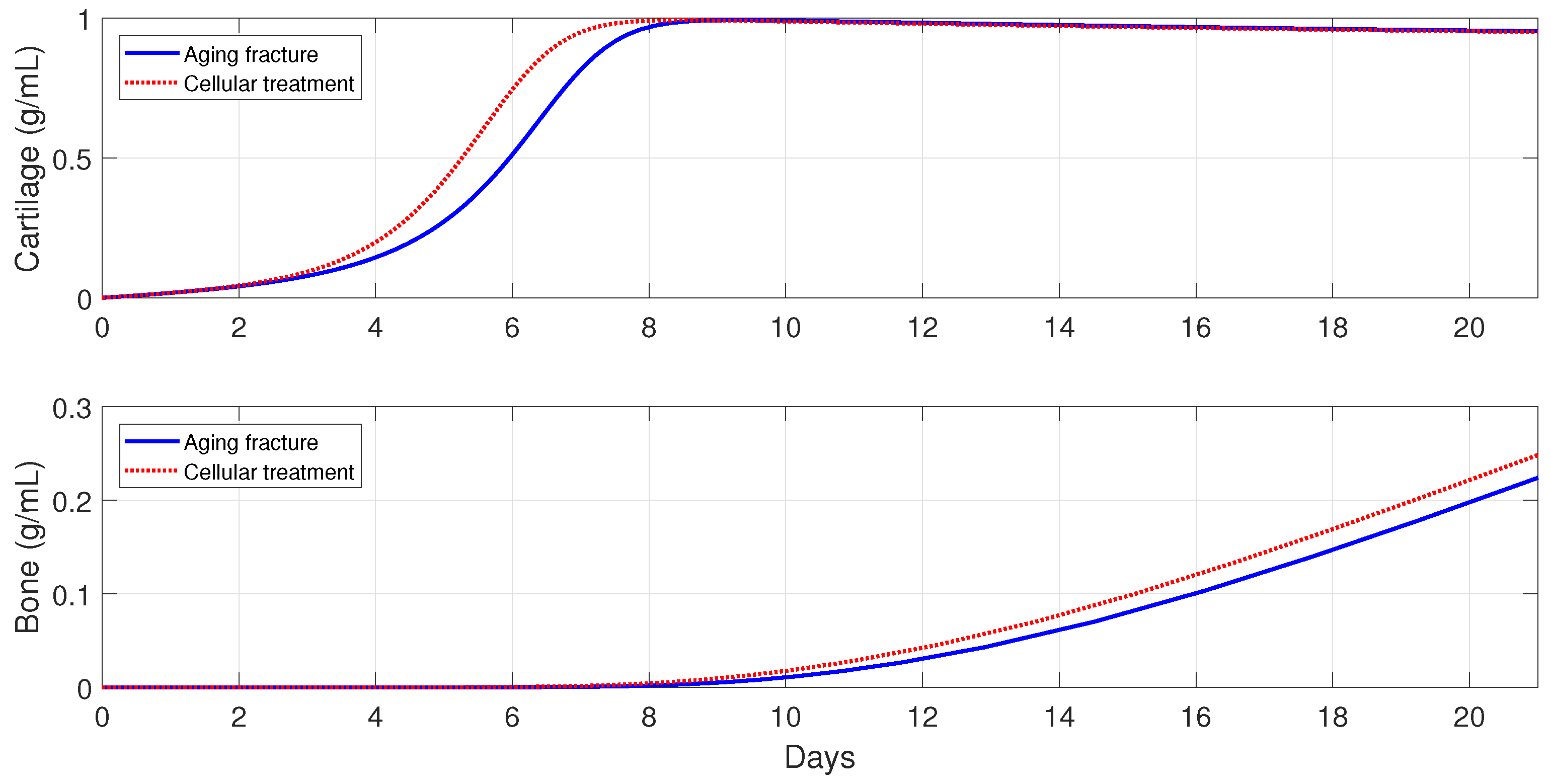

**Figure 17.**Tissue evolution in an aging fracture without therapeutic innervation (solid line) and with MSCs injection (dotted line).

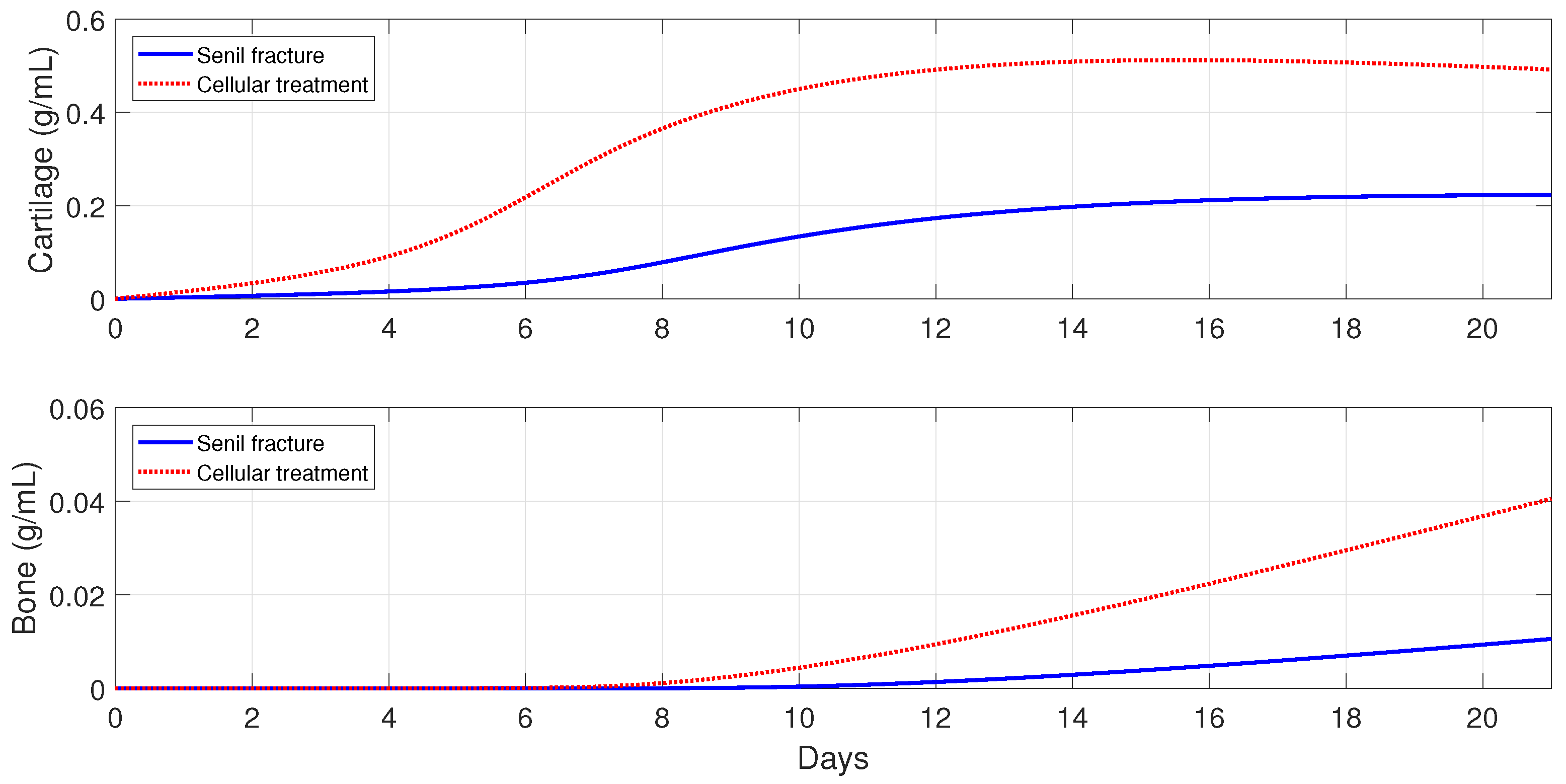

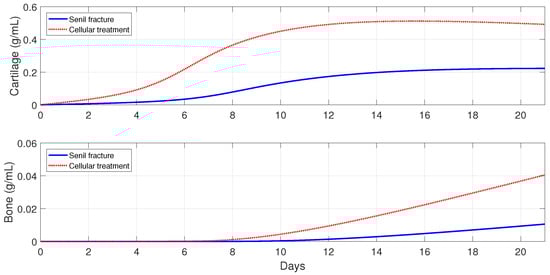

**Figure 18.**Tissue evolution in a senile osteoporotic fracture without therapeutic innervation (solid line) and with MSCs injection (dotted line).

Equilibrium Points | Existence Conditions | Meaning |
---|---|---|

${E}_{0}=(0,0,0,0,0,0,0,0,{m}_{{c}_{0}}^{\ast},{m}_{{b}_{0}}^{\ast})$ | ${m}_{{c}_{0}}^{\ast}\ge 0$, ${m}_{{b}_{0}}^{\ast}\ge 0$ | nonunion |

${E}_{1}=(0,0,0,0,0,0,0,{K}_{lb}(1-{d}_{b}/{k}_{pb}),0,{p}_{bs}/{q}_{bd})$ | ${k}_{pb}>{d}_{b}$ | successful healing |

${E}_{2}=(0,0,0,0,0,{c}_{2}^{\ast},{C}_{m}^{\ast},{C}_{b}^{\ast},{m}_{c}^{\ast},{p}_{bs}/{q}_{bd})$ | ${k}_{pm}>{d}_{m}$ | nonunion or delayed union |

Equilibrium Points | Stability Conditions | Stability |
---|---|---|

${E}_{0}$ | ${k}_{pm}\le {d}_{m}$, ${k}_{pb}\le {d}_{b}$ | ${E}_{0}$ belongs to an attracting local set |

${E}_{0}$, ${E}_{1}$ | ${k}_{pm}\le {d}_{m}$, ${k}_{pb}>{d}_{b}$ | ${E}_{0}$ unstable; ${E}_{1}$ locally stable |

${E}_{0}$, ${E}_{2}$ | ${k}_{pm}>{d}_{m}$, ${k}_{pb}\le {d}_{b}$ | ${E}_{0}$ unstable; ${E}_{2}$ locally stable |

${E}_{0}$, ${E}_{1}$, ${E}_{2}$ | ${k}_{pm}>{d}_{m}$, ${k}_{pb}>{d}_{b}$ | ${E}_{0}$ and ${E}_{1}$ unstable; ${E}_{2}$ locally stable |

Parameter | Description | Range of Values | Reference |
---|---|---|---|

${k}_{{e}_{1}}$ | Engulfing debris rate of ${M}_{1}$ | 3–48/day | [38,41] |

${k}_{{e}_{2}}$ | Engulfing debris rate of ${M}_{2}$ | 3–48/day | [38,41] |

${a}_{ed}$ | Half-saturation of debris | $4.71\times {10}^{6}$ cells/mL | [38] |

${k}_{max}$ | Maximal migration rate | 0.015–0.1/day | [39,45] |

${M}_{max}$ | Maximal macrophages density | $6\times {10}^{5}$–$1\times {10}^{6}$ cells/mL | [27,41] |

${k}_{01}$ | Activation rate of ${M}_{1}$ | 0.55–0.611/day | [29,39] |

${k}_{02}$ | Activation rate of ${M}_{0}$ to ${M}_{2}$ | 0.0843–0.3/day | [29] |

${k}_{12}$ | Transition rate from ${M}_{1}$ to ${M}_{2}$ | 0.083–0.075/day | [29,39] |

${k}_{21}$ | Transition rate from ${M}_{2}$ to ${M}_{1}$ | 0.005–0.05/day | [29] |

${d}_{0}$ | Emigration rate of ${M}_{0}$ | 0.156–0.02/day | [29,39] |

${d}_{1}$ | Emigration rate of ${M}_{1}$ | 0.121–0.2/day | [29,38,39] |

${d}_{2}$ | Emigration rate of ${M}_{2}$ | 0.163–0.2/day | [29,38,39] |

${k}_{0}$ | Secretion rate of ${c}_{1}$ by debris | $5\times {10}^{-7}$–$8.5\times {10}^{-6}$ ng/cells/day | [38] |

${k}_{1}$ | Secretion rate of ${c}_{1}$ by ${M}_{1}$ macrophages | $8.3\times {10}^{-6}$ ng/cells/day | [38] |

${k}_{2}$ | Secretion rate of ${c}_{2}$ by ${M}_{2}$ macrophages | $3.72\times {10}^{-6}$ ng/cells/day | [38] |

${k}_{3}$ | Secretion rate of ${c}_{2}$ by MSCs | $7\times {10}^{-7}$–$8\times {10}^{-6}$ ng/cells/day | [11] |

${d}_{{c}_{1}}$ | Decay rate of ${c}_{1}$ | 12.79–55/day | [29,38] |

${d}_{{c}_{2}}$ | Decay rate of ${c}_{2}$ | 2.5–4.632/day | [29,38] |

${a}_{12}$ | Effectiveness of ${c}_{2}$ inhibition of ${c}_{1}$ synthesis | $0.025$ ng/mL | [29] |

${a}_{22}$ | Effectiveness of ${c}_{2}$ inhibition of ${c}_{2}$ synthesis | $0.1$ ng/mL | [29] |

${a}_{pm}$ | Effectiveness of ${c}_{1}$ inhibition of ${C}_{m}$ proliferation | $3.162$ ng/mL | [11,46] |

${a}_{m{b}_{1}}$ | Effectiveness of ${c}_{1}$ inhibition of ${C}_{m}$ differentiation | $0.1$ ng/mL | [11,47] |

${a}_{01}$ | Half-saturation of ${c}_{1}$ to activate ${M}_{1}$ | $0.01$ ng/mL | [29] |

${a}_{02}$ | Half-saturation of ${c}_{2}$ to activate ${M}_{2}$ | $0.005$ ng/mL | [29] |

${a}_{pb}$ | Effectiveness of ${c}_{1}$ inhibition of ${C}_{b}$ proliferation | 10 ng/mL | [11,48] |

${a}_{p{m}_{1}}$ | Constant enhancement of ${c}_{1}$ to ${C}_{m}$ proliferation | 13 ng/mL | [11,46] |

${k}_{pm}$ | Proliferation rate of ${C}_{m}$ | 0.5/day | [11] |

${d}_{m}$ | Differentiation rate of ${C}_{m}$ | 1/day | [11,30] |

${k}_{pb}$ | Proliferation rate of ${C}_{b}$ | 0.2202/day | [11,30] |

${d}_{b}$ | Differentiation rate of ${C}_{b}$ | 0.15/day | [11,30] |

${p}_{cs}$ | Fibrocartilage synthesis rate | $3\times {10}^{-6}$ g/cells/day | [11,30] |

${q}_{c{d}_{1}}$ | Fibrocartilage degradation rate | $3\times {10}^{-6}$ mL/cells/day | [11,30] |

${q}_{c{d}_{2}}$ | Fibrocartilage degradation rate by osteoclasts | $0.2\times {10}^{-6}$ mL/cells/day | [11,30] |

${p}_{bs}$ | Bone tissue synthesis rate | $5\times {10}^{-8}$ g/cells/day | [11,30] |

${q}_{bd}$ | Bone tissue degradation rate | $5\times {10}^{-8}$ mL/cells/day | [30] |

${K}_{lb}$ | Carrying capacity of ${C}_{b}$ | $1\times {10}^{6}$ cells/mL | [11,30] |

${K}_{lm}$ | Carrying capacity of ${C}_{m}$ | $1\times {10}^{6}$ cells/mL | [11,30] |

$D\left(0\right)$ | Density of necrotic cells | $1\times {10}^{6}$–$2\times {10}^{8}$ cells/mL | [27,38,41] |

${C}_{m}\left(0\right)$ | Initial MSCs density | 1000 cells/mL | [11] |

${M}_{0}\left(0\right)$ | Unactivated macrophage density | 4000 cell/mL | [45] |
