Treatment of Produced Water Using Prepared Activated Carbon-Based Sewage Sludge

Abstract

Removal of organic pollutants and metal ions from produced water by adsorption, using prepared activated carbon (AC) from sewage sludge, with chemical activations using NaOH, KOH and ZnCl₂ separately and pyrolysis at different temperatures (500, 600 and 700 °C). Pure sludge and prepared ACs were analyzed using FTIR and XRD. The results showed 18% crystallinity compared to that of commercial AC, which has 44% crystallinity. The results of FTIR demonstrate that the properties of the post-treated affect the final products depending on the method used and that it contains similar functional groups to those present in the commercial AC, but at a higher peak intensity. Adsorption treatments were carried out at 25, 35 and 45 °C solution temperatures. The results showed that the removal of pollutants from produced water using prepared AC with all types of chemical activations reached 99.5%, such as commercial AC with 0.06 g dosage of adsorbent at pyrolysis temperatures of 500 and 600 °C and a solution temperature of 25 °C. The obtained results refer to the mechanism of exothermic reaction and physical adsorption. It was observed that despite the lower dosage of adsorbent of 0.01 g, a sufficient treatment of pollutants was achieved. This reveals the effectiveness of using sewage sludge as a cheap adsorbent. Also, using pure sewage sludge, the adsorption data showed a 95.2% removal of the pollutants. This result indicated that pure sludge has an efficient adsorption capacity and can be utilized as a cheap and environmentally friendly material. For the removal of manganese and cadmium metal ions from the produced water, the resultant data showed that more than 90% of manganese was adsorbed and more than 97% of cadmium was adsorbed, especially when using pure sewage sludge and prepared activated carbon with NaOH chemical activation at pyrolysis temperatures of 500 °C and 600 °C.

1. Introduction

Oil production is associated with a huge amount of produced water. Globally, the production of produced water from oilfields is expected to increase over the next 10 years from about 158,900 million barrels/day to 243,000 million barrels/day, due to increased demand for oil [1,2]. More than 40% of produced water is discharged into the environment [3]. In Oman a large amount of produced water, around 900,000 m³, is generated each day as a byproduct of its 135,000 m³ of oil production per day. In other words, for every barrel of oil there will be nine barrels of produced water [4]. A similar scenario occurred in Nigeria in which the oil–to–water ratio could be 1:10 [5]. Produced water is a waste byproduct of the oil and gas industry that contains relatively high concentrations of hydrocarbons, including dissolved and dispersed oils, grease, heavy metals, radionuclides, treating chemicals, formation solids, salts, dissolved gases, scale products, waxes, microorganisms, and dissolved oxygen [6]. Currently, the treatment of produced water is being performed through various methods, including physical, chemical, and biological methods [5,7,8]. The importance of the treatment of produced water encourages many researchers to focus on the topic and several treatment methods were investigated for optimal and economical methods, such as Humidification-dehumidification [9]; Ozonation [10]; Electrochemical and Electrocoagulation techniques [11,12]; Filtration and reverse osmosis [13]; Advanced oxidation process [14]; Chemical coagulation [15]; etc.

The major component of sewage sludge is organic material, which comprises between 60% and 80% of sewage sludge [16,17], the sludge is utilized for producing activated carbon. There are many sources to produce activated carbon [18,19,20,21], but producing activated carbon from sewage sludge will have many economic and environmental advantages. Activated carbon-based sludge can be prepared by either direct pyrolysis or pyrolysis followed by a physical activation process, chemical activation process, or physical-chemical activation process [22,23,24]. Gupta and Garg stated that the poor management of sewage sludge, which is a by-product from sewage treatment plants, is a major environmental issue. Being carbonaceous in nature, the waste residue can be converted into activated carbon for utilization in wastewater treatment plants to remove toxic and persistent organic pollutants. This study investigated the performance of sewage sludge-derived adsorbents for the removal of recalcitrant lignin (found in paper and pulp mill effluents) from synthetic wastewater [25]. The adsorbent was prepared from primary sewage sludge using a chemical activation process employing a strong base, KOH. Aliakbari, et al. [26] prepared activated carbons from sewage sludge by chemical activation with phosphoric acid (H₃PO₄), acid (HCl, HF), and base (NaOH) as post-treatment steps, which were employed to eliminate the mineral matter and other impurities of AC based sewage-sludge. Microwave radiation could be utilized to produce activated carbon from sewage sludge [27]. Zaker Ali et al. [28] published a detailed review paper on the microwave-assisted pyrolysis of sewage sludge. They have reported that the main advantages of the microwave pyrolysis process lie in reducing energy consumption and processing time during microwave heating. They have also mentioned that the quality and properties of microwave-assisted pyrolysis products are dependent on many factors, including sewage sludge composition and conditions employed, such as the process temperature, heating rate, and time. Yu-Huan Li, et al. [29] reported a method for preparing sludge-activated carbon (SAC) by activating sludge pyrolysis carbon by zinc chloride. The effect of ZnCl₂ concentration, activation temperature, and activation time on the activated carbon were investigated. The prepared activated carbons were characterized (TGA, XRD, FTIR, SEM, and N₂ adsorption-desorption) and tested for their adsorption ability of iodine and methylene blue. According to the data obtained, sludge pyrolysis char is a suitable precursor for activated carbon preparation, and the obtained SAC could be used as a low-cost adsorbent with favorable surface properties. Dos Res et al., [30] have reported a comparison study of activated carbon prepared from sewage sludge by using two types of pyrolysis: conventional furnace and microwave. In their experiments, it was reported that the activated carbon made by conventional pyrolysis possessed higher surface area values overall than the samples synthesized using the microwave. The optimum parameters for the preparation of activated carbon using conventional pyrolysis have been identified as a pyrolysis temperature of 500 °C, a holding time of 15 min, and a ratio of ZnCl₂: sludge of 0.5. Microwave pyrolysis is found to be optimal when operating at 980 W for 12 min. The analysis of nitrogen adsorption/desorption isotherms revealed the presence of micro- and mesopores in the activated carbon.

In this study, the treatment of produced water was carried out using prepared activated carbon-based sewage sludge and chemical-physical activation using NaOH, KOH, and ZnCl₂ separately. Pyrolysis was performed at different temperatures (500, 600, and 700 °C), followed by physical activation using carbon dioxide. The treatment was compared to that of using commercial AC and sewage sludge.

2. Materials and Methods

Sewage sludge samples were collected from an aeration tank at Nizwa Sewage Treatment Plant (STP). Activation chemical agent: 1 M of each solution, KOH, NaOH, and ZnCl_2, were used. Chemicals were provided by the chemistry lab at the University of Nizwa.

The produced water sample was provided by Petroleum Development Oman (PDO). The properties of the produced water were as follows: UV absorption: 0.59; Conductivity: 5.47 $\mathsf{\mu }\mathrm{s}$, and pH: 7.6. The sample was used to evaluate the potential efficiency of the developed adsorbents for the removal of pollutants from produced water.

Surface morphology and chemical structure of treated sludge were investigated using XRD (BRUKER, model D8 DISCOVER, Karlsruhe, Germany, with CuKα radiation, and their diffraction patterns were recorded between diffraction angles of 0° and 90°) and FTIR (model TENSOR 37-UK). Both devices are available at Daris laboratory at the University of Nizwa.

2.1. Preparation of Sewage Sludge Sample for Activated Carbon

Two liters of sewage sludge samples were filtrated using a piece of cloth, then, air-dried in a clean place for two days. Samples of 30 g of dried sludge were chemically activated using 100 mL of 1 M NaOH, KOH, and ZnCl₂ separately. The solution was stirred using an orbital shaker at 200 rpm for 24 h at room temperature. Then, samples were thoroughly washed using distilled water several times until the pH reached 8, then samples were dried in an electrical oven at 105 °C for one hour.

Pyrolyzed materials were obtained from the dried sewage sludge (10 g) by using thermal treatment in a tubular furnace under nitrogen gas at different temperatures (500, 600 and 700 °C) for two hours with a heating rate of 10 °C/min. Carbon dioxide gas was used for physical activation at 400 °C for one hour. The resulting adsorbent was crushed and sieved to 300 μm.

2.2. Adsorption Study

Experiments of batch adsorption were carried out using different dosages; 0.1, 0.2, 0.4, and 0.6 g of the prepared activation carbon for treatment of 50 mL of produced water at different temperatures: 25, 35, and 45 °C, respectively. Samples were mixed using an Orbital shaker at 200 rpm for 8 h (an equilibrium time). Then, samples were filtered through filter paper. The pollutants in the produced water were determined using the UV absorption technique. The percentage of removal of pollutants was calculated as follows:

$$\mathit{\%}\mathit{Removal}=\frac{{UV}_{°}-UV}{{UV}_{°}}\times 100$$

(1)

where UV_° and UV are the ultraviolet absorption measurements of initial and treated produced water samples.

Also, to test the capability of the prepared activated carbon adsorbents to adsorb metal ions from produced water, the availability of metal ions in the sample of produced water was determined using the 8000-ICP-OES double monochromator (PerkinElmer, Inc., Waltham, MA, USA) device available at the University of Nizwa-Daris Center.

Table 1. Concentration of some metals available in produced water.

Metal	Concentration mg/L
Ca	3.417
Cd	3.804
Co	3.852
Mg	3.852
Mn	3.734
Na	33.01

shows the concentration of metals present in the produced water. Two metals were selected to perform the adsorption test: cadmium and manganese. The adsorption test was performed, and batch experimental tests were carried out using 0.05 g of adsorbent with 50 mL of produced water at a temperature of 25 °C and contact time of 8 h.

3. Results and Discussion

A comparative study of the prepared sewage sludge adsorbents at different pyrolysis temperatures was performed and compared with that of commercial activated carbon and pure non-treated sewage sludge.

3.1. Characterization of Prepared Activated Carbon-Based Sewage Sludge

The XRD was examined for prepared AC at a pyrolysis temperature of 500 °C and the results are presented in

Table 2. XRD of prepared and commercial activated carbon.

Types of Adsorbents	Crystallinity Structures %	Amorphous Structures%
Commercial AC	44.6	55.4
Pure sludge	15.2	84.8
Prepared AC without chemical activation at 500 °C	15.8	84.2
Prepared AC activated with ZnCl2 at 500 °C	18.1	81.9
Prepared AC activated with NaOH at 500 °C	23.6	76.4
Prepared AC activated with KOH at 500 °C	17.1	82.9

. The results showed that the crystallinity of the commercial AC shows a crystallinity content of 44.6% and the rest are amorphous structures, while the prepared activated carbon from pure sludge has 15.2% crystallinity. Most of the prepared AC with or without chemical activation showed a similar percentage of crystallinity, the highest crystallinity was obtained for that which was chemically activated using NaOH, of which the crystallinity is 23.6%.

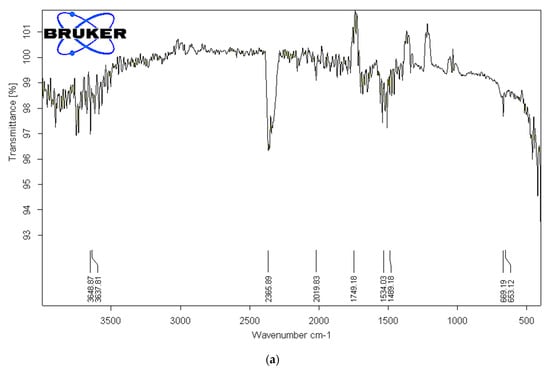

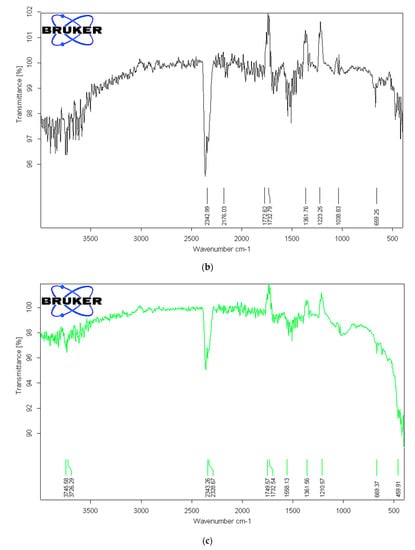

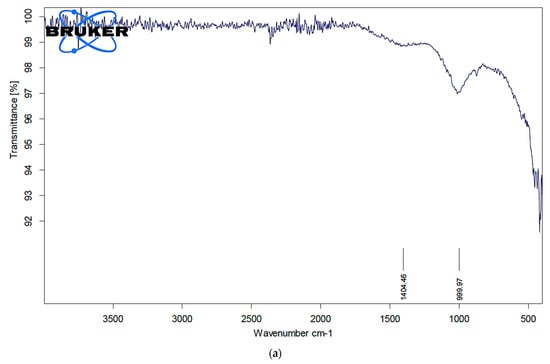

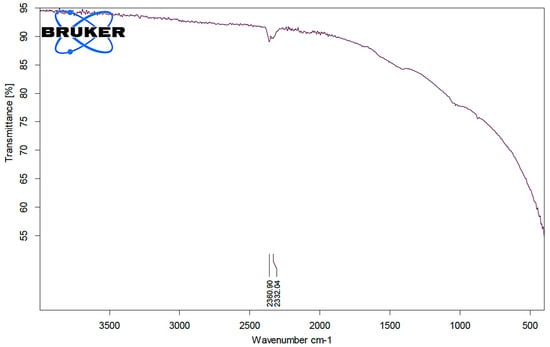

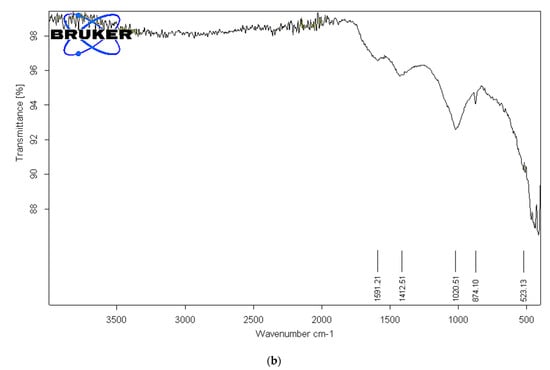

To identify the functional groups of the prepared activated carbon-based sewage sludge with and without chemical activations, pure sludge, or commercial activated carbon, which are responsible for the adsorption of pollutants from produced water, Fourier transform infrared spectroscopy (FTIR) spectrum of all samples were recorded. Figure 1, Figure 2 and Figure 3 show the results of the FTIR spectra. The presence of functional groups in the activated carbon mainly depends on the starting precursor and the activation method used. FTIR spectra of the commercial activated carbon is presented in Figure 1 and compared with that of the chemically activated carbon. The commercial activated carbon exhibited two characteristic bands at 2360 and 2332 cm⁻¹, which corresponds to the presence of O=C=O. The FTIR of sewage sludge samples (Figure 2a,b) exhibit wave-number range 990–1000 cm⁻¹, which corresponds to the C=C bending, and wavenumbers in the range 1210–1370 cm⁻¹ correspond to the C-N stretching. The chemically activated carbon samples have exhibited similar absorption patterns in the range of 2300–2350 cm⁻¹ to that of commercial activated carbon (Figure 3a–c). The CO₂ functional group existed due to the physical treatment carried out in the presence of CO₂ gas. The absorption in the range of 1730–1780 cm⁻¹ was observed in chemically activated carbon samples due to the presence of aromatic C=O stretching. The wavenumber range 990–1000 cm⁻¹ corresponds to the C=C bending. The wavenumbers in the range 1210–1370 cm⁻¹ correspond to the C-N stretching. The activated carbon prepared from the sewage sludge contains heavy metals and other impurities which are corresponding to the many miscellaneous peaks.

3.2. Produced Water Treatment Using Commercial AC

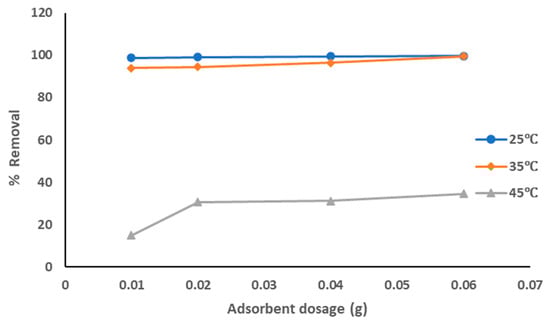

The adsorption data for the removal of pollutants from produced water by using commercial AC adsorbent at the optimized experiment conditions is represented in Figure 4. The adsorption data show that with the increase of the adsorbent dosage from 0.01 to 0.06 g the removal percentage of the pollutants was increased from 98.8% to 99.6%, especially at a solution temperature of 25 °C. Similar results were obtained at a solution temperature of 35 °C, while the removal percentage was much lower at a solution temperature of 45 °C (increased from 15% to 34.7%). This means that the highest adsorption affinity occurred at lower solution temperatures. The solution temperature has the highest effects on the adsorption process, which affects the rate of diffusion of the sorbate within the pores and may affect the number of sorption sites generated due to the breaking of some internal bonds near the edge of active surface sites of sorbent [31]. The decrease of the sorption capacities with the increase in solution temperature indicates an exothermic reaction followed by physical adsorption. These results agree with all previous results [32,33].

3.3. Produced Water Treatment Using Pure Sewage Sludge

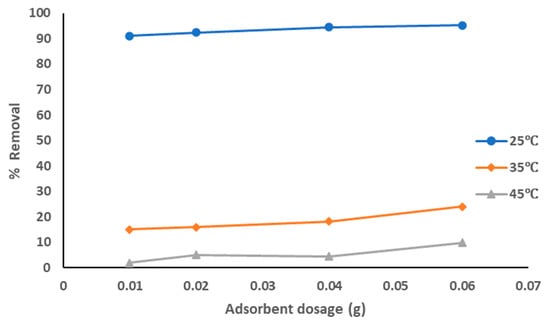

The adsorption data for the removal of pollutants from produced water by pure sewage sludge adsorbent at the optimized experiment conditions is represented in Figure 5. The adsorption data show that with the increase of the adsorbent dosage from 0.01 to 0.06 g the removal percentage of the pollutants was increased from 91% to 95.2%, especially at a solution temperature of 25 °C. The removal percentage was much lower at solution temperatures of 35 °C and 45 °C (around 10–20%). The highest adsorption affinity occurred at a lower solution temperature as temperature has the highest effects on the adsorption process, as explained above. The decrease of the sorption capacity with the increase of solution temperature refers to an exothermic reaction. The results showed that pure sewage sludge has an efficient capacity for adsorption at room temperature.

3.4. Produced Water Treatment Using Prepared AC from Sludge without Chemical Activation

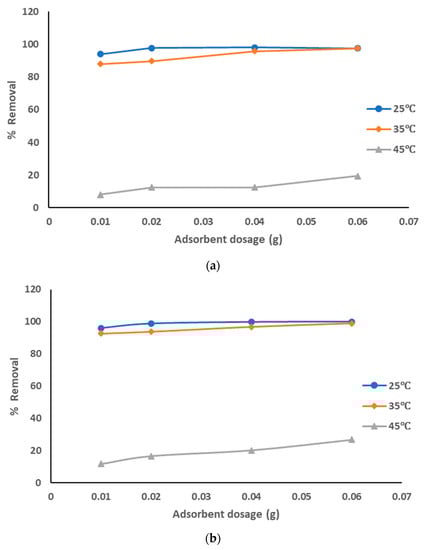

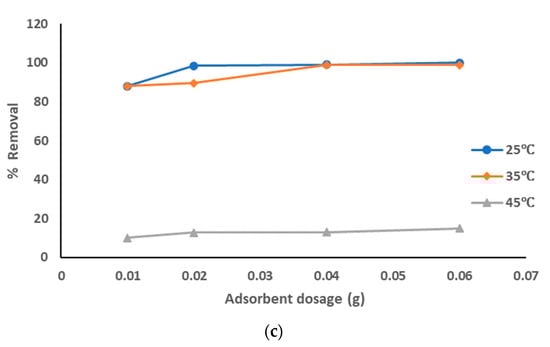

The adsorption data for the removal of pollutants from produced water by prepared AC from sludge without chemical activation adsorbent at the optimized experiment conditions is represented in Figure 6a–c at different pyrolysis temperatures. The adsorption data show that with the increase of the adsorbent dosage from 0.01 to 0.06 g the removal percentage of the pollutants was increased: from 94% to 97.5% with pyrolysis temperature 500 °C; from 96 to 100% with pyrolysis temperature 600 °C from 88% to 100% with pyrolysis temperature 700 °C, especially at a solution temperature of 25 °C and similar results at 35 °C. The removal percentage was much lower at a solution temperature of 45 °C (around 10–26% with all pyrolysis temperatures). Also, the highest adsorption affinity occurred at lower solution temperatures as the temperature has the highest effects on the adsorption process as explained above. The decrease of the sorption capacities with the increase of solution temperature refers to an exothermic reaction. The results showed that pure sewage sludge has an efficient capacity for adsorption at room temperature. These results clearly show that the best treatment conditions were at room temperature with a pyrolysis temperature of 500–600 °C and most dosages of prepared AC. The obtained results agreed with the previous results [34].

3.5. Produced Water Treatment Using Prepared AC from Sludge Activated with ZnCl₂

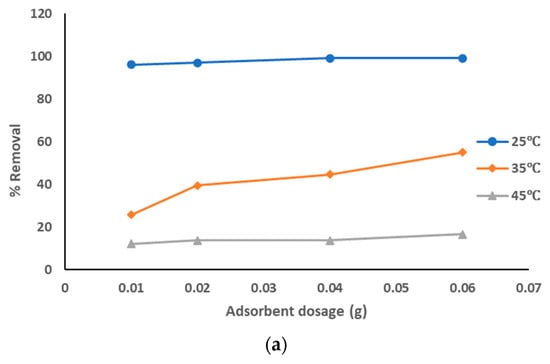

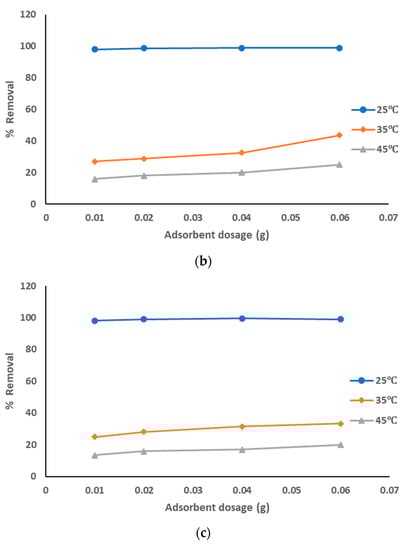

The adsorption data for the removal of pollutants from produced water, by using prepared AC from sludge with ZnCl₂ chemical activation adsorbent at the optimized experiment conditions, is represented in Figure 7a–c at different pyrolysis temperatures. The adsorption data show that with the increase of the adsorbent dosage from 0.01 to 0.06 g, the removal percentage of the pollutants was increased: from 96 to 99% with pyrolysis temperature 500 °C; from 98 to 99% with pyrolysis temperatures 600 °C and 700 °C, especially at solution temperature of 25 °C. However, results of the removal of pollutants were lower at both 35 °C (around 25 to 55% with all pyrolysis temperatures) and 45 °C (around 12 to 25% with all pyrolysis temperatures). It is clear that the highest adsorption affinity occurred at lower solution temperatures. The decrease of the sorption capacities with the increase of solution temperature refers to an exothermic reaction. The results showed that pure sewage sludge has an efficient capacity for adsorption at room temperature. These results show that the best treatment conditions are at room temperature with pyrolysis temperatures of 500–700 °C, using the highest dosage of prepared AC that activated using ZnCl₂. The activation using ZnCl₂ suppressed the release of small organic molecules and enhanced the functional groups, hence increasing the quality of prepared AC.

3.6. Produced Water Treatment Using Prepared AC from Sludge Activated with NaOH

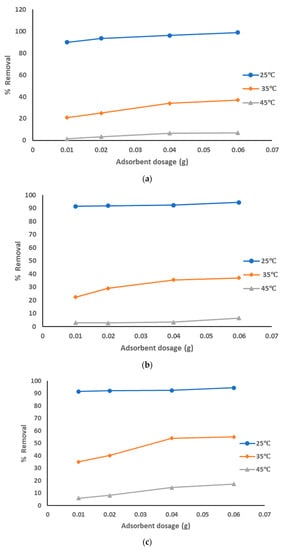

The adsorption data for the removal of pollutants from produced water by using prepared AC from sludge with NaOH chemical activation adsorbent at the optimized experiment conditions is represented in Figure 8a–c at different pyrolysis temperatures. The adsorption data show that with the increase of the adsorbent dosage from 0.01 to 0.06 g, the removal percentage of the pollutants was increased: from 90 to 98% with a pyrolysis temperature of 500 °C; from 92 to 94% with pyrolysis temperatures 600 °C and 700 °C, especially at solution temperature of 25 °C. However, results of the removal of pollutants were lower at both 35 °C (around 35 to 55% with all pyrolysis temperatures) and 45 °C (around 6 to 17% with all pyrolysis temperatures). The highest adsorption affinity occurred at lower solution temperatures. The decrease of the sorption capacities with the increase of solution temperature refers to an exothermic reaction. The results showed that pure sewage sludge has an efficient capacity for adsorption at room temperature. These results show the best treatment conditions were at room temperature with all pyrolysis temperatures of 500 °C and using the highest dosages of prepared AC that activated using NaOH. The activation using NaOH suppressed the release of small organic molecules and enhanced the functional groups, hence increasing the quality of prepared AC.

3.7. Produced Water Treatment Using Prepared AC from Sludge Activated with KOH

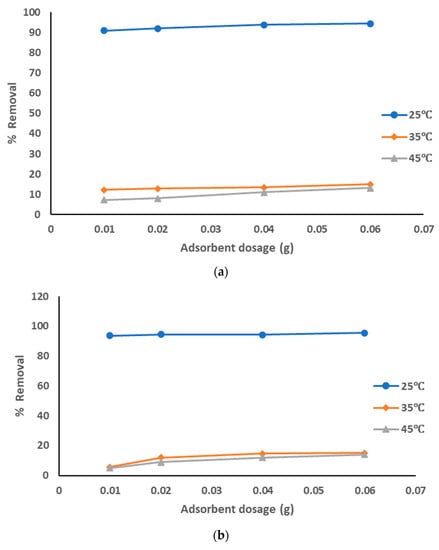

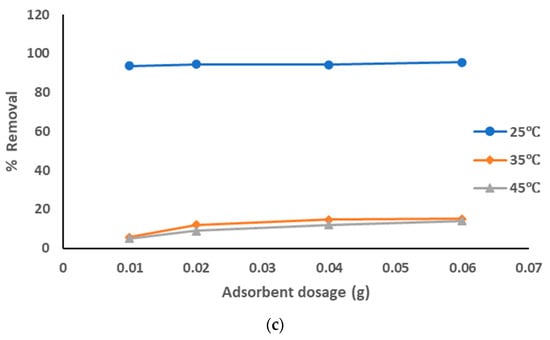

The adsorption data for the removal of pollutants from produced water, using prepared AC from sludge with KOH chemical activation adsorbent at the optimized experiment conditions, is represented in Figure 9a–c at different pyrolysis temperatures. The adsorption data show that with the increase of the adsorbent dosage from 0.01 to 0.06 g, the removal percentage of the pollutants was increased from 91 to 95% with all pyrolysis temperatures 500–700 °C; from 92 to 94% with pyrolysis temperatures 600 °C and 700 °C, especially at a solution temperature of 25 °C. However, results of the removal of pollutants were lower at both 35 °C and 45 °C (around 5 to 15% with all pyrolysis temperatures). The highest adsorption affinity occurred at lower solution temperatures. The decrease of the sorption capacities with the increase of solution temperature refers to an exothermic reaction. The results showed that pure sewage sludge has an efficient capacity for adsorption at room temperature. These results show that the best treatment conditions were at room temperature with all pyrolysis temperatures of 500–700 °C and with the highest dosage of prepared AC that activated using KOH. The activation using KOH suppressed the release of small organic molecules and enhanced the functional groups, hence increasing the quality of prepared AC.

3.8. Adsorption of Metals in Produced Water

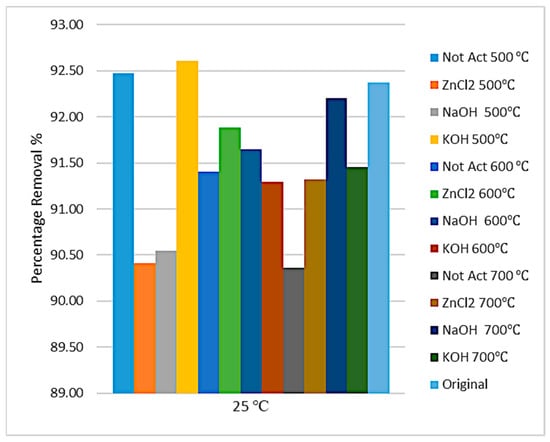

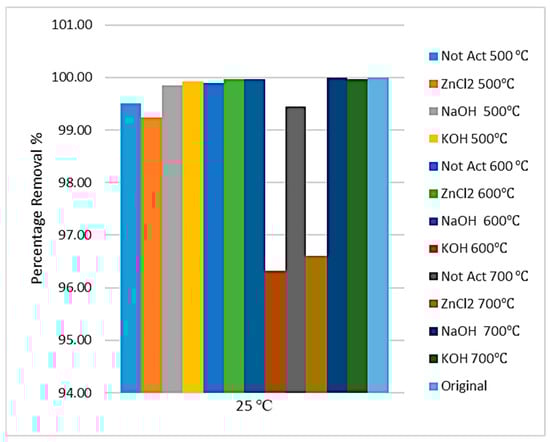

The concentration of manganese and cadmium ions after adsorption and percentage removal are shown in Figure 10 and Figure 11. Despite the considerable contents of metals available in the sludge sample, the adsorption data show that more than 90% of manganese was adsorbed and more than 97% of cadmium was adsorbed, especially when using pure sewage sludge and prepared activated carbon with NaOH chemical activation and pyrolysis temperatures of 500 °C and 600 °C.

Using pure sewage sludge, the adsorption data showed the removal of 93% manganese and 100% cadmium. This result indicated that pure sludge has an efficient adsorption capacity and can be utilized as a cheap and environmentally friendly material.

4. Conclusions

The aim of this project was to investigate the feasibility of the effect of using activated carbon prepared from sewage sludge with chemical activation using 1 M of NaOH, KOH, and ZnCl₂ at different pyrolysis temperatures: 500 °C, 600 °C and 700 °C for the treatment of produced water at different temperatures: 25, 35 and 45 °C. It was evident from the conducted experiments that removal of pollutants from produced water using prepared AC reached 99.5% with all types of chemical activations. Similar results were obtained using commercial AC. The optimum adsorption results were obtained at pyrolysis temperatures of 500 °C and 600 °C and solution temperature of 25 °C. Lower removal of pollutants was indicated at a solution temperature higher than 25 °C, which describes the properties of exothermic reaction and physical adsorption. XRD was found on the best crystallinity at chemical-activated pyrolysis at 500 °C NaOH ratio of 23%, compared with the commercial ratio of 44.6%. The results of metals removal from the produced water (manganese and cadmium ions) indicated 90% manganese and 97% cadmium, especially when using pure sewage sludge and prepared activated carbon with NaOH chemical activation and pyrolysis temperatures of 500 °C and 600 °C.
