Pressure Relief by Blasting Roof Cutting in Close Seam Group Mining under Thick Sandstone to Enhance Gas Extraction for Mining Safety

Abstract

Close seam group mining under thin immediate roofs and thick sandstone walls is typically performed with a strong mine pressure and gas concentration, which pose considerable risks to miners. In this study, the mechanism of pressure relief and permeability enhancement to enhance gas extraction for mining safety through blasting roof cutting were investigated through theoretical analyses, numerical simulations, and laboratory tests. The results revealed that, near the blast-hole, which produced numerous cracks, blasting disturbed the integrity of the thick-layer roofs and redistributed the stress near the blast-hole, which prevented violent mine pressure caused by excessive fracture distances on the thick and hard roofs, reduced the additional load on the support, increased vertical gas migration, and ameliorated the effect of gas drainage caused by high-level boreholes. The field applications of forced roof cutting through deep-hole blasting in the II 7₂24N face of the Renlou coal mine (Huaibei, Anhui, PR China) demonstrated that the occurrence of excessive pressure on the fully mechanized mining hydraulic support was prevented. The gas extraction volume of high-level boreholes was maintained at 6–8 m³/min; the extraction concentration was stable at approximately 35%; and the gas concentration in the upper corner of the coal face was lessened from 7% to <1%, which ensured normal mining in the coal face. The current results can provide data reference and a theoretical basis for roof management and gas control of the same type of coal face.

1. Introduction

The main factors in the safe mining of close coal seams under thick sandstone are roof stability and gas control. It is well-known that gas disasters, such as gas explosions and outbursts, pose a severe threat to the safety of miners [1]. Therefore, it is of crucial significance to develop corresponding techniques to enhance safety during mining and to extract an environmentally friendly gas as well [2,3]. Due to the above benefits, extensive studies on drainage methods have been conducted [4,5]. In addition, scholars have conducted a lot of research to solve coal and gas outburst disasters that occur during coal mine production [6]. Among the many measures to prevent coal and gas outbursts, the method of coalbed gas extraction effectively reduces the gas content and gas pressure in the coal. However, as a majority of coal seams in China have low-permeability, it is difficult to achieve efficient gas drainage. Enhancing coal permeability is a splendid choice for high-efficiency drainage of coal mine gas [7,8]. During coal mining, hard roofs are a largely overhanging area, and the concentration of stress in the fully mechanized mining hydraulic supports and surrounding rocks increases considerably. If the largely overhanging roof falls, it results in prompt gas accumulation in the mining face. At the same time, the gas emission quantity of the adjoining coal seam is enormous. These difficulties may cause accidents such as gas overruns because no prominent crack is developed in the roof.

Forced roof cutting through deep-hole blasting is used to weaken hard roofs without affecting normal mining so that the thick hard roof breaks and enhances the cracks of the rock layer [9,10]. A channel is provided for a high-level borehole along the roof to extract gas from goaf. At present, deep-hole blasting is used for coal seam permeability enhancement [11,12] and blasting excavation [13] is abundant, whereas the research on roof cutting by blasting is only an introduction to the blasting process and parameters [14,15]. Limited research has been conducted on deep-hole blasting to force roof caving for pressure relief to enrich the maintenance effect of the roadway while increasing the gas extraction rate.

Herein, the transmission of blasting stress waves and the development of cracks were explored through numerical analysis and simulation tests of deep-hole blasting. The mechanism underlying pressure relief and permeability enhancement through blasting roof cutting was investigated. Finally, a deep-hole blasting roof cutting test was performed on the coal face of Renlou coal mine II 7₂24N (Huaibei, Anhui, PR China), and the application effects of deep-hole blasting in close coal seam mining under thick hard roofs were examined.

2. Deep-Hole Blasting Numerical Simulation under Thick Sandstone

2.1. Model Construction

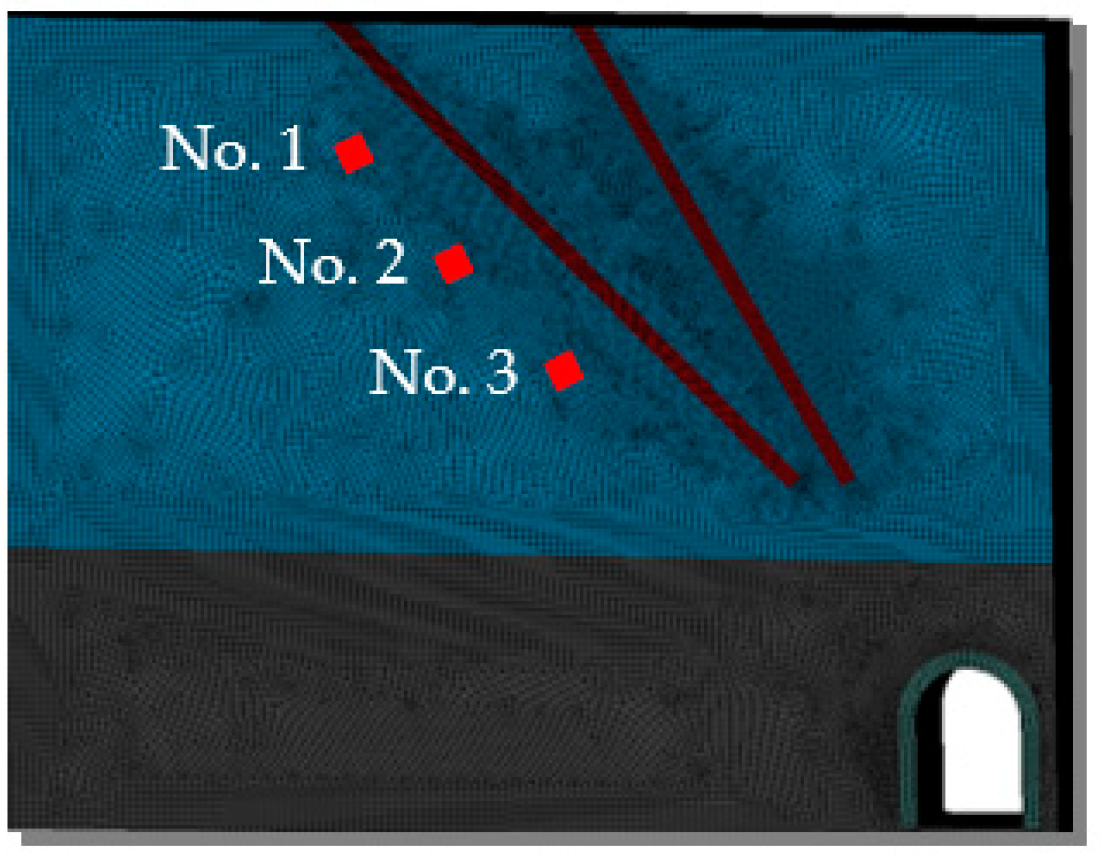

A three-dimensional numerical model was simulated for numerical analysis. Two blast-holes were simulated in the model. The thickness of the model was 3 m. Three stress measurement points in the hard rock body were set at the lower left of the blast-hole (Figure 1). The numerical model adopts the common node joint action mode to conduct stress. The boundary conditions of the calculated model are as follows: the upper boundary of the model is affected by the gravity stress of coal and rock. The left and right boundaries were set as non-reflection boundaries. The bottom was set as the all sides constraint boundary.

The Jones–Wilkins–Lee equation was used to describe the detonation product expansion process. Thus, the detonation pressure acting on coal and rock at any given time can be expressed as follows:

$$P=A\left(1-\frac{\omega }{R_{1}V}\right)e^{-R_{1}V}+B\left(1-\frac{\omega }{R_{2}V}\right)e^{-R_{2}V}+\frac{\omega E_0}{V}$$

(1)

where P denotes the pressure of the blasting product, MPa; A and B refer to the parameters of explosives, GPa; V annotates the relative volume of detonation products, m³; E₀ expresses the internal energy generated by detonation products, GPA; and R₁, R₂, and ω are characteristic dimensionless explosive parameters [16].

The explosive parameter settings used in the numerical calculations are summarized in

Table 1. Parameter setting of explosive in the numerical model.

Parameter	Density (g/cm3)	Detonation Velocity (m/s)	A (GPa)	B (GPa)	R1	R2	ω	E0 (GPa)
Value	1.25	3600	347	0.733	4.15	0.95	0.3	1.0

. The mechanical parameters of coal and rock in the numerical model are listed in

Table 2. Numerical simulation parameters of coal and rock.

Blasting Medium	Density (g/cm3)	Modulus of Elasticity (GPa)	Poisson’s Ratio	Compressive Strength (MPa)	Tensile Strength (MPa)
Coal	1.40	1.49	0.31	7.23	0.64
Rock	2.79	38.45	0.18	74.2	11.90

.

2.2. Analysis of Results

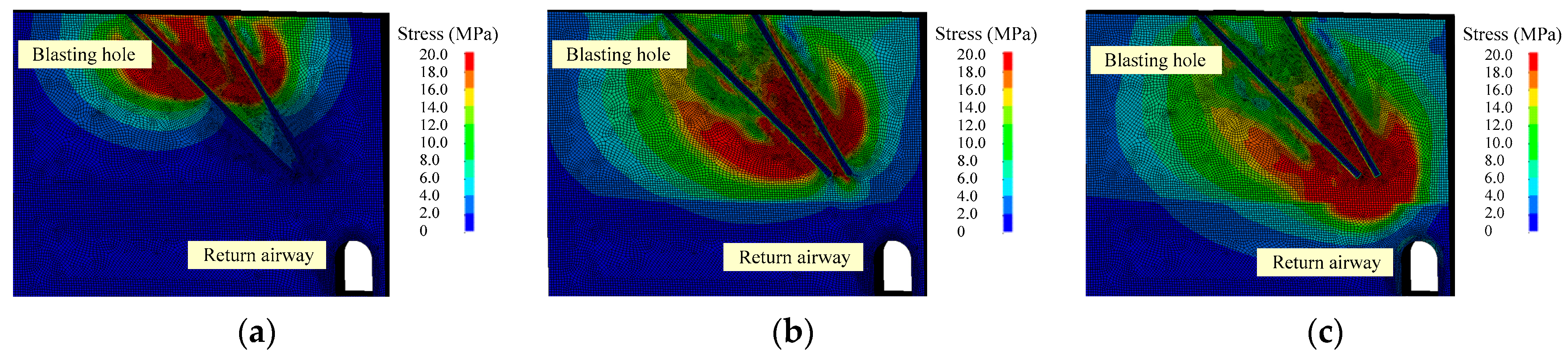

Effective stress at various times in a cut surface of a blast-hole is depicted in Figure 2. These simulations revealed that blasting stress waves propagated uniformly along the blast-hole at the initial time of development and that stress concentration mainly occurred close to the blast-hole. To analyze the change law of blasting stress in a hard rock body, three stress measurement points at 1, 2, and 3 were set in the numerical model (Figure 1). The effective stress change curve of each measurement point is illustrated in Figure 3.

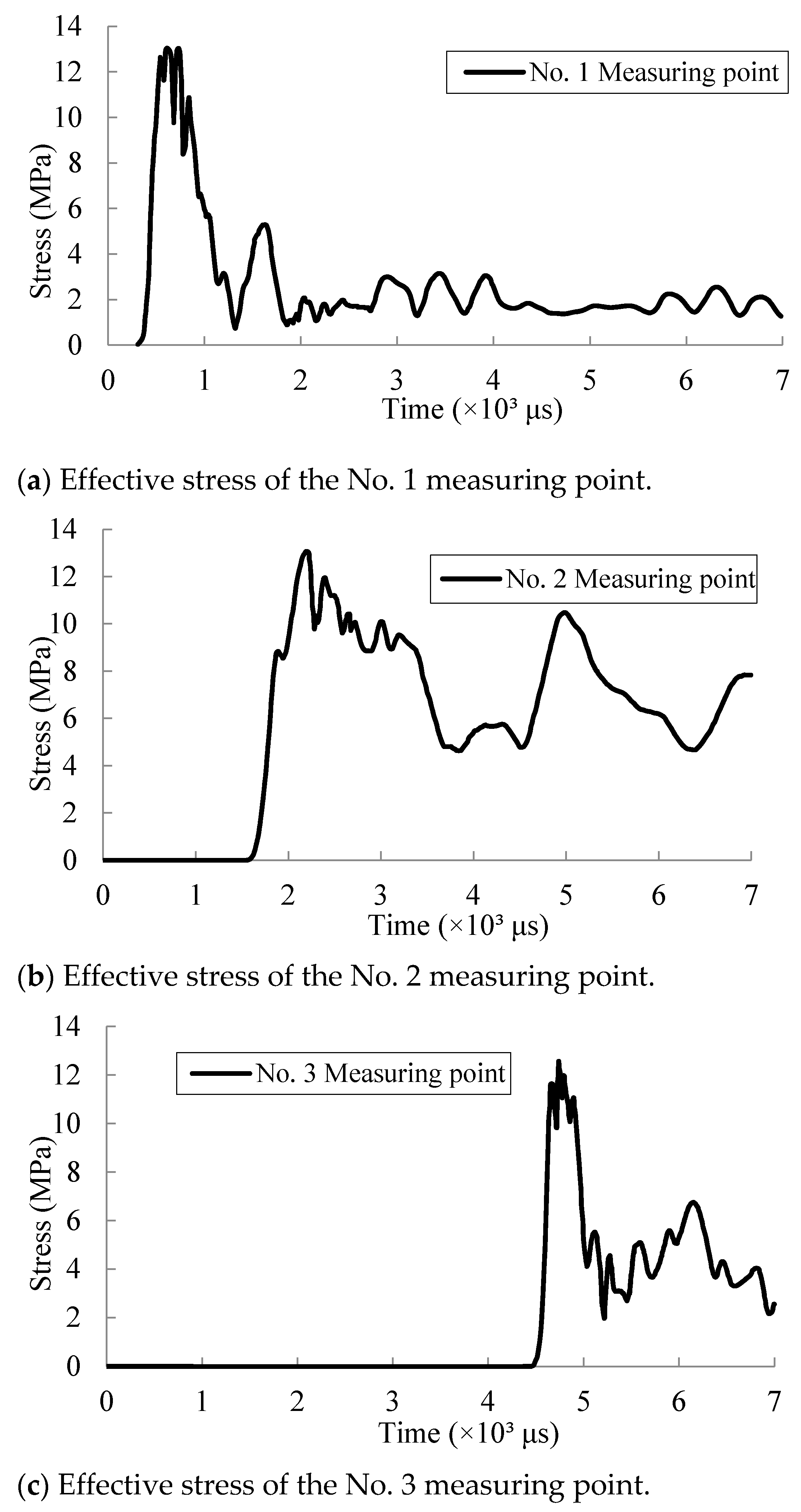

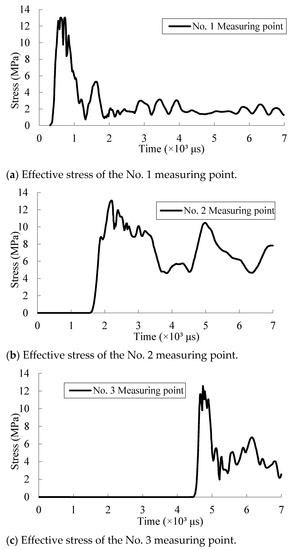

The effective stress reached point 1 at t = 300 μs and then increased swiftly. The maximum effective stress at point 1 was 12.8 MPa. After t = 2000 μs, the stress gradually stabilized. A t = 1600 μs, the maximal effective stress at point 2 was 12.9 MPa. The effective stress reached point 3 at t = 4300 μs. In addition, the maximal effective stress at point 3 was 12.3 MPa. When the blasting stress was greater than the compressive strength of coal and rock, a blasting crushing circle appeared; when the blasting stress was greater than the tensile strength of the coal and rock, a blasting crack occurred. The stress values at the measuring points near the blast-hole were greater than the tensile strength of the rock body, and radial cracks occurred in the rock body.

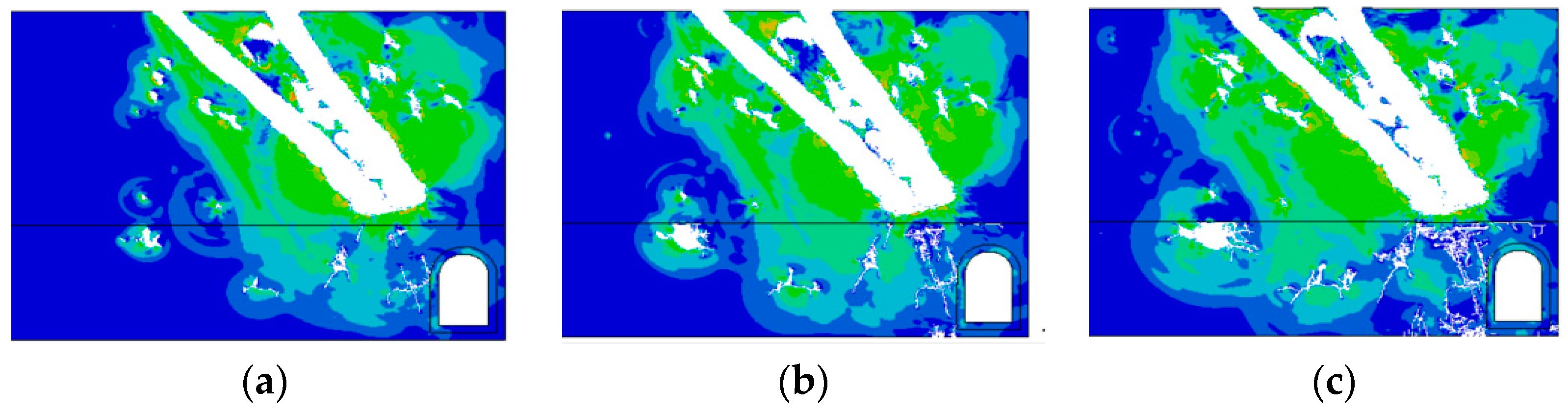

Figure 4 depicts the extension of the cracks near the blast-holes. Thus, the intensity of the stress wave was far more than the tensile strength of rock because of the combined effect of the detonation wave and quasi-static stress field caused by explosion gas products. Rocks surrounding blast-holes were partially broken, and the cracks in the rocks continuously extended to the bottom, forming crossing fracture networks.

To more intuitively observe the crack expansion and development of deep-hole blasting under the condition of a thick and hard roof, a similar simulation test was carried out according to actual coal, and rock conditions were obtained from the II 7₂24N coal face of the Renlou coal mine.

3. Similar Simulation Test of Deep-Hole Blasting under Thick Sandstone

3.1. Similarity Theory Principle

The simulation test should satisfy geometric similarity, similar motion, similar dynamics, similar boundary conditions, and proportional physical quantities. The model line ratio is expressed as follows:

$${\alpha }_l=\frac{x_m}{x_h}=\frac{y_m}{y_h}=\frac{z_m}{z_h}=\frac{1}{30}$$

(2)

where x_h, y_h, and z_h denote the geometric dimensions of the prototype along the x, y, and z directions, respectively, and x_m, y_m, and z_m stand for the geometric dimensions of the model along the x, y, and z directions, respectively. The following parameters with subscripts “h” and “m” refer to the parameters on the prototype and model, respectively.

The mode volume–weight ratio is expressed as follows:

$${\alpha }_r=\frac{{\gamma }_m}{{\gamma }_h}=0.6$$

(3)

The proportional relationship between the material strength and prototype rock strength is expressed as follows:

$${\sigma }_m={\alpha }_l{\alpha }_r{\sigma }_h$$

(4)

where ${\sigma }_m$ and ${\sigma }_h$ express the strength of model material and prototype rock (tensile or compression), respectively.

If a 100-mm columnar second-level permissible water glue explosive charge is present within a mine, 25 mm is required for this experiment, which is calculated based on the similar relationship between explosion load and charge amount [17]. The experimental cartridge used in the experiment was prepared from a polyvinyl chloride tube. This detonator was applied to detonate the explosive (Figure 5).

3.2. Experimental Model Construction

The dimensions of the test model were 1.2 × 1 × 1 m³. According to the length similarity ratio in Equation (2), on-site coal and rock of 36 × 30 × 30 m³ can be simulated. The experimental prototype was obtained from the II 7₂24N coal face of the Renlou coal mine. The measured lithology of the coal face is depicted in Figure 6.

The direct roof of the II 7₂24N coal face was siltstone with an average thickness of 2.88 m, the basic roof was fine sandstone with an average thickness of 13.50 m, the lithologic was hard, and the unidirectional compressive strength was 74.2 MPa. The mechanical parameters of the prototype coal rock are presented in

Table 3. Mechanical parameters of the prototype coal and rock.

Rock Medium	Density (g/cm3)	Modulus of Elasticity (GPa)	Poisson’s Ratio	Compressive Strength (MPa)	Tensile Strength (MPa)
Siltstone	2.36	10.31	0.25	58.40	9.70
Fine sandstone	2.79	38.45	0.18	74.20	11.9
Siltstone	2.65	14.38	0.20	62.31	6.85
72 Coal seam	1.40	1.490	0.31	7.230	0.640
Mudstone	2.55	8.110	1.2	21.32	3.25
Siltstone	2.63	9.100	0.22	53..92	8.86
Mudstone	2.44	6.900	0.86	25.60	1.70
73 Coal seam	1.37	3.150	0.38	8.260	0.400

. The model was simplified during the test process, and the test material proportion parameters are listed in

Table 4. Ratio parameters of the materials in blasting tests.

Serial Number	Thickness (cm)	Rock Medium	Ratio Parameters Number	Sand (kg)	Lime (kg)	Gypsum (kg)	Total Weight (kg)
1	5.4	Siltstone	9:0.5:0.5	87.48	4.86	4.86	97.20
2	40.5	Fine sandstone	6:0.6:0.4	624.86	62.49	41.66	729.00
3	8.64	Siltstone	9:0.5:0.5	139.97	7.78	7.78	155.52
4	5.1	72 Coal	10:0.5:0.5	83.45	4.17	4.17	91.80
5	5.4	Mudstone	7:0.7:0.3	85.05	8.51	3.65	97.20
6	15	Siltstone	9:0.5:0.5	243.00	13.50	13.50	270.00
7	6.6	Mudstone	7:0.7:0.3	103.95	10.40	4.46	118.80
8	6.6	73 Coal	10:0.5:0.5	108.00	5.40	5.40	118.80
Total	93.24			1475.76	117.09	85.47	1678.32

.

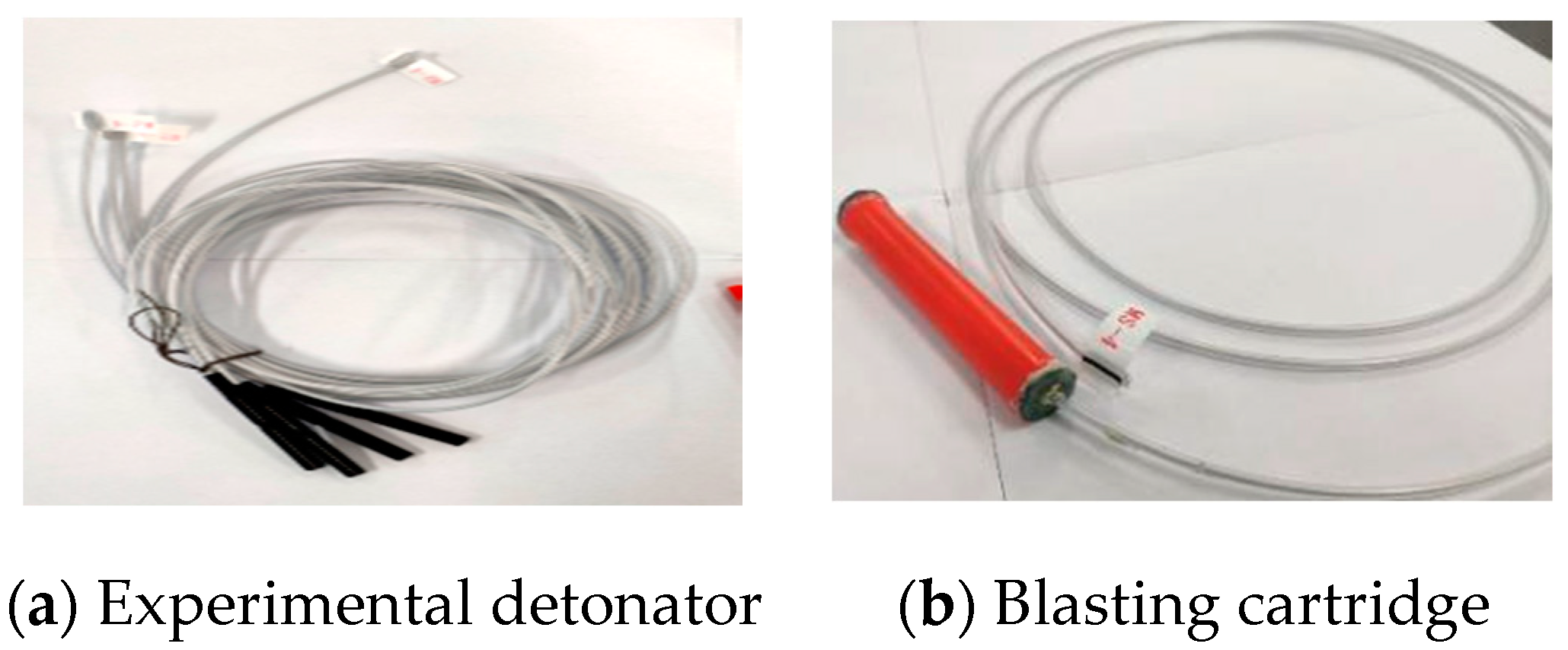

During production of the test model, a special explosive roll was installed at a predesigned position with reference to the numerical simulation model to simulate authentic development of the deep-hole blasting cracks in the thick and hard roof.

3.3. Result Analysis

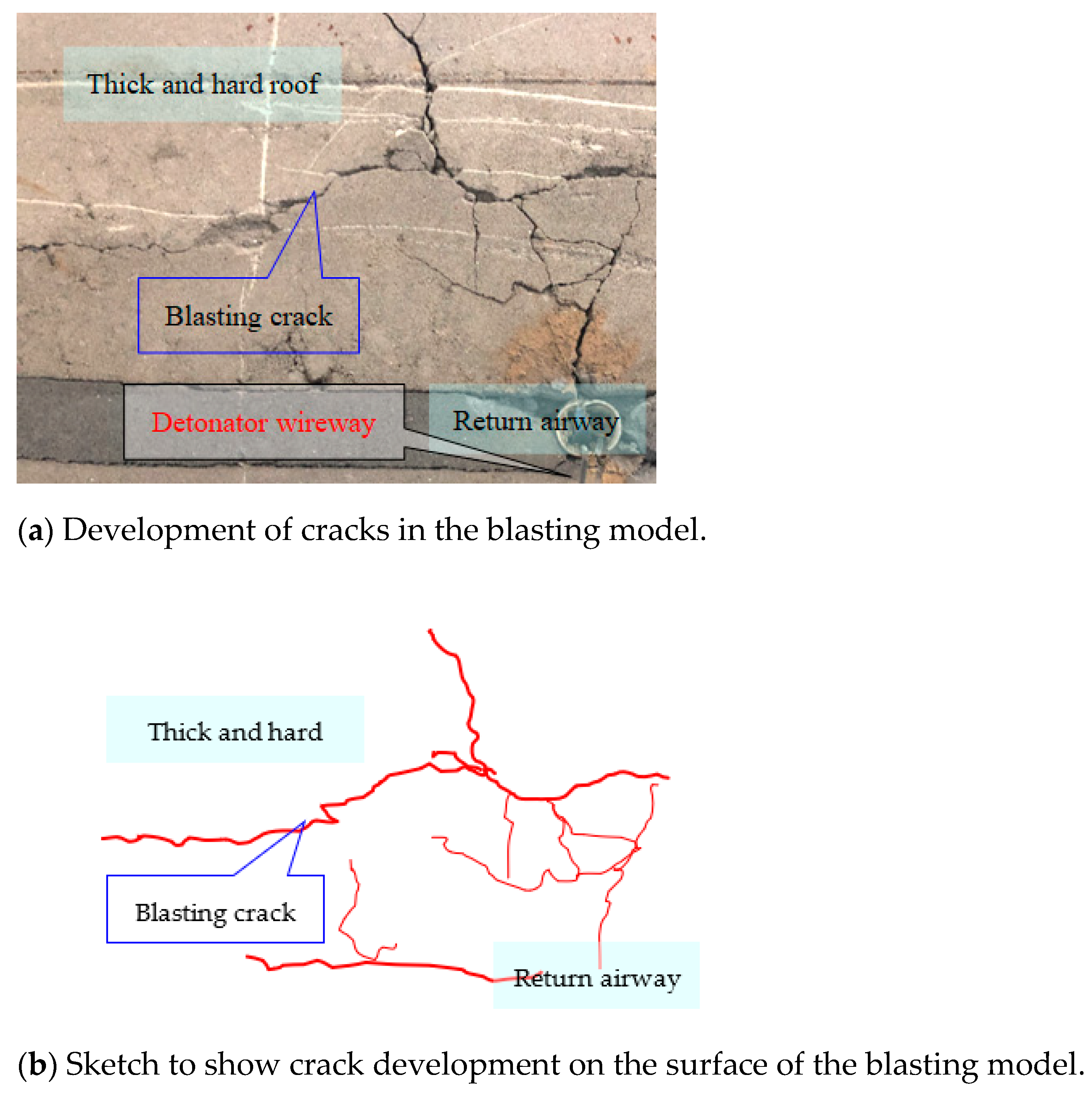

Crack development in the test model after blasting is illustrated in Figure 7. The rupture cracks extended along the blast-hole to the diagonal of the return airway in the thick hard roof. The damage in the thick roof rock layer was severe. The results of similar simulation experiments verify the fracture development of the numerical model. Broken and fissure areas then formed in the original rock that was not affected by mining, which expanded its original cracks and weak surfaces and weakened the roof, and the development of blasting cracks increased the caving property of the hard and thick roof and the vertical migration channel of gas.

4. Mechanism of Pressure Relief and Permeability Enhancement by Blasting Roof Cutting

4.1. Breaking Laws of the Thick and Hard Roof

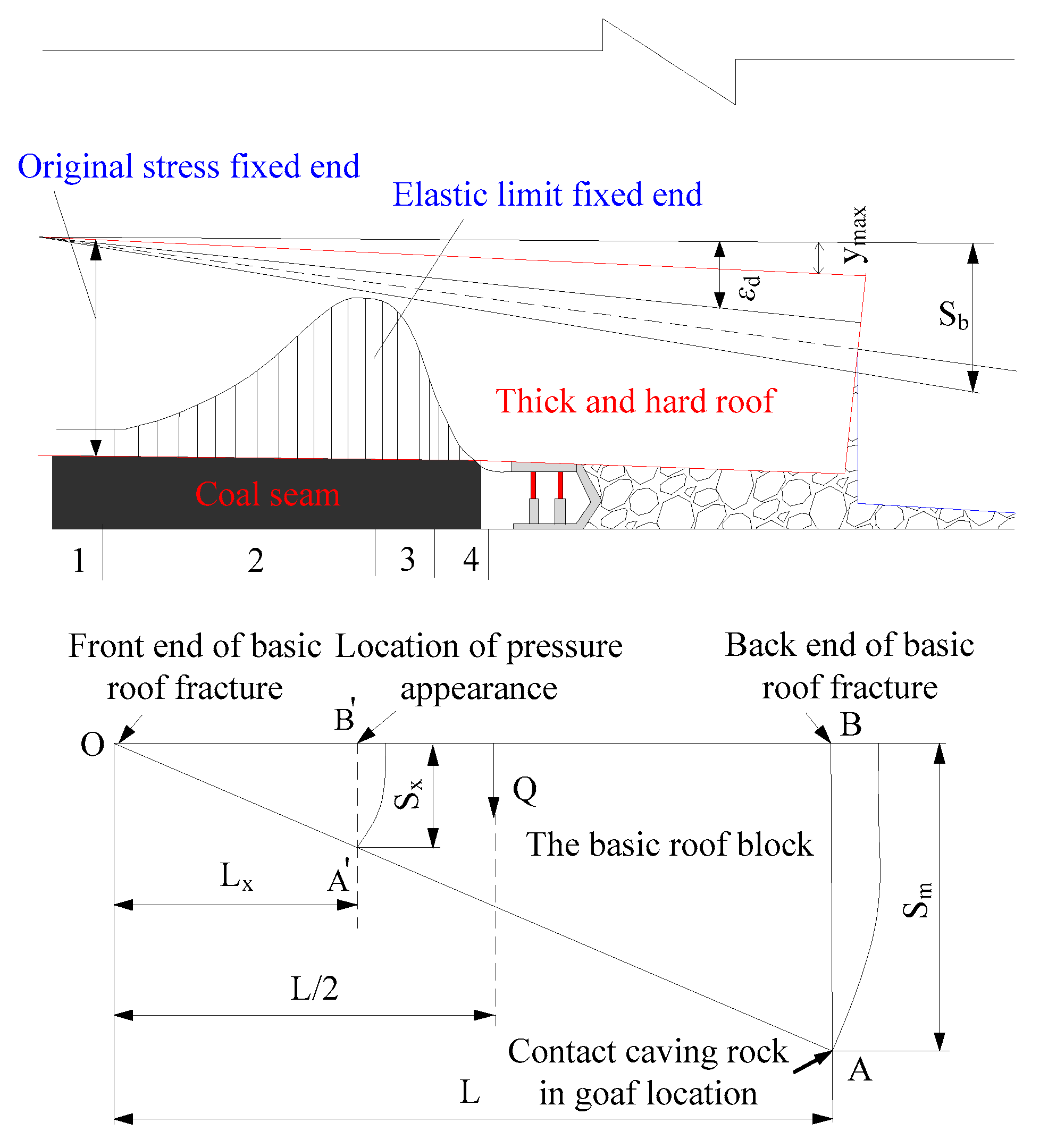

The basic top rock layer broke with mining of the coal face. The end of the basic roof produced the phenomenon of rotational subsidence with the coal and rock in front of the coal face as the fulcrum. In addition, the fracture line of the basic roof is the axis under the effect of its own weight and overlying rock layer. The mechanical model is presented in Figure 8, where 1 denotes original stress area, 2 refers to elastic stress area, 3 stands for residual stress area, 4 expresses plastic failure area, ε_d manifests the ultimate elastic compression of the coal seam, y_max implies ultimate disturbance of basic roof strata, S_b annotates the length of roof subsidence of goaf, L indicates the basic roof length, L_x refers to the periodic pressure step distance of the coal face, S_m denotes the length of subsidence at the end of the basic roof, and S_x stands for the length of subsidence behind the coal face due to basic roof collapse.

When the positive moment at the front end of the basic roof block is greater than the reverse moment of the comprehensive mining hydraulic support to the basic roof block, the moment difference in the formation of the basic roof block can be expressed as Equation (5):

$$\frac{QL}{2}>P_{re}{L}_x$$

(5)

where P_re denotes the working load for controlling the movement of the basic top rock block per meter of the support along the coal face, Q annotates the gravity of the basic top rock block per meter along the coal face, Q = Lhγ, h expresses the thickness of basic roof strata, γ refers to the bulk density of the basic top rock layer, and L denotes the length of the basic top rock block. Here, $P_{re}{L}_x=1/2QL$ manifests the limiting equilibrium point of the basic roof rock movement governed by the hydraulic support in a fully mechanized coal face. Therefore, we obtain Equation (6):

$$\frac{P_{re}}{Q}=\frac{L}{2L_x}$$

(6)

Thus, we obtain Equation (7):

$$P_{re}=\frac{Q{S}_m}{2S_x}=\frac{Lh\gamma S_m}{2S_x}$$

(7)

Thus, the working resistance P_re of hydraulic support in a fully mechanized coal face was related to L, h, and S_m. The longer the basic roof fracture length, the greater the working resistance of the support. If the roof of the fully mechanized coal face is a thick and hard roof, due to its long fracture length, if the roof breaks, the overburden inevitably collapses. Thus, the mechanical balance state of the goaf, hydraulic support, and coal wall was destroyed. In addition, the effect of mine pressure was strong. By reducing the overhang length of the basic roof, the supporting pressure of the roadway can be reduced [18].

4.2. Mechanism of Pressure Relief and Permeability Enhancement

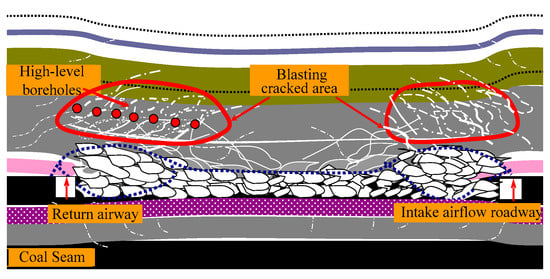

Explosives were blasted in the hard roof rock, which damaged the integrity of the rock. The stress of the rock around the blast-hole shifted away from the damaged rock so that the effective stress on the fully mechanized hydraulic support and the single pillar of the roadway was attenuated. Under the action of the detonation stress wave, plenty of cracks were generated in the rock and the thick and hard roof collapsed as desired in time, which alleviated the range of the suspended ceiling and reduced the roof fracture step distance and the periodic pressure step distance of the coal face. Thus, the additional load on the supports and deformation of the surrounding rock of the roadway were diminished, which protected the roadway [19].

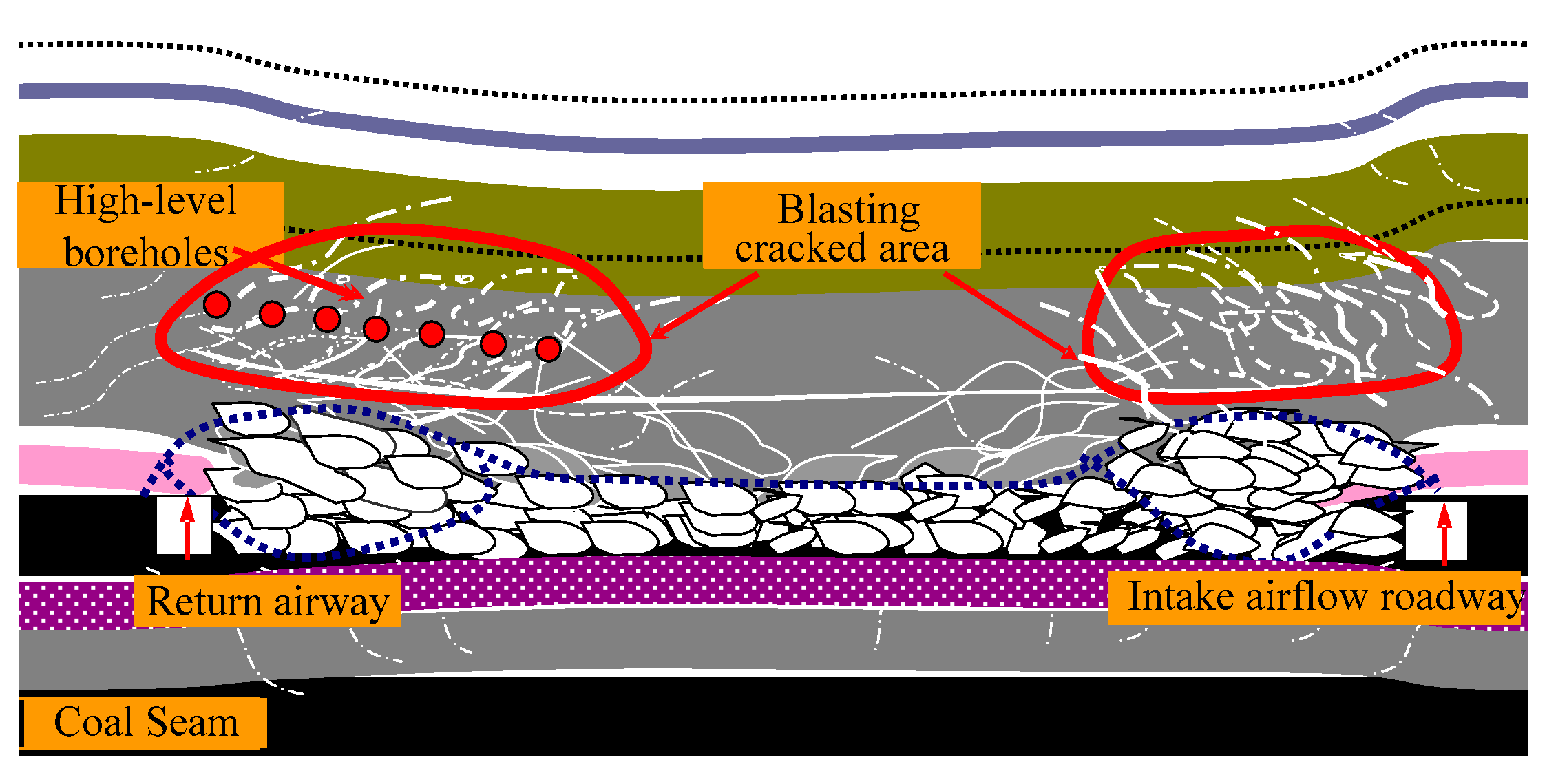

Under the influence of the comprehensive stress field on the coal face, the weak surface of the crack produced by deep-hole blasting and the weak surface of the original crack were connected. The high-level boreholes arranged on the roof use the cracks formed by deep-hole blasting to extract high concentration gas in the deep part of the goaf and to reduce the gas emission from the goaf to the working face to achieve the purpose of proper gas control, as depicted in Figure 9.

5. Field Experiment of Pressure Relief and Permeability Enhancement by Blasting Roof Cutting

5.1. Test Face Overview

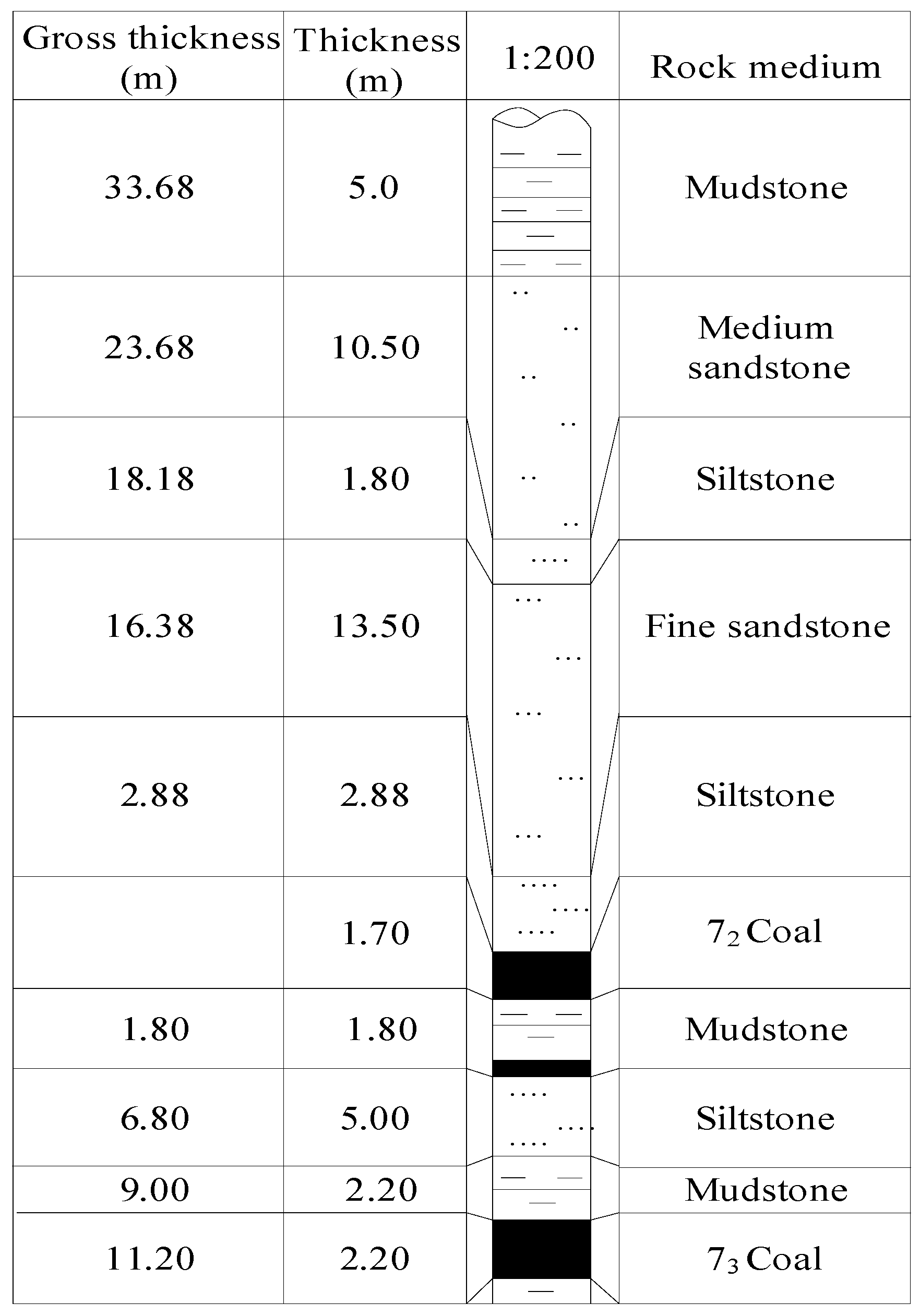

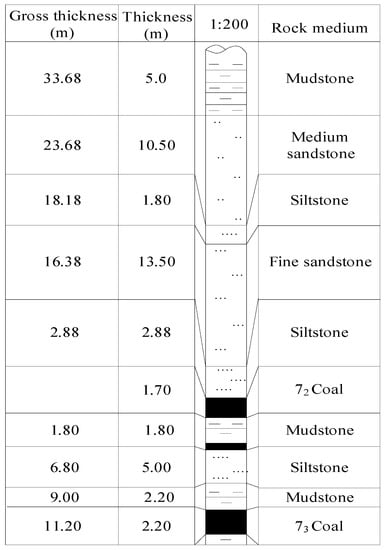

The II 7₂24 fully mechanized mining face is the second-level of the Renlou coal mine of Wanbei Coal Power Group Co. (Figure 10). Figure 6 reveals that the roof of the II 7₂24N fully mechanized coal mining face was a thin direct roof and a thick hard basic roof. The hard roof formed a huge area of overhang without collapsing after coal seam mining. If the roof falls, it can cause severe damage to the roadway. If deformation of the surrounding rock of the roadway is large and the support is seriously damaged, then the stability control of the surrounding rock is disturbed. The average thickness of the 7₂ coal seam was 2.1 m, and the inclination angle was 17°. The average spacing between the 7₂ and 7₃ coal seams was 9 m, and the average spacing between the 7₃ and 8₂ coal seams was 11 m.

The gas in the II 7₂24N fully mechanized coal mining face mainly comes from the coal seam, the adjacent goaf of the II 7₂22N coal face, and coal seams 7₃ and 8₂. High-level gas extraction in the goaf was achieved by drilling holes along the roof. Due to the rigid lithology of the roof, the overhanging area above the goaf was large and developed no cracks. The average gas extraction concentration of high-level gas extraction drilled holes was approximately 10%. The pure extraction volume was 3–4 m³/min. The gas concentration in the upper corner exceeded the limit and reached 5–7% in some places. With the mining of the coal face, the concentration of gas in the upper corner of the coal face continued to increase. However, the problem cannot be solved by using the upper corner buried pipe to extract gas. Therefore, advanced deep-hole blasting was adopted on the II 7₂24N coal face to weaken the hard roof and to improve the caving properties of the hard and thick roof, and the development of cracks in the roof rock layer was increased. Thus, the maintenance effect of the roadway and the gas drainage efficiency of the borehole were ameliorated.

5.2. Blast-Hole Design and Blasting Process

5.2.1. Blast-Hole Spacing

The blast-hole spacing of advanced deep-hole blasting can be calculated as Equation (8):

$$E=K{r}_b{f}^{\frac{1}{3}}$$

(8)

where K refers to the adjustment coefficient (generally, it is 10–15), r_b expresses the blast-hole radius, and f denotes the rock’s general coefficient. When the hardness of the rock was high, K was smaller; when the hardness was low, it took a larger value [20]. Under this test condition, $E=10\times 45.5\times {10}^{-3}\times 3=1.4$ (m).

5.2.2. Distance of the End of the Blast-Hole

The distance of the end of the blast-hole was determined by factors such as the length of the coal face, the lithologic of the roof, and the occurrence shape of cracks. In general, it was 15–20 m, and the distance of the end of the blasting hole was dictated at 16 m.

5.2.3. Blast-Hole Depth

To ensure that the cross section of the roadway is not affected by blasting, a sufficiently long isolation zone must be left between the hole bottom and the roadway. When one-way drilling is used to arrange the blast-hole, the blast-hole depth is calculated using the following expression:

$$s_b=\sqrt{{\left(\frac{S-s}{\sin \alpha }\right)}^2+{[\tan \beta (S-s)]}^2}$$

(9)

where S denotes the length of the coal face, s annotates the horizontal distance from the bottom of the hole to the roadway, α expresses the angle between the blast-hole and the roadway, and β stands for the angle between the blast-hole and coal face. The depths of the blast-holes in this study were 20, 28, 39, and 56 m.

5.2.4. Blasting Cycle Step

With continuous mining of the coal face, the periodic pressure step distance of the coal face was approximately 22 m. According to the principle that the blasting cycle steps should not be greater than the basic roof caving step distance and that the blasting quantities should be minimized, each group had four blast-holes. The layout of the blast-hole is displayed in Figure 11, where A1, A2, A3, and A4 are the blast-hole numbers. From the first group to the outside, each group had a 20-m blast-hole interval.

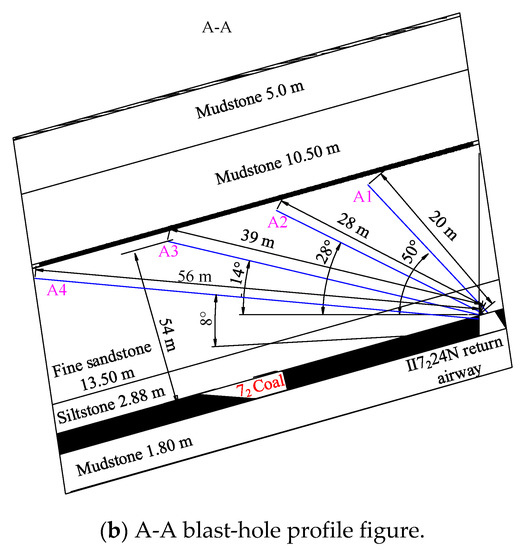

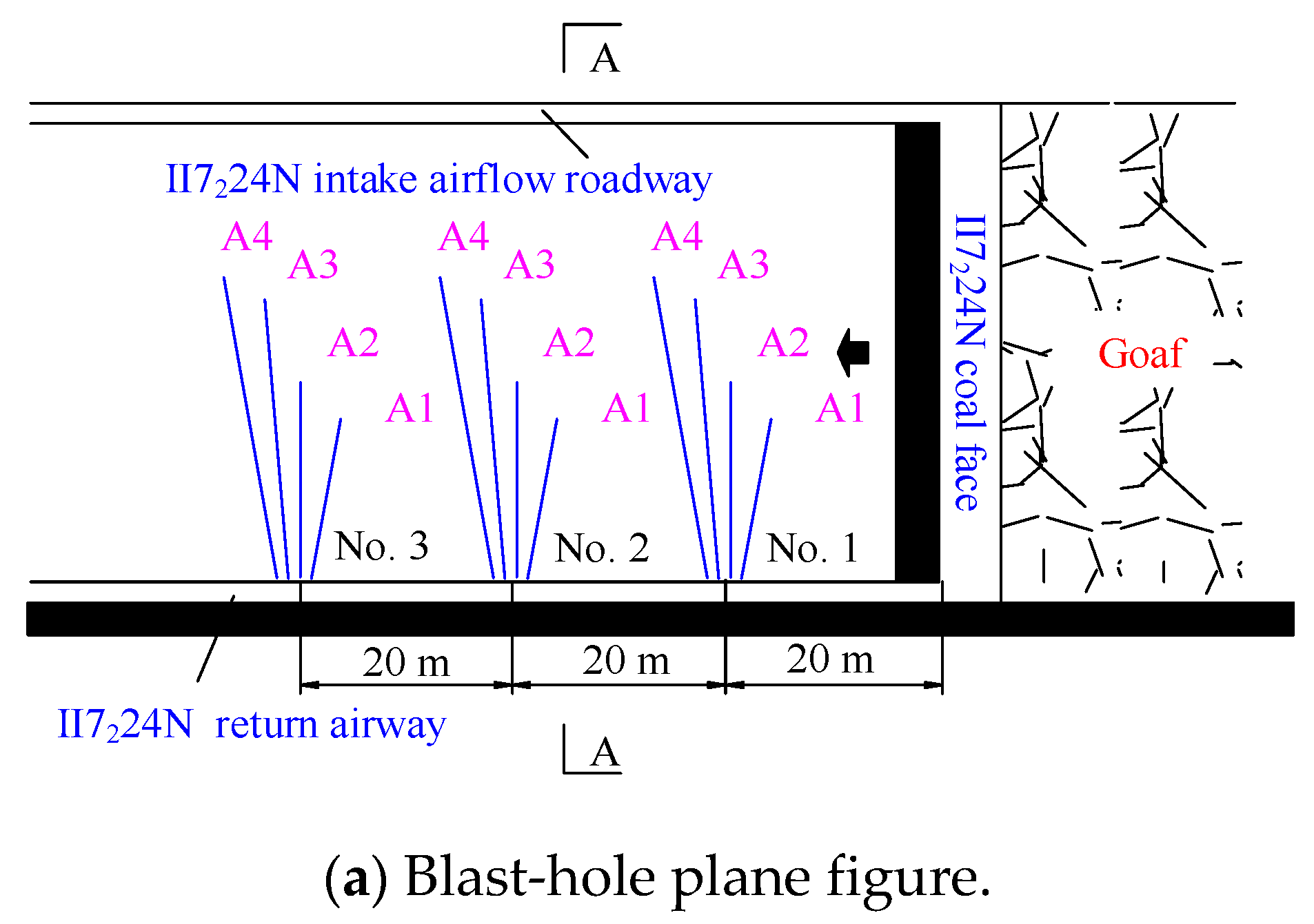

The parameters of the blast-hole and the charge weight are presented in

Table 5. Parameters of blast-hole and charge weight.

Coal Mine Tunnel Name	Number of Blast-Hole	Blast-Hole Depth (m)	Drilling Angle		Charge Weight		Length of Detonating Cord (m)	Sealing Length of Bore-Hole (m)
			Azimuth	Elevation	Roll (hole)	Total (kg)
Ⅱ7224N return airway	A1	20	75°	50°	8	29.92	7	7
	A2	28	75°	28°	13	48.62	9	9
	A3	39	75°	14°	19	71.06	12	12
	A4	56	75°	8°	25	93.50	15	15

. The characteristics of the specially made water glue grains and the continuously charge and blasting explosive parameters are presented in

Table 6. Parameters of blasting explosives.

Type of Explosive	Detonator Type	Model of Detonator	Connection Mode	Initiation Sequence	Blasting Method	Borehole Diameter (mm)
Φ65 × 1000 mm water gel explosive for mining	Millisecond delay electric detonator	FMB-200	Series connection	Prompt simultaneous initiation	Forward initiation	91

.

5.3. Pressure Relief Effect after Blasting Roof Cutting

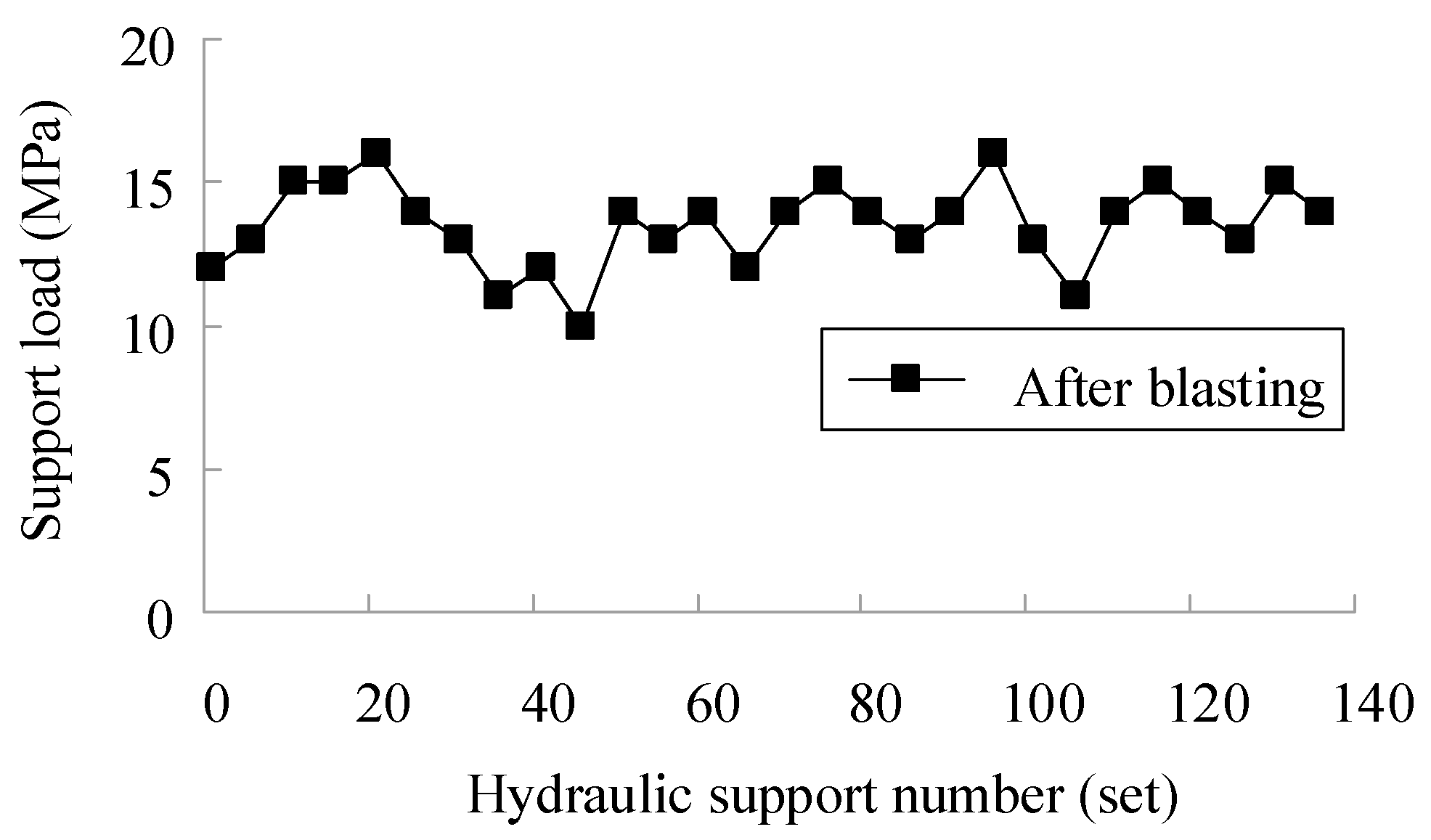

Mining stress in the II 7₂24N coal face was observed for more than one month. Figure 12 displays the support of working resistance in the coal face after blasting. The observation results revealed that the support working resistance of the struts was extremely unevenly distributed along the direction of the coal face and that the working resistance was relatively low, which was far less than the rated working resistance of the fully mechanized mining hydraulic support in this coal face. The support stiffness ensured the support effect of the coal face and played a pivotal role in ensuring the safety of the coal face.

5.4. Gas Drainage Effect of High-Level Boreholes in the II 7₂24N Coal Face

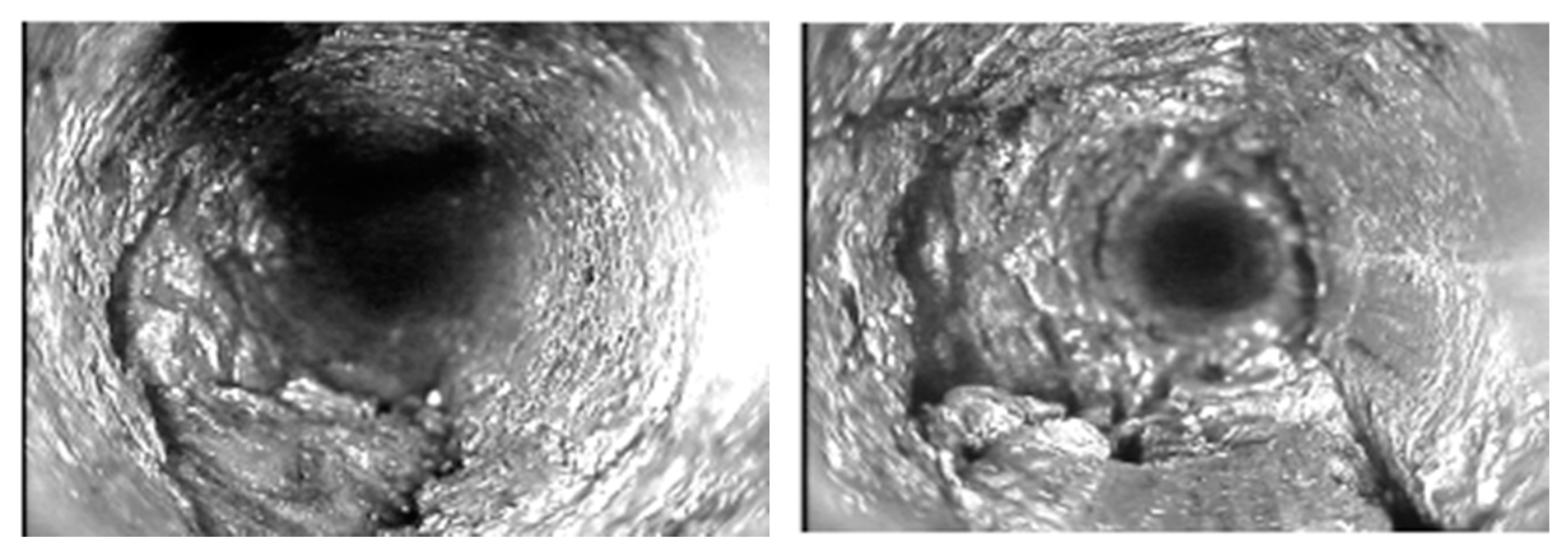

After deep-hole blasting, the borehole peep instrument was used to observe the development situation of cracks. The observation results are shown in Figure 13. It truly shows the development pattern of fracture cracks in rock seams after blasting. The rock around the blast-hole generated numerous cracks, it can provide a channel for the vertical migration of gas and can improve the effect of gas extraction.

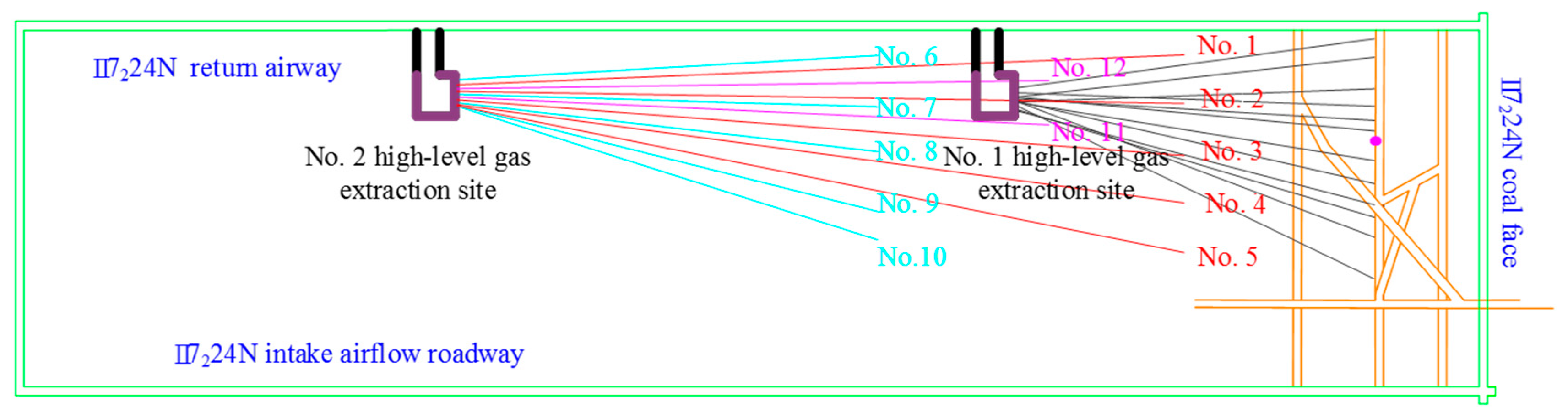

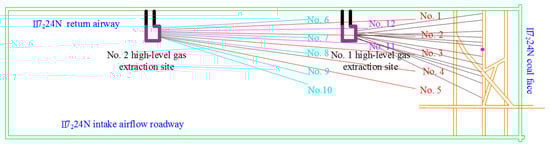

The effectiveness of drilling high-level boreholes for gas control in the coal face depended on the roof of the goaf. The high-level boreholes position of the II 7₂24N coal face was arranged in the fissure zone, and the distance from the coal seam roof was 11–13 m. To analyze the effect of deep-hole blasting on gas drainage, statistical analyses were conducted on the gas drainage data of high-level gas extraction site 2 before and after blasting. The layout of the high-level boreholes in the gas extraction site is illustrated in Figure 14. Twelve gas extraction boreholes in 2 high-level drill sites are indicated as 1–12.

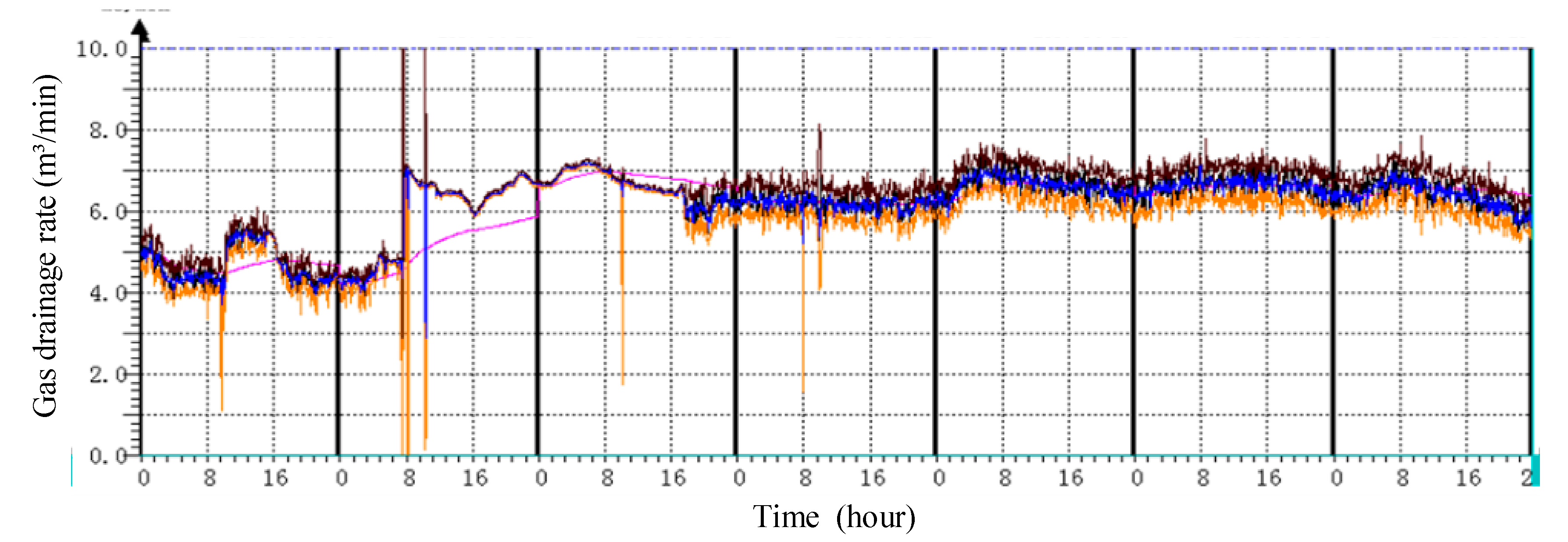

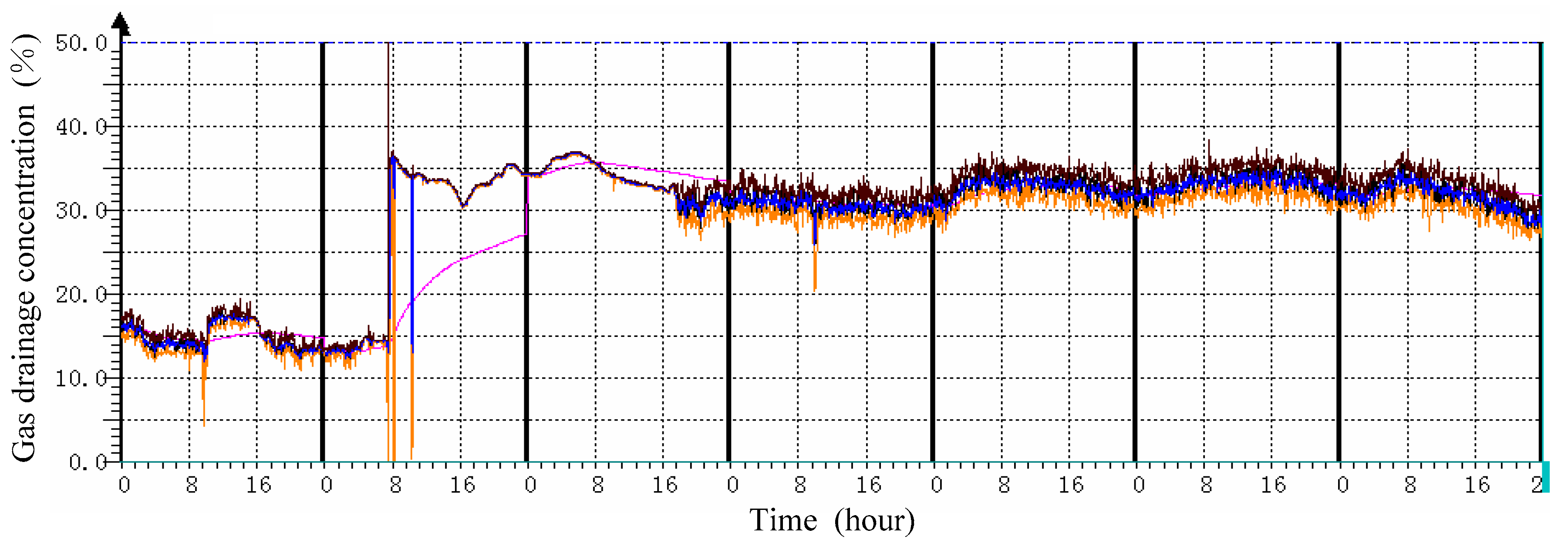

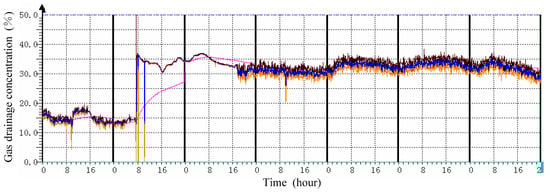

Figure 15 and Figure 16 indicate that, after deep-hole blasting, the gas drainage quantity of site 2, a high-level gas extraction site, augmented from the original 3–5 to 6–8 m³/min. The extraction concentration was stable at approximately 35%, and the gas concentration at the upper corner of the coal face substantially reduced from 7% to <1%.

6. Conclusions

The results of this study are summarized as follows:

The variation in blasting stress and the distribution of blasting cracks in hard rock were analyzed using numerical analysis and similar simulation experiments. The blasting stress far exceeded the tensile strength of the rock, and the rock around the blast-hole, which was completed in a broken state, generated numerous cracks under the action of the detonation stress wave.

The breaking rules of the hard and thick roof were analyzed, and the mechanism of pressure relief and permeability enhancement by blasting was studied. When the explosive was blasted in the hard rock, the hard and thick roof was destroyed and a vertical gas migration channel was added. Redistribution of stress around the blast-hole prevented violent mine pressure from the excessive fracture distance of the thick and hard roof, reduced the additional load on the support, and thus played a key role in protecting the roadway and in increasing the gas drainage rate of high-level boreholes.

The field application of forced roof cutting by deep-hole blasting in the II 7224N fully mechanized face of the Renlou coal mine revealed that the gas extraction volume of high-level boreholes was maintained at 6–8 m³/min; that the extraction concentration was stable at approximately 35%; and that the gas concentration in the upper corner of the coal face was substantially reduced from 7% to <1%, which ensured normal mining of the coal face.
