Article

An Expedient Catalytic Process to Obtain Solketal from Biobased Glycerol

1
Department of Chemical and Geological Sciences, University of Modena and Reggio Emilia, via G. Campi 103, 41125 Modena, Italy
2
Department of Life Sciences, University of Modena and Reggio Emilia, via G. Campi 103, 41125 Modena, Italy
*
Author to whom correspondence should be addressed.
Processes 2021, 9(1), 141; https://doi.org/10.3390/pr9010141
Received: 15 December 2020 / Revised: 4 January 2021 / Accepted: 7 January 2021 / Published: 12 January 2021
(This article belongs to the Special Issue Green Chemistry: From Wastes to Value-Added Products)

Abstract

:
Developing simple and effective chemistry able to convert industrial waste streams into valuable chemicals is a primary contributor to sustainable development. Working in the context of biodiesel production, we found that plain bisulfate on silica (SSANa, 3.0 mmol/g) proved to be an optimal catalyst to convert glycerol into solketal. With the assistance of a proper anhydrification technique, isolated yields of 96% were achieved working in mild conditions, on 100 g scale.

Graphical Abstract

1. Introduction

The progressive depletion of fossil carbon resources and environmental concerns related to their exploitation raise serious doubts about the sustainability of our current development model. This encouraged extensive research to address a reduction of our dependence from hydrocarbon-based resources. But humanity’s hunger for energy has reached unprecedented levels and our current need for carbon-based materials and fuels will continue to grow in the next decades. To support our socio-economic development a great deal of attention was recently devoted to the study and implementation of biorefineries. Biorefineries are production plants where renewable biomass is economically converted into carbon-based products, including materials, fuels, and energy [1]. Carbon dioxide fixation during plant growth can considerably reduce the impact on carbon balance, when a vegetable source is exploited. Additional drive to biorefineries expansion is the price volatility induced by the awareness of the limited nature of fossil resources.
Biodiesel biorefineries focus on the production of hydrocarbon mixtures that can be blended with regular diesel fuel, starting from vegetable or animal fats. Natural fats (triglycerides) are subjected to acid or base catalyzed transesterification in the presence of an excess of a short chain alcohol (Figure 1), to give a mixture of fatty acid methyl (or ethyl) esters, that is biodiesel. Glycerol (gly) is also co-produced and is usually considered a waste stream, especially in small-scale productions where further refining costs are not justified. The present crude gly price is as low as 0.04–0.09 $/lb and it is expected to decrease further, according to the growing industrial availability; predicted global production is 41.9 billion liters by 2020 [2]. Glycerol can have some direct uses in the pharma, food, cosmetic, or polymer industries, but the presence of three vicinal hydroxyl groups in its structure induces high boiling point and viscosity, low miscibility with organics, as well as chemoselectivity issues when used as building block (primary vs. secondary hydroxyl) [3].
As a result, the identification of simple and effective processes able to convert gly into value-added chemicals unveil tremendous potential and can give substantial contribution to the sustainability of the whole biodiesel industry [2,4]. One of the most promising routes involves the production of cyclic acetals from the condensation of gly and carbonyl compounds, with applications as fuel oxygenates or chemical intermediates [2,4,5]. Glycerol acetals can work as octane enhancer into regular gasoline, or can reduce particulate emissions of diesel fuel [6,7,8]. Other notable uses are in the field of polymers, where the said selectivity issue is solved by the acetal protecting group, giving the opportunity of a precise inclusion as a monomer [3,9].
Solketal (1, Figure 2), the acetal obtained from glycerol and acetone, is well described in the literature and commonly prepared in homogeneous or heterogeneous processes catalyzed by mineral acids (e.g., H2SO4), organic acids (p-toluenesulfonic acid), Lewis acids (e.g., SnCl2), synthetic acidic resins (e.g., Amberlyst 15®), and/or zeolites (e.g., beta-zeolite) [10]. As acetone is involved, the process shows high selectivity toward the 5-membered 1,3-dioxolan ring (1), while the isomeric 1,3-dioxane 1a is formed only at trace levels.
Irrespective from the employed catalyst, this preference mainly depends on the substitution degree of the carbonyl compound. Reaction of gly with an aldehyde regularly results in high selectivities for 1,3-dioxa acetals [11], while the two carbonyl substituents of ketones induce unfavorable 1,3-diaxial repulsions inside the six-membered ring [3]. Only when the two substituents display enough steric distinction, like in 4-methyl-2-pentanone for instance, significant amounts of six-membered ring acetal can be obtained from ketones [12,13].
In view of our interest in designing novel methods able to convert industrial waste streams into valuable and sustainable chemicals, we started extensive bibliographic evaluation in order to develop optimal conditions to convert gly into 1. Both the increase of acetone amount and the removal of water are expected to favorably shift the equilibrium of Figure 2 toward 1. Of the two, the first option involves simpler operation because of the easy separation of low boiling acetone at the end of the process while water removal introduces more sophistication, including the need for desiccants and/or azeotropic distillation. An intriguing issue suggested in the recent literature is the possibility to avoid water removal through the choice of a proper catalyst, able to tolerate small amounts of water without deactivation [10]. In order to ascertain this opportunity, we started an experimentation around SnCl2·2H2O catalyst, projected to replicate at best the literature conditions [12,13]. Unfortunately, notwithstanding several trials, what we get was a disappointing 25% isolated yield (entry 1, Table 1).
This prompted us to reconsider some experimental conditions, including water removal and, as expected, the simple anhydrification of acetone (on anhydrous CaCl2 for 24 h) proved very effective to improve the result (entry 2). In addition, further inclusion of 4 Å molecular sieves (MS) brought the yield to a respectable 70% (entry 3). This did not depend to any catalytic activity of MS, as made clear in entry n. 4, where tin chloride was omitted. Curiously enough, it was necessary to delay the introduction of MS thirty minutes after the reaction start as the concurrent insertion of gly and MS resulted in very low yields and produced a viscous residue, a possible consequence of a catalytic oligomerization of glycerol [14]. Anyway, these data suggested that some anhydrification is probably essential, even with a supposedly water-tolerant catalyst like tin chloride. In consideration that water is a typical contaminant of raw glycerol coming from biodiesel industry [15,16], the use of a raw substrate can only make things worse.
The failure of SnCl2 to support the process in absence of anhydrification brought our attention toward its significant toxicity (H332, H314, H317, H335, H341, H361, H373, H410), that couple with a high solubility in the reaction media, giving rise to troublesome separation from the products. In the search for a less problematic catalyst, we were attracted by the use of a simple Brønsted acid, as most of them demonstrated both a good catalytic activity in acetalizations and very low toxicity. Unluckily, high solubility (difficult separation/recovery) and plant corrosion issues hampered their clear use [17,18,19]. These considerations brought us to the conclusion that having a heterogeneous catalyst is the most desirable choice.
Beyond the popular acidic clays, zeolites or synthetic resins, an appealing option appeared to be the use of acidic species over an inert organic [18], or inorganic support [16]. Despite the basic idea is not particularly innovative, it is the specific implementation that can confer its attractiveness. In fact, looking at the recently proposed methods, most of them suffer from over-sophistication due to the prevalence of a “basic research—driven” approach, with marginalization of the applied side [20,21]. This can be detected by the presence of laborious and energy/time-consuming operations possibly including the catalyst preparation or regeneration, making questionable the overall applicability of the method. This being a high-volume low-value sector, the use of a “use-inspired basic research” approach is particularly appropriate. The term, related to the simultaneous consideration of both the understanding/innovation and the simplicity/feasibility sides, refers to Louis Pasteur’s studies, in particular to its Quadrant model [20,21].
Therefore, dealing with simple/elegant solutions, suitable to industrial consideration, we were surprised to note that simple acids supported on silica received little attention in this field. Only a few reports considered the use of sulfuric acid on silica for glycerol acetalization [22,23,24,25], but the current technique require high temperature (130 °C), microwaves, or a large excess of acetone (20 eq) to gain acceptable conversions, so further study was needed to reveal its potential.

2. Materials and Methods

2.1. General Information

Solvents and reagents were commercial grade and used as is, except acetone (water ≤ 0.2% w/w, from Carlo Erba) that was dried on CaCl2 (anhydrous, purchased from Merck, 50 g/L for 24 h) and kept well closed. The employed silica was a standard chromatographic grade Silica Gel 60, having 63–200 μm particle size (70–230 mesh, from Merck). Molecular sieves powder (2.5 μm, 4 Å porosity, activated) was purchased from Merck, while molecular sieves beads (8–12 mesh, 4 Å porosity, grade 514, W.R. Grace & Co., Columbia, MD, USA) were from Fisher Scientific. IR spectra were recorded on a Jasco spectrometer (FT/IR 4700) and processed with Spectragryph 1.2 software; samples put in KBr pellets. Protonic NMR spectra were acquired with a Bruker Avance 400 spectrometer.

2.2. General Procedure for “Wet” Preparation of Supported Catalysts

In a 25 mL round bottom flask containing a magnetic stirring bar, the catalyst (7.5 mL of an aqueous solution containing x mol/L) and SiO2 (3.75 g) were inserted, then the mixture was stirred for 30 min. Once evaporated to dryness at the rotavapor, the solid residue (free-flowing powder) was oven-dried at 130 °C overnight, giving the supported catalyst on silica. To obtain a certain loading (y [mmol/g]), the molarity of the employed solution (x) can be calculated with the following expression:
x ( m o l / L ) = 500 y 100 y m w
where mw [g/mol] is the molecular mass of the catalyst under consideration

2.3. Preparation of SSANa (3.0 mmol/g) Catalyst

Once the loading (y = 3.0 mmol/g) and the catalyst (NaHSO4, with mw = 120.05 g/mol) are established, the concentration of the aqueous solution was calculated (x = 2.34 mol/L) and the catalyst was prepared following the procedure described in the previous section (2.2).
Hence, in a 25 mL round bottom flask containing a magnetic stirring bar, NaHSO4 (2.34 M aqueous solution, 7.5 mL, 17.55 mmol) and SiO2 (3.75 g) were inserted and the mixture was stirred for 30 min. Once evaporated to dryness at the rotavapor, the solid residue (free-flowing powder) was oven-dried at 130 °C overnight, giving SSANa (3.0 mmol/g) as a white powder (5.86 g).

2.4. Solketal Preparation (Small Scale)

To a stirred mixture of glycerol (2.00 g, 21.7 mmol) and acetone (dried on CaCl2, 6.40 mL, 4 eq), inside a 10 mL vial with screw cap, the supported catalyst (1.5 mol%) was added at rt. After 30 min, MS (4 Å, powder, 120 mg) were added and the mixture was left under stirring for 4 h. The solid catalyst was filtered on a Gooch funnel (porosity 3) and the liquid phase was dried at the rotavapor. EtOAc (4 mL) and n-hexane (4 mL) were added to the residue, and the mixture was centrifuged (4000 rpm) for 5 min. A small amount of a lower phase, containing unreacted gly and water was detected. Removal of the volatiles from the organic phase left solketal (1) as a colorless liquid (2.15 g, 75%).

2.5. Solketal Preparation (Bigger Scale)

Glycerol (100 g, 1.086 mol) and acetone (dried on CaCl2, 320 mL, 4 eq) were vigorously stirred inside a 1 L round bottom flask at rt, then SSANa (3.0 mmol/g, 5.50 g, 1.5 mol%) was inserted and the mixture was stirred for 25 min (the mixture changed from hazy to clear in few minutes). CH2Cl2 (600 mL) was inserted and a Dean-Stark trap, featuring a long arm funnel inside and filled with MS (4 Å, 3 mm beads, 75 g), was set up, together with an appropriate water-cooled condenser (see Figure S1). The flask was immersed in a pre-heated oil bath (around 55 °C) and refluxed for 3 h 30 min. The mixture was filtered to remove the solid catalyst, then the volatiles (CH2Cl2 and acetone) were recovered at the rotavapor, leaving raw solketal (1) inside the reaction flask (colorless liquid, 137.8 g, 96%). Its high purity (>99% GC) makes it adequate for most applications (1H-NMR spectra is reported in Figure S2). If desired, a purer version (1H-NMR spectra showed in Figure S3) is easily attainable by distillation at reduced pressure (b.p. 77°C at 10 mm Hg).

3. Results and Discussion

Silica sulfuric acid (H2SO4·SiO2 or SSA, also known as sulfuric acid adsorbed on silica) is a well-known solid acid catalyst with various applications in organic chemistry [26]. It can be obtained by mixing aqueous sulfuric acid with regular chromatography silica gel, followed by water removal at 130 °C (hereafter referred as “wet” SSA or simply SSA) [27,28,29], or by dropping chlorosulfonic acid directly on dry silica (referred as “dry” SSA”) [30,31,32]. Its features like low cost, availability, low toxicity, and easy separation from the reaction media spurred us to study the application of the two popular SSA variants (typical loading 2.63 mmol -SO3H/g) in the said acetalization process (Figure 2).
Working in the earlier defined experimental conditions, and excluded the potential contribution from the support alone (entry 7, Table 1), we detected an improved performance of each SSAs in comparison to SnCl2 (entry 5 or 6 vs. entry 3, Table 1). This represents the first comparison in literature of the two SSA variants, showing that “wet” SSA can perform like the “dry” SSA, without showing any negative, moisture-related effects. The more sustainable “wet” SSA was then selected as our reference catalyst.
In continuation of our evaluation, a set of SSA featuring different H2SO4 loading on SiO2 was prepared and tested, keeping constant the moles of acid with respect to gly (1.5 mol%). Within the investigated range, performances resulted almost independent from this parameter (Figure 3): the little preference for lower loading was rationalized in terms of a small contribution of the dry SiO2 on general anhydrification. The loading value of 3.0 mmol of acid per g of silica was selected as optimal, corresponding to the use of 55 g of solid catalyst in the conversion of 1 kg of gly.
In the attempt to compare alternative Brønsted species, orthophosphoric acid was first considered but, when supported on silica (H3PO4·SiO2, 3.0 mmol/g) it gave a disappointing result on acetalization of glycerol (27% isolated yield), suggesting the importance of the acid strength [4]. At this point, finding other candidates seemed not straightforward as monoprotic donors were expected to be devoid of catalytic activity, accordingly to the popular SSA representation based on sulfuric acid esters with surface silanols [22,23,24,25,27,28,29,30,31,32].
Anyway, going on with further bibliographic research, we were surprised to note the reported activity of silica perchloric acid (HClO4·SiO2) [33,34,35,36], or silica triflic (trifluoromethanesulfonic) acid [37,38,39], even in the acetalization processes. Potassium bisulfate on silica (KHSO4·SiO2) showed good activity too [40], although it was not tested in acetalization processes, until now. This information spurred us to prepare these last catalysts, consistently with published procedures, and test them within our reactive system. The data, collected in Table 2, confirmed a good activity for most of them. Despite the higher strength of the free acid, silica perchloric acid (SPCA, entry 1 Table 2) or silica triflic acid (STA, entry 2) did not improve the isolated yields in respect to SSA. Thus, according to a use-inspired basic research, we judged the employment of these “special” acids to be not justified. Perchloric acid, in particular, features known safety problems on concentration [36], so loading on silica was limited to 0.75 mmol/g [35].
A series of bisulfates never employed in acetalization processes were also considered, namely: sodium (entry 3, Table 2), potassium (entry 4), ammonium (entry 5), and N-Me imidazolium (entry 6). Despite salification did not promise advantages on the acid strength, the observed performances were not inferior to that obtained with SSA (excluding the last one). Sodium or potassium bisulphates, in particular, displayed improved anchoring on silica surface, presumably due to the increased polarity. This was inferred by the absence of any liquid residue inside the container used for the preparation of SSANa (3.0 mmol/g) or SSAK (3.0 mmol/g), while tiny droplets of acidic liquid were often detected inside the walls of the glass container used in SSA (3.0 mmol/g) preparation, after the final drying step (overnight, 130 °C). The intrinsic lower acidity of these supported bisulfates can give potential advantage over SSA, as suggest less plant corrosion issues, in the event of partial leaching. The above considerations brought us to choose the less expensive one as the most convenient catalyst, i.e., SSANa (3.0 mmol/g).
In a final re-evaluation of the catalyst amount, we established that 1.5 mol% with respect to gly was an optimal value (see entries 1, 2, 3 of Table 3), and again, that the system highly benefits from the implementation of adequate anhydrification (entries 4–8 vs. entry 3). In absence of added desiccants (entry 4 of Table 3 vs. entry 2 of Table 1) the better water tolerance of SnCl2·2H2O with respect to SSANa (3.0 mmol/g) is detectable. But when adequate water removal is implemented, the superiority of the second is somewhat evident, both in performance (entry 2 of Table 3 vs. entry 3 of Table 1) and in easiness of separation from the reaction products; as well as in intrinsic toxicity.
The study of the catalyst was completed by considering supported Lewis acids. Various articles suggest potential synergism between both Lewis and Brønsted acidity, the last coming from silica alone [41,42], or even by the deliberate addition of a second active species [43]. In the case of gly acetalization, we observed that when a Lewis acid was supported on silica by means of the wet method, its catalytic activity was greatly reduced (entry 1 Table 4 vs. entry 3 Table 1). The sequential deposition of a Brønsted acid followed by a Lewis acid [43], showed no particular advantage too (entries 4–7 Table 4) with respect to the plain Brønsted acid [44].
The infrared spectra of SSANa (3.0 mmol/g), in comparison to that of silica (oven dried at 130 °C, overnight), showed remarkable differences (Figure 4). The broad band at 3400 cm−1 (relative to the O-H stretching of water and SO3O-H group) together with the shoulder in the range 2900–2400 cm−1 suggest strongly coordinated water via hydrogen bonds to silanols and -SO3H moieties, indication confirmed by the increased H2O bending band (~1635 cm−1). The apparent splitting of the intense band from 1250 to 950 cm−1 (assigned to asymmetric stretching vibrations of Si-O bonds) results from the superimposition of sulfate-stretching modes (asymmetric O=S=O (1252 cm−1), symmetric O=S=O (1080 cm−1), S=O (1024 cm−1), and S-O (709 cm−1)) that feature similar molecular weight of silicon tetrahedra [27,45]. Significative changes of the original silica vibrational structure are particularly evident from 900 cm−1 to 500 cm−1, while the 610 cm−1 band could be assigned to νab of HSO4 group.
To the best of our knowledge, SSA structure has not been fully characterized, possibly due to its amorphous nature. Most of the literature reports depicts it as a sulfuric acid ester of surface silanols [22,23,24,25,27,28,29,30,31,32], despite this model is unable to explain the known activity of supported monoprotic acids, nor of bisulfates. Sulfuric esters may correspond to possible transient states during the formation of SSA (or SSANa), but then hardly represents the final form, because of the known hydrolytic instability of silyl sulfones [46,47,48]. A better even if approximate representation of the catalyst structure, proposed in Figure 5, involves a strongly adsorbed species that, together with some adsorbed water molecules, have the ability to exchange protons with the environment. In this model the peculiar role of residual water is showed, probably responsible for the conserved activity of natively monovalent species. It also could have a prominent role in the apparent acidity levelling observed between bisulfate and sulfuric acid, as well as between the last and perchloric or triflic acids.
In consideration of the bifunctional acid/base nature of the bisulfate a plausible reaction mechanism is proposed in Figure 6. It involves a series of reversible protonation/deprotonation steps, starting from the formation of a non-cyclic hemiacetal between acetone and a primary hydroxyl group and followed by an intramolecular SN1 step [10], that is expected to be faster than other substitution modes [13,42].
In order to study the SSANa-catalyzed process on scale, we became worried about the use of MS inside the reaction mixture, due to the difficulties on the catalyst—desiccant separation stage and due to the observed interaction between gly and MS. A solution was to continuously reflux the solvent on the desiccant, kept apart in a modified Dean-Stark apparatus. In analogy of what was obtained with a special gear [49], the inclusion of a long arm funnel inside a standard glassware did the job, (see Figure S1) forcing the solvent to get into contact with the desiccant.
Using a double volume of acetone, to account for the drying function, [16] a respectable 79% yield was obtained after 4 h, but only when a large mass of MS (double, in respect to gly) was employed. Moreover, the temperature required to keep acetone at reflux (~65 °C) gave an undesired minor yellowing of the crude product. We then thought that a low boiling solvent able to form a positive azeotrope with water was a convenient way to promptly remove the moisture, if the process could tolerate the consequent dilution. Fortunately, this was the case and adding an adequate volume of co-solvent made the process to work at its best. For example, 25 g of gly was converted into 1 in high yield when CH2Cl2 was added as a co-solvent (150 mL). Its azeotrope with water (boiling at 38.8 °C, 0.4% H2O) let the use of a reduced amount of MS (20 g of 4 Å, 3 mm beads), avoided co-distillation of acetone, and helped the timely completion of the process (4 h, overall). Having an independent (azeotropic) anhydrification technique represents a good advantage, in order to accommodate an increased contamination by water or methanol, typical for glycerol coming from biodiesel plants [15,16], through an adaptation of co-solvent volume/desiccant mass/process time. This system proved to be suitable for scale-up and 100 g of gly were converted into solketal with a 96% isolated yield using standard lab glassware (see Section 2.5). In order to further shape the process for industrial operation, future developments could focus on the opportunity to avoid MS and proceed with a water removal uniquely based on the non-miscibility/density difference with co-solvent; even evaluating alternative co-solvents.
Some efforts to recycle the catalyst by simple filtration, drying at 130 °C, and reuse in following reactions failed due to adsorption of organic material on silica, signaled by the browning of the powder during drying. Thermal regeneration at 600 °C left a white powder containing Na2SO4, coming from pyrosulfate decomposition, with the loss of one equivalent of SO3 (see Figure S4). This allowed the recycle of the catalyst, that was obtained in a fully functional form by the addition of equimolar amount of aqueous H2SO4 and subsequent overnight drying. This regeneration method was tested in a set of five successive repetitions (100 g scale), showing a sustained high catalytic activity (see Figure S5). Despite the little catalyst cost and its easy preparation make the described regeneration hardly justified in small-scale productions, a milder thermal treatment should be matter of future investigation (e.g., heating at 400–450 °C) in order to retain the starting sulfate as pyrosulfate, with better sustainability. This provides to SSaNa further potential over SSA, considering that H2SO4 starts its decomposition at 300 °C.

4. Conclusions

Working in the large volume, low value sector, gly transformation must rely on simple and robust chemistry. In this work a simple to prepare, cheap, and effective catalyst (i.e., plain bisulfate on silica, SSANa 3.0 mmol/g) was applied to the conversion of glycerol into its acetone acetal 1, in line with a use-inspired basic research. It features very low toxicity and easy separation from the reaction mixture, at the end of the process. With respect to SSA (3.0 mmol/g), it shows better anchoring on silica and significantly lower acidity, promising less plant corrosion issues in industrial setting and better recyclability. With the assistance of a proper anhydrification technique, this method is able to rapidly convert 100 g of gly into solketal, obtaining a high isolated yield (96%) and employing mild process conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2227-9717/9/1/141/s1, Figure S1: Modified glassware for continuous solvent drying, Figure S2: Crude solketal 1H NMR spectra (100 g scale), Figure S3: Distilled solketal 1H NMR spectra (100 g scale), Figure S4: Catalyst regeneration cycle, Figure S5: Performance of regenerated catalyst.

Author Contributions

Research design, supervision and writing, F.R. Implementation of the research, manuscript correction and writing, L.F. Experimental work and data collection, S.D. Analysis of reaction mixtures and manuscript correction, L.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sadhukhan, J.; Ng, K.S.; Hernandez, E.M. (Eds.) Biorefineries and Chemical Processes: Design, Integration, and Sustainability Analysis; John Wiley & Sons Ltd.: Chichester, UK, 2014; ISBN 9781119990864. [Google Scholar]
  2. Nanda, M.R.; Zhang, Y.; Yuan, Z.; Qin, W.; Ghaziaskar, H.S.; Xu, C. Catalytic conversion of glycerol for sustainable production of solketal as a fuel additive: A review. Renew. Sustain. Energy Rev. 2016, 56, 1022. [Google Scholar] [CrossRef]
  3. Nemoto, H.; Hattori, H.; Matsushita, T.; Yoshitomi, K.; Katagiri, A. An Efficient Method for the Refinement of 1,3-Methyleneglycerol via Bridged Acetal Exchange and the Synthesis of a Symmetrically Branched Glycerol Trimer. Synthesis 2012, 44, 2365–2373. [Google Scholar] [CrossRef][Green Version]
  4. Nanda, M.R.; Yuan, Z.; Qin, W.; Ghaziaskar, H.S.; Poirier, M.-A.; Xu, C.C. A new continuous-flow process for catalytic conversion of glycerol to oxygenated fuel additive: Catalyst screening. Appl. Energy 2014, 123, 75. [Google Scholar] [CrossRef]
  5. Vasantha, V.T.; Venkatesha, N.J.; Shamshuddin, S.J.M.; D’Souza, J.Q.; Vijayasimha Reddy, B.G. Sulphated Zirconia Supported on Cordierite Honeycomb Monolith for Effective Synthesis of Solketal from Acetalisation of Glycerol with Acetone. ChemistrySelect 2018, 3, 602. [Google Scholar] [CrossRef]
  6. Melero, J.; Vicente, G.; Morales, G.; Paniagua, M.; Bustamante, J. Oxygenated compounds derived from glycerol for biodiesel formulation: Influence on EN 14214 quality parameters. Fuel 2010, 89, 2011–2018. [Google Scholar] [CrossRef]
  7. Climent, M.J.; Corma, A.; Iborra, S. Conversion of biomass platform molecules into fuel additives and liquid hydrocarbon fuels. Green Chem. 2014, 16, 516–547. [Google Scholar] [CrossRef][Green Version]
  8. Boot, M.; Frijters, P.P.; Luijten, C.C.; Somers, L.B.; Baert, R.R.; Donkerbroek, A.; Klein-Douwel, R.J.H.; Dam, N.N. Cyclic Oxygenates: A New Class of Second-Generation Biofuels for Diesel Engines? Energy Fuels 2009, 23, 1808–1817. [Google Scholar] [CrossRef]
  9. Zhen, Y.; Wan, S.; Liu, Y.; Yan, H.; Shi, R.; Wang, C. Atom Transfer Radical Polymerization of Solketal Acrylate Using Cyclohexanone as the Solvent. Macromol. Chem. Phys. 2005, 206, 607. [Google Scholar] [CrossRef]
  10. da Silva, C.X.A.; Gonçalves, V.L.C.; Mota, C.J.A. Water-tolerant zeolite catalyst for the acetalisation of glycerol. Green Chem. 2009, 11, 38. [Google Scholar] [CrossRef]
  11. Ozorio, L.P.; Pianzolli, R.; Mota, M.B.S.; Mota, C.J.A. Reactivity of Glycerol/Acetone Ketal (Solketal) and Glycerol/Formaldehyde Acetals toward Acid-Catalyzed Hydrolysis. J. Braz. Chem. Soc. 2012, 23, 931. [Google Scholar] [CrossRef][Green Version]
  12. Da Silva, M.J.; Guimaraes, M.D.O.; Júlio, A.A. A Highly Regioselective and Solvent-Free Sn(II)-Catalyzed Glycerol Ketals Synthesis at Room Temperature. Catal. Lett. 2015, 145, 769–776. [Google Scholar] [CrossRef]
  13. Menezes, F.D.L.; Guimaraes, M.D.O.; da Silva, M.J. Highly Selective SnCl2-Catalyzed Solketal Synthesis at Room Temperature. Ind. Eng. Chem. Res. 2013, 52, 16709. [Google Scholar] [CrossRef]
  14. Nowicki, J. Oligomerization of glycerol over modified molecular sieves. Przemyls Chem. 2012, 91, 1164. [Google Scholar]
  15. da Silva, C.X.A.; Mota, C.J.A. The influence of impurities on the acid-catalyzed reaction of glycerol with acetone. Biomass Bioenergy 2011, 35, 3547–3551. [Google Scholar] [CrossRef]
  16. Vicente, G.; Melero, J.A.; Morales, G.; Paniagua, M.; Martín, E. Acetalisation of bio-glycerol with acetone to produce solketal over sulfonic mesostructured silicas. Green Chem. 2010, 12, 899–907. [Google Scholar] [CrossRef]
  17. Vinu, A.; Justus, J.; Balasubramanian, V.V.; Halligudi, S.B.; Ariga, K.; Mori, T. Synthesis of fructone and acylal using hexagonally ordered mesoporous aluminosilicate catalyst. Collect. Czech. Chem. Commun. 2008, 73, 1112. [Google Scholar] [CrossRef]
  18. Rodrigues, R.; Gonçalves, M.; Mandelli, D.; Pescarmona, P.P.; Carvalho, W.A. Solvent-free conversion of glycerol to solketal catalysed by activated carbons functionalised with acid groups. Catal. Sci. Technol. 2014, 4, 2293. [Google Scholar] [CrossRef]
  19. Wang, L.; Zhang, J.; Yang, S.; Sun, Q.; Zhu, L.; Wu, Q.; Zhang, H.; Meng, X.; Xiao, F.-S. Sulfonated hollow sphere carbon as an efficient catalyst for acetalisation of glycerol. J. Mater. Chem. A 2013, 1, 9422–9426. [Google Scholar] [CrossRef]
  20. Klahr, D. Learning Sciences Research and Pasteur’s Quadrant. J. Learn. Sci. 2019, 28, 153–159. [Google Scholar] [CrossRef]
  21. Stokes, D.E. Pasteur’s Quadrant. Basic Science and Technological Innovation; Brookings Institution Press: Washington, DC, USA, 1997. [Google Scholar]
  22. Kautz, J.; Feltrin, W.; Sales, E.S.; Eifler-Lima, V.L.; Merlo, A.A. Reaíção de condensação do glicerol com compostos carbonílicos. Síntese, caracterização e aplicação em cristais líquidos. Quim. Nova 2015, 38, 1053. [Google Scholar]
  23. Barbosa, S.L.; Ottone, M.; de Almeida, M.T.; Lage, G.L.C.; Almeida, M.A.R.; Nelson, D.L.; dos Santos, W.T.P.; Clososki, G.C.; Lopes, N.P.; Klein, S.I.; et al. Ketalization of Ketones to 1,3-Dioxolanes and Concurring Self-Aldolization Catalyzed by an Amorphous, Hydrophilic SiO2-SO3H Catalyst under Microwave Irradiation. J. Braz. Chem. Soc. 2018, 29, 1663. [Google Scholar] [CrossRef]
  24. Barbosa, S.L.; Lima, P.C.; Dos Santos, W.T.; Klein, S.I.; Clososki, G.C.; Caires, F.J. Oxygenated biofuels: Synthesis of fatty acid solketal esters with a mixture of sulfonated silica and (Bu4N)(BF4) catalyst. Catal. Commun. 2019, 120, 76–79. [Google Scholar] [CrossRef]
  25. Mukhopadhyay, B. Sulfuric acid immobilized on silica: An efficient promoter for one-pot acetalation–acetylation of sugar derivatives. Tetrahedron Lett. 2006, 47, 4337. [Google Scholar] [CrossRef]
  26. Chavez, F.; Suárez, S.; Diaz, M.A. Sulfuric acid adsorbed on silica gel. A multipurpose acid catalyst. Synth. Commun. 1994, 24, 2325. [Google Scholar] [CrossRef]
  27. Manna, J.; Roy, B.; Sharma, P. Efficient hydrogen generation from sodium borohydride hydrolysis using silica sulfuric acid catalyst. J. Power Sources 2015, 275, 727–733. [Google Scholar] [CrossRef]
  28. Montazeri, N. Sulfuric Acid Impregnated on Silica Gel (H2SO4/SiO2): A Versatile and Reusable Catalyst for the Synthesis of 1,2,4-Triazolo [5,1-b][1,3]thiazin-7-ones. Asian J. Chem. 2010, 22, 7432. [Google Scholar]
  29. Riego, J.M.; Sedin, Z.; Zaldívar, J.; Marziano, N.C.; Tortato, C. Sulfuric acid on silica-gel: An inexpensive catalyst for aromatic nitration. Tetrahedron Lett. 1996, 37, 513–516. [Google Scholar] [CrossRef]
  30. Zolfigol, M.A. Silica sulfuric acid/NaNO2 as a novel heterogeneous system for production of thionitrites and disulfides under mild conditions. Tetrahedron 2001, 57, 9509–9511. [Google Scholar] [CrossRef][Green Version]
  31. Zolfigol, M.A.; Madrakian, E.; Ghaemi, E. Silica Sulfuric Acid/NaNO2 as a Novel Heterogeneous System for the Nitration of Phenols under Mild Conditions. Molecules 2002, 7, 734. [Google Scholar] [CrossRef]
  32. Pathak, S.; Debnath, K.; Pramanik, A. Silica sulfuric acid: A reusable solid catalyst for one pot synthesis of densely substituted pyrrole-fused isocoumarins under solvent-free conditions. Beilstein J. Org. Chem. 2013, 9, 2344. [Google Scholar] [CrossRef][Green Version]
  33. Khan, A.T.; Choudhury, L.H.; Ghosh, S. Silica supported perchloric acid (HClO4-SiO2): A highly efficient and reusable catalyst for geminal diacylation of aldehydes under solvent-free conditions. J. Mol. Catal. A 2006, 255, 230. [Google Scholar] [CrossRef]
  34. Khan, A.T.; Parvin, T.; Choudhury, L.H. Silica-Supported Perchloric Acid (HClO4-SiO2): A Versatile Catalyst for Tetrahydropyranylation, Oxathioacetalization and Thioacetalization. Synthesis 2006, 15, 2497. [Google Scholar] [CrossRef]
  35. Chanu, L.V.; Singh, T.P.; Devi, L.R.; Singh, O.M. Synthesis of bioactive heterocycles using reusable heterogeneous catalyst HClO4–SiO2 under solvent-free conditions. Green Chem. Lett. Rev. 2018, 11, 352. [Google Scholar] [CrossRef]
  36. Henderson, M.P.; Miasek, V.I.; Swaddle, T.W. Kinetics of Thermal Decomposition of Aqueous Perchloric Acid. Can. J. Chem. 1971, 49, 317. [Google Scholar] [CrossRef][Green Version]
  37. Liu, P.N.; Xia, F.; Wang, Q.W.; Ren, Y.J.; Chen, J.Q. Triflic acid adsorbed on silica gel as an efficient and recyclable catalyst for the addition of β-dicarbonyl compounds to alcohols and alkenes. Green Chem. 2010, 12, 1049. [Google Scholar] [CrossRef]
  38. Karimi, B.; Ghoreishi-Nezhad, M. Highly chemoselective acetalization of carbonyl compounds catalyzed by a novel recyclable ammonium triflate-functionalized silica. J. Mol. Catal. A 2007, 277, 262. [Google Scholar] [CrossRef]
  39. Shirini, F.; Nahzomi, H.T.; Zolfigol, M.A. Silica Triflate as an Efficient Reagent for the Chemoselective Formylation of Alcohols. Phosphorus Sulfur Silicon Relat. Elem. 2007, 182, 1245. [Google Scholar] [CrossRef]
  40. Sriram, Y.H.; Fatima, T.; Kumar, M.S.; Rajanna, K.C.; Venkateswarlu, M.; Sudhakar, M.S.; Raju, R.M. Reusable silica supported perchloric acid and potassium bisulphate as green catalysts for thiocyanation of aromatic compounds under solvent free conditions. Iran. Chem. Comm. 2017, 5, 352. [Google Scholar]
  41. Gupta, P.; Paul, S. Solid acids: Green alternatives for acid catalysis. Catal. Today 2014, 236, 153. [Google Scholar] [CrossRef]
  42. Li, L.; Korányi, T.I.; Sels, B.F.; Pescarmona, P.P. Highly-efficient conversion of glycerol to solketal over heterogeneous Lewis acid catalysts. Green Chem. 2012, 14, 1611. [Google Scholar] [CrossRef]
  43. Huang, F.; Su, Y.; Long, Z.; Chen, G.; Yao, Y. Enhanced Formation of 5-Hydroxymethylfurfural from Glucose Using a Silica-Supported Phosphate and Iron Phosphate Heterogeneous Catalyst. Ind. Eng. Chem. Res. 2018, 57, 10198. [Google Scholar] [CrossRef]
  44. Stawicka, K.; Díaz-Álvarez, A.E.; Calvino-Casilda, V.; Trejda, M.; Bañares, M.A.; Ziolek, M. The Role of Brønsted and Lewis Acid Sites in Acetalization of Glycerol over Modified Mesoporous Cellular Foams. J. Phys. Chem. C 2016, 120, 16699. [Google Scholar] [CrossRef]
  45. Barbosa, S.L.; Ottone, M.; Santos, M.C.; Junior, G.C.; Lima, C.D.; Glososki, G.C.; Lopes, N.P.; Klein, S.I. Benzyl benzoate and dibenzyl ether from of benzoic acid and benzyl alcohol under microwave irradiation using a SiO2–SO3H catalyst. Catal. Commun. 2015, 68, 97. [Google Scholar] [CrossRef][Green Version]
  46. Voronkov, M.G.; Roman, V.K.; Maletina, E.A. Bis[trimethylsilyl]sulfate as an organosilicon synthon. Synthesis 1982, 4, 277. [Google Scholar] [CrossRef]
  47. Wittenberg, D.; Wu, T.C.; Gilman, H. Cleavage of Diphenyl Sulfone and Diphenyl Sulfide by Triphenylsilyllithium. J. Org. Chem. 1958, 23, 1898. [Google Scholar] [CrossRef]
  48. Haas, A. The Chemistry of Silicon-Sulfur Compounds. Angew. Chem. Int. Ed. 1965, 4, 1014. [Google Scholar] [CrossRef]
  49. Eisenbraun, E.J.; Payne, K.W. Dean-Stark Apparatus Modified for Use with Molecular Sieves. Ind. Eng. Chem. Res. 1999, 38, 4521. [Google Scholar] [CrossRef]

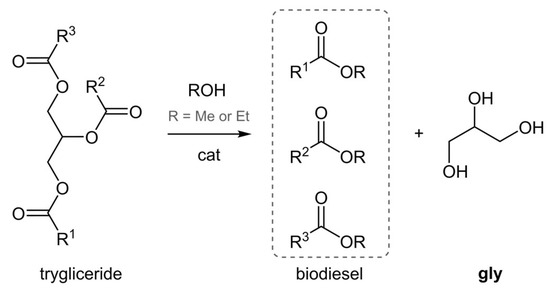

Figure 1. Biodiesel production through transesterification.
Figure 1. Biodiesel production through transesterification.
Processes 09 00141 g001

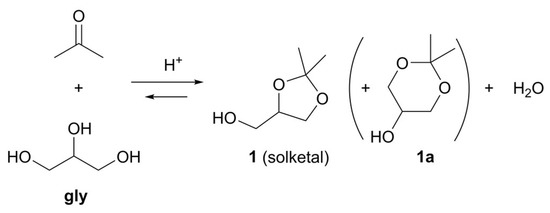

Figure 2. Solketal preparation through acetalization of gly.
Figure 2. Solketal preparation through acetalization of gly.
Processes 09 00141 g002

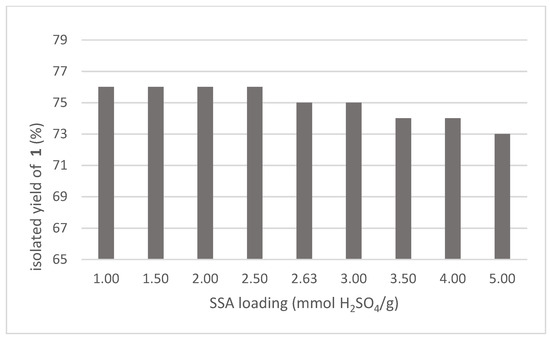

Figure 3. Performances of sulfuric acid adsorbed (SSA) with different H2SO4 loading (1.5 mol% respect to gly).
Figure 3. Performances of sulfuric acid adsorbed (SSA) with different H2SO4 loading (1.5 mol% respect to gly).
Processes 09 00141 g003

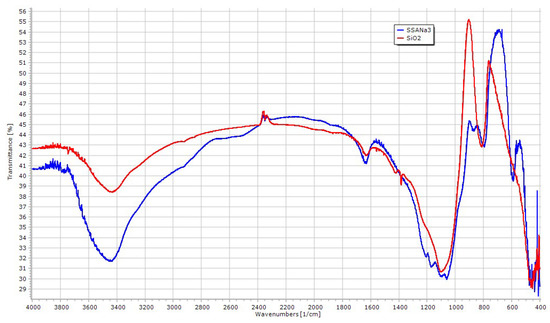

Figure 4. IR spectra of SSANa (3.0 mmol/g, blue) vs. SiO2 (red).
Figure 4. IR spectra of SSANa (3.0 mmol/g, blue) vs. SiO2 (red).
Processes 09 00141 g004

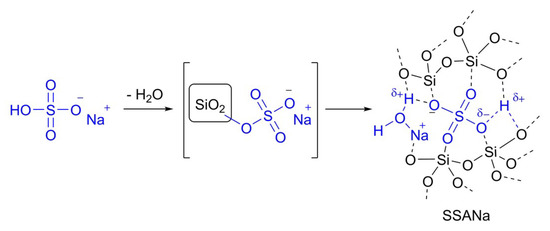

Figure 5. Proposed model describing the adsorption of sodium bisulfate on silica.
Figure 5. Proposed model describing the adsorption of sodium bisulfate on silica.
Processes 09 00141 g005

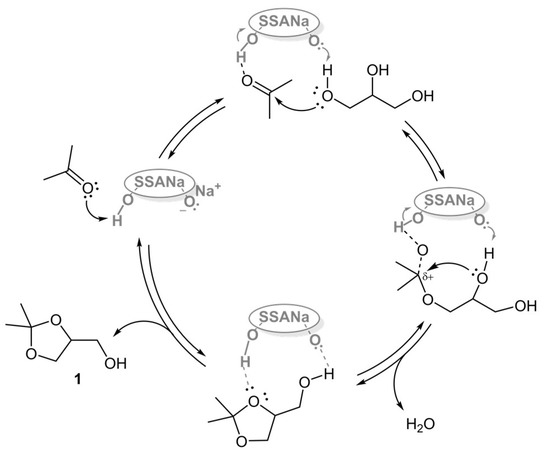

Figure 6. Plausible reaction mechanism.
Figure 6. Plausible reaction mechanism.
Processes 09 00141 g006
Table 1. Preliminary catalyst evaluation.
Table 1. Preliminary catalyst evaluation.
EntryCatalystAcetone Anhyd. aAdded DesiccantIsolated Yield of 1 (%)
1SnCl2·2H2On-25
2SnCl2·2H2Oy-41
3SnCl2·2H2OyMS (after 30′)70
4-yMS0
5“dry” SSA (2.63 mmol/g)yMS (after 30′)75
6“wet” SSA (2.63 mmol/g)yMS (after 30′)75
7SiO2yMS (after 30′)0
Reaction conditions: gly (2 g), acetone (6.4 mL, 4 eq), SnCl2·2H2O (74 mg, 1.5 mol%), MS (powder, 4 Å, 120 mg), 4 h 30 min, 23 °C; a n = no anhydrification; y = acetone pre-anhydrified with CaCl2 for 24 h.
Table 2. Evaluation of different silica supported acids.
Table 2. Evaluation of different silica supported acids.
EntryCatalystIsolated Yieldof 1 (%)
1SPCA (0.75 mmol/g)76
2STA (1.5 mmol/g)76
3SSANa (3.0 mmol/g)76
4SSAK (3.0 mmol/g)76
5SSAN (3.0 mmol/g)75
6SSAI (3.0 mmol/g)27
Reaction conditions: gly (2 g), acetone (dried on CaCl2, 6.4 mL), catalyst (1.5 mol%), MS (powder, 4 Å, 120 mg) inserted after 30 min, 4 h 30 min, 23 °C. SPCA = silica perchloric acid; STA = silica triflic acid; SSANa silica bisulfate (sodium salt); SSAK silica bisulfate (potassium salt); SSAN silica bisulfate (ammonium salt); SSAI silica bisulfate (N-Me-imidazolium salt).
Table 3. Optimization of SSANa (3.0 mmol/g) amount.
Table 3. Optimization of SSANa (3.0 mmol/g) amount.
EntryCatalyst Amount (mol%) aDesiccant (mg)Isolated Yield of 1 (%)
11.25MS powder (120)70
21.50MS powder (120)75
31.75MS powder (120)76
41.50-15
51.50CaCl2 (150)31
61.50MgSO4 (150)50
71.50MgSO4 (300)51
81.50Na2SO4 (150)30
Reaction conditions: gly (2 g), acetone (dried on CaCl2, 6.4 mL), SSANa (3.0 mmol/g), anhydrificant added after 30 min, 4 h, 23 °C. a mol% in respect to gly.
Table 4. Catalytic activity of supported Lewis acids.
Table 4. Catalytic activity of supported Lewis acids.
Entrysupported Catalyst (mmol/g)Isolated Yield of 1 (%)
1SiO2·SnCl2 (2.5)32
2SiO2·FeCl3 (2.5)21
3SiO2·ZnCl2 (2.5)0
4SiO2·H3PO4(3.0)·SnCl2 (1.5)24
5SiO2·H3PO4(3.0)·FeCl3 (1.5)18
6SiO2·H2SO4(3.0)·SnCl2 (1.5)74
7SiO2·H2SO4 (3.0)·FeCl3 (1.5)72
Reaction conditions: gly (2 g), acetone (dried on CaCl2, 6.4 mL), catalyst (1.5 mol%), MS (powder, 4 Å, 120 mg) added after 30 min, 4 h, 23 °C.
