# Finite Element Study of Magnetohydrodynamics (MHD) and Activation Energy in Darcy–Forchheimer Rotating Flow of Casson Carreau Nanofluid

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{*}

## Abstract

**:**

## 1. Introduction

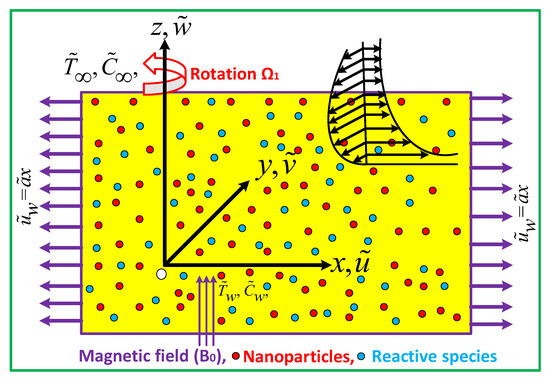

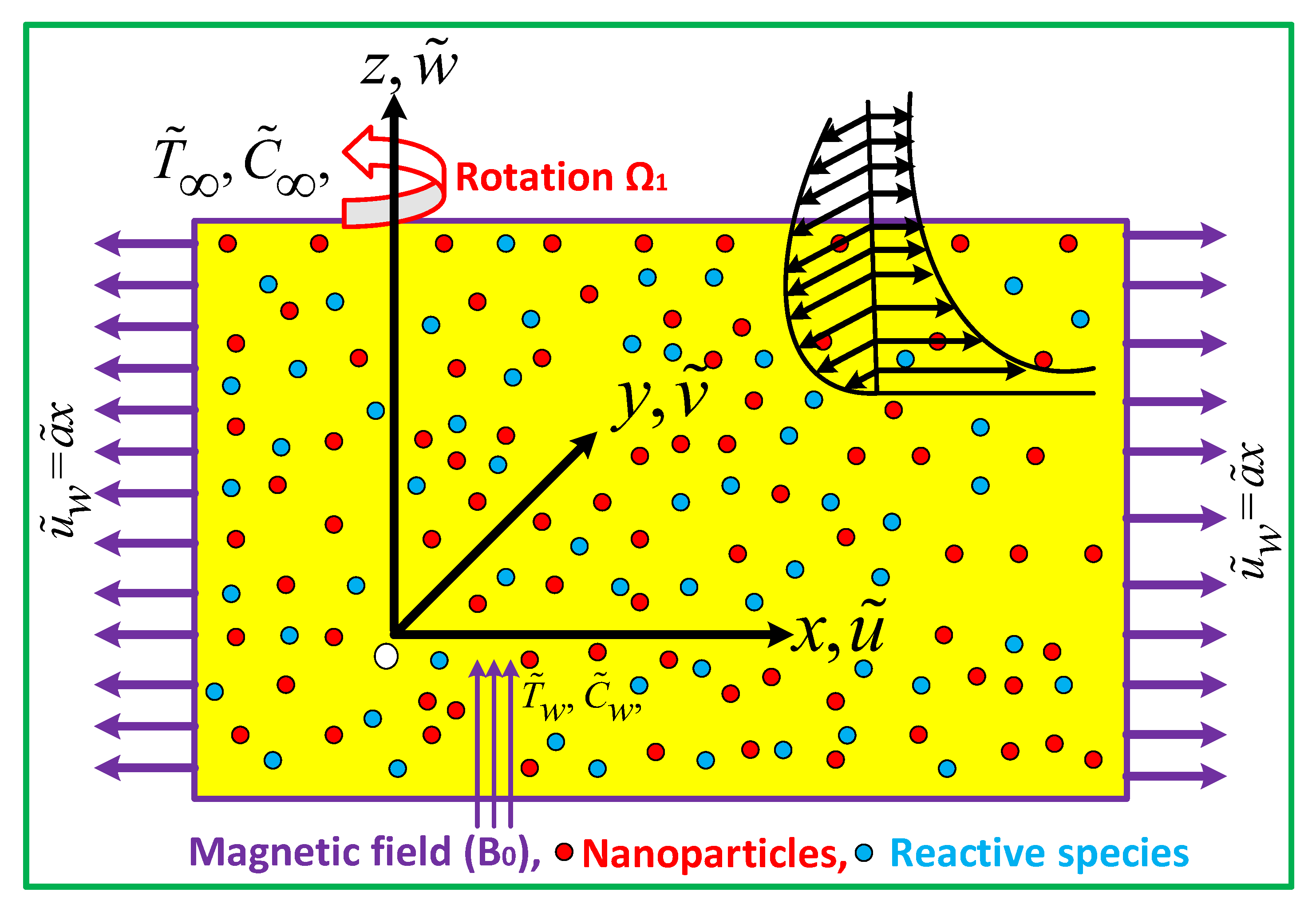

## 2. Statement of The Problem

## 3. Governing Equations

## 4. Finite Element Method Solutions

#### 4.1. Variational Formulations

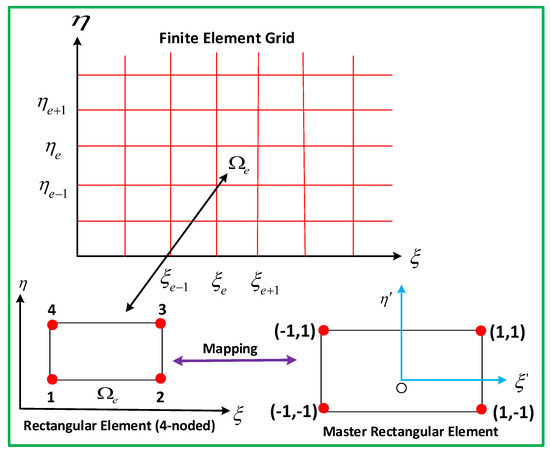

#### 4.2. Finite Element Formulations

## 5. Results and Discussion

## 6. Conclusions

- The progressing values of Casson fluid parameter $\beta $, magnetic parameter M, porosity $kp$, Forchheimer number (Fr), and Weissenberg number (We) reduced the magnitude of secondary velocity $h(\xi ,\eta )$ and the primary velocity ${f}^{\prime}(\xi ,\eta )$ but concentration $\varphi $ and temperature $\theta $ are incremented.
- The concentration and temperature are incremented along with rising values of $\lambda $. The both components of velocity diminishes near the surface when $\lambda $ is incremented.
- Improvement in temperature is reported when Nb, Nt, and ${Q}_{s}$ are increased but inverse behaviour is noted for power-law index ($\u03f5$).
- The higher values of Nb, power-law index ($\u03f5$), and chemical reaction rate parameter $\mathsf{\Omega}$ recede the nanoparticle concentration but it increases against higher values of Nt and EE.
- The Nusselt number attains lower values for higher values of Casson fluid parameter $\beta $, Brownian (Nb), thermophoresis (Nt), magnetic (M), heat source ${Q}_{s}$, and rotating ($\lambda $).
- The Sherwood number attains higher values for higher values of Lewis number (Le), Nb, and $Nt$ but the reduced Sherwood number exhibits an opposite trend for magnetic, rotational, porosity $kp$, Forchheimer number (Fr), and Casson fluid parameter $\beta $ parameters.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Choi, S.U.; Eastman, J.A. Enhancing Thermal Conductivity of Fluids with Nanoparticles; Technical Report; Argonne National Lab: Lemont, IL, USA, 1995. [Google Scholar]
- Makinde, O.D.; Aziz, A. Boundary layer flow of a nanofluid past a stretching sheet with a convective boundary condition. Int. J. Therm. Sci.
**2011**, 50, 1326–1332. [Google Scholar] [CrossRef] - Sarafraz, M.; Arya, H.; Saeedi, M.; Ahmadi, D. Flow boiling heat transfer to MgO-therminol 66 heat transfer fluid: Experimental assessment and correlation development. Appl. Therm. Eng.
**2018**, 138, 552–562. [Google Scholar] [CrossRef] - Uddin, M.J.; Khan, W.; Ismail, A.M. Free convection boundary layer flow from a heated upward facing horizontal flat plate embedded in a porous medium filled by a nanofluid with convective boundary condition. TRansport Porous Media
**2012**, 92, 867–881. [Google Scholar] [CrossRef] - Khan, W.; Pop, I. Boundary-layer flow of a nanofluid past a stretching sheet. Int. J. Heat Mass Transf.
**2010**, 53, 2477–2483. [Google Scholar] [CrossRef] - Turkyilmazoglu, M. Condensation of laminar film over curved vertical walls using single and two-phase nanofluid models. Eur. J. Mech. B Fluids
**2017**, 65, 184–191. [Google Scholar] [CrossRef] - Mahanthesh, B.; Gireesha, B.J.; Thammanna, G.T.; Shehzad, S.A.; Abbasi, F.M.; Gorla, R.S.R. Nonlinear convection in nano Maxwell fluid with nonlinear thermal radiation: A three-dimensional study. Alex. Eng. J.
**2018**, 57, 1927–1935. [Google Scholar] [CrossRef] - Shahzad, A.; Ali, R.; Hussain, M.; Kamran, M. Unsteady axisymmetric flow and heat transfer over time-dependent radially stretching sheet. Alex. Eng. J.
**2017**, 56, 35–41. [Google Scholar] [CrossRef] [Green Version] - Nandy, S.K.; Mahapatra, T.R. Effects of slip and heat generation/absorption on MHD stagnation flow of nanofluid past a stretching/shrinking surface with convective boundary conditions. Int. J. Heat Mass Transf.
**2013**, 64, 1091–1100. [Google Scholar] [CrossRef] - Rashid, S.; Hayat, T.; Qayyum, S.; Ayub, M.; Alsaedi, A. Three-dimensional rotating Darcy–Forchheimer flow with activation energy. Int. J. Numer. Methods Heat Fluid Flow
**2019**, 29, 935–948. [Google Scholar] [CrossRef] - Hayat, T.; Ijaz, M.; Qayyum, S.; Ayub, M.; Alsaedi, A. Mixed convective stagnation point flow of nanofluid with Darcy-Fochheimer relation and partial slip. Results Phys.
**2018**, 9, 771–778. [Google Scholar] [CrossRef] - Muhammad, R.; Khan, M.I.; Jameel, M.; Khan, N.B. Fully developed Darcy–Forchheimer mixed convective flow over a curved surface with activation energy and entropy generation. Comput. Methods Programs Biomed.
**2020**, 188, 105298. [Google Scholar] [CrossRef] [PubMed] - Gireesha, B.; Mahanthesh, B.; Thammanna, G.; Sampathkumar, P. Hall effects on dusty nanofluid two-phase transient flow past a stretching sheet using KVL model. J. Mol. Liq.
**2018**, 256, 139–147. [Google Scholar] [CrossRef] - Hayat, T.; Aziz, A.; Muhammad, T.; Alsaedi, A. Effects of binary chemical reaction and Arrhenius activation energy in Darcy–Forchheimer three-dimensional flow of nanofluid subject to rotating frame. J. Therm. Anal. Calorim.
**2019**, 136, 1769–1779. [Google Scholar] [CrossRef] - Tiwana, M.H.; Mann, A.B.; Rizwan, M.; Maqbool, K.; Javeed, S.; Raza, S.; Khan, M.S. Unsteady Magnetohydrodynamic Convective Fluid Flow of Oldroyd-B Model Considering Ramped Wall Temperature and Ramped Wall Velocity. Mathematics
**2019**, 7, 676. [Google Scholar] [CrossRef] [Green Version] - Naz, R.; Noor, M.; Hayat, T.; Javed, M.; Alsaedi, A. Dynamism of magnetohydrodynamic cross nanofluid with particulars of entropy generation and gyrotactic motile microorganisms. Int. Commun. Heat Mass Transf.
**2020**, 110, 104431. [Google Scholar] [CrossRef] - Khan, M.; Salahuddin, T.; Yousaf, M.M.; Khan, F.; Hussain, A. Variable diffusion and conductivity change in 3d rotating Williamson fluid flow along with magnetic field and activation energy. Int. J. Numer. Methods Heat Fluid Flow
**2019**, 30, 2467–2484. [Google Scholar] [CrossRef] [Green Version] - Alarifi, I.M.; Abokhalil, A.G.; Osman, M.; Lund, L.A.; Ayed, M.B.; Belmabrouk, H.; Tlili, I. MHD flow and heat transfer over vertical stretching sheet with heat sink or source effect. Symmetry
**2019**, 11, 297. [Google Scholar] [CrossRef] [Green Version] - Thumma, T.; Wakif, A.; Animasaun, I.L. Generalized differential quadrature analysis of unsteady three-dimensional MHD radiating dissipative Casson fluid conveying tiny particles. Heat Transf.
**2020**, 49, 2595–2626. [Google Scholar] [CrossRef] - Tlili, I.; Bilal, M.; Qureshi, M.Z.A.; Abdelmalek, Z. Thermal analysis of magnetized pseudoplastic nano fluid flow over 3D radiating non-linear surface with passive mass flux control and chemically responsive species. J. Mater. Res. Technol.
**2020**, 9, 8125–8135. [Google Scholar] [CrossRef] - Khan, S.A.; Nie, Y.; Ali, B. Multiple slip effects on magnetohydrodynamic axisymmetric buoyant nanofluid flow above a stretching sheet with radiation and chemical reaction. Symmetry
**2019**, 11, 1171. [Google Scholar] [CrossRef] [Green Version] - Aziz, A.; Muhammad, T.; Alsaedi, A.; Hayat, T. An optimal study for 3D rotating flow of Oldroyd-B nanofluid with convectively heated surface. J. Braz. Soc. Mech. Sci. Eng.
**2019**, 41, 236. [Google Scholar] [CrossRef] - Mustafa, M.; Ahmad, R.; Hayat, T.; Alsaedi, A. Rotating flow of viscoelastic fluid with nonlinear thermal radiation: A numerical study. Neural Comput. Appl.
**2018**, 29, 493–499. [Google Scholar] [CrossRef] - Wang, C. Stretching a surface in a rotating fluid. Z. Angew. Math. Phys.
**1988**, 39, 177–185. [Google Scholar] [CrossRef] - Takhar, H.S.; Chamkha, A.J.; Nath, G. Flow and heat transfer on a stretching surface in a rotating fluid with a magnetic field. Int. J. Therm. Sci.
**2003**, 42, 23–31. [Google Scholar] [CrossRef] - Ibrahim, W. Three dimensional rotating flow of Powell-Eyring nanofluid with non-Fourier’s heat flux and non-Fick’s mass flux theory. Results Phys.
**2018**, 8, 569–577. [Google Scholar] [CrossRef] - Jusoh, R.; Nazar, R.; Pop, I. Magnetohydrodynamic rotating flow and heat transfer of ferrofluid due to an exponentially permeable stretching/shrinking sheet. J. Magn. Magn. Mater.
**2018**, 465, 365–374. [Google Scholar] [CrossRef] - Jawad, M.; Shah, Z.; Islam, S.; Majdoubi, J.; Tlili, I.; Khan, W.; Khan, I. Impact of nonlinear thermal radiation and the viscous dissipation effect on the unsteady three-dimensional rotating flow of single-wall carbon nanotubes with aqueous suspensions. Symmetry
**2019**, 11, 207. [Google Scholar] [CrossRef] [Green Version] - Christov, C. On frame indifferent formulation of the Maxwell–Cattaneo model of finite-speed heat conduction. Mech. Res. Commun.
**2009**, 36, 481–486. [Google Scholar] [CrossRef] - Khan, M.I.; Alzahrani, F.; Hobiny, A.; Ali, Z. Modeling of Cattaneo-Christov double diffusions (CCDD) in Williamson nanomaterial slip flow subject to porous medium. J. Mater. Res. Technol.
**2020**, 9, 6172–6177. [Google Scholar] [CrossRef] - Hayat, T.; Khan, M.I.; Farooq, M.; Alsaedi, A.; Waqas, M.; Yasmeen, T. Impact of Cattaneo–Christov heat flux model in flow of variable thermal conductivity fluid over a variable thicked surface. Int. J. Heat Mass Transf.
**2016**, 99, 702–710. [Google Scholar] [CrossRef] - Rana, P.; Bhargava, R.; Bég, O.A. Finite element simulation of unsteady magneto-hydrodynamic transport phenomena on a stretching sheet in a rotating nanofluid. Proc. Inst. Mech. Eng. Part N J. Nanoeng. Nanosyst.
**2013**, 227, 77–99. [Google Scholar] [CrossRef] - Raju, C.; Sandeep, N. Unsteady three-dimensional flow of Casson–Carreau fluids past a stretching surface. Alex. Eng. J.
**2016**, 55, 1115–1126. [Google Scholar] [CrossRef] [Green Version] - Abbas, Z.; Javed, T.; Sajid, M.; Ali, N. Unsteady MHD flow and heat transfer on a stretching sheet in a rotating fluid. J. Taiwan Inst. Chem. Eng.
**2010**, 41, 644–650. [Google Scholar] [CrossRef] - Babu, M.J.; Sandeep, N. 3D MHD slip flow of a nanofluid over a slendering stretching sheet with thermophoresis and Brownian motion effects. J. Mol. Liq.
**2016**, 222, 1003–1009. [Google Scholar] [CrossRef] - Hayat, T.; Muhammad, T.; Alsaedi, A. On three-dimensional flow of couple stress fluid with Cattaneo–Christov heat flux. Chin. J. Phys.
**2017**, 55, 930–938. [Google Scholar] [CrossRef] - Butt, A.S.; Ali, A.; Mehmood, A. Study of flow and heat transfer on a stretching surface in a rotating Casson fluid. Proc. Natl. Acad. Sci. India Sect. Phys. Sci.
**2015**, 85, 421–426. [Google Scholar] [CrossRef] - Rudraswamy, N.; Shehzad, S.; Kumar, K.G.; Gireesha, B. Numerical analysis of MHD three-dimensional Carreau nanoliquid flow over bidirectionally moving surface. J. Braz. Soc. Mech. Sci. Eng.
**2017**, 39, 5037–5047. [Google Scholar] [CrossRef] - Ramaiah K, D.; Kotha, G.; Thangavelu, K. MHD rotating flow of a Maxwell fluid with Arrhenius activation energy and non-Fourier heat flux model. Heat Transf.
**2020**, 49, 2209–2227. [Google Scholar] [CrossRef] - Nazar, R.; Amin, N.; Pop, I. Unsteady boundary layer flow due to a stretching surface in a rotating fluid. Mech. Res. Commun.
**2004**, 31, 121–128. [Google Scholar] [CrossRef] - Shafique, Z.; Mustafa, M.; Mushtaq, A. Boundary layer flow of Maxwell fluid in rotating frame with binary chemical reaction and activation energy. Results Phys.
**2016**, 6, 627–633. [Google Scholar] [CrossRef] [Green Version] - Uddin, M.; Rana, P.; Bég, O.A.; Ismail, A.M. Finite element simulation of magnetohydrodynamic convective nanofluid slip flow in porous media with nonlinear radiation. Alex. Eng. J.
**2016**, 55, 1305–1319. [Google Scholar] [CrossRef] - Rana, P.; Bhargava, R. Numerical study of heat transfer enhancement in mixed convection flow along a vertical plate with heat source/sink utilizing nanofluids. Commun. Nonlinear Sci. Numer. Simul.
**2011**, 16, 4318–4334. [Google Scholar] [CrossRef] - Reddy, J.N. Solutions Manual for an Introduction to the Finite Element Method; McGraw-Hill: New York, NY, USA, 1993; p. 41. [Google Scholar]
- Jyothi, K.; Reddy, P.S.; Reddy, M.S. Carreau nanofluid heat and mass transfer flow through wedge with slip conditions and nonlinear thermal radiation. J. Braz. Soc. Mech. Sci. Eng.
**2019**, 41, 415. [Google Scholar] [CrossRef] - Reddy, G.J.; Raju, R.S.; Rao, J.A. Influence of viscous dissipation on unsteady MHD natural convective flow of Casson fluid over an oscillating vertical plate via FEM. Ain Shams Eng. J.
**2018**, 9, 1907–1915. [Google Scholar] [CrossRef] - Ali, B.; Yu, X.; Sadiq, M.T.; Rehman, A.U.; Ali, L. A Finite Element Simulation of the Active and Passive Controls of the MHD Effect on an Axisymmetric Nanofluid Flow with Thermo-Diffusion over a Radially Stretched Sheet. Processes
**2020**, 8, 207. [Google Scholar] [CrossRef] [Green Version]

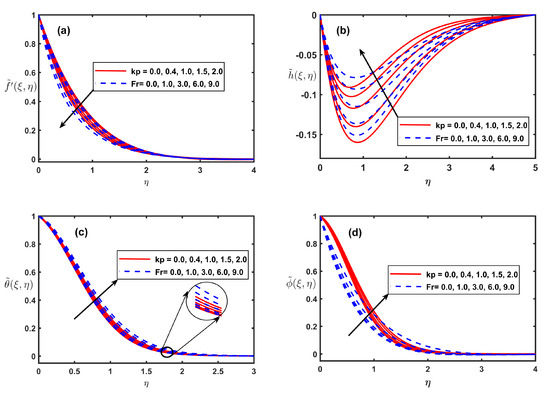

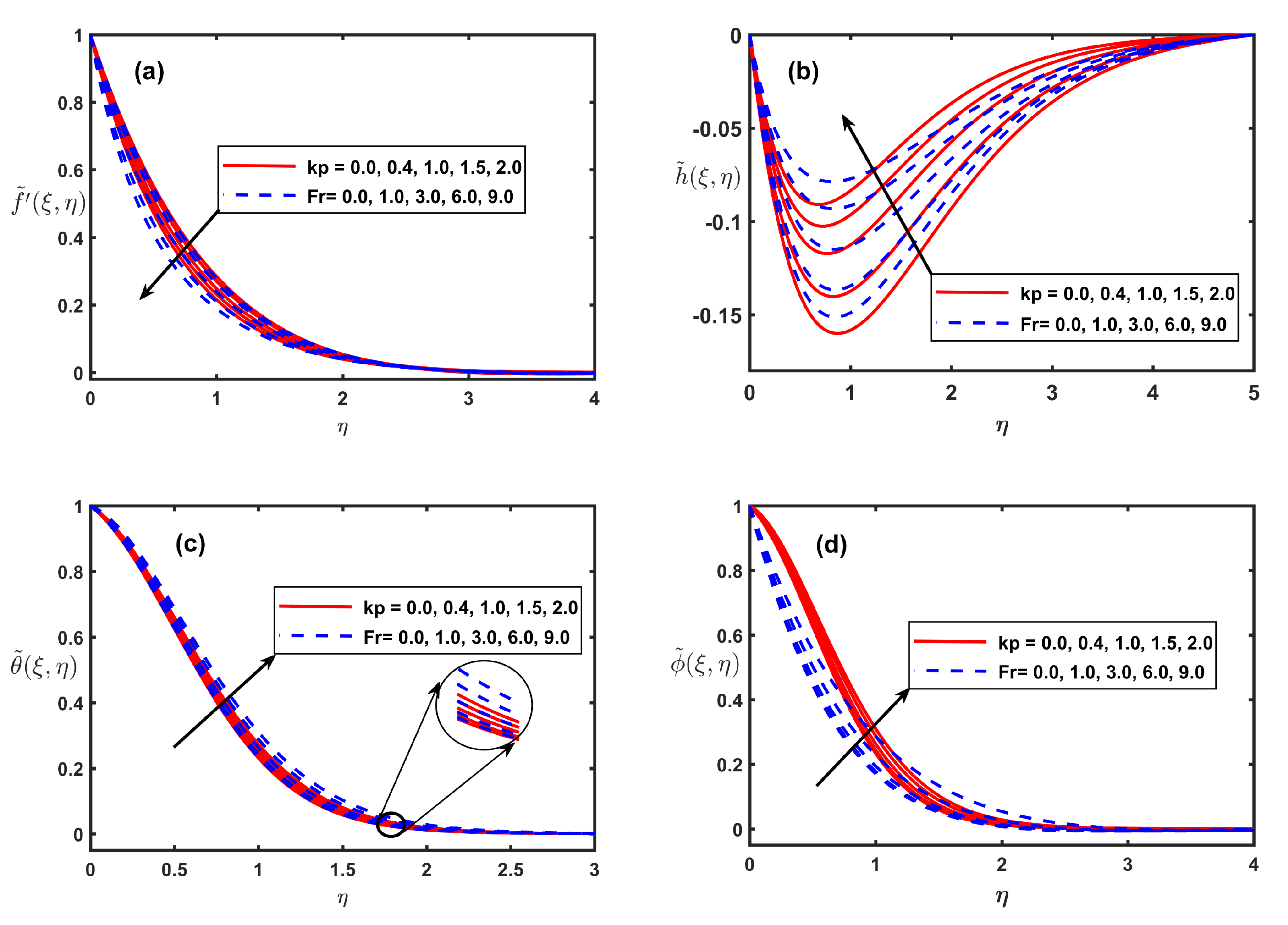

**Figure 3.**Fluctuation of ${\tilde{f}}^{\prime}(\xi ,\eta )$, $\tilde{h}(\xi ,\eta )$, $\tilde{\theta}(\xi ,\eta )$, and $\tilde{\varphi}(\xi ,\eta )$ along with kp and Fr.

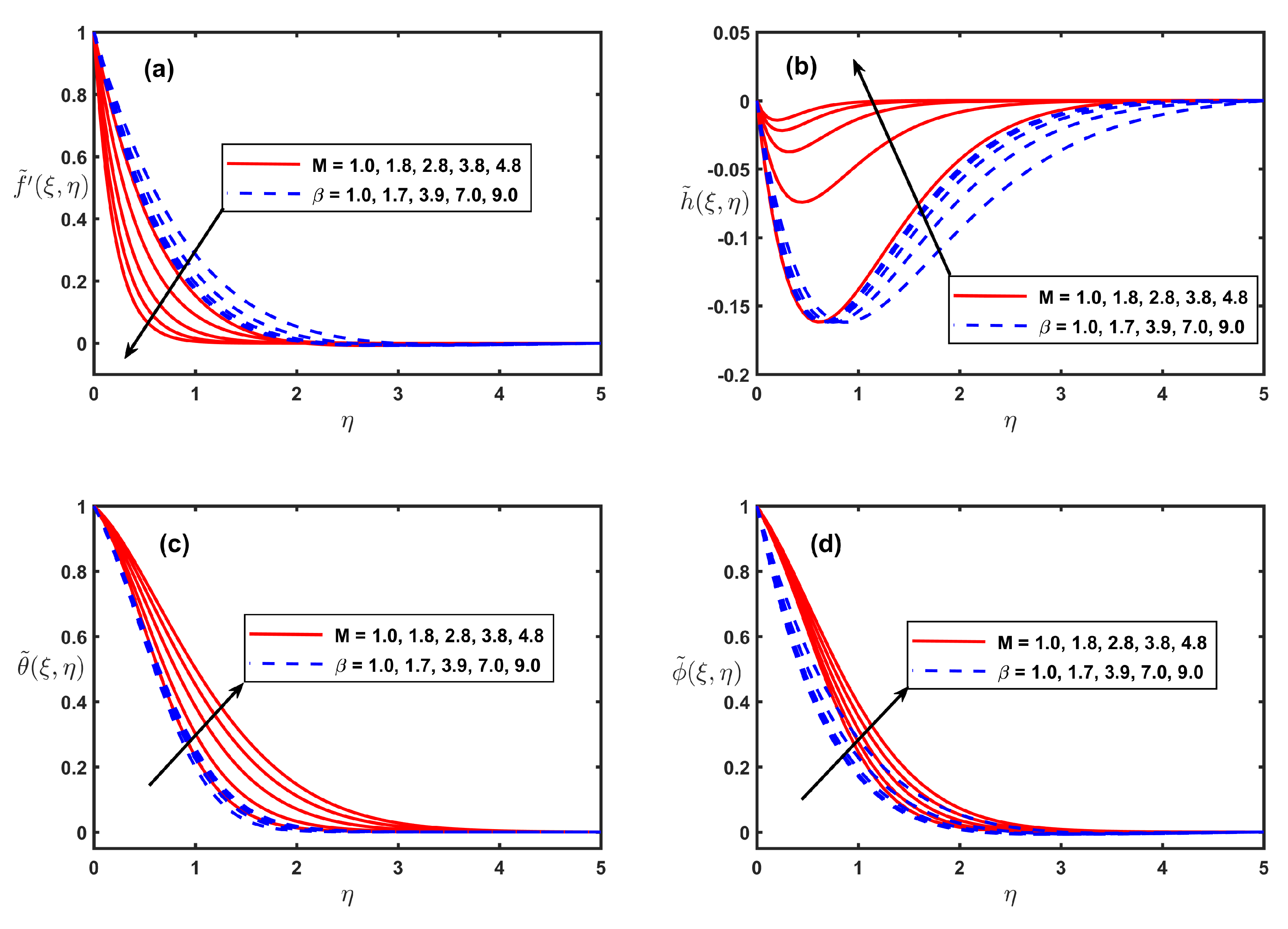

**Figure 4.**Fluctuation of ${\tilde{f}}^{\prime}(\xi ,\eta )$, $\tilde{h}(\xi ,\eta )$, $\tilde{\theta}(\xi ,\eta )$, and $\tilde{\varphi}(\xi ,\eta )$ along with M and $\beta $.

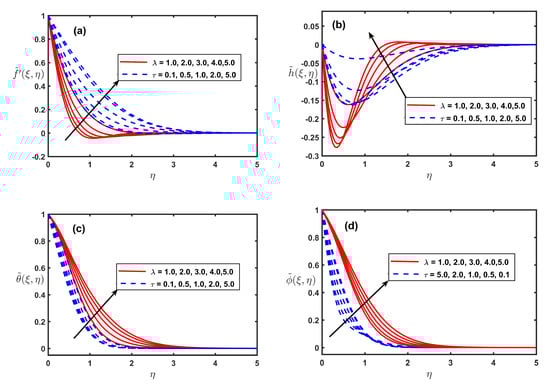

**Figure 5.**Fluctuation of ${\tilde{f}}^{\prime}(\xi ,\eta )$, $\tilde{h}(\xi ,\eta )$, $\tilde{\theta}(\xi ,\eta )$, and $\tilde{\varphi}(\xi ,\eta )$ along with $\lambda $ and $\tau $.

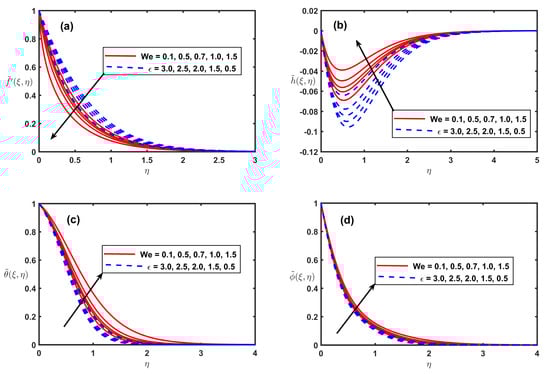

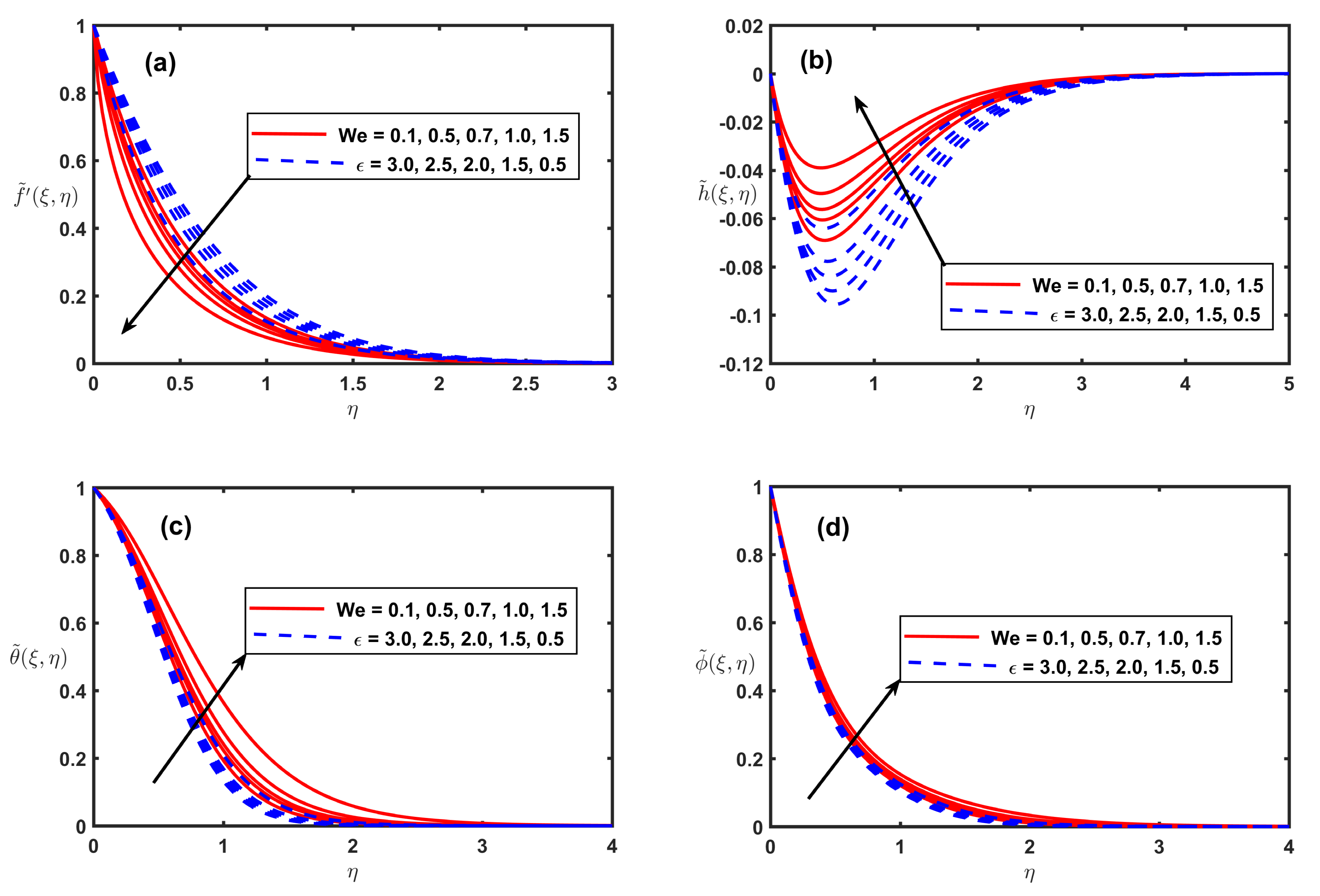

**Figure 6.**Fluctuation of ${\tilde{f}}^{\prime}(\xi ,\eta )$, $\tilde{h}(\xi ,\eta )$, $\tilde{\theta}(\xi ,\eta )$, and $\tilde{\varphi}(\xi ,\eta )$ along with We and $\u03f5$.

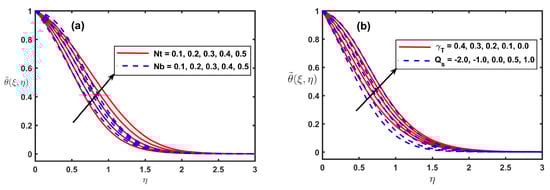

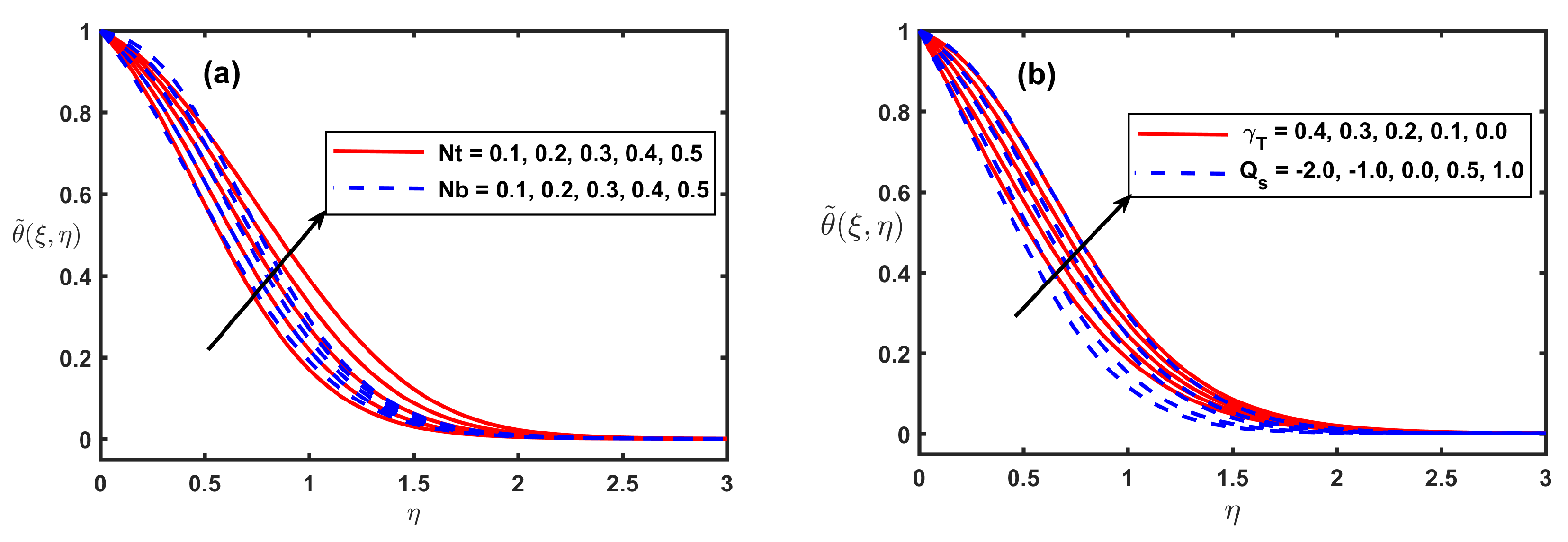

**Figure 7.**Fluctuation of $\tilde{\theta}(\xi ,\eta )$ along with Nb, Nt, ${\gamma}_{T}$, and ${Q}_{s}$.

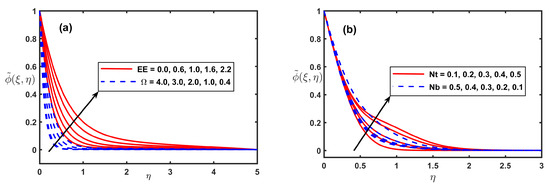

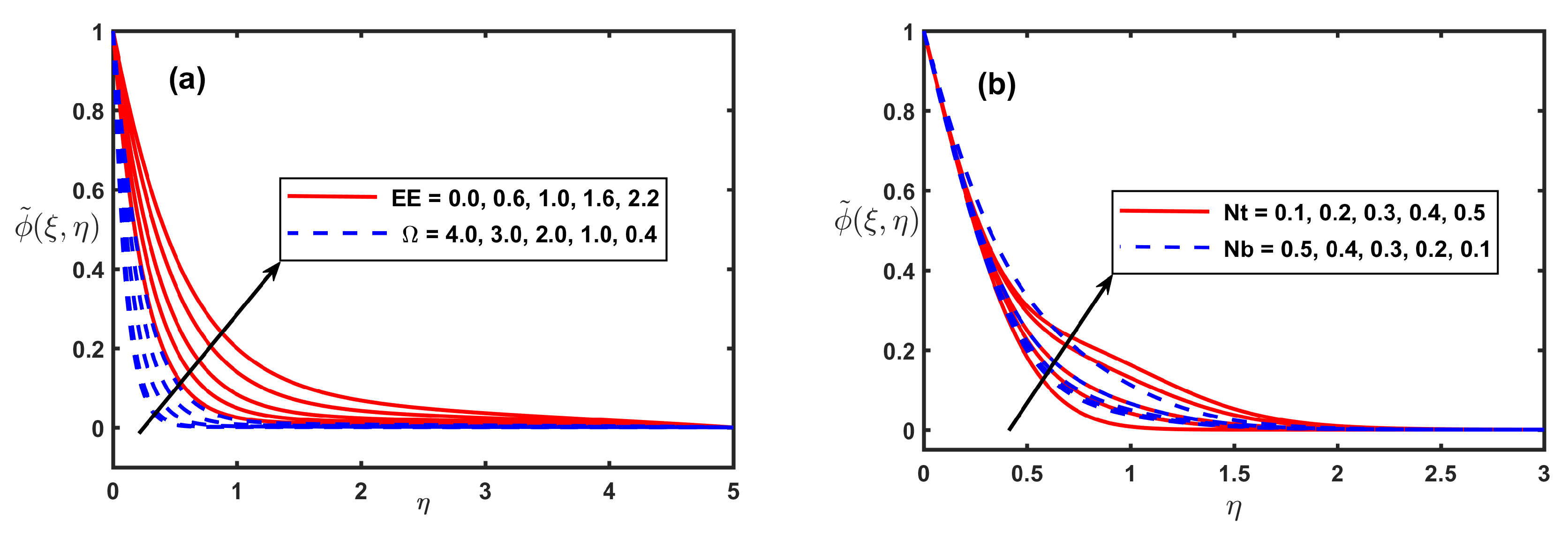

**Figure 8.**Fluctuation of $\tilde{\varphi}(\xi ,\eta )$ along with $EE$, $\mathsf{\Omega}$, Nt, and Nb.

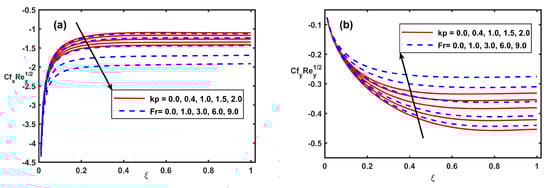

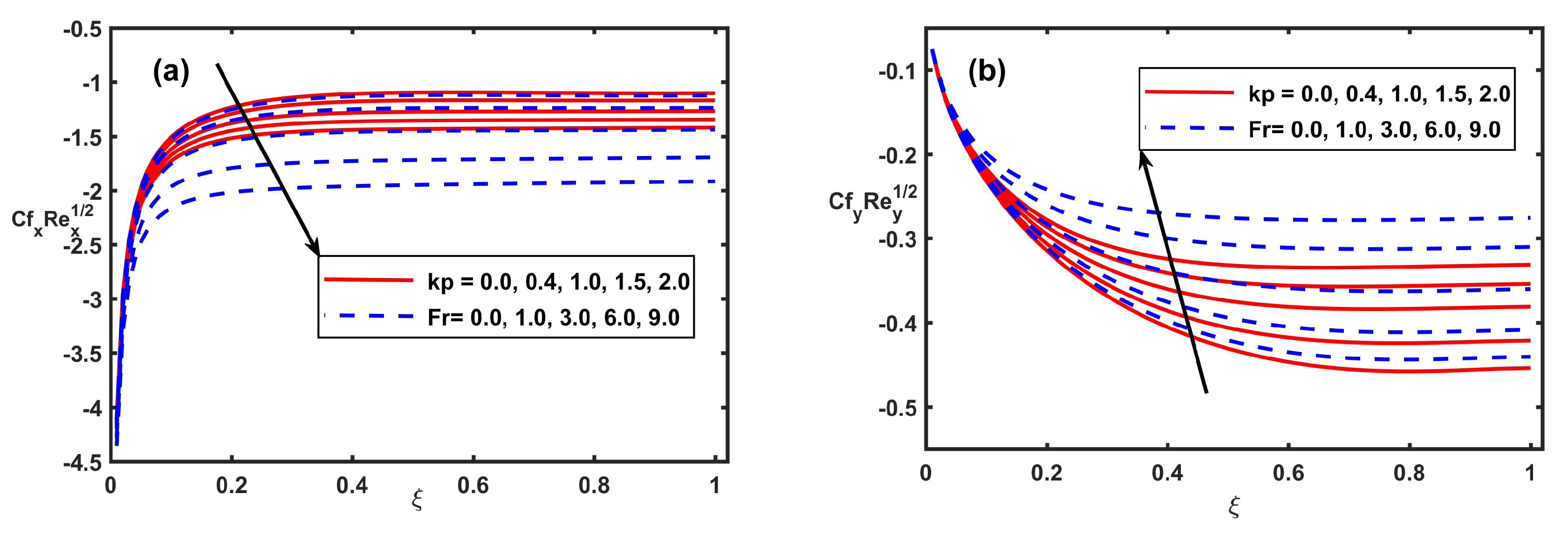

**Figure 9.**Fluctuation of $C{f}_{x}R{e}_{x}^{1/2}$ and $C{f}_{y}R{e}_{y}^{1/2}$ along with $Kp$ and Fr.

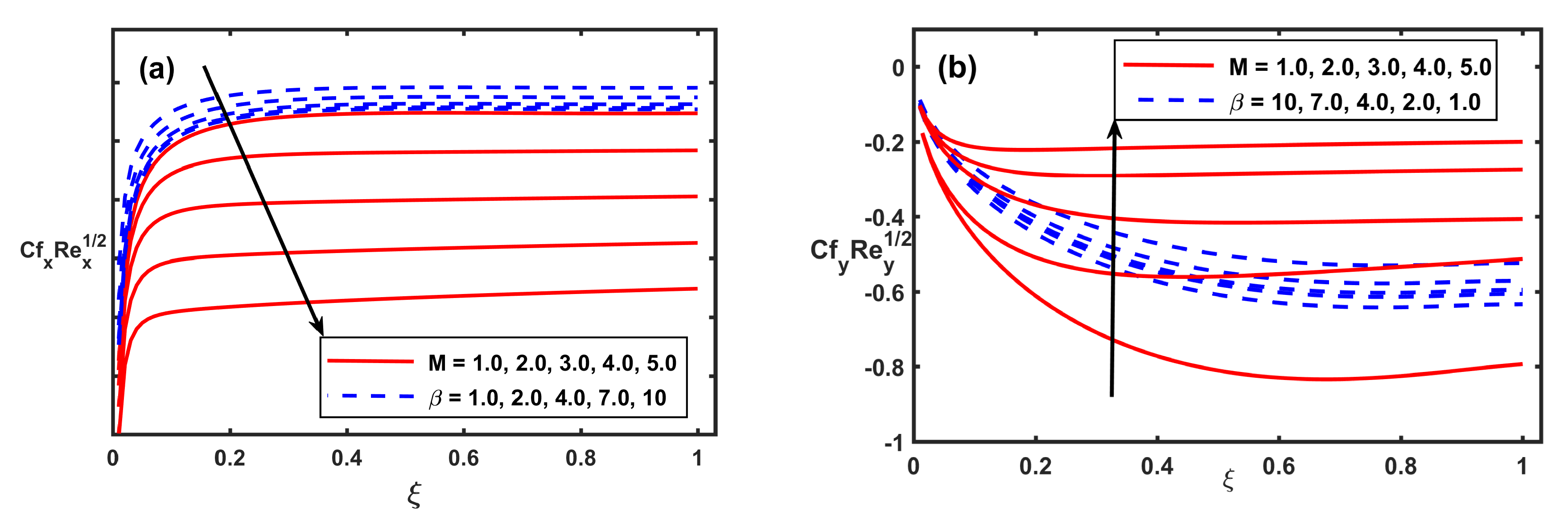

**Figure 10.**Fluctuation of $C{f}_{x}R{e}_{x}^{1/2}$ and $C{f}_{y}R{e}_{y}^{1/2}$ along with M and $\beta $.

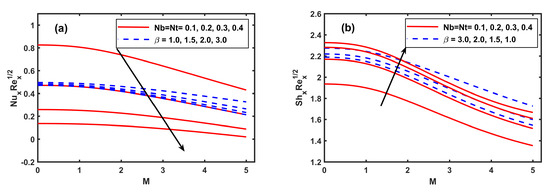

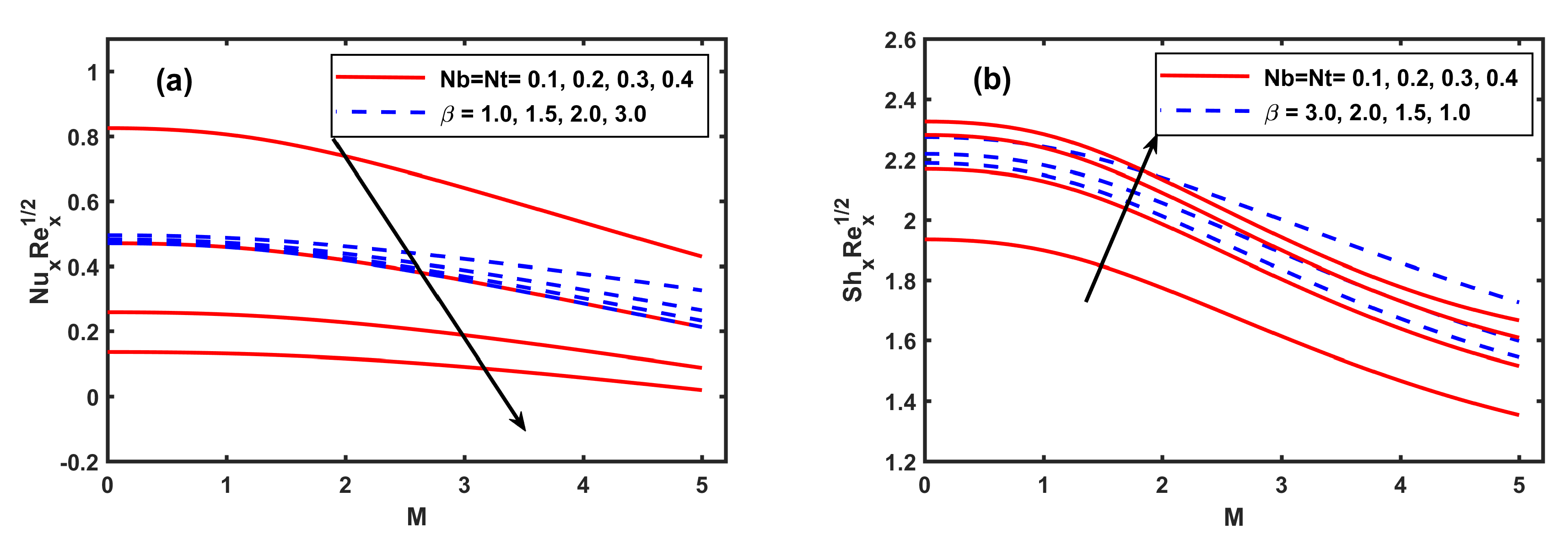

**Figure 11.**Fluctuation of $N{u}_{x}R{e}_{x}^{1/2}$ and $S{h}_{x}R{e}_{x}^{1/2}$ along with Nb, Nt, M, and $\beta $.

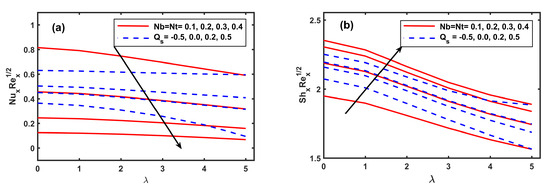

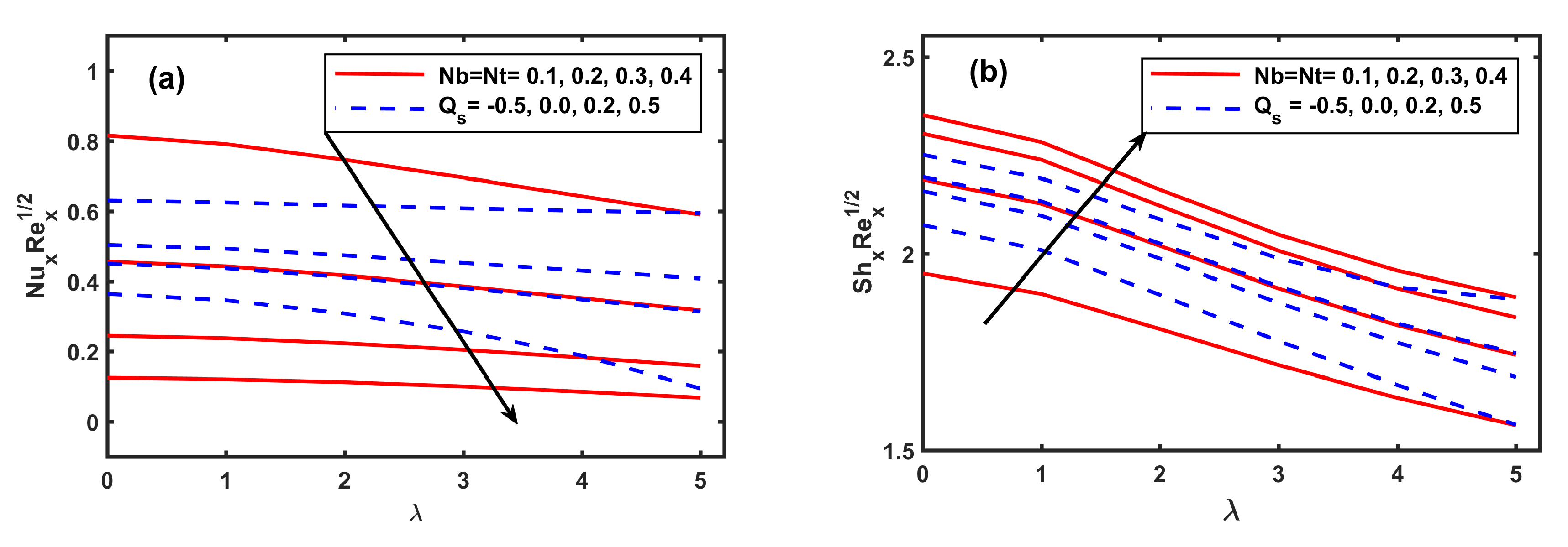

**Figure 12.**Fluctuation of $N{u}_{x}R{e}_{x}^{1/2}$ and $S{h}_{x}R{e}_{x}^{1/2}$ along with Nb, Nt, $\lambda $, and ${Q}_{s}$.

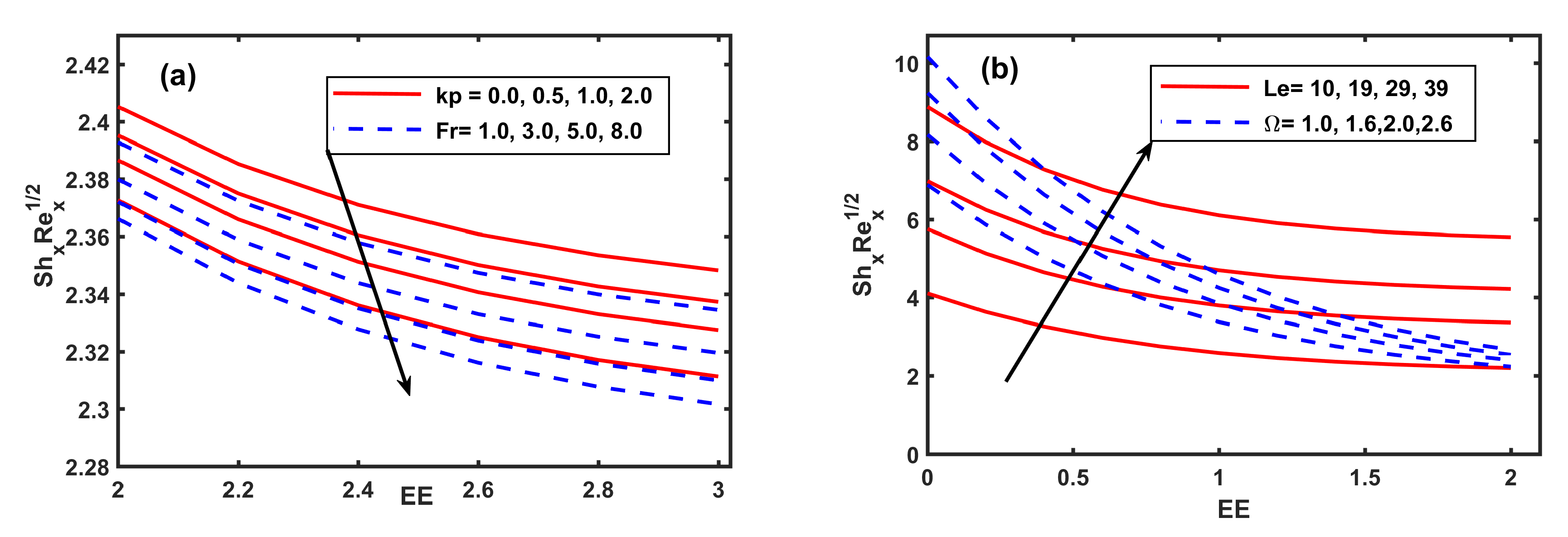

**Figure 13.**Fluctuation of $S{h}_{x}R{e}_{x}^{1/2}$ along with Kp, Fr, EE, Le, and $\mathsf{\Omega}$.

**Table 1.**Comparison of skin friction coefficients for different values of kp, Fr, and $\lambda $ when $M=We=0$, $\beta \to \infty $ at $\xi =1$.

kp | Fr | $\mathit{\lambda}$ | Hayat et al. [14] | FEM (Our Results) | ||
---|---|---|---|---|---|---|

${\mathit{Cf}}_{\mathit{x}}{\mathit{Re}}_{\mathit{x}}^{\mathbf{1}/\mathbf{2}}$ | ${\mathit{Cf}}_{\mathit{y}}{\mathit{Re}}_{\mathit{y}}^{\mathbf{1}/\mathbf{2}}$ | ${\mathit{Cf}}_{\mathit{x}}{\mathit{Re}}_{\mathit{x}}^{\mathbf{1}/\mathbf{2}}$ | ${\mathit{Cf}}_{\mathit{y}}{\mathit{Re}}_{\mathit{y}}^{\mathbf{1}/\mathbf{2}}$ | |||

0.0 | 0.1 | 0.2 | −1.06329 | −0.23769 | −1.063285 | −0.237676 |

0.1 | −1.10532 | −0.22319 | −1.105309 | −0.223185 | ||

0.2 | −1.14675 | −0.21087 | −1.146743 | −0.210873 | ||

0.2 | 0.1 | 0.2 | −1.14675 | −0.21087 | −1.146743 | −0.210873 |

0.2 | −1.17424 | −0.20994 | −1.174241 | −0.209930 | ||

0.3 | −1.20121 | −0.20905 | −1.201216 | −0.209058 | ||

0.2 | 0.1 | 0.05 | −1.12589 | −0.05425 | −1.125878 | −0.054246 |

0.1 | −1.13024 | −0.10786 | −1.130254 | −0.107849 | ||

0.2 | −1.14675 | −0.21087 | −1.146759 | −0.210873 |

**Table 2.**Comparison of Nusselt number $-{\theta}^{\prime}\left(0\right)$ for kp, $\lambda $, Fr, and Pr at $\xi =1$ when M = We = 0, Nt = Nb = 0, ${\gamma}_{T}={Q}_{s}=0$, and $\beta \to \infty $.

kp | $\mathit{\lambda}$ | Fr | Pr | Rashid et al. [10] | FEM (Our Results) |
---|---|---|---|---|---|

0.0 | 0.5 | 1.0 | 1.0 | 0.508972 | 0.508969 |

1.0 | 0.485852 | 0.485847 | |||

2.0 | 0.457520 | 0.457459 | |||

0.2 | 0.1 | 1.0 | 1.0 | 0.542198 | 0.542187 |

0.5 | 0.506965 | 0.506956 | |||

0.9 | 0.467794 | 0.467790 | |||

0.2 | 0.5 | 0.0 | 2.0 | 0.844615 | 0.844608 |

2.0 | 0.783173 | 0.783165 | |||

3.0 | 0.734272 | 0.734277 | |||

0.2 | 0.5 | 1.0 | 2.0 | 0.811336 | 0.811327 |

3.0 | 1.064610 | 1.064582 | |||

4.0 | 1.279790 | 1.279804 |

**Table 3.**Comparison of Nusselt number $-{\theta}^{\prime}\left(0\right)$ for $\lambda $ and M at $\xi =1,Pr=2.0$ when other parameters are ignore.

$\mathit{\lambda}$ | Abbas et al. [34] | FEM (Our results) | ||||
---|---|---|---|---|---|---|

M = 0.5 | M = 1.0 | M = 2.0 | M = 0.5 | M = 1.0 | M = 2.0 | |

0.0 | 0.886 | 0.823 | 0.668 | 0.8862 | 0.8230 | 0.6682 |

0.5 | 0.841 | 0.800 | 0.663 | 0.8408 | 0.8003 | 0.6627 |

1.0 | 0.768 | 0.750 | 0.648 | 0.7684 | 0.7501 | 0.6483 |

2.0 | 0.641 | 0.643 | 0.603 | 0.6411 | 0.6429 | 0.6030 |

5.0 | 0.447 | 0.449 | 0.461 | 0.4467 | 0.4494 | 0.4612 |
