Numerical Investigation on Coal Combustion in Ultralow CO₂ Blast Furnace: Effect of Oxygen Temperature

Abstract

The cooling effect of room-temperature oxygen in oxygen blast furnaces with top gas recycling (TGR-OBF) delays the coal combustion process. To further explore the oxygen–coal combustion mechanism and intensify coal combustion in TGR-OBF, the effect of oxygen temperature on coal combustion was investigated using computational fluid dynamics (CFD). A three-dimensional model was developed to simulate the lance–blowpipe–tuyere–raceway of TGR-OBF. The effect of oxygen temperature at the same oxygen velocity and mass flow on coal combustion was investigated. Results showed the cooling effect of room-temperature oxygen was weakened, and the coal burnout was greatly increased with the increase in oxygen temperature. In particular, the coal burnout increased from 21.64% to 81.98% at the same oxygen velocity when the oxygen temperature increased from 300 to 500 K. The results provide useful reference for the development of TGR-OBF and coal combustion technology.

1. Introduction

Blast furnaces are the main facilities to produce hot metal because of their high productivity and competitive cost compared to other ironmaking technologies [1,2,3,4]. However, the production process of hot metal consumes a lot of fossil fuel and produces significant amounts of CO₂. Therefore, there is great environmental concern about blast furnaces, and it is necessary to further conserve energy and reduce CO₂ emissions. It is hard to significantly change carbon consumption and CO₂ emissions under the present conditions. Consequently, there is a need to develop a new process of blast furnace, and this is also key to maintaining the use of blast furnaces.

Oxygen blast furnace with top gas recycling (TGR-OBF) is a new blast furnace process, representing the development direction of blast furnaces [5,6,7,8]. A schematic diagram of the TGR-OBF process is shown in Figure 1a. Compared to the traditional blast furnace (TBF) (shown in Figure 1b), room-temperature oxygen is injected in TGR-OBF instead of hot air. Furthermore, the CO₂-stripped top gas is heated and recycled into the blast furnace. In theory, the CO₂ emission and carbon consumption of TGR-OBF can be reduced by 76% and 24%, respectively, compared to TBF [9]. The CO₂ concentration in the top gas of TGR-OBF also increases significantly, which is very beneficial for the removal of CO₂ in top gas. Furthermore, the main component of top gas is CO and CO₂, and it can be used for the production of methanol [10,11,12]. Therefore, the additional value of top gas is enhanced. The blast parameters of TGR-OBF change greatly compared to those of TBF, and the coal combustion characteristics will then also change significantly. Therefore, the crux of high pulverized coal rate (PCR) in TGR-OBF is to further reveal the coal combustion characteristics and then explore a proper solution to the problem.

In our previous work [13], the coal burnout at 70% O₂ was found to be only 21.64%. The coal burnout of TBF is 71.78%, meaning TGR-OBF does not have any advantage over TBF. Although the oxygen concentration in TGR-OBF increases significantly, the cooling effect of room-temperature oxygen has some adverse effect on coal combustion. The oxygen temperature may be the main reason causing this phenomena, so properly increasing it may be helpful for coal combustion.

Many investigations by other scholars have focused on the coal combustion of TBF. Shen et al. [14,15,16] investigated the effect of blast temperature and oxygen content on coal combustion in TBF. Chen et al. [17,18,19] investigated the effect of coal lance configurations on coal combustion in TBF. Sato et al. [6] discussed the next-generation ironmaking process based on TGR-OBF using a material and energy balance model. Sahu et al. [20,21] simulated the behavior of TGR-OBF under different operating conditions using a two-zone furnace model. However, investigations on coal combustion in TGR-OBF are lacking. Most of the current research remains in the theoretical stage, and there is still much deficiency in the understanding of TGR-OBF. Therefore, it is necessary to carry out further investigations on coal combustion in TGR-OBF. This will be beneficial for better understanding TGR-OBF. Furthermore, it will be helpful for the development of TGR-OBF.

It is very difficult to carry out a pulverized coal injection trial in a real or simulated blast furnace because of the hazardous environment and complex condition in the raceway region of the blast furnace. Fortunately, computational fluid dynamics (CFD) has become a powerful tool for the investigation of coal combustion in blast furnaces. Furthermore, the reliability and superiority of CFD have been fully proven by many scholars [15,17,22,23].

Considering the aforementioned reasons, in this study, a three-dimensional model was developed to simulate the lance–blowpipe–tuyere–raceway of a TGR-OBF. The effect of oxygen temperature at 70% O₂ on coal combustion was investigated. The effect of oxygen temperature at the same velocity and mass flow on coal combustion was also investigated. The results provide useful insight into the development of the TGR-OBF process. Furthermore, it helps explore an effective way of intensifying coal combustion in TGR-OBF.

2. Mathematical Model

2.1. Basic Equations

The gas–particle flow and coal combustion in the tuyere and raceway regions were calculated based on the framework of software package ANSYS-FLUENT. The model formulations of the gas and particle phases have been described in our previous works in detail [24,25,26].

2.2. Combustion Process

Coal combustion is regarded as a multistage overlapping process consisting of (i) preheating, (ii) devolatilization of raw coal, (iii) combustion of volatiles, and (iv) oxidation/gasification of the residual char [27].

(1) Devolatilization of Coal

The devolatilization process releases volatiles (C_αH_βO_γN_δ) and char (C_(s)). The coal devolatilization process is simulated using the so-called two competing reactions model. A pair of reactions with different rates (k₁, k₂) and volatile yields (α₁, α₂) compete to pyrolyze the raw coal.

$$Raw Coal\begin{array}{c}{k}_1\nearrow {\alpha }_{1}V{M}_1+\left(1-{\alpha }_1\right)C_1 \left(Low Temperature\right)\\ k_2\searrow {\alpha }_{2}V{M}_2+\left(1-{\alpha }_2\right)C_2 \left(High Temperature\right)\end{array}$$

(2) Gas Combustion

The gas combustion reactions are as follows:

$${\mathrm{C}}_{\mathsf{\alpha }}{\mathrm{H}}_{\mathsf{\beta }}{\mathrm{O}}_{\mathsf{\gamma }}{\mathrm{N}}_{\mathsf{\delta }}{+\mathrm{aO}}_2\to {\mathrm{bCO}+\mathrm{cH}}_2{\mathrm{O}+\mathrm{dN}}_2$$

(1)

$$\mathrm{CO}+0.5{\mathrm{O}}_2\to {\mathrm{CO}}_2$$

(2)

$${\mathrm{C}}_{\mathsf{\alpha }}{\mathrm{H}}_{\mathsf{\beta }}{\mathrm{O}}_{\mathsf{\gamma }}{\mathrm{N}}_{\mathsf{\delta }}{+\mathrm{aO}}_2\to {\mathrm{bCO}+\mathrm{cH}}_2{\mathrm{O}+\mathrm{dN}}_2$$

(3)

In turbulent flow, the gas reaction mechanisms are represented by the finite rate/eddy dissipation model. The net reaction rate is determined by the chemistry rate and the mixing rate.

(3) Oxidation/Gasification of Residual Char

For the char reactions, the heterogeneous surface reaction model is used [28]. The following reactions are considered during the coal combustion process:

$$\mathrm{C}\left(\mathrm{s}\right)+0.5{\mathrm{O}}_2\to \mathrm{CO}$$

(4)

$$\mathrm{C}\left(\mathrm{s}\right){+\mathrm{CO}}_2\to 2\mathrm{CO}$$

(5)

$$\mathrm{C}\left(\mathrm{s}\right){+\mathrm{H}}_2\mathrm{O}\to {\mathrm{CO}+\mathrm{H}}_2$$

(6)

The reaction rate is expressed as follows:

$$R_{j,r}=A_p{\eta }_r{Y}_{j}P\frac{k_r{D}_{0,r}}{D_{0,r}+k_r}$$

where A_p and η_r indicate the particle surface area (m²) and effectiveness factor, respectively; Y_j is the mass fraction of species j; and P represents the partial pressure (Pa).

3. Geometry and Operating Conditions

A test TGR-OBF of 120 m³ was built based on a TBF of 120 m³ at Laiwu Steel Company in Shandong Province, China. To further understand the operation of pulverized coal injection in TGR-OBF, the coal combustion characteristics in TGR-OBF was investigated. The main operating parameters of the TGR-OBF and TBF are summarized in

Table 1. Main blast parameters of TBF.

Blast Volume (Nm3/t)	Blast Temperature (K)	Volume (m3)	Coal Ratio (kg/t)
1129	1473	120	150

and

Table 2. Main blast parameters of TGR-OBF.

Oxygen		Recycling Top Gas
Volume Nm3/t	Content %	Volume Nm3/t	Temperature K	CO %	H2 %	CO2 %	N2 %	H2O %
366	70	280	1173	52.58	10.81	4.5	31.49	0.62

. The properties of pulverized coal used in this model are shown in

Table 3. Properties of coal [23].

Proximate Analysis (wt %)		Ultimate Analysis		Size Distribution
Moisture	1	C	88.78	90 μm: 5%
Volatiles	20.02	H	4.54	63 μm: 25%
Ash	8.32	O	4.68	45 μm: 55%
Fixed carbon	70.66	N	2	20 μm: 15%

[23].

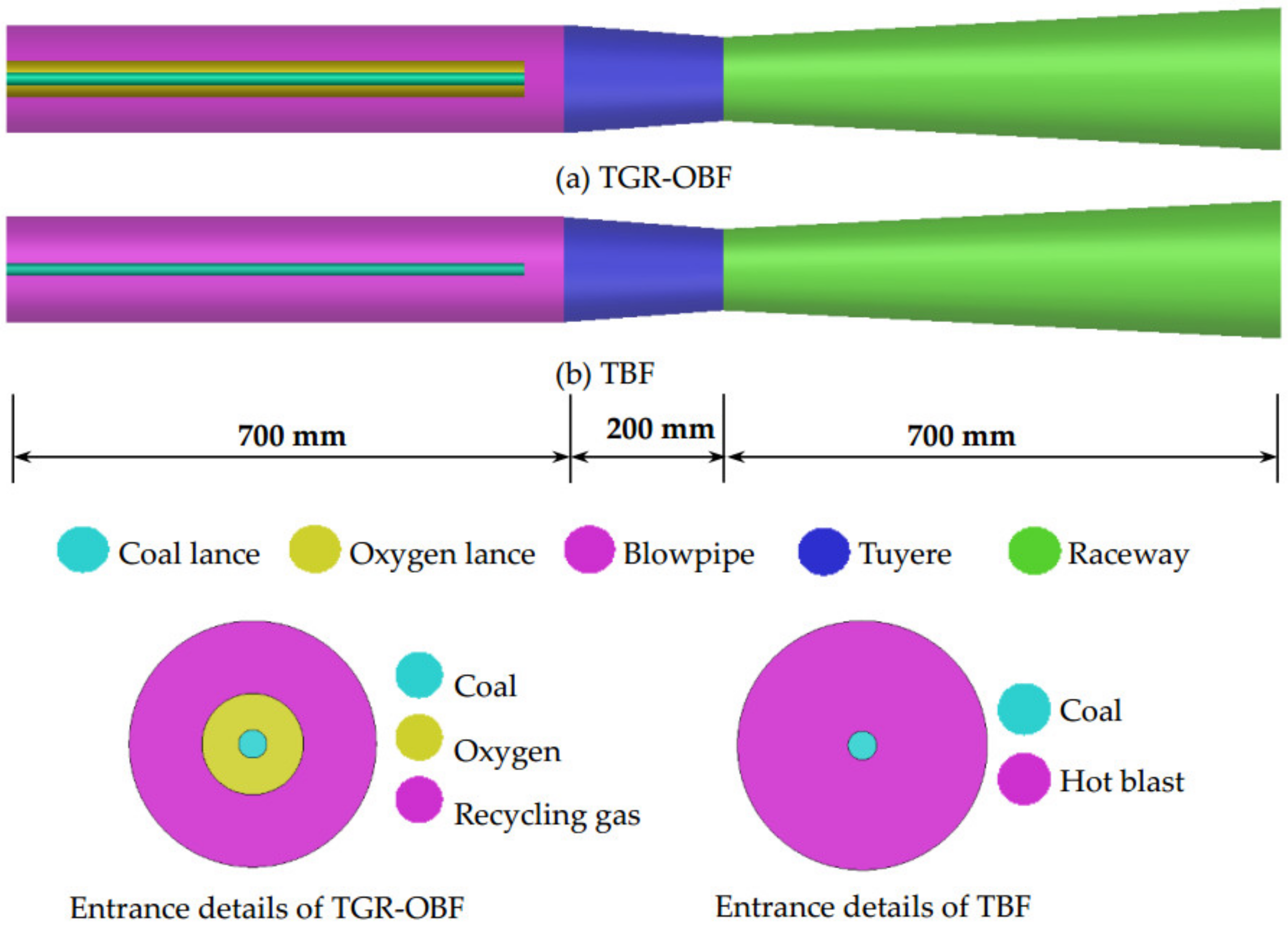

The geometric details of the models are shown in Figure 2. The models simulated the lance–blowpipe–tuyere–raceway of blast furnaces. The coal particles mainly flowed along the horizontal direction in the raceway region. The coal burnout at the end of the raceway represented that of the entire raceway region. Therefore, the investigations were mainly focused on coal combustion along the horizontal direction. The 120 m³ TBF was dissected in 2007. The dissection results showed the raceway depth to be about 700 mm. Therefore, the raceway was designed as a tube of 700 mm length with a divergence angle of 3° in accordance with others [27].

4. Results and Discussion

4.1. Model Validation

The coal combustion in blast furnaces or other facilities has been investigated by many scholars using CFD [17,28,29,30,31,32]. The reliability of CFD has been fully proven. Moreover, investigations on coal combustion in TBF has been carried out using CFD before investigating that in TGR-OBF [21,22,23]. The effect of the oxygen content in hot blast on coal combustion was investigated in our earlier work [24], and the results and phenomena were the same or similar to that of other scholars [27]. Furthermore, the cooling effect of room-temperature oxygen on coal combustion was illustrated in our earlier study [25], which was also in good agreement with the study by Chen [17]. These comparisons fully prove that the model is reliable. Therefore, it is completely acceptable to investigate coal combustion in TGR-OBF using this model.

4.2. Effect of Oxygen Temperature at the Same Velocity

First, the effect of oxygen temperature at the same velocity on coal combustion was investigated using the numerical model.

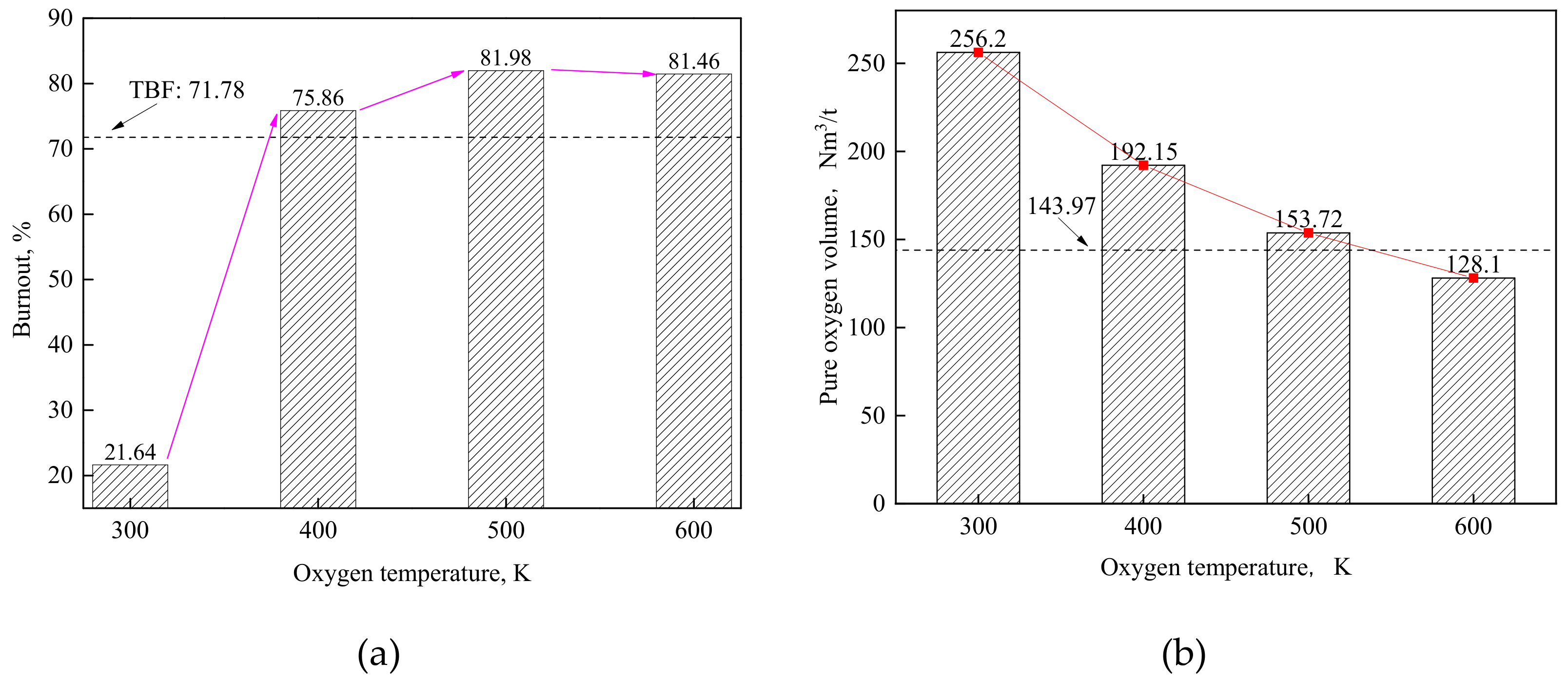

Figure 3a shows the effect of oxygen temperature on the final coal burnout at the raceway outlet. In general, the effect of oxygen temperature was very obvious. The coal burnout at 300 K was only 21.64%. When the oxygen temperature increased to 400 K, the coal burnout increased to 75.86%. The burnout at 500 K was 81.98%, which was the maximum. As oxygen temperature continued to increase, the coal burnout slightly decreased. The coal particles were in direct contact with the oxygen stream after leaving the coal lance. The cooling effect of room-temperature oxygen delayed the coal combustion process. The cold oxygen volume decreased with the increase in oxygen temperature. The adverse effect of cold oxygen was weakened, and the char had more time to react with oxygen. Figure 3b shows the changes in pure oxygen volume with oxygen temperature. The complete combustion of 150 kg/t∙HM pulverized coal required 143.97 Nm³ O₂. However, the pure oxygen volume at 300 K was 256.2 Nm³/t∙HM, which could fully meet coal combustion. The excess cold oxygen would be harmful for coal combustion. The pure oxygen volume at 400 and 600 K could both meet full combustion of 150 kg/t∙HM pulverized coal. The pure oxygen volume at 600 K was 128.1 Nm³/t∙HM. This would not theoretically meet full combustion of 150 kg/t∙HM pulverized coal. Furthermore, some oxygen would be used for recycling gas combustion. Therefore, the coal burnout slightly decreased. It can be concluded that properly decreasing the oxygen volume in direct contact with coal particles is very useful for coal combustion.

The coal burnout at different positions was investigated, as shown in Figure 4a. The coal combustion process was enhanced with increase in oxygen temperature. When the oxygen temperature was 300 K, the coal particles only began to release volatiles at a distance of about 0.6 m. With the increase in oxygen temperature, the coal combustion process was enhanced. In particular, the coal particles already started to release volatiles at a distance of 0.4 m at 600 K oxygen temperature. If the devolatilization process was to be extended, the char combustion process would be shortened. Finally, the coal particles would leave the raceway region without full combustion. Significant devolatilization starts at about 600 K [28,33]. Figure 4b shows that the coal particles were rapidly heated with the increase in oxygen temperature. This was the main reason for the rapid combustion of coal particles with the increase in oxygen temperature. With the increase in oxygen temperature, the cold oxygen volume decreased, and the coal particles could get more heat. The heat was mainly from the recycling gas combustion in the initial combustion process, so the CO reaction rate of different oxygen temperatures was investigated, as shown in Figure 4c. With the increase in oxygen temperature, the CO reaction rate slightly increased before a distance of 0.4 m and rapidly increased after 0.4 m. In the raceway region, the mixing rate of oxygen and recycling gas was the limiting factor of CO reaction. The increase in temperature was useful for the mixing of oxygen and recycling gas.

To better understand coal combustion characteristics under different oxygen temperatures, the mass ratio (m/m₀) of volatile matter was investigated, as shown in Figure 5. The mass ratio was defined as the ratio of char (or volatiles) mass in coal particles to that in raw coal particles. The devolatilization process was enhanced with the increase in oxygen temperature. This was in accordance with the change in coal particle temperature and burnout. Many of the coal particles still could not completely release volatiles at the raceway outlet when the oxygen temperature was 300 K. This was the main reason for a lower burnout under 300 K oxygen temperature. With the increase in oxygen temperature, more coal particles completely released volatiles. In particular, all the volatiles were released under 500 and 600 K oxygen temperature at the raceway outlet. Furthermore, the general devolatilization rate increased with the increase in oxygen temperature. This was because the cold oxygen volume decreased, and the coal particles could obtain more heat. Furthermore, the recycling gas combustion reaction was intensified, and more heat was released. Promoting recycling gas combustion in the initial coal combustion stage is therefore key to increasing coal burnout.

The volatile and char mass fraction were 22.08% and 77.92%, respectively, in combustibles. In other words, the volatiles only contributed a little and the char contributed a lot to the coal burnout. Therefore, to further reveal the effect of oxygen temperature on coal combustion characteristics, the change of char m/m₀ was analyzed, as shown in Figure 6. The char combustion process was enhanced with increase in oxygen temperature. When oxygen temperature was 300 K, most of the char could not finish combustion at the raceway outlet. More char reacted with oxygen with the increase in oxygen temperature. Furthermore, the char reaction rate significantly increased with the increase in oxygen temperature. This was mainly due to two reasons. On the one hand, the char combustion distance was extended. On the other hand, the coal particles got more heat with the increase in oxygen temperature. Moreover, the char combustion rate slowed at the end of the coal plume with the increase in oxygen temperature. This was mainly due to the lack of oxygen at the end of the raceway region.

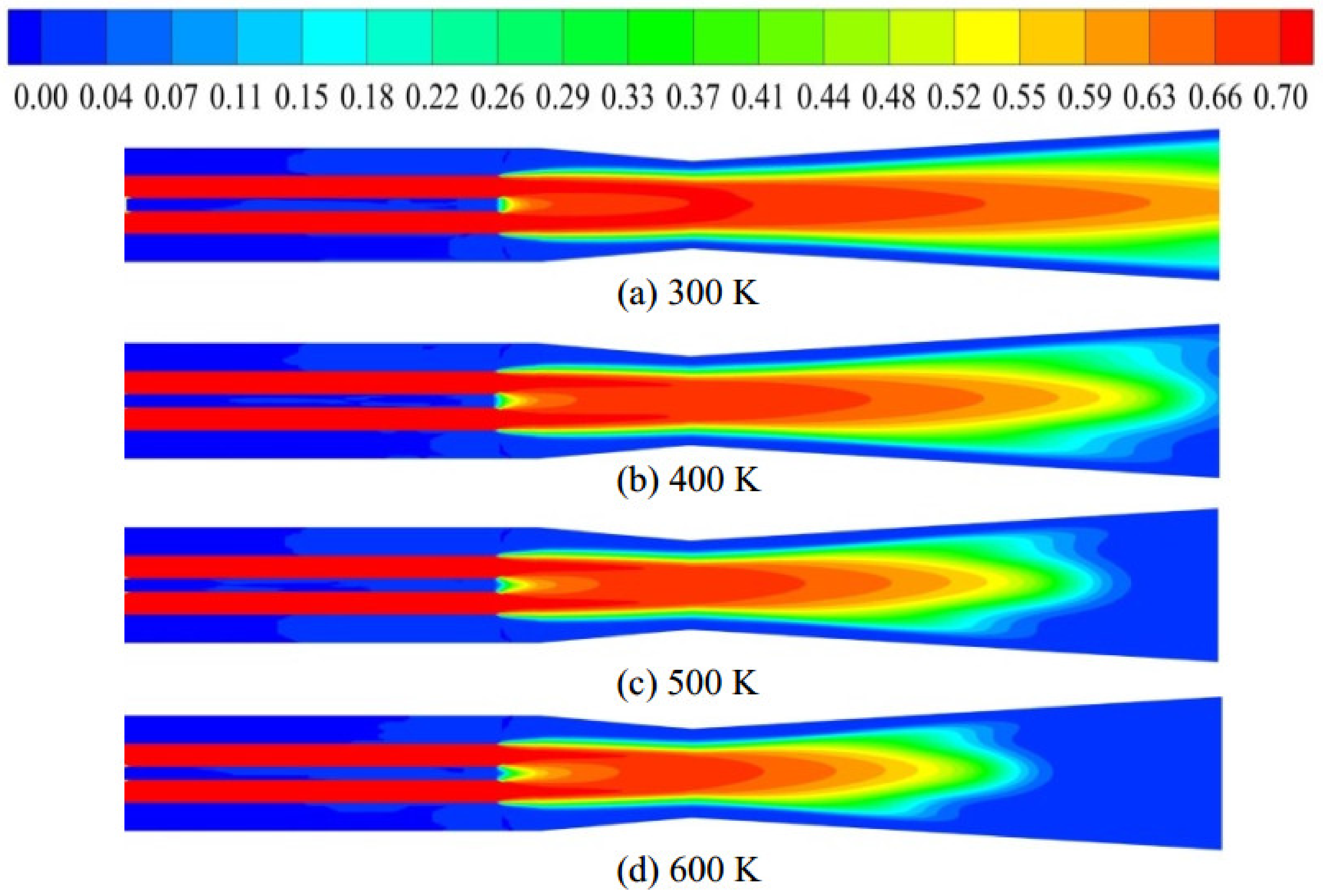

The oxygen distribution at different oxygen temperatures along Z = 0 plane was investigated, as shown in Figure 7. When the oxygen temperature was 300 K, a significant amount of oxygen was found at the raceway outlet. This further explains why most coal particles left the raceway region without full combustion. Less and less oxygen was found at the raceway outlet with the increase in oxygen temperature. When the oxygen temperature was 500 and 600 K, there was no oxygen at the raceway outlet. Oxygen therefore disappeared with the increase in oxygen temperature. This was closely related with char combustion. The coal combustion process was enhanced with the increase in oxygen temperature. Furthermore, the oxygen volume decreased with the increase in oxygen temperature. This further explains why the coal burnout increased slowly and the char combustion rate decreased at the end of the raceway region when the oxygen temperature was 500 and 600 K. When the oxygen temperature was 500 and 600 K, the oxygen concentration was the main factor affecting further coal combustion. The coal burnout would further increase by increasing oxygen concentration in the downstream of the coal plume. This is an important method for intensifying coal combustion in TGR-OBF.

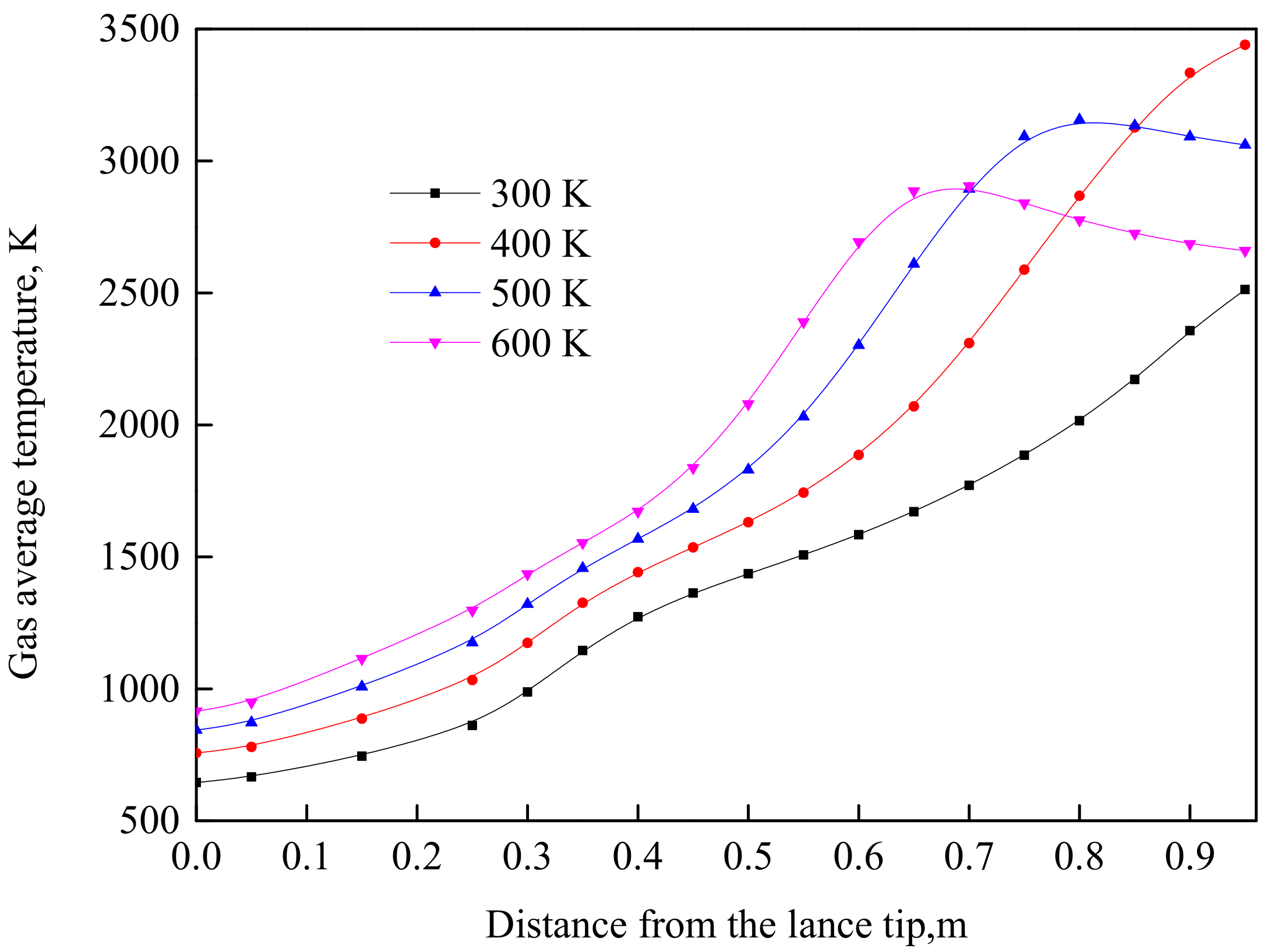

The gas temperature is closely related to reactions and reflects the relationship between reactions and heat transport. Therefore, the average gas temperature along the horizontal direction at different oxygen temperatures was investigated, as shown in Figure 8. In general, the average gas temperature in the first part of the raceway region increased with the increase in oxygen temperature. This was because the cold oxygen amount decreased as the oxygen temperature increased. The recycling gas and char combustion rate rapidly increased, and more heat was released. However, at the end of the raceway region, the average gas temperature at 400 K oxygen temperature was higher than that at other oxygen temperatures. Furthermore, the average gas temperature at 500 K oxygen temperature was higher than that at 300 and 600 K. The average gas temperature at 600 K oxygen temperature was higher than that at 300 K. The reasons for this can be explained as follows. As shown in Figure 4c and Figure 6, the recycling gas and char combustion rate at 400 K oxygen temperature was higher than that of other temperatures at the end of the raceway. The means that more heat was released. Figure 7 shows the oxygen was completely consumed at the end of the raceway when the oxygen temperature was 500 and 600 K. This meant no more heat would be released. Furthermore, the endothermic reaction of char with CO₂ and H₂O would go on. Therefore, the gas temperature at 500 and 600 K oxygen temperature declined at the raceway outlet.

4.3. Effect of Oxygen Temperature at the Same Mass Flow

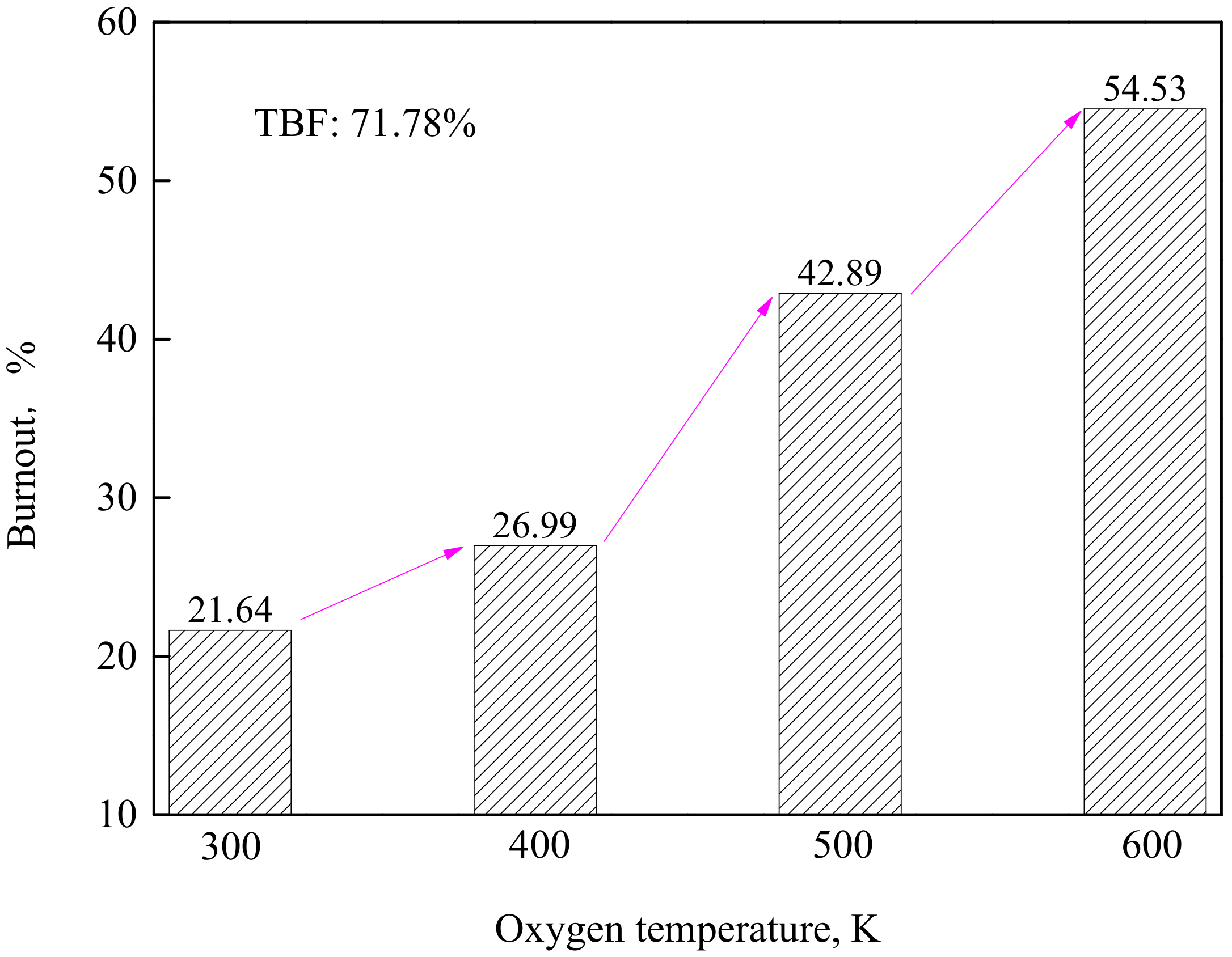

To further understand the effect of oxygen stream, the effect of oxygen temperature at the same mass flow on coal combustion was investigated. Figure 9 shows the effect of oxygen temperature on the final coal burnout. In general, the coal burnout increased with the increase in oxygen temperature. However, the change was not very obvious. When the oxygen temperature increased to 400 K, the coal burnout increased to 26.99%, an increase of only 5.35%. When the oxygen temperature increased to 500 K, the coal burnout was 42.89%, an increase of 21.25% compared to that at 300 K. When the oxygen temperature was 600 K, the coal burnout was further increased. This was because more heat was brought in with the increase in oxygen temperature. Furthermore, the higher temperature promoted the combustion reaction of recycling gas, and more heat was released. However, the mass flow of cold oxygen remained the same, and the cooling effect of oxygen stream was still obvious.

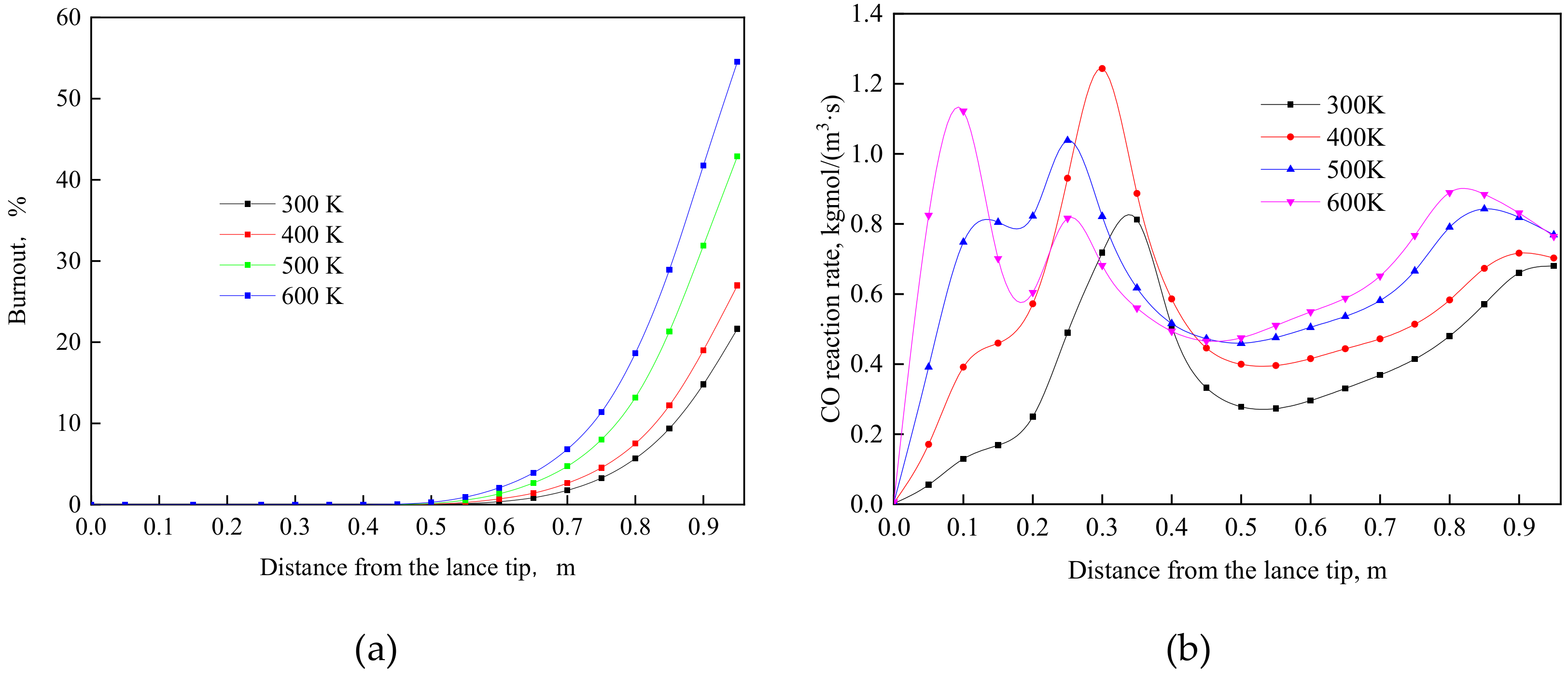

Figure 10a shows the coal burnout at different distances from the lace tip under different oxygen temperatures. The coal particles released volatiles at almost the same distance from the lace tip under different oxygen temperatures. Furthermore, the coal burnout at different oxygen temperatures all maintained rapid growth, and the increasing rate became higher with the increase in oxygen temperature. The reasons causing this phenomenon can be explained as follows. The cooling effect of the oxygen stream on devolatilization was still obvious. The recycling gas combustion reaction strengthened with the increase in oxygen temperature, and more heat was released. This made up for the hysteresis of the coal combustion process, but the effect was not very obvious. To further explore the reasons, the CO combustion rate along the centerline direction was investigated, as shown in Figure 10b. In the initial stage, the CO reaction rate increased significantly with the increase in oxygen temperature, and much heat was released. This was because the velocity of the oxygen stream increased significantly with the increase in oxygen temperature, and the mixing of oxygen and recycling gas increased. However, the coal particles got less heat. On the one hand, more cold oxygen shared more heat. On the other hand, the oxygen stream velocity increased with the increase in oxygen temperature. This was unfavorable for heat transfer to coal particles. In general, decreasing the cold oxygen amount in direct contact with coal particles and enhancing recycling gas combustion is the most effective method to increase coal burnout of TGR-OBF.

5. Conclusions

To further understand the effect of oxygen stream and intensify coal combustion in TGR-OBF, a three-dimensional model was developed to simulate the lance–blowpipe–tuyere–raceway of an TGR-OBF. The effect of oxygen temperature on coal combustion was investigated. The main conclusions are as follows.

(1)

The cooling effect of room-temperature oxygen is the main reason causing a lower burnout in TGR-OBF. The coal burnout can be increased significantly by decreasing the cold oxygen volume in direct contact with coal particles. When the oxygen temperature increased from 300 to 500 K at the same velocity, the coal burnout was increased by 60.34%.

(2)

The initial heat for coal combustion is from recycling gas combustion. The coal combustion process will be enhanced by improving recycling gas combustion. Increasing the mixing of recycling gas and oxygen will significantly promote the combustion reaction. This is an important method to increase coal burnout of TGR-OBF.

(3)

When the oxygen temperature was 500 K at the same velocity, the coal combustion was weakened due to the lack of oxygen at the end of the raceway region. Increasing the oxygen content at the end of the raceway region is also an effective way to further increase coal burnout.

(4)

Increasing oxygen temperature is very helpful for coal combustion. The preheating method of oxygen stream will be a very important research direction in future works. Furthermore, the way of injecting the oxygen stream also has a different effect on coal combustion. This is also the focus of future investigation.
