# Thermal Behavior of a Rod during Hot Shape Rolling and Its Comparison with a Plate during Flat Rolling

## Abstract

**:**

## 1. Introduction

## 2. Experimental Procedure and Numerical Simulation

#### 2.1. Experiment Using Off-line Rolling Simulator

_{o}and A

_{f}are the areas of initial and final cross section, respectively. The reduction of height of a plate during flat rolling was selected to have a same average effective strain with the rod during shape rolling. The average effective strain of a rod during shape rolling was calculated using the model proposed by Lee et al. [24] that is based on the equivalent rectangle approximation method, which transforms a non-rectangular cross section shape into a rectangular shape, and the average effective strain (ε

_{p}) is calculated as follows:

_{1}and ε

_{2}are simply obtained by calculating the reduction ratio of width and height in equivalent rectangle approximation, respectively. In case of plate rolling, the ratio of ε

_{1}and ε

_{2}is very small in nature, and thus the average effective strain is represented as follows:

_{2}is calculated by the reduction ratio of height as follows:

_{i}and H

_{f}are the height of initial and final plate, respectively. The final height of a plate was chosen using Equation (3), as shown in Figure 4a.

#### 2.2. Numerical Simulation

_{p}, k, and Q are the density, specific heat capacity, thermal conductivity of a workpiece, and volumetric rate of heat generation arising from the plastic deformation, respectively. Thermal properties of a workpiece such as thermal conductivity and specific heat were chosen from the library data provided by DEFORM FE software. That is, k and ρC

_{p}values were approximately 31 W·m

^{−1}K

^{−1}and 4.3 N·mm

^{−2}K

^{−1}, respectively. To solve the above governing equation, the boundary conditions for a workpiece are expressed as follows:

_{a}, and T

_{R}are emissivity, Stefan–Boltzmann constant, ambient temperature, and roll temperature, respectively. Ambient and roll temperature is 25 °C, and ε is assumed to be 0.7. h

_{conv}and h

_{cond}are the convective heat transfer coefficient and conductive heat transfer coefficient, respectively, which is discussed in the next section. The shear friction coefficient of 0.6 was selected in the roll-workpiece interface [10,25,26], and other process parameters were identical to the experimental conditions, as given in Figure 4 and Table 1.

## 3. Results

#### 3.1. Measured Temperature of a Workpiece with Area

#### 3.2. Temperature Distribution of Workpiece by Numerical Simulation

^{−2}K

^{−1}was chosen to simulate the temperature distribution of both rod and plate, owing to the similar roll shape and process conditions in reference [2]. It should be noted that the rod and plate had a different heat transfer coefficient because of the different roll shape. However, it is difficult to find the optimum heat transfer coefficients of the two processes due to the limited experiments in this study. Accordingly, the same heat transfer coefficient was chosen for the two processes on the basis of the literature review (Table 2), and then the thermal behavior of the two processes was qualitatively compared.

^{−2}K

^{−1}.

## 4. Discussion

#### 4.1. Effect of Conduction Heat Transfer in the Workpiece-roll Interface

#### 4.2. Effect of Heat Generation due to Plastic Deformation

## 5. Conclusions

## Funding

## Conflicts of Interest

## References

- Kwon, H.C.; Lee, H.W.; Kim, H.Y.; Im, Y.T.; Park, H.D.; Lee, D.L. Surface wrinkle defect of carbon steel in the hot bar rolling process. J. Mater. Process. Technol.
**2009**, 209, 4476–4483. [Google Scholar] [CrossRef] - Lee, H.W.; Kwon, H.C.; Im, Y.T.; Hodgson, P.D.; Zahiri, S.H. Local austenite grain size distribution in hot bar rolling of AISI 4135 steel. ISIJ Int.
**2005**, 45, 706–712. [Google Scholar] [CrossRef] [Green Version] - Laasraoui, A.; Jonas, J.J. Prediction of temperature distribution, flow stress and microstructure during the multipass hot rolling of steel plate and strip. ISIJ Int.
**1991**, 31, 95–105. [Google Scholar] [CrossRef] [Green Version] - Nioi, M.; Pinna, C.; Celotto, S.; Swart, E.; Farrugia, D.; Husain, Z.; Ghadbeigi, H. Finite element modelling of surface defect evolution during hot rolling of Silicon steel. J. Mater. Process. Technol.
**2019**, 268, 181–191. [Google Scholar] [CrossRef] - Li, Y.; Cao, J.; Qiu, L.; Kong, N.; He, A.; Zhou, Y. Effect of strip edge temperature drop of electrical steel on profile and flatness during hot rolling process. Adv. Mech. Eng.
**2019**, 11, 1–11. [Google Scholar] [CrossRef] [Green Version] - Pesin, A.; Pustovoytov, D. Research of edge defect formation in plate rolling by finite element method. J. Mater. Process. Technol.
**2015**, 220, 96–106. [Google Scholar] [CrossRef] - Devadas, C.; Samarasekera, I.V.; Hawbolt, E.B. The thermal and metallurgical state of steel strip during hot rolling: Part 1. Characterization of heat transfer. Metall. Trans. A
**1991**, 22A, 307–319. [Google Scholar] [CrossRef] - Chen, W.C.; Samarasekera, I.V.; Hawbolt, E.B. Fundamental phenomena governing heat transfer during rolling. Metall. Trans. A
**1993**, 24A, 1307–1320. [Google Scholar] [CrossRef] - Chen, B.K.; Thomson, P.F.; Choi, S.K. Temperature distribution in the roll-gap during hot flat rolling. J. Mater. Process. Technol.
**1992**, 30, 115–130. [Google Scholar] [CrossRef] - Serajzadeh, S.; Taheri, A.K.; Nejati, M.; Izadi, J.; Fattahi, M. An investigation on strain inhomogeneity in hot strip rolling process. J. Mater. Process. Technol.
**2002**, 128, 88–99. [Google Scholar] [CrossRef] - Karagiozis, A.N.; Lenard, J.G. Temperature distribution in a slab during hot rolling. J. Eng. Mater. Technol.
**1988**, 110, 17–21. [Google Scholar] [CrossRef] - Hlady, C.O.; Brimacombe, J.K.; Samarasekera, I.V.; Hawbolt, E.B. Heat transfer in the hot rolling of metals. Metall. Mater. Trans. B
**1995**, 26B, 1019–1027. [Google Scholar] [CrossRef] - Shirizly, A.; Lenard, J.G. The effect of scaling and emulsion delivery on heat transfer during the hot rolling of steel strips. J. Mater. Process. Technol.
**2000**, 101, 250–259. [Google Scholar] [CrossRef] - Komori, K.; Kato, K. Analysis of temperature distribution in caliber rolling of a bar. JSME Int. J.
**1989**, 32, 208–216. [Google Scholar] [CrossRef] [Green Version] - Said, A.; Lenard, J.G.; Ragab, A.R.; Abo Elkhier, M. The temperature, roll force and roll torque during hot bar rolling. J. Mater. Process. Technol.
**1999**, 88, 147–153. [Google Scholar] [CrossRef] - Yuan, S.Y.; Zhang, L.W.; Liao, S.L.; Jiang, G.D.; Yu, Y.S.; Qi, M. Simulation of deformation and temperature in multi-pass continuous rolling by three-dimensional FEM. J. Mater. Process. Technol.
**2009**, 209, 2760–2766. [Google Scholar] [CrossRef] - Xue, J.; Liu, M. A new control volume-based 2D method for calculating the temperature distribution of rod during multi-pass hot rolling. ISIJ Int.
**2013**, 53, 1836–1840. [Google Scholar] [CrossRef] [Green Version] - Serajzadeh, S.; Mirbagheri, H.; Taheri, A.K. Modelling the temperature distribution and microstructural changes during hot rod rolling of a low carbon steel. J. Mater. Process. Technol.
**2002**, 125, 89–96. [Google Scholar] [CrossRef] - Serajzadeh, S. Prediction of microstructural changes during hot rod rolling. Int. J. Mach. Tools Manuf.
**2003**, 43, 1487–1495. [Google Scholar] [CrossRef] - Choi, S.; Lee, Y. An approach to predict the depth of the decarburized ferrite layer of spring steel based on measured temperature history of material during cooling. ISIJ Int.
**2014**, 54, 1682–1689. [Google Scholar] [CrossRef] [Green Version] - Hwang, J.K. Effects of process conditions, material properties, and initial shape of flaw on the deformation behavior of surface flaw during wire drawing. ISIJ Int.
**2019**, 59, 2052–2061. [Google Scholar] [CrossRef] - Kim, H.Y.; Kwon, H.C.; Lee, H.W.; Im, Y.T.; Byon, S.M.; Park, H.D. Processing map approach for surface defect prediction in the hot bar rolling. J. Mater. Process. Technol.
**2008**, 205, 70–80. [Google Scholar] [CrossRef] - Hwang, J.K. The temperature distribution and underlying cooling mechanism of steel wire rod in the Stelmor type cooling process. Appl. Therm. Eng.
**2018**, 142, 311–320. [Google Scholar] [CrossRef] - Lee, Y.; Kim, H.J.; Hwnag, S.M. Analytic model for the prediction of mean effective strain in rod rolling process. J. Mater. Process. Technol.
**2001**, 114, 129–138. [Google Scholar] [CrossRef] - Kwon, H.C.; Lee, Y.; Kim, S.Y.; Woo, J.S.; Im, Y.T. Numerical prediction of austenite grain size in round-oval-round bar rolling. ISIJ Int.
**2003**, 43, 676–683. [Google Scholar] [CrossRef] [Green Version] - Awais, M.; Lee, H.W.; Im, Y.T.; Kwon, H.C.; Byon, S.M.; Park, H.D. Plastic work approach for surface defect prediction in the hot bar rolling process. J. Mater. Process. Technol.
**2008**, 201, 73–78. [Google Scholar] [CrossRef] - Bontcheva, N.; Petzov, G. Total simulation model of the thermo-mechanical process in shape rolling of steel rods. Comput. Mater. Sci.
**2005**, 34, 377–388. [Google Scholar] [CrossRef] - Son, I.H.; Lee, J.D.; Choi, S.; Lee, D.L.; Im, Y.T. Deformation behavior of the surface defects of low carbon steel in wire rod rolling. J. Mater. Process. Technol.
**2008**, 201, 91–96. [Google Scholar] [CrossRef] - Ochiai, I.; Ohba, H.; Hida, Y.; Nagumo, M. Effect of precipitation behavior of AlN on abnormal growth of ferrite grains in low-carbon steel wires. Tetsu-to-Hagane
**1984**, 70, 2001–2008. [Google Scholar] [CrossRef] [Green Version] - Na, D.H.; Lee, Y. A study to predict the creation of surface defects on material and suppress them in caliber rolling process. Int. J. Precis. Eng. Manuf.
**2013**, 14, 1727–1734. [Google Scholar] [CrossRef] - Nalawade, R.S.; Puranik, A.J.; Balachandran, G.; Mahadik, K.N.; Balasubramanian, V. Simulation of hot rolling deformation at intermediate passed and its industrial validity. Int. J. Mech. Sci.
**2013**, 77, 8–16. [Google Scholar] [CrossRef] - Kim, S.Y.; Im, Y.T. Three-dimensional finite element analysis of non-isothermal shape rolling. J. Mater. Process. Technol.
**2002**, 127, 57–63. [Google Scholar] [CrossRef] - Bagheripoor, M.; Bisadi, H. Effects of rolling parameters on temperature distribution in the hot rolling of alumimum strips. Appl. Therm. Eng.
**2011**, 31, 1556–1565. [Google Scholar] [CrossRef] - Zhou, S.X. An integrated model for hot rolling of steel strips. J. Mater. Process. Technol.
**2003**, 134, 338–351. [Google Scholar] [CrossRef] - Li, Y.H.; Sellars, C.M. Comparative investigations of interfacial heat transfer behaviour during hot forging and rolling of steel with oxide scale formation. J. Mater. Process. Technol.
**1998**, 80, 282–286. [Google Scholar] [CrossRef] - Wu, J.; Liang, X.; Tang, A.; Pan, F. Interfacial heat transfer under mixed lubrication condition for metal rolling: A theoretical calculation study. Appl. Therm. Eng.
**2016**, 106, 1002–1009. [Google Scholar] [CrossRef] - Malinowski, Z.; Lenard, J.G.; Davies, M.E. A study of the heat-transfer coefficient as a function of temperature and pressure. J. Mater. Process. Technol.
**1994**, 41, 125–142. [Google Scholar] [CrossRef] - Curtze, S.; Kuokkala, V.T. Dependence of tensile deformation behavior of TWIP steels on stacking fault energy, temperature and strain rate. Acta Mater.
**2010**, 58, 5129–5141. [Google Scholar] [CrossRef] - Ding, J.; Zhao, Z.; Jiao, Z.; Wang, J. Central infiltrated performance of deformation in ultra-heavy plate rolling with large deformation resistance gradient. Appl. Therm. Eng.
**2016**, 98, 29–38. [Google Scholar] [CrossRef]

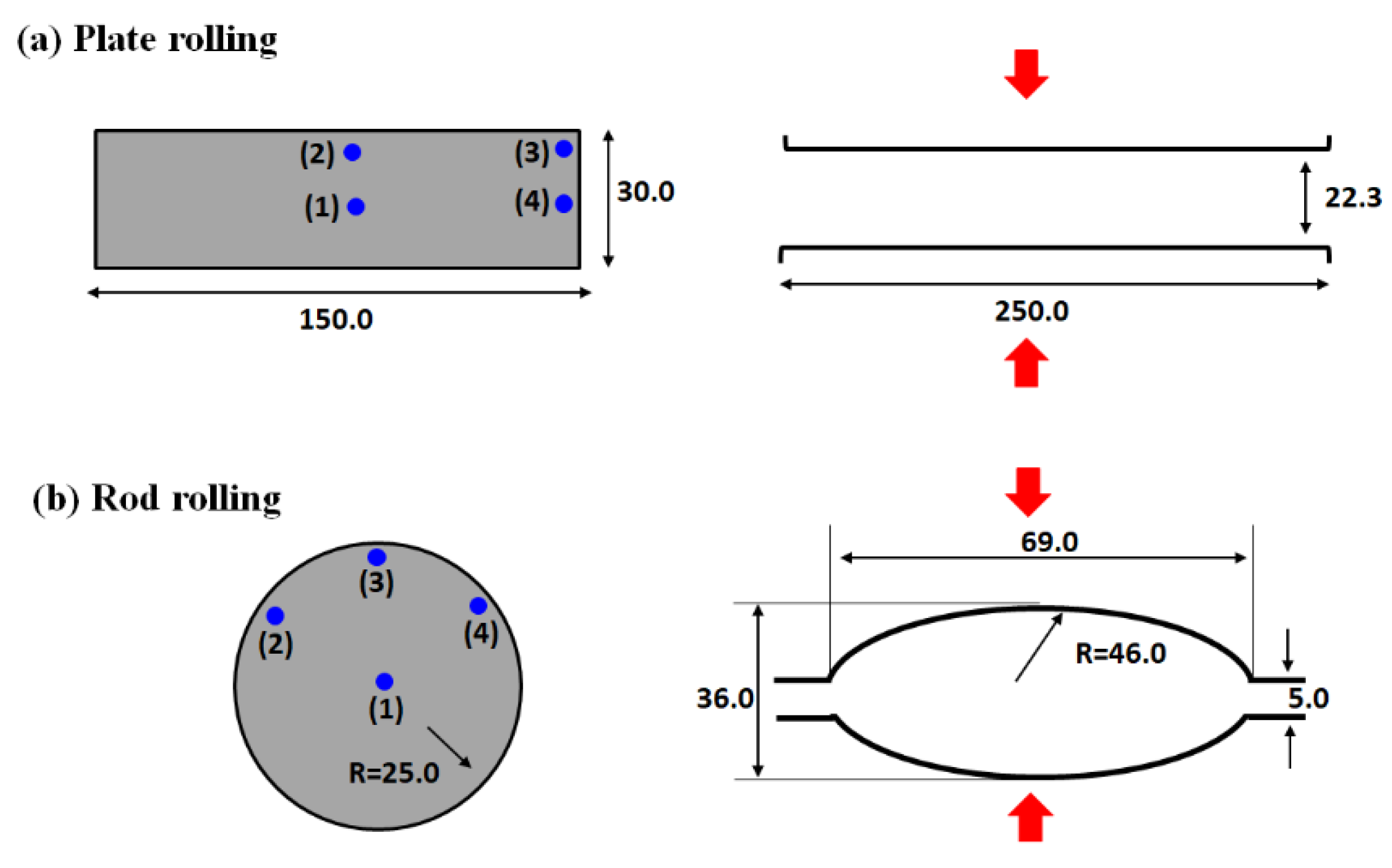

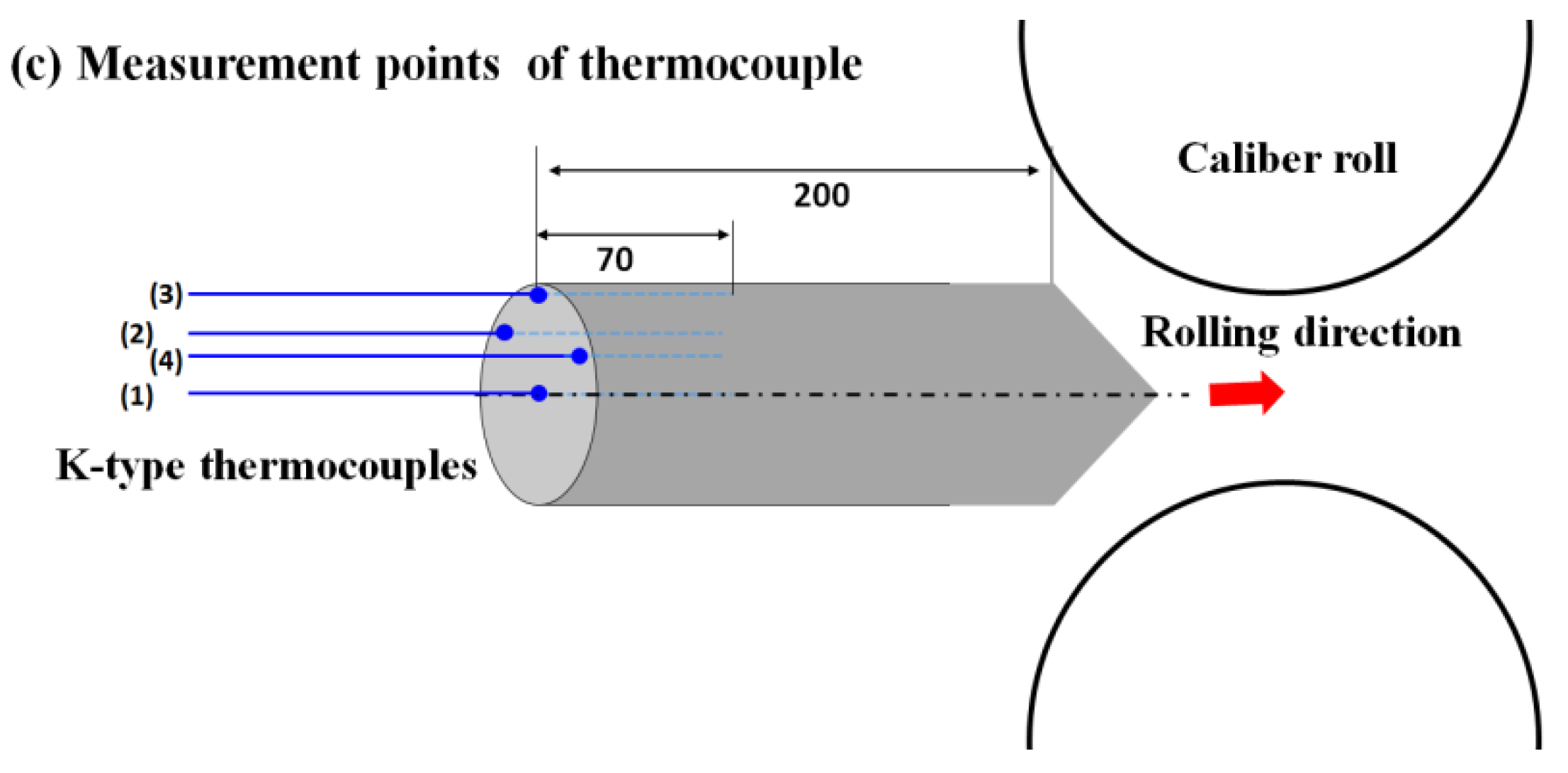

**Figure 4.**Schematic description showing the roll design and the measurement points of temperature using thermocouples: (

**a**) cross section of flat rolling, (

**b**) cross section of rod rolling, and (

**c**) cross section of the longitudinal direction of the rod.

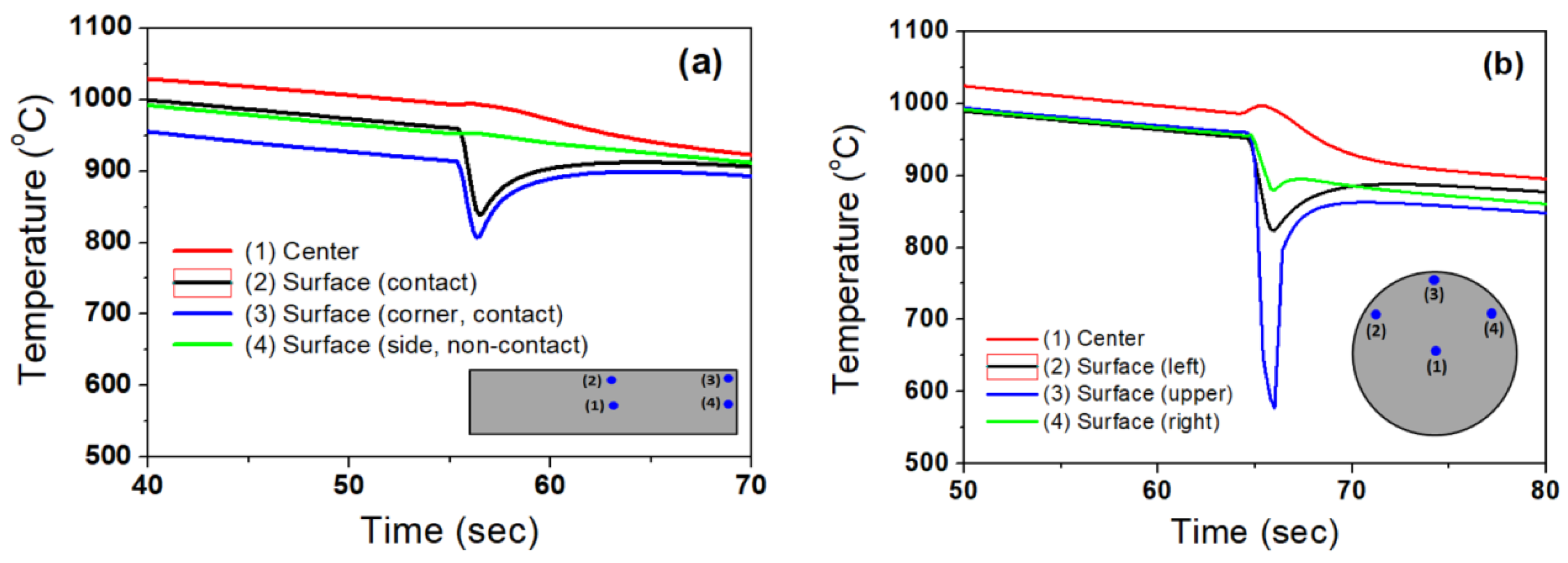

**Figure 5.**Measured temperature profiles of (

**a**) the plate during flat rolling and (

**b**) the rod during shape rolling with area.

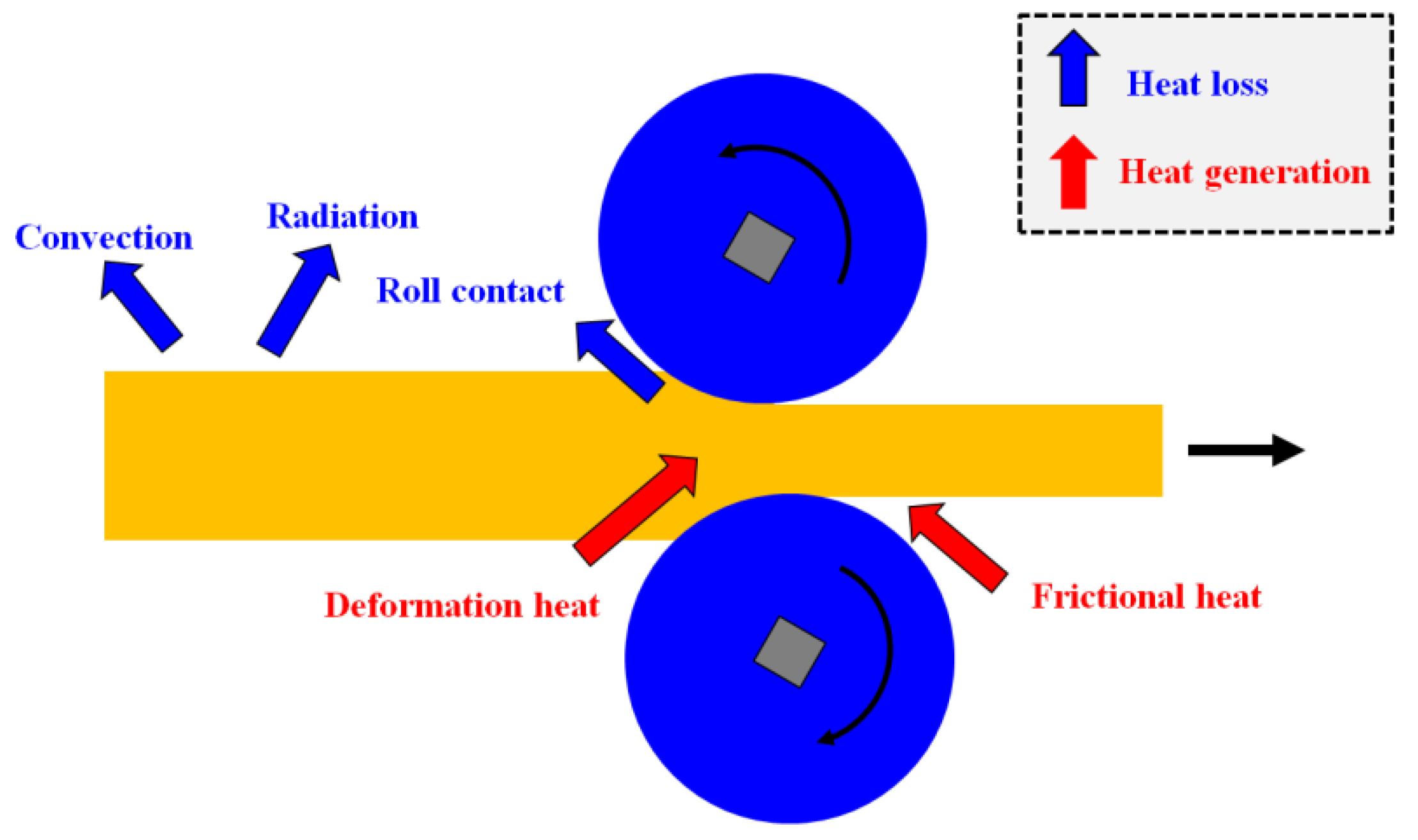

**Figure 6.**Schematic description showing the heat transfer mechanisms in a workpiece during the hot rolling process.

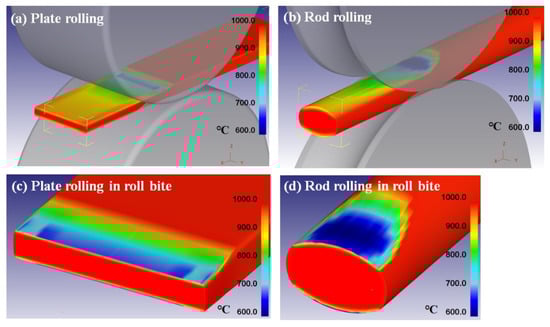

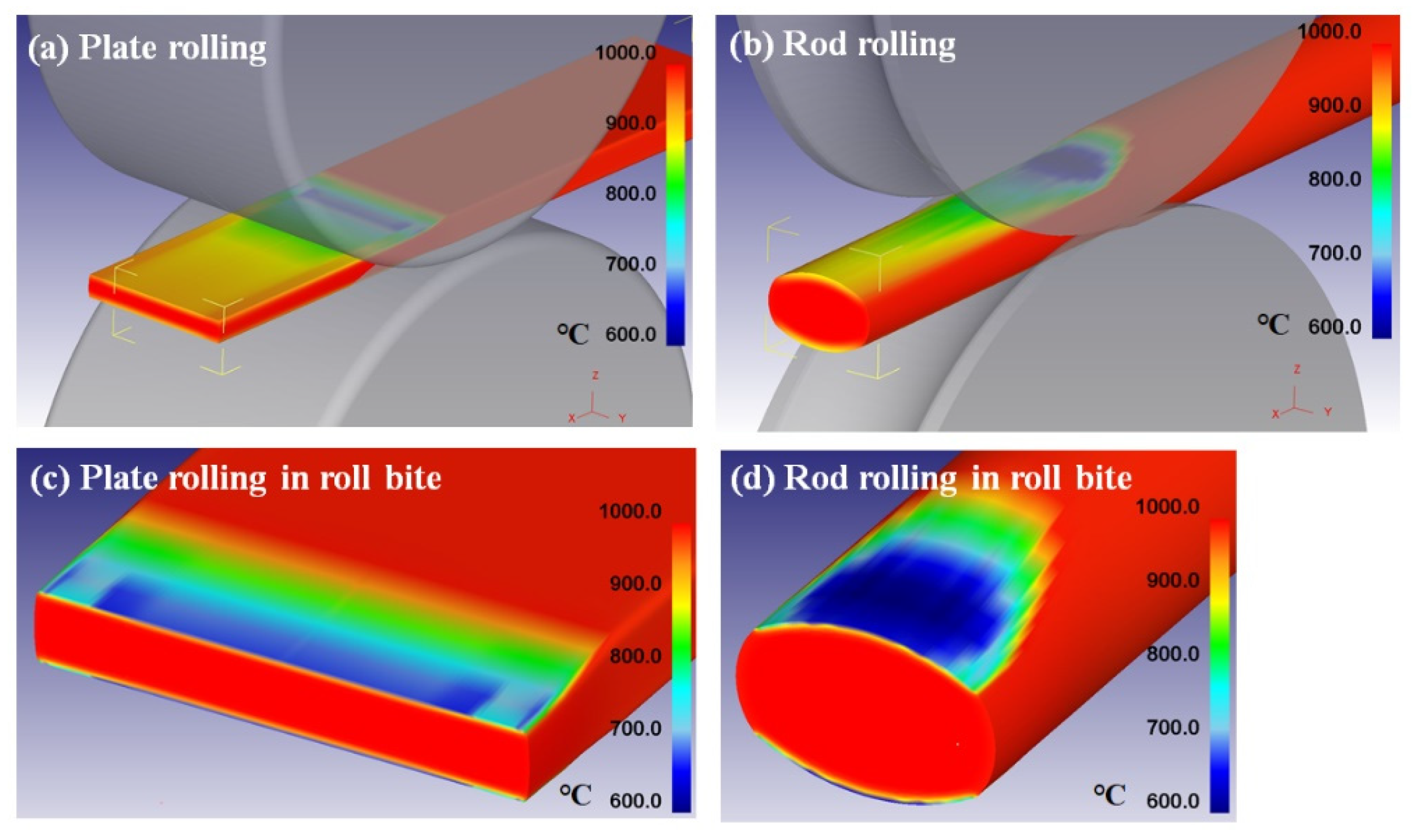

**Figure 8.**Comparison of contour maps of temperature in the roll bite during plate rolling and rod rolling.

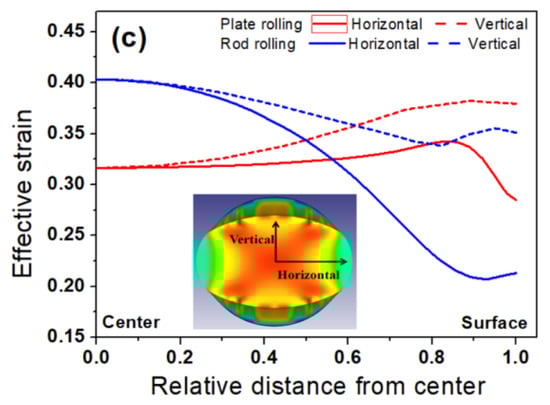

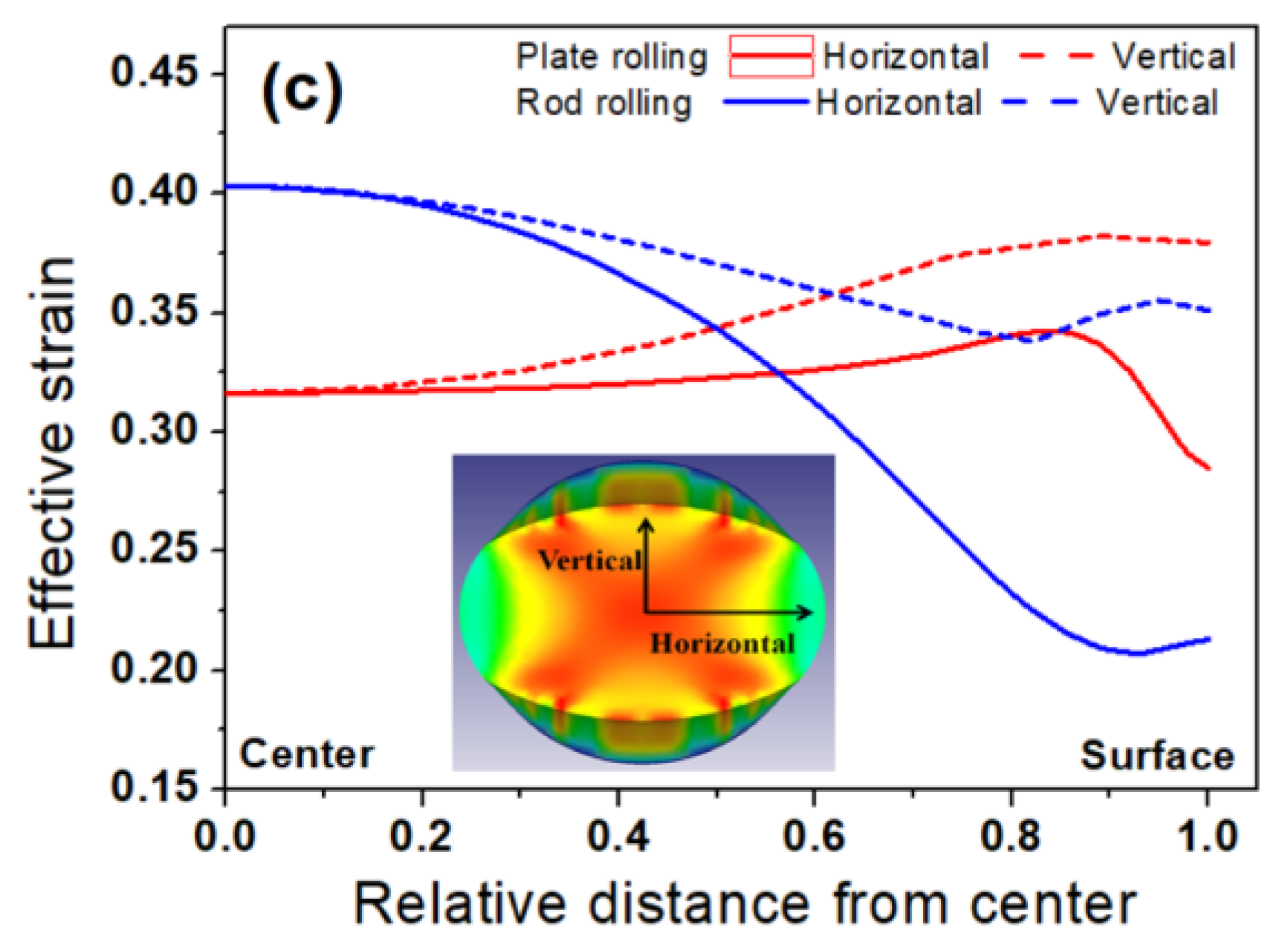

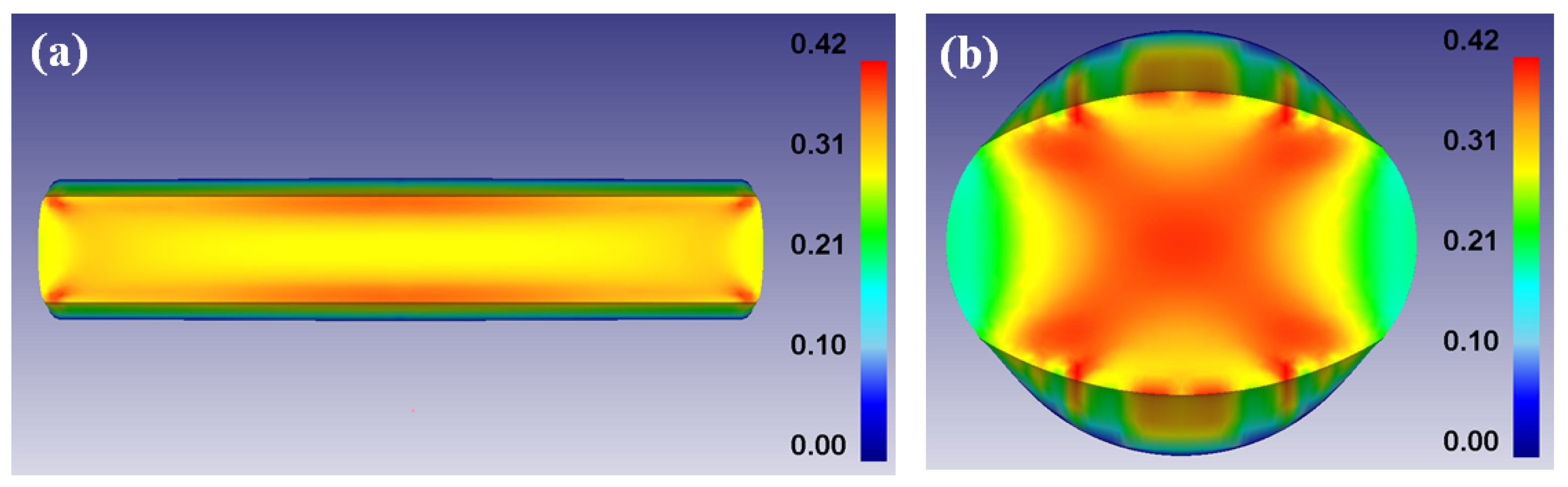

**Figure 10.**Contour maps of effective strain of (

**a**) plate, (

**b**) rod, and (

**c**) comparison of profiles of effective strain along the horizontal and vertical directions of a workpiece.

Parameters | Value | |
---|---|---|

Workpiece | Material | AISI 1020 |

Initial temperature of workpiece | 1150 °C | |

Rolling mill | Rolling speed | 10 RPM |

Roll diameter | 400 mm | |

Temperature of roll | 21 °C | |

Process conditions | Reduction ratio of height of plate | 25.5% |

RA per pass of rod | 20.2% | |

Surrounding temperature | 21 °C |

Contact Conduction (kWm ^{−2}K^{−1}) | Convection (Wm ^{−2}K^{−1}) | Ratio of Mechanical Work to Heat | Rolling Type | Reference |
---|---|---|---|---|

5 | 10 | - | Shape rolling | [30] |

10 | 10 | - | Shape rolling | [31] |

24 | 2.33 | 0.9 | Round-oval | [2] |

72 | 2.33 | 0.9 | Square-diamond | [2] |

4.8 | 30 | - | Shape rolling | [32] |

40 | 10 | - | Flat rolling | [33] |

45–85 | - | 0.85–0.95 | Flat rolling | [10] |

54–71 | - | - | Flat rolling | [34] |

7.6–17.6 | - | - | Flat rolling | [35] |

20–45 | Flat rolling | [36] |
