# Energy-Economizing Optimization of Magnesium Alloy Hot Stamping Process

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

^{9}T, of which 10–15% come from automobiles [2]. An efficient way to improve the energy efficiency and driving range of vehicles is mass reduction. Some lightweight materials, such as magnesium alloys, aluminum alloys, and ultra-high-strength steels, have been rapidly increasing in quantity and have been applied to the automotive industry [3]. Vehicles can conserve significant amounts of energy by using these lightweight materials [4].

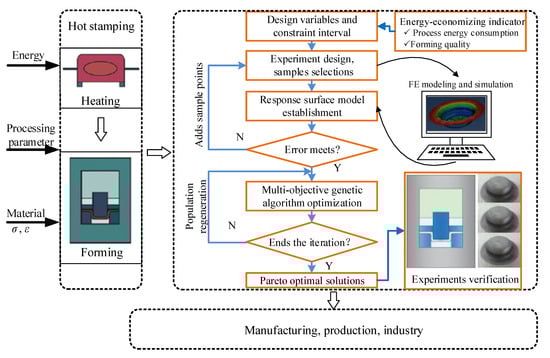

## 2. Framework and Method

## 3. Energy-Economizing Indices of Hot Stamping

#### 3.1. Process Energy Consumption Indices

_{heating}is the heating energy consumption and E

_{forming}is the forming energy consumption.

_{convection}, Q

_{radiation}, and Q

_{conduction}are the heat losses by convection, radiation, and conduction, respectively, and can be calculated by as follows:

_{h}= 1/Ah is the convection resistance, T is the temperature, ΔT is the temperature difference between hot and cold fluid object, k is the Boltzmann constant, F

_{r}is the radiation shape factor, λ is the thermal conductivity, and R

_{λ}= δ/Aλ is the thermal resistance, δ is the thickness, t is the time.

_{blank}is the heat absorbed by sheet metal.

_{loss}(T, i) is thermal efficiency loss caused by the different heating temperatures and methods and i denotes the three heating means, namely, radiation, induction, and conduction.

#### 3.2. Forming Quality Indices

_{2})) or the safety marginal curve (Φ(ε

_{2})), this region of the shaped part will likely fracture. A long distance from the safety marginal curve Φ(ε

_{2}) indicates a high rupture tendency. Therefore, the average distance between the main strain of all elements and the Φ(ε

_{2}) curve can be used to quantify the fracture. Similarly, when the main strain of an area element is below the wrinkle limit curve (ψ(ε

_{2})), this area of the formed part will show a wrinkling trend; the farther the point from the ψ(ε

_{2}) curve, the higher the trend of wrinkling. The fracture distance and wrinkling trend are mainly used to predict the product forming quality in the finite element (FE) simulation, but the FLC limit diagram cannot be directly used to quantify the product forming quality in the actual stamping production process.

_{0}is the thickness of the blank, t

_{min}is the minimum thickness of the sheet material, t

_{max}is the maximum thickness of the sheet material, Δ

_{thinning}is the thinning rate, and Δ

_{thickening}is the thickening rate.

## 4. Multiobjective Optimization for Hot Stamping Process

#### 4.1. Optimization Variables

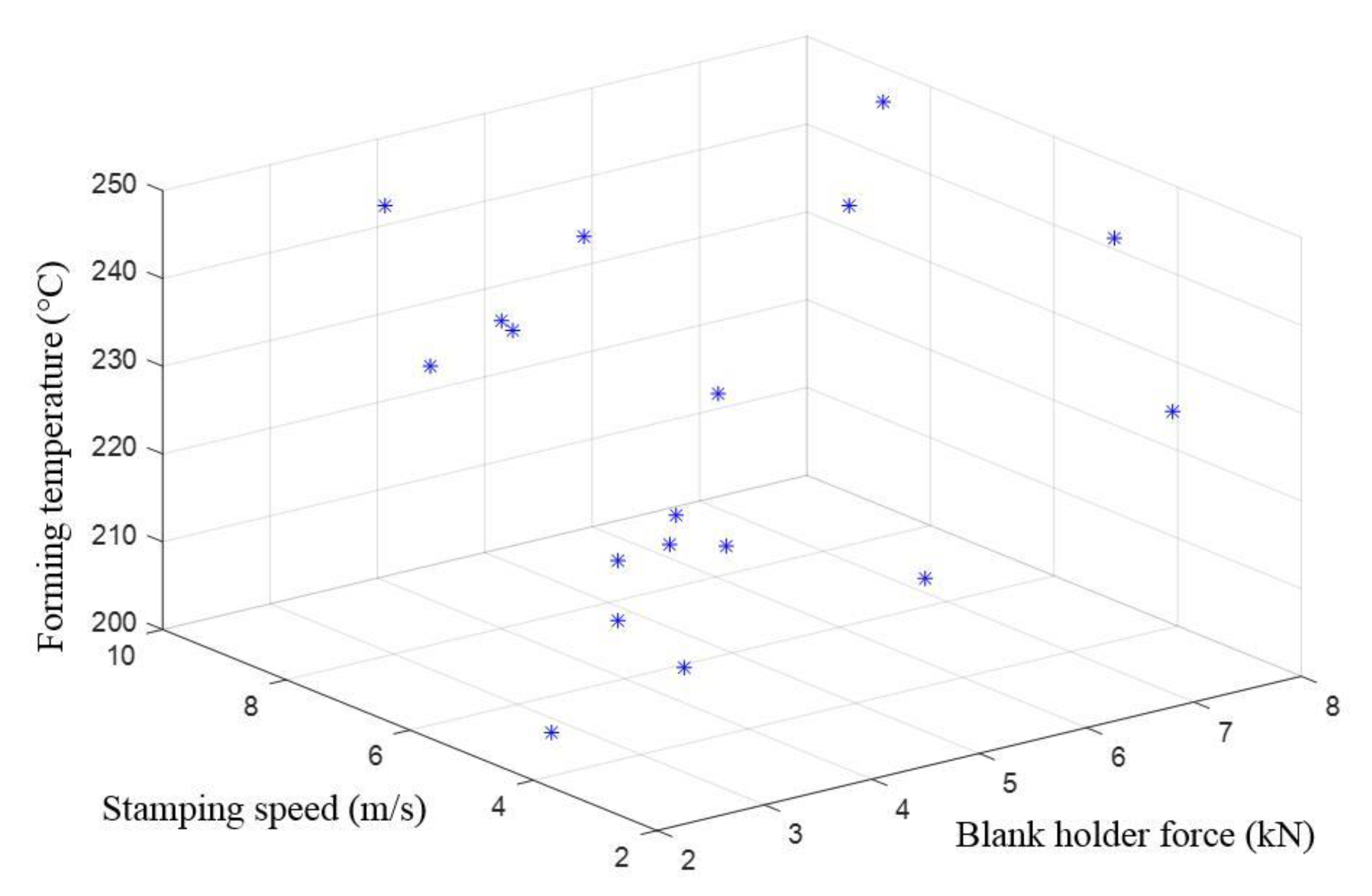

#### 4.2. Sample Selection

#### 4.3. Optimization Model and Solution Approach

_{1}, y

_{2}, and y

_{3}are the response functions of the energy-economizing indices, namely, energy consumption, thinning, and thickening, respectively, and x

_{m}are the design variables, namely, blank holder force, stamping speed, and forming temperature.

_{i}, x

_{j}represents the design variable; n is the minimum number of samples; a

_{0}is the minor error; a

_{i}, a

_{ii}, and a

_{ij}are the polynomial coefficients; and y represents the response of the energy-economizing indices of the stamping process.

## 5. Hot Stamping Process Optimization of ZK60 Magnesium Alloy for Energy Saving

_{h}), and forming temperature (T), are considered in the simulation process. The range of each process parameter is set as follows: stamping speed 2–11 mm/s, blank holder force 3–9 kN, and forming temperature 175–250 °C (the range of forming temperature is determined on the basis of existing research results in Reference [24]).

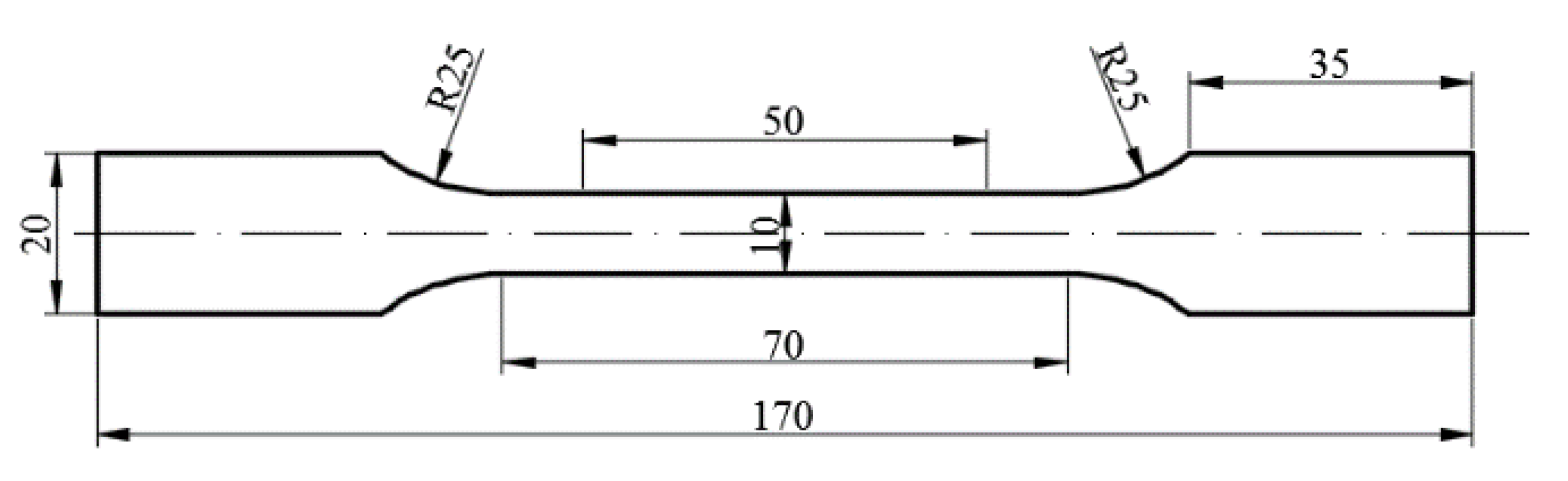

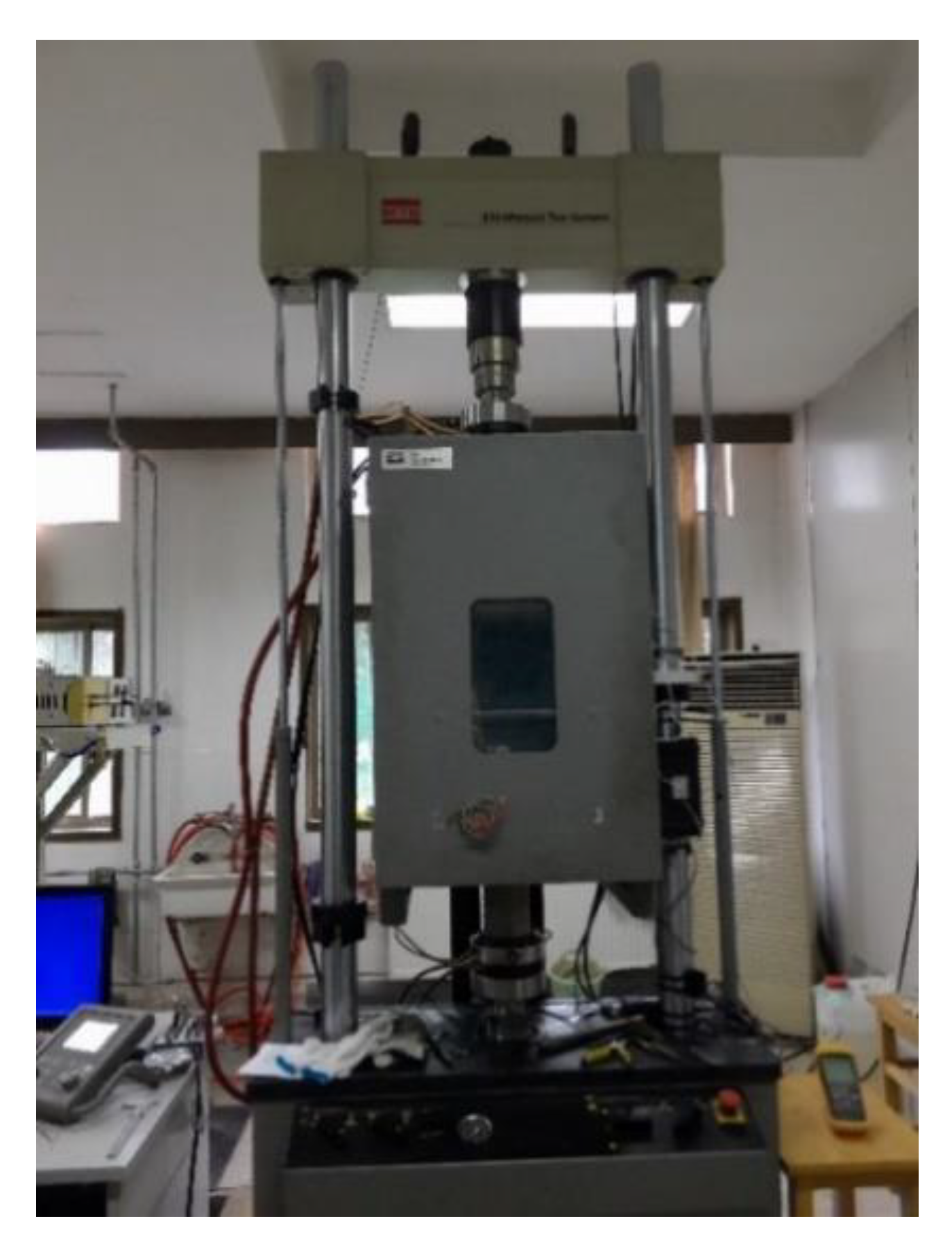

#### 5.1. Material Properties Testing

#### 5.2. FE Modeling and Simulation for Hot Stamping

- (1)

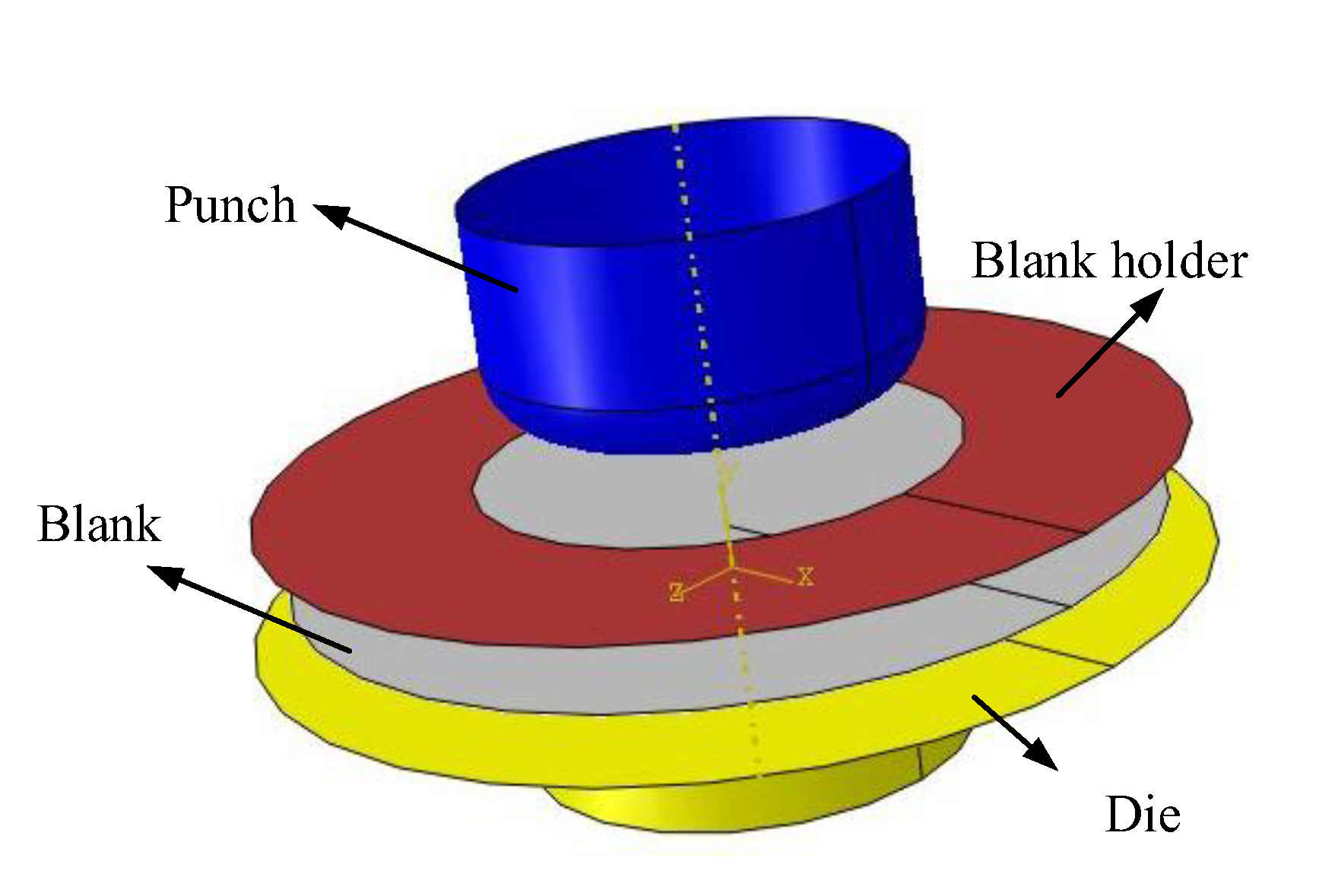

- Figure 9 depicts the initial positions of the die and blank, and the sheet metal is above the die.
- (2)
- The blank holder is close to the sheet metal at a certain speed (it can be set to different speeds, but it maintains a constant speed throughout the stamping process), which is called “holding.”
- (3)

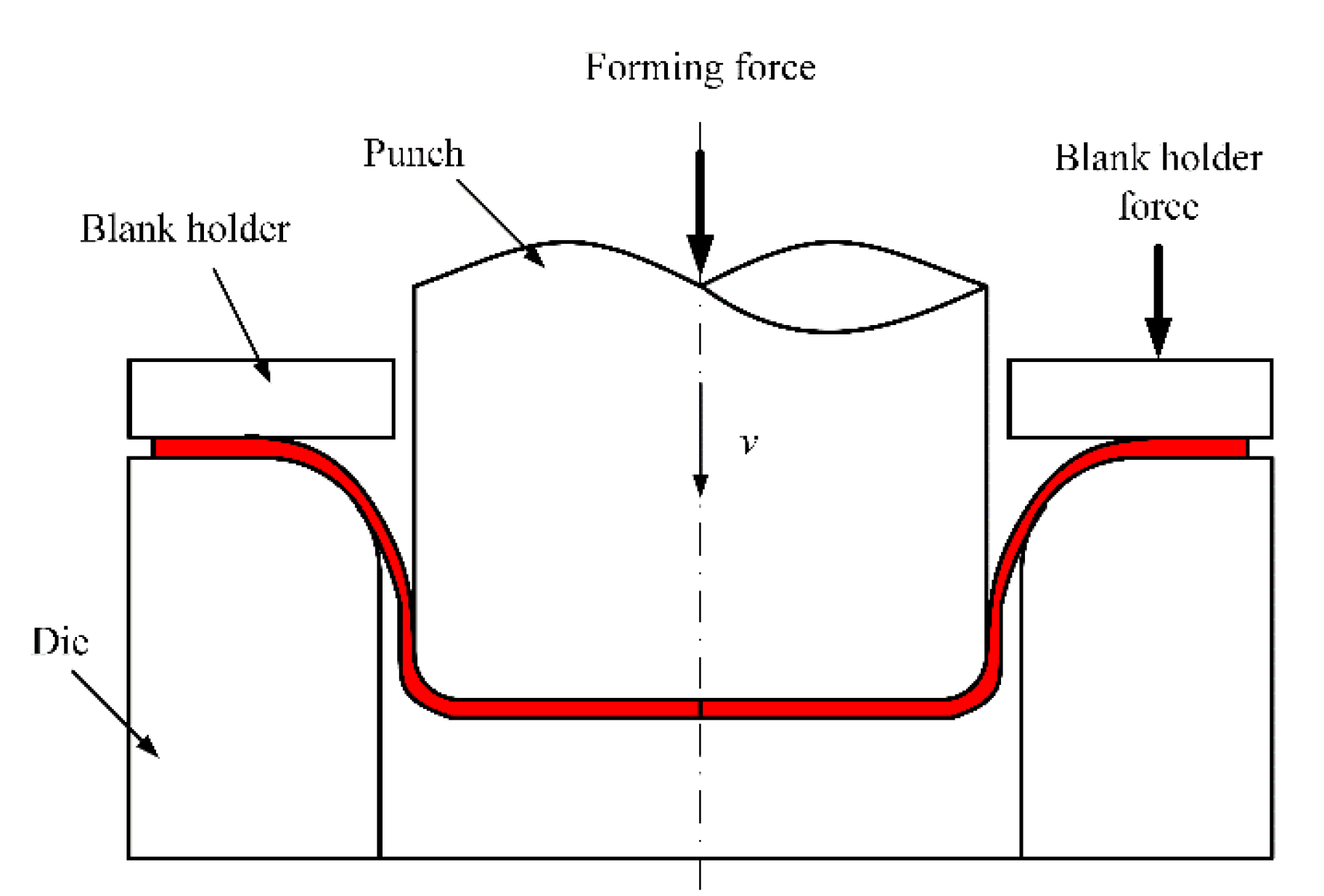

- When the blank holder is finished, the sheet metal is fixed, and the punch starts to act. The “stamping” process begins when the punch contacts the sheet metal.
- (4)
- In the last stage of the simulation, the concave convex die is in a closed state, followed by the quenching stage.

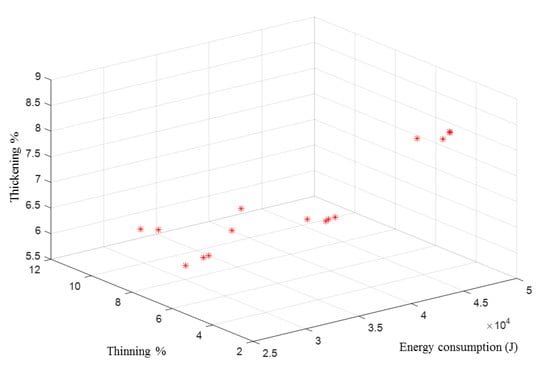

#### 5.3. Process Parameters Optimization

_{1}be the energy consumption of hot stamping, y

_{2}the thinning rate of the stamping parts, and y

_{3}the thickening rate of the stamping parts. The developed model can then be described as

_{1}is the blank holder force, x

_{2}is the stamping speed, and x

_{3}is the forming temperature.

_{1}, y

_{2}, and y

_{3}are the objective functions. The goal is to minimize the stamping energy consumption and thickness variations in hot stamping.

#### 5.4. Stamping Experiments Verification

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Liu, C.; Zhu, Q.; Wei, F.; Rao, W.; Liu, J.; Hu, J.; Cai, W. An integrated optimization control method for remanufacturing assembly system. J. Clean. Prod.
**2019**, 119261. [Google Scholar] [CrossRef] - Yang, X. More Efforts are Needed to Promote New Energy. Available online: https://www.energy.people.com.cn/n1/2019/0307/c71661-30961766.html (accessed on 21 January 2020).
- Whalen, S.; Overman, N.; Joshi, V.; Varga, T.; Graff, D.; Lavender, C. Magnesium alloy ZK60 tubing made by Shear Assisted Processing and Extrusion (ShAPE). Mater. Sci. Eng. A
**2019**, 755, 278–288. [Google Scholar] [CrossRef] - Singh, V.P.; Patel, S.K.; Kumar, N.; Kuriachen, B. Parametric effect on dissimilar friction stir welded steel-magnesium alloys joints: A review. Sci. Technol. Weld. Join.
**2019**, 24, 653–684. [Google Scholar] [CrossRef] - Karbasian, H.; Tekkaya, A.E. A review on hot stamping. J. Mater. Process. Technol.
**2010**, 210, 2103–2118. [Google Scholar] [CrossRef] - Gao, M.; He, K.; Li, L.; Wang, Q.; Liu, C. A review on energy consumption, energy efficiency and energy saving of metal forming processes from different hierarchies. Processes
**2019**, 7, 357. [Google Scholar] [CrossRef] [Green Version] - Bariani, P.F.; Bruschi, S.; Ghiotti, A.; Michieletto, F. Hot stamping of AA5083 aluminium alloy sheets. CIRP Ann.-Manuf. Technol.
**2013**, 62, 251–254. [Google Scholar] [CrossRef] - Gao, M.; Huang, H.; Wang, Q.; Liu, Z.; Li, X. Energy consumption analysis on sheet metal forming: Focusing on the deep drawing processes. Int. J. Adv. Manuf. Technol.
**2018**, 96, 3893–3907. [Google Scholar] [CrossRef] - Gao, M.; Liu, Z.; Li, L. Energy consumption analysis focusing on hot stamping of sheet metal. J. Plast. Eng.
**2017**, 24, 74–81. [Google Scholar] - Shi, C.W.P.; Rugrungruang, F.; Yeo, Z.; Gwee, K.H.K.; Ng, R.; Song, B. Identifying carbon footprint reduction opportunities through energy measurements in sheet metal part manufacturing. In Glocalized Solutions for Sustainability in Manufacturing; Springer: Berlin/Heidelberg, Germany, 2011; pp. 389–394. [Google Scholar]
- Bosetti, P.; Bruschi, S.; Stoehr, T.; Lechler, J.; Merklein, M. Interlaboratory comparison for heat transfer coefficient identification in hot stamping of high strength steels. Int. J. Mater. Form.
**2010**, 3, 817–820. [Google Scholar] [CrossRef] - Abdulhay, B.; Bourouga, B.; Dessain, C. Experimental and theoretical study of thermal aspects of the hot stamping process. Appl. Therm. Eng.
**2011**, 31, 674–685. [Google Scholar] [CrossRef] - Xiao, W.; Wang, B.; Zheng, K. An experimental and numerical investigation on the formability of AA7075 sheet in hot stamping condition. Int. J. Adv. Manuf. Technol.
**2017**, 92, 3299–3309. [Google Scholar] [CrossRef] - Marler, R.T.; Arora, J.S. The weighted sum method for multi-objective optimization: New insights. Struct. Multidiscip. Optim.
**2010**, 41, 853–862. [Google Scholar] [CrossRef] - Costa, N.R.; Pereira, Z.L. Multiple response optimization: A global criterion-based method. J. Chemom.
**2010**, 24, 333–342. [Google Scholar] [CrossRef] - Zhou, J.; Wang, B.; Lin, J.; Fu, L. Optimization of an aluminum alloy anti-collision side beam hot stamping process using a multi-objective genetic algorithm. Arch. Civ. Mech. Eng.
**2013**, 13, 401–411. [Google Scholar] [CrossRef] - Kitayama, S.; Huang, S.; Yamazaki, K. Optimization of variable blank holder force trajectory for springback reduction via sequential approximate optimization with radial basis function network. Struct. Multidiscip. Optim.
**2013**, 47, 289–300. [Google Scholar] [CrossRef] - Zhou, J. A Method to Optimize Aluminum Alloy Door Impact Beam Stamping Process Using NSGA-II. Mater. Sci. Forum
**2013**, 773–774, 89–94. [Google Scholar] [CrossRef] - Xiao, W.; Wang, B.; Zhou, J.; Ma, W.; Yang, L. Optimization of aluminium sheet hot stamping process using a multi-objective stochastic approach. Eng. Optim.
**2016**, 48, 2173–2189. [Google Scholar] [CrossRef] - Liang, Y. Research and Application on Key Process Experiment of High Strength Steel for Hot Forming. Ph.D. Thesis, Da Lian University of Technology, Dalian, China, 15 December 2013. [Google Scholar]
- Gao, M.; Huang, H.; Li, X.; Liu, Z. Carbon emission analysis and reduction for stamping process chain. Int. J. Adv. Manuf. Technol.
**2017**, 91, 667–678. [Google Scholar] [CrossRef] - Li, L.; Huang, H.; Zhao, F.; Zou, X.; Lu, Q.; Wang, Y.; Liu, Z.; Sutherland, J.W. Variations of Energy Demand With Process Parameters in Cylindrical Drawing of Stainless Steel. J. Manuf. Sci. Eng.-Trans. ASME
**2019**, 141, 091002. [Google Scholar] [CrossRef] - Deb, K.; Agrawal, S.; Pratap, A.; Meyarivan, T. A Fast Elitist Non-dominated Sorting Genetic Algorithm for Multi-objective Optimization: NSGA-II; Springer: Berlin/Heidelberg, Germany, 2000; pp. 849–858. [Google Scholar]
- Zhang, S.; Song, G.; Song, H.; Cheng, M. Deformation Mechanism and Warm Forming Technology for Magnesium Alloys Sheets. J. Mech. Eng.
**2012**, 48, 28–34. [Google Scholar] [CrossRef] - Zhang, X.; Cui, Z.; Ruan, X. Warm Forging of Magnesium Alloys: The Formability and Flow Stress of AZ 31B. J. Shanghai Jiaotong Univ.
**2003**, 37, 1874–1877. [Google Scholar]

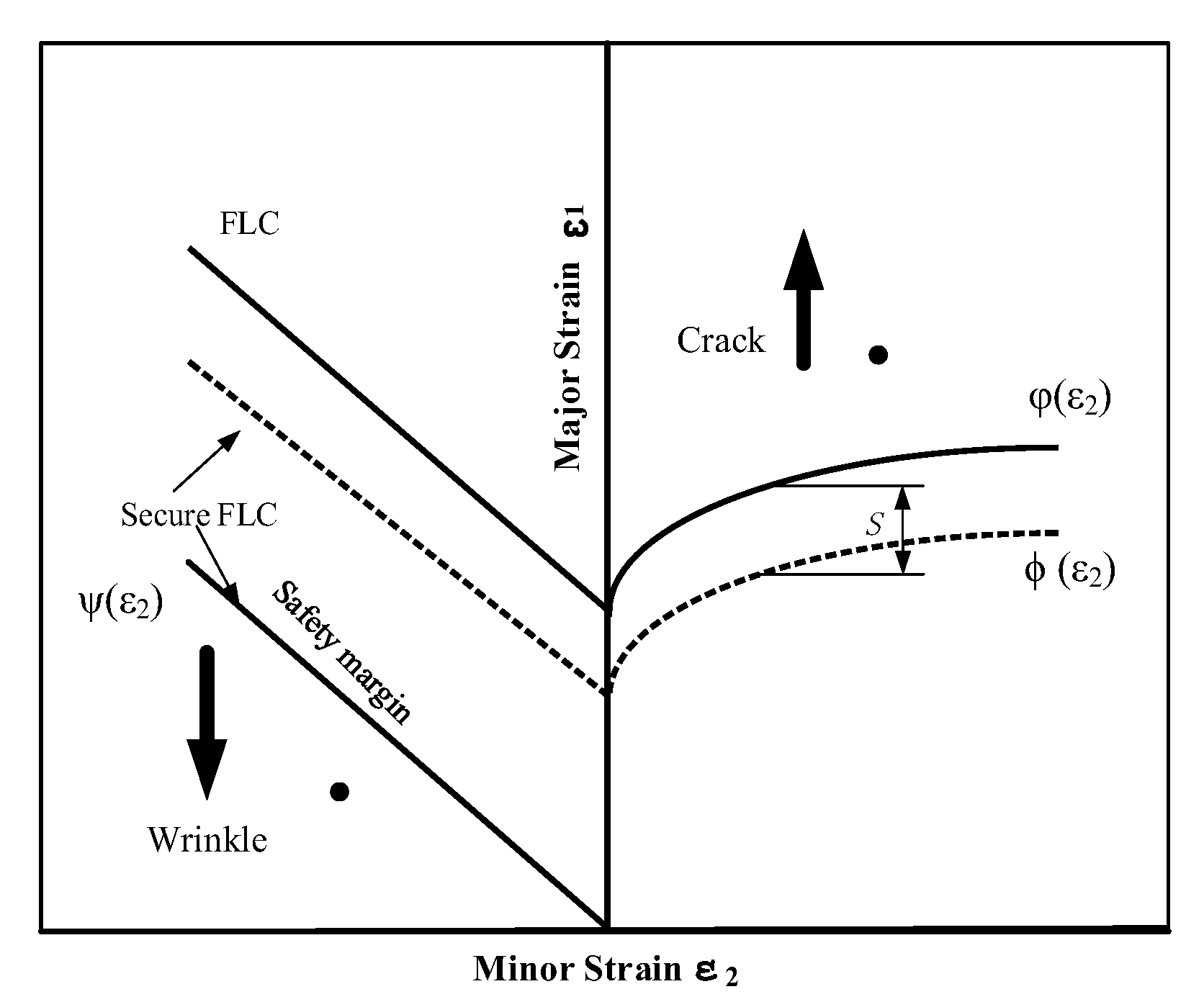

**Figure 3.**Definition diagram of cracking and wrinkling quantification criteria. Φ(ε

_{2}) is the safety marginal curve, ψ(ε

_{2}) is the wrinkle limit curve, and φ(ε

_{2}) is the FLC.

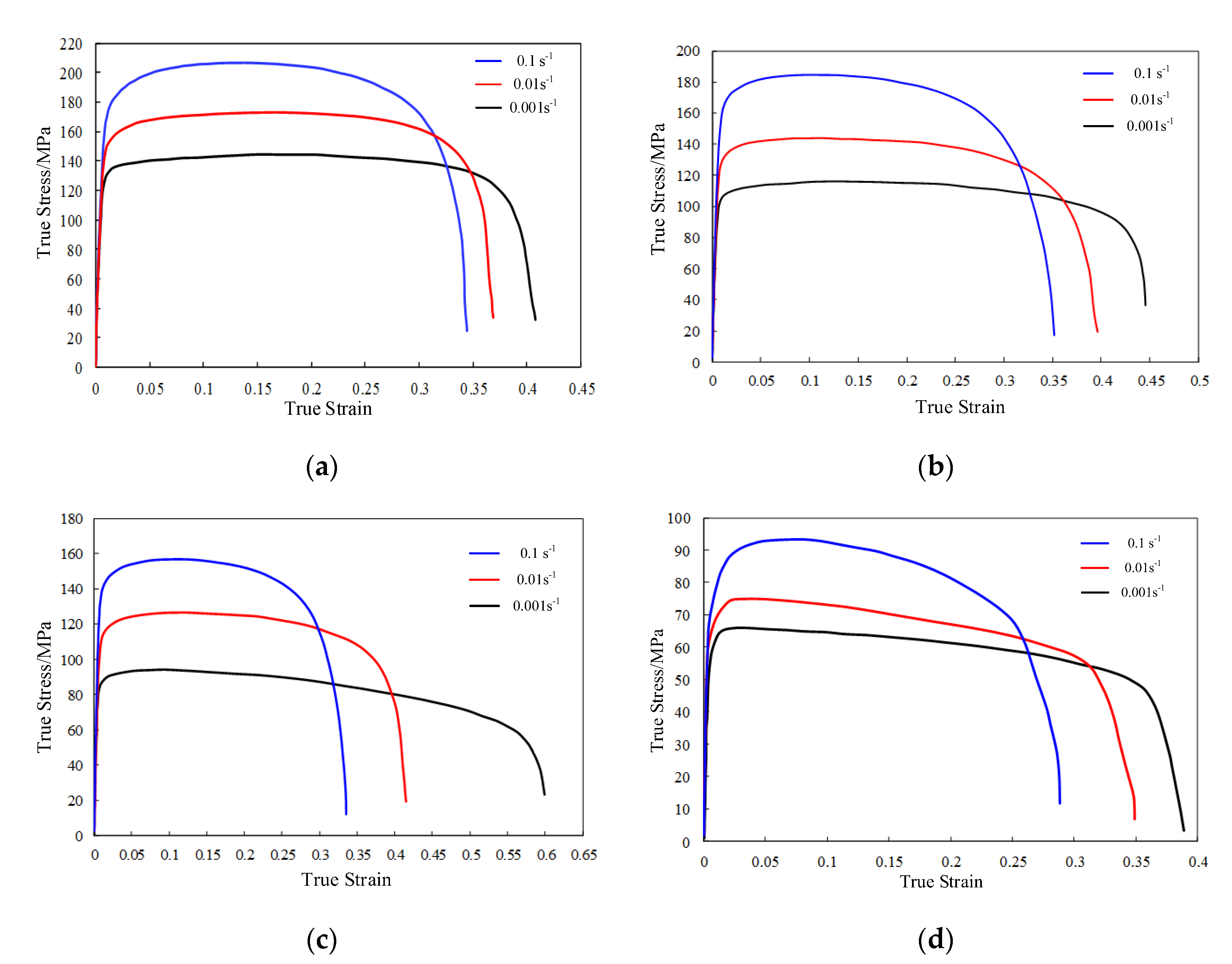

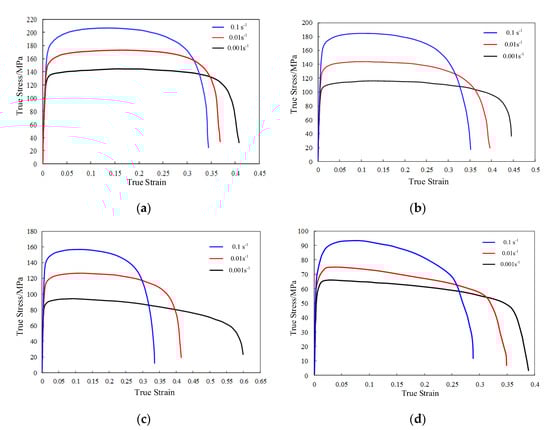

**Figure 8.**True stress-strain curves for ZK60 magnesium alloy deformed at different temperatures and strain rates: (

**a**) 175 °C; (

**b**) 200 °C; (

**c**) 225 °C; (

**d**) 250 °C.

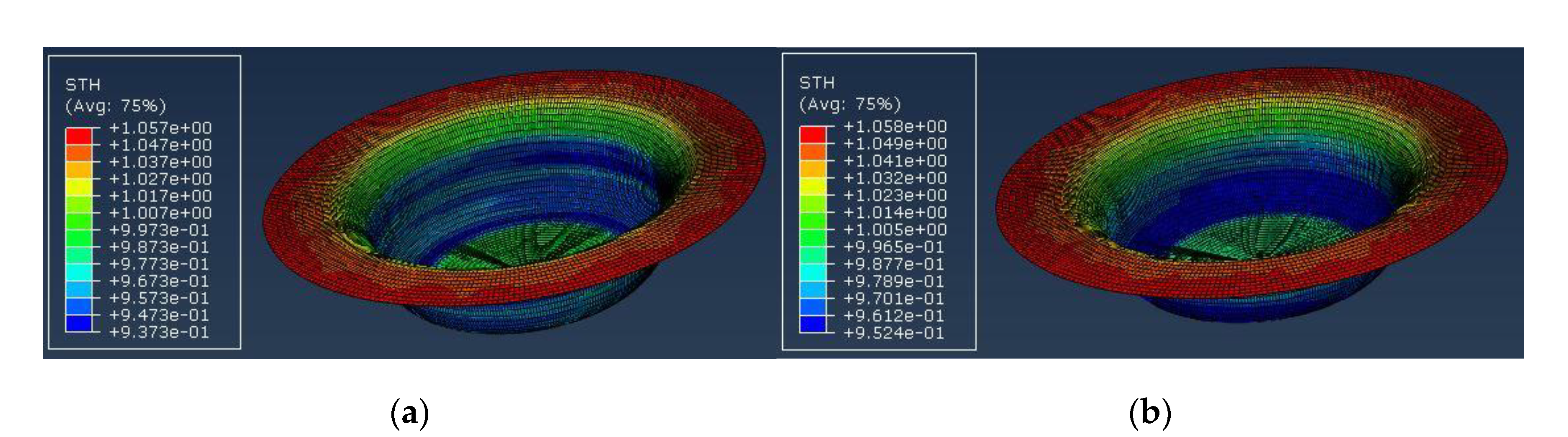

**Figure 11.**Thickness variation distribution demonstrated by the numerical simulation under different compromise solutions: (

**a**) compromise solution 1, (

**b**) compromise solution 2.

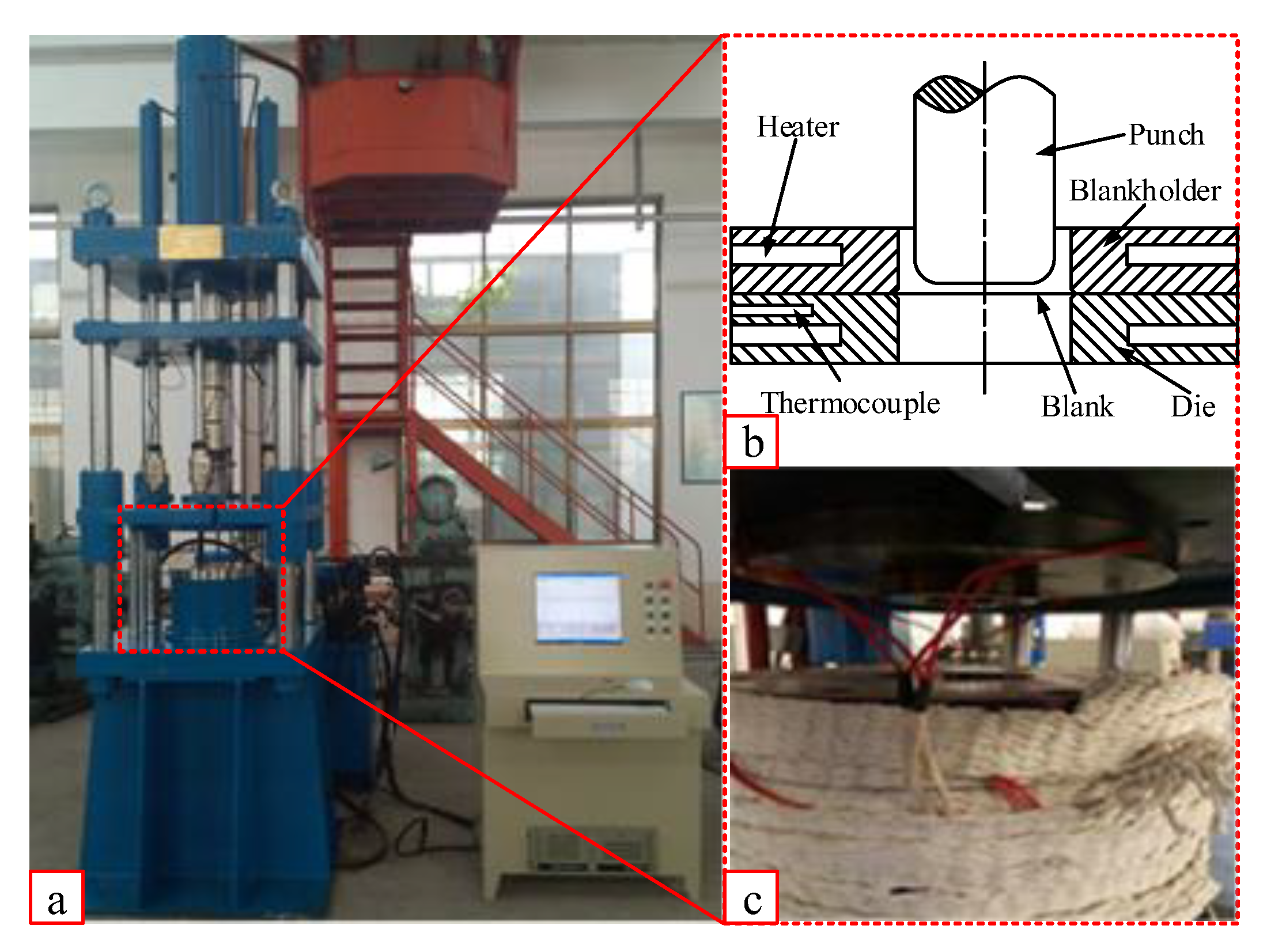

**Figure 12.**Equipment and die structures for hot stamping process of tube-shaped parts: (

**a**) 100 T partitioned VBHF hydraulic machine, (

**b**) die structure, (

**c**) physical die.

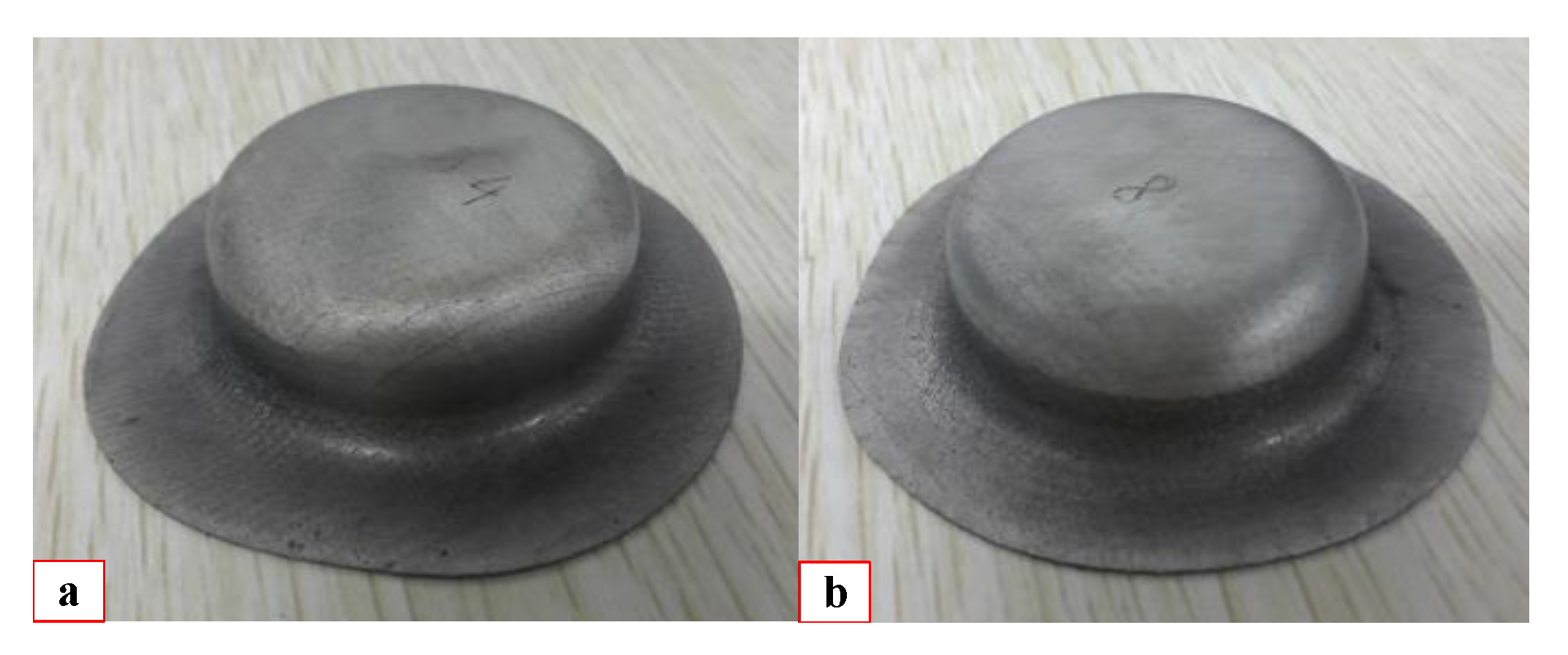

**Figure 13.**Hot stamping parts of experimentally stamped ZK60 magnesium alloy: (

**a**) Obtained part at the parameters of compromise solutions 1; (

**b**) Obtained part at the parameters of compromise solutions 2.

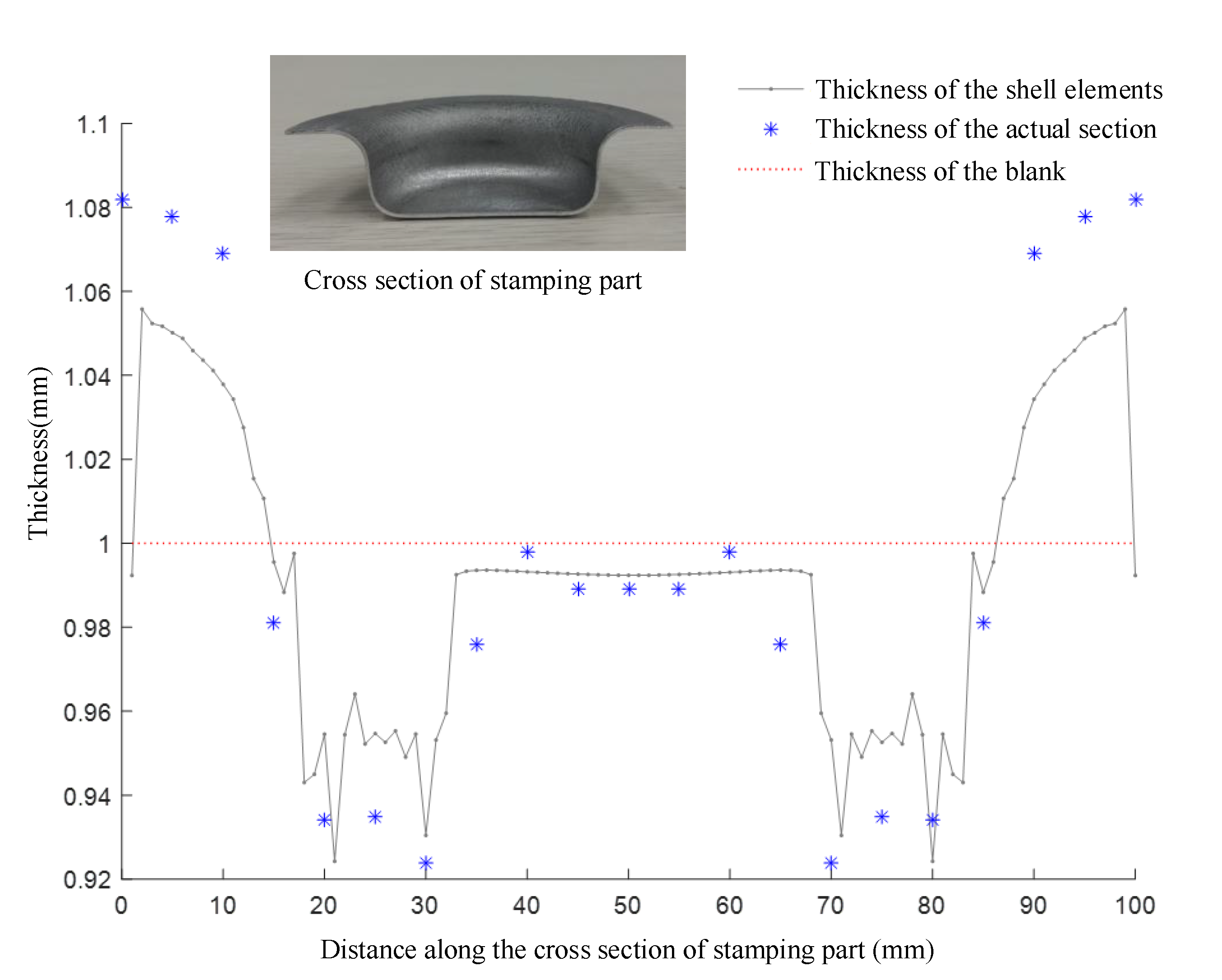

**Figure 14.**Thickness variation along the symmetrical section of the experimentally obtained parts and simulation result.

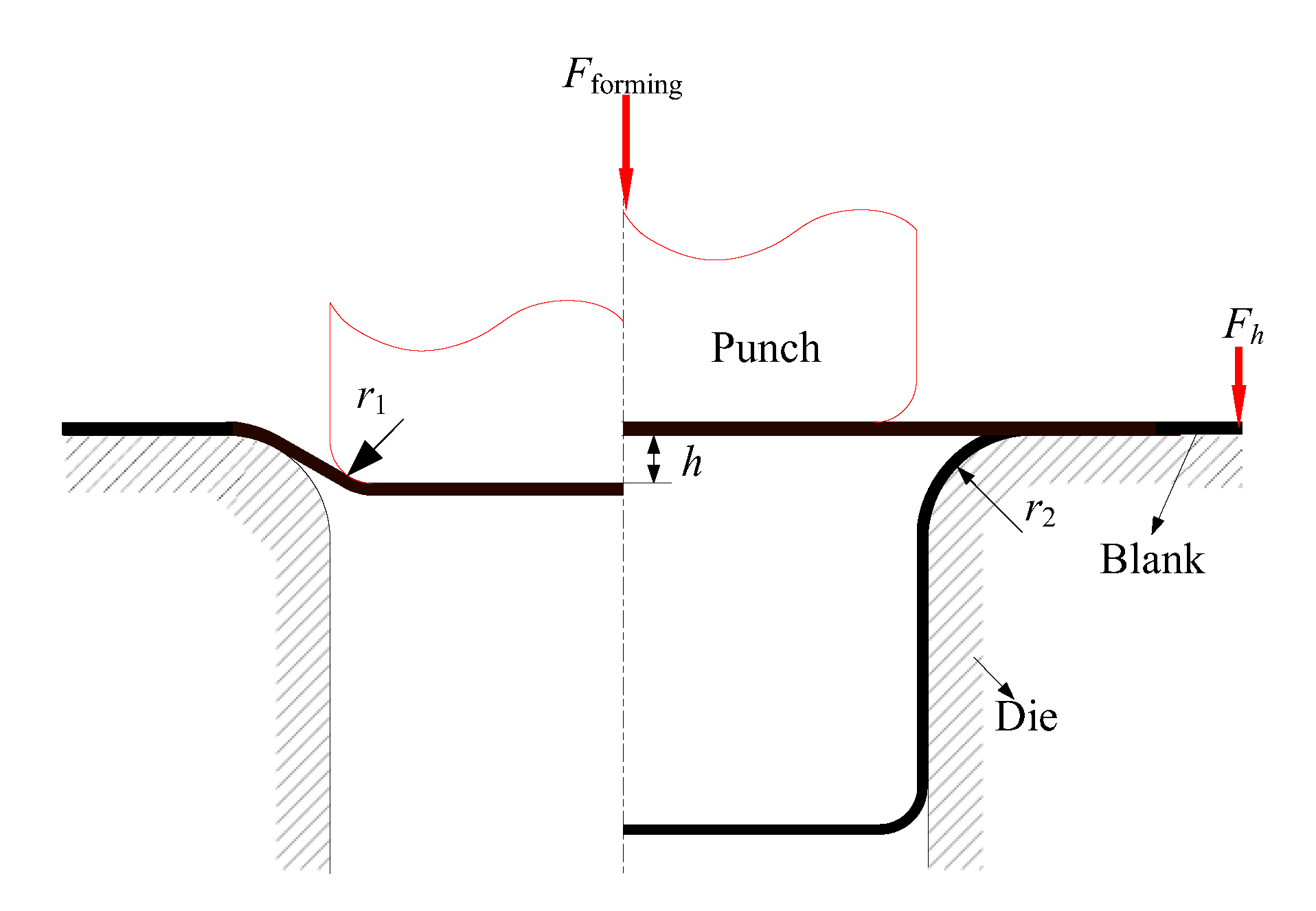

Blank Diameter d_{p} (mm) | Sheet Metal Thickness t_{0} (mm) | Drawing Height h (mm) | Punch Radius r_{1} (mm) | Die Radius r_{2} (mm) | Clearance δ (mm) | Friction Coefficient μ |
---|---|---|---|---|---|---|

100.0 | 1.0 | 20.0 | 7.0 | 8.0 | 1.2 | 0.12 |

Element | Si | Fe | Cu | Mn | Al | Zn | Ni | Zr |
---|---|---|---|---|---|---|---|---|

Quality score w | 0.0014 | 0.003 | 0.0011 | 0.008 | 0.0014 | 5.5 | 0.00048 | 0.53 |

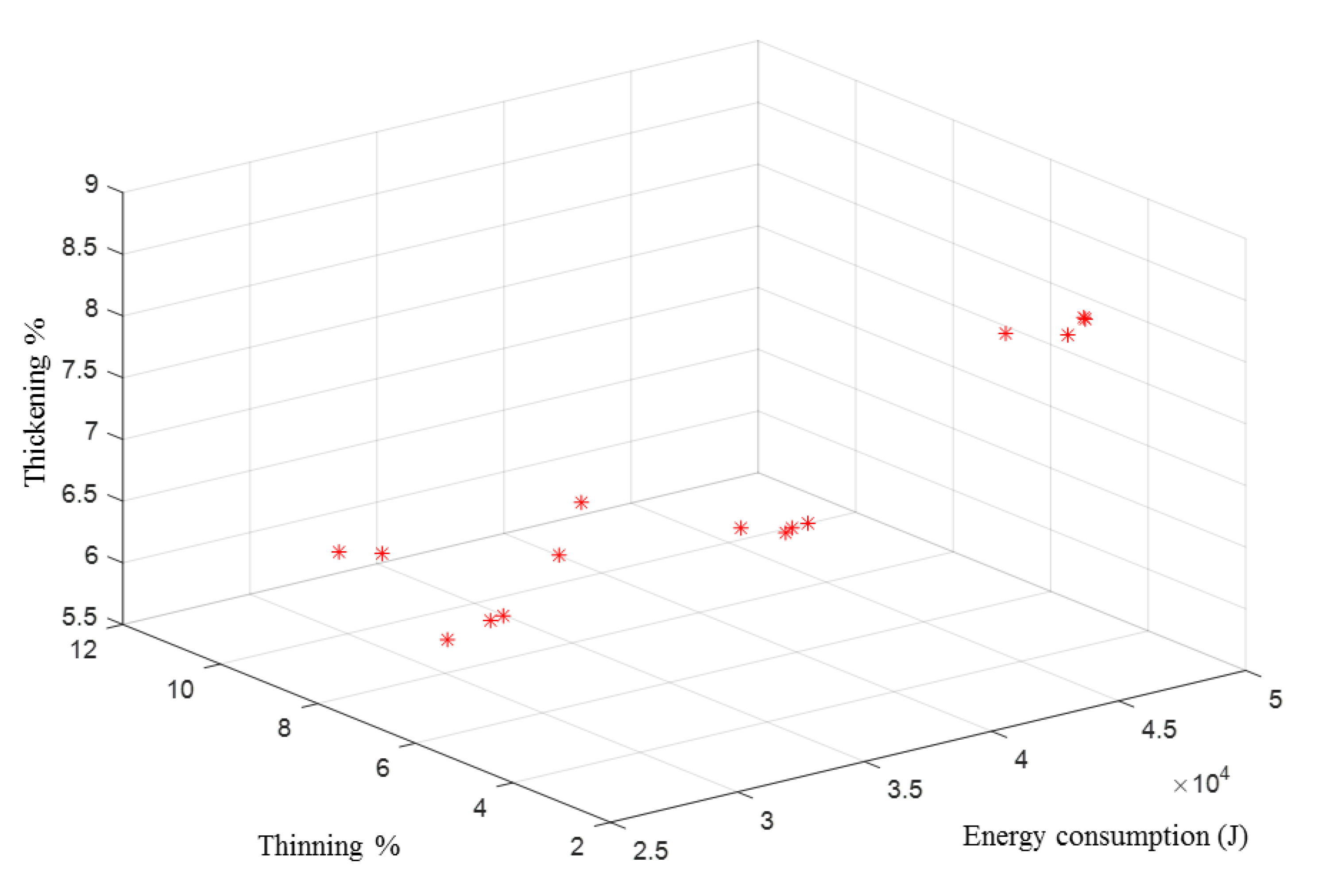

Run | F_{h} (kN) | v (mm/s) | T (°C) | Energy Consumption (J) | Thinning (%) | Thickening (%) |
---|---|---|---|---|---|---|

1 | 2.1 | 4.7 | 250 | 46,212.27 | 5.09 | 8.1 |

2 | 2.5 | 3.5 | 225 | 32,165.84 | 4.3 | 8 |

3 | 2.8 | 5.1 | 200 | 28,919.08 | 4.32 | 7.3 |

4 | 3.1 | 8.3 | 250 | 48,726.87 | 5.96 | 7.6 |

5 | 3.5 | 4.3 | 225 | 33,066.23 | 9.62 | 6.8 |

6 | 3.8 | 6.3 | 250 | 47,463.92 | 5.78 | 7 |

7 | 4.2 | 9.5 | 225 | 37,347.17 | 9.64 | 7.8 |

8 | 4.5 | 5.9 | 200 | 29,853.32 | 7.71 | 6.8 |

9 | 4.8 | 7.5 | 200 | 31,439.71 | 5.08 | 7.4 |

10 | 5.2 | 9.9 | 225 | 37,667.46 | 7.75 | 8 |

11 | 5.5 | 7.1 | 225 | 35,622.90 | 7.01 | 7.1 |

12 | 5.8 | 5.5 | 250 | 46,978.99 | 16.12 | 6 |

13 | 6.2 | 9.1 | 200 | 32,932.06 | 6.12 | 7.7 |

14 | 6.5 | 8.7 | 200 | 32,596.56 | 6.04 | 7.5 |

15 | 6.9 | 3.1 | 250 | 44,981.23 | 6.74 | 6.2 |

16 | 7.2 | 6.7 | 200 | 30,775.07 | 5.84 | 7 |

17 | 7.5 | 7.9 | 250 | 48,664.86 | 8.59 | 6.4 |

18 | 7.9 | 3.9 | 225 | 32,835.24 | 11.86 | 5.7 |

Compromise Solutions | Process Parameters | Indices | ||||
---|---|---|---|---|---|---|

F_{h} (kN) | v (mm/s) | T (°C) | Energy Consumption (J) | Thinning (%) | Thickening (%) | |

Solution 1 | 8.0 | 3.0 | 225 | 31,785.57 | 6.2 | 5.7 |

Solution 2 | 4.7 | 3.3 | 200 | 26,190.36 | 4.8 | 5.9 |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Gao, M.; Wang, Q.; Li, L.; Ma, Z.
Energy-Economizing Optimization of Magnesium Alloy Hot Stamping Process. *Processes* **2020**, *8*, 186.
https://doi.org/10.3390/pr8020186

**AMA Style**

Gao M, Wang Q, Li L, Ma Z.
Energy-Economizing Optimization of Magnesium Alloy Hot Stamping Process. *Processes*. 2020; 8(2):186.
https://doi.org/10.3390/pr8020186

**Chicago/Turabian Style**

Gao, Mengdi, Qingyang Wang, Lei Li, and Zhilin Ma.
2020. "Energy-Economizing Optimization of Magnesium Alloy Hot Stamping Process" *Processes* 8, no. 2: 186.
https://doi.org/10.3390/pr8020186
