Processes 2020, 8(1), 104; https://doi.org/10.3390/pr8010104

Article
Ultrasonically Induced Sulfur-Doped Carbon Nitride/Cobalt Ferrite Nanocomposite for Efficient Sonocatalytic Removal of Organic Dyes
1
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, No. 1, Section 3, Zhongxiao East Road, Da’an District, Taipei 106, Taiwan
2
Department of Chemical and Environmental Engineering, University of Nottingham Malaysia, Broga Road, Semenyih, Selangor 43500, Malaysia
*
Author to whom correspondence should be addressed.
Received: 21 November 2019 / Accepted: 3 January 2020 / Published: 13 January 2020

Abstract

:
The sulfur-doped carbon nitride/cobalt ferrite nanocomposite (SCN/CoFe2O4) was prepared via ultrasonication and studied for the sonocatalytic degradation of wastewater organic dye pollutants including methylene blue, rhodamine B, and Congo red. The X-ray photoelectron spectroscopy confirmed the presence and atomic ratios of S, C, N, Co, Fe, and O elements and their corresponding bonds with Co2+ and Fe3+ cations. The nanocomposite was found to have aggregated nanoparticles on a sheet-like structure. The bandgap energy was estimated to be 1.85 eV. For the sonocatalytic degradation of 25-ppm methylene blue at 20 kHz, 1 W and 50% amplitude, the best operating condition was determined to be 1 g/L of catalyst dosage and 4 vol % of hydrogen peroxide loading. Under this condition, the sonocatalytic removal efficiency was the highest at 96% within a reaction period of 20 min. SCN/CoFe2O4 outperformed SCN and CoFe2O4 by 2.2 and 6.8 times, respectively. The SCN/CoFe2O4 nanocomposite was also found to have good reusability with a drop of only 7% after the fifth cycle. However, the degradation efficiencies were low when tested with rhodamine B and Congo red due to difference in dye sizes, structural compositions, and electric charges.
Keywords:
SCN/CoFe2O4; nanocomposite; sonocatalyst; ultrasound-assisted degradation; organic dye; ultrasound; carbon nitride; cobalt ferrite; catalyst

1. Introduction

The risk of environmental pollution has increased rapidly due to the industrial and economic development. Industries such as paper mills, pharmaceutical, textile, dyeing, and cosmetics using a huge amount of organic dyes result in the production of persistent pollutants that are difficult to degrade after discharge, which further leads to the emergence of secondary pollutants [1,2]. Various techniques have been proposed for the removal of water-soluble pollutants such as adsorption, sedimentation, chemical precipitation, membrane technologies, electrochemical and oxidation processes [3,4,5].
Recently, great attention has been given to sonodegradation as an advanced oxidation process (AOP) for wastewater treatments. The abrupt growth, as well as the collapse of bubbles in solution under the ultrasound irradiation during the process, leads to extreme pressure and temperature around the bubbles [6,7]. The generation of a potent oxidizing agent like hydroxyl radicals (OH˙) increases because of the high temperature around the bubbles, which is useful for the non-selective oxidation of organic dyes. Nonetheless, ultrasound waves alone are not sufficient for the degradation of organic pollutants due to the requirement of higher energy and time. Sonocatalyst is used to overcome this problem for degrading pollutants in the solution. Several nanomaterials, for example, Fe3O4, Cu: ZnS-NPs-AC, TiO2, MgO ZnO, ZnS, Cu2S, CdS, MIL-101(Cr)/RGO/ZnFe2O4 and CoFe2O4@ZnS have been used for sonocatalytic degradation of organic dyes [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22].
Compared to the other catalyst materials, graphitic carbon nitride (g-C3N4) has been broadly studied for its appealing lamellar structure, low-cost, non-toxic, high abundance, and recyclability. Because of its fast electron-hole recombination rate and relatively low specific surface area, g-C3N4 is doped with metals or non-metal species such as Fe, Ag, Au, O, B, and P, coupling with TaON, Bi2WO6 [11,19,23,24,25,26,27,28]. Sulfur doped g-C3N4 (SCN) effectively narrows down the bandgap with the enhancement of the catalytic activity. The electronegativity of S is lower than that of N, which results in its unique electronic structure where the S-doped levels are located above the maximum valence band of doped g-C3N4. However until now, little attention has been focused on SCN to investigate the sonocatalytic degradation of organic dyes [26,28].
The spinel ferrites having a general formula of MFe2O4 (M = Mg, Ca, Mn, Co, Cu, Ni, Zn) are a close-packed array of O2− ions, with M2+ and Fe3+ cations located either partially or all of the tetrahedral and octahedral sites [8,29,30,31,32,33,34,35,36]. Among all ferrites, CoFe2O4 (CFO) possessing the characteristic of an excellent magnetic, electrical property and chemical stability with abundance, low-cost, and eco-friendliness has significantly attracted attention for various purposes such as catalysis, batteries, environment remediation, hydrogen production, etc. [29,30,36].
In the present work, SCN/CoFe2O4 nanocomposite was synthesized for the first time via the ultrasonication method. The sonocatalytic performance of SCN/CoFe2O4 nanocomposite for degrading the organic wastewater dye pollutants including methylene blue (MB), rhodamine B (RhB), and Congo red (CR) was evaluated. The changes in the degradation efficiency for the important parameters including H2O2 loading and catalyst dosage were also investigated. In addition, the sonocatalytic activities of pure SCN and CoFe2O4 were carried out under the same conditions for a comparative study.

2. Materials and Methods

2.1. Materials

All chemicals—iron nitrate (Fe(NO3)3·9H2O, 99%, Grand Chemical Co., Ltd., Miaoli, Taiwan), cobalt nitrate (Co(NO3)2·6H2O, 99%, Merck, Taipei, Taiwan), dicyandiamide (C2H4N4, 99%, Grand Chemical Co., Ltd., Miaoli, Taiwan), sulfuric acid (H2SO4, Thermo Fisher Scientific, Taipei, Taiwan), hydrogen peroxide (30%, Merck, Taipei, Taiwan), and sodium hydroxide (NaOH, Nihon Shiyaku Industries Ltd., Taipei, Taiwan), were of analytical grade and used as received. Double-distilled water was used throughout the experiment.

2.2. Synthesis of SCN

In the simple synthesis of SCN, 5 g of dicyandiamide was mixed with dilute H2SO4 [24]. This homogenous solution was heated at 100 °C under vigorous stirring to remove the water molecules. Further, the mixture was heated using a muffle furnace at 550 °C with a rate of 5 °C min−1 for 3 h. Finally, the powder was collected after centrifugation, washed with ethanol/water and followed by drying in an oven for 4 h at 80 °C.

2.3. Ultrasonic Synthesis of SCN/CoFe2O4 Nanocomposite

For synthesizing the SCN/CoFe2O4 nanocomposite, 0.5 g of SCN was taken in 50 mL water and stirred for 15 min. To the above solution, 50 mL of Co(NO3)2·6H2O (1M) and 50 mL of Fe(NO3)3·9H2O (2M) were added and mixed using ultrasonication (Qsonica sonicators, Newtown borough, CT, USA) for 30 min at 20 kHz, 50% amplitude, and 1 W. The solution was maintained at pH ~ 11 by the addition of 1 M NaOH [29]. Further, the suspension was shifted into a 100 mL Teflon-lined stainless steel and autoclaved at 180 °C for 16 h. The as-formed sample was centrifuged, washed with ethanol/water, and kept for drying in the oven at 90 °C. The collected sample was labeled as SCN/CoFe2O4. A similar method was used for the synthesis of the CoFe2O4 without the addition of SCN.

2.3.1. Characterization

The crystallinity and structural patterns of the samples were investigated by the X-ray diffractometer (XRD, PANanalytical X’Pert PRO, Almelo, The Netherlands) with CuK α radiation (λ = 1.5418 A). The structural studies of the samples were recorded using a field-emission scanning electron microscope (FESEM, JEOL JSM-7100F, Peabody, MA, USA) and a transmission electron microscopy (TEM, JEM2100F, Akishima, Japan) with 200 kV acceleration voltage. Fourier transform infrared (FT-IR, Perkin Elmer Spectrum GX, Shelton, WA, USA) was used to study the sample’s structure. The FT-IR sample pellets were prepared using the KBr substrate. Cary 5000 UV-Vis-NIR spectrophotometer (Agilent, Santa Clara, CA, USA) with an integrating sphere attachment was used for UV–visible diffuse reflectance spectra (UV-DRS). Photoluminescence (PL) spectroscopy (Dongwoo-Ramboss 500i, Gyeonggi-do, Korea) was used to confirm the optical properties of synthesized materials and to calculate the lifetime of the excited electron (recombination rate). X-ray photoelectron spectroscopy (XPS, JEOL JPS-9030, Tokyo, Japan) was used to study the elemental composition and configuration of the samples.

2.3.2. Sonocatalytic Degradation of Organic Dyes

Organic dye removal in aqueous solutions was analyzed in the presence of SCN/CoFe2O4 nanocomposite using the ultrasonication method at 20 kHz, 1 W, 50% amplitude, and pulse every 2s [31]. The removal efficiencies of the catalysts CoFe2O4 and SCN were also evaluated for benchmarking. Catalyst (50 mg) was added to 50 mL of a solution containing 25 ppm MB dye with 2 mL H2O2 (i.e., catalyst dosage of 1 g/L and H2O2 loading of 4 vol %). To balance the adsorption-desorption process between the catalyst and dye, the suspension was stirred magnetically without irradiation for 30 min. The experiment was then subjected to ultrasonic irradiation. Sample solution (2 mL) was taken at particular time intervals for monitoring the residual dye concentration using the UV-Vis spectrophotometer. The degradation efficiency (R) was calculated using Equation (1) and pseudo-first-order kinetic Equation (2) was used to evaluate the kinetic rate.
R% = [(C0 − Ct)/C0] × 100
ln (C0/C) = kt
where C0 and Ct are the dye concentration before irradiation and after time t irradiation, respectively, C is the dye concentration, k is the rate constant, and t is the reaction time. The effects of the dosage of catalyst (0–1.5 g/L) and H2O2 concentration (0–6 vol %) on the catalytic activity were also studied. For further examination of the effectiveness of the sonocatalyst, degradations of RhB and CR were also evaluated at similar conditions.

3. Results and Discussion

3.1. Characterizations of the SCN, CoFe2O4 and SCN/CoFe2O4 Catalysts

To investigate the structures and compositions of SCN, CoFe2O4, and SCN/CoFe2O4, XRD patterns were recorded. As shown in Figure 1a, the diffraction peaks for spinel CoFe2O4 appear at 2θ = 30.16°, 35.60°, 38.21°, 43.21°, 53.64°, 57.12°, and 62.77°, indexed as (220), (311), (222), (400), (422), (511), and (440) planes respectively (JCPDS card No. 00-022-1086) [7,37,38]. SCN depicts the two characteristic diffraction peaks at 27.42° and 13.04° indexed as (002) and (100) planes (JCPDS card No. 87-1526) for SCN [24]. The peak around (002) corresponds to the lamellar stacking of the conjugated aromatic system and (100) for the in-plane packing of g-C3N4. The peaks for SCN/CoFe2O4 composite occur at 30.28°, 35.60°, 38.21°, 43.21°, 53.64°, 57.12°, and 62.77° which correspond to the (220), (311), (222), (400), (422), (511), and (440) planes respectively. The disappearance of the characteristic peaks of SCN in the SCN/CoFe2O4 nanocomposite could be due to the anchoring of CoFe2O4 nanoparticles on the SCN sheets, which has prevented the SCN sheets from restacking orderly due to its small content in the nanocomposite [39].
Figure 1b displays the FT-IR spectra of the as-synthesized catalysts. For SCN, a broad stretching vibration peak of N-H or O-H group appears at 3100–3500 cm−1. The peaks for SCN at 810 and 890 cm−1 are among the characteristic peaks of the CN condensed heterocycles and N-H vibrations, respectively. The bands from the 1237–1640 cm−1 correspond to the typical heptazine ring units of g-C3N4 [25]. Due to the small amount of sulfur doping, the vibrations of S-containing groups are absent. In CoFe2O4 nanoparticles, the principal peak within the range of 400–600 cm−1 is attributed to the Co-O and Fe-O bonds of spinel oxide [29]. Despite of the presence of a small amount of SCN, the peaks as seen in the SCN/CoFe2O4 nanocomposite confirm the presence of CoFe2O4 and SCN. These collectively proved the formation of SCN/CoFe2O4 nanocomposite.
The size and morphology of CoFe2O4, SCN, and SCN/CoFe2O4 nanocomposite were analyzed by FE-SEM and TEM as depicted in Figure 2. SCN possesses an irregular sheet-like structure based on Figure 2a,b [40,41,42]. As shown in Figure 2c,d, CoFe2O4 exhibits irregular aggregates with particles ranging from 10.5 to 53 nm due to their strong magnetic properties and the dipole-dipole interactions between the magnetic aggregates [38,43,44]. Figure 2e,f shows that the SCN/CoFe2O4 nanocomposite consists of aggregated nanoparticles embedded in the sheet-like SCN.
The UV-Vis absorption spectra measured in the wavelength range of 200 to 800 nm for the as-synthesized samples are displayed in Figure 3a. In comparison with the absorption spectra of SCN and CoFe2O4, SCN/CoFe2O4 nanocomposite displayed an enhanced absorption capability with higher absorption intensity. Furthermore, the bandgap energies of the samples calculated from the plot of (αhν)2 versus bandgap energy are presented in Figure 3b. The estimated bandgaps were 2.47, 1.37, and 1.85 eV for SCN, CoFe2O4, SCN/CoFe2O4 nanocomposite, respectively. The reduction in the bandgap of SCN/CoFe2O4 nanocomposite when compared with SCN is thus due to the presence of CoFe2O4.
The photoluminescence spectra of SCN, CoFe2O4, and SCN/CoFe2O4 nanocomposite were analyzed to understand the recombination process of sonogenerated electrons and holes (e-h+). In Figure 4 (inset), the SCN/CoFe2O4 nanocomposite is shown to have the lowest PL intensity when compared to SCN and CoFe2O4, which infers to a higher ability to capture the sonogenerated electrons. Hence, SCN/CoFe2O4 nanocomposite can efficiently lower the recombination rate of the sonogenerated charge carriers.
Figure 5 shows the XPS results of the samples. Figure 5a displays the C 1s spectrum where the four fitting peaks at 284.7, 285.9, 288.5, and 283.3 eV correspond to the C=C, N-C=N, C-C, and C-N/C-S bonds, respectively [25,28,45,46,47,48,49]. In Figure 5b, the three deconvoluted peaks for N 1s spectrum centered at 397.6, 399.8, 401.4, and 403.1 eV correspond to pyridinic N, tertiary nitrogen N-(C)3, N(C-H) group, and π-excitation [24,25,26,27,28,29]. The characteristic peaks of S 2p3/2 at 162.7 and 168.4 eV, as seen in Figure 5c, arose from the C-S bond in SCN and S-O bond due to the surface adsorption of oxygen during the calcination process [27,28,30]. The Co 2p spectrum, depicted in Figure 5d, was attributed to the presence of Co2+ cations. As seen, two characteristic peaks of Co 2p3/2 at around 779.2 and 781.5 eV were due to the Co2+ in B-sites and Co2+ in A-sites with the corresponding shake-up satellite peaks at 784.9 and 789.7 eV [30,31,32,33]. Similarly, the Fe 2p3/2 spectrum shown in Figure 5e is composed of two characteristic peaks at 709.4 and 710.8 eV, assigned to Fe3+ at B-sites and Fe3+ at A-sites along with shake-up satellites at 714.8 and 717.7 eV respectively [50,51,52,53,54,55]. Moreover, fitting peaks of O 1s reveal peaks at 529.6 and 530.8 eV, which coincide with the lattice oxygen and chemisorbed oxygen species, respectively, as displayed in Figure 5f [46,54]. XPS analysis also reveals the atomic ratios of C, Co, Fe, O, N, and S of the SCN/CoFe2O4 nanocomposite to be 54.39%, 2.03%, 39.83%, 2.36%, and 0.94%, respectively.

3.2. Effect of Catalyst Dosage

In order to study the catalyst dosage influence on the degradation of MB dye, the amount of SCN/CoFe2O4 nanocomposite was varied from 0 to 1.5 g/L at H2O2 loading of 4 vol % and without ultrasonication. As shown in Figure 6, the degradation efficiency was very low in the absence of the catalyst at about 35% in 20 min. The increase in catalyst dosage from 0 to 0.5 g/L led to an increase in the degradation efficiency by 26%. This suggests that the higher amount of dosage favors the MB degradation due to the excess availability of the active sites which help in the generation of surplus hydroxyl radicals (OH·) for the degradation of MB [7]. However, as indicated by the drop in the degradation efficiency from 63 to 55% at the catalyst dosage of 1 and 1.5 g/L, respectively, an excess amount of catalyst dosage (in excess of 1 g/L) tends to decrease the selectivity and yield of H2O2 to form undesired water [56].

3.3. Effect of H2O2 Loading

The influence of the amount of H2O2 on the degradation of MB was investigated. As seen in Figure 7, only 14% of MB dye was degraded in the absence of H2O2 within the reaction time of 20 min. The degradation efficiency was increased from 45% to 66% when the H2O2 loading was increased from 2 and 4 vol % of H2O2 due to the excess of OH· with a higher amount of H2O2. However, an increase in the amount of H2O2 from 4 to 6 vol % decreased the degradation efficiency to 57%. This is because surplus H2O2 serves as a scavenger of hydroxyl radical to lower the oxidation potential by the generation of perhydroxyl radical (HOO·) [7,10,42].

3.4. Sonocatalytic Degradation Performances of the SCN, CoFe2O4 and SCN/CoFe2O4 Catalysts

Using the best conditions obtained above—catalyst loading of 1 g/L and H2O2 loading of 4 vol %-–the catalytic and sonocatalytic degradations of 25-ppm methylene blue by SCN, CoFe2O4, and SCN/CoFe2O4 with and without the presence of H2O2 and/or ultrasonication (US) were evaluated and the results are shown in Figure 8. Figure 8a displays a correlative study on the degradation of MB with US alone, H2O2/US, SCN/H2O2/US, CoFe2O4/H2O2/US, SCN/CoFe2O4/US, SCN/CoFe2O4/US, and SCN/CoFe2O4/H2O2/US systems. The MB degradation efficiencies are in the following order: SCN/CoFe2O4/H2O2/US (96%) > H2O2/US (45%) > CoFe2O4/H2O2/US (43%) > SCN/CoFe2O4/H2O2 (37%) > SCN/CoFe2O4 (33%) > SCN/CoFe2O4/US (27%) > SCN/H2O2/US (14%) > US alone (11%).
The SCN/CoFe2O4/H2O2/US system exhibited the highest degradation activity of 96% in 20 min. By comparing the graphs of US alone with H2O2/US and SCN/CoFe2O4/US with SCN/CoFe2O4/H2O2/US in Figure 8a, it is evident that the presence of both H2O2 and ultrasonication greatly enhanced the removal efficiency by 3.5–4.1 times, i.e., the removal efficiencies increased from 11% to 45% in the former, and 27% to 96% in the latter. Additionally, by comparing the three catalysts, in the presence of H2O2 and ultrasonication, SCN/CoFe2O4 outperformed CoFe2O4 and SCN by 2.2 and 6.8 times, respectively. Although a significant improvement was observed on the SCN/CoFe2O4 nanocomposite by applying both H2O2 and ultrasonication; by using H2O2/US as the benchmark, it was found that H2O2 and ultrasonication had not brought much improvement but deterioration in the degradation efficiency for the catalysts CoFe2O4 and SCN. This could be due to the non-optimum catalyst loading for each of these catalysts.
Figure 8b shows that the reactions follow pseudo-first-order kinetics. The k values obtained for the different systems are in the following order: SCN/CoFe2O4/H2O2/US (0.1369 min−1) > H2O2/US (0.0302 min−1) > CoFe2O4/H2O2/US (0.0283 min−1) > SCN/CoFe2O4/H2O2 (0.0229 min−1) > SCN/CoFe2O4 (0.02023 min−1) > SCN/CoFe2O4/US (0.0157 min−1) > SCN/H2O2/US (0.0058 min−1) > US alone (0.0067 min−1). Therefore, SCN/CoFe2O4/H2O2/US showed the highest synergistic effect than the other systems on the degradation of MB.

3.5. Effect of the Type of Organic Dye on Sonodegradation

The capability of SCN/CoFe2O4 nanocomposite in treating different types of organic dyes—RhB and CR—under the same conditions was evaluated, and the results are shown in Figure 9. The degradation efficiencies of RhB, CR and MB were 20%, 58%, and 83%, respectively. The significant difference can be attributed to the difference in dye sizes, structural compositions and electric charges [6,7,8]. Degradation of mixed organic dyes is therefore a challenging study worth investigating further.

3.6. Study of the Possible Mechanism of Sonodegradation

The enhancement of the sonodegradation can be through both chemical and physical processes [57]. The two major phenomena that originate from the ultrasonic-cavitation effect are ‘hot spots’ and sonoluminescence. The hot spots stimulate the sonolysis of H2O to produce ·OH and hydrogen radicals (·H) as shown in Equation (3). Sonoluminescence is generated when sound waves with sufficient intensity results in the formation of light [58]. Therefore, both SCN and CoFe2O4 can be excited to produce sonogenerated e-h+ in the presence of visible light. It is known that the bandgap of CoFe2O4 (1.37 eV) is lower than the SCN (2.47 eV), which causes the movement of electrons from SCN to CoFe2O4 [59]. The electrons readily excite from the conduction band (CB) of SCN to the CB of CoFe2O4. Conversely, the sonogenerated holes in the valence band (VB) of CoFe2O4 also get migrated to the VB of SCN. Hence, the reduction of the recombination rate due to the migration of sonogenerated electrons and holes in the opposite direction leads to the enhancement of sonocatalytic degradation. Further, the highly reactive ·OH is produced by the reaction of electrons in the CB with H2O2, which facilitate the degradation process [7]. The adsorbed OH anions or H2O2 onto the surface of the SCN react with the sonogenerated holes to form ·OH. Similarly, the interaction of adsorbed O2 with the CB electrons generates ·O2 and ·OOH, which aids in the indirect degradation of the organic dye solution. These active species oxidize the dye molecule into CO2, H2O, or NH4+ [8,60,61]. As is known, CoFe2O4 possess more positive CB when compared with SCN. Hence, CoFe2O4 in the SCN/CoFe2O4 nanocomposite acts as a sink for generated electrons, whereas SCN acts as an acceptor for the promotion of interfacial electron transfer process. Equations (3) to (12) describe the chemical sonocatalytic process of SCN/CoFe2O4 nanocomposite.
H2O + ultrasonication → ·OH + ·H (Sonolysis of H2O),
SCN/CoFe2O4 + ultrasonication → SCN/CoFe2O4 (e + h+) (Sonoluminescence),
H2O2 + ultrasonication → ·OH,
H2O2 + ·H → H2O + ·OH,
e + O2 → ·O2,
·O2 + H2O → ·OOH + OH,
h+ + H2O → ·OH + H+,
h+ + OH → ·OH,
H+ + ·O2 → ·OOH,
·OH + ·O2 + ·OOH + Organic pollutants → CO2 + H2O + Inorganics

3.7. Reusability and Stability of SCN/CoFe2O4 Nanocomposite

One of the important factors in the dye degradation process is the reusability of the catalysts. The practical usability and stability of the SCN/CoFe2O4 nanocomposite under constant experimental conditions were investigated, and the results are shown in Figure 10a. After the sonodegradation experiment, the catalyst collected was washed with ethanol/water and dried at 60 °C for the subsequent runs. The degradation efficiencies were found to be 98%, 97%, 95%, 95%, 93%, and 91% for five successive cycles, with concentration measurement errors of 15%. Further, the structural stability of the recovered sample was studied by XRD as shown in Figure 10b. It is confirmed from the result that insignificant changes were observed after the third cycle of reusability.

4. Conclusions

The SCN/CoFe2O4 nanocomposite was successfully synthesized using ultrasonication method. The nanocomposite was composed of aggregated nanoparticles of CoFe2O4 on a sheet-like SCN structure. Its bandgap energy was estimated to be 1.85 eV. XPS confirmed the presence of C, Co, Fe, O, N, and S elements in the atomic ratios of 54.39%, 2.03%, 39.83%, 2.36%, and 0.94%, respectively. The effects of the important experimental parameters such as catalyst dosage and H2O2 loading on the MB degradation were analyzed. For the degradation of 25-ppm methylene blue, the best operating condition was found to be at a catalyst dosage of 1 g/L and 4 vol % of H2O2 loading. In the presence of 4 vol % H2O2, the SCN/CoFe2O4 nanocomposite demonstrated a high degradation efficiency of 96% within a reaction time of 20 min in the sonocatalytic degradation of 25-ppm methylene blue, in comparison with SCN (14%) and CoFe2O4 (43%). It was also found that both ultrasonication and H2O2 improved the methylene-blue degradation efficiency of SCN/CoFe2O4 by 3.5–4.1 times. The sonocatalysis efficiencies for methylene blue, Congo-red, and rhodamine B were found to be 83%, 58%, and 20%, respectively. Further, the reusability test of SCN/CoFe2O4 sonocatalyst revealed insignificant deterioration after the fifth cycle. In summary, the present work can inspire a low-cost, green sonocatalyst for the degradation of organic wastewater pollutants.

Author Contributions

Conceptualization and writing—original draft preparation, S.K.; validation and formal analysis, G.-T.P.; writing—review and editing, S.C.; supervision and funding acquisition, T.C.-K.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We thank the Precision Analysis and Materials Research Centre, National Taipei University of Technology, Taipei, Taiwan, for providing all the analytical facilities to this research. The authors also thank Faizan Husain for his helpful comments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Guo, S.; Tang, Y.; Xie, Y.; Tian, C.; Feng, Q.; Zhou, W.; Jiang, B. P-doped tubular g-C3N4 with surface carbon defects: Universal synthesis and enhanced visible-light photocatalytic hydrogen production. Appl. Catal. B Environ. 2017, 218, 664–671. [Google Scholar] [CrossRef]
  2. Liu, Y.; Li, M.; Zhang, Q.; Qin, P.; Wang, X.; He, G.; Li, L. One-step synthesis of WO3-CuS nanosheets heterojunction with enhanced photocatalytic performance for methylene blue degradation and Cr (VI) reduction. J. Chem. Technol. Biotechnol 2019. [Google Scholar] [CrossRef]
  3. Konstantinou, I.K.; Albanis, T.A. TiO2-assisted photocatalytic degradation of azo dyes in aqueous solution: Kinetic and mechanistic investigations: A review. Appl. Catal. B Environ. 2004, 49, 1–14. [Google Scholar] [CrossRef]
  4. Akpan, U.G.; Hameed, B.H. Parameters affecting the photocatalytic degradation of dyes using TiO2-based photocatalysts: A review. J. Hazard. Mater. 2009, 170, 520–529. [Google Scholar] [CrossRef]
  5. Zhang, J.; Zhou, Y.; Jiang, M.; Li, J.; Sheng, J. Removal of methylene blue from aqueous solution by adsorption on pyrophyllite. J. Mol. Liq. 2015, 209, 267–271. [Google Scholar] [CrossRef]
  6. Ertugay, N.; Acar, F.N. The degradation of Direct Blue 71 by sono, photo and sonophotocatalytic oxidation in the presence of ZnO nanocatalyst. Appl. Surf. Sci. 2014, 318, 121–126. [Google Scholar] [CrossRef]
  7. Hassani, A.; Eghbali, P.; Metin, Ö. Sonocatalytic removal of methylene blue from water solution by cobalt ferrite/mesoporous graphitic carbon nitride (CoFe2O4/mpg-C3N4) nanocomposites: Response surface methodology approach. Environ. Sci. Pollut. Res. 2018, 25, 32140–32155. [Google Scholar] [CrossRef]
  8. Hassani, A.; Çelikdağ, G.; Eghbali, P.; Sevim, M.; Karaca, S.; Metin, Ö. Heterogeneous sono-Fenton-like process using magnetic cobalt ferrite-reduced graphene oxide (CoFe2O4-rGO) nanocomposite for the removal of organic dyes from aqueous solution. Ultrason. Sonochem. 2018, 40, 841–852. [Google Scholar] [CrossRef]
  9. Sadhanala, H.K.; Maddegalla, A.; Nanda, K. Thioacetamide-derived nitrogen and sulfur co-doped carbon nanoparticles used for label-free detection of copper (ii) ions and bioimaging applications. New J. Chem. 2017, 41, 13742–13746. [Google Scholar] [CrossRef]
  10. Hu, S.; Yang, L.; Tian, Y.; Wei, X.; Ding, J.; Zhong, J.; Chu, P.K. Non-covalent doping of graphitic carbon nitride with ultrathin graphene oxide and molybdenum disulfide nanosheets: An effective binary heterojunction photocatalyst under visible light irradiation. J. Colloid Interface Sci. 2014, 431, 42–49. [Google Scholar] [CrossRef]
  11. Kumar, A.; Yadav, R.K.; Park, N.-J.; Baeg, J.-O. Facile one-pot two-step synthesis of novel in situ selenium-doped carbon nitride nanosheet photocatalysts for highly enhanced solar fuel production from CO2. ACS Appl. Nano Mater. 2017, 1, 47–54. [Google Scholar] [CrossRef]
  12. Feng, S.; Yan, P.; Xu, L.; Xia, J.; Li, H. Exploitation of a photoelectrochemical sensing platform for bisphenol A quantitative determination using Cu/graphitic carbon nitride nanocomposites. Chin. Chem. Lett. 2018, 29, 1629–1632. [Google Scholar] [CrossRef]
  13. Rivera-Tapia, E.D.; Fajardo, C.A.; Ávila-Vega, Á.J.; Ávila, C.F.; Sánchez-Arévalo, F.M.; Chango-Villacís, I.; Quiroz-Chávez, F.J.; Santoyo-Salazar, J.; Dante, R.C. Synthesis of boron carbon nitride oxide (BCNO) from urea and boric acid. Fuller. Nanotub. Carbon Nanostruct. 2016, 24, 8–12. [Google Scholar] [CrossRef]
  14. Kong, W.; Zhang, X.; Chang, B.; Zhou, Y.; Zhang, S.; He, G.; Yang, B.; Li, J. Fabrication of B doped g-C3N4/TiO2 heterojunction for efficient photoelectrochemical water oxidation. Electrochim. Acta 2018, 282, 767–774. [Google Scholar] [CrossRef]
  15. Zhou, Y.; Lv, W.; Zhu, B.; Tong, F.; Pan, J.; Bai, J.; Zhou, Q.; Qin, H. Template-Free One-Step Synthesis of g-C3N4 Nanosheets with Simultaneous Porous Network and S-Doping for Remarkable Visible-Light-Driven Hydrogen Evolution. ACS Sustain. Chem. Eng. 2019, 7, 5801–5807. [Google Scholar] [CrossRef]
  16. Liu, Z.; Jiang, Y.; Liu, X.; Zeng, G.; Shao, B.; Liu, Y.; Liu, Y.; Zhang, W.; Yan, M.; He, X. Silver chromate modified sulfur doped graphitic carbon nitride microrod composites with enhanced visible-light photoactivity towards organic pollutants degradation. Compos. Part B Eng. 2019, 173, 106918. [Google Scholar] [CrossRef]
  17. Cao, S.; Huang, Q.; Zhu, B.; Yu, J. Trace-level phosphorus and sodium co-doping of g-C3N4 for enhanced photocatalytic H2 production. J. Power Sources 2017, 351, 151–159. [Google Scholar] [CrossRef]
  18. Liu, B.; Ye, L.; Wang, R.; Yang, J.; Zhang, Y.; Guan, R.; Tian, L.; Chen, X. Phosphorus-doped graphitic carbon nitride nanotubes with amino-rich surface for efficient CO2 capture, enhanced photocatalytic activity, and product selectivity. ACS Appl. Mater. Interfaces 2018, 10, 4001–4009. [Google Scholar] [CrossRef]
  19. Kumar, P.; Boukherroub, R.; Shankar, K. Sunlight-driven water-splitting using two-dimensional carbon based semiconductors. J. Mater. Chem. A 2018, 6, 12876–12931. [Google Scholar] [CrossRef]
  20. Nasir, M.S.; Yang, G.; Ayub, I.; Wang, S.; Wang, L.; Wang, X.; Yan, W.; Peng, S.; Ramakarishna, S. Recent development in graphitic carbon nitride based photocatalysis for hydrogen generation. Appl. Catal. B Environ. 2019, 117855. [Google Scholar] [CrossRef]
  21. Zhou, L.; Zhang, H.; Sun, H.; Liu, S.; Tade, M.O.; Wang, S.; Jin, W. Recent advances in non-metal modification of graphitic carbon nitride for photocatalysis: A historic review. Catal. Sci. Technol. 2016, 6, 7002–7023. [Google Scholar] [CrossRef]
  22. Zhang, Y.; Zong, S.; Cheng, C.; Shi, J.; Guan, X.; Lu, Y.; Guo, L. One-pot annealing preparation of Na-doped graphitic carbon nitride from melamine and organometallic sodium salt for enhanced photocatalytic H2 evolution. Int. J. Hydrog. Energy 2018, 43, 13953–13961. [Google Scholar] [CrossRef]
  23. Jiang, L.; Yuan, X.; Pan, Y.; Liang, J.; Zeng, G.; Wu, Z.; Wang, H. Doping of graphitic carbon nitride for photocatalysis: A reveiw. Appl. Catal. B Environ. 2017, 217, 388–406. [Google Scholar] [CrossRef]
  24. Shcherban, N.D.; Filonenko, S.M.; Ovcharov, M.L.; Mishura, A.M.; Skoryk, M.A.; Aho, A.; Murzin, D.Y. Simple method for preparing of sulfur–doped graphitic carbon nitride with superior activity in CO2 photoreduction. ChemistrySelect 2016, 1, 4987–4993. [Google Scholar] [CrossRef]
  25. Wen, J.; Xie, J.; Chen, X.; Li, X. A review on g-C3N4-based photocatalysts. Appl. Surf. Sci. 2017, 391, 72–123. [Google Scholar] [CrossRef]
  26. Song, L.; Zhang, S.; Wu, X.; Wei, Q. A metal-free and graphitic carbon nitride sonocatalyst with high sonocatalytic activity for degradation methylene blue. Chem. Eng. J. 2012, 184, 256–260. [Google Scholar] [CrossRef]
  27. Dong, G.; Zhang, Y.; Pan, Q.; Qiu, J. A fantastic graphitic carbon nitride (g-C3N4) material: Electronic structure, photocatalytic and photoelectronic properties. J. Photochem. Photobiol. C Photochem. Rev. 2014, 20, 33–50. [Google Scholar] [CrossRef]
  28. Abazari, R.; Mahjoub, A.R.; Sanati, S.; Rezvani, Z.; Hou, Z.; Dai, H. Ni–Ti layered double [email protected] graphitic carbon nitride nanosheet: A novel nanocomposite with high and ultrafast sonophotocatalytic performance for degradation of antibiotics. Inorg. Chem. 2019, 58, 1834–1849. [Google Scholar] [CrossRef]
  29. Kong, J.; Lai, X.; Rui, Z.; Ji, H.; Ji, S. Multichannel charge separation promoted ZnO/P25 heterojunctions for the photocatalytic oxidation of toluene. Chin. J. Catal. 2016, 37, 869–877. [Google Scholar] [CrossRef]
  30. Nirumand, L.; Farhadi, S.; Zabardasti, A.; Khataee, A. Copper ferrite nanoparticles supported on MIL-101/reduced graphene oxide as an efficient and recyclable sonocatalyst. J. Taiwan Inst. Chem. Eng. 2018, 93, 674–685. [Google Scholar] [CrossRef]
  31. Ghobadifard, M.; Farhadi, S.; Mohebbi, S. Sonocatalytic performance of magnetic flower-like CoFe2O4 nanoparticles prepared from a heterometallic oxo-centered trinuclear complex under microwave irradiation. Polyhedron 2018, 155, 66–76. [Google Scholar] [CrossRef]
  32. López, Y.O.; Vázquez, H.M.; Gutiérrez, J.S.; Velderrain, V.G.; Ortiz, A.L.; Martínez, V.C. Synthesis method effect of CoFe2O4 on its photocatalytic properties for H2 production from water and visible light. J. Nanomater. 2015, 16, 76. [Google Scholar]
  33. Safari, J.; Zarnegar, Z. Brønsted acidic ionic liquid based magnetic nanoparticles: A new promoter for the Biginelli synthesis of 3,4-dihydropyrimidin-2(1H)-ones/thiones. New J. Chem. 2014, 38, 358–365. [Google Scholar] [CrossRef]
  34. Nivetha, R.; Chella, S.; Kollu, P.; Jeong, S.K.; Bhatnagar, A.; Andrews, N.G. Cobalt and nickel ferrites based graphene nanocomposites for electrochemical hydrogen evolution. J. Magn. Magn. Mater. 2018, 448, 165–171. [Google Scholar] [CrossRef]
  35. Shao, Z.; Zeng, T.; He, Y.; Zhang, D.; Pu, X. A novel magnetically separable CoFe2O4/Cd0.9Zn0.1S photocatalyst with remarkably enhanced H2 evolution activity under visible light irradiation. Chem. Eng. J. 2019, 359, 485–495. [Google Scholar] [CrossRef]
  36. Chen, J.; Zhao, D.; Diao, Z.; Wang, M.; Shen, S. Ferrites boosting photocatalytic hydrogen evolution over graphitic carbon nitride: A case study of (Co, Ni)Fe2O4 modification. Sci. Bull. 2016, 61, 292–301. [Google Scholar] [CrossRef]
  37. Zhong, M.; Fei, P.; Fu, X.; Lei, Z.; Su, B. Synthesis of PS–CoFe2O4 composite nanomaterial with improved magnetic properties by a one-step solvothermal method. Ind. Eng. Chem. Res. 2013, 52, 8230–8235. [Google Scholar] [CrossRef]
  38. Thomas, B.; Alexander, L. Enhanced synergetic effect of Cr (VI) ion removal and anionic dye degradation with superparamagnetic cobalt ferrite meso–macroporous nanospheres. Appl. Nanosci. 2018, 8, 125–135. [Google Scholar] [CrossRef]
  39. Liu, Z.; Xu, G.; Zhang, M.; Xiong, K.; Meng, P. Synthesis of CoFe2O4/RGO nanocomposites by click chemistry and electromagnetic wave absorption properties. J. Mater. Sci. Mater. Electron. 2016, 27, 9278–9285. [Google Scholar] [CrossRef]
  40. Qin, H.; Lv, W.; Bai, J.; Zhou, Y.; Wen, Y.; He, Q.; Tang, J.; Wang, L.; Zhou, Q. Sulfur-doped porous graphitic carbon nitride heterojunction hybrids for enhanced photocatalytic H2 evolution. J. Mater. Sci. 2019, 54, 4811–4820. [Google Scholar] [CrossRef]
  41. Joseph, S.; Abraham, S.; Priyanka, R.N.; Abraham, T.; Suresh, A.; Mathew, B. In situ S-doped ultrathin gC3N4 nanosheets coupled with mixed-dimensional (3D/1D) nanostructures of silver vanadates for enhanced photocatalytic degradation of organic pollutants. New J. Chem. 2019, 43, 10618–10630. [Google Scholar] [CrossRef]
  42. Ge, L.; Han, C.; Xiao, X.; Guo, L.; Li, Y. Enhanced visible light photocatalytic hydrogen evolution of sulfur-doped polymeric g-C3N4 photocatalysts. Mater. Res. Bull. 2013, 48, 3919–3925. [Google Scholar] [CrossRef]
  43. Kargar, A.; Yavuz, S.; Kim, T.K.; Liu, C.-H.; Kuru, C.; Rustomji, C.S.; Jin, S.; Bandaru, P.R. Solution-processed CoFe2O4 nanoparticles on 3D carbon fiber papers for durable oxygen evolution reaction. ACS Appl. Mater. Interfaces 2015, 7, 17851–17856. [Google Scholar] [CrossRef] [PubMed]
  44. Chang, C.-J.; Lee, Z.; Chu, K.-W.; Wei, Y.-H. CoFe2O4@ZnS core–shell spheres as magnetically recyclable photocatalysts for hydrogen production. J. Taiwan Inst. Chem. Eng. 2016, 66, 386–393. [Google Scholar] [CrossRef]
  45. Ke, L.; Li, P.; Wu, X.; Jiang, S.; Luo, M.; Liu, Y.; Le, Z.; Sun, C.; Song, S. Graphene-like sulfur-doped g-C3N4 for photocatalytic reduction elimination of UO22+ under visible Light. Appl. Catal. B Environ. 2017, 205, 319–326. [Google Scholar] [CrossRef]
  46. Shi, C.; Chen, M.; Han, X.; Bi, Y.; Huang, L.; Zhou, K.; Zheng, Z. Thiacalix[4]arene-supported tetradecanuclear cobalt nanocage cluster as precursor to synthesize CoO/Co9S8@CN composite for supercapacitor application. Inorg. Chem. Front. 2018, 5, 1329–1335. [Google Scholar] [CrossRef]
  47. Sadiq, M.M.J.; Shenoy, U.S.; Bhat, D.K. Synthesis of BaWO4/NRGO–gC3N4 nanocomposites with excellent multifunctional catalytic performance via microwave approach. Front. Mater. Sci. 2018, 12, 247–263. [Google Scholar] [CrossRef]
  48. Cao, S.; Fan, B.; Feng, Y.; Chen, H.; Jiang, F.; Wang, X. Sulfur-doped g-C3N4 nanosheets with carbon vacancies: General synthesis and improved activity for simulated solar-light photocatalytic nitrogen fixation. Chem. Eng. J. 2018, 353, 147–156. [Google Scholar] [CrossRef]
  49. Chang, Q.; Yang, S.; Li, L.; Xue, C.; Li, Y.; Wang, Y.; Hu, S.; Yang, J.; Zhang, F. Loading sulfur and nitrogen co-doped carbon dots onto gC3N4 nanosheets for an efficient photocatalytic reduction of 4-nitrophenol. Dalton Trans. 2018, 47, 6435–6443. [Google Scholar] [CrossRef]
  50. Xiong, P.; Chen, Q.; He, M.; Sun, X.; Wang, X. Cobalt ferrite–polyaniline heteroarchitecture: A magnetically recyclable photocatalyst with highly enhanced performances. J. Mater. Chem. 2012, 22, 17485–17493. [Google Scholar] [CrossRef]
  51. Sun, X.; Gao, L.; Guo, C.; Zhang, Y.; Kuang, X.; Yan, T.; Ji, L.; Wei, Q. Sulfur incorporated CoFe2O4/multiwalled carbon nanotubes toward enhanced oxygen evolution reaction. Electrochim. Acta 2017, 247, 843–850. [Google Scholar] [CrossRef]
  52. Navarro-Pardo, F.; Tong, X.; Selopal, G.S.; Cloutier, S.G.; Sun, S.; Tavares, A.C.; Zhao, H.; Wang, Z.M.; Rosei, F. Graphene oxide/cobalt-based nanohybrid electrodes for robust hydrogen generation. Appl. Catal. B Environ. 2019, 245, 167–176. [Google Scholar] [CrossRef]
  53. Rodríguez-Rodríguez, A.A.; Moreno-Trejo, M.B.; Meléndez-Zaragoza, M.J.; Collins-Martínez, V.; López-Ortiz, A.; Martínez-Guerra, E.; Sánchez-Domínguez, M. Spinel-type ferrite nanoparticles: Synthesis by the oil-in-water microemulsion reaction method and photocatalytic water-splitting evaluation. Int. J. Hydrog. Energy 2019, 44, 12421–12429. [Google Scholar] [CrossRef]
  54. Zhang, Z.; Li, W.; Zou, R.; Kang, W.; San Chui, Y.; Yuen, M.F.; Lee, C.-S.; Zhang, W. Layer-stacked cobalt ferrite (CoFe2O4) mesoporous platelets for high-performance lithium ion battery anodes. J. Mater. Chem. A 2015, 3, 6990–6997. [Google Scholar] [CrossRef]
  55. de Lima Alves, T.M.; Amorim, B.F.; Torres, M.A.M.; Bezerra, C.G.; de Medeiros, S.N.; Gastelois, P.L.; Outon, L.E.F.; de Almeida Macedo, W.A. Wasp-waisted behavior in magnetic hysteresis curves of CoFe2O4 nanopowder at a low temperature: Experimental evidence and theoretical approach. RSC Adv. 2017, 7, 22187–22196. [Google Scholar] [CrossRef]
  56. Zhou, B.; Lee, L.-K. Catalyst and Process for Direct Catalystic Production of Hydrogen Peroxide, (H2O2). U.S. Patent 6,168,775, 2 January 2001. [Google Scholar]
  57. Lee, G.; Chu, K.H.; Al-Hamadani, Y.A.; Park, C.M.; Jang, M.; Heo, J.; Her, N.; Kim, D.-H.; Yoon, Y. Fabrication of graphene-oxide/β-Bi2O3/TiO2/Bi2Ti2O7 heterojuncted nanocomposite and its sonocatalytic degradation for selected pharmaceuticals. Chemosphere 2018, 212, 723–733. [Google Scholar] [CrossRef]
  58. Siadatnasab, F.; Farhadi, S.; Khataee, A. Sonocatalytic performance of magnetically separable CuS/CoFe2O4 nanohybrid for efficient degradation of organic dyes. Ultrason. Sonochem. 2018, 44, 359–367. [Google Scholar] [CrossRef]
  59. Borgohain, C.; Senapati, K.K.; Sarma, K.; Phukan, P. A facile synthesis of nanocrystalline CoFe2O4 embedded one-dimensional ZnO hetero-structure and its use in photocatalysis. J. Mol. Catal. A Chem. 2012, 363, 495–500. [Google Scholar] [CrossRef]
  60. Huang, F.; Chen, L.; Wang, H.; Yan, Z. Analysis of the degradation mechanism of methylene blue by atmospheric pressure dielectric barrier discharge plasma. Chem. Eng. J. 2010, 162, 250–256. [Google Scholar] [CrossRef]
  61. Sajjadi, S.; Khataee, A.; Kamali, M. Sonocatalytic degradation of methylene blue by a novel graphene quantum dots anchored CdSe nanocatalyst. Ultrason. Sonochem. 2017, 39, 676–685. [Google Scholar] [CrossRef]

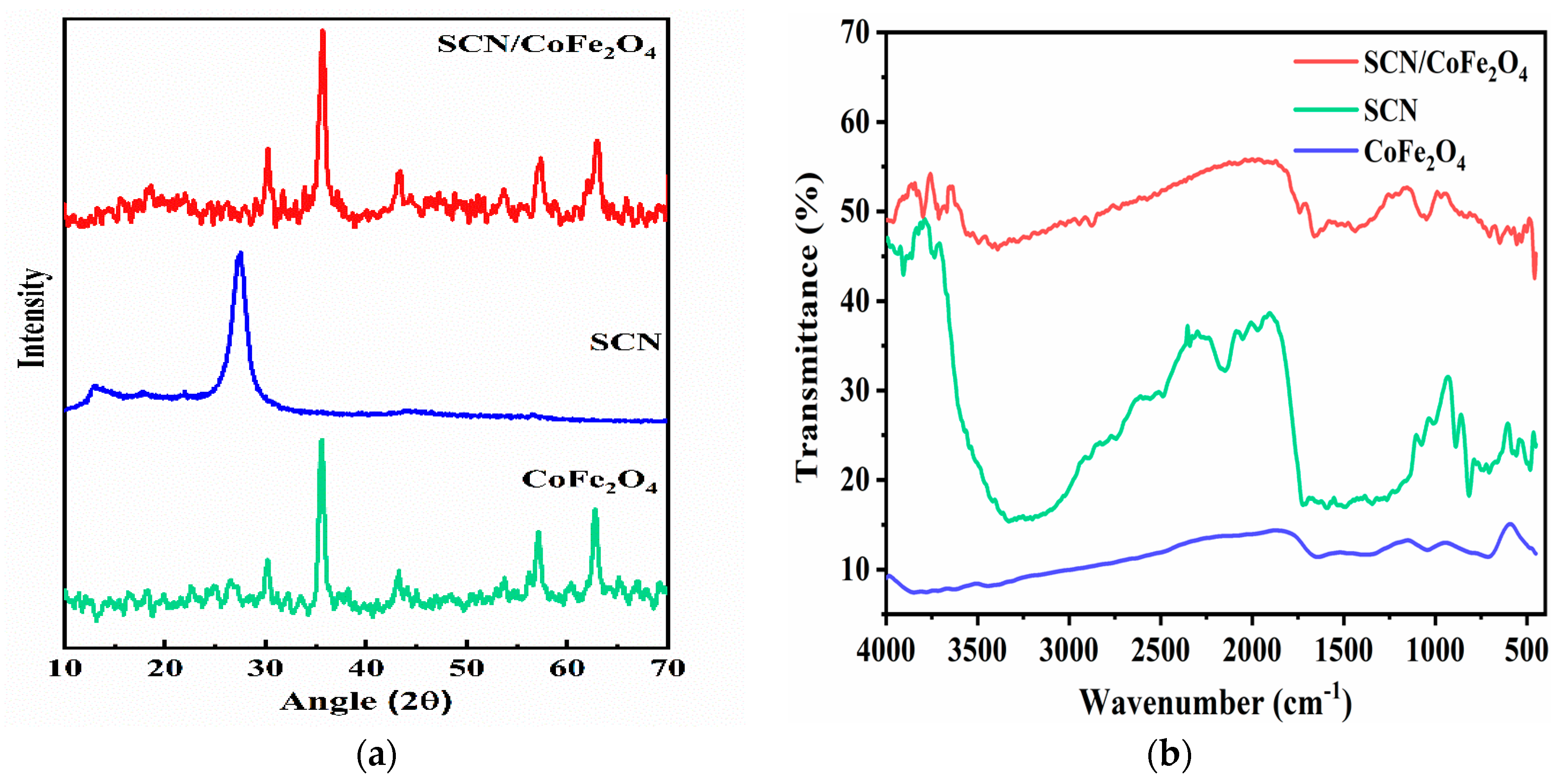

Figure 1. (a) XRD patterns of CoFe2O4, SCN, and SCN/CoFe2O4 nanocomposite; (b) FT-IR spectra of CoFe2O4, SCN, and SCN/CoFe2O4 nanocomposite.
Figure 1. (a) XRD patterns of CoFe2O4, SCN, and SCN/CoFe2O4 nanocomposite; (b) FT-IR spectra of CoFe2O4, SCN, and SCN/CoFe2O4 nanocomposite.
Processes 08 00104 g001
Figure 2. FESEM (a) and TEM (b) of SCN; FESEM (c) and TEM (d) of CoFe2O4; FESEM (e) and TEM (f) of SCN/CoFe2O4.
Figure 2. FESEM (a) and TEM (b) of SCN; FESEM (c) and TEM (d) of CoFe2O4; FESEM (e) and TEM (f) of SCN/CoFe2O4.
Processes 08 00104 g002

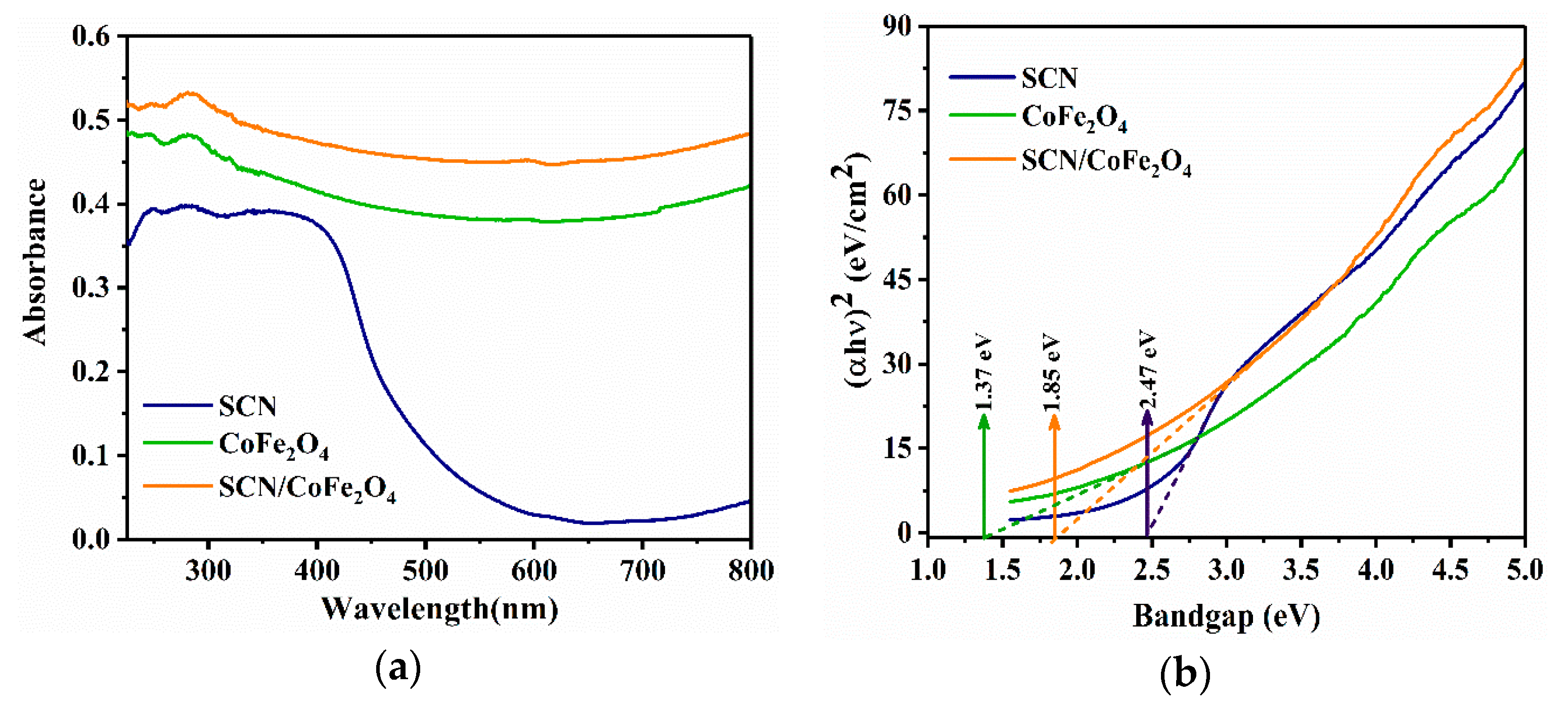

Figure 3. (a) UV-Vis spectra of SCN, CoFe2O4, and SCN/CoFe2O4 nanocomposite; (b) (αhν)2 vs. bandgap energy.
Figure 3. (a) UV-Vis spectra of SCN, CoFe2O4, and SCN/CoFe2O4 nanocomposite; (b) (αhν)2 vs. bandgap energy.
Processes 08 00104 g003
Figure 4. Photoluminescence spectra of SCN, CoFe2O4 and SCN/CoFe2O4 nanocomposite.
Figure 4. Photoluminescence spectra of SCN, CoFe2O4 and SCN/CoFe2O4 nanocomposite.
Processes 08 00104 g004
Figure 5. The XPS spectra of (a) C 1s; (b) N 1s; (c) S 2p; (d) Co 2p; (e) Fe 2p; (f) O 1s.
Figure 5. The XPS spectra of (a) C 1s; (b) N 1s; (c) S 2p; (d) Co 2p; (e) Fe 2p; (f) O 1s.
Processes 08 00104 g005
Figure 6. Effect of SCN/CoFe2O4 dosage on the catalytic degradation of MB without ultrasonication. Experimental conditions: [MB] = 25 ppm, [catalyst] = 0–1.5 g/L, [H2O2] = 4 vol %.
Figure 6. Effect of SCN/CoFe2O4 dosage on the catalytic degradation of MB without ultrasonication. Experimental conditions: [MB] = 25 ppm, [catalyst] = 0–1.5 g/L, [H2O2] = 4 vol %.
Processes 08 00104 g006

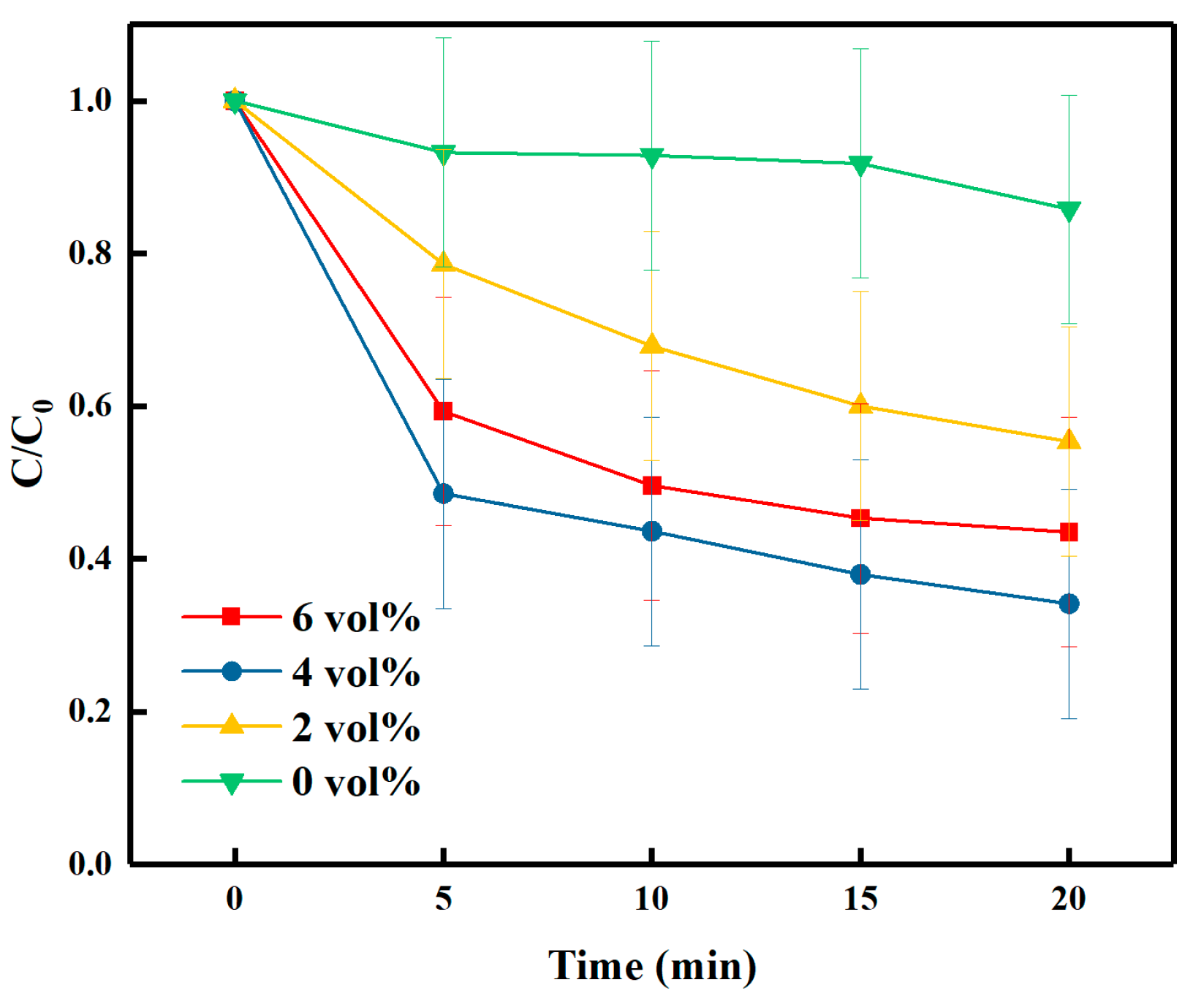

Figure 7. Effect of H2O2 loading on the catalytic degradation of MB without ultrasonication. Experimental conditions: [MB] = 25 ppm, [catalyst] = 1 g/L mg, [H2O2] = 0–6 vol %.
Figure 7. Effect of H2O2 loading on the catalytic degradation of MB without ultrasonication. Experimental conditions: [MB] = 25 ppm, [catalyst] = 1 g/L mg, [H2O2] = 0–6 vol %.
Processes 08 00104 g007

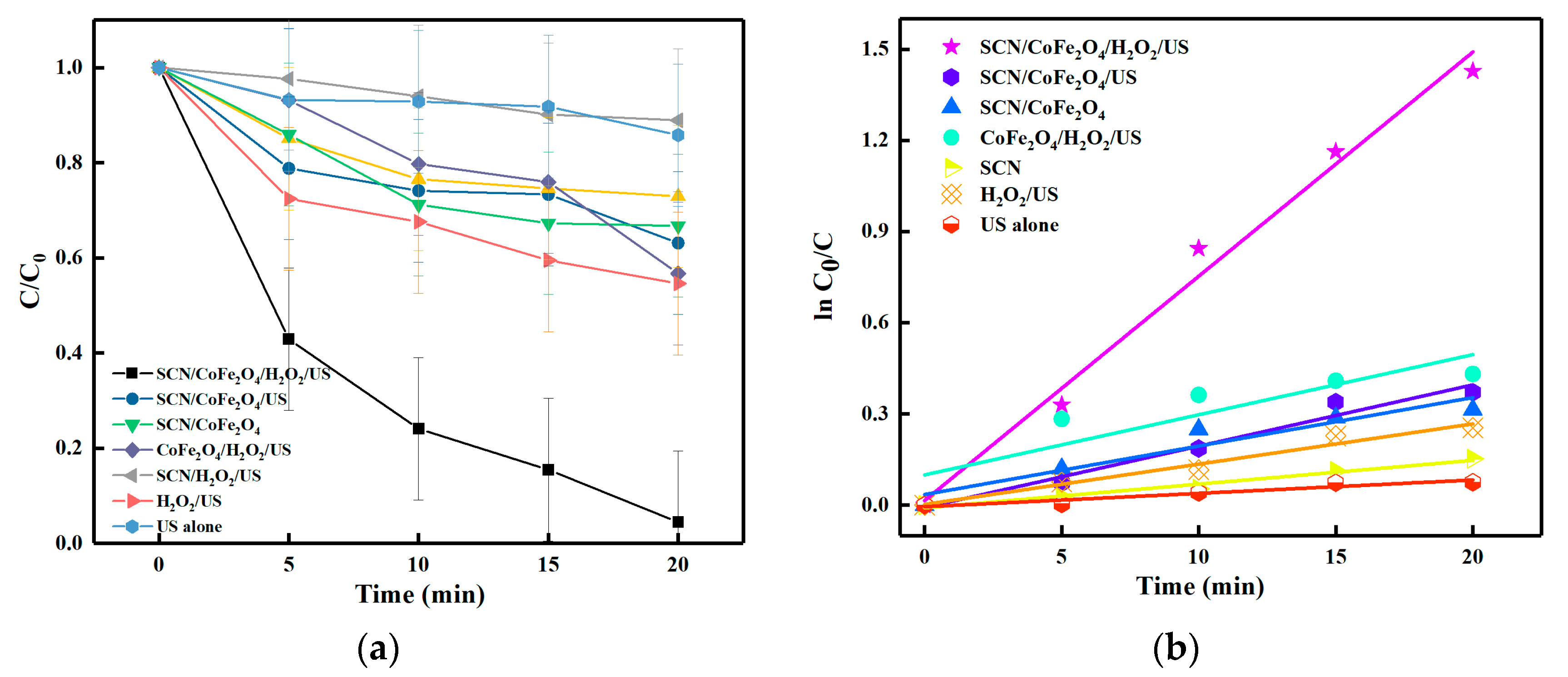

Figure 8. (a) Change in concentration of MB as a function of ultrasonication time; (b) ln(C0/C) versus ultrasonication time. Experimental conditions: [MB] = 25 ppm, [sonocatalyst] = 1 g/L, [H2O2] = 4 vol %.
Figure 8. (a) Change in concentration of MB as a function of ultrasonication time; (b) ln(C0/C) versus ultrasonication time. Experimental conditions: [MB] = 25 ppm, [sonocatalyst] = 1 g/L, [H2O2] = 4 vol %.
Processes 08 00104 g008

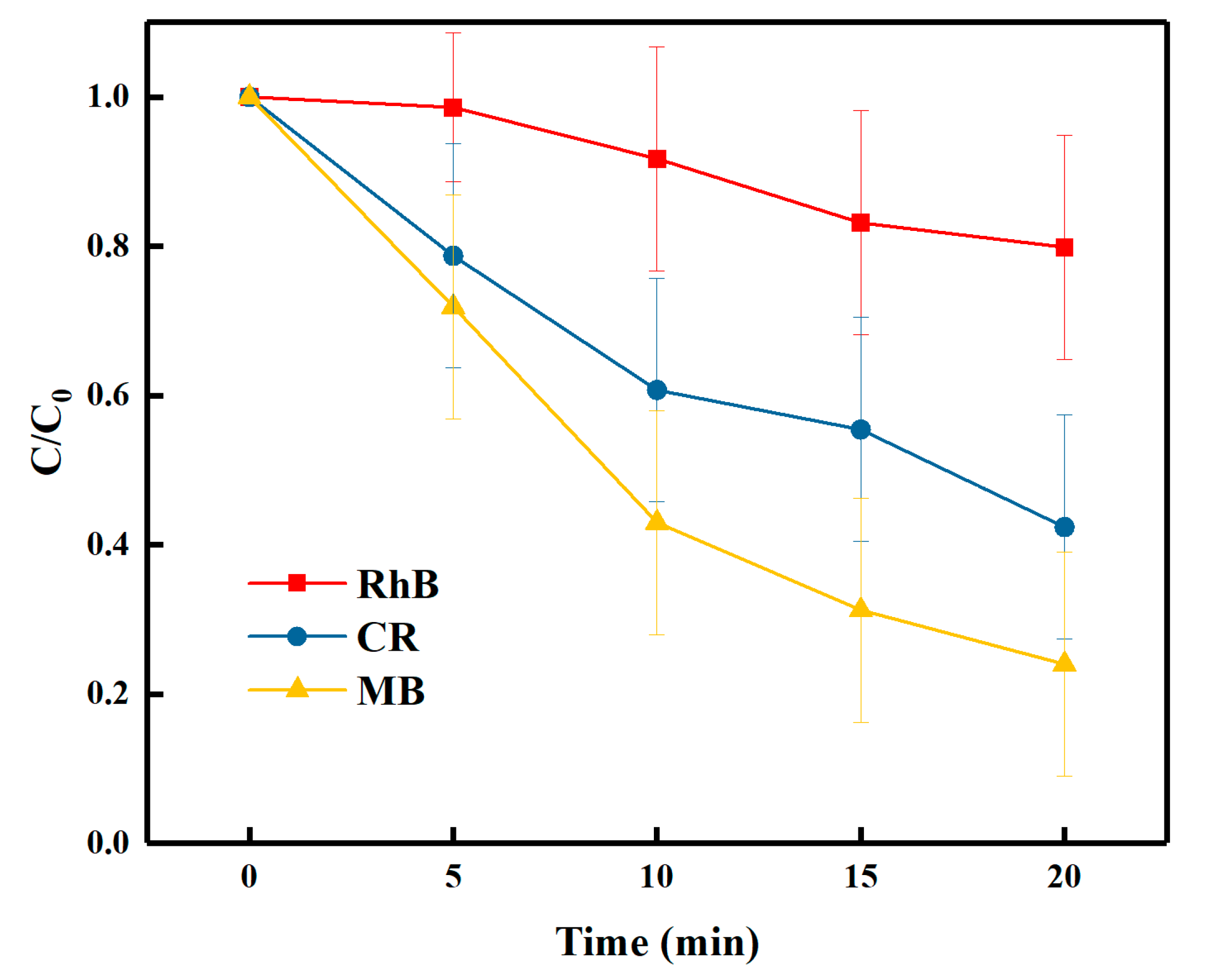

Figure 9. Effect of the type of organic dye on sonodegradation. Experimental conditions: [Dye concentration] = 25 ppm, [sonocatalyst] = 1 g/L, [H2O2] = 4 vol %.
Figure 9. Effect of the type of organic dye on sonodegradation. Experimental conditions: [Dye concentration] = 25 ppm, [sonocatalyst] = 1 g/L, [H2O2] = 4 vol %.
Processes 08 00104 g009
Figure 10. (a) Recyclability of SCN/CoFe2O4 nanocomposite; (b) FT-IR of recovered SCN/CoFe2O4 nanocomposite after the third cycle.
Figure 10. (a) Recyclability of SCN/CoFe2O4 nanocomposite; (b) FT-IR of recovered SCN/CoFe2O4 nanocomposite after the third cycle.
Processes 08 00104 g010
