Wave Characteristics of Coagulation Bath in Dry-Jet Wet-Spinning Process for Polyacrylonitrile Fiber Production Using Computational Fluid Dynamics

1
Center of Sustainable Process Engineering (CoSPE), Department of Chemical Engineering, Hankyong National University, Jungang-ro 327, Anseong-si 17579, Korea
2
Research Center for Applied Human Sciences, Department of Electrical and Electronic Engineering, Hankyong National University, Jungang-ro 327, Anseong-si 17579, Korea
*
Author to whom correspondence should be addressed.
Processes 2019, 7(5), 314; https://doi.org/10.3390/pr7050314 (registering DOI)
Received: 30 April 2019 / Revised: 21 May 2019 / Accepted: 22 May 2019 / Published: 25 May 2019
(This article belongs to the Special Issue Process Modelling and Simulation)
  |
PDF [6342 KB, uploaded 25 May 2019]
  |     |

Abstract

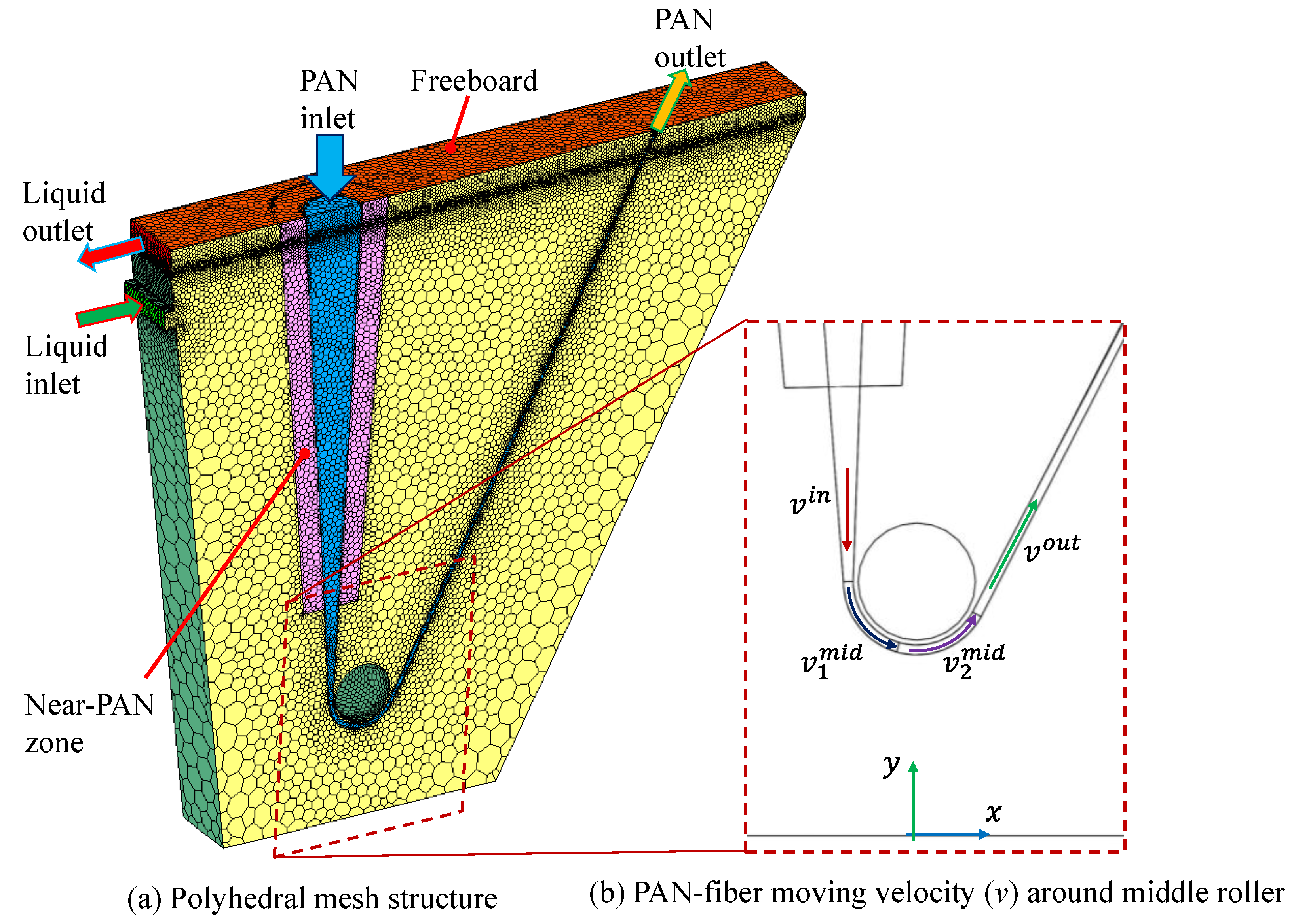

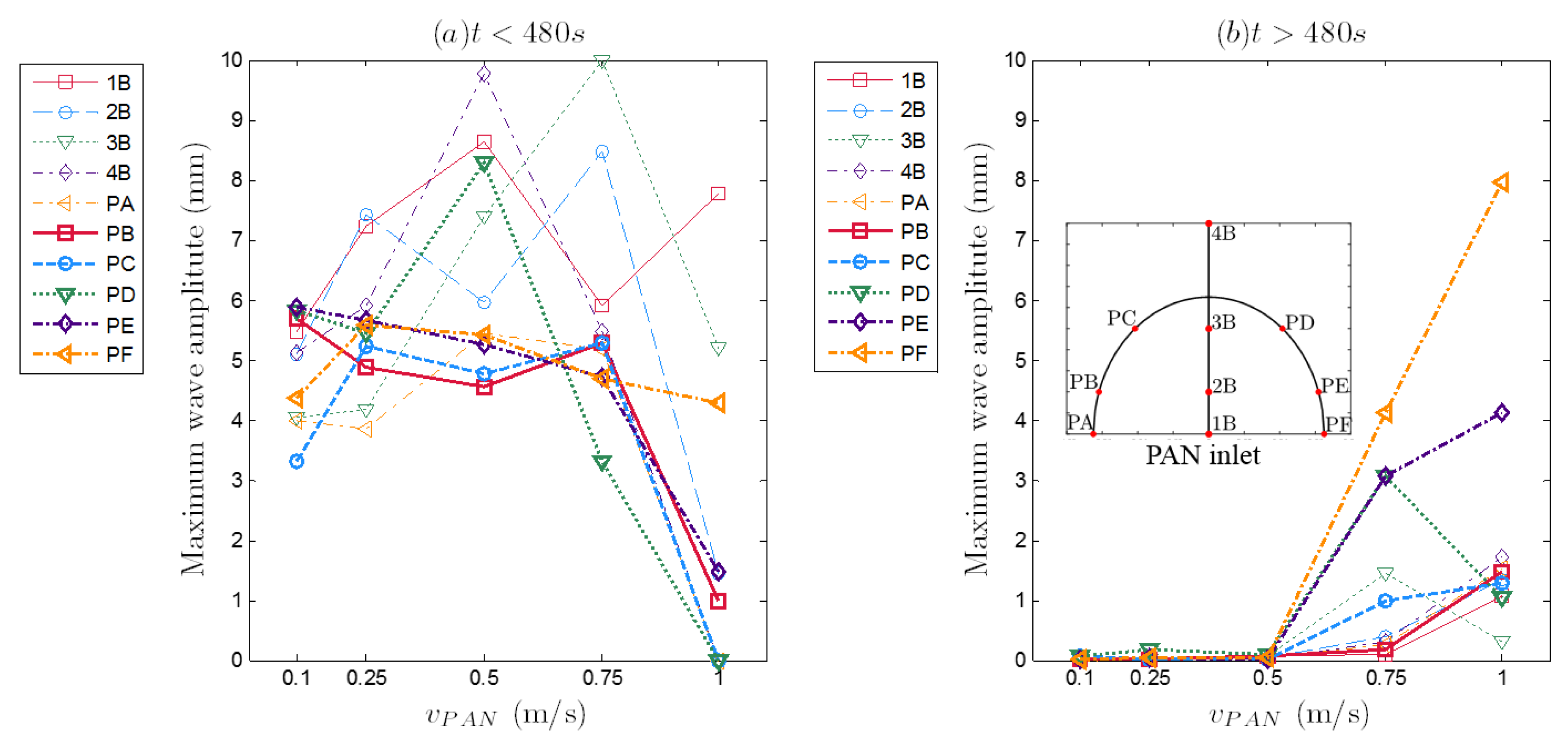

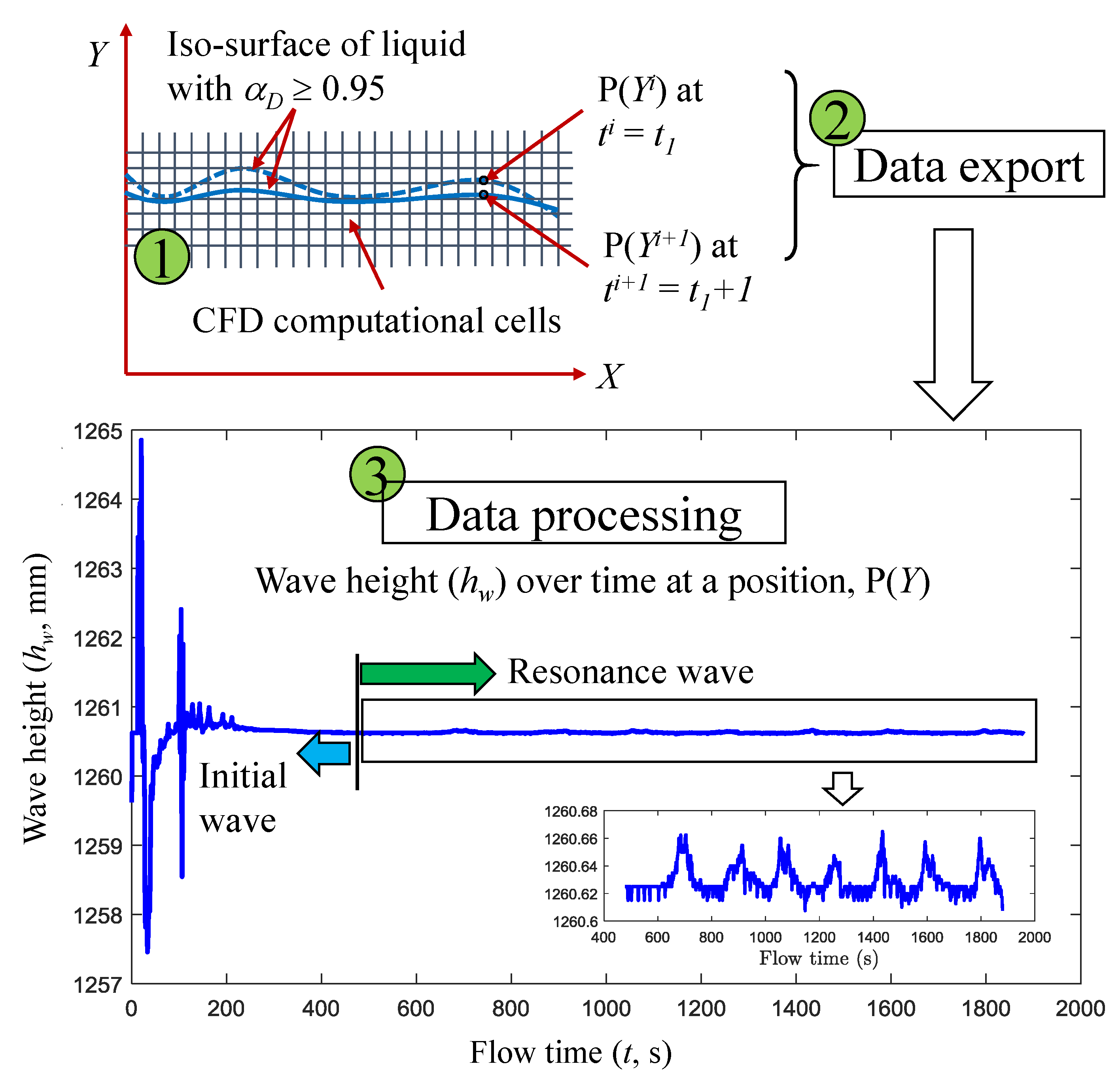

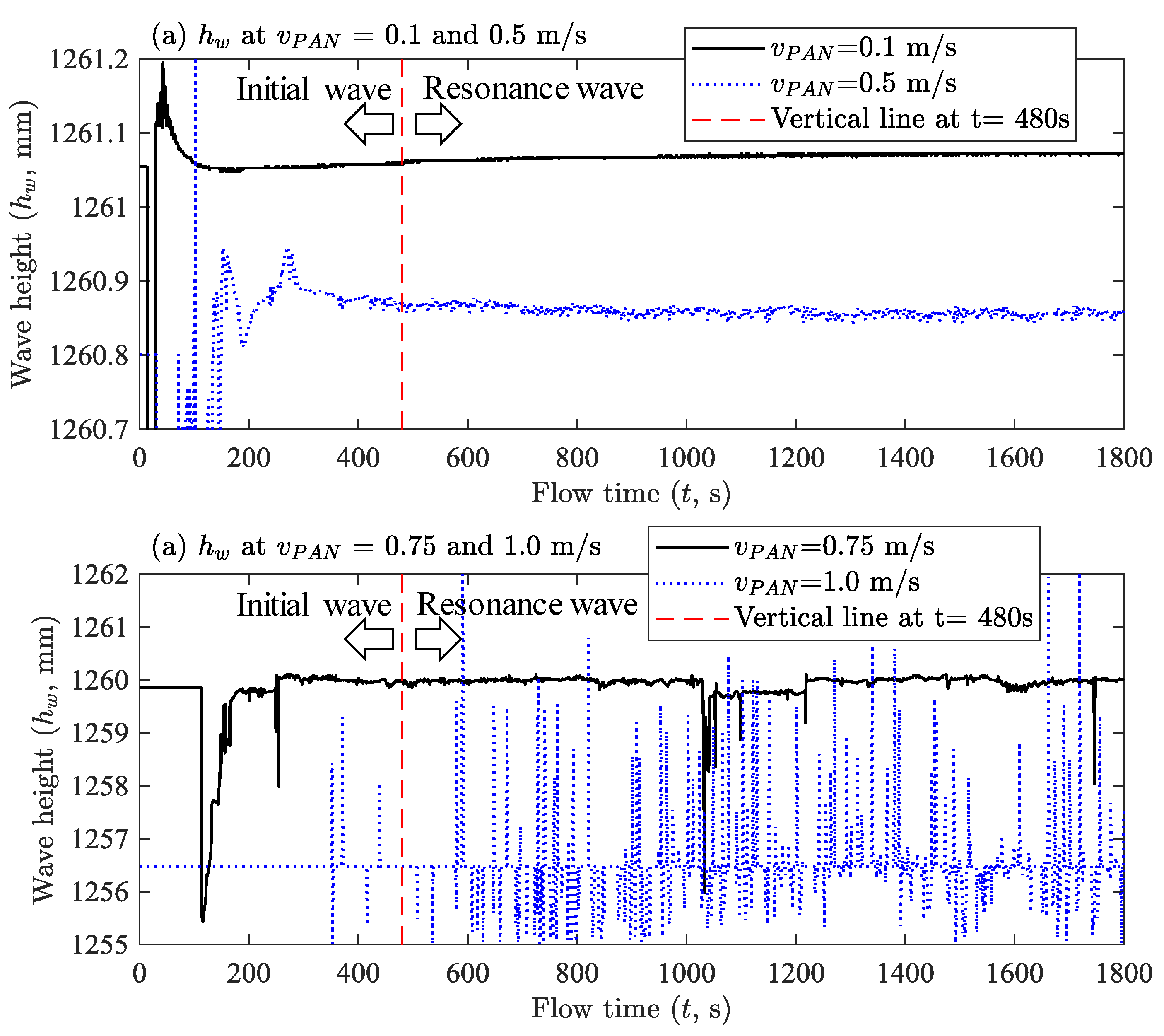

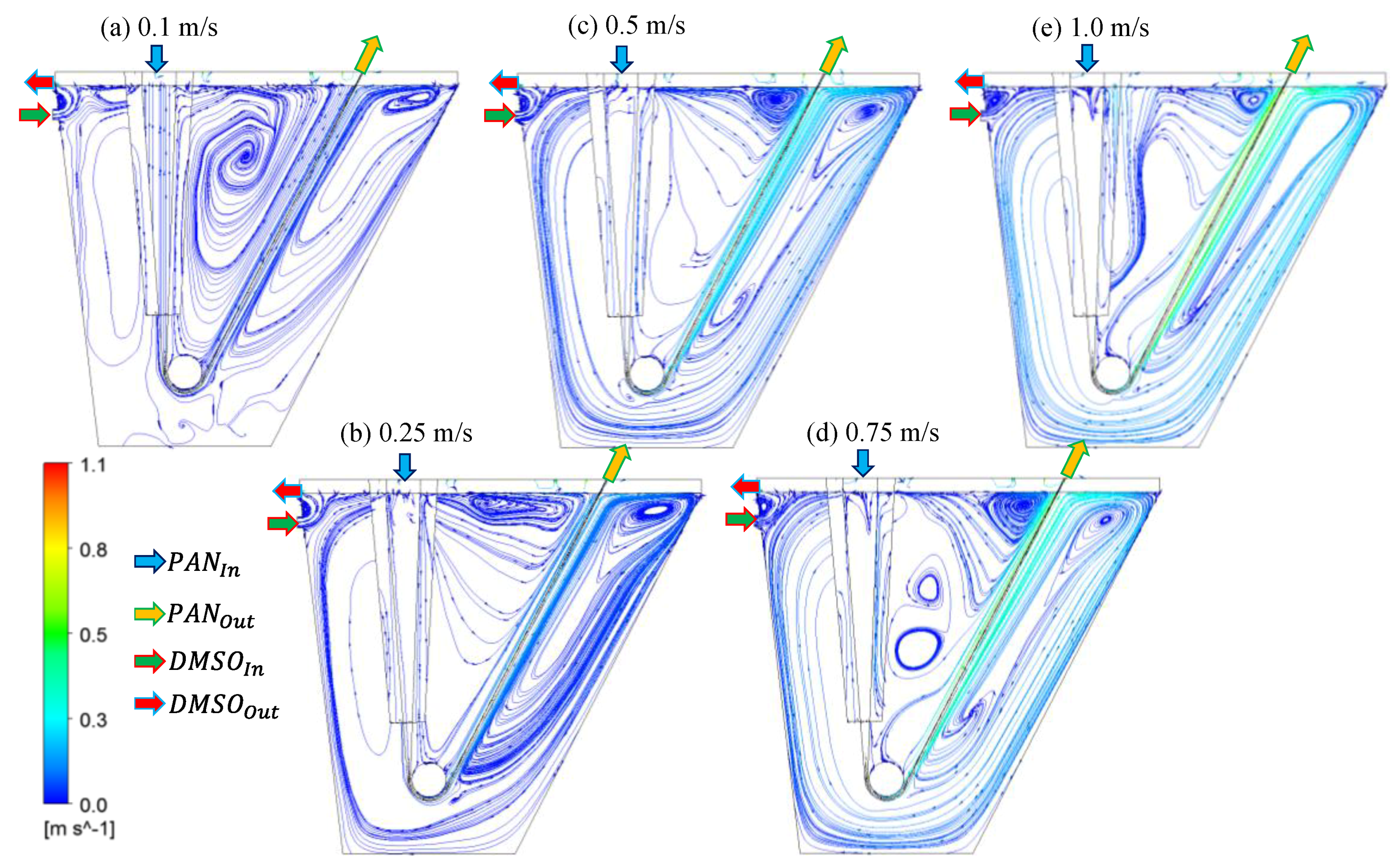

In this work, a three-dimensional volume-of-fluid computational fluid dynamics (VOF-CFD) model was developed for a coagulation bath of the dry-jet wet spinning (DJWS) process for the production of polyacrylonitrile (PAN)-based carbon fiber under long-term operating conditions. The PAN-fiber was assumed to be a deformable porous zone with variations in moving speed, porosity, and permeability. The Froude number, interpreted as the wave-making resistance on the liquid surface, was analyzed according to the PAN-fiber wind-up speed ( v P A N ). The effect of the PAN speed on the reflection and wake flow formed by drag between a moving object and fluid is presented. A method for tracking the wave amplitude with time is proposed based on the iso-surface of the liquid volume fraction of 0.95. The wave signal for 30 min was divided into the initial and resonance states that were distinguished at 8 min. The maximum wave amplitude was less than 0.5 mm around the PAN-fiber inlet nozzle for v P A N = 0.1–0.5 m/s in the resonance state. The VOF-CFD model is useful in determining the maximum v P A N under an allowable air gap of the DJWS process. View Full-Text
Keywords: polyacrylonitrile-based carbon fiber; coagulation bath; dry-jet wet spinning process; computational fluid dynamics; wave resonance; maximum wave amplitude polyacrylonitrile-based carbon fiber; coagulation bath; dry-jet wet spinning process; computational fluid dynamics; wave resonance; maximum wave amplitude
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ngo, S.I.; Lim, Y.-I.; Kim, S.-C. Wave Characteristics of Coagulation Bath in Dry-Jet Wet-Spinning Process for Polyacrylonitrile Fiber Production Using Computational Fluid Dynamics. Processes 2019, 7, 314.
