Processes 2019, 7(3), 175; https://doi.org/10.3390/pr7030175

A Novel Multiphase Methodology Simulating Three Phase Flows in a Steel Ladle

1
Department of Metallurgical Chemical Engineering, Faculty of Chemistry, Universidad Nacional Autonoma de México (UNAM), Edificio “D” Circuito de los Institutos s/n, Cd. Universitaria, México D.F. C.P. 04510, Mexico
2
Department of Materials Engineering, KU Leuven, Kasteelpark Arenberg 44 bus 2450, B-3001 Heverlee-Leuven, Belgium
3
School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing (USTB), 30 Xueyuan Road, Haidian District, Beijing 100083, China
4
Ferrous Metallurgy Research Institute (FeMRI), Circuito Paseo de las Flores 700, Morelia 58080, Michoacán, Mexico
*
Author to whom correspondence should be addressed.
Received: 7 February 2019 / Revised: 17 March 2019 / Accepted: 21 March 2019 / Published: 26 March 2019
(This article belongs to the Special Issue Multiphase Reaction Engineering, Reactors and Processes)
  |
PDF [4413 KB, uploaded 26 March 2019]
  |

Abstract

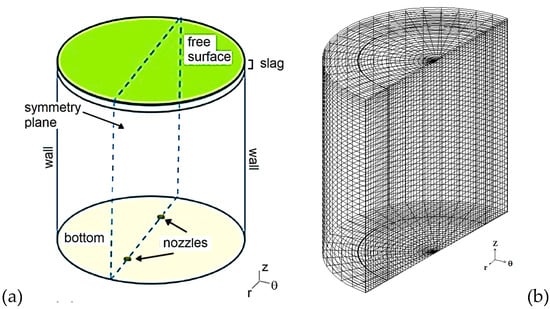

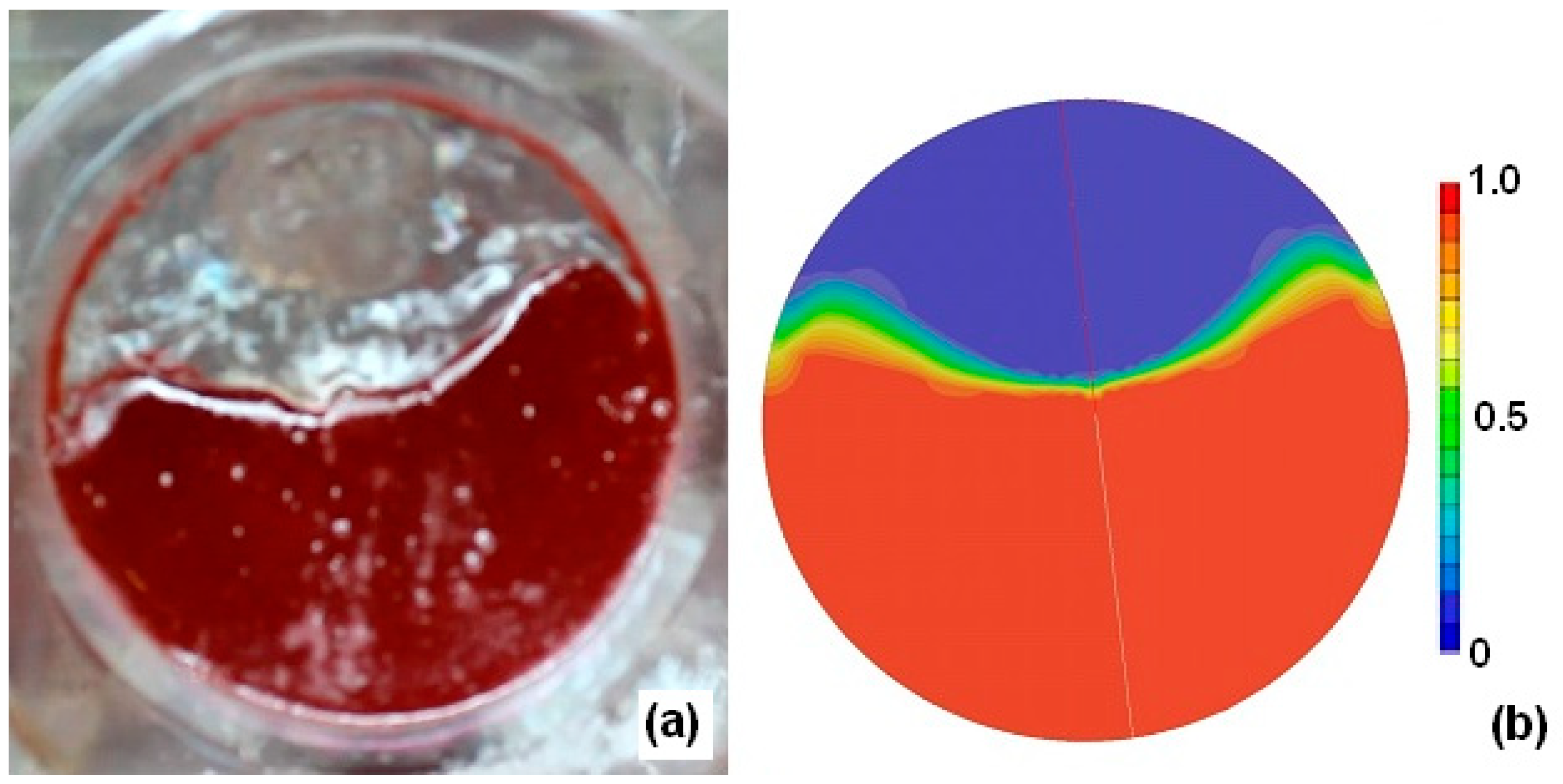

Mixing phenomena in metallurgical steel ladles by bottom gas injection involves three phases namely, liquid molten steel, liquid slag and gaseous argon. In order to numerically solve this three-phase fluid flow system, a new approach is proposed which considers the physical nature of the gas being a dispersed phase in the liquid, while the two liquids namely, molten steel and slag are continuous phases initially separated by a sharp interface. The model was developed with the combination of two algorithms namely, IPSA (inter phase slip algorithm) where the gas bubbles are given a Eulerian approach since are considered as an interpenetrating phase in the two liquids and VOF (volume of fluid) in which the liquid is divided into two separate liquids but depending on the physical properties of each liquid they are assigned a mass fraction of each liquid. This implies that both the liquid phases (steel and slag) and the gas phase (argon) were solved for the mass balance. The Navier–Stokes conservation equations and the gas-phase turbulence in the liquid phases were solved in combination with the standard k-ε turbulence model. The mathematical model was successfully validated against flow patterns obtained experimentally using particle image velocimetry (PIV) and by the calculation of the area of the slag eye formed in a 1/17th water–oil physical model. The model was applied to an industrial ladle to describe in detail the turbulent flow structure of the multiphase system. View Full-Text
Keywords: ladle; mathematical model; steel-slag interface; free surface; IPSA-VOF algorithm ladle; mathematical model; steel-slag interface; free surface; IPSA-VOF algorithm

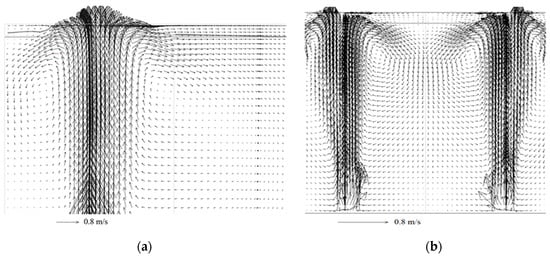

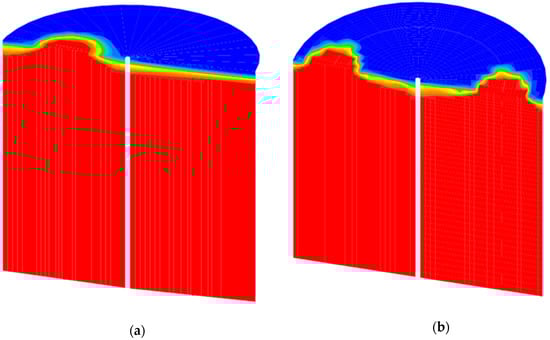

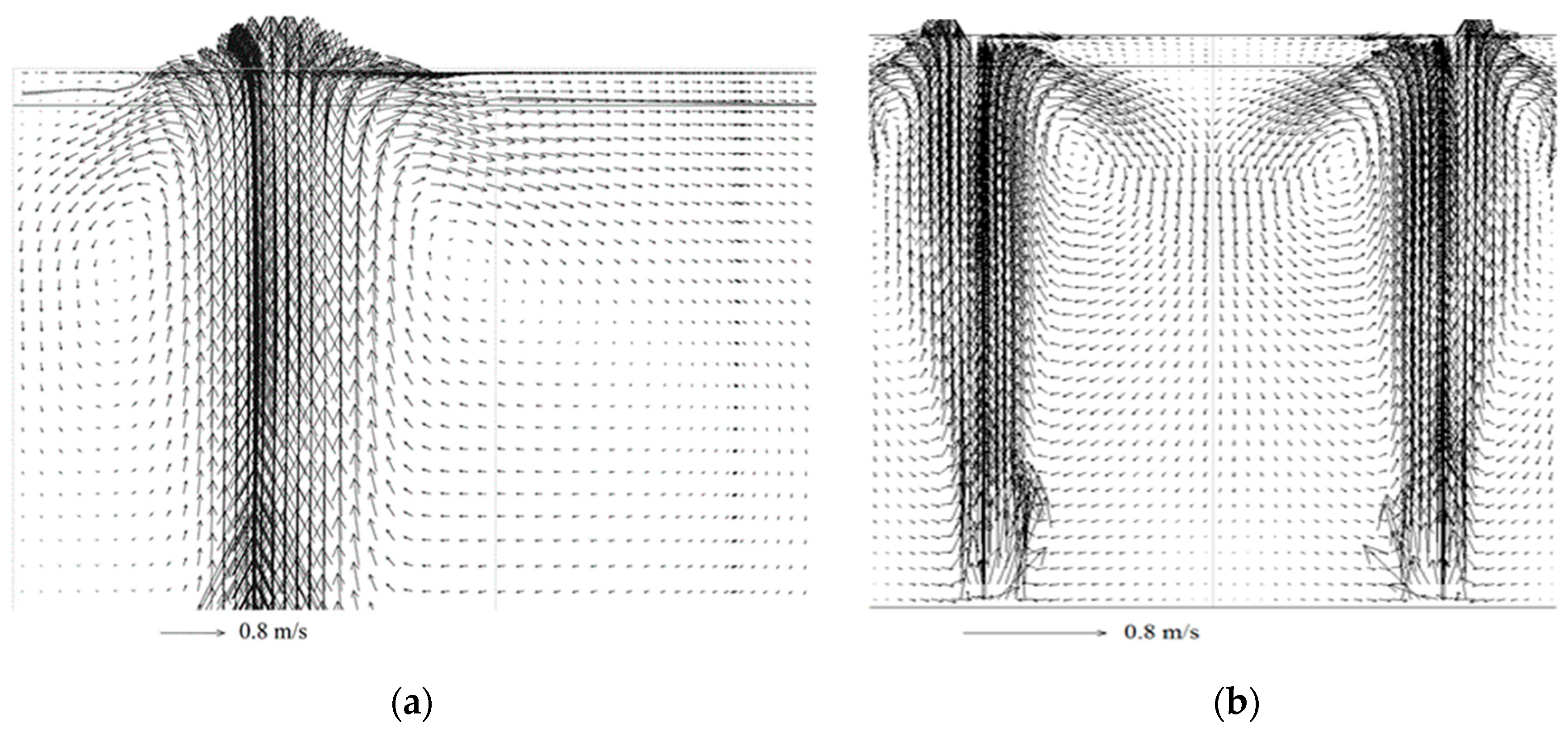

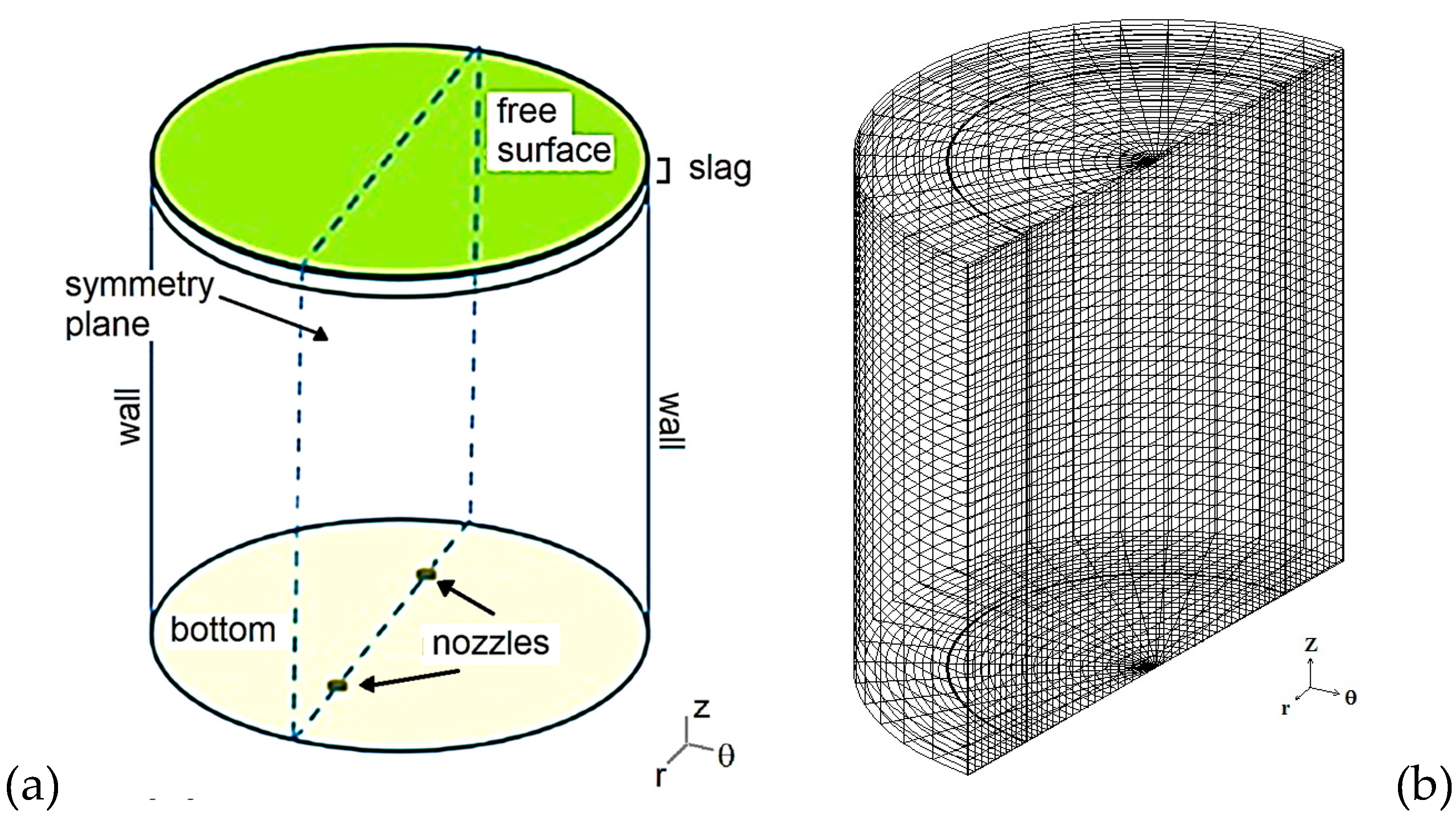

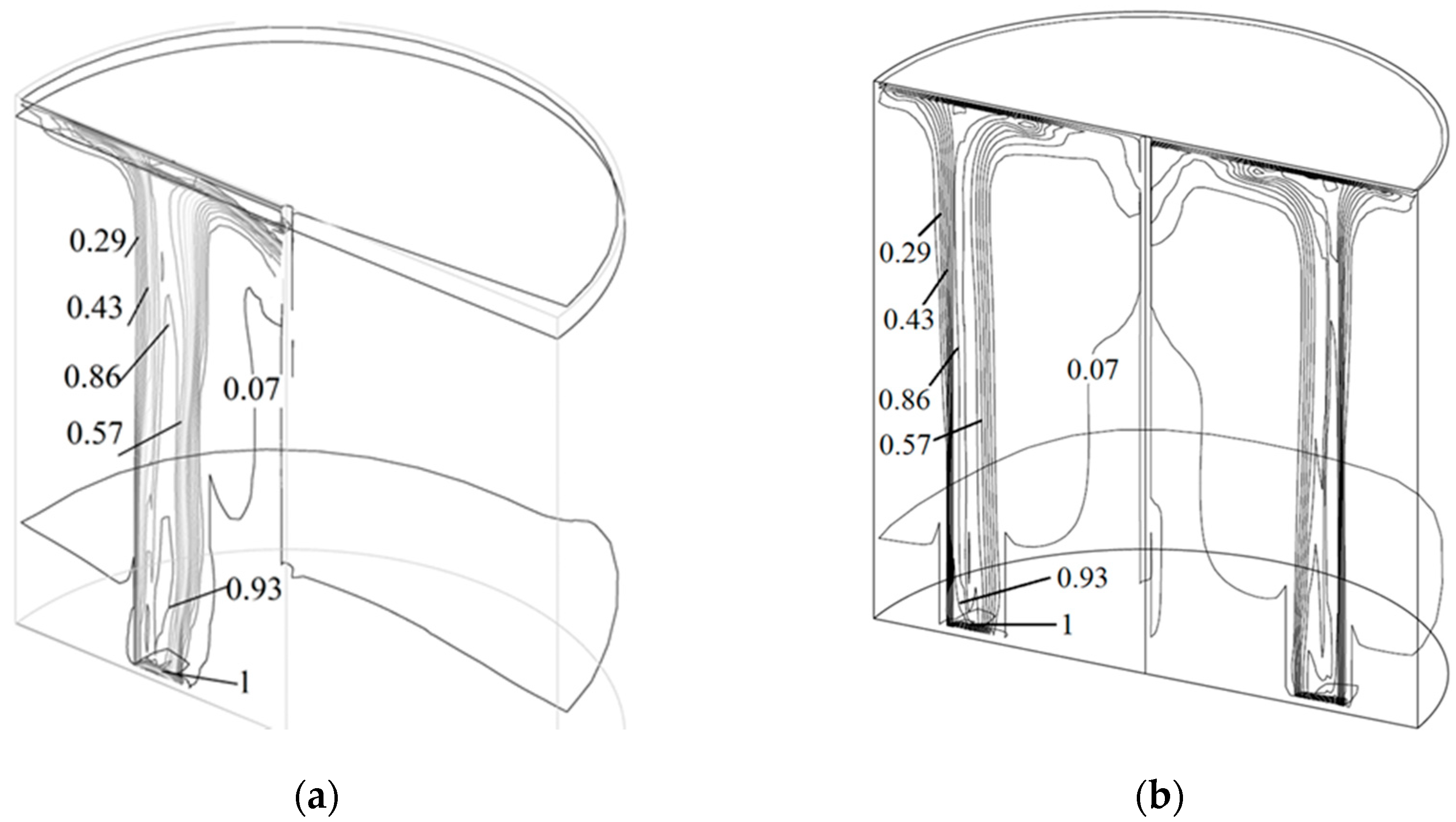

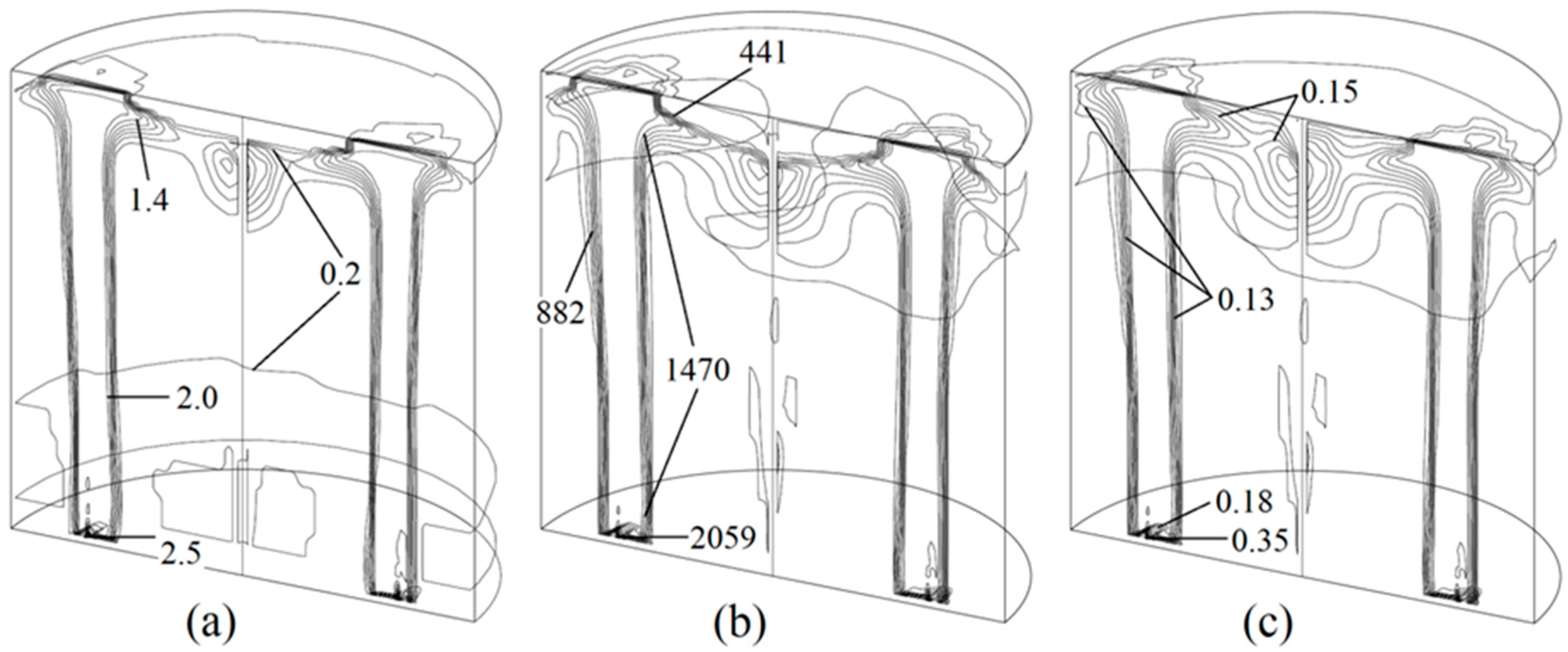

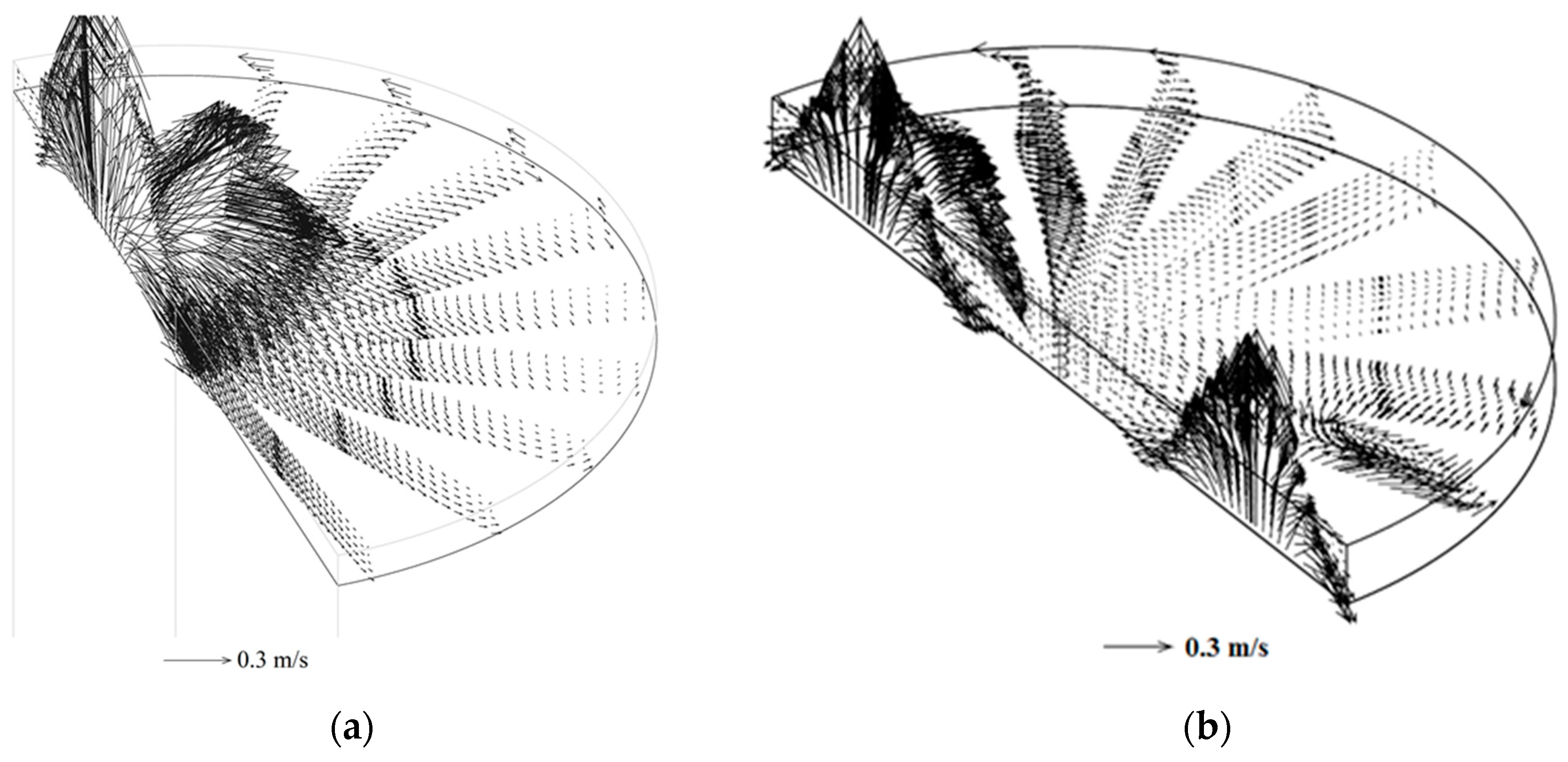

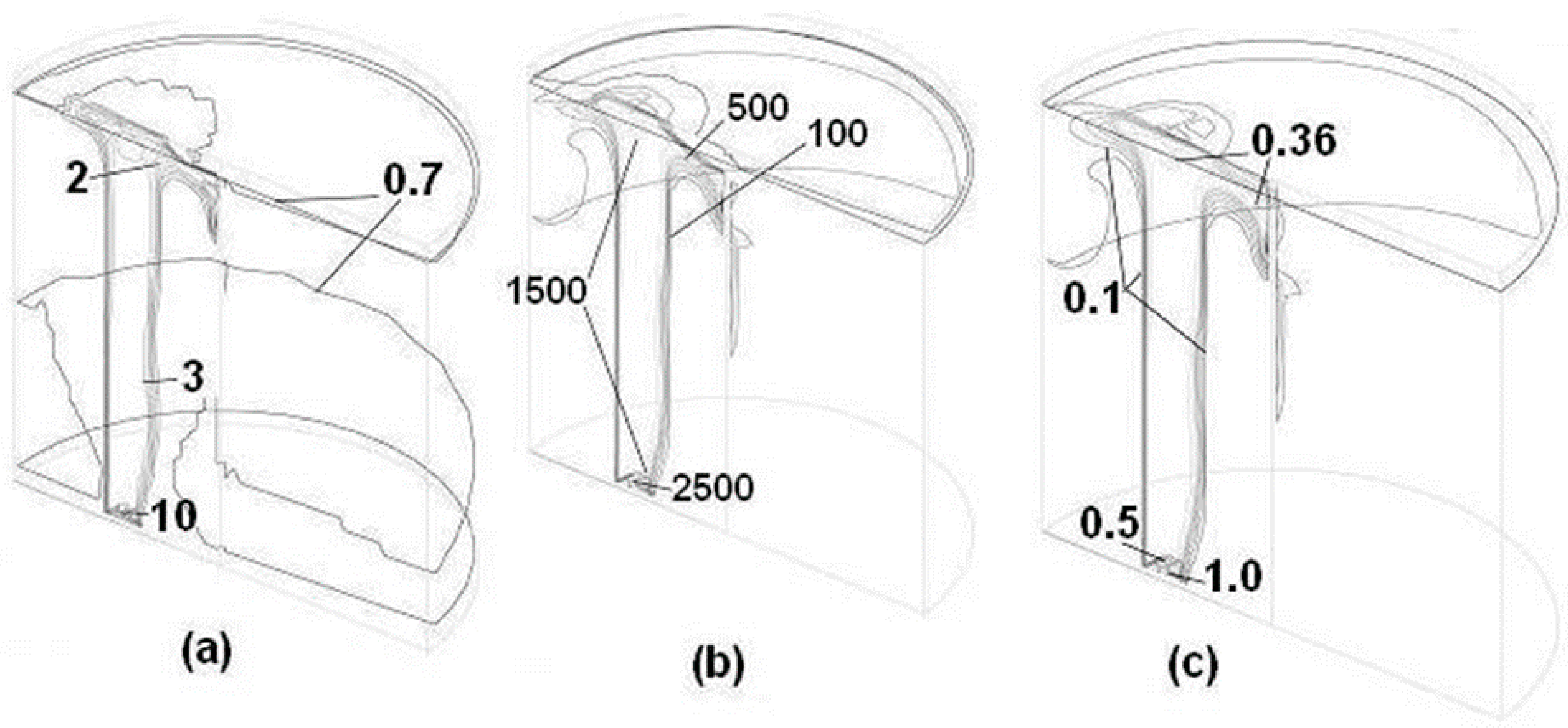

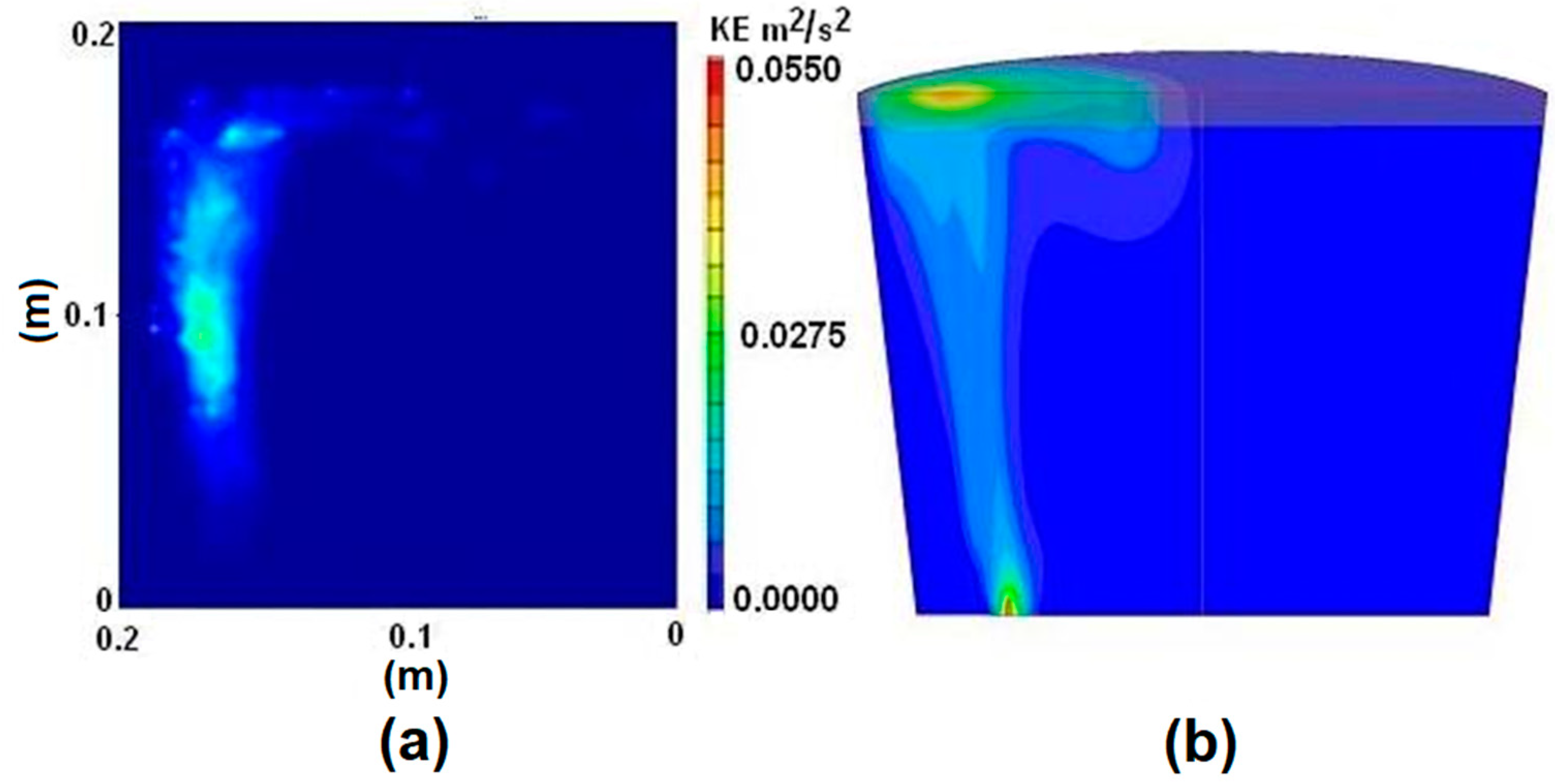

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Ramírez-Argáez, M.A.; Dutta, A.; Amaro-Villeda, A.; González-Rivera, C.; Conejo, A.N. A Novel Multiphase Methodology Simulating Three Phase Flows in a Steel Ladle. Processes 2019, 7, 175.
