Numerical Investigation of SCR Mixer Design Optimization for Improved Performance
Abstract
:1. Introduction
CO(NH2)2→ NH3 + HNCO | (Urea pyrolysis reaction) |
HNCO + H2O →NH3+ CO2 | (HNCO hydrolysis) |
4NH3 + 4NO + O2→ 4N2 + 6 H2O | (Standard SCR reaction) |
4NH3 + 2NO + 2NO2→4N2 + 6 H2O | (Fast-speed SCR reaction) |
8NH3 + 6NO2→7N2 + 12H2O | (Slow SCR Reaction) |
2. Computational Model Formulation

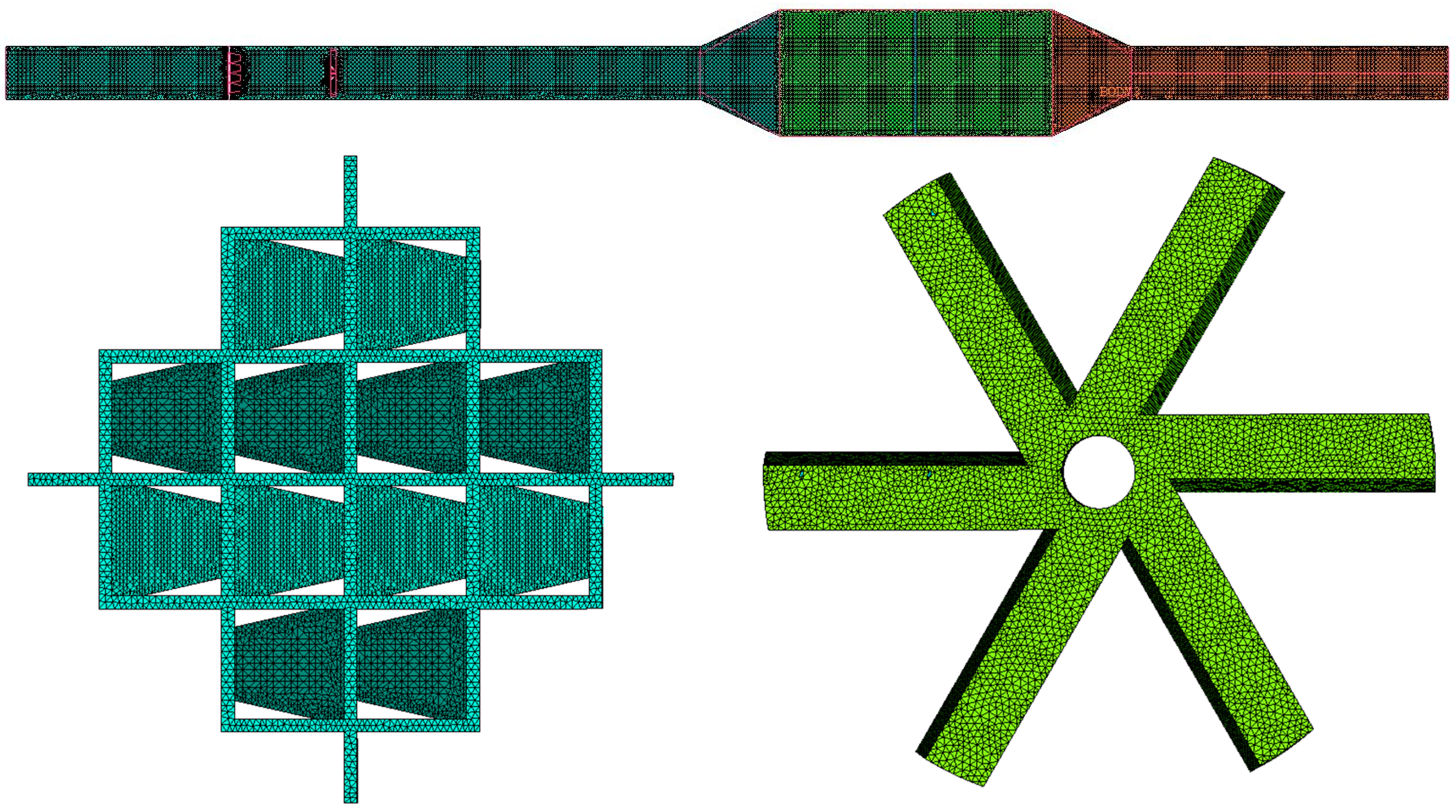

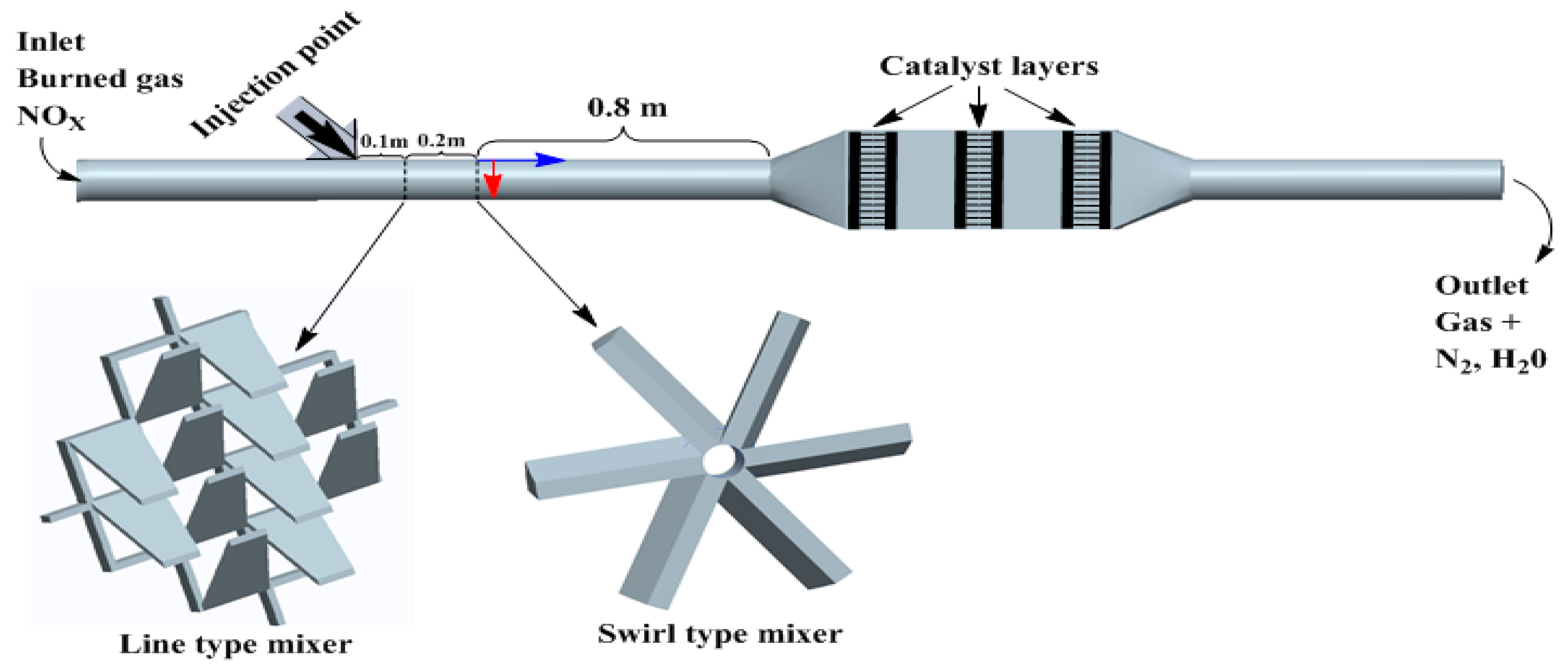

2.1. Geometric Model

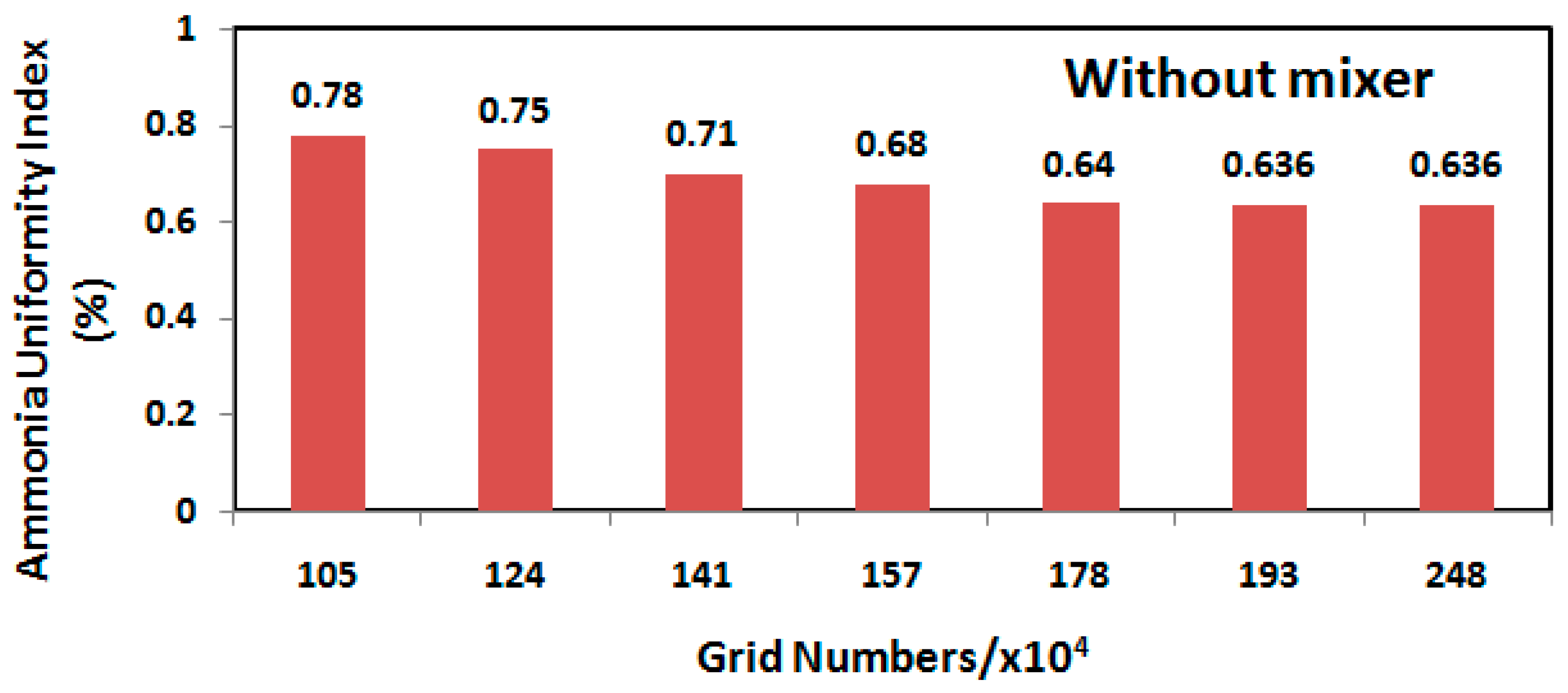

2.2. Numerical Procedure
2.3. Boundary Conditions
3. Results and Discussion
3.1. Uniformity

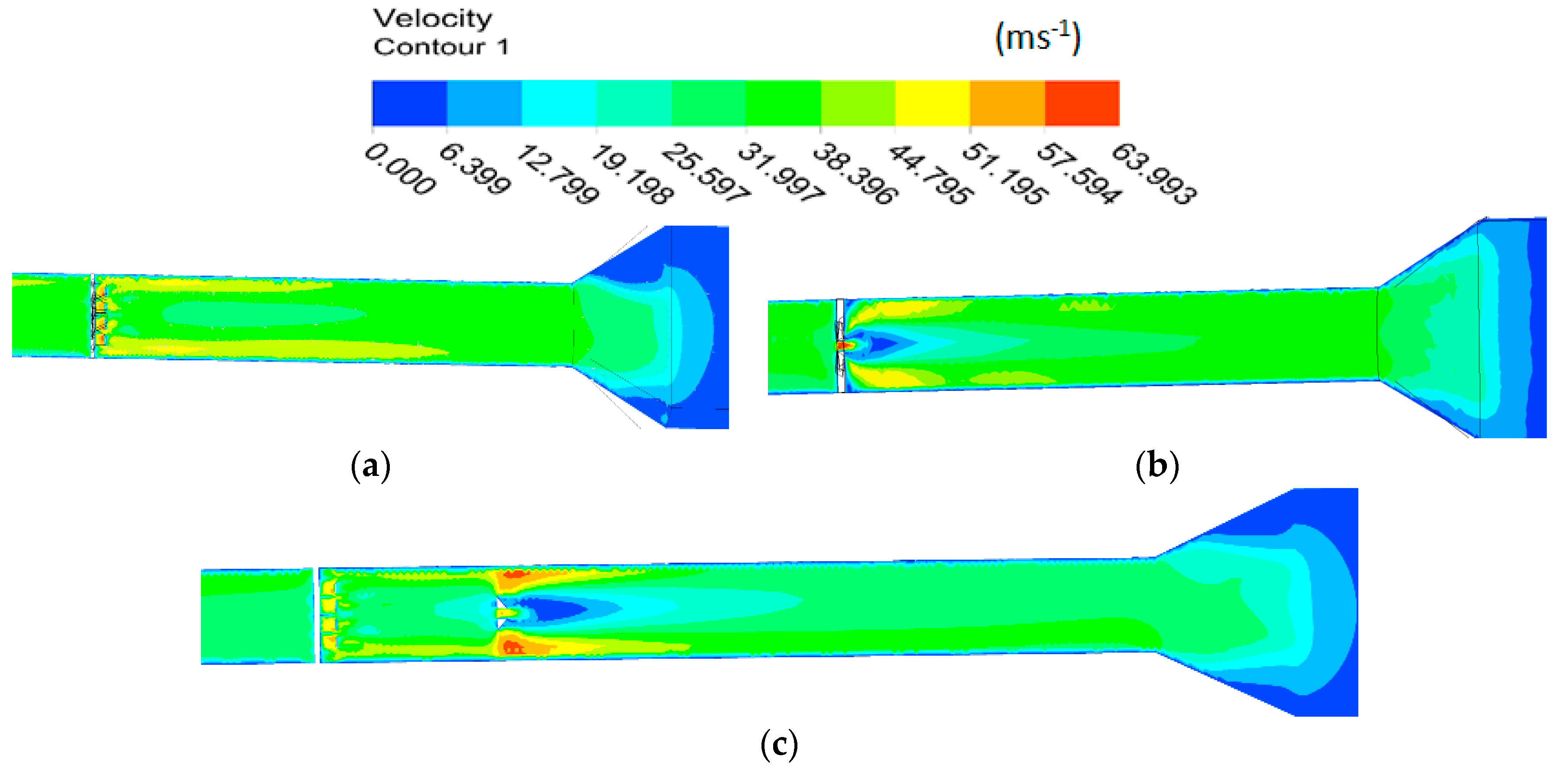

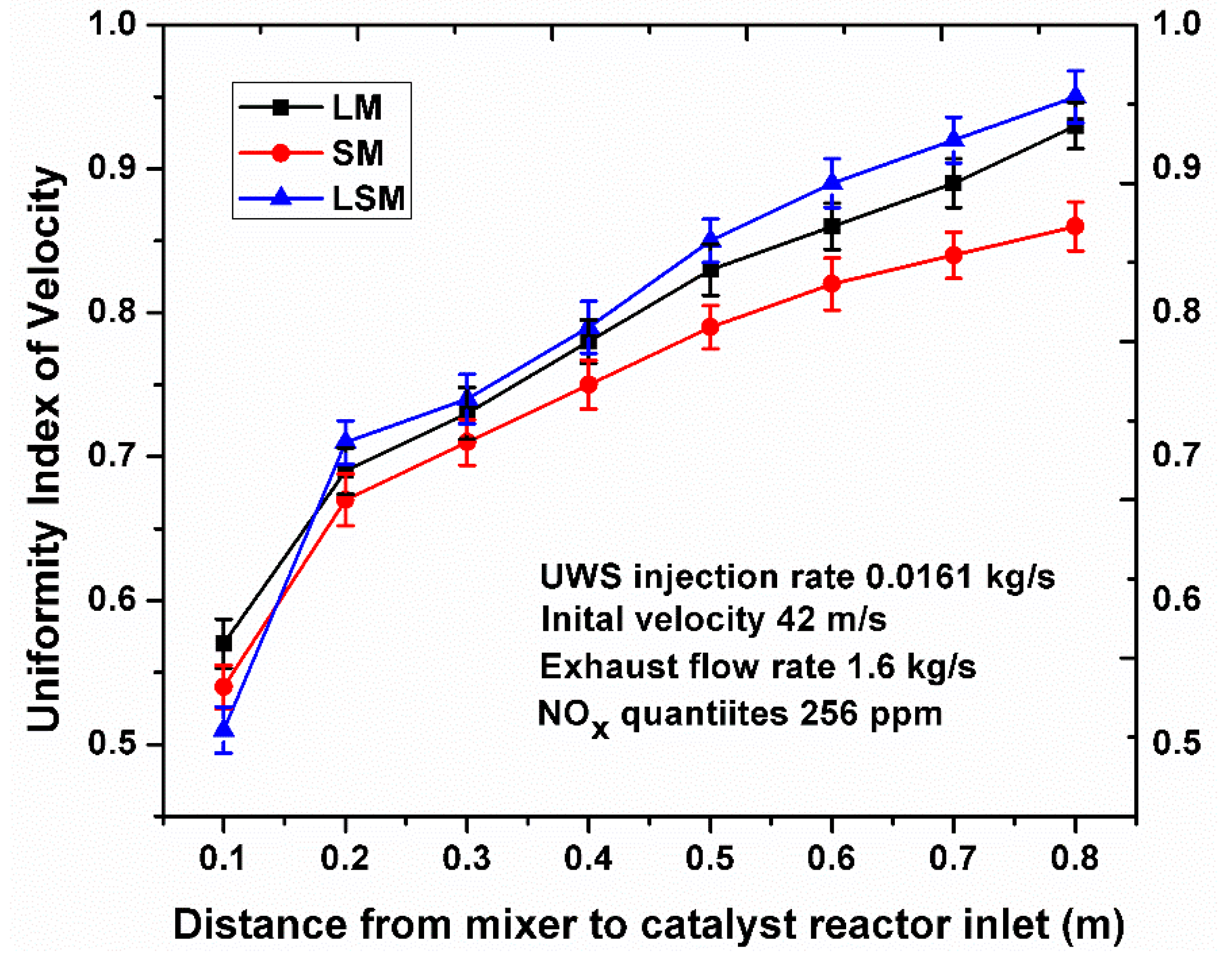

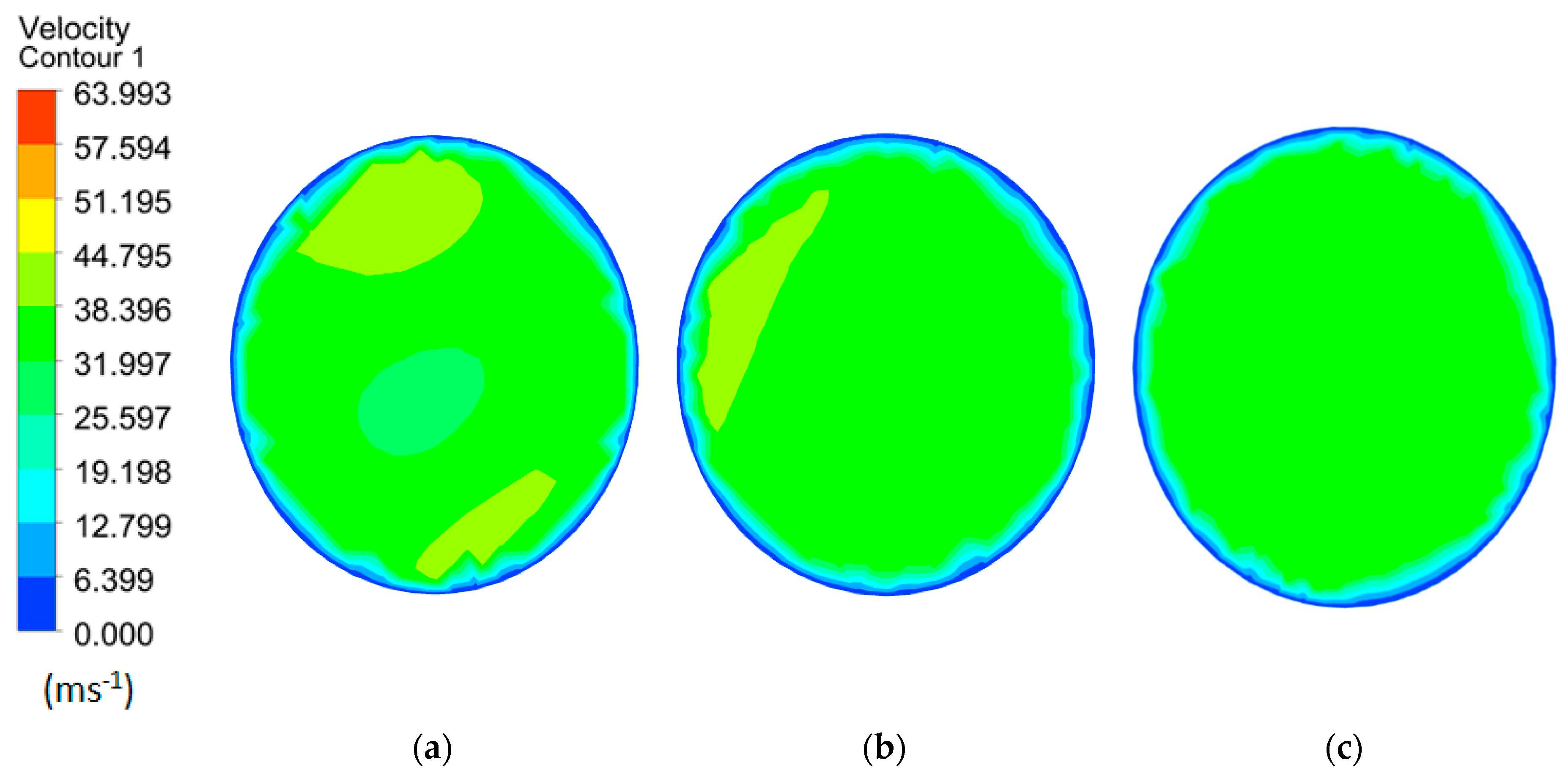

3.1.1. Velocity Uniformity

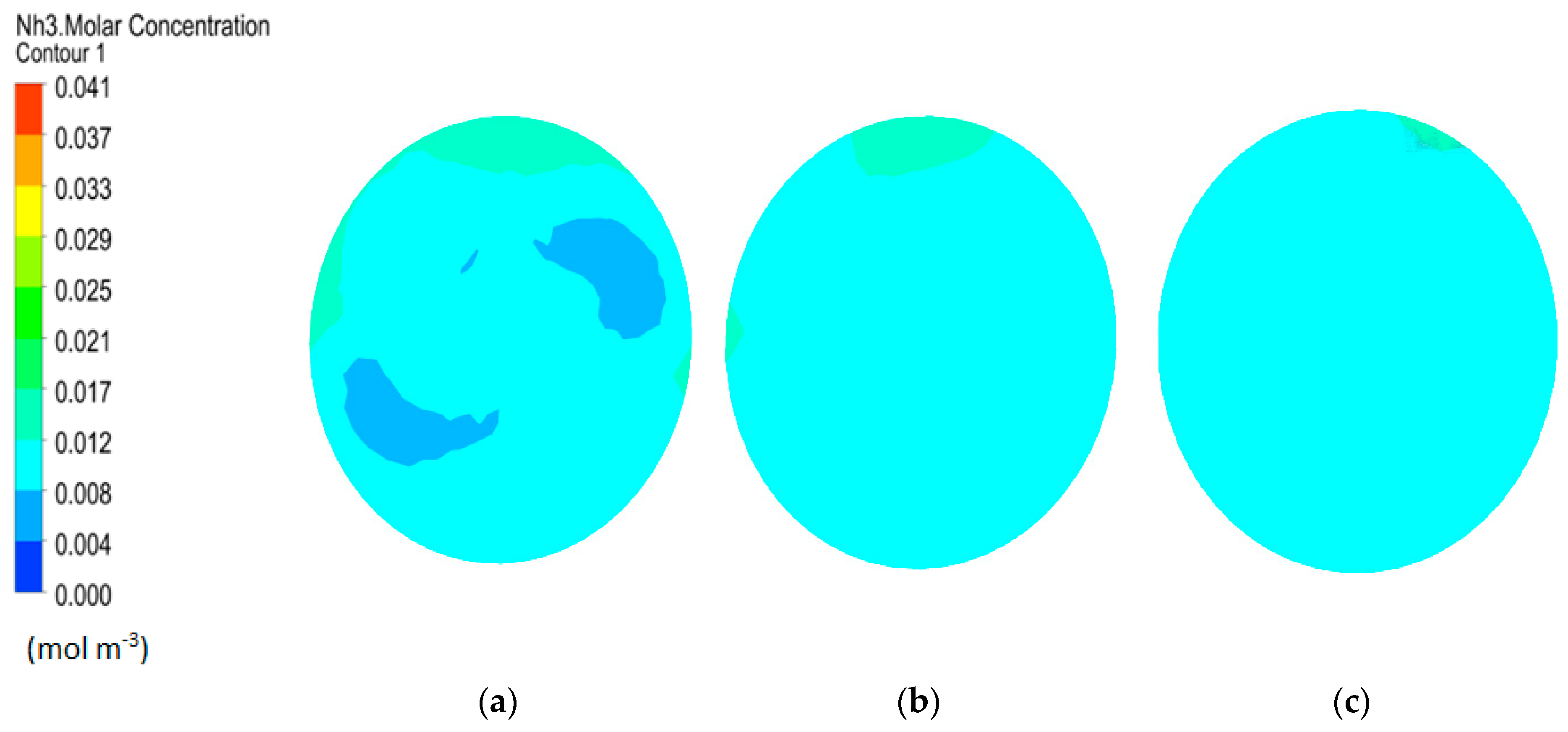

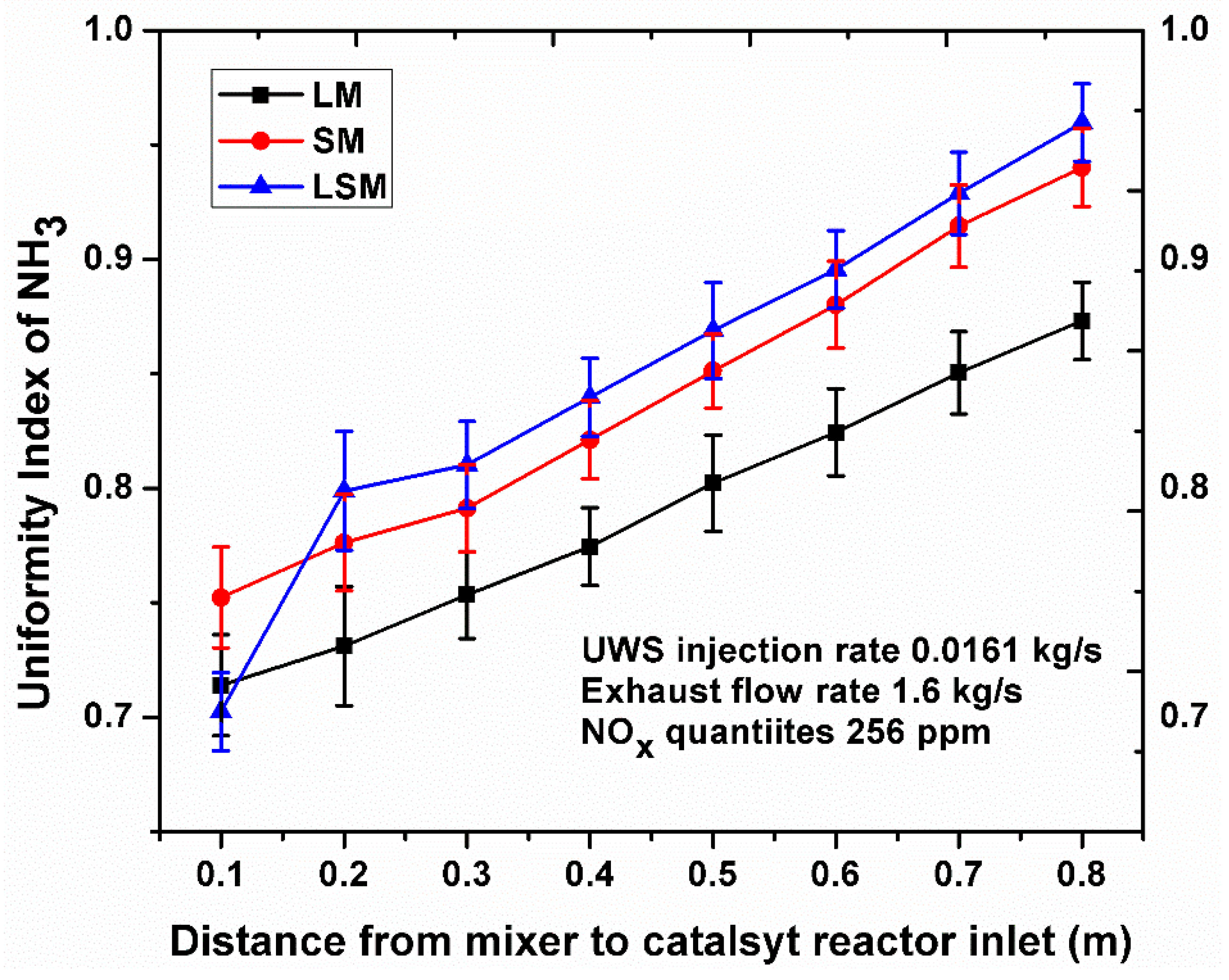

3.1.2. Ammonia Uniformity

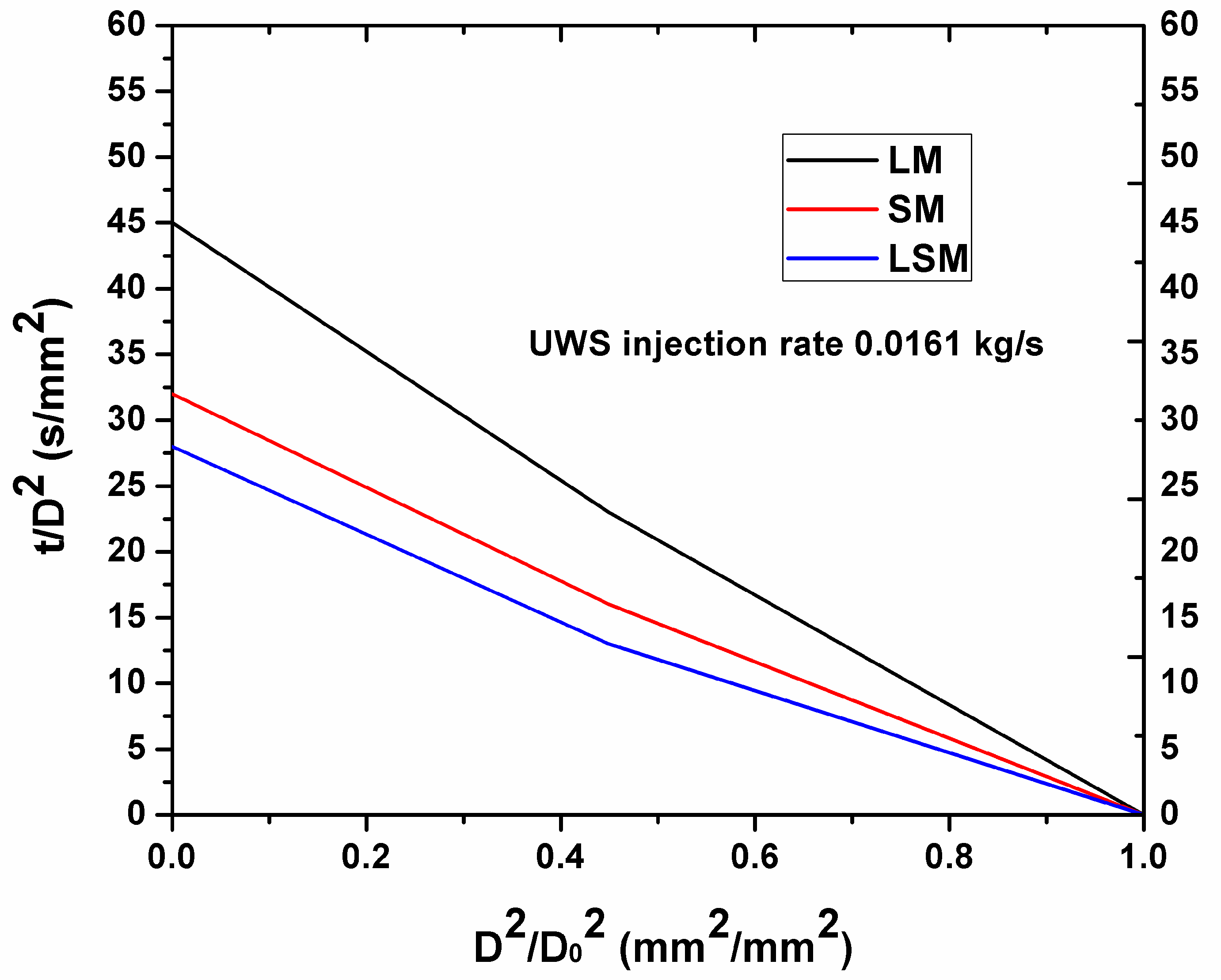

3.2. Droplet Residence Time
3.3. Urea Conversion
3.4. Relation of Temperature with SCR Performance

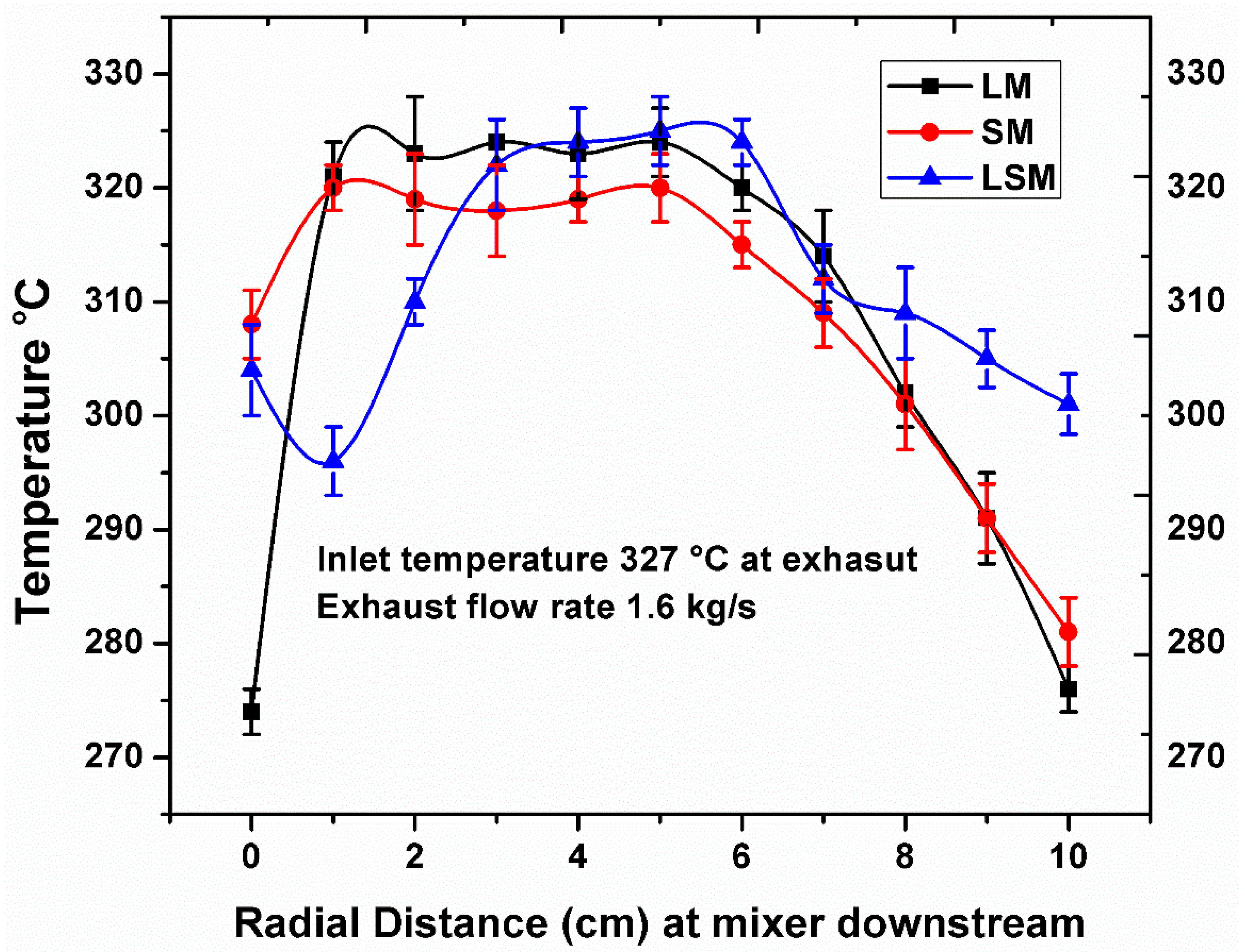

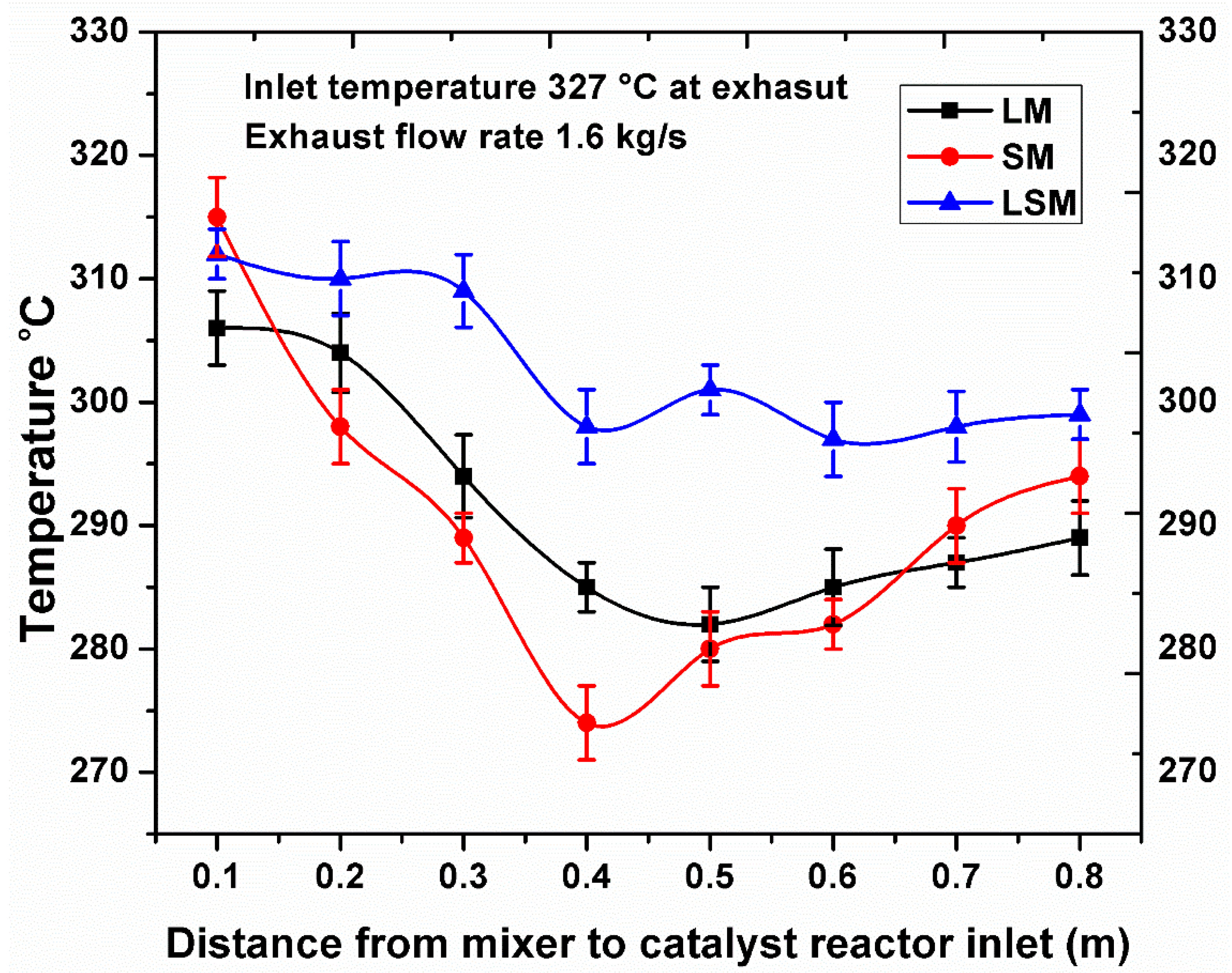

Temperature Distribution along the Mixer Downstream

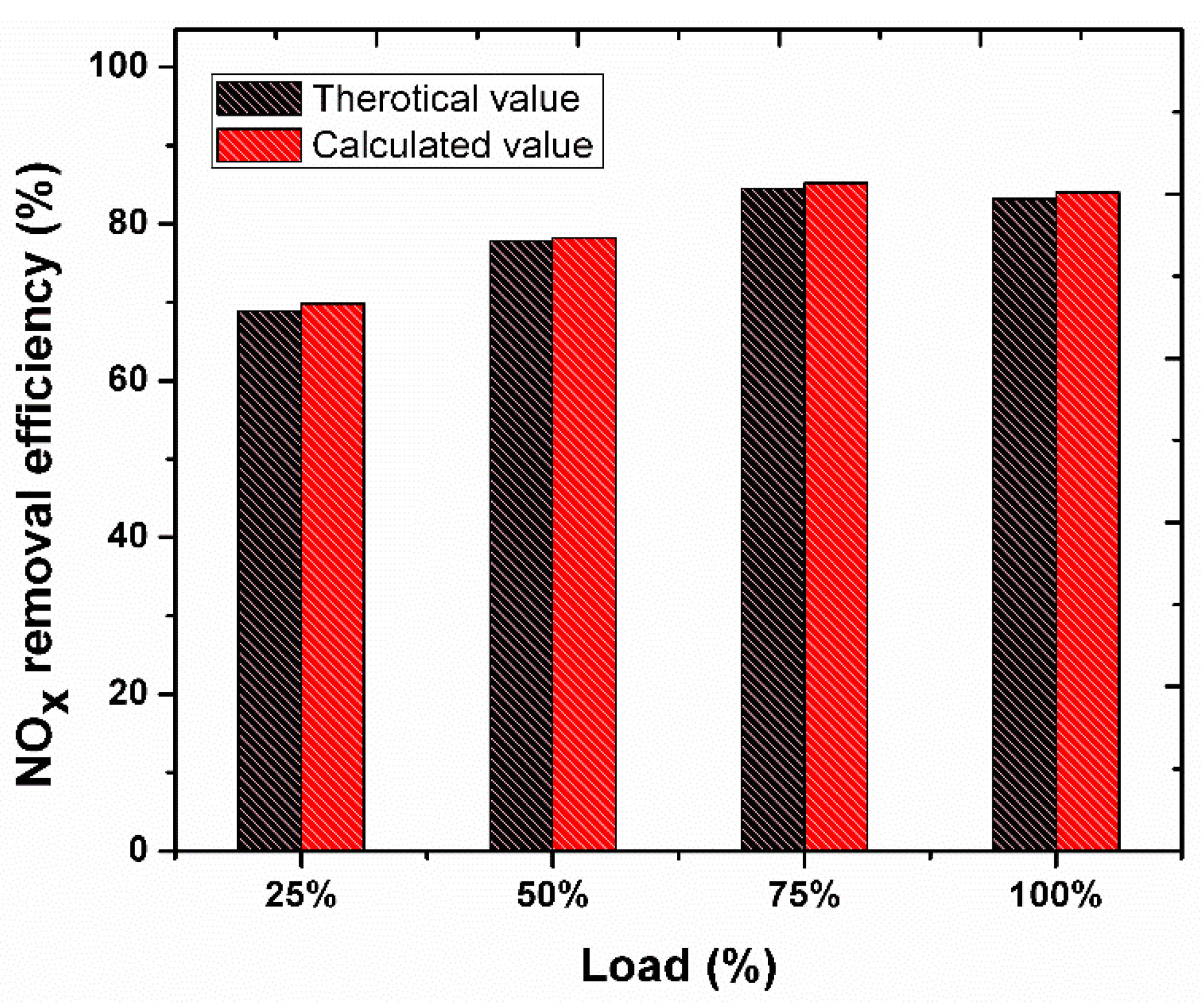

3.5. Working Performance of LSM-Based SCR System
4. Conclusions
- For the in-line type mixer (LM), the uniformity index of velocity was good (0.93) but the uniformity of ammonia was poor (0.87). In contrary to LM, the swirl type mixer (SM) has good ammonia uniformity (0.94) but poor uniformity index of velocity (0.86). However, better values were observed by using combination of two mixers (LSM). The uniformity index of velocity and ammonia uniformity achieved the values of 0.95 and 0.96, respectively, for LSM-based SCR system.
- The residence time UWS was studied. The results show that the residence time of urea droplets for LSM-based SCR system was 0.064 s, which represents47% and 29% decreases compared to LM and SM, respectively. Furthermore, the conversion of urea into ammonia is highly related with the residence time of urea droplets in the pipe. Hence, urea conversion achieves the value of 95.4% by using LSM, which is 19.3% and 12.2% higher than the value of LM and SM, respectively.
- It was also observed that the combination of two mixers (LSM) have good temperature distribution than the LM and SM for radial and axial directions, the temperature at catalyst inlet in axial direction was 300 °C for LSM-based SCR system which is suitable for the catalyst reaction performance and prevents the deposit formation.
- Finally, the simulated results of the model parameters were compared and verified by using ISO 8178 standard marine Diesel engine test cycle E3. The average weighted value of NOx emission was calculated as 2.44 g/kWh for four different loads. Hence, it is concluded that the system based on using LSM strongly meets the standard of IMO Tier III NOx emission regulations effectively.
Author Contributions
Funding
Conflicts of Interest
Abbreviations
CFD | Computational Fluid Dynamics |
ECA | Emission Control Areas |
IMO | International Maritime Organization |
LM | Line Mixer |
LSM | Line Swirl Mixer |
SM | Swirl Mixer |
SCR | Selective Catalyst Reduction |
UWS | Urea Water Solution |
Nomenclature | |
Symbol | Name (Unit) |
R | Gas constant (J kg−1 K−1) |
P | Pressure (Pa) |
T | Reaction Temperature (K) |
U | Fluid velocity (m/s) |
Ρ | Droplet density (m2/s3) |
K | Turbulent kinetic energy (m2/s2) |
Vt | Velocity with time (m/s) |
Cµ | Closure coefficient |
Cs | Volume concentration (m3) |
Diffusion flux | |
DS | Component diffusion coefficient |
Sm | Chemical reaction component mass |
Gas velocity vector | |
Ri | Net production rate of species |
Si | Rate of creation from dispersed phase to user defined phase |
Yi | Species destruction molar rate |
DT | Turbulent diffusivity (m2/s) |
DT,i | Thermal diffusion coefficient (m2/s) |
DT,m | Mass diffusion coefficient |
Cwater | Molar concentration of water |
Kc | Mass transfer coefficient (m/s) |
Tp | Droplet temperature |
Ri,r | Species destruction molar rate |
mp | Droplet mass (kg) |
up | Velocity of liquid droplet |
ρp | Density of liquid droplet |
F | Force except drag force |
CP | Specific heat of liquid droplet (J/K) |
AP | Droplet surface area (m2) |
T∞ | Droplet environment temperature |
h | Convective heat transfer coefficient (W/(m2K)) |
hfg | latent heat of vaporization (KJ/kg) |
Vi | Carrier Nominal velocity (m/s) |
Vmean | Average velocity (m/s) |
Ai | Cell area (m2) |
A | Sectional area of the plane (m2) |
EFx | Weighted emission level (g/kWh) |
mi | Mass emission rate (g/h) |
WFi | Weighting factor |
Pi | Engine load |
Ar | Pre-exponential factor |
Ea | Activation energy (J/kmol) |
MW | Species molecular weight |
Greek symbols | |
Ε | turbulent dissipation (m2/s3) |
Α | viscosity coefficient |
εp | radiant heat transfer rate of liquid droplet |
µt | turbulent viscosity (m2/s) |
Psat, water | Vapour pressure of water |
Dimensionless numbers | |
Pr | Prandtl number |
Sct | Turbulent Schmidt number |
Sc | Schmidt number |
References
- Zhanga, C.; Suna, C.; Wua, M.; Lub, K. Optimisation design of SCR mixer for improving deposit performance at low temperatures. Fuel 2019, 237, 465–474. [Google Scholar] [CrossRef]
- Chen, W.; Fali, H.; Qin, L.; Jun, H.; Zhao, B.; Yangzhe, T.; Fei, Y. Mechanism and Performance of the SCR of NO with NH3 over Sulfated Sintered Ore Catalyst. Catalysts 2019, 9, 90. [Google Scholar] [CrossRef]
- Hu, N.; Zhou, P.; Yang, J. Reducing emissions by optimising the fuel injector match with the combustion chamber geometry for a marine medium-speed diesel engine. Transp. Res. Part D Transp. Environ. 2017, 53, 1–16. [Google Scholar] [CrossRef]
- International Maritime Organization. Annex VI of MARPOL 73/78, Regulations for the Prevention of 418 Air Pollution from Ships and NOx Technical Code; International Maritime Organization: London, UK, 2008; pp. 15–19. [Google Scholar]
- Yewen, G.; Stein, W.W. A potentially overestimated compliance method for the Emission Control Areas. Transp. Res. Part D 2017, 55, 51–66. [Google Scholar]
- Zamboni, G.; Moggia, S.; Capobianco, M. Hybrid EGR and turbocharging systems control for low NOx, and fuel consumption in an automotive diesel engine. Appl. Energy 2016, 165, 839–848. [Google Scholar] [CrossRef]
- Nova, I.; Tronconi, E. Urea-SCR Technology for deNOx after Treatment of Diesel Exhausts; Springer: New York, NY, USA, 2014; pp. 12–18. [Google Scholar]
- Koebel, M.; Elsener, M.; Madia, G. Reaction pathways in the selective catalytic reduction process with NO and NO2 at low temperatures. Ind. Eng. Chem. Res. 2001, 40, 52–59. [Google Scholar] [CrossRef]
- Sadashiva, P.S. Review on Selective Catalytic Reduction (SCR)-A Promising Technology to mitigate NOx of Modern Automobiles. Int. J. Appl. Eng. Res. 2018, 13, 5–9. [Google Scholar]
- Shahariarm, G.M.H.; Lim, O.T. A Study on Urea-Water Solution Spray-Wall Impingement Process and Solid Deposit Formation in Urea-SCR de-NOx System. Energies 2018, 12, 125. [Google Scholar] [CrossRef]
- Koebel, M.; Elsener, M.; Kleemann, M. Urea-SCR: A promising technique to reduce NOx emissions from automotive diesel engines. Catal. Today 2000, 59, 335–345. [Google Scholar] [CrossRef]
- Fang, H.L.; DaCosta, H.F.M. Urea thermolysis and NOx reduction with and without SCR catalysts. Appl. Catal. B Environ. 2003, 46, 14–34. [Google Scholar] [CrossRef]
- Jeong, S.J.; Sang, J.L.; Kim, W.S. Numerical Study on the Optimum Injection of Urea-Water Solution for SCR DeNOx System of a Heavy-Duty Diesel Engine to Improve DeNOx Performance and Reduce NH3 Slip. Environ. Eng. Sci. 2008, 25, 1017–1036. [Google Scholar] [CrossRef]
- Varna, A.; Spiteri, A.C.; Wright, Y.M. Experimental and numerical assessment of impingement and mixing of urea-water sprays for nitric oxide reduction in diesel exhaust. Appl. Energy 2015, 157, 824–837. [Google Scholar] [CrossRef]
- Grout, S.; Blaisot, J.B.; Pajot, K. Experimental investigation on the injection of an urea-watersolution in hot air stream for the SCR application: Evaporation and spray/wall interaction. Fuel 2013, 106, 166–177. [Google Scholar] [CrossRef]
- Choi, C.; Sung, Y.; Choi, G.M.; Kim, D.J. Numerical Analysis of Urea Decomposition with Static Mixers in Marine SCR System. J. Clean Energy Technol. 2015, 3, 39–42. [Google Scholar] [CrossRef]
- Haitao, D.; Dawei, M.; Renbin, Z.; Bowen, S.; Jun, H. Impact of Control Measures on Nitrogen Oxides, Sulfur Dioxide and Particulate Matter Emissions from Coal-Fired Power Plants in Anhui Province, China. Atmosphere 2019, 10, 35. [Google Scholar]
- Tana, L.; Fenga, P.; Yangb, S.; Guoa, Y.; Liua, S.Z.L. CFD studies on effects of SCR mixers on the performance of urea conversion and mixing of the reducing agent. Chem. Eng. Process. Process Intensif. 2018, 123, 82–88. [Google Scholar] [CrossRef]
- Birkhold, F.; Meingast, U.; Wassermann, P. Modeling and simulation of the injection of urea-water-solution for automotive SCR DeNOx-systems. Appl. Catal. B Environ. 2007, 70, 119–127. [Google Scholar] [CrossRef]
- Ström, H.; Lundström, A.; Andersson, B. Choice of urea-spray models in CFD simulations of urea-SCR systems. Chem. Eng. J. 2009, 150, 69–82. [Google Scholar] [CrossRef]
- Rajadurai, S. Improved NOx Reduction Using Wiremesh Thermolysis Mixer in Urea SCR System; SAE Technical Paper 2008; SAE: Zürich, Switzerland, 2008. [Google Scholar]
- Zhang, X.; Romzek, M.; Morgan, C. 3-D Numerical Study of Mixing Characteristics of NH3 in Front of SCR; SAE Technical Paper; SAE: Zürich, Switzerland, 2006. [Google Scholar]
- Chen, M.; Williams, S. Modeling and Optimization of SCR-Exhaust Aftertreatment Systems; SAE, World Congress and Exhibition; SAE: Zürich, Switzerland, 2005. [Google Scholar]
- Capetillo, A.; Ibarra, F. Multiphase injector modeling for automotive SCR systems: A full factorial design of experiment and optimization. Comput. Math. Appl. 2017, 74, 89–97. [Google Scholar] [CrossRef]
- Park, T.; Kim, Y.S.; Lee, I.; Choi, G.; Kim, D. Effect of static mixer geometry on flow mixing and pressure drop in marine SCR applications. Int. J. Nav. Arch. Ocean Eng. 2014, 6, 27–38. [Google Scholar] [CrossRef] [Green Version]
- Yuanqing, Z.; Zhang, R.; Zhou, S.; Huang, C.; Feng, Y.; Shreka, M.; Zhang, C. Performance Optimization of High-Pressure SCR System in a Marine Diesel Engine. Part I: Flow Optimization and Analysis. Top. Catal. 2019. [Google Scholar] [CrossRef]
- Olivier, F.; Toshiyuki, Y. Development of Static Mixer Device for Heavy Duty Diesel Engine SCR After-treatment System. Calsonic Kansei Tech. Rev. 2012, 9, 50–55. [Google Scholar]
- Hyman, D. Mixing and agitation. Adv. Chem. Eng. 1999, 3, 119–202. [Google Scholar]
- Kuhnke, D. Spray Wall Interaction Modeling by Dimensionless Data Analysis. Ph.D. Thesis, Universitat Darmstadt, Darmstadt, Germany, 2004. [Google Scholar]
- Emission Test Cycles. Available online: www.dieselnet.com/standards/cycles/iso8178.php (accessed on 20 December 2018).
- Yong, Y. Development of a 3D Numerical Model for Predicting Spray, Urea Decomposition and Mixing in SCR Systems; SAE Technical Papers; SAE: Zürich, Switzerland, 2007. [Google Scholar]
- Jeong, S.; Lee, S.; Kim, W.; Lee, C. Simulation on the Optimum Shape and Location of Urea Injector for Urea-SCR System of Heavy-Duty Diesel Engine to Prevent NH3 Slip; SAE Technical Paper; SAE: Zürich, Switzerland, 2005. [Google Scholar]
- Yakhot, V.; Orszag, S.; Thangam, S.; Gatski, T.; Speziale, C. Development of turbulence models for shear flows by a double expansion technique. Phys. Fluids A 1992, 4, 1510–1520. [Google Scholar] [CrossRef] [Green Version]
- Andersson, B.; Andersson, R.; Håkansson, L. Computational Fluid Dynamics for Engineers; Cambridge University Press: Cambridge, UK, 2011; pp. 56–66. [Google Scholar]
- Wang, H.; Fischman, G.S. Role of liquid droplet surface diffusionin the vapor-liquidsolid whisker growth mechanism. J. Appl. Phys. 1994, 76, 1557–1562. [Google Scholar] [CrossRef]
- Berlemont, A.; Grancher, M.S.; Gouesbet, G. Heat and mass transfer coupling between vaporizing droplets and turbulence using a Lagrangian approach. Int. J. Heat Mass Transf. 1995, 38, 3023–3034. [Google Scholar] [CrossRef]
- Schaber, P.M.; Colson, J.; Higgins, S. Study of the urea thermal decomposition (pyrolysis) reaction and importance to cyanuric acid producition. Am. Lab 1999, 31, 13–21. [Google Scholar]
- Schaber, P.M.; Colson, J.; Higgins, S. Thermal decomposition (pyrolysis) of urea in an open reaction vessel. Thermochim. Acta 2004, 424, 131–142. [Google Scholar] [CrossRef]
- Law, C.K. Recent advances in droplet vaporization and combustion. Prog. Energy Combust. Sci. 1982, 8, 171–201. [Google Scholar] [CrossRef]
- Spiteri, A.; Eggenschwiler, P.D.; Liao, Y.; Wigley, G.; Michalow-Mauke, K.A.; Elsener, M. Comparative analysis on the performance of pressure and air assisted urea injection for selective catalytic reduction of NOx. Fuel 2015, 161, 269–277. [Google Scholar] [CrossRef]
- Shahariar, G.M.H.; Lim, O.T. Investigation of urea-water solution spray impingement on the hot surface of automotive SCR system. J. Mech. Sci. Technol. 2018, 32, 2935–2946. [Google Scholar] [CrossRef]
- Xu, Z.; Liu, J.; Fu, J. Experimental investigation on the urea injection and mixing module for improving the performance of Urea-SCR in diesel engines. Can. J. Chem. Eng. 2018, 96, 1417–1429. [Google Scholar] [CrossRef]
- Paramadayalan, T.; Pant, A. Selective catalytic reduction converter design: The effect of ammonia nonuniformity at inlet. Korean J. Chem. Eng. 2013, 30, 2170–2177. [Google Scholar] [CrossRef]
- Fischer, S.; Fischer, R.B.; Lauer, T. Impact of the turbulence model and numerical approach on the prediction of the ammonia homogenization in an automotive SCR system. SAE Int. J. Eng. 2012, 5, 1443–1458. [Google Scholar] [CrossRef]
- Rourke, P.J.O.; Amsden, A.A. A Spray/Wall Interaction Submodel for the KIVA-3 Wall Flm Model; SAE Technical Paper; SAE: Zürich, Switzerland, 2000. [Google Scholar]
- Marin, P.; Fissore, D.; Barresi, A.A. Simulation of an industrial-scale process for the SCR of NOx based on the loop reactor concept. Chemical Eng. Process. Process Intensif. 2009, 48, 311–320. [Google Scholar] [CrossRef]
- Gysel, N.R.; Robert, L.; Russell; Welch, W.A.; Cocker, I.D.R. Impact of Aftertreatment Technologies on the In-Use Gaseous and Particulate Matter Emissions from a Tugboat. Energy Fuels 2016, 30, 684–689. [Google Scholar] [CrossRef] [Green Version]
Parameters | 25% | 50% | 75% | 100% |
---|---|---|---|---|
Flow (kg/s) | 0.516 | 1.2 | 1.63 | 1.94 |
Pressure (bar) | 1.4 | 2.17 | 3.1 | 3.8 |
Temperature (°C) | 254 | 290 | 327 | 395 |
Urea Injection (kg/s) | 0.0091 | 0.013 | 0.0161 | 0.0192 |
Parameters | Value | |
---|---|---|
Injection Conditions | Injection type model | Pressure swirl atomizer |
Injection inner hole diameter | 0.0007 m | |
Urea temperature | 313 k | |
Number of streams | 10 | |
Catalyst Conditions | Inverse absolute Permeability (m−2) | 1.85 |
Inertia resistance (m−1) | 85 | |
Porosity | 0.89 | |
Surface to volume ratio (1/m) | 1275 |
Uniformity Index | LM | SM | LSM |
---|---|---|---|
Velocity Uniformity | 0.93 | 0.86 | 0.95 |
Ammonia Uniformity | 0.87 | 0.94 | 0.96 |
Type ISO 8178 E3 Mode | 1 | 2 | 3 | 4 |
---|---|---|---|---|
Load (%) | 25 | 50 | 75 | 100 |
Speed (%) | 63 | 80 | 91 | 100 |
Weightage factor | 0.15 | 0.15 | 0.5 | 0.2 |
