Performance Optimization of High Specific Speed Centrifugal Pump Based on Orthogonal Experiment Design Method

1
College of Mechanical and Electronic Engineering, Shandong University of Science and Technology, Qingdao 266590, China
2
Group of Shanghai Liancheng, Shanghai 201812, China
*
Author to whom correspondence should be addressed.
Processes 2019, 7(10), 728; https://doi.org/10.3390/pr7100728
Received: 16 September 2019 / Revised: 2 October 2019 / Accepted: 3 October 2019 / Published: 11 October 2019
(This article belongs to the Special Issue CFD Applications in Energy Engineering Research and Simulation)

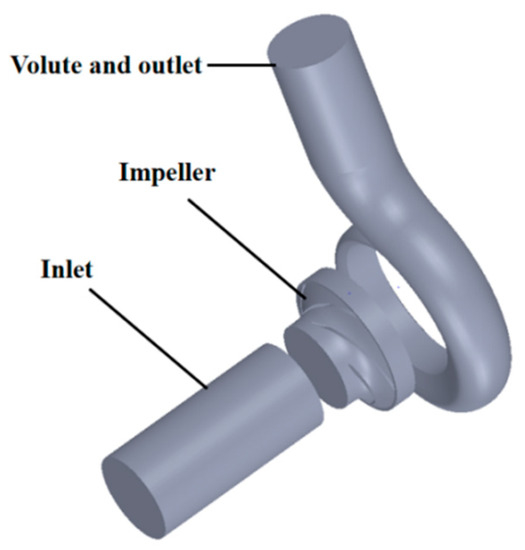

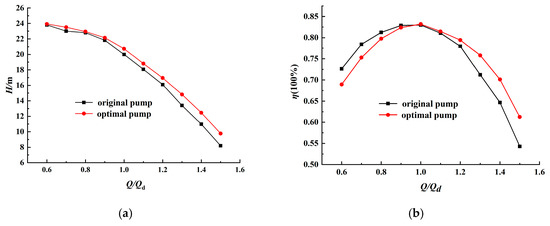

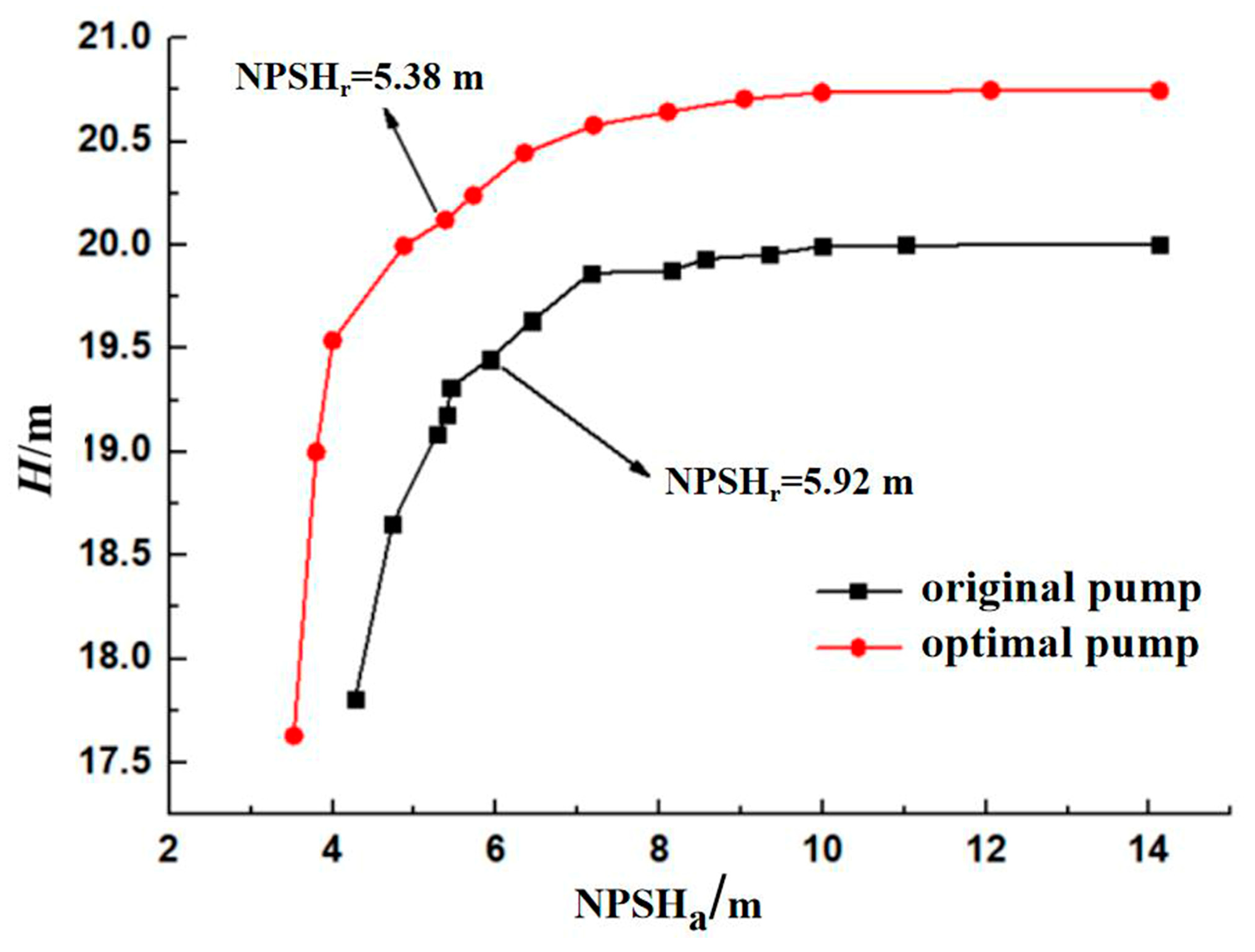

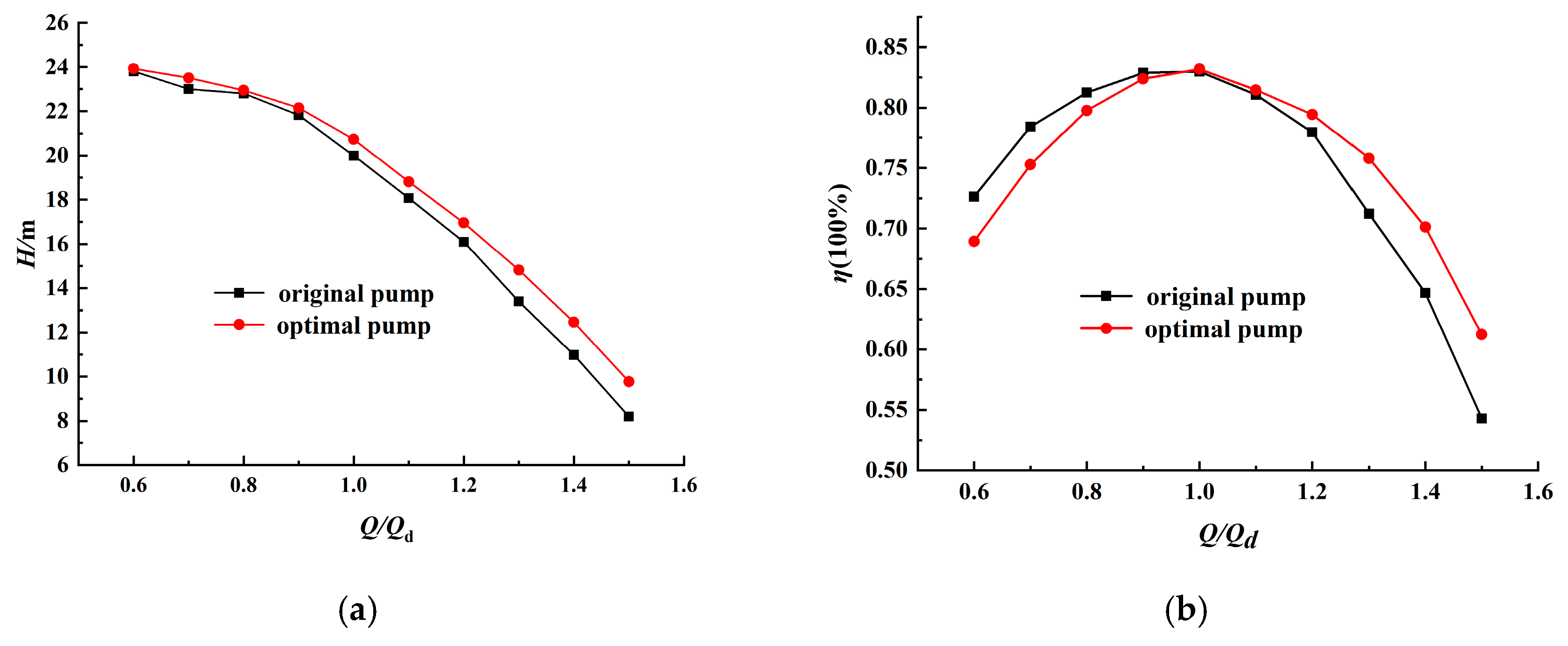

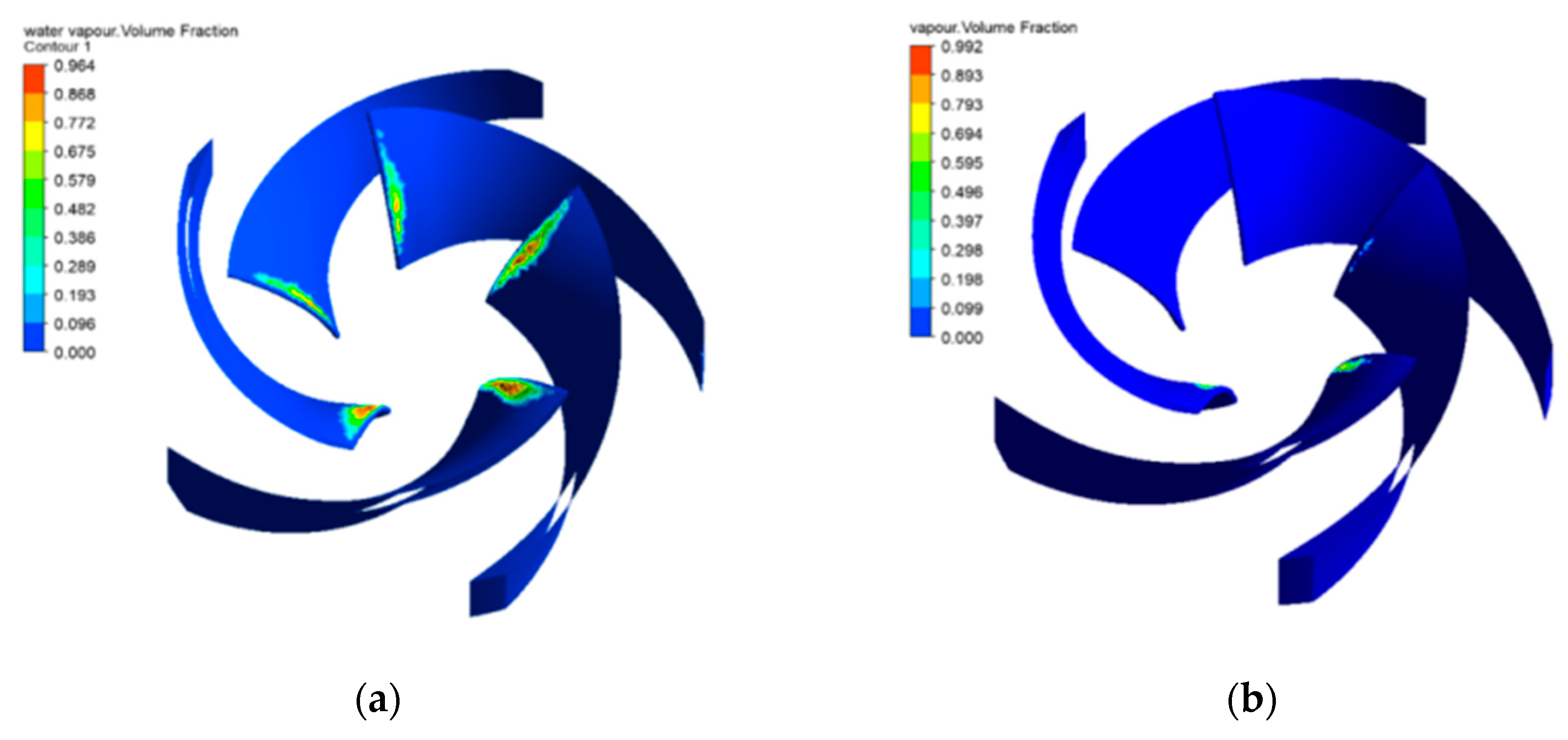

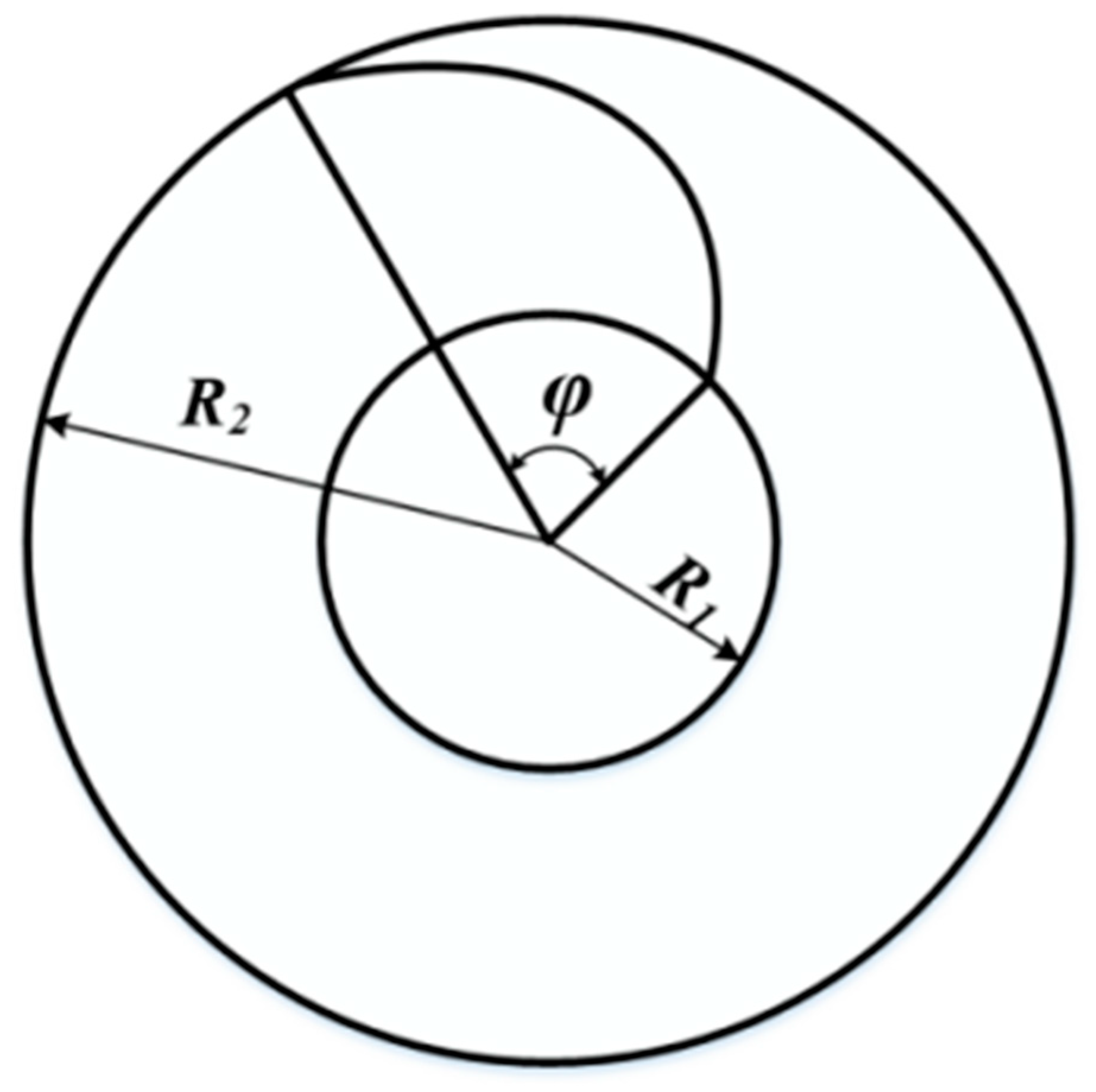

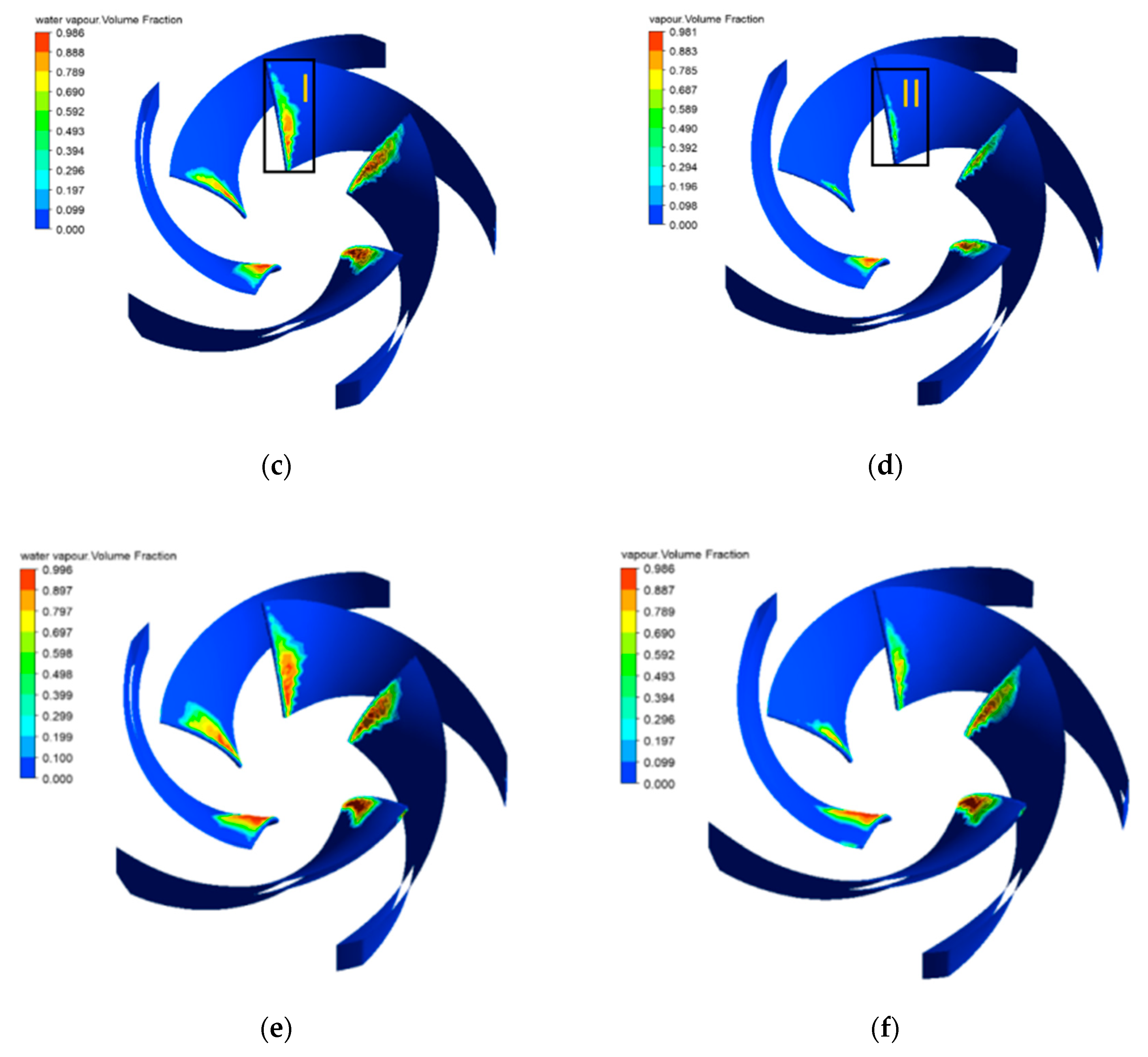

A high specific speed centrifugal pump is used in the situation of large flow and low head. Centrifugal pump parameters need to be optimized in order to raise its head and efficiency under off-design conditions. In this study, the orthogonal experiment design method is adopted to optimize the performance of centrifugal pump basing on three parameters, namely, blade outlet width b2, blade outlet angle β2 and blade wrap angle φ. First, the three-dimensional model of the centrifugal pump is established by CFturbo and SolidWorks. Then nine different schemes are designed by using orthogonal table, and numerical simulation is carried out in CFX15.0. The final optimized combination of parameters is b2 = 24 mm, β2 = 24°, φ = 112°. Under the design condition, the head and efficiency of the optimized centrifugal pump are appropriately improved, the increments of which are 0.74 m and 0.48%, respectively. However, the efficiency considerably increases at high flow rates, with an increase of 6.9% at 1.5 Qd. The anti-cavitation performance of the optimized centrifugal pump is also better than the original pump. The results in this paper can provide references for parameter selection (b2, β2, φ) in the centrifugal pump design.
Keywords: high specific speed centrifugal pump; performance optimization; orthogonal design method high specific speed centrifugal pump; performance optimization; orthogonal design method
Show Figures

Graphical abstract

MDPI and ACS Style

Li, Z.; Ding, H.; Shen, X.; Jiang, Y. Performance Optimization of High Specific Speed Centrifugal Pump Based on Orthogonal Experiment Design Method. Processes 2019, 7, 728.
