# Multi-Objective Optimization of Experiments Using Curvature and Fisher Information Matrix

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Model-Based Optimal Design of Experiments

#### 2.1. Multi-Objective Design of Experiments Based on Curvatures

#### 2.2. Numerical Implementation of the Curvature-Based MOO Design

## 3. Results

#### 3.1. MBDOEs of Baker Yeast Fermentation Model

#### 3.2. Performance Evaluation

## 4. Discussion

## 5. Conclusions

## Supplementary Materials

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Abbreviations

MBDOE | Model-based design of experiments |

FIM | Fisher information matrix |

MOO | Multi-objective optimization |

RMS | Root mean square |

ODE | Ordinary differential equation |

MLE | Maximum likelihood estimator |

CVP | Control vector parametrization |

nMSE | Normalized mean-square error |

## References

- Srinath, S.; Gunawan, R. Parameter identifiability of power-law biochemical system models. J. Biotechnol.
**2010**, 149, 132–140. [Google Scholar] [CrossRef] [PubMed] - Jia, G.; Stephanopoulos, G.; Gunawan, R. Ensemble kinetic modeling of metabolic networks from dynamic metabolic profiles. Metabolites
**2012**, 2, 891–912. [Google Scholar] [CrossRef] [PubMed] - Gábor, A.; Hangos, K.; Banga, J.; Szederkànyi, G. Reaction network realizations of rational biochemical systems and their structural properties. J. Math. Chem.
**2015**, 53, 1657–1686. [Google Scholar] [CrossRef] - Liu, Y.; Manesso, E.; Gunawan, R. REDEMPTION: Reduced dimension ensemble modeling and parameter estimation. Bioinformatics
**2015**, 31, 3387–3389. [Google Scholar] [CrossRef] [PubMed] - Villaverde, A.F.; Banga, J.R. Structural properties of dynamic systems biology models: Idenfiability, reachability and initial conditions. Processes
**2017**, 5, 29. [Google Scholar] [CrossRef] - Franceschini, G.; Macchietto, S. Model-based design of experiments for parameter precision: State of the art. Chem. Eng. Sci.
**2008**, 63, 4846–4872. [Google Scholar] [CrossRef] - Kreutz, C.; Timmer, J. Systems biology: Experimental design. FEBS J.
**2009**, 276, 923–942. [Google Scholar] [CrossRef] [PubMed] - Chakrabarty, A.; Buzzard, G.T.; Rundell, A.E. Model-based design of experiments for cellular processes. WIREs Syst. Biol. Med.
**2013**, 5, 181–203. [Google Scholar] [CrossRef] [PubMed] - Cover, T.M.; Thomas, J.A. Elements of Information Theory, 2nd ed.; John Wiley & Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
- Faller, D.; Klingmüller, U.; Timmer, J. Simulation methods for optimal experimental design in systems biology. Simulation
**2003**, 79, 717–725. [Google Scholar] [CrossRef] - Gadkar, K.G.; Gunawan, R.; Doyle, F.J., III. Iterative approach to model identification of biological networks. BMC Bioinformatics
**2005**, 6, 155. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Balsa-Canto, E.; Alonso, A.A.; Banga, J.R. Computational procedures for optimal experimental design in biological systems. IET Syst. Biol.
**2008**, 2, 163–172. [Google Scholar] [CrossRef] [PubMed] - Chung, M.; Haber, E. Experimental design for biological systems. SIAM J. Control Optim.
**2012**, 50, 471–489. [Google Scholar] [CrossRef] - Transtrum, M.K.; Qiu, P. Optimal experiment selection for parameter estimation in biological differential equation models. BMC Bioinform.
**2012**, 13, 181. [Google Scholar] [CrossRef] [PubMed] - Maheshwari, V.; Rangaiah, G.P.; Samavedham, L. A multi-objective framework for model based design of experiments to improve parameter precision and minimize parameter correlation. Ind. Eng. Chem. Res.
**2013**, 52, 8289–8304. [Google Scholar] [CrossRef] - Sinkoe, A.; Hahn, J. Optimal experimental design for parameter estimation of an IL-6 signaling model. Processes
**2017**, 5, 49. [Google Scholar] [CrossRef] - Vanlier, J.; Tiemann, C.A.; Hilbers, P.A.J.; van Riel, N.A.W. A Bayesian approach to targeted experiment design. Bioinformatics
**2012**, 28, 1136–1142. [Google Scholar] [CrossRef] [PubMed] - Weber, P.; Kramer, A.; Dingler, C.; Radde, N. Trajectory-oriented Bayesian experiment design versus Fisher A-optimal design: An in-depth comparison study. Bioinformatics
**2012**, 28, i535–i541. [Google Scholar] [CrossRef] [PubMed] - Liepe, J.; Filippi, S.; Komorowski, M.; Stumpf, M.P.H. Maximizing the information content of experiments in systems biology. PLoS Comput. Biol.
**2013**, 9, e1002888. [Google Scholar] [CrossRef] [PubMed] - Apgar, J.F.; Toettcher, J.E.; Endy, D.; White, F.M.; Tidor, B. Stimulus design for model selection and validation in cell signaling. PLoS Comput. Biol.
**2008**, 4, e30. [Google Scholar] [CrossRef] [PubMed] - Daunizeau, J.; Preuschoff, K.; Friston, K.; Stephan, K. Optimizing experimental design for comparing models of brain function. PLoS Comput. Biol.
**2011**, 7, e1002280. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Flassig, R.J.; Sundmacher, K. Optimal design of stimulus experiments for robust discrimination of biochemical reaction networks. Bioinformatics
**2012**, 28, 3089–3096. [Google Scholar] [CrossRef] [PubMed] - Busetto, A.G.; Hauser, A.; Krummenacher, G.; Sunnaker, M.; Dimopoulos, S.; Ong, C.S.; Stelling, J.; Buhmann, J.M. Near-optimal experimental design for model selection in systems biology. Bioinformatics
**2013**, 29, 2625–2632. [Google Scholar] [CrossRef] [PubMed] - Silk, D.; Kirk, P.D.W.; Barnes, C.P.; Toni, T.; Stumpf, M.P.H. Model selection in systems biology depends on experimental design. PLoS Comput. Biol.
**2014**, 10, e1003650. [Google Scholar] [CrossRef] [PubMed] - Bazil, J.N.; Buzzard, G.T.; Rundell, A.E. A global parallel model based design of experiments method to minimize model output uncertainty. Bull. Math. Biol.
**2012**, 74, 688–716. [Google Scholar] [CrossRef] [PubMed] - Mdluli, T.; Buzzard, G.T.; Rundell, A.E. Efficient optimization of stimuli for model-based design of experiments to resolve dynamical uncertainty. PLoS Comput. Biol.
**2015**, 11, e1004488. [Google Scholar] [CrossRef] [PubMed] - Cochran, W.G. Experiments for Nonlinear Functions. J. Am. Stat. Assoc.
**1973**, 68, 771–781. [Google Scholar] [CrossRef] - Bates, D.M.; Watts, D.G. Relative Curvature Measures of Nonlinearity. J. R. Stat. Soc. Ser. B
**1980**, 42, 1–25. [Google Scholar] - Hamilton, D.C.; Watts, D.G. A quadratic design criterion for precise estimation in nonlinear regression models. Technometrics
**1985**, 27, 241–250. [Google Scholar] [CrossRef] - Benabbas, L.; Asprey, S.P.; Macchietto, S. Curvature-based methods for designing optimally informative experiments in multiresponse nonlinear dynamic situations. Ind. Eng. Chem. Res.
**2005**, 44, 7120–7131. [Google Scholar] [CrossRef] - Asprey, S.P.; Macchietto, S. Statistical tools for optimal dynamic model building. Comput. Chem. Eng.
**2000**, 24, 1261–1267. [Google Scholar] [CrossRef] - Seber, G.A.F.; Wild, C.J. Nonlinear Regression; John Wiley & Sons: Hoboken, NJ, USA, 2003. [Google Scholar]
- Merlé, Y.; Tod, M. Impact of pharmacokinetic-pharmacodynamic model linearization on the accuracy of population information matrix and optimal design. J. Pharmacokinet. Pharmacodyn.
**2001**, 28, 363–388. [Google Scholar] [CrossRef] [PubMed] - Bogacka, B.; Wright, F. Comparison of two design optimality criteria applied to a nonlinear model. J. Biopharm. Stat.
**2004**, 14, 909–930. [Google Scholar] [CrossRef] [PubMed] - Rangaiah, G.P. Multi-Objective Optimization: Techniques and Applications in Chemical Engineering; World Scientific: Singapore, 2008; Volume 1. [Google Scholar]
- Varma, A.; Morbidelli, M.; Wu, H. Parametric Sensitivity in Chemical Systems; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
- Zhang, T.; Golub, G.H. Rank-One Approximation to High Order Tensors. SIAM J. Matrix Anal. Appl.
**2001**, 23, 534–550. [Google Scholar] [CrossRef] - Deb, K.; Pratap, A.; Agarwal, S.; Meyarivan, T. A fast and elitist multi-objective genetic algorithm: NSGA-II. IEEE Trans. Evol. Comput.
**2002**, 6, 182–197. [Google Scholar] [CrossRef] - Egea, J.A.; Martí, R.; Banga, J.R. An evolutionary method for complex-process optimization. Comput. Oper. Res.
**2010**, 37, 315–324. [Google Scholar] [CrossRef] - Egea, J.A.; Rodriguez-Fernandez, M.; Banga, J.R.; Martí, R. Scatter search for chemical and bioprocess optimization. J. Glob. Optim.
**2007**, 37, 481–503. [Google Scholar] [CrossRef] [Green Version] - Rodriguez-Fernandez, M.; Egea, J.A.; Banga, J.R. Novel metaheuristic for parameter estimation in nonlinear dynamic biological systems. BMC Bioinform.
**2006**, 7, 483. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, Y.; Edgar, T.F. PCA combined model-based design of experiments (DOE) criteria for differential and algebraic system parameter estimation. Ind. Eng. Chem. Res.
**2008**, 47, 7772–7783. [Google Scholar] [CrossRef] - Chou, I.C.; Voit, E. Recent developments in parameter estimation and structure identification of biochemical and genomic systems. Math. Biosci.
**2009**, 219, 57–83. [Google Scholar] [CrossRef] [PubMed] - Voit, E. Biochemical systems theory: A review. ISRN Biomath.
**2013**, 2013, 897658. [Google Scholar] [CrossRef] - White, A.; Tolman, M.; Thames, H.D.; Withers, H.R.; Mason, K.A.; Transtrum, M.K. The limitations of model-based experimental design and parameter estimation in sloppy systems. PLoS Comput. Biol.
**2016**, 12, e1005227. [Google Scholar] [CrossRef] [PubMed] - Transturm, M.K.; Qiu, P. Model reduction by manifold boundaries. Phys. Rev. Lett.
**2014**, 113, 098701. [Google Scholar] [CrossRef] [PubMed] - Transturm, M.K.; Qiu, P. Bridging mechanistic and phenomenological models of complex biological systems. PLoS Comput. Biol.
**2016**, 12, e1004915. [Google Scholar] [CrossRef] [PubMed]

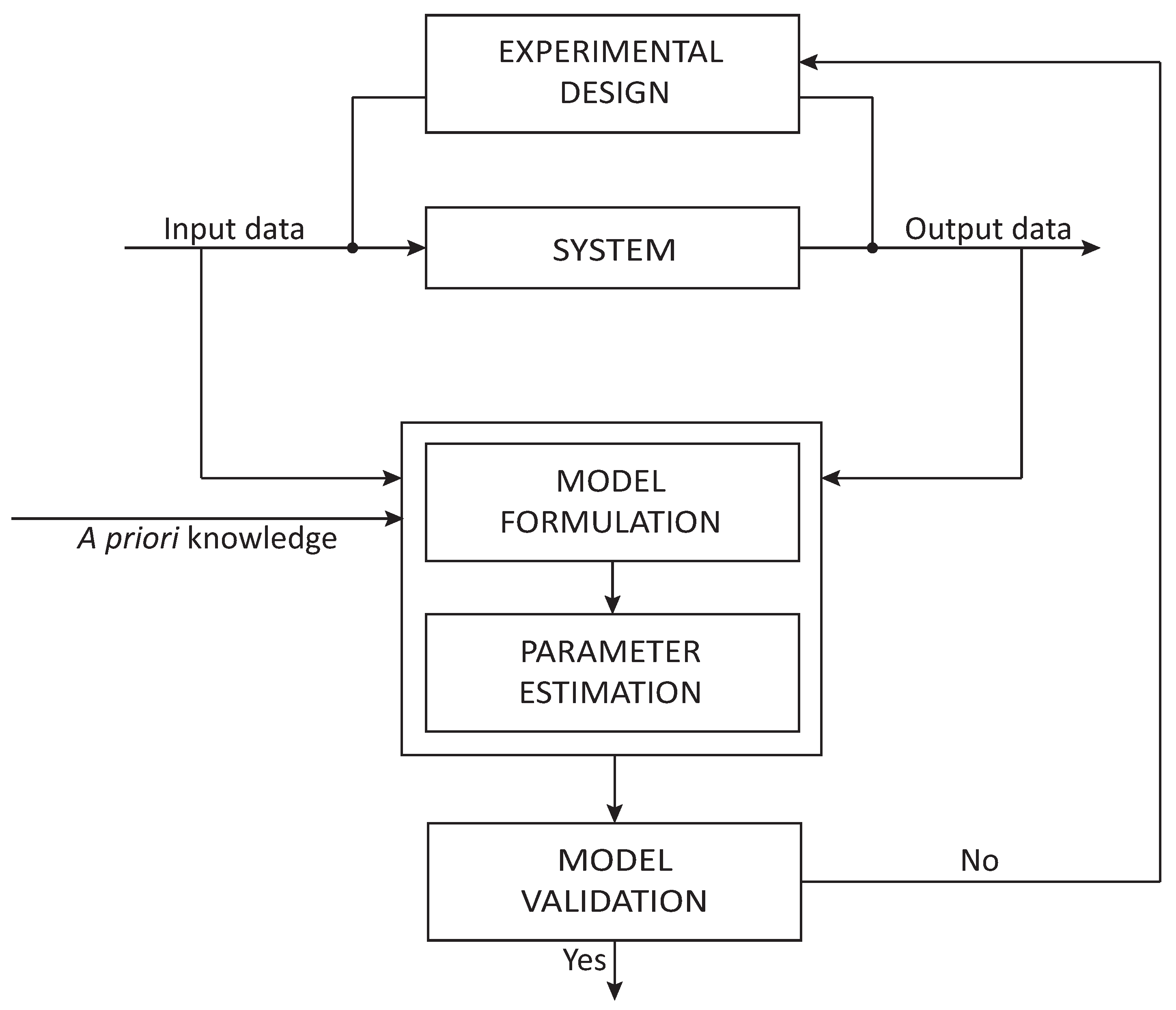

**Figure 1.**Iterative model identification cycle. The model building process involves the following key steps: experimental design, model structure formulation, parameter estimation, and model validation.

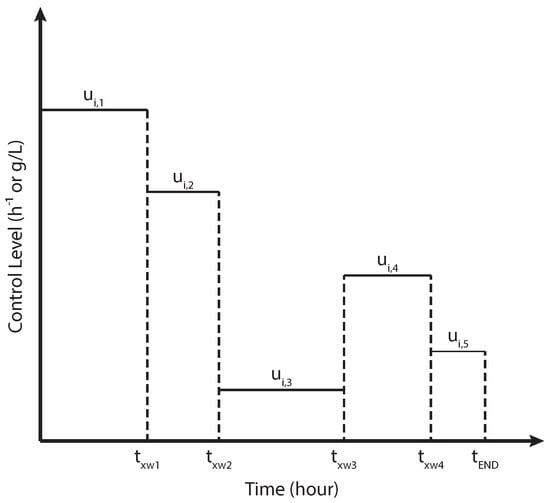

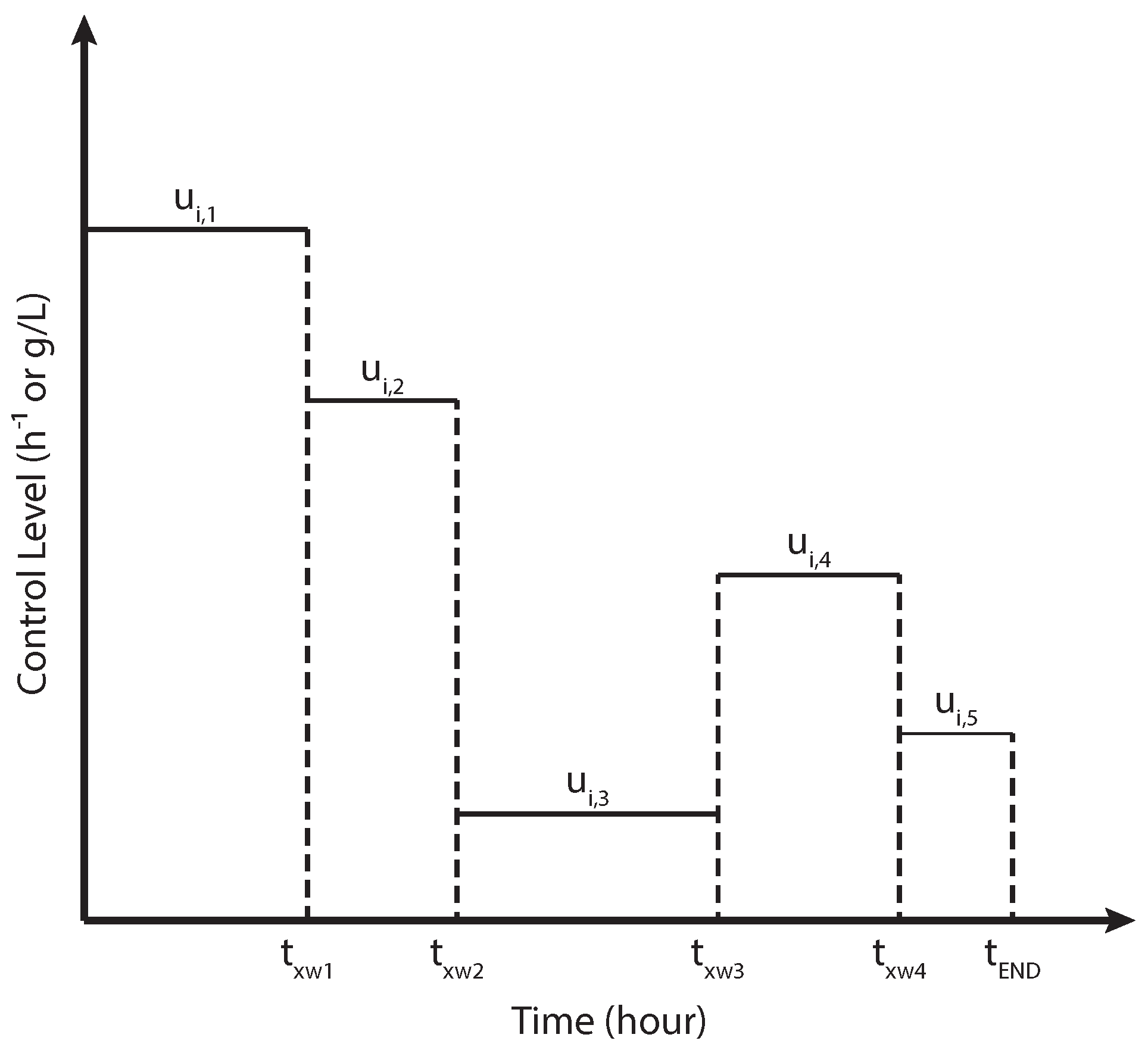

**Figure 2.**Control vector parametrization of input profiles. In the baker yeast case study, we implemented piecewise constant input profiles with ${u}_{i}$ = [${u}_{i,1}$, ${u}_{i,2}$, ${u}_{i,3}$, ${u}_{i,4}$, ${u}_{i,5}$] and four switching times: ${t}_{sw1}$, ${t}_{sw2}$, ${t}_{sw3}$, and ${t}_{sw4}$.

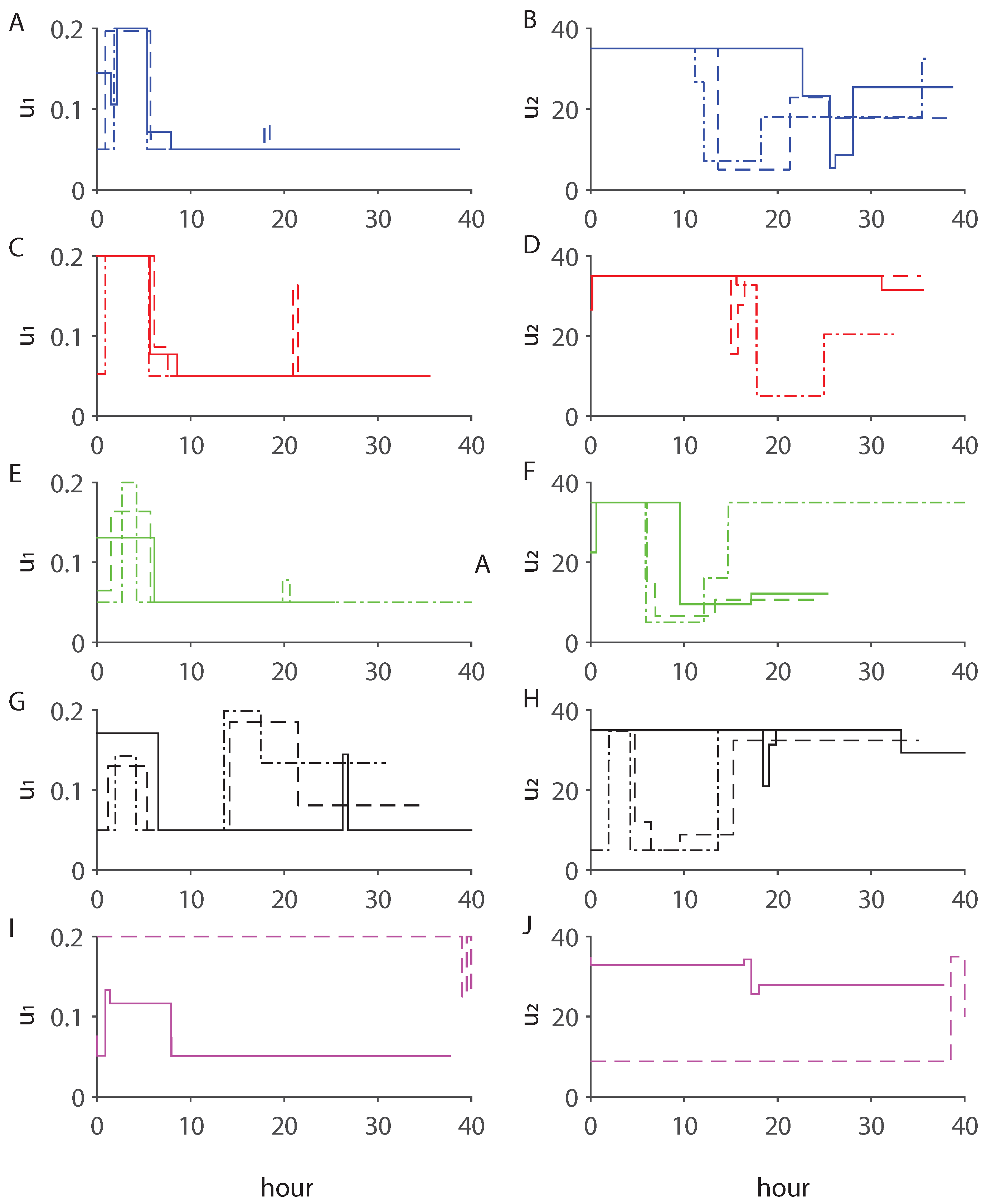

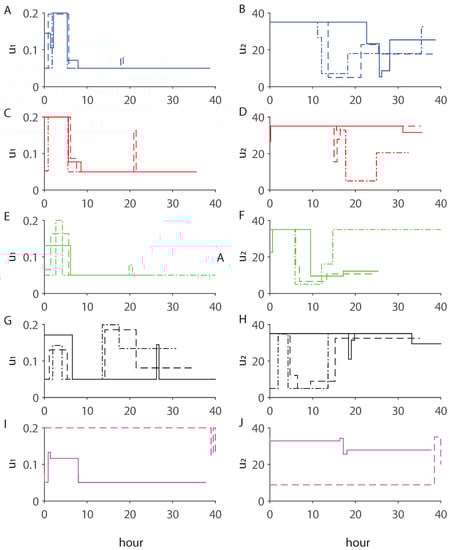

**Figure 3.**Optimal dilution factor and feed substrate concentration. Optimal dilution factor (${u}_{1}$ in h${}^{-1}$, left panels) and feed substrate concentration (${u}_{2}$ in g/L, right panels). (

**A**,

**B**) D-optimal (blue). (

**C**,

**D**) A-optimal (red). (

**E**,

**F**) E-optimal (green). (

**G**,

**H**) modified E-optimal (black). In panels (

**A**–

**H**), the optimal ${u}_{1}$ and ${u}_{2}$ using Fisher information matrix (FIM)-based criteria are shown by solid line. Those using FIM-based criteria combined with curvatures are shown by dashed line, while those using FIM-based criteria combined with parameter correlation are drawn with dashed-dot line. (

**I**–

**J**) Threshold curvature (magenta, solid line), and Q-optimal design (magenta, dashed line).

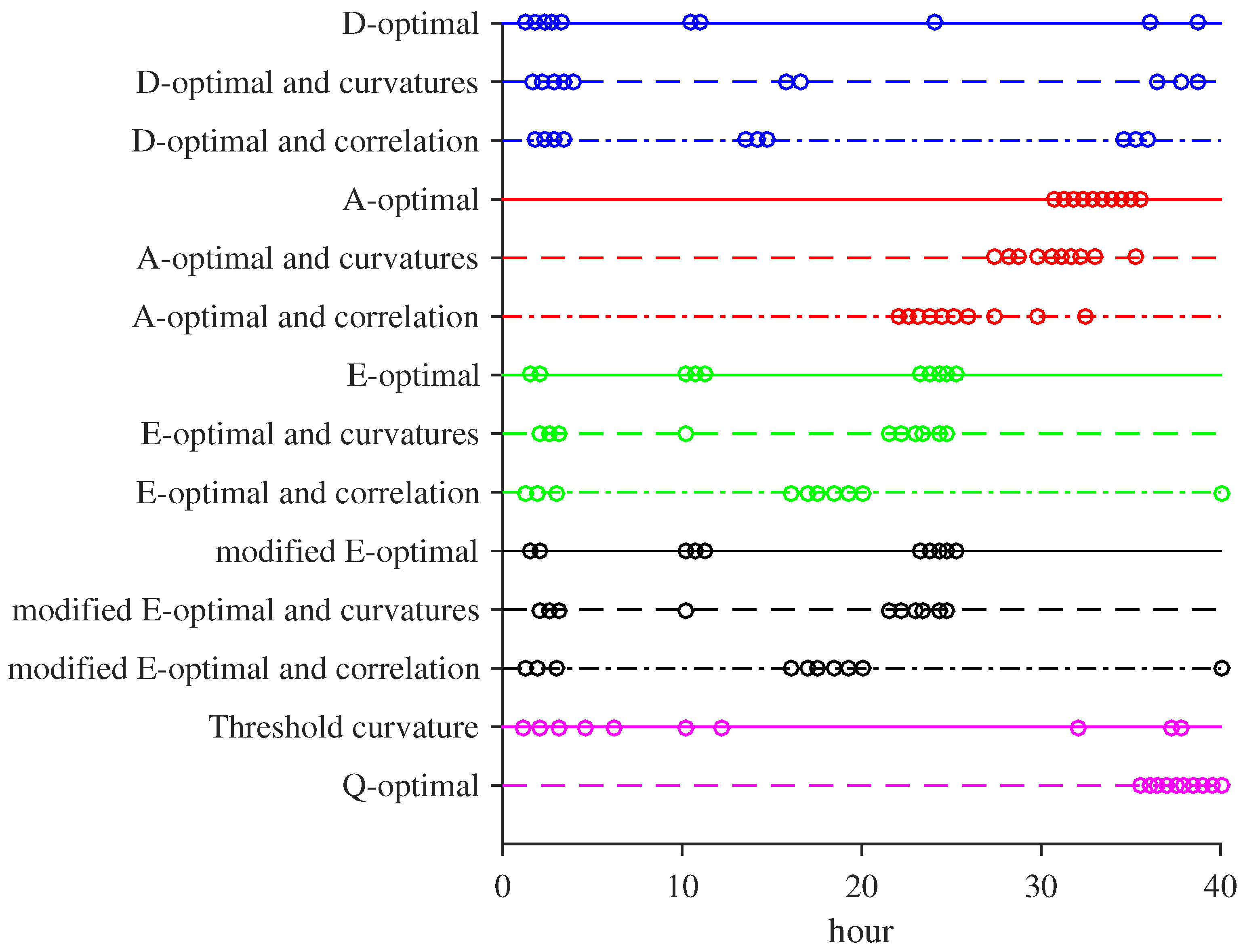

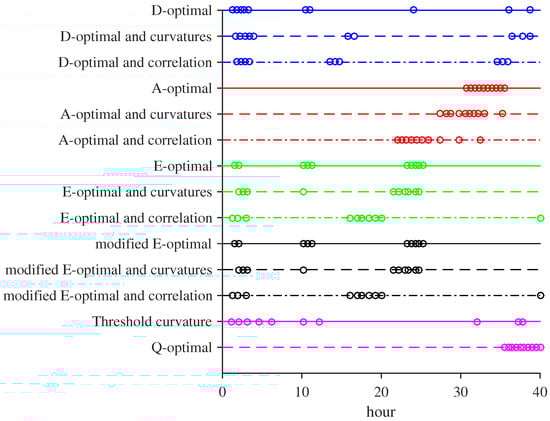

**Figure 4.**Optimal sampling grid from model-based design of experiments (MBDOEs). Simple Fisher information matrix (FIM)-based criteria shown by continuous line, FIM-based criteria combined with curvatures by dashed line, and FIM-based criteria combined with parameter correlation by dashed-pointed line. Dots indicate the sampling times.

FIM-Based MBDOE | Criterion |
---|---|

D-optimal | max ${\prod}_{i}{\lambda}_{i}$ |

A-optimal | max ${\sum}_{i}{\lambda}_{i}$ |

E-optimal | max $min\left({\lambda}_{i}\right)$ |

Modified E-optimal | max $\frac{min\left({\lambda}_{i}\right)}{max\left({\lambda}_{i}\right)}$ |

**Table 2.**Optimal initial condition of biomass ${x}_{1}\left(0\right)$ (g/L) from model-based design of experiments (MOO: multi-objective optimization).

Design Criterion | ${\mathit{x}}_{1}\left(0\right)$ |
---|---|

D-optimal | 10.0 |

MOO D-optimal and curvatures | 10.0 |

MOO D-optimal and correlation | 10.0 |

A-optimal | 10.0 |

MOO A-optimal and curvatures | 9.9 |

MOO A-optimal and correlation | 10.0 |

E-optimal | 10.0 |

MOO E-optimal and curvatures | 10.0 |

MOO E-optimal and correlation | 10.0 |

Modified E-optimal | 10.0 |

MOO modified E-optimal and curvatures | 10.0 |

MOO modified E-optimal and correlation | 10.0 |

Threshold curvature | 8.2 |

Q-optimal | 5.5 |

**Table 3.**Model-based design of experiment (MBDOE) performance on the fed-batch fermentation of baker’s yeast model. The overall parameter accuracy is represented by the average of the normalized mean-square error (nMSE). The reported parameter values and errors are the averages and standard deviations from 100 repeated runs of parameter estimation.

Design Criterion | $\overline{\mathrm{nMSE}}$ | ${\mathit{\theta}}_{1}$ ± ${\mathit{SD}}_{{\mathit{\theta}}_{1}}$ | ${\mathit{\theta}}_{2}$ ± ${\mathit{SD}}_{{\mathit{\theta}}_{2}}$ | ${\mathit{\theta}}_{3}$ ± ${\mathit{SD}}_{{\mathit{\theta}}_{3}}$ | ${\mathit{\theta}}_{4}$ ± ${\mathit{SD}}_{{\mathit{\theta}}_{4}}$ |
---|---|---|---|---|---|

D-optimal | 7.06 × 10${}^{-3}$ | 0.3107 ± 0.0102 | 0.1831 ± 0.0276 | 0.5505 ± 0.0125 | 0.0502 ± 0.0026 |

MOO D-optimal and curvatures | 4.71 × 10${}^{-3}$ | 0.3099 ± 0.0056 | 0.1825 ± 0.0233 | 0.5496 ± 0.0099 | 0.0499 ± 0.0018 |

MOO D-optimal and correlation | 5.36 × 10${}^{-3}$ | 0.3117 ± 0.0134 | 0.1781 ± 0.0151 | 0.5543 ± 0.0270 | 0.0508 ± 0.0049 |

A-optimal | 2.35 × 10${}^{-1}$ | 0.3294 ± 0.0659 | 0.2399 ± 0.1387 | 0.5841 ± 0.1083 | 0.0558 ± 0.0181 |

MOO A-optimal and curvatures | 1.42 | 0.3669 ± 0.0947 | 0.5267 ± 0.2230 | 0.5548 ± 0.1333 | 0.0510 ± 0.0244 |

MOO A-optimal and correlation | 4.82 | 0.0863 ± 0.0499 | 0.8927 ± 0.2555 | 0.2879 ± 0.1928 | 0.0177 ± 0.0263 |

E-optimal | 8.01 × 10${}^{-2}$ | 0.3180 ± 0.0420 | 0.2026 ± 0.0956 | 0.5473 ± 0.0159 | 0.0496 ± 0.0026 |

MOO E-optimal and curvatures | 3.33 × 10${}^{-3}$ | 0.3083 ± 0.0095 | 0.1829 ± 0.0164 | 0.5502 ± 0.0183 | 0.0500 ± 0.0026 |

MOO E-optimal and correlation | 8.19 × 10${}^{-3}$ | 0.3108 ± 0.0164 | 0.1824 ± 0.0213 | 0.5552 ± 0.0304 | 0.0509 ± 0.0055 |

Modified E-optimal | 6.99 × 10${}^{-2}$ | 0.3137 ± 0.0165 | 0.1986 ± 0.0920 | 0.5498 ± 0.0144 | 0.0502 ± 0.0033 |

MOO modified E-optimal and curvatures | 3.44 × 10${}^{-4}$ | 0.3095 ± 0.0036 | 0.1789 ± 0.0034 | 0.5491 ± 0.0073 | 0.0500 ± 0.0013 |

MOO modified E-optimal and correlation | 2.27 × 10${}^{-3}$ | 0.3088 ± 0.0048 | 0.1820 ± 0.0160 | 0.5486 ± 0.0047 | 0.0496 ± 0.0013 |

Threshold curvature | 1.29 × 10${}^{-2}$ | 0.3144 ± 0.0307 | 0.1857 ± 0.0339 | 0.5500 ± 0.0155 | 0.0502 ± 0.0032 |

Q-optimal | 1.91 × 10${}^{-2}$ | 0.3085 ± 0.0178 | 0.1757 ± 0.0216 | 0.5514 ± 0.0236 | 0.0504 ± 0.0119 |
