Article

GOS from Porungo Cheese Whey: Batch, Repeated Batch, and Continuous Bioreactors

by
Thaís Cavalcante Torres Gama
1,
Guilherme Fermino de Oliveira
1,
Natan de Jesus Pimentel-Filho
2,
Marcelo Perencin de Arruda Ribeiro
3,
Marco Antônio Záchia Ayub
4 and
Sabrina Gabardo
1,*
1
Department of Agroindustrial Technology and Rural Socioeconomics, Center of Agricultural Sciences, Federal University of São Carlos (UFSCar), Rodovia Anhanguera, km 174, Araras 13600-970, SP, Brazil
2
Center of Natural Sciences, Federal University of São Carlos (UFSCar), Rodovia Lauri Simões de Barros, km 12, Buri 18245-970, SP, Brazil
3
Department of Chemical Engineering, Federal University of São Carlos (UFSCar), Rod. Washington Luiz, km 235, P.O. Box 676, São Carlos 13565-905, SP, Brazil
4
Biotechnology & Biochemical Engineering Laboratory (BiotecLab), Food Science and Technology Institute, Federal University of Rio Grande do Sul (UFRGS), Av. Bento Gonçalves 9500, Porto Alegre 91501-970, RS, Brazil
*
Author to whom correspondence should be addressed.
Processes 2026, 14(5), 822; https://doi.org/10.3390/pr14050822
Submission received: 26 January 2026 / Revised: 16 February 2026 / Accepted: 26 February 2026 / Published: 3 March 2026
(This article belongs to the Special Issue Sustainable Processing and Utilization of Dairy Products)
Browse Figures
Versions Notes

Abstract

This study was aimed at producing galactooligosaccharides (GOS) from Porungo cheese whey in immobilized enzyme bioreactors. The β-galactosidase was produced, concentrated, and immobilized on chitosan–genipin supports. Initially, GOS production was conducted in conical flasks, investigating three different variables: enzyme concentration (50–150 U/mL), Porungo cheese whey concentration (200–400 g/L), and temperature (37–43 °C). The highest GOS yields (15.24%) occurred under intermediate process conditions (100 U/mL, 300 g/L, 40 °C), reaching a GOS concentration of 27.04 g/L. These conditions were then used in a packed-bed column bioreactor operated in batch mode, achieving yields of 19.72%. Repeated batches were carried out, and the system was stable until the fifth cycle, with enzyme activity remaining at 83.56% of the initial level. Continuous bioreactors were conducted, varying feed flow rates (1–3 mL/h), with the highest yields and lactose conversion occurring for the longest residence time (24.63% and 68.38%), respectively, with high GOS concentration (44.14 g/L). Microorganisms isolated from Porungo cheese showed the ability to metabolize the GOS produced, demonstrating its prebiotic potential. This work can contribute to optimizing the production of GOS, an important product for pharmaceuticals and food industries.

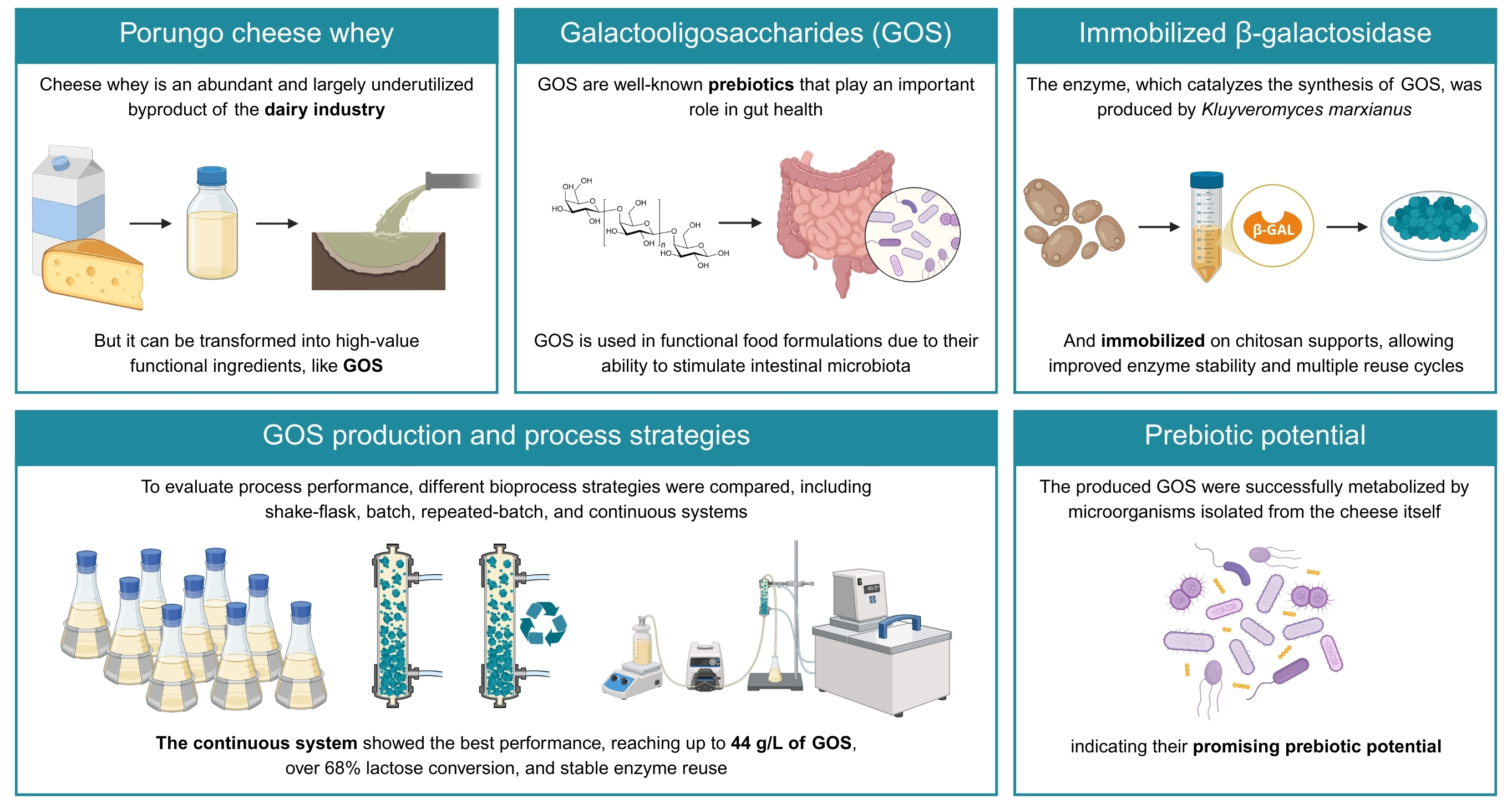

Graphical Abstract

1. Introduction

Well-being and health concerns have driven researchers to develop alternative technologies to synthesize increasingly versatile biomolecules through new production processes to meet an increasingly demanding market [1,2,3]. Prebiotics have been steadily increasing the interest of the scientific community due to their ability to not only meet nutritional needs but also to enable better health conditions along with the proper functioning of the organism [2,3,4]. Galactooligosaccharides (GOS) are an important class of dietary oligosaccharides that are not digestible by the human body and act as prebiotics [1,3,5,6,7]. These nutrients contain in their structure terminal glucose residues and galactose monomers linked by glycosidic bonds of the type Gal β(1 → 3), Gal β(1 → 6), Gal β(1 → 4), and may present different degrees of polymerization, configurations, or even chemical compositions, depending on the process conditions as well as on the microbial origin of the enzyme used in the reaction [3,4,8,9,10]. Among the main benefits of GOS consumption are the bifidogenic effect, suppression of pathogenic bacterial activity, decreased incidence of infections and colon cancer, reduced formation of toxic metabolites, increased mineral absorption, and strengthening of the immune system [4,11]. In this context, GOS synthesis has been widely studied for application in different industrial sectors, such as food, pharmaceutical, and, more recently, agricultural [1,9,12].
GOS are enzymatically synthesized through a transgalactosylation reaction catalyzed by β-galactosidase (EC 3.2.1.23), which is favored by the high concentration of lactose and high temperatures [1,13]. This reaction must be strictly controlled due to the competition that occurs between the two reactions performed by the β-galactosidase, that is, lactose hydrolysis and transgalactosylation [2,9,13,14]. Nevertheless, improvements regarding the process of obtaining GOS are continuously investigated, with the enzyme immobilization approach being one of the potentially promising strategies to allow for greater catalyst stability, in addition to being a potentially reusable resource with easy product recovery [15,16,17,18,19]. Furthermore, the reuse of biocatalysts leads to a reduction in operating costs and enables the continuous bioreactor system [3,17,20,21,22,23,24,25]. Considering the above aspects, it is evident that enzymatic immobilization leads to an increase in productivity as well as a reduction in the costs associated with the process of obtaining the final product [19,23,24,26,27].
In addition to these advantages, the sustainable production of GOS has been widely reported using dairy waste, currently recognized as a by-product of industrial processes, such as cheese whey, which is an alternative and inexpensive source of substrate [23,25,28,29]. The valorization of this industrial by-product is an important strategy, considering the reduction of environmental impact due to the inadequate disposal of these resources, as well as the potential recovery of nutrients with high biological value, contributing to the sustainable generation of biotechnological products [22,23,24,25,30,31,32,33]. Approximately 50% of cheese whey produced is used in the food sector and pharmaceutical formulations; the remaining volume is of considerable amount to be used in bioprocesses to obtain biotechnological products with high added value [3,15,19,23,25,29,34].
In this sense, the present research aims to study the use of Porungo cheese whey to obtain galactooligosaccharides (GOS) by means of enzymatic immobilization technology, using different bioprocess approaches and column bioreactors with different operating modes (Figure 1).

2. Materials and Methods

2.1. Materials

Porungo cheese whey was provided by farmers located in the southwest of the State of São Paulo, Brazil (geocoordinates 23°29′04.2″ S and 48°20′14.7″ W). Kluyveromyces marxianus CCT 4086 was provided by Tropical Culture Collection of André Tosello Foundation (Campinas, Brazil), both donated by Biotechnology & Biochemical Engineering Laboratory (BiotecLab), of the Food Science and Technology Institute (ICTA) of the Federal University of Rio Grande do Sul, Brazil. Chitosan (from shrimp shells, ≥75% deacetylated), genipin (≥98%), ONPG (O-nitrophenyl-β-D-galactopyranoside), Bradford reagent, D-glucose, D-galactose and lactose were obtained from Sigma-Aldrich (São Paulo, Brazil). All solvents and other chemicals were of analytical grade (Sigma-Aldrich, São Paulo, Brazil).

2.2. Methods

2.2.1. Production, Extraction, and Partial Purification of the Enzyme

The β-galactosidase enzyme production was carried out under the optimized conditions previously established by our research group [35], using the yeast Kluyveromyces marxianus CCT 4086 (30 °C, 200 rpm and pH 7.0). Porungo cheese served as the carbon source, with lactose and protein contents of 4.99% and 0.81%, respectively (Appendix A.1), during 24 h of cultivation. The inoculum was adjusted for optical density 1.0 at 600 nm (OD600nm), which corresponded to 1.4 g/L (dry weight) of strain K. marxianus CCT 4086, added as 10% volume of the final fermentation volume. To avoid protein precipitation during the sterilization process, the cheese whey was previously hydrolyzed with commercial protease (Alcalase 2.4 L, Tovani Benzaquen Ingredients, SP, Brazil), at 55 °C, pH 8.5 for 3 h. For cell recovery, the fermentation medium was centrifuged (3000× g for 15 min) and the cell pellet was resuspended in 0.1 M phosphate buffer (pH 7.3) for further enzymatic extraction. Cell disruption was carried out by two methods: mechanical disruption and chemical solubilization of the cell wall. The former was performed according to the modified method of Medeiros [36], using 1.1 g of glass beads (between 0.6 and 0.85 mm in diameter) per mL of suspension culture with a vortex for abrasion, and the latter was performed by adding chloroform 2% (v/v) to the cell suspension and incubation at 150 rpm, 37 °C, 17 h. Subsequently, the enzyme concentration was evaluated by three different strategies, the first two using chemical agents, namely an 80% saturated ammonium sulfate solution and acetone, while the third used ultrafiltration membranes (10 kDa). Precipitation was performed using 80% saturated ammonium sulfate solution, as described by Lima [37], at 4 °C for 24 h, after which the mixture was centrifuged (12,000× g, 30 min, at 4 °C), and the precipitate was resuspended in 0.1 M potassium phosphate buffer (pH 7.0) and then desalted by dialysis through a 10 kDa membrane (GE Healthcare, Chicago, IL, USA). Acetone precipitation was evaluated according to the modified methodology of Li [38], where three times the volume of crude enzyme extract was added under gentle stirring (4 °C), followed by resting (20 min, −8 °C) and centrifugation (12,000× g, 30 min, 4 °C). The precipitate was then evaporated and resuspended in 0.1 M potassium phosphate buffer (pH 7.0).

2.2.2. Optimal pH and Temperature of Free and Immobilized Enzyme

The immobilization of β-galactosidase was performed using two approaches: (1) using calcium alginate; and (2) using a chitosan–genipin complex. Immobilization in calcium alginate—enzyme physically enzyme entrapped within calcium-alginate beads via ionotropic gelation, i.e., the addition of Ca2+ ions to the polymer provides the bond between the carboxyl groups of the alginate, forming a three-dimensional structure (gel matrix) and providing a porous hydrogel matrix that retains the enzyme while allowing substrate and product diffusion [39]—was performed according to the methodology of Bolognesi [40], where a solution containing 5% sodium alginate was mixed with the β-galactosidase and then dripped through a peristaltic pump containing a needle-coupled syringe with a 0.05 M calcium chloride (CaCl2) solution to form spheres. Immobilization in chitosan—enzyme covalently attached using genipin as a natural crosslinker, in which the amino group of chitosan nucleophilically attacks the carbonyl group of genipin, so, enzyme can bind through the two structures—was performed according to the method described by Klein [41]. Beads were prepared by dissolving 2% in 0.35 M acetic acid and dropped into the coagulation solution containing 1 M sodium hydroxide and 26% ethanol. The beads were then washed with distilled water to neutrality, followed by activation with 0.5% genipin for 3 h with gentle shaking, and kept in contact with β-galactosidase solution for 5 h with gentle shaking (4 °C). The parameters of immobilization yield (IY) was defined as the percentage of immobilized activity relation with the starting activity, and the enzyme efficiency (IE) was defined as the percentage of observed activity in the solution per immobilized activity. The immobilized activity was calculated as the difference between the initial enzymatic activity in the solution before the immobilization and the residual activity in the solution after the immobilization [42].
The optimal pH of enzyme activity concerning both free and immobilized enzymes on the two different immobilization support materials was evaluated using a 0.1 M potassium phosphate buffer containing a 1.5 mM magnesium and chloride (MgCl2) solution at 37 °C, with a pH range of 5.5 to 8.0. The optimum enzyme activity temperature for free immobilized enzymes on both supports was found to be in the range of 20 °C to 60 °C, at pH 7.0. Enzymatic activity was determined according to the methodology described below. Thermal stability of free and immobilized enzymes was carried out by incubating the biocatalyst in sealed tubes at 50 °C. Samples were withdrawn at different time intervals during 6 min—with periodic samples taken every 15 s during 1 min of reaction, then every 30 s for 2 min of reaction, and subsequently, for each 2 min until a complete 6 min. The reaction was stopped in an ice bath for instantaneous thermal inactivation.

2.2.3. GOS Production in Shaker

GOS yield using immobilized β-galactosidase on chitosan–genipin supports was determined by evaluating the influence of several variables: temperature (37–43 °C) at lactose concentration of 300 g/L and enzyme concentration of 100 U/mL; the immobilized enzyme concentration (50–150 U/mL) at lactose concentration of 300 g/L and temperature of 40 °C; and concentration of Porungo cheese whey (200–400 g/L or 0.58–1.17 mol/L) at enzyme concentration of 100 U/mL and temperature of 40 °C. Considering that lactose has low solubility in water (216 g/L at 20 °C), the solutions were heated to ensure complete dissolution during substrate preparation. All tests were performed using 125 mL conical flasks filled with 30% of the total reaction volume was filled with chitosan–genipin beads. The experiments were performed in duplicate. Samples were collected periodically, centrifuged (3000× g for 15 min), and filtered through a cellulose acetate membrane (0.22 μm) for further analysis of sugars and galactooligosaccharides.

2.2.4. GOS Production in Bioreactor

The production of GOS using a packed-bed batch column bioreactor (Figure 2) was carried out under the conditions described in the previous step. The bioreactor was operated in batch mode at a temperature of 40 °C with 300 g/L Porungo cheese whey, using β-galactosidase immobilized on the chitosan–genipin support (100 U/mL), which filled 60% of the volume of the bioreactor column. Temperature control was kept by a thermostatic bath coupled to the water jacket of the bioreactor. The operational stability of the system was evaluated in bioreactors operated in a repeated batch of seven cycles (4 h each) for a total of 28 h of reaction. At the end of each cycle, the same volume of substrate was immediately added to the bioreactor to start the new cycle. Samples were collected periodically and treated as described in Section 2.2.3. All experiments were carried out in duplicate.
The continuous packed-bed bioreactor was operated at varying feed rates (1–3 mL/h) using Porungo cheese whey (300 g/L) and β-galactosidase immobilized on chitosan–genipin (100 U/mL). The feeding was started after 3 h of batch operation. Temperature control was kept by a thermostatic bath coupled to the water jacket of the bioreactor (40 °C). Samples were collected periodically and processed as described in Section 2.2.3. All experiments were carried out in duplicate.

2.2.5. GOS as a Potential Prebiotic

Two strains isolated from Porungo cheese, Lactococcus QP 40 and Streptococcus QP 32, and a commercial strain, Lactococcus lactis ATCC 19435, were used to evaluate their ability to metabolize GOS. The inoculum was prepared from the different strains in MRS medium (37 °C, 50 rpm, for 18–20 h). A 10% aliquot (OD600nm = 1.0) was then added to a 250 mL conical flask containing 50 mL MRS plus GOS (37 °C, 50 rpm, for 96 h). The MRS medium was used as a control for the three strains tested here. All experiments were performed in duplicate, and samples were collected periodically. Samples were centrifuged (3000× g, 15 min) to determine the biomass and then filtered with a cellulose acetate membrane (0.22 μm) for further analysis of HPLC sugar consumption.

2.2.6. Analytical Methods

The enzymatic activity of free β-galactosidase was performed using ONPG (o-nitrophenyl-β-D-galactopyranoside) as substrate, according to the methodology described by Klein [17], and the determination of released o-nitrophenol (ONP) was performed with a spectrophotometer at 415 nm. The amount of protein in the enzymatic solutions was analyzed according to the methodology of Bradford [43], using bovine serum albumin (BSA) as a standard protein, with a spectrophotometer at 595 nm. The determination of cell concentration was performed according to the methodology proposed by Gabardo [23], by measuring the absorbance in a spectrophotometer (OD600nm) and correlating it with dry weight (g/L) using a calibration curve. GOS and monosaccharide analyses were performed by high-performance liquid chromatography (HPLC) (Shimadzu SCL-10A) equipped with a Shimadzu RID-10A detector (Kyoto, Japan) using a SUPELCOGEL Ca+2 column (30 cm × 7.8 mm, Bellefonte, PA, USA). The column and detector temperatures were maintained at 80 °C and 40 °C, respectively. Samples were eluted with Milli-Q water (Merck Millipore, Darmstadt, Germany) at a flow rate of 0.5 mL/min, and the chromatograms were integrated using the software LC solution (Shimadzu, Kyoto, Japan). The identification of the different carbohydrates was done using external calibration based on commercially available standards. The GOS yield (%) was defined as the percentage of GOS concentration compared with the initial lactose concentration in the reaction medium; lactose conversion (%) was defined as a relation of lactose consumption in the reaction with its initial concentration; the productivity (Qp) in batch system was defined as GOS formed per unit of reaction time; and in the continuous system Qp was defined as GOS produced multiplicated by dilution rate [42,44].

2.2.7. Statistics

Data were statistically evaluated by analysis of variance (ANOVA) using Statistica 12.5 software (StatSoft, Tulsa, OK, USA).

3. Results

3.1. Production, Extraction, and Partial Purification of the Enzyme

Before the extraction and purification, β-galactosidase was produced by fermentation on Porungo cheese whey as substrate according to a method optimized by our research group [35]. As a result, the maximum enzymatic activity reached 17.46 U/mL, and after 15 h of cultivation, the remaining lactose in the medium was only 4.66 g/L (Appendix A.2), corresponding to 91% of lactose consumption. Since β-galactosidase is intracellular, cell disruption is an essential step in obtaining this enzyme [36,37,45]. In the present study, two methods of K. marxianus cell disruption, mechanical and chemical, were tested. Although the glass bead abrasion disruption method showed similar enzymatic activity values as the chloroform solubilization of cell wall method (Table 1), it was observed that the specific enzymatic activity (44.21 U/g ± 3.64 U/g) was higher when the chemical method was used. Similar results were obtained by Numanoglu and Sungur [46] when comparing the physical and chemical methods of K. lactis ATCC 8583 disruption. The enzymatic activities were practically the same when testing the mechanical disruption with glass beads (2.66 µmol/min.mg cell) as well as with the chloroform–ethanol solution (3.0 µmol/min.mg cell). In contrast, Dagbagli and Goksungur [45] reported that the mechanical disruption of K. lactis NRRL Y-8279 cells with glass beads (3038.9 U/g cells) was more efficient than disruption using either Triton X-100 (1888.8 U/g) or SDS (964.3 U/g). Although mechanical methods are less specific, chemical cell wall digestion, on the other hand, presents toxicity risks and requires downstream procedures to treat the generated wastes, in addition to being corrosive to the equipment [36,46,47]. The mechanical disruption technique was found to be more suitable in this work, considering that the objective was to use the β-galactosidase enzyme to obtain GOS for food applications.
Different enzyme concentration strategies were evaluated since the produced enzyme should be used in column bioreactors filled with immobilized enzyme supports. Acetone, saturated ammonium sulfate solution (80%), and ultra-filtration through 10 kDa membranes were tested (Table 1). Concentration using chemical methods with ammonium sulfate and acetone caused a significant reduction in specific enzymatic activity, yielding a value 53.57% lower and approximately ten times less than that of the unconcentrated crude enzyme extract (31.63 U/mg). This is probably because the concentration reached with these chemical agents can destabilize the ionic charges of the enzyme, changing the polarity of the solution and thus altering the stability of the enzyme, leading to instability, decreased activity, or even denaturation. Although the ammonium sulfate solution increased the total protein (9.00 mg), the total activity of the enzyme decreased (127.05 U), indicating that this method does not have a high purification rate, despite a good recovery. Similar results were verified by Gul-Guven [48] and Heidtmann [49], where the enzyme concentration obtained using 50% and 70% ammonium sulfate solutions led to a decrease in the specific enzymatic activity of β-galactosidase (45.4% and 16.8%, respectively).
Concentration by membrane ultrafiltration (10 kDa) showed a more than six-fold increase in total enzyme activity (1640.80 U), but an approximate three-fold decrease in specific activity (8.66 U/mg). As the crude enzyme extract is composed of several other uninteresting enzymes, it is possible that high molecular weight proteins were retained by the 10 kDa membrane. This hypothesis was confirmed by SDS gel by comparing the molecular weight of the proteins in the crude enzyme extract within the sample containing the concentrated enzyme extract and the sample purified by cation exchange chromatography in comparison to the commercial enzyme (Maxilact LGi 5000, DSM of Brazil). In addition, the presence of a band in the 150 kDa region was observed for the crude and commercial enzyme samples. According to the literature, β-galactosidase from Kluyveromyces sp. strains have a molecular weight ranging from 120 kDa to 200 kDa [50,51,52]. Considering that the immobilization processes require enzymes with high enzymatic activities and low interference, the present study also adopted the strategy of concentrating the cell suspension (six times) before its disruption (Table 1), resulting in a 56.6% increase in enzymatic activity (69.24 U/mL) and total enzymatic activity (517.90 U) in comparison with the crude enzymatic extract. In addition, a high specific enzymatic activity (10.90 U/mg) was found compared to that concentrated by membrane (10 kDa). The cell suspension concentration approach not only represents a reduction in the number of operations in the process, but also generating lower waste amount when compared to the chemical methods tested.

3.2. Optimal pH and Temperature of β-Galactosidase Activity

The immobilization yield (IY) and efficiency (IE) obtained in the chitosan–genipin beads was 43.81% and 61.75%, respectively, indicating that, although part of the enzyme was successfully retained on the support, not all immobilized molecules remained fully accessible to the substrate, likely due to steric effects, enzyme orientation on the support surface, or diffusional limitations within the support matrix, which may partially restrict access to the active site of the enzyme.
The activity of free and immobilized β-galactosidase on different support materials was determined at temperatures ranging from 20 °C to 60 °C and at pH levels ranging from 5.7 to 8.0 for both the enzyme produced in this work and the commercial one. The immobilization yield was determined for both supports, being 64.24% for chitosan–genipin and 72.47% for alginate; nevertheless, the highest immobilization efficiency was for chitosan–genipin support (55.68%), being almost 32% times higher as alginate (37.99%). The pH variation tests (Figure 3A) for the produced enzyme demonstrated that both the free enzyme and its immobilized form on chitosan support exhibited optimal activity at pH 6.5. Conversely, immobilization on calcium alginate extended the range, with optimal activity at pH 7.0. Furthermore, the relative enzyme activity at pH 6.0 was 73.94% and 61.6% for the chitosan–genipin and calcium alginate supports, respectively. However, at pH 7.0, the values were 70.65% and 100%, respectively, for the chitosan–genipin and alginate supports. These results suggest that the chitosan–genipin support provided greater stability at a slightly more acidic pH, while the alginate showed greater relative activity at a slightly more basic pH.
The optimal temperature (Figure 3B) for the free enzyme (11.23 U/mL) was found to be 37 °C. It was observed that immobilization in alginate extended the thermal stability range up to 40 °C, with a relative activity of 98.62%, whereas the immobilization in the chitosan–genipin support resulted in an increased thermal stability range (37–45 °C), maintaining the relative activity between 95.8% and 100%. This confirms the advantages of the immobilization system and the increased thermal stability of it [16]. Another advantage of this technique is that it allows for the reuse of the enzyme in the reaction medium, enabling the use of a continuous process [15,16]. Bolognesi [40] reported that calcium alginate immobilization broadened the optimal pH range of K. lactis β-galactosidase. Hackenhaar [19] found that genipin crosslinking increased the optimal temperature range of the immobilized enzyme, while Klein [53] observed that chitosan–genipin supports shifted the optimal pH of A. oryzae β-galactosidase to more acidic values without affecting its optimal temperature. Overall, immobilization offers advantages such as a wider activity range across pH values and enhanced thermal stability, improving operational stability and enabling biocatalyst reuse [16,17,40].
The thermal inactivation tests (Appendix A.3) showed that the immobilized enzyme improved the enzymatic stability, retaining 96.10% and 60.14% of residual activity at 30 and 60 s of reaction time compared to 62.52% and 44.74% for free enzymes, respectively. Moreover, this behavior was observed up to 120 s of reaction time, with residual activity of 42% and 32%, for immobilized and free enzymes, respectively, indicating higher thermal stability and resistance to denaturation for the immobilized enzyme, and then, a promising strategy to GOS obtention testes described below.

3.3. GOS Production in Shaker

The production of GOS using the crude β-galactosidase extract was performed with the analysis of three different process variables: temperature (37–43 °C), enzyme concentration (50–150 U/mL), and Porungo cheese whey concentration (200–400 g/L). The highest GOS production was observed at a temperature of 40 °C, with 23.91 g/L of GOS3 obtained in 6 h of reaction, reaching a maximum yield of 9.21% and lactose conversion of 55.58% (Figure 4A,B). These values are 15.7% and 37.3% higher than those obtained at 37 °C (7.96% and 40.47%), and slightly higher than those obtained at 43 °C (8.63% and 53.21%), respectively. Higher temperatures favor the transgalactosylation reaction over the hydrolysis reaction. Following these observations, it can be inferred that the lower GOS production at 37 °C (19.97 g/L) in comparison to that obtained at 40 °C is not due to enzyme stability issues, but rather to the negative effect observed at lower temperatures on the transgalactosylation reaction. Moreover, at 37 °C, the percentage of monosaccharides formation (glucose and galactose) was comparatively higher (88.22%) than 40 °C (73.88%) and (69.69%), indicating a more pronounced hydrolysis mechanism than transgalactosylation reaction. Thus, the best temperature for GOS production should not be as high to reduce enzyme activity, but not as low to render the transgalactosylation process ineffective. González-Delgado [54] reported that temperatures above 40 °C impaired GOS production due to thermal denaturation of K. lactis β-galactosidase (Lactozym Pure 6500), with the highest yield (12.18%) achieved at 40 °C using a 250 g/L lactose solution. Similarly, Srivastava [55] observed enzyme inactivation at 60 °C while investigating GOS synthesis (200 g/L lactose, 40 °C) with permeabilized K. marxianus and K. lactis, reaching a maximum yield of 36% for K. marxianus.
The Tukey test showed statistical differences (p < 0.05) between an enzyme concentration of 100 U/mL and the other two concentrations, 50 U/mL and 150 U/mL, but not between these last two for GOS yield and lactose conversion. The influence of enzyme concentration on GOS production can be seen in Figure 4C. The highest GOS yields (15.24%) and lactose conversions (50.34%) were achieved at the 100 U/mL concentration, while the lowest values of these kinetic parameters were obtained at the 50 U/mL concentration (10.22% and 21.41%), respectively. For the enzymatic concentration of 150 U/mL, intermediate values of yield and conversion were reached (12.57% and 32.66%), indicating a possible limitation in the mass transfer on the surface of the most enzyme-loaded matrix (150 U/mL), thus hindering the access to the substrate and impairing the efficiency of the process. González-Delgado [54] studied GOS ranging the enzyme concentrations (2–20 U/mL), reaching a highest yield (12.5%) at 5 U/mL, suggesting that higher concentrations favor hydrolysis over transgalactosylation. Furthermore, González-Cataño [56] observed a maximum GOS concentration (25.46 g/L) at the highest enzyme concentration (6 U/mL). At an enzyme concentration of 50 U/mL, the glucose and galactose concentration was 35.76 g/L and 25.88 g/L, respectively, suggesting not also more resistance to mass transfer, but probably a more pronounced hydrolysis mechanism.
Regarding the influence of substrate concentration on GOS production (Figure 4D), the highest GOS yield (15.24%) and lactose conversion (50.34%) were observed at the intermediate concentration (300 g/L), resulting at a GOS production of 26.5 g/L within a four-hour reaction period. The higher substrate concentration (400 g/L) resulted in lower GOS yields (12.99%) and conversion values (47.16%) when compared to those obtained at the intermediate substrate concentration. Thus, even when a higher concentration (32.8 g/L) was obtained, the presence of a considerable amount of unconverted lactose resulted in lower yields. High lactose concentrations generally favor the transgalactosylation process due to the excess of hydroxylated galactose compounds (GOS), which bind to the galactose resulting from hydrolysis, as well as the decreased percentage of water molecules available to accept galactose residues [17,40,57]. Very high concentrations of lactose, such as 400 g/L, can reduce the efficiency of the process due to the competitive inhibition of galactose on enzymatic activity [58]. The results suggest that low substrate concentrations of 200 g/L produced reduced yields (8.35%) and lactose conversion with a high conversion rate (64.32%), which can be attributed to the conversion of not only GOS through transgalactosylation, but also the formation of undesirable by-products, such as glucose (54.25 g/L) and galactose (35.33 g/L), probably due to the concomitant hydrolysis reaction, given the greater presence of water in this solution. The Tukey test showed statistical differences (p < 0.05) between the substrate concentration of 200 g/L and the other two evaluated, 300 g/L and 400 g/L, but not between the last two for GOS yield and lactose conversion.
Similar results were observed by Martínez-Villaluenga [59], who reported that GOS yields went from 14.8% to 17.1% when increasing the lactose solution concentration from 150 g/L to 250 g/L using K. lactis β-galactosidase (40 °C and pH 7.5). Likewise, González-Delgado [54] and Zhang [60] obtained the highest GOS yields (11.6% to 15.9% and 20.54% to 30.63%), respectively, when increasing the lactose concentration (50 g/L to 250 g/L and 200 g/L to 400 g/L), using A. aculeatus β-galactosidase (60 °C and pH 6.5) and Lactobacillus plantarum β-galactosidase (35 °C and pH 7.0). Hackenhaar [19] showed the effect of lactose concentration in cheese whey and whey permeate (30% and 40%, pH 7.0, 50 °C), and obtained the highest concentration of GOS for the highest lactose concentration of both substrates (159.4 g/L and 168.8 g/L), with yields of 40% and 42%, respectively.

3.4. GOS Production in Batch and Repeated Batch Bioreactors

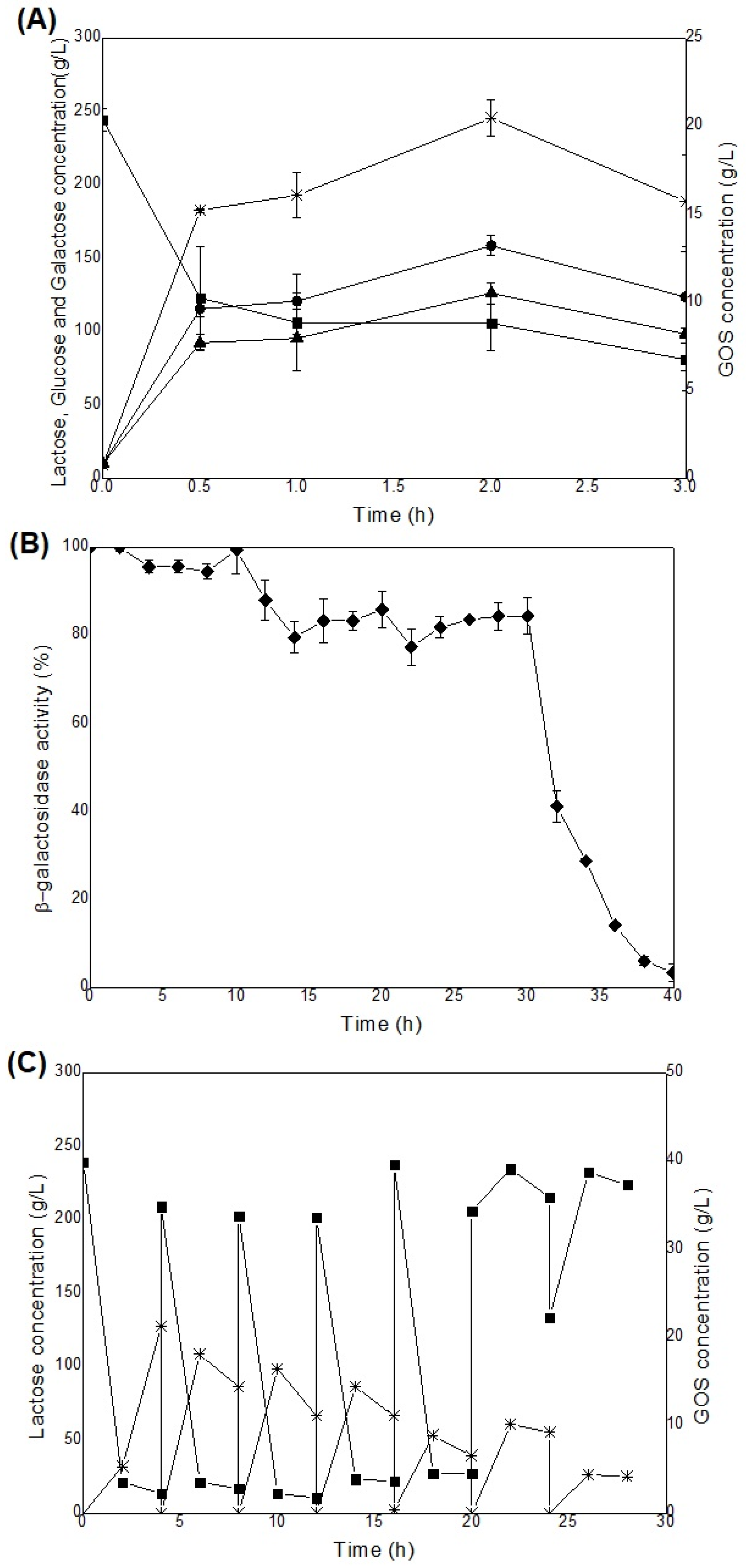

Figure 5A presents the kinetic profile of the conversion of lactose to GOS in a packed-bed column bioreactor in batch mode. It is possible to observe that the GOS concentration reached the maximum (20.45 g/L) in 2 h of reaction, with 68.35% of consumption of the initial substrate. In addition, a maximum GOS yield of 19.72% and productivity of 10.22 g/L.h were achieved, being 62.49% higher than that obtained with the shaker (6.29 g/L.h). Comparing the results of batch bioreactors for GOS yield and lactose conversion with those obtained shaker, under the same process conditions, higher values of these parameters were obtained (29.39% and 33.11%, respectively). There is a substantial increase in the surface contact area between immobilized enzyme substrate, improving process performances [23]. The packed-bed reactor allows the concentration gradient along the height of the reactor column, providing more efficient enzymatic reaction at the beginning of the process, and thus, enabling higher yields. Higher GOS yield (25.46% and 41%) were observed by González-Cataño [56] and Misson [61] in the stirred tank reactor and disk stack column reactor, respectively, and this behavior is probably due to the different geometries and configurations reactors—at first a greater mass transfer and at second a higher enzyme concentration per reactor volume.
The kinetics of obtaining GOS from Porungo cheese whey conducted in repeated batch bioreactors (Figure 5B,C) shows that β-galactosidase kept its activity at 83.56% for up to five cycles of reuse (Figure 5A), indicating the operational stability of the process. Additionally, a slight increase over the first cycle was observed about the substrate consumption (73.46% to 89.13%) and GOS yield (19.22% to 20.44%), remaining constant until the fifth cycle (Figure 5C). This means that enzymatic immobilization allows not only the efficient reuse of the biocatalyst but also the operational stability of the process, hence allowing the reduction of costs associated with the process [31]. From the sixth cycle onwards, there was a drastic loss of operational stability of the system, and this may be due to the enzyme washout, causing the system to destabilize and to a drastic reduction in yield. Similarly, Hackenhaar [19] and Liu [62] achieved 74% and 84.6% of the initial enzymatic activity, respectively, for up to 10 and 15 cycles. Higher GOS yield was observed (28.8%, 31% and 49%) by Urrutia [63], Liu [62], and Lu [64] over 10, 15, and 20 cycles, respectively.

3.5. GOS Production in Continuous Bioreactor

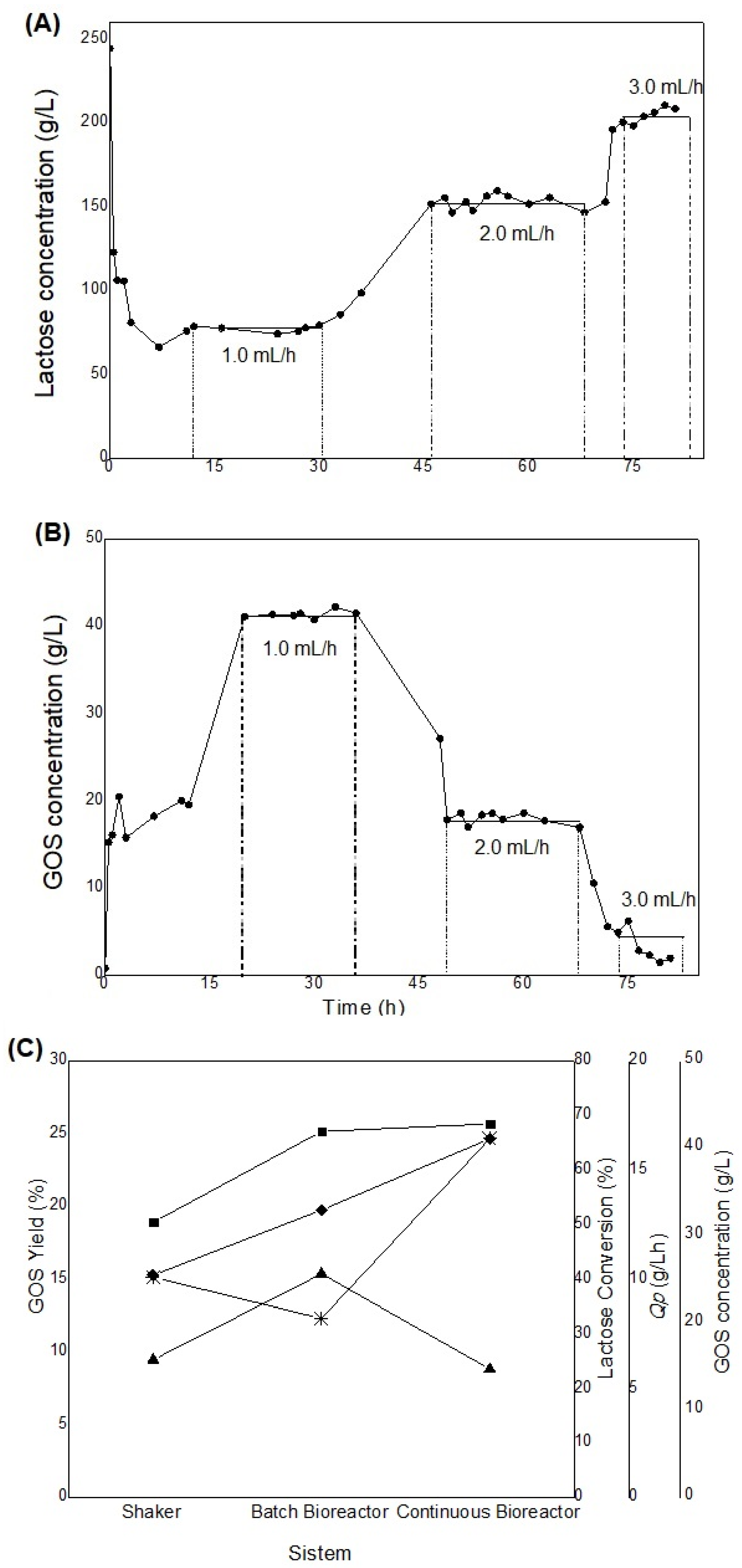

Continuously operated packed-bed bioreactors were tested under three different volumetric flow rates of fresh medium. The Tukey test showed statistical differences on GOS yields (p < 0.05) between the 1 mL/h flow rate compared with 2 mL/h and 3 mL/h, but not between the latter two. For lactose conversion, all flow rates tested differed from each other. As shown in Figure 6A,B, system stabilization was observed for the flow rates of 1 mL/h and 2 mL/h, indicating that a steady state was achieved. The highest yield values of 24.63% and productivity of 5.87 g/L.h were obtained for the lowest flow rate tested, reaching GOS concentration of 44.14 g/L (Table 2). The kinetic parameters were optimal at the lowest feed flow rate as well. This may be attributed to the longer residence time, which allows the substrate to be available for the reaction for a longer period in the bioreactor column. At a flow rate of 1 mL/h, a yield 28.44% higher than that obtained at the flow rate of 2 mL/h (19.18%), and approximately three times higher than that obtained at the flow rate of 3 mL/h (8.35%) was observed. Significant increases in lactose conversion (80% and four-fold increase) and volumetric productivity (approximately two- and six-fold increase) were observed when compared to those obtained at 2 mL/h and 3 mL/h flow rates, respectively. The behavior observed for the tests at the highest flow rate (3 mL/h) suggests the possibility of a system washout (Figure 6A,B), as evidenced by the significant increase in lactose concentration, reaching 85.27% of the initial substrate concentration. This result can be explained by the short residence time of the substrate inside the bioreactor, limiting its optimized conversion into a product. These results were in agreement with those reported by Hackenhaar [65] in a packed-bed reactor (40 °C, 300 g/L lactose solution), using different substrate feed rate (0.44 mL/min to 2.2 mL/min), and obtained a total maximum GOS production of 71.2 g/L at the lowest flow rate tested (0.44 mL/min), corresponding to a GOS yield of 23.7%, which decreased considerably (38.7 g/L) at higher feed rates. The authors observed a conversion of lactose that was 1.7 times lower (39.7%) than that observed in the present study. In contrast, Klein [17] evaluated that a packed-bed reactor operated continuously (1 mL/min to 15 mL/min), and reached the lowest yield and lactose conversion (6.5% and 58%) for a flow rate of 3.1 mL/min, suggesting it was due to the hydrolysis of the synthesized GOS, since longer residence times could lead to the subsequent hydrolysis by the enzyme.
Figure 6C depicts the kinetic parameters obtained in the different systems studied in this work. It can be inferred that the continuous system in the GOS production process achieved better parameters when compared to the other processes tested, increasing the yield in relation to the batch bioreactor by 24.90%, and 61.61% compared to the production using the shaker. Lactose conversion was slightly higher (2.04%) with the continuous bioreactor than with the batch bioreactor, and 35.84% higher when compared to shaker tests. In contrast, the continuous bioreactor productivity was 6.68% and 45.56% lower than that obtained with the shaker and batch systems, respectively. Nevertheless, the GOS production reached maximum levels (41.06 g/L) when using the continuous system, compared to batch mode (20.45 g/L). Results here suggest the use of the continuous bioreactor, demonstrating its application in more efficient and optimized processes.

3.6. GOS as a Potential Prebiotic

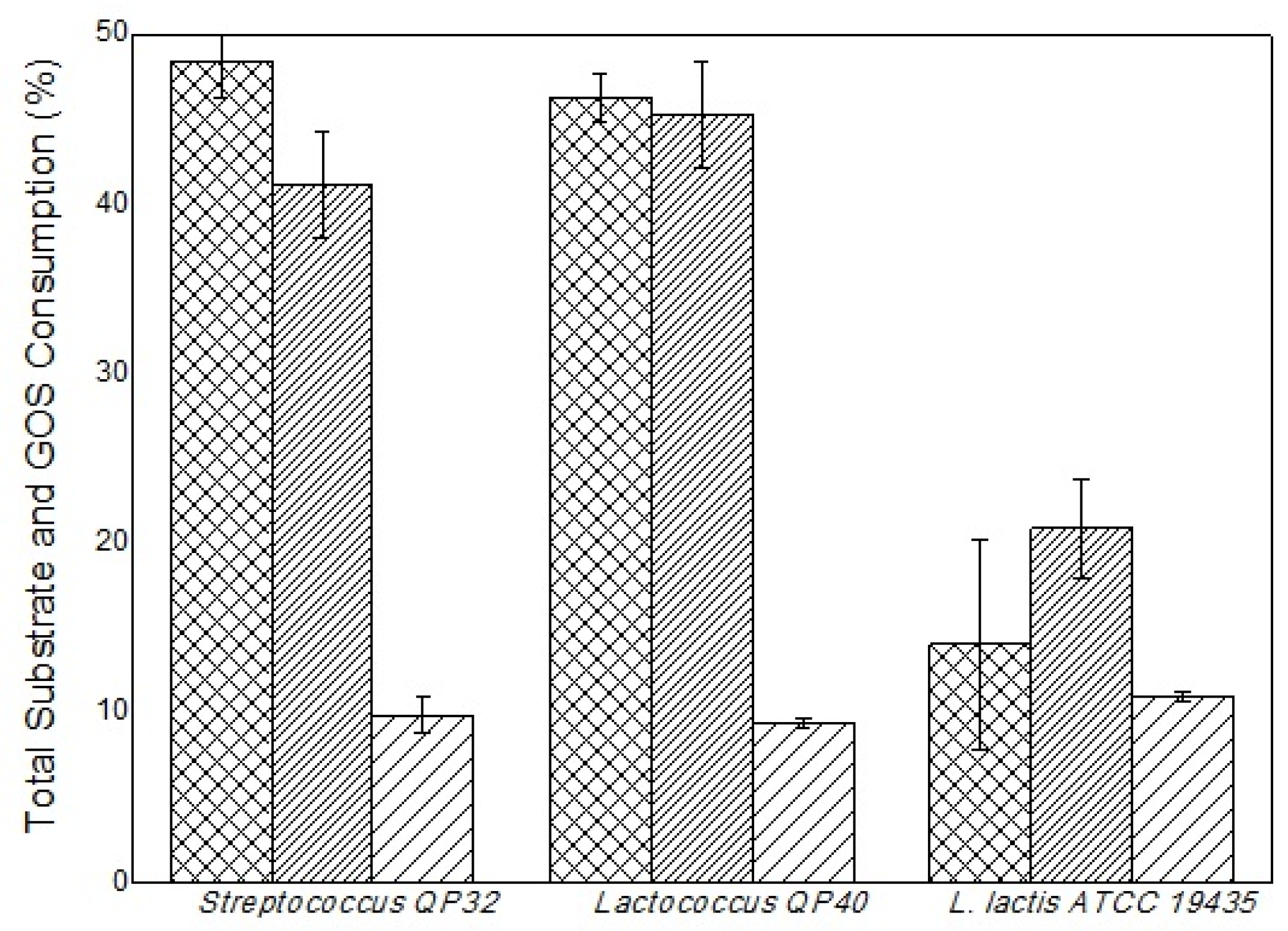

The Lactococcus QP40, Streptococcus QP32, and L. lactis ATCC 19435 bacteria were grown in different culture media, one with GOS (MRS + GOS) and a control without GOS (MRS), to verify the prebiotic potential of the oligosaccharides produced. These microorganisms are cited in the literature as probiotics [66,67,68]. The Lactococcus QP40 and Streptococcus QP32 strains (Figure 7) showed quite similar behavior, both in the ability to metabolize the total substrate (glucose and galactose) in the MRS medium (46.26% and 48.47%) and in the MRS medium combined with GOS (45.24% and 41.13%), respectively.
Although these two strains showed greater metabolism of total substrates when compared to the commercial strain L. lactis ATCC 19435, it showed a better substrate consumption when GOS was added to the MRS culture medium, in this case, the aforementioned strain metabolized 20.88% of total substrate compared to 14.04% in MRS medium (without GOS). This indicates that the presence of GOS improved the metabolism of other carbon sources for this strain. Therefore, L. lactis ATCC 19435 metabolized 10.94% of the GOS, while Lactococcus QP40 and Streptococcus QP32 metabolized, respectively, 9.87% and 9.41%. Nevertheless, this stage of the work is still preliminary; these previous results may serve as a basis for future studies on the prebiotic potential of GOS and probiotics related to the strains tested here.

4. Conclusions

Porungo cheese whey proved to be a promising substrate for GOS production using β-galactosidase, particularly when combined with enzyme immobilization and optimized bioprocess strategies. This study investigated the production, recovery, and purification of the enzyme, and its immobilization on different supports, to optimize GOS yield through different process variables, with the best conditions applied for optimized GOS production in column bioreactors operated in different modes. The prebiotic potential of the GOS produced was evaluated in culture with different probiotic microorganism cultures. Among several cell disruption strategies and partial purification techniques, the mechanical disruption and ultrafiltration have proven to be promising. The GOS production through different substrate and enzyme concentration, and temperature in shaker, enabled a process yielding high GOS productivity. The effective immobilization of β-galactosidase on chitosan–genipin supports allowed enzyme reuse with promising operational stability. The batch packed-bed bioreactor substantially increased productivity compared to the shaker system, while continuous operation further improved lactose conversion, GOS yield, and final GOS concentration, demonstrating a more efficient and scalable production process. This research provides a basis for future studies on continuous bioreactors operated in sequence to obtain and purify GOS simultaneously. Additionally, the prebiotic potential of GOS in animal models of obesity could support applications in the food, pharmaceutical, and agricultural sectors. Overall, the strategies of this research demonstrate a sustainable approach for valorizing dairy waste, with the concomitant production of a high added-value biotechnological product and with significant commercial potential.

Author Contributions

T.C.T.G.: Writing—Original Draft, Investigation, Validation, Data Curation. G.F.d.O.: Writing—Original Draft, Investigation, Validation, Data Curation. N.d.J.P.-F.: Methodology, Writing—Review & Editing. M.P.d.A.R.: Methodology, Writing—Review & Editing. M.A.Z.A.: Methodology, Resources, Writing—Review & Editing. S.G.: Conceptualization, Methodology, Resources, Data Curation, Writing—Original Draft, Writing—Review & Editing, Visualization, Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

São Paulo Research Foundation (FAPESP, Brazil) (grant #2021/06313-7) and National Council for Scientific and Technological Development (CNPq, Brazil) (grant #405418/2021-3).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors wish to thank the São Paulo Research Foundation (FAPESP) (grant #2021/06313-7) and CNPq (405418/2021-3), Brazil, for the financial support of this research and scholarships for the first author.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A

Appendix A.1

Table A1. Centesimal composition of Porungo cheese whey.
Table A1. Centesimal composition of Porungo cheese whey.
Component%
Moisture92.30 ± 0.29
Dry extract7.70 ± 0.35
Lipids0.30 ± 0.03
Protein0.81 ± 0.01
Lactose4.99 ± 0.06
Ash0.55 ± 0.01

Appendix A.2

Processes 14 00822 g0a1

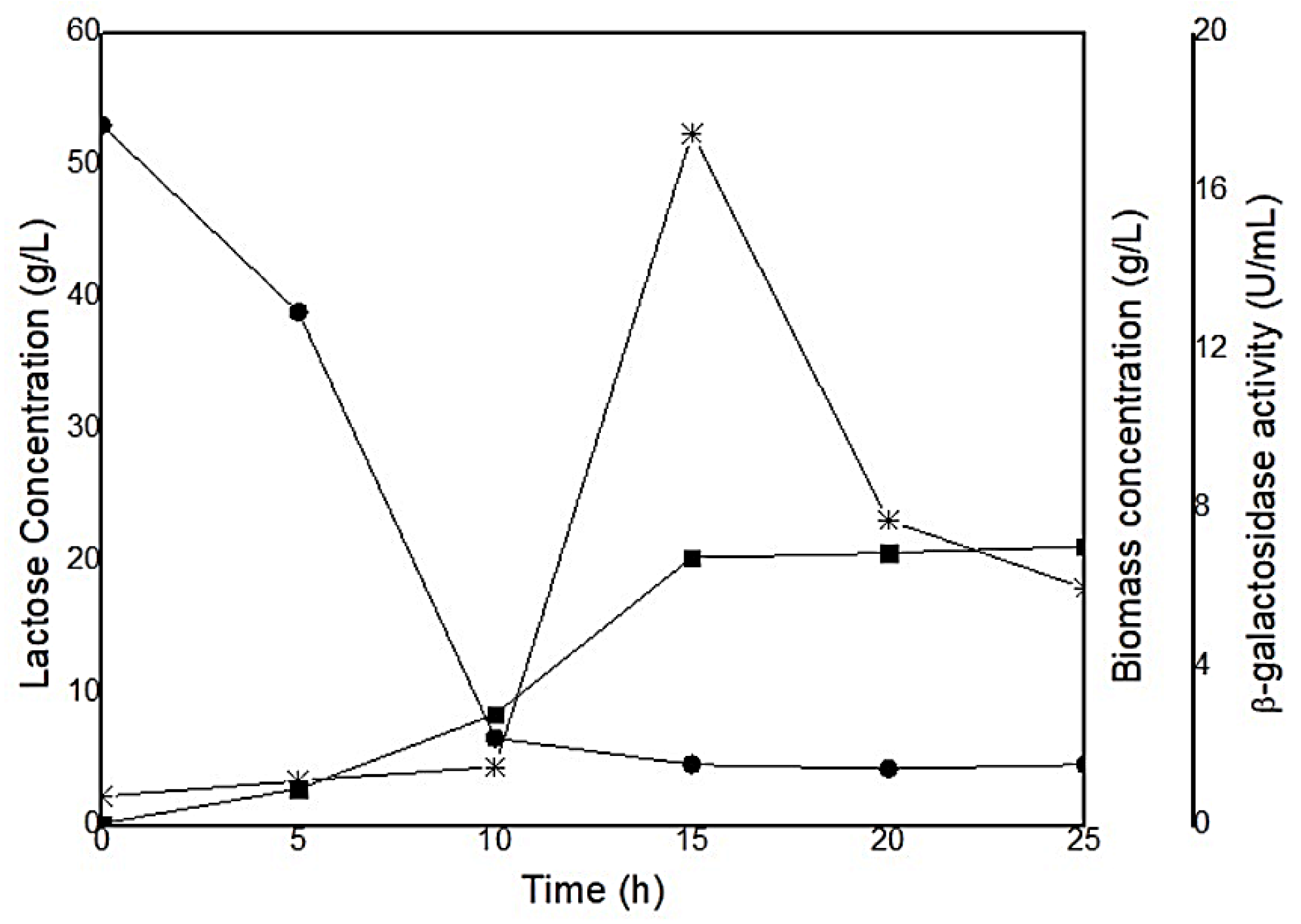

Figure A1. Kinetics of K.marxianus CCT 4086 (A) growing in Porungo cheese whey at 30 °C and 200 rpm. Lactose (-●-), biomass (-◼-), enzymatic activity (-∗-).
Figure A1. Kinetics of K.marxianus CCT 4086 (A) growing in Porungo cheese whey at 30 °C and 200 rpm. Lactose (-●-), biomass (-◼-), enzymatic activity (-∗-).
Processes 14 00822 g0a1

Appendix A.3

Processes 14 00822 g0a2

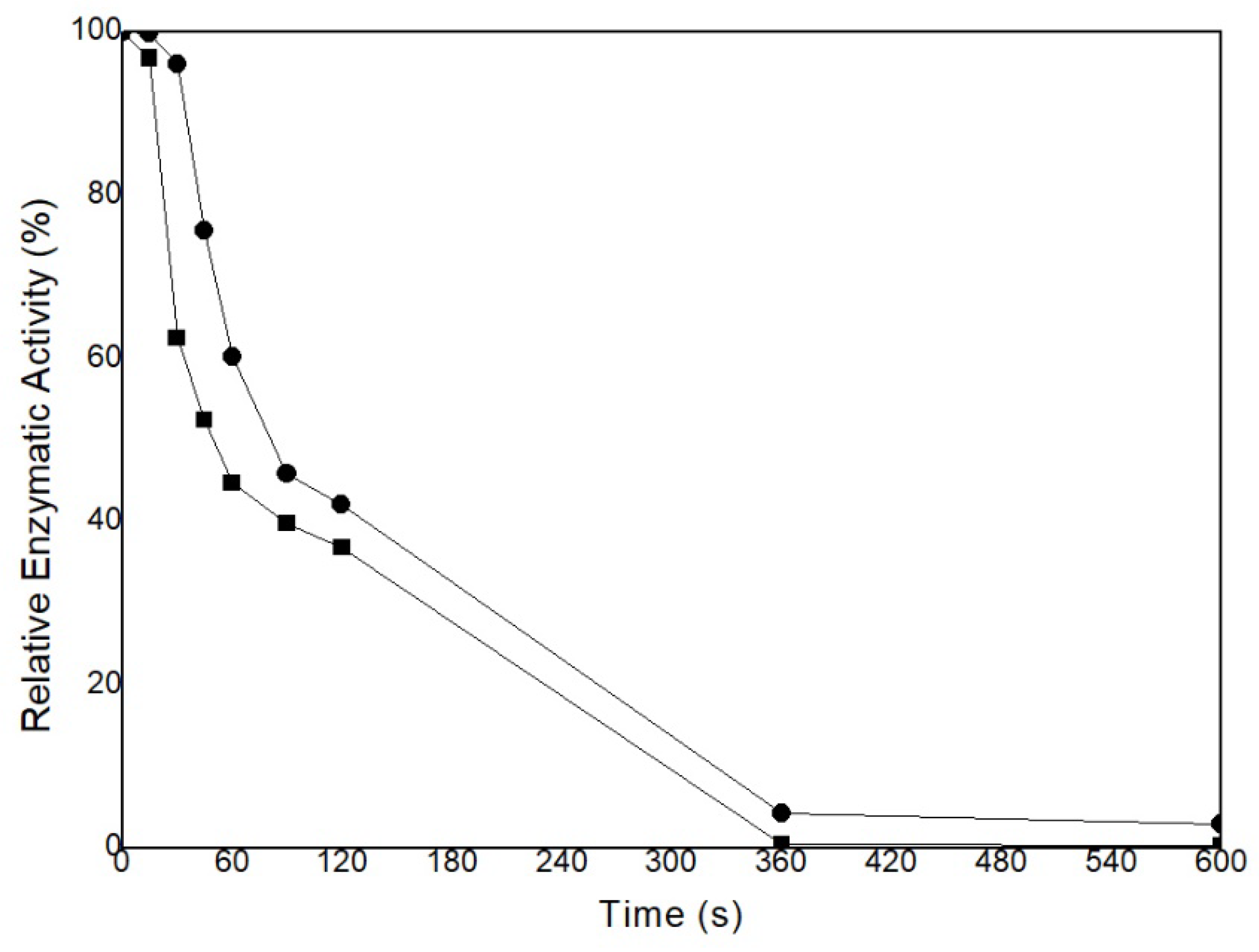

Figure A2. Thermal stability for free (-●-) and immobilized enzymes (-◼-) at 50 °C.
Figure A2. Thermal stability for free (-●-) and immobilized enzymes (-◼-) at 50 °C.
Processes 14 00822 g0a2

References

  1. Davani-Davari, D.; Negahdaripour, M.; Karimzadeh, I.; Seifan, M.; Mohkam, M.; Masoumi, S.J.; Berenjian, A.; Ghasemi, Y. Prebiotics: Definition, Types, Sources, Mechanisms, and Clinical Applications. Foods 2019, 8, 92. [Google Scholar] [CrossRef]
  2. Sanders, M.E.; Merenstein, D.J.; Reid, G.; Gibson, G.R.; Rastall, R.A. Probiotics and Prebiotics in Intestinal Health and Disease: From Biology to the Clinic. Nat. Rev. Gastroenterol. Hepatol. 2019, 16, 605–616. [Google Scholar] [CrossRef]
  3. Souza, A.F.C.E.; Gabardo, S.; Coelho, R.D.J.S. Galactooligosaccharides: Physiological Benefits, Production Strategies, and Industrial Application. J. Biotechnol. 2022, 359, 116–129. [Google Scholar] [CrossRef] [PubMed]
  4. Farias, D.D.P.; De Araújo, F.F.; Neri-Numa, I.A.; Pastore, G.M. Prebiotics: Trends in Food, Health and Technological Applications. Trends Food Sci. Technol. 2019, 93, 23–35. [Google Scholar] [CrossRef]
  5. Gibson, G.R.; Scott, K.P.; Rastall, R.A.; Tuohy, K.M.; Hotchkiss, A.; Dubert-Ferrandon, A.; Gareau, M.; Murphy, E.F.; Saulnier, D.; Loh, G.; et al. Dietary Prebiotics: Current Status and New Definition. Food Sci. Technol. Bull. 2010, 7, 1–19. [Google Scholar] [CrossRef]
  6. Sako, T.; Tanaka, R. Encyclopedia of Dairy Sciences, 2nd ed.; Prebiotics Types. Food Science; Elsevier Ltd.: Amsterdam, The Netherlands, 2011; pp. 354–364. [Google Scholar] [CrossRef]
  7. Gosling, A.; Stevens, G.W.; Barber, A.R.; Kentish, S.E.; Gras, S.L. Effect of the Substrate Concentration and Water Activity on the Yield and Rate of the Transfer Reaction of β-Galactosidase from Bacillus circulans. J. Agric. Food Chem. 2011, 59, 3366–3372. [Google Scholar] [CrossRef]
  8. Gosling, A.; Stevens, G.W.; Barber, A.R.; Kentish, S.E.; Gras, S.L. Recent Advances Refining Galactooligosaccharide Production from Lactose. Food Chem. 2010, 121, 307–318. [Google Scholar] [CrossRef]
  9. Torres, D.P.M.; Gonçalves, M.D.P.F.; Teixeira, J.A.; Rodrigues, L.R. Galacto-Oligosaccharides: Production, Properties, Applications, and Significance as Prebiotics. Compr. Rev. Food Sci. Food Saf. 2010, 9, 438–454. [Google Scholar] [CrossRef]
  10. Nath, A.; Bhattacharjee, C.; Chowdhury, R. Synthesis and Separation of Galacto-Oligosaccharides Using Membrane Bioreactor. Desalination 2013, 316, 31–41. [Google Scholar] [CrossRef]
  11. Sangwan, V.; Tomar, S.K.; Ali, B.; Singh, R.R.; Singh, R.R.B.; Singh, A.K.; Mandal, S. Galactooligosaccharides Purification Using Microbial Fermentation and Assessment of Its Prebiotic Potential by In Vitro Method. Int. J. Curr. Microbiol. Appl. Sci. 2014, 3, 573–585. [Google Scholar]
  12. Lamsal, B.P. Production, Health Aspects and Potential Food Uses of Dairy Prebiotic Galactooligosaccharides. J. Sci. Food Agric. 2012, 92, 2020–2028. [Google Scholar] [CrossRef] [PubMed]
  13. Cavalcante Fai, A.E.; Pastore, G.M. Galactooligosaccharides: Production, Health Benefits, Application to Foods and Perspectives. Sci. Agropecu. 2015, 6, 69–81. [Google Scholar] [CrossRef]
  14. Vera, C.; Córdova, A.; Aburto, C.; Guerrero, C.; Suárez, S.; Illanes, A. Synthesis and Purification of Galacto-Oligosaccharides: State of the Art. World J. Microbiol. Biotechnol. 2016, 32, 197. [Google Scholar] [CrossRef] [PubMed]
  15. Kosseva, M.R.; Panesar, P.S.; Kaur, G.; Kennedy, J.F. Use of Immobilised Biocatalysts in the Processing of Cheese Whey. Int. J. Biol. Macromol. 2009, 45, 437–447. [Google Scholar] [CrossRef]
  16. Panesar, P.S.; Kumari, S.; Panesar, R. Potential Applications of Immobilized β-Galactosidase in Food Processing Industries. Enzym. Res. 2010, 2010, 473137. [Google Scholar] [CrossRef]
  17. Klein, M.P.; Fallavena, L.P.; Schöffer, J.D.N.; Ayub, M.A.Z.; Rodrigues, R.C.; Ninow, J.L.; Hertz, P.F. High Stability of Immobilized β-D-Galactosidase for Lactose Hydrolysis and Galactooligosaccharides Synthesis. Carbohydr. Polym. 2013, 95, 465–470. [Google Scholar] [CrossRef]
  18. Chen, S.-C.; Duan, K.-J. Production of Galactooligosaccharides Using β-Galactosidase Immobilized on Chitosan-Coated Magnetic Nanoparticles. Int. J. Mol. Sci. 2015, 16, 12499–12512. [Google Scholar] [CrossRef]
  19. Hackenhaar, C.R.; Spolidoro, L.S.; Flores, E.E.E.; Klein, M.P.; Hertz, P.F. Batch Synthesis of Galactooligosaccharides from Co-Products of Milk Processing Using Immobilized β-Galactosidase from Bacillus circulans. Biocatal. Agric. Biotechnol. 2021, 36, 102136. [Google Scholar] [CrossRef]
  20. Krajewska, B. Application of Chitin- and Chitosan-Based Materials for Enzyme Immobilizations: A Review. Enzyme Microb. Technol. 2004, 35, 126–139. [Google Scholar] [CrossRef]
  21. Grosová, Z.; Rosenberg, M.; Rebroš, M. Perspectives and Applications of Immobilised β-Galactosidase in Food Industry—A Review. Czech J. Food Sci. 2008, 26, 1–14. [Google Scholar] [CrossRef]
  22. Gabardo, S.; Rech, R.; Ayub, M.A.Z. Performance of Different Immobilized-Cell Systems to Efficiently Produce Ethanol from Whey. J. Chem. Technol. Biotechnol. 2012, 87, 1194–1201. [Google Scholar] [CrossRef]
  23. Gabardo, S.; Rech, R.; Rosa, C.A.; Ayub, M.A.Z. Dynamics of Ethanol Production from Whey and Whey Permeate by Immobilized Strains of Kluyveromyces marxianus. Renew. Energy 2014, 69, 89–96. [Google Scholar] [CrossRef]
  24. Gabardo, S.; Pereira, G.F.; Rech, R.; Ayub, M.A.Z. Modeling of Ethanol Production by Kluyveromyces marxianus Using Whey as Substrate. J. Ind. Microbiol. Biotechnol. 2015, 42, 1243–1253. [Google Scholar] [CrossRef] [PubMed]
  25. Das, M.; Raychaudhuri, A.; Ghosh, S.K. Supply Chain of Bioethanol Production from Whey: A Review. Procedia Environ. Sci. 2016, 35, 833–846. [Google Scholar] [CrossRef]
  26. Haider, T.; Husain, Q. Calcium Alginate Entrapped Preparations of Aspergillus oryzae β-Galactosidase. Int. J. Biol. Macromol. 2007, 41, 72–80. [Google Scholar] [CrossRef]
  27. Freitas, F.F.; Marquez, L.D.S.; Ribeiro, G.P.; Brandão, G.C.; Cardoso, V.L.; Ribeiro, E.J. Comparison of Kinetic Properties of Free and Immobilized Aspergillus oryzae β-Galactosidase. Biochem. Eng. J. 2011, 58, 33–38. [Google Scholar] [CrossRef]
  28. Guimarães, P.M.R.; Teixeira, J.A.; Domingues, L. Fermentation of Lactose to Bio-Ethanol by Yeasts. Biotechnol. Adv. 2010, 28, 375–384. [Google Scholar] [CrossRef]
  29. Ozcelik, D.; Suwal, S.; Ray, C.; Tiwari, B.K.; Jensen, P.E.; Poojary, M.M. Valorization of Dairy Side-Streams for the Cultivation of Microalgae. Trends Food Sci. Technol. 2024, 146, 104386. [Google Scholar] [CrossRef]
  30. Christensen, A.D.; Kádár, Z.; Oleskowicz-Popiel, P.; Thomsen, M.H. Production of Bioethanol from Organic Whey Using Kluyveromyces marxianus. J. Ind. Microbiol. Biotechnol. 2011, 38, 283–289. [Google Scholar] [CrossRef]
  31. Gabardo, S.; Pereira, G.F.; Klein, M.P.; Rech, R.; Hertz, P.F.; Ayub, M.A.Z. Dynamics of Yeast Immobilized-Cell Fluidized-Bed Bioreactors. Bioprocess Biosyst. Eng. 2016, 39, 141–150. [Google Scholar] [CrossRef]
  32. Trindade, M.B.; Soares, B.C.V.; Scudino, H.; Guimarães, J.T.; Esmerino, E.A.; Freitas, M.Q.; Pimentel, T.C.; Silva, M.C.; Souza, S.L.Q.; Almada, R.B.; et al. Cheese Whey Exploitation in Brazil. Food Sci. Technol. 2019, 39, 788–791. [Google Scholar] [CrossRef]
  33. Pires, A.F.; Marnotes, N.G.; Rubio, O.D.; Garcia, A.C.; Pereira, C.D. Dairy By-Products: Valorization of Whey. Foods 2021, 10, 1067. [Google Scholar] [CrossRef] [PubMed]
  34. Rech, R.; Ayub, M.A.Z. Simplified Feeding Strategies for Fed-Batch Cultivation of Kluyveromyces marxianus. Process Biochem. 2007, 42, 873–877. [Google Scholar] [CrossRef]
  35. Coelho, R.J.S.; Gabardo, S.; Marim, A.V.C.; Bolognesi, L.S.; Pimentel Filho, N.J.; Ayub, M.A.Z. Porungo Cheese Whey: A New Substrate to Produce β-Galactosidase. An. Acad. Bras. Cienc. 2023, 95, e20200483. [Google Scholar] [CrossRef]
  36. Medeiros, F.O.D.; Alves, F.G.; Lisboa, C.R.; Martins, D.D.S.; Burkert, C.A.V.; Kalil, S.J. Ultrasonic Waves and Glass Beads: A New β-Galactosidase Extraction Method. Quim. Nova 2008, 31, 336–339. [Google Scholar] [CrossRef]
  37. Lima, M.D.A.; Freitas, M.D.F.M.D.; Gonçalves, L.R.B.; Silva Junior, I.J.D. Recovery and Purification of Kluyveromyces lactis β-Galactosidase. J. Chromatogr. B 2016, 1015–1016, 181–191. [Google Scholar] [CrossRef]
  38. Li, L.; Li, G.; Cao, L.; Ren, G.; Kong, W.; Wang, S.; Guo, G.; Liu, Y.-H. Characterization of Cross-Linked Enzyme Aggregates of β-Galactosidase. J. Agric. Food Chem. 2015, 63, 894–901. [Google Scholar] [CrossRef]
  39. Menegatti, T.; Žnidaršič-Plazl, P. Hydrogel-based enzyme and cofactor co-immobilization for efficient continuous transamination in a microbioreactor. Front. Bioeng. Biotechnol. 2021, 9, 752064. [Google Scholar] [CrossRef]
  40. Bolognesi, L.S.; Gabardo, S.; Dall Cortivo, P.R.; Ayub, M.A.Z. Biotechnological Production of Galactooligosaccharides Using Porungo Cheese Whey. Food Sci. Technol. 2021, 42, e64520. [Google Scholar] [CrossRef]
  41. Klein, M.P.; Nunes, M.R.; Rodrigues, R.C.; Benvenutti, E.V.; Costa, T.M.H.; Hertz, P.F.; Ninow, J.L. Effect of Support Size on β-Galactosidase Immobilization on Chitosan. Biomacromolecules 2012, 13, 2456–2464. [Google Scholar] [CrossRef]
  42. Esparza-Flores, E.; Siquiera, L.; Cardoso, F.; Costa, T.; Benvenutti, E.; Medina-Ramírez, I.; Perullini, M.; Santagapita, P.; Rodrigues, R.; Hertz, P. Chitosan with modified porosity and crosslinked with genipin: A dynamic system structurally characterized. Food Hydrocoll. 2023, 144, 109034. [Google Scholar] [CrossRef]
  43. Bradford, M.M. A Rapid and Sensitive Method for the Quantitation of Microgram Quantities of Protein. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  44. Guerrero, C.; Vera, C.; Conejeros, R.; Illanes, A. Transgalactosylation and hydrolytic activities of commercial preparations of β-galactosidase for the synthesis of prebiotic carbohydrates. Enzyme Microb. Technol. 2015, 70, 9–17. [Google Scholar] [CrossRef] [PubMed]
  45. Dagbagli, S.; Goksungur, Y. Optimization of β-Galactosidase Production Using Kluyveromyces lactis. Electron. J. Biotechnol. 2008, 11, 1–12. [Google Scholar] [CrossRef]
  46. Numanoğlu, Y.; Sungur, S. β-Galactosidase from Kluyveromyces lactis: Cell Disruption and Immobilization. Process Biochem. 2004, 39, 705–711. [Google Scholar] [CrossRef]
  47. Sousa, C.C.D.; Gonçalves, G.T.I.; Falleiros, L.N.S.S. Ethanol Production Using Agroindustrial Residues by Kluyveromyces marxianus. Ind. Biotechnol. 2018, 14, 308–314. [Google Scholar] [CrossRef]
  48. Gul-Guven, R.; Guven, K.; Poli, A.; Nicolaus, B. Purification and Properties of a β-Galactosidase from Alicyclobacillus acidocaldarius. Enzyme Microb. Technol. 2007, 40, 1570–1577. [Google Scholar] [CrossRef]
  49. Heidtmann, R.B.; Duarte, S.H.; Pereira, L.P.D.; Braga, A.R.C.; Kalil, S.J. Kinetic and Thermodynamic Characterization of β-Galactosidase from Kluyveromyces marxianus. Braz. J. Food Technol. 2012, 15, 41–49. [Google Scholar] [CrossRef]
  50. Galinari, É.; Sabry, D.A.; Sassaki, G.L.; Macedo, G.R.; Passos, F.M.L.; Mantovani, H.C.; Rocha, H.A.O. Chemical Structure and Antioxidant Activities of Yeast Mannan. Carbohydr. Polym. 2017, 157, 1298–1305. [Google Scholar] [CrossRef]
  51. Gékas, V.; Lopez-Leiva, M. Hydrolysis of Lactose: A Literature Review. Process Biochem. 1985, 20, 2–12. [Google Scholar]
  52. Cavaille, D.; Combes, D. Characterization of β-Galactosidase from Kluyveromyces lactis. Biotechnol. Appl. Biochem. 1995, 22, 55–64. [Google Scholar]
  53. Klein, M.P.; Hackenhaar, C.R.; Lorenzoni, A.S.G.; Rodrigues, R.C.; Costa, T.M.H.; Ninow, J.L.; Hertz, P.F. Chitosan Crosslinked with Genipin as Support Matrix. Carbohydr. Polym. 2016, 136, 184–190. [Google Scholar] [CrossRef] [PubMed]
  54. González-Delgado, I.; López-Muñoz, M.-J.; Morales, G.; Segura, Y. Optimisation of High GOS Synthesis from Lactose. Int. Dairy J. 2016, 61, 211–219. [Google Scholar] [CrossRef]
  55. Srivastava, A.; Mishra, S.; Chand, S. Transgalactosylation of Lactose Using Kluyveromyces marxianus. New Biotechnol. 2015, 32, 412–418. [Google Scholar] [CrossRef] [PubMed]
  56. González-Cataño, F.; Tovar-Castro, L.; Castaño-Tostado, E.; Regalado-Gonzalez, C.; García-Almendarez, B.; Cardador-Martínez, A.; Amaya-Llano, S. Improvement of Covalent Immobilization of β-Galactosidase. Biotechnol. Prog. 2017, 33, 1568–1578. [Google Scholar] [CrossRef]
  57. Lisboa, C.R.; Costa, F.A.D.A.; Burkert, J.F.D.M.; Burkert, C.A.V. Synthesis of Galactooligosaccharides Using Commercial β-Galactosidase. Braz. J. Food Technol. 2012, 15, 30–40. [Google Scholar] [CrossRef]
  58. Gomes, K.D.; Polizelli, M.A. Determination of Kinetic Parameters of β-Galactosidase. Braz. J. Dev. 2020, 6, 28194–28208. [Google Scholar] [CrossRef]
  59. Martínez-Villaluenga, C.; Cardelle-Cobas, A.; Corzo, N.; Olano, A.; Villamiel, M. Optimization of Galactooligosaccharide Synthesis Conditions. Food Chem. 2008, 107, 258–264. [Google Scholar] [CrossRef]
  60. Zhang, X.; Yao, C.; Wang, T.; Zhao, H.; Zhang, B. Production of High-Purity Galactooligosaccharides by Lactobacillus-Derived β-Galactosidase. Eur. Food Res. Technol. 2021, 247, 1501–1510. [Google Scholar] [CrossRef]
  61. Misson, M.; Jin, B.; Dai, S.; Zhang, H. Interfacial Biocatalytic Performance of Nanofiber-Supported β-Galactosidase. Catalysts 2020, 10, 81. [Google Scholar] [CrossRef]
  62. Liu, J.-F.; Liu, H.; Tan, B.; Chen, Y.-H.; Yang, R.-J. Reversible Immobilization of β-Galactosidase onto Magnetic Nanospheres. J. Mol. Catal. B Enzym. 2012, 82, 64–70. [Google Scholar] [CrossRef]
  63. Urrutia, P.; Bernal, C.; Wilson, L.; Illanes, A. Use of Chitosan Heterofunctionality for Enzyme Immobilization. Int. J. Biol. Macromol. 2018, 116, 182–193. [Google Scholar] [CrossRef]
  64. Lu, L.; Xu, S.; Zhao, R.; Zhang, D.; Li, Z.; Li, Y.; Xiao, M. Synthesis of Galactooligosaccharides by CBD Fusion β-Galactosidase. Bioresour. Technol. 2012, 116, 327–333. [Google Scholar] [CrossRef]
  65. Hackenhaar, C.R.; Klein, M.P. Obtenção de Galactooligossacarídeos Utilizando β-Galactosidase Imobilizada; Feira de Inovação Tecnológica, UFRGS: Porto Alegre, Brazil, 2013. [Google Scholar]
  66. Song, A.A.-L.; In, L.L.A.; Lim, S.H.E.; Rahim, R.A. A Review on Lactococcus lactis: From Food to Factory. Microb. Cell Fact. 2017, 16, 55. [Google Scholar] [CrossRef] [PubMed]
  67. Higdon, S.M.; Huang, B.C.; Bennett, A.B.; Weimer, B.C. Identification of Nitrogen Fixation Genes in Lactococcus. Microorganisms 2020, 8, 2043. [Google Scholar] [CrossRef]
  68. Sánchez, L.; Tromps, J. Caracterização In Vitro de Ácido Láctico Bacteriano com Potencial Probiótico. Rev. Salud Anim. 2014, 36, 124–129. [Google Scholar]
Processes 14 00822 g001

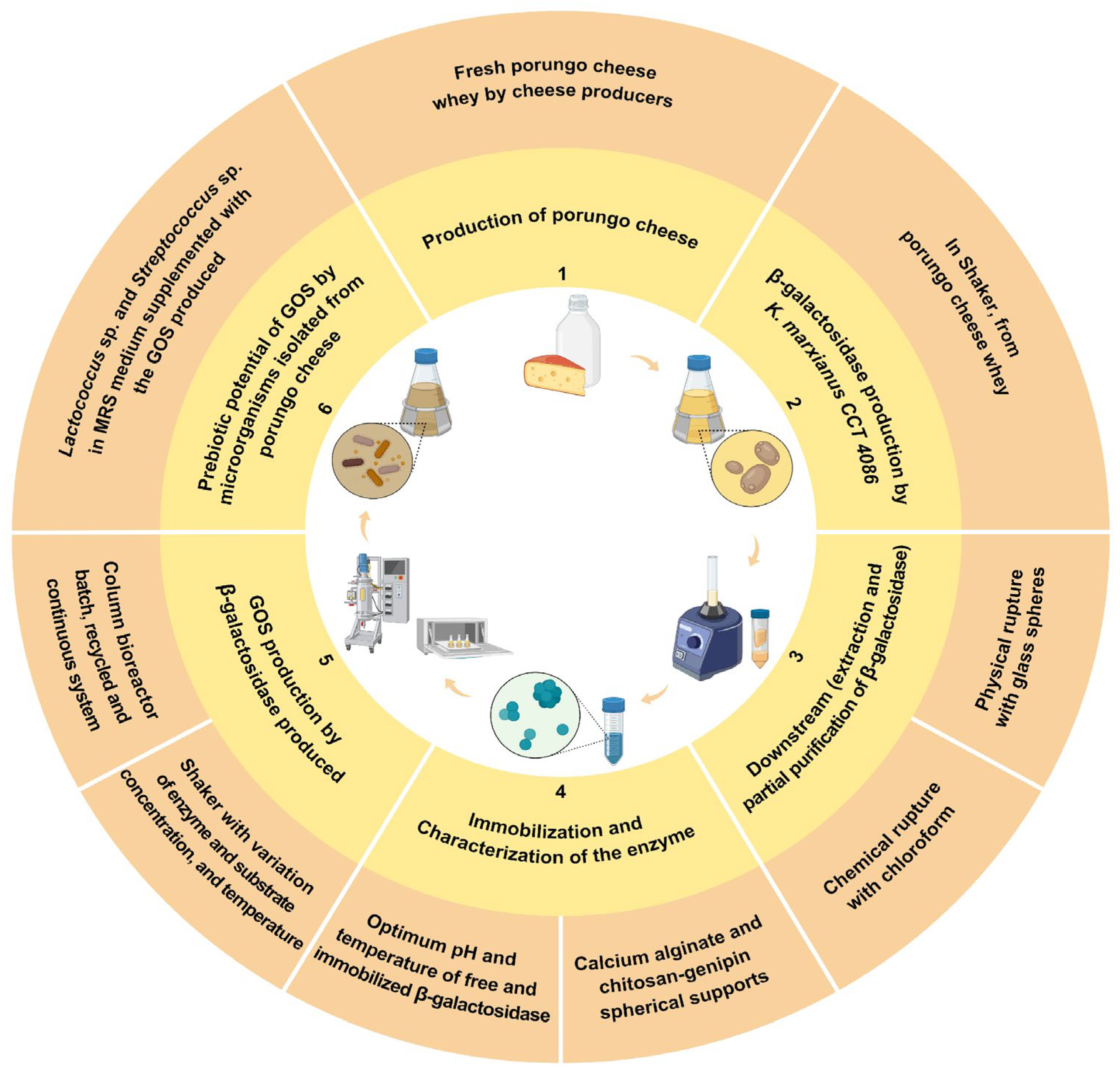

Figure 1. General scheme and strategy of the proposal used in this study for the GOS production. (1) Porungo cheese whey obtained in cheese production process. (2) Production of β-galactosidase by K. marxianus CCT 4086. (3) Downstream stage: extraction, concentration and partial purification of the enzyme. (4) Immobilization and characterization of the β-galactosidase produced. (5) Use of the concentrated β-galactosidase for GOS production by different bioprocess strategies (shaker and bioreactor). (6) GOS prebiotic potential by microorganisms isolated from Porungo cheese.
Figure 1. General scheme and strategy of the proposal used in this study for the GOS production. (1) Porungo cheese whey obtained in cheese production process. (2) Production of β-galactosidase by K. marxianus CCT 4086. (3) Downstream stage: extraction, concentration and partial purification of the enzyme. (4) Immobilization and characterization of the β-galactosidase produced. (5) Use of the concentrated β-galactosidase for GOS production by different bioprocess strategies (shaker and bioreactor). (6) GOS prebiotic potential by microorganisms isolated from Porungo cheese.
Processes 14 00822 g001
Processes 14 00822 g002

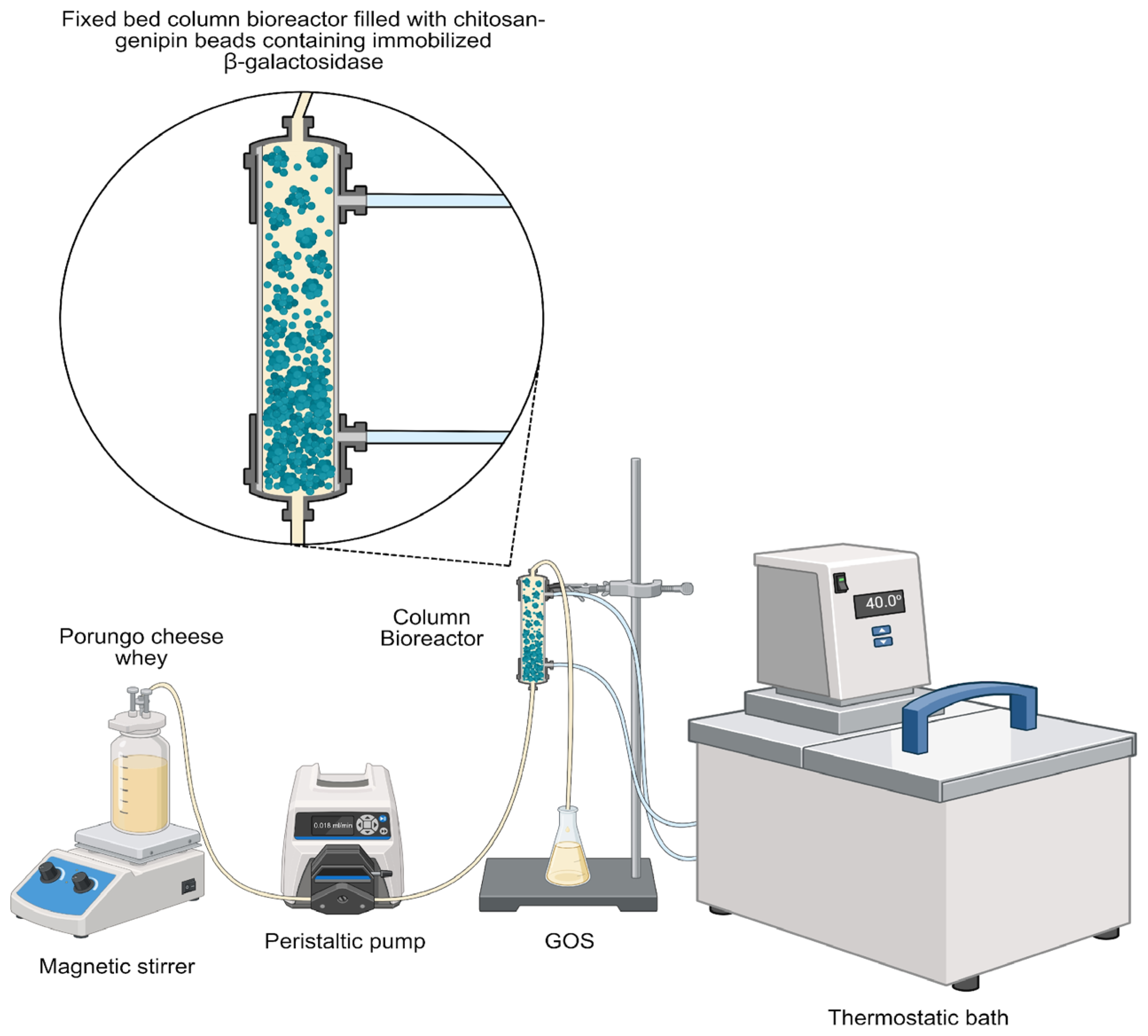

Figure 2. Schematic of the experimental apparatus for the continuous GOS production process using a packed-bed column bioreactor containing the enzyme immobilized in genipin–chitosan spheres.
Figure 2. Schematic of the experimental apparatus for the continuous GOS production process using a packed-bed column bioreactor containing the enzyme immobilized in genipin–chitosan spheres.
Processes 14 00822 g002
Processes 14 00822 g003

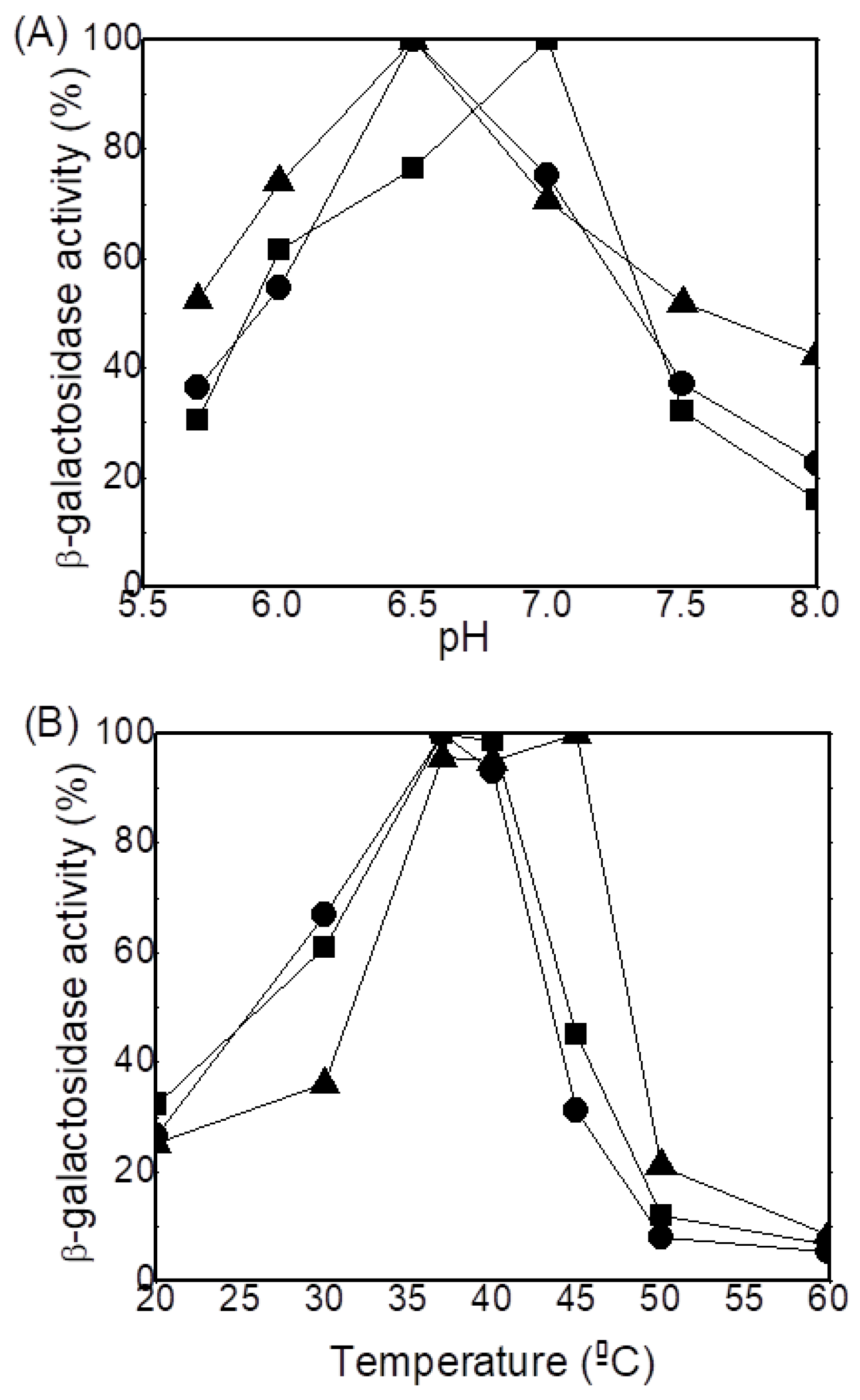

Figure 3. Effect of the pH (A) and temperature (B) on the activity of β-galactosidase produced by K. marxianus CCT 4086. β-galactosidase free activity (●), immobilized on alginate (◼), and on chitosan–genipin (▲).
Figure 3. Effect of the pH (A) and temperature (B) on the activity of β-galactosidase produced by K. marxianus CCT 4086. β-galactosidase free activity (●), immobilized on alginate (◼), and on chitosan–genipin (▲).
Processes 14 00822 g003
Processes 14 00822 g004

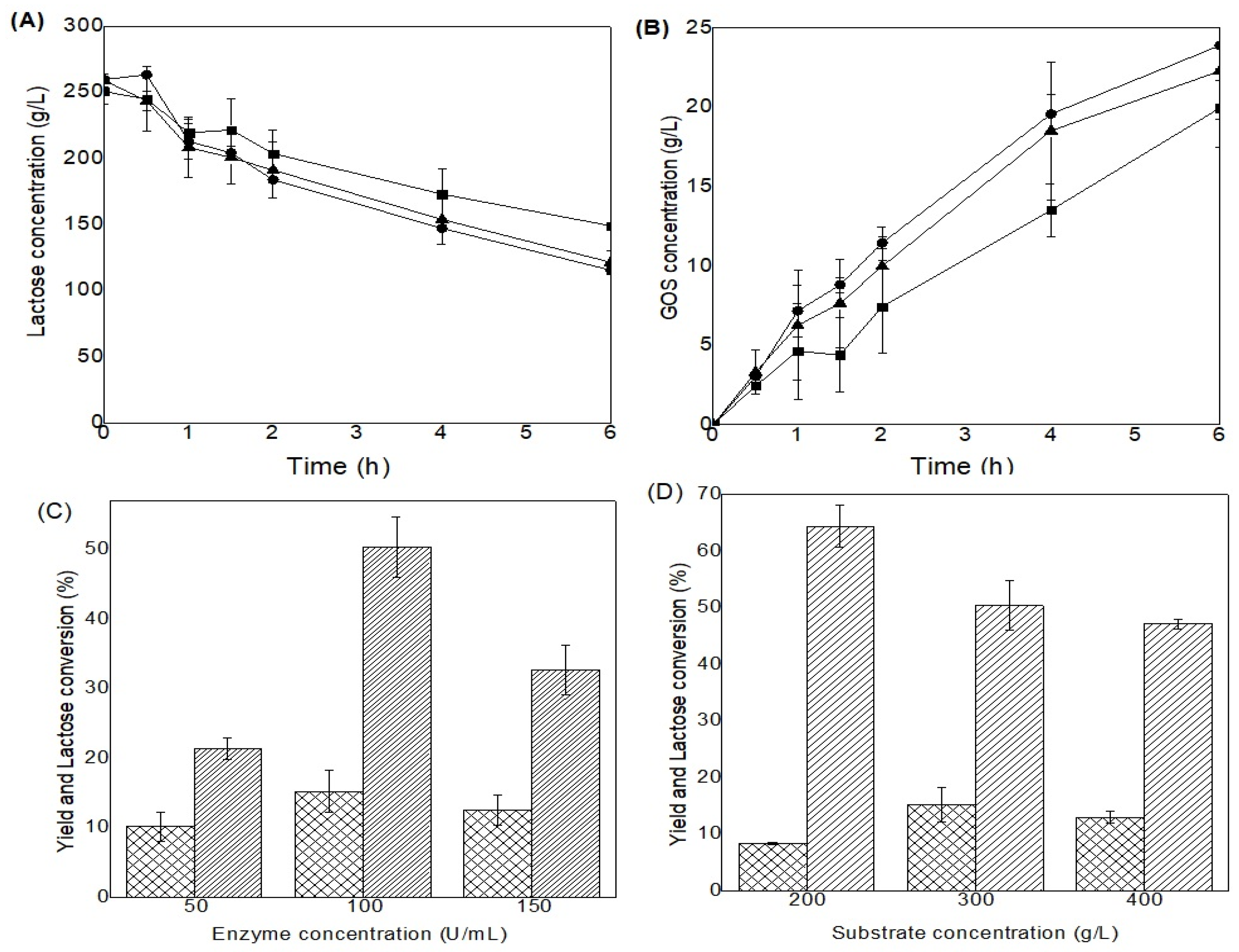

Figure 4. Kinetics of lactose consumption (A) and GOS production (B) at different temperatures, and the influence of the immobilized enzyme concentration (C) and Porungo cheese whey concentration (D) on GOS yield and lactose conversion, in shaker at 150 rpm for 6 h of reaction. Temperature of 37 °C (◼), 40 °C (●), 43 °C (▲), Yield (Processes 14 00822 i001) and Conversion (Processes 14 00822 i002).
Figure 4. Kinetics of lactose consumption (A) and GOS production (B) at different temperatures, and the influence of the immobilized enzyme concentration (C) and Porungo cheese whey concentration (D) on GOS yield and lactose conversion, in shaker at 150 rpm for 6 h of reaction. Temperature of 37 °C (◼), 40 °C (●), 43 °C (▲), Yield (Processes 14 00822 i001) and Conversion (Processes 14 00822 i002).
Processes 14 00822 g004
Processes 14 00822 g005
Figure 5. Kinetics of GOS production from Porungo cheese whey in a batch packed-bed bioreactor system (A), the relative β-galactosidase activity (B), and the kinetic profile of GOS production (C) in repeated-batch bioreactor for seven consecutive cycles of 4 h each, at 40 °C, using Porungo cheese whey (300 g/L). Lactose concentration (■), glucose (●), galactose (▲), and GOS (*).
Figure 5. Kinetics of GOS production from Porungo cheese whey in a batch packed-bed bioreactor system (A), the relative β-galactosidase activity (B), and the kinetic profile of GOS production (C) in repeated-batch bioreactor for seven consecutive cycles of 4 h each, at 40 °C, using Porungo cheese whey (300 g/L). Lactose concentration (■), glucose (●), galactose (▲), and GOS (*).
Processes 14 00822 g005
Processes 14 00822 g006
Figure 6. Profile of lactose concentration (A) and GOS production (B) in a continuously operated packed-bed column bioreactor, at 40 °C, from Porungo cheese whey (300 g/L) using β-galactosidase immobilized on chitosan–genipin as a biocatalyst for three different feed rates: 1 mL/h, 2 mL/h, and 3 mL/h, and the comparison (C) between GOS yield, lactose conversion, productivity, and maximum GOS concentration conducted in different bioprocess systems. GOS yield (♦), lactose conversion (◼), productivity, Qp (▲), and GOS concentration (*).
Figure 6. Profile of lactose concentration (A) and GOS production (B) in a continuously operated packed-bed column bioreactor, at 40 °C, from Porungo cheese whey (300 g/L) using β-galactosidase immobilized on chitosan–genipin as a biocatalyst for three different feed rates: 1 mL/h, 2 mL/h, and 3 mL/h, and the comparison (C) between GOS yield, lactose conversion, productivity, and maximum GOS concentration conducted in different bioprocess systems. GOS yield (♦), lactose conversion (◼), productivity, Qp (▲), and GOS concentration (*).
Processes 14 00822 g006
Processes 14 00822 g007
Figure 7. Percentage of the consumption profile of the total substrate and GOS for the different bacteria grown at 37 °C, 50 rpm. MRS medium (Processes 14 00822 i003), MRS medium combined with GOS (Processes 14 00822 i004), and percentage of GOS consumption in MRS medium combined with GOS (Processes 14 00822 i005).
Figure 7. Percentage of the consumption profile of the total substrate and GOS for the different bacteria grown at 37 °C, 50 rpm. MRS medium (Processes 14 00822 i003), MRS medium combined with GOS (Processes 14 00822 i004), and percentage of GOS consumption in MRS medium combined with GOS (Processes 14 00822 i005).
Processes 14 00822 g007
Table 1. Total enzyme activity, total protein, and specific activity of β-galactosidase obtained from K. marxianus CCT 4086 using different strategies of cell disruption and of the enzyme concentration.
Table 1. Total enzyme activity, total protein, and specific activity of β-galactosidase obtained from K. marxianus CCT 4086 using different strategies of cell disruption and of the enzyme concentration.
Cell Disruption MethodTotal Enzyme Activity (U)Total Protein (mg)Specific Activity (U/mg)
Vortex shaker cell lysis17.33 ± 0.420.49 ± 0.0538.91 ± 2.60
Chloroform autolysis17.35 ± 1.890.40 ± 0.0844.21 ± 3.64
Enzyme Concentration Approaches
Crude extract237.2 ± 0.597.50 ± 0.1931.63 ± 3.49
75% Acetone9.00 ± 0.032.70 ± 0.013.40 ± 0.41
80% Saturation Ammonium
Sulfate		127.05 ± 2.279.00 ± 0.1614.07 ± 2.40
Ultrafiltration (10 kDa)1640.80 ± 19.07568.05 ± 3.738.66 ± 0.64
Concentrated cell
Suspension		517.90 ± 11.3347.50 ± 0.6410.90 ± 0.09
Table 2. Values of GOS yield, lactose conversion, and productivity for continuous packed-bed bioreactors for the three tested flow rates.
Table 2. Values of GOS yield, lactose conversion, and productivity for continuous packed-bed bioreactors for the three tested flow rates.
Flow Rate (mL/h)GOS Yield (%)Lactose Conversion (%)Qp (g/Lh)
1.024.63 ± 1.9868.38 ± 2.455.87 ± 0.44
2.019.18 ± 3.4537.97 ± 2.842.57 ± 0.37
3.08.35 ± 3.5816.78 ± 2.190.47 ± 0.33
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gama, T.C.T.; de Oliveira, G.F.; Pimentel-Filho, N.d.J.; Ribeiro, M.P.d.A.; Ayub, M.A.Z.; Gabardo, S. GOS from Porungo Cheese Whey: Batch, Repeated Batch, and Continuous Bioreactors. Processes 2026, 14, 822. https://doi.org/10.3390/pr14050822

AMA Style

Gama TCT, de Oliveira GF, Pimentel-Filho NdJ, Ribeiro MPdA, Ayub MAZ, Gabardo S. GOS from Porungo Cheese Whey: Batch, Repeated Batch, and Continuous Bioreactors. Processes. 2026; 14(5):822. https://doi.org/10.3390/pr14050822

Chicago/Turabian Style

Gama, Thaís Cavalcante Torres, Guilherme Fermino de Oliveira, Natan de Jesus Pimentel-Filho, Marcelo Perencin de Arruda Ribeiro, Marco Antônio Záchia Ayub, and Sabrina Gabardo. 2026. "GOS from Porungo Cheese Whey: Batch, Repeated Batch, and Continuous Bioreactors" Processes 14, no. 5: 822. https://doi.org/10.3390/pr14050822

APA Style

Gama, T. C. T., de Oliveira, G. F., Pimentel-Filho, N. d. J., Ribeiro, M. P. d. A., Ayub, M. A. Z., & Gabardo, S. (2026). GOS from Porungo Cheese Whey: Batch, Repeated Batch, and Continuous Bioreactors. Processes, 14(5), 822. https://doi.org/10.3390/pr14050822

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
