Modeling the Influence of Ionic Strength on Mineral Solubility in Concentrated Brine Solutions

Abstract

Mineral extraction from brine solutions is a vital issue for resource recovery in many fields of industry, especially in desalination processes. Usually, the solubility limit is viewed as a key factor that plays a determinant role in the efficiency of a prescribed process. This paper suggests the investigation of the influence of ionic strength, which is a measure of the total concentration of all dissolved ions, on the solubility limits in brines that are extracted from desalination facilities in Kuwait before discharging them into the Persian Gulf. For this purpose, the solubility of two main minerals (CaSO₄ and Mg(OH)₂) was measured for several values of ionic strength achieved by adjusting the concentration of the brine solutions. Brine samples were characterized and concentrated to achieve ionic strength values that are in the range of 1.1–2.0 mol/L. An adapted supersaturation-equilibration method was applied to determine solubility limits. Results show a non-linear relationship between ionic strength and the solubility limit of the target minerals, with behavior similar to that which could be found in the literature. In the case of CaSO₄, it was found that the solubility exhibits an increase (salting in effect) at low ionic strength, followed by a decrease at higher ionic strength (>1.1 M) (salting-out effect). On the other hand, the solubility of Mg(OH)₂ in Kuwait brine water was shown to decrease as the ionic strength increased. These trends, validated against literature data, are attributed to non-ideal solution behavior and specific ion interactions in the complex brine matrix. The findings of this work provide crucial insights for process design, enabling more precise control over precipitation steps and enhancing the overall yield and economic viability of mineral extraction from complex brine resources.

1. Introduction

Providing freshwater for growing societies becomes a challenging issue driven by climate change and industrialization. Desalinating seawater has emerged as a new technology that results in the augmentation of water supplies. Regions such as the Middle East, North Africa, and parts of Asia rely on desalinated water [1].

Thermal processes, such as multi-effect distillation and multi-stage flash, and processes based on the implementation of special membranes (reverse osmosis) are the two main classes of this new technology. Reverse osmosis has the advantage of low energy consumption and flexibility in operational conditions [2].

Concentrated brines are the primary by-products of the desalination process, and they are discharged back into the source of seawater. This presents a significant challenge since it has environmental and economic impacts, as it leads to elevated rates of salinity and the accumulation of heavy metals [3]. An idea raised in this field is extracting the valuable minerals from these concentrated brines, or mineral recovery, creating economic value from the waste and mitigating the environmental impact [4].

The problem of water treatment in terms of mineral extraction from seawater and produced water brines has become a strategic imperative for several reasons, and discussing the parameters that influence water processing is crucial. One interesting parameter that plays a determinant role in the extraction of valuable salts such as CaSO₄ and Mg(OH)₂ is the ionic strength, which has a direct impact on the activity coefficients that affect the solubility limits through the behavior of ions in concentrated solutions. From this point of view, recent studies have focused on the investigation and modeling of these effects.

Recent studies have implemented the Pitzer model to predict mineral solubility in concentrated brines with high ionic strength. Smith et al. [5] showed that in order to precipitate Li₂CO₃ from high Mg/Li brines, the employment of the Pitzer model has led to predictions of Li recovery yields within 5% error. The main finding was how ionic strength, with higher values from Mg²⁺ and Cl⁻ ions, significantly suppresses Li₂CO₃ activity.

In another study, Zhao et al. [6] investigated mineral recovery from produced water with shale gas. Evaporative concentration was used to improve the ionic strength value. First, CaSO₄ was precipitated at a moderate value, then NaCl was obtained at higher values of ionic strength. They concluded that the salting-out effect improved the precipitation efficiency of minor components by reducing their activity coefficients.

The effect of ionic strength in membrane and sorption processes was also investigated by Kwon et al. [7]. They showed that higher ionic strength from cations such as Mg²⁺ or Ca²⁺ increases the scaling propensity on nanofiltration membranes, and this was due to charge shielding that reduces electrostatic repulsion between ions and the membrane surface.

Specific brine systems were treated in other studies, such as the work of Mondal et al. [8] that presented the modeling of silica polymerization and scaling in high ionic strength geothermal fluids, and the work of Liu et al. [9] that evaluated the adsorption of Li from high ionic strength salt-lake brines.

To conclude at this stage, the presented studies prove that ionic strength is a key parameter when mineral extraction from brines is involved. Recent developments in the field of simulations can lead to accurate predictions via Pitzer models. To achieve evaluable mineral recovery, the determination of ionic strength through evaporation, dilution, or mixing could be applied. The control of ionic strength is a must to navigate to the solubility limits.

Kuwait desalination facilities generate a substantial volume of brine solutions, containing a high concentration of valuable minerals [10], which are currently discharged into the Persian Gulf without any pretreatment. The extraction of these beneficial minerals from brine solutions is considered a promising economic opportunity. This extraction has beneficial aspects [11]: increasing the productivity of desalination plants, reducing operating expenses, resulting in a high economic value of critical commercial minerals, reducing power consumption in desalination facilities, and mitigating the negative risk impact on the ecosystem and marine environment.

Discharge regulations for wastewater from desalination plants are legal after the national standards are enhanced by the Kuwait Environment Public Authority, based on the regional framework of the ROMPE Convention. They define the salinity and residual chemical limits.

To enable efficient extraction with low operating costs, the solubility limits of these valuable minerals must be assessed in a real brine solution that has the same mineral matrix and concentration as the actual brine solution.

It is well known that the solubility limit of all minerals depends on various parameters, including temperature, pressure, pH values, ionic strength of the solvent solution, and the concentration of other minerals dissolved in the base solution [12].

In the Gulf Cooperation Council, desalination of seawater represents the main source of providing freshwater. The byproduct brine discharges into the Persian Gulf. Kuwait brine water, discharged from desalination plants, is characterized by a high concentration of Ca, Mg, SO₄, Na, Cl, K, and HCO₃ ions [12]. This favors the extraction of many valuable minerals such as magnesium hydroxide (Mg(OH)₂), sodium chloride (NaCl), potassium chloride (KCl), lithium carbonate (Li₂CO₃), calcium carbonate (CaCO₃), and sulfate minerals (SM), which include CaSO₄, BaSO₄, and SrSO₄.

High concentration and economic value are crucial parameters in selecting minerals for extraction. The solubility limit is the most critical factor that must be considered before choosing a specific mineral for extraction. Generally, not all minerals can be extracted from brine solutions unless their solubility limits are exceeded.

The minerals dissolved in the Kuwait brine solution of the Doha Research Plant (BSDRP) have high economic value and high potential for extraction because of their high concentration and low solubility limits.

Table 1. The solubility of high-value minerals in distilled water.

Mineral	Solubility in Water (g/100 mL) at 20 °C	Ksp at 25 °C (Approximate)	Reference
Li2CO3	1.33	5.3 × 10−4	[5]
CaCO3	6.6 × 10−4	3.3 × 10−9 to 8.7 × 10−9	[13]
CaSO4·2H2O	0.21 to 0.27	3.14 × 10−5	[14]
SrSO4	0.0138	3.2 × 10−7	[15]
BaSO4	2.44 × 10−4	1.1 × 10−10	[13,16]
Mg(OH)2	9 × 10−4	1.5 × 10−11	[15,16]
NaCl	35.9	Highly Soluble	[17]
KCl	34.2	Highly Soluble	[17]
MgCl2	54.6	Highly Soluble	[17]
CaCl2	74.5	Highly Soluble	[15]
BaCl2	35.8	Highly Soluble	[17]

contains the solubility limits of most of the minerals in distilled water. Two of them will be considered in the present study: magnesium hydroxide and calcium sulfate.

Ionic strength (I) cannot fully describe the non-ideal interactions between ions in concentrated brines such as those produced from Kuwait’s desalination plants. Activity coefficients of ions (γ) deviate significantly from unity when the ionic strength is high (I > 1 M), and thus the Debye-Hückel equation is not applied. In this case, the Pitzer model implementation, based on the specific ion interaction theory (SIT), could be suggested as a powerful tool that leads to accurate prediction of solubility limits and scaling potentials. It accounts for interactions between all solute ions, such as Na⁺-SO₄²⁻ and Mg²⁺-Cl⁻-SO₄²⁻ [18]. Nowadays, PHREEQC software version 3can implement the Pitzer model and provide evaluable interpretation of experimental solubility data in complex brines and therefore for the whole process design [19].

The average price of Mg(OH)₂ per ton during the first quarter of 2025 exhibited notable regional variation according to industry market analysis [20,21,22,23]. Mg(OH)₂ was recognized as the most essential mineral for extraction from brine solution due to its very low solubility limit in water of 0.00122 g/100 mL and -solubility product constant of 5.61 × 10⁻¹² [24]. This mineral is expensive, and it is used in many applications in the international market as an absorbent for heat, isolation, and polymer applications [25].

Additionally, the global price for sulfate minerals (SMs) as CaSO₄, BaSO₄, and SrSO₄ ranges from $160, $170, and $250, respectively, per ton for standard grade [26]. SMs are commonly used in the industrial field, such as in construction, dental products, and food processing. SMs are essential minerals for glass and pigment manufacturing. X-rays, medical applications, and drilling operations in oil production are other applications for SMs. Thus, SMs are not only a challenge to be managed but can also represent an opportunity for resource recovery and economic gain in industrial settings.

Measuring the solubility limits accurately and under different operating conditions is not only essential in predicting the scaling limits of significant minerals, but it will also significantly reduce the cost of annual maintenance in desalination plants.

Based on the preliminary facts, experiments are planned to determine the solubility limits of the aforementioned valuable minerals using high-salinity Kuwait brine solutions and under different operating conditions.

Viewing the lack of solubility data for valuable minerals in high ionic strength Kuwaiti desalination brine as a gap, it is necessary to work on the optimal design of brine valorization processes. The primary aim of this paper is to determine the solubility limit of selected valuable minerals, such as calcium sulfate and magnesium hydroxide, in brine solutions taken from desalination plants in Kuwait under various operating conditions. This work contributes to the comprehension of the solubility of these two valuable minerals regarding the ionic strength values that are high in Kuwait desalination brine.

2. Experimental Procedure

2.1. Testing Unit

A laboratory test unit was inspected and prepared for the execution of the testing program, Amar Equipments PVT. LTD., Mumbai, India. It consists of the following parts:

−

Double-jacketed incubating vessel that incubates the test base solution at a constant temperature,

−

Condenser that ensures a constant composition of the tested brine solution during the experiments and condenses any vapor produced from the brine solution during incubation,

−

Heat exchanger that controls the temperature of the base solution inside the double-jacketed vessel,

−

Automatic pressure pump that controls the pressure inside the testing vessel,

−

Reflux section that retains any condensate vapor back to the feed water.

−

Digital controller with a digital display to control the temperature inside the incubator vessel and the heat exchanger.

−

Stirrer mixer with adjustable control speeds.

−

Temperature and pressure gauges to monitor the temperature and pressure values.

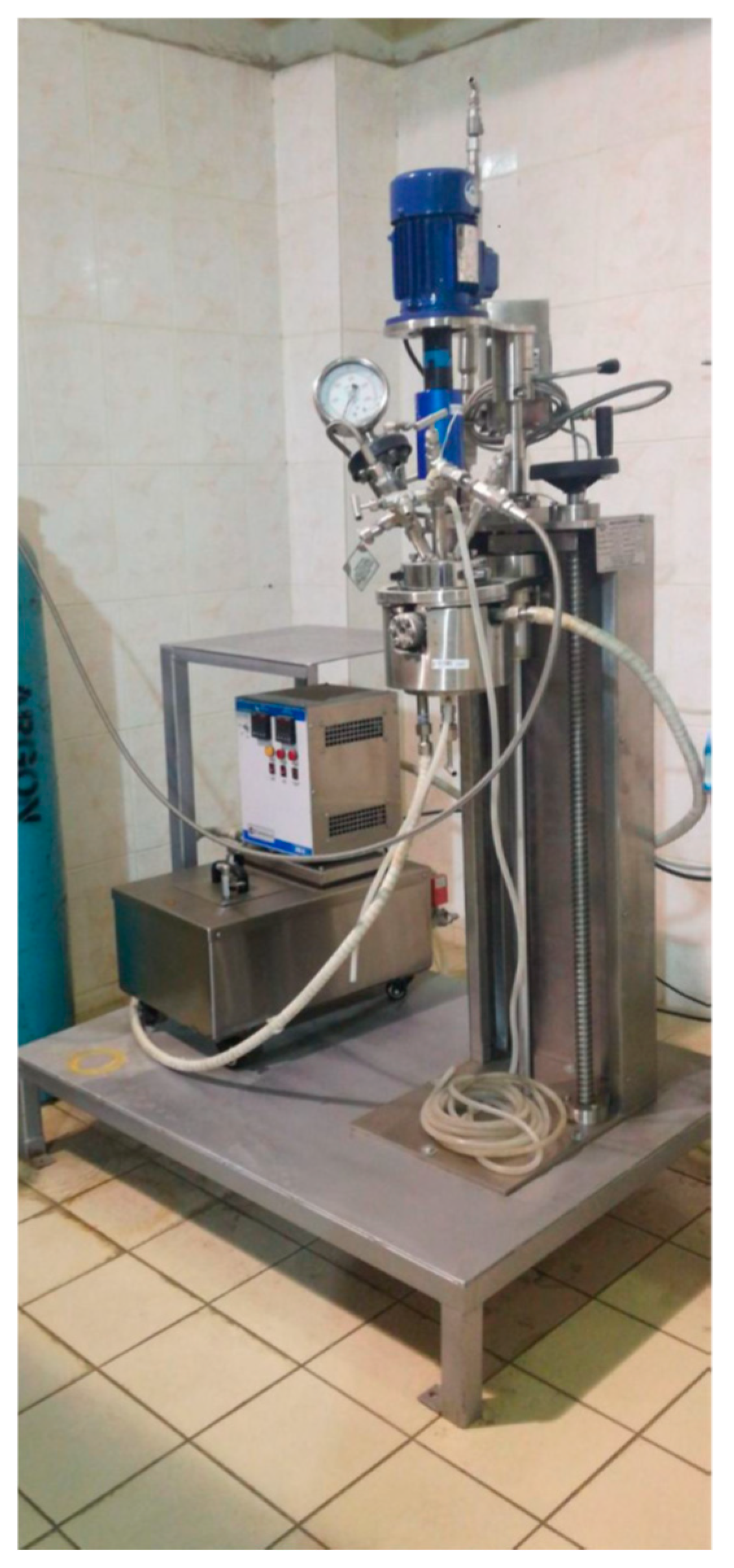

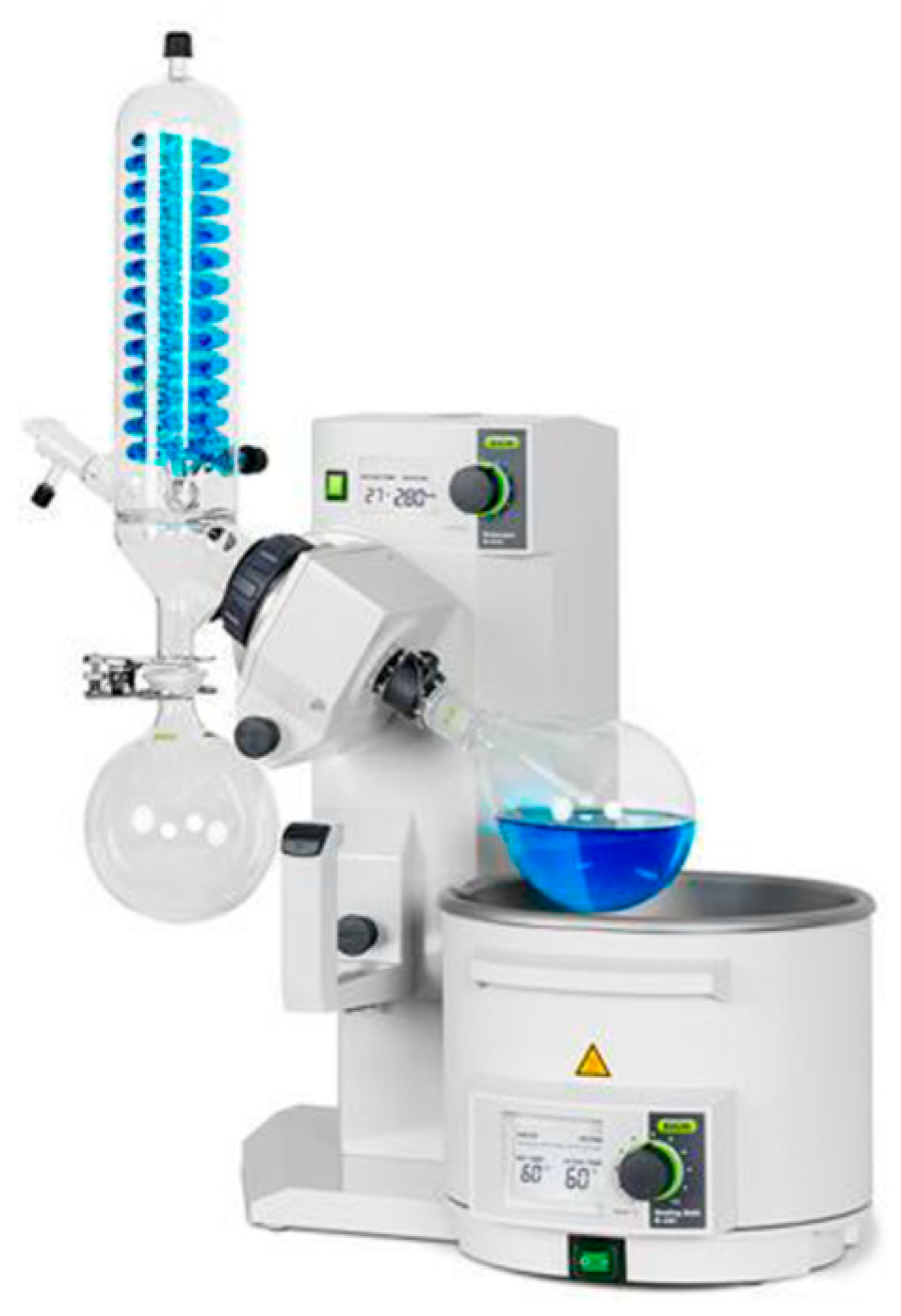

Figure 1 is the assembly of these parts, while Figure 2 shows the rotavapor instrument. The Rota-vapor will be used to prepare different concentrations of brine solution at low operating temperatures. Other measuring instruments and regulators, such as pH meters, conductivity meters, dipping turbidity meters, temperature sensors, and pressure controllers, are also needed.

All measuring instruments were calibrated before starting the testing schedule to ensure proper performance and accuracy.

All the required chemicals were acquired from the local market for the execution of the tasks outlined in the proposal. Minerals were requested and received to be used in the preparation of supersaturated solutions, which will be incubated at ambient temperature under stirring conditions to stabilize before starting each experiment.

All the sample containers were cleaned with diluted hydrochloric acid, and then they were rinsed several times with distilled water just before using them for sample collection.

2.2. Brine Water Samples Collection

Samples were collected from the brine discharge of the Shuwaikh Reverse Osmosis Desalination Plant in a polyethylene container weekly, starting in April 2024 until October 2025, to measure the induction time required for saturation and to prepare the saturated solution before initiating solubility limit experiments. The collected samples (of about 50 L of reverse osmosis (RO)) were filtered through a 0.45 µm cellulose nitrate membrane to remove suspended solids, then were stored at 4 °C in the dark. Ion Chromatography (ICS) facility and Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES) were used to determine the ionic composition, and excess solids of the target minerals were added based on the results. Samples were then incubated in the reactor at a controlled temperature (20 °C) in preliminary experiments to measure the time required to reach saturation, or the equilibrium time, to be implemented in the test plan. In addition, concentrated brine solutions were prepared from the base solution using a rotary evaporator for further experiments and stored at ambient temperature in closed containers to prevent pH variation.

Sample collections were conducted in accordance with international standards for quality control/quality assurance (QA/QC) with respect to protocols for saline water sampling [27]. This is necessary to ensure the reliability of the data, thereby ensuring accuracy, precision, representativeness, and completeness. Moreover, a written standard operating procedure (SOP) for the collection, preservation, and storage of samples is applied in the proposal, in addition to the calibration of the equipment and following the QC/QA aspects during sampling and analysis.

The collected samples were analyzed for all required ions and cations dissolved in BSSDP. The average, maximum, minimum, standard deviation, relative standard deviation (RSD), Standard Error of the Mean (SEM), and other statistical parameters were calculated to ensure the reliability of the analysis.

2.3. Brine Water Sample Preparation

Based on a method adapted from [6], all collected samples were concentrated via rotary evaporation at a constant low temperature (40 °C) and reduced pressure to avoid mineral precipitation during the process. The resulting stock solutions were at target levels of 50%, 60%, and 70% (wt%) of the main water volume. Equilibration was achieved after continuous stirring at 300 rpm for 72 h. The ionic strength of these concentrated solutions was calculated as indicated further in Section 3.

2.4. Mineral Analysis

Experiments have been conducted until the end of October 2025 to measure the solubility limits of the required salts at different concentrations of BSSDR and under various conditions. The temperature of the reactor was kept at 20 °C using a thermostatic circulating bath. Solubility measurements were taken for two important minerals: Mg(OH)₂ and CaSO₄, respectively. Results for other minerals will be discussed in a separate work further.

The base experimental work was based on several concentrations of the base solution. The solubility of the selected minerals was determined using concentration methods with high precision instruments available at DRP, such as ICP and ICS, to quantify concentrations in high-salinity brine solutions.

High-purity salts (≤99% for gypsum and ≤95% for magnesium hydroxide) were used in supersaturated solutions to avoid contamination and control the ionic strength of the brine solutions [28,29]. Each experiment was repeated three times to ensure reproducibility, increase confidence, and produce scientifically valid data on mineral solubility limits in such a complex brine solution.

3. Ionic Strength Calculations

It is therefore of great importance to discuss the ionic strength of seawater since it falls at the heart of marine chemistry and geochemical modeling. For this reason, the ionic strength of major ions in seawater is calculated as a function of temperature.

Ionic strength is a quantitative measure of the total dissolved anions and cations and their valence in the brine and saline solution, which usually affects ion stability, scaling tendency, fouling, precipitation, activity coefficient, and the chemical properties of the brine solution.

Generally, ionic strength is defined as mentioned in the work of Millero [30]:

$$I=\frac{1}{2}\sum c_i{z}_i^2$$

(1)

where c stands for the molar concentration of a given ion [mol/L] and z is the charge of this ion.

From this equation, it is clear that temperature has no direct influence on ionic strength. Actually, it has an indirect influence by changing the density of seawater, which in turn changes the molar concentration of the ion.

4. Results

The results of the measurements for CaSO₄ and Mg(OH)₂ will be presented and discussed separately, as will be detailed below.

4.1. Solubility Limits of Hydrous CaSO₄

The solubility limit of this mineral was measured at concentrations of 50%, 60%, and 70%. The brine of different concentrations was expressed in terms of ionic strength (I), as it is essential to describe the behavior of dissolved ions in high saline solutions and is commonly used in desalination systems, mineral extraction processes, and solubility measurements. Thus, the determination of the ionic strength in the brine solution analysis is essential; therefore, the ionic strength of (BSSDP) and for 50%, 60%, and 70% concentrated solutions is estimated for a more efficient solubility limit investigation.

Table 2. Ionic strength calculations for the ions contained in the brine solutions of the investigated samples.

Ion	Concentration (mg/L) ± SD	Molar Mass (g/mol)	Charge (z)	Molarity mol/L	Contribution to 0.5 × Ci × Zi2
SO42−	5260 ± 120	96.06	−2	0.055	0.219
Ca2+	750 ± 25	40.08	2	0.019	0.076
Mg2+	2478 ± 60	24.305	2	0.10196	0.408
Cl−	37,954 ± 800	35.45	−1	1.071	0.535
Na+	21,980 ± 450	22.99	1	0.956	0.478
K+	1035 ± 35	39.1	1	0.026	0.013
HCO3−	217 ± 15	61.02	−1	0.004	0.002
Total Ionic Strength (I)					1.379 ± 0.05

gives the ionic strength calculation of BSSDP samples using the analytical concentrations in (mg/L) and the charge of ions separately and then applying Equation (1) above.

The concentration of ions in the brine solution was converted from mg/L to mol/L using Equation (2) below:

$$C_i\left({\displaystyle \frac{\mathrm{m}\mathrm{o}\mathrm{l}}{\mathrm{L}}}\right)={\displaystyle \frac{C_i\left(\frac{\mathrm{m}\mathrm{g}}{\mathrm{L}}\right)}{molar mass of ion i \left(\frac{\mathrm{g}}{\mathrm{m}\mathrm{o}\mathrm{l}}\right)\ast 1000}}$$

(2)

For example, Mg²⁺ concentration was 2478 mg/L, and the molar mass of Mg is 24.305 g/mol. Substituting gives:

$$c_{M{g}^{2+}}={\displaystyle \frac{2478\left(\frac{\mathrm{m}\mathrm{g}}{\mathrm{L}}\right)}{24.305\left(\frac{\mathrm{g}}{\mathrm{m}\mathrm{o}\mathrm{l}}\right)\ast 1000}}=0.10196 \mathrm{m}\mathrm{o}\mathrm{l}/\mathrm{L}$$

(3)

Table 3. The ionic strength for different brine solutions.

Solution	I	pH	Temp
BSDRP	1.20	7.940	20
BSSDP	1.38	7.860	20
50% BSSDP	1.436	7.650	20
60% BSSDP	1.688	7.440	20
70% BSSDP	1.996	7.490	20

contains the results of the ionic strength calculated based on the converted values of the concentrations.

The ionic strength of the Shuwaikh Brine solution is calculated to range approximately from 1.25 to 1.43 mol/L, with an average value of 1.38 mol/L depending on the chemical composition and the concentration of dissolved ions, while it ranged from 1.13 to 1.22 mol/L for brine water at the Doha Research Plan (BSDRP) with an average of 1.20. The 50% concentrated solution of BSSDP displays a higher ionic strength value of 1.43 mol/L. Moreover, the ionic strength was approximately 1.68 mol/L for a 60% concentration of BSSDP and increased to reach 1.996 mol/L at a 70% concentration.

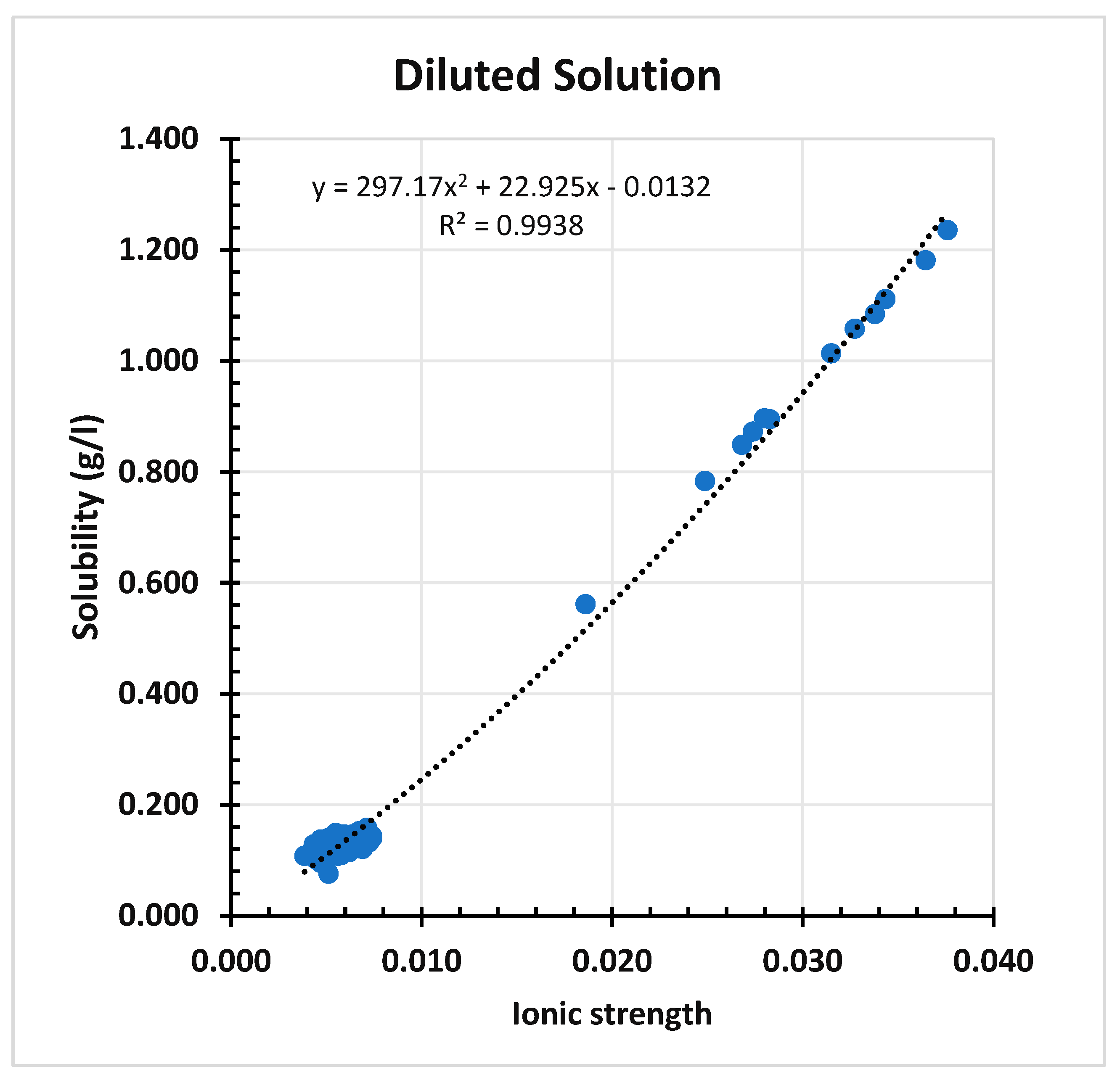

The solubility limits of CaSO₄·2H₂O at ambient temperature for diluted solutions with different ionic strengths are shown in Figure 3. It was found that the ionic strength ranged from 0.004 to 0.037 mol/L, while the measured solubility ranged from 0.2 to 1.2 g/L.

Figure 2 traces the results of the solubility limit measured in the brine solution of BSDRP and BSSDP, while in Figure 3, the results of the concentrated brine solution, which was prepared from concentrated BSSDP at 50%, 60%, and 70% concentrations, are demonstrated.

The solubility of CaSO₄·2H₂O in brine solution with an ionic strength greater than 1.10 shows a distinct behavior, which is totally different from that in a diluted solution, as shown in Figure 3. As the ionic strength increased beyond 1.1 mol/L, a distinct pattern emerged. Figure 4 shows the solubility measured for two brine solutions collected from two RO desalination plants in Kuwait, BSSDP and BSDRP. Both represent a brine solution; the only difference is the ionic strength, which, as is evident from Figure 2, is the dominating factor. Although the chemical composition is similar, the concentrations in the BSSDP are higher. Since the ionic strength of BSSDP ranged from 1.35 to 1.43, with an average of 1.38, while BSDRP ranged from 1.13 to 1.22, with an average value of 1.2.

The measured solubility limits of CaSO₄·2H₂O (mol/kg) in different concentration brine solutions were found to range between 2.34 g/L at an ionic strength of 1.2 and decrease to 2.19 g/L at an ionic strength of 1.38. The aforementioned solubility refers to the standard brine solution used in RO desalination plants in Kuwait. Hence, the previous ionic strength values were observed to further decrease to 1.12 at 50% concentration, then to 0.8 and 0.51 for 60% and 70% concentrations, respectively (Figure 5), due to the increase in the solubility limit as the concentration % increased. It is clear that as the ionic strength of the tested solution increases, the solubility limit decreases, or as the content of dissolved brine increases, it reversibly affects the solubility limit of CaSO₄·2H₂O, making the minerals more suitable for extractions as the concentration increases. That pattern of solubility may be primarily due to the effect of the double layer around the ions, which reduces the ion activity coefficient (a) and ion pairing and increases the common ion effect [18].

Comparing the experimental solubility obtained in the current study with that from the literature (

Table 4. The Solubility Limit of CaSO₄ at ambient conditions using brine solution.

Solution	I	pH	Temp	Solubility (g/L)	Literature	Reference	Deviation%
BSDRP	1.20	7.94	20.0	2.34	2.20–2.35	[28,31]	−0.43
BSSDP	1.38	7.86	20.0	2.19	2.19–2.3	[32,33]	−0.46
50%	1.42	7.94	20.0	1.12	1.1–1.25	[34]	2.16
60%	1.68	7.94	20.0	0.80	0.75–0.85	[31,35]	6.58
70%	2.00	7.92	20.0	0.51	0.45–0.55	[36]	−7.48

) shows excellent agreement, with a slight deviation of approximately 1%. The deviation of the measured value from the values in the literature does not exceed 7%. At high ionic strength, the deviation is even lower, using a 70% concentration. However, the deviation % was found to be less than 6.5% at 60% concentration. Moreover, at a standard brine solution, the deviation was less than 0.4%. Therefore, the deviation % of the result obtained from the current investigation is acceptable and within a reasonable range.

4.2. Solubility Limits of Mg(OH)₂

The solubility limit of Mg(OH)₂ was measured in brine solution rejected from the Shuwaikh desalination plant at ambient temperature and in different concentrated solutions: 50%, 60%, and 70%.

The experimental results of the measurements for Mg(OH)₂ under different ionic strength values are summarized in

Table 5. The solubility of Mg(OH)₂ under different ionic strengths at ambient temperature.

Solution	I	PH	OH	Solubility	Solubility	Solubility	OH	Temperature
				app.	app.	act.	act.
			mol/L	mg/L	mol/L	mol/L	mol/L	°C
BSDRP	1.20	10.65	4.50 × 10−4	12.00	2.06 × 10−4	1.15 × 10−4	3.54 × 10−4	20
BSSDP	1.38	10.53	3.40 × 10−4	9.92	1.70 × 10−4	9.49 × 10−5	2.92 × 10−4	20
50%	1.42	10.51	3.20 × 10−4	9.33	1.60 × 10−4	8.93 × 10−5	2.75 × 10−4	20
60%	1.68	10.41	2.60 × 10−4	7.58	1.30 × 10−4	7.25 × 10−5	2.24 × 10−4	20
70%	2.00	10.34	2.20 × 10−4	6.41	1.10 × 10−4	6.14 × 10−5	1.89 × 10−4	20

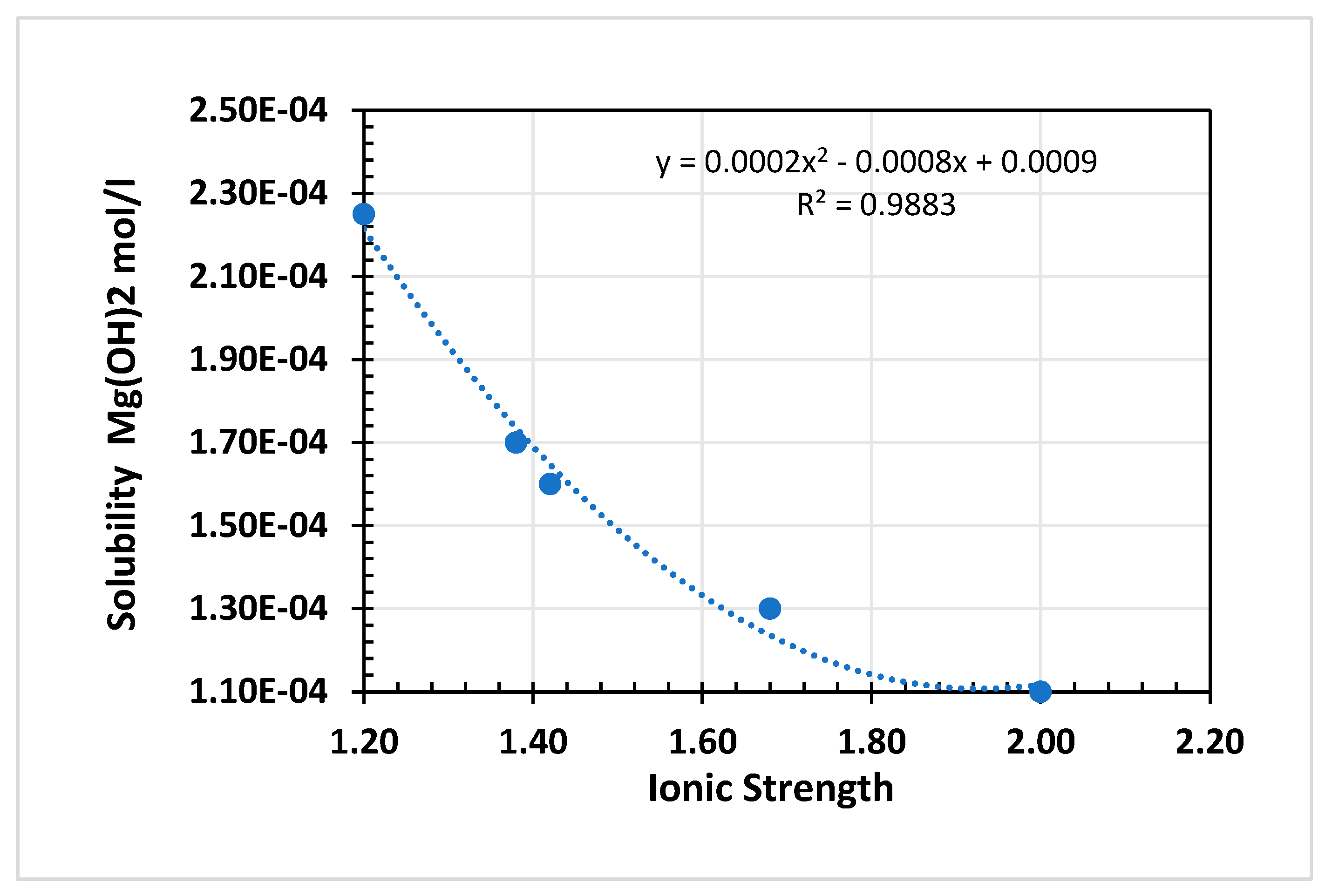

and plotted graphically in Figure 6.

The solubility in Kuwait brine water is sensitive to the ionic strength of the tested solution, and generally, as the ionic strength increases, the measured solubility decreases.

Table 6. The deviation in solubility of Mg(OH)₂ compared to the literature.

Ionic Strength (I)	Ksp (mol3/L3)	Ksp Literature (mol3/L3)	Deviation Ksp (%)	Reference
1.20	1.44 × 10−11	1.5 × 10−11	−4.03	[37]
1.38	8.11 × 10−12	9.0 × 10−12	−9.64	[38]
1.42	6.76 × 10−12	7.5 × 10−12	−9.79	[29]
1.68	3.63 × 10−12	4.0 × 10−12	−9.29	[39]
2.00	2.20 × 10−12	2.3 × 10−12	−4.60	[40]

shows the deviation of the measured solubility limit from that reported in the literature, along with the reference.

5. Discussion

The solubility limit measurements of CaSO₄ and Mg(OH)₂ were prioritized among other assigned minerals because these minerals are common problematic scaling agents in desalination plants and in industrial water systems. These two minerals, when precipitated in any desalinated system, can severely reduce heat transfer efficiency, clog the membrane, and increase maintenance costs in desalination and industrial water systems. They also form multiple polymorphs in brine water and transfer between these polymorphs when the temperature and ionic strength change. Therefore, for reliable and reproducible measurement of their solubility limits, it requires accurate analytical analysis, high-purity reagents, and precise control of testing conditions.

5.1. Calcium Sulfate: Salting-In to Salting-Out Transition

The non-linear relationship between solubility and ionic strength is consistent with the known thermodynamic principles but provides critical validation for the specific Gulf brine solutions.

The obtained tendency in results for CaSO₄ was expected since ionic strength usually determines the concentration of the solution and expresses the high concentration of dissolved ions in the brine solution, indicating the activity of dissolved ions and how much they are expected to deviate from an ideal or dilute solution. It is also noted from Table 4 that the pH was affected by the concentration process due to the precipitation of a small amount of aragonite, although the evaporation or concentration process lasted two or three days at very low temperatures. Therefore, after each concentration, the pH must be adjusted to 7.9, as in the raw situation before the addition of excess salt, to ensure a constant pH condition and restore the original alkalinity level in the raw solution.

The results traced in Figure 3 show a high regression ratio of up to 99% and an increasing trend with increasing solubility. The solubility in the literature was reported to be 2.1 in pure water [41,42], so the result obtained aligns well with the literature result for potable water and water produced from an RO plant.

The tendency of results shown in Figure 4 implies the high effect of ionic strength on the solubility of gypsum at ambient conditions. BSSDP exhibits a lower solubility limit measurement than BSDRP, despite having a higher ionic strength, in contrast to the solubility trend observed in diluted water, as shown in Figure 3.

That pattern of solubility was demonstrated by several studies, which reported that the addition of calcium chloride or calcium nitrate increases the concentration of the common calcium ion, thereby shifting the dissociation reaction toward the solid and decreasing gypsum solubility [43]. Another study demonstrated that the addition of NaCl increases gypsum solubility up to 3 M, after which the solubility begins to decrease [44]. Reiss also reported a similar trend in 2012, when the solubility of gypsum in brine solution, resulting from mixing Dead Sea brine water and standard seawater, was found to increase until 55% mixing, then decrease as the mixing ratio increased above 55% [45].

Therefore, the initial increase in the solubility of gypsum at low ionic strength or in diluted solutions is attributed to the salting-in effect, where the presence of other ions in the tested solution, even at low concentrations, surrounds the Ca and SO₄ ions, reducing their tendency to combine and precipitate as gypsum. As a result, the solubility of CaSO₄ increases to a certain point, where this phenomenon has no more effect or demolishes, and the high ionic strength reduces the activity coefficient and consequently the activity of these two ions (Ca and SO₄); the solubility begins to decrease dramatically as the ionic strength increases to above 1.2 M [46]. This means that the decrease in solubility as ionic strength rises is mainly related to the thermodynamic effect of ionic strength on the activity coefficient, in addition to the common ion effect.

Table 4 shows a comparison between the experimental values of solubility and the corresponding values that may be found in the literature. A slightly higher value of the deviation may refer to the unique composition of Kuwait brine water, ion competition, and the complexity of the brine, which differs from an NaCl solution. Thus, the result is consistent with the established findings in the literature.

The increase in solubility at low ionic strength values (I < 0.1 M) matches perfectly the salting in effect widely reported in the literature [31]. The new trend is the salting-out effect observed at ionic strength values greater than unity, where the solubility decreases with the increase in I. This trend has been reported by Reiss et al. [45], where they observed a maximum in solubility at 55% in samples mixed from Dead Sea brine and seawater. In this study, the behavior was the same but with a shifted transition. This could be attributed to different dominant ions. The measured solubility values in this study were in good agreement with those cited in the work of Wang et al. [32].

5.2. Magnesium Hydroxide

The solubility of magnesium hydroxide showed a consistent and inverse relationship with ionic strength for all investigated samples.

From Figure 4, the solubility of Mg(OH)₂ in Kuwait brine water was proven to decrease as the ionic strength of the brine solution increases.

From Table 6, a moderate deviation was observed, with a magnitude ranging from 9.7 to 4.03% when compared to the K_sp obtained by other researchers using brine water with a similar ionic strength. Although the solution used in the literature differs completely from the investigated solution in this study, which may make the comparison nonequivalent, they are using brine water with a similar ionic strength since brine water can be composed of different ions and have varying concentrations.

The observed trend in results is well-known for hydroxides generally. In the work of Palmer et al. [29], Ksp for magnesium oxide was 1.5 × 10⁻¹¹ in dilute solutions, while in our study it was 2.2 × 10⁻¹¹.

6. Conclusions

In this work, the solubility limits of selected valuable minerals in Kuwait brine solution generated from desalination plants for extraction purposes under different operating conditions were experimentally investigated. The aim was to establish a reference knowledge base on the extraction of selected valuable minerals from brine water and to show the influence of ionic strength, as it may lead to optimizing the desalination process.

The experimental investigation was limited to two minerals viewed as the most important. The ionic strength of the brine solution was first determined for four types of brine solutions. The ionic strength is used to express the high concentration of dissolved ions in each brine solution and to indicate the activity of the dissolved ions, as well as how much they are expected to deviate from an ideal or dilute solution. It is a critical parameter for comparison between solubility limits in different brine solutions. Then, the solubility limits of the assigned minerals were determined at least three times with high precision.

In order to improve data reliability and ensure the integrity of the final results, many protocols were considered, such as reducing the matrix effect, using a standard calibration procedure, implementing a highly accurate reference material, reducing the background noise, applying a standard method for analysis, using a statistical indicator for accuracy, and lowering the Relative Standard Deviation (RSD).

The analysis of the results of CaSO₄·2H₂O proves a special behavior for that mineral in a diluted solution or low ionic strength. The solubility limit of gypsum increases as the ionic strength increases. However, a reversed solubility pattern was observed when using a brine solution with high ionic strength, similar to brine water. In addition, it was proven that the solubility limit of gypsum in a high ionic strength solution decreases as the content of dissolved solids increases. That makes the minerals suitable for extraction in the concentrated brine solution. The observed behavior of gypsum solubility is consistent with the data published in the literature, where a similar pattern of solubility is reported.

In the case of Mg(OH)₂, special attention was paid due to its very low solubility limits. The solubility of Mg(OH)₂ in Kuwait brine water was shown to decrease as the ionic strength of the brine solution increases. The obtained solubility limit of Mg(OH)₂ was compared to that in the literature, and a moderate deviation was observed for brine water with a similar ionic strength.

This work provides the first comprehensive experimental dataset on the solubility of CaSO₄ and Mg(OH)₂ across a targeted range of ionic strengths in Kuwaiti desalination brine. It tries to capture the salting-out and complexation effects inherent to the region’s unique brine matrix. The findings provide evaluable knowledge for process engineers designing brine extraction facilities in Kuwait. By correctly defining the relationship between solubility changes and ionic strength (brine concentration), this paper contributes to enhancing process yield and controlling membrane scaling. Furthermore, it helps the scientific community transform the desalination process from a water supply process into a sustainable resource recovery system.

The shift from salting-in to a salting-out effect suggests the presence of non-ideal solution thermodynamics. This means that the ionic strength contribution must be mutually analyzed with the specific ion interactions. It is suggested to implement the results obtained by PHREEQC software that is based on the Pitzer model.

Engineering mineral recovery from brines obtained at Kuwaiti sites may lead to major points:

• It is critical to consider the sequential mineral extraction. Calcium sulfate should be targeted at an intermediate concentration stage since its solubility passes through a maximum, thus concentrating the brine too much, making it less soluble, and potentially co-precipitating with other salts. On the other hand, magnesium hydroxide could be recovered at higher concentrations since it has high solubility, and this maximizes the yield.
• The comparison with other studies confirms that the solubility predictions are a function of the region where the investigation has been conducted.
