New Evidence of the Effect of Post-Combustion During Roasting/Reduction of Nickel-Bearing Lateritic Ores

Abstract

The roasting/reduction process is one of the fundamental stages of Caron technology, ensuring the adequate transformation of lateritic ore, with post-combustion air feed being one of the main variables considered. In this study, new evidence is presented that justifies the negative effect that post-combustion air has on Ni extractions in H-6 of the furnace. With this objective, three air feed levels were evaluated, measuring the hearth temperature from 495 °C without post-combustion to 780 °C for the maximum post-combustion level analyzed. The evaluation was carried out in a conventional multi-hearth furnace at pilot scale using atomic absorption spectrometry, XRD, SEM, and particle size analysis as the main analytical techniques for the characterization of lateritic ore before and after the reduction process. Increasing the temperature of H-6 resulted in a significant decrease in Ni extractions by 1.68% for every 57 °C increase in hearth temperature, which was due to the resulting decrease in the reaction rate constant and the significant increase in the average particle size of the reduced ore. This research emphasizes the importance of controlling post-combustion air inflow as a technological alternative to optimize Ni extraction and reduce delays in the control of diffusive processes.

1. Introduction

Nickel (Ni) is a critical and strategic transition metal with high demand in the international market due to its essential use in the production of special and stainless alloys and its excellent electrical conductivity and chemical stability [1,2]. Recently, as a consequence of the gradual depletion of high-Ni-sulfide ores, its extraction from lateritic ore processing has received significant attention [3,4,5,6].

Currently, one of the main technologies that exist for the extraction of Ni from lateritic ores is the Caron process, with more than 100 years of experience from the time it was patented [7,8]. It is a technology that selectively extracts Ni by combining pyro-hydrometallurgical processes, obtaining the maximum levels of efficiency when feeding lateritic ores, with a predominance of the mineralogical phases of iron oxides and oxyhydroxides (Fe) with mass percentages of Ni and Fe greater than 0.9% and 25%, respectively [9,10].

In general, the Caron process is carried out using the fundamental operations of drying, grinding, roasting/reduction, and leaching [11,12]—the roasting/reduction stage being one of the most important [13,14,15]. The roasting/reduction stage is key to ensuring an adequate transformation of the lateritic ore fed to the process, guaranteeing the maximum possible conversion of NiO into metallic nickel (Nio) when reacting with CO, which is formed from the fuels used [16,17,18]. Different investigations recognize that the characteristics of the lateritic ore [19,20,21], the operations of the multiple-hearth furnace [10,12,14,15,22,23,24], and the use of reducing additives [9,13,25,26,27,28] constitute the most important variables to control during the roasting/selective reduction process.

When considering the variables that influence the operations of multiple-hearth furnaces at commercial scales, one of the most controversial in the scientific community is the feeding of post-combustion air [10]. Post-combustion is the process that occurs as a consequence of the injection of secondary air into hearths four and six to burn excess reducing gases, achieve energy recovery, and preserve the integrity of the furnace [29]. The use of post-combustion in multiple-hearth furnaces generates considerable changes in the concentration of the reducing atmosphere in the upper hearths; its control is a very important operation [30,31]. More recently, some research [10,23] considers the negative effect of post-combustion on nickel extraction when lateritic ores with a predominance of Fe oxide and oxy-hydroxide phases are fed to the furnace; however, to date, no evidence has been presented to justify this behavior.

Thus, the objective of this study is to justify the negative effect of the use of post-combustion during the roasting/reduction stage of the Caron process. For this aim, this study includes a kinetic analysis of the pilot-scale roasting/reduction process with various levels of post-combustion air feed, as well as an X-ray diffraction analysis of the lateritic ore fed to the furnace, scanning electron microscopy, and particle size analysis of the reduced ore. Finally, the results obtained demonstrate that the negative effect of post-combustion is due to the changes it generates in the reaction rate constant of the roasting/reduction process, as well as its influence on the size and shape of the reduced ore particles.

2. Materials and Methods

2.1. Chemical-Physical Characteristics of the Lateritic Ore

In this study, a mixture of nickel-bearing lateritic ores, predominantly Fe oxides and oxyhydroxides, from Moa deposits in Cuba, was used. The chemical and physical characteristics of the mineral and its main mineralogical phases are presented in

Table 1. Characteristics of the lateritic ore fed to the reduction process.

Content, wt %									Particle Size, μm
									150	75	45	<45
Ni	Co	Fe	MgO	SiO2	Al2O3	H2O	S	C	Contribution, %
1.167	0.099	39.323	2.828	7.788	8.080	3.660	0.251	2.088	3.425	9.783	7.392	79.400

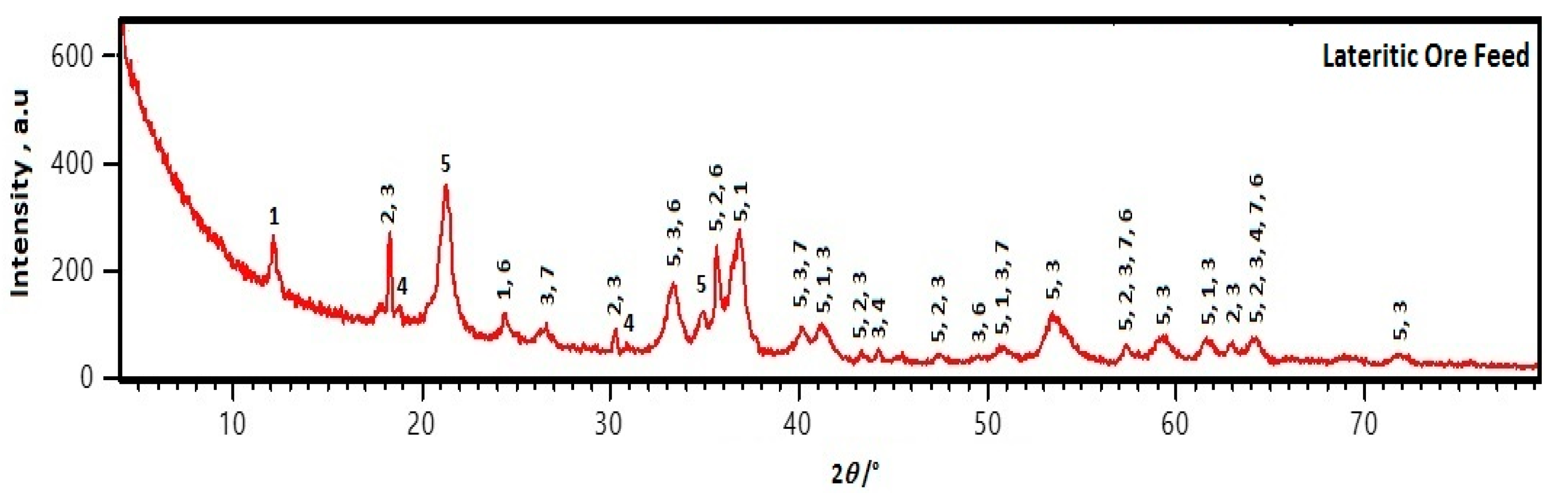

and Figure 1, respectively.

2.2. Characteristics of the Experimental Facility

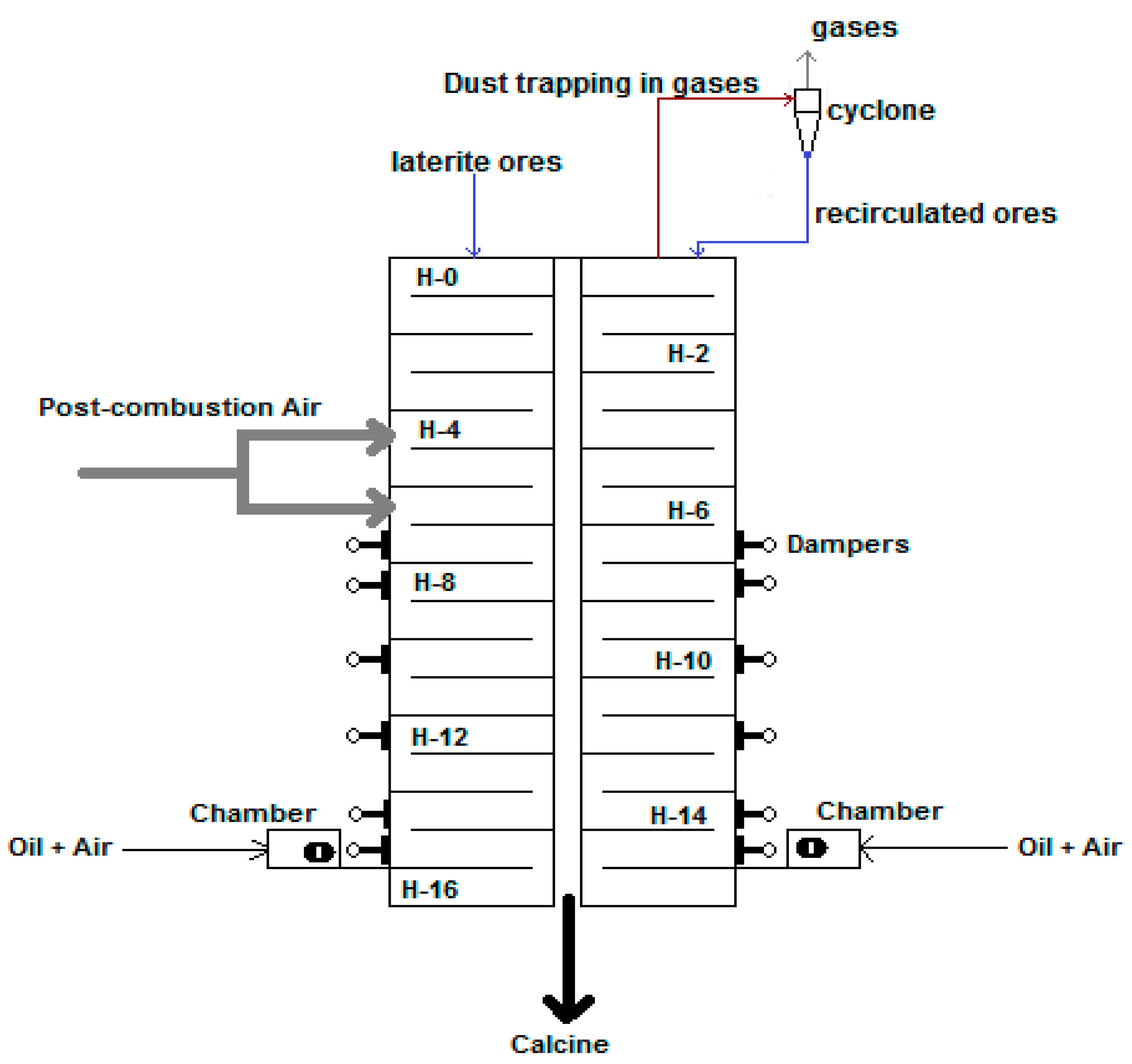

The experiments were carried out in the conventional multiple hearth furnace (see Figure 2) in the pilot plant of the CEDINIQ. The reducing atmosphere was generated from the combustion of fuel oil in the combustion chambers, enriched with the use of the mixture of bituminous coal at 2.0 wt. % and fuel oil at 1.25 wt. % (BC2-FO1.25) as a reducing additive, with characteristics similar to those reported by Angulo et al. [9,32].

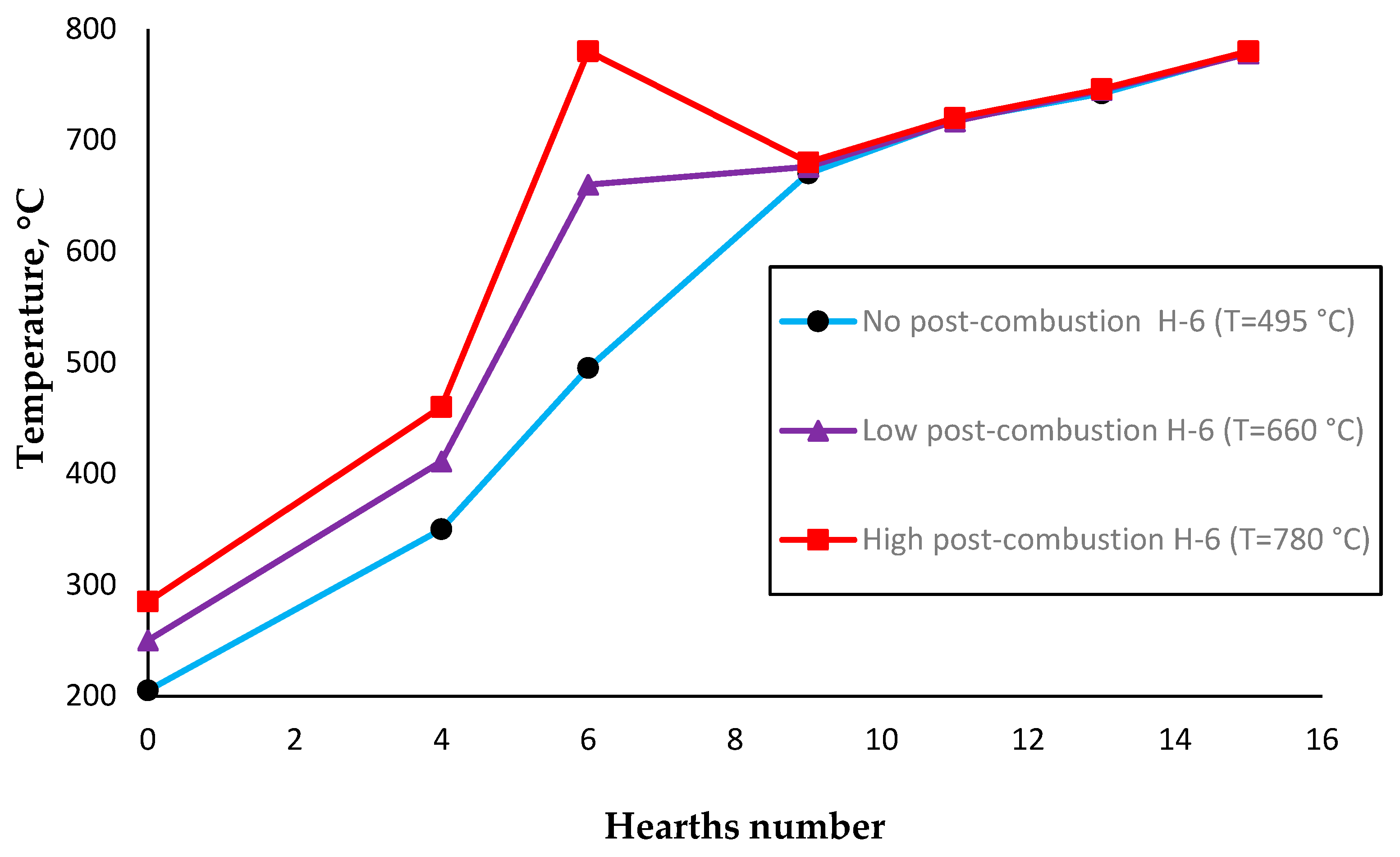

In this study, three levels of post-combustion air feed were evaluated in furnace six (H-6) for five days of operation each; their control was ensured by measuring the average temperature of H-6 at 495 °C with no post-combustion, 660 °C with low post-combustion, and 780 °C with high post-combustion. Figure 3 shows the temperature profile used in each furnace zone for each of the experiments ± 5 °C. Additionally, Ni extraction contents were determined using Equation (1), with an uncertainty of ±1.5%, to identify whether significant changes occurred during the evaluation of the different temperature levels in H-6.

$${\mathrm{C}}_{\mathrm{E}\mathrm{x}\mathrm{t}\text{-}\mathrm{N}\mathrm{i}}=\left[1-{\displaystyle \frac{{\mathrm{C}}_{\mathrm{N}\mathrm{i}\text{-}\mathrm{l}\mathrm{e}\mathrm{a}\mathrm{c}\mathrm{h}\mathrm{e}\mathrm{d}\mathrm{o}\mathrm{r}\mathrm{e}}{\mathrm{C}}_{\mathrm{F}\mathrm{e}\text{-}\mathrm{f}\mathrm{e}\mathrm{d}}}{{\mathrm{C}}_{\mathrm{N}\mathrm{i}\text{-}\mathrm{f}\mathrm{e}\mathrm{d}}{\mathrm{C}}_{\mathrm{F}\mathrm{e}\text{-}\mathrm{l}\mathrm{e}\mathrm{a}\mathrm{c}\mathrm{h}\mathrm{e}\mathrm{d}\mathrm{o}\mathrm{r}\mathrm{e}}}}\right]100$$

(1)

where

C_Ext-_Ni is the Ni extraction contents, %;

C_Ni-_{leached ore} is the content of the Ni in the ore after leaching, %;

C_Ni-_fed is the content of Ni in the ore fed to the reduction furnace, %;

C_Fe-_fed is the content of iron in the ore fed to the reduction furnace, %;

C_Fe-_{leached ore} is the content of iron in the ore after leaching, %.

2.3. Analytical Techniques

The chemical analyses of the samples were performed using atomic absorption spectrometry (AAS, model SOLAR 929, Solar System ATI, Unicam Analytical Technology Inc., Cambridge, UK), whilst the crystalline structure and composition of the fed lateritic ore were analyzed by powder X-ray diffraction (XRD) using a PANalytical X’PERT3 diffractometer (Malvern Panalytical, Doncaster, UK) with Gonio type sweep in [°2θ] angular registration from 4.0042 to 79.9962 with step distance in °2θ of 0.0080 with Cu radiation and a nickel filter, potential difference of 40 kV, current of 30 mA, and a calibration checked by an external silicon standard scan.

Additionally, the morphology of the reduced lateritic ore was examined by Scanning Electron Microscopy using an X-ray Analyzer (Malvern Panalytical, Doncaster, UK). Images and spectra were obtained using a Tescan model 5130 SB microscope and an Oxford Instruments model Inca Energy 350 X-ray analyzer (Brno, Czech Republic). Particle size distribution analyses of the fed and reduced lateritic ore were determined using a Horiba LA 250V2 Particle Analyzer (Horiba Jobin Yvon Sas, Saint Albans, UK).

2.4. Methodology for Determining Kinetic Behavior

For each operating condition under analysis, the kinetic behavior was determined by following these steps:

(a)

Verification of compliance and stability with the furnace operating conditions.

(b)

Preparation of 9 samplers, previously coded with the number of each even-numbered furnace chamber, containing 200 mL of ammonia-carbonate liquor with an NH₃ concentration of 80–85 g/L.

(c)

Determination of the mass of each sampler with the 200 mL of previously added liquor.

(d)

Addition of an argon flow to each sampler to prevent the reoxidation process of the previously reduced samples taken from the even-numbered hearths.

(e)

Collection of reduced ore samples from the even-numbered furnace hearts, from H-0 to H-16, with a 10 min interval between each sampler.

(f)

Determination of the mass of reduced ore using the weight difference method.

(g)

Leaching of the reduced mineral taken from each furnace hearth for 2 h with the ammonia-carbonate liquor with an NH₃ concentration of 80–85 g/L (liquid/solid ratio of 10:1) in stirred-tank reactors.

(h)

Filtering and vacuum-washing the suspensions (formulated in g) with 200 mL of ammonia-carbonate solutions at (7 and 3%) and distilled water, respectively.

(i)

Drying the filtered solid in the oven at 150 °C for 2 h.

(j)

Cooling the dry solid to room temperature and grinding it until everything had a particle size of less than 0.150 mm.

(k)

Homogenization of the ground solid and characterize the elements of interest in a certified analytical laboratory.

(l)

Plotting the amount of residual Ni (%) of each of the leached solid samples as a function of time (min).

2.5. Methodology to Identify the Mechanism That Describes the Roasting/Reduction Process

In this investigation, the procedure proposed by Angulo et al. [32] was used to identify the mechanism describing the roasting/reduction process. The evaluated models are shown in

Table 2. Mechanisms analyzed [${\mathrm{x}}_{\mathrm{N}\mathrm{i}}$ is the conversion ratio of Ni (degree of reduction) and $\mathrm{t}$ is the time, while ${\mathrm{k}}_{\mathrm{D}\mathrm{G}\mathrm{F}}$, ${\mathrm{k}}_{\mathrm{D}\mathrm{A}\mathrm{L}}$, ${\mathrm{k}}_{\mathrm{C}\mathrm{h}\mathrm{R}}$, ${\mathrm{k}}_{\mathrm{GN}\text{-}2}$, ${\mathrm{k}}_{\mathrm{GN}\text{-}3}$, and ${\mathrm{k}}_{\mathrm{GN}\text{-}5}$ are the rate constants for each proposed mechanism].

Model Type	Mechanism	Equation
Unreacted core	Diffusion through the gas film (DGF)	${\mathrm{x}}_{\mathrm{Ni}}={\mathrm{k}}_{\mathrm{DGF}}\mathrm{t}$
	Diffusion through the ash layer (DAL)	$1-3(1-{\mathrm{x}}_{\mathrm{Ni}}{)}^{{\displaystyle \frac{2}{3}}}+2(1-{\mathrm{x}}_{\mathrm{Ni}})={\mathrm{k}}_{\mathrm{DAL}}\mathrm{t}$
	Chemical reaction (ChR)	$1-(1-{\mathrm{x}}_{\mathrm{Ni}}{)}^{1/3}={\mathrm{k}}_{\mathrm{ChR}}\mathrm{t}$
Nucleation	2-D growth of nuclei (GN-2)	${\left[-\ln (1-{\mathrm{x}}_{\mathrm{Ni}})\right]}^{1/2}={\mathrm{k}}_{\mathrm{GN}\text{-}2}\mathrm{t}$
	3-D growth of nuclei (GN-3)	${\left[-\ln (1-{\mathrm{x}}_{\mathrm{Ni}})\right]}^{1/3}={\mathrm{k}}_{\mathrm{GN}\text{-}3}\mathrm{t}$
	5-D growth of nuclei (GN-5)	${\left[-\ln (1-{\mathrm{x}}_{\mathrm{Ni}})\right]}^{1/5}={\mathrm{k}}_{\mathrm{GN}\text{-}5}\mathrm{t}$

.

3. Results and Discussions

3.1. Chemical-Physical Characteristics of the Reduced Mineral

The main chemical and physical characteristics of the reduced ore are presented in

Table 3. Chemical-physical characteristics of the reduced mineral [^a average, ^b standard deviation, ^c apparent density, ^d magnetic fraction].

Statistics	Content, wt %									ρ c, kg/m3	MF d, %
	Ni	Co	Fe	Ni0	Fe0	Fe2+	FeO	S	C
A a	1.34	0.112	46.53	1.07	2.78	25.06	19.90	0.60	1.37	4.560	59.63
σ b	0.04	0.00	0.27	0.58	0.06	0.23	0.24	0.06	0.05	9.42	1.86

. The results indicate that the selective reduction roasting process is adequate, since the transformation of NiO into metallic nickel (Ni⁰) is enhanced, as the formation of metallic iron (Fe⁰) is controlled with values below 3%. The high contents of Fe (46.53%) and magnetic fraction (59.63%) indicate that the reduced ore is dominated by magnetite as the main mineralogical phase—a result that can be corroborated in Figure 4 and Figure 5.

The XRD results (Figure 4) and the distribution of elements in the reduced mineral (Figure 5) also allow us to identify the presence of the mineralogical phases Maghemite, Fayalite, and Ferroan Magnesiochromite; it was confirmed that the temperatures exceeding 700 °C in the lower hearths likely explain the persistence of unreduced Ni phases.

The identification of the Ni phases was not possible because its concentration is below the detection limit; see Figure 4. In general, the results described in this study coincide with reports made in different investigations [9,32,33,34,35,36,37,38].

Furthermore, it is important to highlight that the analysis of the chemical-physical characteristics shown in Table 3 and Figure 2 and Figure 4 confirm that the Fe-phase transformation involves the following steps: Goethite (FeOOH) → Hematite (Fe₂O₃)→ Magnetite (Fe₃O₄) → Metal oxide (FeO) → Metallic iron (Fe), similar to those described in different studies [9,25,27,39].

3.2. Effect of Post-Combustion Air on the Reaction Rate Constant of the Roasting/Reduction Process

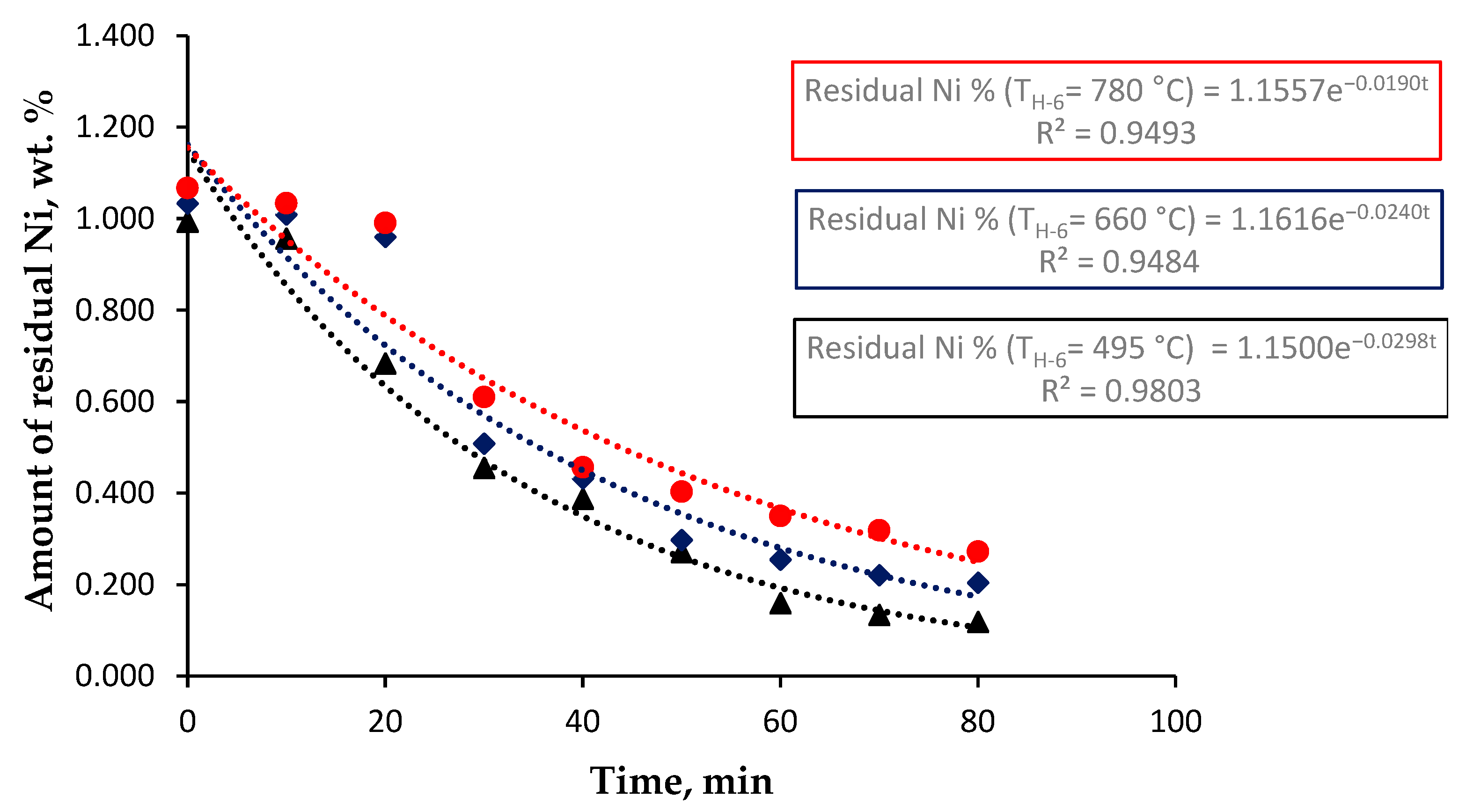

Figure 6 and Appendix A present the kinetic behavior of residual Ni % during the reduction process at different temperatures of the H-6 under study. The kinetics (k) of residual Ni% were characterized by a first-order reaction distribution with coefficients of determination greater than 0.9484, similar to that reported by Castellanos [40] during the evaluation of pyrite as a reducing additive. It is important to note that the significant changes shown by k as the post-combustion air-supply conditions varied are striking, as it regularly showed a behavior inversely proportional to the increase in temperature in H-6. This behavior can be justified by the dilution of the reducing gases generated by the air supply to the furnace in the heating zone. Furthermore, is observed that when the post-combustion air flow in H-6 decreases (see Figure 6 for the transformations starting at 20 min), the amount of residual Ni decreases considerably; this behavior can be explained by the early execution of the dehydroxylation processes of gohetite and lizardite, as suggested by various studies [28,41,42]. Regarding the shape of the curves, it suggests that the mechanism that best describes the roasting/reduction process is a combination of the diffusion model through the ash layer (DAL) and the growth of the nucleus (GN), being the controlling stage of the DAL, similar to that reported by Angulo et al. [32], regardless of the operating condition under analysis (see Appendix B).

Figure 7 models the relationship between k and the increase in temperature of H-6 of the furnace. The model that best describes the relationship is a decreasing second-order polynomial with a coefficient of determination and residual error of 1.00 and 0.00, respectively, indicating that the increase in hearth temperature exerts a negative influence on the roasting/reduction process by decreasing k by 7.0938% for every 57 °C increase in the hearth temperature, with a confidence level of 95%.

3.3. Effect of Post-Combustion Air on the Granulometric Behavior of the Reduced Ore

The effect of H-6 post-combustion air feed on the granulometry of the reduced mineral is shown in Figure 8 and Figure 9. Regardless of the operating conditions used in the reactor, it is observed that the lateritic ore after the roasting/reduction process experiences a growth in the average diameter of its particles, where the main changes are shown in the particle sizes greater and less than 67 and 10 μm, respectively, with an increase in the maximum particle size of the reduced mineral (262,376 μm) of 23.77% compared to that of the lateritic ore (200 μm); see Figure 8.

The feeding of post-combustion air under the maximum operating conditions under study caused the average particle diameter to increase by 5.52 μm (17.49%) with a considerable degree of irregularity, while, in the case of the reduction process without post-combustion, the sizes are characterized by being more regular, with a small increase of 1.87 μm (6.68%); see Figure 8 and Figure 9.

These results explain the mechanism behind the slowdown in the roasting/reduction process of lateritic ores during the introduction of post-combustion air into H-6, since, by causing a considerable increase in the sizes of the grains, the diffusive process of penetration and evacuation of the gases within the particle requires a longer residence time to guarantee a conversion similar to that achieved without the introduction of post-combustion air (see Appendix B).

3.4. Effect of Post-Combustion Air on Nickel Extraction

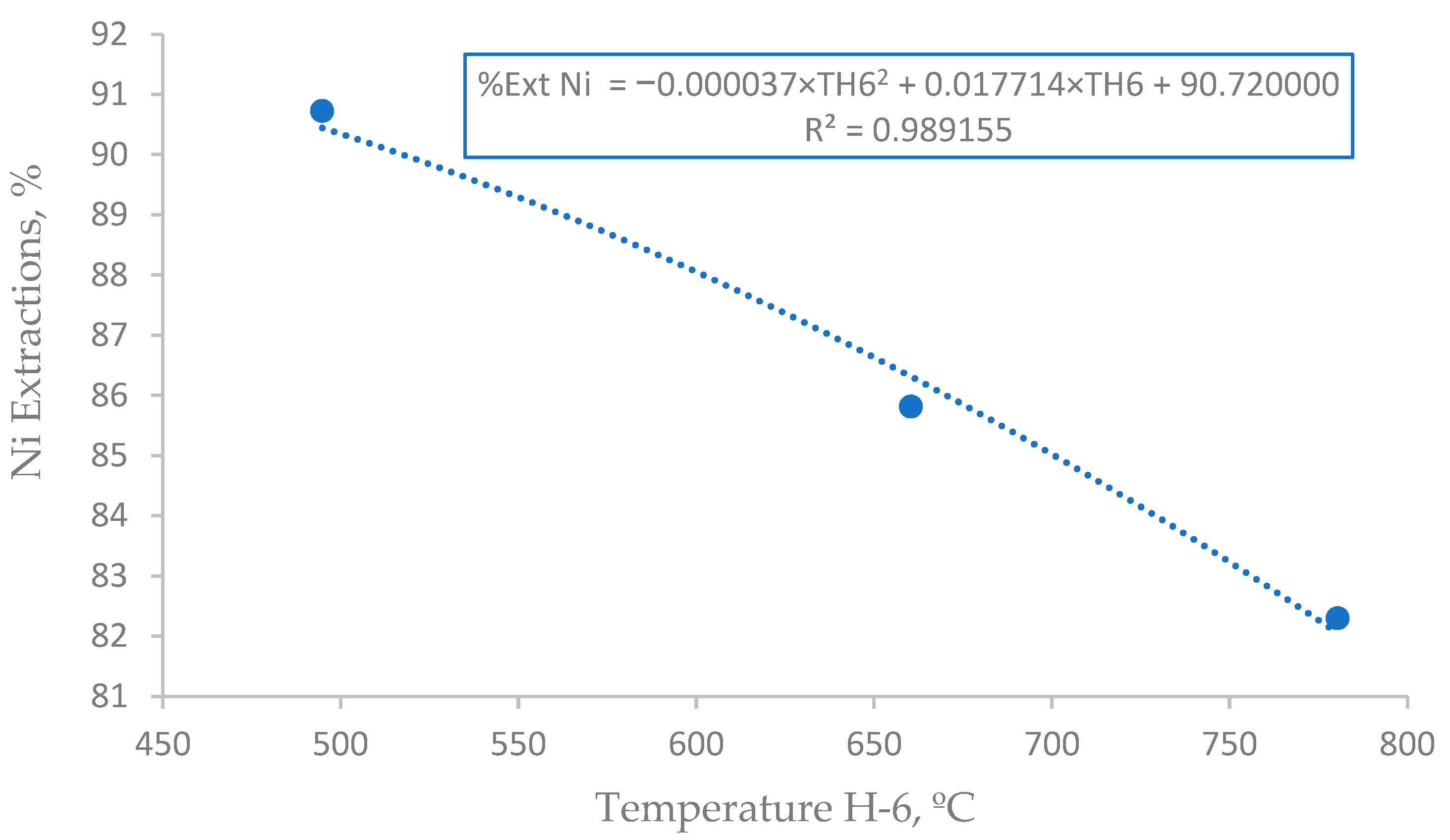

Figure 10 shows the behavior of the average Ni extractions as a function of H-6 temperature. It was observed that the extractions range from 82 to 91%, where the shape of the curve confirms the negative effect generated by the supply of post-combustion air on the extractions of the process, causing a decrease of 1.68% for every 57 °C increase in the hearth in a temperature range of 495–780 °C. Furthermore, the best-fitting mathematical model is a decreasing quadratic polynomial, with a coefficient of determination greater than 98% and an absolute error of 0.33%. It is important to note that these results coincide with those obtained at pilot scale when analyzing the effect of post-combustion in H-6 with the use of the reducing additive FO2.5 [10].

4. Conclusions

An evaluation of the effect of post-combustion air feeding was carried out in a conventional pilot-scale multi-hearth furnace by varying the temperature of H-6 from 495 °C (without post-combustion air) to 780 °C (the maximum post-combustion level evaluated). A comprehensive analysis of the results indicates that this variable causes a considerable decrease in Ni extraction in the roasting/reduction process. Specifically, when lateritic ores with a predominance of Fe oxides and oxyhydroxides are fed to the furnace, the following is shown:

▪

A decrease in the reaction rate of the roasting/reduction process (k decreases 7.0938% for every 57 °C of temperature increase in H-6).

▪

A considerable increase in the average particle size, making the diffusive processes controlling the process difficult.

These results suggest that, in the future, industrial plants will need to implement dust recovery systems that allow for the elimination of post-combustion air. In this sense, one technological option is to replace electrofilters with bag filters that contain elements capable of withstanding temperatures above 500 °C. On the other hand, if this variable is to continue to be used, it is recommended that H-6 temperatures operate within the range of 680–700 °C as an alternative to minimize the losses of the Ni extractions. Therefore, control of the post-combustion air feed is a high priority to ensure maximum Ni extraction levels in the Caron process.
