Article

Recovery of β-Carotene from Microalga Dunaliella sp. by HPCCC

by
Daniela Bárcenas-Pérez
1,2,
Diana Gomes
3,
Celina Parreira
3,
Luís Costa
3 and
José Cheel
1,*
1
Laboratory of Algal Biotechnology—Centre ALGATECH, Institute of Microbiology of the Czech Academy of Sciences, Opatovický Mlýn, 379 81 Třeboň, Czech Republic
2
Faculty of Science, University of South Bohemia, Branišovská 1760, 370 05 České Budějovice, Czech Republic
3
A4F—Algae for Future, Campus do Lumiar, Estrada do Paço do Lumiar, Edif. E, R/C, 1649-038 Lisboa, Portugal
*
Author to whom correspondence should be addressed.
Processes 2025, 13(6), 1812; https://doi.org/10.3390/pr13061812
Submission received: 30 April 2025 / Revised: 30 May 2025 / Accepted: 4 June 2025 / Published: 7 June 2025

Abstract

:
β-carotene, a high-value carotenoid widely used in the food, pharmaceutical, and cosmetics industries, is naturally synthesized by the microalga Dunaliella sp. However, the efficient extraction and purification of β-carotene from microalgae biomass remain a technical challenge. This study presents the development of a scalable and efficient isolation method employing high-performance countercurrent chromatography (HPCCC) to recover β-carotene from Dunaliella sp. The separation process was optimized by integrating two elution strategies (reverse phase and extrusion) using a biphasic solvent system of n-heptane and methanol (1:1, v/v). The upper phase served as the stationary phase, while the lower phase was used as the mobile phase. Two consecutive injections of 800 mg of microalgal extract each resulted in the isolation of 225.4 mg of β-carotene with a purity of 97% and a recovery of 98%. The developed HPCCC approach represents an efficient method for β-carotene purification and serves as a promising model for future scale-up in microalgae-based production platforms.

1. Introduction

β-carotene is a valuable, naturally occurring carotenoid, with significant commercial importance in the global market due to its diverse applications in the food, pharmaceutical, nutraceutical, and cosmetics industries [1]. Its potent antioxidant properties and role as a precursor to vitamin A make it an essential component in combating various health problems, such as reducing oxidative stress, supporting immune function, and preventing vitamin A deficiency [2]. With increasing consumer demand for natural and sustainably produced compounds, there is growing interest in bio-based production methods that reduce reliance on synthetic chemicals and environmentally harmful processes. Among the natural sources of β-carotene, the microalga Dunaliella has emerged as one of the most promising candidates for sustainable, large-scale production. Dunaliella is a halotolerant unicellular algae capable of producing significant amounts of β-carotene under stressful conditions such as high salinity, intense light, or nutrient deficiency [3]. Its ability to thrive in hypersaline environments not only minimizes the risk of contamination from competing microorganisms, but also makes it suitable for cultivation on non-arable land, reducing pressure on agricultural resources. While the cultivation of Dunaliella for β-carotene production has been extensively researched, downstream processing, particularly the extraction and purification of β-carotene, remains a bottleneck for cost-effective and scalable production.
β-carotene has been extracted from algal biomass using a variety of conventional techniques. These include pressurized liquid extraction with organic solvents such as ethanol and 2-methyltetrahydrofuran [4]; sequential extraction using methanol [5]; ultrasound-assisted extraction with a solvent mixture of hexane and ethanol [6]; extraction using tetrahydrofuran and acetone following cell disruption with glass beads [7]; ultrasound-assisted extraction combined with final purification via solid–liquid chromatography [8]; acetone extraction followed by high-performance thin-layer chromatography; and purification through flash chromatography [9]. In addition, β-carotene has been recovered using supercritical fluid extraction, including supercritical CO2 [10,11,12,13,14,15,16]. While these methods have proven to be effective on a laboratory scale, several challenges remain when considering industrial implementation. Others are associated with high operational costs, complex instrumentation, or limited selectivity for hydrophobic compounds such as β-carotene.
High-performance countercurrent chromatography (HPCCC) is a liquid/liquid chromatography technique that offers a scalable and highly efficient solution for the separation and purification of bioactive compounds, including β-carotene. In contrast to conventional chromatographic methods, HPCCC does not use a solid stationary phase. This not only reduces operating costs, but also minimizes sample degradation and loss, making this method particularly suitable for compounds such as β-carotene. In addition, HPCCC offers high selectivity and scalability, making it an ideal technique for both research and industrial scale applications. In liquid/liquid chromatography, the separation process relies on the differential partitioning of target compounds between two immiscible liquid phases. The retention of the liquid stationary phase through centrifugal force can be achieved via two principal mechanisms: hydrodynamic and hydrostatic. In hydrodynamic systems, such as countercurrent chromatography (CCC), two rotational axes, a central axis and a planetary axis, create a dynamic, variable centrifugal field. In contrast, hydrostatic systems, such as centrifugal partition chromatography (CPC), operate with a single axis of rotation, producing a stable and constant centrifugal force field [17,18]. CCC has been used to recover β-carotene from carrots [19]; and CPC has been applied to obtain β-carotene from Dunaliella salina [20]. The present study aims to develop a sequential separation process for the recovery of β-carotene from Dunaliella sp. using high-performance countercurrent chromatography (HPCCC) as a production model, enabling the efficient recovery of this high-value carotenoid from microalgal biomass.

2. Materials and Methods

2.1. Biomass Production

Dunaliella sp. biomass was produced during the winter season in unilayer horizontal tubular photobioreactor (closed system) by A4F—Algae for future (Lisbon, Portugal), using A4F hypersaline industrial medium with limiting nutrient conditions, in an outdoor environment, with a maximum setpoint temperature of 30 °C. The biomass was harvested and concentrated by solid/liquid separation and then spray-dried to obtain a carotenoid-rich powder.

2.2. Preparation of Extract of Dunaliella sp. Biomass

Microalgal biomass extract was prepared by extracting 30 g of Dunaliella sp. biomass with a 1:1 (v/v) mixture of n-heptane (HiPerSolv Chromanorm, VWR Inc., Gliwice, Poland) and acetone (HiPerSolv Chromanorm, VWR Inc., Fontenay-sous-Bois, France). The extraction was carried out using an ultrasonic bath (K6 Kraintek, s.r.o., Podhájska, Slovakia) operating at 38 kHz frequency and an intensity of 47.77 W/cm2, maintained at 25 °C, with a total solvent volume of 3.6 L. The suspension was cleared of insoluble material by filtration. This extraction step was repeated three times on the same biomass using an equal volume of solvent each time. The resulting extracts were then combined, and the solvent was removed by rotary evaporation under reduced pressure at 38 °C. The concentration of β-carotene in the obtained extract was quantified using high-performance liquid chromatography coupled with diode array detection (HPLC-DAD), as described in Section 2.4. The obtained dried extract (6.6 g) was used as feedstock for the HPCCC separation of β-carotene.

2.3. High-Performance Countercurrent Chromatography (HPCCC) Separation

2.3.1. HPCCC Equipment

β-carotene was purified from the Dunaliella sp. extract using a high-performance countercurrent chromatography (HPCCC) system (Spectrum model, Dynamic Extractions Ltd., Slough, UK) equipped with a 134 mL coil constructed from PTFE tubing with an internal diameter of 3.2 mm. The rotational speed of the column was regulated via an integrated speed controller within the HPCCC unit. Column temperature was maintained using a H50/H150 Smart Water Chiller (LabTech Srl, Sorisole Bergamo, Italy). A Q-Grad pump (LabAlliance, State College, PA, USA) was utilized to deliver the mobile phase through the system. The real-time monitoring of the separation was achieved using a sapphire UV-VIS spectrophotometer (ECOM spol. s.r.o., Prague, Czech Republic) set at 440 nm. Data acquisition and process tracking were managed using the EZChrom SI software suite version number 3.3.2 SP2 (Agilent Technologies, Pleasanton, CA, USA).

2.3.2. Selection of the Suitable Biphasic Solvent System for HPCCC

Several biphasic solvent systems were prepared by mixing varying ratios of absolute ethanol (AnalaR Normapur, VWR Inc., Fontenay-sous-Bois, France), methanol (HiPerSolv Chromanorm, VWR Inc., Fontenay-sous-Bois, France), n-heptane (HiPerSolv Chromanorm, VWR Inc., Gliwice, Poland), and deionized water. Various biphasic solvent systems were assessed for their suitability in HPCCC. An optimal system should exhibit a favorable partition coefficient (K) for the target compound [21], a significant density difference between the two liquid phases, and a short settling time [21]. To measure the partition coefficient, 2 mg of the extract was dissolved separately in 1 mL of each phase (upper and lower) of the biphasic system. The mixtures were vigorously shaken and then allowed to settle until full phase separation was achieved. Each phase was then carefully sampled and analyzed by HPLC-DAD to quantify the β-carotene concentration. The partition coefficient (K) was calculated as the ratio of β-carotene peak areas between the upper and lower phases [22]. Settling times were determined according to established protocols [23], and phase densities were measured by weighing 1 mL of each phase with a precision microbalance [22].

2.3.3. HPCCC Separation Process

β-carotene isolation from the Dunaliella sp. biomass extract was carried out using HPCCC with an optimized biphasic solvent system of n-heptane and methanol. The solvent mixture was prepared by combining specific volumes of each solvent in a separatory funnel, followed by thorough mixing and phase separation to obtain two clear liquid phases. The upper liquid phase was used as the stationary phase, and the lower liquid phase served as the mobile phase. The HPCCC column was first filled with the stationary phase, then operated at a rotation speed of 1600 rpm and maintained at 30 °C. Once the column was filled, the mobile phase was pumped through the system until hydrodynamic equilibrium was established. Equilibrium was reached when the mobile phase eluted from the column without causing displacement of the stationary phase, indicating that the system was properly stabilized for injection. At this stage, the sample prepared by dissolving the Dunaliella sp. extract in the mobile phase was loaded into the chromatographic system. Fractions were collected manually throughout the separation process and subsequently analyzed via HPLC-DAD.
The volume fraction of stationary phase retained in the HPCCC column (Sf) was determined according to the following formula:
S f ( % ) = V s V c × 100
In this equation, Vc represents the total volume of the HPCCC column, while Vs denotes the volume of stationary phase retained in the column once hydrodynamic equilibrium is established [24].

2.4. HPLC-DAD Analysis of Extract and Fractions

The analysis of the Dunaliella sp. extract and the collected HPCCC fractions was carried out using a high-performance liquid chromatography system (Agilent 1100 Series, Santa Clara, CA, USA) equipped with a diode array detector (DAD). Chromatographic separation was achieved on a reversed-phase Luna® C8 column (100 × 4.6 mm, 3 μm particle size, 100 Å pore size) operating at a constant temperature of 30 °C. The chromatographic separation was carried out using a binary solvent system consisting of water (solvent A) and methanol (solvent B), with a constant flow rate of 0.8 mL/min. The gradient elution profile was programmed as follows: from 0 to 20 min, a linear decrease of solvent A from 20% to 0%; held at 0% A from 20 to 25 min; re-equilibrated from 0% to 20% A between 25 and 27 min; and maintained at 20% A until the end of the run at 30 min [25]. Detection was performed at a wavelength of 440 nm. The quantitative analysis and identification of β-carotene were conducted using a certified standard (Sigma Aldrich, Darmstadt, Germany). To determine the β-carotene concentration in the algal samples, a calibration curve was established using nine standard solutions ranging from 3.9 to 1000 μg/mL. Each sample was analyzed with a 20 μL injection volume. The linear regression of the standard curve was defined by the equation y = 6.6033x + 36.335 with a correlation coefficient of R2 = 0.9999, where x represents the β-carotene concentration (μg/mL) and y corresponds to the peak area observed in the chromatogram. This same calibration model was used to assess the purity of the β-carotene isolated from the extract.

2.5. Confirmation of the Chemical Identity of the Purified Target Compound

The chemical identity of the purified compound was verified using a Dionex UltiMate 3000 high-performance liquid chromatography system (Thermo Scientific, Carlsbad, CA, USA) coupled with a high-resolution tandem mass spectrometer (Impact HD, Bruker, Billerica, MA, USA). The analysis was performed with an electrospray ionization (ESI) source operating in positive ionization mode (HPLC-ESI-HRMS). To enhance ionization performance, 0.1% formic acid was added to both solvent A and solvent B used during analysis. The mass spectrometry parameters were configured as follows: a capillary voltage of 2500 V, a drying gas temperature of 250 °C with a flow rate of 10 L/min, and a nebulizer pressure set to 58 psi. Full-scan mass spectra were acquired over an m/z range of 20–2200. For tandem MS analysis (MS/MS), β-carotene was fragmented using nitrogen as the collision gas at a collision energy of 30 eV. The identity of the isolated compound was verified by comparing the obtained mass spectra with reference data available in the literature. Detailed chromatographic conditions used for separation are provided in Section 2.4.

2.6. Evaluation of HPCCC Process Efficiency

The overall performance of the HPCCC system was evaluated based on a previously established methodology [26], using four key indicators: the process throughput (Pt), process efficiency (Pe), environmental risk factor (Er), and general evaluation factor (Ge).
The process throughput (Pt) quantifies the amount of algal extract processed per unit of time and was calculated using the following equation:
P t = M c t
where Mc represents the total mass of algal extract processed in both cycles, while t denotes the cumulative time required to complete the two sequential separation runs.
The process efficiency (Pe) reflects the rate of isolated product formation over time, and was determined as follows:
P e = M t t
with Mt representing the amount of purified β-carotene obtained and t representing the total processing time.
To assess the environmental sustainability of the separation, the environmental risk factor (Er) was used. This indicator estimates the volume of solvent waste generated per unit mass of product and was defined by the following:
E r = V M t
where V is the total solvent volume consumed and Mt is the mass of the isolated compound.
Finally, the general evaluation factor (Ge) integrates process efficiency and environmental impact to provide a relative measure of process performance. It is calculated as the ratio of Pe to Er:
G e = P e E r
A higher Ge value indicates a more favorable balance between productivity and environmental impact.
Together, these indicators provide a comprehensive assessment of the HPCCC process. While Pt and Pe provide insights into productivity and separation efficiency, Er highlights environmental impact and Ge serves as an integrative metric for process optimization and sustainability.

3. Results and Discussion

3.1. Development and Optimization of HPCCC Separation

Multiple biphasic solvent systems, formulated by varying the volumetric proportions of selected solvents, were systematically evaluated to assess their suitability for the HPCCC-based isolation of β-carotene from Dunaliella sp. biomass extract (Table 1). The development of suitable solvent systems was guided initially by a known lipophilic mixture composed of n-heptane, ethanol, and water in a 6:5:1 ratio, previously reported in the literature [27]. Building upon this reference, several modified systems were formulated by increasing the proportion of ethanol to adjust polarity and enhance phase behavior. In parallel, an alternative biphasic solvent system, composed of n-heptane and methanol in a 1:1 ratio, was selected from the Arizona solvent system series [27]. This more apolar configuration was chosen to better match the hydrophobic characteristics of β-carotene, facilitating its preferential partitioning into the upper and lower phase. The selection of solvents for the biphasic systems also considered their compliance with European food safety regulations. While ethanol is widely accepted for use in the food industry, the application of n-heptane and methanol is subject to specific conditions. Heptane was chosen as a safer alternative to hexane, with regulatory guidelines setting a maximum residue limit of 1 mg/kg in the final food product. For methanol, the maximum residue limit is 10 mg/kg [28]. These limits can be safely met by removing the solvents well during the final drying step. Following these rules is important to make sure the process is safe for food-related applications.
For a biphasic solvent system to be suitable for HPCCC, it must meet specific criteria. Firstly, the system should yield an appropriate partition coefficient (K) within the optimal range of 0.5 to 3.5 [21], ensuring the effective distribution of the target compound between the two immiscible liquid phases of the chosen biphasic solvent system. Secondly, it must enable the adequate retention of the stationary phase in the HPCCC column, which requires a sufficient density difference between the phases (greater than 0.08 g/mL) [22,24], along with a rapid phase separation characterized by a settling time of less than 30 s [21]. Among the biphasic solvent systems evaluated (Table 1), none exhibited a partition coefficient (K) within the ideal operational range. Nevertheless, system 11 emerged as the most promising candidate, as it demonstrated a K value closest to the desired range, coupled with the shortest settling time and a sufficiently acceptable density difference between the upper and lower phases. Although elevated K values are typically associated with prolonged elution times, this limitation can be mitigated by employing the highest permissible flow rate of the mobile phase. As such, system 11 was chosen as the most suitable option and subsequently implemented in the HPCCC system to optimize the separation of β-carotene.
It is widely recognized that maintaining high stationary phase retention is essential for achieving an effective resolution in countercurrent chromatography [17]. Since both the flow rate of the mobile phase and the quantity of sample introduced in HPCCC can significantly influence the volume of stationary phase retained within the column [24], these operational parameters were systematically optimized in this study to ensure maximum separation efficiency. The column was operated at a rotation speed of 1600 rpm, the maximum achievable on the HPCCC instrument. This high-speed setting promoted the optimal retention of the stationary phase, thereby enhancing chromatographic resolution [29]. The loop volume was at 0.5 mL, and the separation was operated at 30 °C. The separation was carried out in reverse elution mode, wherein the mobile phase consisted of the lower liquid phase of the biphasic system, and the upper phase was retained as the stationary phase.
Based on the evaluation of how different mobile phase flow rates influenced stationary phase retention (Figure 1), a flow rate of 10 mL/min was identified as the most suitable for achieving effective separation of β-carotene. This setting enabled a more time-efficient operation, while preserving a satisfactory retention of the stationary phase within the column (Sf: 50%, as calculated by Equation (1)), and ensured that system pressure remained safely below the maximum threshold of 250 PSI.
The impact of sample loading on stationary phase retention was also assessed (Figure 2, Table 2), revealing that effective separation of the target compound could be maintained across a loading range of 100 to 800 mg of algal extract. All experiments were performed at a constant flow rate of 10 mL/min and a column temperature of 30 °C, with an initial retention of the stationary phase (Sf) of 50% at the hydrodynamic equilibrium.
With an increasing injection load, a progressive decrease in stationary phase retention was observed at the end of each HPCCC run, dropping from 47% at 100 mg to 21% at 800 mg. Despite this decrease, the system maintained high separation efficiency throughout, as evidenced by the purity of β-carotene of 97% to 98% in all cases. Importantly, the yield of β-carotene increased proportionally with the sample load, reaching a maximum of 112.7 mg at the 800 mg injection, the highest amount tested. Ultimately, 800 mg was selected as the optimal loading amount, as it maximizes processing efficiency and enhances overall throughput.
To further increase the efficiency and output of the optimized process, a dual-injection strategy was implemented. This approach involved re-establishing the hydrodynamic equilibrium between runs, enabling consecutive separations of the target compound. After the first elution, the system was reset by applying extrusion mode. This was performed by switching from mobile phase pumping to stationary phase pumping while keeping the column in continuous rotation [25,30]. This technique effectively refills the column with fresh stationary phase without interrupting its motion, allowing the formation of a new equilibrium. By doing so, a second separation cycle can be seamlessly initiated (Figure 3). The use of stationary phase extrusion not only removes any residual compounds from the column coil but also ensures that each injection is made into a clean, regenerated stationary phase. This contributes to high reproducibility, which is crucial for processes intended for repeated or continuous operation.
Using the previously optimized conditions, a sequential two-cycle HPCCC protocol was successfully applied for the isolation of β-carotene from Dunaliella sp. biomass extract (Figure 3). In each cycle, 800 mg of algal extract was introduced, processing a total of 1.6 g over two runs. The complete HPCCC procedure lasted a total of 137.5 min. This duration encompassed 13.5 min for initially filling the first column with the upper phase at a flow rate of 10 mL/min, followed by a 10 min equilibration step in which the lower phase was introduced at 10 mL/min to establish liquid phase balance within the column. The remaining 114 min was dedicated to conducting two consecutive separation cycles. Each of the two HPCCC cycles consisted of three phases: (1) the separation of β-carotene using reverse-phase elution with the lower phase pumped at 10 mL/min for 42 min; (2) the extrusion of the stationary phase by switching to upper phase flow for 20 min; and (3) the achievement of the hydrodynamic equilibrium of two immiscible liquid phases inside the column for another 10 min. The overall chromatographic profile of the entire process is presented in Figure 3. It is relevant to note that for future scale-up into production, the duration of the steps could likely be optimized in further studies and, thus, reduced. Throughout the two-cycle process, 1.375 L of solvents were consumed, yielding 225.4 mg of β-carotene at a purity of 97%. Given that the β-carotene concentration in the dried Dunaliella sp. extract was measured at 14.396 mg per 100 mg extract, the recovery efficiency of the developed HPCCC method reached 98%. Figure 4a displays the HPLC-DAD chromatogram of the Dunaliella sp. biomass extract, while Figure 4b presents the chromatogram of the corresponding isolated fraction. The comparison highlights the effectiveness of the HPCCC technique in achieving the selective separation of β-carotene.

3.2. Confirmation of β-Carotene Identity Isolated by HPCCC

The compound isolated via HPCCC was conclusively identified as β-carotene through high-resolution electrospray ionization mass spectrometry (ESI-HRMS) and UV-Visible spectroscopy. The obtained spectral profiles matched those of previously reported profiles in the literature [31,32], as well as a commercial all-trans-β-carotene standard, confirming the compound’s identity. The ESI-HRMS spectrum of the isolated compound showed a distinct molecular ion peak at m/z 536.4484 [M]+•, characteristic of a radical cation. The fragmentation analysis revealed two major diagnostic ions at m/z 444 and m/z 429 (Figure 5a). The formation and stability of β-carotene molecular ions, whether as protonated species [M+H]+ or as radical cations [M]+•, are strongly influenced by its extensive polyene conjugation, the parameters of the ESI ion source, and the composition of the HPLC mobile phase. When using a mobile phase of MeOH:H2O (20:80, v/v), we observed a predominance of the radical molecular ion [M]+•, while the signal for the protonated molecular ion [M+H]+ was negligible. As with many carotenoids, β-carotene undergoes in-chain eliminations that follow Woodward–Hoffmann rules. The loss of toluene (−92 Da) from the radical molecular ion occurs via a fully radical mechanism, yielding a fragment at m/z 444 [M−92]+•. In contrast, the loss of xylene (−106 Da) may proceed through a partially protonated mechanism, resulting in a fragment at m/z 429 [M−(106+H)]+•.
Although Dunaliella is recognized for producing β-carotene predominantly in the 9-cis configuration [33], the identification in this study was referenced against an all-trans commercial standard. Therefore, while mass spectrometry confirmed the molecular identity as β-carotene, it did not allow for a discrimination between cis and trans isomers. To gain further insight into the isomeric nature of the isolated compound, a UV-Vis spectral analysis was performed. The purified β-carotene exhibited characteristic absorbance maxima at 444 and 470 nm (Figure 5b), while the all-trans β-carotene standard displayed its typical peaks at 450 and 474 nm (Figure 5c). This noticeable hypsochromic shift (i.e., shift to shorter wavelengths) in the absorption maxima of the isolated compound suggests a structural variation compared to the all-trans form. In addition to the spectral shift, the UV-Vis spectrum of the isolated compound revealed a distinct cis-peak, indicative of a cis isomer. The intensity ratio between the cis-peak (DB) and the main absorption peak (DII) was calculated at 10.61%, further supporting the presence of a cis configuration. These spectral features are consistent with previously reported data for the 9-cis or 9′-cis isomers of β-carotene [32]. Therefore, based on the combined spectral evidence, it is likely that the isolated pigment corresponds to one of these naturally occurring cis isomers, which are known to be prevalent in Dunaliella. The chemical structure of β-carotene isomeric forms are shown in Figure 6.

3.3. Process Performance

To evaluate the performance of the developed HPCCC process, Table 3 presents a comparative analysis of key productivity and sustainability indicators (as calculated by Equations (2)–(5)) against a previous study [19], which employed a dual-mode countercurrent chromatography (CCC) method using a ternary solvent system comprising n-hexane, benzotrifluoride, and acetonitrile. The values derived from the previous study [19] were estimated in the present study based on the data reported in that publication. In contrast, the HPCCC method developed in the present study utilizes a binary solvent system composed of n-heptane and methanol, eliminating the need for fluorinated solvents and reducing overall chemical complexity. All values related to solvent consumption, sample loading, and carotenoid yield from the comparative CCC process were obtained directly from the original publication. In terms of productivity, the HPCCC system achieved a process throughput (Pt) of 0.698 g/h and a process efficiency (Pe) of 0.09836 g/h, representing more than a 25-fold and 7-fold improvement, respectively, over the corresponding values calculated from the previous study (Table 3) These improvements are primarily attributed to optimized sample loading (800 mg per run) and the enhanced stationary phase retention achieved under high-performance centrifugal conditions. The environmental impact of the HPCCC process was also markedly lower. The environmental risk factor (Er), which quantifies solvent use per gram of product, was calculated at 6.1 L/g, representing a reduction of more than 50% compared to the 14.1 L/g estimated from the previous study (Table 3). Furthermore, the overall evaluation factor (Ge), which integrates both productivity and environmental efficiency, reached 0.0161 g2·h−1·L−1 in this study, an almost 17-fold improvement over the 0.000956 g2·h−1·L−1 calculated from the previous CCC study (Table 3). Another study [20] also reported the recovery of β-carotene from Dunaliella salina, using centrifugal partition chromatography (CPC) with an ethyl oleate-based solvent system containing 5% dichloromethane; however, their approach was specifically designed for continuous extraction while minimizing the impact on microalgal viability. In contrast, the current HPCCC method prioritizes high-yield recovery and enhanced environmental and operational performance, highlighting its suitability for integration into scalable microalgae-based biorefinery systems.
Overall, the results demonstrate that under optimized conditions, HPCCC offers a more productive, scalable, and environmentally sustainable platform for the purification of β-carotene from microalgae. These findings underscore its strong potential for industrial implementation within integrated biorefinery workflows targeting the multiproduct valorization of algal biomass.

3.4. Theoretical Throughput Projections for β-Carotene Separation from Dunaliella sp. via HPCCC at Multiple Scales

Table 4 provides a theoretical projection of the β-carotene separation throughput from Dunaliella sp. using HPCCC across different operational scales, ranging from laboratory (semi-preparative) to pilot-scale configurations. These estimations are derived from volumetric scaling principles and are expressed in terms of the mass of algal extract processed per unit time. The calculations take into account a realistic weekly operating schedule tailored to each scale of operation. Using the Spectrum system (134 mL coil volume) as used in this study, the estimated throughput is 0.698 g/h, which corresponds to approximately 28 g of processed extract per week under standard laboratory conditions (40 h/week). When scaling up to commercially available systems, including a preparative HPCCC unit such as the 980 mL column, productivity increases more than sevenfold, reaching 5.105 g/h or approximately 204.2 g/week. Further scale-up to pilot-scale systems, specifically the 4.6 L and 8.82 L column HPCCC units, substantially enhances the weekly processing capacity to over 500 g and more than 1 kg, respectively. The highest throughput is achieved with the 18L system, which processes 93.765 g/h and over 2 kg of extract per week, assuming 24 h continuous operation. These projections underline the scalability of the HPCCC process. The consistent linear increase in throughput with the column volume indicates that the optimized parameters established at the semi-preparative level can be adapted for larger systems with minimal modification. This demonstrates that HPCCC can be used not only for research-scale purification, but also in preparative and industrial settings where continuous and cost-effective processing is essential.

4. Conclusions

This study successfully established a sequential two-cycle high-performance countercurrent chromatography (HPCCC) process for the efficient recovery of β-carotene from autotrophically cultivated Dunaliella sp. The optimized HPCCC method produced a high-purity β-carotene fraction without the use of solid-phase materials, demonstrating enhanced separation efficiency and selectivity compared to conventional chromatographic techniques. The process achieved reproducible recovery across both cycles, highlighting the robustness and scalability of HPCCC for continuous operation. These results validate HPCCC as a cost-effective and sustainable alternative for carotenoid purification, delivering a solvent-free product suitable for high-value applications in the food, nutraceutical, and cosmetic sectors. Furthermore, the successful implementation of HPCCC in this context illustrates its broader potential as a core technology in algae-based biorefineries, enabling the selective and efficient extraction of bioactive compounds from microalgal biomass.

Author Contributions

Conceptualization, J.C.; HPCCC methodology, J.C. and D.B.-P.; cultivation and extract production methodology, D.G., C.P. and L.C.; formal analysis, D.B.-P.; investigation, D.B.-P.; writing—original draft preparation, J.C.; writing—review and editing, J.C., L.C. and D.B.-P.; supervision, J.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work has received funding from the Bio Based Industries Joint Undertaking (JU) under grant agreement No. 887227. The JU receives support from the European Union’s Horizon 2020 research and innovation programme and the Bio Based Industries Consortium.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

Daniela Bárcenas-Pérez gratefully acknowledges the research supervision of José Cheel (Centre Algatech—Czech Academy of Sciences) during her PhD study.

Conflicts of Interest

Authors Diana Gomes, Celina Parreira and Luís Costa have received financial support as employees of the company A4F—Algae for future.

References

  1. Raja, R.; Hemaiswarya, S.; Rengasamy, R. Exploitation of Dunaliella for β-carotene production. Appl. Microbiol. Biotechnol. 2007, 74, 517–523. [Google Scholar] [CrossRef] [PubMed]
  2. Bogacz-Radomska, L.; Harasym, J. β-Carotene—Properties and production methods. Food Qual. Saf. 2018, 2, 69–74. [Google Scholar] [CrossRef]
  3. Jin, E.S.; Melis, A. Microalgal biotechnology: Carotenoid production by the green algae Dunaliella salina. Biotechnol. Bioprocess Eng. 2003, 8, 331–337. [Google Scholar] [CrossRef]
  4. Damergi, E.; Schwitzguébel, J.P.; Refardt, D.; Sharma, S.; Holliger, C.; Ludwig, C. Extraction of carotenoids from Chlorella vulgaris using green solvents and syngas production from residual biomass. Algal Res. 2017, 25, 488–495. [Google Scholar] [CrossRef]
  5. Di Caprio, F.; Altimari, P.; Pagnanelli, F. Sequential extraction of lutein and β-carotene from wet microalgal biomass. J. Chem. Technol. Biotechnol. 2020, 95, 3024–3033. [Google Scholar] [CrossRef]
  6. Soares, A.T.; Marques Júnior, J.G.; Lopes, R.G.; Derner, R.B.; Antoniosi Filho, N.R. Improvement of the extraction process for high commercial value pigments from Desmodesmus sp. microalgae. J. Braz. Chem. Soc. 2016, 27, 1083–1093. [Google Scholar] [CrossRef]
  7. Schüler, L.M.; Gangadhar, K.N.; Duarte, P.; Placines, C.; Molina-Márquez, A.M.; Léon-Bañares, R.; Sousa, V.S.; Varela, J.; Barreira, L. Improvement of carotenoid extraction from a recently isolated, robust microalga, Tetraselmis sp. CTP4 (chlorophyta). Bioprocess Biosyst. Eng. 2020, 43, 785–796. [Google Scholar] [CrossRef]
  8. Bachchhav, M.B.; Kulkarni, M.V.; Ingale, A.G. Process-intensified extraction of phycocyanin followed by β-carotene from Spirulina platensis using ultrasound-assisted extraction. Sep. Sci. Technol. 2019, 55, 932–944. [Google Scholar] [CrossRef]
  9. Rajput, A.; Singh, D.P.; Khattar, J.S.; Swatch, G.K.; Singh, Y. Evaluation of growth and carotenoid production by a green microalga Scenedesmus quadricauda PUMCC 4.1.40. under optimized culture conditions. J. Basic. Microbiol. 2022, 62, 1156–1166. [Google Scholar] [CrossRef]
  10. Gamlieli-Bonshtein, I.; Korin, E.; Cohen, S. Selective separation of cis-trans geometrical isomers of beta-carotene via CO2 supercritical fluid extraction. Biotechnol. Bioeng. 2002, 80, 169–174. [Google Scholar] [CrossRef]
  11. Jaime, L.; Mendiola, J.A.; Ibáñez, E.; Martin-Alvarez, P.J.; Cifuentes, A.; Reglero, G.; Señoráns, F.J. Beta-carotene isomer composition of sub- and supercritical carbon dioxide extracts. Antioxidant activity measurement. J. Agric. Food Chem. 2007, 55, 10585–10590. [Google Scholar] [CrossRef] [PubMed]
  12. Macias-Sanchez, M.D.; Mantell, C.; Rodriguez, M.; Martínez de la Ossa, E.; Lubian, L.M.; Montero, O. Comparison of Supercritical Fluid and Ultrasound-Assisted Extraction of Carotenoids and Chlorophyll a from Dunaliella salina. Talanta 2009, 77, 948–952. [Google Scholar] [CrossRef] [PubMed]
  13. Molino, A.; Larocca, V.; Di Sanzo, G.; Martino, M.; Casella, P.; Marino, T.; Karatza, D.; Musmarra, D. Extraction of Bioactive Compounds Using Supercritical Carbon Dioxide. Molecules 2019, 24, 782. [Google Scholar] [CrossRef] [PubMed]
  14. Hosseini, S.R.P.; Tavakoli, O.; Sarrafzadeh, M.H. Experimental Optimization of SC-CO2 Extraction of Carotenoids from Dunaliella salina. J. Supercrit. Fluids 2017, 121, 89–95. [Google Scholar] [CrossRef]
  15. Tirado, D.F.; Calvo, L. The Hansen theory to choose the best cosolvent for supercritical CO2 extraction of Β-carotene from Dunaliella salina. J. Supercrit. Fluids 2019, 145, 211–218. [Google Scholar] [CrossRef]
  16. Ludwig, K.; Rihko-Struckmann, L.; Brinitzer, G.; Kruse, A. β-Carotene Extraction from Dunaliella salina by Supercritical CO2. J. Appl. Phycol. 2021, 33, 1435–1445. [Google Scholar] [CrossRef]
  17. Berthod, A.; Maryutina, T.; Spivakov, B.; Shpigun, O.; Sutherland, I.A. Countercurrent chromatography in analytical chemistry (IUPAC Technical Report). Pure Appl. Chem. 2009, 81, 355–387. [Google Scholar] [CrossRef]
  18. Sutherland, I.A. Recent Progress on the Industrial Scale-Up of Counter-Current Chromatography. J. Chromatogr. A 2007, 1151, 6–13. [Google Scholar] [CrossRef]
  19. Englert, M.; Hammann, S.; Vetter, W. Isolation of β-carotene, α-carotene and lutein from carrots by countercurrent chromatography with the solvent system modifier benzotrifluoride. J. Chromatogr. A 2015, 1388, 119–125. [Google Scholar] [CrossRef]
  20. Marchal, L.; Mojaat-Guemir, M.; Foucault, A.; Pruvost, J. Centrifugal partition extraction of β-carotene from Dunaliella salina for efficient and biocompatible recovery of metabolites. Bioresour. Technol. 2013, 134, 396–400. [Google Scholar] [CrossRef]
  21. Ito, Y. Golden rules and pitfalls in selecting optimum conditions for high-speed counter-current chromatography. J. Chromatogr. A 2005, 1065, 145–168. [Google Scholar] [CrossRef] [PubMed]
  22. Cheel, J.; Urajová, P.; Hájek, J.; Hrouzek, P.; Kuzma, M.; Bouju, E.; Faure, K.; Kopecký, J. Separation of cyclic lipopeptide puwainaphycins from cyanobacteria by countercurrent chromatography combined with polymeric resins and HPLC. Anal. Bioanal. Chem. 2017, 409, 917–930. [Google Scholar] [CrossRef] [PubMed]
  23. Ito, Y.; Conway, W.D. Experimental Observations of the Hydrodynamic Behavior of Solvent Systems in High-Speed Countercurrent Chromatography. III. Effects of Physical Properties of the Solvent Systems and Operating Temperature on the Distribution of Two-Phase Solvent Systems. J. Chromatogr. A 1984, 301, 405–414. [Google Scholar] [CrossRef] [PubMed]
  24. Sutherland, I.A. Liquid stationary phase retention and resolution in hydrodynamic CCC. In Comprehensive Analytical Chemistry; Berthod, A., Ed.; Elsevier Science B.V.: Amsterdam, The Netherlands, 2002; Volume 38, pp. 159–176. [Google Scholar]
  25. Bárcenas-Pérez, D.; Střížek, A.; Hrouzek, P.; Kopecký, J.; Barradas, M.; Sierra-Ramirez, A.; Fernandez-Marcos, P.J.; Cheel, J. Production of fucoxanthin from Phaeodactylum tricornutum using high performance countercurrent chromatography retaining its FOXO3 nuclear translocation-inducing effect. Mar. Drugs 2021, 19, 517. [Google Scholar] [CrossRef]
  26. Zhang, M.; Ignatova, S.; Liang, Q.; Wu, J.F.; Sutherland, I.; Wang, Y.; Luo, G. Rapid and High-Throughput Purification of Salvianolic Acid B from Salvia miltiorrhiza Bunge by High-Performance Counter-Current Chromatography. J. Chromatogr. A 2009, 1216, 3869–3873. [Google Scholar] [CrossRef]
  27. Renault, J.H.; Nuzillard, J.M.; Intes, O.; Maciuk, A. Solvent systems. In Comprehensive Analytical Chemistry; Berthod, A., Ed.; Elsevier Science B.V.: Amsterdam, The Netherlands, 2002; Volume 38, pp. 49–83. [Google Scholar]
  28. Official Journal of the European Union; European Parliament and Council. Directive 2009/32/EC of 23 April 2009 on the approximation of the laws of the Member States on extraction solvents used in the production of foodstuffs and food ingredients (Recast). Off. J. Eur. Union. 2009, L 140, 3–11. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32009L0032 (accessed on 10 January 2025).
  29. Berthod, A.; Faure, K. Separations with a liquid stationary phase: Countercurrent chromatography or centrifugal partition chromatography. In Analytical Separation Science, 1st ed.; Anderson, J.L., Berthod, A., Pino Estévez, V., Stalcup, A.M., Eds.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2015; pp. 1177–1206. [Google Scholar]
  30. Li, S.; He, S.; Zhong, S.; Duan, X.; Ye, H.; Shi, J.; Peng, A.; Chen, L. Elution-extrusion counter-current chromatography separation of five bioactive compounds from Dendrobium chrysototxum Lindl. J. Chromatogr. A 2011, 20, 3124–3128. [Google Scholar] [CrossRef]
  31. Stutz, H.; Bresgen, N.; Eckl, P.M. Analytical tools for the analysis of β-carotene and its degradation products. Free Radic. Res. 2015, 49, 650–680. [Google Scholar] [CrossRef]
  32. Zhang, Y.; Honda, M.; Wahyudiono; Kanda, H.; Goto, M. Enhanced production of β-carotene suspensions using supercritical CO2 via naturally occurring Z-isomerization-accelerating catalyst. IOP Conf. Ser. Mater. Sci. Eng. 2020, 778, 012008. [Google Scholar] [CrossRef]
  33. Xu, Y.; Harvey, P.J. Red light control of β-Carotene isomerisation to 9-cis β-carotene and carotenoid accumulation in Dunaliella salina. Antioxidants 2019, 27, 148. [Google Scholar] [CrossRef]
Figure 1. Effect of mobile phase flow rate on stationary phase retention in high-performance countercurrent chromatography (HPCCC). The mobile phase corresponds to the lower phase of solvent system 11, composed of n-heptane and methanol in a 1:1 volume ratio. The stationary phase is the upper phase of the same solvent system, also composed of n-heptane and methanol in a 1:1 (v/v) ratio.
Figure 1. Effect of mobile phase flow rate on stationary phase retention in high-performance countercurrent chromatography (HPCCC). The mobile phase corresponds to the lower phase of solvent system 11, composed of n-heptane and methanol in a 1:1 volume ratio. The stationary phase is the upper phase of the same solvent system, also composed of n-heptane and methanol in a 1:1 (v/v) ratio.
Processes 13 01812 g001

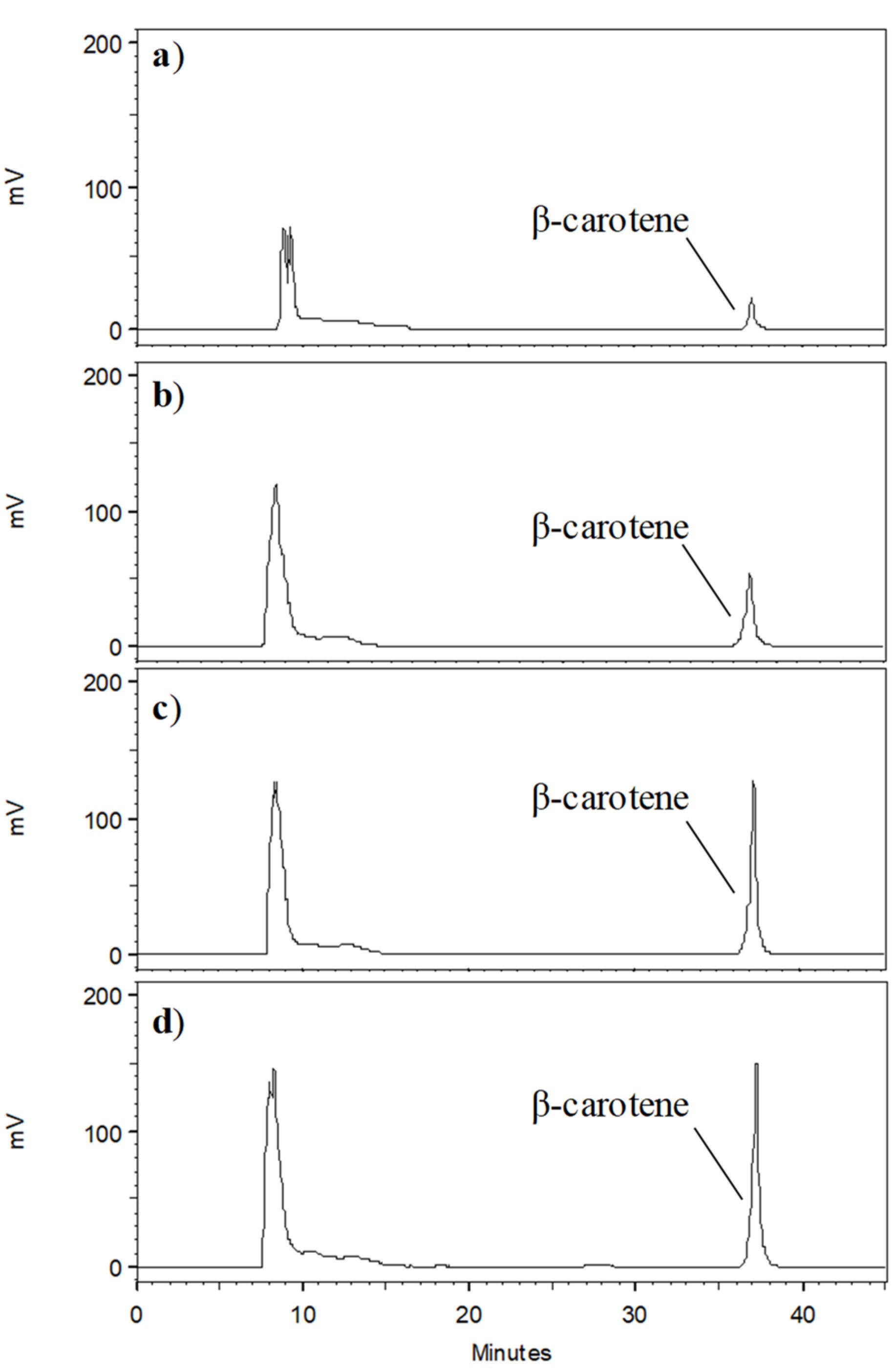

Figure 2. Evaluation of sample load impact on β-carotene isolation from Dunaliella sp. extract using HPCCC. Injection volumes tested: (a) 100 mg, (b) 200 mg, (c) 400 mg, and (d) 800 mg. Experiments were performed at 1600 rpm rotor speed, employing biphasic solvent system 11 (n-heptane:methanol, 1:1 v/v). Reverse-phase elution was conducted using the lower phase as mobile phase at 10 mL/min flow rate. Column temperature was maintained at 30 °C, with detection at 440 nm. Samples were prepared by dissolving in 3 mL of stationary phase and injected through a 3 mL loop.
Figure 2. Evaluation of sample load impact on β-carotene isolation from Dunaliella sp. extract using HPCCC. Injection volumes tested: (a) 100 mg, (b) 200 mg, (c) 400 mg, and (d) 800 mg. Experiments were performed at 1600 rpm rotor speed, employing biphasic solvent system 11 (n-heptane:methanol, 1:1 v/v). Reverse-phase elution was conducted using the lower phase as mobile phase at 10 mL/min flow rate. Column temperature was maintained at 30 °C, with detection at 440 nm. Samples were prepared by dissolving in 3 mL of stationary phase and injected through a 3 mL loop.
Processes 13 01812 g002
Figure 3. Sequential two-cycle HPCCC process for β-carotene isolation from Dunaliella sp. extract using biphasic solvent system 11 (n-heptane:methanol, 1:1 v/v). The separation involved reverse-phase (RP) elution followed by elution-extrusion (EE), with hydrodynamic equilibrium (HE) established prior to each run. Each cycle included injection of 800 mg extract dissolved in 3 mL stationary phase via a 3 mL injection loop. Operating conditions: mobile phase flow rate 10 mL/min, column rotation speed 1600 rpm, temperature 30 °C, and detection at 440 nm.
Figure 3. Sequential two-cycle HPCCC process for β-carotene isolation from Dunaliella sp. extract using biphasic solvent system 11 (n-heptane:methanol, 1:1 v/v). The separation involved reverse-phase (RP) elution followed by elution-extrusion (EE), with hydrodynamic equilibrium (HE) established prior to each run. Each cycle included injection of 800 mg extract dissolved in 3 mL stationary phase via a 3 mL injection loop. Operating conditions: mobile phase flow rate 10 mL/min, column rotation speed 1600 rpm, temperature 30 °C, and detection at 440 nm.
Processes 13 01812 g003

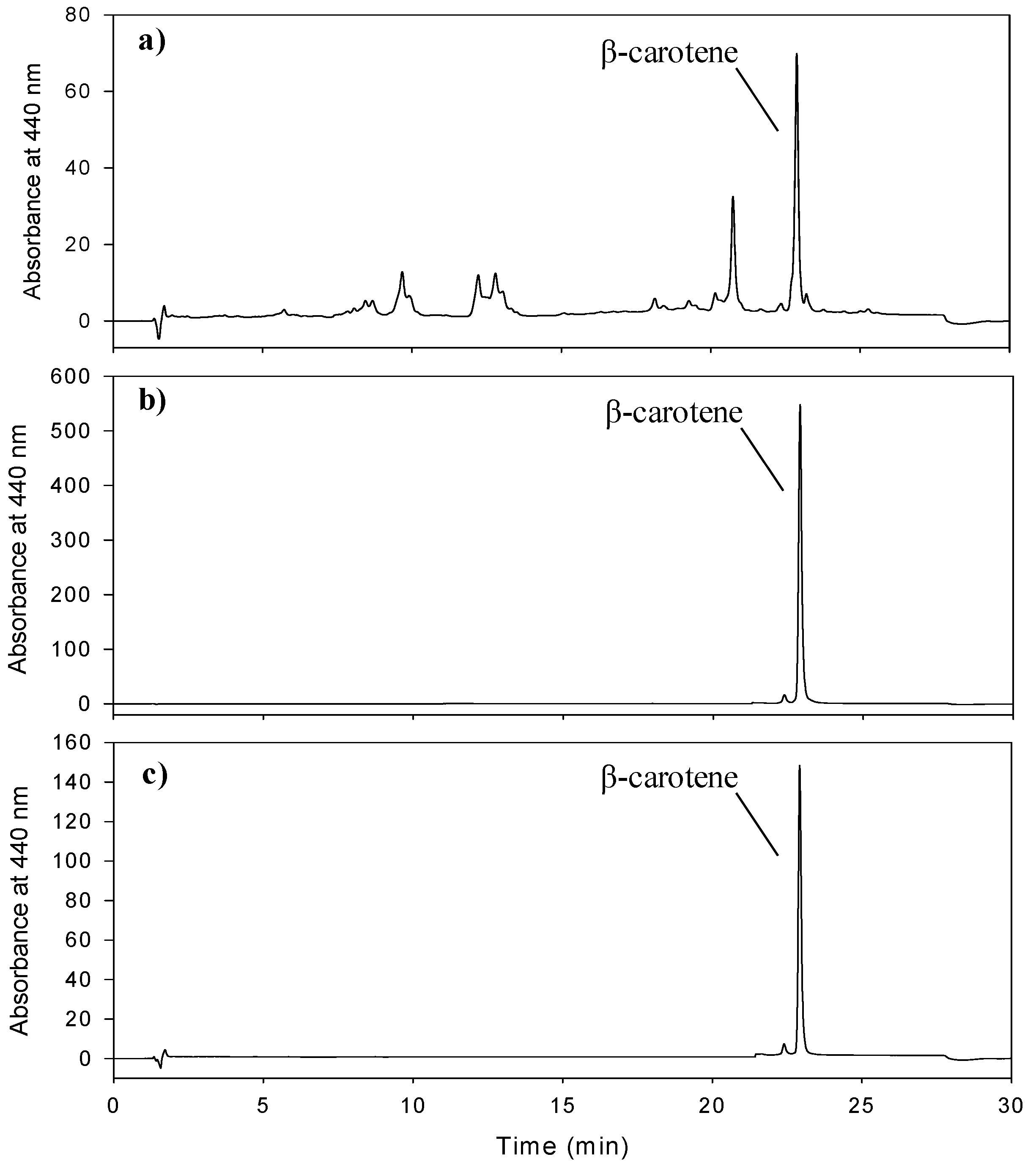

Figure 4. (a) HPLC-DAD chromatogram of the crude Dunaliella sp. extract, (b) chromatogram of the β-carotene-enriched fraction obtained after HPCCC purification, and (c) chromatogram of the β-carotene reference standard (Sigma Aldrich). All chromatograms were recorded at 440 nm.
Figure 4. (a) HPLC-DAD chromatogram of the crude Dunaliella sp. extract, (b) chromatogram of the β-carotene-enriched fraction obtained after HPCCC purification, and (c) chromatogram of the β-carotene reference standard (Sigma Aldrich). All chromatograms were recorded at 440 nm.
Processes 13 01812 g004

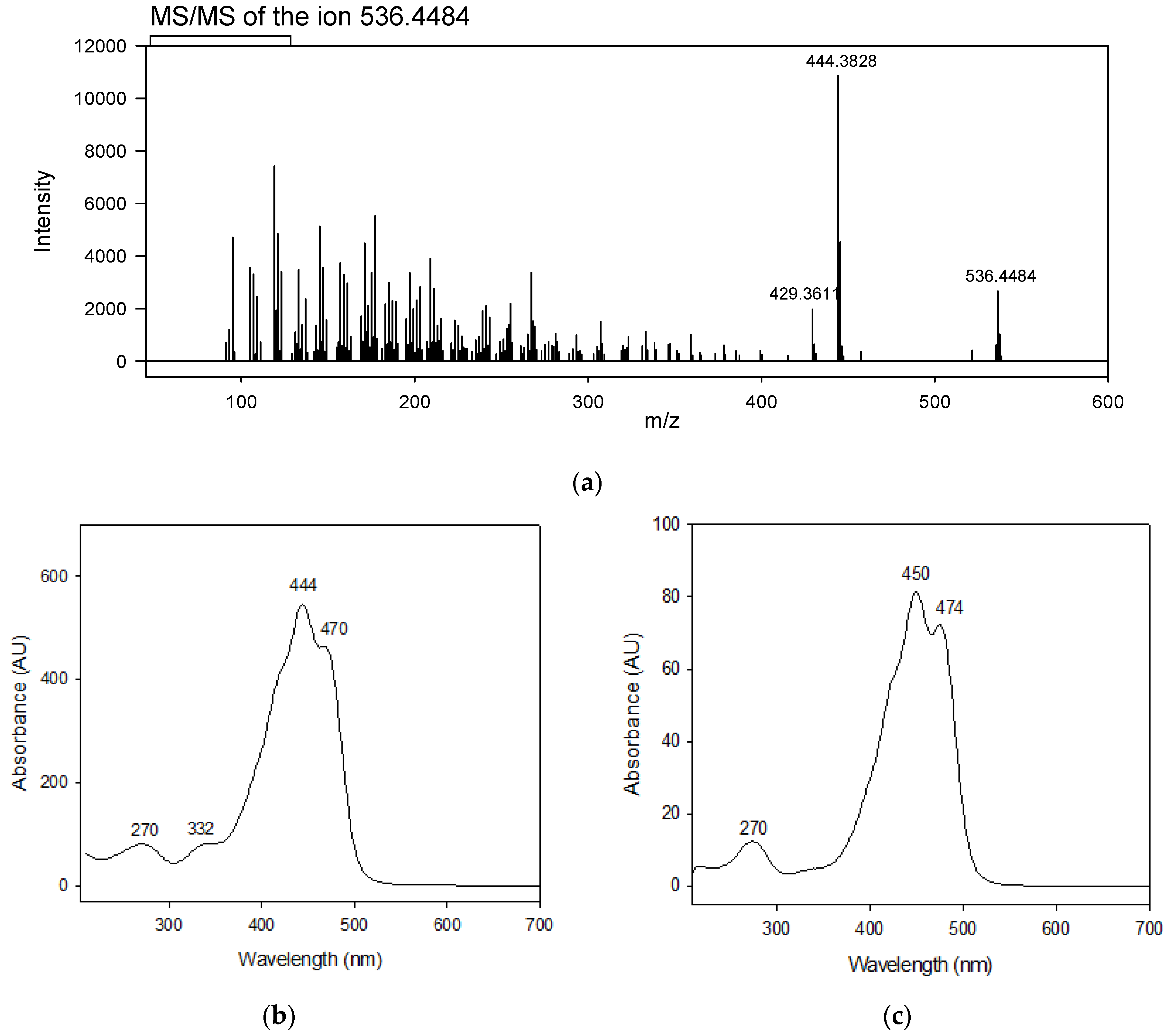

Figure 5. (a) High-resolution electrospray ionization tandem mass spectrometry (ESI-HRMS/MS) analysis of β-carotene isolated by HPCCC. (b) UV-Vis absorption spectrum of β-carotene obtained via HPCCC. (c) UV-Vis spectrum of the all-trans-β-carotene reference standard.
Figure 5. (a) High-resolution electrospray ionization tandem mass spectrometry (ESI-HRMS/MS) analysis of β-carotene isolated by HPCCC. (b) UV-Vis absorption spectrum of β-carotene obtained via HPCCC. (c) UV-Vis spectrum of the all-trans-β-carotene reference standard.
Processes 13 01812 g005
Figure 6. Chemical structure of all-trans-β-carotene (a), 9-cis β-carotene (b) and 9′-cis β-carotene (c).
Figure 6. Chemical structure of all-trans-β-carotene (a), 9-cis β-carotene (b) and 9′-cis β-carotene (c).
Processes 13 01812 g006
Table 1. Partitioning behavior of β-carotene in diverse biphasic solvent systems with measured density differences and settling times [25].
Table 1. Partitioning behavior of β-carotene in diverse biphasic solvent systems with measured density differences and settling times [25].
Solvent
Systems
CompositionRelative
Proportions
of
Solvents
(v/v/v)
Phase
Volume Ratio
(UP/LP)
Settling Time
(s)
Density
Difference
(LP − UP,
g/mL)
Partition
Coefficient
(K)
of
β-Carotene
1n-Hep–EtOH–H2O6/5/11.00100.12841180.08
2n-Hep–EtOH–H2O6/6/10.78110.11251014.24
3n-Hep–EtOH–H2O6/7/10.65130.0953220.46
4n-Hep–EtOH–H2O6/8/10.50140.0940188.08
5n-Hep–EtOH–H2O6/9/10.39270.091098.16
6n-Hep–EtOH–H2O6/10/10.27200.082559.69
7n-Hep–EtOH–H2O6/11/10.22290.079754.40
8n-Hep–EtOH–H2O6/12/10.13290.072835.10
9n-Hep–EtOH–H2O6/13/10.02290.064224.03
10n-Hep–EtOH–H2O6/14/1No phases---
11n-Hep–MeOH1/10.5380.07009.00
LP: lower phase. UP: upper phase. n-Hep: n-heptane. EtOH: ethanol.
Table 2. Optimization of β-carotene recovery using HPCCC at different sample loadings [25].
Table 2. Optimization of β-carotene recovery using HPCCC at different sample loadings [25].
Optimization
Experiments
Flow Rate
(mL/min)
Sf at the Hydrodynamic Equilibrium in HPCCC
(%)
Loading per
Injection
(mg)
Sf at the End of the HPCCC
Separation Run
(%)
β-Carotene
HPLC Purity
(%)
β-Carotene
Yield
(mg)
a1050100479813.5
b1050200369828.1
c1050400299755.6
d10508002197112.7
Experiments were performed using a 134 mL semi-preparative coil and biphasic solvent system 11 (n-heptane/methanol, 1:1 v/v). The reversed phase elution was performed with the lower phase as mobile phase. The column was kept at 30 °C, detection was performed at 440 nm, and the volume of the injection loop was 3 mL. Stationary phase retention: Sf.
Table 3. Performance evaluation of countercurrent chromatography methods for the isolation of β-carotene.
Table 3. Performance evaluation of countercurrent chromatography methods for the isolation of β-carotene.
HPCCC ProcessPurity (%)Pt (g/h)Pe (g/h)Er (L/g)Ge (g2 h−1 L−1)
Method in this paper970.69800.098366.10030.0161
[19]950.02700.0134814.10000.0009
Pt: process throughput. Pe: process efficiency. Er: process environmental risk factor. Ge: general process evaluation factor. Estimation of Pe and Er uses the mass of isolated β-carotene.
Table 4. Estimated throughput of HPCCC-based β-carotene recovery from Dunaliella at semi-preparative, preparative, and pilot scales [25].
Table 4. Estimated throughput of HPCCC-based β-carotene recovery from Dunaliella at semi-preparative, preparative, and pilot scales [25].
Column
Volume
(mL)
Throughput
(g/h)
Throughput
(g/week)
1340.69827.92 a
9805.105204.19 a
4.623.962575.09 b
8.82045.9451102.67 b
1893.7652250.37 b
The throughput values indicate the amount of algae extract processed per hour. a Estimates for lab-scale systems are based on 40 h of operation per week. b Pilot scale estimates are based on 24 h per week of continuous operation when equipment is available.
