The Application of Dextran Sodium Sulfate to the Efficient Separation of Ilmenite and Forsterite, as a Flotation Depressant

by
Guixia Fan
1,2,3,
Huaiyao Zhang
4,
Fuqiang Tian
4,
Hongbin Wang
4,
Longhua Xu
4,
Yijun Cao
1,2,3,
Hongxiang Xu
5,
Fanfan Zhang
1,2,3,
Jianyong He
1,2,3 and
Guosheng Li
1,2,3,*
1
Henan Critical Metals Institute, Zhengzhou University, Zhengzhou 450000, China
2
Zhongyuan Critical Metals Laboratory, Zhengzhou 450000, China
3
The Key Lab of Critical Metals Minerals Supernormal Enrichment and Extraction, Ministry of Education, Zhengzhou 450001, China
4
School of Chemical Engineering, Zhengzhou University, Zhengzhou 450000, China
5
School of Chemical & Environment Engineering, China University of Mining and Technology—Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Processes 2024, 12(1), 134; https://doi.org/10.3390/pr12010134
Submission received: 16 November 2023 / Revised: 18 December 2023 / Accepted: 26 December 2023 / Published: 4 January 2024
Browse Figures
Versions Notes

Abstract

:
A depressant is essential to the effective flotation-based separation of ilmenite and forsterite, based on their comparable physicochemical characteristics. In this work, dextran sodium sulfate (DSS) was initially introduced as a depressant, to aid in the separation of ilmenite and forsterite. Comparing the DSS to conventional natural starch, the results indicate that the forsterite exerts a greater depression over the ilmenite. The difference in recovery of ilmenite and forsterite was 75.44% at 10 mg/L of DSS dosage. The DSS was chemisorbed strongly onto the forsterite surface via Mg active sites, whereas its interaction with the ilmenite surface via physisorption was weak, based on the XPS and molecular-dynamics-simulation analyses. The results of the AFM and QCM-D investigations showed that the DSS adsorption layer on the forsterite surface was larger than those on the ilmenite surface. Consequently, DSS may function as a depressant, to effectively separate forsterite from ilmenite ore.

Graphical Abstract

1. Introduction

Titanium, a strategic metal, is frequently employed in aerospace, military and medical applications [1,2]. Ilmenite is an important titanium-bearing mineral, and titanaugite and forsterite are the primary gangue minerals in the flotation separation of ilmenite [3]. Depressing titanaugite/forsterite with traditional depressants is the most used flotation technique for treating ilmenite commercially. Fatty acid collectors are the next most used method [4]. Nevertheless, it is difficult to divide titanaugite/forsterite and ilmenite effectively, due to their comparable physicochemical characteristics [5,6].
In ilmenite ore flotation, the crucial factor is to improve the hydrophilicity of gangue minerals and modify the mineral surface property, selectively [7,8]. Previous studies reported that common inorganic depressants, like oxalic acid [9], sodium fluosilicate [10], and water glass/acidified water glass [11], exhibit some selective depressing ability for forsterite or titanaugite. Using chemical chelating as a depressant, oxalic acid was selectively clicked to the Ca active site of the titanaugite surface to produce ilmenite ore containing 26.0% TiO2. Flotation was then utilized to obtain a TiO2 grade concentrate of 41.0% [9]. Acidified water glass exerts a more effective depression effect on forsterite compared to regular water glass, realizing separation between ilmenite and forsterite via flotation. Nevertheless, there are challenges in using these depressants, including pulp acidification [11], low concentrate filtration efficiency, etc. [10,12].
Concerns over organic depressants like cellulose and starch have increased recently [13,14,15]. Carboxymethyl cellulose was chemisorbed on forsterite surface via Fe active sites, while it scarcely affected the collector’s adsorption on the ilmenite surface [16]. Yuan et al. found that sodium citrate could be adsorbed on both the ilmenite and titanaugite surfaces, whereas sodium citrate and titanaugite interacted more strongly than sodium citrate with ilmenite [17]. Titanaugite was selectively depressed by sodium polystyrene sulfonate, resulting in a successful separation with a TiO2 grade of 42.43% and recovery of 80.87% [12]. Meng et al. illustrated that the interaction between carboxymethyl starch and the titanaugite surface inhibited the adsorption of the NaOL collector [18]. Unfortunately, most of the high-molecular polymer depressants are faced with challenges; for example, low solubility and poor dispersion in water [19].
The sulfuric acid group has the characteristics of a strong polar selective bond to metal atoms [12]. Herein, dextran sodium sulfate (DSS), with good solubility and dispersion in water, would act as a depressant to prevent forsterite and ilmenite from being separated effectively by flotation. Nevertheless, there is very little information available regarding the use of DSS in the flotation process for the separation of forsterite and ilmenite.
In this work, the depression of DSS on the forsterite and ilmenite was investigated. The micro-flotation and actual ore flotation test were used to examine the DSS’s inhibitory performance. The adsorption of DSS on the surface of forsterite and its effect on the adsorption of sodium oleate (collector) were further investigated, using zeta potential measurement (Malvern Hills District Britain), X-ray photoelectron spectroscopy (XPS, Thermo 250 XI, Waltham, MA, America), Fourier-transform infrared spectroscopy (FT-IR, Nicolet Nexus 670, Waltham, MA, America), atomic force microscopy (AFM, Bruker, Karlsruhe Hadstrae, Germany), in situ quartz crystal microbalance with dissipation monitoring (QCM-D, Biolin Scientific, Gothenburg, Sweden), and molecular dynamics simulation analysis. A potential reaction mechanism was created in order to gain greater insight into the adsorption of sulfate groups at the forsterite/water interface.

2. Experimental Section

2.1. Materials

The pure ilmenite (Figure 1a) and forsterite ore (Figure 1b) were collected from Panzhihua, Sichuan Province, China. The sample fraction of 38~74 μm was chosen for micro-flotation, whereas the −38 μm fraction was utilized for mechanism characterization, after being further ground to −5 μm.
The DSS (Shanghai Macklin Biochemical Co., Shanghai, China, M.W 500000) and traditional natural starch (Shanghai Macklin Biochemical Co., Shanghai, China) were used as depressants for flotation. The collector used was sodium oleate (Shanghai Macklin Biochemical Co., Shanghai, China). The pH was adjusted to the correct level using NaOH and H2SO4 (95~98%, the concentration volume fraction is 10%). All of the experiments used analytical-grade, deionized water (18.20 MΩ cm).

2.2. Characterization of DSS

A total of 0.05 g DSS was hydrolyzed in hydrochloric acid solution for 10 h and prepared as a 5 mg/L solution. The degree of substitution (DS) of DSS was calculated by the following formula:
DS = (1.62 × S)/(32 − 1.02 × S)
where DS is the degree of substitution; S is the sulfur content expressed in DSS.
The sulfate content was detected using ion chromatography (IC, Dionex Aquion, Sunnyvale, CA, USA). Separation and resolution of ions was carried out on an AS11-HC separation column. Conductivity was suppressed with an AERS~4 mm suppressor. The suppressor voltage and flow rate were set at 75 mA and 1.0 mL/min, and the eluent was 30 mM sodium hydroxide solution. The functional groups of DSS were analyzed using FT-IR. Following a mixture of 1.0 mg DSS and 100.0 mg KBr, measurements were taken between 400 and 4000 cm−1. A gel permeation chromatography (GPC, Agilent, 5301 Stevens Creek Blvd USA) analysis was performed to determine the average molecular weight of DSS.

2.3. Flotation Tests

A total of 40 mL of deionized water and 2.0 g of pure mineral were added to the cell, and the mixture was stirred at 1700 rpm [18,19]. The pulp was gradually mixed with the pH regulator, the depressant and the NaOL collector (preparation concentration 2 g/L), added after 2 min of stirring. Every reagent required 2 min of conditioning. A further 3 min was spent on the flotation time, after that.
NaOH or H2SO4 solution was used to correct the pulp’s pH, and stirring was continued for another 2 min. The depressant and collector were added into the pulp in sequence, and were conditioned for 2 min, separately. A further 3 min was spent on the flotation time, after that. Following drying, the concentrate and tailings underwent separate weight measurements, to ascertain the recoveries. The selectivity index (SI), calculated by the following formula [20,21], was employed to assess how DSS affected the selective separation of ilmenite and forsterite.
S I = ε C I ε T I × ε T F ε C F
The SI denotes the selectivity index, where ε C I and ε C F denote the recoveries of ilmenite and forsterite in froth products, while ε T I and ε T F represent the recoveries of ilmenite and forsterite in tailings products.
The actual minerals used for flotation in the laboratory were taken from the iron tailings of a titanium concentrator in Panzhihua, which primarily contained ilmenite and forsterite. A 0.75 L-capacity flotation machine was utilized for the roughing step of the actual ore flotation process, 225 g of actual ore (pulp concentration of 30 wt%) was placed in a flotation cell, and the pH was adjusted and stirred for 5 min. After that, the procedures were the same as for flotation of a single mineral, and the flotation time increased to 5 min. The final result of the flotation test was determined by averaging the three repetitions.

2.4. Interaction Mechanisms

A total of 40 mL of deionized water was used to disperse 30.0 mg of pure materials with a particle size of −5 μm. Prior to adding DSS depressant into the pulp, the pH was adjusted to the desired value with NaOH or H2SO4 solution [22,23]. The pulp was sonicated and dispersed for 10 min; this was followed by allowing the suspension to stand for 48 h [5]. The Zetasizer Nano ZS90 device was used to measure the zeta potential of the supernatant at various pH levels. The adsorption density and standard adsorption free energy (∆G0ads) of DSS on mineral surfaces were determined based on the Stern–Grahame equation [18,24].
Using 40 mL deionized water (with or without DSS depressant) and a 2.0 g sample at pH = 5.0, the mixture was stirred for 3 min. After filtering, the samples were cleaned with the deionized water, followed by drying at 50 °C for 12 h [25]. A total of 1.0 mg of the prepared samples was combined with 100.0 mg spectroscopic-grade KBr, and was then recorded in the range of 400~4000 cm−1, using FT-IR and XPS at pass energy of 30 eV.
After 3 min of immersion in a DSS solution (10 mg/L), the chips were rinsed with deionized water to remove any remaining reagents on the forsterite and ilmenite surfaces. After that, the chips were blasted dry using high-purity nitrogen, so that they could be scanned using AFM in contact mode at room temperature.
The dynamic adsorption behavior of the DSS on the mineral sensor at 25 °C was investigated using the QCM-D experiment. Once the deionized water had been pumped into the flow cell until the baseline was smooth, the DSS solution (10 mg/L) was added. The entire experiment was performed at pH = 5.0, at a flow rate of 0.15 mL/min. Every 0.5 s, the frequency (F) and dissipation (D) were measured. From these graphs, the mass density and thickness of the adsorbed layer were calculated.

2.5. Molecular Dynamics Simulation

2.5.1. DSS Molecule and Mineral Crystal Structure

A visualizer module from Materials Studio was used to construct the DSS molecule and mineral crystals, which were then optimized by selecting the B3LYP function of the Dmol3 module. The charge distribution was assigned to each atom in the DSS molecule, using energy optimization calculations. The structures of the DSS and mineral crystals [26,27] are displayed in Figure 2.

2.5.2. Dynamics Simulation Details

Molecular dynamics simulation provides a means of quantifying intermolecular and interatomic forces [28]. The universal force field (UFF) was chosen to simulate the interaction of the ilmenite/forsterite surface with DSS [23,29]. The adsorption models were constructed using the PCFF interface field to produce the ilmenite (101) and forsterite (010) surfaces. A total of 500 water molecules were supplied to the mineral surfaces, using the AC module to bring it closer to flotation conditions. The four DSS molecules were placed oriented to the mineral surface. To remove periodic boundary conditions, a 10 Å vacuum layer was taken into consideration in each simulation box. The details of setting parameters were based on previous reports [30].

3. Results and Discussion

3.1. Characterization of DSS

As depicted in Figure 3a, the sulfate content of the DSS solution was found to be 2.74 mg/L, using ion chromatography. The DS of DSS was found to be 2.21, using Formula (1), indicating that the polarity and selectivity of the DSS was enhanced [4].
As depicted in Figure 3b, the stretching vibration of –OH and –CH2 was responsible for the two peaks, at 3432.21 cm−1 and 2948.83 cm−1 [31,32]. The peak at 1627.32 cm−1 originated from tightly bound water [33]. The peaks located at 983.57 cm−1 and 830.07 cm−1, respectively, were associated with the –OSO3− and –S–O–C groups [34]. According to GPC analysis, the DSS’s average molecular weight was approximately 8899 Da, which helped the dispersion in the pump to enhance its depression performance.

3.2. Flotation Experiments

3.2.1. Micro-Flotation of Single Minerals

Figure 4 and Figure 5 show the recoveries of forsterite and ilmenite at different pH values and depressant doses, respectively. As depicted in Figure 4, ilmenite and forsterite exhibited excellent flotation performance at pH = 5.0 with NaOL alone. In these circumstances, ilmenite and forsterite showed a marginally different rate of recovery. The recovery of forsterite at pH = 5.0 was immediately reduced, from 64.29% to 8.12%, with the addition of 10 mg/L DSS before NaOL, whereas the floatability of ilmenite was rarely affected [16,35]. As displayed in Figure 4b, both ilmenite and forsterite in recovery decreased rapidly, after natural treatment.
As illustrated in Figure 5, the forsterite recovery met a significant decrease as the DSS dosage increased, whereas this had minimal influence on the ilmenite flotation. With the escalation of the DSS dosage to 10 mg/L, the forsterite recovery rapidly declined from 64.29% to 8.12%, while 83.56% of ilmenite was still recovered. The ilmenite and forsterite recovery declined quickly with the increasing amount of natural starch, as illustrated in Figure 5b. At a dosage of 10 mg/L of DSS, there was a 75.44% recovery differential between ilmenite and forsterite, while that of natural starch was only 24.68%.
When the DSS dosage was increased from 0 to 10 mg/L, as shown in Figure 6, the SI of DSS increased more quickly than that of natural starch. The SI of DSS with 7.58 was approximately 1.6 times that of natural starch, with 4.85 at 10 mg/L of DSS dosage. These results confirmed that the natural starch is inferior to DSS for the selective depressant flotation separation of ilmenite and forsterite.

3.2.2. Laboratory Flotation of Ilmenite Ore

More research is required to determine how well DSS inhibits multi-component pulp [36]. Thus, we conducted actual ore flotation tests. As seen in Figure 7, there is a positive correlation between the TiO2 grade in the concentrate and the DSS dosage, and the recovery rate falls as the DSS dosage increases. At lower dosages, DSS has superior selective-inhibition performance. The TiO2 grade and TiO2 recovery of the concentrate are 41.21 wt% and 68.80 wt%, respectively, upon the addition of 70 g/t DSS. Therefore, it is advantageous to achieve the separation of ilmenite and forsterite when the dosage of DSS is 70 g/t.
During the ilmenite flotation process, the collector’s surface is prevented from further adsorption by the highly selective inhibitor, which interacts preferentially with the metal sites on the gangue minerals. This decreases the floatability of the ilmenite, substantially. The mechanism of the inhibitor–mineral solid–liquid interface interaction is described in the following section.

3.3. Interaction Mechanisms of the DSS on Ilmenite/Forsterite Surface

3.3.1. Electrostatic Interaction Analysis

As displayed in Figure 8, both forsterite and ilmenite treated with DSS had a similar degree of negative zeta potential change. Ilmenite treated with DSS demonstrated a negative change in its zeta potential of 11.56 mV at pH = 5, increasing from −4.24 mV to −15.80 mV. Similar to ilmenite, forsterite’s zeta potential shifted by 9.60 mV in a negative direction. The ∆G0ads of DSS on the forsterite surface with −0.93 kJ was similar to that of ilmenite, with −1.12 kJ (Table 1). These results demonstrated that DSS could interact with both ilmenite and forsterite through electrostatic interaction.

3.3.2. Changes in Mineral-Surface Functional Groups before and after DSS Treatment

As shown in Figure 9, the stretching vibration of –OH on DSS appeared at 3432.21 cm−1 [31]. At 2948.83 cm−1, and the –CH2 stretching vibration peak appeared [32]. Tightly bound water was identified as the cause of the band at 1627.32 cm−1 [33]. The –OSO3− and S–O–C groups were identified as the two peaks at 1014.40 cm−1 and 830.07 cm−1, respectively [34].
Comparing the FT-IR spectra of the DSS-treated ilmenite to those of pure ilmenite, as shown in Figure 9a, no new peak was observed. These results could support the fact that the DSS was most likely to be adsorbed on the ilmenite surface via physisorption, such as intramolecular hydrogen bonds [18]. As shown in Figure 9b, a new peak at 983.57 cm−1 was observed on forsterite surface treated with DSS, belonging to the stretching vibration of the –OSO3− group [34]. The significant change in the –OSO3− group in the DSS from 1014 cm−1 to 983.57 cm−1 confirmed that there was strong DSS chemisorption on the forsterite surface [37,38].

3.3.3. Surface Morphology Analysis

The surfaces of ilmenite and forsterite, as shown in Figure 10a,c, were smooth, with an average roughness (Ra) of 0.444 nm and 0.400 nm, which reduced the effect of the adsorption morphology study [37]. As shown in Figure 10a,b, the adsorption layer height of DSS on the ilmenite surface witnessed an increase of 8.39 nm (2D height images), and sporadically distributed bulges appeared on the 3D images. Compared with pure forsterite, the DSS bulges became clearly visible on the surface of the treated one (Figure 10c,d). Moreover, the data presented in Figure 10b,d provided enough evidence to support the variation in DSS adsorption on mineral surfaces. The 3D images showed that DSS exhibited a denser adsorption layer on the surface of forsterite than those on the ilmenite surface. Furthermore, on the forsterite surface, the DSS adsorption density and layer height were greater than on the ilmenite surface. These findings demonstrated that, compared to the ilmenite surface, the forsterite surface was more significantly absorbed by the DSS.

3.3.4. Changes in the Binding Energy of Minerals with/without DSS Treatment

The forsterite surface exhibited a significant increase of 3.50%, while the ilmenite surface showed a relative increase of 0.46%, after being exposed to DSS (Table 2). This confirmed that DSS had a stronger adsorption on the forsterite than ilmenite. The O1s spectra of ilmenite treated with DSS fit rather well, according to Figure 11a,b, where two factors were ascribed to the Ti-O and Fe-O bonds, respectively [39,40]. The forsterite surface’s oxygen chemical environment underwent a significant change, as seen by the 0.32 eV shift in the binding energies of the Mg-O bond (Figure 11c). Moreover, compared with the high-resolution O1s spectra of pure forsterite, the newly binding energy at around 532.81 eV was observed in the treated one, which was assigned to the Mg-O-S bond [41] (Figure 11d). These results confirmed that DSS interacted with the forsterite surface through chemisorption.
As displayed in Figure 12a,b, the high-resolution Ti1s spectra of the treated and raw ilmenite have two components. Notably, there are subtle shifts in the binding energies of these bonds. Moreover, the Ti relative content decreased by 2.11% (Table 2). These results indicated that DSS was most likely to interact with the ilmenite surface through weak physisorption, such as intramolecular hydrogen bonds [14,33]. The Mg1s high-resolution spectra of forsterite may be matched rather well with two bonds; Mg2+ was identified as the source of the peak at 1303.42 eV [42] and Mg-Si as the source of the peak at 1304.90 eV [43] (Figure 12c). Compared with the high-resolution Mg 1s spectra of pure forsterite, as shown in Figure 12d, the newly binding energy at 1303.93 eV was observed in the treated one, which was assigned to the Mg-O bond [44]. Furthermore, the Mg relative content was decreased by 2.27% (Table 2). These results confirmed that DSS interacted with Ti active sites on the ilmenite surface via physisorption, and chemisorbed on the forsterite surface via Mg active sites.

3.3.5. Dynamic Adsorption Behavior of DSS on the Ilmenite/Forsterite Surface

As shown in Figure 13, the frequency (F) sharply decreased to −59.74 Hz, simultaneous with a sharp increase in dissipation (D) on the forsterite sensor, whereas a slight decrease was observed on the ilmenite sensor. On the ilmenite sensor, a thin and rigid adsorption layer of DSS appeared to be forming, while the high D with 16.48 × 10−6 suggested the formation of a soft and dissipative adsorption layer on the forsterite sensor [45]. As seen in Table 3, at pH = 5.0, the mass density of the DSS adsorption layer was 2578.38 ng/cm2 on the ilmenite surface and 8204.62 ng/cm2 on the forsterite surface. The layer thickness was 25.78 nm and 82.05 nm, respectively. These findings indicated that DSS preferred to adsorb on the forsterite surface.

3.3.6. Adsorption Configuration of DSS on Ilmenite and Forsterite Surfaces

Figure 14 illustrates the DSS adsorption configuration on the surfaces of forsterite and ilmenite. The Mg site on the hydrated surface and the O atom in DSS produced two strong bonds, with lengths of 2.505 Å and 2.454 Å, respectively; the bond lengths with the Ti site were 4.844 Å and 4.801 Å, respectively. Since DSS is located at a distance from the mineral surface, there is little-to-no chemical contact between the active group and the mineral-surface active site [8]. Furthermore, Table 4 computes the interaction energy between DSS and the surfaces of forsterite and ilmenite. According to the table, DSS has a higher interaction energy, of −477.75 kJ/mol, with the surface of ilmenite than it does with the surface of forsterite (−989.06 kJ/mol). This suggests that DSS is more likely to adsorb on the surface of forsterite than it is on the surface of ilmenite [46,47]. This conclusion is in line with the findings of XPS, FT-IR, and AFM, demonstrating that DSS interacts with surfaces considerably more strongly on the surface of forsterite than it does on ilmenite.
The first peak in the distribution of O atoms and Mg atoms was located at 2.41 Å, whereas the nearest distance between O atoms and Si atoms was about 3.19 Å (Figure 15). These findings verified that DSS was chemisorbed with Mg active sites on the forsterite surface [48,49]. In agreement with the XPS data, the first peak of O-Ti and O-Fe were located at 3.25 Å and 3.39 Å, respectively, which implied that DSS interacted with the ilmenite surface by physisorption, via the Ti active site.

4. Conclusions

To effectively separate ilmenite and forsterite via flotation, the DSS was initially presented as a new depressant. Under the optimized conditions of pH = 5.0 and 10 mg/L DSS, the DSS showed a stronger selective depression on forsterite than ilmenite. The DSS depressant was chemisorbed strongly onto the forsterite surface via Mg active sites, whereas the weaker physisorption of DSS via Ti active sites was detected on the forsterite surface. The adsorption layer height and adsorption density of DSS with 8204.62 ng/cm2 on the forsterite surface were larger than that of the ilmenite surface, which was 2578.38 ng/cm2. Based on the facts above, it can be said that DSS is now a more effective inhibitor than natural starch. This is due to the sulfuric acid group’s strong polarity, which improves its solubility and dispersion in water, as well as the group’s ability to selectively bond to metal atoms, which promotes the DSS’s selective adsorption on gangue surfaces and allows for high inhibition and selectivity in the DSS. It offers recommendations for the selection of high-efficiency ilmenite separation inhibitors, and has a wide range of industrial application prospects for the effective separation of ilmenite and forsterite.

Author Contributions

G.F.: Writing—review and editing; H.Z.: methodology; F.T.: writing—original draft; H.W.: formal analysis; L.X.: methodology; Y.C.: methodology; H.X.: validation; F.Z.: validation; J.H.: supervision; G.L.: writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National key research and development plan (Grant No. 2023YFC2908301), National Natural Science Foundation of China (No. U1908226; 52104270), China Postdoctoral Science Foundation project (No. 2022M710851), Key Specialized Research and Development Breakthrough Project in Henan Province (No. 221111320300), and Zhongyuan Critical Metals Laboratory (No. GJJSGFYQ202329). This research received no external funding.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Desheng, C.; Longsheng, Z.; Tao, Q.; Guoping, H. Desilication from titanium–vanadium slag by alkaline leaching. Trans. Nonferrous Met. Soc. China 2013, 23, 3076–3082. [Google Scholar] [CrossRef]
  2. Samal, S.; Mohapatra, B.K.; Mukherjee, P.S.; Chatterjee, S.K. Integrated XRD, EPMA and XRF study of ilmenite and titania slag used in pigment production. J. Alloys Compd. 2009, 474, 484–489. [Google Scholar] [CrossRef]
  3. Zhao, W.; Chen, J.; Chang, X.; Guo, S. Effect of microwave irradiation on selective heating behavior and magnetic separation characteristics of Panzhihua ilmenite. Appl. Surf. Sci. 2014, 300, 171–177. [Google Scholar] [CrossRef]
  4. Deng, R.; Yang, X.; Hu, Y.; Ku, J. Effect of Fe(II) as assistant depressant on flotation separation of scheelite from calcite. Miner. Eng. 2018, 118, 133–140. [Google Scholar] [CrossRef]
  5. Fan, G.; Zhang, C.; Wang, T.; Deng, J.; Cao, Y.; Chang, L.; Zhou, G.; Wu, Y.; Li, P. New insight into surface adsorption thermodynamic, kinetic properties and adsorption mechanisms of sodium oleate on ilmenite and titanaugite. Adv. Powder Technol. 2020, 31, 3628–3639. [Google Scholar] [CrossRef]
  6. Fan, X.; Rowson, N.A. The effect of Pb(NO3)2 on the ilmenite flotation. Miner. Eng. 2000, 13, 205–215. [Google Scholar] [CrossRef]
  7. Meng, Q.; Yuan, Z.; Yu, L.; Xu, Y.; Du, Y. Study on the activation mechanism of lead ions in the flotation of ilmenite using benzyl hydroxamic acid as collector. J. Ind. Eng. Chem. 2018, 62, 209–216. [Google Scholar] [CrossRef]
  8. Kang, Y.; Zhang, C.; Wang, H.; Xu, L.; Li, P.; Li, J.; Li, G.; Peng, W.; Zhang, F.; Fan, G.; et al. A novel sodium trans-2-nonene hydroxamate for the flotation separation of ilmenite and forsterite: Superior collecting and selectivity. Sep. Purif. Technol. 2024, 333, 125830. [Google Scholar] [CrossRef]
  9. Liu, X.; Huang, G.Y.; Li, C.X.; Cheng, R.J. Depressive effect of oxalic acid on titanaugite during ilmenite flotation. Miner. Eng. 2015, 79, 62–67. [Google Scholar] [CrossRef]
  10. Zhao, X.; Meng, Q.Y.; Yuan, Z.T.; Zhang, Y.; Li, L. Effect of sodium silicate on the magnetic separation of ilmenite from titanaugite by magnetite selective coating. Powder Technol. 2019, 344, 233–241. [Google Scholar] [CrossRef]
  11. Yang, Y.H.; Xu, L.H.; Tian, J.; Liu, Y.C.; Han, Y.X. Selective flotation of ilmenite from olivine using the acidified water glass as depressant. Int. J. Miner. Process. 2016, 157, 73–79. [Google Scholar] [CrossRef]
  12. Qian, Y.; Wang, Z.; Cao, J. New depression mechanism of polymeric depressant on titanaugite in ilmenite flotation. Sep. Purif. Technol. 2021, 264, 118468. [Google Scholar] [CrossRef]
  13. Yang, S.; Xu, Y.; Liu, C.; Huang, L.; Huang, Z.; Li, H. The anionic flotation of fluorite from barite using gelatinized starch as the depressant. Colloids Surf. A Physicochem. Eng. Asp. 2020, 597, 124794. [Google Scholar] [CrossRef]
  14. Yang, S.; Wang, L. Measurement of froth zone and collection zone recoveries with various starch depressants in anionic flotation of hematite and quartz. Miner. Eng. 2019, 138, 31–42. [Google Scholar] [CrossRef]
  15. Ludovici, F.; Hartmann, R.; Rudolph, M.; Liimatainen, H. Thiol-Silylated Cellulose Nanocrystals as Selective Biodepressants in Froth Flotation. ACS Sustain. Chem. Eng. 2023, 11, 16176–16184. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, W.; Wang, H.; Wu, Q.; Zheng, Y.; Cui, Y.; Yan, W.; Deng, J.; Peng, T. Comparative study on adsorption and depressant effects of carboxymethyl cellulose and sodium silicate in flotation. J. Mol. Liq. 2018, 268, 140–148. [Google Scholar] [CrossRef]
  17. Yuan, Z.; Zhao, X.; Meng, Q.; Zhang, Y.; Xu, Y.; Li, L. Adsorption mode of sodium citrate for achieving effective flotation separation of ilmenite from titanaugite. Miner. Eng. 2021, 171, 107086. [Google Scholar] [CrossRef]
  18. Meng, Q.; Yuan, Z.; Yu, L.; Xu, Y.; Du, Y.; Zhang, C. Selective depression of titanaugite in the ilmenite flotation with carboxymethyl starch. Appl. Surf. Sci. 2018, 440, 955–962. [Google Scholar] [CrossRef]
  19. Wang, Z.; Xu, R.; Wang, L. Adsorption of polystyrenesulfonate on titanaugite surface: Experiments and quantum chemical calculations. J. Mol. Liq. 2020, 319, 114167. [Google Scholar] [CrossRef]
  20. Yang, B.; Zhu, Z.; Sun, H.; Yin, W.; Hong, J.; Cao, S.; Tang, Y.; Zhao, C.; Yao, J. Improving flotation separation of apatite from dolomite using PAMS as a novel eco-friendly depressant. Miner. Eng. 2020, 156, 106492. [Google Scholar] [CrossRef]
  21. Cao, Z.; Cao, Y.; Qu, Q.; Zhang, J.; Mu, Y. Separation of bastnäsite from fluorite using ethylenediamine tetraacetic acid as depressant. Miner. Eng. 2019, 134, 134–141. [Google Scholar] [CrossRef]
  22. Xu, Y.; Yuan, Z.; Meng, Q.; Zhao, X.; Du, Y. Study on the flotation behavior and interaction mechanism of ilmenite with mixed BHA/NaOL collector. Miner. Eng. 2021, 170, 107034. [Google Scholar] [CrossRef]
  23. Du, Y.; Meng, Q.; Yuan, Z.; Xu, Y.; Li, L. New cognitions into three new classified titanaugite in mineralogical characteristics and fundamental performances. Miner. Eng. 2021, 169, 106962. [Google Scholar] [CrossRef]
  24. Mehdilo, A.; Irannajad, M.; Rezai, B. Effect of crystal chemistry and surface properties on ilmenite flotation behavior. Int. J. Miner. Process. 2015, 137, 71–81. [Google Scholar] [CrossRef]
  25. Meng, Q.; Yuan, Z.; Li, L.; Lu, J.; Yang, J. Modification mechanism of lead ions and its response to wolframite flotation using salicylhydroxamic acid. Powder Technol. 2020, 366, 477–487. [Google Scholar] [CrossRef]
  26. Yuan, Z.; Zhao, X.; Meng, Q.; Zhang, Y. Investigation of selective adsorption of sodium oleate during separation of ilmenite from titanaugite via surface magnetization. Miner. Eng. 2021, 171, 107128. [Google Scholar] [CrossRef]
  27. Zhang, C.; Li, P.; Cao, Y.; Hao, H. Synthesis of sodium oleate hydroxamate and its application as a novel flotation collector on the ilmenite-forsterite separation. Sep. Purif. Technol. 2022, 284, 120283. [Google Scholar] [CrossRef]
  28. Tazikeh, S.; Kondori, J.; Zendehboudi, S.; Amin, J.S. Molecular dynamics simulation to investigate the effect of polythiophene-coated Fe3O4 nanoparticles on asphaltene precipitation. Chem. Eng. Sci. 2021, 237, 116417. [Google Scholar] [CrossRef]
  29. Xu, L.; Hu, Y.; Dong, F.; Gao, Z. Anisotropic adsorption of oleate on diaspore and kaolinite crystals: Implications for their flotation separation. Appl. Surf. Sci. 2014, 321, 331–338. [Google Scholar] [CrossRef]
  30. Hao, H.; Li, L.; Yuan, Z.; Liu, J. Molecular arrangement of starch, Ca2+ and oleate ions in the siderite-hematite-quartz flotation system. J. Mol. Liq. 2018, 254, 349–356. [Google Scholar] [CrossRef]
  31. Hao, Z.; Jiankun, W.; Wenjing, L.; Fengyan, L. Microwave-assisted synthesis, characterization, and textile sizing property of carboxymethyl corn starch. Fibers Polym. 2015, 16, 2308–2317. [Google Scholar] [CrossRef]
  32. Saboktakin, M.R.; Tabatabaie, R.M.; Maharramov, A.; Ramazanov, M.A. Synthesis and characterization of new electrorheological fluids by carboxymethyl starch nanocomposites. Carbohydr. Polym. 2010, 79, 1113–1116. [Google Scholar] [CrossRef]
  33. Yuan, Z.; Du, Y.; Meng, Q.; Zhang, C.; Xu, Y.; Zhao, X. Adsorption differences of carboxymethyl cellulose depressant on ilmenite and titanaugite. Miner. Eng. 2021, 166, 106887. [Google Scholar] [CrossRef]
  34. Chen, W.; Feng, Q.; Zhang, G.; Yang, Q. The flotation separation of scheelite from calcite and fluorite using dextran sulfate sodium as depressant. Int. J. Ofmineral Process. 2017, 169, 53–59. [Google Scholar] [CrossRef]
  35. Liu, W.; Zhang, J.; Wang, W.; Deng, J.; Chen, B.; Yan, W.; Xiong, S.; Huang, Y.; Liu, J. Flotation behaviors of ilmenite, titanaugite, and forsterite using sodium oleate as the collector. Miner. Eng. 2015, 72, 1–9. [Google Scholar] [CrossRef]
  36. Rhein, F.; Zhai, O.; Schmid, E.; Nirschl, H. Multidimensional Separation by Magnetic Seeded Filtration: Experimental Studies. Powders 2023, 2, 588–606. [Google Scholar] [CrossRef]
  37. Dong, L.; Jiao, F.; Qin, W.; Hailing, Z.; Wenhao, J. New insights into the carboxymethyl cellulose adsorption on scheelite and calcite: Adsorption mechanism, AFM imaging and adsorption model. Appl. Surf. Sci. 2019, 463, 105–114. [Google Scholar] [CrossRef]
  38. Liu, Q.; Zhang, Y.; Laskowski, J.S. The adsorption of polysaccharides onto mineral surfaces: An acid/base interaction. Int. J. Miner. Process. 2000, 60, 229–245. [Google Scholar] [CrossRef]
  39. Daou, T.J.; Begin, S.C.; Greneche, J.M.; Thomas, F.; Derory, A.; Bernhardt, P.; Legaré, P.; Pourroy, G. Phosphate adsoption properties of magnetite-base nanoparticles. Chem. Mater. 2007, 19, 4494–4505. [Google Scholar] [CrossRef]
  40. Ouerd, A.; Dumont, C.A.; Berthome, G.; Normand, B. Reactivity of titanium in physiological medium: I. Electrochemical characterization of the metal/protein interface. J. Electrochem. Soc. 2007, 154, 593–601. [Google Scholar] [CrossRef]
  41. Sugiyama, S.; Miyamoto, T.; Hayashi, H.; Moffat, J.B. Oxidative coupling of methane on mgo-mgso4 catalysts in the presence and absence of carbon tetrachloride. Bull. Chem. Soc. Jpn. 1996, 69, 235–240. [Google Scholar] [CrossRef]
  42. Haycock, D.E.; Kasrai, M.; Nicholls, C.J.; Urch, D.S. ChemInform abstract: The electronic structure of magnesium hydroxide (brucite) using X-ray emission, X-ray photoelectron, and auger spectroscopy. Chem. Informationsdienst 1979, 10, 1791–1796. [Google Scholar] [CrossRef]
  43. Seyama, H.; Soma, M. Bonding-state characterization of the constituent elements of silicate minrals by X-ray photoelectron spectroscopy. Chem. Informationsdienst 1985, 16, 2199–2924. [Google Scholar]
  44. Seyama, H.; Soma, M. X-ray Photoelectron Spectroscopic Study of Montmorillonite Containing Exchangeable Divalent Cations. J. Am. Chem. Soc. 1984, 80, 237–248. [Google Scholar] [CrossRef]
  45. Wu, B.; Raghavan, S. Removal of BTA Adsorbed on Cu: A Feasibility Study Using the Quartz Crystal Microbalance with Dissipation (QCMD) Technique. ECS J. Solid State Sci. Technol. 2019, 8, P3114–P3117. [Google Scholar] [CrossRef]
  46. Gao, F.; Dong, L.; Xue, Z.; Cai, S.; Fan, M.; Hao, B.; Fan, P.; Bao, W.; Wang, J. Dodecylamine enhanced coal gasification fine slag flotation and its molecular dynamics simulation. Miner. Eng. 2023, 203, 108322. [Google Scholar] [CrossRef]
  47. Tang, Y.; Kelebek, S.; Yin, W. Surface chemistry of magnesite and calcite flotation and molecular dynamics simulation of their cetyl phosphate adsorption. Colloids Surf. A Physicochem. Eng. Asp. 2020, 603, 125246. [Google Scholar] [CrossRef]
  48. Wang, L.; Li, Z.; Zhang, H.; Lyu, W.; Zhu, Y.; Ma, Y.; Li, F. The role of gellan gum in the selective flotation separation of fluorite from calcite: An experimental and molecular dynamics simulation study. Powder Technol. 2024, 432, 119156. [Google Scholar] [CrossRef]
  49. Huang, H.; Gao, W.; Li, X. Effect of SO42− and PO43− on flotation and surface adsorption of dolomite: Experimental and molecular dynamics simulation studies. Colloids Surf. A Physicochem. Eng. Asp. 2024, 680, 132699. [Google Scholar] [CrossRef]
Processes 12 00134 g001

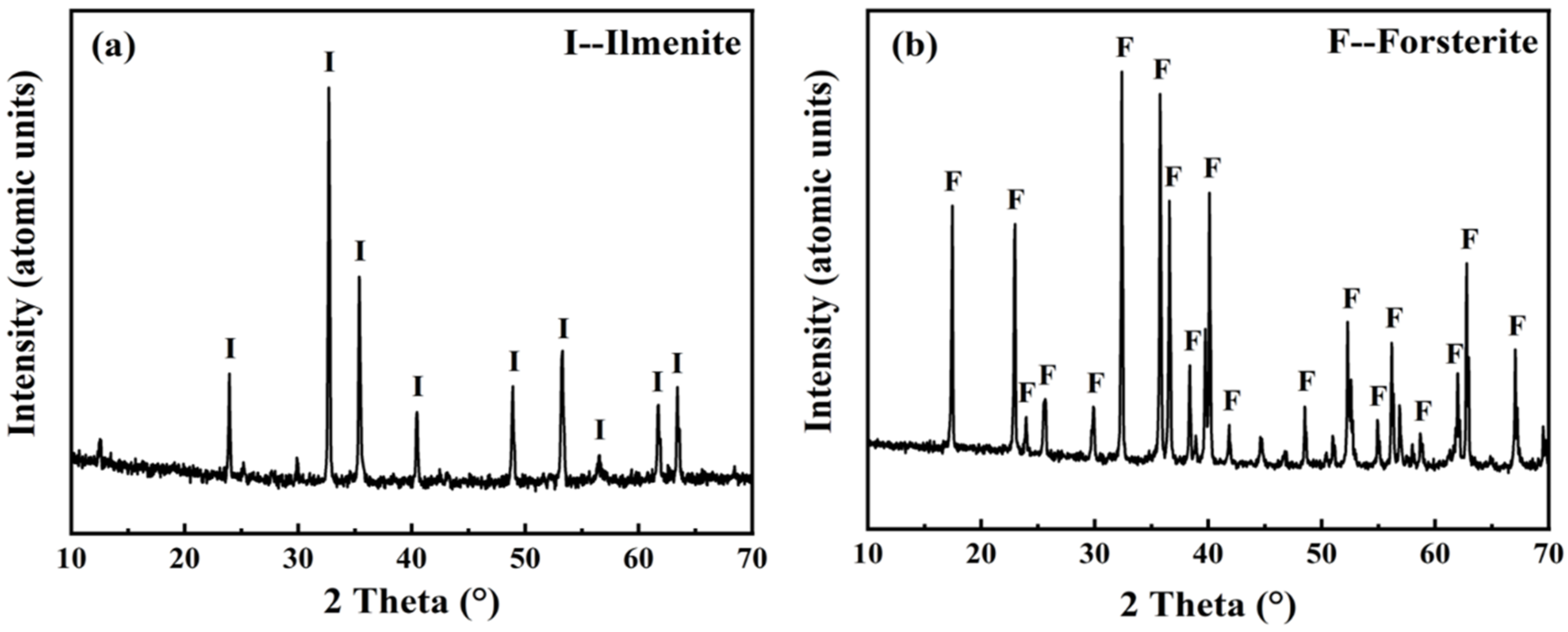

Figure 1. X-ray diffraction patterns of (a) pure-ilmenite and (b) forsterite samples.
Figure 1. X-ray diffraction patterns of (a) pure-ilmenite and (b) forsterite samples.
Processes 12 00134 g001
Processes 12 00134 g002
Figure 2. The structures of (a) D SS molecule, (b) ilmenite crystal, and (c) forsterite crystal.
Figure 2. The structures of (a) D SS molecule, (b) ilmenite crystal, and (c) forsterite crystal.
Processes 12 00134 g002
Processes 12 00134 g003

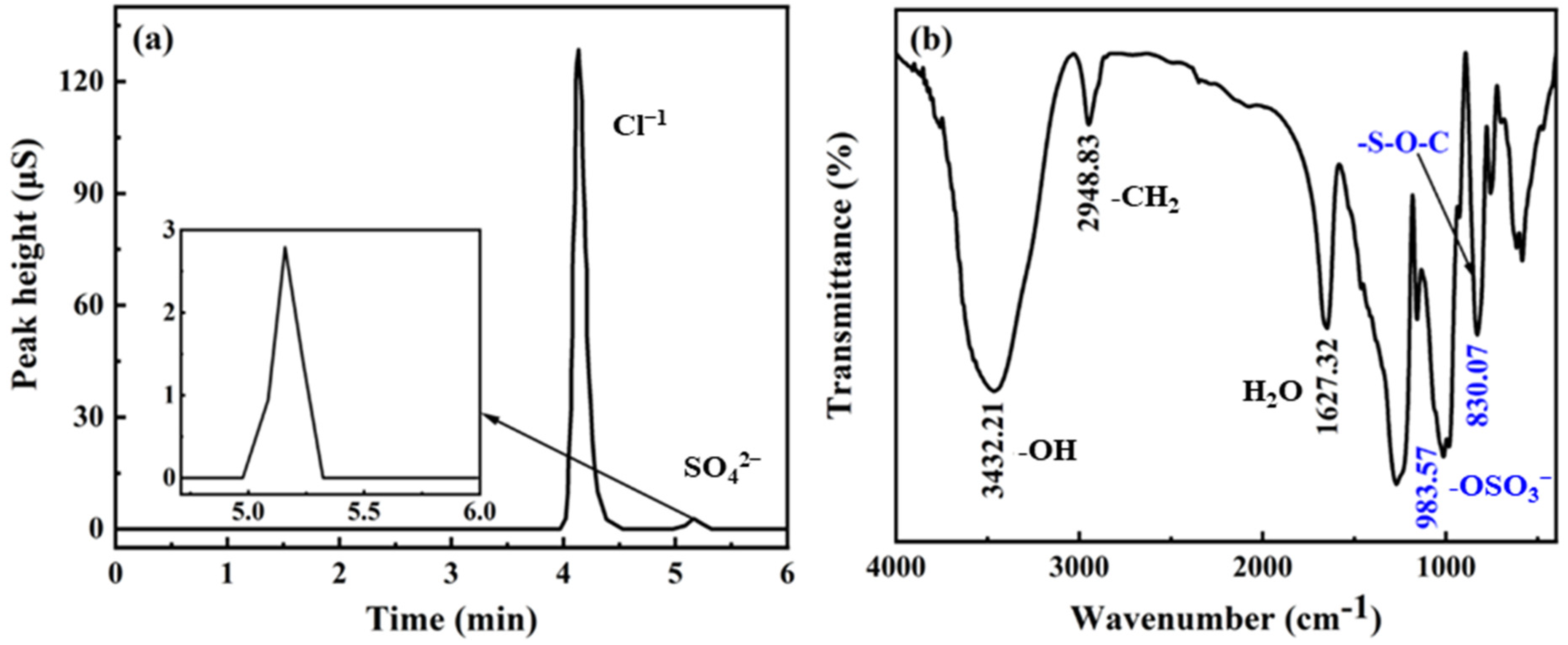

Figure 3. (a) The sulfate content in DSS, (b) FT-IR spectrum of DSS.
Figure 3. (a) The sulfate content in DSS, (b) FT-IR spectrum of DSS.
Processes 12 00134 g003
Processes 12 00134 g004
Figure 4. Effect of pH on the flotation performance of (a) ilmenite and (b) forsterite, with or without DSS (CNaOL = 6 × 10−4 mol/L).
Figure 4. Effect of pH on the flotation performance of (a) ilmenite and (b) forsterite, with or without DSS (CNaOL = 6 × 10−4 mol/L).
Processes 12 00134 g004
Processes 12 00134 g005
Figure 5. Effect of (a) DSS and (b) natural starch dosage on the flotation of ilmenite and forsterite at pH 5.0 (CNaOL = 6 × 10−4 mol/L).
Figure 5. Effect of (a) DSS and (b) natural starch dosage on the flotation of ilmenite and forsterite at pH 5.0 (CNaOL = 6 × 10−4 mol/L).
Processes 12 00134 g005
Processes 12 00134 g006

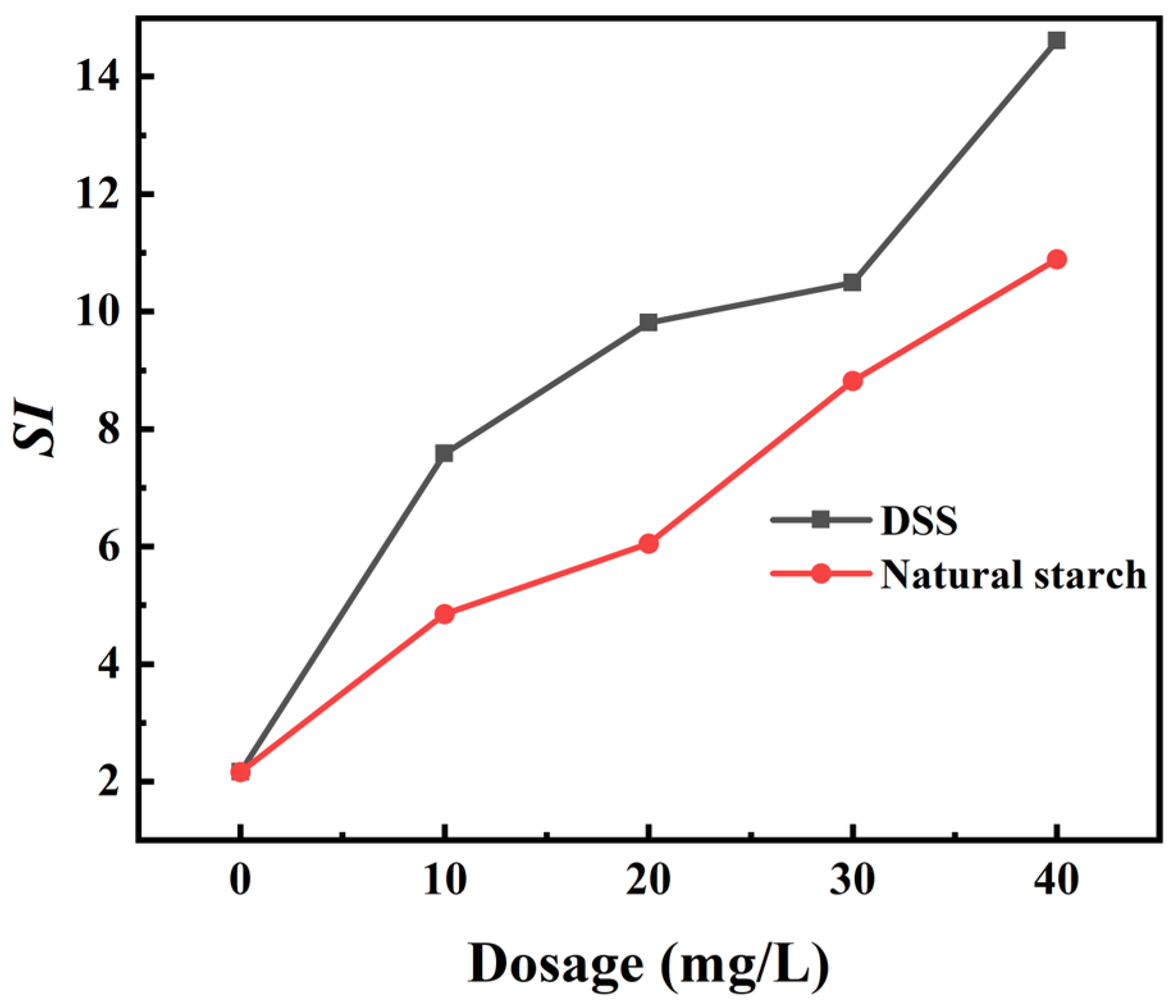

Figure 6. The selectivity index of DSS and natural starch at pH = 5.0.
Figure 6. The selectivity index of DSS and natural starch at pH = 5.0.
Processes 12 00134 g006
Processes 12 00134 g007

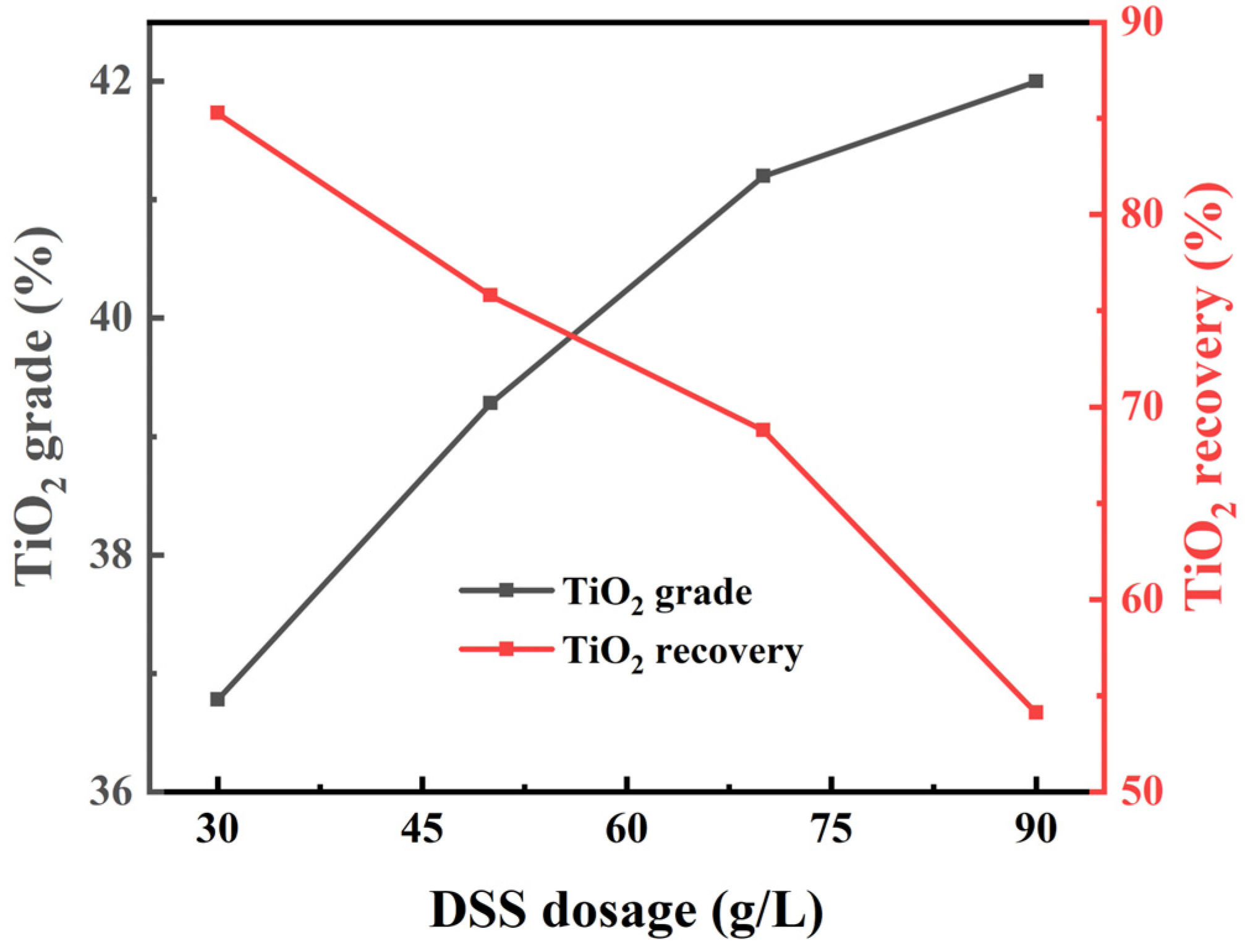

Figure 7. Effect of DSS dosages on the flotation concentrate (CH2SO4 = 1800 g/t, CMOH = 2200 g/t).
Figure 7. Effect of DSS dosages on the flotation concentrate (CH2SO4 = 1800 g/t, CMOH = 2200 g/t).
Processes 12 00134 g007
Processes 12 00134 g008

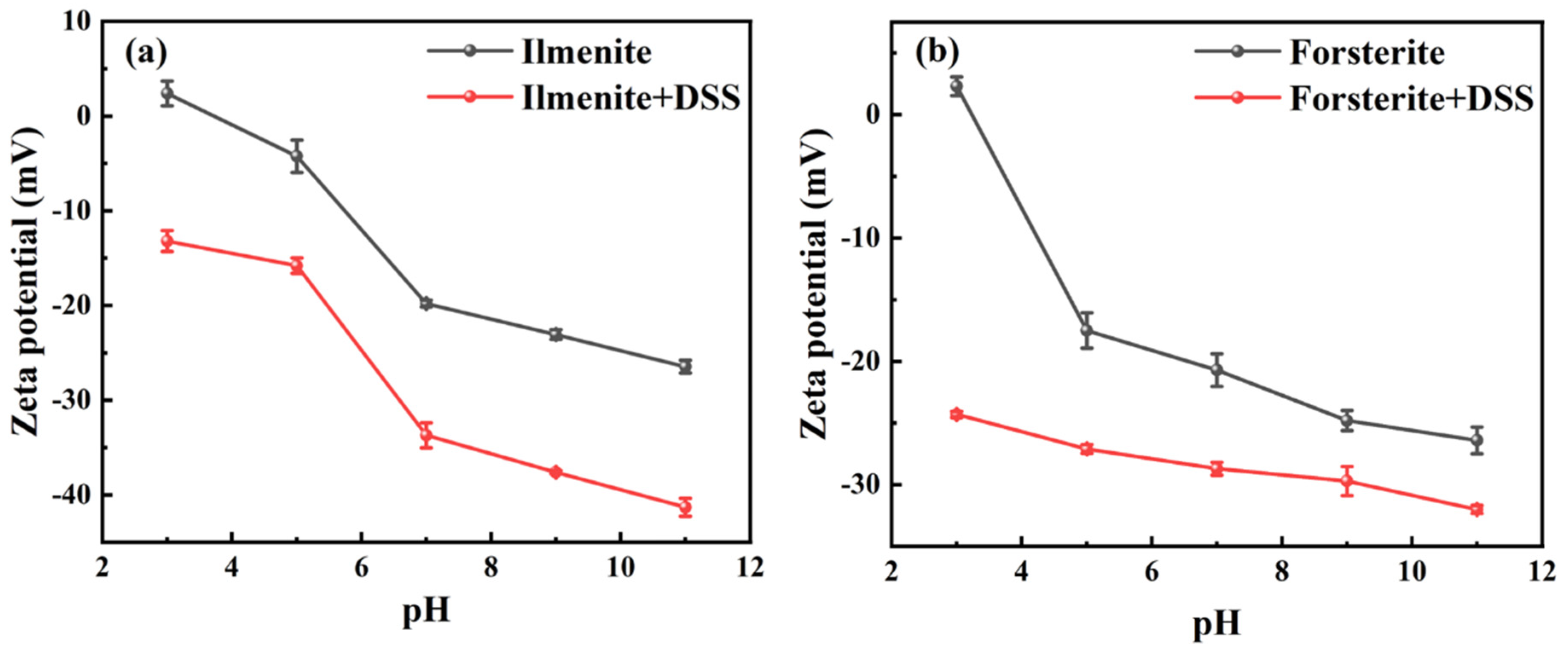

Figure 8. Effect of pH on the zeta potentials of (a) ilmenite and (b) forsterite, in the absence and presence of DSS.
Figure 8. Effect of pH on the zeta potentials of (a) ilmenite and (b) forsterite, in the absence and presence of DSS.
Processes 12 00134 g008
Processes 12 00134 g009
Figure 9. FT-IR spectra of (a) ilmenite and (b) forsterite, in the absence and presence of DSS.
Figure 9. FT-IR spectra of (a) ilmenite and (b) forsterite, in the absence and presence of DSS.
Processes 12 00134 g009
Processes 12 00134 g010
Figure 10. 2D and 3D images of mineral surfaces: (a) ilmenite, (b) ilmenite + DSS, (c) forsterite, and (d) forsterite + DSS.
Figure 10. 2D and 3D images of mineral surfaces: (a) ilmenite, (b) ilmenite + DSS, (c) forsterite, and (d) forsterite + DSS.
Processes 12 00134 g010
Processes 12 00134 g011

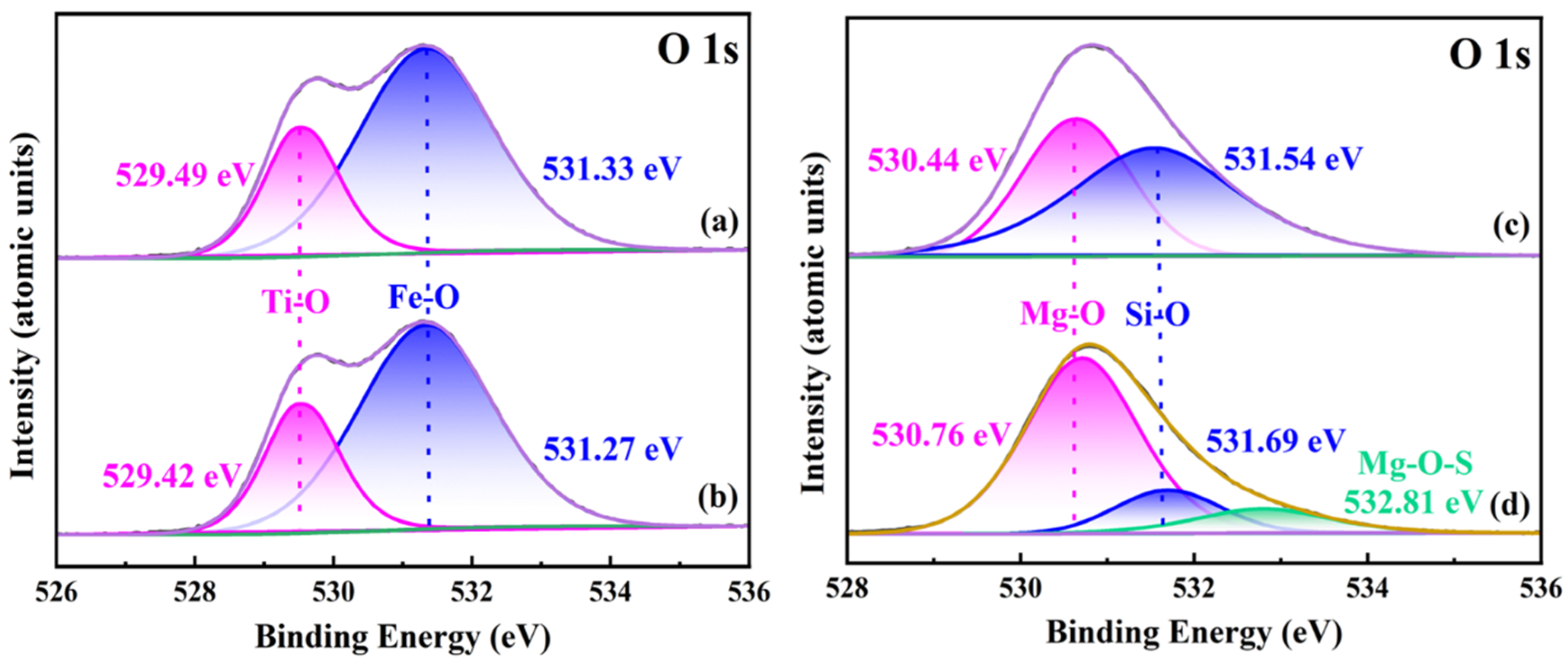

Figure 11. High-resolution O1s spectra of (a) ilmenite, (b) treated with DSS, (c) forsterite, and (d) treated with DSS.
Figure 11. High-resolution O1s spectra of (a) ilmenite, (b) treated with DSS, (c) forsterite, and (d) treated with DSS.
Processes 12 00134 g011
Processes 12 00134 g012
Figure 12. High-resolution Ti 1s spectra of (a) ilmenite, (b) treated with DSS, high-resolution Mg 1s spectra of (c) forsterite, and (d) treated with DSS.
Figure 12. High-resolution Ti 1s spectra of (a) ilmenite, (b) treated with DSS, high-resolution Mg 1s spectra of (c) forsterite, and (d) treated with DSS.
Processes 12 00134 g012
Processes 12 00134 g013
Figure 13. Adsorption frequency and energy dissipation of DSS on the surface of ilmenite and forsterite: (a) ilmenite, (b) forsterite.
Figure 13. Adsorption frequency and energy dissipation of DSS on the surface of ilmenite and forsterite: (a) ilmenite, (b) forsterite.
Processes 12 00134 g013
Processes 12 00134 g014
Figure 14. The adsorption configurations of DSS on ilmenite and forsterite surfaces: (a) ilmenite, (b) forsterite.
Figure 14. The adsorption configurations of DSS on ilmenite and forsterite surfaces: (a) ilmenite, (b) forsterite.
Processes 12 00134 g014
Processes 12 00134 g015
Figure 15. The radial distribution function of O-Metal.
Figure 15. The radial distribution function of O-Metal.
Processes 12 00134 g015
Table 1. Adsorption density and standard adsorption free energy of DSS on ilmenite and forsterite surface at pH = 5.0.
Table 1. Adsorption density and standard adsorption free energy of DSS on ilmenite and forsterite surface at pH = 5.0.
Sampleξ2 (mV)ξ1 (mV)∆|ξ| (mV)τs (mol/L)∆G0ads (kJ)
Ilmenite−15.80−4.2411.56K × exp(0.01156)−1.12
Forsterite−27.10−17.509.60K × exp(0.00960)−0.93
Table 2. Relative atomic content of the elements on the ilmenite and forsterite.
Table 2. Relative atomic content of the elements on the ilmenite and forsterite.
SamplesRelative Atomic Content of the Elements (%)
COFeSiTiMgCaAl
Ilmenite19.0957.429.745.358.40———
Ilmenite + DSS19.5556.3610.637.176.29———
Forsterite13.5248.041.8312.74—14.536.203.14
Forsterite + DSS17.0246.181.8813.56—12.265.953.15
Table 3. DSS adsorption data on ilmenite/forsterite sensor surface.
Table 3. DSS adsorption data on ilmenite/forsterite sensor surface.
SampleD (×10−6)F (Hz)Thickness (nm)Mass (ng/cm2)
Ilmenite3.66−21.5125.782578.38
Forsterite16.48−45.6882.058204.62
Table 4. Interaction energy of DSS with mineral surfaces.
Table 4. Interaction energy of DSS with mineral surfaces.
SampleInteraction Energy (kJ/mol)
Ilmenite−497.17
Forsterite−805.85
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fan, G.; Zhang, H.; Tian, F.; Wang, H.; Xu, L.; Cao, Y.; Xu, H.; Zhang, F.; He, J.; Li, G. The Application of Dextran Sodium Sulfate to the Efficient Separation of Ilmenite and Forsterite, as a Flotation Depressant. Processes 2024, 12, 134. https://doi.org/10.3390/pr12010134

AMA Style

Fan G, Zhang H, Tian F, Wang H, Xu L, Cao Y, Xu H, Zhang F, He J, Li G. The Application of Dextran Sodium Sulfate to the Efficient Separation of Ilmenite and Forsterite, as a Flotation Depressant. Processes. 2024; 12(1):134. https://doi.org/10.3390/pr12010134

Chicago/Turabian Style

Fan, Guixia, Huaiyao Zhang, Fuqiang Tian, Hongbin Wang, Longhua Xu, Yijun Cao, Hongxiang Xu, Fanfan Zhang, Jianyong He, and Guosheng Li. 2024. "The Application of Dextran Sodium Sulfate to the Efficient Separation of Ilmenite and Forsterite, as a Flotation Depressant" Processes 12, no. 1: 134. https://doi.org/10.3390/pr12010134

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
