Biochemical and Functional Characterization by Site-Directed Mutagenesis of a Phospholipase A₂ from Scorpio maurus Venom

Abstract

The study of amino acid interactions in the active site of scorpion venom phospholipases A₂ could help to gain insights into the structure–function relationship and the biological activities of the enzyme. In the secreted phospholipase A₂ of Scorpio maurus venom glands, Glutamate 63 and Tyrosine 122 amino acids play critical roles in the catalytic mechanism through interactions with residues around the calcium-binding loop. We constructed mutants at these positions by overexpression in Escherichia coli cells. After refolding and purification of recombinant enzymes, we studied their kinetic properties using pH-stat and monolayer techniques. The mutant Glutamate 63–Aspartate (E63D) exhibited a reduced activity, while the second mutant Tyrosine 122–Arginine (Y122R) retained some activity with a 14-fold reduction in catalytic efficiency. However, both mutants remained stable in pH values ranging from 2 to 12 whereas the double mutant D63–R122 was catalytically inactive. Comparative analysis of wild-type and mutant 3-D models showed various modifications of the hydrogen-binding network linking residues Glutamate 63 and Tyrosine 122. These modifications of interactions could explain the reduction in enzymatic activity. The kinetic behavior on phosphatidylcholine and phosphatidylethanolamine monolayers of three mutants was evaluated using a baro-stat system to assess the potential association between the hydrolysis of erythrocyte membrane phospholipids and the enzyme’s capability to penetrate phospholipid monolayers at high surface pressure. Mutants’ kinetic behaviors were similar to the wild-type form with slightly modified specific activities at high surface pressure. All mutants were more active on phosphatidylethanolamine than phosphatidylcholine films at high surface pressure. This study provided new information to further elucidate structure–function relationships of scorpion venom-secreted phospholipases A₂ and the design of novel potent drug molecules.

1. Introduction

Secreted phospholipases A₂ (sPLA₂s) hydrolyze the n-2 ester bonds of glycerophospholipids. They are widely found in biological liquids such as pancreatic juices and especially in animal venoms like snake, bee, and scorpion. sPLA₂s are characterized by small molecular masses between 13 and 15 kDa, containing six to eight disulfide bonds, Histidine (His)/Aspartate (Asp) catalytic residues, and require a millimolar concentration of calcium (Ca²⁺) for enzymatic activities [1]. According to the amino acid sequence and similarities, sPLA₂ enzymes include 12 groups, namely I (A and B), II (A–F), III, V, X, IX, XII (A and B), and otoconin-95. Groups IA, IIA, IIB, III, and IX are present in venoms [2].

Snake venom sPLA₂s are classified into group I and group II based on the presence or absence of a pancreatic loop, C-terminal extension, and disulfide bond number [3]. Despite their structure similitudes, snake venom sPLA₂s are characterized by many pharmacological activities such as inflammatory, neurotoxicity, anticoagulant, anti-tumoral, and anti-microbial properties [3]. Group III sPLA₂ has been found in the venom of bees, lizards, jellyfish, bumblebees, and scorpions [4]. Compared to groups I and II, sPLA₂ from group III is different except for the conserved active site and the Ca²⁺-binding loop. The first member of group III was bee venom sPLA₂. Its polypeptide chain, containing 135 residues stabilized by five disulfide bridges, showed a three-dimensional structure with three α-helices and a wing-like structure [2].

sPLA₂s from scorpion venom belonging to group III that are monomeric are heterodimeric enzymes. They are made up of a long enzymatic chain connected to a short chain by a disulfide bridge following the pentapeptide cleavage throughout the maturation phases. The long chain contains a Ca²⁺-binding loop and a catalytic dyad [2]. Structural studies of scorpion-venom sPLA₂ have been carried out using the only available bee venom sPLA₂ crystal structure, showing a significant sequence homology [5]. In all built models, the long enzymatic chain steadied by four disulfide bonds shows three α-helices while the short one is arranged on an antiparallel β-sheet. The long chain is responsible for the phospholipase activity by containing the active site residues and Ca²⁺-binding loop. Built models suggest that the free cysteine in the short chain is susceptible to establishing an SS bond with the last free cysteine residue in the long chain even when the pentapeptide is excised. The primary structure of the short chain differs between scorpion sPLA₂ venom and shows many hydrophobic residues [2,5]. The short chain’s role in sPLA₂ activity and stability, as well as the influence of the pentapeptide insert, were investigated with only two recombinant forms of Sm-PLGV, a secreted PLA₂ from Scorpio maurus venom glands. These two recombinant forms are rPLA₂(+5) (formed by the long chain, the pentapeptide, and the short chain) and rPLA(−5) containing long and short chains without the pentapeptide deleted by mutagenesis [5].

The catalytic mechanism of group III sPLA₂ is due to the interactions between Asp, His, and tyrosine (Tyr) amino acid residues in the active site [6]. In the well-characterized bee-venom sPLA₂, it has been proposed that the His–Asp pair is critical for phospholipid (PL) hydrolysis by PLA₂. Indeed, His-34 acts as a bronstead base and forms hydrogen bonds with the carboxyl and hydroxyl groups of Asp-64 and Tyr-87, respectively [7]. Interestingly, the active site of MtsPLA₂ and Sm-PLGV from Mesobuthus tamulus and Scorpio maurus, respectively, showed that the Asp-62 is substituted by the acidic residue glutamic acid (Glu) [5,6]. Active site analysis of the built MtsPLA₂ model revealed that the carboxyl oxygen of the Glu residue is oriented away from the catalytic His residue, preventing the formation of hydrogen bonds between these two residues. The Glu side chain conformation is not conducive to a possible interaction of water with the catalytic His. In its current orientation, the Glu residue is stabilized by interactions with the surrounding residues [6].

In a previous study, infrared spectroscopy analyses, assisted with 3D modeling of the recombinant form of Sm-PLGV designed with rPLA₂(−5), were performed, in order to investigate the structure–function relationships. This study underlined the importance of the Tyr residue at position 122 in active site stabilization through interaction with the Glu-63 residue. Indeed, this recombinant enzyme showed a high specific activity of 1500 U/mg with a catalytic efficiency k_cat/K_m of 83.6 s⁻¹·mM⁻¹ compared to the recombinant forms rPLA₂(+5) in which lysine residue 124 blocks the interaction of Tyr-122 with Glu-63, allowing a reduction of the specific activity to 500 U/mg [5].

To evaluate the importance of active site residues Glu and Tyr in catalysis, we investigated the kinetic behavior of three different mutants of rPLA₂(−5): The residue Glu-63 was substituted by an Asp residue in the first mutant (E63D) and the Tyr-122 residue was replaced by an Arg residue in the second mutant (Y122R). Kinetic behavior was also studied by constructing the double mutant (D63–R122) and comparing it to the wild-type form (rPLA₂(−5)).

2. Materials and Methods

2.1. Materials

Phospholipase substrates (egg phosphatidylcholine (egg-PC), 1,2-dilauroyl-sn-glycero-3-phosphocholine (diC12-PC), and 1,2-dilauroyl-sn-glycero-3-phosphoethanolamine (diC12-PE)), Triton X100, ethylenediaminetetraacetic acid (EDTA), sodium taurodeoxycholate (NaTDC), Bovine Serum Albumin (BSA), β-cyclodextrin, NaCl, isopropyl-thio-β-D-galactopyranoside (IPTG), CaCl₂, and Tris–HCl were obtained from Sigma Aldrich (St. Quentin-Fallavier, France). Ammonium persulfate, Coomassie brilliant blue R-250, guanidine hydrochloride; N,N,N′,N′-tetramethyl ethylenediamine (TEMED) acrylamide, Sodium Dodecyl Sulfate (SDS), β-mercaptoethanol, L-cysteine, p-bromophenacyl bromide (p-BPB), and the chromatography column (HisLinkTM Protein Purification Resin) were obtained from Bio-Rad. Restriction endonuclease enzymes were used according to the manufacturer’s protocols, and Kanamycin was obtained from Promega (France, Charbonnières-les-Bains).

2.2. Bacterial Strains, Plasmids, and Media

E. coli strains XL1Blue and BL21(DE3) served as cloning and overexpression hosts of rPLA₂(−5) mutants. Transformed E. coli strains were grown on LB medium with kanamycin (100 µg·mL⁻¹). The expression vector was the plasmid pET28b(+). The Wizard polymerase chain reaction (PCR) Preps DNA purification system (Promega) allowed the purification of PCR products.

2.3. Site-Directed Mutagenesis Construction

cDNA encoding rPLA₂(−5) (372 pb) cloned into the pET21a(+) expression plasmid served as the PCR template [6]. The three site-directed mutants E63D, Y122R, and D63–R122 were constructed using the following protocol presented in

Table 1. PCR reactions and primers used to generate rPLA₂(−5) mutants E63D, Y122R, and D63–R122.

Mutant	Primers Used for PCR	cDNA Template	Amplified Region
E63D	PCR 1: Fw: primer 1 Rv: primer 2	The cDNA encoding the rPLA2(−5) gene formed by 372 pb cloned into the pET21a(+) expression vector.	PCR1 product: 195 bp corresponding to residues 1 to 65 in the protein rPLA2(−5) sequence.
	PCR 2: Fw: primer 3 Rv: primer 4		PCR2 product: 177 pb encoding the rPLA2(−5) protein region from residues 66 to 124.
	PCR 3: Fw: primer 1 Rv: primer 4	Amplified products obtained from PCR1 and PCR2.	A cDNA encoding the mutant E63D constructed of 372 pb.
Y122R	Fw: primer 1 Rv: primer 5	The cDNA encoding to rPLA2(−5) gene formed by 372 pb cloned into the pET21a(+) expression vector.	A cDNA encoding the mutant Y122R constructed of 372 pb.
D63–R122	Fw: primer 1 Rv: primer 5	A cDNA encoding the mutant E63D constructed of 372 pb.	A cDNA encoding the mutant D63–R122 constructed of 372 pb.

Primer sequences are as follows: Primer 1: ^5′GGAATTCCATATGTTTCTTATATGGGGAGGGACC^3′; Primer 2: ^5′AGCTTCGTCGCATTTGCAGTT^3′; Primer 3: ^5′TTCGATCAGTGCTTGACGGAA^3′; Primer 4: ^5′CCGCTCGAGCTAGTCTTTGTAGCTCTTTTTCC^3′; and Primer 5: ^5′CCGCTCGAGCTA GTC TTTCCTGCTCTTTTTCCA^3′. Restriction sites of endonucleases NdeI and XhoI were underlined. The NdeI (CATATG) and XhoI (CTCGAG) restriction sites were introduced at primers 1, 4, and 5, respectively. The nucleotide modified to generate mutations was marked in red and double-underlined in primers 2 and 5. In primer 2, the codon ^5′TTC^3′ encoding residue E was replaced by the codon ^5′GTC^3′ encoding residue D. In primer 5, the codon ^5′GTA^3′ encoding residue Y was replaced by ^5′CCT^3′ encoding residue R.

. Mutations were made by overlap extension PCR mutagenesis. Selected mutants were verified by DNA sequencing.

PCR reactions were performed in 50 µL reaction mixtures including 0.5 µg of the cDNA template, 1 µmol of each primer, 10 mM dNTP mix, and 1.25 U of DNA polymerase with 10× DNA polymerase buffer. The performed PCR program consisted of three steps: denaturation (1 min at 95 °C), annealing (1 min at 57 °C), and extension (1 min at 72 °C) for 35 cycles. Amplified genes corresponding to mutants E63D, Y122R, and D63–R122 were cloned directionally using NdeI and XhoI restriction sites in the pET28b(+) expression vector. Plasmid pET28b(+) and mutants were double-digested and purified. Then, the ligation reaction was carried out in the ratio of 3 inserts/1 vector. Selection of E. coli BL21(DE3) transformants was performed in LB medium with kanamycin (100 µg·mL⁻¹). Restriction analysis and DNA sequences were determined in order to verify the presence of appropriate inserts.

2.4. Expression and Purification

Transformed bacteria BL21(DE3) were grown at 37 °C on LB medium supplemented with kanamycin (100 µg·mL⁻¹) until an absorbance of about 0.6 to 0.8 was observed at 600 nm. Then, 1 mM IPTG was added to induce the expression of recombinant proteins for 5 h. After centrifugation at 4 °C for 15 min at 12,000× g, recombinant proteins present in inclusion bodies were first renatured and then purified according to Krayem et al.’s [5] protocol with slight modifications.

The obtained pellet was solubilized in buffer R (50 mM Tris–HCl pH 8.0, including 1 mM EDTA, 0.5 mM PMSF, and 50 mM NaCl) allowing a 20% (w/v) cell suspension to be obtained. This percentage allowed a maximal yield of well-refolded proteins to be obtained. In order to solubilize inclusion bodies, increasing concentrations (0.4%, 0.8%, and 1% (w/v)) of sodium deoxycholate (NaDC) and Triton X-100 were added. After stirring for 20 min at 4 °C, sonication using an MSE Sonyprep 150 (Bio-Rad (Hercules, CA, USA) at full power was applied in order to disrupt the cells. After centrifugation at 4 °C (10 min at 15,000× g), NaDC and Triton X-100 were eliminated by washing the resulting solid pellet with buffer R. Lastly, inclusion bodies in the pellet were dissolved in 25 mL of buffer R with 5% β-mercaptoethanol and 6 M guanidine hydrochloride under overnight stirring at 4 °C. About 0.8 mg/mL of solubilized denatured recombinant proteins were collected after centrifugation for 10 min at 15,000× g and 4 °C.

Protein refolding was carried out according to the protocol previously described [5]. Briefly, obtained denatured recombinant PLA₂s were dialyzed 4 times at 4 °C for 48 h against 2 L of 20 mM Tris–HCl at pH 8, including 0.6 M guanidine hydrochloride, 5 mM L-cysteine, and 5 mM CaCl₂ (buffer A). Unfolded precipitate proteins were discarded by centrifugation for 10 min at 15,000× g and 4 °C, while guanidine hydrochloride, the denatured agent, was removed by dialysis at 4 °C overnight against 2 L of 20 mM Tris–HCl at pH 8, containing 5 mM CaCl₂ and 20 mM NaCl (buffer B). The obtained folded protein solution was loaded on the HisLink^TM Protein Purification Resin column pre-equilibrated with buffer B. A linear gradient of imidazole (from 20 mM to 400 mM) was then applied to elute proteins after washing the column with buffer B until the optical density at 280 nm dropped to zero. The different recombinant mutants were eluted between 50 mM and 200 mM imidazole. Collected fractions of 1.5 mL were analyzed by measuring the phospholipase activity under standard conditions [5]. Active fractions displaying a unique band in SDS-PAGE were collected and concentrated. The protein content of pure enzymes was measured by following the Bradford protocol [8].

2.5. Phospholipase A₂ Assay

Measurement of PLA₂ activity was performed titrimetrically using a pH-stat technique under standard conditions: The egg phosphatidylcholine (egg-PC) 1% w/v was used as an emulsified substrate with 8 mM NaTDC and 12 mM CaCl₂ at pH 8.5 and 50 °C [5]. According to this technique, the release of one µmole of free fatty acids (FFAs) per minute corresponds to one phospholipase A₂ unit.

2.6. Hydrolysis of Phospholipid Monolayers

The interfacial behavior of mutants was assessed using a baro-stat system (KSV-2200 baro-stat (KSV Helsinki)) as previously reported by Pattus et al. [9], using zero-order Teflon, composed of two compartments, and equipped with a mobile Teflon barrier. The latter allows the compensation of substrate molecules removed from the film after enzymatic hydrolysis, thereby keeping a constant surface pressure. Surface pressure was determined using a Wilhelmy plate (perimeter 3.94 cm) attached to an electro-balance, which was sequentially connected to a microprocessor allowing mobile barrier movements to be controlled.

The reaction compartment (120 cm²) sub-phase (10 mM Tris–HCl pH 8, 20 mM CaCl₂, 150 mM NaCl, 0.5 mM β-cyclodextrin, 1 mM EDTA) was continuously stirred at 250 rpm. The reservoir compartment was 249 mm long and 148 mm wide. In order to inject enzyme solution through the film over the stirrer, a Hamilton syringe was used. Hydrolysis of PL monolayers by injecting phospholipases releases water-soluble lyso-PL and FFAs that rapidly desorb from the monolayer. The consequent decreased surface pressure therefore allowed the mobile barrier displacement to maintain a constant surface pressure. As the studied PL monolayers exhibited compression isotherms at the air–water interface, the barrier-covered surface was, consequently, converted into substrate molecules. Phospholipase activity was expressed as the amount of substrate hydrolyzed (moles) per surface and time units of the “zero-order” trough’s reaction compartment for an appropriate concentration of sPLA₂.

2.7. Hemolysis Assay

The hemolytic activity of the pure mutants E63D, Y122R, and D63–R122 and the wild-type rPLA₂(−5) proteins was investigated against human red blood cells (RBCs) [5]. A pure RBC suspension was obtained from freshly collected anticoagulated blood samples. An amount of 20 mL of phosphate-buffered saline (PBS, pH 7.5) was mixed with 1 mL of blood and centrifuged for 5 min at 4 °C and at 1900× g. Gentle aspiration of the buffy coats and the supernatant was performed to wash the RBCs in the pellet. This process was repeated three times. One milliliter of pure RBC suspension was obtained and used for the hemolytic assay. Various purified phospholipases at a concentration of 400 µg/mL were added to the RBC suspension. After mixing and incubating for 30 min at 37 °C, centrifugation for 5 min at 4 °C and 1500× g was performed. In order to determine the extent of RBC lysis and hemoglobin liberation, the absorbance of supernatants was recorded at 545 nm. RBCs in PBS alone or with 1% Triton X-100 served as a negative control (0% hemolysis) or positive control (100% hemolysis), respectively.

2.8. Temperature and pH Stability

The thermal stability of the three mutants of rPLA₂(−5) was studied by incubating aliquots of corresponding enzymes for 1 h at different temperatures ranging from 25 °C to 85 °C. Residual activities were measured after centrifugation for 5 min at 13,000× g and 4 °C under the standard assay method [5]. pH stability was also checked by incubating the different recombinant mutants for 1h in the following buffers: sodium acetate buffer (50 mM, pH 4–6), potassium phosphate buffer (50 mM, pH 6–8), Tris–HCl buffer (50 mM, pH 7–9), and glycine–NaOH buffer (50 mM, pH 10–12). Residual activities were measured after centrifugation for 5 min at 13,000× g and 4 °C under the standard assay method [5].

2.9. Molecular Modeling

The construction of 3D models of phospholipases was performed by the automated comparative protein structure homology modeling server, SWISS-MODEL (http://www.expasy.org/swissmod, accessed on 1 November 2023), using the crystal structure complex of bee venom PLA₂ (PDB code: 1POC) as a template.

Exploration of molecular interactions between catalytic residues and those around the active site was carried out using the discovery studio visualizer (DSV) and Viewer Lite.

3. Results

3.1. Protein Expression and Purification

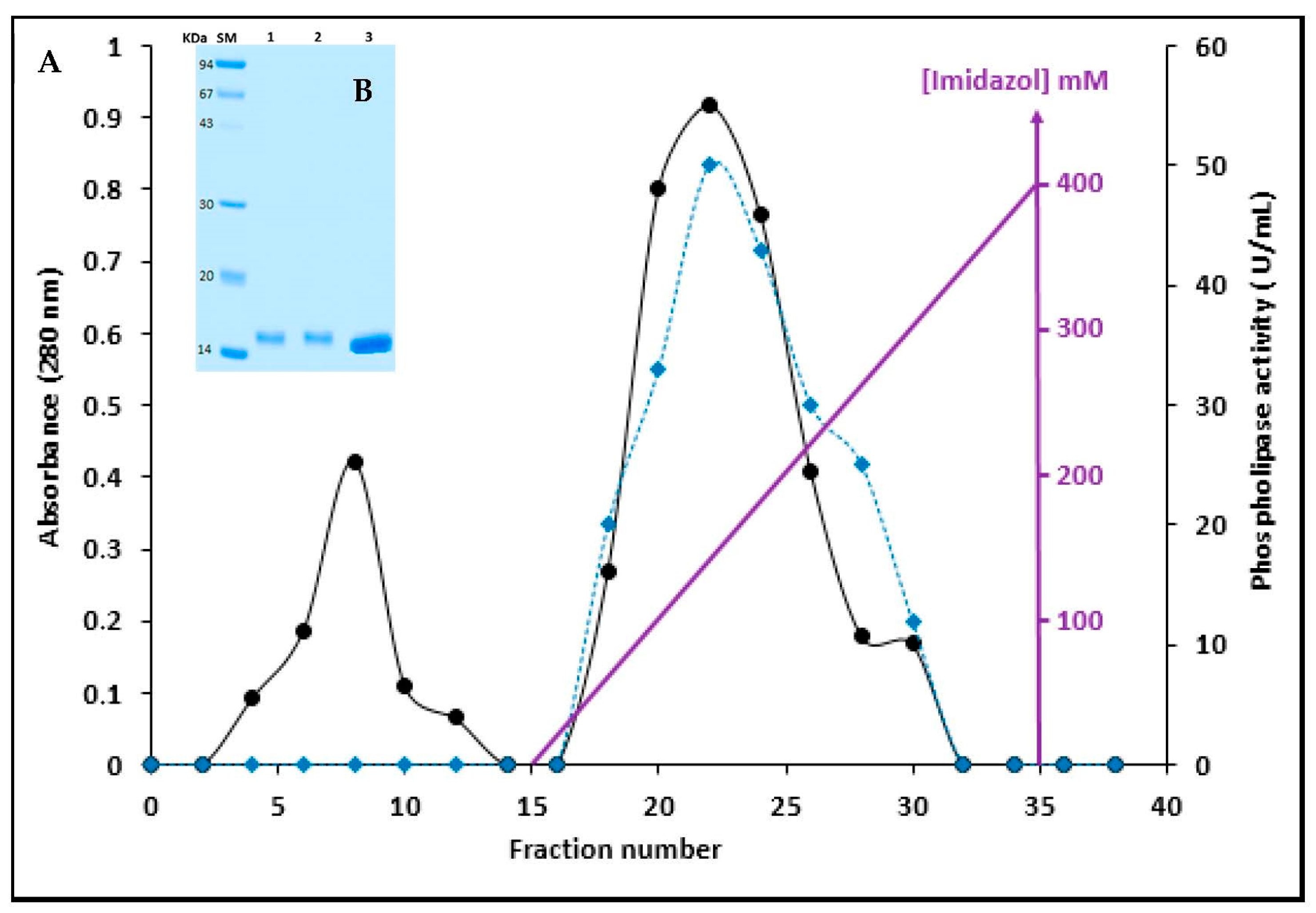

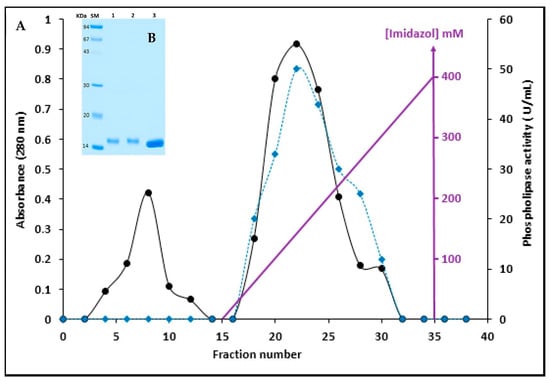

Recombinant mutants E63D, Y122R, and D63–R122 were obtained after refolding and purification following the protocol described in Section 2 (Figure 1A).

PLA₂ activity was investigated on egg-PC as an emulsified substrate by the pH-stat method according to the same conditions used for wild rPLA₂(−5) (in the presence of 8 mM NaTDC and 12 mM CaCl₂ at pH 8.5 and 50 °C) [5]. While the double mutant D63–R122 did not exhibit any enzymatic activity, E63D and Y122R displayed PLA₂ activities of about 3 ± 1 and 14 ± 2 U/mL, respectively (

Table 2. Purification steps and specific activities (SAs) of E63D, Y122R, and D63–R122. Proteins were overexpressed in E. coli cells using the pET-28b(+) expression vector and each purification was performed using one liter of culture. Phospholipase activity was measured using emulsified egg-PC as substrate with pH-stat technique. Purified wild rPLA₂(−5) was taken as a control for specific activity comparison. Experiments were repeated three times.

Purification Steps	[Proteins] (mg/mL) a	Total Proteins (mg)	Activity (U/mL) b	Specific Activity (U/mg)	Proteins Recovery (%)
Inclusion bodies solubilization	0.42 ± 0.12	8.5 ± 0.21	-	-	-
E63D
Refolding	0.32 ± 0.13	6.4 ± 0.19	3 ± 1	9.3 ± 2	75.29 ± 5
Affinity chromatography	0.60 ± 0.21	1.2 ± 0.11	50 ± 4	82.5 ± 4	18.75 ± 4
Y122R
Refolding	0.30 ± 0.17	6 ± 0.18	14 ± 2	35 ± 3	70.42 ± 8
Affinity chromatography	0.65 ± 0.18	1.5 ± 0.16	70 ± 5	107 ± 6	21.66 ± 3
D63–R122
Refolding	0.29 ± 0.15	5.8 ± 0.15	0	0	68.23 ± 10
Affinity chromatography	0.71 ± 0.2	1.48 ± 0.2	0	0	24.13 ± 4
rPLA2(−5)
Refolding	1.25 ± 0.5	6 ± 2	375 ± 15	300 ± 18	70.58 ± 3
Affinity chromatography	0.5 ± 0.25	3 ± 0.5	750 ± 20	1500 ± 27	50 ± 4

^a: Proteins were estimated by Bradford method [8]. ^b: One unit of phospholipase activity corresponds to the liberation of 1 µmol of FFAs under standard conditions [5].

). Under the same conditions, the wild-type rPLA₂(−5), however, showed an enzymatic activity of about 750 U/mL. Specific activities on the emulsified substrate PC were 1500 U/mg, 35 U/mg, and 9.3 U/mg for wild type rPLA₂(−5), E63D, and Y122R, respectively. The double mutant D63–R122 was fully inactive (Table 2). These findings thus revealed the importance of the modified residues on phospholipid hydrolysis.

From 1 L culture, protein recoveries between 68 and 75% were obtained after refolding of the three mutants. A similar recovery of 70.58% was recorded with the wild-type rPLA₂(−5) (Table 2). The high recovery might be due to the high amount of aggregate recombinant enzymes produced in E. coli cells in inclusion bodies. Indeed, 8 mg of total proteins were obtained for rPLA₂(−5) and the three mutants (Table 2). After refolding, about 5 and 6 mg of total refolded proteins were obtained for rPLA₂(−5), E63D, Y122R, and D63–R122. Table 2 shows a difference in the yields of pure refolded proteins: about 1.5 mg/mL for the three pure mutants and 3 mg/mL for the pure wild-type rPLA₂(−5). This could be attributed to the increased rate of misfolding and protein aggregation in the case of mutants during the dialysis step. E63D, Y122R, and D63–R122 were purified with a final yield between 18 and 24% compared to 50% for the wild-type rPLA₂(−5) (Table 2). In the SDS-PAGE analysis, purified mutants showed a single band corresponding to the expected molecular mass around 15 kDa (Figure 1B).

3.2. Apparent Kinetic Parameter Determination

Apparent kinetic parameters such as the Michaelis Menten constant (K_m), catalytic constant (k_cat), and the catalytic efficiency (k_cat/K_m) of E63D, Y122R, and D63–R122 were determined compared to the wild form rPLA₂(−5). Under standard conditions, specific activities of the three mutants were determined as a function of increased concentrations of PC [5]. Apparent K_m, k_cat, and k_cat/K_m were then deduced from the obtained Lineweaver–Burk plots.

While wild rPLA₂(−5) exhibited a V_max value of 1500 µmol/min/mg, mutants E63D and Y122R showed a V_max reduction of 82.5 ± 4 µmol/min/mg and 107 ± 6 µmol/min/mg, respectively. Compared to the wild rPLA₂(−5), which exhibited a K_m value of 4.23 ± 0.35 mM, K_m values of 8.33 ± 2 mM and 1.8 ± 0.7 mM were recorded for E63D and Y122R, respectively. However, mutants had highly reduced k_cat values, indicating that they had different numbers of converted substrates into products (

Table 3. E63D, Y122R, and D63–R122 apparent kinetic parameters. Wild rPLA₂(−5) overexpressed in E. coli was taken as control. Experiments were repeated three times.

Enzymes	Vmax (µmol/min/mg)	Km (mM)	kcat (s−1)	Kcat/Km (s−1·mM−1)	Reference
rPLA2(−5)	1500 ± 7	4.23 ± 0.35	354 ± 2	83.86 ± 8	[5]
E63D	9.3 ± 2	8.33 ± 2	32.7 ± 1.5	3.92 ± 2.3	Present study
Y122R	107 ± 6	1.8 ± 0.7	25.4 ± 3	14.11 ± 2
D63–R122	0	0	0	-

).

These results confirmed our previous structural study in which we constructed a 3D model for the wild rPLA₂(−5) [5]. In this study, we have demonstrated the importance of Glu-63 in the catalytic activity compared to bee venom sPLA₂, which has an Asp residue in the same position. FTIR data and 3D modeling of rPLA₂(−5) suggested that the pentapeptide deletion allowed a structural reorganization of the short chain responsible for the formation of a productive Glu-63/His-34 interaction with the Ca²⁺-binding residues [5]. Similarly, an in silico study of the MtPLA₂ from Mesobuthus tamulus venom showed that catalytic Glu is stabilized by numerous interactions with the surrounding residues in the Ca²⁺-binding loop [6]. In the bee-venom sPLA₂, in order to analyze the impact of the Asp-64 carboxylate on the enzyme’s catalytic function, the substitution of Asp-64 with asparagine caused a moderate decrease in the enzyme’s catalytic efficiency (56-fold in k_cat and 10-fold in k_cat/K_m) [10].

The reduction in Y122R V_max can be related to an absence of the interaction of Arg residues with Glu-63 and His-34. Indeed, in our previous structural study, Tyr-122 in the access behind Glu-63 stabilized the interaction between Glu-63 and His-34 residues via a hydrogen bond with Glu-63’s phenolic hydroxyl function. Similarly, the catalytic sites of group I and II PLA₂ were found to be stabilized by two Tyr residues [5]. In the well-studied group III bee-venom sPLA₂, the substitution of Tyr-87 by a phenylalanine residue resulted in the enzyme’s catalytic efficiency being reduced 5-fold when compared to wild sPLA₂ [10].

3.3. Molecular Modeling Analysis

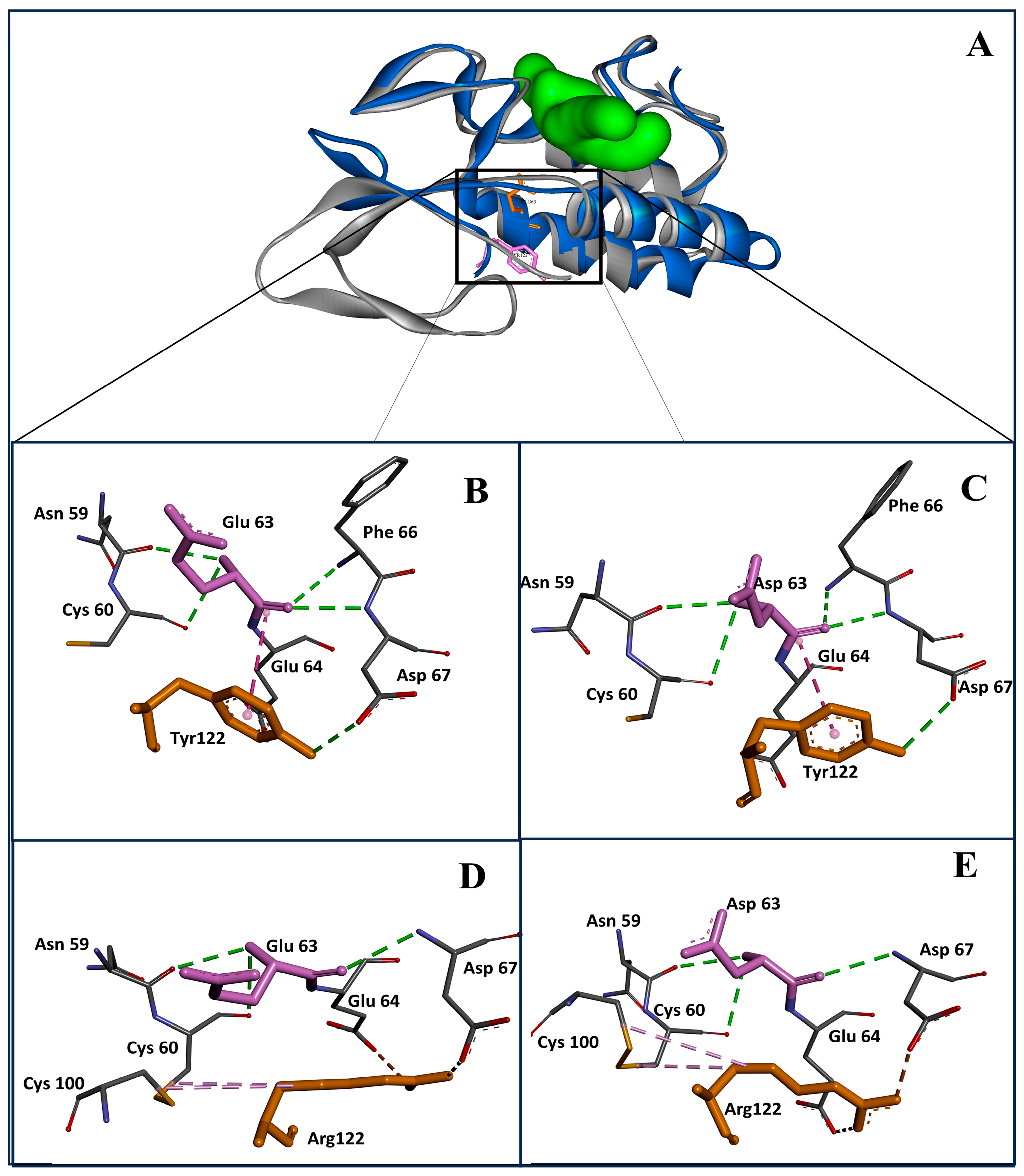

In order to explain the observed reduction in the specific activities and kinetic parameters of mutants compared to the wild rPLA₂(−5), 3D models were constructed using the only available group III complex structure of bee-venom PLA₂ as the template (PDB code: 1POC) [11]. Figure 2A showed a superposition of rPLA₂(−5) and bee-venom PLA₂ models and the orientation of Glu-63 and Tyr-122 side-chain residues. Analysis of active site amino acids in rPLA₂(−5) (Figure 2B) revealed that Glu-63 interacted via hydrogenous bonds with Asn-59, Cys-60, Phe-66, and Asp-67 as well as with Glu-64. These active site-stabilizing bindings in each constructed mutant (E63D, Y122R, and D63–R122) allowed the observation of some modifications in the orientation plan of side chain residues and the nature of interactions (Figure 2B–D). Indeed, it seemed that Glu-64 played an important role in the stabilization of catalytic residues since its orientation and interaction were modified in each mutant configuration (Figure 2B–D). The reduction in the specific activity of the mutant E63D could be attributed to the modification of binding with the hydroxyl group of Tyr-122 as well as the orientation of the Glu-64 radical (Figure 2C). The side chain of Arg-122 in the mutant Y122R was oriented away from Glu-63 and Glu-64, with the absence of the characteristic interaction of Glu-63 with Tyr-122 (Figure 2C). Compared to the wild-type and simple mutants E63D and Y122R, the plan orientation of all interactions was different in the double mutant D63–R122 (Figure 2E). Indeed, the Asp-63 side chain did not interact with Arg-122, which was near the radical residues Cys-60 and Cys-100. Furthermore, the orientation of hydrogen bonds linking the side chains of Asp-63 and Asp-64 and between Asp-63, Asn-59, and Cys-60 were different compared to the simple mutant (Figure 2E). This new interaction network destabilized the substrate binding during hydrolysis. Thus, it could be concluded that the hydrogen-binding network linking Glu-63, Tyr-122, and Glu-64 was critical for catalysis.

3.4. Stability Study

The stability of the mutant proteins towards pH and temperature was also investigated in addition to their catalytic activity. The pH stability assessment of E63D, Y122R, and D63–R122 maintained at 50 °C, which corresponds to the optimum temperature of wild rPLA₂(−5) activity, was performed [5]. All mutants were incubated in different pH solutions (3–12) and at 4 °C, followed by measuring their residual activities under standard conditions [5].

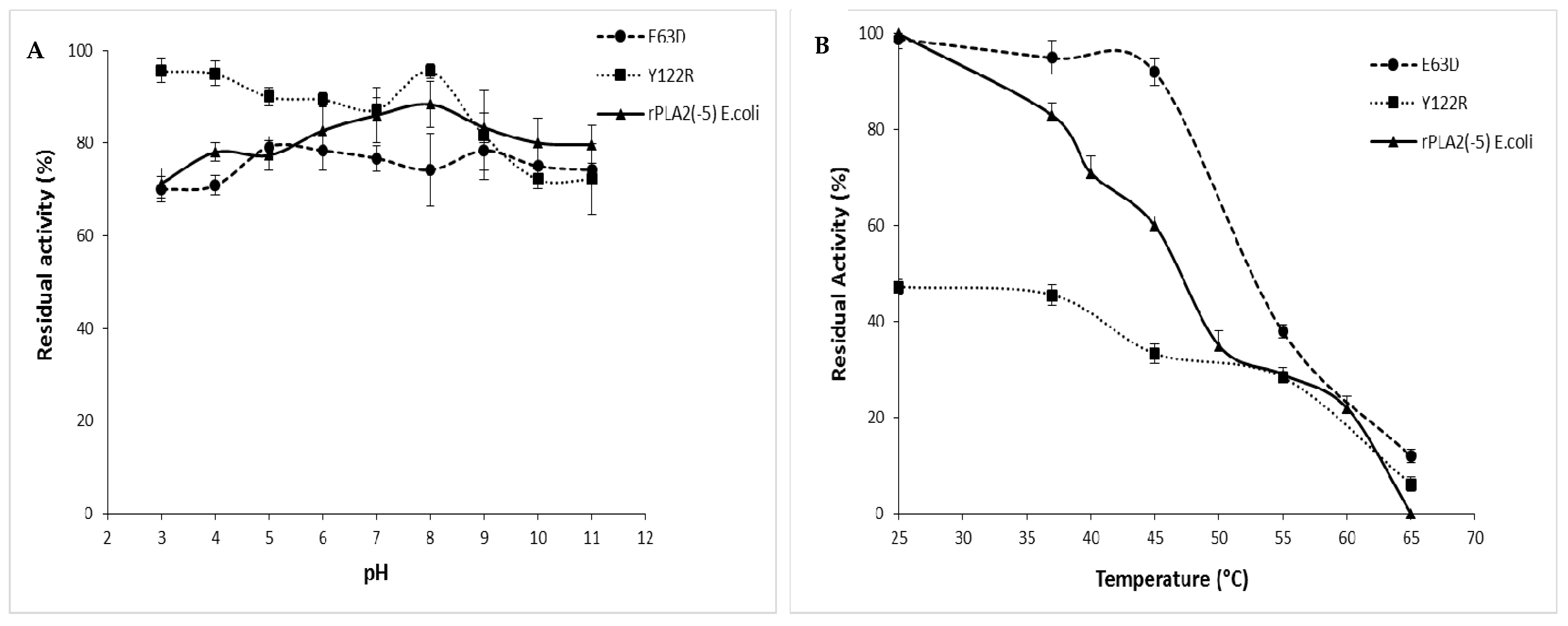

Maximum protein stability was observed at pH 8 with 83.3% and 100% for rPLA₂(−5) and E63D, respectively (Figure 3A). Observed pH stability can be related to the rigid tridimensional conformation of sPLA₂ through the highly disulfide-linked tertiary structure (10 SS bonds).

The thermostability of E63D, Y122R, and D63–R122, compared to wild rPLA₂(−5), was studied by measuring the remaining activity after 1 h incubation at different temperatures (25–80 °C) (Figure 3B). Our results showed that E63D exhibited a similar thermostability to wild rPLA₂(−5). Decreased enzymatic activity was observed as temperature increased and was totally lost at 65 °C. Y122R was less thermostable and lost more than 50% of its activity at 25 °C (Figure 3B).

3.5. Correlation between Hemolytic Effect and Phospholipase Activity with Surface Pressure

Secreted phospholipases A₂, which have a variety of behaviors against biological membranes, have been useful tools to investigate lipid localization in membranes like erythrocytes. These enzymes are characterized by a different ability to penetrate these membranes.

In our previous study, we showed that at 400 µg/mL corresponding to 0.28 µM, rPLA₂(−5) exhibited a hemolytic effect on human RBCs evaluated to be 97% of hemolysis. This activity was directly dependent on the catalytic activity since the enzyme inactivated by p-BPB (p-bromophenylacyl bromide) became unable to hydrolyze membrane RBCs [5]. E63D and Y122R with reduced specific activities exhibited 15 and 17% hemolytic effect, respectively, at the same concentration. The inactive double mutant D63–R122 had no effect on RBCs. Our data confirmed the correlation between phospholipase activity and hemolysis as previously reported for other snake venom sPLA₂s, such as NK-PLA₂-I and NK-PLA₂-II isolated from Naja kaouthia cobra venom. Indeed, at 500 nM, NK-PLA₂-I and NK-PLA₂-II hydrolyzed PLs in human RBC membranes while enzymes inhibited by 3.3 mM of p-BPB were unable to penetrate these membranes [12].

It is well documented that PLA₂ hemolytic activity was correlated with PL composition and asymmetric organization of human RBC membranes in their inner and outer leaflets. Zwitterionic PE is mostly located in the inner monolayer, whereas sphingomyelin (SM) and PC characterize the outer monolayer [13]. This asymmetric PL organization could explain the different behavior of several sPLA₂s on RBC membranes as well as in the PL layer. In this line, in order to investigate the potential association between PL hydrolysis in RBC membranes causing hemolysis and the enzyme’s capability to penetrate PL layers at high surface pressure, the activity of E63D, Y122R, as well as the wild rPLA₂(−5) on PL monolayers at several surface pressures, was evaluated. The kinetic behavior on zwitterionic PL monolayers of recombinant E63D and Y122R mutants compared to rPLA₂(−5) was evaluated.

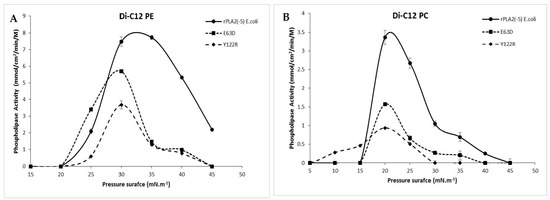

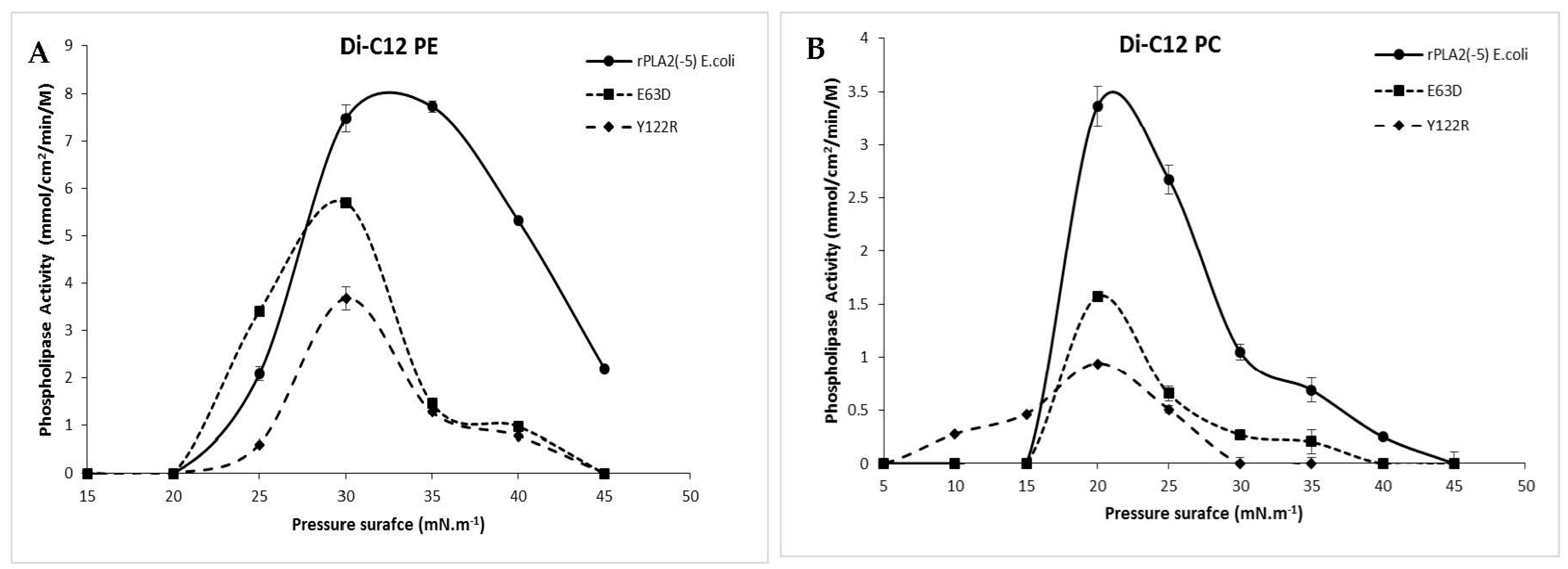

E63D and Y122R showed the same PL preference of wild rPLA₂(−5) and were more active on diC12-PE films than on diC12-PC ones (Figure 4). The maximal enzymatic activities of E63D were reached on diC12-PE at 30 mN·m⁻¹. A specific activity of about 5.68 mol·cm⁻²·min⁻¹·M⁻¹ was observed for E63D compared to 7.47 mol·cm⁻²·min⁻¹·M⁻¹ for wild rPLA₂(−5) (Figure 4A). Furthermore, in the diC12-PC, SA for E63D and Y122R were 0.27 and 0.03 mol·cm⁻²·min⁻¹·M⁻¹ at 30 mN·m⁻¹ respectively (Figure 4B).

Hydrolysis of diC12-PC monolayers demonstrated the highest specific activities for E63D (1.56 mol·cm⁻²·min⁻¹·M⁻¹) and rPLA₂(−5) (3.63 mol·cm⁻²·min⁻¹·M⁻¹) at 20 mN.m⁻¹ (Figure 4B). This reduced SA towards zwitterionic PL monolayers underlines the importance of the modified residue in the catalytic activity shown with the pH-stat system with PL emulsion. A similar finding was observed with the D64E bee PLA₂ mutant, which exhibited lower catalytic activity compared to the wild form but better substrate binding [10].

The difference observed in the hydrolysis of zwitterionic PL monolayers PC and PE could be related to the difference in interfacial binding to these PLs depending on their physical state and polar head. Interfacial binding of sPLA₂ is mediated by the interaction between the interface-binding surface of the enzyme, around the hydrophobic pocket leading to the active site, and the PL interface film [5].

4. Conclusions

In all secreted phospholipases A₂, Asp-62 is the key residue in the active site that interacts with Tyr-87. However, scorpion-venom heterodimeric sPLA₂ showed the implications of Glu-63 and Tyr-122 in the active site stability. Modification of these residues caused a reduction in specific activity and apparent kinetic parameters. Furthermore, the simple mutants E63D and Y122R remained stable in acidic and alkali pH, whereas the double mutant D63–R122 was catalytically inactive. Mutants’ kinetic behaviors on monolayers of zwitterionic PLs at high surface pressure were similar to those of the wild-type form with slightly modified specific activities. This reduction in specific activity could be related to the modification of the interactions of residues around the active site, as shown in the in silico study. To our knowledge, this is the first study that investigated the structure–function relationships of scorpion-venom PLA₂. These mutants might serve as a starting point for pursuing the study of the antitumor effect of scorpion-venom PLA₂, which was previously demonstrated to be independent of the enzymatic activity.
