# Applications of Fractional Partial Differential Equations for MHD Casson Fluid Flow with Innovative Ternary Nanoparticles

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Formulation

## 3. Preliminaries of Fractional Calculus

**Definition**

**1.**

**Definition**

**2.**

**Definition**

**3.**

**Definition**

**4.**

## 4. Solution of the Problem Based on Generalized Law with Ternary Nanoparticles

#### 4.1. Computation of Temperature Field

#### 4.2. Computation of Concentration Field

#### 4.3. Computation of Velocity Field

## 5. Graphical Outcomes

## 6. Discussion

## 7. Conclusions

- The model based on ternary is stronger approach than the hybrid and mono nanoparticle.
- Enhancement in temperature and velocity can be achieved for larger values of fractional parameters.
- Model based on generalized laws are reliable way for fractional modeling and can be accurately fitted any experimental data.
- Maximum temperature is achievable for ternary nanoparticles instead of hybrid and mono nanoparticles, respectively.

## 8. Future Work

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

Symbol | Explanation | Unit |

$\rho $ | Density | kg/m${}^{3}$ |

$\tau $ | Shear stress | Pascal (Pa) N/s${}^{2}$ |

${C}_{p}$ | Specific heat capacity | JK${}^{-1}$kg${}^{-1}$ |

$\mu $ | Fluid viscosity | kg/ms |

${\beta}_{0}$ | Casson parameter | no unit |

$\mathrm{Gr}$ | Thermal Grashof number | no unit |

Pr | Prandtl number | no unit |

$\mathrm{Gm}$ | Mass Grashof number | no unit |

$\mathrm{Sc}$ | Schimdt number | no unit |

g | Gravitational force | m/s${}^{2}$ |

${\beta}_{c}$ | Volumetric expansion | mol${}^{-1}$·m${}^{3}$ |

D | mass diffusion coefficient | m${}^{3}$ |

${\beta}_{T}$ | Thermal expansion | K${}^{-1}$ |

$\alpha $ | Fractional derivative parameter | no unit |

$\beta $ | Fractional derivative parameter | no unit |

$\gamma $ | Fractional derivative parameter | no unit |

$\sigma $ | Electrical conductivity | S·m${}^{-1}$ |

${T}_{\infty}$ | Ambient temperature | K |

${T}_{w}$ | Wall temperature | K |

${C}_{w}$ | Wall concentration | mol·m${}^{-3}$ |

${C}_{\infty}$ | Ambient concentration | mol·m${}^{-3}$ |

q | Frequency | ${\mathrm{s}}^{-1}$ |

$\nu $ | Fluid kinematic viscosity | m${}^{2}$·s${}^{-1}$ |

$M$ | Dimensionless magnetic parameter | no unit |

A | Accelration | m/s${}^{2}$ |

## References

- Asjad, M.I. Fractional mechanism with power law (singular) and exponential (non-singular) kernels and its applications in bio heat transfer model. Int. J. Heat Technol.
**2019**, 37, 846–852. [Google Scholar] [CrossRef] - Aleem, M.; Asjad, M.I.; Shaheen, A.; Khan, I. MHD Influence on different water based nanofluids (TiO
_{2}, Al_{2}O_{3}, CuO) in porous medium with chemical reaction and newtonian heating. Chaos Solitons Fractals**2020**, 130, 109437. [Google Scholar] [CrossRef] - Imran, M.A.; Shah, N.A.; Khan, I.; Aleem, M. Applications of non-integer Caputo time fractional derivatives to natural convection flow subject to arbitrary velocity and Newtonian heating. Neural Comp. Appl.
**2018**, 30, 1589–1599. [Google Scholar] [CrossRef] - Asjad, M.I.; Shah, N.A.; Aleem, M.; Khan, I. Heat transfer analysis of fractional second-grade fluid subject to Newtonian heating with Caputo and Caputo-Fabrizio fractional derivatives: A comparison. Eur. Physical J. Plus
**2017**, 132, 1–19. [Google Scholar] [CrossRef] - Tahir, M.; Imran, M.A.; Raza, N.; Abdullah, M.; Aleem, M. Wall slip and non-integer order derivative effects on the heat transfer flow of Maxwell fluid over an oscillating vertical plate with new definition of fractional Caputo-Fabrizio derivatives. Results Phys.
**2017**, 7, 1887–1898. [Google Scholar] [CrossRef] - Singh, J.; Hristov, J.Y.; Hammouch, Z. (Eds.) New Trends in Fractional Differential Equations with Real-World Applications in Physics; Frontiers Media SA: Lausanne, Switzerland, 2020. [Google Scholar]
- Owolabi, K.M.; Atangana, A. Numerical Methods for Fractional Differentiation; Springer: Singapore, 2019; p. 54. [Google Scholar]
- Trujillo, J.J.; Scalas, E.; Diethelm, K.; Baleanu, D. Fractional Calculus: Models and Numerical Methods; World Scientific: Singapore, 2016; Volume 5. [Google Scholar]
- Hayday, A.A.; Bowlus, D.A.; McGraw, R.A. Free convection from a vertical flat plate with step discontinuities in surface temperature. J. Heat Transfer.
**1967**, 89, 244–249. [Google Scholar] [CrossRef] - Schetz, J.A. On the approximate solution of viscous-flow problems. J. Appl. Mech.
**1963**, 30, 263–268. [Google Scholar] [CrossRef] - Malhotra, C.P.; Mahajan, R.L.; Sampath, W.S.; Barth, K.L.; Enzenroth, R.A. Control of temperature uniformity during the manufacture of stable thin-film photovoltaic devices. In Proceedings of the ASME International Mechanical Engineering Congress and Exposition, Anaheim, CA, USA, 13–19 November 2004; Volume 4711, pp. 547–555. [Google Scholar]
- McIntosh, R.; Waldram, S. Obtaining more, and better, information from simple ramped temperature screening tests. J. Therm. Anal. Calorim.
**2003**, 73, 35–52. [Google Scholar] [CrossRef] - Das, S.; Jana, M.; Jana, R.N. Radiation effect on natural convection near a vertical plate embedded in porous medium with ramped wall temperature. Open J. Fluid Dyn.
**2011**, 1, 1–11. [Google Scholar] [CrossRef] [Green Version] - Nandkeolyar, R.; Das, M.; Sibanda, P. Exact solutions of unsteady MHD free convection in a heat absorbing fluid flow past a flat plate with ramped wall temperature. Bound. Value Probl.
**2013**, 2013, 1–16. [Google Scholar] [CrossRef] - Seth, G.S.; Hussain, S.M.; Sarkar, S. Hydromagnetic natural convection flow with heat and mass transfer of a chemically reacting and heat absorbing fluid past an accelerated moving vertical plate with ramped temperature and ramped surface concentration through a porous medium. J. Egypt. Math. Soc.
**2015**, 23, 197–207. [Google Scholar] [CrossRef] [Green Version] - Seth, G.S.; Sharma, R.; Sarkar, S. Natural convection heat and mass transfer flow with Hall current, rotation, radiation and heat absorption past an accelerated moving vertical plate with ramped temperature. J. Appl. Fluid Mech.
**2014**, 8, 7–20. [Google Scholar] - Seth, G.S.; Sarkar, S.; Hussain, S.M.; Mahato, G.K. Effects of hall current and rotation on hydromagnetic natural convection flow with heat and mass transfer of a heat absorbing fluid past an impulsively moving vertical plate with ramped temperature. J. Appl. Fluid Mech.
**2014**, 8, 159–171. [Google Scholar] - Seth, G.S.; Ansari, M.S.; Nandkeolyar, R. MHD natural convection flow with radiative heat transfer past an impulsively moving plate with ramped wall temperature. Heat Mass Transf.
**2011**, 47, 551–561. [Google Scholar] [CrossRef] - Mohd Zin, N.A.; Khan, I.; Shafie, S. Influence of thermal radiation on unsteady MHD free convection flow of Jeffrey fluid over a vertical plate with ramped wall temperature. Math. Probl. Eng.
**2016**, 2016, 6257071. [Google Scholar] [CrossRef] [Green Version] - Asif, M.; Ul Haq, S.; Islam, S.; Abdullah Alkanhal, T.; Khan, Z.A.; Khan, I.; Nisar, K.S. Unsteady flow of fractional fluid between two parallel walls with arbitrary wall shear stress using Caputo-Fabrizio derivative. Symmetry
**2019**, 11, 449. [Google Scholar] [CrossRef] [Green Version] - Polito, F.; Tomovski, Z. Some properties of Prabhakar-type fractional calculus operators. arXiv
**2015**, arXiv:1508.03224. [Google Scholar] [CrossRef] - Elnaqeeb, T.; Shah, N.A.; Mirza, I.A. Natural convection flows of carbon nanotubes nanofluids with Prabhakar-like thermal transport. Math. Methods Appl. Sci.
**2020**. [Google Scholar] [CrossRef] - Shah, N.A.; Fetecau, C.; Vieru, D. Natural convection flows of Prabhakar-like fractional Maxwell fluids with generalized thermal transport. J. Therm. Anal. Calorim.
**2021**, 143, 2245–2258. [Google Scholar] [CrossRef] - Eshaghi, S.; Ghaziani, R.K.; Ansari, A. Stability and dynamics of neutral and integro-differential regularized Prabhakar fractional differential systems. Comput. Appl. Math.
**2020**, 39, 1–21. [Google Scholar] [CrossRef] - Tanveer, M.; Ullah, S.; Shah, N.A. Thermal analysis of free convection flows of viscous carbon nanotubes nanofluids with generalized thermal transport: A Prabhakar fractional model. J. Therm. Anal. Calorim.
**2021**, 144, 2327–2336. [Google Scholar] [CrossRef] - Alidousti, J. Stability region of fractional differential systems with Prabhakar derivative. J. Appl. Math. Comp.
**2020**, 62, 135–155. [Google Scholar] [CrossRef] - Derakhshan, M. New numerical algorithm to solve variable—Order fractional integrodifferential equations in the sense of Hilfer Prabhakar derivative. In Abstract and Applied Analysis; Hindawi: London, UK, 2021; Volume 2021. [Google Scholar]
- Asjad, M.I.; Sarwar, N.; Hafeez, M.B.; Sumelka, W.; Muhammad, T. Advancement of non-newtonian fluid with hybrid nanoparticles in a convective channel and prabhakars fractional derivative—Analytical solution. Fractal Fract.
**2021**, 5, 99. [Google Scholar] [CrossRef] - Chen, C.; Rehman, A.U.; Riaz, M.B.; Jarad, F.; Sun, X.E. Impact of Newtonian heating via Fourier and Ficks Laws on thermal transport of oldroyd-B fluid by using generalized Mittag-Leffler kernel. Symmetry
**2022**, 14, 766. [Google Scholar] [CrossRef] - Wang, F.; Asjad, M.I.; Zahid, M.; Iqbal, A.; Ahmad, H.; Alsulami, M.D. Unsteady thermal transport flow of Casson nanofluids with generalized Mittag-Leffler kernel of Prabhakar’s type. J. Mater. Res. Technol.
**2021**, 14, 1292–1300. [Google Scholar] [CrossRef] - Sene, N.; Srivastava, G. Generalized Mittag-Leffler input stability of the fractional differential equations. Symmetry
**2019**, 11, 608. [Google Scholar] [CrossRef] [Green Version] - Nadeem, S.; Ahmad, S.; Khan, M.N. Mixed convection flow of hybrid nanoparticle along a Riga surface with Thomson and Troian slip condition. J. Therm. Anal. Calorim.
**2021**, 143, 2099–2109. [Google Scholar] [CrossRef] - Reddy, M.G.; Shehzad, S.A. Molybdenum disulfide and magnesium oxide nanoparticle performance on micropolar Cattaneo-Christov heat flux model. Appl. Math. Mech.
**2021**, 42, 541–552. [Google Scholar] [CrossRef] - Jamei, M.; Pourrajab, R.; Ahmadianfar, I.; Noghrehabadi, A. Accurate prediction of thermal conductivity of ethylene glycol-based hybrid nanofluids using artificial intelligence techniques. Int. Commun. Heat Mass Transf.
**2020**, 116, 104624. [Google Scholar] [CrossRef] - Xian, H.W.; Sidik, N.A.C.; Saidur, R. Impact of different surfactants and ultrasonication time on the stability and thermophysical properties of hybrid nanofluids. Int. Commun. Heat Mass Transf.
**2020**, 110, 104389. [Google Scholar] [CrossRef] - Arani, A.A.A.; Aberoumand, H. Stagnation-point flow of Ag-CuO/water hybrid nanofluids over a permeable stretching/shrinking sheet with temporal stability analysis. Powder Technol.
**2021**, 380, 152–163. [Google Scholar] [CrossRef] - Roy, N.C.; Saha, L.K.; Sheikholeslami, M. Heat transfer of a hybrid nanofluid past a circular cylinder in the presence of thermal radiation and viscous dissipation. AIP Adv.
**2020**, 10, 095208. [Google Scholar] [CrossRef] - Mousavi, S.M.; Esmaeilzadeh, F.; Wang, X.P. Effects of temperature and particles volume concentration on the thermophysical properties and the rheological behavior of CuO/MgO/TiO2 aqueous ternary hybrid nanofluid. J. Therm. Anal. Calorim.
**2019**, 137, 879–901. [Google Scholar] [CrossRef] - Sahoo, R.R.; Kumar, V. Development of a new correlation to determine the viscosity of ternary hybrid nanofluid. Int. Commun. Heat Mass Transfer
**2020**, 111, 104451. [Google Scholar] [CrossRef] - Xia, X.; Chen, Y.; Yan, L. Averaging principle for a class of time-fractal-fractional stochastic differential equations. Fractal Fract.
**2022**, 6, 558. [Google Scholar] [CrossRef] - Guechi, S.; Dhayal, R.; Debbouche, A.; Malik, M. Analysis and optimal control of ϕ-Hilfer fractional semilinear equations involving nonlocal impulsive conditions. Symmetry
**2021**, 13, 2084. [Google Scholar] [CrossRef] - Manjunatha, S.; Puneeth, V.; Gireesha, B.J.; Chamkha, A. Theoretical study of convective heat transfer in ternary nanofluid flowing past a stretching sheet. J. Appl. Comput. Mech.
**2022**, 8, 1279–1286. [Google Scholar] - Nazir, U.; Sohail, M.; Hafeez, M.B.; Krawczuk, M. Significant production of thermal energy in partially ionized hyperbolic tangent material based on ternary hybrid nanomaterials. Energies
**2021**, 14, 6911. [Google Scholar] [CrossRef] - Nasir, S.; Sirisubtawee, S.; Juntharee, P.; Berrouk, A.S.; Mukhtar, S.; Gul, T. Heat transport study of ternary hybrid nanofluid flow under magnetic dipole together with nonlinear thermal radiation. Appl. Nanosci.
**2022**, 12, 2777–2788. [Google Scholar] [CrossRef] - Guedri, K.; Bashir, T.; Abbasi, A.; Farooq, W.; Khan, S.U.; Khan, M.I.; Jammel, M.; Galal, A.M. Hall effects and entropy generation applications for peristaltic flow of modified hybrid nanofluid with electroosmosis phenomenon. J. Indian Chem. Soc.
**2022**, 99, 100614. [Google Scholar] [CrossRef] - Saqib, M.; Mohd Kasim, A.R.; Mohammad, N.F.; Chuan Ching, D.L.; Shafie, S. Application of fractional derivative without singular and local kernel to enhanced heat transfer in CNTs nanofluid over an inclined plate. Symmetry
**2020**, 1, 768. [Google Scholar] [CrossRef] - Irandoost Shahrestani, M.; Maleki, A.; Safdari Shadloo, M.; Tlili, I. Numerical investigation of forced convective heat transfer and performance evaluation criterion of Al
_{2}O_{3}/water nanofluid flow inside an axisymmetric microchannel. Symmetry**2020**, 12, 120. [Google Scholar] [CrossRef] [Green Version] - Kumar, M.A.; Reddy, Y.D.; Rao, V.S.; Goud, B.S. Thermal radiation impact on MHD heat transfer natural convective nano fluid flow over an impulsively started vertical plate. Case Stud. Therm. Eng.
**2021**, 24, 100826. [Google Scholar] [CrossRef] - Reyaz, R.; Mohamad, A.Q.; Lim, Y.J.; Saqib, M.; Shafie, S. Analytical solution for impact of Caputo-Fabrizio fractional derivative on MHD casson fluid with thermal radiation and chemical reaction effects. Fractal Fract.
**2022**, 6, 38. [Google Scholar] [CrossRef] - Sarwar, N.; Jahangir, S.; Asjad, M.I.; Eldin, S.M. Application of Ternary Nanoparticles in the Heat Transfer of an MHD Non-Newtonian Fluid Flow. Micromachines
**2022**, 13, 2149. [Google Scholar] [CrossRef] - Sarwar, N.; Asjad, M.A.; Sitthiwirattham, T.; Patanarapeelert, N.; Muhammad, T. A Prabhakar fractional approach for the convection flow of casson fluid across an oscillating surface based on the generalized Fourier law. Symmetry
**2021**, 13, 2039. [Google Scholar] [CrossRef] - Maiti, S.; Shaw, S.; Shit, G.C. Caputo-Fabrizio fractional order model on MHD blood flow with heat and mass transfer through a porous vessel in the presence of thermal radiation. Phys. A Stat. Mech. Its Appl.
**2020**, 540, 123149. [Google Scholar] [CrossRef] - Hussanan, A.; Zuki Salleh, M.; Tahar, R.M.; Khan, I. Unsteady boundary layer flow and heat transfer of a Casson fluid past an oscillating vertical plate with Newtonian heating. PLoS ONE
**2014**, 9, e108763. [Google Scholar] [CrossRef]

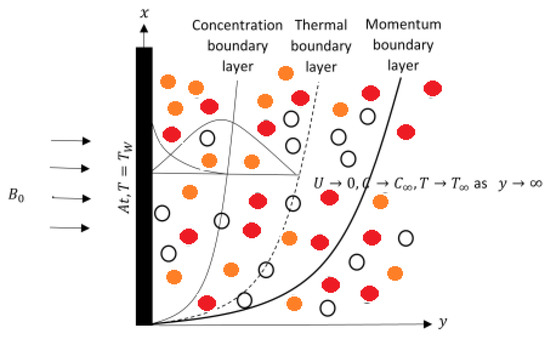

**Figure 1.**Physical model of the problem [49].

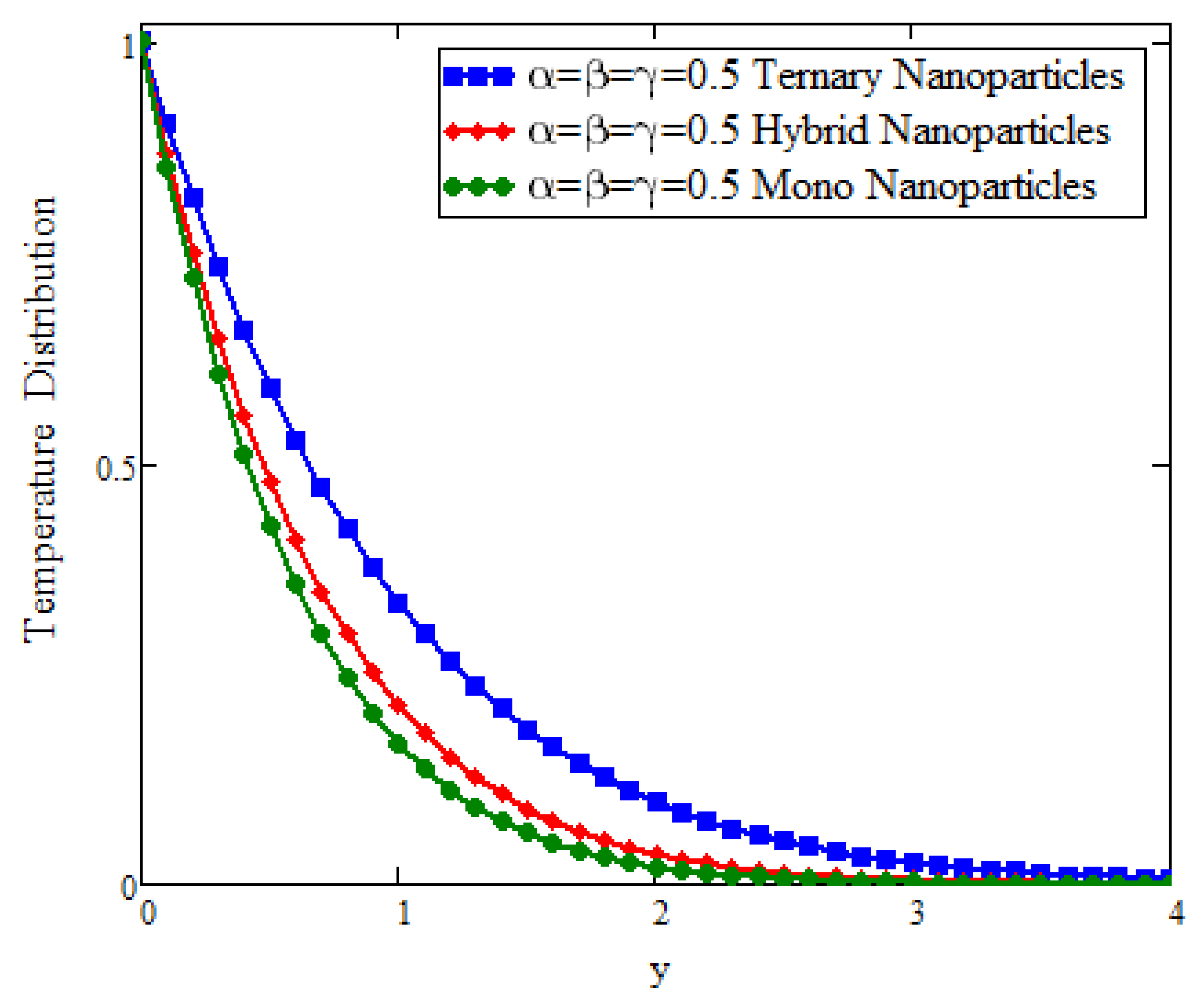

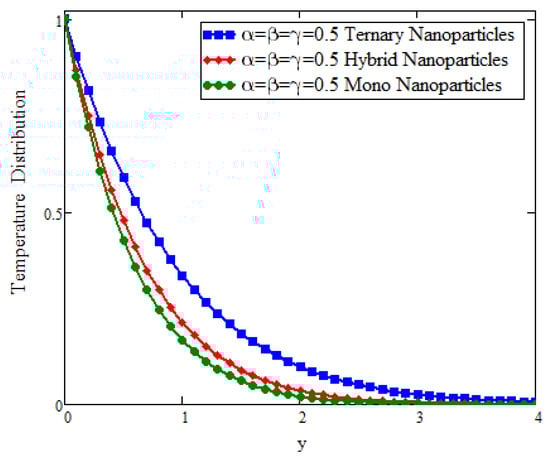

**Figure 2.**Comparison of temperature assessment across y as $\alpha =0.5$, $\beta =0.5$, and $\gamma =0.5$ when t = 0.04, $\mathrm{Sc}=1.5$, and $\mathrm{Pr}=21$.

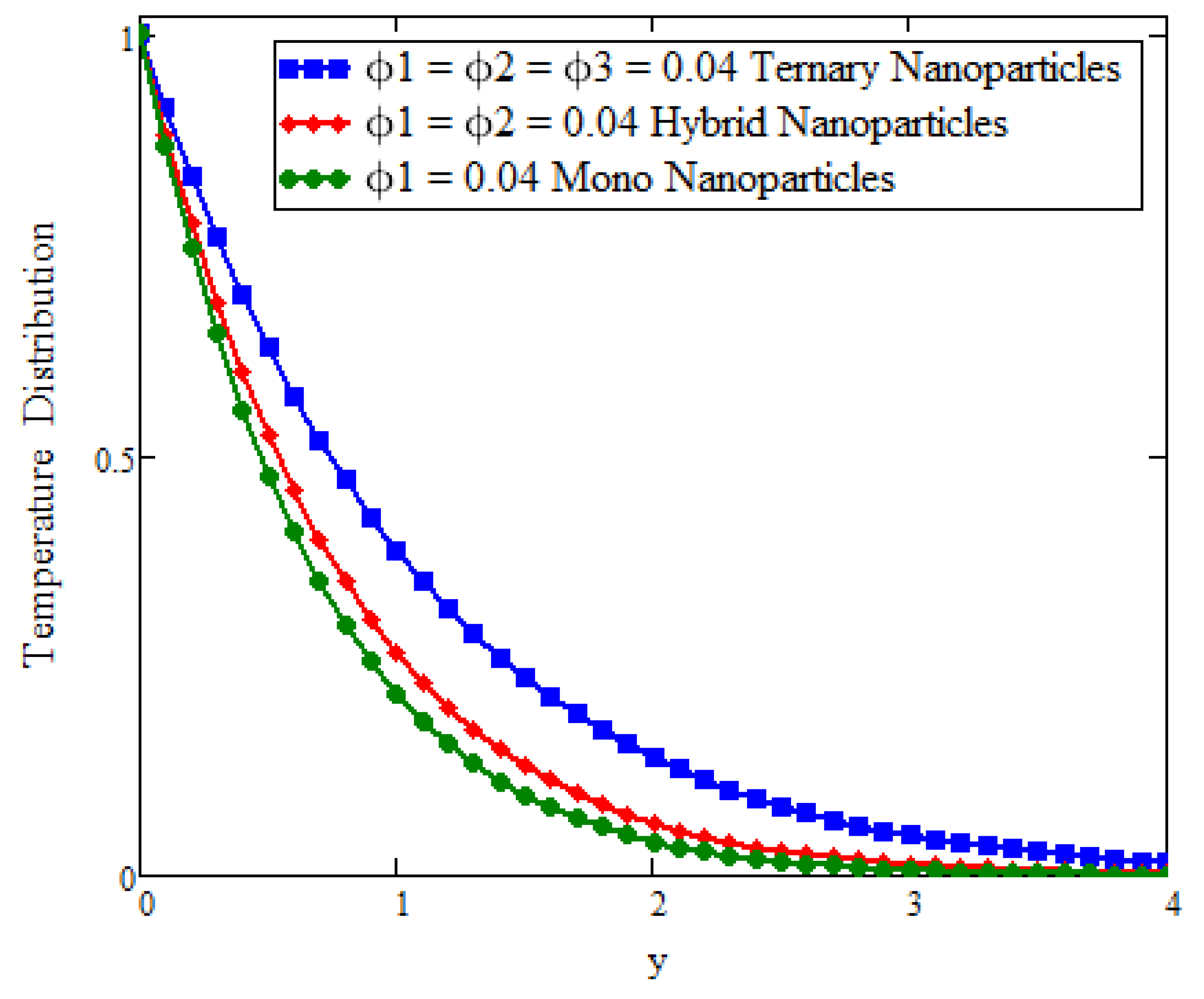

**Figure 3.**Comparison of temperature assessment across y as volume fraction ${\varphi}_{1}={\varphi}_{2}={\varphi}_{3}=0.01$ when $\alpha =\beta =\gamma =0.5$, t = 0.04, $\mathrm{Sc}=1.5$, and $\mathrm{Pr}=21$.

**Figure 4.**Comparison of temperature assessment with Pr across y as $\alpha =0.5$, $\beta =0.5$, and $\gamma =0.5$ when t = 0.04 and $\mathrm{Sc}=1.5$.

**Figure 5.**Comparison of velocity assessment with $\alpha $$\beta $$\gamma $ across y as $\mathrm{Sc}=9.2$ when t = 1, $\alpha =\beta =\gamma =0.2$, $M=1.5$, and $\mathrm{Pr}=21$.

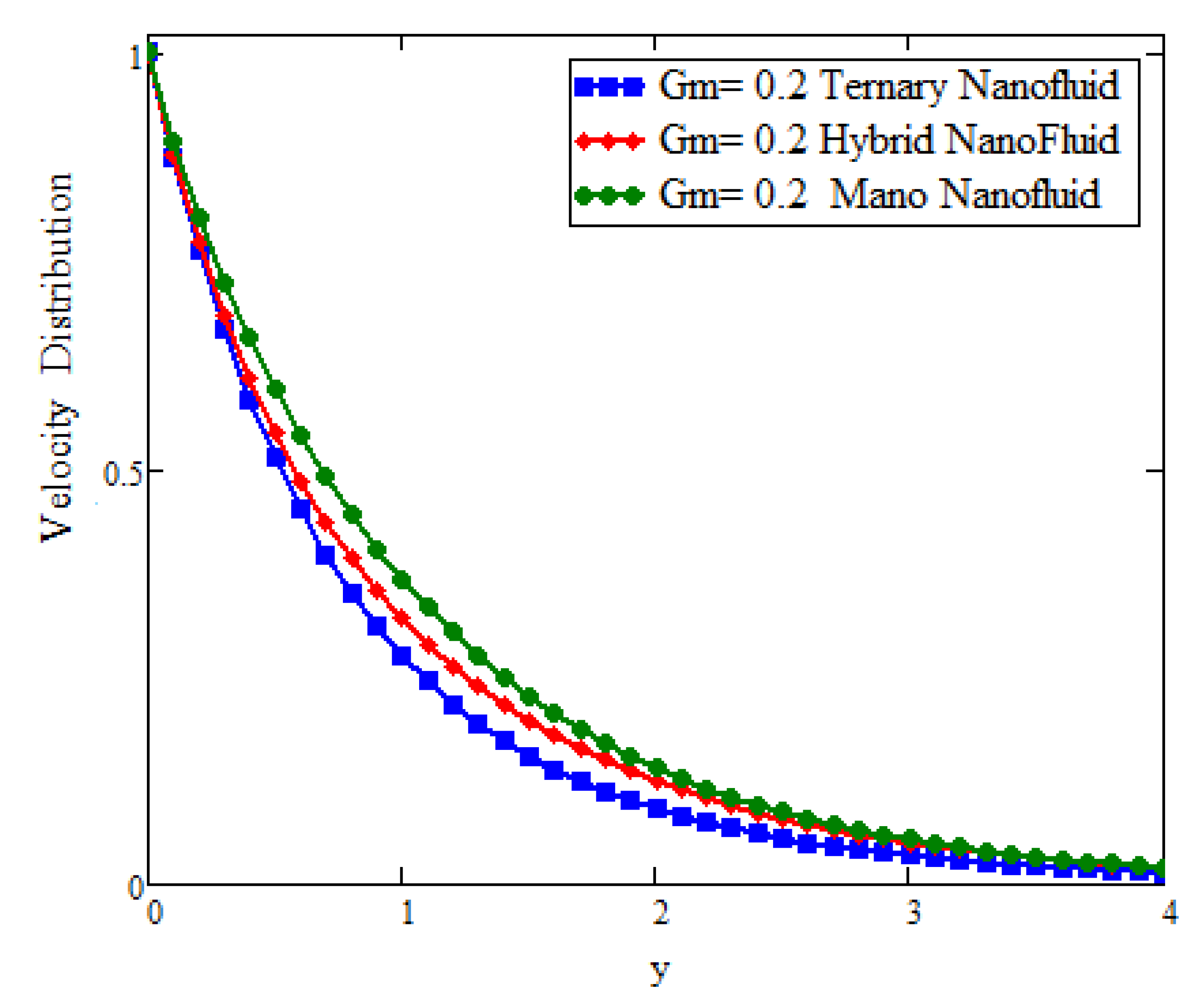

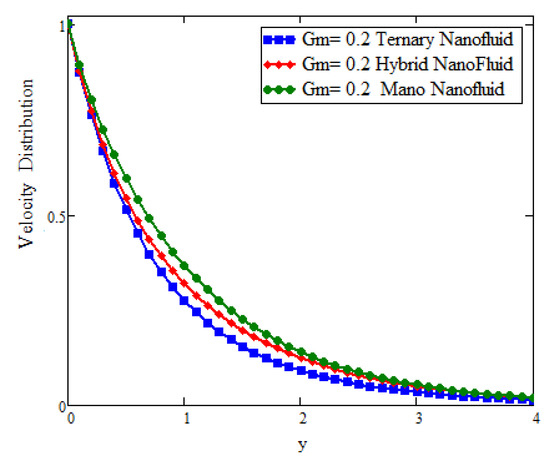

**Figure 6.**Comparison of velocity assessment with $\mathrm{Gm}$ across y as $\alpha =\beta =\gamma =0.5$ when t = 1, $\mathrm{Sc}=9.2$, ${\varphi}_{1}=0.02$, ${\varphi}_{2}=0.03$, ${\varphi}_{3}=0.04$, $\mathrm{Pr}=21$, and $M=1.5$.

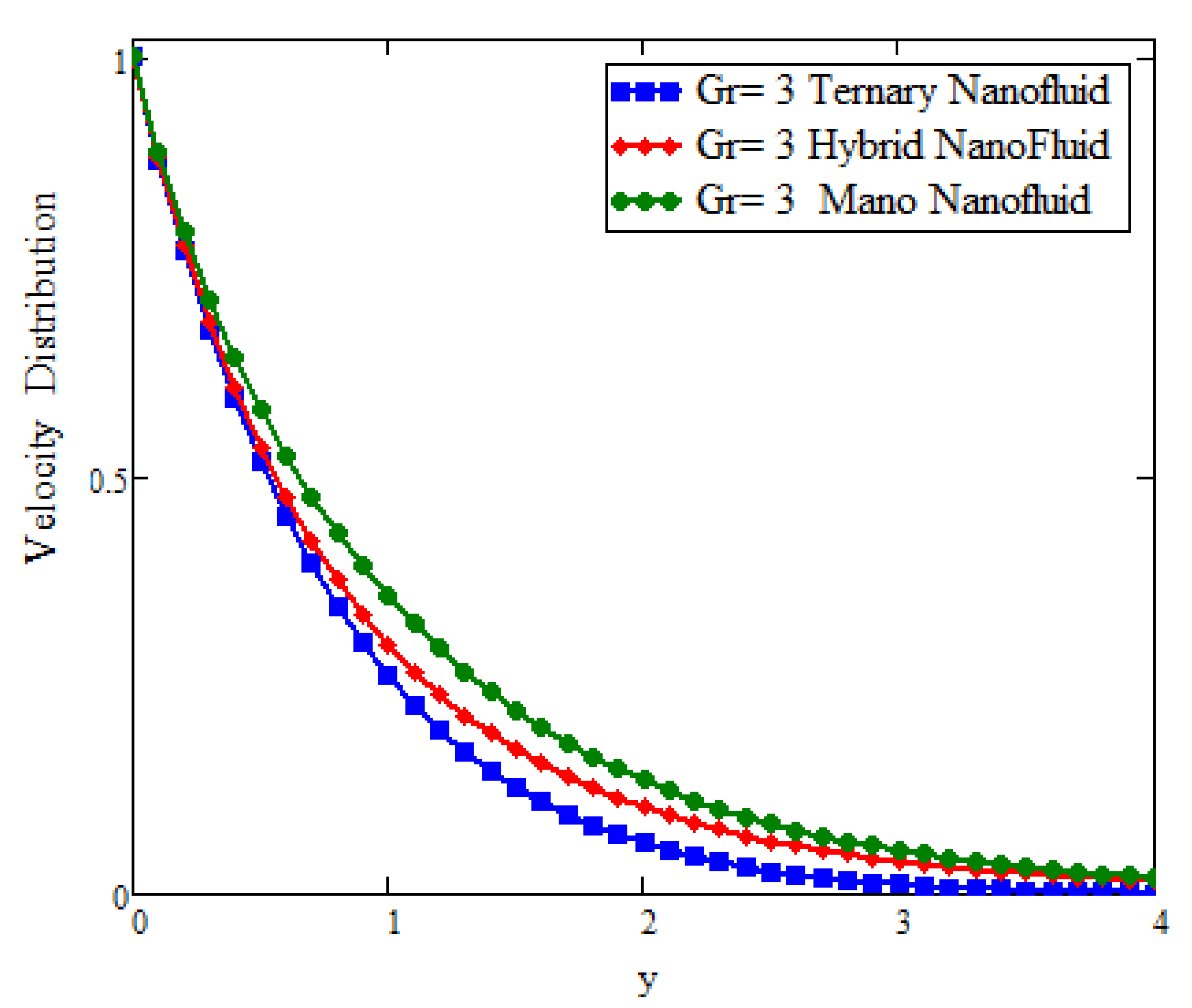

**Figure 7.**Comparison of velocity assessment with $\mathrm{Gr}$ across y as $\alpha =0.5$, $\beta =0.5$, $\gamma =0.5$ when t = 1, $\mathrm{Sc}=9.2$, ${\varphi}_{1}=0.02$, ${\varphi}_{2}=0.03$, ${\varphi}_{3}=0.04$, $\mathrm{Pr}=21$, and $M=1.5$.

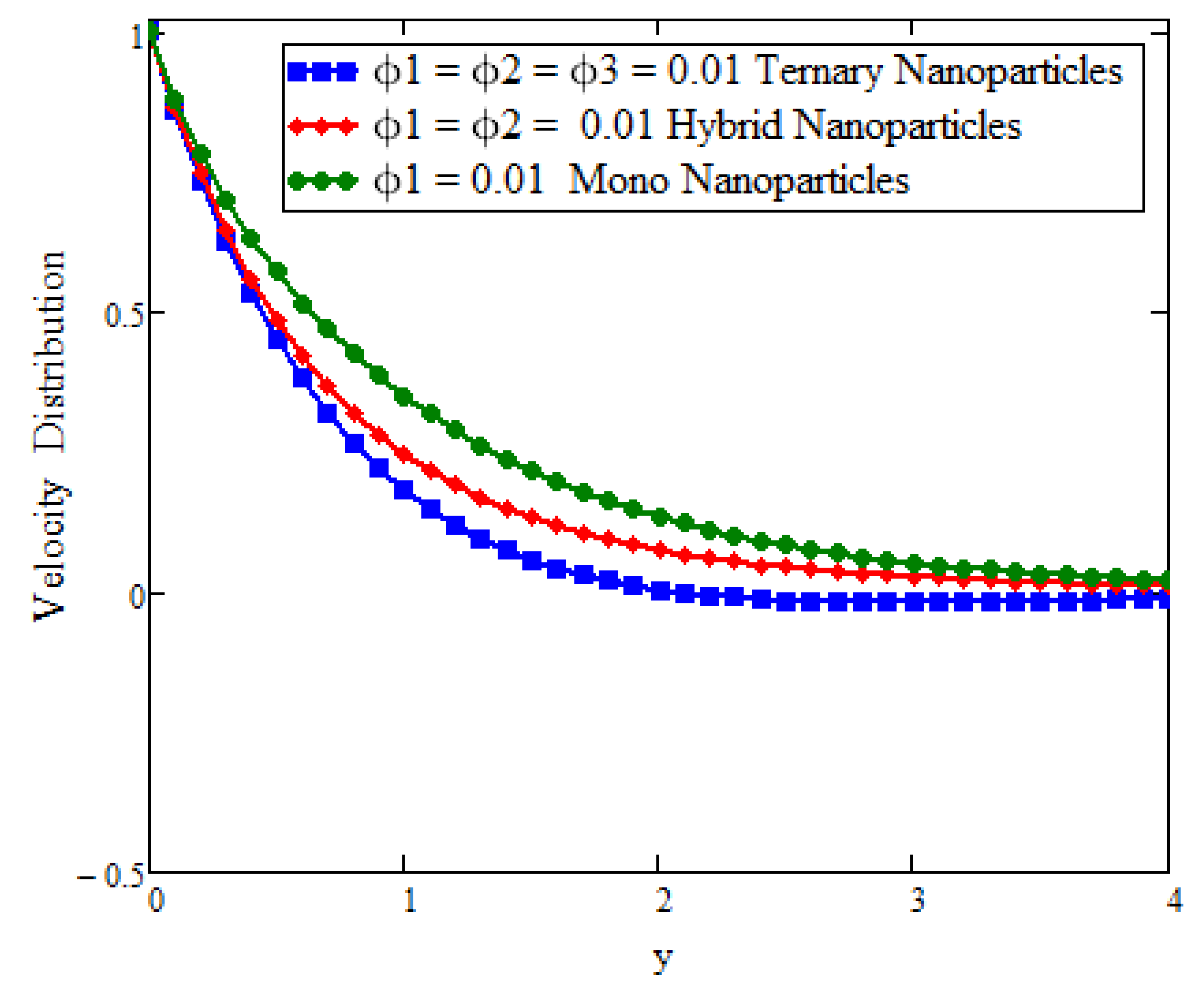

**Figure 8.**Comparison of velocity assessment with volume fraction across y as $\alpha =\beta =\gamma =0.5$ when t = 1, $\mathrm{Pr}=21$, and $M=1.5$.

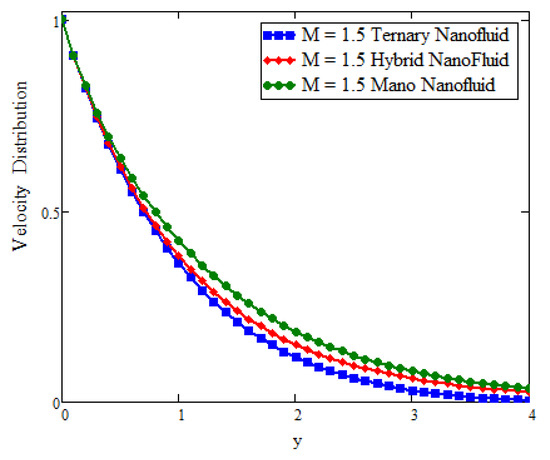

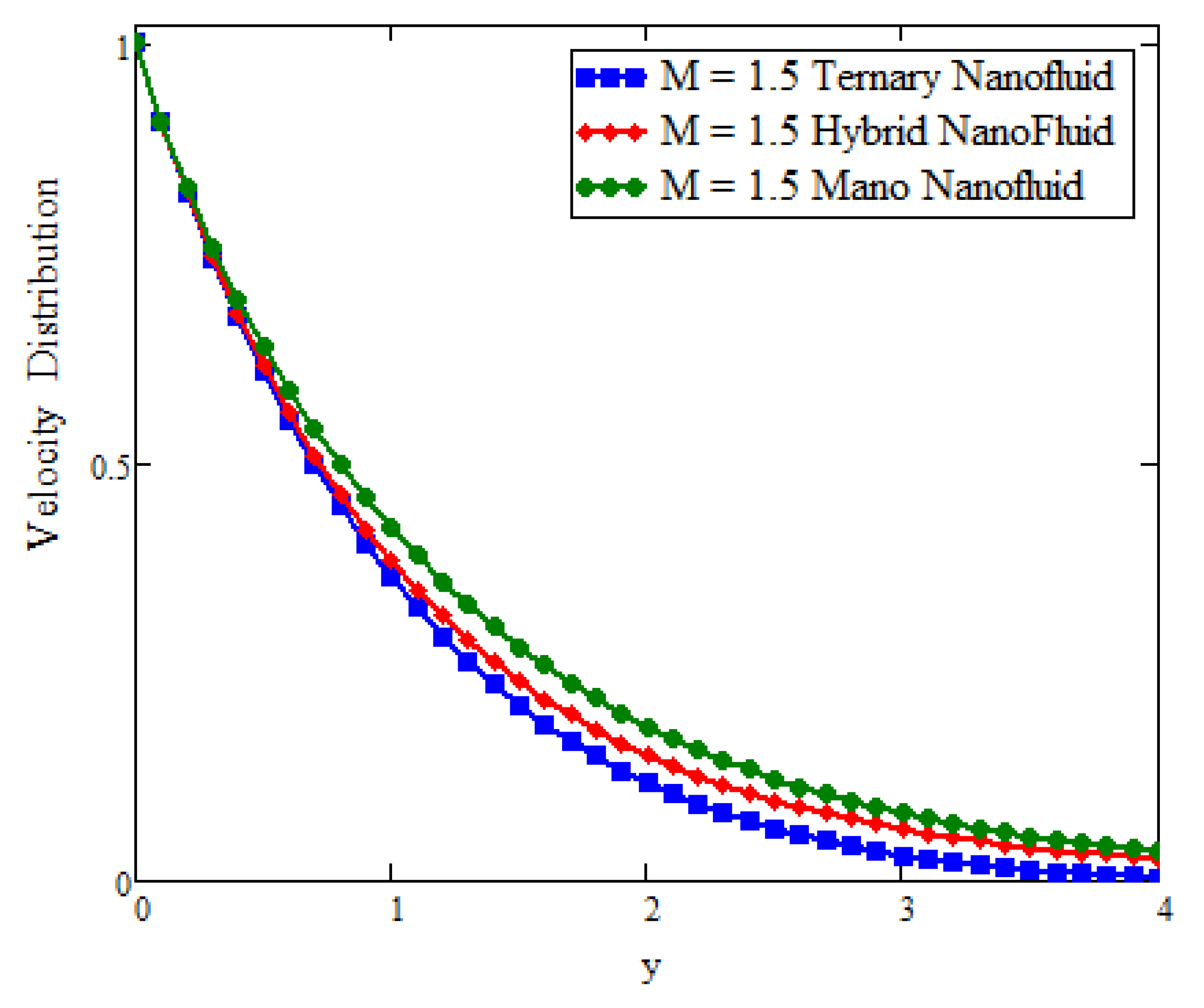

**Figure 9.**Comparison of velocity assessment with magnetic parameter $M$ across y as $\alpha =0.3$, $\beta =0.3$, $\gamma =0.3$ when t = 1, ${\varphi}_{1}=0.03$, ${\varphi}_{2}=0.03$, ${\varphi}_{3}=0.03$, $\mathrm{Pr}=21$, $\mathrm{Gm}=1.4$, and $\mathrm{Gr}=1.5$.
