Recent Developments in Voltammetric Analysis of Pharmaceuticals Using Disposable Pencil Graphite Electrodes

Abstract

The even growing production of both well-known and new derivatives with pharmaceutical action involves the need for developing facile and reliable methods for the analysis of these compounds. Among the widely used instrumental techniques, the electrochemical ones are probably the simplest and the most rapid, also having good performance characteristics. However, the key tool in electroanalysis is the working electrode. Due to the inherent electrochemical and economic advantages of the pencil graphite electrode (PGE), the interest in its applicability in the analysis of different analytes has continuously increased in recent years. Thus, this paper aims to review the scientific reports published in the last 10 years on the use of the disposable eco- and user-friendly PGEs in the electroanalysis of compounds of pharmaceutical importance in different matrices. The PGE characteristics and designs (bare or modified with various types of materials), along with their applications and performance parameters (e.g., linear range, limit of detection, and reproducibility), will be discussed, and their advantages and limitations will be critically emphasized.

1. Introduction

In the current context of increasing drug use and abuse, pharmaceutical analysis is an important issue related to active ingredient identification and evaluation in raw materials, pharmaceutical formulations, and biological samples. It also involves impurities, degradation product, and excipient determination, content uniformity assessment, as well as dissolution and stability studies. Among the manifold applications that can be mentioned are drug quality control, therapeutic drug monitoring, and pharmacokinetic and clinical studies.

The pharmaceutical industry is one of the most regulated fields, with an increasing level of requirements set by the regulatory bodies. As a consequence, chemical analysts are continuously facing a challenge regarding the development, validation, and application of robust, fast, and cost-affordable analytical methods leading to reliable results, based on which decisions can be made. The pharmacopoeias [1] usually recommend chromatographic and spectrometric methods, but these conventional approaches present some shortcomings. Thus, despite the fact that the chromatographic techniques are the first choice for the separation of components from complex matrices, they require expensive equipment that needs to be carefully handled, tedious sample preparation steps, reagent consumption, and longer analysis time. Spectrometric methods are easy to use, offer (to a certain extent) economic value, and rely on noninvasive sample preparation and analysis procedures, but they suffer from a lack of selectivity (some analytes cannot be discriminated from the interferents absorbing at the same wavelength) and sensibility (sometimes, the necessity arises to concentrate or dilute the sample or the limited linear range due to deviations from the Beer’s law) and are influenced by different factors (e.g., pH, temperature, and impurities) that can modify the sample absorption properties.

A promising approach in pharmaceutical analysis can be the use of electroanalytical techniques, especially due to the fact that they are suitable for miniaturization and portability, thus enabling on-site monitoring. Their efficiency was proven by their extensive use for the detection and quantification of various compounds, with powerful impacts on human health [2,3,4,5] and environment [6,7,8].

The electrochemical methods are versatile, non-destructive, cost-effective, fast, and facile, possess good analytical performance characteristics (e.g., precision, accuracy, selectivity, sensitivity, and large dynamic concentration range) [9], and do not involve time-consuming pre-treatment processes [10]. In electrochemical techniques, qualitative information can be obtained by means of the analyte peak potential, while the peak current magnitude relates to the analyte concentration, being exploited for quantitative purposes. Moreover, the study of the target compound redox properties can lead to data regarding the in vivo metabolic processes taking place or the pharmacokinetic action [11].

The ability of the electrochemical methods to directly detect the target species in complex matrices is well known, but their analytical performances depend on the material of the working electrode. The limited employment of mercury electrodes due to environmental concerns and EU regulations, which restrict the use and storage of mercury [12], led to increased exploitation of metallic (e.g., gold, platinum, silver, palladium, and indium tin oxide) and carbon-based (e.g., glassy carbon, carbon paste, boron doped diamond, and graphite) substrates. One important drawback of the conventional solid electrodes is their surface fouling, a fact that seriously affects the possibility of obtaining a new surface with the same properties and, consequently, the electrode response reproducibility. To overcome this problem, the surface of the electrode must be mechanically or electrochemically cleaned [13], thus apearing to be a time-consuming step in the global analysis procedure. A simple alternative to electrode surface regeneration consists of using disposable electrodes like pencil graphite electrodes (PGEs).

PGEs consist of graphite leads of different diameters composed of graphite (~65%) as well as clay (~30%) and a binder (wax, resin, or high polymer), with the conductivity of this composite material being correlated with the clay/graphite ratio. Thus, B type leads are softer due to their higher graphite content, while a greater amount of clay in leads enhances the material hardness (H-type) [14]. The lead composition affects the structural and (electro)chemical properties of PGE. The graphite is responsible for the electrochemical activity, and the clay can act against electrode surface fouling [15]. The presence of sp2 hybridized carbon offers some special characteristics, such as good adsorption properties, electrical conductivity, and a small background current [16,17]. A recent paper [18] as well as our research (data not published) pointed out that polymer-based PGEs have superior electrochemical properties.

Commonly used in writing instruments, graphite pencil leads are commercially easily available and inexpensive, and they became a promising alternative as working electrodes in electroanalytical chemistry due to their recognized properties and advantages: a uniform lead surface, enlargeable active surface area, mechanical rigidity and stability, chemical inertness, portability, fast responses, and also being eco- and user-friendly [14,19,20]. It is worth emphasizing that a PGE is a disposable electrode, with the surface renewal being faster by simply replacing the pencil lead in comparison with polishing procedures applied to the classical solid electrodes [21]. Although another lead is used for every measurement, the reproducibility is assured by the composition uniformity, with the graphite leads being subjected to strict quality control during the fabrication process. Moreover, the same electrode surface area is always in contact with the analyzed solution.

Due to the large electrode surface area, which depends on how much the graphite lead is immersed into the solution, the target analytes can be detected at low concentrations. Additionally, the fact that PGEs can be exploited over a wide range of both negative and positive potentials extends the type and number of compounds that can be analyzed. The published studies proved that unmodified PGEs can successfully perform from −1.20 V [22] to +1.40 V vs. Ag/AgCl [23].

By combining various voltametric techniques and PGEs as working electrodes, well-defined and reproducible signals are obtained which underlie reliable determinations. Moreover, the sensitivity and selectivity of the voltametric techniques can be improved by the working electrode modification, either electrochemical or chemical, that can also enhance the rate of the electron transfer processes.

Thus, bearing in mind the importance of pharmaceuticals in our day-to-day life and the inherent advantages of the voltametric methods and of the PGEs, this review seeks to provide an exhaustive analysis of the progress made in the last 10 years in the field of PGE applications in the voltametric determination of pharmaceutically important compounds. Due to the huge number of papers published on this topic, the present work refers only to the literature data appeared in the last 10 years, comprises only the voltametric techniques, and makes no reference to biosensors and DNA-based PGEs.

2. PGE Manufacturing Procedures

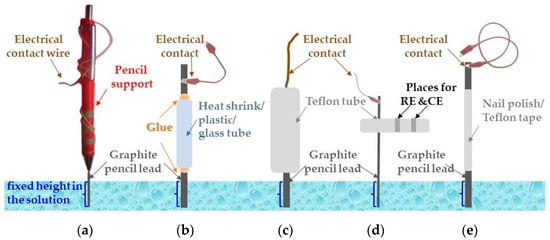

The most employed procedure for PGE preparation consists of a graphite pencil lead introduced into a mechanical pencil holder acting as support. In order to ensure a reproducible electroactive surface area, the same length of the pencil lead is always left outside the support and introduced in the voltametric solution. Electrical contact with the instrument is realized by means of a conductive wire which was soldered or wrapped to the metallic part of the mechanical pencil holder [9,19,21,22,24,25,26,27,28,29,30,31,32,33,34,35,36,37] (Figure 1a). A micropipette tip [38], an insuline syringe [39], a glass cappilary [40,41], or a plastic [16,42,43,44,45,46] (Figure 1b) or Teflon tube [47,48,49,50,51,52] (Figure 1c,d) can also act as holder. An araldite mixture (epoxy resin, 1:1) [16,41,43,44,45], bentonite [38,39], or cyanoacrylate glue [40] was used to fix the graphite lead into the support. Other PGEs were obtained by covering a part of the graphite lead with nail polish [53] or with Teflon tape [20,54,55,56,57,58,59,60,61,62,63,64,65] (Figure 1e), leaving a constant length and area of nacked pencil mine to act as an electroative surface. The electrical contact with the potentiostat is provided by a metallic (copper) wire wrapped arround the end of the mine, which is not exposed to the analyzed solution. Ibrahim and Temerek [66] created a pencil holder consisting of a polypropylene tube having a heat-shrinking tube connected at the bottom to a metallic part, in which the graphite lead is fixed. Electrical contact is made by winding a copper wire on the metal portion.

The working electrode based on graphite leads with different hardness which is used for investigating the fouling effect during the voltammetry of the anesthetic propofol, a phenolic compound, is manufactured by peeling the two ends of wood pencils in order to expose the internal graphite mine. One end of the lead is used to provide the electrical contact with the potentiostat, whereas the other one constitutes the electroactive part of the electrode, which is cut to ensure a flat surface immersed in the investigated solution [15].

Sometimes, the graphite lead electrode is polished with an alumina slurry [25,41,47,59,67], on sandpaper with different granulometrics [40,42,68], on emery paper [41,49,50,51,52,69] followed by a butter sheet [16,45], on butter paper [39], or on weighing paper [20,57,58,62,70]. Yen et al. [71] reported that amoxicicllin presented a better electrochemical response at the PGE mechanically treated with polishing paper in comparison with the original electrode.

Another approach for manufacturing procedures was reported by Tigari and Manjunatha [72] by preparing a paste electrode based on carbon nanotubes and 8B type pencil graphite powder composite modified with the anionic surfactant sodium lauryl sulphate for the electroanalysis of riboflavin in the presence of dopamine.

3. Voltametric Performance Characteristics of PGEs vs. Other Common Bare Working Electrodes

The performance characteristics of the three most popular and simplest carbon-based working electrodes, namely glassy carbon (GCE), pencil graphite (PGE), and carbon paste (CPE) electrodes, for methylergometrine maleate (MM) determination pointed out that the highest and best-defined oxidation signals were obtained for CPEs and PGEs, the lowest limit of detection (LoD) was attained for CPEs (0.008 µg/mL), and the widest linear range was recorded for GCEs (0.50–5.50 µg/mL), whereas the MM quantification for the PGEs enabled an LoD close to that obtained for CPEs and a linear range of one order of magnitude almost as large as that of the GCEs (Table 1) [24]. The two well-defined strontium ranelate irreversible anodic peaks recorded for GCEs, CPEs, and PGEs were exploited for its differential pulse (DP) and square wave (SW) voltametric determination. The PGEs provided the lowest LoD and limit of quantification (LoQ) values, while the widest linear ranges were obtained for the GCEs (3.00–24.00 µg/mL and 2.50–25.00 µg/mL for both peaks by DPV and SWV, respectively) [25].

Itraconazole electro-oxidation and its adsorptive stripping (AdS) voltametric quantification were investigated at an ultra-trace graphite electrode (UTGE), PGE, and CPE. The analyte oxidation followed the same mechanism, and the linear ranges were comparable for all investigated electrodes, while the lowest LoDs (8.40 and 6.00 ng/mL by AdS-DPV and AdS-SWV, respectively) were attained for the CPE (Table 1) [26]. SWV determination of linezolid based on its irreversible diffusion-controlled oxidation was more sensitive for the PGE but within a narrower linear range (Table 1) in comparison with the CPE (9.25 × 10⁻⁹ mol/L and 2.96 × 10⁻⁷–2.22 × 10⁻⁵ mol/L, respectively) [73]. The intensity of the dipyridamole and sulfamethoxazole DPV anodic signals decreased in the order PGE > GCE > Pt [27,28], whereas chloramphenicol [29] and famotidine [30] voltammograms recorded for the Au, Pt, GCE, and PGE emphasized better defined and more intense signals when the PGE was the working electrode. Enhanced niclosamide [21], famotidine [31], amlodipine [39], piroxicam [42], and ketorolac [74] oxidation signals were obtained for the PGE vs. GCE.

As was already mentioned, pencil graphite is a composite material which has a different hardness depending on the graphite-to-clay or high polymer ratio. The electrochemical properties of the pencil graphite also depend on its composition. Our studies (unpublished data) showed that better and more intense voltametric signals were obtained at high polymer pencil leads, and the pencil lead hardness influenced the electrochemical behavior of the different analytes. Alves et al. [40] showed that K₃[Fe(CN)]₆ presented a sluggish electron transfer for 2B type graphite leads, whereas in the B and HB mines, the redox peaks were intense and well-defined, with these signals being higher than those recorded in the same conditions for the GCE. On the other hand, the sensitivities (A × L/mol × cm²) of the dipyridamole, sulfamethoxazole DPV, and chloramphenicol cyclic voltammetric (CV) signals varied with the PGE hardness in the order HB > B > H > 2H > 2B [27] and B > 2B > 2H > H > HB [28] and HB > B > H > 2H > 2B [29], respectively.

Kojabad and Ebrahimiasl [75] compared the effect of GCE and PGE modification with polypyrrole, CNT, and graphene on the tramadol DPV oxidation signal, with the highest peak current being provided by the CNT-modified electrodes. The results obtained for the two carbon-based electrodes used as substrates were similar, but due to the cost-effectiveness, the authors selected PGEs for their further investigations.

Table 1. The performance characteristics of voltametric methods developed for drug quantitative determination for bare PGE.

Analyte (Drug)	PGE Type	Technique	Linear Range (mol/L)	LoD (mol/L)	Sample	Ref.
Acyclovir	2B	DPV	1.00 × 10−6–1.00 × 10−4	3.00 × 10−7	Pharmaceutical tablets	[9]
4-Aminophenazone	HB	DPV	1.00 × 10−6–1.00 × 10−5	4.58 × 10−8	Plasma; urine	[76]
Amlodipine	HB	DPV SWV	2.10 × 10−9–8.96 × 10−8 8.00 × 10−10–5.22 × 10−8	4.00 × 10−14 2.00 × 10−14	Pharmaceutical tablets; spiked human serum	[39]
Amoxicicllin	-	DPV	1.00 × 10−6–6.00 × 10−5	2.24 × 10−7	-	[71]
Cefidrin	-	SWV	0.50–20.00 µg/mL	0.15 µg/mL	Pharmaceutical tablets and powder	[23]
Chloramphenicol	2H	LSV SWV	2.50 × 10−6–1.00 × 10−3 2.50 × 10−6–7.50 × 10−4	6.09 × 10−7 1.39 × 10−6	Pharmaceutical capsules	[29]
Chlorpromazine	HB	DPV	1.00 × 10−8–8.00 × 10−8	3.00 × 10−9	Pharmaceutical tablets	[16]
Ciprofloxacin	HB	SWV	1.20 × 10−5–5.50 × 10−5	5.60 × 10−6	Pharmaceutical formulations	[40]
Cysteamine	-	DPV	1.00 × 10−5–1.10 × 10−4	4.00 × 10−6	Urine	[54]
Dipyridamole	HB	DPV	5.00 × 10−7–2.50 × 10−4	1.21 × 10−7	Pharmaceutical tablets	[27]
Doxorubicin	-	DPV LSV	1.00 × 10−5–5.00 × 10−5 1.00 × 10−5–3.00 × 10−5	7.20 × 10−6	Serum	[70]
Eugenol	2B	DPV	3.00 × 10−7–5.00 × 10−5	8.50 × 10−8	Pharmaceutical liquid	[32]
Famotidine	HB	SWV DPV	5.00 × 10−6–1.80 × 10−4 4.72 × 10−7–4.95 × 10−4	1.29 × 10−6 1.51 × 10−7	Pharmaceutical tablets	[30] [31]
Flutamide Irinotecan	2B	CAdS-SWV	3.98 × 10−7–6.36 × 10−6 7.94 × 10−8–4.03 × 10−7	1.55 × 10−8 1.68 × 10−9	Serum; urine	[22]
Hydroxyurea	-		1.00 × 10−5–1.00 × 10−3	7.89 × 10−6	Pharmaceutical tablets; urine	[11]
Imipenem		Tb3+-complex deposition + CV	1.50 × 10−5–7.00 × 10−5	2.44 × 10−6	Pharmaceutical vials; rabbit plasma	[77]
Itraconazole	HB	AdS-DPV AdS-SWV	32.00–169.00 10.60–127.00 ng/mL	9.10 8.70 ng/mL	Pharmaceutical capsules; serum; urine	[26]
Linezolid	-	SWV	2.96 × 10−8–5.93 × 10−7	1.39 × 10−9	Pharmaceutical and biological samples	[73]
Methylergometrine maleate	HB	DPV	0.10–1.00 µg/mL	0.02 µg/mL	Pharmaceutical tablets and ampoules	[24]
Niclosamide	2B	DPV	5.00 × 10−7–1.00 × 10−5	1.50 × 10−9	Pharmaceutical tablets	[21]
Paclitaxel	HB	DPV	4.00 × 10−7–3.00 × 10−6	2.46 × 10−9	Pharmaceutical injections; plasma; urine	[78]
Piroxicam	4B	DPV	2.91 × 10−5–1.63 × 10−4	2.10 × 10−6	Pharmaceutical capsules	[42]
Strontium Ranelate	HB	DPV SWV	1.00–10.00 µg/mL 1.00–10.00 µg/mL	0.17 µg/mL 0.19 µg/mL	Pharmaceutical formulations	[25]
Sulfamethoxazole	B	DPV	1.00 × 10−5–2.50 × 10−4	4.04 × 10−6	Pharmaceutical tablets	[28]
Vildagliptin	2B	SWV	2.94 × 10−6–4.99 × 10−5	8.20 × 10−8	Pharmaceutical tablets; urine	[13]
Vitamin B1 Vitamin B6	HB	DPV	1.00 × 10−5–1.00 × 10−3 5.00 × 10−6–1.00 × 10−3	5.34 × 10−6 2.81 × 10−6	Pharmaceutical vials	[33]
Vitamin B2 Vitamin B6	HB	SWV	1.00 × 10−7–7.50 × 10−4 2.50 × 10−5–2.50 × 10−3	7.38 × 10−8 1.10 × 10−5	Pharmaceutical tablets	[79]
Vitamin B12	-	DPV	2.50 × 10−9–3.00 × 10−8	8.20 × 10−8	Pharmaceutical tablets	[55]

DPV = differential pulse voltammetry; SWV = square wave voltammetry; LSV = linear sweep voltammetry; CAdS-SWV = cathodic adsorptive stripping square wave voltammetry; CV = cyclic voltammetry; AdS-DPV = adsorptive stripping differential pulse voltammetry; AdS-SWV = adsorptive stripping square wave voltammetry.

Table 1. The performance characteristics of voltametric methods developed for drug quantitative determination for bare PGE.

Analyte (Drug)	PGE Type	Technique	Linear Range (mol/L)	LoD (mol/L)	Sample	Ref.
Acyclovir	2B	DPV	1.00 × 10−6–1.00 × 10−4	3.00 × 10−7	Pharmaceutical tablets	[9]
4-Aminophenazone	HB	DPV	1.00 × 10−6–1.00 × 10−5	4.58 × 10−8	Plasma; urine	[76]
Amlodipine	HB	DPV SWV	2.10 × 10−9–8.96 × 10−8 8.00 × 10−10–5.22 × 10−8	4.00 × 10−14 2.00 × 10−14	Pharmaceutical tablets; spiked human serum	[39]
Amoxicicllin	-	DPV	1.00 × 10−6–6.00 × 10−5	2.24 × 10−7	-	[71]
Cefidrin	-	SWV	0.50–20.00 µg/mL	0.15 µg/mL	Pharmaceutical tablets and powder	[23]
Chloramphenicol	2H	LSV SWV	2.50 × 10−6–1.00 × 10−3 2.50 × 10−6–7.50 × 10−4	6.09 × 10−7 1.39 × 10−6	Pharmaceutical capsules	[29]
Chlorpromazine	HB	DPV	1.00 × 10−8–8.00 × 10−8	3.00 × 10−9	Pharmaceutical tablets	[16]
Ciprofloxacin	HB	SWV	1.20 × 10−5–5.50 × 10−5	5.60 × 10−6	Pharmaceutical formulations	[40]
Cysteamine	-	DPV	1.00 × 10−5–1.10 × 10−4	4.00 × 10−6	Urine	[54]
Dipyridamole	HB	DPV	5.00 × 10−7–2.50 × 10−4	1.21 × 10−7	Pharmaceutical tablets	[27]
Doxorubicin	-	DPV LSV	1.00 × 10−5–5.00 × 10−5 1.00 × 10−5–3.00 × 10−5	7.20 × 10−6	Serum	[70]
Eugenol	2B	DPV	3.00 × 10−7–5.00 × 10−5	8.50 × 10−8	Pharmaceutical liquid	[32]
Famotidine	HB	SWV DPV	5.00 × 10−6–1.80 × 10−4 4.72 × 10−7–4.95 × 10−4	1.29 × 10−6 1.51 × 10−7	Pharmaceutical tablets	[30] [31]
Flutamide Irinotecan	2B	CAdS-SWV	3.98 × 10−7–6.36 × 10−6 7.94 × 10−8–4.03 × 10−7	1.55 × 10−8 1.68 × 10−9	Serum; urine	[22]
Hydroxyurea	-		1.00 × 10−5–1.00 × 10−3	7.89 × 10−6	Pharmaceutical tablets; urine	[11]
Imipenem		Tb3+-complex deposition + CV	1.50 × 10−5–7.00 × 10−5	2.44 × 10−6	Pharmaceutical vials; rabbit plasma	[77]
Itraconazole	HB	AdS-DPV AdS-SWV	32.00–169.00 10.60–127.00 ng/mL	9.10 8.70 ng/mL	Pharmaceutical capsules; serum; urine	[26]
Linezolid	-	SWV	2.96 × 10−8–5.93 × 10−7	1.39 × 10−9	Pharmaceutical and biological samples	[73]
Methylergometrine maleate	HB	DPV	0.10–1.00 µg/mL	0.02 µg/mL	Pharmaceutical tablets and ampoules	[24]
Niclosamide	2B	DPV	5.00 × 10−7–1.00 × 10−5	1.50 × 10−9	Pharmaceutical tablets	[21]
Paclitaxel	HB	DPV	4.00 × 10−7–3.00 × 10−6	2.46 × 10−9	Pharmaceutical injections; plasma; urine	[78]
Piroxicam	4B	DPV	2.91 × 10−5–1.63 × 10−4	2.10 × 10−6	Pharmaceutical capsules	[42]
Strontium Ranelate	HB	DPV SWV	1.00–10.00 µg/mL 1.00–10.00 µg/mL	0.17 µg/mL 0.19 µg/mL	Pharmaceutical formulations	[25]
Sulfamethoxazole	B	DPV	1.00 × 10−5–2.50 × 10−4	4.04 × 10−6	Pharmaceutical tablets	[28]
Vildagliptin	2B	SWV	2.94 × 10−6–4.99 × 10−5	8.20 × 10−8	Pharmaceutical tablets; urine	[13]
Vitamin B1 Vitamin B6	HB	DPV	1.00 × 10−5–1.00 × 10−3 5.00 × 10−6–1.00 × 10−3	5.34 × 10−6 2.81 × 10−6	Pharmaceutical vials	[33]
Vitamin B2 Vitamin B6	HB	SWV	1.00 × 10−7–7.50 × 10−4 2.50 × 10−5–2.50 × 10−3	7.38 × 10−8 1.10 × 10−5	Pharmaceutical tablets	[79]
Vitamin B12	-	DPV	2.50 × 10−9–3.00 × 10−8	8.20 × 10−8	Pharmaceutical tablets	[55]

DPV = differential pulse voltammetry; SWV = square wave voltammetry; LSV = linear sweep voltammetry; CAdS-SWV = cathodic adsorptive stripping square wave voltammetry; CV = cyclic voltammetry; AdS-DPV = adsorptive stripping differential pulse voltammetry; AdS-SWV = adsorptive stripping square wave voltammetry.

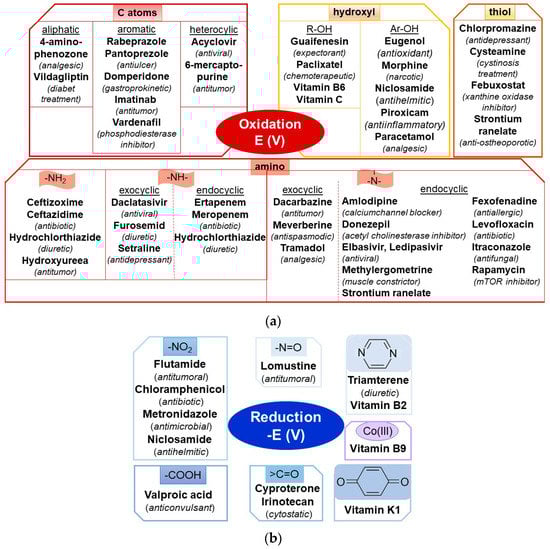

4. Voltametric Analysis of Pharmaceutical Active Compounds Using PGEs

4.1. Applications of Unmodified PGEs to the Voltametric Analysis of Pharmaceutical Compounds

Considering all the above mentioned advantages offered by the use of PGEs as working electrodes in electrochemical analysis, numerous examples of research describe their applicability in the voltametric determination of various drugs, either individual or in mixtures, from very different matrices, like pharmaceuticals, biological fluids, or food or water samples. The literature data reported in the last 10 years regarding the applications of unmodified PGEs in this field are summarized in Table 1. The main benefits of employing a bare PGE are, beside its disposability, the simplicity and ease of use, time, and reagent consuming steps being absent. It can be observed from Table 1 that the LoD obtained for this working electrode are below the micromolar level, highlighting the good sensitivity of the bare PGEs, which makes the methods using them appropriate for the drug quantification in the selected samples.

4.2. Applications of Electrochemically Pretreated PGEs to the Voltametric Analysis of Pharmaceutical Compounds

The performance parameters (i.e., sensitivity and selectivity) of solid working electrodes can be improved by the modification of their electroactive surface area. The simplest, easiest, and most rapid way to change the structure and morphology of the carbon-based electrode surface, and thus of the PGE, with the use of minimum amounts of non-toxic reagents [80] (usually only a supporting electrolyte is required) is electrochemical pretreatment, which consists of potential cycling or electrochemical anodization [10]. During this process, the electrode surface is cleaned, and new active edge-plane sites are produced along with the generation of oxygen-containing moieties (e.g., carbonyl, carboxyl, and epoxide) [14,62,80,81]. These functional groups activate the electrode surface by enhancing its hydrophilic properties [82] and may have an electrocatalytic effect, improving the electron transfer rate for some analytes [83]. The PGE pretreatment reduces the background current [74], and due to the oxidation of the graphite layer, the effective surface area of the electrode is increased [84] by the formation of carbon nanoparticles [81], thus offering better sensitivity and more reproducible results. All these observations were supported by experimental results. Thus, scanning electron microscopy (SEM) images emphasized that the non-treated PGE had a smooth surface, whereas the electrochemical pretreated PGE (ET-PGE) presented porosity and an increased surface area [80]. CV investigations pointed out the increase in the ET-PGE effective electroactive surface area in comparison with the PGE (e.g., 0.0170 cm² for an HB type PGE and 0.0235 cm² for ET-PGE [43], 0.0355 cm² for a 2B type PGE and 0.1408 cm² for ET-PGE [56], or approximately a threefold increase [80]). The electrochemical impedance spectroscopic (EIS) studies emphasized a lower charge transfer resistance and thus a higher conductivity of the ET-PGE [56,80] due to good electrocatalytic activity and a high interfacial electron transfer rate at the ET-PGE, resulting in enhanced peak currents.

The analytes’ voltametric behavior depends on the PGE’s electrochemical treatment (activation) method (at a constant current [62], performed by maintaining the working electrode for a given time at a certain potential [36,37,82,84,85,86,87,88], or potentiodynamic, being carried out by CV [20,60,68,89,90,91,92]) as well as on the instrumental parameters (pretreatment time and potential in the potentiostatic procedure and scan rate and potential range in the CV method) and on the nature, concentration, and pH of the supporting electrolyte [14,83]. For example, in the case of diclofenac sodium, the potentiostatic activation resulted in a more pronounced enhancement of the DPV anodic peak in comparison with electroactivation by CV [80]. For the sensitive and selective determination of paracetamol in the presence of ascorbic acid and caffeine, Kyun et al. [81] performed PGE electrochemical treatment using different acids (HCl, HNO₃, and H₂SO₄ at various concentrations from 0.10 to 5.00 mol/L) and varying the number of cyclic voltametric scans (from 5 to 50). The best results were obtained using 0.50 mol/L H₂SO₄ as the optimized activation medium and 10 cycles of the potential in the range 0.00–2.10 V.

Moreover, by applying chronoamperometry in H₃PO₄, Dokur et al. [10] obtained a phosphorous-doped PGE with improved performances for pyridoxine voltametric analysis, whereas the potentiostatic treatment of a PGE in a melamine and (NH₄)₂SO₄ mixture resulted in the deposition of a sulfur and nitrogen co-doped graphene nanocomposite on the PGE [63].

In some research, the electroactivated PGE was applied as such in the pharmaceutical electrochemical analysis (

Table 2. The performance characteristics of voltametric methods developed for drug quantitative determination at ET-PGE.

Analyte (Drug)	PGE Type/ET Conditions	Analysis Technique	Linear Range (mol/L)	LoD (mol/L)	Sample	Ref.
Ascorbic acid Norepinephrine Uric acid	1.40 V, 60 s	DPV	1.00 × 10−7–8.00 × 10−7 2.00 × 10−8–1.70 × 10−7 4.00 × 10−8–1.75 × 10−7	2.70 × 10−8 4.00 × 10−9 1.00 × 10−8	Pharmaceutical formulations; urine	[84]
Diclofenac sodium	H/−0.50 V, 300 s; 0.50 mol/L ABS pH 4.80 + 0.10 mol/L NaCl	DPV	2.30 × 10−7–1.29 × 10−5	1.20 × 10−7	Pharmaceutical tablets; urine	[80]
Methamphetamine	1.70 V, 10 min; 0.10 mol/L BRB pH 11.00	DPV	7.40 × 10−8–5.40 × 10−5	5.00 × 10−8	Serum; urine	[93]
Morphine	+1.80 V, 300 s; 0.50 mol/L PBS pH 7.00	DPV Amp	1.00 × 10−6–1.00 × 10−4	2.60 × 10−7	Street drugs; urine	[94]
Pantoprazole	HB/+1.30 V, 30 s; BRB pH 7.00	Co2+-complexation + AdS-SWV	1.00 × 10−10–9.00 × 10−9	4.00 ×10−11	Pharmaceutical tablets and vials; spiked rabbit plasma	[82]
Vitamin B6	2.00 V, 100 s; 0.10 mol/L H3PO4	DPV	5.00 × 10−7–3.00 × 10−4	2.19 × 10−7	Energy drink; vitamin water	[10]
Acetaminophen	HB/CV: 0.00–2.10 V; n = 10; 0.50 mol/L H2SO4	DPV	1.00 × 10−6–1.00 × 10−3	1.74 × 10−7	Pharmaceutical tablets	[81]
Albendazole	HB/CV: −2.00 to 2.00 V; n = 5; 0.05 V/s; 0.10 M HCl	DPV	2.50 × 10−4–1.45 × 10−3	5.42 × 10−9	Pharmaceutical tablets; urine	[95]
Epinephrine Norepinephrine Epinephrine Norepinephrine	HB/CV: −0.20 to 2.00 V; n = 10; 0.50 V/s; BRB pH 2.21	CSWV SWV	2.50 × 10−6–2.50 × 10−4 2.50 × 10−6–2.50 × 10−4 2.50 × 10−6–2.50 × 10−4 2.50 × 10−6–2.40 × 10−4	8.32 × 10−7 9.92 × 10−7 1.46 × 10−6 1.46 × 10−6	Pharmaceutical vials; plasma Human plasma	[96,97]
Hydrochlorthiazide	HB/CV: 0.40 to 1.20 V; n = 50; 0.10 V/s; 0.10 mol/L PBS pH 7.00	DPV SWV	4.00 × 10−6–1.40 × 10−4 1.00 × 10−6–2.00 × 10−5	3.25 × 10−6 4.21 × 10−7	Pharmaceutical tablets; urine	[43]
Ketorolac	CV: 0.60 to 1.60 V; n = 10; 0.20 mol/L PBS pH 3.00	DPV	2.00 × 10−6–1.00 × 10−3	4.59 × 10−7	Pharmaceutical tablets; urine	[74]
Lamotrigine	HB/CV: −0.20 to 2.00 V; n = 10; 0.50 V/s; BRB pH 2.21	LSV	2.50 × 10−5–1.00 × 10−3	1.94 × 10−5	Pharmaceutical tablets	[98]
Rapamycin	2B/CV: 1.50 to 2.00 V; n = 50; 0.05 V/s; 0.10 mol/L PBS pH 7.00	DPV	1.00 × 10−8–2.50 × 10−4	7.50 × 10−9	Pharmaceutical tablets	[56]

ABS = acetate buffer solution; BRB = Britton–Robinson buffer; PBS = phosphate buffer solution; CSWV = cyclic square wave voltammetry; Amp = amperometry.

), while in other research, its surface was further modified [36,37,68,85,86,91,92] (Table 3).

4.3. Applications of (Electro)chemically Modified PGEs to the Voltametric Analysis of Pharmaceutical Compounds

It is well established that modified electrodes provide wider linear ranges, lower limits of detection, better selectivity, high precision, and good accuracy of the electrochemical measurements. In order to obtain one or more of these improved sensing performance characteristics, the electrodes’ electroactive surfaces are changed by covering them with proper selected species. Nanomaterials and polymers deposited at the PGE’s surface usually have an electrocatalytic effect and facilitate the electron transfer between the electrode and the electroactive species, increase the effective electroactive surface area, and reduce electrode fouling. As can be observed from Table 3, the most frequently used modifiers, immobilized on the PGE surface by various physical or chemical methods, are nanomaterials like nanoparticles (including magnetic nanoparticles [99]), nanofibers, and nanodots based on carbon (e.g., carbon nanotubes or graphene [100]), metals (noble metals, Cu, etc. or bimetallic structures), metaloxides (Mn₅O₈, MnO₂, TiO₂, etc.) or metal complex structures [101], polymers and molecularly imprinted polymers (MIP) [102], or combinations of them, resulting in hybrid nanomaterial composites.

Thin metallic films and metal or metallic oxide micro- or nanoparticles have excellent electric and catalytic properties, and therefore, they are widely used to improve the electrochemical performances of solid electrodes, also making them more suitable for analysis in the cathodic range. Despite the fact that this type of modified electrode contains a small amount of metal, it possesses the advantages of the corresponding metallic electrodes and is adequate for stripping analysis. Thus, based on its reduction signal from −0.93 V, the antineoplastic drug lomustine was quantified as a PGE in situ electrochemically modified in a single step with a thin mercury film [103] (Table 3). The in situ coating has the advantage of eliminating the electrode preparation steps before analysis, but it has the drawback of introducing the modifier in the sample solution, making the solution inadequate for further investigations. A bismuth film-plated PGE [104] and a porous copper microparticles modified PGE were fabricated by ex situ potentiostatic deposition [19] and then transferred to the analyte solution, which was voltametrically investigated (Table 3). Layers and nanoparticles of various other materials were also deposited on the PGE surface by applying a given potential for a certain time [61,63,64,65,68,91,92,105,106,107].

An easy way to cover the PGE surface is to apply multiple CV scans to a solution containing the desired modifier(s) [20,60,86,87,108], most often resulting in electrode surface polymeric films like polypyrrole [86,109,110], polyaniline [105,109], poly(2-thiobarbituric acid) [59], poly(Azure-B) [45], poly(xylenol orange) [46], poly(eriochrom black T) [111,112], poly(bromocresol green) [113], etc. or MIPs if the polymerization solutions contain both the monomer(s) and the analyte(s), which act as template molecule(s) [38,49,89,91,92,106,107,114,115,116,117,118,119,120,121,122,123,124] (Table 3). Covering an electrode with electrogenerated polymeric films is simple, rapid, and cost-effective and results in sensors with enhanced electrochemical performance characteristics. The electrocatalytic properties of the modified PGE depends on the polymeric film thickness and stability, with the optimum ones being established by adjusting the electrochemical parameters (e.g., deposition potential and time, scan rate, and number of multiple voltametric cycles).

In the case of MIP, after the polymerization step, the template (analyte) inserted into the polymeric matrix must be retrieved in order to create the size- and shape-specific cavities responsible for the selective recognition of the analyte. The encapsulated template molecules were extracted by introducing the polymer adduct into an adequate solvent or solvent mixture for a given time, usually under stirring [36,37,48,49,50,51,52,65,91,92,120,123,125,126,127,128], with the complete removal of the analyte molecules most often being confirmed by the absence of the characteristic signal in voltametric recordings [48,50,51,52,120,123,125] but also by FTIR [52], UV-Vis [48,49], or EDS analysis [120,128]. Some studies reported the electrochemical de-doping of the imprinted polymer performed either by cyclic [129] or differential pulse potential scanning [106,107,121,122,124] or by applying to the PGE covered with the polymeric film a given potential for a well-established time period [38].

In some cases, electrodeposition (e.g., AuNPs) and electropolymerization (e.g., polypyrrole [37], and poly(L-methionine [130]) on the PGE surface were achieved in one single step by CV, with other modification procedures comprising both cyclic voltametric and potentiostatic steps [53,91,129,131].

Other modified PGEs were manufactured by dip [17,61,69,87,88,90,92,127,132,133] or spin coating [48,50,51,52,125,126,134]. Drop coating was applied to produce Mo₅O₈/PGE [34], Trypan blue-modified PGEs [44], different CNT-modified PGEs [47,57,58,68], or PGEs covered with various modifiers [41,49,62,65,135]. After that, the modified PGE was dried either in air [35,48,52,66,68,69,90,136] or in other well-established conditions (e.g., in a desiccator [50] or at a certain temperature [125,137]). The substrate could be either inactivated or electrochemically treated (ET) PGEs (Table 3).

Some PGEs were modified with several species combining two or more of the above-mentioned surface covering methods [92]. For example, the nitrogen-doped graphene (NDG) was electrochemically synthesized and deposited on the PGE in a single step at room temperature by immersing the PGE in a graphene oxide (GO) in an NH₄Cl/NH₃ suspension and applying a potential of −1.20 V for 300 s, resulting in an NDG/PGE, which was further immersed for 30 min in the MIP based on poly(acrylamide) (PAA)/sol-gel to obtain an NDG/MIP(PAA)/sol-gel/PGE [127]. MIP based on a poly(methacrylic acid)/sol-gel/phosphotungstic acid/reduced GO (MIP(PMA)/sol-gel/PWA/rGO)-modified PGE was prepared by dropping the MIP on the surface of a PWA/rGO/PGE obtained previously by potentiostatic deposition of the PWA/rGO composite [65]. In the double-polymer (PVC/PEDOT-C14)-modified PGE, the conductive polymer constituting C14 alkyl group derivatized poly(3,4-ethylenedioxythiophene) (PEDOT-C14) was obtained by cyclic voltametric electropolymerization of the monomer 2-n-tetradecyl-2,3-dihydro-thieno [3,4-b][1,4]dioxine (EDOT-C14), resulting in a PEDOT-C₁₄/PGE, which was subsequently dip-coated with a plasticized polyvinyl chloride (PVC) membrane [138].

Table 3. The performance characteristics of voltametric methods developed for drug quantitative determination at (electro)chemically modified PGE.

Analyte (Drug)	PGE Type/Modifier	Analysis Technique	Linear Range (mol/L)	LoD (mol/L)	Sample	Ref.
Lomustine	2B/Hg film	CAdS-SWV	1.92 × 10−7–1.36 × 10−5	8.13 × 10−8	Human blood and urine	[103]
Diazepam	ET/Bi film	DPV	1.40 × 10−6–1.067 × 10−5	1.10 × 10−6	Pharmaceutical tablets; human urine	[139]
Metronidazole	-/Bi film	CV	3.00 × 10−7–8.00 × 10−5		Pharmaceutical tablets; human serum	[104]
		DPV	2.00 × 10−7–3.00 × 10−5	3.90 × 10−8
		Amp	1.00 × 10−6–1.10 × 10−5	2.94 × 10−6
Flutamide Cyproterone acetate	2B/nanoacetylene black	CAdS-SWV	2.60 × 10−8–4.77 × 10−7 6.60 × 10−8–1.10 × 10−6	1.39 × 10−9 4.74 × 10−9	Pharmaceutical tablets; human serum and urine	[66]
Elbasivir	H/Mn5O8NPs	SWV	2.00 × 10−7–3.00 × 10−6	4.00 × 10−8	Spiked human plasma	[34]
Ledipasivir	H/MnO2NPs	SWV	2.50 × 10−8–3.60 × 10−6	5.10 × 10−9	Pharmaceutical tablets; rat plasma	[35]
Valacyclovir	H/CuMPs	AdS-SWV	2.00 × 10−9–1.00 × 10−8	1.78 × 10−10	Pharmaceutical tablets	[19]
Aceclofenac	2B/MWCNTs	DPV	1.00 × 10−6–6.00 × 10−5	2.60 × 10−9	Pharmaceutical tablets; human urine	[47]
Buprenorphine	ET/MWCNTs	DPV	1.00 × 10−12–1.09 × 10−10 1.09 × 10−10–1.10 × 10−7	6.00 × 10−13	Human plasma and urine	[137]
Diclofenac sodium	H/MWCNTs	DPV	4.70 × 10−8–1.29 × 10−5	1.70 × 10−8	Pharmaceutical tablets; human urine	[57]
Methadone	H/MWCNTs	DPV	1.00 × 10−7–1.50 × 10−5	8.70 × 10−8	Human serum and urine	[58]
Hydrochlorthiazide	HB/TyB	DPV SWV	5.00 × 10−7–7.00 × 10−6 1.00 × 10−7–5.00 × 10−6	1.33 × 10−7 3.20 × 10−8	Pharmaceutical tablets	[44]
Daclatasivir Vardenafil	H/PXO	SWV	2.00 × 10−7–7.00 × 10−7 1.00 × 10−7–6.00 × 10−7	3.00 × 10−8 2.00 × 10−8	Rabbit plasma	[46]
Domperidone Rabeprazole sodium	-/PEBT	CV AdS-SWV CV AdS-SWV	5.20 × 10−6–9.00 × 10−5 5.00 × 10−7–8.00 × 10−6 4.10 × 10−6–1.20 × 10−4 7.50 × 10−7–8.00 × 10−6	5.20 × 10−6 5.00 × 10−7 4.10 × 10−6 7.50 × 10−6	Synthetic mixture; human plasma	[111]
Domperidone Pantoprazole	-/PEBT	AdS-SWV	1.00 × 10−8–3.40 × 10−6 4.00 × 10−8–5.50 × 10−6	4.00 × 10−9 1.20 × 10−8	Synthetic mixture; human plasma	[112]
Ertapenem Meropenem	-/PBCG	SWV	3.00 × 10−7–7.50 × 10−5 1.00 × 10−6–6.00 × 10−5	8.00 × 10−8 3.20 × 10−7	Pharmaceutical vials; rabbit plasma	[113]
Levofloxacin	2B/poly(Azure-B)	DPV	1.00 × 10−6–1.25 × 10−4	1.20 × 10−6	Urine; serum	[45]
Acetaminophen	-/2-TBA	DPV	9.00 × 10−8–5.00 × 10−7 5.00 × 10−7–9.46 × 10−6 9.46 × 10−6–4.23 × 10−4	2.10 × 10−8	Tap and lake water; child syrup	[59]
	H/PA/AgNPs	DPV	5.00 × 10−8–8.00 × 10−7	1.01 × 10−8	Pharmaceutical tablets and syrup	[105]
	2H/SWCNTs/PVP	SWV	1.00 × 10−6–5.00 × 10−4	3.80 × 10−7		[41]
2-Thiouracil	-/PA -/PPy	SCV	1.00 × 10−8–1.30 × 10−7 1.00 × 10−8–1.50 × 10−7	1.80 × 10−9 1.60 × 10−9	Pharmaceutical tablets; serum; urine	[109]
2-Aminobenz-imidazole	HB/MIP (PPy)	DPV	1.00 × 10−9–3.00 × 10−2	1.00 × 10−10	Chicken, turkey, beef, and fish meat	[114]
Benzimidazole	HB/MIP (PPy)	DPV	3.00 × 10−6–5.00 × 10−3	7.00 × 10−7	Chicken, turkey, beef, lamb, and fish meat	[115]
Methimazole	HB/MIP (PPy)	DPV	7.00 × 10−6–6.00 × 10−3	3.00 × 10−6	Pharmaceutical tablets; human serum	[116]
Sulfanilamide	-/MIP (PPy)	DPV	5.00 × 10−8–1.10 × 10−6 1.10 × 10−6–4.80 × 10−5	2.00 × 10−8	Serum; ground water	[117]
Doxicycline	HB/MIP (OPPy)	DPV	5.00 × 10−5–5.00 × 10−4 3.00 × 10−3–7.00 × 10−3	4.35 × 10−5	Pharmaceutical capsules	[118]
Sulfasalazine	2B/MIP (OPPy)	DPV	1.00–10.00 μg/mL	0.26 μg/mL	Pharmaceutical tablets	[119]
Primaquine	/C60-MIP (TAT)	AS-DPV	2.70 × 10−9–8.48 × 10−7	8 × 10−10	Pharmaceuticals; plasma; urine	[48]
Lamivudine Zidovudine	/HCS-MIP (TAT)	AS-DPV	7.26–80.16 ng/mL 4.76–128.76 ng/mL	2.23 ng/mL 1.26 ng/mL	Pharmaceuticals; serum	[120]
Pantoprazole	HB/f-MWCNTs/MIP (PPy)	DPV	5.00 × 10−6–7.00 × 10−4	3.75 × 10−7	Pharmaceutical capsules; serum	[121]
Celecoxib	-/f-MWCNTs/MIP (PPy)	DPV	5.00 × 10−9–2.00 × 10−5	2.34 × 10−9	Pharmaceutical tablets; serum	[122]
Metoprolol	-/f-MWCNTs/MIP (PPy)	DPV	6.00 × 10−8–4.90 × 10−4	2.88 × 10−9	Pharmaceutical tablets; serum	[106]
Triamterene	HB/f-MWCNTs/MIP (PPy)	DPV	8.00 × 10−8–2.65 × 10−4	3.35 × 10−9	Pharmaceutical tablets; serum	[107]
Capecitabine Erlotinib HCl	-/HF-MWCNTs/PU	DPV	7.70 × 10−6–1.42 × 10−4 1.10 × 10−7–2.35 × 10−5	1.10 × 10−7 2.00 × 10−8	Nail; urine	[133]
Flutamide	2B/HF-GO/HPB	SWV	1.00 × 10−7–1.10 × 10−4	2.90 × 10−8	Plasma	[140]
Imatinib	ET-HB/HF-PAMAM-rGO	DPV	1.00 × 10−8–1.00 × 10−5 1.00 × 10−5–2.00 × 10−4	7.39 × 10−9	Serum; urine	[88]
6-Thioguanine	HB/ErGO/MIP (PNR)	AS-DPV	0.124–78 ng/mL	0.02 ng/mL	Pharmaceuticals; serum; urine	[49]
Epinephrine	2B/MIP (CNT-mer)	AS-DPV	0.09–5.90 ng/mL	0.02 ng/mL	Pharmaceutical vials; serum	[50]
Folic acid (vitamin B9)	HB/CNDs/MIP (PABSA)	CS-DPV	2.20–30.80 ng/mL	2.02 ng/mL	Pharmaceutical tablets; urine	[123]
Citaprolam Fluoxetine Setraline	H/PVC/PEDOT-C14	ITS-LSV	1.00 × 10−7–1.50 × 10−6	3.50 × 10−8 4.50 × 10−8 2.50 × 10−8	Tap and river water	[138]
Cefixime	-/AuNPs/CTAB	DPV	1.00 × 10−8–3.00 × 10−7	1.21 × 10−10	Pharmaceutical tablets; serum; urine	[141]
Ceftizoxime	ET-2B/rGO/PNCs	AdS-DPV	1.00 × 10−11–3.00 × 10−8	1.80 × 10−12	Pharmaceutical vials; serum	[90]
	-/rGO/HAuNPs	AdS-DPV	1.00 × 10−12–1.00 × 10−11 1.00 × 10−11–1.00 × 10−9	3.50 × 10−13	Pharmaceutical vials; plasma	[142]
Ceftazidime	HB/rGO/HPtNPs	AdS-DPV	5.00 × 10−13–1.00 × 10−9	2.20 × 10−13	Pharmaceutical vials; plasma	[143]
Clozapine	-/rGO-X/Nafion (X: Au; Pd; Pt)	DPV	5.00 × 10−8–1.00 × 10−5	1.60 × 10−9	Serum	[135]
Pyridoxine (vitamin B6)	-/β-CD–G/PtNPs	DPV	5.00 × 10−9–2.05 × 10−7	1.20 × 10−9	Fruit juice	[144]
Febuxostat	2B/AuNPs@f-CNFs	AdS-SWV	3.00 × 10−8–7.70 × 10−5	1.27 × 10−8	Pharmaceutical tablets; plasma; urine	[17]
Propranolol	HB/TiO2/MWCNTs	AdS-DPV	8.50 × 10−8–6.50 × 10−6	2.10 × 10−8	Pharmaceutical tablets, serum; urine	[132]
Riboflavin (vitamin B2)	/AZA/NiHCF	DPV	4.37 × 10−6–1.23 × 10−3	1.45 × 10−6	Vitamin tablets	[145]
	2B/Chit/Sn	SWV	1.00 × 10−8–1.20 × 10−6	5.56 × 10−9	Pharmaceuticals; milk powder	[69]
	SLSMCNTPGCPE	DPV	2.00 × 10−7–8.00 × 10−7 1.00 × 10−6–5.00 × 10−6	1.16 × 10−8	B-complex pill; food supplement	[72]
Valproic acid	-/APTES-MNPs	DPV	1.00–100.00 µg/mL	0.40 µg/mL	Plasma	[67]
Ascorbic acid (vitamin C)	ET-2B/MIP (PPy-oPD)	SWV	1.00 × 10−6–1.00 × 10−3	2.63 × 10−7	Pharmaceutical tablets	[89]
	-/PIG	SWV	4.00 × 10−5–4.10 × 10−3	2.34 × 10−7	-	[134]
	-/MWCNTs/CeO2NP	CV	4.20 × 10−8–5.39 × 10−7	8.00 × 10−9	-	[146]
L-Ascorbic acid D-Ascorbic acid	-/MIPANI-FSA/CDs	DPV	6.00 × 10−9–1.65 × 10−7 6.00 × 10−9–1.55 × 10−7	1.00 × 10−12 2.00 × 10−12	Pharmaceutical tablets; cerebrospinal fluid; plasma	[38]
Acetylsalicylic acid Ascorbic acid	2B/MWCNTs/SMT	AdS-DPV	8.05 × 10−7–1.00 × 10−4 3.19 × 10−7–6.00 × 10−5	2.41 × 10−7 9.60 × 10−8	Pharmaceutical tablets	[136]
Acetaminophen Acetylsalicylic acid Ascorbic acid	ET-2B/MWCNTs/SEP	AdS-DPV	1.28 × 10−8–1.40 × 10−4 2.13 × 10−8–1.00 × 10−4 2.01 × 10−8–1.20 × 10−4	1.80 × 10−8 4.70 × 10−8 4.20 × 10−8	Pharmaceutical tablets	[85]
Acetaminophen Chlorpheniramine maleate Caffeine Ascorbic acid	2B/P(L-met)/AuNPs	DPV	3.18 × 10−6–3.00 × 10−3 9.74 × 10−6–7.14 × 10−4 8.30 × 10−6–2.00 × 10−3 1.00 × 10−5–2.00 × 10−3	9.50 × 10−7 2.92 × 10−6 2.50 × 10−9 3.03 × 10−6	Pharmaceutical powder; serum	[130]
Guaifenesin	HB/P(L-cys)/AgNPs	DPV	3.00 × 10−8–3.00 × 10−4	6.10 × 10−9	Pharmaceutical syrup; serum; urine	[53]
Ifosfamide Etoposide	ET/Au/Pd@ rGO@P(L-cys)	DPV	1.00 × 10−7–9.00 × 10−5 1.00 × 10−8–4.00 × 10−5	9.21 × 10−9 7.18 × 10−10	Pharmaceutical injections; serum; urine	[87]
Vitamin K	ET/2-A-5-CBP/AgNPs	SWV	5.00 × 10−8–7.00 × 10−7	1.66 × 10−8	Serum	[60]
Mebeverine	HB/MIP (PPy)/AgNPs	DPV	1.00 × 10−8–1.00 × 10−6 1.00 × 10−5–1.00 × 10−3	8.60 × 10−9	Pharmaceutical capsules; serum	[129]
Levodopa	2B/GO/DHPA@AgNPs	DPV	3.00 × 10−9–1.00 × 10−7 1.00 × 10−7–1.00 × 10−5	7.60 × 10−10	Pharmaceutical tablets; serum; urine	[147]
Methyldopa	HB/GO/PMoA	DPV	4.90 × 10−10–1.00 × 10−7	1.20 × 10−10	Milk; serum; urine	[148]
Furosemid	-/P[Ni(salen)]/Ni(OH)2/C NPs	CV	2.50 × 10−10–2.70 × 10−9	1.40 × 10−10	-	[149]
Insulin	ET/RuO 2-EGO	DPV	8.00 × 10−10–2.00 × 10−8 2.00 × 10−8–1.00 × 10−6	2.40 × 10−11	Plasma; urine	[150]
	ET/NiNPs/MBz	DPV	2.50 × 10−8–4.50 × 10−7	8.30 × 10−9	Serum	[20]
	ET/NiNPs/Chit/MWCNTs EA/NiONPs/Chit/MWCNTs	CV	1.00 × 10−6–5.00 × 10−6 5.00 × 10−8–5.00 × 10−6	4.34 × 10−6 2.60 × 10−8	-	[68]
	/CS@Z	DPV	5.00 × 10−11–5.00 × 10−8	1.28 × 10−11	Pharmaceutical injections	[108]
Avanafil Nimodipine	H/P(SA)/NiONPs	SWV	4.00 × 10−8–1.00 × 10−6 1.00 × 10−6–1.50 × 10−5	3.70 × 10−8 3.20 × 10−7	Serum	[151]
Norepinephrine Uric acid	2B/DID (TAT)/f-MWCNTs/AuNPs	AS-DPV	2.83–44.05 ng/mL 1.99–44.31 ng/mL	0.62 ng/mL 0.43 ng/mL	Pharmaceuticals; serum; urine	[51]
Tramadol	H/CNT	DPV	1.00 × 10−6–2.50 × 10−5	7.76 × 10−7	Blood serum	[75]
	2B/f-MWCNTs/AuNPs	DPV	1.20 × 10−8–1.00 × 10−7 1.00 × 10−7–3.00 × 10−6	5.00 × 10−9	Pharmaceutical tablets; urine	[61]
	-/PPy/CuONPs	SWV	5.00 × 10−9–3.80 × 10−4	1.00 × 10−9	Pharmaceutical tablets and vials	[110]
Raloxifene Tamoxifen	ET/PPy/G/CuO	SWV	1.00 × 10−8–5.50 × 10−4 5.00 × 10−7–4.50 × 10−4	3.00 × 10−9 1.05 × 10−8	Pharmaceutical tablets; serum	[86]
Caffeine	2B/MIP (PPy)/sol-gel/AuNPs	SWV	2.00 × 10−9–5.00 × 10−8 5.00 × 10−8–1.00 × 10−6	9.00 × 10−10	Pharmaceutical tablets; urine; plasma green tea; energy and soda drink	[36]
Lorazepam	2B/MIP (PPy)/sol-gel/AuNPs	SWV	2.00 × 10−10–2.00 × 10−9 2.00 × 10−9–2.00 × 10−8	9.00 × 10−11	Pharmaceutical tablets; plasma; urine	[37]
Ranitidine	2B/f-MWCNTs/MIP/sol–gel/AuNPs	SWV	5.00 × 10−8–2.00 × 10−6	2.00 × 10−8	Urine	[91]
Morphine	ET/f-MWCNTs/MIP (PMTMOS)/AuNPs	SWV	8.00 × 10−9–5.00 × 10−6	2.90 × 10−9	Plasma; urine	[92]
Carbazine	/f-MWCNTs/MIP (PABA)-NSPs	AS-DPV	0.10–50.80 ng/mL	0.02 ng/mL	Pharmaceuticals; plasma; urine	[126]
Thiamine (vitamin B1)	2B/ANiNPs/f-MWCNTs/MIP (PNMGA)	AS-DPV	0.60–19.43 ng/mL	0.17 ng/mL	Pharmaceutical tablets; plasma; urine	[52]
Cyanocobalamine (vitamin B12)	-/MIP (MB-rGO/f-MWCNTs/AU)	AS-DPV	0.021–1.44 ng/mL	0.0056 ng/mL	Pharmaceuticals, cerebrospinal fluid; serum; urine	[125]
Fexofenadine	HB/NDG/MIP (PAA)/sol-gel	DPV	5.00 × 10−10–7.80 × 10−6	1.50 × 10−10	Pharmaceutical tablets, blood; urine	[127]
Isoniazid	ET/CNQDs/Cu-MOF	DPV	1.00 × 10−7–6.5 × 10−5	6.75 × 10−8	Pharmaceutical tablets; serum	[62]
Setraline	HB/SNDG/Cu-MOF	DPV	5.00 × 10−8–2.67 × 10−6	3.80 × 10−8	Pharmaceutical tablets; serum	[63]
Paroxetine	H/PWA/rGO	DPV	8.00 × 10−9–1.00 × 10−6	9.00 × 10−10	Pharmaceutical tablets; serum; urine	[64]
Sumatripan Paroxetine	H/MIP(PMA)/sol-gel/PWA/rGO	AdS-DPV	2.00 × 10−8–3.00 × 10−6 5.00 × 10−9–2.20 × 10−6	4.00 × 10−9 7.00 × 10−10	Pharmaceutical tablets; serum; urine	[65]
Donepezil	/PSBT/N-CNDs/CoNPs	DPV	1.50 × 10−9–4.00 × 10−4	5.00 × 10−10	Pharmaceutical tablets; rabbit plasma	[131]
6-mercapto-purine	2B/IL/N-HCNS@Pd- MIP (N-AAsp)	AS-DPV	0.80–70.75 ng/mL	0.11–0.22 ng/mL	Water; pharmaceuticals; plasma; urine	[128]
	-/MIP (PPy)/sol-gel/ZnO@GQDs	DPV	1.00 × 10−8–5.00 × 10−5 5.00 × 10−5–7.00 × 10−4	5.72 × 10−9	Pharmaceutical tablets; serum; urine	[124]

ET = electrochemically treated; NPs = nanoparticles; MPs = microparticles; MWCNTs = multi-wall carbon nanotubes; TyB = Trypan blue; PXO = poly(xylenol orange); PEBT = poly(eriochrome black T); PBCG = poly(bromocresol green); 2-TBA = 2-thiobarbituric acid; PA = polyaniline; SWCNTs = single-walled carbon nanotubes; PVP = poly(vinylpyrrolidone); PP = polypyrrole; MIP = molecularly imprinted polymer; OPPy = overoxidized polypyrrole; C₆₀- = fullerene monoaduct; TAT = 2,4,6-trisacrylamido-1,3,5-triazine; HCS = hollow core shell; f-MWCNTs = functionalized MWCNTs; HF = hollow fiber; GO = graphene oxide; PU = polyurethane; HPB = hyper-branched polyglycerol; PAMAM = ethylenediamine core poly (amidoamine) dendrimer; rGO = reduced graphene oxide; ErGO = electrochemically rGO; PNR = poly neutral red; CNT-mer = f-MWCNT monomer; CNDs = carbon nanodots; PABSA = poly(p-aminobenzene sulphonic acid); PVC/PEDOT-C₁₄ = polyvinyl chloride/C14 alkyl group-derivatized poly(3,4-ethylenedioxythiophene); CTAB = cetyltrimethyl ammonium bromide; PNCs = Preyssler nanocapsules; HAuNPs and HPtNPs = hollow Au/Pt NPs; β-CD = β-cyclodextrine; G = graphene; AuNPs@f-CNFs = AuNP-decorated functionalized carbon nanofibers; AZA/NiHCF = Azure A/nickel hexacianoferrate; Chit/Sn = Chitosan/tin; SLSMCNTPGCPE = sodium lauryl sulphate-modified carbon nanotube pencil graphite composite paste electrode; APTES-MNPs = 3-aminopropyletriethoxy silane-coated magnetic NPs; oPD = o-phenylenediamine; PIG = graphene-iron oxide-polyvinyl alcohol; MIPANI-FSA/CDs = molecularly imprinted polyaniline-ferrocenesulfonic acid/carbon dots; SMT = nano-smectite clay; SEP = Sepiolite clay; P(L-met) = poly (L-methionine); P(L-cys) = poly(L-cysteine); 2-A-5-CBP = 2-amino-5-chloro benzophenone; DHPA = Dawson heteropolyacid; PMoA = phosphomolybdic acid; P[Ni(salen)] = poly(N,N′-bis(salicylidene)ethylenediaminonickel(II) complex); EGO = exfoliated graphene oxide; MBz = methylbenzoate; CS@Z = cerium (III) salen encapsulated into dealuminated zeolite Y; P(SA) = poly (sulfanilamide); DID = double-imprinted dendrimer; PMTMOS = poly (methyltrimethoxysilane); PABA = poly (N-acryloylamino butyric acid); NSPs = nanospherical particles; ANiNPs = acryloylated nickel nanoparticles; PNMGA = poly(N-methacryloylglutamic acid); MB = methyl blue; AU = acryloylurea; NDG = nitrogen-doped graphene; PAA = poly(acrylamide); CNQDs = carbon nitride quantum dots; Cu-MOF = copper-based metal organic framework; SNDG = sulfur and nitrogen co-doped graphene; PWA = phosphotungstic acid; PMA = poly(methacrylic acid); PSBT = poly solochrome black T; N-CNDs = nitrogen-doped CNDs; IL/N-HCNS@Pd-MIP (N-AAsp) = N-acryloyl derivative of aspartic acid-based MIP of N-doped hollow carbon nanosphere − palladium nanocomposite grafted on ionic liquid (1-butyl-3-methylimidazolium tetrafluorobarate); ZnO@GQDs = ZnO-graphene-capped quantum dots; SCV = staircase voltammetry; AS-DPV: anodic stripping differential pulse voltammetry; CS-DPV = cathodic stripping differential pulse voltammetry; ITS-LSV = ion-transfer stripping linear sweep voltammetry.

Table 3. The performance characteristics of voltametric methods developed for drug quantitative determination at (electro)chemically modified PGE.

Analyte (Drug)	PGE Type/Modifier	Analysis Technique	Linear Range (mol/L)	LoD (mol/L)	Sample	Ref.
Lomustine	2B/Hg film	CAdS-SWV	1.92 × 10−7–1.36 × 10−5	8.13 × 10−8	Human blood and urine	[103]
Diazepam	ET/Bi film	DPV	1.40 × 10−6–1.067 × 10−5	1.10 × 10−6	Pharmaceutical tablets; human urine	[139]
Metronidazole	-/Bi film	CV	3.00 × 10−7–8.00 × 10−5		Pharmaceutical tablets; human serum	[104]
		DPV	2.00 × 10−7–3.00 × 10−5	3.90 × 10−8
		Amp	1.00 × 10−6–1.10 × 10−5	2.94 × 10−6
Flutamide Cyproterone acetate	2B/nanoacetylene black	CAdS-SWV	2.60 × 10−8–4.77 × 10−7 6.60 × 10−8–1.10 × 10−6	1.39 × 10−9 4.74 × 10−9	Pharmaceutical tablets; human serum and urine	[66]
Elbasivir	H/Mn5O8NPs	SWV	2.00 × 10−7–3.00 × 10−6	4.00 × 10−8	Spiked human plasma	[34]
Ledipasivir	H/MnO2NPs	SWV	2.50 × 10−8–3.60 × 10−6	5.10 × 10−9	Pharmaceutical tablets; rat plasma	[35]
Valacyclovir	H/CuMPs	AdS-SWV	2.00 × 10−9–1.00 × 10−8	1.78 × 10−10	Pharmaceutical tablets	[19]
Aceclofenac	2B/MWCNTs	DPV	1.00 × 10−6–6.00 × 10−5	2.60 × 10−9	Pharmaceutical tablets; human urine	[47]
Buprenorphine	ET/MWCNTs	DPV	1.00 × 10−12–1.09 × 10−10 1.09 × 10−10–1.10 × 10−7	6.00 × 10−13	Human plasma and urine	[137]
Diclofenac sodium	H/MWCNTs	DPV	4.70 × 10−8–1.29 × 10−5	1.70 × 10−8	Pharmaceutical tablets; human urine	[57]
Methadone	H/MWCNTs	DPV	1.00 × 10−7–1.50 × 10−5	8.70 × 10−8	Human serum and urine	[58]
Hydrochlorthiazide	HB/TyB	DPV SWV	5.00 × 10−7–7.00 × 10−6 1.00 × 10−7–5.00 × 10−6	1.33 × 10−7 3.20 × 10−8	Pharmaceutical tablets	[44]
Daclatasivir Vardenafil	H/PXO	SWV	2.00 × 10−7–7.00 × 10−7 1.00 × 10−7–6.00 × 10−7	3.00 × 10−8 2.00 × 10−8	Rabbit plasma	[46]
Domperidone Rabeprazole sodium	-/PEBT	CV AdS-SWV CV AdS-SWV	5.20 × 10−6–9.00 × 10−5 5.00 × 10−7–8.00 × 10−6 4.10 × 10−6–1.20 × 10−4 7.50 × 10−7–8.00 × 10−6	5.20 × 10−6 5.00 × 10−7 4.10 × 10−6 7.50 × 10−6	Synthetic mixture; human plasma	[111]
Domperidone Pantoprazole	-/PEBT	AdS-SWV	1.00 × 10−8–3.40 × 10−6 4.00 × 10−8–5.50 × 10−6	4.00 × 10−9 1.20 × 10−8	Synthetic mixture; human plasma	[112]
Ertapenem Meropenem	-/PBCG	SWV	3.00 × 10−7–7.50 × 10−5 1.00 × 10−6–6.00 × 10−5	8.00 × 10−8 3.20 × 10−7	Pharmaceutical vials; rabbit plasma	[113]
Levofloxacin	2B/poly(Azure-B)	DPV	1.00 × 10−6–1.25 × 10−4	1.20 × 10−6	Urine; serum	[45]
Acetaminophen	-/2-TBA	DPV	9.00 × 10−8–5.00 × 10−7 5.00 × 10−7–9.46 × 10−6 9.46 × 10−6–4.23 × 10−4	2.10 × 10−8	Tap and lake water; child syrup	[59]
	H/PA/AgNPs	DPV	5.00 × 10−8–8.00 × 10−7	1.01 × 10−8	Pharmaceutical tablets and syrup	[105]
	2H/SWCNTs/PVP	SWV	1.00 × 10−6–5.00 × 10−4	3.80 × 10−7		[41]
2-Thiouracil	-/PA -/PPy	SCV	1.00 × 10−8–1.30 × 10−7 1.00 × 10−8–1.50 × 10−7	1.80 × 10−9 1.60 × 10−9	Pharmaceutical tablets; serum; urine	[109]
2-Aminobenz-imidazole	HB/MIP (PPy)	DPV	1.00 × 10−9–3.00 × 10−2	1.00 × 10−10	Chicken, turkey, beef, and fish meat	[114]
Benzimidazole	HB/MIP (PPy)	DPV	3.00 × 10−6–5.00 × 10−3	7.00 × 10−7	Chicken, turkey, beef, lamb, and fish meat	[115]
Methimazole	HB/MIP (PPy)	DPV	7.00 × 10−6–6.00 × 10−3	3.00 × 10−6	Pharmaceutical tablets; human serum	[116]
Sulfanilamide	-/MIP (PPy)	DPV	5.00 × 10−8–1.10 × 10−6 1.10 × 10−6–4.80 × 10−5	2.00 × 10−8	Serum; ground water	[117]
Doxicycline	HB/MIP (OPPy)	DPV	5.00 × 10−5–5.00 × 10−4 3.00 × 10−3–7.00 × 10−3	4.35 × 10−5	Pharmaceutical capsules	[118]
Sulfasalazine	2B/MIP (OPPy)	DPV	1.00–10.00 μg/mL	0.26 μg/mL	Pharmaceutical tablets	[119]
Primaquine	/C60-MIP (TAT)	AS-DPV	2.70 × 10−9–8.48 × 10−7	8 × 10−10	Pharmaceuticals; plasma; urine	[48]
Lamivudine Zidovudine	/HCS-MIP (TAT)	AS-DPV	7.26–80.16 ng/mL 4.76–128.76 ng/mL	2.23 ng/mL 1.26 ng/mL	Pharmaceuticals; serum	[120]
Pantoprazole	HB/f-MWCNTs/MIP (PPy)	DPV	5.00 × 10−6–7.00 × 10−4	3.75 × 10−7	Pharmaceutical capsules; serum	[121]
Celecoxib	-/f-MWCNTs/MIP (PPy)	DPV	5.00 × 10−9–2.00 × 10−5	2.34 × 10−9	Pharmaceutical tablets; serum	[122]
Metoprolol	-/f-MWCNTs/MIP (PPy)	DPV	6.00 × 10−8–4.90 × 10−4	2.88 × 10−9	Pharmaceutical tablets; serum	[106]
Triamterene	HB/f-MWCNTs/MIP (PPy)	DPV	8.00 × 10−8–2.65 × 10−4	3.35 × 10−9	Pharmaceutical tablets; serum	[107]
Capecitabine Erlotinib HCl	-/HF-MWCNTs/PU	DPV	7.70 × 10−6–1.42 × 10−4 1.10 × 10−7–2.35 × 10−5	1.10 × 10−7 2.00 × 10−8	Nail; urine	[133]
Flutamide	2B/HF-GO/HPB	SWV	1.00 × 10−7–1.10 × 10−4	2.90 × 10−8	Plasma	[140]
Imatinib	ET-HB/HF-PAMAM-rGO	DPV	1.00 × 10−8–1.00 × 10−5 1.00 × 10−5–2.00 × 10−4	7.39 × 10−9	Serum; urine	[88]
6-Thioguanine	HB/ErGO/MIP (PNR)	AS-DPV	0.124–78 ng/mL	0.02 ng/mL	Pharmaceuticals; serum; urine	[49]
Epinephrine	2B/MIP (CNT-mer)	AS-DPV	0.09–5.90 ng/mL	0.02 ng/mL	Pharmaceutical vials; serum	[50]
Folic acid (vitamin B9)	HB/CNDs/MIP (PABSA)	CS-DPV	2.20–30.80 ng/mL	2.02 ng/mL	Pharmaceutical tablets; urine	[123]
Citaprolam Fluoxetine Setraline	H/PVC/PEDOT-C14	ITS-LSV	1.00 × 10−7–1.50 × 10−6	3.50 × 10−8 4.50 × 10−8 2.50 × 10−8	Tap and river water	[138]
Cefixime	-/AuNPs/CTAB	DPV	1.00 × 10−8–3.00 × 10−7	1.21 × 10−10	Pharmaceutical tablets; serum; urine	[141]
Ceftizoxime	ET-2B/rGO/PNCs	AdS-DPV	1.00 × 10−11–3.00 × 10−8	1.80 × 10−12	Pharmaceutical vials; serum	[90]
	-/rGO/HAuNPs	AdS-DPV	1.00 × 10−12–1.00 × 10−11 1.00 × 10−11–1.00 × 10−9	3.50 × 10−13	Pharmaceutical vials; plasma	[142]
Ceftazidime	HB/rGO/HPtNPs	AdS-DPV	5.00 × 10−13–1.00 × 10−9	2.20 × 10−13	Pharmaceutical vials; plasma	[143]
Clozapine	-/rGO-X/Nafion (X: Au; Pd; Pt)	DPV	5.00 × 10−8–1.00 × 10−5	1.60 × 10−9	Serum	[135]
Pyridoxine (vitamin B6)	-/β-CD–G/PtNPs	DPV	5.00 × 10−9–2.05 × 10−7	1.20 × 10−9	Fruit juice	[144]
Febuxostat	2B/AuNPs@f-CNFs	AdS-SWV	3.00 × 10−8–7.70 × 10−5	1.27 × 10−8	Pharmaceutical tablets; plasma; urine	[17]
Propranolol	HB/TiO2/MWCNTs	AdS-DPV	8.50 × 10−8–6.50 × 10−6	2.10 × 10−8	Pharmaceutical tablets, serum; urine	[132]
Riboflavin (vitamin B2)	/AZA/NiHCF	DPV	4.37 × 10−6–1.23 × 10−3	1.45 × 10−6	Vitamin tablets	[145]
	2B/Chit/Sn	SWV	1.00 × 10−8–1.20 × 10−6	5.56 × 10−9	Pharmaceuticals; milk powder	[69]
	SLSMCNTPGCPE	DPV	2.00 × 10−7–8.00 × 10−7 1.00 × 10−6–5.00 × 10−6	1.16 × 10−8	B-complex pill; food supplement	[72]
Valproic acid	-/APTES-MNPs	DPV	1.00–100.00 µg/mL	0.40 µg/mL	Plasma	[67]
Ascorbic acid (vitamin C)	ET-2B/MIP (PPy-oPD)	SWV	1.00 × 10−6–1.00 × 10−3	2.63 × 10−7	Pharmaceutical tablets	[89]
	-/PIG	SWV	4.00 × 10−5–4.10 × 10−3	2.34 × 10−7	-	[134]
	-/MWCNTs/CeO2NP	CV	4.20 × 10−8–5.39 × 10−7	8.00 × 10−9	-	[146]
L-Ascorbic acid D-Ascorbic acid	-/MIPANI-FSA/CDs	DPV	6.00 × 10−9–1.65 × 10−7 6.00 × 10−9–1.55 × 10−7	1.00 × 10−12 2.00 × 10−12	Pharmaceutical tablets; cerebrospinal fluid; plasma	[38]
Acetylsalicylic acid Ascorbic acid	2B/MWCNTs/SMT	AdS-DPV	8.05 × 10−7–1.00 × 10−4 3.19 × 10−7–6.00 × 10−5	2.41 × 10−7 9.60 × 10−8	Pharmaceutical tablets	[136]
Acetaminophen Acetylsalicylic acid Ascorbic acid	ET-2B/MWCNTs/SEP	AdS-DPV	1.28 × 10−8–1.40 × 10−4 2.13 × 10−8–1.00 × 10−4 2.01 × 10−8–1.20 × 10−4	1.80 × 10−8 4.70 × 10−8 4.20 × 10−8	Pharmaceutical tablets	[85]
Acetaminophen Chlorpheniramine maleate Caffeine Ascorbic acid	2B/P(L-met)/AuNPs	DPV	3.18 × 10−6–3.00 × 10−3 9.74 × 10−6–7.14 × 10−4 8.30 × 10−6–2.00 × 10−3 1.00 × 10−5–2.00 × 10−3	9.50 × 10−7 2.92 × 10−6 2.50 × 10−9 3.03 × 10−6	Pharmaceutical powder; serum	[130]
Guaifenesin	HB/P(L-cys)/AgNPs	DPV	3.00 × 10−8–3.00 × 10−4	6.10 × 10−9	Pharmaceutical syrup; serum; urine	[53]
Ifosfamide Etoposide	ET/Au/Pd@ rGO@P(L-cys)	DPV	1.00 × 10−7–9.00 × 10−5 1.00 × 10−8–4.00 × 10−5	9.21 × 10−9 7.18 × 10−10	Pharmaceutical injections; serum; urine	[87]
Vitamin K	ET/2-A-5-CBP/AgNPs	SWV	5.00 × 10−8–7.00 × 10−7	1.66 × 10−8	Serum	[60]
Mebeverine	HB/MIP (PPy)/AgNPs	DPV	1.00 × 10−8–1.00 × 10−6 1.00 × 10−5–1.00 × 10−3	8.60 × 10−9	Pharmaceutical capsules; serum	[129]
Levodopa	2B/GO/DHPA@AgNPs	DPV	3.00 × 10−9–1.00 × 10−7 1.00 × 10−7–1.00 × 10−5	7.60 × 10−10	Pharmaceutical tablets; serum; urine	[147]
Methyldopa	HB/GO/PMoA	DPV	4.90 × 10−10–1.00 × 10−7	1.20 × 10−10	Milk; serum; urine	[148]
Furosemid	-/P[Ni(salen)]/Ni(OH)2/C NPs	CV	2.50 × 10−10–2.70 × 10−9	1.40 × 10−10	-	[149]
Insulin	ET/RuO 2-EGO	DPV	8.00 × 10−10–2.00 × 10−8 2.00 × 10−8–1.00 × 10−6	2.40 × 10−11	Plasma; urine	[150]
	ET/NiNPs/MBz	DPV	2.50 × 10−8–4.50 × 10−7	8.30 × 10−9	Serum	[20]
	ET/NiNPs/Chit/MWCNTs EA/NiONPs/Chit/MWCNTs	CV	1.00 × 10−6–5.00 × 10−6 5.00 × 10−8–5.00 × 10−6	4.34 × 10−6 2.60 × 10−8	-	[68]
	/CS@Z	DPV	5.00 × 10−11–5.00 × 10−8	1.28 × 10−11	Pharmaceutical injections	[108]
Avanafil Nimodipine	H/P(SA)/NiONPs	SWV	4.00 × 10−8–1.00 × 10−6 1.00 × 10−6–1.50 × 10−5	3.70 × 10−8 3.20 × 10−7	Serum	[151]
Norepinephrine Uric acid	2B/DID (TAT)/f-MWCNTs/AuNPs	AS-DPV	2.83–44.05 ng/mL 1.99–44.31 ng/mL	0.62 ng/mL 0.43 ng/mL	Pharmaceuticals; serum; urine	[51]
Tramadol	H/CNT	DPV	1.00 × 10−6–2.50 × 10−5	7.76 × 10−7	Blood serum	[75]
	2B/f-MWCNTs/AuNPs	DPV	1.20 × 10−8–1.00 × 10−7 1.00 × 10−7–3.00 × 10−6	5.00 × 10−9	Pharmaceutical tablets; urine	[61]
	-/PPy/CuONPs	SWV	5.00 × 10−9–3.80 × 10−4	1.00 × 10−9	Pharmaceutical tablets and vials	[110]
Raloxifene Tamoxifen	ET/PPy/G/CuO	SWV	1.00 × 10−8–5.50 × 10−4 5.00 × 10−7–4.50 × 10−4	3.00 × 10−9 1.05 × 10−8	Pharmaceutical tablets; serum	[86]
Caffeine	2B/MIP (PPy)/sol-gel/AuNPs	SWV	2.00 × 10−9–5.00 × 10−8 5.00 × 10−8–1.00 × 10−6	9.00 × 10−10	Pharmaceutical tablets; urine; plasma green tea; energy and soda drink	[36]
Lorazepam	2B/MIP (PPy)/sol-gel/AuNPs	SWV	2.00 × 10−10–2.00 × 10−9 2.00 × 10−9–2.00 × 10−8	9.00 × 10−11	Pharmaceutical tablets; plasma; urine	[37]
Ranitidine	2B/f-MWCNTs/MIP/sol–gel/AuNPs	SWV	5.00 × 10−8–2.00 × 10−6	2.00 × 10−8	Urine	[91]
Morphine	ET/f-MWCNTs/MIP (PMTMOS)/AuNPs	SWV	8.00 × 10−9–5.00 × 10−6	2.90 × 10−9	Plasma; urine	[92]
Carbazine	/f-MWCNTs/MIP (PABA)-NSPs	AS-DPV	0.10–50.80 ng/mL	0.02 ng/mL	Pharmaceuticals; plasma; urine	[126]
Thiamine (vitamin B1)	2B/ANiNPs/f-MWCNTs/MIP (PNMGA)	AS-DPV	0.60–19.43 ng/mL	0.17 ng/mL	Pharmaceutical tablets; plasma; urine	[52]
Cyanocobalamine (vitamin B12)	-/MIP (MB-rGO/f-MWCNTs/AU)	AS-DPV	0.021–1.44 ng/mL	0.0056 ng/mL	Pharmaceuticals, cerebrospinal fluid; serum; urine	[125]
Fexofenadine	HB/NDG/MIP (PAA)/sol-gel	DPV	5.00 × 10−10–7.80 × 10−6	1.50 × 10−10	Pharmaceutical tablets, blood; urine	[127]
Isoniazid	ET/CNQDs/Cu-MOF	DPV	1.00 × 10−7–6.5 × 10−5	6.75 × 10−8	Pharmaceutical tablets; serum	[62]
Setraline	HB/SNDG/Cu-MOF	DPV	5.00 × 10−8–2.67 × 10−6	3.80 × 10−8	Pharmaceutical tablets; serum	[63]
Paroxetine	H/PWA/rGO	DPV	8.00 × 10−9–1.00 × 10−6	9.00 × 10−10	Pharmaceutical tablets; serum; urine	[64]
Sumatripan Paroxetine	H/MIP(PMA)/sol-gel/PWA/rGO	AdS-DPV	2.00 × 10−8–3.00 × 10−6 5.00 × 10−9–2.20 × 10−6	4.00 × 10−9 7.00 × 10−10	Pharmaceutical tablets; serum; urine	[65]
Donepezil	/PSBT/N-CNDs/CoNPs	DPV	1.50 × 10−9–4.00 × 10−4	5.00 × 10−10	Pharmaceutical tablets; rabbit plasma	[131]
6-mercapto-purine	2B/IL/N-HCNS@Pd- MIP (N-AAsp)	AS-DPV	0.80–70.75 ng/mL	0.11–0.22 ng/mL	Water; pharmaceuticals; plasma; urine	[128]
	-/MIP (PPy)/sol-gel/ZnO@GQDs	DPV	1.00 × 10−8–5.00 × 10−5 5.00 × 10−5–7.00 × 10−4	5.72 × 10−9	Pharmaceutical tablets; serum; urine	[124]

ET = electrochemically treated; NPs = nanoparticles; MPs = microparticles; MWCNTs = multi-wall carbon nanotubes; TyB = Trypan blue; PXO = poly(xylenol orange); PEBT = poly(eriochrome black T); PBCG = poly(bromocresol green); 2-TBA = 2-thiobarbituric acid; PA = polyaniline; SWCNTs = single-walled carbon nanotubes; PVP = poly(vinylpyrrolidone); PP = polypyrrole; MIP = molecularly imprinted polymer; OPPy = overoxidized polypyrrole; C₆₀- = fullerene monoaduct; TAT = 2,4,6-trisacrylamido-1,3,5-triazine; HCS = hollow core shell; f-MWCNTs = functionalized MWCNTs; HF = hollow fiber; GO = graphene oxide; PU = polyurethane; HPB = hyper-branched polyglycerol; PAMAM = ethylenediamine core poly (amidoamine) dendrimer; rGO = reduced graphene oxide; ErGO = electrochemically rGO; PNR = poly neutral red; CNT-mer = f-MWCNT monomer; CNDs = carbon nanodots; PABSA = poly(p-aminobenzene sulphonic acid); PVC/PEDOT-C₁₄ = polyvinyl chloride/C14 alkyl group-derivatized poly(3,4-ethylenedioxythiophene); CTAB = cetyltrimethyl ammonium bromide; PNCs = Preyssler nanocapsules; HAuNPs and HPtNPs = hollow Au/Pt NPs; β-CD = β-cyclodextrine; G = graphene; AuNPs@f-CNFs = AuNP-decorated functionalized carbon nanofibers; AZA/NiHCF = Azure A/nickel hexacianoferrate; Chit/Sn = Chitosan/tin; SLSMCNTPGCPE = sodium lauryl sulphate-modified carbon nanotube pencil graphite composite paste electrode; APTES-MNPs = 3-aminopropyletriethoxy silane-coated magnetic NPs; oPD = o-phenylenediamine; PIG = graphene-iron oxide-polyvinyl alcohol; MIPANI-FSA/CDs = molecularly imprinted polyaniline-ferrocenesulfonic acid/carbon dots; SMT = nano-smectite clay; SEP = Sepiolite clay; P(L-met) = poly (L-methionine); P(L-cys) = poly(L-cysteine); 2-A-5-CBP = 2-amino-5-chloro benzophenone; DHPA = Dawson heteropolyacid; PMoA = phosphomolybdic acid; P[Ni(salen)] = poly(N,N′-bis(salicylidene)ethylenediaminonickel(II) complex); EGO = exfoliated graphene oxide; MBz = methylbenzoate; CS@Z = cerium (III) salen encapsulated into dealuminated zeolite Y; P(SA) = poly (sulfanilamide); DID = double-imprinted dendrimer; PMTMOS = poly (methyltrimethoxysilane); PABA = poly (N-acryloylamino butyric acid); NSPs = nanospherical particles; ANiNPs = acryloylated nickel nanoparticles; PNMGA = poly(N-methacryloylglutamic acid); MB = methyl blue; AU = acryloylurea; NDG = nitrogen-doped graphene; PAA = poly(acrylamide); CNQDs = carbon nitride quantum dots; Cu-MOF = copper-based metal organic framework; SNDG = sulfur and nitrogen co-doped graphene; PWA = phosphotungstic acid; PMA = poly(methacrylic acid); PSBT = poly solochrome black T; N-CNDs = nitrogen-doped CNDs; IL/N-HCNS@Pd-MIP (N-AAsp) = N-acryloyl derivative of aspartic acid-based MIP of N-doped hollow carbon nanosphere − palladium nanocomposite grafted on ionic liquid (1-butyl-3-methylimidazolium tetrafluorobarate); ZnO@GQDs = ZnO-graphene-capped quantum dots; SCV = staircase voltammetry; AS-DPV: anodic stripping differential pulse voltammetry; CS-DPV = cathodic stripping differential pulse voltammetry; ITS-LSV = ion-transfer stripping linear sweep voltammetry.

As was already stated, modified PGEs have superior electrochemical performance characteristics when compared with the bare ones. For example, propranolol exhibited a small oxidation peak for the unmodified PGE, while for the MWCNT/PGE and TiO₂/MWCNT/PGE, the peak currents were higher and the potentials shifted due to the presence of carbon nanotubes and TiO₂ nanoparticles, which enhanced the electroactive surface area and reduced the electron transfer resistance [132]. A similar behavior was observed for paroxetine, whose weak oxidation signal for the bare PGE increased with the rGO/PGE and furthermore for the PWA/rGO/PGE, along with a decrease in the peak potential [64]. Despite the fact that clozapine was determined in the same linear range by using a PGE either bare or modified with rGO, rGO-Au, rGO-Pd, or rGO-Pt nanocomposites, the LoD of the DPV method varied as follows: 1.04 × 10⁻⁸ > 8.60 × 10⁻⁹ > 4.50 × 10⁻⁹ > 3.60 × 10⁻⁹ > 1.60 × 10⁻⁹ mol/L [135]. The acetaminophen (AAP) oxidation peak was small for the bare and PA-modified PGE, whereas for the AgNPs/PA/PGE it was well-defined, with its current significantly increased and its potential shifted toward lower values due to the catalytic effect of AgNPs/PA on the electrode surface [105]. Similarly, tramadol did not show a well-defined peak for the PGE, but after the electrode modification with f-MWCNTs, a clear anodic signal was observed, while further modification with AgNPs resulted in an increased oxidation peak that appeared at lower values due to the enhanced surface area and the synergistic effects of the two modifiers’ electrocatalytic properties [61]. The electro-oxidation response of guaifenesin for the bare PGE and PGE modified with AgNPs/P(L-cys) was evaluated by CV and DPV. For the unmodified PGE, the guaifenesin alcohol group gave a weak oxidation signal whose peak current increased, and its potential shifted in the negative direction after the electrode surface covering by P(L-cys) and by P(L-cys)/AgNPs due to the analyte adsorption through the hydrogen bonding interaction of guaifenesin –OH groups and the P(L-cys) film and the AgNPs’ electrocatalytic effect on the resulting current, respectively [53]. The examples could be continued, but generally, it can be concluded that PGE modification generates higher peak currents, yielding more sensitive determinations, and in some cases, a potential shift toward lower values was observed, indicating that the electrode process took place easier.

It is worth mentioning that most voltametric methods developed for pharmaceutical quantification using bare or modified PGEs are based on the analyte oxidation processes (Figure 2a). However, there were a few examples where the reduction signals (Figure 2b) of the species of interest were exploited. Thus, although niclosamide was determined based on the oxidation signal resulting after the electrochemical reduction of its nitro group, it was emphasized that the PGE could also be used successfully to investigate cathodic processes due to the fact that it had a wide potential window (in the mentioned study, from −0.80 to 0.80 V) [21]. Additionally, chloramphenicol was quantified for the PGE by SWV considering the reduction peak of its nitro group and by LSV based on the oxidation signal of the –NHOH moiety contained in its reduction product. The two methods had similar performance characteristics (Table 1) [29]. In the case of a mixture of epinephrine (EP) and norepinephrine (NP), the analytes’ oxidation signals for the ET-PGE could not be employed for their simultaneous determination, but the cathodic peaks at 0.15 V and about −0.25 V, attributed to the reduction of the EP and NP oxidation products, enabled the direct detection of NP by exploiting the signal from +0.15 V and the assessment of the sum of the two catecholamines, considering the current of the signal situated at negative potential values [96,97].

The nitroso group in the lomustine structure [103] and the nitro moiety in the metronidazole molecule [104] allowed the possibility of determining voltametrically these compounds by using their cathodic signals obtained for the mercury and bismuth film-modified PGEs, respectively (Table 3). Flutamide was quantified for the GO/HPB/HF-PGE based on the –NO₂ reduction peak [140] (Table 3). CAdS-SWV recordings for a PGE in the range from −0.20 to −1.20 V were exploited to determine either individually or simultaneously the flutamide (E_p ≈ −0.50 V) and irinotecam (E_p ≈ −1.00 V) (Table 1) [22] or the nanoacetylene black-modified PGE for the singular or concomitant quantification of flutamide (E_p ≈ −0.80 V) and cyproterone (E_p ≈ −1.20 V) (Table 3) [66].

The reduction signal of vitamin B12 (E_p~−0.80 V) and of vitamin B9 (E_p~−0.60 V) constituted the basis of their determination by DPV for the bare PGE (Table 1) [55] and by CS-DPV for the CNDs/MIP(PABSA)/PGE [123], respectively, while Sangeetha and Narayanan [144] developed a PGE modified with two mediators, Azure A and nickel hexacianoferrate, with electrocatalytic activity for the oxidation of the antioxidant butylated hydroxyanisole and the reduction of vitamin B2, respectively. Vitamin K1 quantification by SWV for the 2-A-5-CBP/AgNPs/ET-PGE [60] and celecoxib by DPV for the fMWCNT/MIP/PGE [122] were also based on their reduction signals (Table 3).

For the APTES-MNP-modified PGE, valproic acid (Table 3) presented reduction peaks at −0.20 and −0.80 V, with one situated at more cathodic potentials being exploited for the drug’s quantitative determination by DPV [67].

Other molecules were indirectly detected based on the linear decrease of the voltametric signal of a redox probe, such as [Fe(CN)₆]⁴⁻ for lamivudine and zidovudine [120,152] and [Ru(NH₃)₆]²⁺ for thiamine [52], in the presence of increasing analyte concentrations.

4.4. Simultaneous Voltametric Determination of Drugs Using PGEs

Most voltametric methods using PGEs reported in the literature were applied to the determination of a single drug from various matrices. However, there are papers presenting the simultaneous quantification of two, three, or even four pharmaceuticals.

Using a bare PGE, vitamin B1 and vitamin B6 were determined by DPV with one in the presence of the other by changing the supporting electrolyte, due to the fact that vitamin B1 is electroactive only in a NaOH solution (Table 1) [33], while the oxidation peak separation of more than 1.10 V obtained in BRB pH 5.00 enabled the precise and accurate concomitant SWV quantification of vitamin B2 and B6 [79]. EP and NP were determined simultaneously using CSWV [96] and SWV [97] for the ET-PGE.

Ascorbic acid (AA) and acetaminophen (AAP) were determined in their mixture solution, applying AdS-DPV on the SMT/MWCNT/PGE by keeping constant the concentration of one analyte and increasing linearly the concentration of the other and vice versa, as well as by enhancing the concentrations of both drugs at the same time. No differences were observed between the determinations of AAP and AA alone or simultaneously [136]. Similarly, by employing DPV, it was possible to quantify capecitabine and erlotinib hydrochloride for the MWCNT/PU/HF-PGE [133] and ifosfamide and itoposide for the Au/Pd@rGO@P(L-cys)/PGE [87]. CAdS-SWV detection of flutamide and irinotecan (Table 1) [22] or flutamide and cyproterone (Table 3) [66] in mixtures were reported for the bare or nanoacetylene black-modified PGEs, respectively. Using AdS-DPV for a selective MIP/sol-gel/PWA/rGO/PGE, the sumatripan and paroxetine levels were determined with good recoveries from the urine and serum samples by applying the standard addition method [65]. The slopes of the calibration curves for the SWV determination of raloxifene and tamoxifen levels for the PPy/G/CuO/ET-PGE in a mixture were similar to those obtained for each one alone, demonstrating that the method is adequate for simultaneous drug quantification [86]. On the same basis, the DID (TAT)/f-MWCNT/AuNPs/PGE was applied to the AS-DPV determination of both NP and uric acid (UA) in aqueous solutions and in pharmaceutical and biological (blood and urine) samples [51].

An interesting approach for AS-DPV detection of the electro-inactive anti-HIV drugs lamivudine (3TC) and zidovudine (AZT) employed a double-layered one-by-one imprinted (the outer layer imprinted with AZT and the inner layer with 3TC) hollow core shells@PGE. The method exploited the decrease in the [Fe(CN)₆]⁴⁻ probe oxidation signal in the presence of increasing concentrations of one of the anaytes (e.g., AZT) when the cavities of the corresponding MIP (the inner layer) were saturated with the other target compound (3TC). The obtained linear ranges and detection limits were 0.50–8.12 ng/mL and 0.13 ng/mL for AZT and 3.58–48.98 ng/L and 0.94 ng/mL for 3CT, respectively, in the blood serum and 0.82–10.55 ng/mL and 0.20 ng/mL for AZT and 3.77–56.64 ng/L and 0.99 ng/mL for 3CT, respectively, in the pharmaceutical samples [152].

By applying DPV to the ET-PGE, well-separated and sharp peaks were obtained for acetylsalicylic acid (ASA), NP, and UA. When the concentration of an analyte was increased while maintaining the concentrations of the other two constant, as well as when the concentrations of all three species were gradually enhanced, the peak currents of all compounds varied linearly, and the slopes of the calibration graphs of each analyte did not change significantly, thus enabling their quantitative simultaneous determination [84].

The AA, AAP, and ASA from a ternary mixture were determined with one in the presence of the other two by AdS-DPV for the SEP/MWCNTs/ET-PGE either by varying the concentration of the investigated analyte at constant concentrations of the other two species or by increasing all their concentrations [85], while AA, AAP, chlorpheniramine maleate, and caffeine were simultaneously determined by DPV for the AuNPs/P(L-met)/PGE [130].

4.5. Pharmacokinetic Studies Performed by Voltammetric Techniques at PGEs

AS-SWV for the PGE in the presence of Co²⁺ was applied to the pharmacokinetic study of pantoprazole sodium in rabbit plasma after drug administration. The obtained pharmacokinetic parameters were in good agreement with those obtained by a reported method, thus indicating the reliability of the voltametric method [82]. SWV for the POX/PGE was applied to study the possible pharmacokinetic interaction between vardenafyl hydrochloride (VAR), a drug used to control erectile dysfunctions, and the antiviral drug daclatasivir hydrochloride (DAC), prescribed to patients with Hepatitis C, when they were co-administrated. Investigations performed on spiked rabbit plasma evidenced a higher VAR plasmatic concentration when it was administrated simultaneously with DAC [46]. The possible pharmacokinetic interaction between avanafil used to treat erectile dysfunction and the antihypertensive nimodipine, which are co-administered for elderly patients, was investigated in the plasma of healthy volunteer men using SWV for a NiONPs/P(SA)/PGE [151]. SWV for a PBCG/PGE was successfully applied to pharmacokinetic studies after individual administration of meropenem and ertapenem by monitoring the time-dependent antibiotics levels in healthy rabbit plasma [113]. The pharmacokinetic parameters of donepezil HCl in rabbits’ plasma after drug consumption were determined by CV for a PSBT/N-CNDs/CoNPs/PGE by applying a non-compartmental statistics model using moment analysis [131].

5. PGEs as Electrochemical Detectors in Separation Techniques

Real samples as biological ones and wastewaters resulted in the pharmaceutical industry possibly having very complex matrices, and some analytes may exist at concentrations below the detection limit of the analytical method. Therefore, the direct determination of certain species is impossible due to the presence of interfering compounds and the low analyte(s) content(s). Separation techniques are recognized as having the ability to isolate the analyte from the matrix sample or concentrate it in another medium with a simple chemical composition. Coupling an electrochemical method using a PGE as a working electrode with separation and extraction techniques enhances both the selectivity and the sensitivity of the quantitative determination of interest species in complex samples.

Liquid three-phase microextraction (LPME) consists of analyte transfer from the aqueous donor phase to a thin layer of a proper organic solvent immobilized within a porous membrane, followed by the re-extraction of it into a smaller volume of an aqueous acceptor phase. A polytetrafluoroethylene (PTFE) membrane impregnated with propyl benzoate was used to transport buprenorphine from the sample (aqueous phase) to the acceptor phase, and a MWCNTs/ET-PGE was used to study the electrochemical behavior of this pharmaceutical and to quantify it by DPV [137]. A similar extraction-electrochemical set-up was described by the same authors for insulin determination. The supported liquid membrane of a PTFE film containing sodium dodecyl sulfate was prepared to transfer the analyte from the sample into a smaller volume of aqueous receiving phase, where insulin was determined at an ultra-trace level by DPV at a RuO ₂-EGO/ET-PGE [150] (Table 3). LPME-DPV was applied to the detection of these two drugs in human plasma and urine.

Solid phase microextraction (SPME) involves the use of fibers which are not very selective for samples with complex matrices, such as the clinical ones. To overcome this inconvenience, the fiber can be supported with a hollow fiber (HF) membrane in the electromembrane extraction (EME) technique. In EME, the charged analyte is extracted from the sample and into a supported liquid membrane (SLM), which comprises an organic solvent located in the wall pores of the HF, and then the analyte passes into an acceptor phase located inside the lumen of the porous fiber. Pencil lead spin-coated with an rGO layer (rGO/PGE) was used as cathode of the EME unit, and it was introduced in the acceptor phase, existing inside the lumen of the porous HF, having the walls impregnated with 2-nitrophenyl octyl ether as organic extraction solvent (acting as SLM). A Pt wire (anode) was immersed into the stirred sample solution (donor phase). By applying an electrical field between the cathode and the anode, tramadol was extracted from the sample through the SLM, into the receiving solution, and then adsorbed on the rGO/PGE, which acted as a solid adsorbent for SPME. Subsequently, the rGO/PGE with the adsorbed drug was introduced into an electrochemical cell containing only the electrolyte, and linear sweep voltammograms were registered in order to quantify the analgesic. The peak current was proportional to the tramadol concentration in the ranges of 0.01–0.50 and 0.50–50 µg/mL, with an LoD of 0.003 µg/mL [153]. The anticancer drug imatinib was determined from biological samples applying a similar principle, based on microextraction using PAMAM dendrimer-assisted rGO as an adsorbent (immobilized on the ET-PGE and in the HF walls) and DPV detection using the HF-modified ET-PGE (Table 3) [88].

Despite the advantages of the above-mentioned procedures, the most powerful separation technique remains chromatography. The leading analytical methods for drug determination at very low concentrations in various samples are gas and liquid chromatography coupled with mass spectrometric detection (GS/MS/MS; LC/MS/MS). However, chromatographic methods involving a MS detector are very expensive compared with those using spectrometric or electrochemical detection, which are significantly more affordable. Analytes possessing redox properties can be detected online using electrochemical sensors with higher sensitivity and selectivity than those provided by UV-VIS spectrometric detectors. A high-performance liquid chromatographic method coupled with an electrochemical detector based on micro carbon pencil lead as a working electrode was developed for the low-cost and sensitive screening of nine antipsychotic drugs in human plasma [154]. A Pt wire auxiliary electrode and a miniaturized Ag/AgCl reference electrode were placed in close proximity to the pencil lead, which was inserted into the HPLC capillary outlet, and the drugs separated by a reverse-phase mechanism were detected, applying a potential of 0.90 V to the in-capillary working electrode. The calibration plots were linear in the range from the corresponding LoD (situated between 1.00 × 10⁻⁹ mol/L and 7.90 × 10⁻⁹ mol/L for olanzapine and chlorpromazine, respectively) up to 5.00 ×10⁻⁷ mol/L, proving to be very good inter-electrode reproducibility.

6. Development of PGE-Reliant Analytical Procedures Aided by Laborious Calculations

Nowadays, a significant number of papers reporting electrochemical analysis are complemented by complex calculations run by specialized software (one can find the appropriate details in the articles cited in this section). This is because computational chemistry, which is grounded in quantum mechanics, is able to predict the most stable structures to be found in complex, well-specified chemical systems. Meanwhile, the science called chemometrics developed powerful mathematical tools suitable for the optimization of rather complex (electro)analytical procedures or other types of chemical processes. For example, in the case of the cefdinir SWV determination for a bare PGE, a chemometric strategy was employed to select the optimum values of the supporting electrolyte pH, and the frequency and amplitude of the square wave [23].

Although the problems solved by computational chemistry and chemometrics are different, one can also find situations where they contribute symbiotically to the development of robust procedures of pharmaceutical electroanalysis [121], as discussed at the end of this section. Subsequently, this section states briefly the problems solved in the reviewed articles either by chemometrics [23,88,106,107,121,122,129,142,143,153] or computational chemistry [48,49,50,86,106,107,114,115,117,121,122].

Primarily to select the optimum monomer used for MIP preparations, quantum mechanics calculi have been performed [106,107,114,117,121,122] in order to maximize the energy difference between the monomer and template on one side and their association on the other side in a pre-polimerization solution, with the rationale that the bigger this difference is, the more stable the recognition sites formed in the MIP during electropolymerization should be. Pyrrole [106,107,114,115,117,121,122] was selected and employed in the subsequent works as the optimum monomer among the tested ones: furan [106,107,114,117,121,122], thiophene [106,107,114,117,121,122], methylthiophene [114,117,121,122], and methylpyrrole [106,107,117,121,122]. Where only pyrrole was considered a monomer [115], the stoichiometry of the most stable association between benzimidazole and pyrrole was found to be 1:2. Most articles of this type also display the geometrical conformations of the most stable associations (called “complexes”) found by the employed calculus [106,107,114,115,117,121].

In the design of more complex materials also containing polymers in their compositions, the optimum monomer was selected among a few options by ab initio calculations, as was the case for the modified PGEs employed in the determinations of primaquine [48], 6-thioguanine [49], and epinephrine [50], respectively. Finally, Fouladgar et al. [86] performed density functional theory calculations with van der Waals correction in order to explain the behavior difference between tamoxifen and raloxifene on a CuO/G/PPy/ET-PGE. The results of the calculi explain the strong adsorption on CuO of raloxifene, which was found experimentally.

Depending on the nature of the structured materials engineered to cover the PGE surface, the number of experimental variates that influence the sensors’ performance during the determinations can be numerous. Faced with the need to optimize many experimental parameters, multifactorial optimizations of the developed analytical procedures have been performed either by classical methods, such as Analysis of Variance (ANOVA) or the Response Surface (RS) methodology [88,105,106,107,129,142,143,153], or by more advanced chemometric tools, such as Artificial Neural Networks (ANNs) [121,122] or Genetic Algorithms (GAs) [121,122]. As input for the employed optimization methods, data acquired in one or two sets of developed experiments have been used, with the aim of limiting the number of determinations according to the available experimental designs of the following types: Plackett–Burman (PB) [106,107,121,122,129], central composite (CCD) [104,106,121,122,129,142,143], Box–Behnken [153], or Taguchi L25 orthogonal [88]. For example, the conditions (e.g., pH, Bi³⁺ concentration, deposition time, and potential) for the preparation of the Bi film-modified PGE used for metronidazole voltammetric investigation were optimized by applying a circumscribed CCD [104], while a full factorial design with three factors at three levels was used to establish the optimum pH, accumulation time, and accumulation potential in the fabrication of a AgNPs/PA/PGE for the analysis of acetaminophen [105].

As a relevant example of optimization significance in achieving good performance characteristics of complex electrochemical sensors, the procedure followed for the MIP (PPy)/f-MWCNTs/PGE [121] is briefly described below. This example was chosen because the optimization of the MIP/f-MWCNTs/PGE fabrication was compared during the entire process with the one for a non-imprinted PGE sensor (NIP/f-MWCNTs/PGE) obtained in a similar fashion to the MIP/f-MWCNTs/PGE but without a template in the electropolymerization solution and used in parallel sets of analytical measurements. After pyrrole selection as the monomer for MIP generation by ab initio calculations, eight parameters (pH of the buffer solution, CV scan number and rate in the polymerization step, monomer and template concentrations in the prepolymerization mixture, nanotube concentration in f-MWCNTs-coating step, and the uptake time and stirring rate after MIP preparation) were considered in 12 randomized runs developed in agreement with a PB factorial design due to the ability of this optimization method to identify the main factors affecting the measurements in relatively few experiments. During each run, the current peak heights were the responses obtained at two levels of factors. Data analysis of the obtained results identified as significant, in decreasing order, the following three factors: monomer concentration in the electropolymerization solution, buffer pH, and uptake stirring rate. Due to the strong interactions between those three factors, a CCD was subsequently employed. It consisted of a full factorial design, six axial points, six center points, and eight cube points in order to fit the quadratic polynomials. In addition to the classical mathematical treatment of the data, by modeling the response surface, the two responses of the MIP- and NIP/f-MWCNTs/PGEs were fed to the two neurons from the first layer of an artificial neural network or in a genetic algorithm that simulated the behavior of simple biological systems and was programmed in MATLAB. The optimum conditions achieved by the two modeling methods of the measurement system (i.e., ANN and GA) were as follows: 1.00 × 10⁻⁴ mol/L template (pantoprazole), 50 CV cycles, 4.30 × 10⁻³ mol/L monomer (pyrrole), and 0.10 mol/L supporting electrolyte (NaClO₄·H₂O) for MIP and the same conditions but without the template for NIP fabrication. The complex optimization procedure performed resulted in a maximum response ratio of 17.4 between the currents recorded by the MIP- and NIP/f-MWCNTs/PGE sensors for the same samples and, consequently, good performance characteristics for the pantoprazole determinations (Table 3).

7. PGE Surface Characterization

To confirm the change of the PGE surface during the various steps performed for its modification, several analytical techniques (electrochemical, spectroscopic, and microscopic) were employed. Usually, the selected parameters (e.g., peak potentials and currents, charge transfer resistances, wavelengths, and wavenumbers) of the modifier(s) of the bare and final or intermediate modified PGE were compared.

7.1. PGE Surface Characterization by Electrochemical Techniques

The electrochemical characterization of bare and modified electrodes was usually performed by CV [87,88,117,124,125,129] and electrochemical impedance spectroscopy (EIS) using [Fe(CN)₆]^3−/4− as a redox probe and KCl as a supporting electrolyte [17,20,37,41,43,45,47,53,56,57,59,63,64,65,69,80,85,87,90,105,117,124,125,127,131,132,136,141,142,143,147], but [Ru(NH₃)₆]^3+/2+ was also used [38].

CV carried out at different scan rates was most often employed to calculate the electroactive surface area (A_ea) of bare or different modified electrodes while considering the slope of the regression equation corresponding to the I_p = f(v^1/2) plot, where I_p (A) represents the peak current and v is the potential scan rate (V/s) [16,20,38,39,41,43,44,45,46,47,48,49,53,56,59,64,67,72,74,82,85,87,88,106,124,125,126,128,141].

Chronoamperometry [68] and chronocoulometry were also used to assess the A_ea of various working electrodes [53,62,143].

Generally, the electrode’s electroactive surface area is higher than the geometrical one due to the porosity [40] or irregular surface morphologies. Moreover, the immobilization of various types of modifiers on the PGE surface resulted in an enhanced electroactive surface area [17,63,69,85,110,136,141]. For example, the surface areas of the AuNPs/P(L-met)/PGE [130] and of the rGO/PWA/PGE [64] were about twofold higher than that of the corresponding bare PGE. The graphite lead modification with f-MWCNTs and AuNPs resulted in a specific electroactive surface that was 6.66 times larger [61], and the CNDs/MIP(PABSA)/PGE developed for folic acid determination presented an electroactive surface area enhanced 9.26 times vs. the bare PGE [123]. Likewise, A_ea increased in the following order: PGE (1.121 cm²), β-CD-G/PGE (2.578 cm²), Pt/β-CD-G/PGE (3.420 cm²) and PGE (15.29 cm²), P(SA)PGE (17.93 cm²), NiONPs/PGE (22.25 cm²), and NiONPs/P(SA)/PGE (35.45 cm²) in the case of the modified PGEs recently developed for vitamin B6 [144] and avanafil and nimodipine [151] analysis, respectively.

CV using a redox active probe was applied to perform comparative studies of the electrochemical properties of various electrodes and to monitor the whole processes in the stepwise preparation of modified PGEs [36,38,49,67,108,123,126]. The performances of different types of electrodes were compared while considering the potential difference (ΔE_p) between the anodic and cathodic peak potentials and the peak currents. A decrease in ΔE suggests faster electron transfer rates and therefore a more reversible electrode process, while larger peak currents indicate an enhanced A_ea and better electrocatalytic activity of the electrode [10,45,46,47,72,109,131]. Most studies revealed that PGE modification resulted in improved performance characteristics [37,85,128,136,141,147], such as a decrease in ΔE_p from 440 mV for the PGE to 80 mV for the Chti/Sn/PGE [69] or improved electrochemical properties in the order of PGE < SNDGr/PGE < Cu-MOF/SNDGr/PGE due to enhanced peak currents and lowered ΔE_p [63].

EIS enables accurate assessment of the electrode resistance changes during the different successive modification steps [38,69,126,127] and provides information about their interfacial electron transfer properties by interpreting the impedance spectrum (Nyquist plot). The Nyquist plot consists of a linear part at lower frequencies, which corresponds to the diffusion process, and a semicircle at higher frequencies, whose diameter can be used to calculate the charge transfer resistance at the electrode’s surface (Rct). The charge transfer resistance of the electrode is obtained from a known equivalent circuit model (Randle’s equivalent circuit) [10,44,45,47,56,68,87,111,117,124]. Thus, the larger semicircle indicates a high interfacial electron transfer resistance, whereas a small semicircle indicates a lower resistance, increased conductivity, and faster electron transfer. Usually, the ET [43,56,80] or modified electrodes employed [20,36,37,45,46,47,53,57,59,61,63,64,65,67,68,85,90,92,105,110,113,117,130,132,136,141,142,143,144,147,148] in pharmaceutical quantification presented a much lower Rct and thus a higher electron transfer capability in comparison with the bare PGE or the electrodes modified during the different steps of the manufacturing process. For example, EIS measurements emphasized that by covering the PGE with MIP/sol-gel, the Rct increased due to the surface passivation and decreased after potentiostatic deposition of N-doped graphene [127], AuNPs [91], or phosphotungstic acid/reduced graphene oxide (PWA/rGO) [65] due to the electron-conducting properties of the nanomaterials. In the case of fabrication of the AuNPs@f-CNFs/PGE for febuxostate and of the poly(SBT)/N-CNDs/CoNPs/PGE for donezepil quantification, the EIS results showed that the conductivity of the stepwise prepared electrodes increased in the order PGE < AuNPs/PGE < f-CNFs/PGE < AuNPs@f-CNFs/PGE [17] and PGE < poly(SBT)/PGE < poly(SBT)/N-CNDs/PGE < poly(SBT)/N-CNDs/CoNPs/PGE [131], respectively.

7.2. PGE Surface Characterization by Techniques of Electron Microscopy

The modifications of the PGEs either in the final form or during the intermediate steps involving the deposition of various materials [53,60,69,85,86,127,130,131,143] must be proven by surface analysis using non-destructive techniques like scanning electron microscopy (SEM) [41,46,52,60,67,87,88,106,119,124,127,133,144,145,146,151], field effect SEM (FE-SEM) [108,110,128,134,142,150], transmission electron microscopy (TEM) [52,87,134,144,146], and atomic force microscopy (AFM) [36,37,109,110]. These techniques, either alone or in combination, give valuable information about the surface morphology (e.g., texture and distribution of the materials [50,62,65,72,90,103,117,132]), topography (e.g., shape and size of the modifier(s) [20,51,53,68,86,115,123,126,135,147]), and roughness [89,123,140].

Most SEM [47,56,57,62,63,64,80,85,111,112,113,127,130,136], FE-SEM [10,53], and AFM images [10,110] revealed that the PGE had a smooth surface, but some research emphasized a flake-like structure [20,54,55,58,60,69,89], whereas others indicated that the PGE surface contained pores [46,61,141]. On the other hand, SEM images showed that in the electrochemically pretreated PGEs, the graphite layers were broken into smaller pieces, and the effective surface area was increased [10,36,56,62]. The surface analysis techniques showed that the roughness, and consequently the effective surface area of the PGE, was increased by electrode modification [37,63,64,135,137,141,147,148].

7.3. PGE Surface Characterization by Spectroscopic Techniques Using X-rays

Spectroscopic techniques involving X-rays are often used in association with the electron microscopic techniques for the characterization of different materials. Energy-dispersive X-ray analysis (EDX or EDS) is an elemental analysis technique giving information about the chemical composition of a material, so this was frequently applied in the PGE modification process to reveal the elemental distribution by mapping each component [10,17,20,48,87,110,120,124,126,131,132,134,146,148,150], thus confirming the presence of the modifier(s) on the electrode surface in different steps [38,49,52,53,61,62,63,68,69,130,142,143,145,147]. X-ray photoelectron spectroscopy (XPS), also known as electron spectroscopy for chemical analysis (ESCA), which provides information about the chemical composition of the material and the chemical state of the contained elements was sometimes used as a complementary technique to confirm the existence of certain materials at the PGE’s surface [10,128,134,144]. X-ray diffraction (XRD) analysis was applied to gain structural information (crystallinity) about bare or modified PGEs. XRD analysis of bare PGEs confirmed that the main component was graphite, and it had good crystallinity [54,55]. In the case of modified PGEs, the XRD patterns were helpful in structural characterization of the prepared materials before and after their deposition at the electrode’s surface [17,62,63,108,110,124,134,135,136,144,146,148,149].

7.4. PGE Surface Characterization by Optical Spectroscopic Techniques

Fourier-Transform infrared (FT-IR) spectroscopy is a widely used technique for providing information about the chemical structure and bonds of organic, polymeric [59,111,140], and inorganic materials like graphene-based ones [64,90,108,124,127,134,135,147,148,150]. Therefore, it was frequently employed to investigate the functional groups in different steps of the synthesis of modified PGEs in order to monitor the changes (e.g., immobilization of chemical species) that occurred at the electrode’s surface during the fabrication process [17,56,59,62,69,111,112,125,131,132,133,144,146,151]. Binding mechanisms between the monomer(s) and the template(s) were suggested based on the comparative analysis of the FT-IR spectra of the monomer(s), template(s), MIP-adduct(s), and MIP(s) [48,49,50,51,52,126,128]. Some papers reported the Raman spectroscopic analysis of PGEs modified with graphene-based materials [64,127,142], while UV-Vis spectra were useful in confirming the synthesis of AgNPs [146], CNDs [38,123,131], and [Ni(salen)] [149].

8. Conclusions

The examples presented in this review regarding PGE use in the voltametric analysis of pharmaceuticals emphasize the versatility of pencil graphite leads as working electrodes, because they are disposable and cheap (e.g., USD 0.01 per electrode [40] or EUR~0.06 vs. the disposable screen-printed graphite electrodes (EUR~2.7) [18]), they have high availability, being commercialized in common bookstores, and very importantly, they present low background currents and can be modified easier in comparison with other usually employed electrodes like GCEs or diamond electrodes [64]. Unmodified PGEs are user- and eco-friendly, while modified PGEs present better performance characteristics like selectivity and sensitivity, but they require more reagents and time for the whole analysis due to the various synthesis steps and supplementary investigations for surface characterization. All these and other important advantages offered by the PGE, either bare or as support for modified sensors, resulted in ever increasing interest in its use in the electrochemical analysis of various organic or inorganic species from very different matrices. According to the database provided by Scopus [155], in 1931, 1968, and 1989, only one paper referring to PGEs was published in each of these years. In 2016, the number increased to 94, while in the last 2 years, the specialized literature has been enriched annually with over 150 reports on this topic. The increasing tendency seems to continue, as in the first month of 2022, 25 studies using PGEs in pharmaceutical analysis had already appeared. It must be emphasized that this brief statistic comprises all types of electrochemical sensors (voltametric, impedimetric, potentiometric, and photoelectrochemical) based on PGEs. Due to the huge number of papers existing on this subject, we chose to discuss in this review strictly the voltametric sensors based on PGEs developed in the last 10 years for the analysis of drugs. We considered that this is an important research domain due to three main aspects: (1) the pharmaceutical industry is developing very fast, and it is imperative to have rapid and simple tools for the quality control of intermediate and final products during the fabrication process; (2) drugs must be carefully administrated due to their possible side effects, and their concentrations in the body fluids must be precise and easily monitored; and (3) some pharmaceuticals may enter through different paths into the food chain or environment, and therefore their levels in such samples must be accurately controlled by affordable means. From all the instrumental methods, the electrochemical ones are among the cheapest, simplest, and most rapid ones. The instrumentation may be portable and simple to operate but provide the required sensitivity and selectivity of the analysis. The literature data and our personal research experience emphasized that the use of disposable PGEs as working electrodes in voltametric measurements offers many advantages, making them versatile tools for pharmaceutical analysis as they can be easily modified, resulting in more selective or selective sensors. In the literature, there are some reviews regarding PGE applications, but they are more general. This paper is a comprehensive review of PGEs, focusing on their applications in drug voltametric analysis. We tried to bring together and discuss almost all information published in the last 10 years on this topic, emphasizing the most relevant aspects, like PGE characteristics, surface modification procedures, and characterization techniques, but most importantly, actual examples of voltametric methods using PGEs for the analysis of pharmaceutically important compounds, pointing out the performance parameters of each method and the investigated samples.
