# Robust and General Model to Forecast the Heat Transfer Coefficient for Flow Condensation in Multi Port Mini/Micro-Channels

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Previous Works

#### 1.1.1. Channels’ Classifications

#### 1.1.2. Experimental Research

#### 1.1.3. Previous Models for Condensation HTC

#### 1.1.4. Contributions of the Present Study

## 2. Materials and Methods

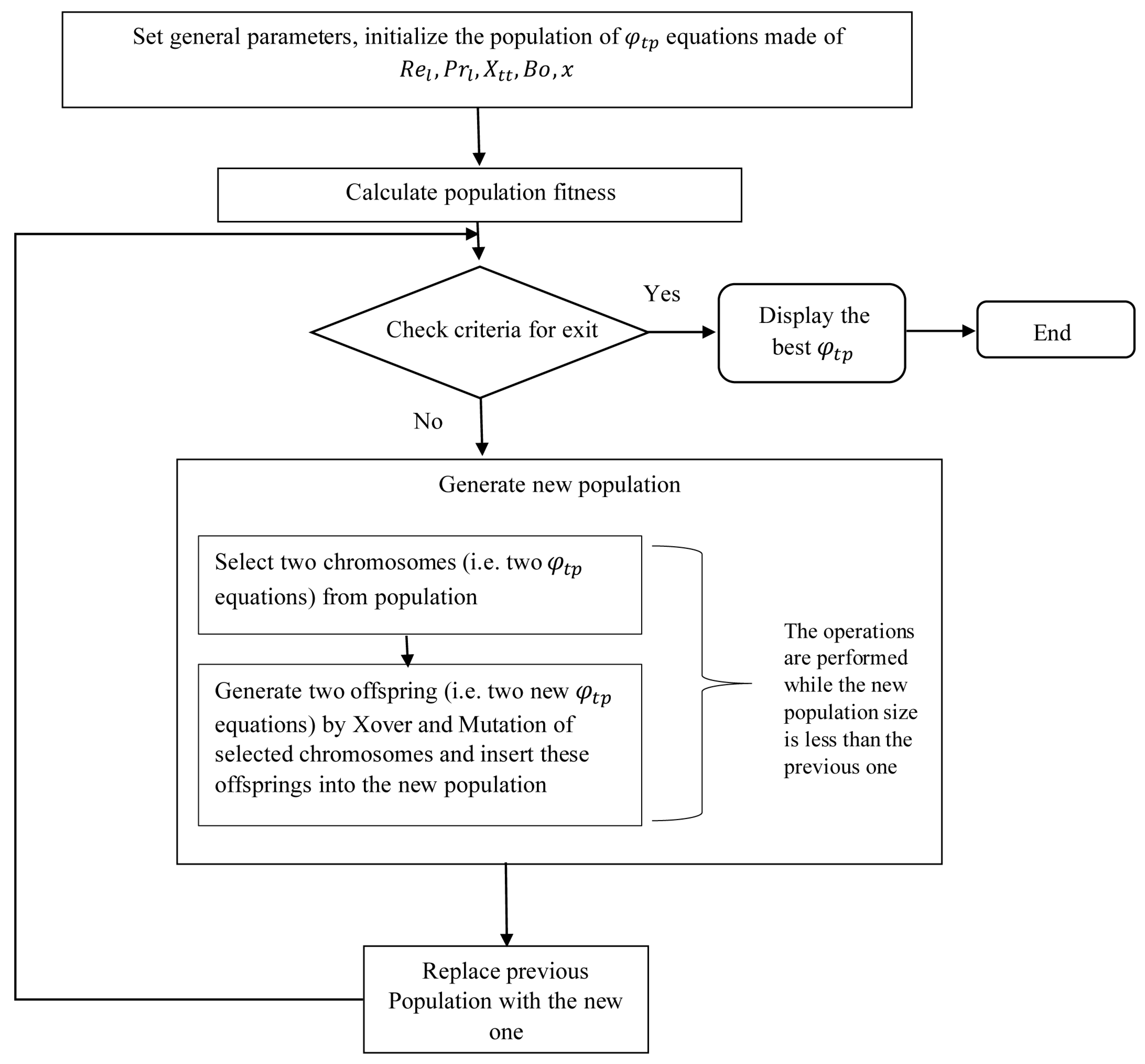

#### 2.1. Genetic Programming

#### 2.2. Experimental Data Samples

_{tp}numbers for refrigerants condensation in multi-port mini/micro-channels. Most of these data are available as figures from the database sources listed in Table 1, which have been extracted using the GetData Graph Digitizer.

#### 2.3. Error Analysis

## 3. Results and Discussion

## 4. Conclusions

- The effects of all affecting parameters $\left(R{e}_{l},P{r}_{l},{X}_{tt},Bo,x\right)$ on the HTC were considered in the GP correlation. Using these parameters led to a correlation that estimates the condensation HTC with reasonable accuracy. The new correlation estimated the HTC with a total AARD of 16.87% for a broad range of data samples. In addition, the percentages of all data with error lower than 20% and 30% for the new model were 70.04% and 84.43%, respectively.
- The previous models’ predictions of the HTC were also compared to the measured data. The previous correlations showed significantly higher deviations from the experimental data compared to the new correlation. The total AARD values for the correlations of Kim and Mudawar [52], Dorao and Fernandino [49], Shah (2016) [90], Shah (2019) [57], Crosser [92], Hosseini et al. [56], Bohdal et al. [93], and Akers et al. [91] were, respectively, 36.94%, 41.54%, 43.39%, 43.45%, 44.07%, 44.68%, 164.97%, 191.19%. It was found that the previous models can not be considered as general correlations for estimating the condensation HTC in multi-port channels. However, the new GP correlation provides much-improved estimates for the HTCs.
- The new model and previous correlations were used for estimating the HTC in channels with different sizes. It was shown that the new correlation estimated the data for micro and mini-channels with the AARD of 16.60% and 16.91%, respectively, and was the most accurate for all cases among all correlations. In addition, the new GP correlation estimated more than 80% of all data for both micro and mini-channels with an error of lower than 30%. This is because using the Bond number in the new model explicitly includes the effects of surface tension in different channel sizes. The previous correlations, however, showed relatively large deviations for all cases. Furthermore, their deviations become larger when the channel’s diameter decreases, and all correlations had AARD values of more than 50% for micro-channels.
- The new model developed by GP was shown to be suitable for estimating the condensation HTC in multi-port channels over a broad range of vapor qualities, mass velocities, saturation temperatures, channel diameters, and working fluids.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

h | Coefficient of heat transfer, ${\mathrm{W}\mathrm{m}}^{-2}{\mathrm{K}}^{-1}$ |

Bo | Bond Number $=g\left({\rho}_{l}-{\rho}_{v}\right){D}^{2}{\sigma}^{-1}$, (-) |

$F{r}_{l}$ | Froude number $={G}^{2}{\rho}_{L}^{-2}{\mathrm{g}}^{-1}{D}^{-1}$, (-) |

G | Total flux, k$\mathrm{g}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$ |

${J}_{g}$ | Dimensionless velocity of vapor |

${H}_{lv}$ | Latent heat, ${\mathrm{J}\mathrm{Kg}}^{-1}$ |

$Pr$ | Prandtl number, (-) |

k | Thermal conductivity, ${\mathrm{W}\mathrm{m}}^{-1}{\mathrm{K}}^{-1}$ |

$N{u}_{tp}$ | Nusselt number = $hD{k}_{l}^{-1}$, (-) |

${P}_{c}$ | Critical pressure, Pa |

${P}_{red}$ | Reduced pressure = ${P}_{s}{P}_{c}{}^{-1}$, (-) |

${P}_{s}$ | Saturation pressure, Pa |

$R{e}_{v}$ | $\mathrm{Vapor}\mathrm{Reynolds}\mathrm{number}=GxD{\mu}_{v}{}^{-1}$, (-) |

$P{r}_{tp}$ | Prandtl number = $P{r}_{l}\left(1-x\right)+xP{r}_{v}$, (-) |

$R{e}_{l}$ | Superficial liquid Reynolds number = $G\left(1-x\right)D{\mu}_{l}{}^{-1}$, (-) |

$R{e}_{lo}$ | Liquid Reynolds number = $GD{\mu}_{l}{}^{-1}$, (-) |

$R{e}_{tp}$ | Flow Reynolds number = $R{e}_{l}$ + $R{e}_{v}$, (-) |

$Su$ | Suratman Number, (-) |

${T}_{s}$ | Saturation temperature, $\mathbb{C}$ |

$W{e}_{vo}$ | Vapor only Weber number = ${G}^{2}D{\rho}_{v}{}^{-1}{\sigma}^{-1}$, (-) |

x | Vapor quality, (-) |

${X}_{tt}$ | $\mathrm{Martinelli}\mathrm{parameter}={\left({\mu}_{l}/{\mu}_{v}\right)}^{0.1}{\left({\rho}_{v}/{\rho}_{l}\right)}^{0.5}{\left(\left[1-x\right]/x\right)}^{0.9}$, (-) |

x | Vapor quality, (-) |

## References

- Tokgoz, N. Experimental and numerical investigation of flow structure in a cylindrical corrugated channel. Int. J. Mech. Sci.
**2019**, 157–158, 787–801. [Google Scholar] [CrossRef] - Velasco, F.; Illán-Gómez, F.; García-Cascales, J. Energy efficiency evaluation of the use of R513A as a drop-in replacement for R134a in a water chiller with a minichannel condenser for air-conditioning applications. Appl. Therm. Eng.
**2021**, 182, 115915. [Google Scholar] [CrossRef] - Sharifi, N. Numerical study of non-equilibrium condensing supersonic steam flow in a jet-pump based on supersaturation theory. Int. J. Mech. Sci.
**2020**, 165, 105221. [Google Scholar] [CrossRef] - Salilih, E.M.; Birhane, Y.T.; Abu-Hamdeh, N.H. Performance prediction of a solar refrigeration system under various operating pressure of evaporator and condenser. Sol. Energy
**2020**, 209, 485–492. [Google Scholar] [CrossRef] - Azzouzi, D.; Kelkouli, M.; Amaryoucef, F. Parametric study of the wire-on-tube condenser subcooling effect on the performance of vapor compression refrigeration system. Appl. Therm. Eng.
**2017**, 122, 528–534. [Google Scholar] [CrossRef] - Petrucci, M.; Faghri, A. Multiple evaporator and condenser loop thermosyphon system for passive cooling of liquid-fuel molten salt nuclear reactors. Nucl. Eng. Des.
**2020**, 370, 110936. [Google Scholar] [CrossRef] - Gong, M.; Peng, M.; Zhu, H. Research of parameter distributing simulation and modeling for the condenser in nuclear power plant. Ann. Nucl. Energy
**2019**, 133, 313–326. [Google Scholar] [CrossRef] - Golubev, G.; Eremeev, I.; Makaev, S.; Shalygin, M.; Vasilevsky, V.; He, T.; Drioli, E.; Volkov, A. Thin-film distillation coupled with membrane condenser for brine solutions concentration. Desalination
**2021**, 503, 114956. [Google Scholar] [CrossRef] - Eiamsa-Ard, S.; Wongcharee, K. Convective heat transfer enhancement using Ag-water nanofluid in a micro-fin tube combined with non-uniform twisted tape. Int. J. Mech. Sci.
**2018**, 146–147, 337–354. [Google Scholar] [CrossRef] - Knipper, P.; Bertsche, D.; Gneiting, R.; Wetzel, T. Experimental investigation of heat transfer and pressure drop during condensation of R134a in multiport flat tubes. Int. J. Refrig.
**2019**, 98, 211–221. [Google Scholar] [CrossRef] - Knipper, P.; Arnsberg, J.; Bertsche, D.; Gneiting, R.; Wetzel, T. Modelling of condensation pressure drop for R134a and R134a-lubricant-mixtures in multiport flat tubes. Int. J. Refrig.
**2020**, 113, 239–248. [Google Scholar] [CrossRef] - Boeng, J.; Rametta, R.S.; Melo, C.; Hermes, C.J. Thermal-hydraulic characterization and system-level optimization of microchannel condensers for household refrigeration applications. Therm. Sci. Eng. Prog.
**2020**, 20, 100479. [Google Scholar] [CrossRef] - Zhang, P.; Dong, W.; Wang, L.; Sun, W.; Liu, B.; Yang, Z.; Liu, G. Failure analysis of micro-channel condenser of air source heat pump water heater. Eng. Fail. Anal.
**2021**, 122, 105250. [Google Scholar] [CrossRef] - Tosun, M.; Doğan, B.; Öztürk, M.M.; Erbay, L.B. Integration of a mini-channel condenser into a household refrigerator with regard to accurate capillary tube length and refrigerant amount. Int. J. Refrig.
**2019**, 98, 428–435. [Google Scholar] [CrossRef] - Wei, L. Study on comprehensive performance evaluation for condensation heat transfer inside the micro-fin tube. Adv. Mech. Eng.
**2020**, 12. [Google Scholar] [CrossRef] - Nalbandian, H.; Yang, C.-Y.; Chen, K.-T. Effect of channel size and shape on condensation heat transfer of refrigerants HFO-1234yf and HFC-134a in rectangular microchannels. Int. J. Heat Mass Transf.
**2020**, 161, 120314. [Google Scholar] [CrossRef] - Kruzel, M.; Bohdal, T.; Sikora, M. Heat transfer and pressure drop during refrigerants condensation in compact heat exchangers. Int. J. Heat Mass Transf.
**2020**, 161, 120283. [Google Scholar] [CrossRef] - Kandlikar, S.G.; Grande, W.J. Evolution of Microchannel Flow Passages—Thermohydraulic Performance and Fabrication Technology Evolution of Microchannel Flow Passages—Thermohydraulic Performance and fabrication technology. Heat Transf. Eng.
**2003**, 24, 3–17. [Google Scholar] [CrossRef] - Kandlikar, S.G. Fundamental issues related to flow boiling in minichannels and microchannels. Exp. Therm. Fluid Sci.
**2002**, 26, 389–407. [Google Scholar] [CrossRef] - Kandlikar, S.G. Heat Transfer Mechanisms during Flow Boiling in Microchannels. J. Heat Transf.
**2004**, 126, 8–16. [Google Scholar] [CrossRef] - Cheng, P.; Wu, H. Mesoscale and Microscale Phase-Change Heat Transfer. Adv. Heat Transf.
**2006**, 39, 461–563. [Google Scholar] [CrossRef] - Ong, C.L. Macro-to-Microchannel Transition in Two-Phase Flow and Evaporation. Ph.D. Thesis, École Polytechnique Fédérale de Lausanne, Lausanne, Switzerland, 2010. [Google Scholar]
- Kew, P.A.; Cornwell, K. Correlations for the prediction of boiling heat transfer in small-diameter channels. Appl. Therm. Eng.
**1997**, 17, 705–715. [Google Scholar] [CrossRef] - Li, W.; Wu, Z. A general criterion for evaporative heat transfer in micro/mini-channels. Int. J. Heat Mass Transf.
**2010**, 53, 1967–1976. [Google Scholar] [CrossRef] - Triplett, K.; Ghiaasiaan, S.; Abdel-Khalik, S.; Sadowski, D. Gas–liquid two-phase flow in microchannels Part I: Two-phase flow patterns. Int. J. Multiph. Flow
**1999**, 25, 377–394. [Google Scholar] [CrossRef] - Mehendale, S.S.; Jacobi, A.; Shah, R.K. Fluid Flow and Heat Transfer at Micro- and Meso-Scales with Application to Heat Exchanger Design. Appl. Mech. Rev.
**2000**, 53, 175–193. [Google Scholar] [CrossRef] - Brauner, N.; Ullmann, A. The prediction of flow boiling maps in minichannels. In Proceedings of the 4th Japanese–European Two-Phase Flow Group Meeting, Kyoto, Japan, 24–28 September 2006. [Google Scholar] [CrossRef]
- Shah, M.M. Applicability of Correlations for Boiling/Condensing in Macrochannels to Minichannels. Heat Mass Transf. Res. J.
**2018**, 2, 22–32. [Google Scholar] - Liu, N.; Li, J.M.; Sun, J.; Wang, H.S. Heat transfer and pressure drop during condensation of R152a in circular and square microchannels. Exp. Therm. Fluid Sci.
**2013**, 47, 60–67. [Google Scholar] [CrossRef] - Liu, N.; Xiao, H.; Li, J. Experimental investigation of condensation heat transfer and pressure drop of propane, R1234ze(E) and R22 in minichannels. Appl. Therm. Eng.
**2016**, 102, 63–72. [Google Scholar] [CrossRef] - Del Col, D.; Bortolato, M.; Bortolin, S. Comprehensive experimental investigation of two-phase heat transfer and pressure drop with propane in a minichannel. Int. J. Refrig.
**2014**, 47, 66–84. [Google Scholar] [CrossRef] - Del Col, D.; Bisetto, A.; Bortolato, M.; Torresin, D.; Rossetto, L. Experiments and updated model for two phase frictional pressure drop inside minichannels. Int. J. Heat Mass Transf.
**2013**, 67, 326–337. [Google Scholar] [CrossRef] - Del Col, D.; Bortolato, M.; Azzolin, M.; Bortolin, S. Condensation heat transfer and two-phase frictional pressure drop in a single minichannel with R1234ze(E) and other refrigerants. Int. J. Refrig.
**2015**, 50, 87–103. [Google Scholar] [CrossRef] - Cavallini, A.; Censi, G.; Del Col, D.; Doretti, L.; Longo, G.A.; Rossetto, L. Experimental investigation on condensation heat transfer and pressure drop of new HFC refrigerants in a horizontal smooth tube Â rimentale sur le transfert de chaleur lors de la Etude expe condensation et sur la chute de pression des nouveaux frigorige da. Int. J. Refrig.
**2001**, 24, 73–87. [Google Scholar] [CrossRef] - Del Col, D.; Bortolin, S.; Censi, G.; Da Riva, E. Impact of two-phase distribution systems on the performance of a microchannel evaporator. Sci. Technol. Built Environ.
**2015**, 21, 1047–1058. [Google Scholar] [CrossRef] - Garimella, S.; Agarwal, A.; Fronk, B.M. Condensation heat transfer in rectangular microscale geometries. Int. J. Heat Mass Transf.
**2016**, 100, 98–110. [Google Scholar] [CrossRef] - Fronk, B.M.; Garimella, S. Condensation of carbon dioxide in microchannels. Int. J. Heat Mass Transf.
**2016**, 100, 150–164. [Google Scholar] [CrossRef] [Green Version] - Jige, D.; Inoue, N.; Koyama, S. Condensation of refrigerants in a multiport tube with rectangular minichannels. Int. J. Refrig.
**2016**, 67, 202–213. [Google Scholar] [CrossRef] - Cavallini, A.; Zecchin, R. A Dimensionless Correlation for Heat Transfer in Forced Convection Condensation. In International Heat Transfer Conference Digital Library; Begell House: Danbury, CT, USA, 1974. [Google Scholar] [CrossRef]
- Haraguchi, H.; Koyama, S.; Fujii, T. Condensation of Refrigerants HCFC 22, HFC 134a and HCFC 123 in a Horizontal Smooth Tube. 2nd Report, Proposals of Empirical Expressions for Local Heat Transfer Coefficient. Trans. Jpn. Soc. Mech. Eng. Ser. B
**1994**, 60, 2117–2124. [Google Scholar] [CrossRef] [Green Version] - Dobson, M.K.; Chato, J.C. Condensation in Smooth Horizontal Tubes. J. Heat Transf.
**1998**, 120, 193–213. [Google Scholar] [CrossRef] - Wang, H.S.; Rose, J.W. Theory of heat transfer during condensation in microchannels. Int. J. Heat Mass Transf.
**2011**, 54, 2525–2534. [Google Scholar] [CrossRef] - Koyama, S.; Kuwahara, K.; Nakashita, K. Condensation of Refrigerant in a Multi-Port Channel. In Proceedings of the 1st International Conference on Microchannels and Minichannels, Rochester, NY, USA, 24–25 April 2003; pp. 193–205. [Google Scholar]
- Dittus, F.W.; Boelter, L.M.K. Heat transfer in automobile radiators of the tubular type. Int. Commun. Heat Mass Transf.
**1985**, 12, 3–22. [Google Scholar] [CrossRef] - Shah, M. A general correlation for heat transfer during film condensation inside pipes. Int. J. Heat Mass Transf.
**1979**, 22, 547–556. [Google Scholar] [CrossRef] - Cavallini, A.; Del Col, D.; Doretti, L.; Matkovic, M.; Rossetto, L.; Zilio, C.; Censi, G. Condensation in Horizontal Smooth Tubes: A New Heat Transfer Model for Heat Exchanger Design. Heat Transf. Eng.
**2006**, 27, 31–38. [Google Scholar] [CrossRef] - Shah, M.M. An Improved and Extended General Correlation for Heat Transfer During Condensation in Plain Tubes. HVAC&R Res.
**2009**, 15, 889–913. [Google Scholar] [CrossRef] - Shah, M.M. General correlation for heat transfer during condensation in plain tubes: Further development and verification. ASHRAE Trans.
**2013**, 119, 3–11. [Google Scholar] - Dorao, C.A.; Fernandino, M. Simple and general correlation for heat transfer during flow condensation inside plain pipes. Int. J. Heat Mass Transf.
**2018**, 122, 290–305. [Google Scholar] [CrossRef] - Moser, K.W.; Webb, R.L.; Na, B. A New Equivalent Reynolds Number Model for Condensation in Smooth Tubes. J. Heat Transf.
**1998**, 120, 410–417. [Google Scholar] [CrossRef] - Dorao, C.A.; Fernandino, M. Dominant dimensionless groups controlling heat transfer coefficient during flow condensation inside pipes. Int. J. Heat Mass Transf.
**2017**, 112, 465–479. [Google Scholar] [CrossRef] - Kim, S.-M.; Mudawar, I. Universal approach to predicting heat transfer coefficient for condensing mini/micro-channel flow. Int. J. Heat Mass Transf.
**2013**, 56, 238–250. [Google Scholar] [CrossRef] - Soliman, H. The mist-annular transition during condensation and its influence on the heat transfer mechanism. Int. J. Multiph. Flow
**1986**, 12, 277–288. [Google Scholar] [CrossRef] - Derby, M.; Lee, H.J.; Peles, Y.; Jensen, M.K. Condensation heat transfer in square, triangular, and semi-circular mini-channels. Int. J. Heat Mass Transf.
**2012**, 55, 187–197. [Google Scholar] [CrossRef] - Wang, W.-W.W.; Radcliff, T.D.; Christensen, R.N. A condensation heat transfer correlation for millimeter-scale tubing with flow regime transition. Exp. Therm. Fluid Sci.
**2002**, 26, 473–485. [Google Scholar] [CrossRef] - Hosseini, S.; Moradkhani, M.; Valizadeh, M.; Zendehboudi, A.; Olazar, M. A general heat transfer correlation for flow condensation in single port mini and macro channels using genetic programming. Int. J. Refrig.
**2020**, 119, 376–389. [Google Scholar] [CrossRef] - Shah, M.M. Improved correlation for heat transfer during condensation in conventional and mini/micro channels. Int. J. Refrig.
**2019**, 98, 222–237. [Google Scholar] [CrossRef] - Qiblawey, Y.; Tahir, A.; Chowdhury, M.; Khandakar, A.; Kiranyaz, S.; Rahman, T.; Ibtehaz, N.; Mahmud, S.; Maadeed, S.; Musharavati, F.; et al. Detection and Severity Classification of COVID-19 in CT Images Using Deep Learning. Diagnostics
**2021**, 11, 893. [Google Scholar] [CrossRef] - Rahman, T.; Al-Ishaq, F.A.; Al-Mohannadi, F.S.; Mubarak, R.S.; Al-Hitmi, M.H.; Islam, K.R.; Khandakar, A.; Hssain, A.A.; Al-Madeed, S.; Zughaier, S.M.; et al. Mortality Prediction Utilizing Blood Biomarkers to Predict the Severity of COVID-19 Using Machine Learning Technique. Diagnostics
**2021**, 11, 1582. [Google Scholar] [CrossRef] - Rahman, T.; Khandakar, A.; Hoque, E.; Ibtehaz, N.; Kashem, S.B.; Masud, R.; Shampa, L.; Hasan, M.M.; Islam, M.T.; Al-Maadeed, S.; et al. Development and Validation of an Early Scoring System for Prediction of Disease Severity in COVID-19 Using Complete Blood Count Parameters. IEEE Access
**2021**, 9, 120422–120441. [Google Scholar] [CrossRef] - Cao, Y.; Kamrani, E.; Mirzaei, S.; Khandakar, A.; Vaferi, B. Electrical efficiency of the photovoltaic/thermal collectors cooled by nanofluids: Machine learning simulation and optimization by evolutionary algorithm. Energy Rep.
**2021**, 8, 24–36. [Google Scholar] [CrossRef] - Chowdhury, M.; Rahman, T.; Khandakar, A.; Ayari, M.; Khan, A.; Khan, M.; Al-Emadi, N.; Reaz, M.; Islam, M.; Ali, S. Automatic and Reliable Leaf Disease Detection Using Deep Learning Techniques. AgriEngineering
**2021**, 3, 294–312. [Google Scholar] [CrossRef] - Zhou, L.; Garg, D.; Qiu, Y.; Kim, S.-M.; Mudawar, I.; Kharangate, C.R. Machine learning algorithms to predict flow condensation heat transfer coefficient in mini/micro-channel utilizing universal data. Int. J. Heat Mass Transf.
**2020**, 162, 120351. [Google Scholar] [CrossRef] - Zhang, X.; Yu, T.; Zhao, J. An analytical approach on stochastic model for cutting force prediction in milling ceramic matrix composites. Int. J. Mech. Sci.
**2020**, 168, 105314. [Google Scholar] [CrossRef] - Hosseini, S.; Rezaei, M.J.; Bag-Mohammadi, M.; Karami, M.; Moradkhani, M.A.; Panahi, M.; Olazar, M. Estimation of the minimum spouting velocity in shallow spouted beds by intelligent approaches: Study of fine and coarse particles. Powder Technol.
**2019**, 354, 456–465. [Google Scholar] [CrossRef] - Qiu, Y.; Garg, D.; Zhou, L.; Kharangate, C.R.; Kim, S.-M.; Mudawar, I. An artificial neural network model to predict mini/micro-channels saturated flow boiling heat transfer coefficient based on universal consolidated data. Int. J. Heat Mass Transf.
**2020**, 149, 119211. [Google Scholar] [CrossRef] - Kunwar, A.; Hektor, J.; Nomoto, S.; Coutinho, Y.A.; Moelans, N. Combining multi-phase field simulation with neural network analysis to unravel thermomigration accelerated growth behavior of Cu6Sn5 IMC at cold side Cu–Sn interface. Int. J. Mech. Sci.
**2020**, 184, 105843. [Google Scholar] [CrossRef] - Moradkhani, M.; Hosseini, S.; Valizadeh, M.; Zendehboudi, A.; Ahmadi, G. A general correlation for the frictional pressure drop during condensation in mini/micro and macro channels. Int. J. Heat Mass Transf.
**2020**, 163, 120475. [Google Scholar] [CrossRef] - Hosseini, S.; Moradkhani, M.; Shah, M.M.; Edalati, M. General equation for flow condensation heat transfer coefficient in different orientations of helical coils of smooth tubes using genetic programming. Int. Commun. Heat Mass Transf.
**2020**, 119, 104916. [Google Scholar] [CrossRef] - Hosseini, S.; Moradkhani, M.; Valizadeh, M.; Ahmadi, G. Applying genetic programming in estimation of frost layer thickness on horizontal and vertical plates at ultra-low temperature. Int. J. Refrig.
**2021**, 125, 113–121. [Google Scholar] [CrossRef] - Lemmon, E.W.; Huber, M.L.; McLinden, M.O. Reference fluid thermodynamic and transport properties—REFPROP. NIST Stand. Ref. Database
**2002**, 23, v7. [Google Scholar] - Fronk, B.M.; Garimella, S. Heat Transfer and Pressure Drop during Condensation of Ammonia in Microchannels. In Proceedings of the ASME 3rd Micro/Nanoscale Heat and Mass Transfer International Conference, Atlanta, GA, USA, 3–6 March 2012. [Google Scholar]
- López-Belchí, A.; Illán, F.; García-Cascales, J.R.; Vera-García, F. Condensing two-phase pressure drop and heat transfer coefficient of propane in a horizontal multiport mini-channel tube: Experimental measurements. Int. J. Refrig.
**2016**, 68, 59–75. [Google Scholar] [CrossRef] - Lopez-Belchi, A.; Illán-Gómez, F. Evaluation of a condenser based on mini-channels technology working with R410A and R32. Experimental data and performance estimate. Appl. Energy
**2017**, 202, 112–124. [Google Scholar] [CrossRef] - Agarwal, A.; Bandhauer, T.M.; Garimella, S. Measurement and modeling of condensation heat transfer in non-circular microchannels. Int. J. Refrig.
**2010**, 33, 1169–1179. [Google Scholar] [CrossRef] - López-Belchí, A.; Illán, F.; García-Cascales, J.R.; Vera-García, F. R32 and R410A condensation heat transfer coefficient and pressure drop within minichannel multiport tube. Experimental technique and measurements. Appl. Therm. Eng.
**2016**, 105, 118–131. [Google Scholar] [CrossRef] - Bandhauer, T.M.; Agarwal, A.; Garimella, S. Measurement and Modeling of Condensation Heat Transfer Coefficients in Circular Microchannels. J. Heat Transf.
**2006**, 128, 1050–1059. [Google Scholar] [CrossRef] - Cavallini, A.; Del Col, D.; Doretti, L.; Matkovic, M.; Rossetto, L.; Zilio, C. Condensation Heat Transfer and Pressure Gradient Inside Multiport Minichannels. Heat Transf. Eng.
**2005**, 26, 45–55. [Google Scholar] [CrossRef] - López-Belchí, A. Assessment of a mini-channel condenser at high ambient temperatures based on experimental measurements working with R134a, R513A and R1234yf. Appl. Therm. Eng.
**2019**, 155, 341–353. [Google Scholar] [CrossRef] - Belchí, A.L.; Gómez, F.I.; Cascales, J.R.G.; García, F.V. Heat transfer coefficient during condensation inside a minichannel multiport tube with R32 and R410A as working fluids. Sci. Technol. Built Environ.
**2015**, 21, 535–544. [Google Scholar] [CrossRef] - Andresen, U. Supercritical Gas Cooling and Near-Critical-Pressure Condensation of Refrigerant Blends in Microchannels. Ph.D. Thesis, Georgia Institute of Technology, Atlanta, GA, USA, May 2007. [Google Scholar]
- Heo, J.; Park, H.; Yun, R. Comparison of condensation heat transfer and pressure drop of CO
_{2}in rectangular microchannels. Int. J. Heat Mass Transf.**2013**, 65, 719–726. [Google Scholar] [CrossRef] - Illán-Gómez, F.; López-Belchí, A.; García-Cascales, J.R.; Vera-García, F. Experimental two-phase heat transfer coefficient and frictional pressure drop inside mini-channels during condensation with R1234yf and R134a. Int. J. Refrig.
**2015**, 51, 12–23. [Google Scholar] [CrossRef] - Park, J.; Vakili-Farahani, F.; Consolini, L.; Thome, J. Experimental study on condensation heat transfer in vertical minichannels for new refrigerant R1234ze(E) versus R134a and R236fa. Exp. Therm. Fluid Sci.
**2010**, 35, 442–454. [Google Scholar] [CrossRef] - Pham, Q.V.; Choi, K.-I.; Oh, J.-T. Condensation heat transfer characteristics and pressure drops of R410A, R22, R32, and R290 in a multiport rectangular channel. Sci. Technol. Built Environ.
**2019**, 25, 1325–1336. [Google Scholar] [CrossRef] - Park, C.Y.; Hrnjak, P. CO
_{2}flow condensation heat transfer and pressure drop in multi-port microchannels at low temperatures. Int. J. Refrig.**2009**, 32, 1129–1139. [Google Scholar] [CrossRef] - Li, M.; Guo, Q.; Lv, J.; Li, D. Research on condensation heat transfer characteristics of R447A, R1234ze, R134a and R32 in multi-port micro-channel tubes. Int. J. Heat Mass Transf.
**2018**, 118, 637–650. [Google Scholar] [CrossRef] - Rahman, M.M.; Kariya, K.; Miyara, A. An experimental study and development of new correlation for condensation heat transfer coefficient of refrigerant inside a multiport minichannel with and without fins. Int. J. Heat Mass Transf.
**2018**, 116, 50–60. [Google Scholar] [CrossRef] - Kim, S.-M.; Mudawar, I. Universal approach to predicting two-phase frictional pressure drop for adiabatic and condensing mini/micro-channel flows. Int. J. Heat Mass Transf.
**2012**, 55, 3246–3261. [Google Scholar] [CrossRef] - Shah, M.M. A correlation for heat transfer during condensation in horizontal mini/micro channels. Int. J. Refrig.
**2016**, 64, 187–202. [Google Scholar] [CrossRef] - Akers, W.W.; Deans, H.; Crosser, O. Condensing heat transfer within horizontal tubes. Chem. Eng. Prog. Symp.
**1955**, 54, 89–90. [Google Scholar] - Crosser, O. Condensing Heat Transfer within Horizontal Tubes. Ph.D. Thesis, Rice University, Houston, TX, USA, 1955. [Google Scholar]
- Bohdal, T.; Charun, H.; Sikora, M. Comparative investigations of the condensation of R134a and R404A refrigerants in pipe minichannels. Int. J. Heat Mass Transf.
**2011**, 54, 1963–1974. [Google Scholar] [CrossRef] - Moradkhani, M.; Hosseini, S.; Song, M. Robust and general predictive models for condensation heat transfer inside conventional and mini/micro channel heat exchangers. Appl. Therm. Eng.
**2021**, 201, 117737. [Google Scholar] [CrossRef] - Sikora, M.; Bohdal, T.; Formela, K. Experimental Study of HFE 7000 Refrigerant Condensation in Horizontal Pipe Minichannels. Materials
**2021**, 14, 6886. [Google Scholar] [CrossRef] - Coleman, J.W.; Garimella, S. Two-phase flow regimes in round, square and rectangular tubes during condensation of refrigerant R134a. Int. J. Refrig.
**2003**, 26, 117–128. [Google Scholar] [CrossRef]

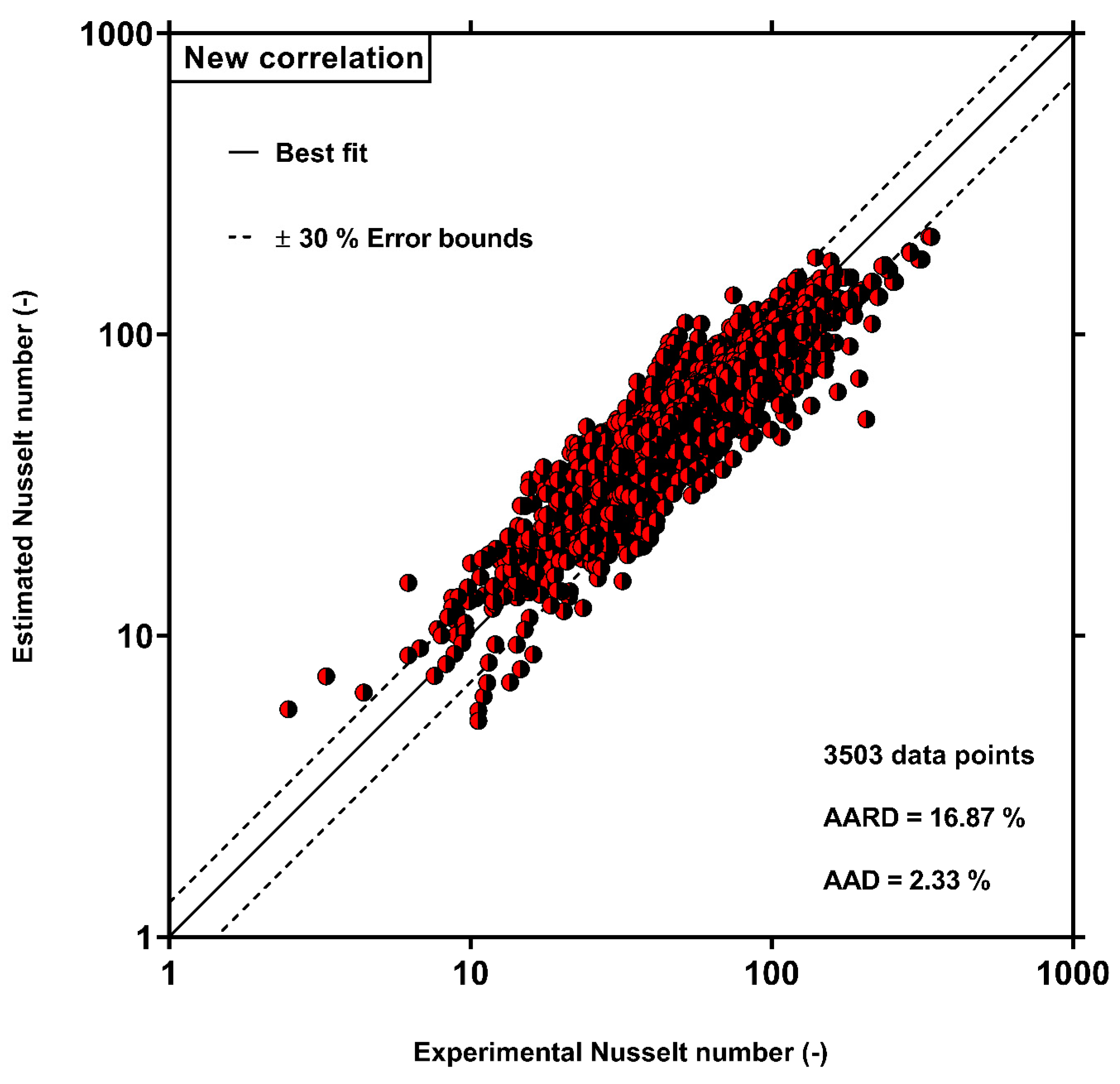

**Figure 2.**Comparison between the Nusselt number estimated by Equation (13) and the measured data. The solid points represent the outcomes of Equation (13). The solid line represents the best fitting between experimental and estimated data, and the dash lines represent the $\pm 30\%$ error bounds.

**Figure 3.**Comparison of predictions of the previous condensation HTC models with all 3503 experimental data points: (

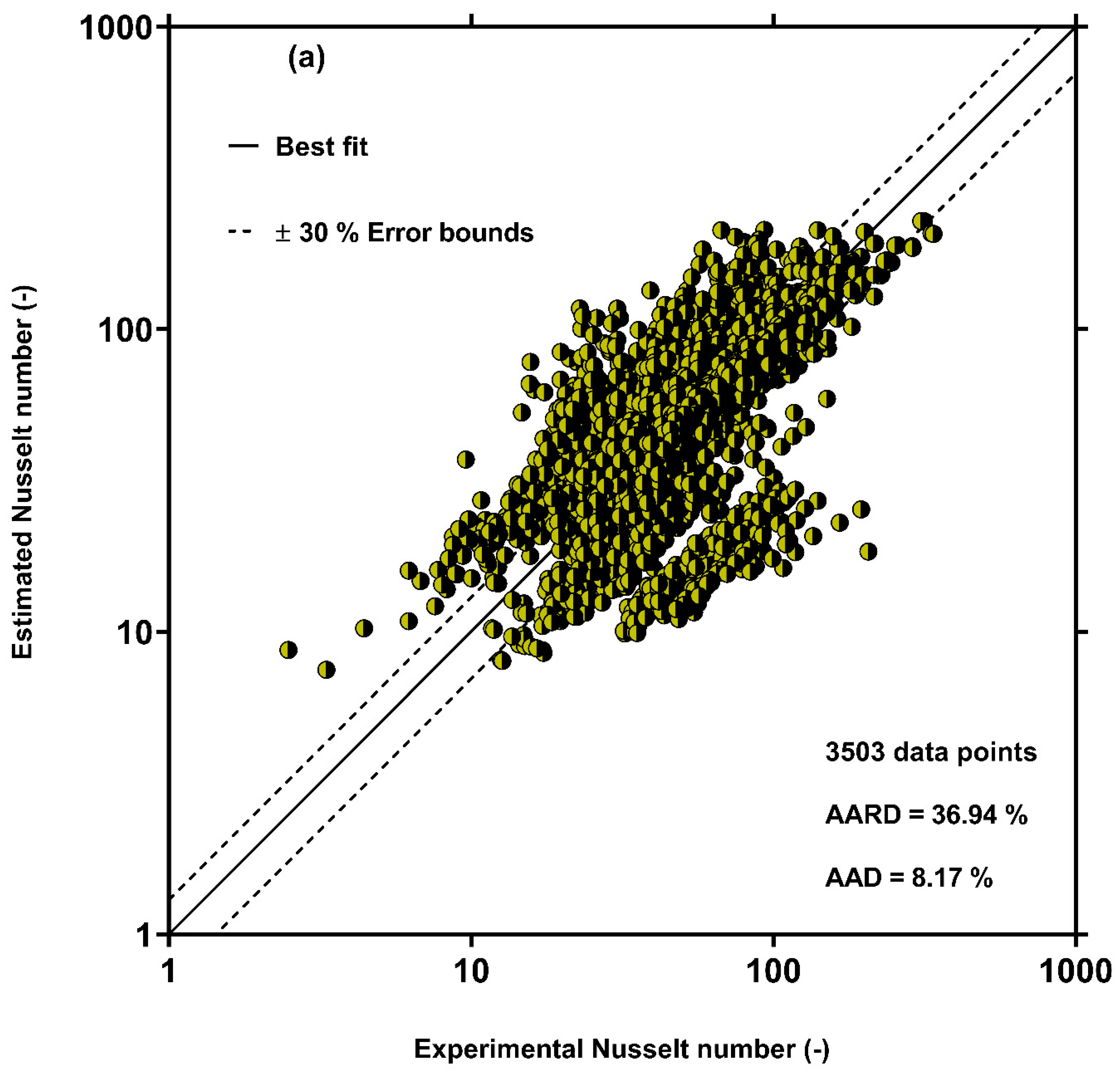

**a**) Kim and Mudawar [52], (

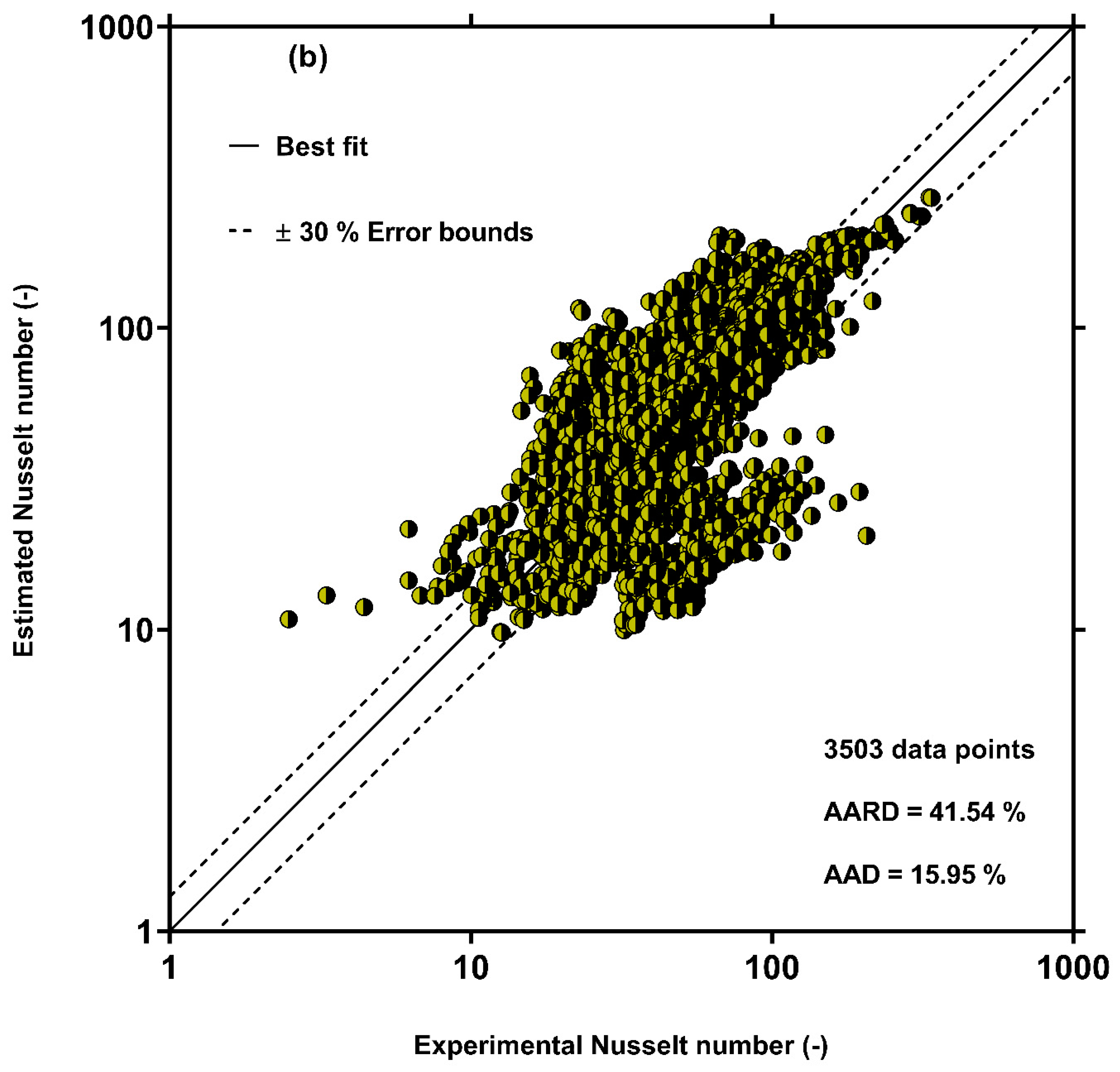

**b**) Dorao and Fernandino [49], (

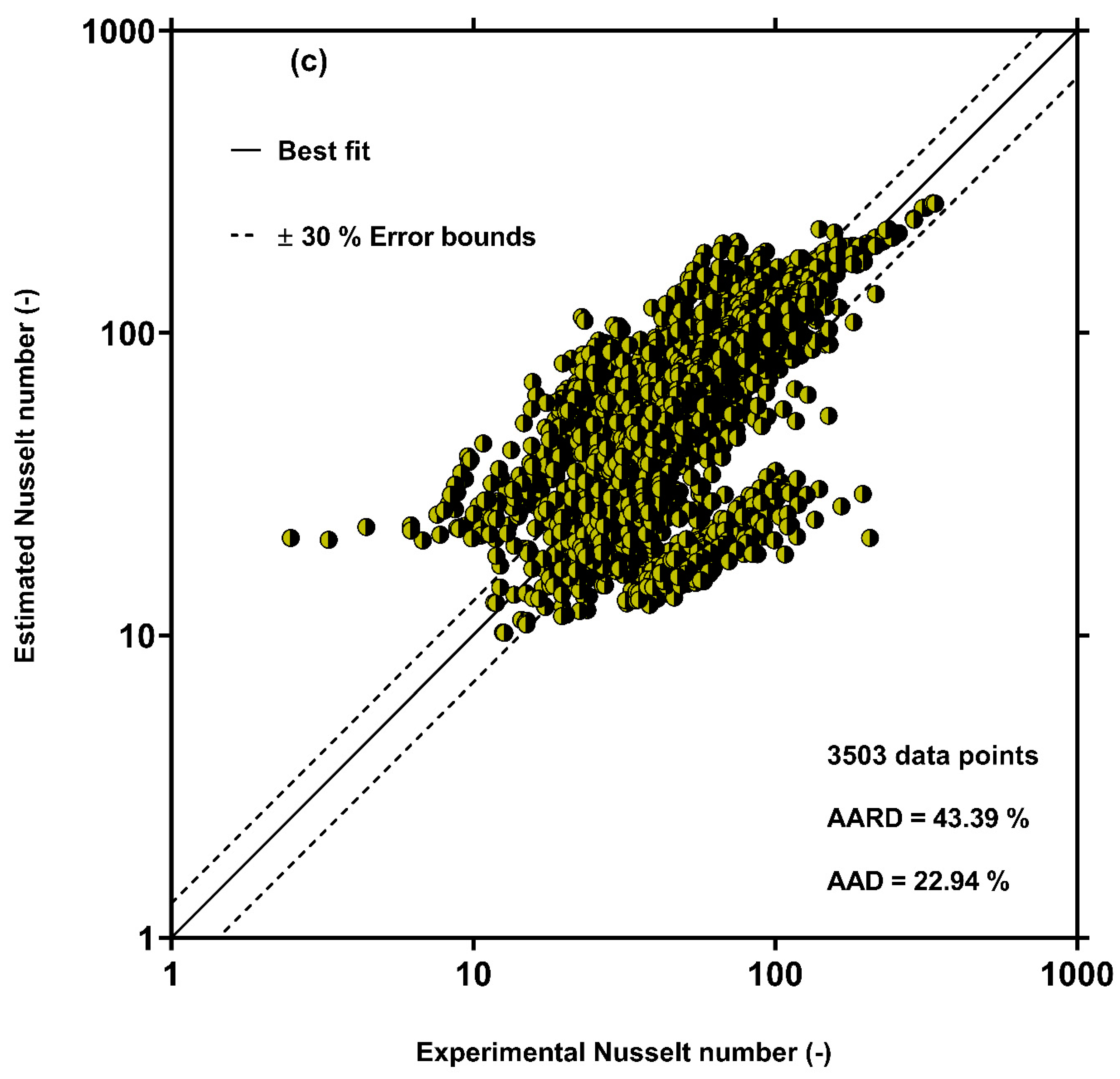

**c**) Shah (2016) [90], (

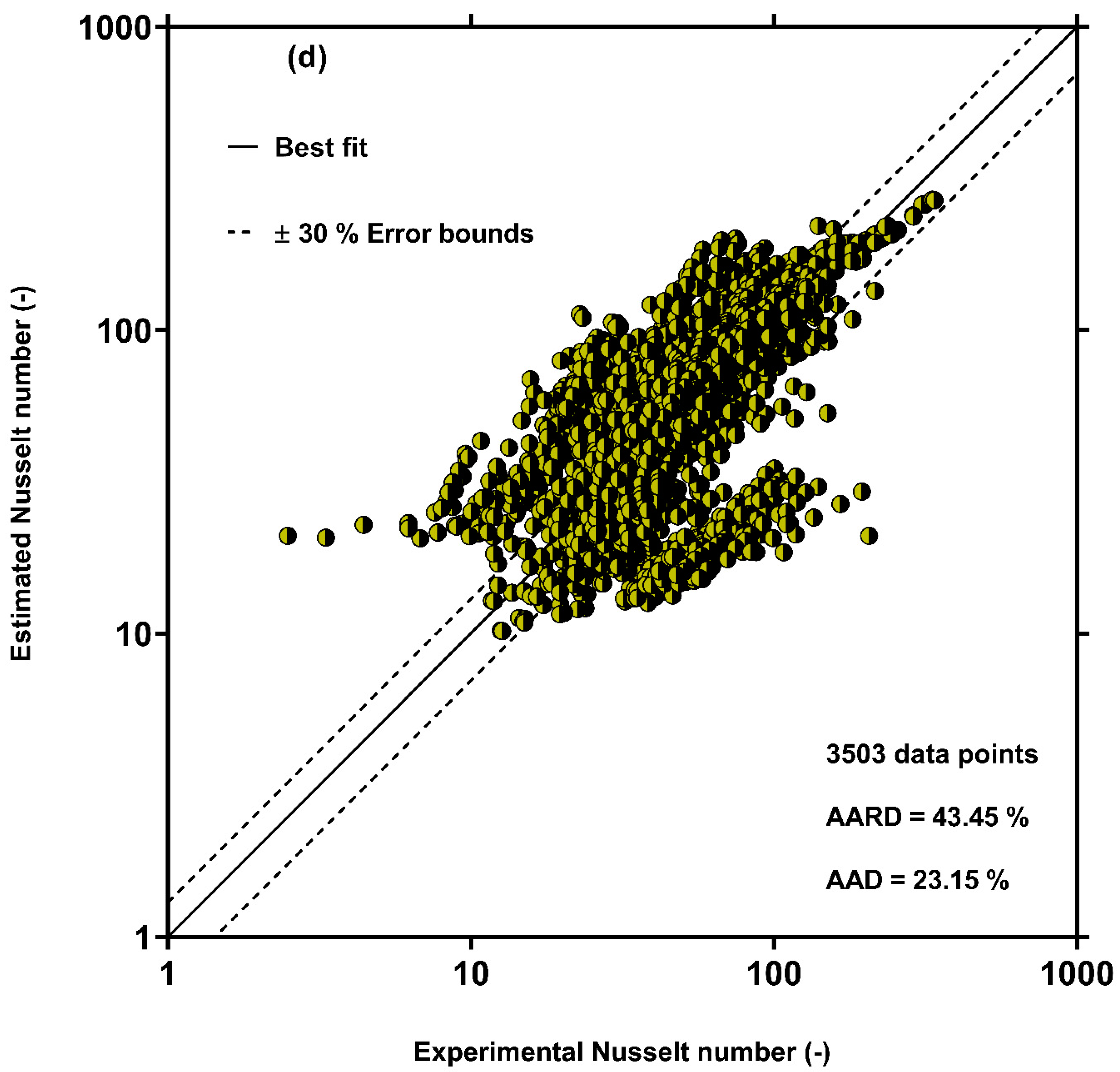

**d**) Shah (2019) [57], (

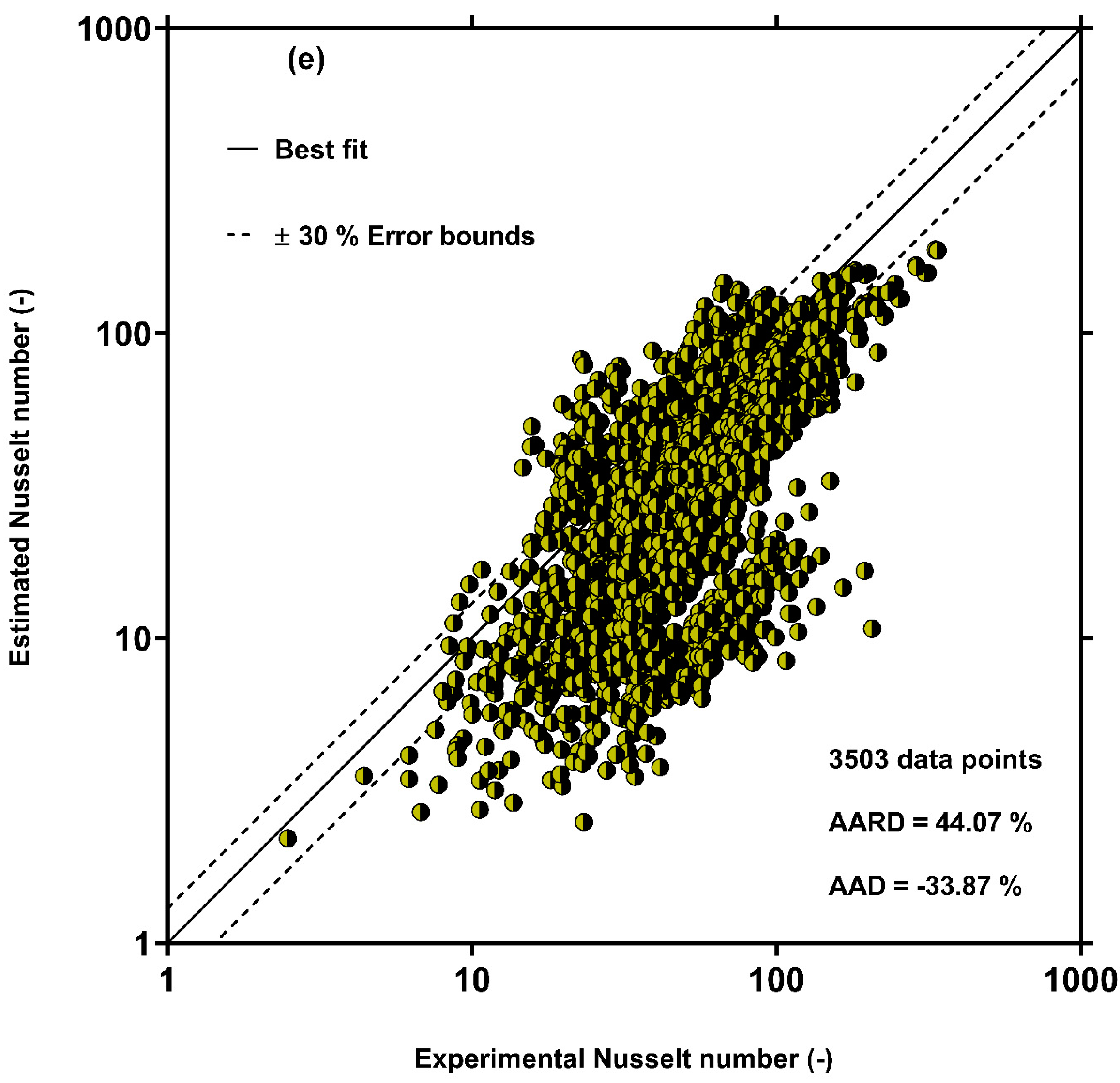

**e**) Crosser [92] and (

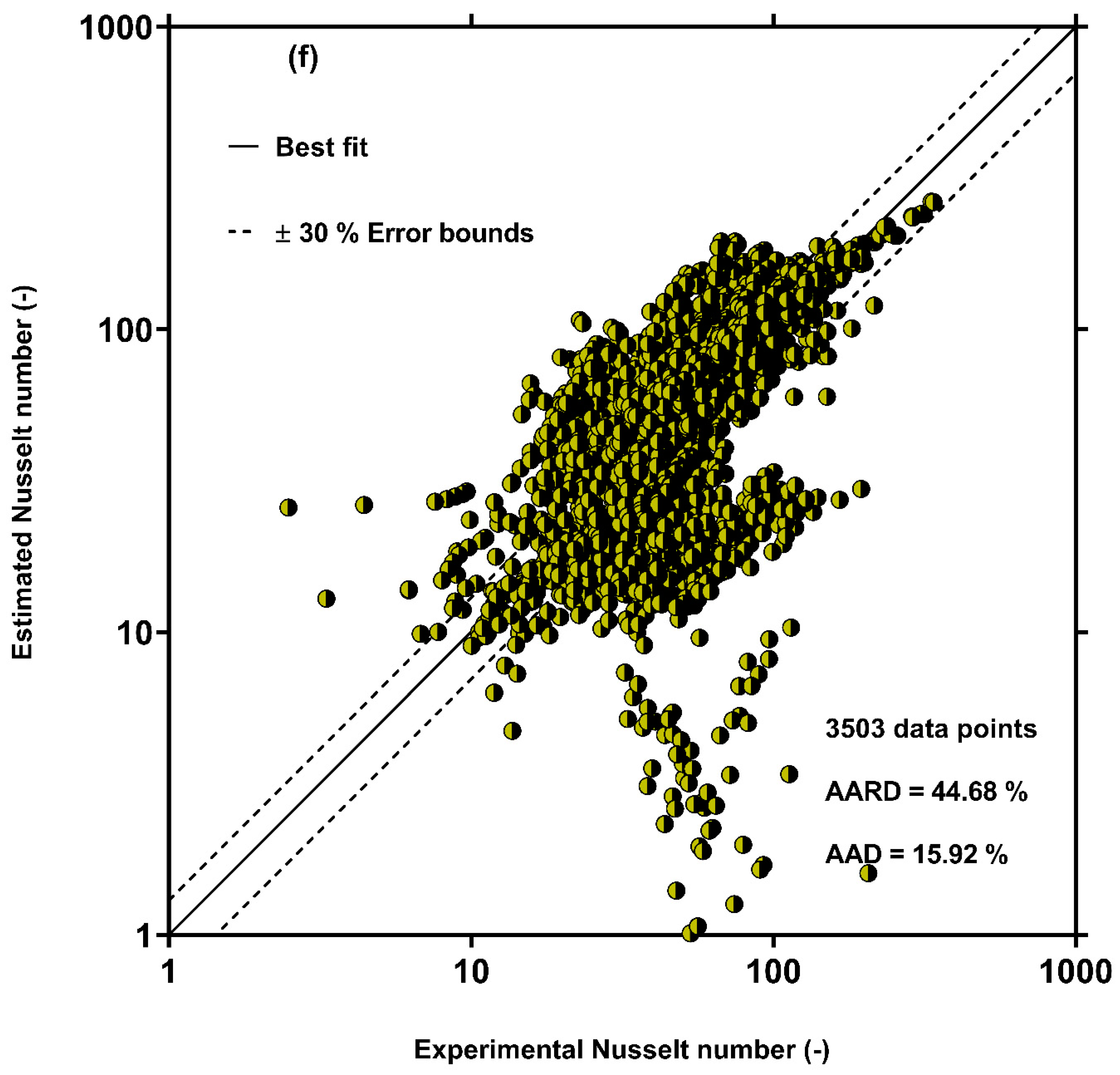

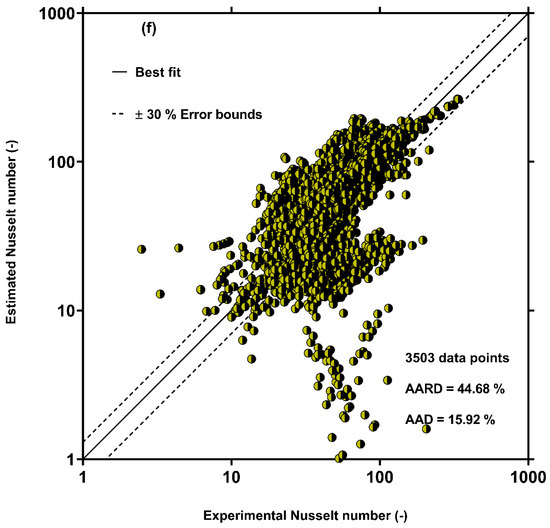

**f**) Hosseini et al. [56]. The solid points represent the outcomes of different models. The solid line represents the best fitting between experimental and estimated data, and the dash lines represent the $\pm 30\%$ error bounds.

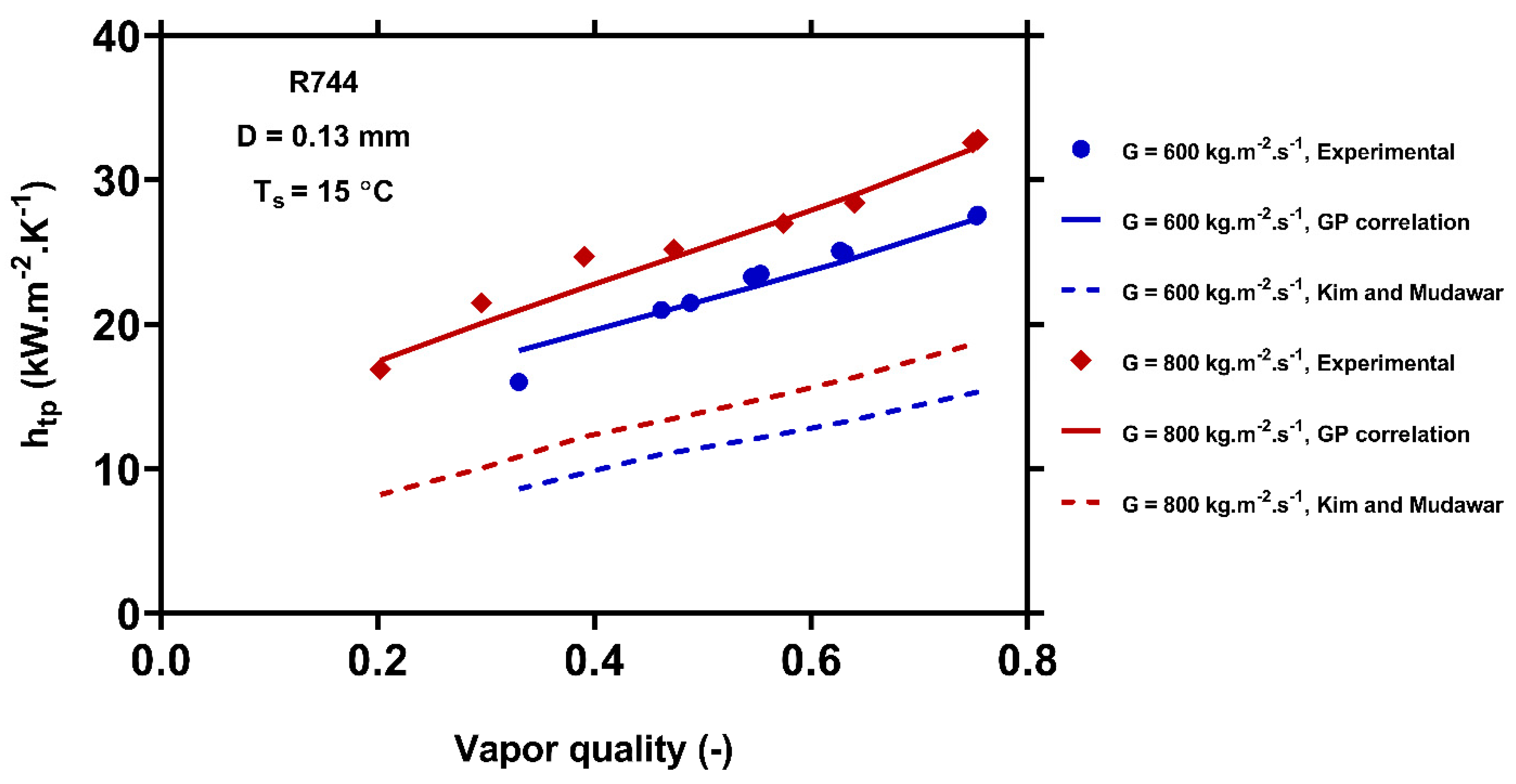

**Figure 4.**Comparison of the predictions of the GP correlation (Equation (13)) and the model of Kim and Mudawar [52] with the experimental data [37] for R744 condensing at the saturation temperature of 15 $\mathbb{C}$ inside a 0.13 mm channel under different vapor qualities and mass fluxes. Blue and red points represent the G = 600 $\mathrm{kg}.{\mathrm{m}}^{-2}\xb7{\mathrm{s}}^{-1}$ and G = 800 $\mathrm{kg}\xb7{\mathrm{m}}^{-2}.{\mathrm{s}}^{-1}$, respectively. The solid points, solid lines, and dash lines represent the experimental values, GP outcomes, and Kim and Mudawar [52] outcomes.

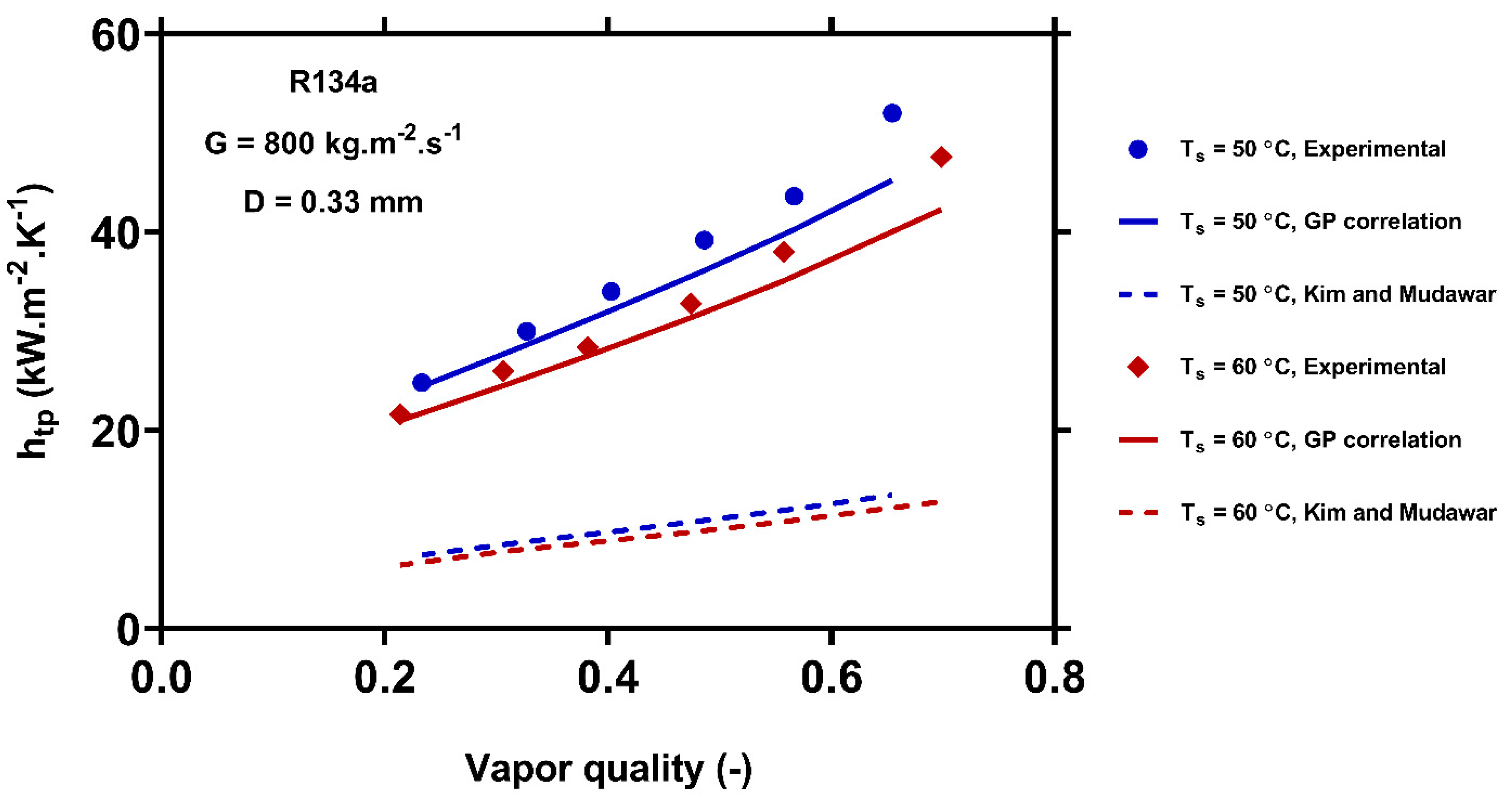

**Figure 5.**Comparison of the predictions of the GP correlation (Equation (13)) and the model of Kim and Mudawar [52] with the experimental data [72] for R134a condensing at the mass flux of 800$\mathrm{kg}.{\mathrm{m}}^{-2}.{\mathrm{s}}^{-1}$ inside a 0.33 mm channel under different saturation temperatures. Blue and red points represent the ${\mathrm{T}}_{\mathrm{s}}=50\xb0\mathrm{C}$ and ${\mathrm{T}}_{\mathrm{s}}=60\xb0\mathrm{C}$, respectively. The solid points, solid lines, and dash lines represent the experimental values, GP outcomes and Kim and Mudawar [52] outcomes.

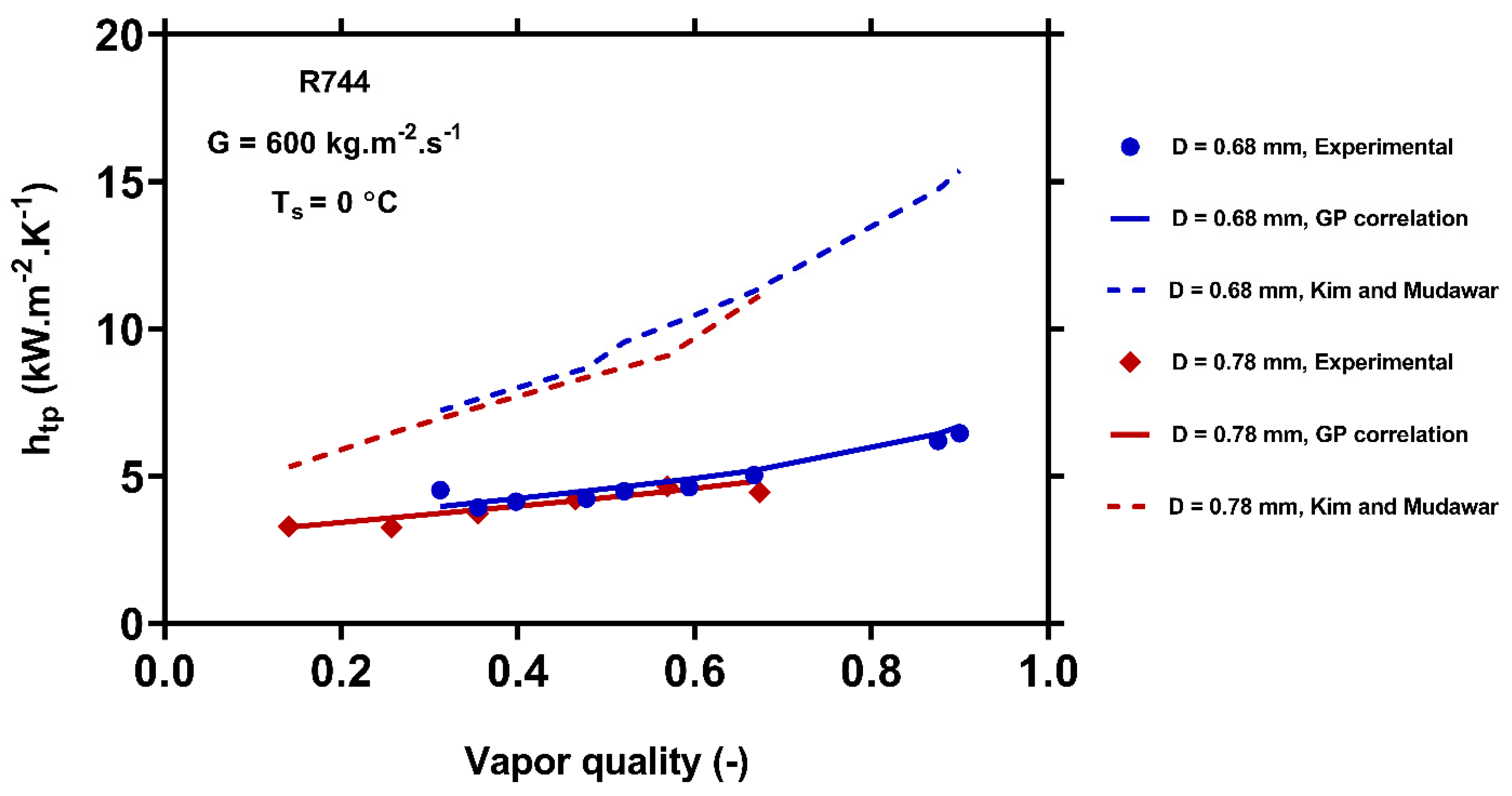

**Figure 6.**Comparisons of the predictions of the GP correlation (Equation (13)) and the model of Kim and Mudawar [52] with the experimental data [82] for R744 condensing at the mass flux of 800$\mathrm{kg}\xb7{\mathrm{m}}^{-2}\xb7{\mathrm{s}}^{-1}$ and saturation temperature of 0 °C inside different channel diameters. Blue and red points represent the D = 68 mm and D = 78 mm, respectively. The solid points, solid lines, and dash lines represent the experimental values, GP outcomes and Kim and Mudawar [52] outcomes.

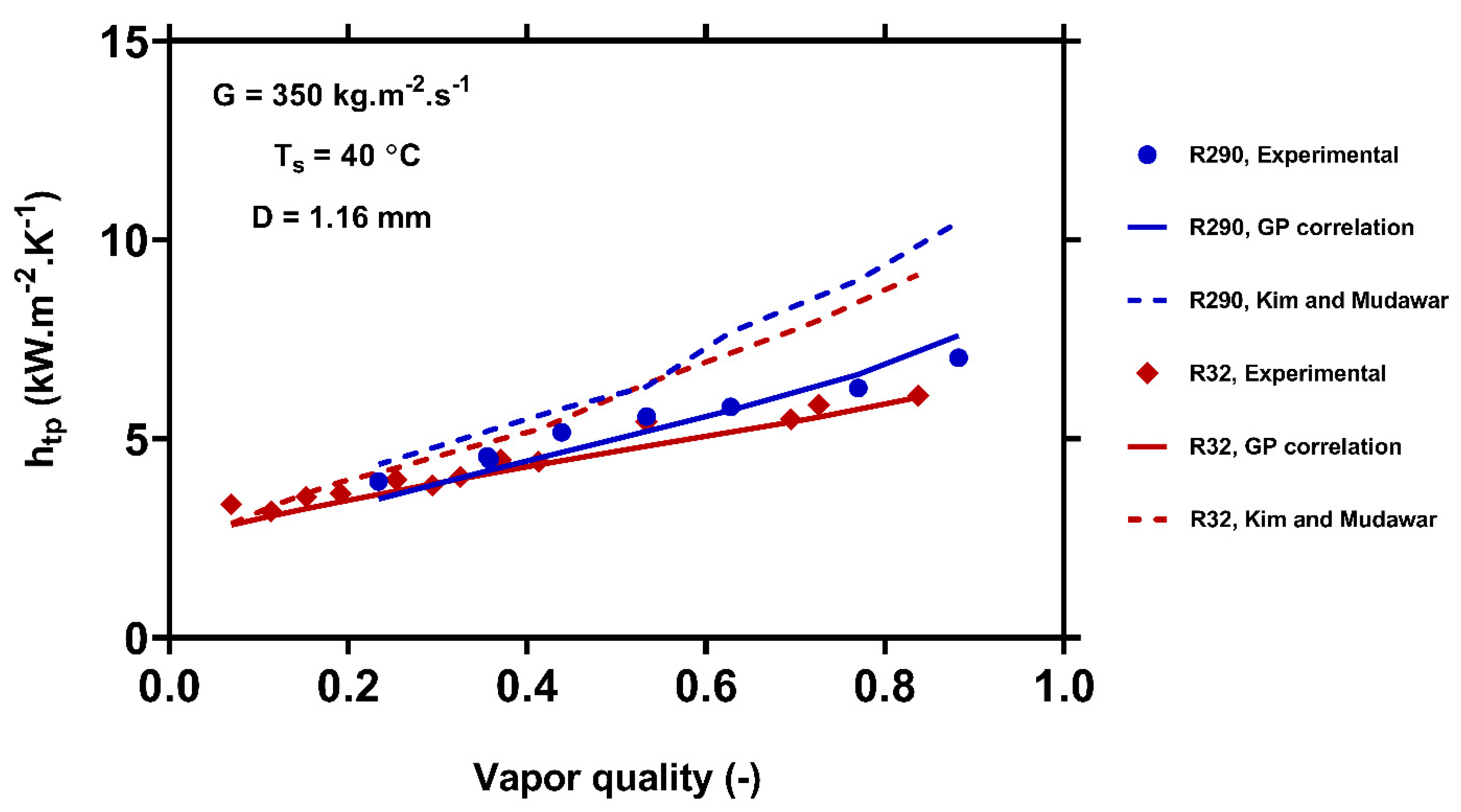

**Figure 7.**Comparison of the predictions of the GP correlation (Equation (13)) and the model of Kim and Mudawar [52] with the experimental data [73,76] for R290 and R32 condensing at the mass flux of 350$\mathrm{kg}\xb7{\mathrm{m}}^{-2}\xb7{\mathrm{s}}^{-1}$ and saturation temperature of 40 $\mathbb{C}$ inside a 1.16 mm channel. Blue and red points represent the R290 and R32, respectively. The solid points, solid lines, and dash lines represent the experimental values, GP outcomes, and Kim and Mudawar [52] outcomes, respectively.

References | Fluid | Channel Geometry | Hydraulic Diameter (mm) | Mass Flux $(\mathbf{k}\mathbf{g}{\mathbf{m}}^{-2}{\mathbf{s}}^{-1})$ | Reduced Pressure (-) | Number of Points |
---|---|---|---|---|---|---|

Agarwal [72] | R134a | Rectangular, Square | 0.1 to 0.16 | 300 to 800 | 0.19 to 0.42 | 291 |

Belchi et al. [73] | R290 | Square | 1.16 | 175 to 350 | 0.25 to 0.40 | 100 |

Belchi et al. [74] | R32, R410A | Square | 1.16 | 470 to 710 | 0.33 to 0.63 | 163 |

Agarwal et al. [75] | R134a | Barrel, N-shape, Rectangular, Square, Triangular | 0.424 to 0.839 | 150 to 750 | 0.37 | 152 |

Belchi et al. [76] | R32, R410A | Square | 1.16 | 350 to 800 | 0.33 to 0.63 | 515 |

Fronk and Garimella [37] | R744 | Rectangular | 0.1 to 0.16 | 400 to 800 | 0.69 to 0.87 | 189 |

Bandhauer et al. [77] | R134a | Circular | 0.506 to 1.524 | 150 to 750 | 0.41 | 128 |

Cavallini et al. [78] | R134a, R410A | Circular | 1.4 | 200 to 1400 | 0.25 to 0.5 | 61 |

Belchi [79] | R1234yf, R134a | Square | 1.16 | 470 to 710 | 0.25 to 0.49 | 81 |

Belchi et al. [80] | R32, R410A | Square | 1.16 | 475 | 0.38 to 0.49 | 88 |

Derby et al. [54] | R134a | Square | 1 | 75 to 450 | 0.22 | 80 |

Andresen [81] | R410A | Circular | 0.76 to 1.52 | 200 to 800 | 0.80 to 0.90 | 198 |

Heo and Yun [82] | R744 | Rectangular | 0.68 to 1.5 | 400 to 800 | 0.41 to 0.54 | 203 |

Gomez et al. [83] | R1234yf | Square | 1.16 | 350 to 945 | 0.23 to 0.43 | 162 |

Jige et al. [38] | R1234ze(E), R134a, R32 | Rectangular | 0.76 to 1.06 | 100 to 400 | 0.21 to 0.43 | 323 |

Park et al. [84] | R1234ze(E), R134a, R236fa | Rectangular | 1.45 | 100 to 260 | 0.13 to 0.44 | 97 |

Pham et al. [85] | R22, R290, R32, R410A | Rectangular | 0.83 | 50 to 500 | 0.37 to 0.60 | 79 |

Park and Hrnjak [86] | R744 | Rectangular | 0.89 | 200 to 800 | 0.23 to 0.40 | 112 |

Li et al. [87] | R1234ze(E), R134a, R32, R32/R134a (24.5/75/5%), R32/R134a (51/49%) | Circular | 0.86 | 100 to 300 | 0.18 to 0.42 | 151 |

Wang et al. [55] | R134a | Circular | 1.46 | 150 to 750 | 0.45 | 279 |

Rahman et al. [88] | R134a | Rectangular | 0.81 | 50 to 200 | 0.19 to 0.22 | 51 |

Total | 3503 |

**Table 2.**Operating conditions, geometric dimensions, and the range of dimensionless factors used in the present study.

Parameter | Type of Refrigerant/Operating Conditions/Channel Geometry/Dimensionless Factors |
---|---|

Fluids | R744, R1234yf, R1234ze(E), R134a, R22, R236fa, R290, R32, R32/R134a (24.5/75.5%), R32/R134a (51/49%) and R410A |

$G,(\mathrm{k}\mathrm{g}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$) | 50–1400 |

$D,\left(mm\right)$ | 0.1–1.524 |

Channel geometry | Rectangular, circular, square, barrel, N-shaped and Triangular mini/micro channels |

Reduced pressure, (-) | 0.13–0.90 |

Vapor quality, x, (-) | 0.002–0.978 |

$R{e}_{l}$, (-) | 11–16886 |

$P{r}_{l}$, (-) | 1.75–4.69 |

${X}_{tt}$, (-) | 0.0088–105.26 |

$Bo$, (-) | 0.015–31.36 |

Reference(s) | Correlation | Remarks |
---|---|---|

Kim and Mudawar [52] | $forannularflow\left(W{e}^{*}7{X}_{tt}\right):$ $N{u}_{tp}=0.048{\left(R{e}_{l}\right)}^{0.69}{\left(P{r}_{l}\right)}^{0.34}\frac{{\varphi}_{v}}{{X}_{tt}}$ $forslugandbubblyflow\left(W{e}^{*}7{X}_{tt}\right):$ $N{u}_{tp}={\left[{\left(0.048{\left(R{e}_{l}\right)}^{0.69}{\left(P{r}_{l}\right)}^{0.34}\frac{{\varphi}_{v}}{{X}_{tt}}\right)}^{2}+{\left(3.2\times {10}^{-7}{\left(R{e}_{l}\right)}^{-0.38}{\left(S{u}_{vo}\right)}^{1.39}\right)}^{2}\right]}^{0.5}$ $W{e}^{*}=2.45\frac{R{e}_{v}^{0.64}}{S{u}_{vo}^{0.3}{\left(1+1.09{X}_{tt}^{0.039}\right)}^{0.4}}forR{e}_{l}\le 1250$ $W{e}^{*}=0.85\frac{R{e}_{v}^{0.79}{X}_{tt}^{0.157}}{S{u}_{vo}^{0.3}{\left(1+1.09{X}_{tt}^{0.039}\right)}^{0.4}}{\left[\left(\frac{{\rho}_{l}}{{\rho}_{v}}\right){\left(\frac{{\mu}_{v}}{{\mu}_{l}}\right)}^{2}\right]}^{0.084}forR{e}_{l}1250$ ${\varphi}_{v}=1+CX+{X}^{2}S{u}_{vo}=\frac{{\rho}_{v}\sigma D}{{\mu}_{v}^{2}}$ C and X are calculated by Kim and Mudawar [89] method. | General correlations for condensation in mini/micro-channels. |

Dorao and Fernandino [49] | $N{u}_{tp}={\left(N{u}_{I}^{9}+N{u}_{II}^{9}\right)}^{\frac{1}{9}}$ $N{u}_{I}=0.023R{e}_{tp}^{0.8}P{r}_{tp}^{0.3}$ $N{u}_{II}=41.5{D}^{0.6}R{e}_{tp}^{0.4}P{r}_{tp}^{0.3}$ | General correlations for condensation in horizontal tubes. |

Shah (2016) [90] | ${h}_{tp}={h}_{I}For{J}_{g}\ge 0.98{\left({\left(\frac{1}{x}-1\right)}^{0.8}{P}_{red}^{0.4}+0.263\right)}^{-0.62}andW{e}_{vo}\ge 100$ ${h}_{tp}={h}_{Nu}For{J}_{g}\le 0.95{\left(2.27{\left({\left(\frac{1}{x}-1\right)}^{0.8}{P}_{res}^{0.4}\right)}^{1.249}+1.254\right)}^{-1}$ ${h}_{tp}={h}_{Nu}+{h}_{I}Forotherregimes$ ${h}_{I}=0.023R{e}_{lo}{}^{0.8}P{r}_{l}{}^{0.4}\left[1+1.128{x}^{0.8170}{\left(\frac{{\rho}_{l}}{{\rho}_{g}}\right)}^{0.3685}{\left(\frac{{\mu}_{l}}{{\mu}_{g}}\right)}^{0.2363}\times {\left(1-\frac{{\mu}_{g}}{{\mu}_{l}}\right)}^{2.144}P{r}_{l}{}^{-0.100}\right]\left(\frac{{k}_{l}}{D}\right)$ ${h}_{Nu}=1.32R{e}_{l}{}^{\frac{-1}{3}}{\left[\frac{{\rho}_{l}\left({\rho}_{l}-{\rho}_{v}\right)g{k}_{l}^{3}}{{\mu}_{l}^{2}}\right]}^{\frac{1}{3}}$ ${J}_{g}=\frac{xG}{{\left(gD{\rho}_{v}\left({\rho}_{l}-{\rho}_{v}\right)\right)}^{0.5}}W{e}_{vo}=\frac{{G}^{2}D}{{\rho}_{v}\sigma}$ | General correlations for condensation in horizontal mini/micro-tubes. |

Shah (2019) [57] | $For{J}_{g}\ge 0.98{\left({\left(\frac{1}{x}-1\right)}^{0.8}{P}_{red}^{0.4}+0.263\right)}^{-0.62},F{r}_{l}0.012andW{e}_{vo}\ge 100:$ ${h}_{tp}={h}_{I}$ $For{J}_{g}\le 0.95{\left(2.27{\left({\left(\frac{1}{x}-1\right)}^{0.8}{P}_{res}^{0.4}\right)}^{1.249}+1.254\right)}^{-1}andF{r}_{l}0.012$ ${h}_{tp}={h}_{Nu}$ $Forotherregimes:$ ${h}_{tp}={h}_{Nu}+{h}_{I}$ $F{r}_{L}=\frac{{G}^{2}}{{\rho}_{l}^{2}gD}$ ${h}_{I}$$,{h}_{Nu}$$,{J}_{g}$$\mathrm{and}W{e}_{vo}$ are calculated by Shah (2016) method. | |

Akers et al. [91] | $N{u}_{tp}={\mathit{CPr}}_{\mathrm{l}}^{\frac{1}{3}}{\left\{G\left[\left(1-x\right)+x{\left(\frac{{\rho}_{\mathrm{l}}}{{\rho}_{V}}\right)}^{0.5}\right]\frac{D}{{\mu}_{\mathrm{l}}}\right\}}^{n}$ $C=0.026,n=0.8{\mathit{for}\mathit{Re}}_{\mathit{eq}}50000$ $C=5.3,n=\frac{1}{3}{\mathit{for}\mathit{Re}}_{\mathit{eq}}50000$ $R{e}_{eq}=G\left[\left(1-x\right)+x{\left(\frac{{\rho}_{l}}{{\rho}_{v}}\right)}^{0.5}\right]\left(\frac{D}{{\mu}_{l}}\right)$ | Condensations for horizontal plain tubes |

Crosser [92] | $N{u}_{tp}=0.0265P{r}_{l}{}^{\frac{1}{3}}{\left(G\left(x{\left(\frac{{\rho}_{l}}{{\rho}_{v}}\right)}^{0.5}\right)\frac{D}{{\mu}_{l}}\right)}^{n}$ $n=0.8for\frac{Gx}{{\mu}_{l}}60000$ $n=0.2for\frac{Gx}{{\mu}_{l}}60000$ | |

Bohdal et al. [93] | $N{u}_{tp}=25.084R{e}_{l}{}^{0.258}P{r}_{l}{}^{-0.495}{P}_{res}{}^{-0.288}{\left(\frac{x}{1-x}\right)}^{0.266}$ | R134a and R410A condensation in mini-channels |

Hosseini et al. [56] | $\mathit{For}G\le 200\mathrm{k}\mathrm{g}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$: $N{u}_{tp}=0.0022\times R{e}_{tp}\times \left(\frac{\rho l-\rho v}{\rho l}\right)+0.0342\times W{e}_{vo}\times {\left(\frac{\rho l-\rho v}{\rho l}\right)}^{2}+\frac{Sin\left(39.8963\times {P}_{red}\right)-Ln\left(W{e}_{vo}\right)}{-0.0298-0.2203\times F{r}_{l}}-P{r}_{tp}$ $\mathit{For}G200\mathrm{k}\mathrm{g}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$: $N{u}_{tp}=ABS\left(0.0169\ast R{e}_{tp}^{0.8620}-0.00146\ast \frac{R{e}_{tp}}{P{r}_{tp}\ast \left(\frac{\rho l-\rho v}{\rho l}\right)}+\phantom{\rule{0ex}{0ex}}\frac{0.0036+0.0171\ast W{e}_{vo}}{F{r}_{l}}+17.9480\ast \mathrm{sin}\left(\frac{0.0036+0.0171\ast W{e}_{vo}}{F{r}_{l}}\right)+\phantom{\rule{0ex}{0ex}}\mathrm{tan}\left(27.6370106546243\ast \left(\frac{\rho l-\rho v}{\rho l}\right)\right)-\mathrm{tan}\left(369.8572+\phantom{\rule{0ex}{0ex}}\mathrm{sin}\left(\frac{0.0036+0.01712\ast W{e}_{vo}}{F{r}_{l}}\right)\right)\right)$ | General correlations for condensation in single-port horizontal plain tubes |

Model $\mathit{A}\mathit{A}\mathit{R}\mathit{D}\mathit{\%}$ $\mathit{A}\mathit{A}\mathit{D}\mathit{\%}$ | |||||||||
---|---|---|---|---|---|---|---|---|---|

References | Akers et al. [91] | Crosser [92] | Bohdal et al. [93] | Shah (2016) [90] | Shah (2019) [57] | Dorao and Fernandino [49] | Hosseini et al. [56] | Kim and Mudawar [52] | GP correlation |

Agarwal [72] | 44.06 41.63 | 83.56 −83.56 | 40.09 36.40 | 68.35 −68.35 | 68.35 −68.35 | 70.93 −70.93 | 76.33 −76.33 | 72.94 −72.94 | 17.91 −4.55 |

Belchi et al. [73] | 144.97 144.97 | 30.61 −30.48 | 128.72 128.72 | 21.23 18.65 | 21.23 18.65 | 15.00 10.95 | 24.72 1.19 | 16.38 11.37 | 17.54 −7.91 |

Belchi et al. [74] | 184.29 184.29 | 20.74 −5.72 | 190.63 190.63 | 60.45 60.45 | 60.45 60.45 | 59.83 59.83 | 63.26 63.26 | 41.05 41.05 | 16.41 14.16 |

Agarwal et al. [75] | 143.40 143.25 | 47.80 −47.80 | 100.93 100.27 | 22.77 −1.92 | 22.77 −1.92 | 23.80 −4.88 | 24.78 −5.76 | 23.85 −14.58 | 22.59 −4.98 |

Belchi et al. [76] | 153.28 153.28 | 26.62 −20.03 | 170.31 170.31 | 35.13 34.54 | 35.13 34.54 | 34.78 34.16 | 39.60 39.50 | 23.50 21.82 | 9.96 −2.49 |

Fronk and Garimella [37] | 273.45 273.45 | 57.49 −57.49 | 170.52 170.52 | 31.09 −30.41 | 31.09 −30.41 | 30.72 −30.44 | 34.61 −34.27 | 37.78 −37.78 | 14.59 2.43 |

Bandhauer et al. [77] | 129.60 129.60 | 40.92 −40.92 | 87.58 86.65 | 12.08 5.42 | 12.08 5.42 | 11.94 3.60 | 15.61 4.01 | 12.66 −8.10 | 17.72 −4.01 |

Cavallini et al. [78] | 63.59 57.97 | 43.90 −43.90 | 53.81 44.01 | 8.91 −4.03 | 8.91 −4.03 | 9.82 −5.27 | 12.25 1.68 | 19.04 −17.93 | 25.98 −25.98 |

Belchi [79] | 315.23 315.23 | 34.81 21.10 | 224.80 224.80 | 117.50 117.50 | 117.50 117.50 | 105.43 105.43 | 122.73 122.73 | 92.85 92.85 | 52.30 51.82 |

Belchi et al. [80] | 177.70 177.70 | 26.17 −25.28 | 200.52 200.52 | 32.07 32.07 | 32.07 32.07 | 31.03 31.03 | 38.50 38.50 | 22.41 21.95 | 8.00 −4.25 |

Derby et al. [54] | 182.16 182.16 | 55.93 −55.93 | 149.56 149.56 | 11.79 9.57 | 11.79 9.57 | 14.55 −11.18 | 35.33 1.75 | 13.38 −11.13 | 17.07 16.75 |

Andresen [81] | 201.77 201.77 | 17.66 −11.44 | 91.15 90.09 | 39.38 39.28 | 39.38 39.28 | 40.96 40.96 | 17.46 0.43 | 22.03 19.10 | 21.31 11.21 |

Heo and Yun [82] | 384.25 384.25 | 55.87 42.53 | 382.29 382.29 | 132.05 132.05 | 132.05 132.05 | 134.14 134.13 | 123.45 123.38 | 116.22 116.22 | 21.74 10.60 |

Gomez et al. [83] | 84.08 84.08 | 44.40 −44.33 | 43.28 43.28 | 7.65 −1.02 | 7.65 −1.02 | 10.42 −8.00 | 6.52 −0.57 | 15.81 13.42 | 13.46 −12.03 |

Jige et al. [38] | 147.22 147.22 | 57.47 −57.47 | 123.73 123.73 | 17.26 −7.32 | 17.26 −7.32 | 30.92 −23.76 | 30.87 −18.22 | 26.94 −21.78 | 14.50 0.25 |

Park et al. [84] | 244.99 244.99 | 42.44 −42.44 | 173.49 173.49 | 27.50 20.80 | 27.72 23.84 | 22.14 20.59 | 34.50 23.67 | 21.13 18.64 | 14.06 −0.97 |

Pham et al. [85] | 652.27 652.27 | 46.23 1.14 | 680.51 680.51 | 179.40 179.40 | 179.40 179.40 | 103.09 102.63 | 116.14 102.92 | 111.40 111.22 | 42.09 28.05 |

Park and Hrnjak [86] | 232.11 232.11 | 33.01 −33.01 | 251.06 251.06 | 38.77 38.77 | 38.77 38.77 | 27.22 23.67 | 34.06 33.46 | 24.47 24.04 | 13.07 −11.26 |

Li et al. [87] | 338.36 338.36 | 31.81 −29.64 | 353..18 353.18 | 57.92 57.03 | 57.92 57.03 | 30.78 25.07 | 37.10 27.87 | 40.40 37.87 | 15.73 6.26 |

Wang et al. [55] | 167.58 167.58 | 49.10 −49.10 | 89.72 89.72 | 17.11 11.22 | 17.67 12.87 | 15.43 12.93 | 28.34 19.57 | 9.90 −5.32 | 10.36 8.29 |

Rahman et al. [88] | 108.70 107.50 | 72.09 −72.09 | 99.34 98.03 | 24.01 −21.90 | 24.01 −21.90 | 47.80 −47.80 | 49.91 −49.56 | 38.66 −38.42 | 20.98 −2.42 |

Total | 191.19 190.87 | 44.07 −33.87 | 164.97 164.35 | 43.39 22.94 | 43.45 23.15 | 41.54 15.95 | 44.68 15.92 | 36.94 8.17 | 16.87 2.33 |

**Table 5.**Comparison of the accuracy of the available models for estimating the HTC in multi-port micro and mini-channels.

Channel Diameter | Micro-Channels $\left(\mathit{D}\le 0.2\mathit{m}\mathit{m}\right),$ 480 Data Points | Mini-Channels $\left(0.2<\mathit{D}<3\mathit{m}\mathit{m}\right),$ 3023 Data Points | All Data, 3503 Data Points | ||||||
---|---|---|---|---|---|---|---|---|---|

Models | Percentage of Data within the AARD of 20% | Percentage of Data within the AARD of 30% | AARD (%) | Percentage of Data within the AARD of 20% | Percentage of Data within the AARD of 30% | AARD (%) | Percentage of Data within the AARD of 20% | Percentage of Data within the AARD of 30% | AARD (%) |

Akers et al. [91] | 14.36 | 20.83 | 134.39 | 1.36 | 1.72 | 200.21 | 3.14 | 4.34 | 191.19 |

Crosser [92] | 0.00 | 0.00 | 73.31 | 22.23 | 36.09 | 39.43 | 19.18 | 31.14 | 44.07 |

Bohdal et al. [93] | 16.86 | 25.83 | 91.45 | 4.30 | 6.55 | 176.64 | 5.99 | 9.19 | 164.97 |

Shah (2016) [90] | 10.21 | 16.67 | 53.68 | 40.13 | 55.94 | 41.76 | 36.03 | 50.56 | 43.39 |

Shah (2019) [57] | 10.21 | 16.67 | 53.68 | 39.93 | 55.71 | 41.82 | 35.86 | 50.36 | 43.45 |

Dorao and Fernandino [49] | 10.00 | 16.25 | 55.09 | 40.46 | 56.17 | 39.39 | 36.28 | 50.70 | 41.54 |

Hosseini et al. [56] | 9.38 | 13.96 | 59.91 | 32.09 | 49.49 | 42.27 | 28.98 | 44.62 | 44.68 |

Kim and Mudawar [52] | 4.17 | 7.29 | 59.10 | 49.19 | 63.44 | 33.42 | 43.05 | 55.75 | 36.94 |

New Correlation | 68.75 | 84.58 | 16.60 | 70.66 | 84.75 | 16.91 | 70.37 | 84.73 | 16.87 |

${\mathit{T}}_{\mathit{s}}(\mathbb{C})$ | ${\mathit{\rho}}_{\mathit{l}}\left(\mathbf{k}\mathbf{g}{\mathbf{m}}^{-3}\right)$ | ${\mathit{\rho}}_{\mathit{v}}\left(\mathbf{k}\mathbf{g}{\mathbf{m}}^{-3}\right)$ | ${\mathit{k}}_{\mathit{l}}\left(\mathbf{w}{\mathbf{m}}^{-1}{\mathbf{K}}^{-1}\right)$ |
---|---|---|---|

50 | 1102.3 | 66.27 | 0.070427 |

60 | 1052.9 | 87.38 | 0.066091 |

Fluids | ${\mathit{T}}_{\mathit{s}}(\mathbb{C})$ | ${\mathit{\rho}}_{\mathit{l}}\left(\mathbf{k}\mathbf{g}{\mathbf{m}}^{-3}\right)$ | ${\mathit{\rho}}_{\mathit{v}}\left(\mathbf{k}\mathbf{g}{\mathbf{m}}^{-3}\right)$ | ${\mathit{H}}_{\mathit{l}\mathit{v}}\left(\mathbf{k}\mathbf{J}\mathbf{K}{\mathbf{g}}^{-1}\right)$ |
---|---|---|---|---|

R290 | 40 | 467.46 | 30.165 | 307.06 |

R32 | 40 | 893.04 | 73.268 | 237.10 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Hosseini, S.H.; Ayari, M.A.; Khandakar, A.; Moradkhani, M.A.; Jowkar, M.; Panahi, M.; Ahmadi, G.; Tavoosi, J.
Robust and General Model to Forecast the Heat Transfer Coefficient for Flow Condensation in Multi Port Mini/Micro-Channels. *Processes* **2022**, *10*, 243.
https://doi.org/10.3390/pr10020243

**AMA Style**

Hosseini SH, Ayari MA, Khandakar A, Moradkhani MA, Jowkar M, Panahi M, Ahmadi G, Tavoosi J.
Robust and General Model to Forecast the Heat Transfer Coefficient for Flow Condensation in Multi Port Mini/Micro-Channels. *Processes*. 2022; 10(2):243.
https://doi.org/10.3390/pr10020243

**Chicago/Turabian Style**

Hosseini, Seyyed Hossein, Mohamed Arselene Ayari, Amith Khandakar, Mohammad Amin Moradkhani, Mehdi Jowkar, Mohammad Panahi, Goodarz Ahmadi, and Jafar Tavoosi.
2022. "Robust and General Model to Forecast the Heat Transfer Coefficient for Flow Condensation in Multi Port Mini/Micro-Channels" *Processes* 10, no. 2: 243.
https://doi.org/10.3390/pr10020243
