A Review on Parallel Development of Flux Design and Thermodynamics Subject to Submerged Arc Welding

Abstract

Submerged arc welding is a complex metallurgical process with a temperature of nearly 2000 °C (a temperature much higher than that in traditional steelmaking) and different phases, including flux (slag), metal, and plasma. Flux serves vital functions in order to produce the weld metal with desired qualities. It is well known that understandings of the thermodynamic properties regarding flux and slag are essential to aid in flux design and optimization. Actually, the developments of flux design and thermodynamics have been promoting each other. Within this review, the flux design stages have been documented and reviewed in detail from the perspective of thermodynamics. The thermodynamic design principles for fluxes have been evaluated systematically, the limitations of each flux have been elucidated, and the thermodynamic significance of the designed fluxes upon the development of welding thermodynamics has been analyzed. Based on the hypothesis that thermodynamic equilibrium is attained locally considering that the high temperatures and surface-to-volume ratio counteract the short time available for chemical reactions to be completed, both slag–metal and gas–slag–metal equilibrium models have been evaluated, which may provide technical assistance for flux design and matching. Then, recent applications of Calphad (Computer Coupling of Phase Diagrams and Thermochemistry) technology in the fields of flux design and matching have been introduced. The incumbent review demonstrates that thermodynamic consideration is essential to develop new fluxes or upgrade existing ones to meet the growing demands concerning submerged arc welding quality. Furthermore, it is revealed that the thermodynamic approach is capable of facilitating the flux design process geared toward submerged arc welding. Finally, further investigation into welding thermodynamics is proposed to better aid in flux design and matching.

1. Introduction

The atmosphere is primarily composed of N₂ and O₂. When the weld pool is exposed to the atmosphere, it tends to combine with O and N elements. The formation of oxides in the weld metal (WM) varies under different circumstances. The oxide layer on the metal surface may prevent the joining of the two workpieces together [1]. Additionally, an excess of O in the WM may incur unexpected problems, such as enhanced porosity, reduced toughness, and depreciated hardenability [2]. When N is absorbed by the molten metal, its presence exerts adverse impacts on the mechanical properties unless it combines with a strong nitride-forming element [3].

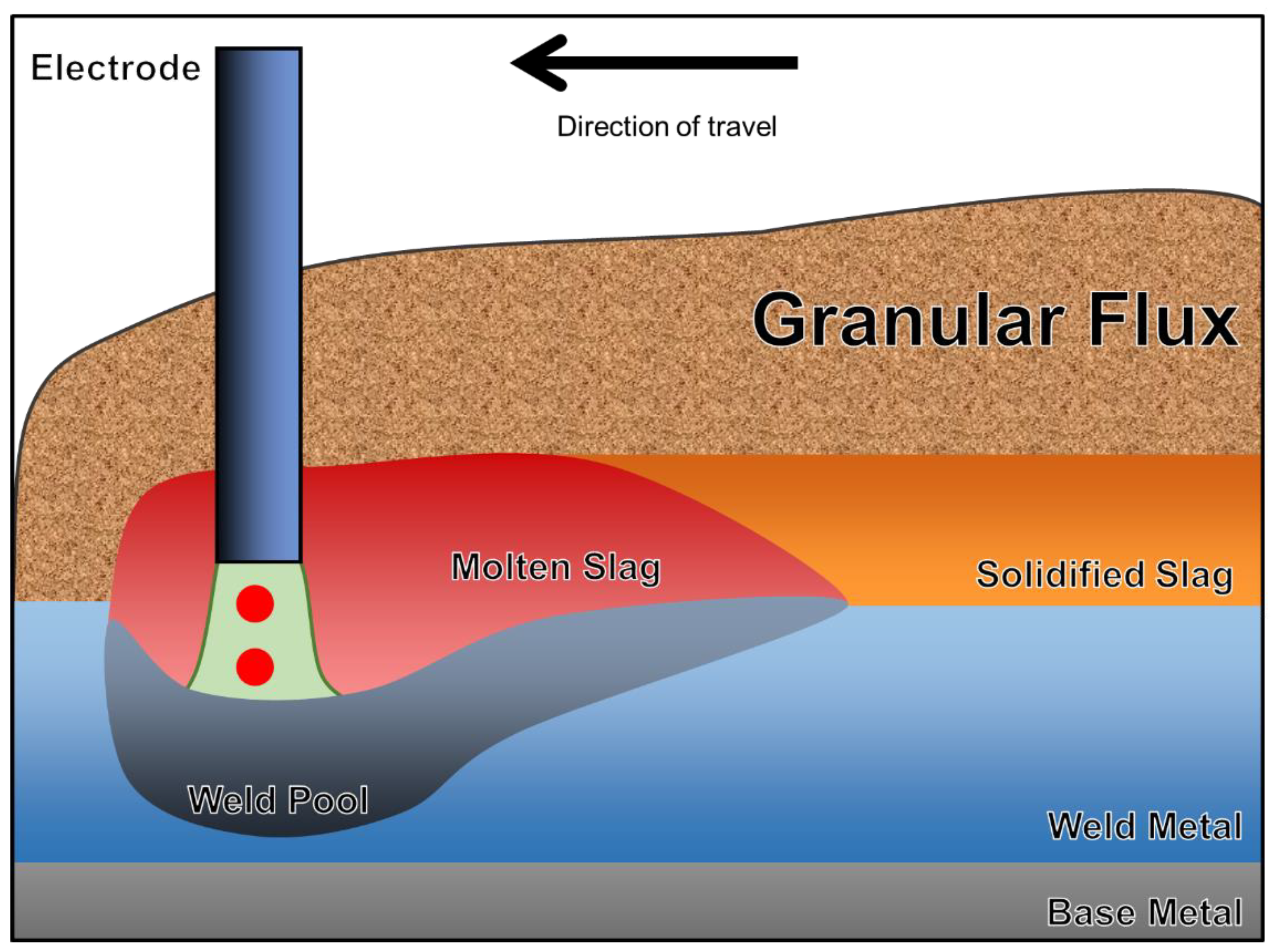

Submerged arc welding (SAW) is an automatic welding process particularly suitable for the joining of thick workpieces [4]. Instead of permitting the air to exist between the base metal (BM) and the electrode, the arc cavity and weld pool are submerged under a layer of granular flux [1]. Figure 1 illustrates the diagrammatic sketch of SAW. The SAW process is unique due to the permission of high welding currents in the absence of a violent arc [5]. Therefore, high deposition rates and welding efficiencies are expected when SAW is applied [6]. Flux is defined by the American Welding Society (AWS) as a material used for preventing, dissolving, or facilitating the removal of oxides and other undesirable surface substances [7].

Flux serves essential functions in order to produce weldment with sound qualities. Most importantly, a flux must protect the metal from the atmosphere and stabilize the arc; other functions have been extensively documented, such as [3,4,8]:

• Provide a slag with a melting point lower than the metal.
• Provide a slag with proper viscosity and low density.
• Replenish the loss of metallic elements from the weld pool or micro-alloy WM via slag–metal reactions.
• Perform metallurgical refining operations, such as deoxidation, desulphurization, and dephosphorization.
• Reduce spatter and fumes during welding.

Section 1.1, Section 1.2, Section 1.3 are designed by the guidelines in previous study [9].

1.1. Research Gaps Based on Literature Review

The welding industry is constantly required to develop new fluxes or upgrade existing ones to meet the growing demands concerning SAW quality [10]. To address such a challenge, an understanding of SAW, especially in terms of thermodynamics, is needed [1]. Actually, the developments of flux design and thermodynamics have been promoting each other.

Some Review papers provide insight into the nature of fluxes subject to SAW. For example, Natalie et al. [3] summarized the physical and chemical behavior of welding fluxes, including flux design criteria, compositional control for the WM, electrochemical reactions in arc welding, slag detachability, etc. Liu et al. [2] documented the nature and behavior of fluxes used for fusion welding; they systematically generalized the function, classification, and possible application of steelmaking knowledge into welding metallurgy. Mitra et al. [11], on the other hand, systematically evaluated the droplet–reaction time theories and slag–metal reaction theories subject to fusion welding, and studied the importance of chemical reactions in the compositional control for WM.

It is well known that an understanding of welding thermodynamics is essential for flux design and optimization [4]. However, the development of welding thermodynamics and flux design has been pended for decades due to the lack of knowledge regarding thermodynamic knowledge under the high temperature of SAW, as high as 2000 °C. From the perspective of flux design for SAW, there have been few academic reviews concerning flux design since the 1990s. For instance, due to the lack of understanding of the physical and chemical properties of flux (slag), multicomponent fluxes are always designed on the basis of personal experience and random experiments [12]. In the field of commercial flux, design achievements are mainly displayed in the form of patents, and the interconnection between flux design and thermodynamics is not fully clarified and reviewed.

1.2. Research Questions and Intended Contribution of the Study

Due to the incomplete understanding of flux’s thermodynamic properties, a definition of the basicity index (BI) drawn from steelmaking has been proposed to identify the flux’s O potential [13,14,15,16]. Then, based on the BI model, Chai et al. [17,18,19] developed the slag–metal equilibrium model to predict the contents of Si and Mn in submerged arc welded metal. However, it should be pointed out that the BI and slag–metal equilibrium models are empirical in nature since there is a limited thermodynamic relationship between flux O potential and BI. The limitations of the BI and slag–metal equilibrium models have been discussed in our previous studies [4,13].

In recent years, a number of thermodynamic databases for multicomponent oxide and alloy systems have been developed by what has come to be known as the “Calphad technique” [20,21]. Although the effective temperature of SAW is as high as 2000 °C, under which the physical and chemical information of the flux (slag) remains scarce, the applicable thermodynamic models in the Calphad technique make it possible to obtain the thermodynamic data under high temperatures [21]. The gas–slag–metal equilibrium model has been developed recently by employing the Calphad technique [22]. It has been demonstrated that the gas–slag–metal equilibrium model is more feasible for aiding in the flux design and matching than the traditional BI and slag–metal equilibrium models [6,23]. Furthermore, one may get a better understanding of the SAW process by analyzing the thermodynamic data [14,24,25,26,27].

Considering the research gaps mentioned above, the study addressed the following research questions:

• How flux design and thermodynamics foster the development of each other.
• Further the flux design criteria and specification from the perspective of thermodynamics.
• The importance of Calphad technology and progressive thermodynamic databases in the flux design process.

1.3. Research Objectives

The present review has been undertaken to elaborate on the parallel development of flux design and welding thermodynamics subject to SAW. Typical fluxes designed at different stages are documented, and the corresponding design principle is evaluated from thermodynamic perspectives. Furthermore, the thermodynamic contributions of each flux to the understanding of the SAW process and welding metallurgy are evaluated. At last, the recent application of Calphad technology on flux design and matching is introduced.

2. Flux Classification

Flux is a granular material that primarily consists of oxides and CaF₂ [4]. The manufacturing method plays an important role in shaping the flux features. In this section, the flux classification methods are documented to detail the manufacturing methods and to introduce an important definition widely applied in the field of flux design, namely, flux basicity.

2.1. Manufacturing Methods

2.1.1. Fused Flux

The fused flux is manufactured by melting the raw materials in a furnace at 1500 °C or higher. The melt is stirred for homogenization and then solidified by water or a metal plate. At last, the solidified fragments are screened to a proper size range [2].

2.1.2. Bonded Flux

Raw materials for producing the bonded flux are dry mixed and then combined with an addition of potassium silicate or sodium silicate at approximately 300 °C or higher. The resulting mixture is then dried at a relatively low temperature and screened [3].

2.1.3. Agglomerated Flux

The agglomerated flux is similar to the bonded flux except that it is bonded at a temperature higher than 760 °C.

Table 1. Advantages and disadvantages of fused flux, bonded flux, and agglomerated flux [8].

Flux	Advantages	Disadvantages
Fused flux	Excellent homogeneity. Nonhygroscopic Recyclable	Inability to add deoxidizers and ferroalloys
Bonded flux	Permit the extensive use of deoxidizers and ferroalloys	Tendency to pick up moisture Require better protection during storage
Agglomerated flux

summarizes the advantages and disadvantages of fused flux, bonded flux, and agglomerated flux [8].

2.2. Basicity Assessment of SAW Flux

The most widely accepted BI was proposed by Tuliani et al. [16], as shown in Equation (1) (wt pct). The oxygen-free compound is CaF₂. The basic oxides include CaO, CaF₂, MgO, Na₂O, K₂O, MnO, and FeO, while the acid oxides include SiO₂, Al₂O₃, Cr₂O₃, TiO₂, and ZrO₂. Fluxes can be classified into three categories: acidic (BI < 1.0), neutral (1 ≤ BI < 1.2), and basic (BI ≥ 1.2) [2]. Tuliania et al. [16] have regressed the tendency of O level as a function of BI, as shown by Equation (1). Eagar [28] then removed CaF₂ from Equation (1) since he assumed that CaF₂ should be considered as a neural component. Generally, the predicted O content decreases with increasing BI and then reaches a constant [2]. From the empirical relationship between BI and WM O content, the flux’s O potential can be estimated, as shown in Figure 2 [16,28,29].

$$\mathrm{BI}=\frac{{\mathrm{CaO}+\mathrm{CaF}}_2{+\mathrm{MgO}+\mathrm{K}}_2{\mathrm{O}+\mathrm{Na}}_2{\mathrm{O}+\mathrm{Li}}_2\mathrm{O}+1/2(\mathrm{MnO}+\mathrm{FeO})}{{\mathrm{SiO}}_2{+1/2(\mathrm{Al}}_2{\mathrm{O}}_3{+\mathrm{TiO}}_2{+\mathrm{ZrO}}_2)}$$

(1)

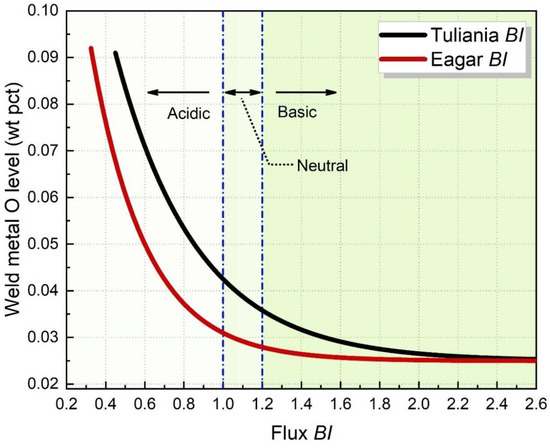

BI definition is a controversial subject. Much research has been performed in this area, but most of it has been empirical in nature [3]. Numbers of controversy centers around the BI definition subject to SAW and how different components in a flux contribute to the flux behavior [10]. Palm et al. [30] also pointed out that there is a lack of fundamental basis regarding the correlation between BI and flux O potential.

2.3. Workflow Methodology

Submerged arc welding is a metallurgical process with a temperature as high as 2000 °C, which puts forward techniques and scientific challenges for flux design. An understanding of the physicochemical properties of flux and slag, especially under high temperatures, is essential to optimize the flux formula.

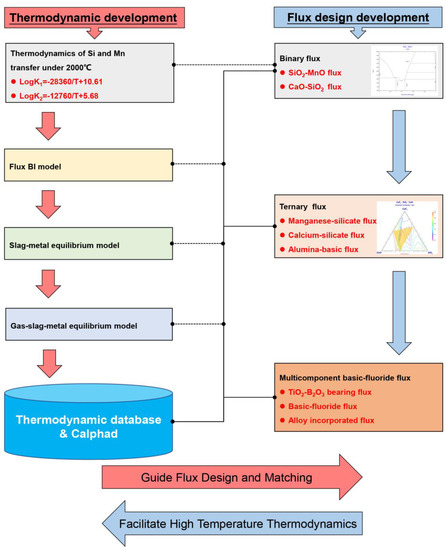

The overall flow diagram with respect to workflow methodology is plotted in Figure 3 for better readership. As shown in Figure 3, the development of the flux in submerged arc welding experiences three stages: the binary system, ternary system, and multicomponent system. Within this framework, the flux design stages have been documented and reviewed in detail. The design principles for fluxes are evaluated, and the limitations of each flux are elucidated. Furthermore, we explain and analyze the scientific significance of the designed fluxes upon the development of the welding metallurgy, especially in terms of the thermodynamic models developed to aid in the flux design. As last, the application of Calphad technology in welding metallurgy has been summarized.

3. Binary Flux

The early fluxes employed for SAW were acid in formulation and designed on the knowledge acquired in steelmaking [31,32]. During this period, designers primarily focused on the flux capability to perform the submerging function with high currents and facilitate high deposition rates.

3.1. Binary SiO₂–MnO Flux

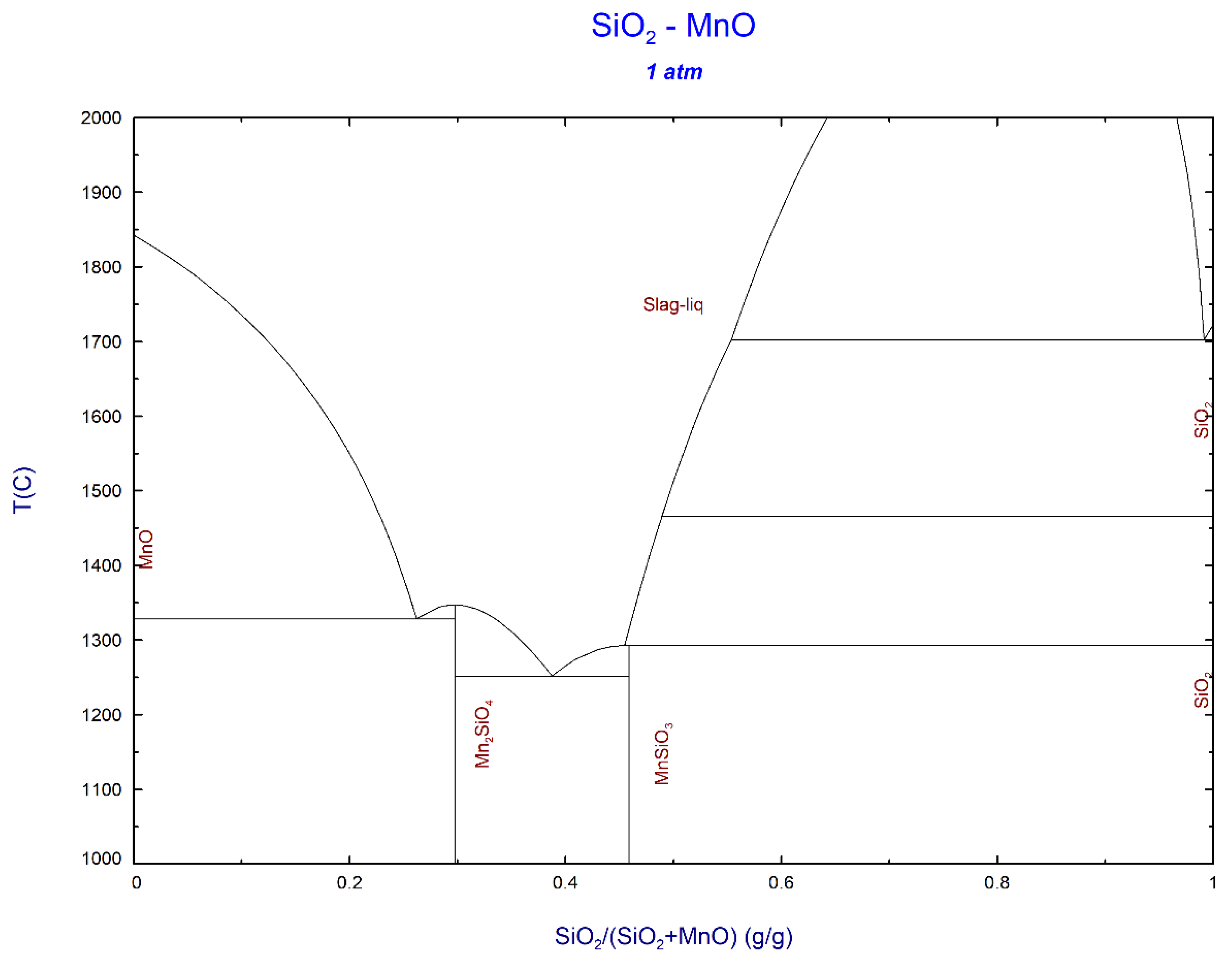

In the beginning, the manganese–silicate flux (flux with SiO₂ and MnO as major components) was designed from the MnO–SiO₂ phase diagram (plotted by Phase Diagram module in FactSage, similarly hereinafter [20]) enjoying its low melting eutectic (38 wt pct SiO₂ at 1245 °C), as shown in Figure 4 [20].

SiO₂–MnO flux is regarded as acidic in nature due to the high level of SiO₂ incorporated. The WM produced by manganese-silicate flux always possess a high O content. SiO₂–MnO flux also favors the transfer of Mn and Si to the WM. Such flux is used for joining steels where no low-temperature toughness is needed. The thermodynamic analysis demonstrates that SiO₂ and MnO are the flux components with instabilities as they tend to decompose and release O₂ via Reactions (2) and (3), thereby improving the overall flux O potential [28,33,34,35,36].

$${(\mathrm{SiO}}_2)=\mathrm{SiO}(\mathrm{g})+\frac{1}{2}{\mathrm{O}}_2\left(\mathrm{g}\right)$$

(2)

$$\left(\mathrm{MnO}\right)=\mathrm{Mn}\left(\mathrm{g}\right)+\frac{1}{2}{\mathrm{O}}_2\left(\mathrm{g}\right)$$

(3)

3.2. Binary CaO–SiO₂ Flux

Redundant O causes a number of problems for the WM. In order to improve the mechanical properties of the weld, investigators were searching for effective methods to reduce the flux O potential. Binary CaO–SiO₂ flux is the prototype for calcium–silicate flux (flux with SiO₂ and CaO as major components). The flux design philosophy was poised to replace MnO with CaO (the oxide with lower O potential than MnO) by referring the knowledge from steelmaking [31,32].

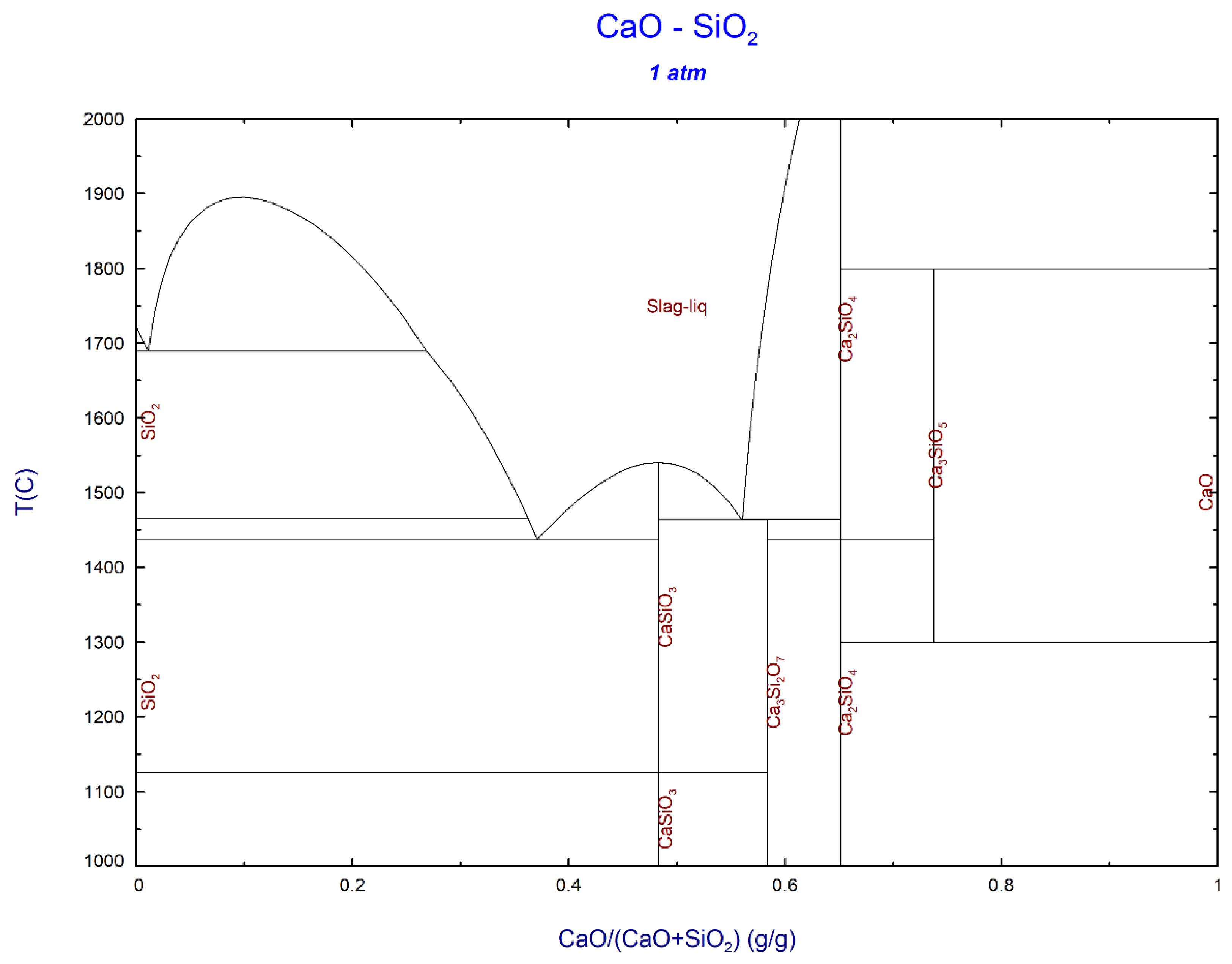

As shown in Figure 5, the liquid zone of CaO–SiO₂ flux is much narrower than that of SiO₂–MnO flux, so the design interval for CaO–SiO₂ flux is decreased [20]. Nonetheless, binary CaO–SiO₂ flux fostered the development of research on thermodynamics for SAW; that is, through systematic welding experiments, investigators determined the equilibrium constants of Reaction (4) (K₁) and Reaction (5) (K₂) up to 2000 °C, which dominate the transfer of Si and Mn at the slag–metal interface [37,38]. Later on, Equations (6) and (7) provide the foundation for the development of the well-known slag–metal equilibrium model by the Massachusetts Institute of Technology group, which will be discussed in Section 7 [17,18,19].

$${(\mathrm{SiO}}_2)=[\mathrm{Si}]+2[\mathrm{O}]$$

(4)

$$\left(\mathrm{MnO}\right)=\left[\mathrm{Mn}\right]+\left[\mathrm{O}\right]$$

(5)

$$\log K_1=-\frac{28360}{T}+10.61$$

(6)

$$\log K_2=-\frac{12760}{T}+5.68$$

(7)

4. Ternary Flux

The most imperative problems for binary flux are excessive O and Si transfer from flux due to the mass of SiO₂ incorporated into flux. Benefiting from the development of thermodynamics, investigators started trying out the design of ternary fluxes.

4.1. Ternary Manganese-Silicate Flux

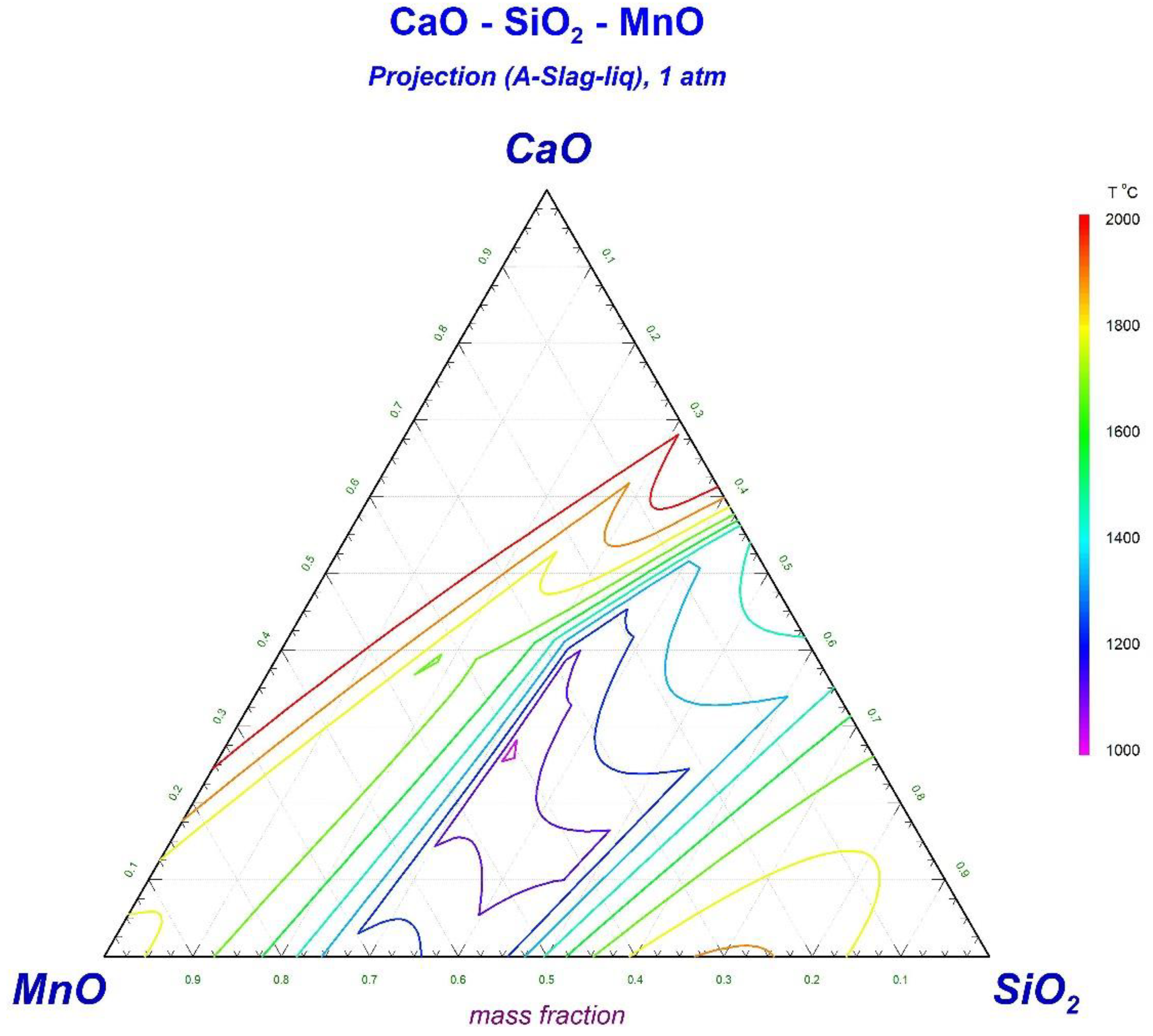

One major disadvantage of SiO₂–MnO flux is the excessive O uptake from the flux. Therefore, investigators started to replace SiO₂ and MnO with other components. By referring to ternary phase diagrams, Burck et al. [39] designed manganese–silicate fluxes of FeO–SiO₂–MnO, CaO–SiO₂–MnO, and CaF₂–SiO₂–MnO systems; they checked the flux melting point from the isotherm projection graph (such as Figure 6 for CaF₂–SiO₂–MnO system), measured the viscosity of the melts, performed bead-on-plate welding, and evaluated the transfer behaviors of O, Si, and Mn [20].

Investigators revealed that FeO is a component with high O potential [36,40]. CaO, on the other hand, decreases the flux O potential by lowering the SiO₂ activity in slag [6]. Within the study of Burck et al. [39], it was revealed that CaF₂ could effectively reduce the flux O potential due to the fact that:

• CaF₂ is the flux component without O.
• The chemical interaction between CaF₂ and SiO₂ decreases the SiO₂ activity in the slag via Reaction (8).

$${2(\mathrm{CaF}}_2{)+(\mathrm{SiO}}_2{)=2(\mathrm{CaO})+\mathrm{SiF}}_4(\mathrm{g})$$

(8)

Subsequently, Chaveriat et al. [41] investigated the mechanical properties of the WMs processed by FeO–SiO₂–MnO, CaO–SiO₂–MnO, and CaF₂–SiO₂–MnO fluxes (developed on the binary SiO₂–MnO fluxes), and revealed that CaF₂ helped to improve the impact toughness of the weldment by decreasing the flux O potential. Other fluxes of TiO₂–SiO₂–MnO, Al₂O₃–SiO₂–MnO, and MgO–SiO₂–MnO systems were also investigated, but none of them provide proper flux O potentials [10].

4.2. Ternary Calcium–Silicate Flux

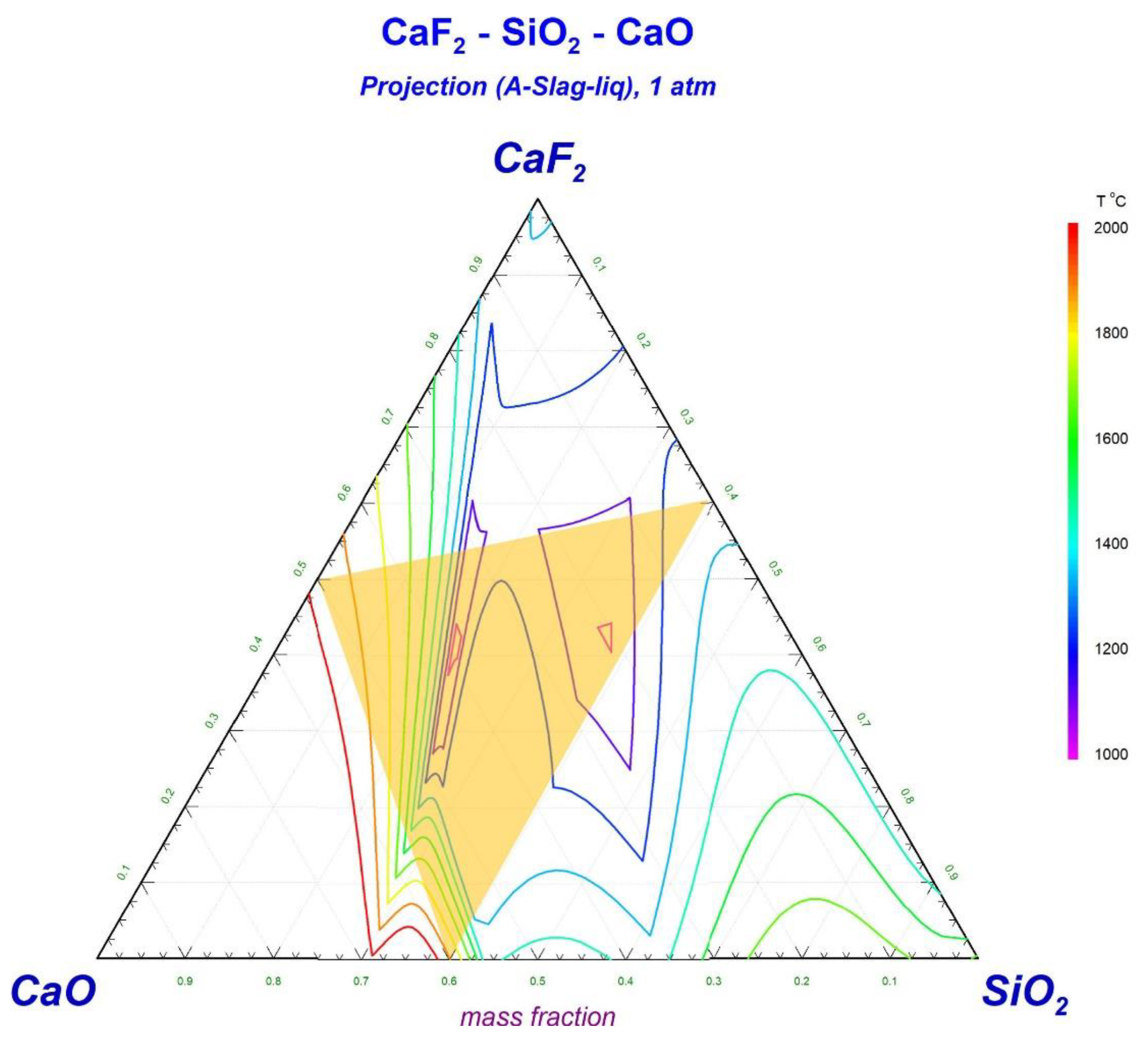

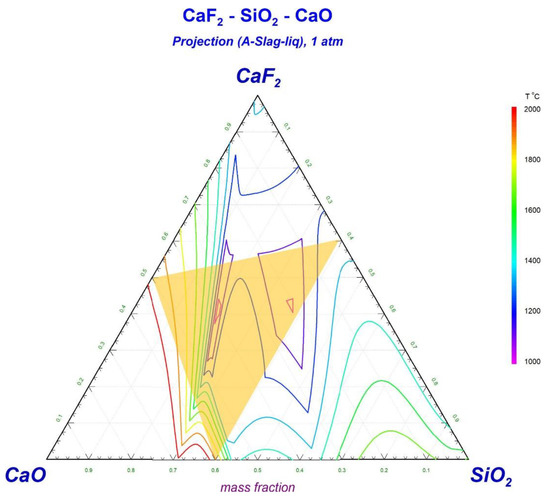

The typical commercial calcium–silicate flux in the early stage is SiO₂–CaO–MgO flux, particularly suitable for high-current SAW applications [12]. Then, CaF₂ addition was found to be beneficial in improving the toughness [42]. An important calcium–silicate flux is the CaF₂–SiO₂–CaO flux. Dallam et al. [42] designed and manufactured CaF₂–SiO₂–CaO fluxes with 28 formulas based on the isotherm projection graph (see the yellow shaded area in Figure 7) [20]. It was concluded that such fluxes were capable of producing good-quality, high-strength, low-alloy (HSLA) steel weldments with O content spanning from 100 to 460 ppm. The optimum WM O was found to be from 200 to 300 ppm, corresponding to a microstructure of approximately 90 pct acicular ferrite (AF). Before that, it was believed that the higher the basicity, the cleaner the WM concerning nonmetallic inclusions, and thereby higher toughness [16]. The conclusion drawn from the application of CaF₂–SiO₂–CaO flux revised the above hypothesis: A moderate O potential is anticipated for flux design since low O content means that there would be insufficient inclusions to promote the formation of AF [4].

4.3. Ternary Alumina–Basic Flux

Si is an essential element in the WM that should be carefully controlled since excessive Si tends to reduce both elongation and toughness [4,19]. Despite the low O potential obtained in CaF₂–SiO₂–CaO flux, the SiO₂ favors the transfer of Si to the WM [42]. With the increasing knowledge of slag structure, investigators realized that Al₂O₃, which may act as a slag network-builder, could substitute the SiO₂ in flux [43,44,45]. Lau et al. [33,34] designed ternary alumina–basic fluxes of SiO₂–CaO–Al₂O₃ and Al₂O₃–CaO–MnO systems. The ensuing experimental results indicated that the level of Si in the WM was significantly decreased [33,34]. Nowadays, alumina–basic fluxes (the flux with CaO and Al₂O₃ as major components) are typical materials when high mechanical performances are required [2].

Within the studies by Lau et al. [33,34], the source of O in SAW was also evaluated. Additionally, Lau et al. [33,34] tried to discuss the gas–slag–metal reactions when alumina–basic flux was applied. One important conclusion drawn by Lau et al. [33,34] was that the flux decomposition and O₂ pressure level within the arc should be considered as major sources of O contamination for the submerged arc-welded metal. Before that, only the relationship between slag and flux O potential was considered [28]. Lau et al. [33,34], on the other hand, illustrated the importance of oxide decomposition on flux O potential.

5. Multicomponent Flux

5.1. Multicomponent TiO₂–B₂O₃ Bearing Flux

Binary and ternary fluxes generally focused on the tuning of O, Si, and Mn contents subject to submerged arc welded metal. With the development of welding metallurgy and growing demand in the arctic regions for large, welded structures, investigators began trying to develop multicomponent fluxes due to the fact that:

Investigators revealed that the simultaneous addition of Ti and B into the submerged arc welded metal beneficially improved both strength and toughness. Recognizing the benefits of Ti and B for the WM, fluxes with the following characteristics were developed [46]:

• Good weldability, such as slag detachability and arc stability.
• Obtain Ti and B in WM by the reduction of TiO₂ and B₂O₃ in the flux.

Kohno et al. [46] varied the levels of components until the best performance of the flux and WM was obtained. They reported the optimal flux system, with one being the TiO₂–BaO–CaO–CaF₂–Al₂O₃–SiO₂–B₂O₃ system and the other being the TiO₂–MgO–CaO–CaF₂–Al₂O₃–SiO₂ system. Kohno et al. [46] have put forward serval recommendations for the design of multicomponent flux:

• The precipitation of the chemical compound with a high melting point would deteriorate the slag detachability. For instance, when TiO₂ was the main component, it was necessary to substitute BaO or MgO for CaO to eliminate the precipitation of perovskite (CaTiO₃).
• The arc stability is important for the reduction of N in the weld pool.
• The transfer efficiency of Ti from flux (slag) to the WM is difficult to control.

5.2. Multicomponent Basic–Fluoride Flux

In recent decades, basic–fluoride flux has been developed due to its low O potential. In terms of basic–fluoride flux, CaF₂ acts as the major component, SiO₂ or Al₂O₃ acts as the network builder, with other oxides, such as MgO, CaO, TiO₂, etc., making up the remainder. In order to save energy, most basic–fluoride fluxes are manufactured via agglomeration. Despite possible moisture pickup when basic–fluoride flux is employed, the moisture can be removed via Reaction (9) during the welding process.

$${(\mathrm{CaF}}_2{)+(\mathrm{H}}_2\mathrm{O})=(\mathrm{CaO})+2\mathrm{HF}(\mathrm{g})$$

(9)

From the perspective of microalloying ability, a shortcoming of the basic–fluoride flux is the reduction of the alloying element from the formation of the fluoride gases [22].

5.3. Recent Development Multicomponent Flux

As was concluded by Mitra et al. [11,47,48], the transfer of alloy elements is governed by Reactions (10) and (11) at the slag–metal interface.

$$x[\mathrm{M}]+y[\mathrm{O}]=({\mathrm{M}}_x{\mathrm{O}}_y)$$

(10)

$$x[\mathrm{M}]+y(\mathrm{FeO})=({\mathrm{M}}_x{\mathrm{O}}_y)+y\mathrm{Fe}$$

(11)

According to Reactions (10) and (11), the transfer of alloying element (M) is controlled by the activity of M_xO_y, O content, and the activity of FeO at the slag–metal interface [11,47,48]. Indacochea et al. [40] and Natalie et al. [3] concluded that the level of FeO activity was proportional to the flux O potential. Considering that flux contributes a major source of O for the weld pool, it is concluded that the higher the flux O potential, the lower the element transfer of M from flux to the WM [22].

Another essential factor dictating the transfer efficiency of alloying element from flux to the WM is the activity of the oxide in the flux (slag). Recently, Zhang et al. [13,22] and Coetsee et al. [14,49] demonstrated the chemical interactions of CaF₂ and oxides, especially when basic–fluoride flux is applied. Therefore, the reduction in the transfer efficiency of the alloying elements due to the formation of fluoride gases should be considered when multicomponent basic–fluoride fluxes are designed, as mentioned in Section 5.2. Recently, a series of fluxes have been designed by Coetsee et al. [24,25,26,50] to improve the transfer efficiency of the alloying element from flux to the WM.

6. Flux Specification

Flux specification becomes more and more essential nowadays since it dictates how to match welding materials (BM, electrode, and flux) subject to SAW. Herein, two important technical parameters are introduced: Δ value and neutral point.

6.1. Δ Value

It is accepted that the WM composition is made up of the contributions from the electrode, flux, and BM [2,3]. The nominal composition can be calculated considering just the dilution effect of the electrode and BM, as shown in Equation (12).

$$\mathrm{nominal} \mathrm{comp}.={\mathrm{dilution}}_{\mathrm{BM}}\times \mathrm{BM} \mathrm{comp}.={\mathrm{dilution}}_{\mathrm{Electrode}}\times \mathrm{electrode} \mathrm{comp}.$$

(12)

The extent of loss or transfer of a specific element can be evaluated by a Δ quantity. A positive Δ indicates an elemental transfer from the flux to the WM, whereas a negative Δ suggests an elemental loss from the weld pool [2,3]. If the Δ changes rapidly with the flux formula, it will be difficult to maintain the WM composition with variations in the flux composition [11,47,48]. A flux with a Δ that maintains a constant value can be attained without altering the desired WM composition by selecting the proper electrode/flux/BM combination.

6.2. Neutral Point

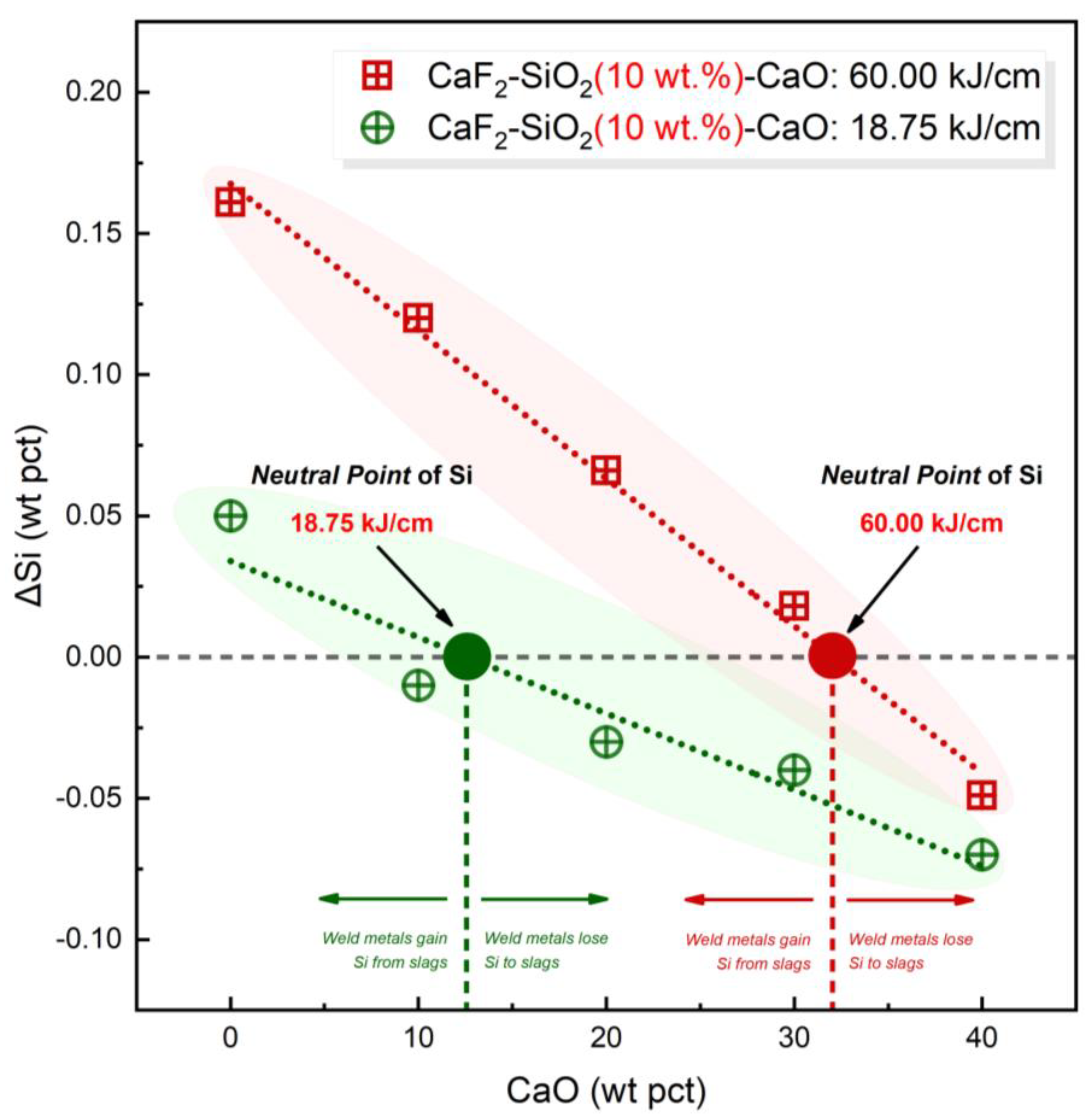

As is discussed in Section 6.1, it is desirable to fine-tune the WM composition smoothly, especially the contents of the alloying elements. To describe the behavior of elemental transfer between flux (slag) and WM, Chai and Eagar et al. [17,18,19] have proposed a “Neutral Point” (NP) definition to locate the flux formula when no transfer of a certain element between the flux and WM occurs [5,51]. Based on the slag–metal equilibrium consideration, Mitra et al. [11,47,48,52,53] concluded that the NP is only affected by the flux formula. This conclusion is important since it is the basis for the Mitra kinetic model. However, by comparing the Δ values of CaF₂–SiO₂–CaO fluxes, a bias of NP has been captured when the heat input increases from 20 to 60 kJ/cm, as shown in Figure 8 [42,51]. Therefore, the interconnection between NP and SAW parameters may be revised to make it applicable to high heat-input SAW, which is confirmed in another study [54].

7. Application of Calphad Technology on Flux Design and Matching

SAW is a process with a temperature of as high as nearly 2000 °C. Due to incomplete understanding of flux thermodynamic properties, a high number of experiments are needed on flux design and matching, thereby consuming significant resources. FactSage is an integrated database of computing systems consisting of information, database, calculation, and manipulation modules that access various pure substances and solution databases [20,21]. Herein, the recent applications of FactSage on flux design are elucidated.

7.1. Viscosity Module

The viscosity of flux is viewed as a critical requirement for producing sound welds [3]. For example, weld pool refining is facilitated by a fluid flux, as greater fluidity promotes a kinetic driving force for chemical reactions. Further, a flux must possess a high enough viscosity to protect the metal from the atmosphere. However, if the flux viscosity is too high, undercutting of the weld bead may occur. Jackson [8] investigated the viscosity of the fluxes and suggested that the viscosities should be controlled from 0.2 to 0.7 Pa.s at 1400 °C. The temperature of SAW is as high as 2000 °C, under which the slag viscosity is unmeasurable. Therefore, the conclusion drawn by Jackson [8] was rendered empirical since no fundamental formulations were developed between flux viscosity and the quality of the weld.

7.2. Phase Diagram Module

The Phase Diagram module is applied to plot types of phase diagrams for systems containing stoichiometric phases, solution phases, and any number of system components [3]. By using this module, one can ensure that the flux melting point is lower than the metal to be joined [55].

7.3. Equilib Module

Equilib calculates the equilibria for multicomponent systems [3]. FactPS, FToxid, and FSstel are essential databases for thermodynamic simulation of the SAW process [6,13,14,24,25]. The FactPS database contains data from standard compilations. The FToxid database contains data for pure oxides and oxide solutions. The oxyfluoride systems were also incorporated into the FToxid database to facilitate the equilibrium calculation when CaF₂-bearing fluxes are applied. The FSstel database is intended to provide a sound basis for calculations covering a wide range of steelmaking processes.

7.3.1. The Slag–Metal Equilibrium Model

The slag–metal equilibrium model was developed by Chai et al. [17,18,19], with the following assumptions.

• The effective temperature of chemical reactions in SAW is set as 2000 °C.
• An empirical relationship between the BI and the O content of the WM is known to exist.
• The activity data of steelmaking slag may be extrapolated to be from 1600 to 2000 °C by using the regular solution model.
• The interaction items are neglected.
• The primary reactions of interest are those involving Si, Mn, and O.

Recently, Zhang and Coetsee et al. [22] performed a slag–metal equilibrium calculation by applying the Equilib module. It was revealed that the Equilib module is capable of compensating for the limitations of the slag–metal equilibrium model subject to the following aspects:

• The activities of SiO₂ and MnO are calculable at various temperatures.
• The interaction items are fully considered.
• Except for Si, Mn, and O, all contents of elements in the metal can be predicted.

7.3.2. The Gas–Slag–Metal Equilibrium Model

Previous investigations have demonstrated that the sole consideration of slag–metal reactions may increase the prediction error, especially when CaF₂-rich fluxes are applied [13,14,22]. For instance, Lau et al. [33,34] concluded that the flux O potential (O content in submerged arc welded metal) is governed by the partial pressure of O₂ in the arc cavity. Chai et al. [36] designed several binary CaF₂-oxide fluxes and found that the decomposition level of oxide dictates the O uptake from the flux.

Recently, the physical phenomena have been fully reviewed, based on which Zhang et al. [56] established the model of gas–slag–metal interface subject to the SAW process [1]. Then, the gas–slag–metal equilibrium model has been proposed to improve the prediction accuracy [22]:

• An equilibrium temperature in SAW of 2000 °C was set.
• Nominal compositions were used as the input metal chemistries.

In further studies, we assessed the capabilities of the slag–metal and gas–slag–metal equilibrium models to predict the chemistries in submerged arc welded metal [13,22]. It was revealed that the slag–metal equilibrium model may underestimate the flux O potential since the impact of O₂ is not considered [13,14,22]. Additionally, the contents of alloying elements in the WM may be overestimated because the loss of elements from the gas formation is not considered in the slag–metal equilibrium model [13,14,22].

7.3.3. Matching of Flux, BM, and the Electrode

Each country processes a number of standards (most of them are different in detail) on the matching strategies of the flux, BM, and electrode subject to SAW. The significance of SAW metallurgy is to model these complex matching standards in another way in lieu of referring to the various standards in different countries. As mentioned previously, the nominal composition is defined to determine the compositional contribution from BM and the electrode, and the Δ value is defined to quantify the compositional contribution from the flux. Then, a Neutral Point definition is proposed to describe the flux formula where no transfer of alloying element between the flux and WM occurs. As such, the above parameters could be employed to establish the matching strategy of flux, electrode, and BM.

Recently, Zhang et al. [55] proposed a thermodynamic method to facilitate flux design and to aid in the development of the matching strategy instead of performing experiments.

8. Concluding Remarks and Further Research

The review above has demonstrated that thermodynamics is vital for the development of the flux design, while the ongoing flux design requirement further fosters the research in thermodynamics subject to high temperatures. From the perspective of technology, the measurement of thermodynamic data under 2000 °C is impossible [4]. As such, one needs the application of certain models, such as the Modified Quasichemical Model, Cell Model, and Associate Model, to obtain thermodynamic data even if the temperature is higher than for steelmaking [21]. Therefore, to further improve the thermodynamic calculation accuracy, the development of the thermodynamic data under high temperatures is anticipated.

Then, a significant feature of SAW concerns the chemical interaction between plasma and the alloy element. For instance, it has been extensively established that the element loss of Mn is favored during the SAW process, and the sole consideration of thermodynamic equilibrium is insufficient to explain such a loss. Therefore, a deeper understanding of the interconnection between plasma and welding consumables is required.

It should also be pointed out that, as was concluded by Mitra et al. [11,47,48], the welding parameters are kinetic factors for SAW in nature and are subject to flux/electrode combinations with comprehensive issues, including both thermodynamic and kinetic knowledge. We will review the kinetic subjects on SAW in our coming work.

The development of new fluxes for submerged arc welding is ongoing. The present study provides a revealing insight into the flux design at various stages from the thermodynamic perspective: The flux design philosophy regarding binary, ternary, and multicomponent systems has been systematically reviewed. The contribution of each flux system to the development of welding thermodynamics and technology is documented. The Calphad technology is introduced to facilitate the flux design, flux selection, and the matching of welding consumables. Based on the critical outcome, the following conclusions can be drawn:

• Binary fluxes were mainly applied in the early trials of SAW, primarily focused on the flux capability of performing the submerging function with high currents and facilitating high deposition rates. Despite several limitations, the binary fluxes promote the development of welding thermodynamics, especially in terms of the transfer of Si and Mn mechanisms at the slag–metal interface.
• Ternary fluxes were developed based on binary fluxes benefiting from deeper understanding of thermodynamics. Within these stages, various types of fluxes, such as manganese–silicate fluxes, calcium–silicate fluxes, and alumina–basic fluxes, have been developed to fulfill different SAW conditions. With the development of welding metallurgy and growing demand in the arctic regions for large, welded structures, investigators began trying to develop multicomponent fluxes.
• The Calphad technology and progressive thermodynamic databases facilitate the flux design process and strengthen the understanding of the SAW process. By using Calphad technology, the gas–slag–metal equilibrium model has been developed, which processes stronger universality than the traditional BI slag–metal equilibrium models.
• Then, the Viscosity module, Phase Diagram module, and Equilib module are able to aid in the flux design so that some random experiments regarding flux design can be replaced, thereby saving human and material resources.
