Effect of Special-Shaped Nozzle Structure on Water Jet Performance
Abstract
:1. Introduction
2. Experimental Equipment and Method

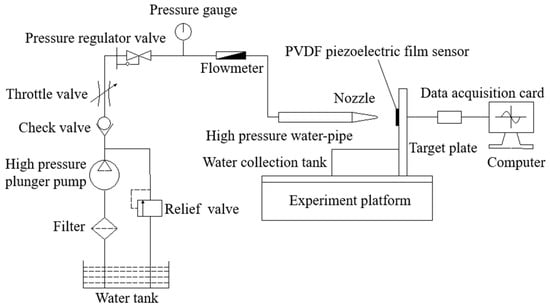

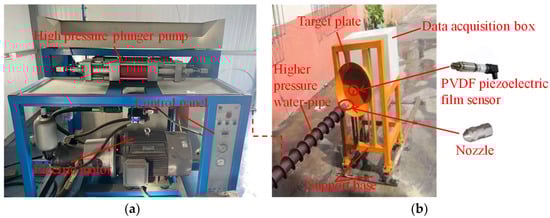

2.1. Experimental Equipment
2.2. Experimental Method
3. Experimental Results and Analysis
3.1. Effect of Special-Shaped Nozzle on Water Jet Impact Pressure

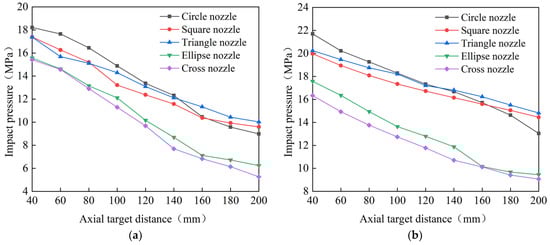

3.1.1. Axial Variation Characteristics of the Impact Pressure at the Center of the Water Jet

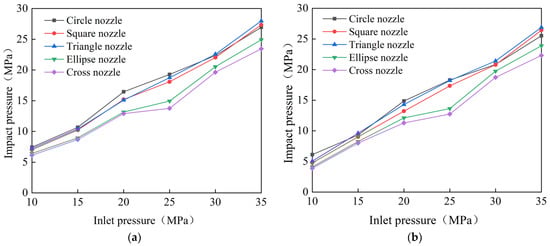

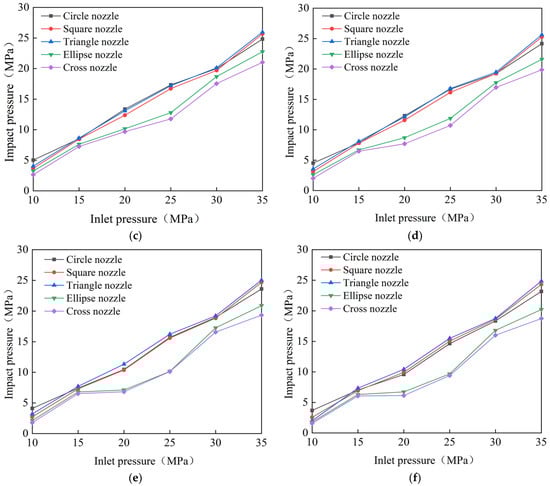

3.1.2. Variation Characteristics of Center Impact Pressure with Inlet Pressure of the Special-Shaped Nozzle
3.2. Effect of Special-Shaped Nozzle Structure on Water Jet Flow
4. Numerical Simulation and Analysis
4.1. Construction of Numerical Model

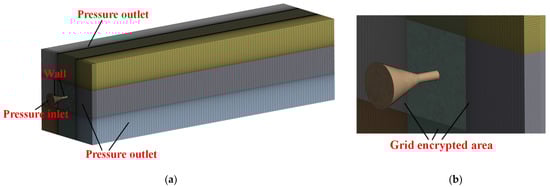

4.2. Model Meshing and Independence Verification
4.3. Resultsand Discussion

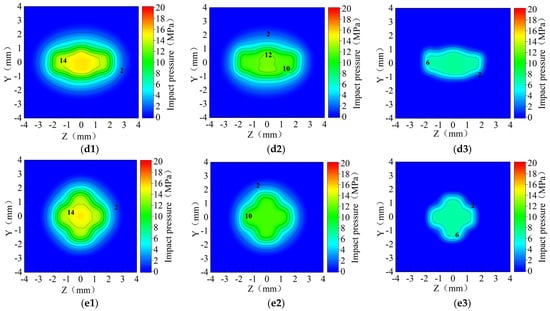

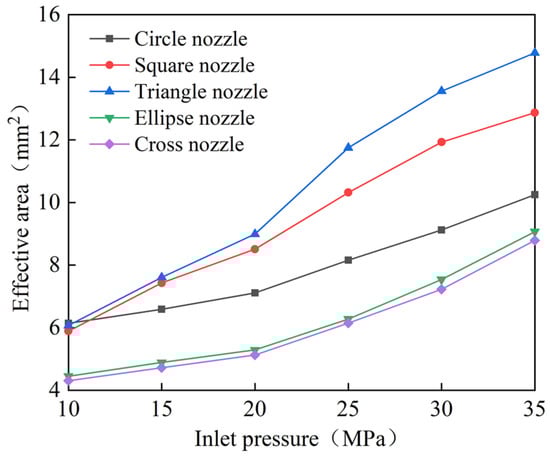

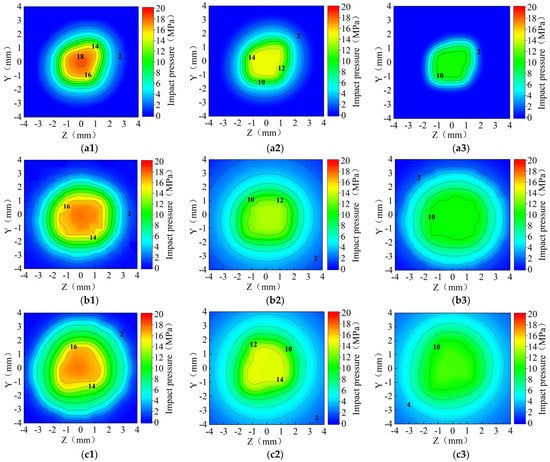

4.3.1. Effect of Special-Shaped Nozzle Structure on Water Jet Impact Area

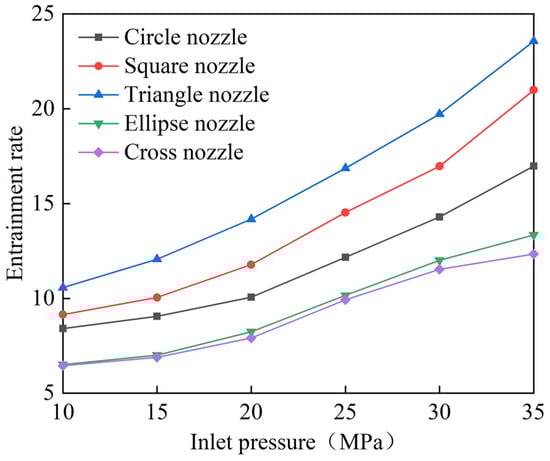

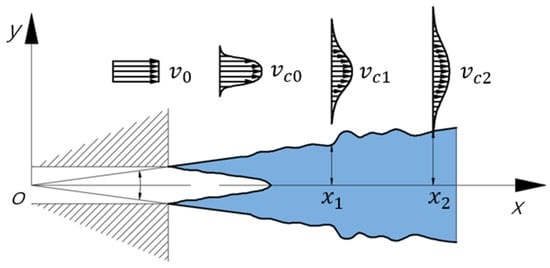

4.3.2. Effect of Special-Shaped Nozzle Structure on Jet Entrainment Rate
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Lu, Y.Y.; Fei, H.; Liu, X.; Ao, X. On the failure pattern of sandstone impacted by high-velocity water jet. Int. J. Impact. Eng. 2015, 76, 67–74. [Google Scholar] [CrossRef]
- Shen, Z.H. Water Jet Theory and Technology; China University of Petroleum Press: Dongying, China, 1998. [Google Scholar]
- Liu, C.; Xia, B.; Lu, Y. Coalbed methane extraction using the self-oscillating water jetslotting method. Energies 2018, 11, 897. [Google Scholar] [CrossRef] [Green Version]
- Liu, Y.; Zhang, T.; Liu, X. Analysis of the stress wave effect during coal breakage by ahigh-pressure abrasive air jet. Adv. Mech. Eng. 2018, 10, 1687814018782302. [Google Scholar] [CrossRef]
- Wen, J.W.; Chen, C. Optimizing the structure of the straight cone nozzle and the parameters of borehole hydraulic mining for huadian oil s`hale based on Experimental Research. Energies 2017, 10, 2021. [Google Scholar] [CrossRef] [Green Version]
- Zheng, H.X.; Luo, Y.; Zhang, B.Z.; Jiang, W.C.; Tu, S.T. A new calculation formula to describe the dynamic pressure of water jet peening with elliptical nozzle for high-efficiency treatment. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2022, 236, 5238–5256. [Google Scholar] [CrossRef]
- Huang, F.; Mi, J.; Li, D.; Wang, R. Impinging performance of high-pressure water jets emitting from different nozzle orifice shapes. Geofluids 2020, 4, 1–14. [Google Scholar] [CrossRef]
- Hong, C.Y.; Yang, R.Y.; Huang, Z.W.; Liu, W.; Chen, J.X.; Cong, R.C. Experimental investigation on coal-breaakage performances by abrasive nitrogen-gas jet with a conical nozzle. Int. J. Rock. Mech. Min. 2021, 142, 104781. [Google Scholar] [CrossRef]
- Liu, Y.; Zhang, J.; Wei, J.; Wang, C.; Cui, J. Impact pressure distribution of an sc-co2 jet used in rock breakage. Geomech. Geophys. Geo. 2022, 8, 27. [Google Scholar] [CrossRef]
- Rouly, E.; Warkentin, A.; Bauer, R.J. Design and testing of low-divergence elliptical-jet nozzles. J. Mech. Sci. Technol. 2015, 29, 1993–2002. [Google Scholar] [CrossRef]
- Rouly, E.; Bauer, R.J.; Warkentin, A. An investigation into the effect of nozzle shape and jet pressurein profile creepfeed grinding. Proc. Inst. Mech. Eng. Part B-J. Eng. Manuf. 2015, 231, 1116–1130. [Google Scholar] [CrossRef]
- Rahman, M.S.; Tay, G.F.K.; Tachie, M.F. Effects of nozzle geometry on turbulent characteristics and structure of surface attaching jets. Appl. Sci. Res. 2019, 103, 797–825. [Google Scholar] [CrossRef]
- Huang, F.; Li, S.; Zhao, Y.; Liu, Y. Study on the lateral jetting range during an arc-curved jet impacting nonplanar solid surfaces. J. Fluid. Eng. 2018, 140, 101201. [Google Scholar] [CrossRef]
- Wen, J.W.; Chen, C.; Qi, Z.W.; Campos, U.; Pei, X.J. Bionic optimum design of straight cone nozzle and the effectiveness evaluation of reducing fluid resistance. J. Braz.Soc. Mech.Sci. 2019, 41, 358–369. [Google Scholar] [CrossRef]
- Yang, M.G.; Xiao, S.N.; Kang, C.; Wan, Y.L. Effect of geometrical parameters on submerged cavitation jet discharged from profiled central-body nozzle. Chin. J. Mech. Eng. 2013, 26, 476–482. [Google Scholar] [CrossRef]
- Song, Y.; Han, D.; Si, Z.t.; Zheng, M.G. Research on jet flow and entrainment characteristics of petal nozzle. Mach. Bui. Auto. 2020, 49, 16–20. [Google Scholar] [CrossRef]
- He, X.T. Numerical Simulation and Experimental Research on Self-Excited Oscillation Pulsed Nozzle of Different Nozzle Shape. Ph.D. Thesis, Hunan University of Technology, Zhuzhou, China, 2014. [Google Scholar] [CrossRef]
- Chen, R.; Li, H.; Wang, J.; Guo, X. Effects of pressure and nozzle size on the spray characteristics of low-pressure rotating sprinklers. Water 2020, 12, 2904. [Google Scholar] [CrossRef]
- Cho, Y.; Kim, S.; Lim, H.; Choi, S.; Kim, M. Experimental study of electrostatic spray modes of high-flowrate water with horizontal nozzle. J. Mech. Sci. Technol. 2019, 33, 4563–4572. [Google Scholar] [CrossRef]
- Liu, Y.; Wei, J.; Ren, T.; Lu, Z. Experimental study of flow field structure of interrupted pulsed water jet and breakage of hard rock. Int. J. Rock. Min. 2015, 78, 253–261. [Google Scholar] [CrossRef]
- Zuo, H.N.; Bai, L.; Zhou, J.R.; Cai, S.P. Visualization research on the internal flow field of non-circle nozzle. J. Hunan. Univ. T. 2013, 27, 43–47. [Google Scholar] [CrossRef]
- Chen, L.H.; Cheng, M.Z.; Cai, Y.; Guo, L.W.; Gao, D.R. Design and optimization of high-pressure water jet for coal breaking and punching nozzle considering structural parameter interaction. Machines 2022, 10, 60. [Google Scholar] [CrossRef]
- Tang, S.N.; Zhu, Y.; Yuan, S.Q. Intelligent fault diagnosis of hydraulic piston pump based on deep learning and bayesian optimization. ISA Trans. 2022, 129, 555–563. [Google Scholar] [CrossRef]
- Wen, J.W.; Qi, Z.W.; Seyed, S.B.; Pei, X.J.; Tom, I. Research on the structures and hydraulic performances of the typical direct jet nozzles for water jet technology. J. Braz. Soc. Mech. Sci. 2019, 41, 570. [Google Scholar] [CrossRef]
- Huang, F.; Li, S.; Zhao, Y.; Liu, Y. A numerical study on the transient impulsive pressure of a water jet impacting nonplanar solid surfaces. J. Mech. Sci. Technol. 2018, 32, 4209–4221. [Google Scholar] [CrossRef]
- Chen, L.H.; Cheng, M.; Cai, Y.; Guo, L.; Gao, D. Multi−objective collaborative optimization design of key structural parameters for coal breaking and punching nozzle. Processes 2022, 10, 1036. [Google Scholar] [CrossRef]
- Xi, B.; Wang, C.; Xi, W.; Liu, Y.; Wang, H.; Yang, Y. Experimental investigation on the water hammer characteristic of stalling fluid in eccentric casing-tubing annulus. Energy 2022, 253, 124113. [Google Scholar] [CrossRef]
- Hıra, O.; Yücedağ, S.; Samankan, S. Numerical and experimental analysis of optimal nozzle dimensions for FDM printers. Prog. Addit. Manuf. 2022, 7, 823–838. [Google Scholar] [CrossRef]
- Tang, S.N.; Zhu, Y.; Yuan, S.Q. A novel adaptive convolutional neural network for fault diagnosis of hydraulic piston pump with acoustic images. Adv. Eng. Inform. 2022, 52, 101554. [Google Scholar] [CrossRef]
- Zhu, Y.; Li, G.P.; Tang, S.N.; Wang, R.; Su, H.; Wang, C. Acoustic signal-based fault detection of hydraulic piston pump using a particle swarm optimization enhancement CNN. Appl. Acoust. 2022, 192, 108718. [Google Scholar] [CrossRef]
- Chen, B.; Gao, D.R.; Li, Y.B. Experimental analysis of spray behavior and lubrication performance under twin-fluid atomization–ScienceDirect. J. Manuf. Processe 2021, 61, 561–573. [Google Scholar] [CrossRef]
- Zhang, D.; Wang, H.; Liu, J.; Wang, C.; Ge, J.; Zhu, Y.; Chen, X.; Hu, B. Flow characteristics of oblique submerged impinging jet at various impinging heights. J. Mar. Sci. Eng. 2022, 10, 399. [Google Scholar] [CrossRef]
- Tang, S.N.; Zhu, Y.; Yuan, S.Q. Intelligent fault identification of hydraulic pump using deep adaptive normalized CNN and synchrosqueezed wavelet transform. Reliab. Eng. Syst. Safe. 2022, 224, 108560. [Google Scholar] [CrossRef]
- Azad, M.; Quinn, W.R.; Groulx, D. Mixing in turbulent free jets issuing from isosceles triangular orifices with different apex angles. Exp. Therm. Fluid. Sci. 2012, 39, 237–251. [Google Scholar] [CrossRef]
- Tang, S.N.; Zhu, Y.; Yuan, S.Q. An improved convolutional neural network with an adaptable learning rate towards multi-signal fault diagnosis of hydraulic piston pump. Adv. Eng. Inform. 2021, 50, 101406. [Google Scholar] [CrossRef]
- Hu, B.; Wang, H.; Liu, J.; Zhu, Y.; Wang, C.; Ge, J.; Zhang, Y. A numerical study of a submerged water jet impinging on a stationary wall. J. Mar. Sci. Eng. 2022, 10, 228. [Google Scholar] [CrossRef]
- Tang, S.N.; Zhu, Y.; Yuan, S.Q. An adaptive deep learning model towards fault diagnosis of hydraulic piston pump using pressure signal. Eng. Fail. Anal. 2022, 138, 106300. [Google Scholar] [CrossRef]
- Yuan, X.M.; Wang, W.Q.; Zhu, X. Theory model of dynamic bulk modulus of aerated hydraulic fluid. Chin. J. Mech. Eng. 2022, 4, 735. [Google Scholar] [CrossRef]
- Zhang, J.P.; Xu, M.Y.; Mi, J.C. Large eddy simulations of a circle orifice jet with and without a cross-sectional exit plate. Chin. Phys. B 2014, 23, 44704. [Google Scholar] [CrossRef]
Equipment Name | Parameter | Value |
---|---|---|
Hw200d-s high-pressure plunger pump | Rated pressure (MPa) | 60 |
Rated flow (L/min) | 81 | |
K60L water tank | Volume (L) | 60 |
T207 pressure regulator valve | Pressure regulation range (MPa) | 0–45 |
SK-YLKZ pressure gauge | Measuring range (MPa) | 0–60 |
ZC-LUGB-15 flowmeter | Measuring range (L/min) | 6–130 |
PVF2.25-EK piezoelectric thin film sensor | Diameter (mm) | 0.25 |
Thickness (mm) | 0.1 | |
Sampling frequency (MHz) | 100 | |
Maximum load (GPa) | 5 |

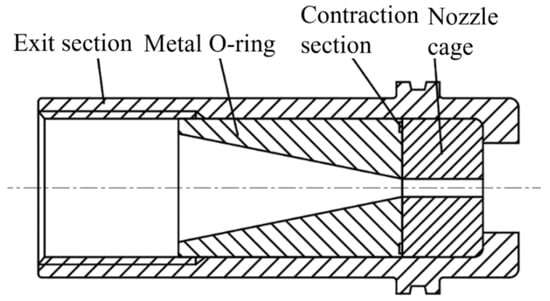

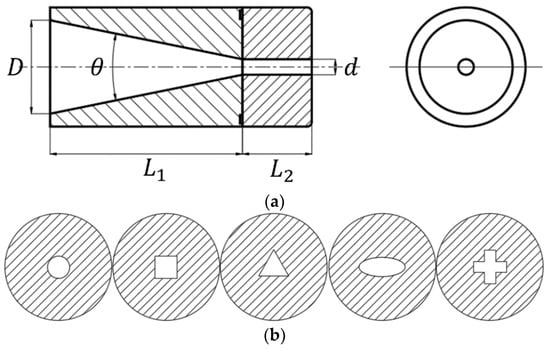

Number | Outlet Shape | Inlet Diameter D (mm) | Length of Contraction Section L1 (mm) | Contraction Angle (°) | Length of Outlet Straight Section L2 (mm) | Area of Outlet Corss-Section (mm2) |
---|---|---|---|---|---|---|
1 | circle | 10 | 14.93 | 30 | 5 | |
2 | square | 10 | 13.99 | 30 | 5 | |
3 | triangle | 10 | 12.87 | 30 | 5 | |
4 | ellipse | 10 | 11.20 | 30 | 5 | |
5 | cross | 10 | 13.99 | 30 | 5 |

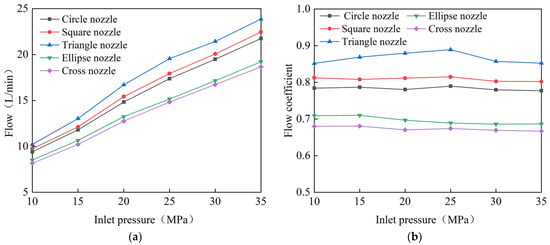

Experimental Pressure (MPa) | Flow (L/min) | |||||
---|---|---|---|---|---|---|
Circular Nozzle | Triangular Nozzle | Square Nozzle | Elliptical Nozzle | Cross Nozzle | Inlet Flow | |
10 | 9.41 | 9.75 | 10.22 | 8.51 | 8.16 | 12.00 |
15 | 11.8 | 12.12 | 13.03 | 10.65 | 10.21 | 15.00 |
20 | 14.83 | 15.42 | 16.71 | 13.24 | 12.74 | 19.00 |
25 | 17.37 | 17.93 | 19.56 | 15.16 | 14.83 | 22.00 |
30 | 19.49 | 20.07 | 21.43 | 17.15 | 16.73 | 25.00 |
35 | 21.76 | 22.46 | 23.87 | 19.22 | 18.67 | 28.00 |

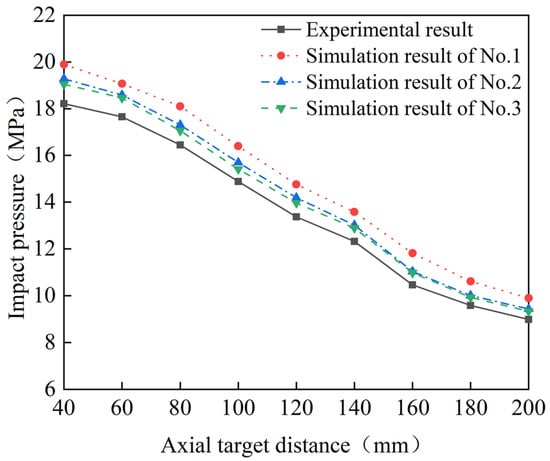

Grid Density | Number of Grid (Nozzle) | Number of Grid (External Flow Field) | Maximum Deviation (%) | Minimum Deviation (%) | Average Deviation (%) |
---|---|---|---|---|---|
No.1 | 766,475 | 4,315,647 | 10.78 | 8.00 | 10.05 |
No.2 | 1,358,732 | 5,120,646 | 6.16 | 4.46 | 5.39 |
No.3 | 2,567,896 | 5,986,478 | 5.12 | 3.59 | 4.23 |
Outlet Shape | Number of Grid (Nozzle) | Number of Grid (External Flow Field) | Maximum Deviation (%) | Minimum Deviation (%) | Average Deviation (%) |
---|---|---|---|---|---|
square | 1,361,632 | 5,121,164 | 4.92 | 3.86 | 4.26 |
triangle | 1,360,354 | 5,128,044 | 4.58 | 3.42 | 4.05 |
ellipse | 1,361,236 | 5,131,322 | 5.42 | 4.38 | 4.52 |
cross | 1,363,626 | 5,134,566 | 5.86 | 4.16 | 4.66 |
Target Distance X (mm) | Effective Pressure P (MPa) | Circular Nozzle (mm2) | Square Nozzle (mm2) | Triangular Nozzle (mm2) | Elliptical Nozzle (mm2) | Cross Nozzle (mm2) |
---|---|---|---|---|---|---|
X = 40 | P ≥ 16 MPa | 3.36 | 5.74 | 6.27 | - | - |
P ≥ 14 MPa | 5.02 | 9.13 | 9.44 | 2.95 | 2.17 | |
X = 100 | P ≥ 14 MPa | 3.35 | - | 5.22 | - | - |
P ≥ 12 MPa | 5.43 | 6.08 | 9.20 | 1.32 | - | |
X = 160 | P ≥ 10 MPa | 3.17 | 8.41 | 9.27 | - | - |
P ≥ 6 MPa | 7.20 | 24.72 | 27.90 | 4.26 | 4.30 |
