Article

Enhancing Pediatric Adnexal Torsion Diagnosis: Prediction Method Utilizing Machine Learning Techniques

1
Electrical and Computer Engineering Department, Faculty of Engineering, King Abdulaziz University, Jeddah 21589, Saudi Arabia
2
Center of Excellence in Intelligent Engineering Systems, King Abdulaziz University, Jeddah 21589, Saudi Arabia
3
Pediatric Surgery Department, Faculty of Medicine, King Abdulaziz University, Jeddah 21589, Saudi Arabia
4
Pediatric Surgery Department, International Medical Center, Jeddah 23214, Saudi Arabia
*
Author to whom correspondence should be addressed.
Children 2023, 10(10), 1612; https://doi.org/10.3390/children10101612
Submission received: 23 August 2023 / Revised: 9 September 2023 / Accepted: 25 September 2023 / Published: 27 September 2023

Abstract

:
This study systematically examines pediatric adnexal torsion, proposing a diagnostic approach using machine learning techniques to distinguish it from acute appendicitis. Our retrospective analysis involved 41 female pediatric patients divided into two groups: 21 with adnexal torsion (group 1) and 20 with acute appendicitis (group 2). In group 1, the average age was 10 ± 2.6 years, while in group 2, it was 9.8 ± 21.9 years. Our analysis found no statistically significant age distinctions between these two groups. Despite acute lower abdominal pain being a common factor, group 1 displayed shorter pain duration (28.9 h vs. 46.8 h, p < 0.05), less vomiting (28% vs. 50%, p < 0.05), lower fever incidence (4.7% vs. 50%, p < 0.05), reduced leukocytosis (57% vs. 75%, p < 0.05), and CRP elevation (30% vs. 80%, p < 0.05) compared to group 2. Machine learning techniques, specifically support vector classifiers, were employed using clinical presentation, pain duration, white blood cell counts, and ultrasound findings as features. The classifier consistently demonstrated an average predictive accuracy of 87% to 97% in distinguishing adnexal torsion from appendicitis, as confirmed across various SVM models employing different kernels. Our findings emphasize the capacity of support vector machines (SVMs) and machine learning as a whole to augment diagnostic accuracy when distinguishing between adnexal torsion and acute appendicitis. Nevertheless, it is imperative to validate these results through more extensive investigations and explore alternative machine learning models for a comprehensive understanding of their diagnostic capabilities.

1. Introduction

Adnexal torsion involves the twisting of the fallopian tube and/or ovary with its vascular pedicle [1]. Early suspicion and diagnosis are crucial to prevent damage and necrosis of the ovaries [2].
Adnexal torsion is considered a rare cause of acute abdominal pain in children and adolescents, with an incidence of 2 to 4.9 cases per 100,000 individuals [1], peaking between the ages of 9 and 14 years [2].
Other conditions, such as ovarian cysts or acute appendicitis, can mimic the symptoms of adnexal torsion, complicating the diagnosis [3]. Moreover, mesenteric adenitis, gastroenteritis, urinary tract infections, and renal stones can likewise present with acute onset abdominal pain and should be considered in the differential diagnosis.
Ultrasound imaging is typically the initial step in evaluating suspected cases of adnexal torsion. It helps assess blood flow to the ovaries and identifies signs of torsion such as enlarged ovaries, twisted blood vessels, or a twisted pedicle [1].
Although ultrasound or Doppler flow are valuable tools for diagnosing adnexal torsion, they may not always provide a definitive diagnosis on their own [4]. Additional diagnostic methods and clinical evaluation may be required to confirm the condition [3].
If adnexal torsion is strongly suspected but not confirmed by ultrasound, prompt surgical intervention may be necessary to prevent further complications [5]. Laparoscopic exploration is often performed to definitively diagnose adnexal torsion and determine the appropriate treatment, which may involve untwisting the affected structures (detorsion), ovarian fixation, or excision of the ovarian cyst if needed [5].
Several studies emphasize the importance of improving the time to diagnose adnexal torsion and its accuracy, utilizing clinical, laboratory, and imaging characteristics [6,7,8]. Rapid diagnosis is essential for successful outcomes, particularly when detorsion, while preserving the ovary, is desired [6]. A recent investigation has revealed that, despite the availability of diagnostic methods, there are instances where this condition goes unnoticed. Consequently, late diagnosis results in surgical procedures such as oophorectomy or adnexectomy being conducted in roughly half of adnexal/ovarian torsion cases [9].
The rise in the adoption of Medical Decision Support Systems (MDSSs) has led to a widespread presence of diagnostic tools aimed at aiding medical practitioners in making precise and effective diagnoses. These systems have substantial promise in enhancing decision-making accuracy for surgeons, physicians, and healthcare professionals, ultimately lowering the risk of errors in critical medical contexts. In pursuit of this goal, MDSS commonly utilizes a variety of machine learning algorithms to streamline the decision-making procedure [10].
Machine learning stands out as a significant and extensively applied field within artificial intelligence. It concentrates on creating techniques and algorithms that empower computers and systems to learn from data and independently execute a range of tasks. Its applications span diverse areas, including data mining, statistics, pattern recognition, data classification, and bioinformatics, among others [11].
Incorporating sophisticated mathematical and statistical software, such as support vector machines (SVMs), into these systems enables them to predict and classify different potential outcomes. Moreover, these advanced systems facilitate faster and more in-depth analysis of vast medical databases, leading to more informed decisions.
The primary outcome of this study is to enhance the diagnostic accuracy of pediatric adnexal torsion using machine learning techniques. Secondary outcomes are to evaluate the clinical manifestations of adnexal torsion, and laboratory and ultrasound findings in pediatric patients, and differentiate between adnexal torsion and acute appendicitis.

2. Support Vector Machine

A support vector machine (SVM) is a supervised machine learning algorithm that seeks a linear model that maximizes the margin between hyperplanes for class separation. Data points closest to this margin are called support vectors and are crucial for boundary definition. SVM employs quadratic programming for linearly separable data, and kernel functions for non-linearly separable data, mapping the data into higher-dimensional spaces. Kernel functions include linear, polynomial, and radial basis functions (RBFs). The kernel trick transforms data points to establish optimal decision boundaries, enabling efficient handling of high-dimensional data. SVM finds applications in image classification, text categorization, bioinformatics, and medical diagnosis. Its success depends on kernel function selection and hyperparameter tuning [11,12,13].

3. Methodology

We conducted a retrospective study involving female pediatric patients under the age of 14 years, who had undergone surgery for either acute adnexal torsion (group 1) or acute appendicitis (group 2) and were admitted to the emergency department within the same timeframe. This study was conducted at the International Medical Center in Jeddah, Saudi Arabia, between June 2017 and June 2021. To optimize the training data for the SVM classifier aimed at diagnosing adnexal torsion, we intentionally selected a larger number of patients for group 1 compared to group 2. We included a total of 21 patients in group 1 and 20 patients in group 2 based on the following specific inclusion and exclusion criteria.
Inclusion criteria for group 1 (adnexal torsion):
  • Pediatric age less than 14 years
  • Primary adnexal torsion (torsion without adnexal pathology)
  • Secondary adnexal torsion (torsion due to adnexal pathology)
Exclusion criteria for group 1 (adnexal torsion):
  • Neonatal adnexal torsion age less than 1 month
  • Age more than 14 years
  • Adnexal mass without torsion
Inclusion criteria for group 2 (acute appendicitis):
  • Female patient presented with acute appendicitis.
  • Age less than 14 years
  • Duration of pain less than 5 days
Exclusion criteria for group 2 (acute appendicitis):
  • Age more than 14 years
  • Male patients with acute appendicitis
  • Appendicular mass or abscess
  • Patients who present with diffuse peritonitis
  • Duration of pain more than 5 days
The selection of features for our model was guided by the aim to effectively distinguish between pediatric adnexal torsion and appendicitis, both of which can present with similar symptoms. We chose four specific features based on their clinical relevance and their potential to differentiate between the two conditions in our specific patient population.
  • Clinical Presentation: Pain and vomiting were chosen because they are common symptoms in both groups.
  • Pain Duration: This feature helps capture the temporal aspects of the patients’ pain.
  • White Blood Cell (WBC) Count: Elevated WBC counts are a crucial marker of inflammation and infection, which can vary between adnexal torsion and appendicitis cases. This feature contributes to the diagnostic process by considering the inflammatory response in these conditions.
  • Radiologic Findings: Ultrasound findings were included as they provide valuable imaging data specific to each condition.
These four features were selected to comprehensively capture both clinical and radiological aspects of the patients’ presentation, enabling our machine learning model to make accurate distinctions between the two groups.
The primary outcome of this study aimed to enhance the diagnostic accuracy of pediatric adnexal torsion using machine learning techniques. Secondary outcomes are to evaluate the clinical manifestations of adnexal torsion, and laboratory and ultrasound findings, in pediatric patients and differentiate between adnexal torsion and acute appendicitis.
To accomplish this, we retrospectively reviewed cases of adnexal torsion and appendicitis, both confirmed through surgical and pathological records. The identified cases were then used to train and test a support vector machine (SVM) machine learning model. We utilized four key clinical features to build the SVM classification model: clinical presentation, pain duration, white blood cell (WBC) counts, and ultrasound findings. These features were converted into numerical values for data vectorization. The assigned numerical values for clinical presentation and ultrasound findings can be found in Table 1 and Table 2, respectively. These values were meticulously determined to accurately represent the corresponding clinical indications and ultrasound results.
To identify the most effective feature for aiding in the diagnosis and confirmation of adnexal torsion, we divided the dataset into two subsets: approximately 20% for training and the remaining 80% for testing. Additionally, we applied t-tests to identify the statistically significant features distinguishing the two groups. We evaluated the performance of the SVM model using metrics including accuracy, area under the receiver operator curve (AUC), precision score, recall score, and F1 score, by using the Equations (1)–(5) as shown below. To ensure robust assessment of these metrics, we employed cross-validation for each classifier. Given the relatively limited size of our dataset, this step was vital to mitigate potential biases caused by overfitting.
The SVM approach was implemented with various kernel functions, namely the linear kernel function, polynomial function, and radial basis function. This involved establishing a hyperplane using the training dataset and subsequently applying the trained model to the testing dataset. The constructed hyperplane aided in classifying whether individuals had adnexal torsion.
The accuracy of the SVM metrics was calculated using appropriate equations for evaluation across the three kernel functions. The metrics were determined by considering True Positive (TP), True Negative (TN), False Positive (FP), and False Negative (FN) cases, where TP signifies accurate prediction of individuals with torsion, TN represents accurate prediction of individuals without torsion, FP denotes incorrect prediction of individuals with torsion (Type I error), and FN indicates incorrect prediction of individuals without torsion (Type II error).
All the SVM testing and statistical analyses were conducted using Python (version 3.11; Python Software Foundation, Wilmington, DE, USA).
Accuracy = T P + T N T P + T N + F P + F N × 100
AUC = 0 1 ROC   curve T P   d F P × 100
Precision = T P T P + F P × 100
Recall = T P T P + F N × 100
F 1   Score = 2 × Precision × Recall Precision + Recall × 100
Furthermore, we conducted a comparative analysis of the SVM results with those obtained from logistic regression and XGBoost models, aiming to assess the performance and suitability of these machine learning techniques for our specific diagnostic task. Additionally, we utilized the power of SHAP values (SHapley Additive exPlanations) which are a robust tool to understand how each feature contributes to predicting model results [14].
The computation of SHAP values is rooted in the idea that each prediction generated by a machine learning model can be understood as the result of collaborative contributions from the model’s features. In this context, each feature makes a distinct contribution to the prediction’s final outcome. SHAP’s core objective is to fairly allocate the “credit” or “responsibility” for the prediction among these individual features [14].
The SHAP equation is defined as follows:
ϕ f = ϕ 0 + j = 1 M f x i E f x i M
where:
-
ϕ f represents the SHAP values for a particular feature.
-
ϕ 0 is the expected value of the model’s prediction.
-
M is the total number of features.
-
f x i is the model’s prediction when feature i is included.
-
E f x i is the expected prediction when feature i is excluded.
In the context of “Adnexal Torsion” and “Appendicitis”, SHAP values can reveal which features with higher SHAP values for “Adnexal Torsion or Appendicitis”, play a more significant role in distinguishing between the two conditions. This information is valuable for feature selection, model interpretability, and domain-specific insights, allowing us to make more informed decisions in healthcare or other domains where precise prediction and feature importance are critical.

4. Results

A total of 21 patients diagnosed with confirmed adnexal torsion (group 1) and 20 patients diagnosed with acute appendicitis (group 2) constituted the subjects for this study. In group 1, the average age was 10 ± 2.6 years, while in group 2, it was 9.8 ± 21.9 years. To investigate the potential divergence in ages between the two patient groups, a t-test was conducted, yielding a p-value greater than 0.05. This outcome suggests no statistically significant age difference between the adnexal torsion and appendicitis groups.
In terms of presenting symptoms, all patients experienced acute lower abdominal pain; however, group 1 displayed shorter pain duration (28.9 h vs. 46.8 h, p < 0.05), less vomiting (28% vs. 50%, p < 0.05), and lower fever incidence (4.7% vs. 50%, p < 0.05), compared to group 2. Over 90% of patients in both categories exhibited abdominal tenderness, although signs of localized peritonitis were identified in only one adnexal torsion patient, in contrast to the majority of acute appendicitis cases. Elevated white blood cell counts were observed in 57% in group 1 and 75% in group 2 (p < 0.05). Additionally, elevated C-reactive protein (CRP) levels were present in only 30% of group 1 compared to 80% of group 2 (p < 0.05). The distinctions in these symptoms and signs between adnexal torsion and appendicitis are depicted in Figure 1 and Table 3.
Every patient with adnexal torsion and appendicitis underwent an ultrasound with color Doppler examination. In adnexal torsion cases, ultrasound findings indicated primary ovarian torsion characterized by an enlarged ovary positioned near the midline. This was associated with hyperechoic parenchyma and peripherally displaced follicles. Notably, the presence of an ovarian cyst was noted in 85% of adnexal torsion cases. Nevertheless, arterial flow, as determined by Doppler assessment, remained intact in all patients. For appendicitis patients, ultrasound findings encompassed two cases of a perforated appendix (10%) and 90% with acute uncomplicated appendicitis.
As previously discussed, we employed support vector classifier (SVC) functions, considering four crucial features, namely clinical presentation, pain duration, white blood cell counts, and ultrasound findings. Through rigorous cross-validation, our classifier demonstrated remarkable predictive accuracy in identifying adnexal torsion, with results spanning from 87% to 97%. These findings were bolstered by confidence intervals, which provide a measure of uncertainty in our estimates. The confidence intervals (0.69–1.05 and 0.83–1.07) indicate that, with a specified level of confidence, the true predictive accuracy of our SVC model falls within these ranges. It is important to note that the intervals extend beyond 100%, which could be attributed to the relatively small dataset used for training and validation, as detailed in Table 4.
Furthermore, we compared the SVM results with those of logistic regression and XGBoost models. While SVM with a polynomial kernel and logistic regression yielded favorable outcomes, logistic regression displayed wider confidence intervals, signifying a more cautious modeling approach. On the other hand, a narrower CI indicates more confidence and less variability in the model’s predictions. Of note, XGBoost consistently obtained flawless metrics on our modest dataset, which prompts concerns regarding the risk of overfitting. Even after implementing regularization, it maintained impeccable scores, hinting at the necessity for additional parameter adjustments. Therefore, we should exercise caution when solely depending on XGBoost’s exceptional performance, especially given our dataset’s limited size.
In our assessment of feature significance using SHAP values for the categorization of adnexal torsion and appendicitis, we identified ultrasound (US) findings as the most influential feature, possessing the highest mean absolute SHAP value of 0.4461. In close succession, white blood cell (WBC) count demonstrated considerable importance, exhibiting a mean absolute SHAP value of 0.4720. Duration of pain, despite having a relatively elevated mean absolute SHAP value of 0.4705, held a slightly lower position in terms of importance when compared to US and WBC. Conversely, presentation had the lowest mean absolute SHAP value of 0.4810, signifying its limited impact on the model’s predictions. It is important to note that SHAP values represent the contribution of each feature to individual predictions. In contrast, the SHAP importance plot values, as visually depicted in Figure 2, provide an overview of the relative importance of features across the entire dataset. While SHAP values offer insight into how each feature influences individual predictions, the SHAP importance plot values help us understand the overall importance of features in the model’s decision-making process. These observations underline the significance of ultrasound and white blood cell count as pivotal factors for distinguishing between adnexal torsion and appendicitis within the SVM and polynomial kernel classification model, as supported by both SHAP values and the SHAP importance plot.
The visual representation of SVM’s performance is depicted in Figure 3, demonstrating the hyperplane plot. This plot effectively illustrates the differentiation between patients with adnexal torsion (depicted in the blue area) and those with appendicitis (represented in the red area). Notably, while the features of white blood cell count and ultrasound findings exhibited significant differences between the two conditions (p < 0.05), it is important to emphasize that these are just a part of the broader set of features analyzed. The results underscore the potential of machine learning techniques, particularly SVM, in enhancing diagnostic accuracy for distinguishing between cases of adnexal torsion and acute appendicitis. It is worth noting that the significance of other features was also assessed, contributing to the overall effectiveness of the SVM model in this critical differentiation task.

5. Discussion

The study investigates the application of machine learning in general, and specifically support vector machine (SVM) techniques, to improve the diagnosis of pediatric adnexal torsion, a condition often mistaken for acute appendicitis due to their similar symptoms. Many incidents have been reported of intraoperative finding of adnexal torsion in presumptive diagnosis of acute appendicitis [15], even when radiological studies such as ultrasound and CT scan were performed preoperatively [16].
Prior research in the field has examined the use of machine learning in the context of diagnosing adnexal torsion (AT) among pediatric patients [13]. While some studies have explored the potential of machine learning, it is essential to highlight that none of the existing literature specifically addressed the application of support vector machine (SVM) algorithms for these cases or employed the same combination of clinical presentation and ultrasound findings as predictive factors [11,12,13].
The research focuses on analyzing four key clinical features: clinical presentation, pain duration, white blood cell counts, and ultrasound findings. The SVM model, with various kernel functions, shows promise in enhancing diagnostic accuracy, with the polynomial kernel function exhibiting the most favorable performance.
The current body of scholarly work consists of investigations that have assessed various machine learning techniques for the diagnosis of adnexal torsion in pediatric populations. This distinction sets our research apart, as it concentrates on assessing the capability of SVM, a widely recognized machine learning method, to differentiate adnexal torsion from acute appendicitis using a unique combination of clinical features.
Our study aligns with the broader trend in current research, which highlights the advantages of machine learning approaches in the healthcare domain [13]. More specifically, it emphasizes how these proposed machine learning algorithms can be seamlessly integrated into Medical Decision Support Systems (MDSSs) to assist healthcare practitioners in their decision-making processes [13].
It is worth acknowledging that SVM, known for its classification prowess, has demonstrated its effectiveness even when working with relatively limited datasets, as highlighted in previous research [17]. This aspect holds particular significance in our study, as it contributes to the practicality of implementing SVM in real-world clinical scenarios where data availability may be constrained.
Despite the promising results, the study has several limitations. First, the dataset used in the study is relatively small, which may introduce bias and limit the generalizability of the findings. Additionally, the study lacks external validation, which is crucial to assess the model’s performance on different patient populations. Moreover, the study focuses on a single medical center, which may not represent diverse patient demographics or healthcare settings. Lastly, while the SVM model shows potential, the clinical implementation of such technology requires user-friendly tools and further validation in larger cohorts.
The study has significant implications for medical practice, policy, and future research. From a practical perspective, the findings suggest that SVM, mainly when using the polynomial kernel function, can aid in the early and accurate diagnosis of adnexal torsion in pediatric patients. From a policy standpoint, the potential of integrating the SVM algorithm into Medical Decision Support Systems (MDSSs) and health portal systems should not be underestimated. These systems can serve as valuable tools to assist healthcare providers in their decision-making processes, providing them with evidence-based recommendations and enhancing diagnostic accuracy. For future research, there is a need for more extensive multicenter studies to validate the findings and assess the model’s performance in diverse patient populations.

6. Conclusions

In conclusion, this study offers promising insights into the potential of machine learning techniques, particularly support vector machines (SVMs), to enhance the diagnosis of pediatric adnexal torsion. While acknowledging the study’s limitations, including its small dataset and the imperative for external validation, the findings highlight the promise of SVM, particularly when employing the polynomial kernel function, in elevating diagnostic precision, especially in cases where adnexal torsion manifests symptoms akin to acute appendicitis. Additionally, it is essential to explore and validate other machine learning approaches, especially when armed with more extensive datasets, as they hold the promise of delivering even more robust decision-making capabilities. This research contributes to the ongoing endeavors to harness technology for more precise and informed medical decisions, ultimately benefiting patient care and outcomes. To fully unlock the clinical potential of machine learning in this domain, additional research and validation are imperative.

Author Contributions

Conceptualization, A.T. and E.R.; methodology, E.R.; software, A.T.; validation, E.R. and A.T.; formal analysis, A.T.; investigation, E.R.; resources, E.R.; data curation, E.R.; writing—original draft preparation, A.T.; writing—review and editing, E.R.; visualization, A.T.; supervision, E.R.; project administration, A.T.; funding acquisition, A.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research work was funded by The Deanship of Scientific Research (DSR) at King Abdulaziz University (KAU), Jeddah, Saudi Arabia has funded this Project under grant no (G: 549-135-1443). The authors gratefully acknowledge technical and financial support provided by the Ministry of Education and King Abdulaziz University, DSR, Jeddah, Saudi Arabia.

Institutional Review Board Statement

The study protocol was approved by the institutional review board (IRB) of the Center of Innovation in Personalized Medicine at King Abdulaziz University, with approval number 20-CEGMR-Bioeth-2022 (Approval Date: 30 November 2022).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study. Informed consent forms were signed by the guardians of the subjects, following the guidelines approved by the IRB.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy reasons.

Acknowledgments

The authors gratefully acknowledge technical and financial support provided by The Deanship of Scientific Research (DSR) at King Abdulaziz University (KAU), Jeddah, Saudi Arabia has funded this Project under grant no (G: 549-135-1443). We would like to express our gratitude to our colleagues from Center of Excellence in Intelligent Engineering Systems and the Center of Innovation in Personalized Medicine at King Abdulaziz University for their valuable contributions in the overall assistance throughout the research process. It is important to note that while they have provided valuable insight and expertise, they may not necessarily endorse all the interpretations and conclusions presented in this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Smorgick, N.; Nir, O.; Pekar-Zlotin, M.; Maymon, S.; Pansky, M.; Maymon, R. Long-term ultrasound follow-up after pediatric adnexal torsion. Ultraschall Med. 2020, 41, 404–409. [Google Scholar] [CrossRef] [PubMed]
  2. Childress, K.J.; Dietrich, J.E. Pediatric Ovarian Torsion. Surg. Clin. N. Am. 2017, 97, 209–221. [Google Scholar] [CrossRef] [PubMed]
  3. Gasser, C.R.-B.; Gehri, M.; Joseph, J.-M.; Pauchard, J.-Y. Is It Ovarian Torsion? A Systematic Literature Review and Evaluation of Prediction Signs. Pediatr. Emerg. Care 2016, 32, 256–261. [Google Scholar] [CrossRef] [PubMed]
  4. McCloskey, K.; Grover, S.; Vuillermin, P.; Babl, F.E. Ovarian torsion among girls presenting with abdominal pain: A retrospective cohort study. Emerg. Med. J. 2013, 30, e11. [Google Scholar] [CrossRef] [PubMed]
  5. Dawood, M.T.; Naik, M.; Bharwani, N.; Sudderuddin, S.A.; Rockall, A.G.; Stewart, V.R. Adnexal Torsion: Review of Radiologic Appearances. Radiographics 2021, 41, 609–624. [Google Scholar] [CrossRef] [PubMed]
  6. Spinelli, C.; Tröbs, R.-B.; Nissen, M.; Strambi, S.; Ghionzoli, M.; Bertocchini, A.; Domass, V.C.; Sanna, B.; Morganti, R.; Molinaro, F.; et al. Ovarian torsion in the pediatric population: Predictive factors for ovarian-sparing surgery—An international retrospective multicenter study and a systematic review. Arch. Gynecol. Obstet. 2022, 308, 1–12. [Google Scholar] [CrossRef] [PubMed]
  7. Hartley, J.; Akhtar, M.; Edi-Osagie, E. Ophoropexy for Recurrent Ovarian Torsion. Case Rep. Obstet. Gynecol. 2018, 2018, 8784958. [Google Scholar] [PubMed]
  8. Adeyemi-Fowode, O.; Lin, E.G.; Syed, F.; Sangi-Haghpeykar, H.; Zhu, H.; Dietrich, J.E. Adnexal torsion in children and adolescents: A retrospective review of 245 cases at a single institution. J. Pediatr. Adolesc. Gynecol. 2019, 32, 64–69. [Google Scholar] [CrossRef] [PubMed]
  9. Giambanco, L.; Iannone, V.; Borriello, M.; Scibilia, G.; Sozzi, G.; Chiantera, V.; Scollo, P. Adnexal Torsion in Pediatric Age: Does Bolli’s Score Work? Report of Two Cases. Case Rep. Obstet. Gynecol. 2019, 2019, 9701874. [Google Scholar] [CrossRef] [PubMed]
  10. Pogorelic, Z.; Jukic, D.; Jukic, M.; Mrklic, I. Factors Associated with Ovarian Preservation in Children and Adolescents with Primary Tumors of Ovary. Indian Pediatr. 2020, 57, 515–518. [Google Scholar] [CrossRef] [PubMed]
  11. Imoize, L.; Hemanth, J.; Do, D.-T.; Sur, S.N. Explainable Artificial Intelligence in Medical Decision Support Systems; IET Digital Library: London, UK, 2022. [Google Scholar]
  12. Otjen, J.P.; Stanescu, A.L.; Alessio, A.M.; Parisi, M.T. Ovarian torsion: Developing a machine-learned algorithm for diagnosis. Pediatr. Radiol. 2020, 50, 706–714. [Google Scholar] [CrossRef] [PubMed]
  13. Janardhanan, P.; Sabika, F. Effectiveness of Support Vector Machines in Medical Data mining. J. Commun. Softw. Syst. 2015, 11, 25–30. [Google Scholar] [CrossRef]
  14. Mosca, E.; Szigeti, F.; Tragianni, S.; Gallagher, D.; Groh, G. Shap-Based Explanation Methods: A Review for NLP Interpretability. In Proceedings of the 29th International Conference on Computational Linguistics, Gyeongju, Republic of Korea, 12–17 October 2022; Available online: https://aclanthology.org/2022.coling-1.406 (accessed on 2 August 2023).
  15. Kapoor, S.; Saeed, S.; Balasubramaniam, D. Paediatric cystic ovarian torsion masquerading. BMJ Case Rep. 2021, 14, e239188. [Google Scholar] [CrossRef] [PubMed]
  16. Tsai, T.-C.; Wong, L.Y.; Wu, H.-P. Ovarian Torsion Caused by Teratoma Masquerading as Perforated Appendicitis in a 5-Year-Old Girl. Pediatr. Neonatol. 2011, 52, 51–54. [Google Scholar] [CrossRef] [PubMed]
  17. Wu, D.L.; Fang, L.Q.; Ma, J.S.; Yang, Y.F.; Wang, H.K. Application of Support Vector Machines to a Small-Sample Prediction. Appl. Mech. Mater. 2014, 584–586, 2129–2132. [Google Scholar]

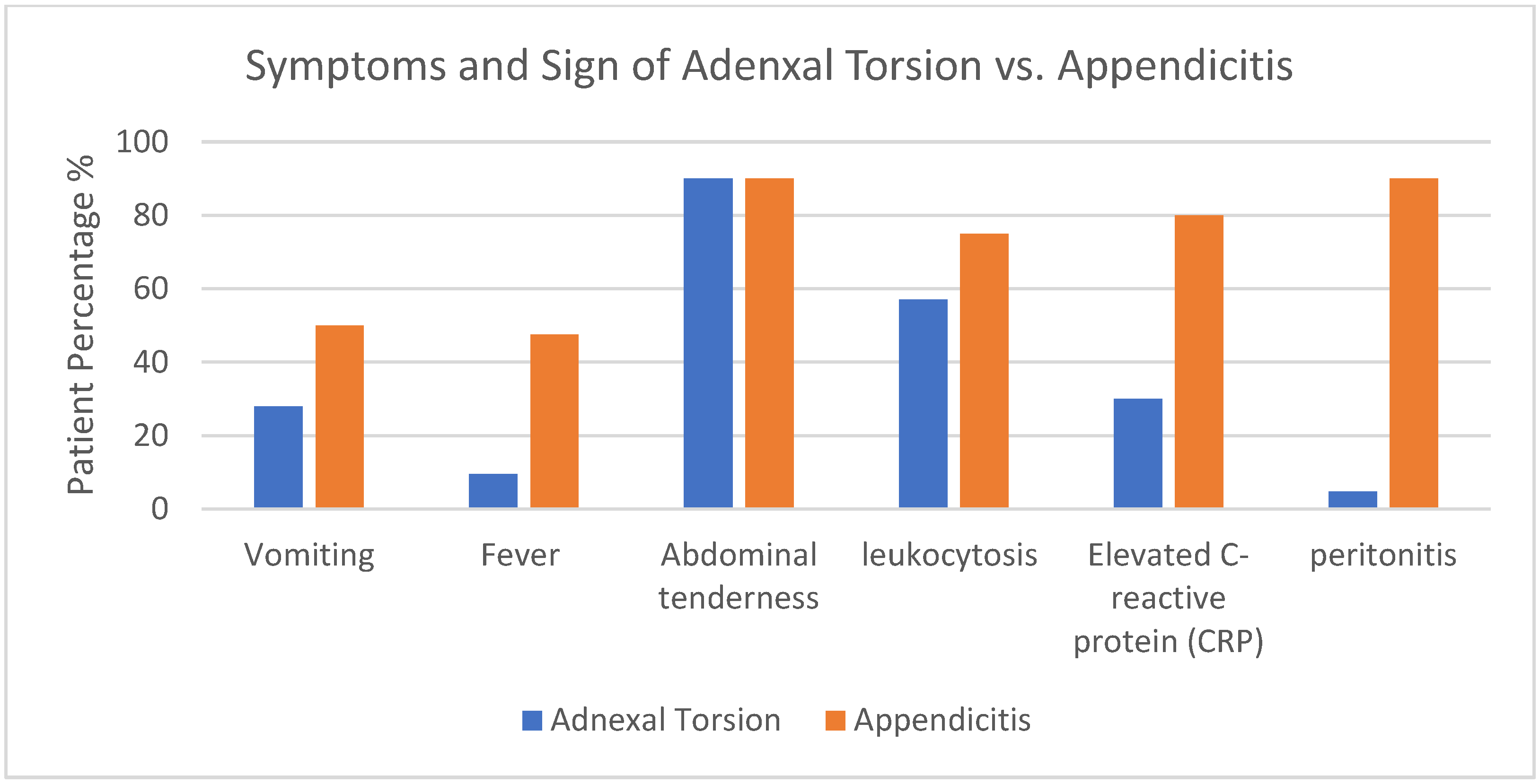

Figure 1. Symptoms and signs of adnexal torsion and appendicitis.
Figure 1. Symptoms and signs of adnexal torsion and appendicitis.
Children 10 01612 g001

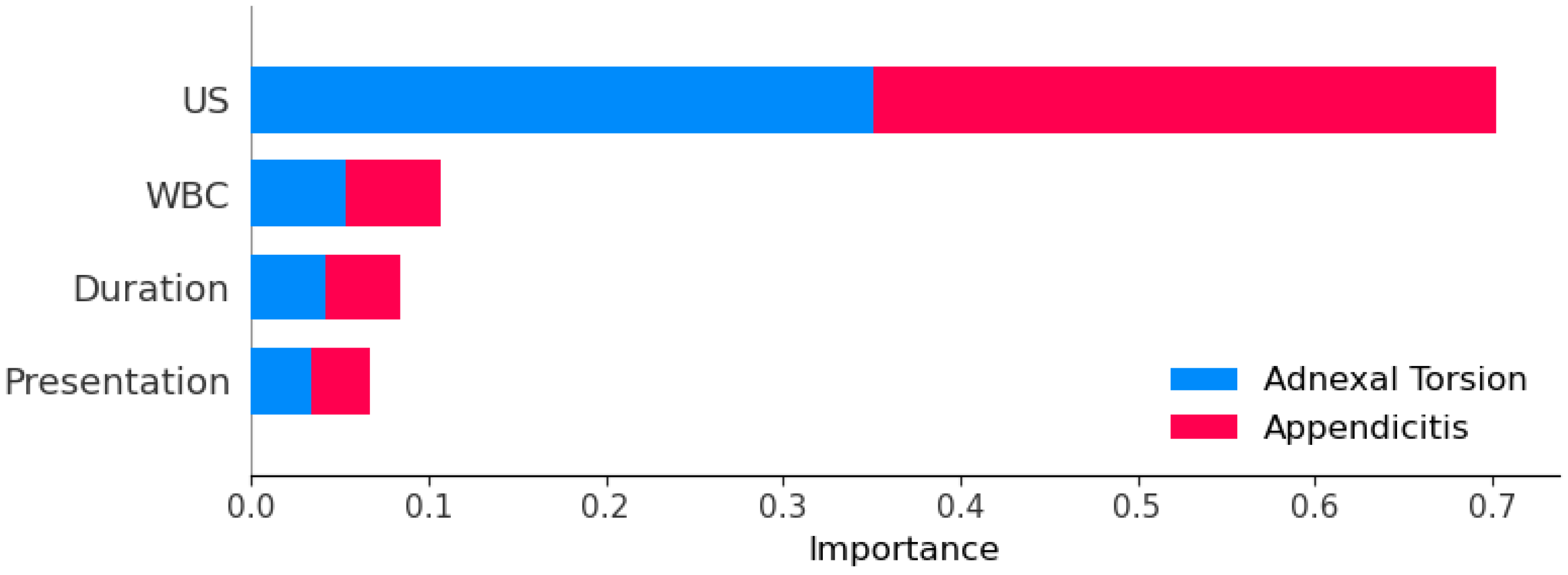

Figure 2. SHAP feature importance plot using the SVC with polynomial kernel.
Figure 2. SHAP feature importance plot using the SVC with polynomial kernel.
Children 10 01612 g002

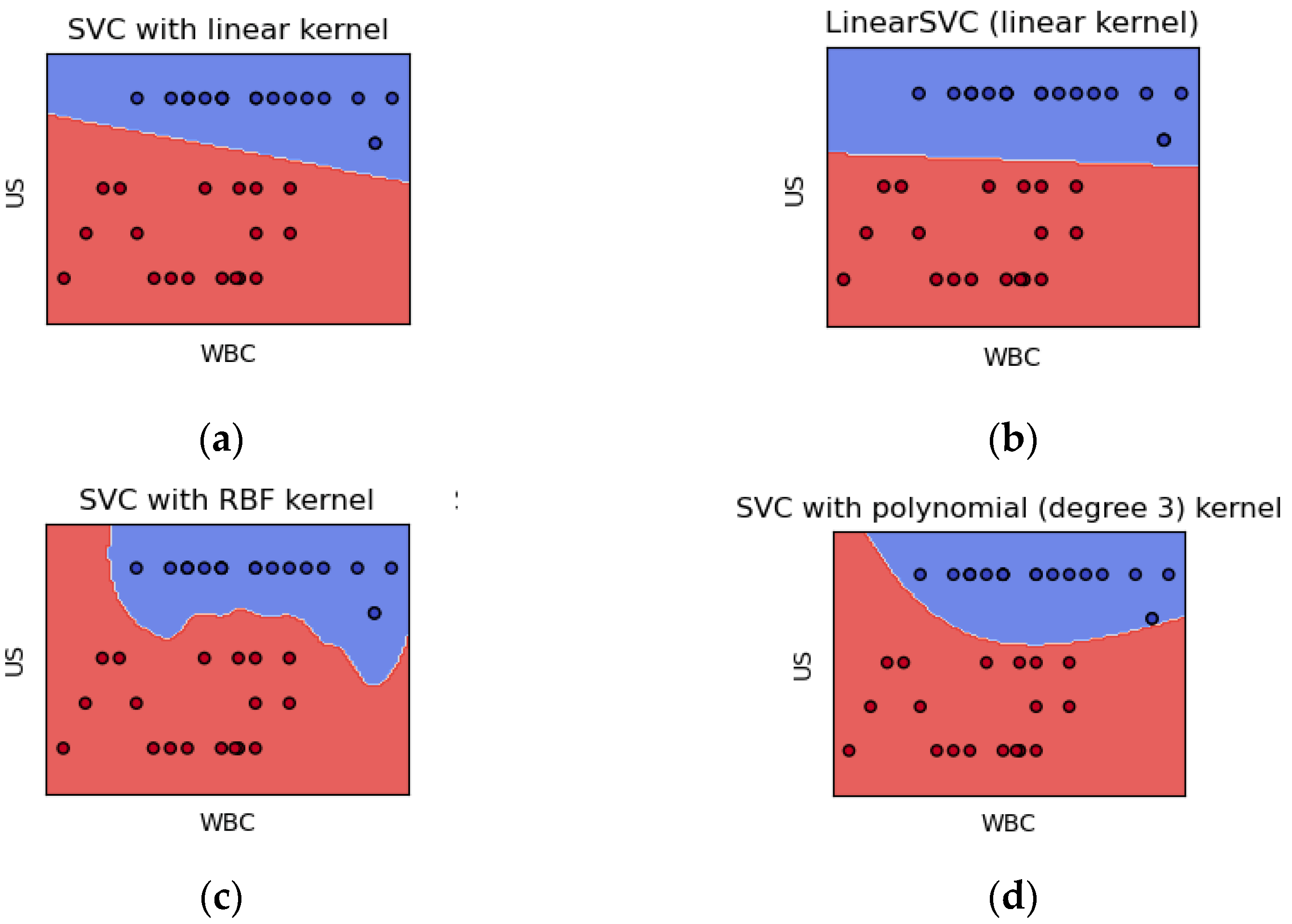

Figure 3. Representation of hyperplane and data point distribution for depicting the differentiation between patients with adnexal torsion (blue area) and patients with appendicitis (red area) in the hyperplane plot for SVM: (a) distribution of data points for support vector classifier (SVC) with linear kernel; (b) distribution of data points for linear SVC with linear kernel; (c) distribution of data points for SVC with radial basis function (RBF) kernel; (d) distribution of data points for SVC with polynomial kernel.
Figure 3. Representation of hyperplane and data point distribution for depicting the differentiation between patients with adnexal torsion (blue area) and patients with appendicitis (red area) in the hyperplane plot for SVM: (a) distribution of data points for support vector classifier (SVC) with linear kernel; (b) distribution of data points for linear SVC with linear kernel; (c) distribution of data points for SVC with radial basis function (RBF) kernel; (d) distribution of data points for SVC with polynomial kernel.
Children 10 01612 g003
Table 1. Adnexal torsion patients’ symptoms.
Table 1. Adnexal torsion patients’ symptoms.
SubjectAgePresentation 1Duration (Hours)WBC 2Ultrasound 3LateralizationMass
110148121leftyes
211172101rightyes
3215.04131leftyes
4726162rightno
5817.2142leftyes
69116.842rightno
71021272rightno
81122463left yes
912148141rightyes
10141182.71rightyes
119116.891rightyes
1210121.653rightyes
138124131rightyes
1412148141rightyes
1510124161rightyes
1611124111leftyes
1710148133rightyes
181222481leftyes
191327212.81rightyes
208124141leftyes
21132249.61leftYes
1 Presentation Assigned Numeric Value, as inserted into the SVM classifier, 1: pain; 2: pain and vomiting; 2 White blood cell counts; 3 Ultrasound Assigned Numeric Value, as inserted into the SVM classifier, 1: ovarian cyst; 2: enlarged ovary/peripheral follicles; 3: adnexal mass.
Table 2. Appendicitis patients’ symptoms.
Table 2. Appendicitis patients’ symptoms.
SubjectAgePresentation 1Duration (Hours)WBC 2Ultrasound 3
17372214
27124225
39348125
412148145
593120214
612124155
712372175
812548145
9912495
1011124115
116148125
121237275
1312348165
148372105
1512124105
1610424205
179548105
188224125
199224125
2010348185
1 Presentation Assigned Numeric Value, as inserted into the SVM classifier, 1: pain; 2: pain and vomiting; 3: pain, vomiting and fever; 4: pain and nausea; 5: pain and fever; 2 White blood cell counts; 3 Ultrasound Assigned Numeric Value, as inserted into the SVM classifier, 4: perforated appendix; 5: acute appendicitis.
Table 3. Demographic and clinical data for all groups.
Table 3. Demographic and clinical data for all groups.
VariableAdnexal Torsion (n = 21)Acute Appendicitis (n = 20)p-Value 1 (α = 0.05)
Mean Age10 ± 2.69.8 ± 1.9>0.05
Pain Duration (hour)28.946.8<0.05
Vomiting28.5%50%<0.05
Fever4.7%50%<0.05
Leukocytes57%75%<0.05
CRP30%80%<0.05
1 t-test p-value results for the comparison of the mean difference between (group 1) and (group 2).
Table 4. Performance of SVC functions.
Table 4. Performance of SVC functions.
SVC MetricSVC Function 1Logistic Reg. 95% CI 2
Polynomial
95% CI 2
Linear
95% CI 2
Radial Basis
95% CI 2
Accuracy97.0% 0.83–1.0792.0% 0.79–1.0587.0% 0.69–1.0597.3% 0.73–1.21
AUC 395.0% 1.00–1.0099.0% 1.00–1.0092.5% 0.92–1.0497.2% 0.72–1.22
Precision Score93.0% 0.76–1.0991.0% 0.73–1.1291.0% 0.55–1.25100% 1.00–1.00
Recall Score99.0% 1.00–1.0096.0% 0.81–1.0895.0% 0.70–1.0894.4% 0.44–1.44
F1-Score96.0% 0.86–1.0594.0% 0.81–1.0493.0% 0.78–0.9897.0% 0.73–1.23
1 Support vector classifier functions; 2 95%Confidance Interval; 3 Area under the curve.
